Model UniMac UL055L Dryer – Common Parts & Diagrams

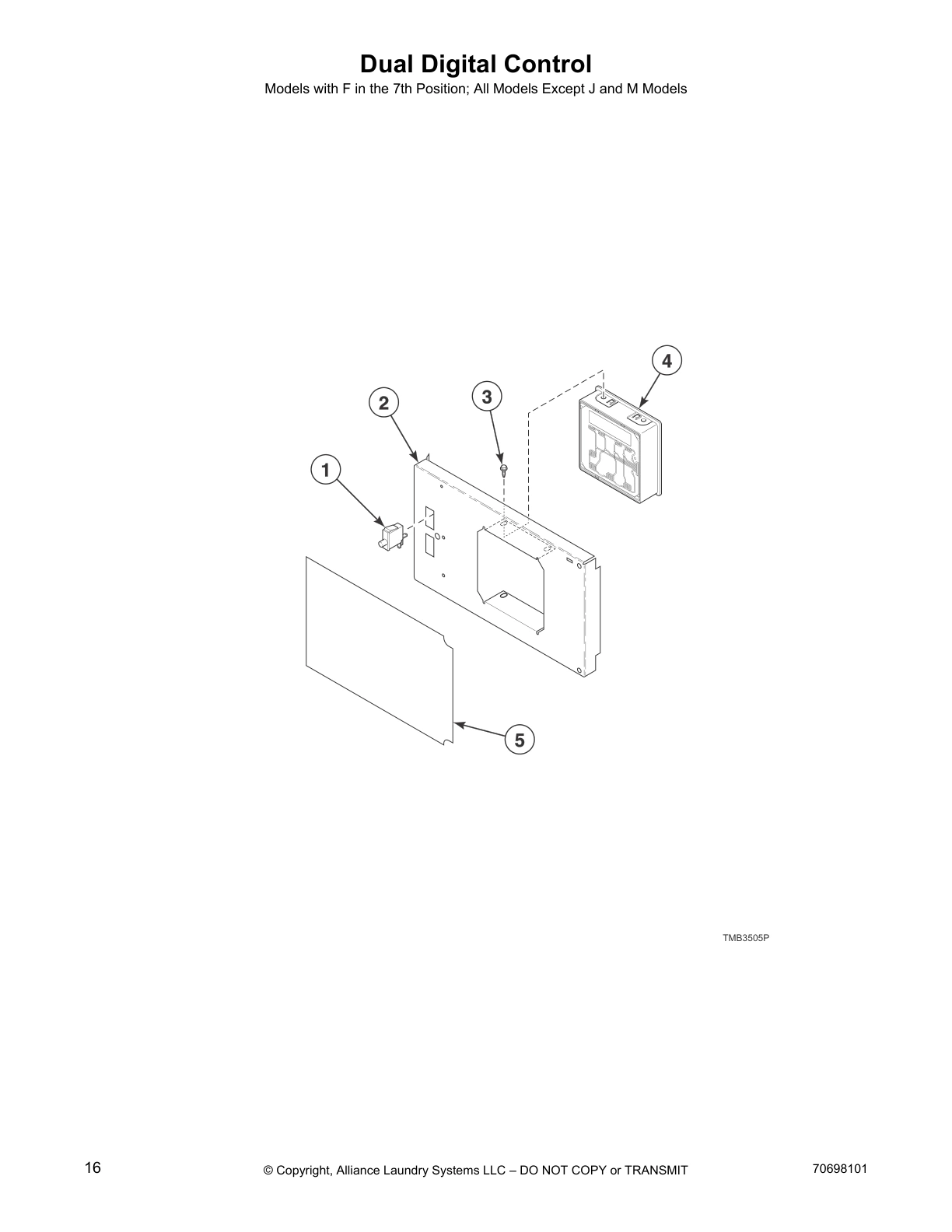

Dual Digital Control

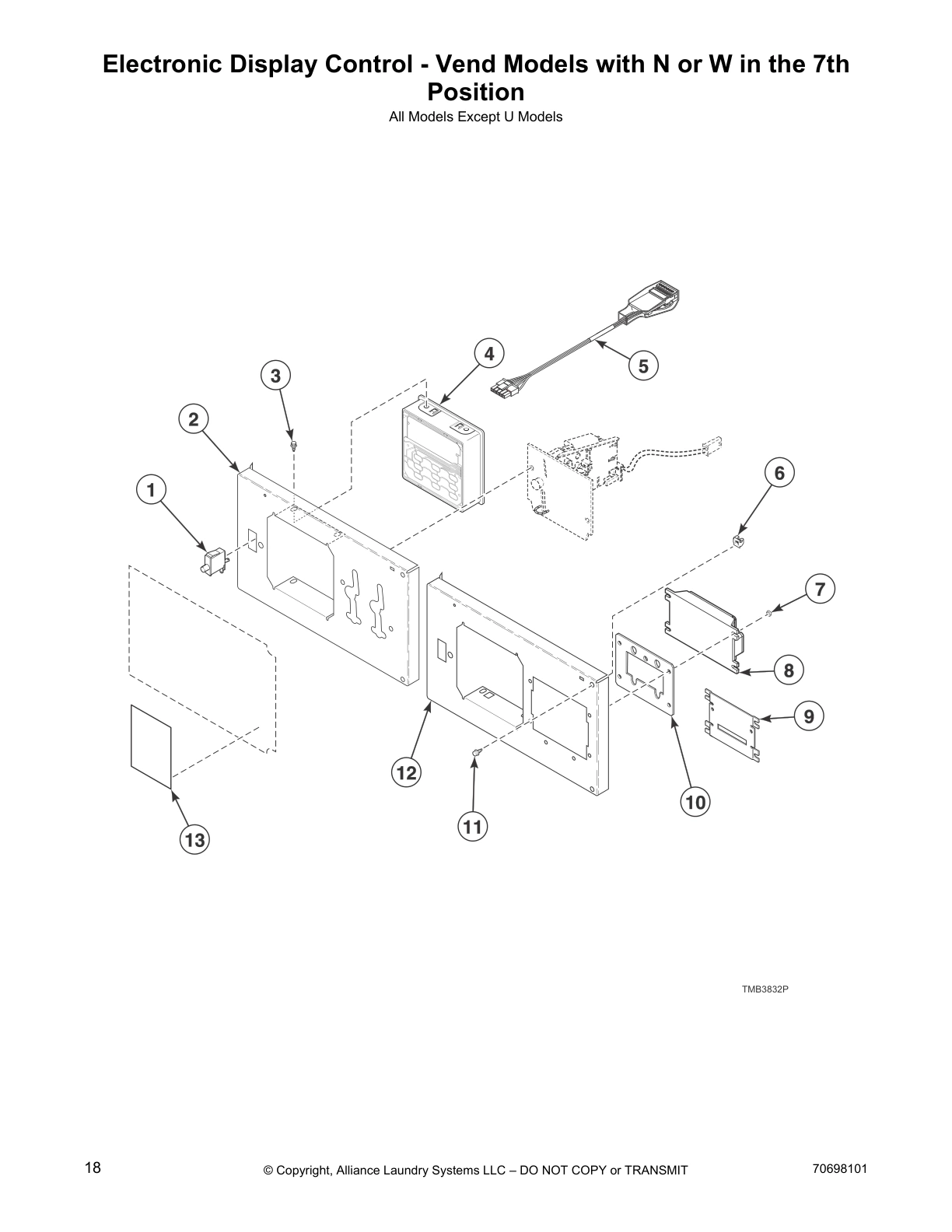

Electronic Display Control - Vend Models with N or W in the 7th
Position
Electronic Display Control - OPL Models with N in the 7th Position
3.5 Inch Graphical Control
Touch Control - Vend Models with V in the 7th Position
Touch Control - OPL Models with V in the 7th Position
Network Board Components
Door Components
Hinge Components
Control Panels
Front Panel Assemblies
Cabinet Front Components
Emergency Stop Button - IEC OPL Models
Lower Cabinet Components
Cylinder and Trunnion Assembly
Moisture Sensing Components
Cylinder Components
Cabinet Components
Rear Panels
Fire Suppression System Components
Fire Suppression System Control Box
Motor Components
Blower and Exhaust Components
Inverter Tray Components
Airflow Switch
Gas Heater Components
Burner Orifices
Electric Heater Components
Steam Heater Components
Control Tray
Accessory Box - Electric Models
Accessory Box - Gas and Steam Models
Common parts from model UniMac UL055L Dryer
Wireless Control Label SPQ 204692 Contact Us For Availability
SPQ 70173402 SPQ 70173402 Contact Us For Availability
SPQ 70030301 SPQ 70030301 Contact Us For Availability
SPQ 70411301 SPQ 70411301 Contact Us For Availability
SPQ 70305202 SPQ 70305202 Contact Us For Availability
SPQ 298P4P SPQ 298P4P Contact Us For Availability
SPQ 70167601 SPQ 70167601 Contact Us For Availability
SPQ 70696803 SPQ 70696803 Contact Us For Availability
1
Door Ring Gasket SPQ 44008201P Contact Us For Availability
1
Terminal Block SPQ 430642 Contact Us For Availability
1
Control Panel SPQ 70695802 Contact Us For Availability
1
Front Panel Assembly SPQ 70703604W Contact Us For Availability
1
Cylinder Assembly SPQ 70408802P Contact Us For Availability
1
Union Tee SPQ 70427901 Contact Us For Availability
1
Blower Housing SPQ 70554801 Contact Us For Availability
1
Airflow Switch Wrapper SPQ 70356101 Contact Us For Availability
1
Burner Orifice SPQ 70684126 Contact Us For Availability
2
Nameplate SPQ 70155601 Contact Us For Availability
2
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
2
Wireless Network Control Assembly SPQ 807211 Contact Us For Availability
2
Control Panel SPQ 70695801W Contact Us For Availability
2
Label SPQ 70703604 Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Cylinder Rib Assembly SPQ 70444102 Contact Us For Availability
2
Slip Ring Holder SPQ 70455401 Contact Us For Availability
2
Drive Motor SPQ 70554701 Contact Us For Availability
2
Switch SPQ 70411901 Contact Us For Availability
2
Central Pay Control Assembly SPQ 70671701 Contact Us For Availability
2
Insulator SPQ 70333001 Contact Us For Availability
3
Support Bearing SPQ 70448701 Contact Us For Availability
3
Pop Rivet SPQ 70417113 Contact Us For Availability
3
Front Cylinder Seal SPQ 70703603W Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Screw SPQ 70070101 Contact Us For Availability
3
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
3
Spray Paint SPQ 70432307 Contact Us For Availability
3
Gasket SPQ 70220901 Contact Us For Availability
3
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
3
Expansion Clip SPQ M411826 Contact Us For Availability
3
Ground Lug Connector SPQ M413862 Contact Us For Availability
4
Door Seal Kit SPQ 70211902P Contact Us For Availability
4
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
4
Pop Rivet SPQ 70596602 Contact Us For Availability
4
Screw SPQ 70703603 Contact Us For Availability
4
Coin Box SPQ 70296401 Contact Us For Availability
4
Trunnion and Seal Kit SPQ 70070102 Contact Us For Availability
4
Tumbler Dolly Kit SPQ 70346501 Contact Us For Availability
4
Side Guard SPQ 70648102 Contact Us For Availability
4
SPQ 70653801 SPQ 70653801 Contact Us For Availability
4
Inverter Control Assembly SPQ 70603201 Contact Us For Availability
5
Door Glass SPQ 44008401P Contact Us For Availability
5
Hinge Cam Kit SPQ 70576101 Contact Us For Availability
5
Jumper Harness SPQ 70413301 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
SPQ 70289101P SPQ 70289101P Contact Us For Availability
5
Rear Cylinder Channel Plate SPQ 70433004 Contact Us For Availability
5
Rear Guard SPQ 70648302 Contact Us For Availability
5
Spray Nozzle Hose SPQ 70427701 Contact Us For Availability
5
Cold Weather Kit SPQ 70180001 Contact Us For Availability
5
SPQ 70501301 SPQ 70501301 Contact Us For Availability
5
Screw SPQ 70603001 Contact Us For Availability
5
Switch Bracket SPQ 70356301 Contact Us For Availability
5
Transformer SPQ 204779 Contact Us For Availability
6
Door Glass Installation Tool SPQ M4221P4 Contact Us For Availability
6
Screw SPQ 431318 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Rear Cover SPQ 70648301 Contact Us For Availability
6
Pop Rivet SPQ 70178701 Contact Us For Availability
6
Tube Assembly SPQ 70427601 Contact Us For Availability
6
SPQ 70554901 SPQ 70554901 Contact Us For Availability
6
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
7
SPQ 44349101 SPQ 44349101 Contact Us For Availability
7
Door Catch Kit SPQ M400977 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272401 Contact Us For Availability
7
SPQ 70392101 SPQ 70392101 Contact Us For Availability
7
Washer SPQ 70564808 Contact Us For Availability
7
Nut SPQ M400022 Contact Us For Availability
7
SPQ 70376801 SPQ 70376801 Contact Us For Availability
7
Bottom Guard SPQ 70650901 Contact Us For Availability
7
SPQ 70392701P SPQ 70392701P Contact Us For Availability
7
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
7
SPQ M411283 SPQ M411283 Contact Us For Availability
8
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
8
Rear Cylinder Channel SPQ 70564807 Contact Us For Availability
8
SPQ 70660701 SPQ 70660701 Contact Us For Availability
8
SPQ 70424201 SPQ 70424201 Contact Us For Availability
8
Gas Valve Manifold SPQ 44154508 Contact Us For Availability
8
SPQ 685837 SPQ 685837 Contact Us For Availability
9
SPQ F8206901 SPQ F8206901 Contact Us For Availability
9
SPQ 70071401 SPQ 70071401 Contact Us For Availability
9
Drywall Screw Magnet Kit SPQ 70506403 Contact Us For Availability
9
SPQ 70424401 SPQ 70424401 Contact Us For Availability
9
Adapter SPQ 431482 Contact Us For Availability
10
Nut SPQ M414215 Contact Us For Availability
10
Screw SPQ 70033502 Contact Us For Availability
10
Roller Catch Wheel SPQ 70297601 Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70408801P Contact Us For Availability
10
Rear Cylinder Seal SPQ 70013704P Contact Us For Availability
10
Lower Pan SPQ 70377601 Contact Us For Availability
10
Control Box Cover SPQ 44065201 Contact Us For Availability
10
Fan Motor SPQ 44354903 Contact Us For Availability
10
Primary Air Adjustment Sleeve SPQ 70239801 Contact Us For Availability
11
Door Handle SPQ 44263801 Contact Us For Availability
11
Pop Rivet SPQ M400003 Contact Us For Availability
11
Screw SPQ M411072 Contact Us For Availability
11
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
11
Roller Catch Spacer SPQ 70030201 Contact Us For Availability
11
End Cap SPQ 70444101P Contact Us For Availability
11
Spray Nozzle SPQ 70427801 Contact Us For Availability
11
Screw SPQ 70508301 Contact Us For Availability
11
Blower Motor Mounting Plate SPQ 44354901 Contact Us For Availability
12
Nut SPQ 44088001 Contact Us For Availability
12
Lock Shim SPQ 70342401 Contact Us For Availability
12
Screw SPQ 70072801 Contact Us For Availability
12
Elbow SPQ 70428101 Contact Us For Availability
12
Screw SPQ 70380801 Contact Us For Availability
13
Key SPQ 70155602 Contact Us For Availability
13
Screw SPQ M400661 Contact Us For Availability
13
Door Hinge Assembly SPQ 70436301 Contact Us For Availability
13
Center Cylinder Seal SPQ 70066005 Contact Us For Availability
13
Hold-Down Clip SPQ 70058502 Contact Us For Availability
13
Nozzle Bracket SPQ 70428601 Contact Us For Availability
13
Nut SPQ F430144 Contact Us For Availability
13
Washer SPQ 70126101 Contact Us For Availability
13
Burner Grill SPQ 70396701 Contact Us For Availability
14
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
14
Blower Assembly SPQ M400991 Contact Us For Availability
14
Magnet SPQ 70343101 Contact Us For Availability
14
Anti-Rattle Burner Assembly SPQ 70546702 Contact Us For Availability
14
Wire Clip SPQ 51783 Contact Us For Availability
15
Pop Rivet SPQ 44166601 Contact Us For Availability
15
Gas Burner SPQ 70396201P Contact Us For Availability
16
Door Latch SPQ M401223 Contact Us For Availability
16
Hose SPQ 44073304 Contact Us For Availability
16
Damper and Hinge Exhaust Assembly SPQ 70302201P Contact Us For Availability
16
Stove Back SPQ 70396801 Contact Us For Availability
17
Switch Hole Plug SPQ 44057801W Contact Us For Availability
17
Pop Rivet SPQ 70126401 Contact Us For Availability
17
Roller Seal SPQ 70616701 Contact Us For Availability
17
Damper Spacer SPQ 70215101 Contact Us For Availability
17
Terminal Block Shield SPQ F8449502 Contact Us For Availability
18
Panel Locator SPQ 70126301 Contact Us For Availability
18
Roller Shaft SPQ 70443601 Contact Us For Availability
18
Thermistor SPQ 70209501 Contact Us For Availability
18
Thermostat Cover SPQ M414477 Contact Us For Availability
19
Nut SPQ 44057801B Contact Us For Availability
19
Washer SPQ 70249501 Contact Us For Availability
19
Control Box Base SPQ 44065301 Contact Us For Availability
19
Blower Housing SPQ 70655103 Contact Us For Availability
19
Limit Access Bracket SPQ 70376201 Contact Us For Availability
20
Nut SPQ 70261401 Contact Us For Availability
20
Coin Chute Assembly SPQ 44088801 Contact Us For Availability
20
Handle and Caps Assembly SPQ F8245101 Contact Us For Availability
20
Motor Pulley SPQ 44355002 Contact Us For Availability
20
Stove Limit Harness SPQ 70564301 Contact Us For Availability
21
Pushbutton Switch SPQ F8443105 Contact Us For Availability
21
Lint Panel SPQ 70117613 Contact Us For Availability
21
Sheet Metal Edge Gasket SPQ 70288801 Contact Us For Availability
21
Fan Motor SPQ 44355001 Contact Us For Availability
21
Igniter Cover SPQ 05161 Contact Us For Availability
22
Gasket SPQ 70117622 Contact Us For Availability
22
Blower Motor Mounting Plate SPQ 70559101 Contact Us For Availability
22
Spark Electrode SPQ 70159601 Contact Us For Availability
23
Lint Panel Pivot Plate SPQ 70154411 Contact Us For Availability
23
Blower Housing Scroll SPQ 44333202 Contact Us For Availability
24
Roller Catch Arm SPQ 70154418 Contact Us For Availability
25
SPQ 70515604W SPQ 70515604W Contact Us For Availability
25
Bushing SPQ 70015711 Contact Us For Availability
25
Snap Bushing SPQ 70654201 Contact Us For Availability
27
Center Partition SPQ 70015710 Contact Us For Availability
28
Screw SPQ 70432308 Contact Us For Availability
29
Hole Plug SPQ 70378002 Contact Us For Availability
30
Porcelain Touch-Up Paint SPQ 70378001 Contact Us For Availability
32
SPQ 70016301 SPQ 70016301 Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
Wireless Network Harness SPQ F8674006 Contact Us For Availability
NI
Wireless Network Kit SPQ 70609701 Contact Us For Availability
NI
USB IR Interface Kit SPQ 203346 Contact Us For Availability
NI
SPQ 70472801 SPQ 70472801 Contact Us For Availability
NI
SPQ F160673P SPQ F160673P Contact Us For Availability
NI
SPQ D511476 SPQ D511476 Contact Us For Availability
NI
SPQ 70132301 SPQ 70132301 Contact Us For Availability
NI
SPQ 70305301 SPQ 70305301 Contact Us For Availability
NI
SPQ 70305201 SPQ 70305201 Contact Us For Availability
NI
SPQ 70391101 SPQ 70391101 Contact Us For Availability
NI
Support Housing Bearing Assembly SPQ 70343101P Contact Us For Availability
NI
SPQ 430260P SPQ 430260P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 70063201 SPQ 70063201 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 70648201 SPQ 70648201 Contact Us For Availability
NI
SPQ 44340301 SPQ 44340301 Contact Us For Availability
NI
SPQ 70050401P SPQ 70050401P Contact Us For Availability
NI
SPQ 70303101 SPQ 70303101 Contact Us For Availability
NI
SPQ 70635404 SPQ 70635404 Contact Us For Availability
NI
SPQ 70635403 SPQ 70635403 Contact Us For Availability
NI
Plug SPQ 70659201 Contact Us For Availability
NI
High Voltage Suppression Cable SPQ 70131901 Contact Us For Availability
NI
SPQ 44239702 SPQ 44239702 Contact Us For Availability
NI
Burner Orifice SPQ 70684124 Contact Us For Availability
NI
SPQ 70684118 SPQ 70684118 Contact Us For Availability
NI
SPQ 70684123 SPQ 70684123 Contact Us For Availability
NI
SPQ 70696807 SPQ 70696807 Contact Us For Availability
NI
SPQ 70631201 SPQ 70631201 Contact Us For Availability
× ![]()
