Model UniMac UL035L Dryer – Common Parts & Diagrams
Dual Digital Control

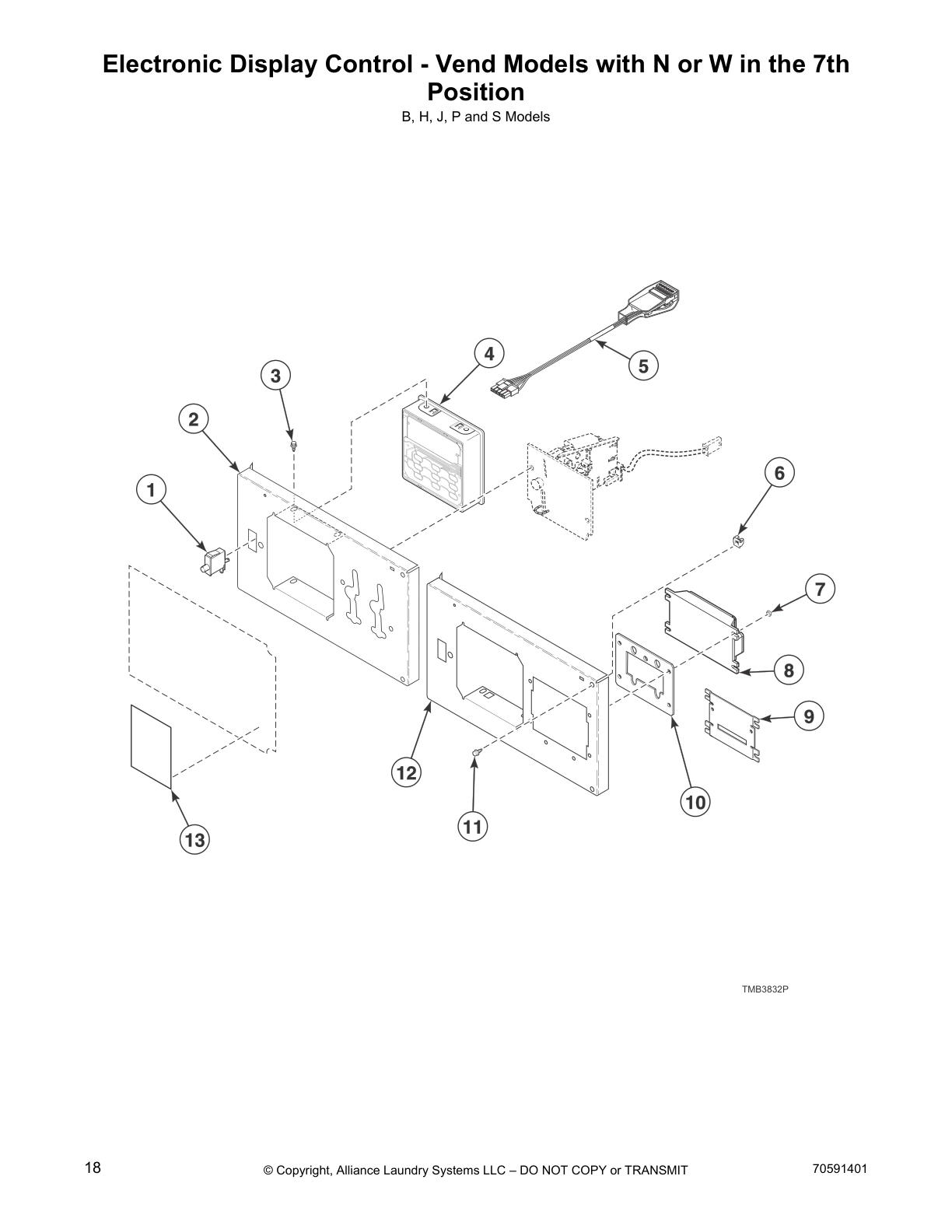

Electronic Display Control - Vend Models with B in the 7th Position
Electronic Display Control - Vend Models with N or W in the 7th
Position

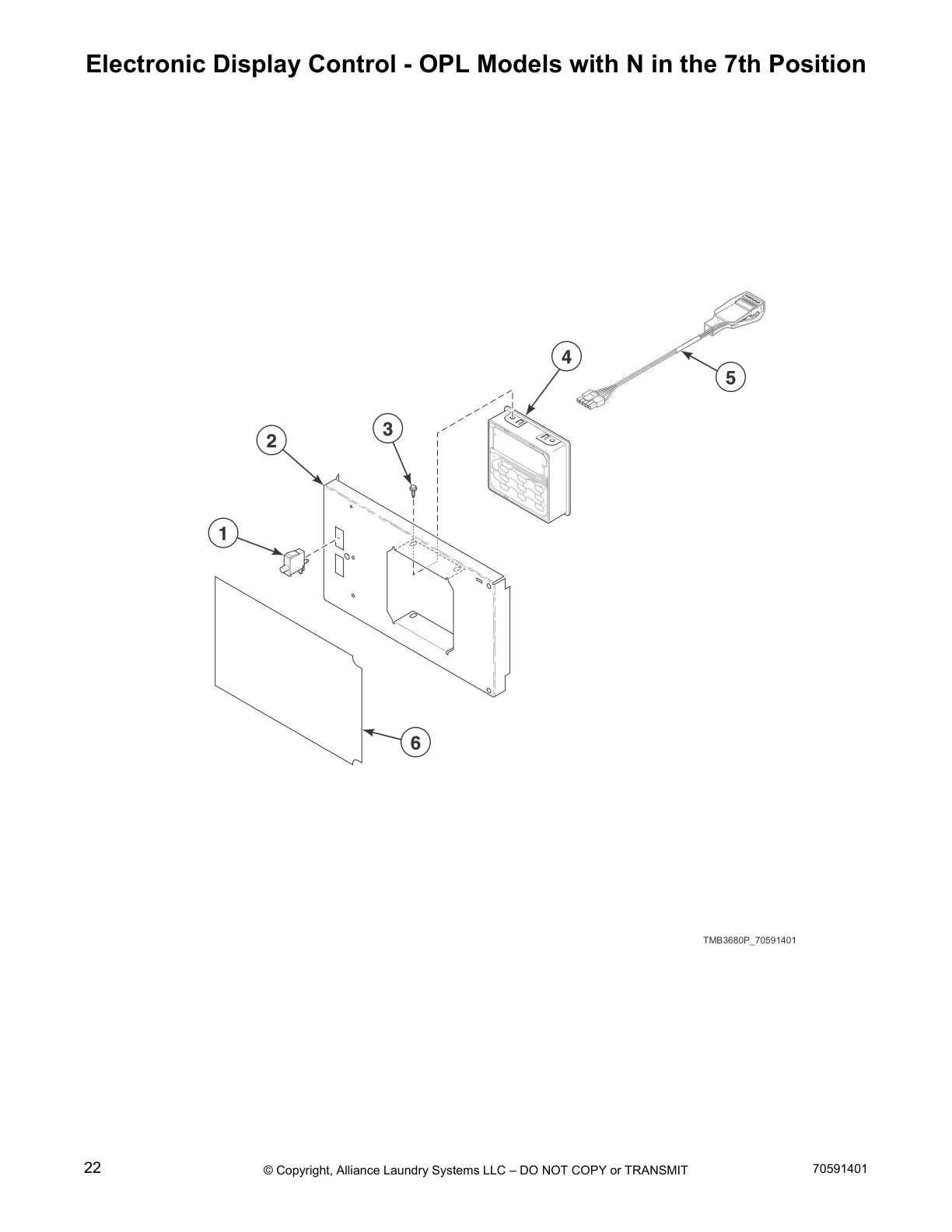

Electronic Display Control - OPL Models with N in the 7th Position

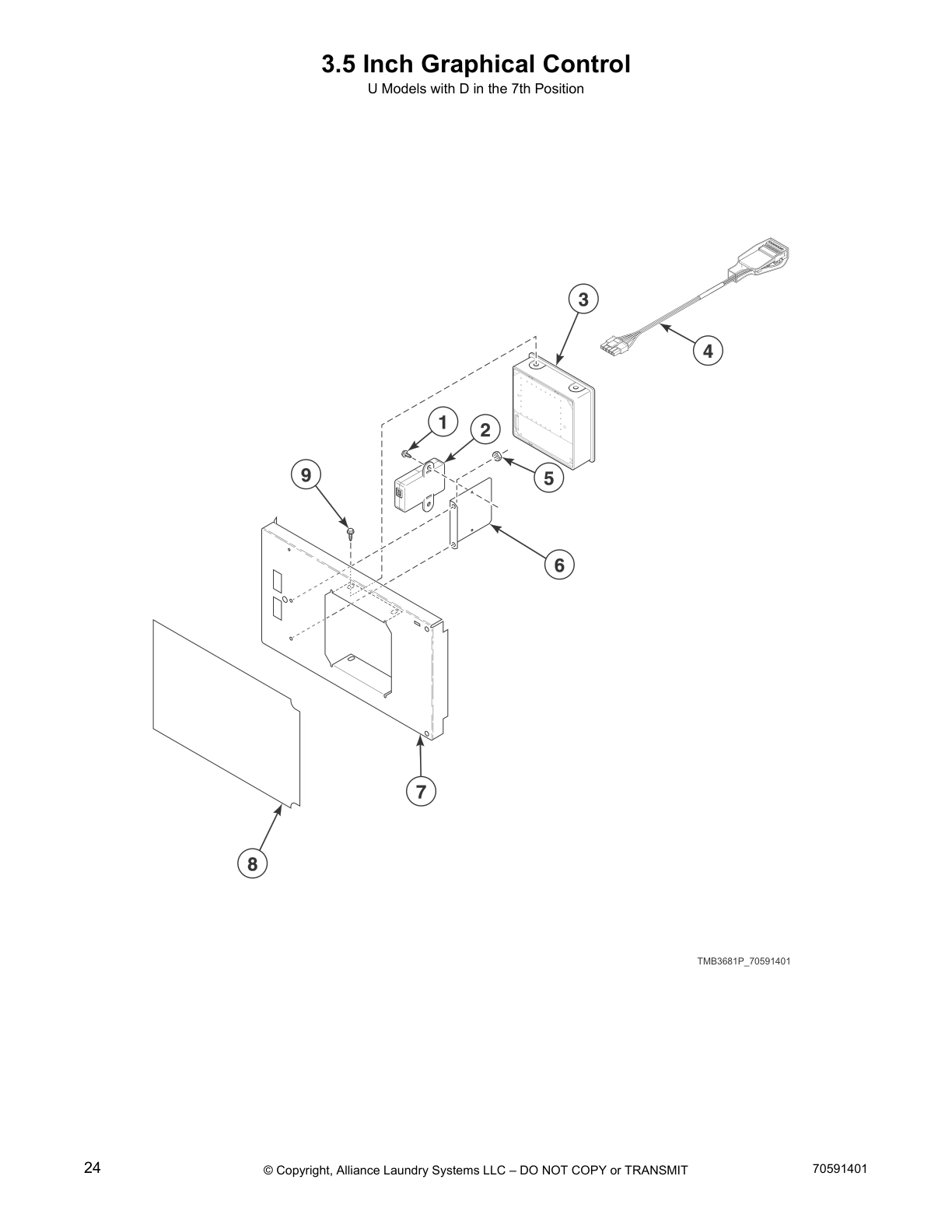

3.5 Inch Graphical Control

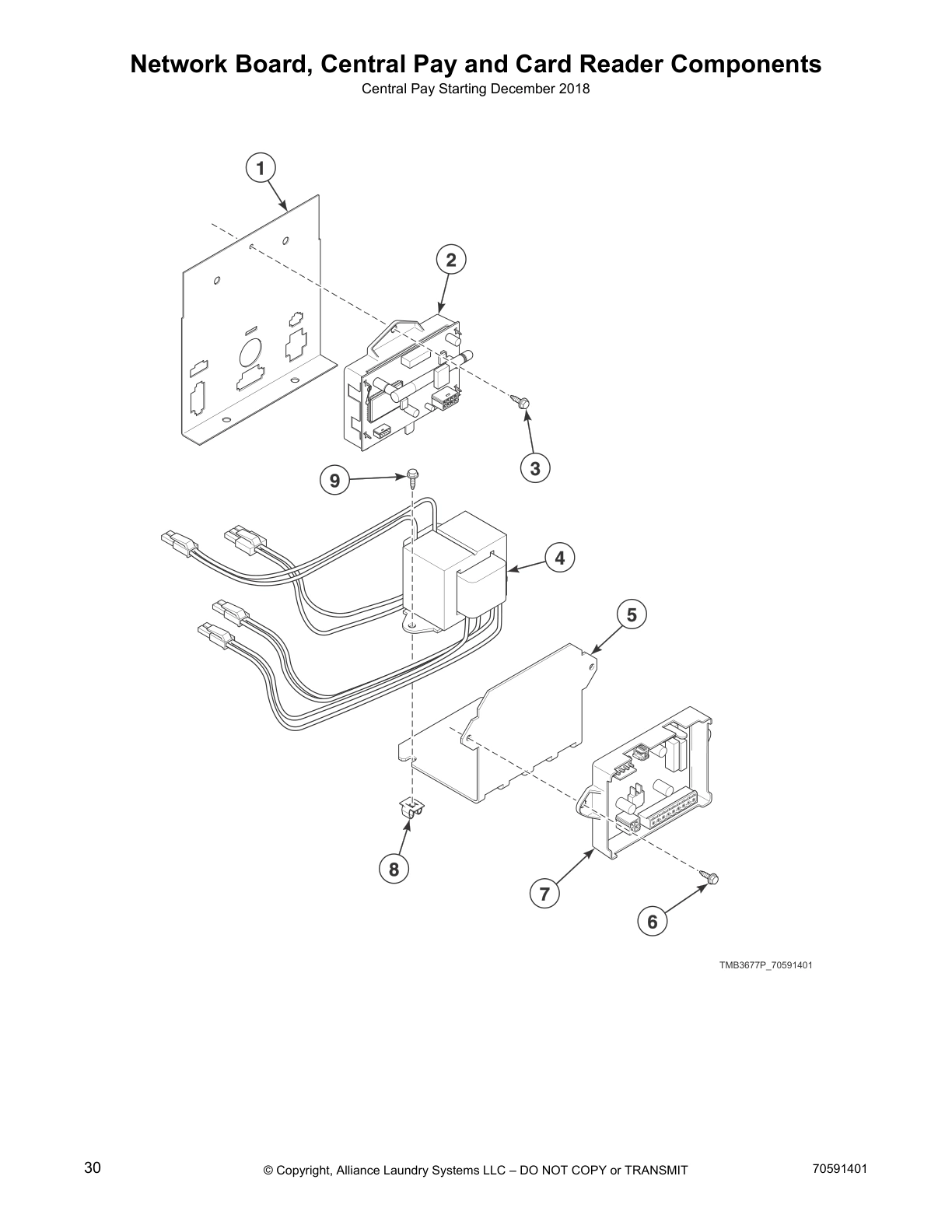

Network Board, Central Pay and Card Reader Components

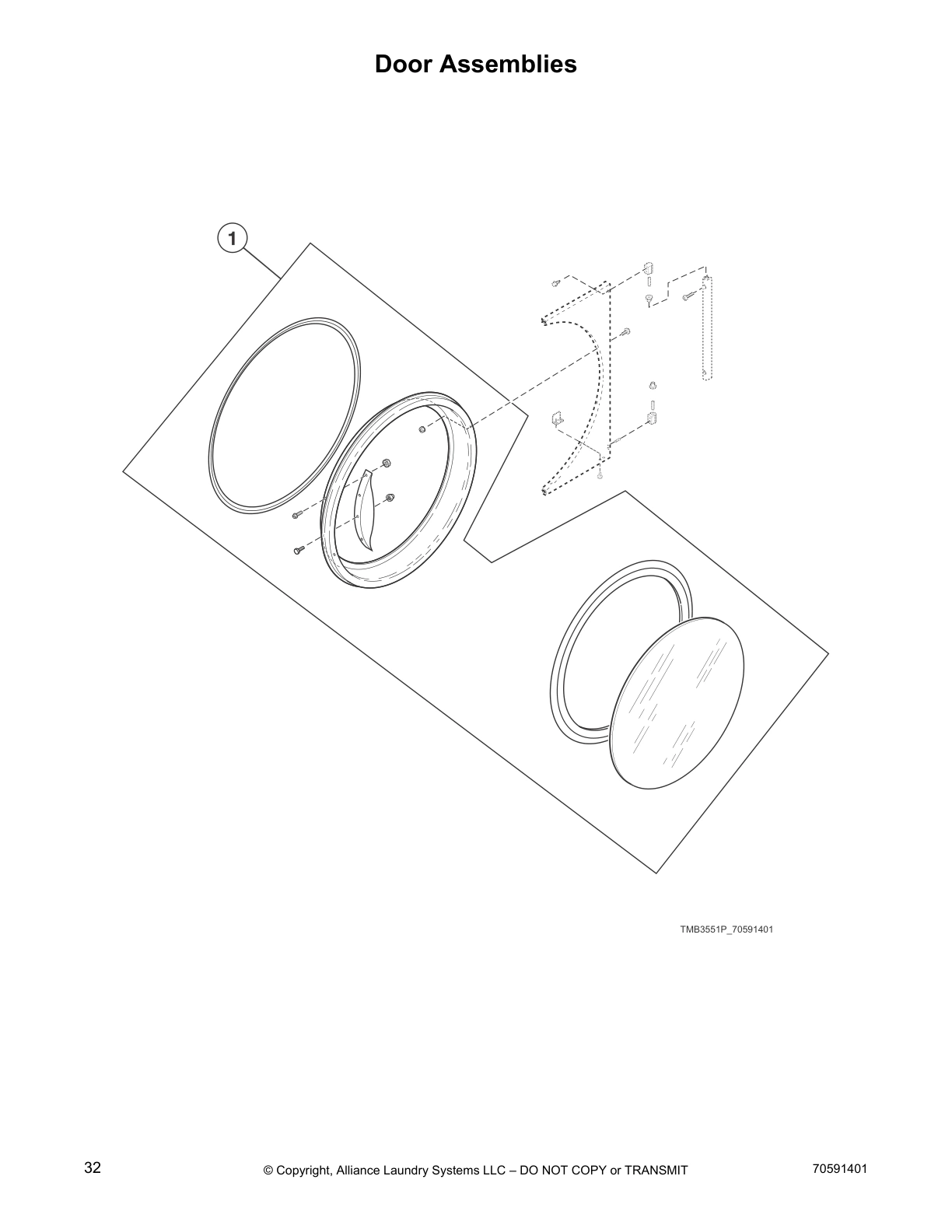

Door Assemblies

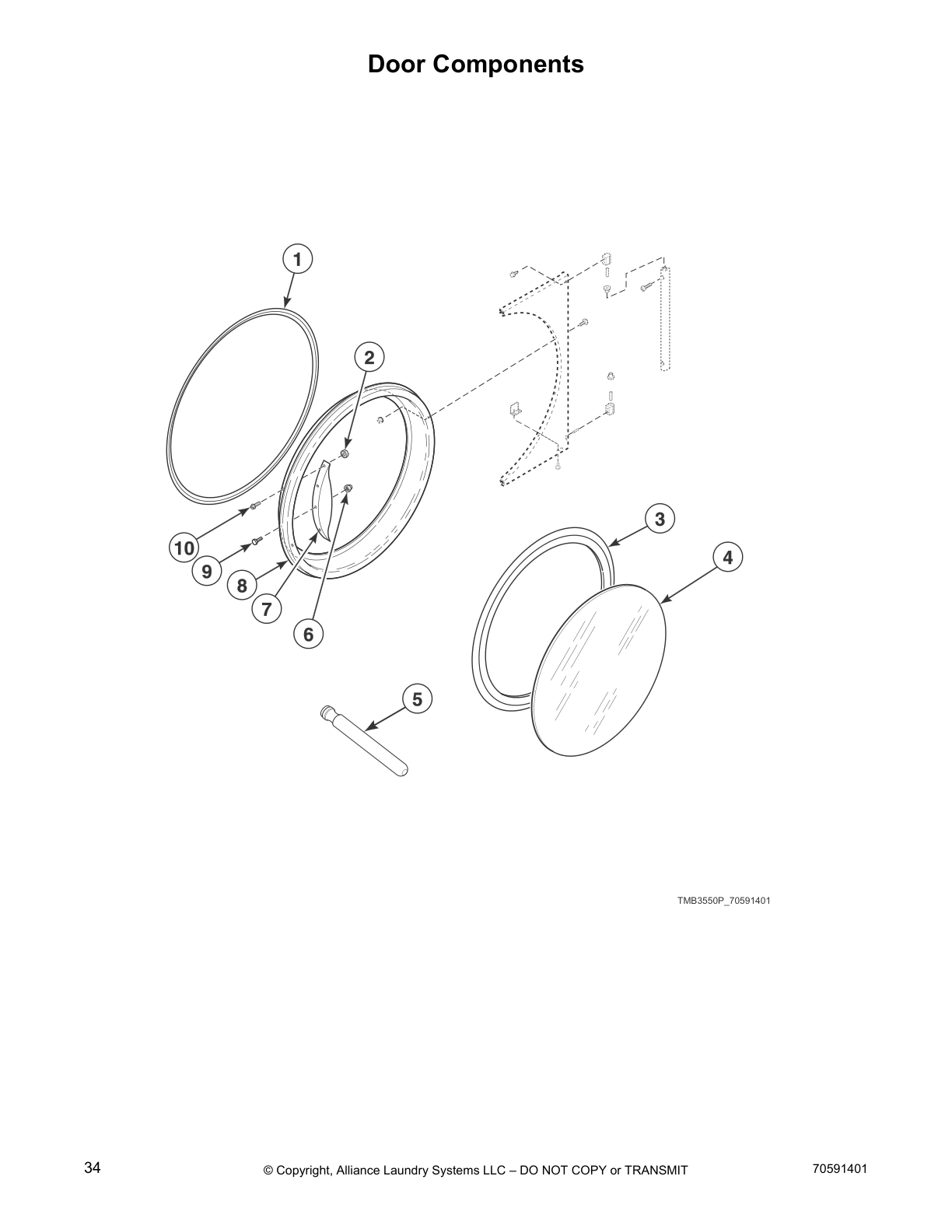

Door Components

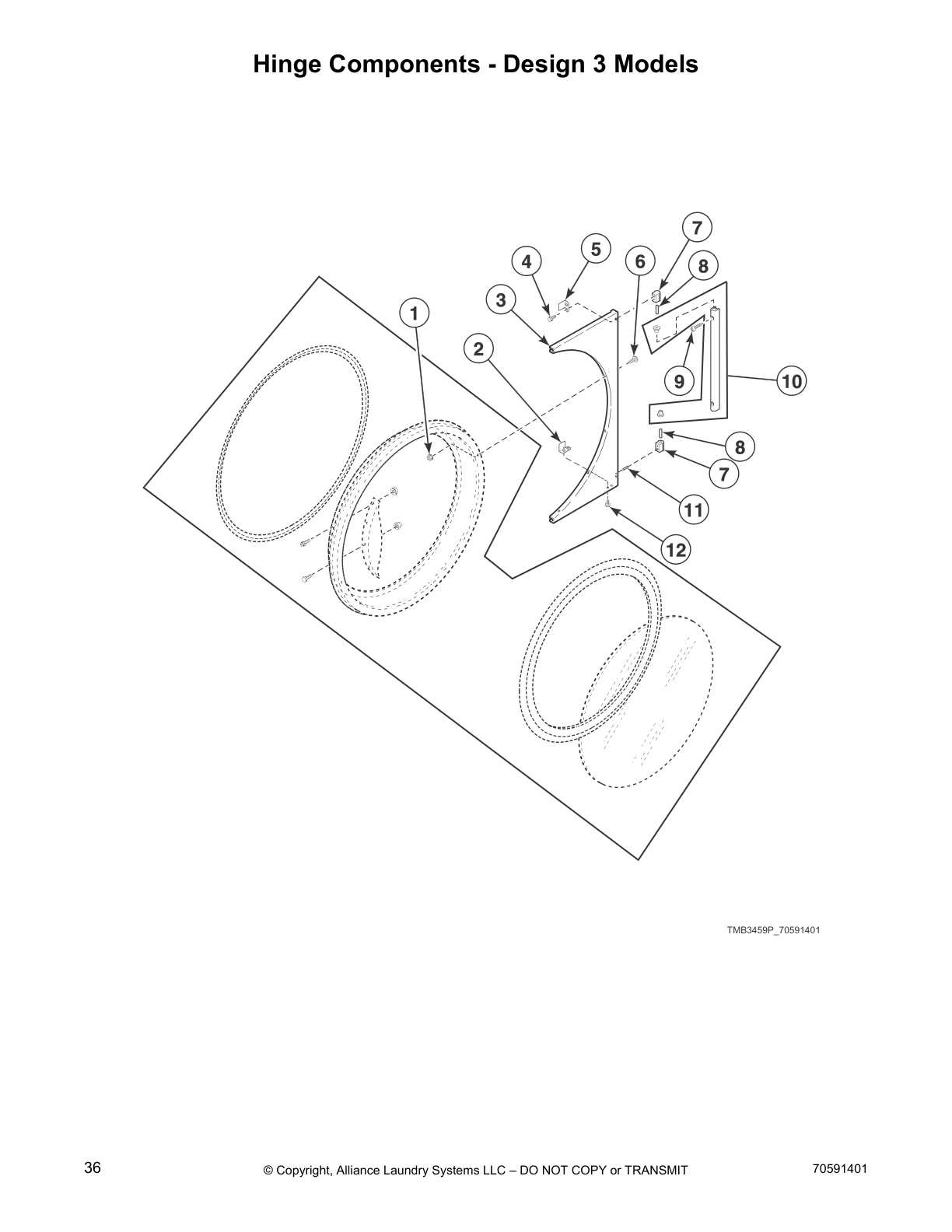

Hinge Components - Design 3 Models
Hinge Components - Design 5 Models

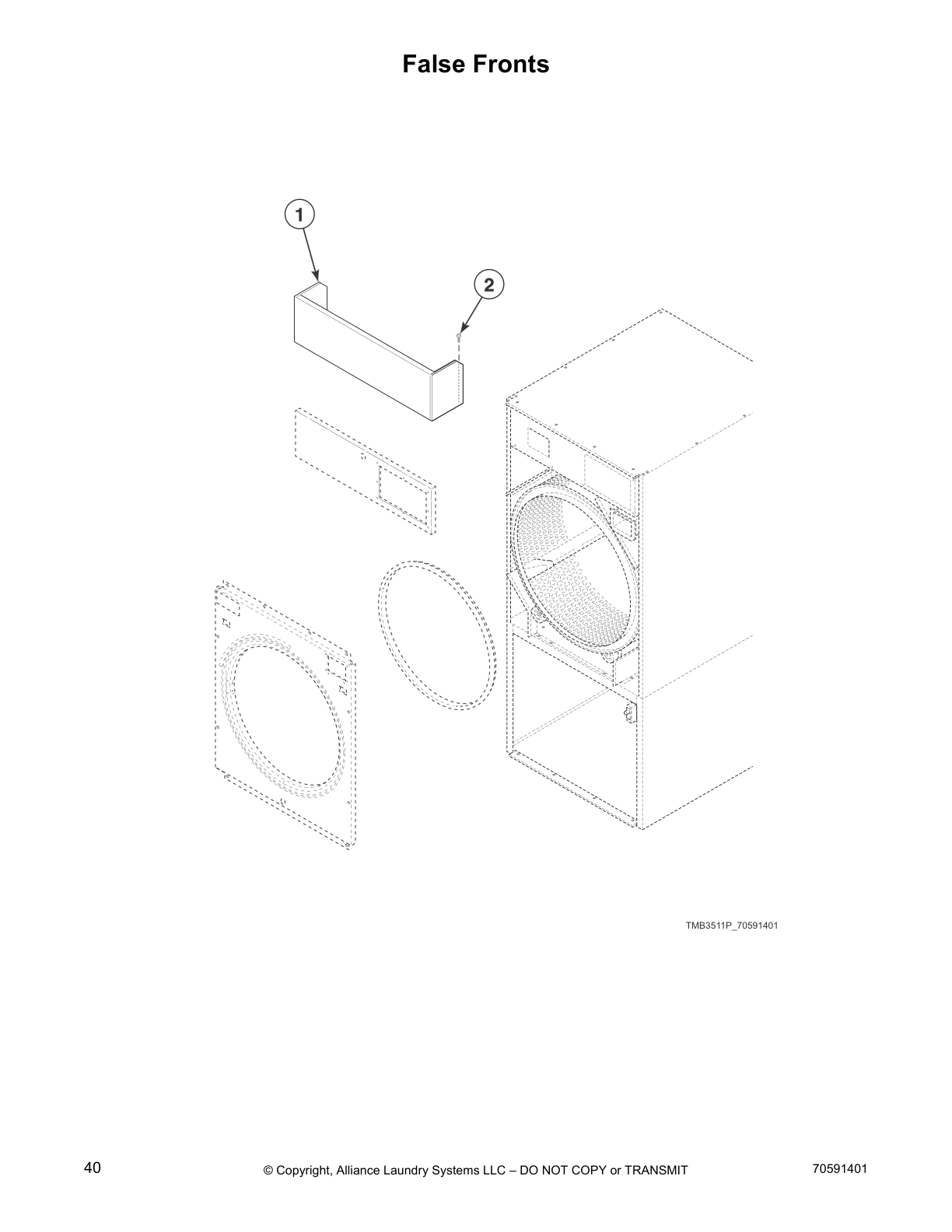

False Fronts

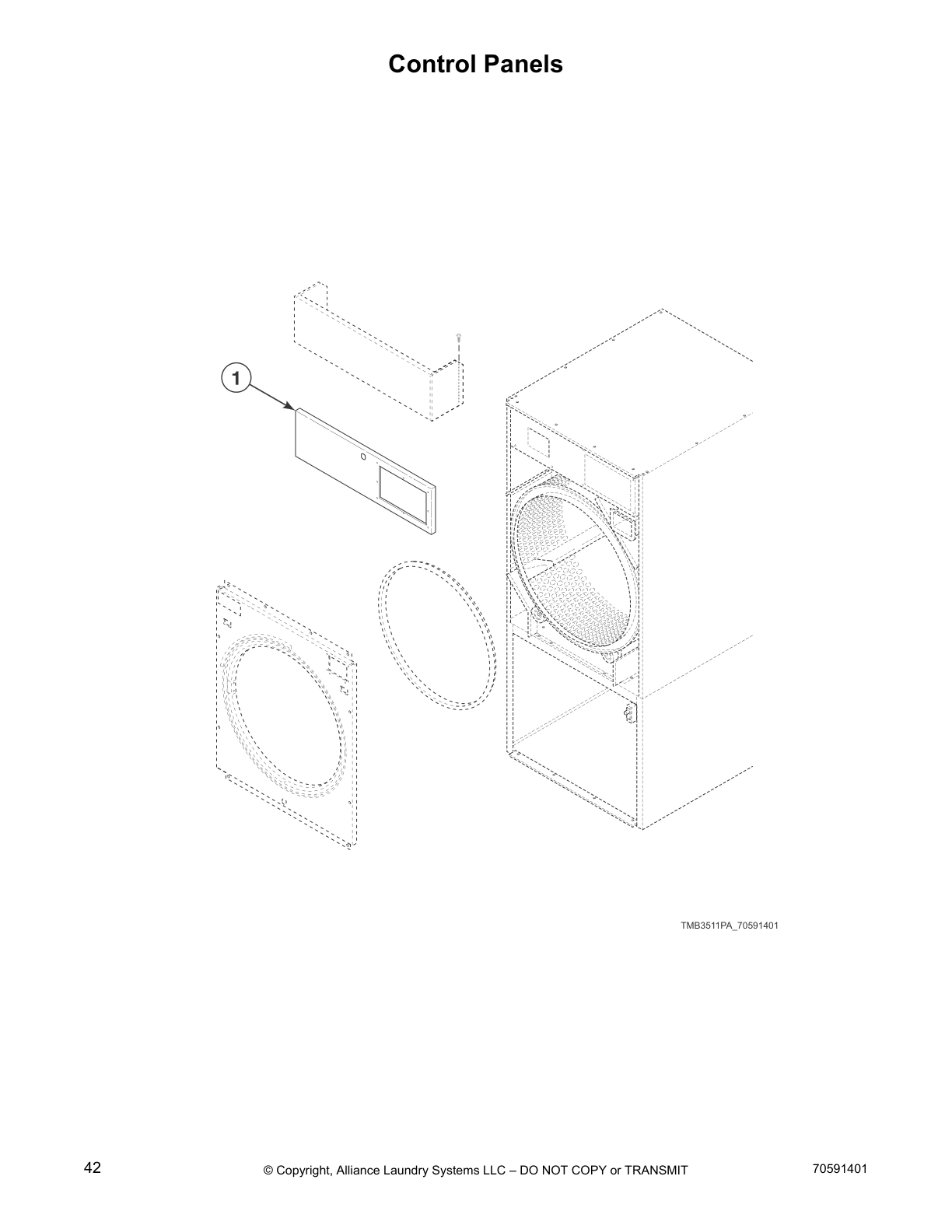

Control Panels

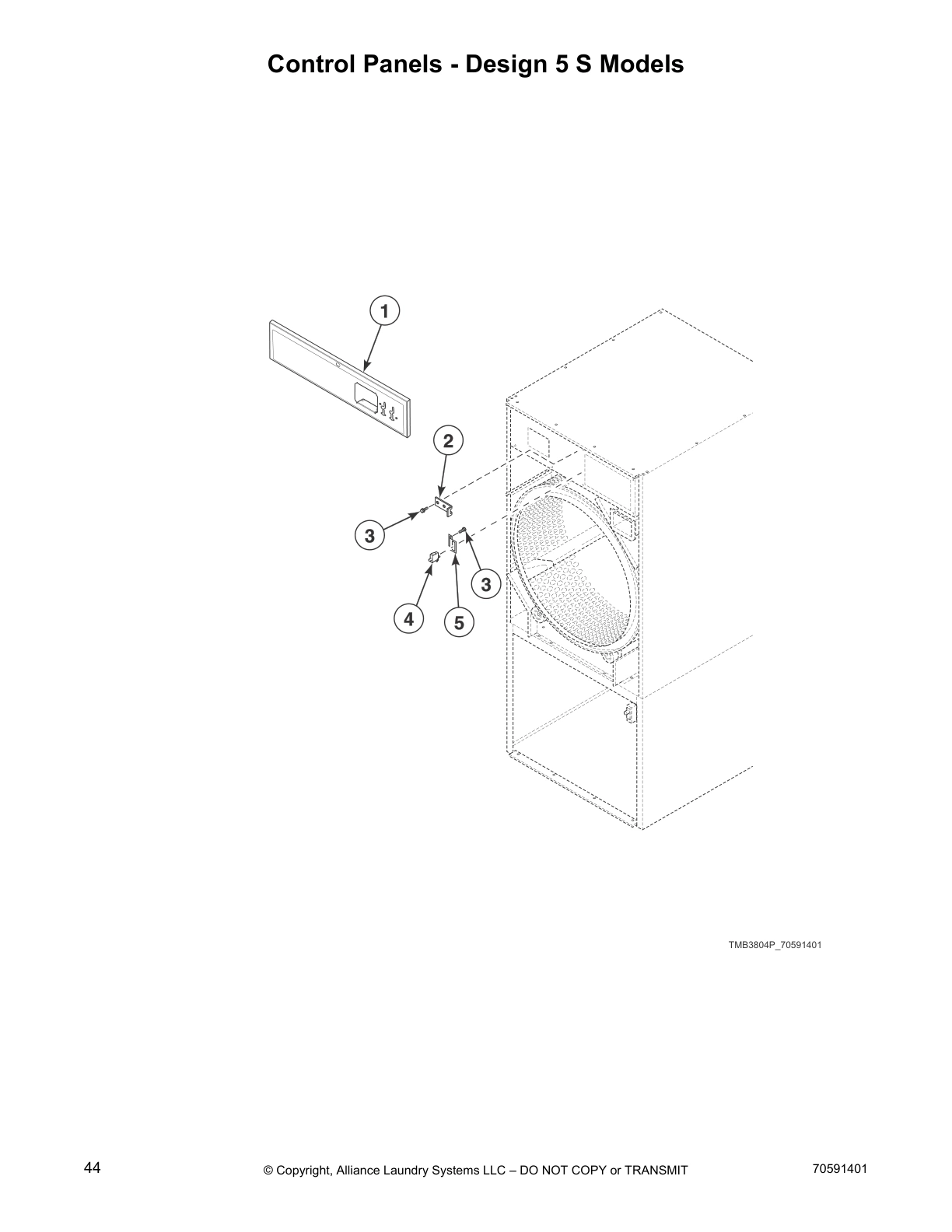

Control Panels - Design 5 S Models

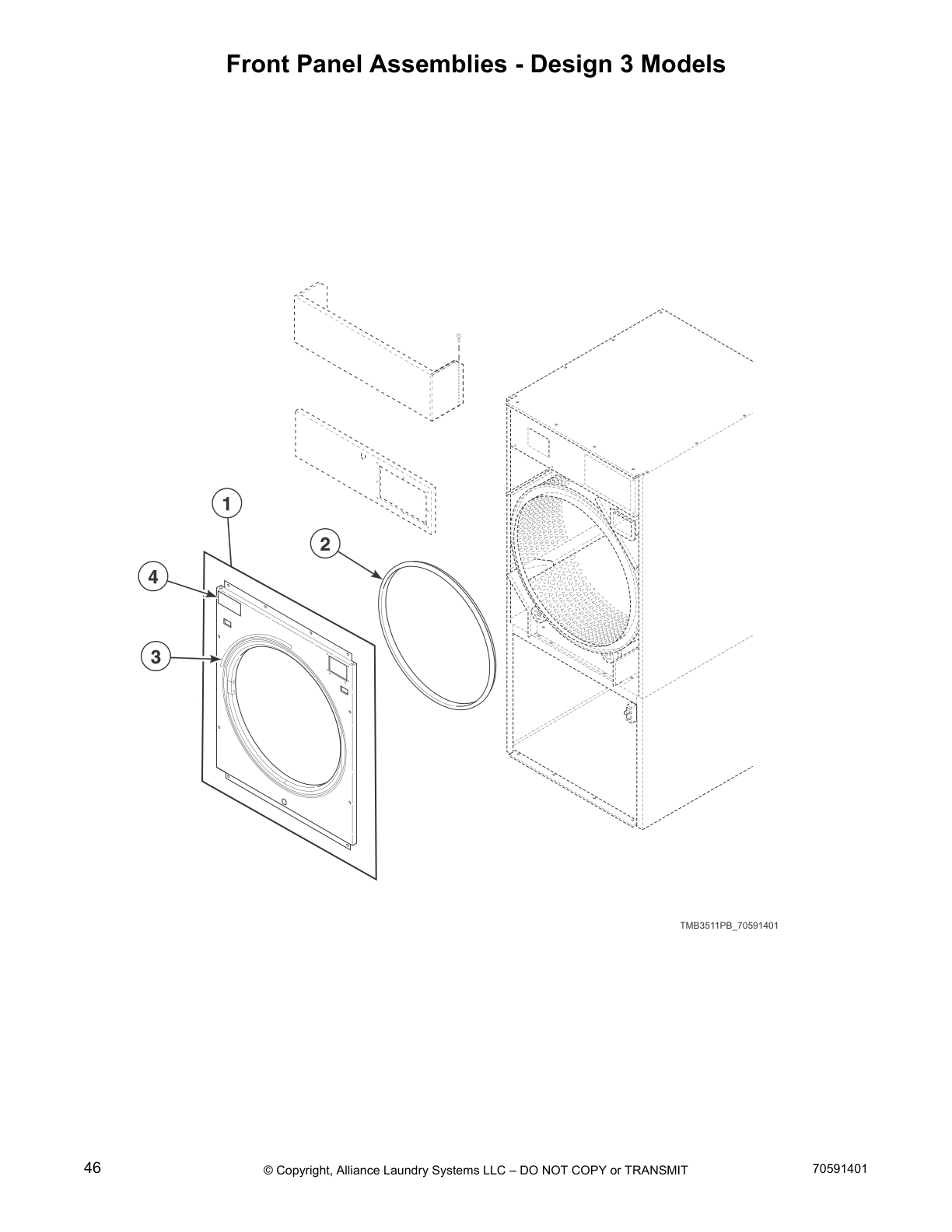

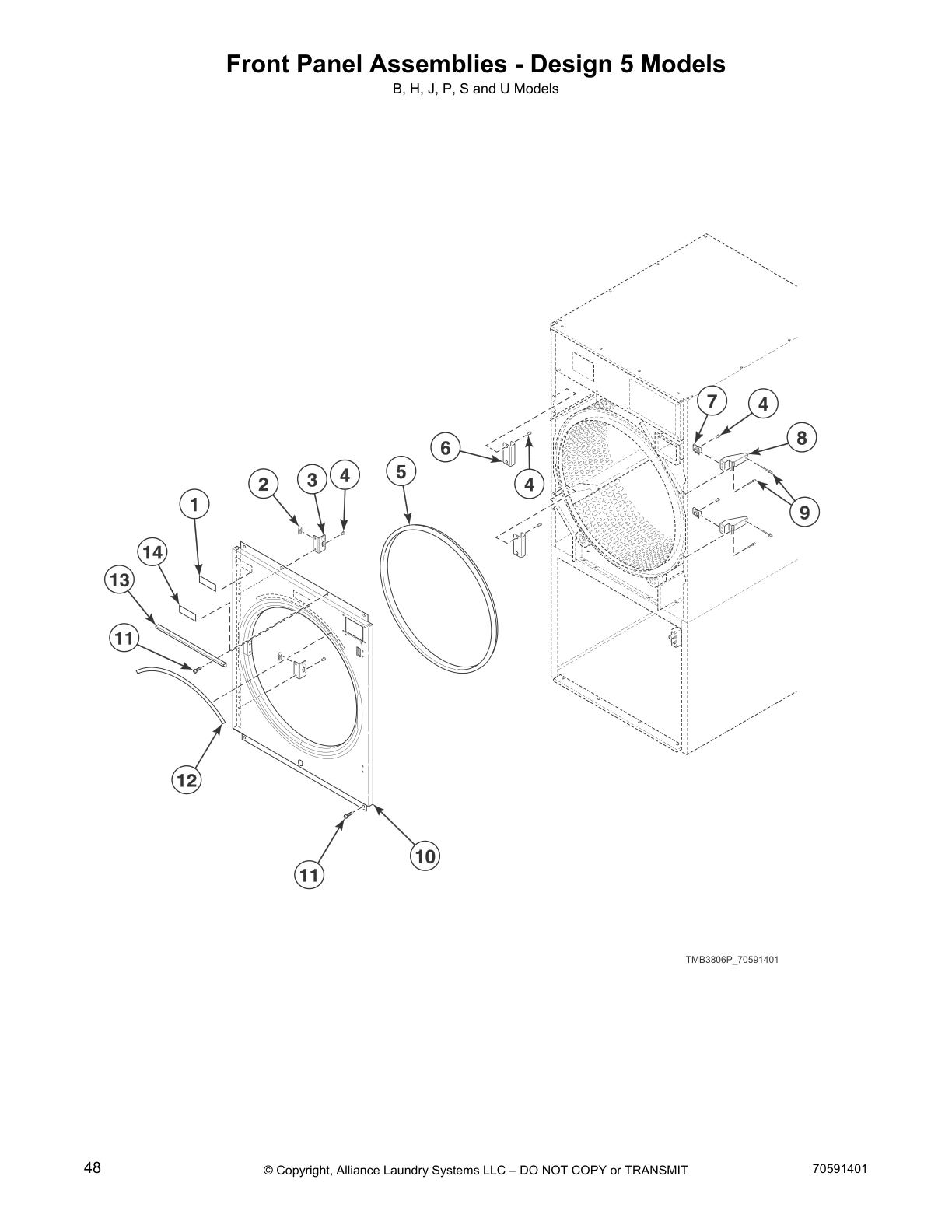

Front Panel Assemblies - Design 3 Models
Front Panel Assemblies - Design 5 Models

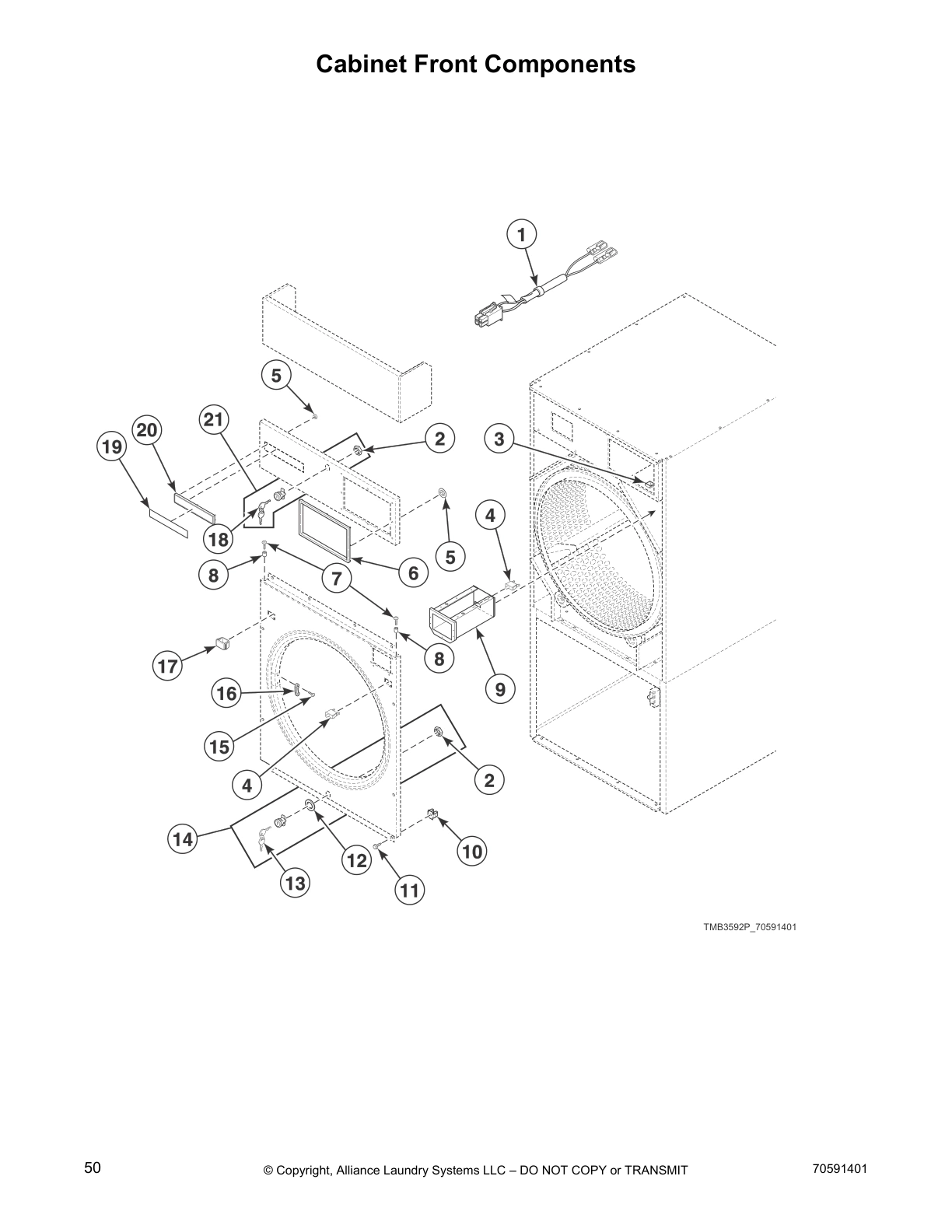

Cabinet Front Components

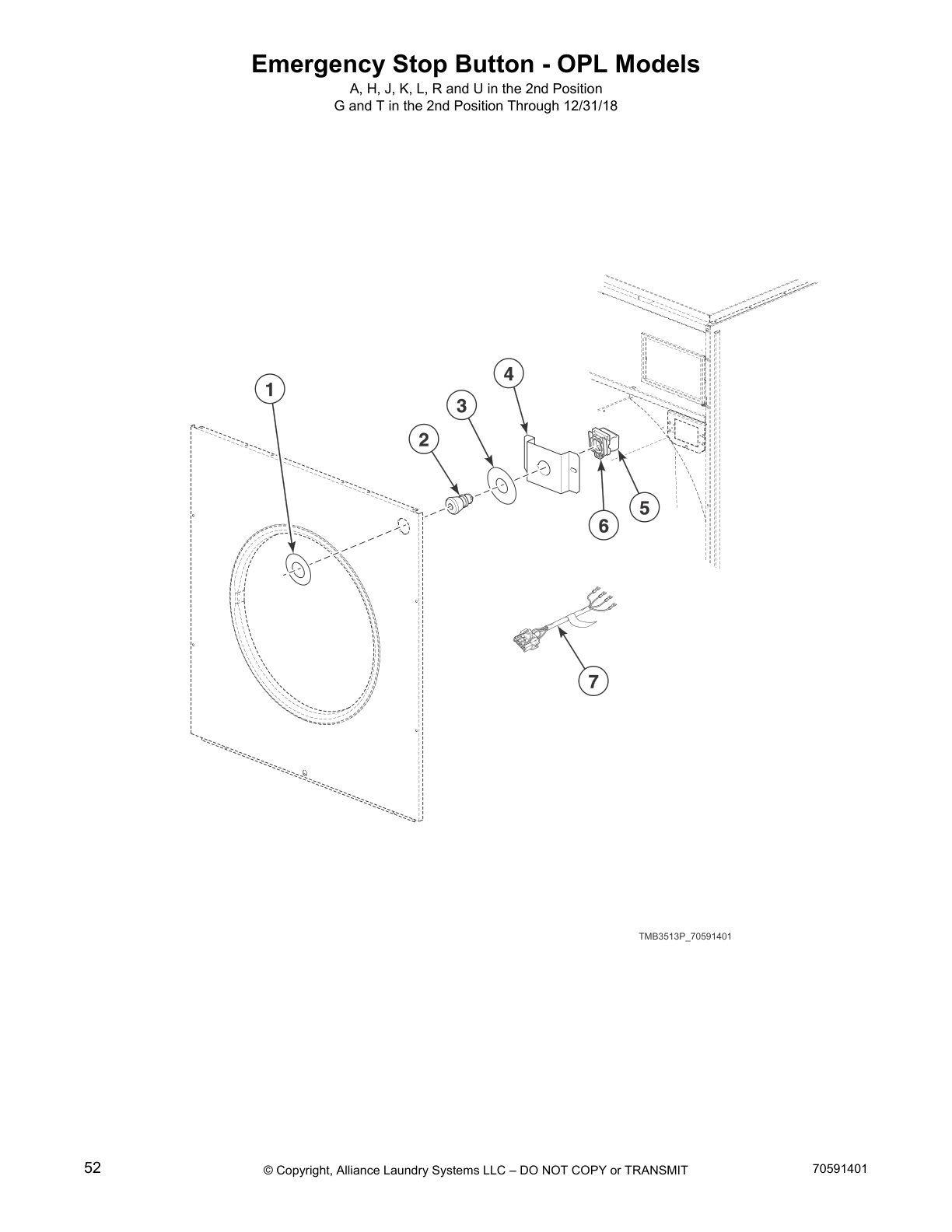

Emergency Stop Button - OPL Models

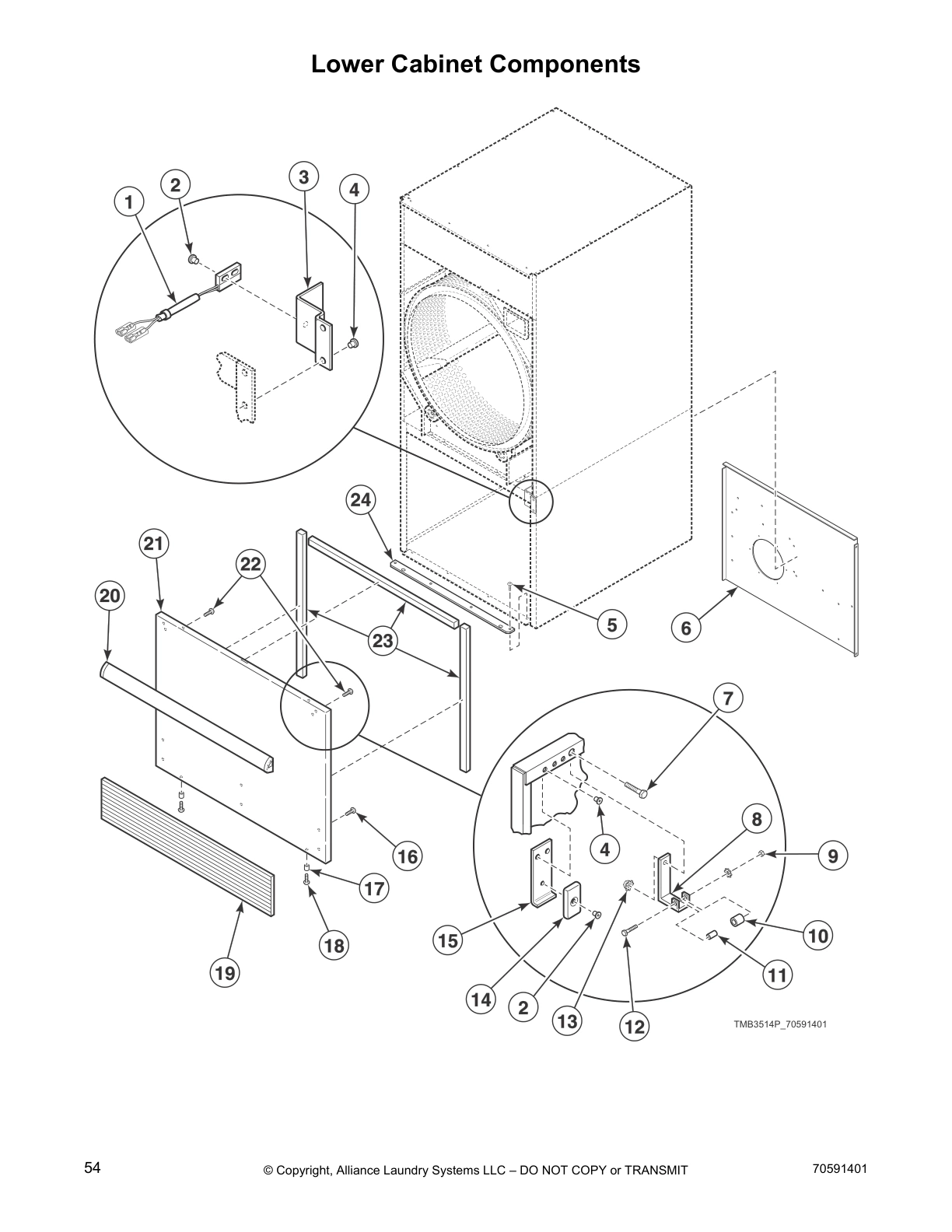

Lower Cabinet Components

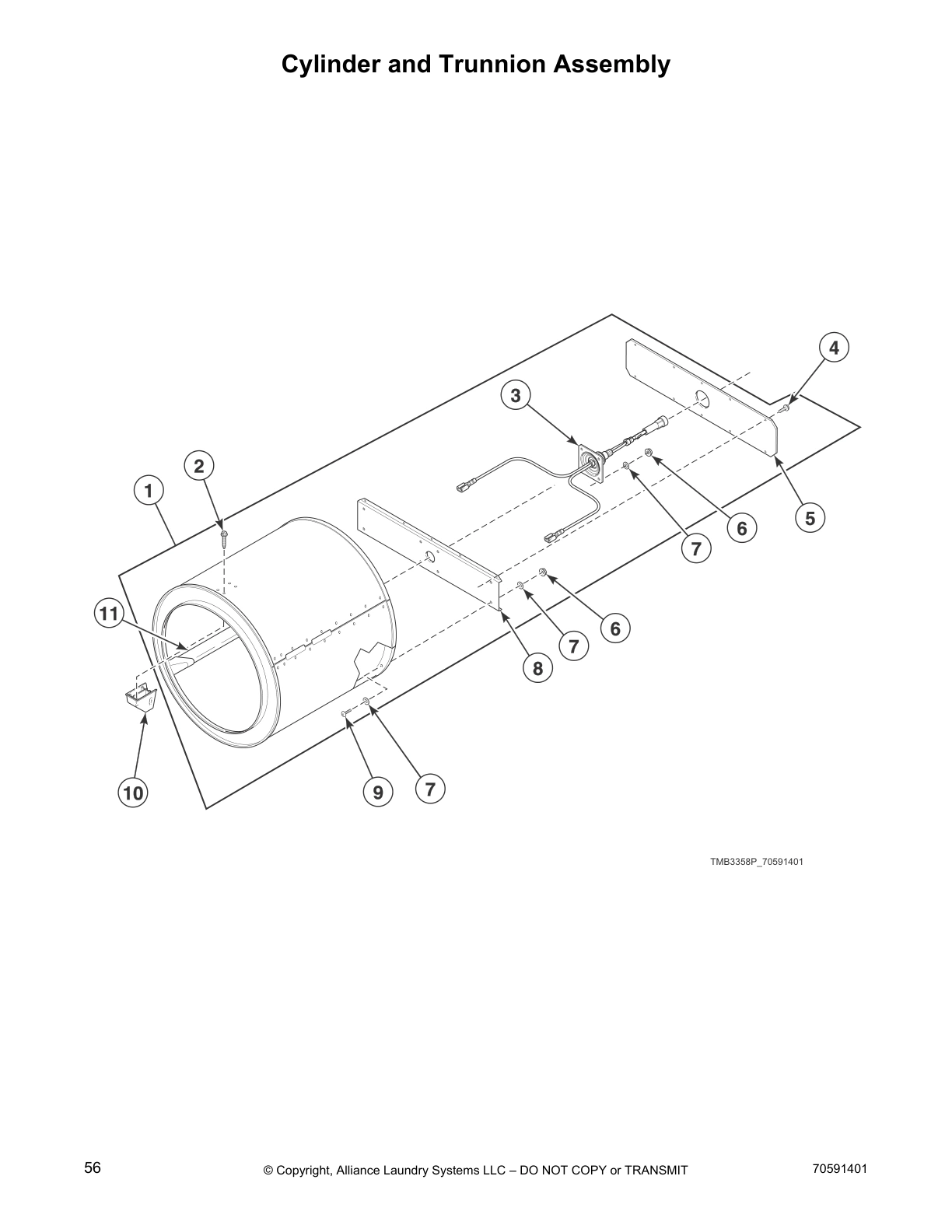

Cylinder and Trunnion Assembly

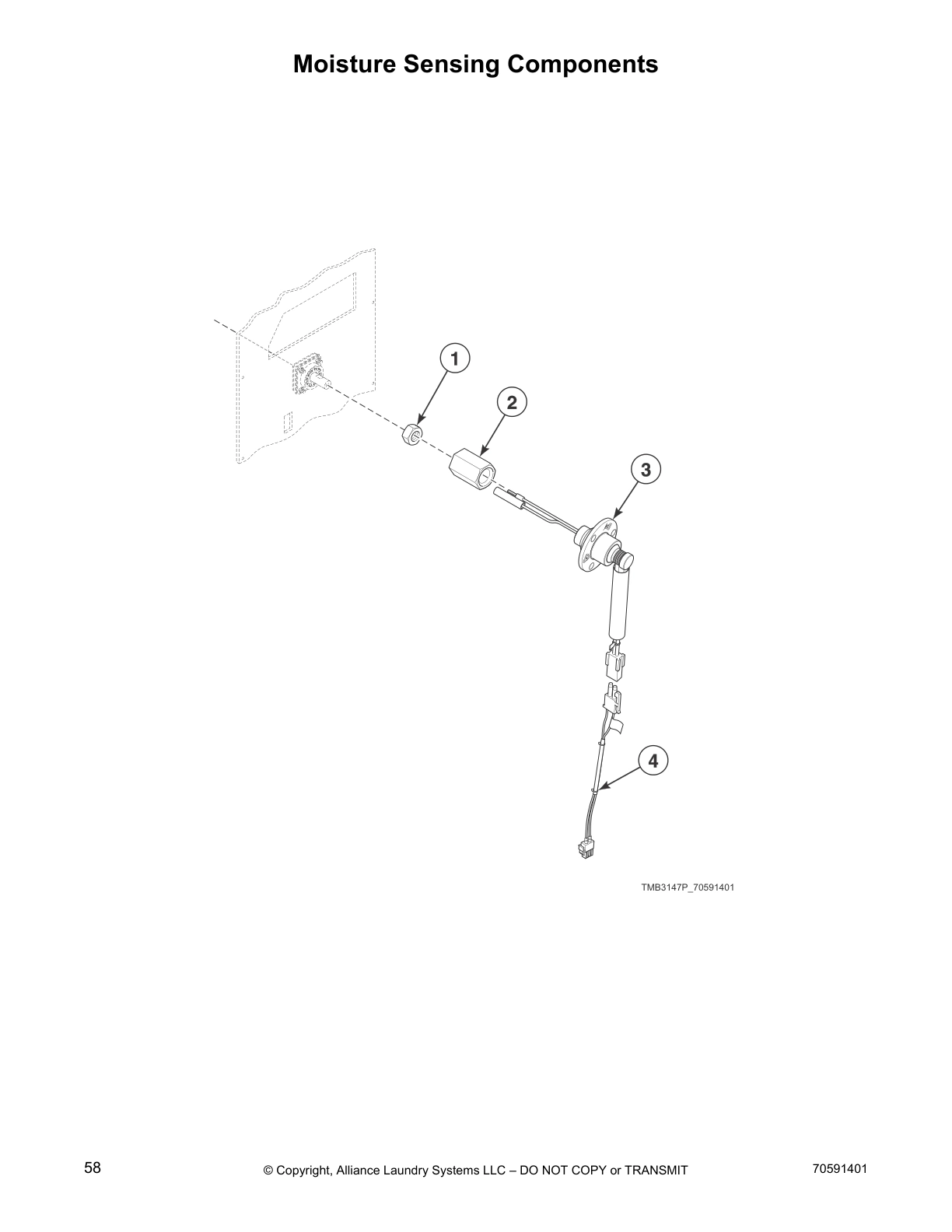

Moisture Sensing Components

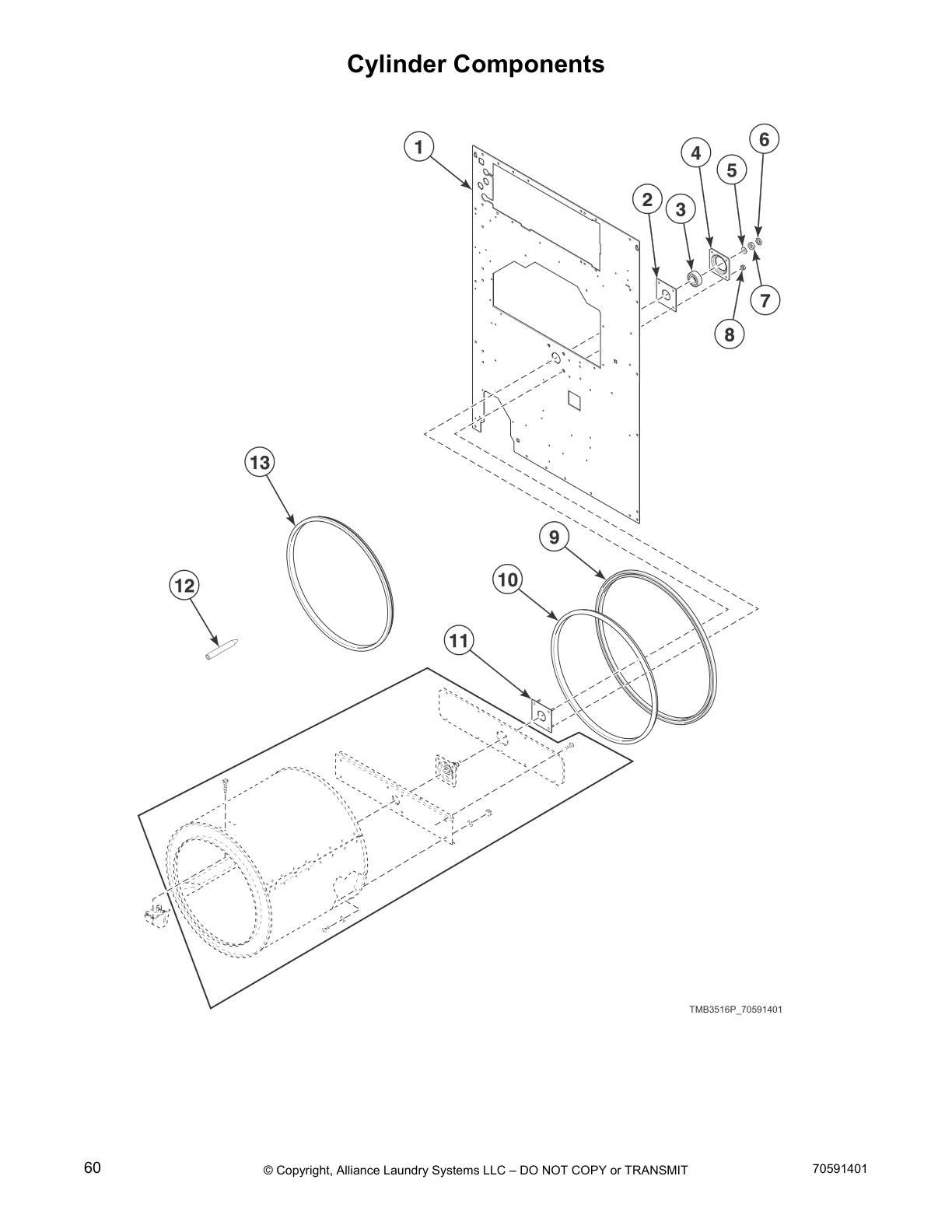

Cylinder Components

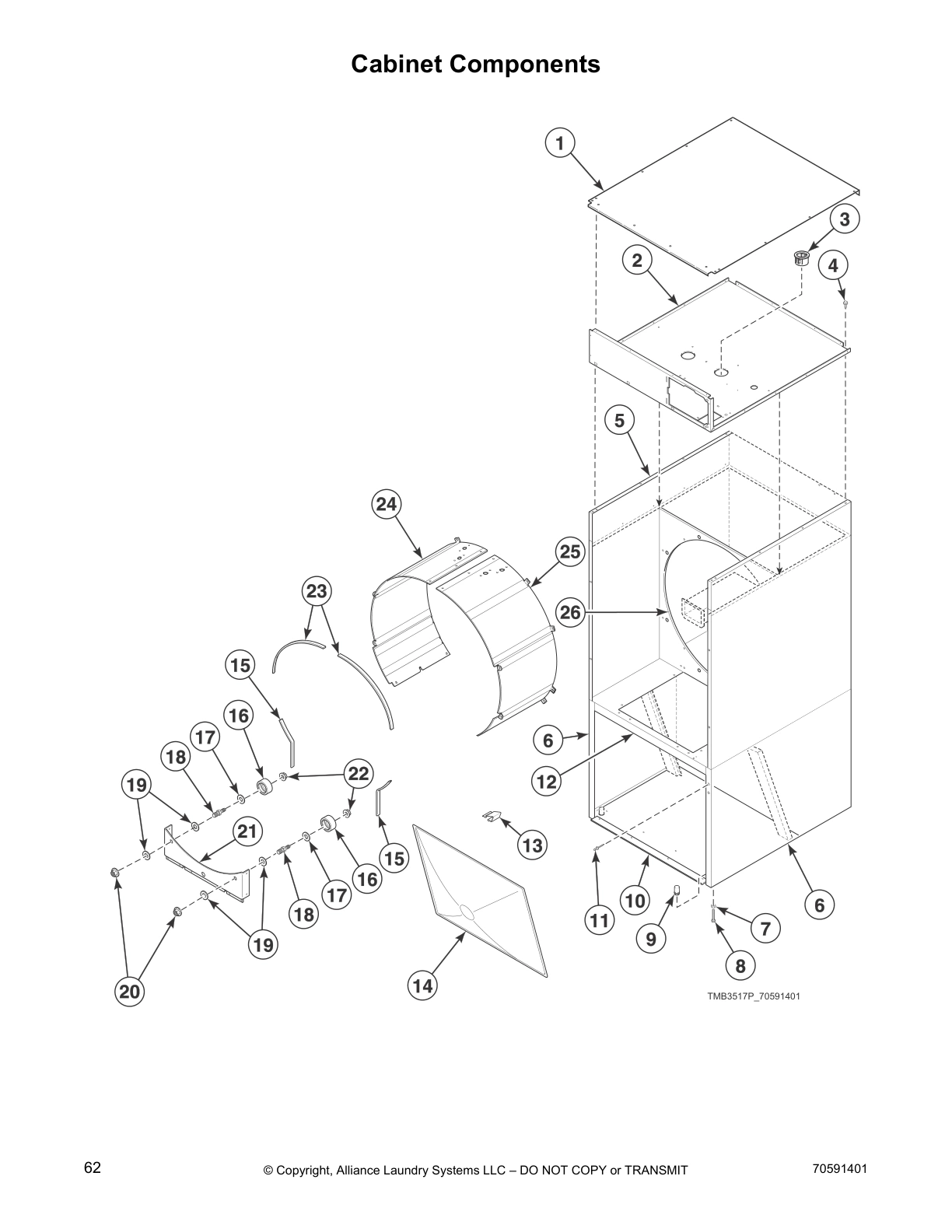

Cabinet Components

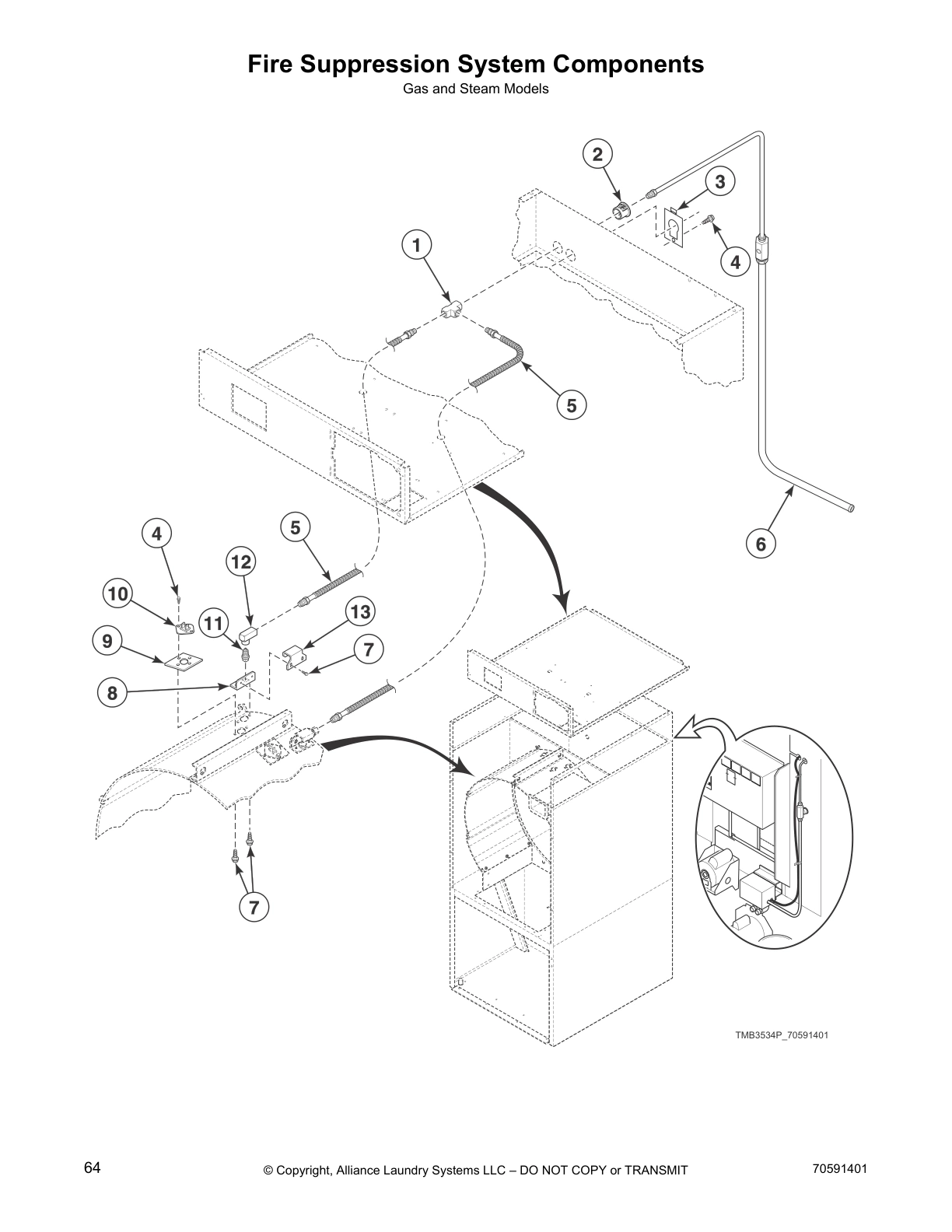

Fire Suppression System Components

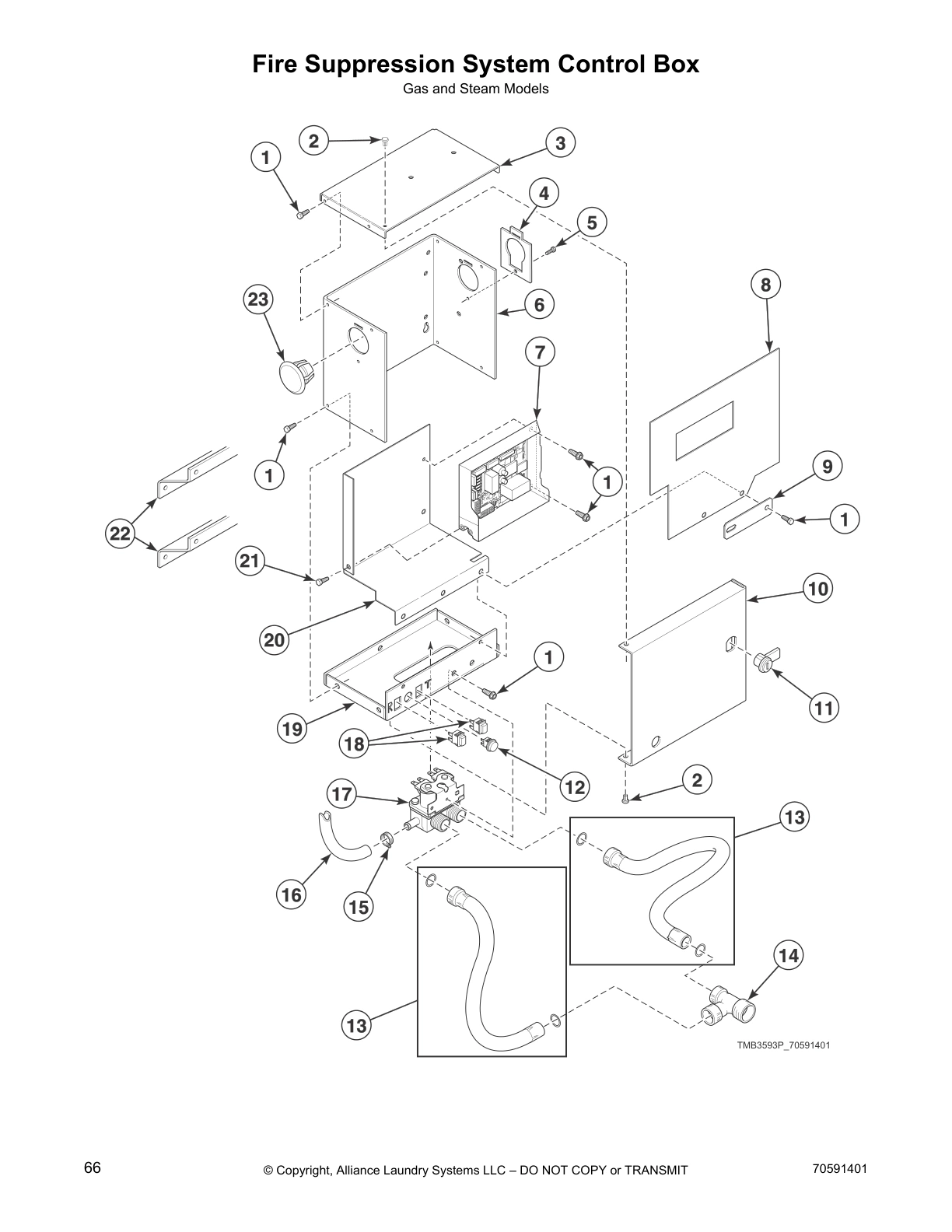

Fire Suppression System Control Box

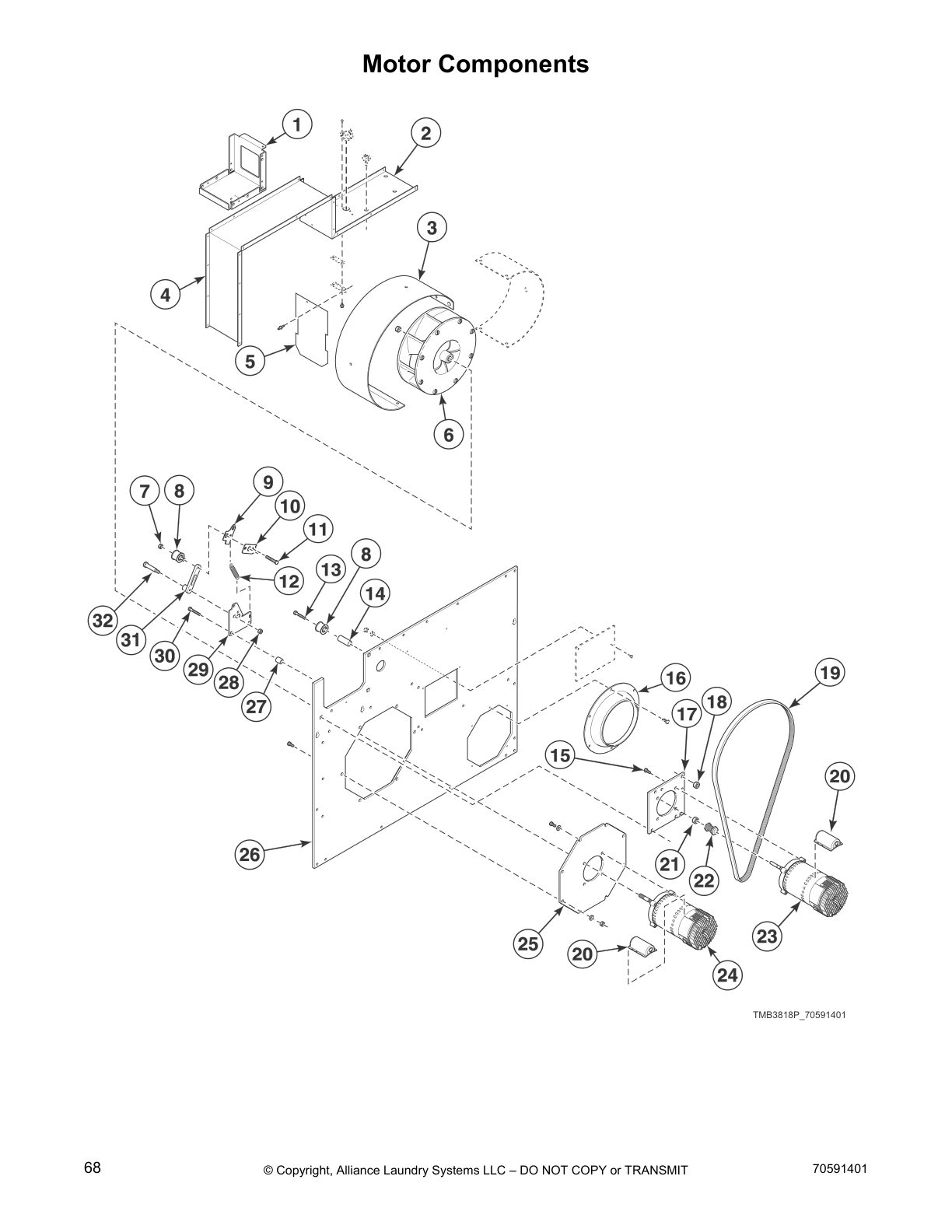

Motor Components

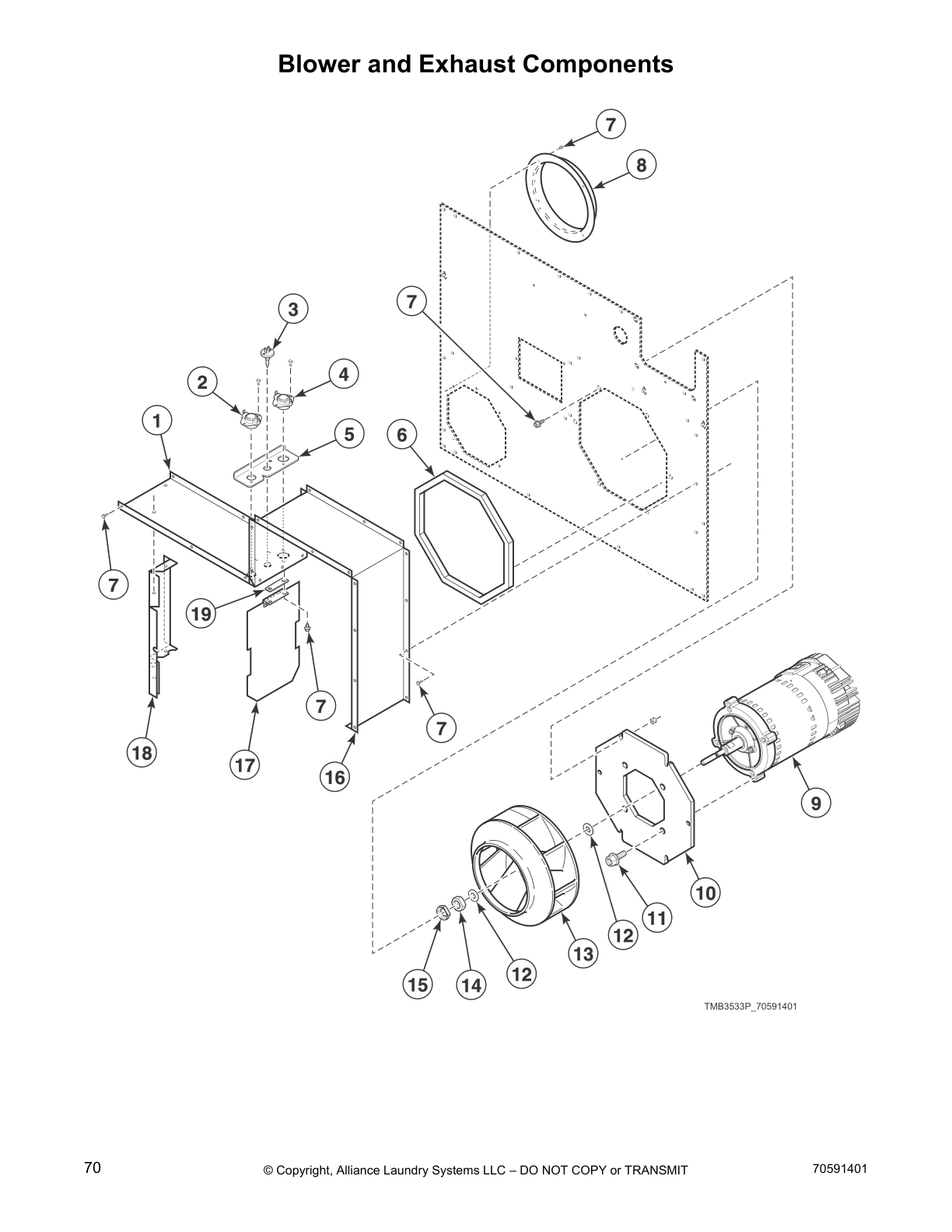

Blower and Exhaust Components

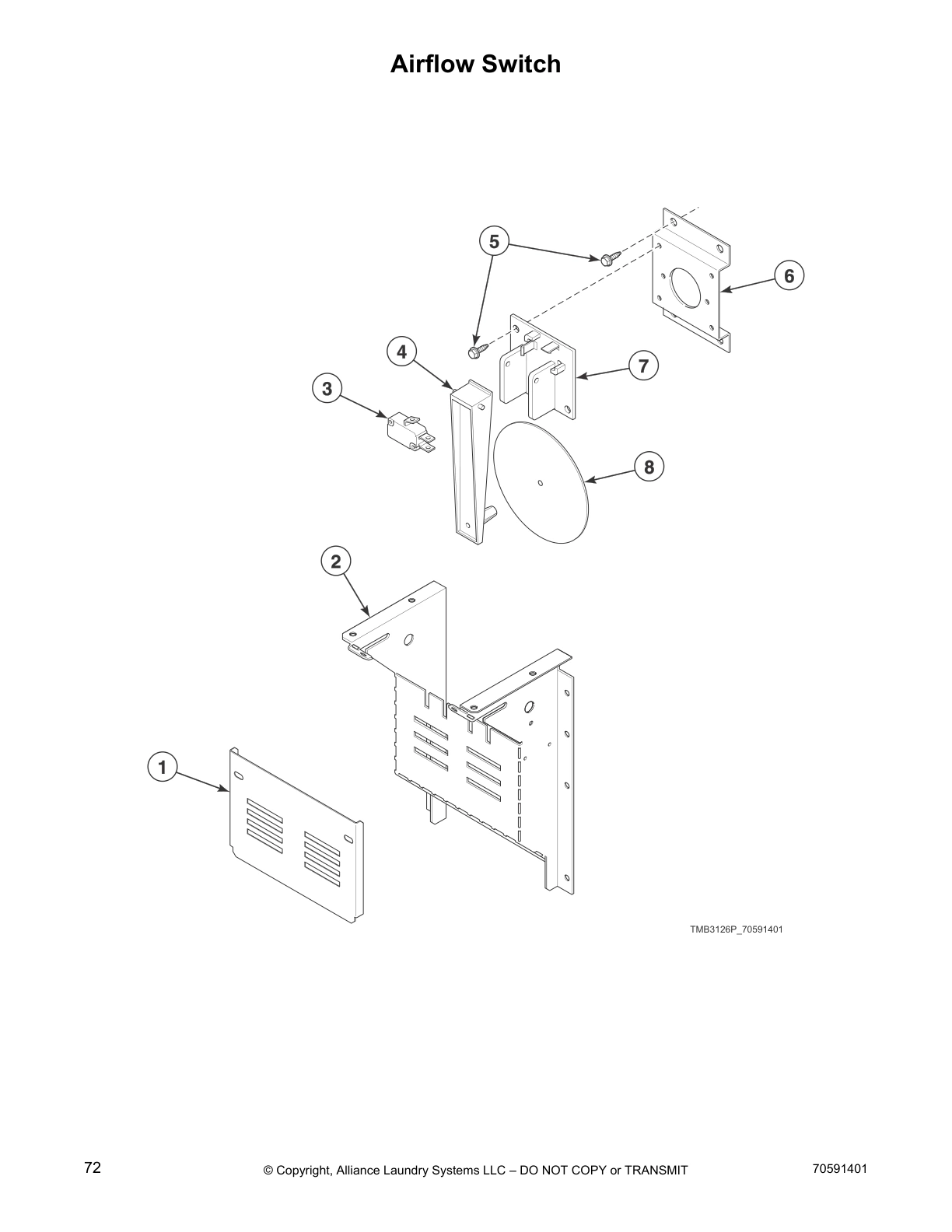

Airflow Switch

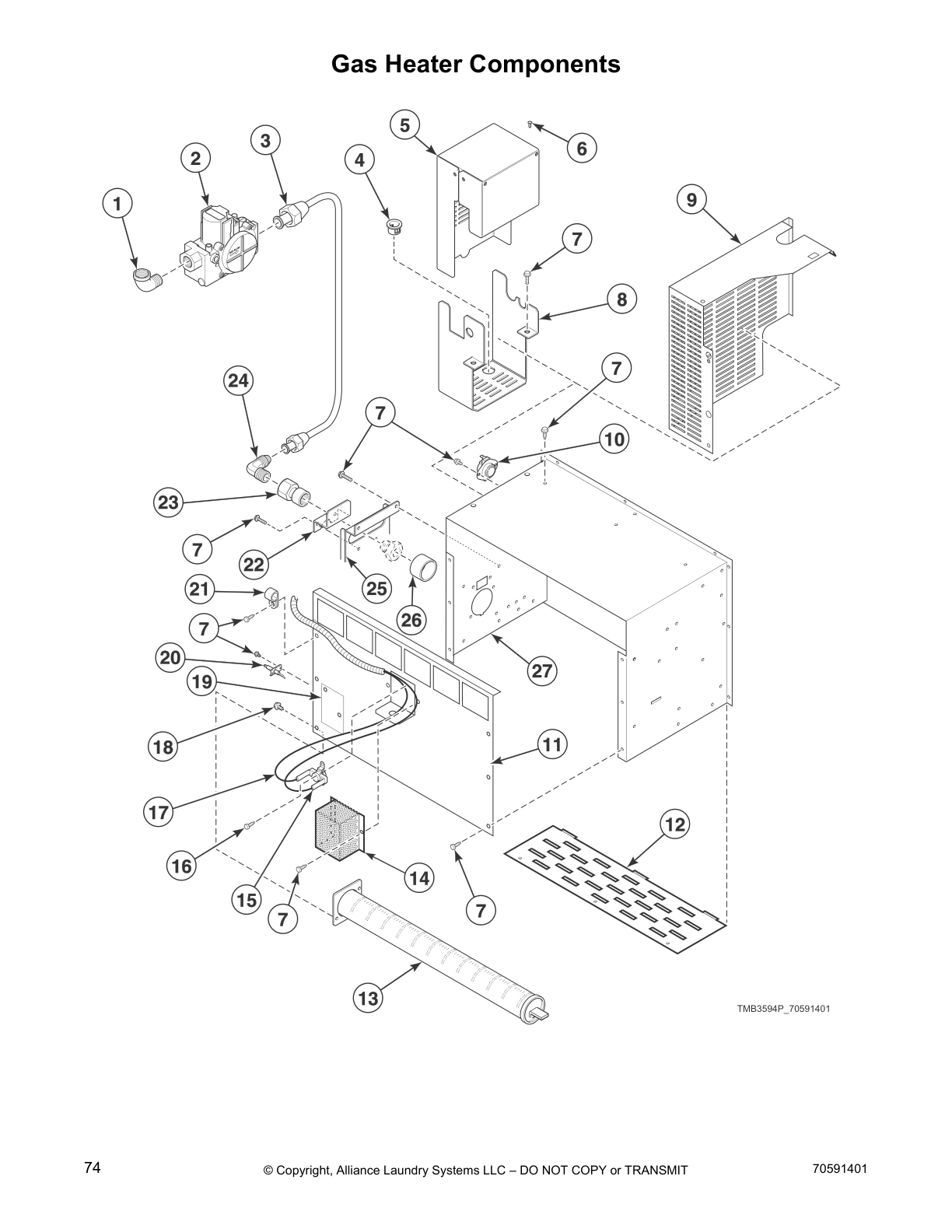

Gas Heater Components

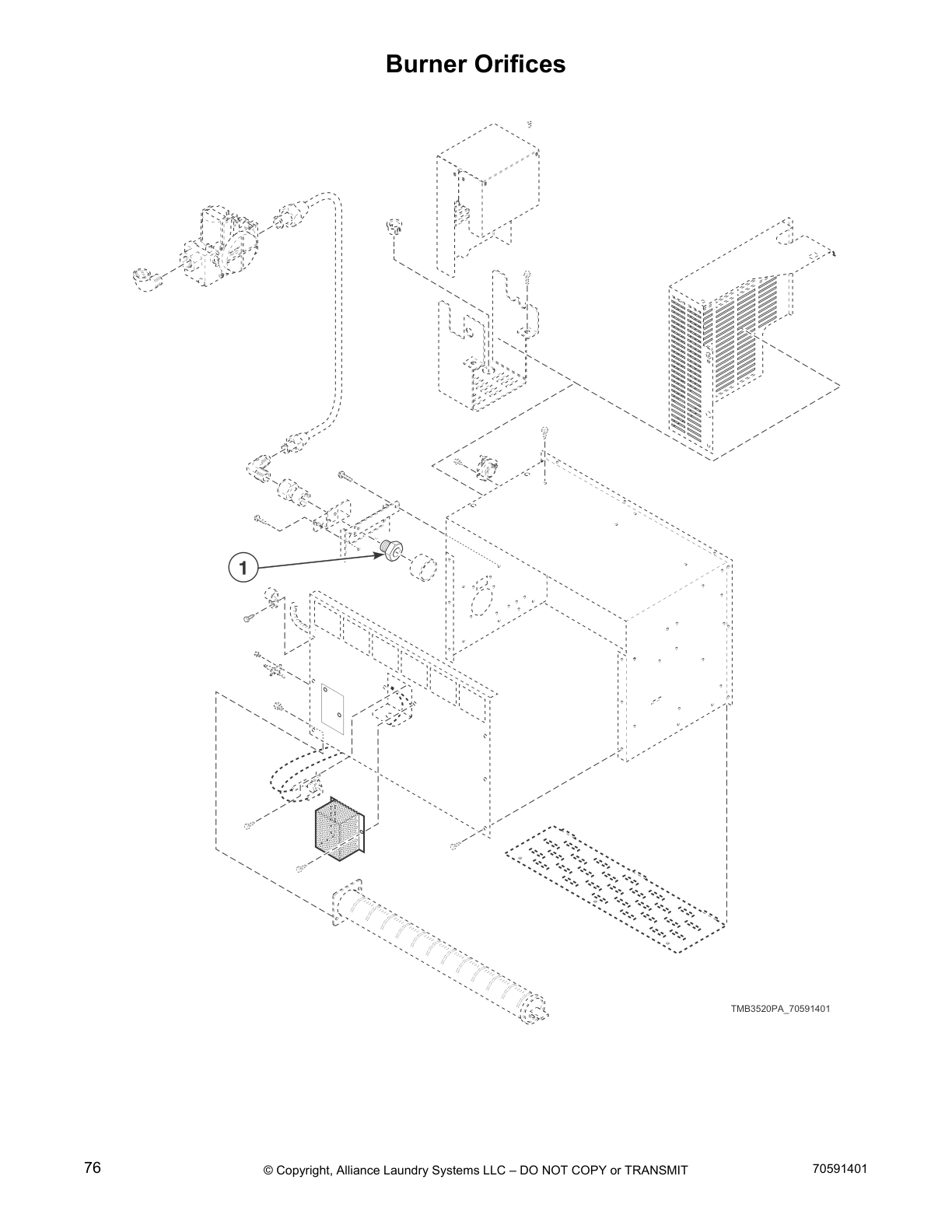

Burner Orifices

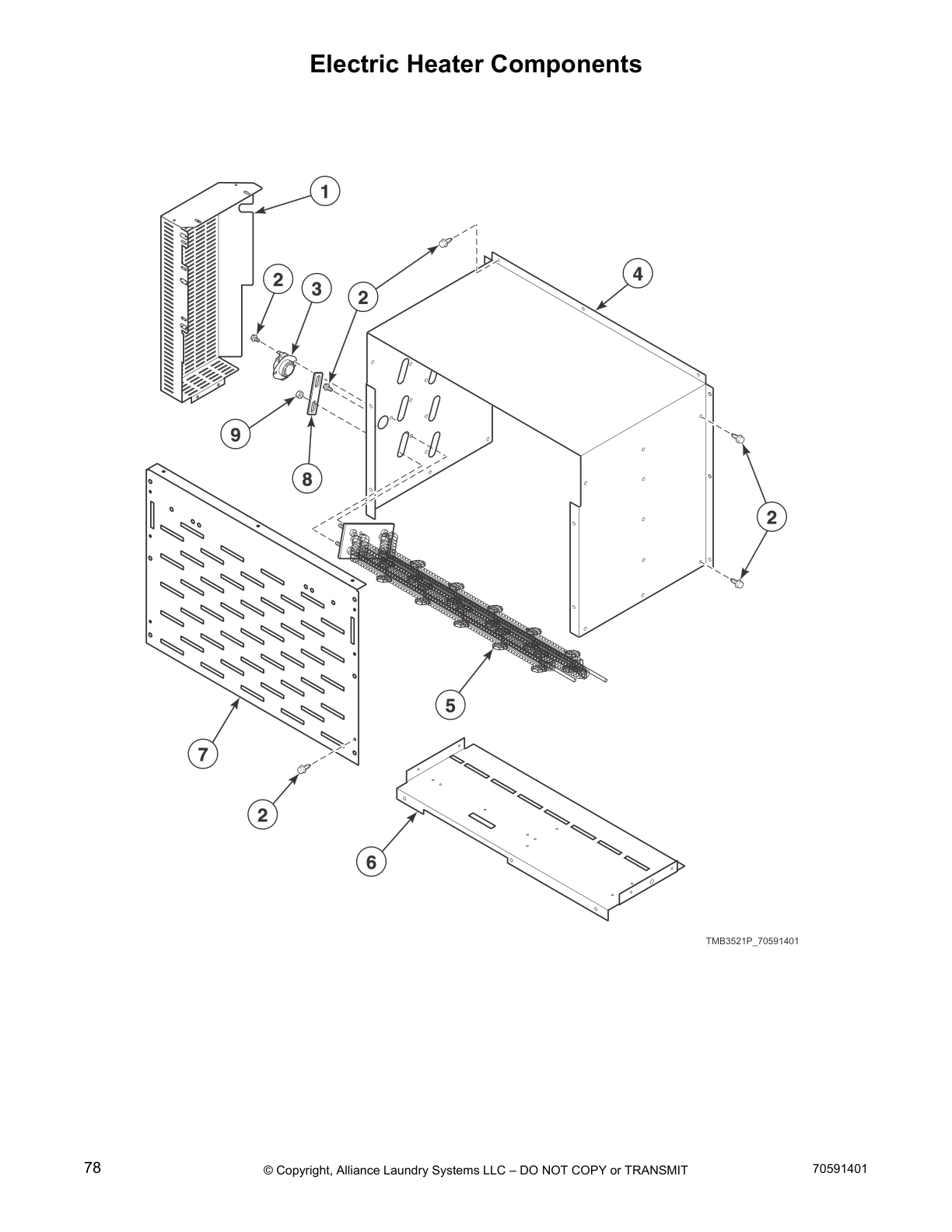

Electric Heater Components

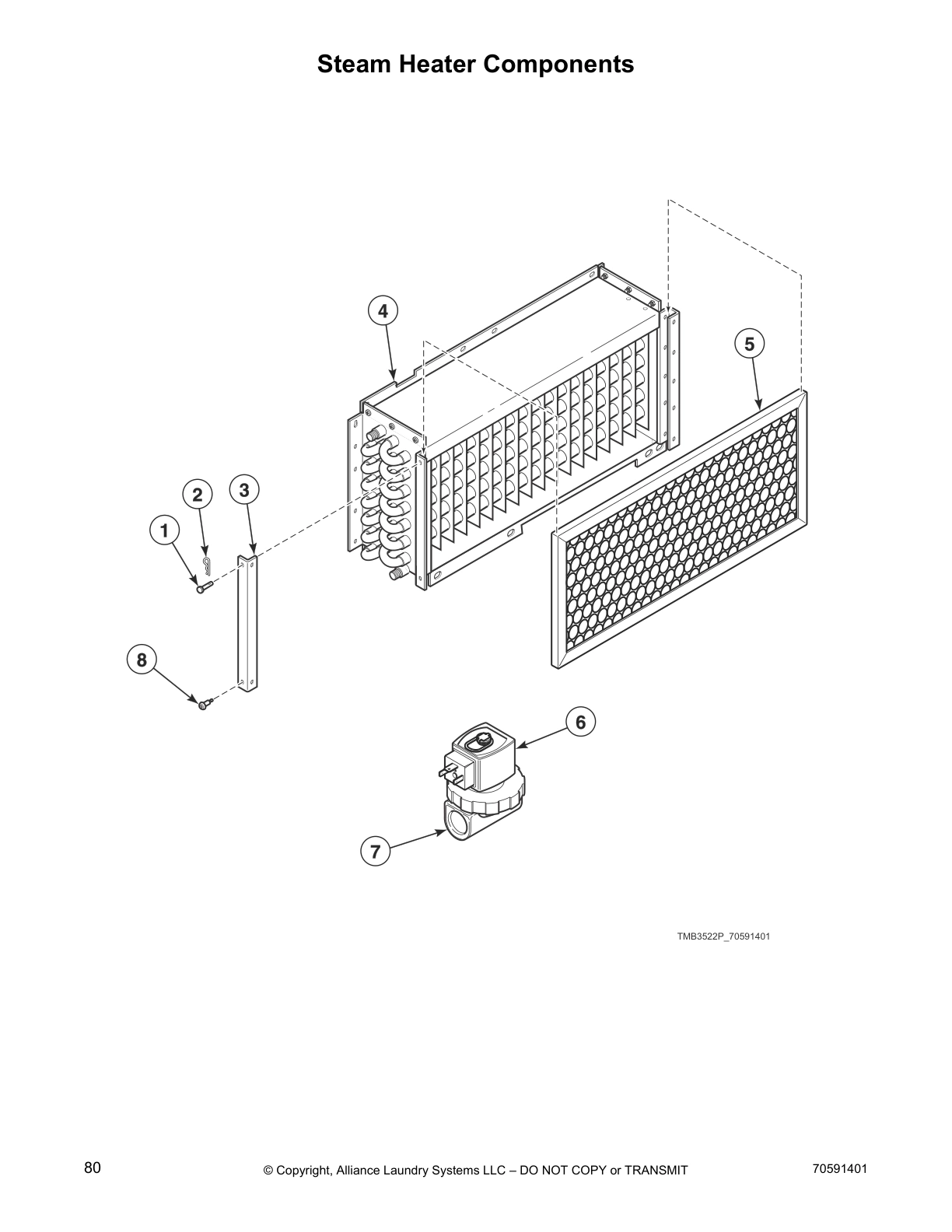

Steam Heater Components

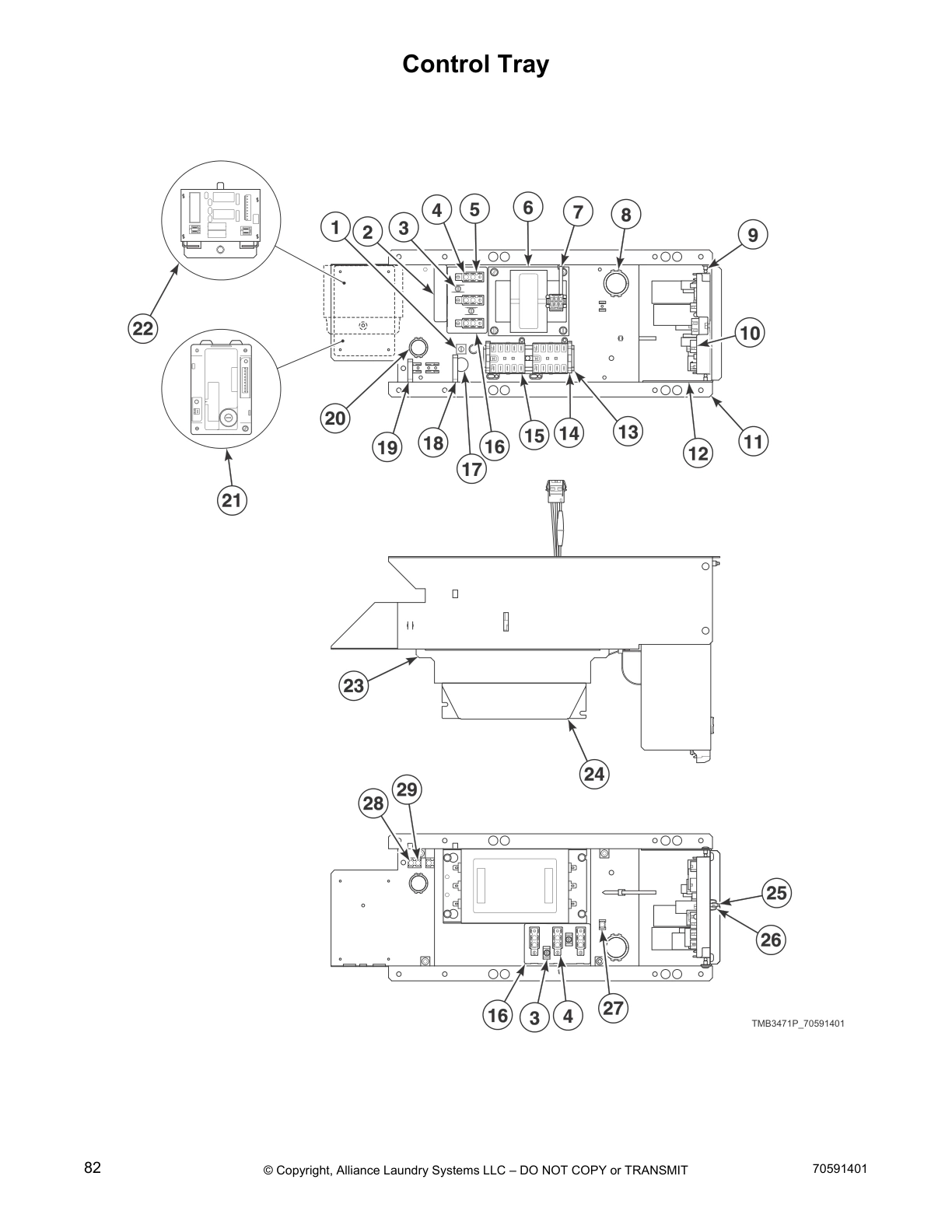

Control Tray

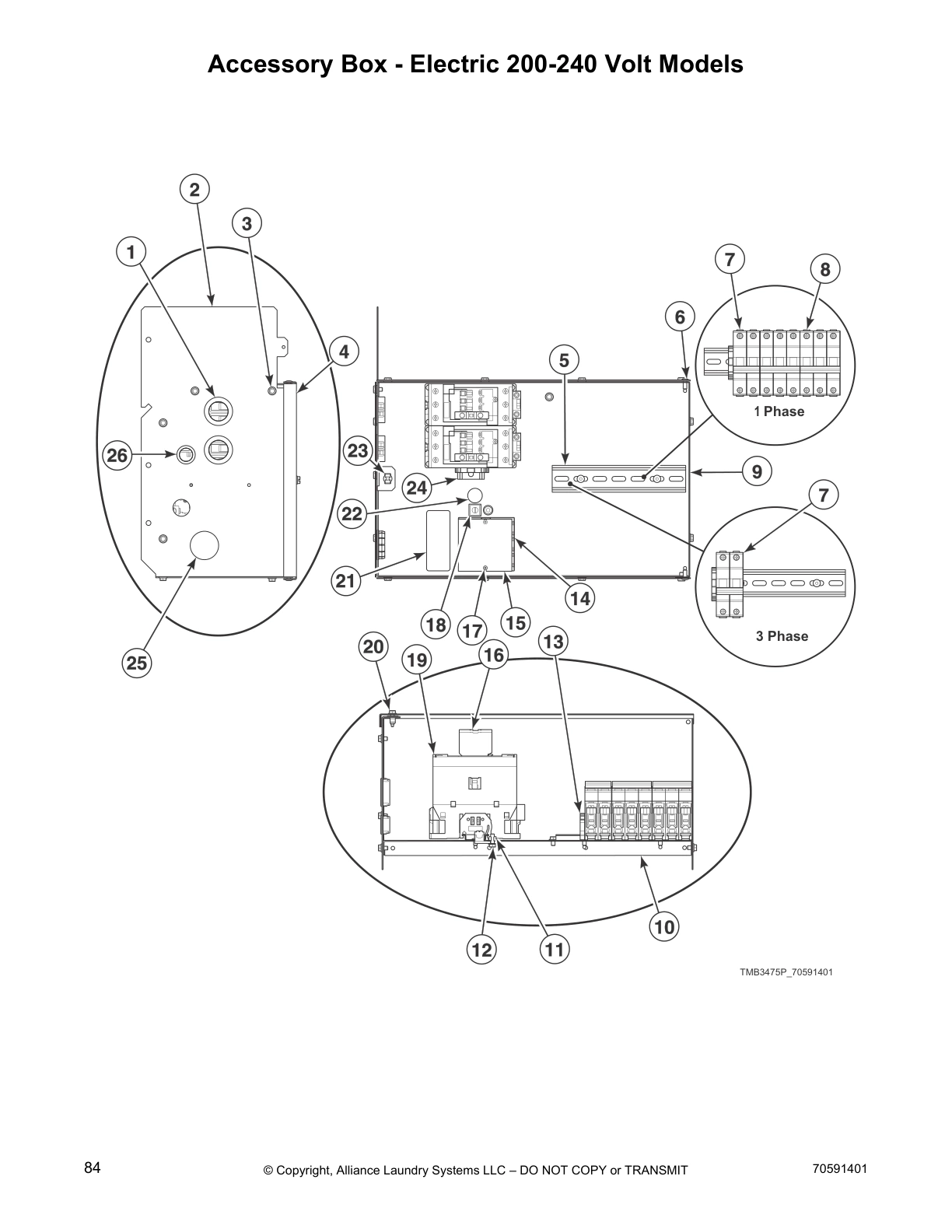

Accessory Box - Electric 200-240 Volt Models

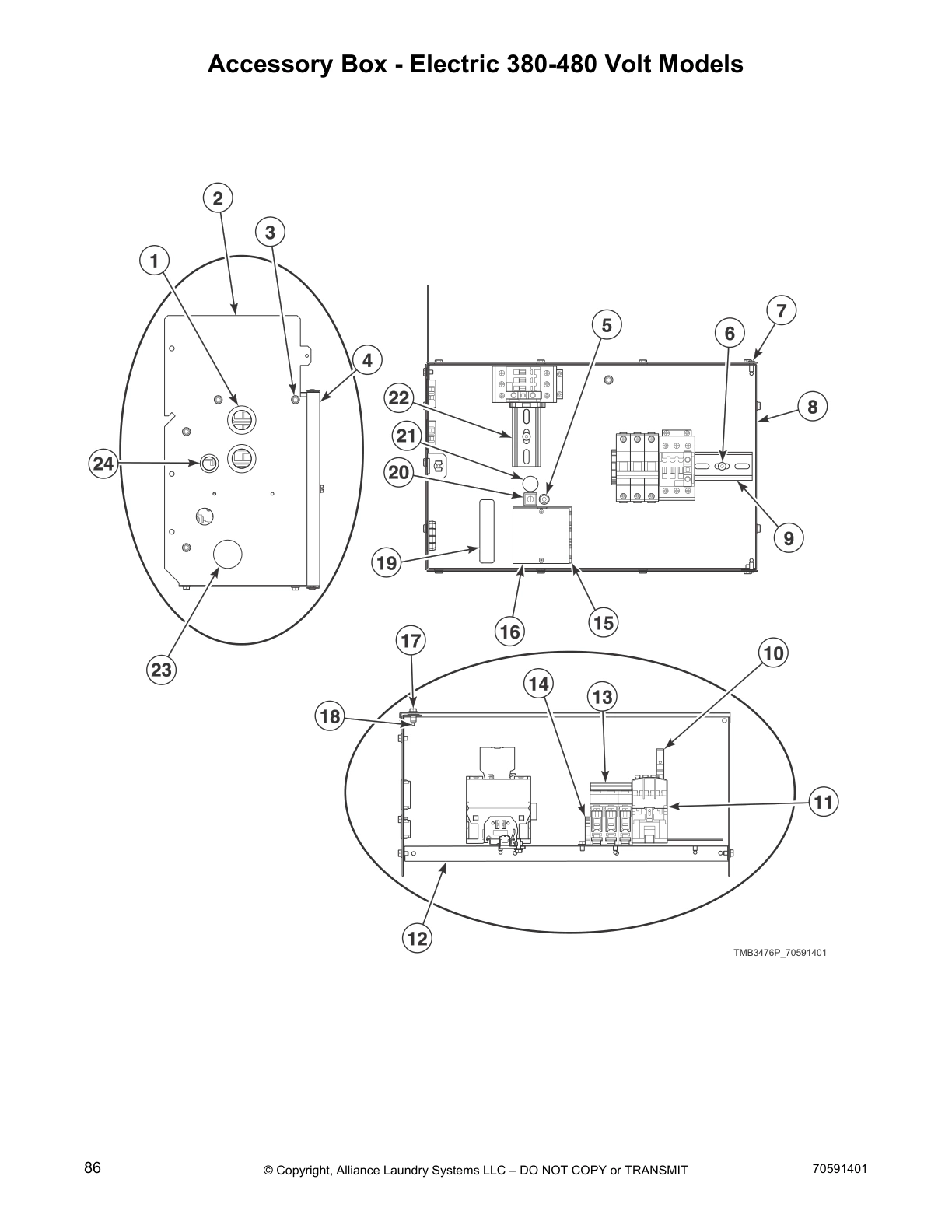

Accessory Box - Electric 380-480 Volt Models
Common parts from model UniMac UL035L Dryer
SPQ 70021103LG SPQ 70021103LG Contact Us For Availability
SPQ F160673P SPQ F160673P Contact Us For Availability
SPQ 70132301 SPQ 70132301 Contact Us For Availability
SPQ 70411301 SPQ 70411301 Contact Us For Availability
SPQ 70257102 SPQ 70257102 Contact Us For Availability
SPQ 298P4P SPQ 298P4P Contact Us For Availability
SPQ 381P4 SPQ 381P4 Contact Us For Availability
High Voltage Suppression Cable SPQ 70551903 Contact Us For Availability
SPQ 70167601 SPQ 70167601 Contact Us For Availability
SPQ 70684118 SPQ 70684118 Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
False Front SPQ 70024004 Contact Us For Availability
1
Control Panel SPQ 70273416W Contact Us For Availability
1
Front Panel SPQ 70623701LG Contact Us For Availability
1
Cylinder Assembly SPQ 70372602P Contact Us For Availability
1
Union Tee SPQ 70427901 Contact Us For Availability
1
Blower Housing SPQ 70554701 Contact Us For Availability
1
Airflow Switch Cover SPQ 70356601 Contact Us For Availability
1
Street Elbow SPQ H86070034 Contact Us For Availability
2
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
2
Screw SPQ 70024003LG Contact Us For Availability
2
Front Panel SPQ 70622701 Contact Us For Availability
2
Coin Chute Assembly SPQ 44057801LG Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Handle and Caps Assembly SPQ 70117603 Contact Us For Availability
2
Cylinder Rib Assembly SPQ 70435201 Contact Us For Availability
2
Slip Ring Holder SPQ 70455401 Contact Us For Availability
2
Airflow Switch Wrapper SPQ 70465701 Contact Us For Availability
2
Gas Valve SPQ 70159601 Contact Us For Availability
3
Support Bearing SPQ 70448701 Contact Us For Availability
3
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
3
Door Hinge SPQ 70115901W Contact Us For Availability
3
Panel Locator SPQ F8443105 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Screw SPQ 70070101 Contact Us For Availability
3
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
3
Hole Plug SPQ 70347001 Contact Us For Availability
3
Idler Wheel Assembly SPQ 70493301 Contact Us For Availability
3
Switch SPQ 70356101 Contact Us For Availability
3
Gas Line Assembly SPQ 70239801 Contact Us For Availability
3
Terminal Block Shield SPQ 51783 Contact Us For Availability
4
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
4
Door Glass SPQ M400784P Contact Us For Availability
4
Cable Tie SPQ 430642 Contact Us For Availability
4
Hinge Cam Kit SPQ 70115904 Contact Us For Availability
4
Coin Box SPQ 44088801 Contact Us For Availability
4
SPQ 70515503W SPQ 70515503W Contact Us For Availability
4
Trunnion and Seal Kit SPQ 70070102 Contact Us For Availability
4
Moisture Sensor Harness SPQ 44333903 Contact Us For Availability
4
Spray Paint SPQ 70252601 Contact Us For Availability
4
SPQ 70653801 SPQ 70653801 Contact Us For Availability
4
Airflow Switch Arm SPQ 70411901 Contact Us For Availability
4
Snap Bushing SPQ 70333401 Contact Us For Availability
5
Washer SPQ M400991 Contact Us For Availability
5
Pop Rivet SPQ 44088001 Contact Us For Availability
5
Door Glass Installation Tool SPQ M4221P4 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
Rear Cylinder Channel Plate SPQ 70433001 Contact Us For Availability
5
Spray Nozzle Hose SPQ 70427701 Contact Us For Availability
5
SPQ 70501301 SPQ 70501301 Contact Us For Availability
5
Blower Inlet Cone SPQ 70554901 Contact Us For Availability
5
Screw SPQ 70319401 Contact Us For Availability
5
Gas Valve Cover SPQ 70271201 Contact Us For Availability
5
Bushing SPQ 70333001 Contact Us For Availability
6
Nut SPQ M414215 Contact Us For Availability
6
Pin SPQ 70115903LG Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Tube Assembly SPQ 70427601 Contact Us For Availability
6
Fan Motor SPQ 70392701P Contact Us For Availability
6
Warning Label SPQ 685837 Contact Us For Availability
7
Door Handle SPQ 44263801 Contact Us For Availability
7
SPQ 70576101 SPQ 70576101 Contact Us For Availability
7
SPQ 70289101P SPQ 70289101P Contact Us For Availability
7
Door Catch Kit SPQ 70296401 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272401 Contact Us For Availability
7
Washer SPQ 70564804 Contact Us For Availability
7
SPQ 70021502LG SPQ 70021502LG Contact Us For Availability
7
Airflow Switch and Arm Bracket SPQ 70356301 Contact Us For Availability
7
Gas Valve Bracket SPQ 70429901 Contact Us For Availability
7
Conversion Kit SPQ 70335601 Contact Us For Availability
8
Rear Cylinder Channel SPQ 70564803 Contact Us For Availability
8
Door Ring Assembly SPQ 70543906 Contact Us For Availability
8
SPQ M400044 SPQ M400044 Contact Us For Availability
8
SPQ 70413301 SPQ 70413301 Contact Us For Availability
8
SPQ 70016701 SPQ 70016701 Contact Us For Availability
8
Control Tray Cover SPQ 70346501 Contact Us For Availability
8
SPQ 70253801LG SPQ 70253801LG Contact Us For Availability
8
SPQ 70424201 SPQ 70424201 Contact Us For Availability
8
SPQ 70014101 SPQ 70014101 Contact Us For Availability
8
Airflow Switch Vane SPQ 70319602 Contact Us For Availability
8
Adapter SPQ M405750 Contact Us For Availability
9
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
9
Drywall Screw Magnet Kit SPQ 70506402 Contact Us For Availability
9
Screw SPQ 70543902 Contact Us For Availability
9
SPQ M400977 SPQ M400977 Contact Us For Availability
9
SPQ 70424401 SPQ 70424401 Contact Us For Availability
9
SPQ 70484901P SPQ 70484901P Contact Us For Availability
10
Rear Cylinder Seal SPQ 70013701P Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70372601P Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Roller Catch Wheel SPQ 70297601 Contact Us For Availability
10
Lower Pan SPQ 70326601 Contact Us For Availability
10
Control Box Cover SPQ 44065201 Contact Us For Availability
10
Blower Motor Mounting Plate SPQ 70349601 Contact Us For Availability
11
Screw SPQ 70436301 Contact Us For Availability
11
Screw SPQ 44349101 Contact Us For Availability
11
Screw SPQ M411072 Contact Us For Availability
11
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
11
Roller Catch Spacer SPQ 70030201 Contact Us For Availability
11
End Cap SPQ 70435202 Contact Us For Availability
11
Spray Nozzle SPQ 70427801 Contact Us For Availability
11
Screw SPQ 70508301 Contact Us For Availability
11
Screw SPQ 70126101 Contact Us For Availability
11
Stove Back SPQ 70371501 Contact Us For Availability
11
Control Tray SPQ 70492401 Contact Us For Availability
12
Lock Shim SPQ 70342401 Contact Us For Availability
12
Screw SPQ 70072801 Contact Us For Availability
12
Elbow SPQ 70428101 Contact Us For Availability
12
Burner Grill SPQ 70188801 Contact Us For Availability
12
Control Board Control Tray SPQ 70494901 Contact Us For Availability
13
Key SPQ 70155602 Contact Us For Availability
13
Center Cylinder Seal SPQ 70066003 Contact Us For Availability
13
Nozzle Bracket SPQ 70428601 Contact Us For Availability
13
Exhaust Thimble SPQ F430144 Contact Us For Availability
13
Anti-Rattle Burner Assembly SPQ 70546701 Contact Us For Availability
14
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
14
Lint Screen SPQ 70325601 Contact Us For Availability
14
Label SPQ 70472801 Contact Us For Availability
14
Magnet SPQ 70343101 Contact Us For Availability
14
Nut SPQ M400022 Contact Us For Availability
14
Gas Burner SPQ 70229801P Contact Us For Availability
15
Pop Rivet SPQ 44166601 Contact Us For Availability
15
Sheet Metal Edge Gasket SPQ 70015711 Contact Us For Availability
15
Nut SPQ 70126104 Contact Us For Availability
15
Contactor SPQ 70482601 Contact Us For Availability
16
Door Latch SPQ M401223 Contact Us For Availability
16
Pop Rivet SPQ 70126401 Contact Us For Availability
16
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
16
Hose SPQ 44073304 Contact Us For Availability
16
Damper and Hinge Exhaust Assembly SPQ 70215101 Contact Us For Availability
16
Lever Arm and Belt Kit SPQ 70017801 Contact Us For Availability
16
Thermostat Cover SPQ M414477 Contact Us For Availability
16
Insulator SPQ M413862 Contact Us For Availability
17
Switch Hole Plug SPQ 44057801W Contact Us For Availability
17
Panel Locator SPQ 70126301 Contact Us For Availability
17
Roller Seal SPQ 70443601 Contact Us For Availability
17
Damper Spacer SPQ 70209501 Contact Us For Availability
17
Screw SPQ F8206901 Contact Us For Availability
18
Nameplate SPQ 44057801Q Contact Us For Availability
18
Roller Shaft SPQ 70249501 Contact Us For Availability
18
Thermistor SPQ 70020301 Contact Us For Availability
18
Stove Limit Harness SPQ 70564301 Contact Us For Availability
18
Wire Clip SPQ F8449501 Contact Us For Availability
19
Washer SPQ 70261401 Contact Us For Availability
19
Nut SPQ 44057801B Contact Us For Availability
19
Control Box Base SPQ 44065301 Contact Us For Availability
19
Motor Pulley SPQ 70655102 Contact Us For Availability
19
Limit Access Bracket SPQ 70220901 Contact Us For Availability
19
Igniter Cover SPQ 05161 Contact Us For Availability
19
Snap Bushing SPQ F8449502 Contact Us For Availability
20
Handle and Caps Assembly SPQ 70117617 Contact Us For Availability
20
Screw SPQ 70178701 Contact Us For Availability
20
Spark Electrode SPQ 44154508 Contact Us For Availability
20
Ground Lug Connector SPQ M411283 Contact Us For Availability
21
Pushbutton Switch SPQ 70155601 Contact Us For Availability
21
Lint Panel SPQ F8245101 Contact Us For Availability
21
Roller Support Bracket SPQ 70328301 Contact Us For Availability
21
Fan Motor SPQ 44333202 Contact Us For Availability
21
Pipe Clip SPQ 44154507 Contact Us For Availability
22
Gasket SPQ 70154403 Contact Us For Availability
22
Blower Motor Mounting Plate SPQ 70559101 Contact Us For Availability
22
DIN Rail SPQ M412690 Contact Us For Availability
23
Lint Panel Pivot Plate SPQ 70154414 Contact Us For Availability
23
Center Partition SPQ 70015710 Contact Us For Availability
23
Plug SPQ 70180001 Contact Us For Availability
23
Lower Rear Assembly SPQ 70485001P Contact Us For Availability
23
Orifice Adapter SPQ 70548701P Contact Us For Availability
24
Roller Catch Arm SPQ 70515504W Contact Us For Availability
24
Bushing SPQ 70432306 Contact Us For Availability
24
Snap Bushing SPQ M400770 Contact Us For Availability
24
Elbow SPQ 70203701 Contact Us For Availability
25
Screw SPQ 70347002 Contact Us For Availability
25
Orifice Holder Bracket SPQ 70379301 Contact Us For Availability
26
Side Panel SPQ 70432305 Contact Us For Availability
26
Primary Air Adjustment Sleeve SPQ 70208701 Contact Us For Availability
27
Stove Top and Sides SPQ 70248901 Contact Us For Availability
28
Terminal Block SPQ M400003 Contact Us For Availability
32
SPQ 70016301 SPQ 70016301 Contact Us For Availability
NI
SPQ 70173401P SPQ 70173401P Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
SPQ M400661 SPQ M400661 Contact Us For Availability
NI
SPQ 70071401 SPQ 70071401 Contact Us For Availability
NI
SPQ 70033502 SPQ 70033502 Contact Us For Availability
NI
SPQ 70021104 SPQ 70021104 Contact Us For Availability
NI
Pop Rivet SPQ 70273414 Contact Us For Availability
NI
SPQ 431318 SPQ 431318 Contact Us For Availability
NI
Front Panel Seal SPQ 70524213W Contact Us For Availability
NI
SPQ D511476 SPQ D511476 Contact Us For Availability
NI
Emergency Stop Bypass Harness SPQ F8519403 Contact Us For Availability
NI
SPQ 70030301 SPQ 70030301 Contact Us For Availability
NI
SPQ 70257201 SPQ 70257201 Contact Us For Availability
NI
SPQ 70257101 SPQ 70257101 Contact Us For Availability
NI
SPQ 70391101 SPQ 70391101 Contact Us For Availability
NI
Support Housing Bearing Assembly SPQ 70343101P Contact Us For Availability
NI
SPQ 430260P SPQ 430260P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 70063201 SPQ 70063201 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 44340301 SPQ 44340301 Contact Us For Availability
NI
SPQ 70478701P SPQ 70478701P Contact Us For Availability
NI
SPQ 70050401P SPQ 70050401P Contact Us For Availability
NI
SPQ 70319201 SPQ 70319201 Contact Us For Availability
NI
Pipe Plug SPQ 70504101 Contact Us For Availability
NI
Plug SPQ 70131901 Contact Us For Availability
NI
SPQ 70346801 SPQ 70346801 Contact Us For Availability
NI
SPQ 44239702 SPQ 44239702 Contact Us For Availability
NI
Burner Orifice SPQ 70684114 Contact Us For Availability
NI
SPQ 70684123 SPQ 70684123 Contact Us For Availability
NI
SPQ 70684116 SPQ 70684116 Contact Us For Availability
NI
SPQ 70559301 SPQ 70559301 Contact Us For Availability
NI
SPQ 70507501 SPQ 70507501 Contact Us For Availability
NI
SPQ F8611601 SPQ F8611601 Contact Us For Availability
× ![]()
