Model UniMac UJ120L Dryer – Common Parts & Diagrams

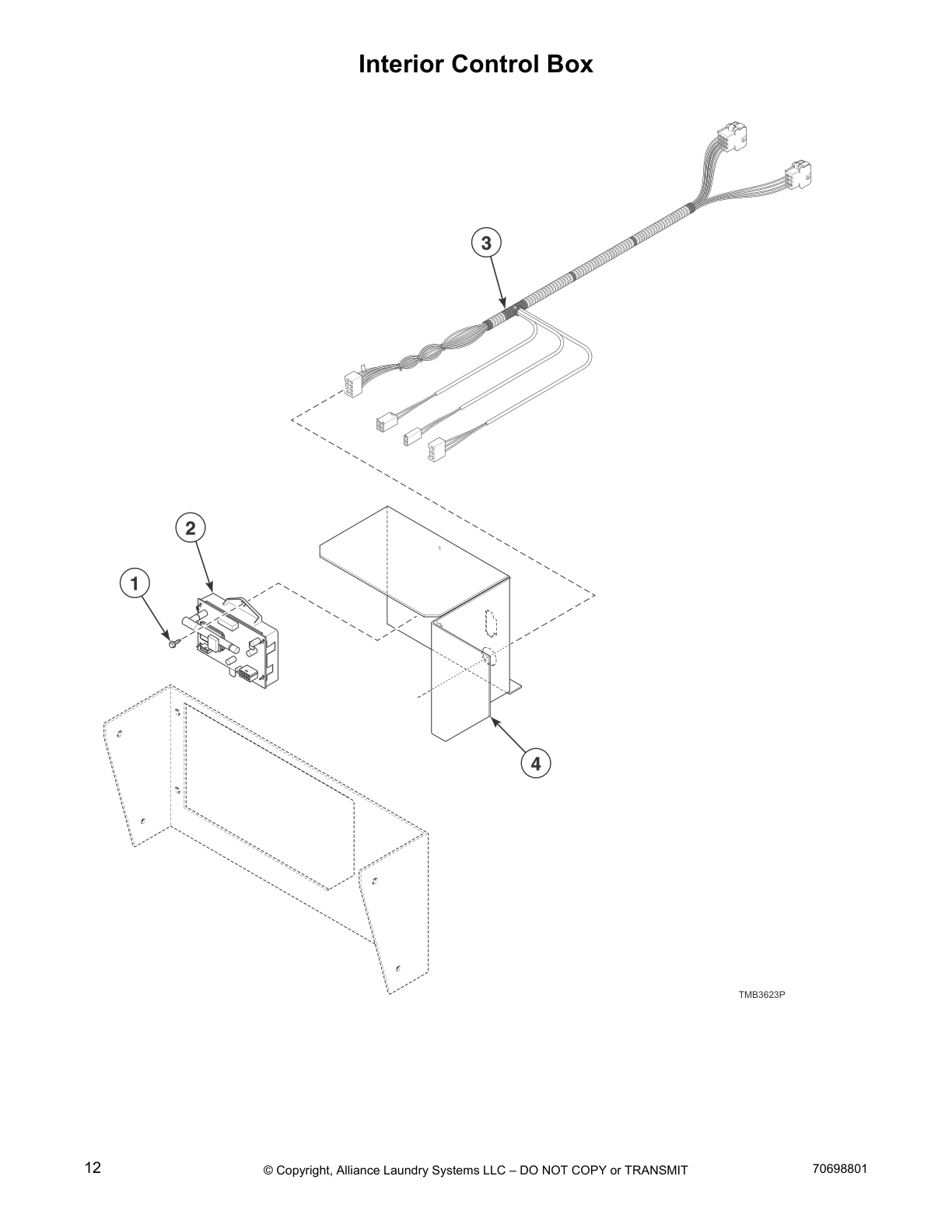

Interior Control Box

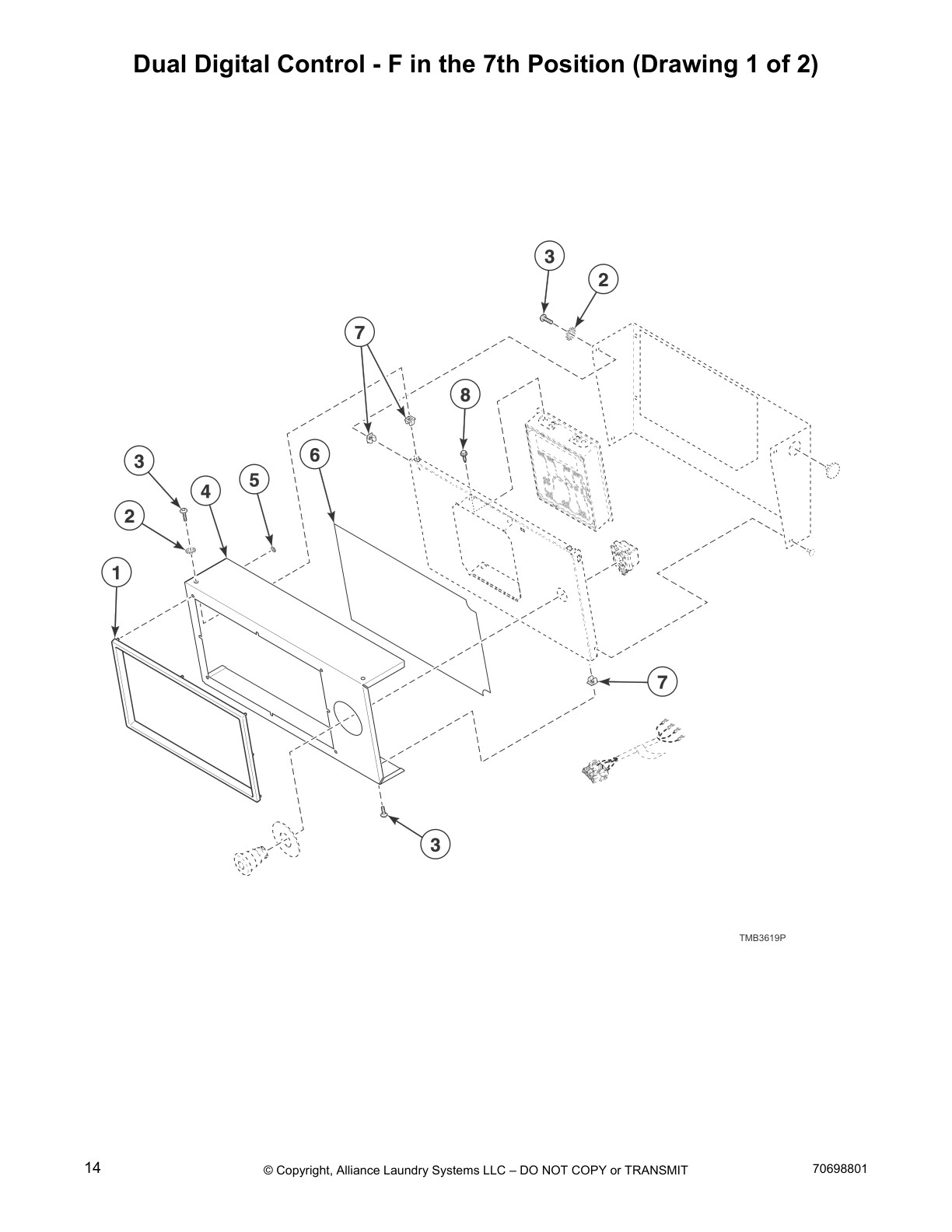

Dual Digital Control - F in the 7th Position (Drawing 1 of 2)
Dual Digital Control - F in the 7th Position (Drawing 2 of 2)
Electronic Display Control - N in the 7th Position (Drawing 1 of 2)
Electronic Display Control - N in the 7th Position (Drawing 2 of 2)
3.5 Inch Graphical Control - D in the 7th Position
Touch Control - V in the 7th Position
Fire Suppression System Control Box
Front Panel Components
Access Panel and Nameplates
Door Components
Hinge Components
Lint Panel Components
Cabinet and Frame Assembly
Rear Panel Components
Cylinder and Trunnion Assembly
Trunnion Bearings
Moisture Sensing Components
Cylinder Motor Components
Blower and Exhaust Components
Inverter Tray Components
Airflow Switch
Gas Heater Components
Burner Orifices
Steam Heater Components
Electric Heater Components
Control Tray
Accessory Box - Electric 200-240 Volt Models
Accessory Box - Electric 380-480 Volt Models
Common parts from model UniMac UJ120L Dryer
SPQ 44340301 SPQ 44340301 Contact Us For Availability
SPQ 44285401 SPQ 44285401 Contact Us For Availability
SPQ H88412101 SPQ H88412101 Contact Us For Availability
SPQ H88301411 SPQ H88301411 Contact Us For Availability
SPQ 70635411 SPQ 70635411 Contact Us For Availability
SPQ H85101608 SPQ H85101608 Contact Us For Availability
SPQ 44330303 SPQ 44330303 Contact Us For Availability
SPQ 70684114 SPQ 70684114 Contact Us For Availability
1
Door Ring Gasket SPQ 44008201P Contact Us For Availability
1
Handle and Caps Assembly SPQ 44049901 Contact Us For Availability
1
Rear Guard SPQ 44372001 Contact Us For Availability
1
Cylinder and Trunnion Assembly SPQ 44054802 Contact Us For Availability
1
Nut SPQ F8387701 Contact Us For Availability
1
Wireway Channel SPQ 44239001 Contact Us For Availability
1
Nut SPQ M400026 Contact Us For Availability
1
Insulator SPQ M413862 Contact Us For Availability
1
Switch SPQ 70411901 Contact Us For Availability
1
Gas Stove Assembly SPQ 44248801 Contact Us For Availability
1
Burner Orifice SPQ 70684122 Contact Us For Availability
2
Screw SPQ 44272401 Contact Us For Availability
2
Drive Rivet SPQ 44065301 Contact Us For Availability
2
Front Access Panel SPQ 44012612 Contact Us For Availability
2
Roller Catch Mounting Bracket SPQ 70117609 Contact Us For Availability
2
SPQ 44371901 SPQ 44371901 Contact Us For Availability
2
Cylinder Assembly SPQ 44054801 Contact Us For Availability
2
Rib Wire SPQ 44208101 Contact Us For Availability
2
Extension Spring SPQ 44355003 Contact Us For Availability
2
Snap Bushing SPQ M411283 Contact Us For Availability
2
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
2
Pressure Fitting SPQ 20391 Contact Us For Availability
3
Hinge Cam Kit SPQ 70576101 Contact Us For Availability
3
Roller Catch SPQ 70126401 Contact Us For Availability
3
SPQ 44369401 SPQ 44369401 Contact Us For Availability
3
Cylinder Assembly SPQ 44194101 Contact Us For Availability
3
Screw SPQ 44338901 Contact Us For Availability
3
Wire Clip SPQ 685837 Contact Us For Availability
3
I/O Control Assembly SPQ 70671701 Contact Us For Availability
4
Door Glass Installation Tool SPQ 70211902P Contact Us For Availability
4
Nut SPQ 44012609W Contact Us For Availability
4
Pin SPQ 44349101 Contact Us For Availability
4
SPQ 44371701 SPQ 44371701 Contact Us For Availability
4
Trunnion Assembly SPQ 44194102 Contact Us For Availability
4
Washer SPQ 44238902 Contact Us For Availability
4
Fan Motor SPQ 44354904 Contact Us For Availability
4
Switch Bracket SPQ 70356301 Contact Us For Availability
4
Bushing SPQ 44249301 Contact Us For Availability
4
Snap Bushing SPQ D503235 Contact Us For Availability
5
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
5
Bushing SPQ 44041901P Contact Us For Availability
5
Overlay SPQ F200233500 Contact Us For Availability
5
Overlay SPQ 44330803W Contact Us For Availability
5
Spray Paint SPQ 70472801 Contact Us For Availability
5
Washer SPQ 44012609LG Contact Us For Availability
5
SPQ 44008401P SPQ 44008401P Contact Us For Availability
5
SPQ 44028202W SPQ 44028202W Contact Us For Availability
5
SPQ 44370101 SPQ 44370101 Contact Us For Availability
5
Nut SPQ M409788 Contact Us For Availability
5
Bearing Mounting SPQ M411165 Contact Us For Availability
5
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
5
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
5
Nipple SPQ 44087801 Contact Us For Availability
6
Contact Base SPQ 70478802 Contact Us For Availability
6
Expansion Clip SPQ 44330803LG Contact Us For Availability
6
Expansion Clip SPQ M400977 Contact Us For Availability
6
Screw SPQ 70030401 Contact Us For Availability
6
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
6
Nut SPQ 70442101 Contact Us For Availability
6
SPQ 70071401 SPQ 70071401 Contact Us For Availability
6
SPQ 70126301 SPQ 70126301 Contact Us For Availability
6
SPQ 44028202LG SPQ 44028202LG Contact Us For Availability
6
Washer SPQ H96427513 Contact Us For Availability
6
Spacer SPQ 44048301P Contact Us For Availability
6
Inverter to Motor Harness SPQ M400008 Contact Us For Availability
7
Wireless Network Board Harness SPQ 44330802 Contact Us For Availability
7
Emergency Stop Bypass Harness SPQ 70595401 Contact Us For Availability
7
SPQ 70033504 SPQ 70033504 Contact Us For Availability
7
SPQ 44012206 SPQ 44012206 Contact Us For Availability
7
Spacer SPQ 44193301 Contact Us For Availability
7
SPQ 44301701 SPQ 44301701 Contact Us For Availability
7
Airflow Switch Kit SPQ 70319201 Contact Us For Availability
7
Extension Harness SPQ 70159601 Contact Us For Availability
8
Porcelain Touch-Up Paint SPQ 44166601 Contact Us For Availability
8
SPQ 44012203LG SPQ 44012203LG Contact Us For Availability
8
SPQ 44266902 SPQ 44266902 Contact Us For Availability
8
SPQ M401402 SPQ M401402 Contact Us For Availability
8
Bolt SPQ 44193302 Contact Us For Availability
8
1 Circuit Plug Housing SPQ M400035 Contact Us For Availability
8
Blower Assembly SPQ 44354902 Contact Us For Availability
9
Cold Weather Kit SPQ 44065201 Contact Us For Availability
9
Door Catch Kit SPQ M401223 Contact Us For Availability
9
SPQ 44014001 SPQ 44014001 Contact Us For Availability
9
Cylinder Rib Assembly SPQ 44055501 Contact Us For Availability
9
SPQ H88012034 SPQ H88012034 Contact Us For Availability
9
SPQ 44370401 SPQ 44370401 Contact Us For Availability
9
Extension Harness SPQ 70346501 Contact Us For Availability
10
Control Guard SPQ 44369602 Contact Us For Availability
10
Nut SPQ M414215 Contact Us For Availability
10
Screw SPQ 70436301 Contact Us For Availability
10
Screw SPQ 70154416 Contact Us For Availability
10
Damper Assembly SPQ 44280303 Contact Us For Availability
10
Moisture Sensing Harness Kit SPQ 44344703 Contact Us For Availability
10
V-Belt SPQ 44293702 Contact Us For Availability
10
Snap Bushing SPQ 44071501 Contact Us For Availability
10
Inverter Control Assembly SPQ 70603601 Contact Us For Availability
11
Control Bracket SPQ 44331006W Contact Us For Availability
11
Light SPQ 44369601 Contact Us For Availability
11
Switch SPQ 44312401 Contact Us For Availability
11
Door Handle SPQ 44263801 Contact Us For Availability
11
Spud Holder Weldment SPQ 44390001 Contact Us For Availability
12
Plug SPQ 44331006LG Contact Us For Availability
12
Door Switch Cover SPQ 44316301 Contact Us For Availability
12
Motor Pulley SPQ 44267602 Contact Us For Availability
12
Thermostat Cover SPQ M414477 Contact Us For Availability
12
Snap Bushing SPQ M400770 Contact Us For Availability
13
Pop Rivet SPQ 44331005 Contact Us For Availability
13
Door Switch Shield SPQ 44316601 Contact Us For Availability
13
Screw SPQ M400661 Contact Us For Availability
13
Guard SPQ 44369301 Contact Us For Availability
13
Drive Motor SPQ 44309402 Contact Us For Availability
13
Fuse Control Assembly SPQ 70683201 Contact Us For Availability
14
Lint Panel Clip SPQ 44288401 Contact Us For Availability
14
Vent Collar SPQ H96372164 Contact Us For Availability
15
Contact Switch SPQ M400985 Contact Us For Availability
15
Bolt SPQ 70343101 Contact Us For Availability
15
Top Access Panel Gusset SPQ 44028201W Contact Us For Availability
15
Screw SPQ 70275801 Contact Us For Availability
15
Screw SPQ F8206901 Contact Us For Availability
15
Gas Valve SPQ 44166704 Contact Us For Availability
16
Label SPQ 44292003W Contact Us For Availability
16
Screw SPQ 44028201LG Contact Us For Availability
16
Drive Access Cover SPQ 44377201 Contact Us For Availability
16
Pipe Nipple SPQ 44166703 Contact Us For Availability
17
Control Tray Guard SPQ 44371801 Contact Us For Availability
17
Bolt SPQ 44355004 Contact Us For Availability
17
Terminal Block SPQ 70333001 Contact Us For Availability
17
Pipe Union SPQ 44249501 Contact Us For Availability
18
Ground Lug Connector SPQ 430642 Contact Us For Availability
18
Emergency Stop Harness SPQ F8069501 Contact Us For Availability
18
Pop Rivet SPQ 44017801 Contact Us For Availability
18
SPQ 70202501 SPQ 70202501 Contact Us For Availability
18
Hose Clamp SPQ M411419 Contact Us For Availability
19
Emergency Stop Label SPQ F8538101 Contact Us For Availability
19
Lint Panel SPQ 44017901 Contact Us For Availability
19
Pipe Elbow SPQ 44252301 Contact Us For Availability
20
Emergency Stop Pushbutton SPQ 44012901 Contact Us For Availability
20
Blind Rivet SPQ 70117620 Contact Us For Availability
20
Bearing SPQ M400650 Contact Us For Availability
20
Screw SPQ 44252401 Contact Us For Availability
21
Lint Screen SPQ M409911 Contact Us For Availability
21
Trunnion Housing SPQ F8440701 Contact Us For Availability
21
Cable Tie SPQ 44249401 Contact Us For Availability
22
Lint Screen Clip SPQ 44063602 Contact Us For Availability
22
Washer SPQ M413923P Contact Us For Availability
22
High Voltage Suppression C SPQ 44231601 Contact Us For Availability
23
Screw SPQ M413826 Contact Us For Availability
23
DIN Rail SPQ M412690 Contact Us For Availability
24
Ball Bearing SPQ 70261401 Contact Us For Availability
24
Thermistor Plate SPQ H96418413 Contact Us For Availability
24
Gas Valve Bracket SPQ 51783 Contact Us For Availability
25
Key SPQ M400063 Contact Us For Availability
26
Pipe Cap SPQ 44239704 Contact Us For Availability
27
Cable Tie SPQ 70335601 Contact Us For Availability
28
Burner SPQ 44245701 Contact Us For Availability
29
Thermistor SPQ 44088001 Contact Us For Availability
30
Blower Inlet Cone SPQ 44068102 Contact Us For Availability
31
Damper Assembly SPQ 44068101 Contact Us For Availability
NI
SPQ 70155601 SPQ 70155601 Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
SPQ 430725 SPQ 430725 Contact Us For Availability
NI
SPQ F8519403 SPQ F8519403 Contact Us For Availability
NI
SPQ F8536002 SPQ F8536002 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
Manifold SPQ 44089301P Contact Us For Availability
NI
SPQ 44079601 SPQ 44079601 Contact Us For Availability
NI
SPQ 70182601 SPQ 70182601 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ F8245101 SPQ F8245101 Contact Us For Availability
NI
SPQ H87020202 SPQ H87020202 Contact Us For Availability
NI
SPQ 44285402 SPQ 44285402 Contact Us For Availability
NI
SPQ M402144 SPQ M402144 Contact Us For Availability
NI
SPQ 44055502 SPQ 44055502 Contact Us For Availability
NI
SPQ M412334 SPQ M412334 Contact Us For Availability
NI
SPQ 44191203 SPQ 44191203 Contact Us For Availability
NI
SPQ F280409P SPQ F280409P Contact Us For Availability
NI
SPQ 70635412 SPQ 70635412 Contact Us For Availability
NI
SPQ 44267201 SPQ 44267201 Contact Us For Availability
NI
SPQ F8449502 SPQ F8449502 Contact Us For Availability
NI
SPQ 70429601P SPQ 70429601P Contact Us For Availability
NI
SPQ 44374903 SPQ 44374903 Contact Us For Availability
NI
SPQ M413021 SPQ M413021 Contact Us For Availability
NI
SPQ 44174201 SPQ 44174201 Contact Us For Availability
NI
SPQ 44342901 SPQ 44342901 Contact Us For Availability
NI
SPQ 44178803 SPQ 44178803 Contact Us For Availability
NI
Burner Orifice SPQ 70684119 Contact Us For Availability
NI
SPQ 70684118 SPQ 70684118 Contact Us For Availability
NI
SPQ 70684116 SPQ 70684116 Contact Us For Availability
NI
SPQ M400003 SPQ M400003 Contact Us For Availability
× ![]()
