Model UniMac UG120N Dryer – Common Parts & Diagrams

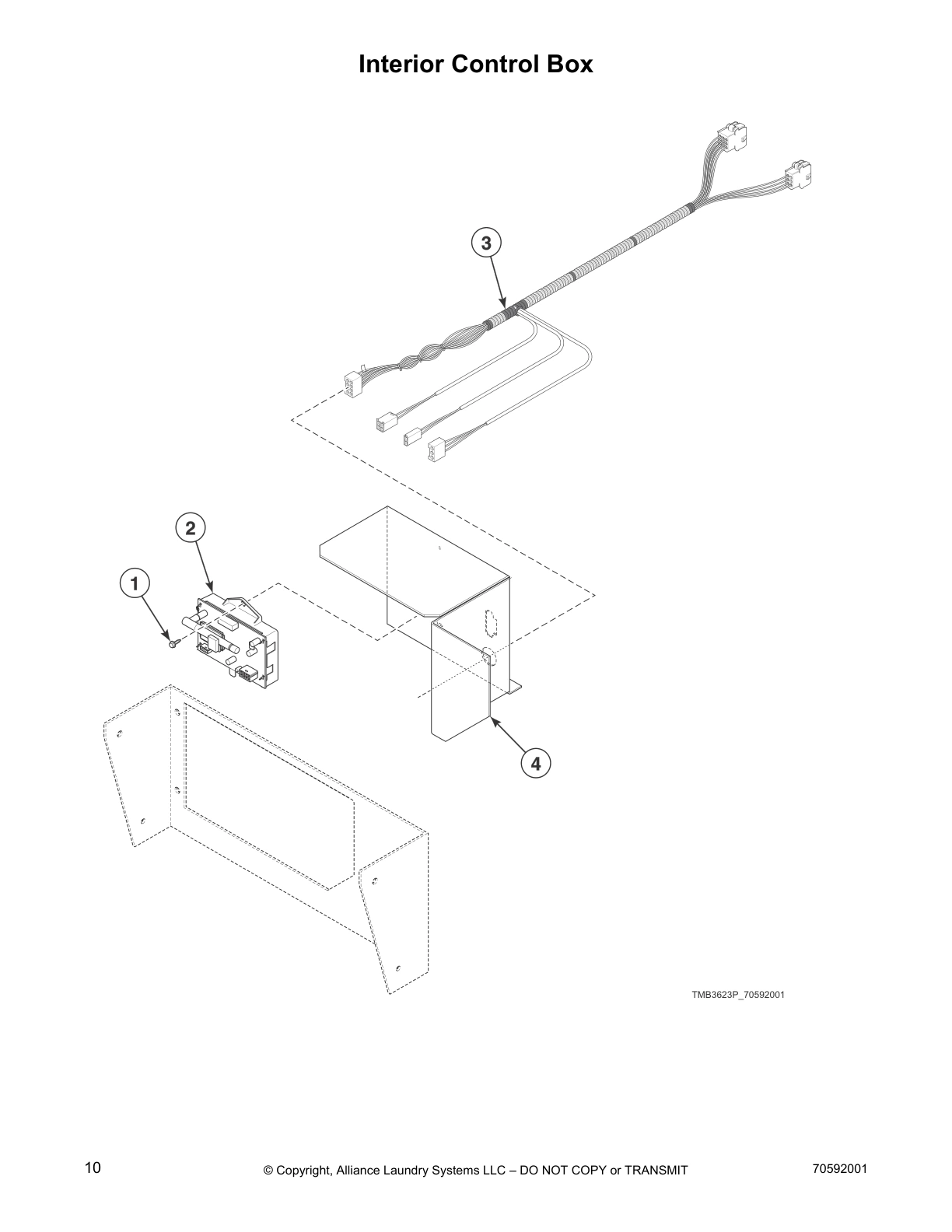

Interior Control Box

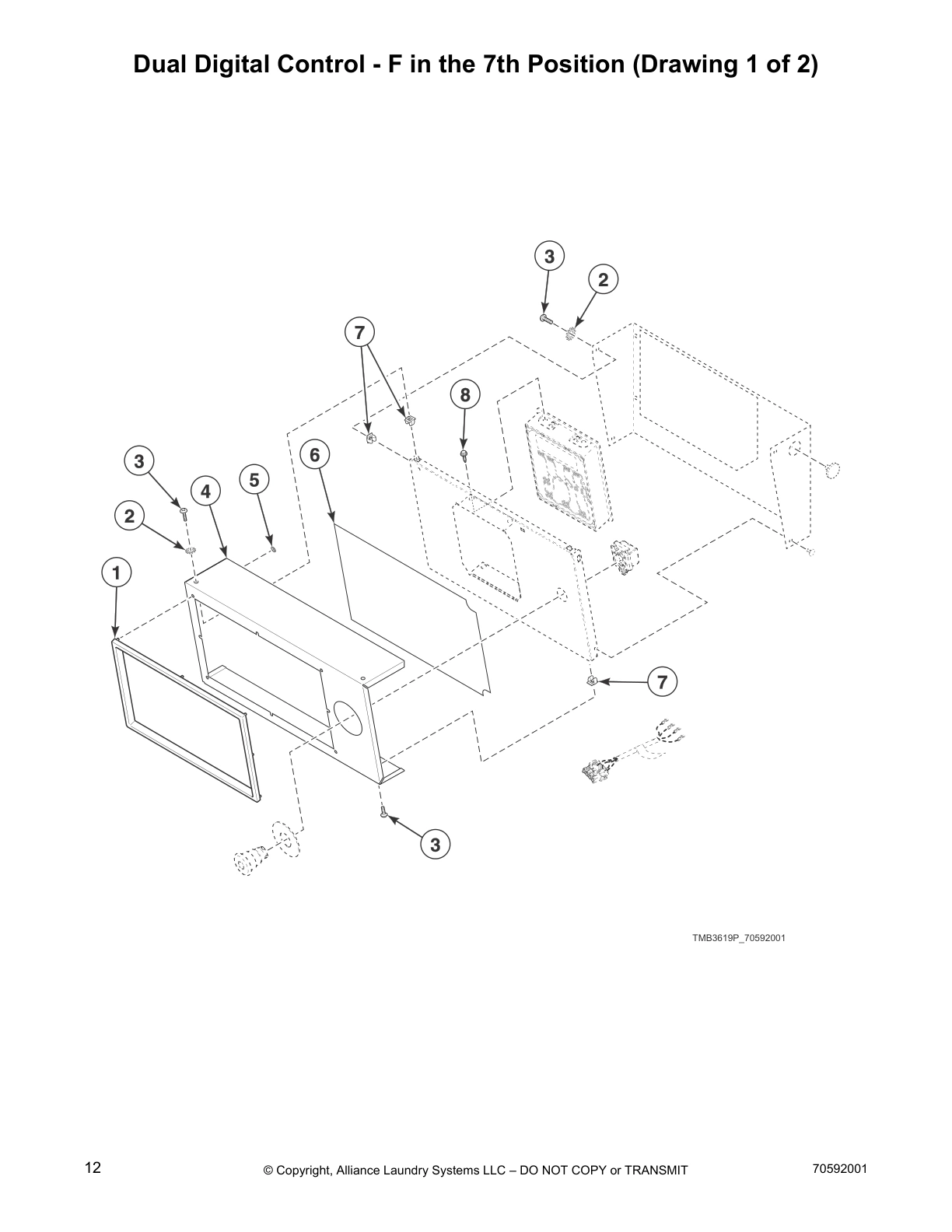

Dual Digital Control - F in the 7th Position (Drawing 1 of 2)

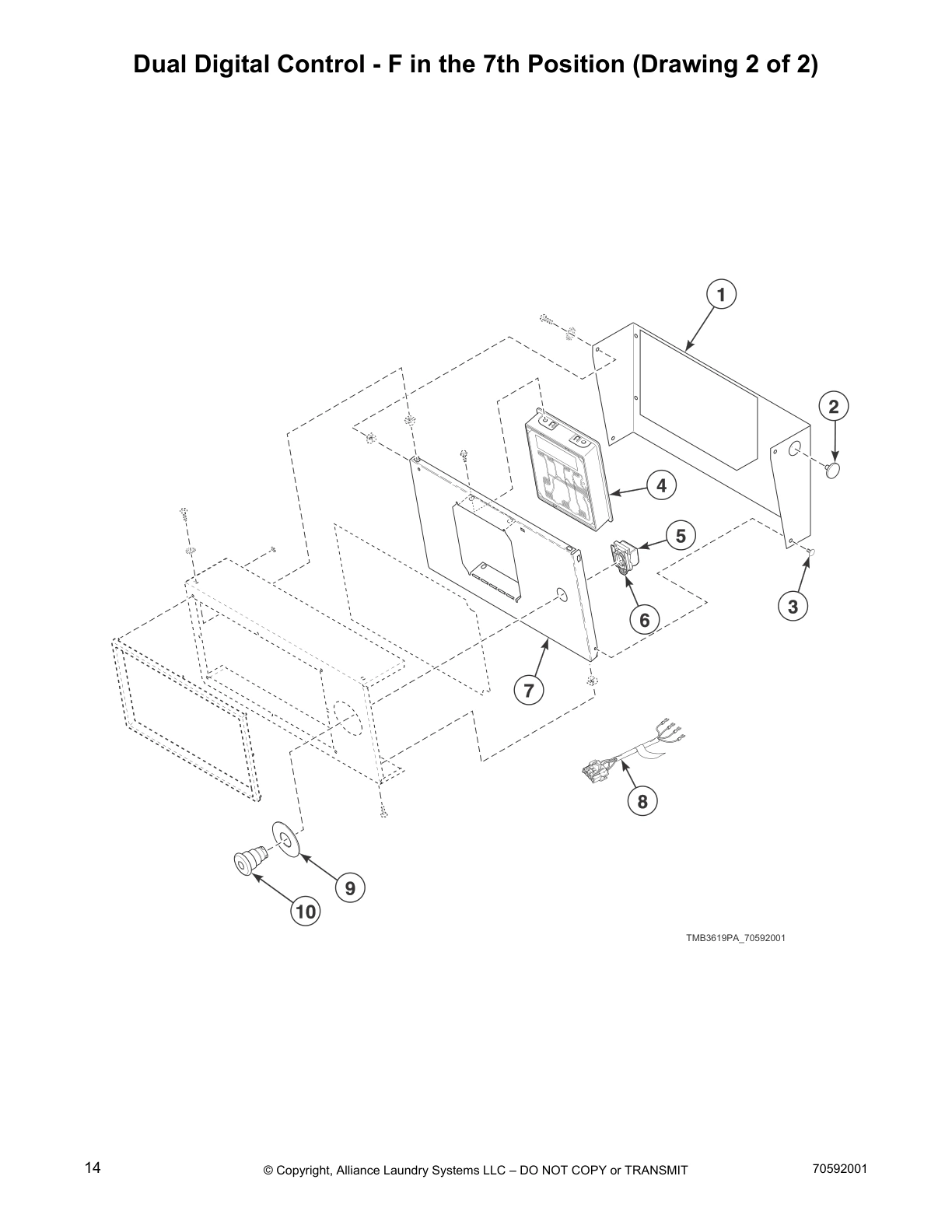

Dual Digital Control - F in the 7th Position (Drawing 2 of 2)

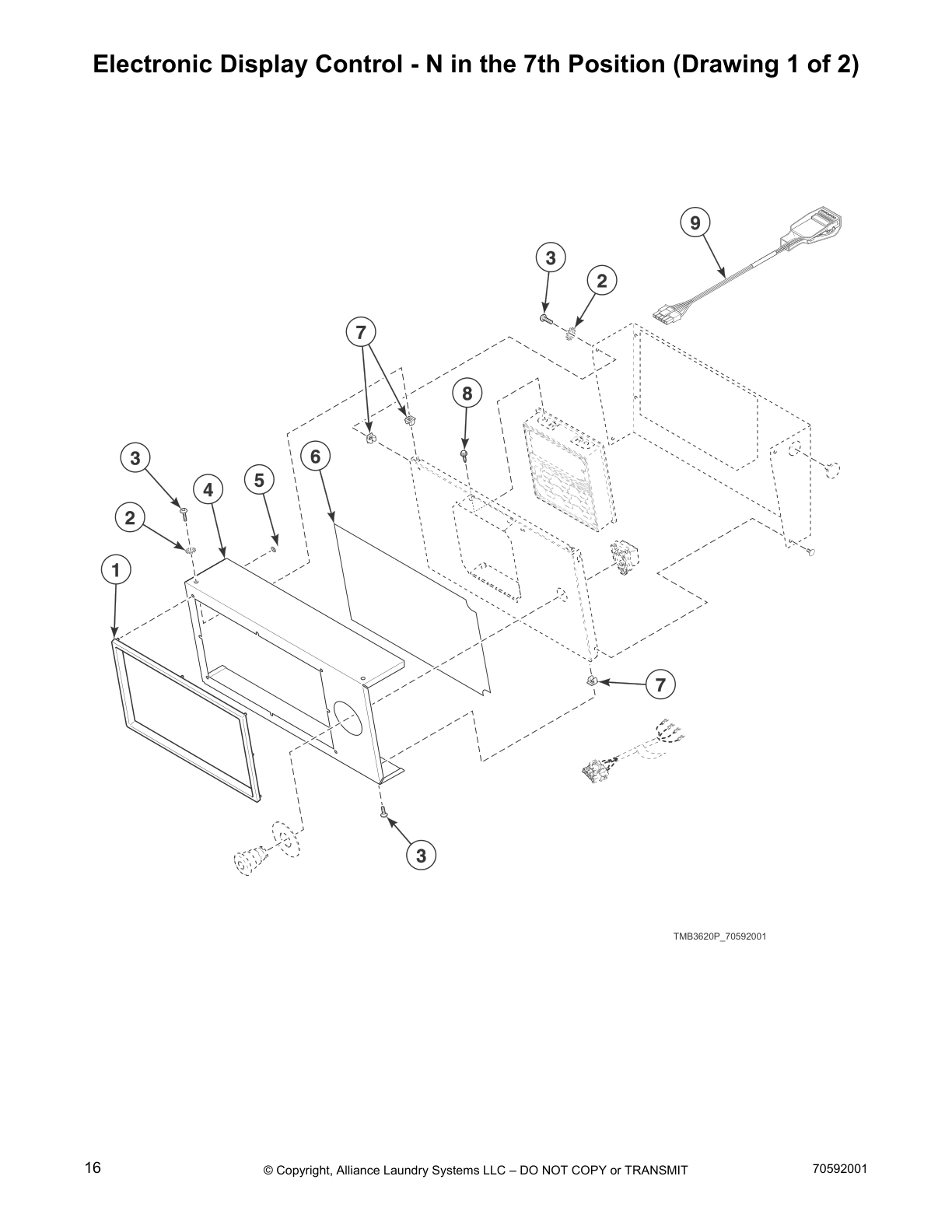

Electronic Display Control - N in the 7th Position (Drawing 1 of 2)

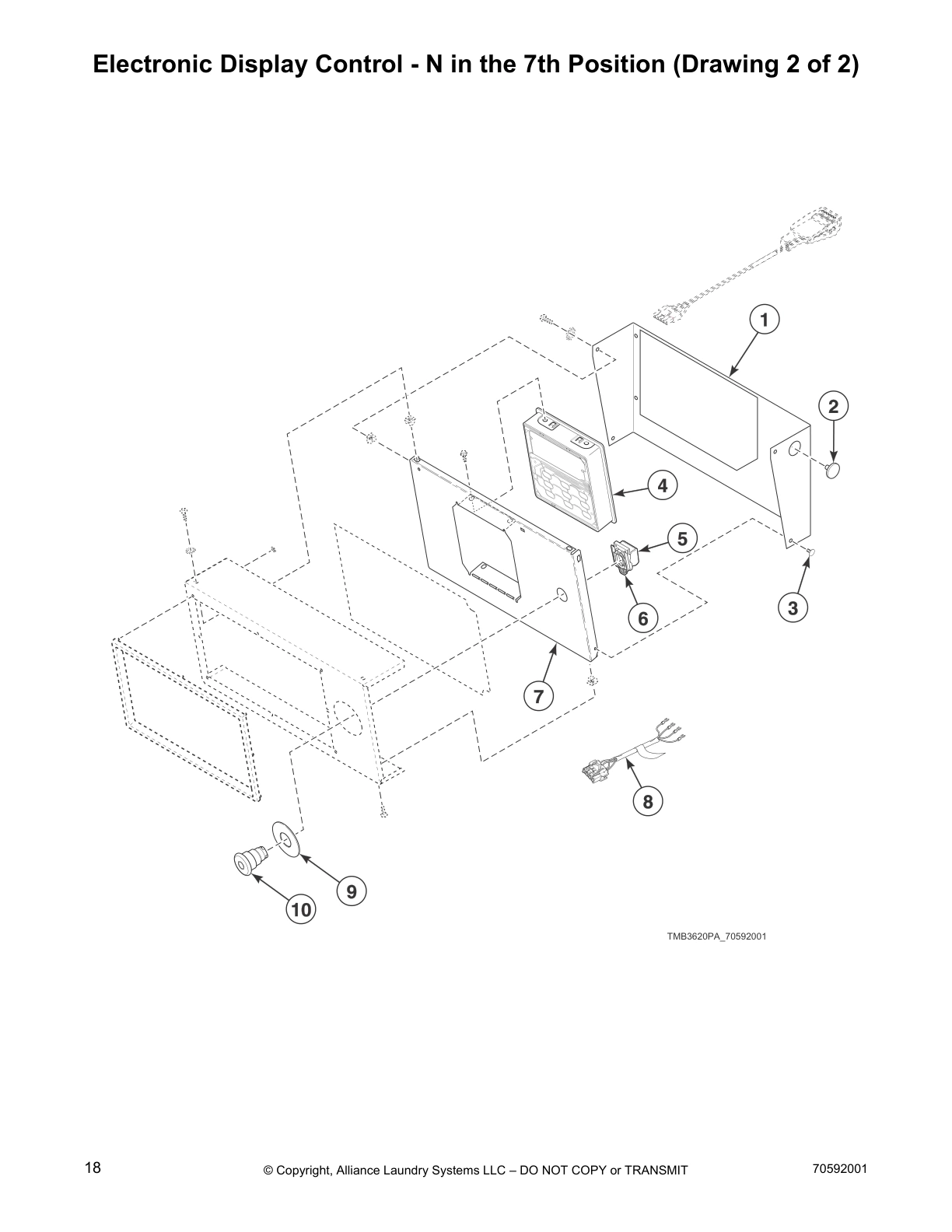

Electronic Display Control - N in the 7th Position (Drawing 2 of 2)

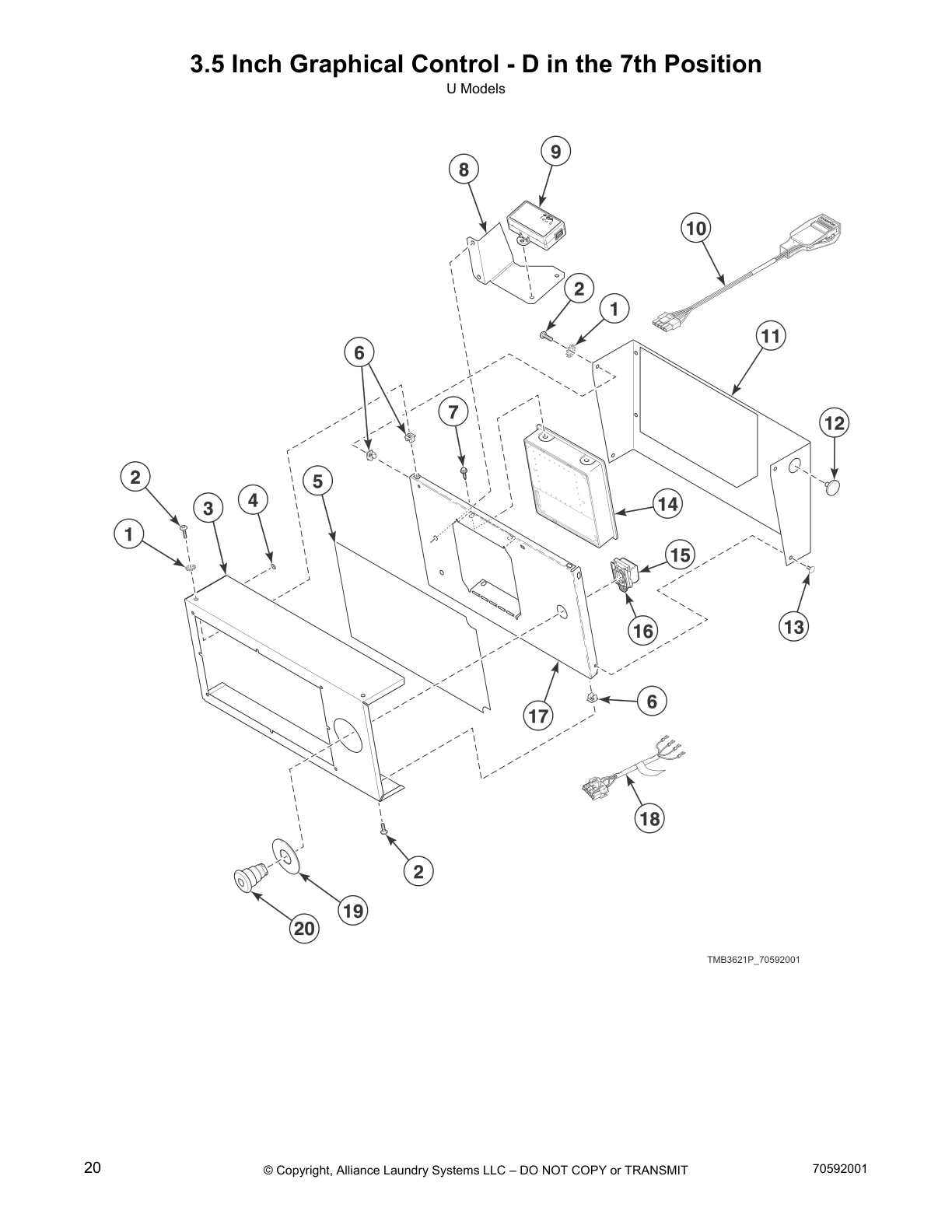

3.5 Inch Graphical Control - D in the 7th Position

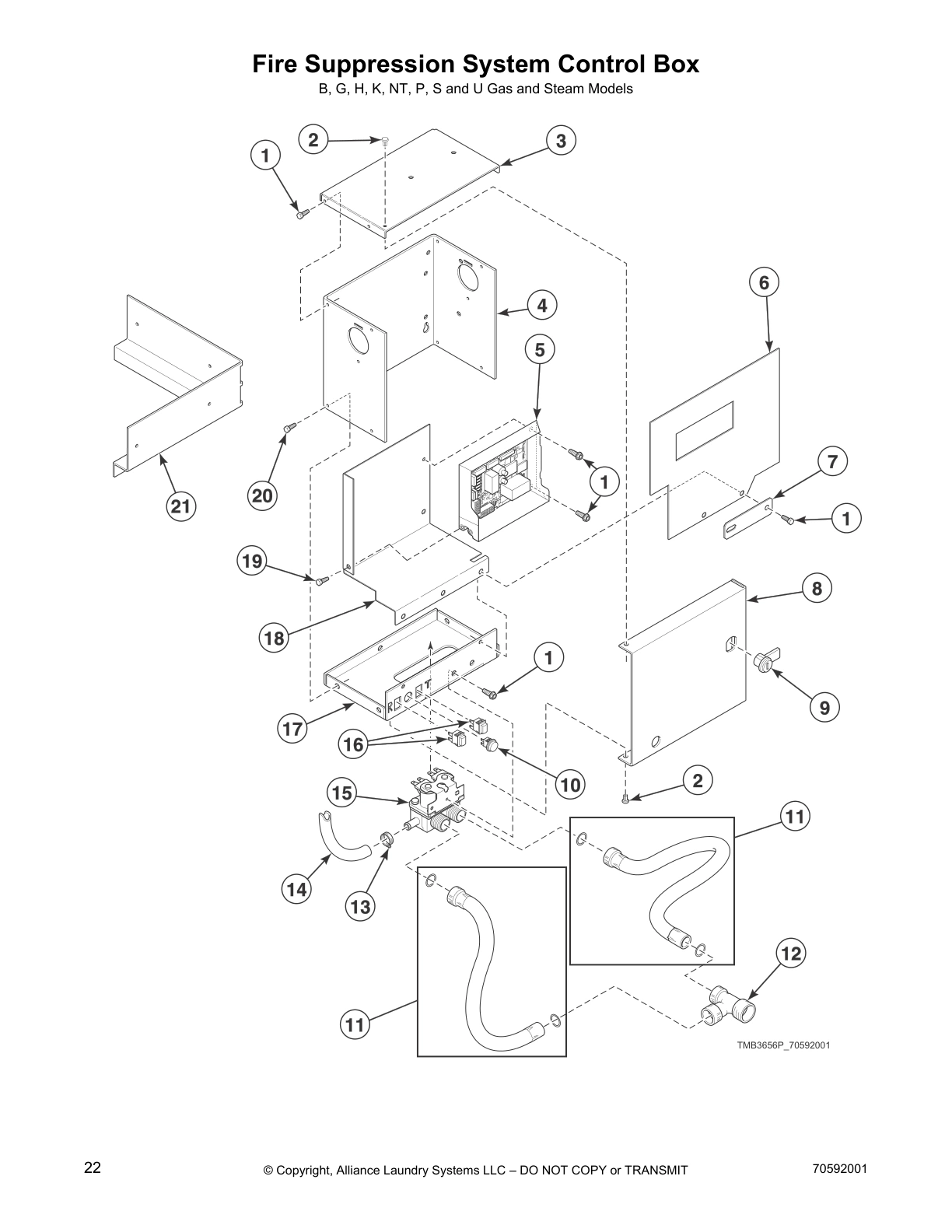

Fire Suppression System Control Box

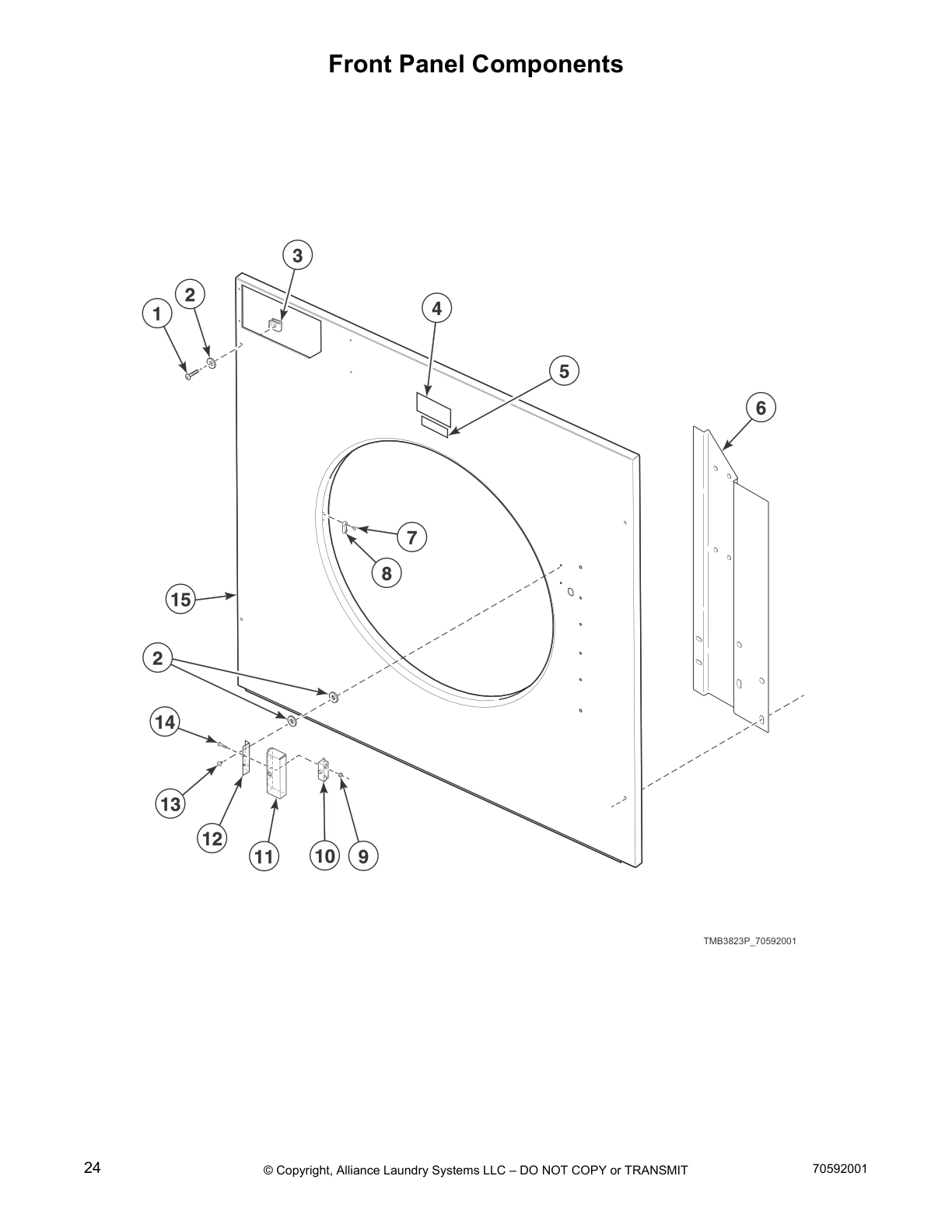

Front Panel Components

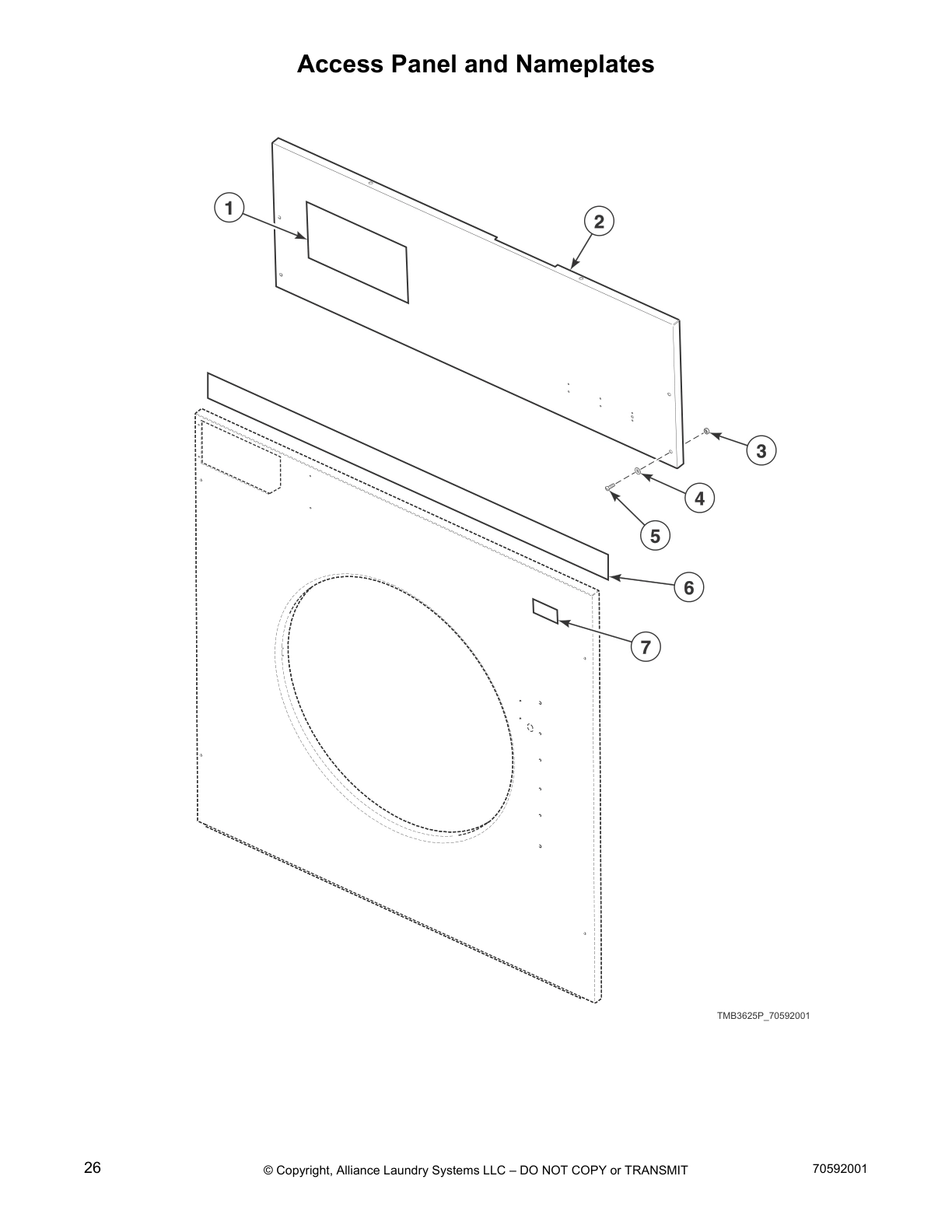

Access Panel and Nameplates

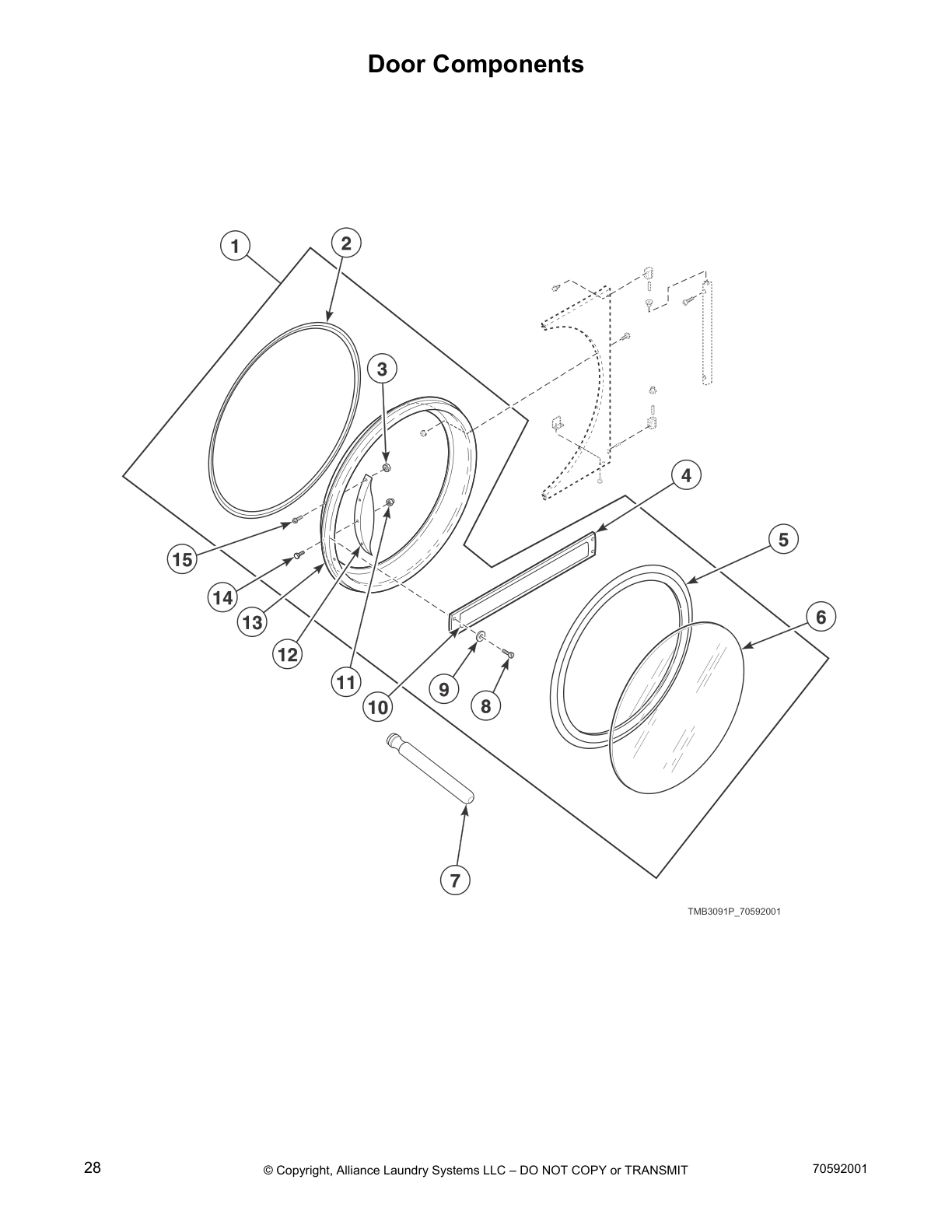

Door Components

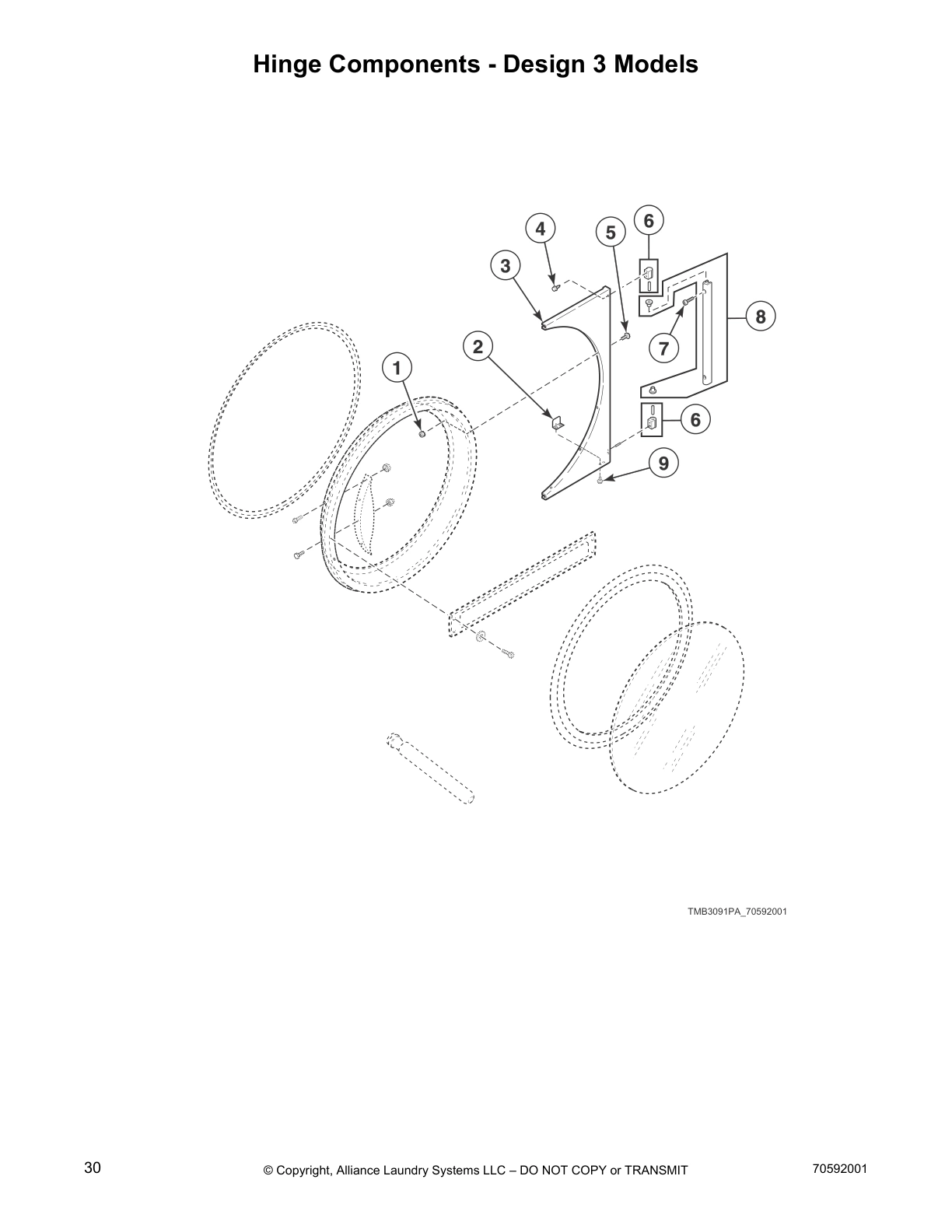

Hinge Components - Design 3 Models
Hinge Components - Design 5 Models

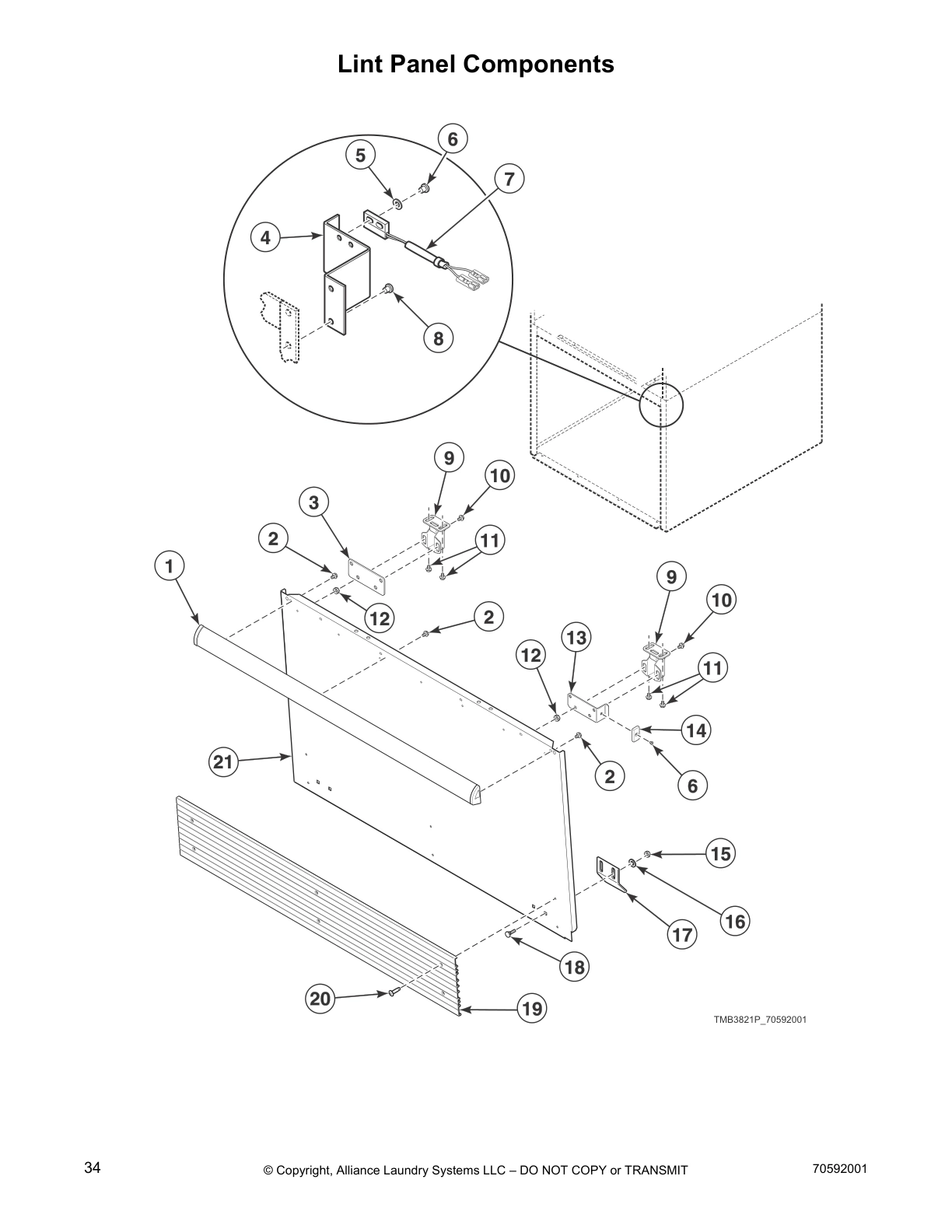

Lint Panel Components

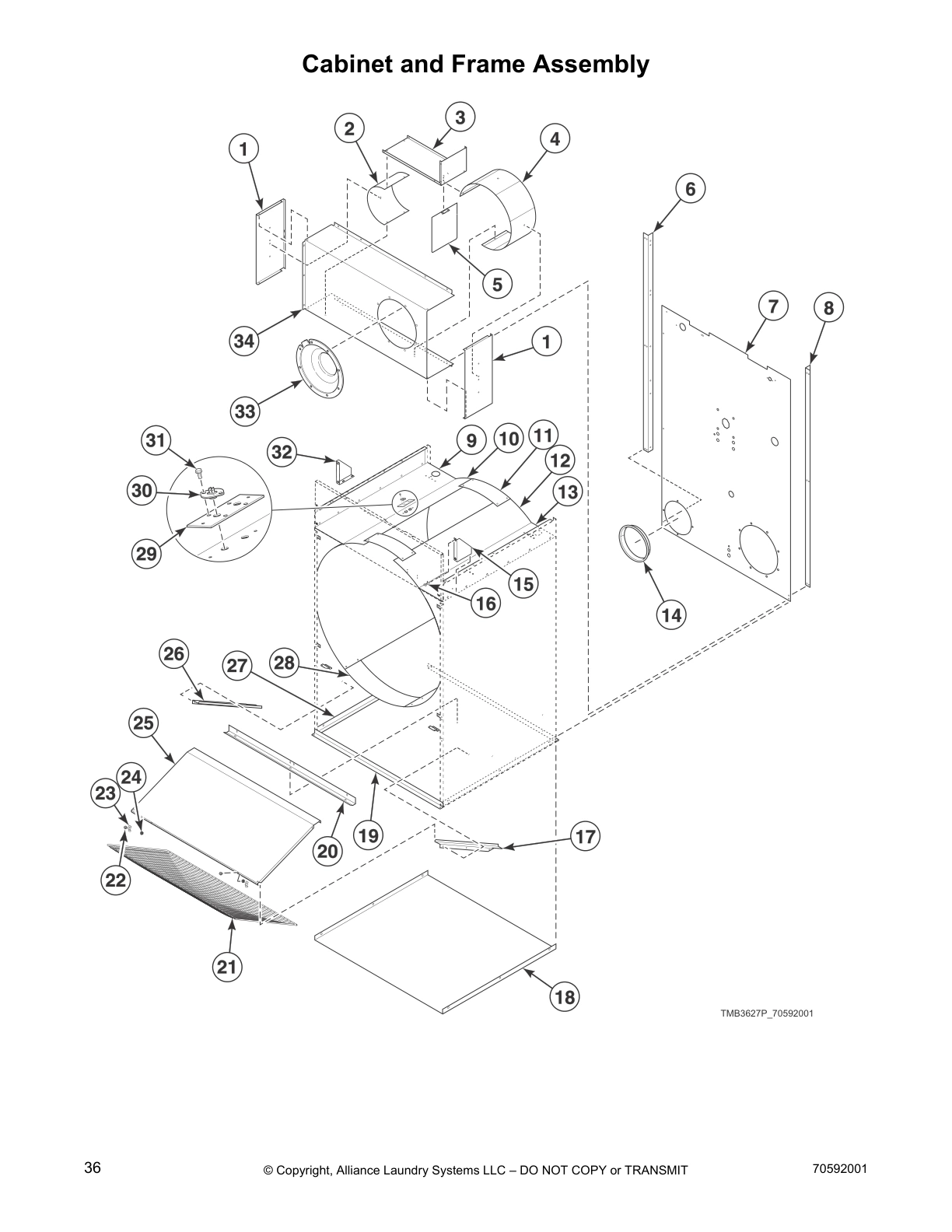

Cabinet and Frame Assembly

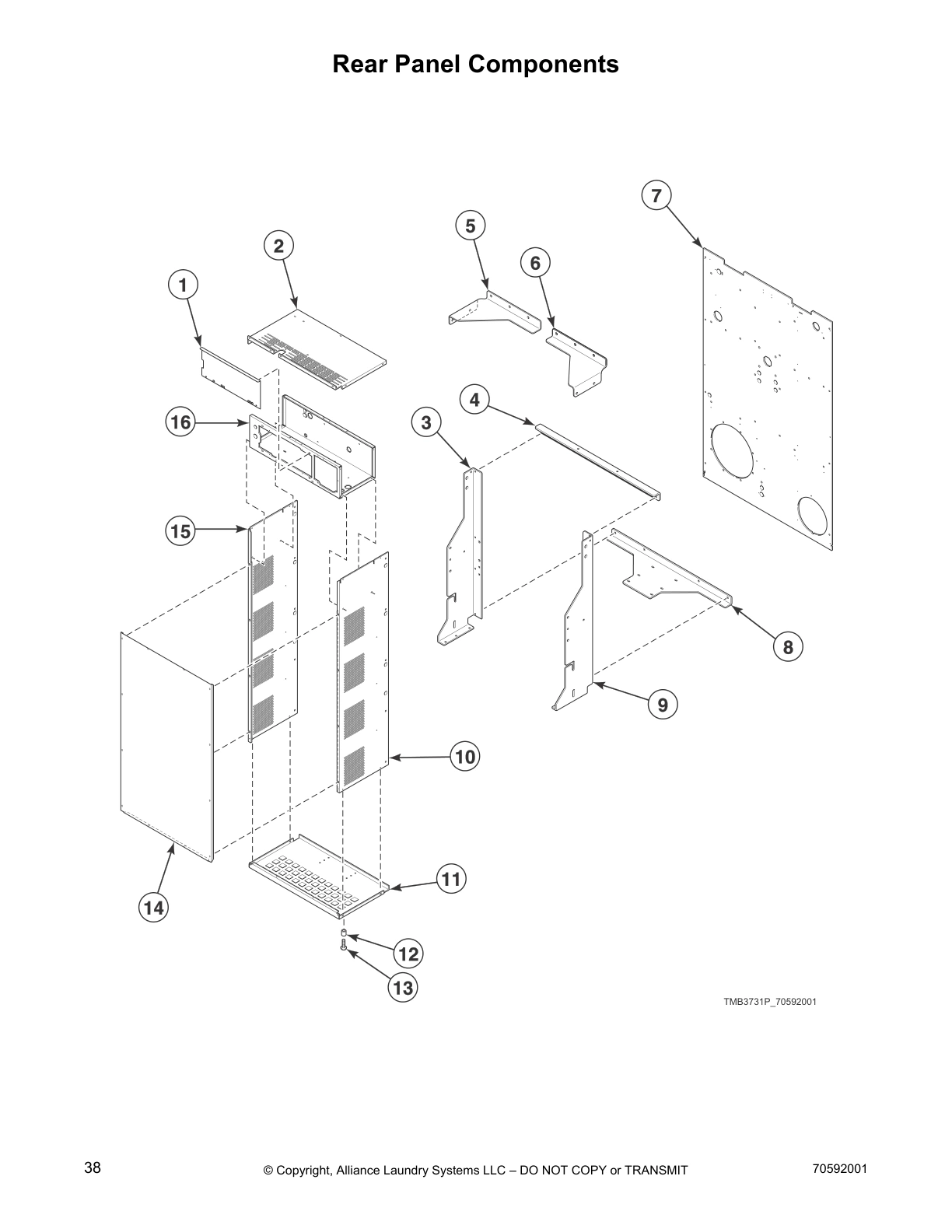

Rear Panel Components

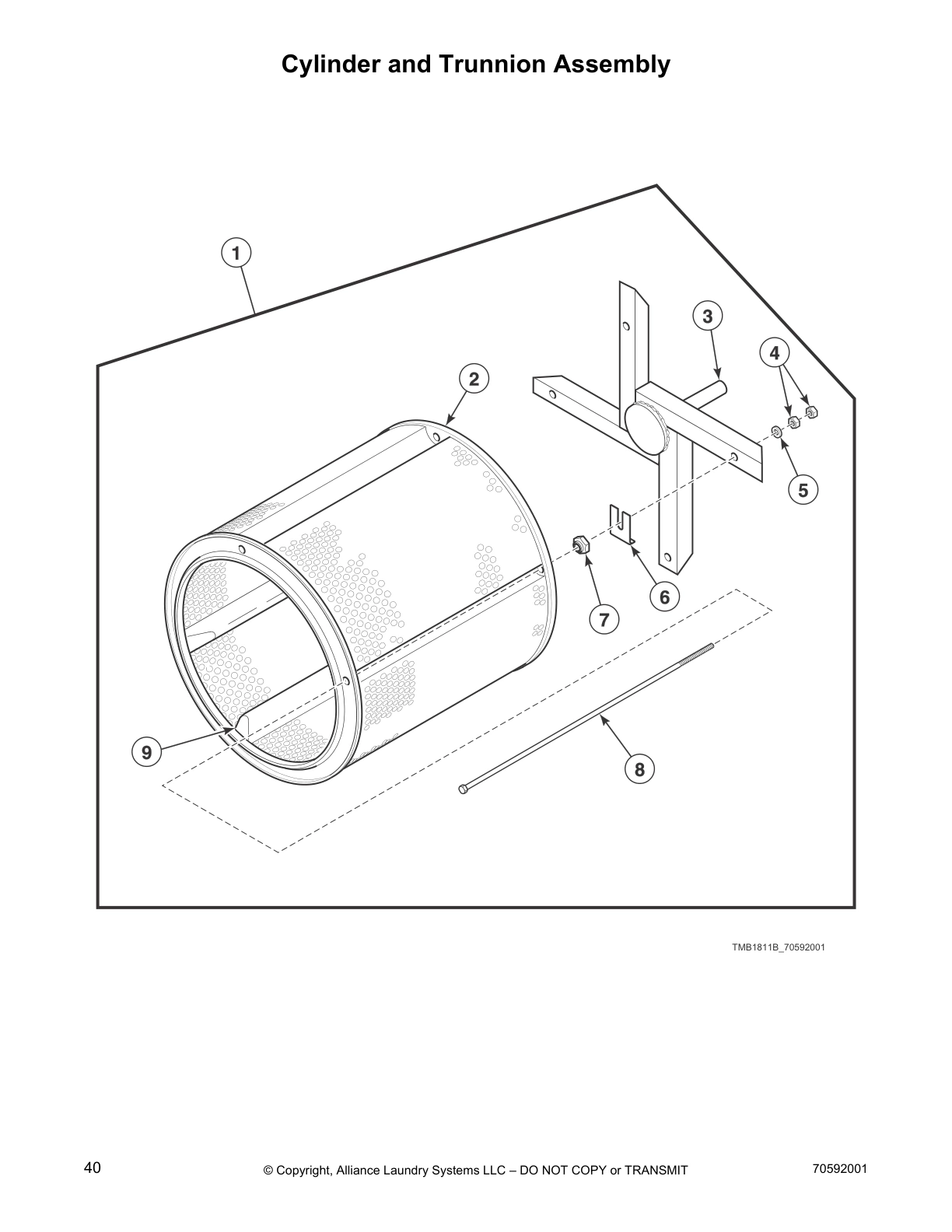

Cylinder and Trunnion Assembly

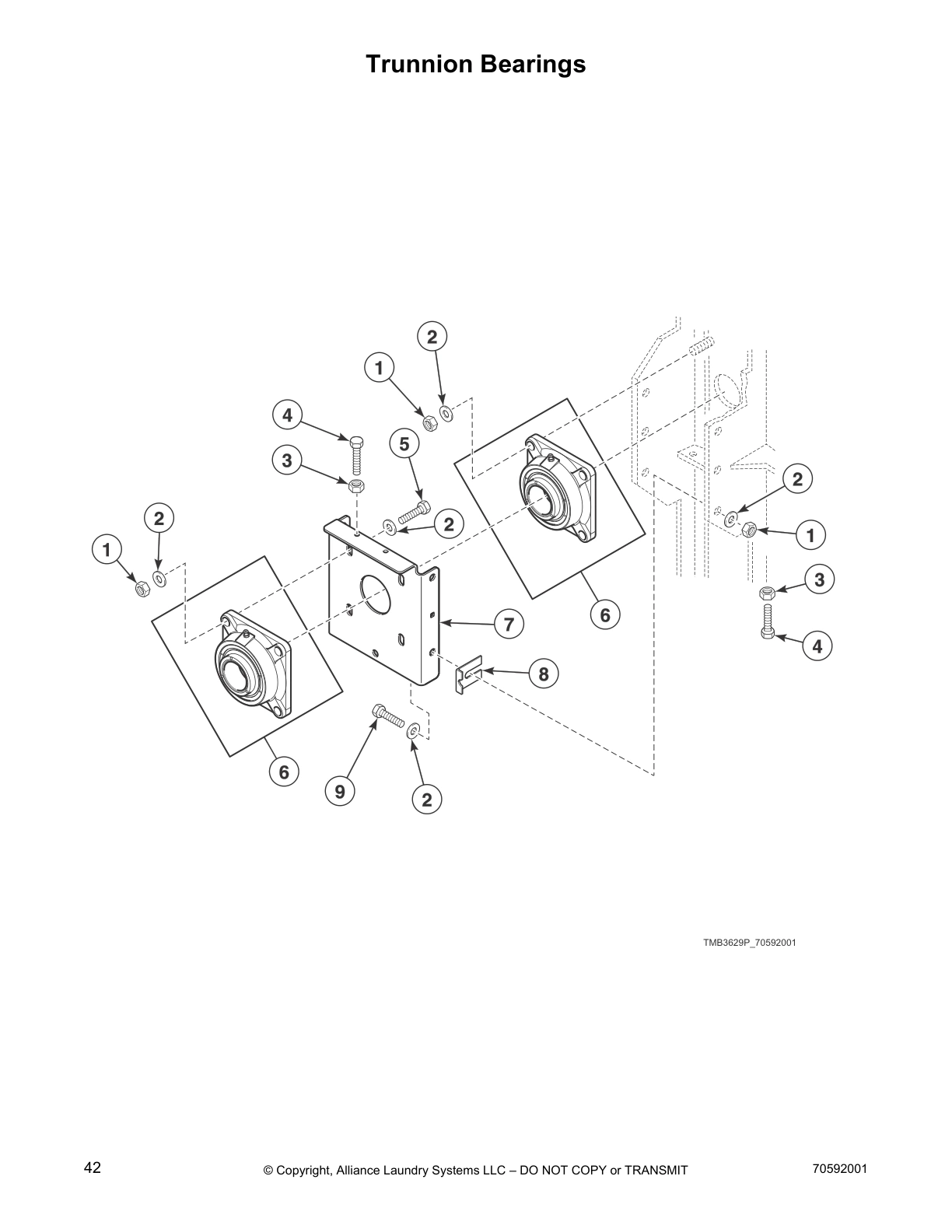

Trunnion Bearings

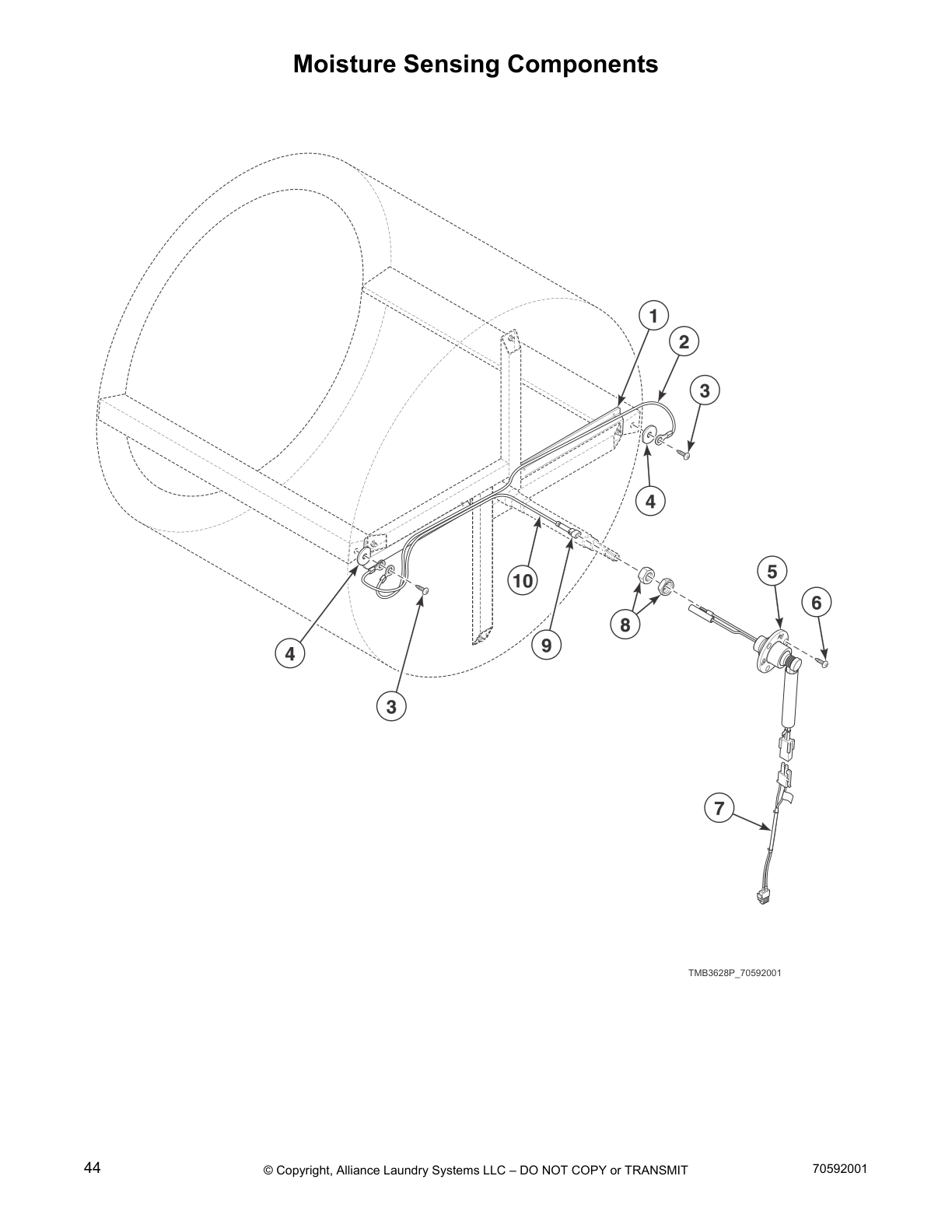

Moisture Sensing Components

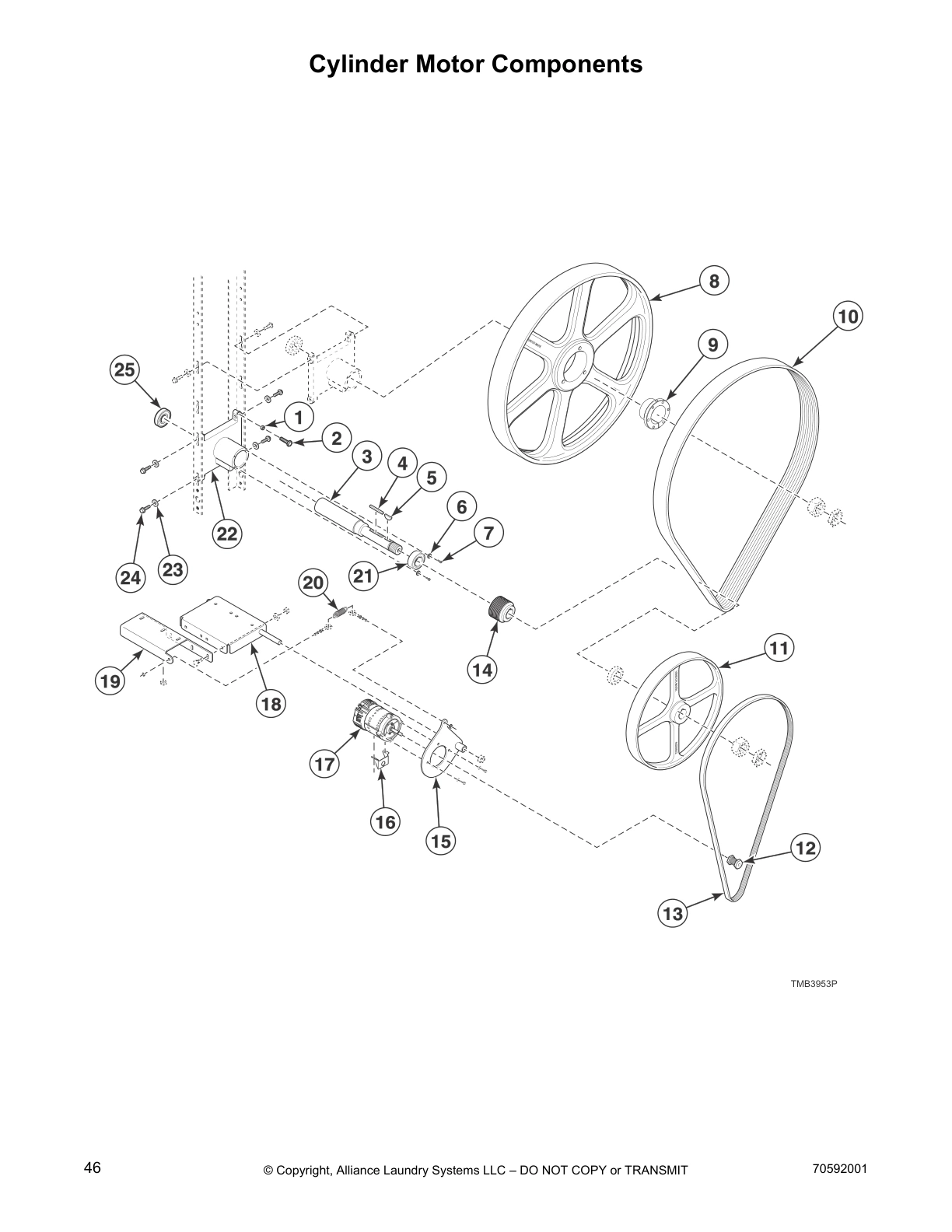

Cylinder Motor Components

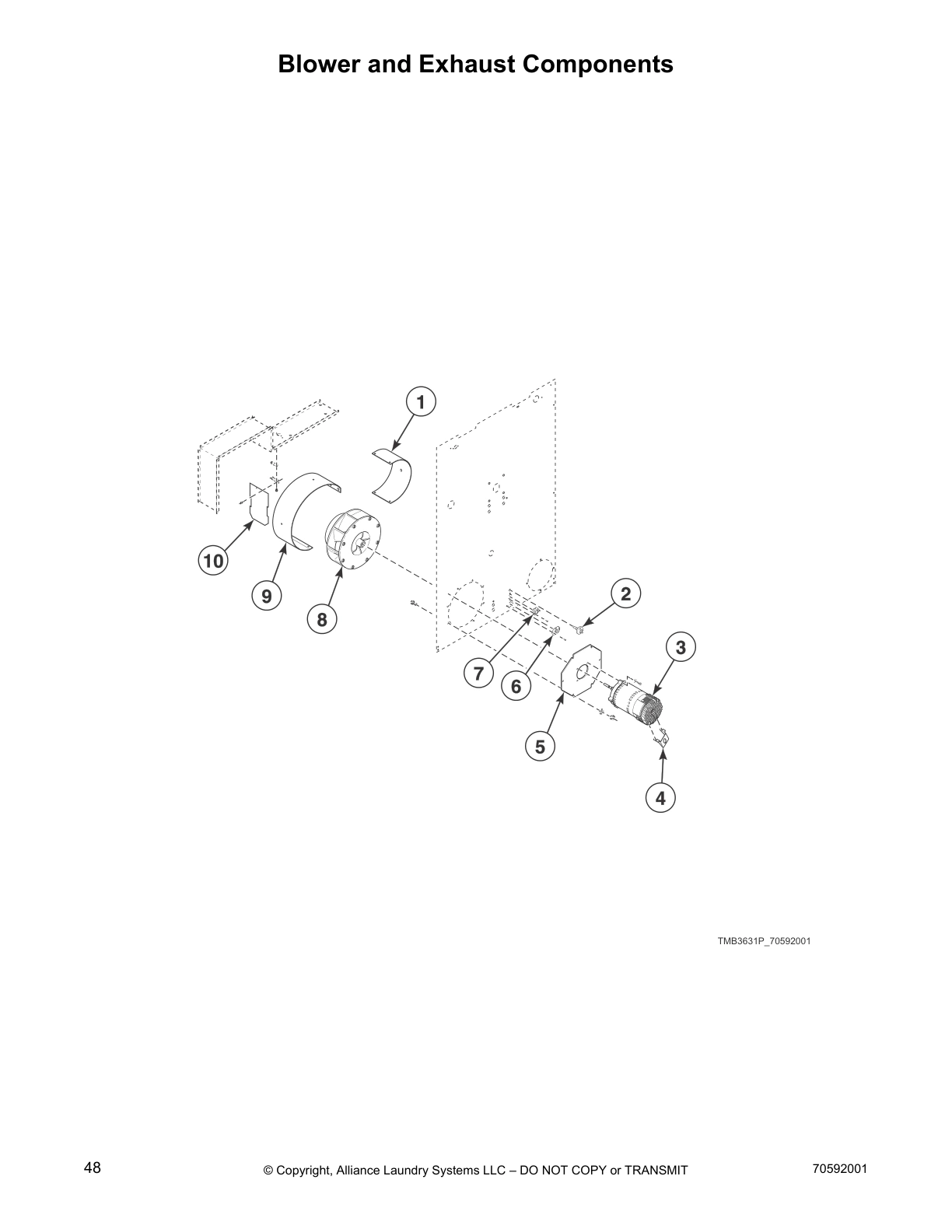

Blower and Exhaust Components

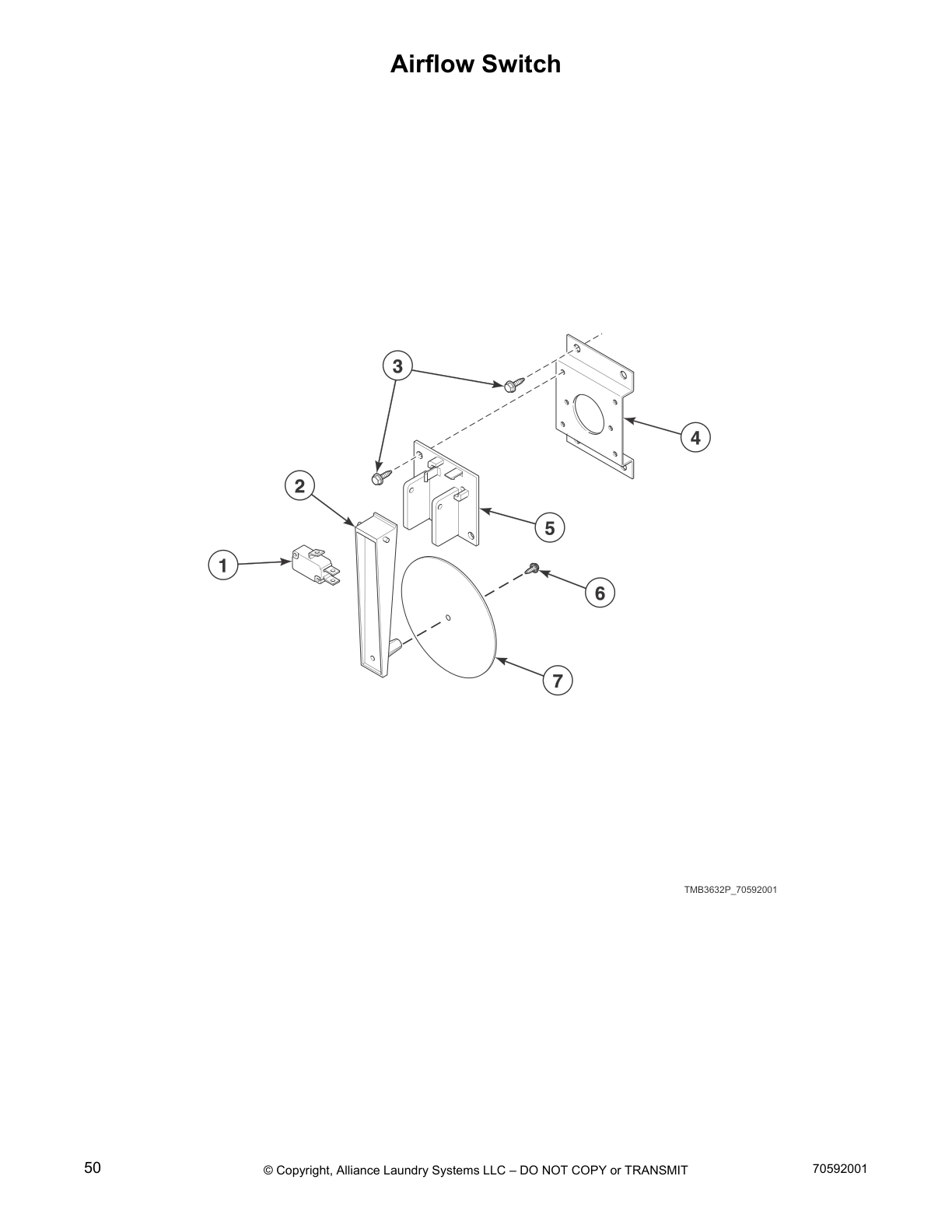

Airflow Switch

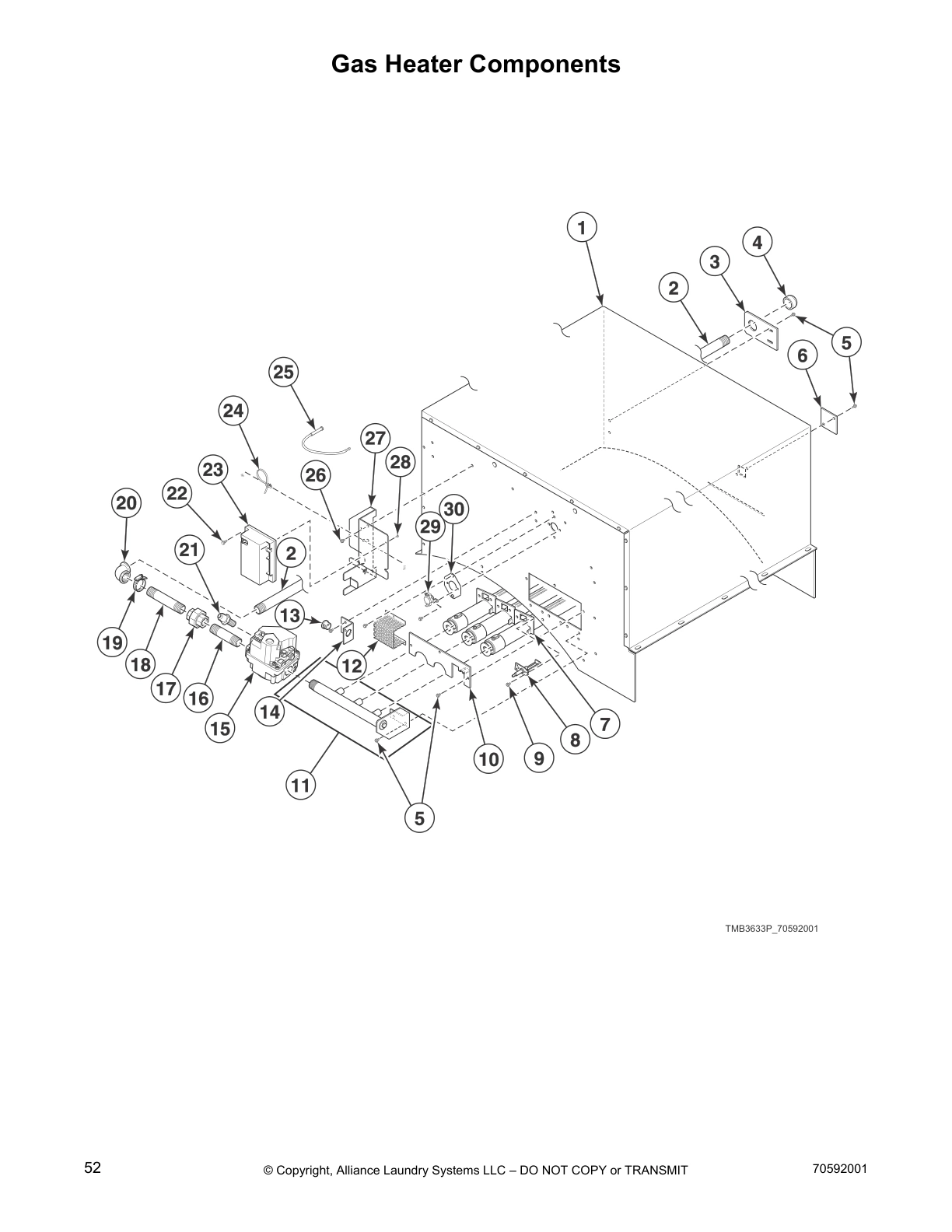

Gas Heater Components

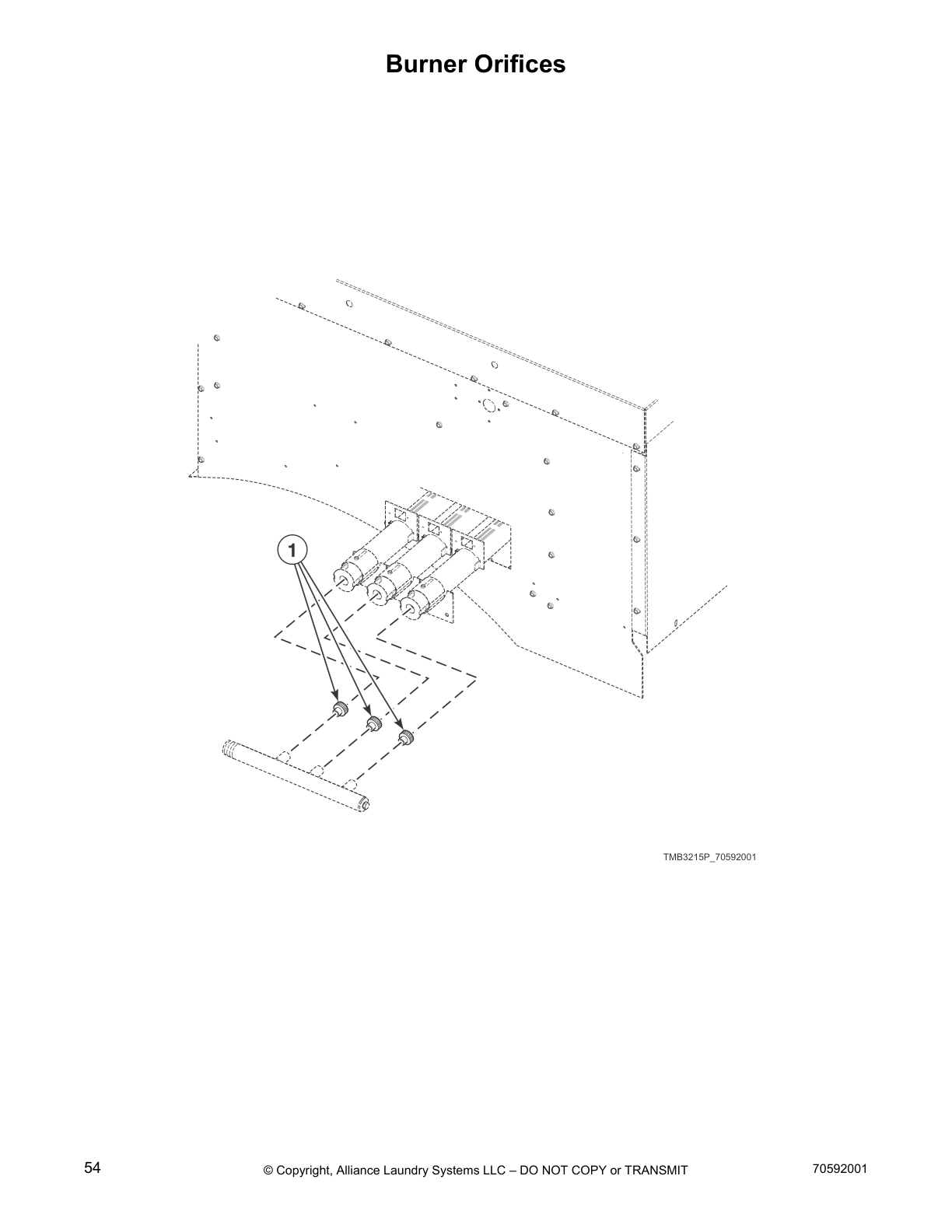

Burner Orifices

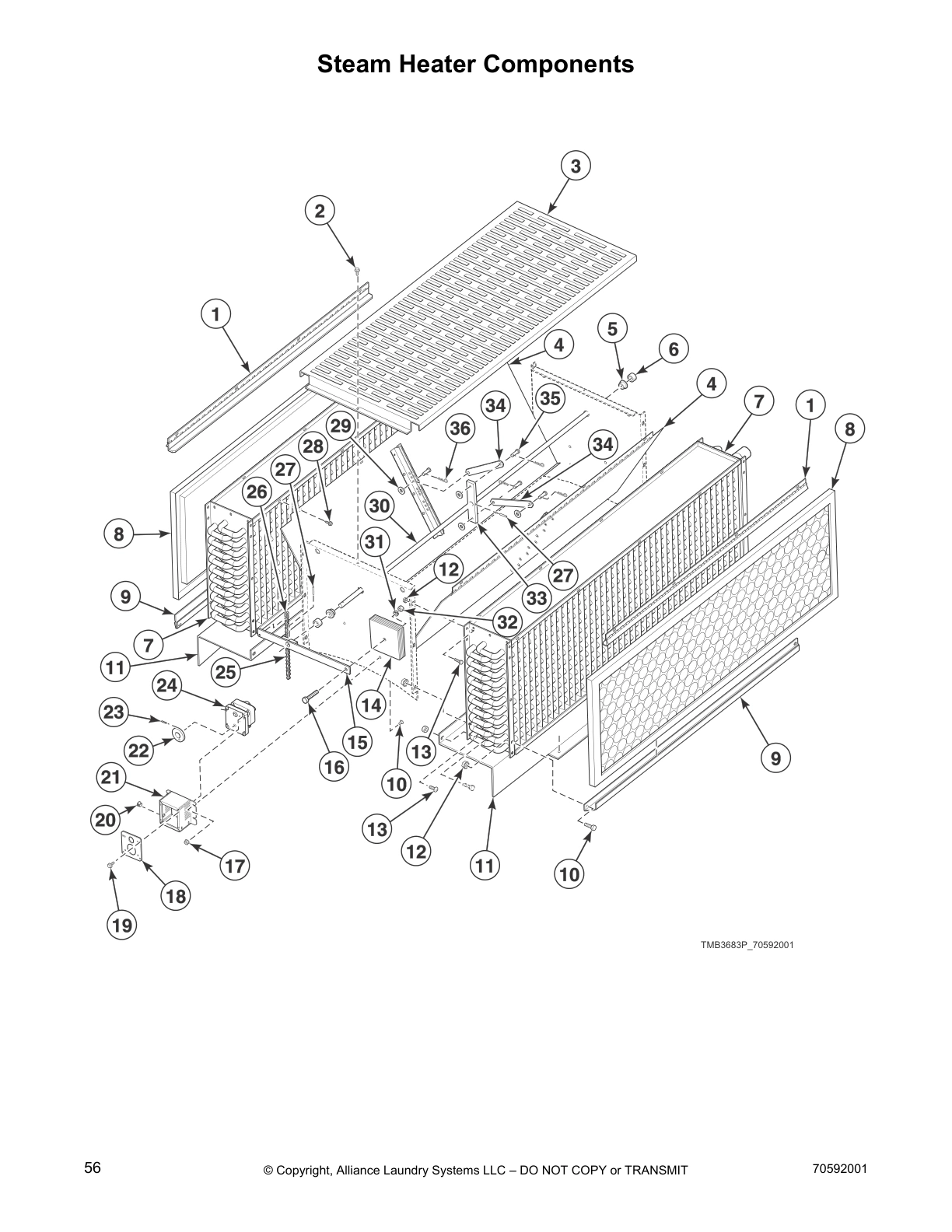

Steam Heater Components

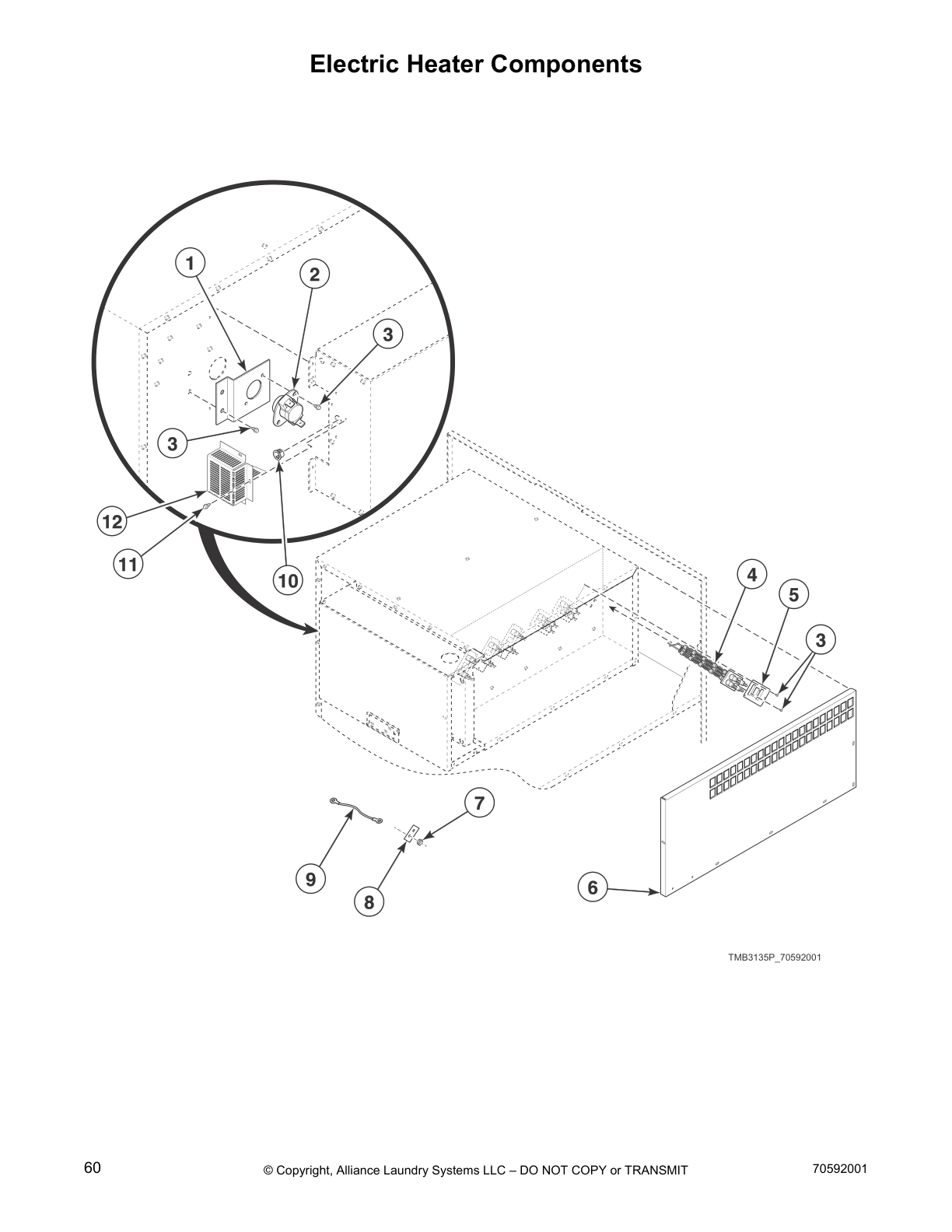

Electric Heater Components

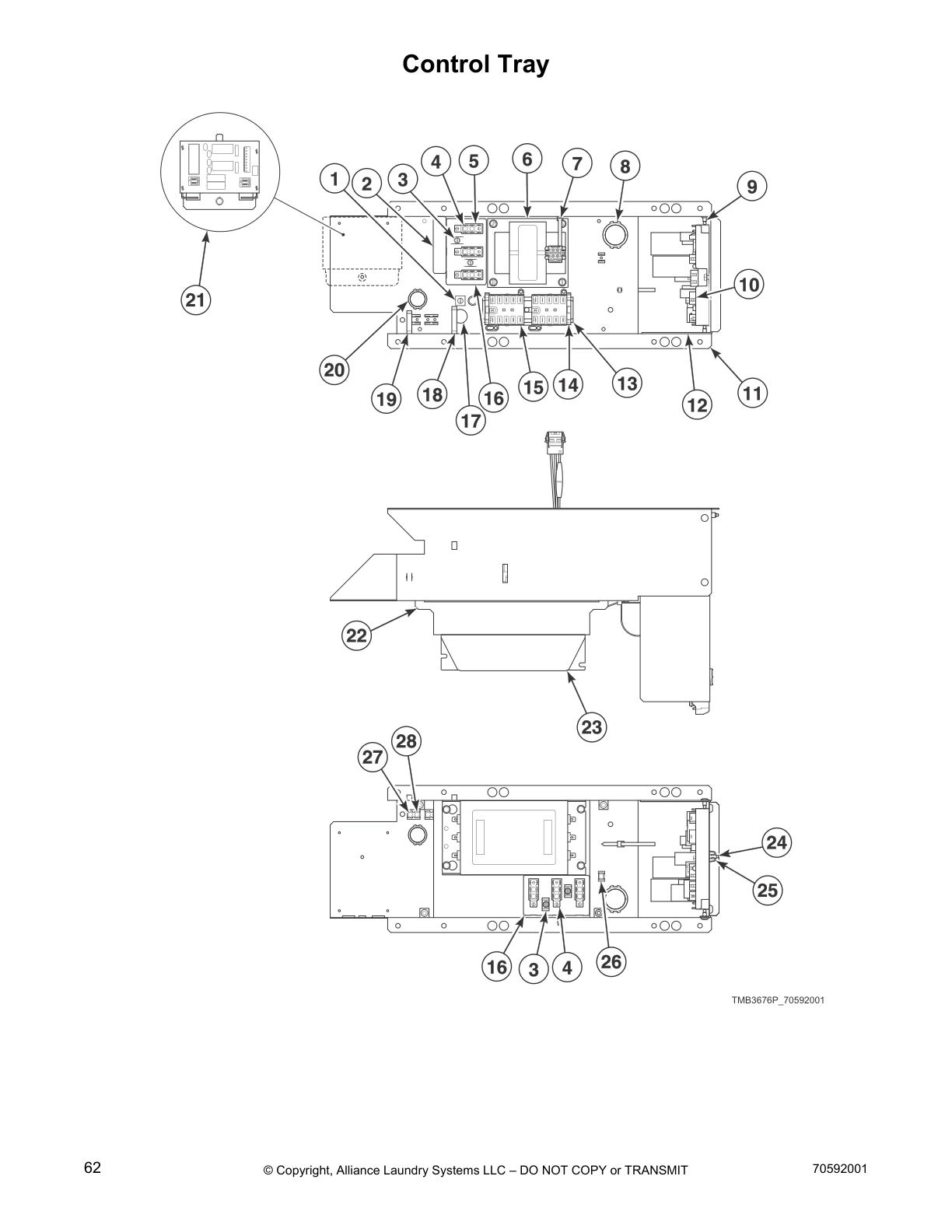

Control Tray

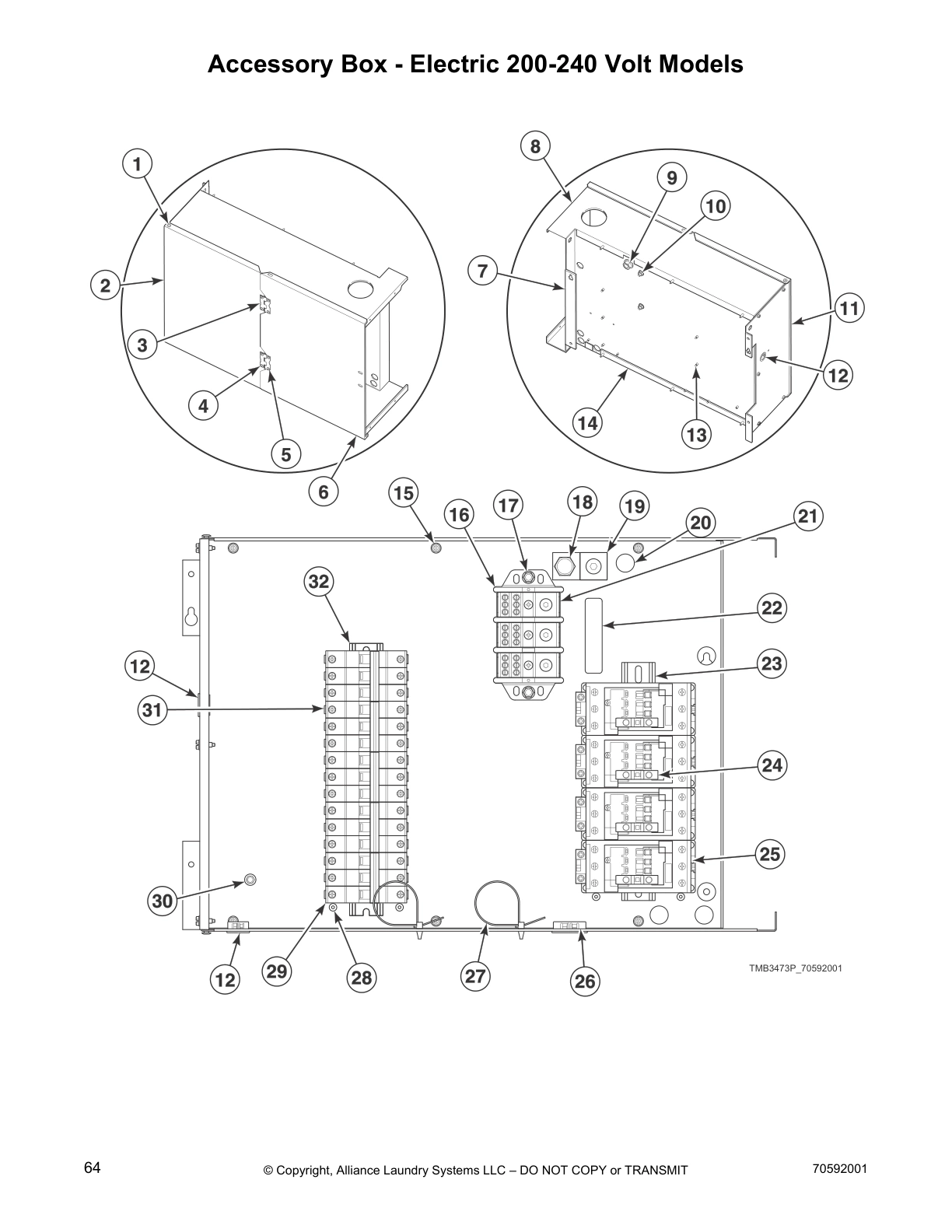

Accessory Box - Electric 200-240 Volt Models

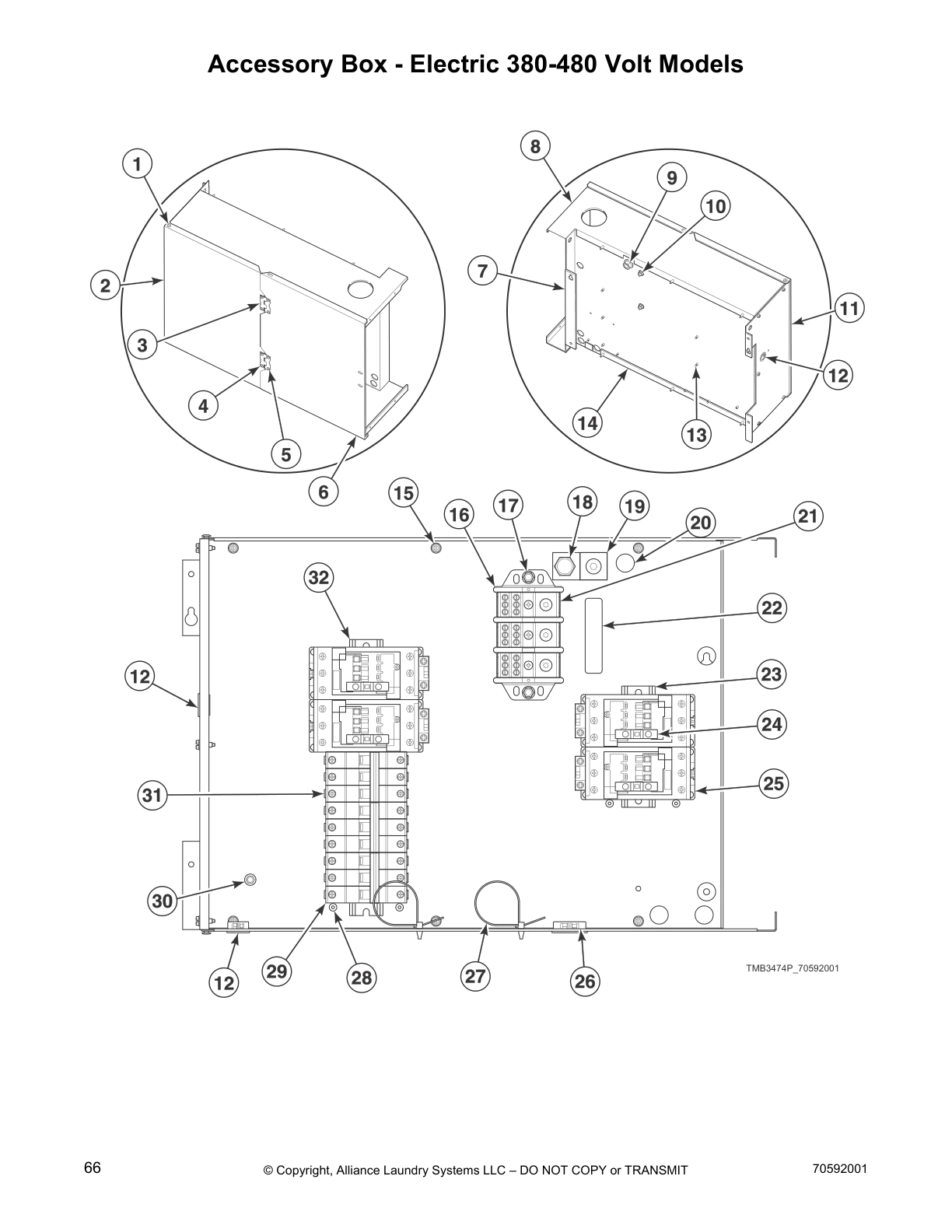

Accessory Box - Electric 380-480 Volt Models
Common parts from model UniMac UG120N Dryer
SPQ 430725 SPQ 430725 Contact Us For Availability
SPQ F8245101 SPQ F8245101 Contact Us For Availability
SPQ H88412101 SPQ H88412101 Contact Us For Availability
SPQ H88301411 SPQ H88301411 Contact Us For Availability
SPQ 70684137 SPQ 70684137 Contact Us For Availability
1
Door Assembly SPQ 44266703 Contact Us For Availability
1
Handle and Caps Assembly SPQ 44049901 Contact Us For Availability
1
Control Tray Cover SPQ 70507501 Contact Us For Availability
1
Cylinder and Trunnion Assembly SPQ 44054802 Contact Us For Availability
1
Nut SPQ F8387701 Contact Us For Availability
1
Wireway Channel SPQ 44239001 Contact Us For Availability
1
Nut SPQ M400026 Contact Us For Availability
1
Switch SPQ 70411901 Contact Us For Availability
1
Gas Stove Assembly SPQ 44248801 Contact Us For Availability
1
Burner Orifice SPQ 70684147 Contact Us For Availability
1
Ground Lug Connector SPQ M411283 Contact Us For Availability
2
Door Seal Kit SPQ 44008201P Contact Us For Availability
2
Screw SPQ 44012901 Contact Us For Availability
2
Control Box Cover SPQ M400713 Contact Us For Availability
2
Front Access Panel SPQ 44012612 Contact Us For Availability
2
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
2
Pop Rivet SPQ 802822 Contact Us For Availability
2
Cylinder Assembly SPQ 44054801 Contact Us For Availability
2
Rib Wire SPQ 44208101 Contact Us For Availability
2
Extension Spring SPQ 44259701P Contact Us For Availability
2
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
2
Screw SPQ 20391 Contact Us For Availability
3
Control Cover SPQ F200233500 Contact Us For Availability
3
Nut SPQ 44012609W Contact Us For Availability
3
Door Hinge Assembly SPQ 44075210 Contact Us For Availability
3
Cylinder Assembly SPQ 44194101 Contact Us For Availability
3
Screw SPQ 44338901 Contact Us For Availability
3
Fan Motor SPQ 44259401P Contact Us For Availability
3
Terminal Block Shield SPQ 51783 Contact Us For Availability
4
Bushing SPQ 44041901P Contact Us For Availability
4
Cable Tie SPQ 430642 Contact Us For Availability
4
Control Cover SPQ 44330803LG Contact Us For Availability
4
Washer SPQ 44012609LG Contact Us For Availability
4
Screw SPQ 44075207LG Contact Us For Availability
4
Trunnion Assembly SPQ 44194102 Contact Us For Availability
4
Washer SPQ 44238902 Contact Us For Availability
4
Switch Bracket SPQ 70356301 Contact Us For Availability
4
L.P. Conversion Kit SPQ 44249301 Contact Us For Availability
5
Door Glass Installation Tool SPQ 70211902P Contact Us For Availability
5
Nut SPQ 44330802 Contact Us For Availability
5
Screw SPQ 70030401 Contact Us For Availability
5
Door Latch SPQ 70472801 Contact Us For Availability
5
SPQ 44366606W SPQ 44366606W Contact Us For Availability
5
SPQ 44266902 SPQ 44266902 Contact Us For Availability
5
Nut SPQ M409788 Contact Us For Availability
5
Bearing Mounting SPQ M411165 Contact Us For Availability
5
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
5
Trunnion Housing Assembly SPQ M405232 Contact Us For Availability
5
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
5
SPQ 44087801 SPQ 44087801 Contact Us For Availability
5
Bushing SPQ 70333001 Contact Us For Availability
6
Overlay SPQ M400977 Contact Us For Availability
6
SPQ 44008401P SPQ 44008401P Contact Us For Availability
6
Moisture Sensor Harness SPQ 70442101 Contact Us For Availability
6
Door Hinge Lug Assembly SPQ M400044 Contact Us For Availability
6
Roller Catch SPQ 70126401 Contact Us For Availability
6
Washer SPQ H96427513 Contact Us For Availability
6
Spacer SPQ 44048301P Contact Us For Availability
6
SPQ M400008 SPQ M400008 Contact Us For Availability
7
Pop Rivet SPQ M4772P3 Contact Us For Availability
7
Expansion Clip SPQ 70595401 Contact Us For Availability
7
Spray Paint SPQ 44166601 Contact Us For Availability
7
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
7
SPQ 70126301 SPQ 70126301 Contact Us For Availability
7
Spacer SPQ 44193301 Contact Us For Availability
7
SPQ 44301701 SPQ 44301701 Contact Us For Availability
7
Nut SPQ 44333903 Contact Us For Availability
7
Airflow Switch Kit SPQ 70319201 Contact Us For Availability
7
SPQ 70159601 SPQ 70159601 Contact Us For Availability
8
Key SPQ 44065201 Contact Us For Availability
8
Porcelain Touch-Up Paint SPQ M401223 Contact Us For Availability
8
SPQ 70033502 SPQ 70033502 Contact Us For Availability
8
SPQ 44012206 SPQ 44012206 Contact Us For Availability
8
SPQ 44285402 SPQ 44285402 Contact Us For Availability
8
SPQ M401402 SPQ M401402 Contact Us For Availability
8
Bolt SPQ 44193302 Contact Us For Availability
8
1 Circuit Plug Housing SPQ M400035 Contact Us For Availability
8
Blower Assembly SPQ 44259301P Contact Us For Availability
8
SPQ 70346501 SPQ 70346501 Contact Us For Availability
9
SPQ 44035001 SPQ 44035001 Contact Us For Availability
9
Cold Weather Kit SPQ 44089301P Contact Us For Availability
9
SPQ 44012203LG SPQ 44012203LG Contact Us For Availability
9
Cylinder Rib Assembly SPQ 44055501 Contact Us For Availability
9
SPQ H88012034 SPQ H88012034 Contact Us For Availability
9
SPQ 44370401 SPQ 44370401 Contact Us For Availability
10
Switch SPQ 44312401 Contact Us For Availability
10
Handle and Caps Assembly SPQ 70154416 Contact Us For Availability
10
Nut SPQ 44087101 Contact Us For Availability
10
Damper Assembly SPQ 44280303 Contact Us For Availability
10
Belt Guard SPQ 44277801 Contact Us For Availability
10
Moisture Sensing Harness Kit SPQ 44344703 Contact Us For Availability
10
V-Belt SPQ 44293702 Contact Us For Availability
10
Snap Bushing SPQ 44071501 Contact Us For Availability
11
Control Bracket SPQ 44331006W Contact Us For Availability
11
Door Switch Cover SPQ 44316301 Contact Us For Availability
11
Nut SPQ M414215 Contact Us For Availability
11
Screw SPQ 44349101 Contact Us For Availability
11
Panel Locator SPQ 44277301 Contact Us For Availability
11
Spud Holder Weldment SPQ 44390001 Contact Us For Availability
11
Control Tray SPQ 70492401 Contact Us For Availability
12
Plug SPQ 44331006LG Contact Us For Availability
12
Hose Fitting SPQ 44069101 Contact Us For Availability
12
Door Switch Shield SPQ 44316601 Contact Us For Availability
12
Door Handle SPQ 44263801 Contact Us For Availability
12
Motor Pulley SPQ 44267602 Contact Us For Availability
12
Thermostat Cover SPQ M414477 Contact Us For Availability
12
Snap Bushing SPQ M400770 Contact Us For Availability
12
Control Board Control Tray SPQ 70494901 Contact Us For Availability
13
Pop Rivet SPQ M400985 Contact Us For Availability
13
Door Ring Assembly SPQ 44326002 Contact Us For Availability
13
SPQ 70275801 SPQ 70275801 Contact Us For Availability
13
Drive Motor SPQ 44309402 Contact Us For Availability
14
Screw SPQ M400661 Contact Us For Availability
14
Magnet SPQ 44288401 Contact Us For Availability
14
Vent Collar SPQ H96372164 Contact Us For Availability
14
SPQ 44277401 SPQ 44277401 Contact Us For Availability
14
End Stop SPQ F8449801 Contact Us For Availability
15
Washer SPQ 70343101 Contact Us For Availability
15
Top Access Panel Gusset SPQ 44028201LG Contact Us For Availability
15
SPQ 44277802 SPQ 44277802 Contact Us For Availability
15
Gas Valve SPQ 44166702 Contact Us For Availability
15
Contactor SPQ 70482601 Contact Us For Availability
15
Screw SPQ F8206901 Contact Us For Availability
16
Contact Base SPQ F8069501 Contact Us For Availability
16
SPQ 44313701 SPQ 44313701 Contact Us For Availability
16
Pipe Nipple SPQ 44166701 Contact Us For Availability
16
Insulator SPQ M413862 Contact Us For Availability
17
Control Box Base SPQ 44065301 Contact Us For Availability
17
Bolt SPQ 44259801P Contact Us For Availability
17
Pipe Union SPQ 44249501 Contact Us For Availability
18
Emergency Stop Harness SPQ F8538101 Contact Us For Availability
18
Kickplate SPQ 44017801 Contact Us For Availability
18
Base Pan SPQ M409911 Contact Us For Availability
18
Hose Clamp SPQ M411419 Contact Us For Availability
18
Wire Clip SPQ F8449501 Contact Us For Availability
19
Emergency Stop Label SPQ 44272401 Contact Us For Availability
19
Pop Rivet SPQ 44017901 Contact Us For Availability
19
Pipe Elbow SPQ 44252301 Contact Us For Availability
19
Snap Bushing SPQ F8449502 Contact Us For Availability
20
Roller Catch Mounting Bracket SPQ 70117609 Contact Us For Availability
20
Bearing SPQ M400650 Contact Us For Availability
20
Cable Tie SPQ 44252401 Contact Us For Availability
20
Screw SPQ 70178701 Contact Us For Availability
21
Lint Screen SPQ 44063602 Contact Us For Availability
21
Blind Rivet SPQ 70117620 Contact Us For Availability
21
Trunnion Housing SPQ F8440701 Contact Us For Availability
22
Washer SPQ M413923P Contact Us For Availability
22
High Voltage Suppression Cable SPQ 44249401 Contact Us For Availability
23
Nut SPQ H96418413 Contact Us For Availability
23
Screw SPQ M413826 Contact Us For Availability
23
DIN Rail SPQ M412690 Contact Us For Availability
24
Ball Bearing SPQ 70261401 Contact Us For Availability
25
Key SPQ M400063 Contact Us For Availability
25
Pipe Bracket SPQ M405829 Contact Us For Availability
26
Pipe Cap SPQ 44239704 Contact Us For Availability
27
Cable Tie SPQ 70335601 Contact Us For Availability
27
Terminal Block SPQ M400003 Contact Us For Availability
28
Burner SPQ 44245701 Contact Us For Availability
29
Thermistor SPQ 44068102 Contact Us For Availability
30
Blower Inlet Cone SPQ 44068101 Contact Us For Availability
33
Felt Pad SPQ 44028202LG Contact Us For Availability
NI
Manifold SPQ 70155601 Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
SPQ F8536002 SPQ F8536002 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
SPQ 44340301 SPQ 44340301 Contact Us For Availability
NI
SPQ 44079601 SPQ 44079601 Contact Us For Availability
NI
SPQ 70182601 SPQ 70182601 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 44088001 SPQ 44088001 Contact Us For Availability
NI
SPQ 44014001 SPQ 44014001 Contact Us For Availability
NI
SPQ H87020202 SPQ H87020202 Contact Us For Availability
NI
SPQ 44285401 SPQ 44285401 Contact Us For Availability
NI
SPQ M402144 SPQ M402144 Contact Us For Availability
NI
SPQ 44055502 SPQ 44055502 Contact Us For Availability
NI
SPQ M412334 SPQ M412334 Contact Us For Availability
NI
SPQ 44191203 SPQ 44191203 Contact Us For Availability
NI
SPQ F280409P SPQ F280409P Contact Us For Availability
NI
SPQ 44267201 SPQ 44267201 Contact Us For Availability
NI
SPQ 70429601P SPQ 70429601P Contact Us For Availability
NI
SPQ 44328804 SPQ 44328804 Contact Us For Availability
NI
High Altitude Orifice Kit SPQ 70684144 Contact Us For Availability
NI
SPQ 70684140 SPQ 70684140 Contact Us For Availability
NI
SPQ 70684142 SPQ 70684142 Contact Us For Availability
NI
SPQ 44357507 SPQ 44357507 Contact Us For Availability
NI
SPQ 685837 SPQ 685837 Contact Us For Availability
× ![]()
