Model Unimac UC80PN3 Washer – Common Parts & Diagrams

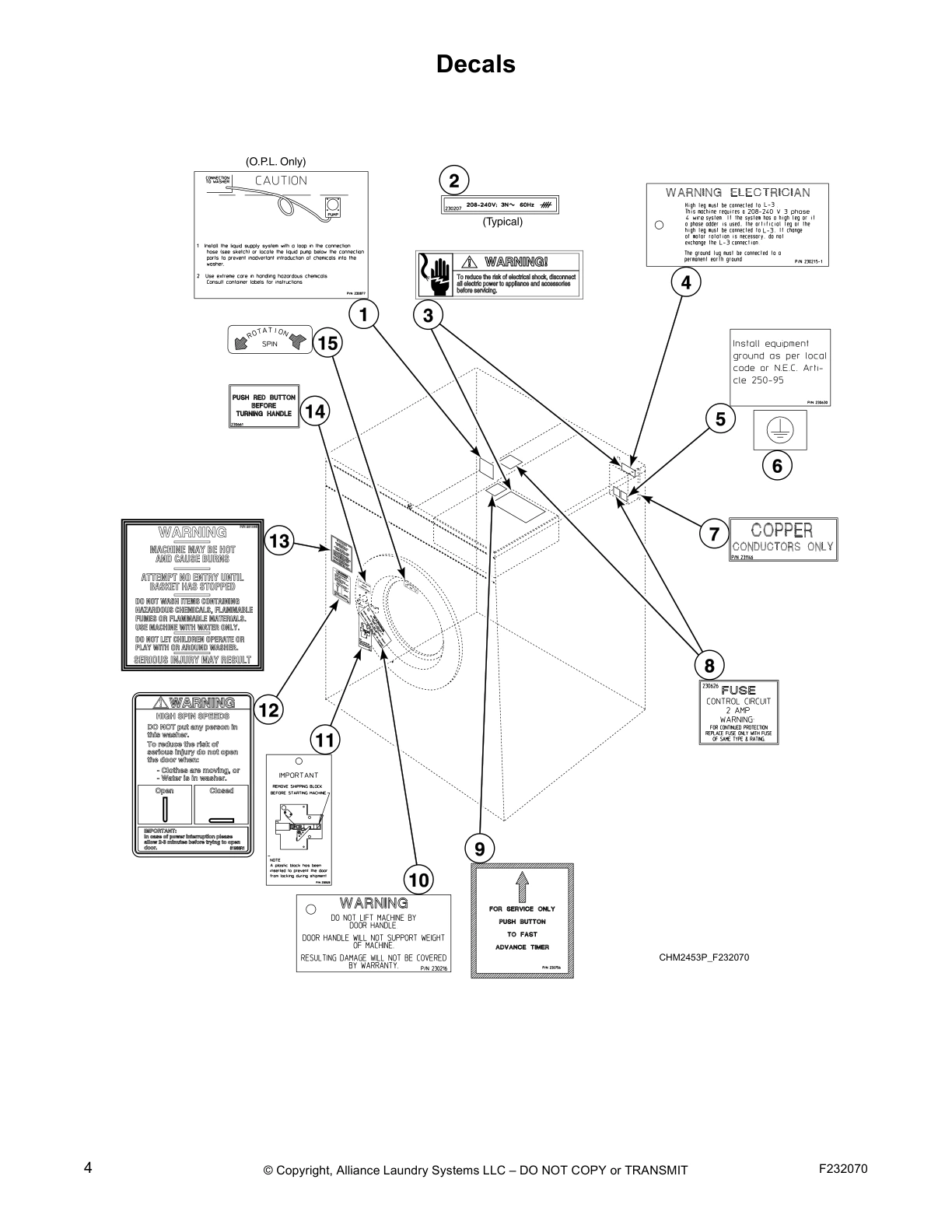

Decals

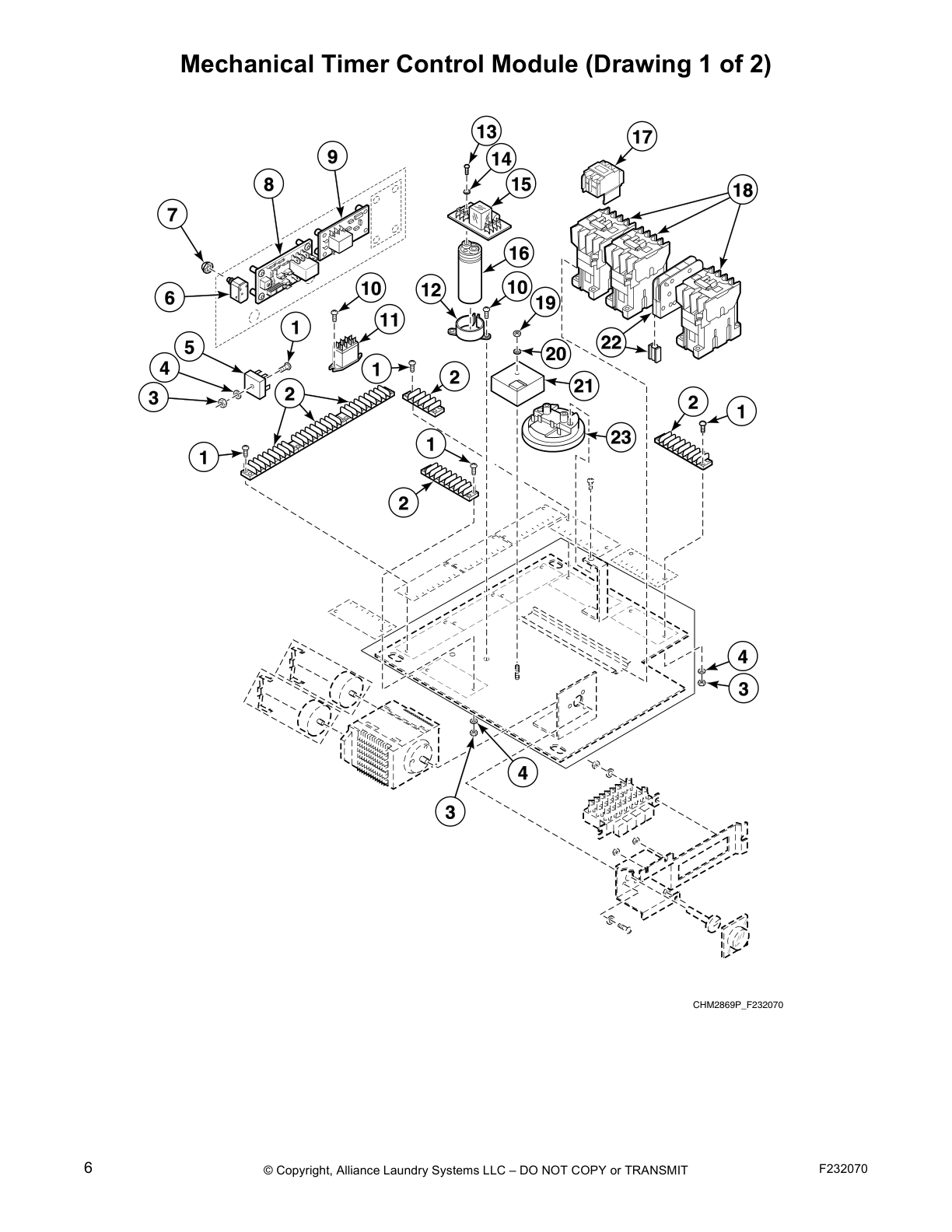

Mechanical Timer Control Module (Drawing 1 of 2)
Mechanical Timer Control Module (Drawing 2 of 2)
P and S-Series Computer Control Module (Drawing 1 of 2)
P and S-Series Computer Control Module (Drawing 2 of 2)
Front Panels
P and S-Series Keypad and Computer
Display Coin Meter Assembly - MC and MD Models; Single Drop
(Drawing 1 of 2)
Display Coin Meter Assembly - MC and MD Models; Single Drop
(Drawing 2 of 2)
Display Coin Meter Assembly - MC and MD Models; Dual Drop
(Drawing 1 of 2)
Display Coin Meter Assembly - MC and MD Models; Dual Drop
(Drawing 2 of 2)
Vertical Coin Meter Assembly - MV Models
Switch Assembly - OPL Models
Cover Panels and Frame
Supply Dispenser
Door Assembly
OPL Door Lock Assembly
Coin Door Lock Assembly
Standard Basket and Shell Assembly
Electric Heat Basket and Shell Assembly
Mueller Water Inlet Valves
Parker and Elbi Water Inlet Valves
External Water Filter (Optional) and Water Supply Hose
Siphon Break, Hoses and Vent Hoses
Inlet Valve Hoses
Drain System
Bearings, Basket Pulley and Grease Manifold
Motors
Special Tools
Common parts from model Unimac UC80PN3 Washer
SPQ F200164 SPQ F200164 Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
Trim SPQ F015050100P Contact Us For Availability
1
Terminal Strip Insulator Decal SPQ F140916 Contact Us For Availability
1
Keypad SPQ F370576P Contact Us For Availability
1
Rocker Switch SPQ F340411 Contact Us For Availability
1
Key SPQ F160562 Contact Us For Availability
1
Supply Dispenser Cup SPQ F150368 Contact Us For Availability
1
Door Handle SPQ F150225 Contact Us For Availability
1
Screw SPQ F430977 Contact Us For Availability
1
Shell Band Kit SPQ F8537808 Contact Us For Availability
1
Valve Repair Kit SPQ F380938 Contact Us For Availability
1
Drain Valve Kit SPQ F200166402 Contact Us For Availability
1
Front Bearing Kit SPQ F745015-1 Contact Us For Availability
1
Junction Box SPQ F140400 Contact Us For Availability
1
Locknut Spanner Wrench SPQ F703654 Contact Us For Availability
2
Terminal Strip SPQ F330175P Contact Us For Availability
2
2-Way Valve SPQ F381731P Contact Us For Availability
2
Terminal Strip SPQ F350110 Contact Us For Availability
2
RC Network Filter SPQ F330217P Contact Us For Availability
2
Computer SPQ F370555-01P Contact Us For Availability
2
Switch Plate Sub-Assembly SPQ F633098 Contact Us For Availability
2
Door Mount SPQ F602813-3 Contact Us For Availability
2
Door Lock Splash Shield SPQ F430225 Contact Us For Availability
2
Reducer Bushing SPQ F791001 Contact Us For Availability
2
2-Way Valve SPQ F380952P Contact Us For Availability
2
Filter Housing Cap Gasket SPQ F270305 Contact Us For Availability
2
Top Fill Hose SPQ F150413 Contact Us For Availability
2
Water Hose SPQ F200108P Contact Us For Availability
2
Cable Tie SPQ F140605 Contact Us For Availability
2
Junction Box Cover SPQ F140312 Contact Us For Availability
2
Basket Pulley Puller Tool SPQ F460131P Contact Us For Availability
3
SPQ F340919 SPQ F340919 Contact Us For Availability
3
Straight Tab Connector SPQ F140738 Contact Us For Availability
3
Board SPQ F370555-11P Contact Us For Availability
3
Nut SPQ F430231 Contact Us For Availability
3
Clip SPQ F601515 Contact Us For Availability
3
SPQ F749803 SPQ F749803 Contact Us For Availability
3
Pushbutton Rod SPQ F170115 Contact Us For Availability
3
Temperature Probe SPQ F603988P Contact Us For Availability
3
Coil SPQ F380776P Contact Us For Availability
3
Washer SPQ F381722P Contact Us For Availability
3
Replacement Filter SPQ F270407 Contact Us For Availability
3
Y Connector SPQ F422808 Contact Us For Availability
3
Drain Valve Cover SPQ F150400 Contact Us For Availability
3
Connector SPQ J1408004 Contact Us For Availability
3
Belt SPQ F140401 Contact Us For Availability
3
Bolt Layout Mounting Template SPQ F609692 Contact Us For Availability
4
Screw SPQ F430928 Contact Us For Availability
4
Washer SPQ F430311 Contact Us For Availability
4
SPQ F431223 SPQ F431223 Contact Us For Availability
4
SPQ F730155 SPQ F730155 Contact Us For Availability
4
SPQ F431901 SPQ F431901 Contact Us For Availability
4
Plug SPQ F8407401 Contact Us For Availability
4
1-Way Valve SPQ F380900 Contact Us For Availability
4
Nipple SPQ F430322 Contact Us For Availability
4
SPQ F200128P SPQ F200128P Contact Us For Availability
4
Hose Clamp SPQ F200133600 Contact Us For Availability
4
Grease Fitting SPQ F190701 Contact Us For Availability
4
Motor Pulley Bushing SPQ F280338 Contact Us For Availability
4
Grease Gun Kit SPQ F798700 Contact Us For Availability
5
Nut SPQ F330206 Contact Us For Availability
5
SPQ F141020 SPQ F141020 Contact Us For Availability
5
Washer SPQ F150403 Contact Us For Availability
5
Wire SPQ 45121 Contact Us For Availability
5
SPQ F603972 SPQ F603972 Contact Us For Availability
5
SPQ F608271-2 SPQ F608271-2 Contact Us For Availability
5
SPQ F320300 SPQ F320300 Contact Us For Availability
5
Shaft Seal Sleeve SPQ F421936 Contact Us For Availability
5
Screw SPQ F380917 Contact Us For Availability
5
Valve SPQ F421969 Contact Us For Availability
5
Overflow Hose SPQ F200213 Contact Us For Availability
5
Vent Hose SPQ F200170 Contact Us For Availability
5
SPQ F200222 SPQ F200222 Contact Us For Availability
5
Lubrication Instruction Decal SPQ F231078 Contact Us For Availability
5
Motor Pulley SPQ F280212 Contact Us For Availability
5
Bearing Grease SPQ F210206P Contact Us For Availability
6
Contactor SPQ F370437P Contact Us For Availability
6
Screw SPQ F430925 Contact Us For Availability
6
SPQ F310125 SPQ F310125 Contact Us For Availability
6
SPQ F320200 SPQ F320200 Contact Us For Availability
6
Plug SPQ F8513501 Contact Us For Availability
6
Shell Front Gasket Kit SPQ F370606P Contact Us For Availability
6
Water Connection Inlet Manifold SPQ F380953P Contact Us For Availability
6
Hose Barb SPQ F8322803P Contact Us For Availability
6
Pipe SPQ F608237 Contact Us For Availability
6
Screw SPQ F150317 Contact Us For Availability
6
Screw SPQ F280150 Contact Us For Availability
6
Grease Gun SPQ F210207P Contact Us For Availability
7
Interlock SPQ F370438P Contact Us For Availability
7
SPQ F330227 SPQ F330227 Contact Us For Availability
7
SPQ F602753 SPQ F602753 Contact Us For Availability
7
SPQ F432223 SPQ F432223 Contact Us For Availability
7
SPQ F431907 SPQ F431907 Contact Us For Availability
7
SPQ F8059701 SPQ F8059701 Contact Us For Availability
7
SPQ F634696 SPQ F634696 Contact Us For Availability
7
SPQ F420408 SPQ F420408 Contact Us For Availability
7
Washer SPQ F380760P Contact Us For Availability
7
Screw SPQ F421930 Contact Us For Availability
7
Drain Tee SPQ F430103 Contact Us For Availability
7
Grease Manifold Kit SPQ F761900 Contact Us For Availability
7
Washer SPQ F280128 Contact Us For Availability
7
Basket Puller Tool SPQ F460129P Contact Us For Availability
8
SPQ F380939 SPQ F380939 Contact Us For Availability
8
SPQ F140912 SPQ F140912 Contact Us For Availability
8
SPQ F170401P SPQ F170401P Contact Us For Availability
8
SPQ F390300 SPQ F390300 Contact Us For Availability
8
SPQ F8535601 SPQ F8535601 Contact Us For Availability
8
SPQ F8312007P SPQ F8312007P Contact Us For Availability
8
Water Connection Inlet Manifold SPQ F430929 Contact Us For Availability
8
Washer SPQ F150398 Contact Us For Availability
8
Grease Manifold SPQ F320326 Contact Us For Availability
9
SPQ F792000 SPQ F792000 Contact Us For Availability
9
SPQ F430211 SPQ F430211 Contact Us For Availability
9
SPQ F140913 SPQ F140913 Contact Us For Availability
9
SPQ M405535 SPQ M405535 Contact Us For Availability
9
Nut SPQ F430317 Contact Us For Availability
9
SPQ F190203P SPQ F190203P Contact Us For Availability
9
SPQ F0150273-00 SPQ F0150273-00 Contact Us For Availability
9
SPQ F603003 SPQ F603003 Contact Us For Availability
9
SPQ F421507 SPQ F421507 Contact Us For Availability
9
Bottom Fill Hose SPQ F150414 Contact Us For Availability
9
Tubing SPQ C000628P Contact Us For Availability
10
Electrical Panel Sub-Assembly SPQ F0606950-02 Contact Us For Availability
10
Screw SPQ F430935 Contact Us For Availability
10
Switch Panel Mounting Assembly SPQ F606999 Contact Us For Availability
10
Valve Panel Sub-Assembly SPQ 70155603 Contact Us For Availability
10
Nut SPQ F430205 Contact Us For Availability
10
Washer SPQ F150369 Contact Us For Availability
10
Door Lock Plate Sub-Assembly SPQ F633734 Contact Us For Availability
10
Key SPQ F608824-1 Contact Us For Availability
11
Rear Drain Hose SPQ F200166302 Contact Us For Availability
11
Gasket SPQ F608797 Contact Us For Availability
11
Screw SPQ F430532 Contact Us For Availability
11
Screw SPQ F430947 Contact Us For Availability
11
Vacuum Breaker Weldment SPQ F608347 Contact Us For Availability
11
Bolt SPQ F430509 Contact Us For Availability
12
Washer SPQ F150261 Contact Us For Availability
12
Door Lock Relay CCA SPQ F370426-2P Contact Us For Availability
12
Rear Panel SPQ F170402P Contact Us For Availability
12
Screw SPQ F431125 Contact Us For Availability
12
Nut SPQ F431041 Contact Us For Availability
12
Washer SPQ F430144 Contact Us For Availability
12
Drain Hose SPQ F0150399-00 Contact Us For Availability
12
Pulley SPQ F280256 Contact Us For Availability
12
Motor SPQ F220310P Contact Us For Availability
13
Nut SPQ F431100 Contact Us For Availability
13
Magnetic Switch SPQ F430986 Contact Us For Availability
13
Side Panel SPQ F603976 Contact Us For Availability
13
Nut SPQ F608282 Contact Us For Availability
13
Rear Bearing Kit SPQ F745016-1 Contact Us For Availability
13
Pulley SPQ F220309P Contact Us For Availability
14
Screw SPQ F370426-1P Contact Us For Availability
14
Magnetic Switch Assembly SPQ F431217 Contact Us For Availability
14
Lift-Off Hinge SPQ F432229 Contact Us For Availability
14
Adhesive SPQ F8142701 Contact Us For Availability
14
Door Lock Lever SPQ F430921 Contact Us For Availability
14
Heating Element Plug SPQ F360205P Contact Us For Availability
14
Bearing Adapter Sleeve SPQ F100307 Contact Us For Availability
14
Bushing SPQ F280152 Contact Us For Availability
15
Door Lock Torsion Spring SPQ F430264 Contact Us For Availability
15
Push-Pull Knob SPQ F431108 Contact Us For Availability
15
Bridge Rectifier SPQ F370310 Contact Us For Availability
15
Extrusion Control Panel SPQ F0340723-00 Contact Us For Availability
15
Door Gasket SPQ F8440801P Contact Us For Availability
15
Nut SPQ F360202 Contact Us For Availability
15
Connector SPQ F280193 Contact Us For Availability
16
Cover SPQ F430917 Contact Us For Availability
16
Input Harness Kit SPQ F141871P Contact Us For Availability
16
Gasket SPQ F200321200 Contact Us For Availability
16
Frame Assembly SPQ F603969P Contact Us For Availability
16
Supply Dispenser Cover Gasket SPQ F431028 Contact Us For Availability
16
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
16
L-Catch Kit SPQ F431902 Contact Us For Availability
16
Shell Band Fastener Kit SPQ F430201 Contact Us For Availability
17
Battery Backup Wire Harness SPQ F140423 Contact Us For Availability
17
Output Board CCA SPQ F370450P Contact Us For Availability
17
Nut SPQ F603926 Contact Us For Availability
17
Gasket Retaining Plate SPQ F190205P Contact Us For Availability
17
Door Hinge SPQ F430536 Contact Us For Availability
17
Door Release Solenoid SPQ F605381 Contact Us For Availability
17
Shell Front Assembly SPQ F430325 Contact Us For Availability
18
Ribbon Cable SPQ F370449P Contact Us For Availability
18
Door Lock Microswitch SPQ F310110 Contact Us For Availability
18
Battery SPQ F140249 Contact Us For Availability
18
Supply Dispenser Cover Kit SPQ F430907 Contact Us For Availability
18
Rod SPQ F190216P Contact Us For Availability
19
Spacer SPQ F746808 Contact Us For Availability
19
Washer SPQ F603947 Contact Us For Availability
19
Pop Rivet SPQ F190101 Contact Us For Availability
20
Door Lock Splash Shield SPQ F602567 Contact Us For Availability
20
Washer SPQ F431222 Contact Us For Availability
20
RC Network Filter SPQ F350109 Contact Us For Availability
20
Door Lock Plate Shim SPQ F430232 Contact Us For Availability
20
Screw SPQ F190805P Contact Us For Availability
20
Supply Dispenser Sub-Assembly SPQ F431137 Contact Us For Availability
21
Top Brace SPQ F190802P Contact Us For Availability
21
Supply Dispenser Lid Latch SPQ F608705 Contact Us For Availability
22
Magnet SPQ F150271 Contact Us For Availability
22
SPQ F608703 SPQ F608703 Contact Us For Availability
23
SPQ F300128P SPQ F300128P Contact Us For Availability
23
Door Glass Retainer SPQ F431022 Contact Us For Availability
23
Door Lock Assembly Cover SPQ F431123 Contact Us For Availability
23
SPQ F190202P SPQ F190202P Contact Us For Availability
24
Door Glass Gasket SPQ F431113 Contact Us For Availability
24
Take-Apart Hinge SPQ F430108 Contact Us For Availability
25
Red Dot Decal SPQ F8390801 Contact Us For Availability
25
SPQ F431903 SPQ F431903 Contact Us For Availability
26
Glass SPQ F430916 Contact Us For Availability
26
SPQ F605382 SPQ F605382 Contact Us For Availability
29
Door Handle Kit SPQ F8504901 Contact Us For Availability
30
Door Lock Spring SPQ F230662 Contact Us For Availability
31
Door Spacer SPQ F290210P Contact Us For Availability
32
Door Assembly SPQ F230661 Contact Us For Availability
NI
SPQ F330152P SPQ F330152P Contact Us For Availability
NI
Ribbon Cable SPQ F140216P Contact Us For Availability
NI
SPQ F140914 SPQ F140914 Contact Us For Availability
NI
SPQ F140915 SPQ F140915 Contact Us For Availability
NI
SPQ F430174 SPQ F430174 Contact Us For Availability
NI
SPQ F430215 SPQ F430215 Contact Us For Availability
NI
SPQ F140215 SPQ F140215 Contact Us For Availability
NI
SPQ F8505107 SPQ F8505107 Contact Us For Availability
NI
SPQ F150247 SPQ F150247 Contact Us For Availability
NI
SPQ F150246 SPQ F150246 Contact Us For Availability
NI
SPQ F200166 SPQ F200166 Contact Us For Availability
NI
Belt SPQ F280359 Contact Us For Availability
NI
SPQ F430300 SPQ F430300 Contact Us For Availability
× ![]()
