Model Unimac UC80BNV Washer – Common Parts & Diagrams
Decals
Control Module - NC, NR, NX and NY Models (Drawing 1 of 2)

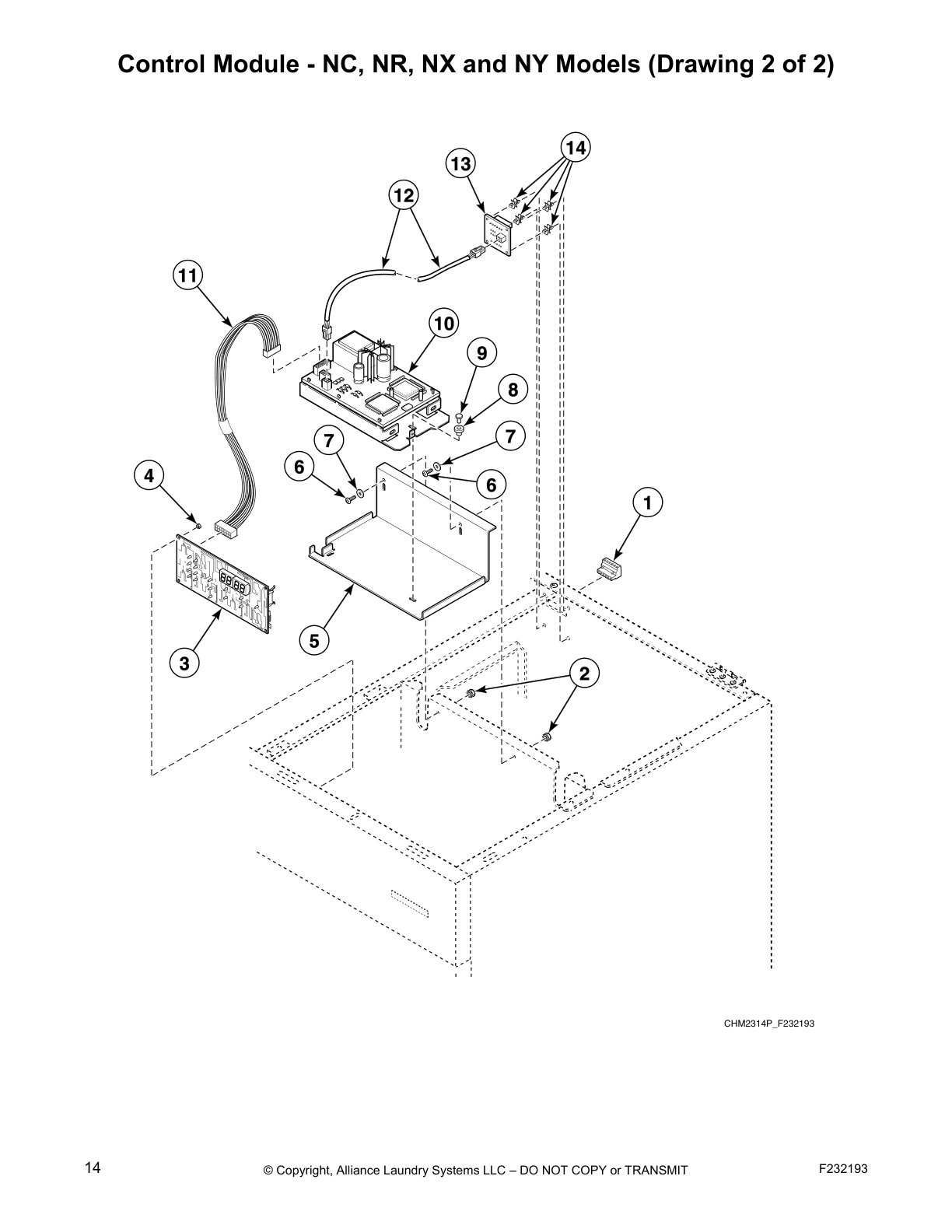

Control Module - NC, NR, NX and NY Models (Drawing 2 of 2)

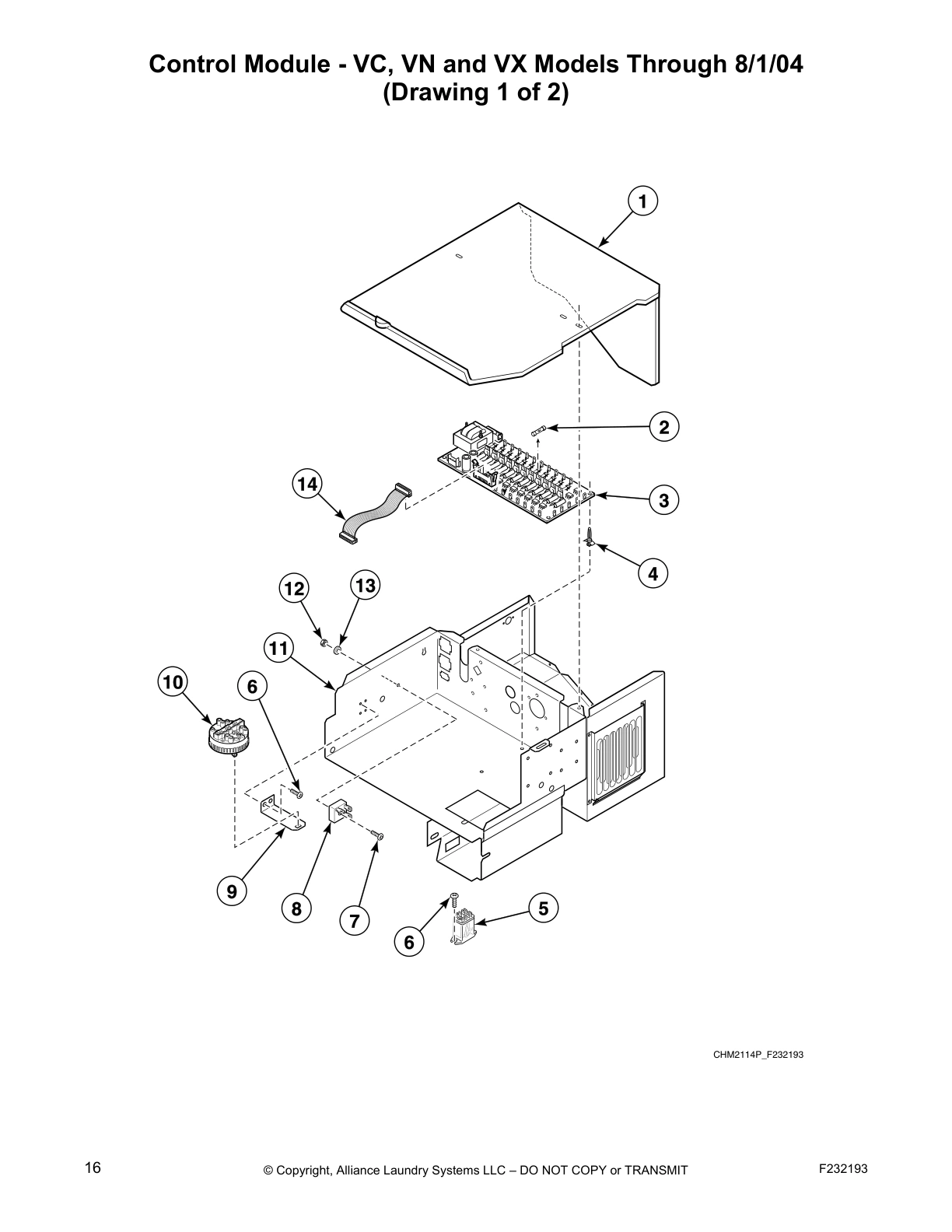

Control Module - VC, VN and VX Models Through 8/1/04
(Drawing 1 of 2)

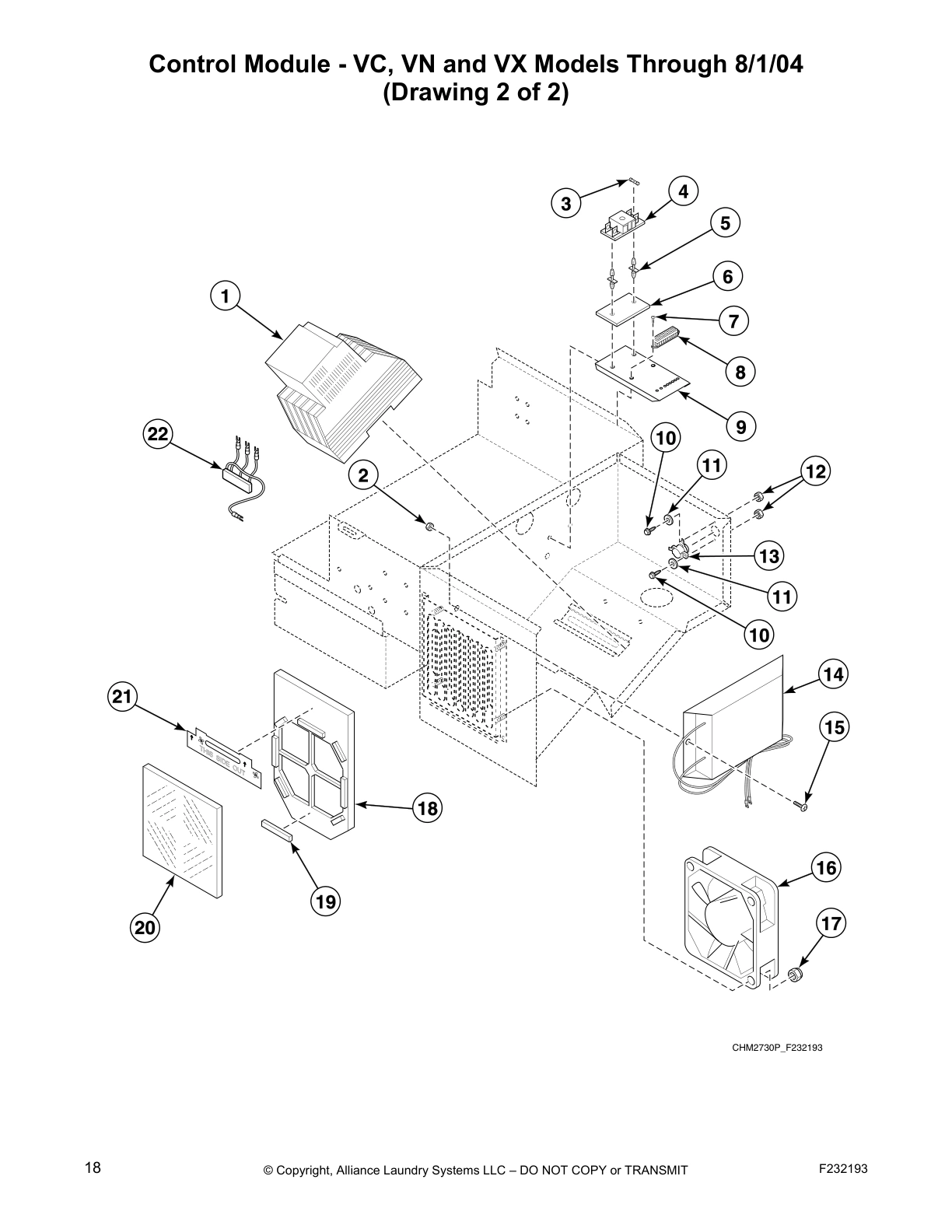

Control Module - VC, VN and VX Models Through 8/1/04
(Drawing 2 of 2)

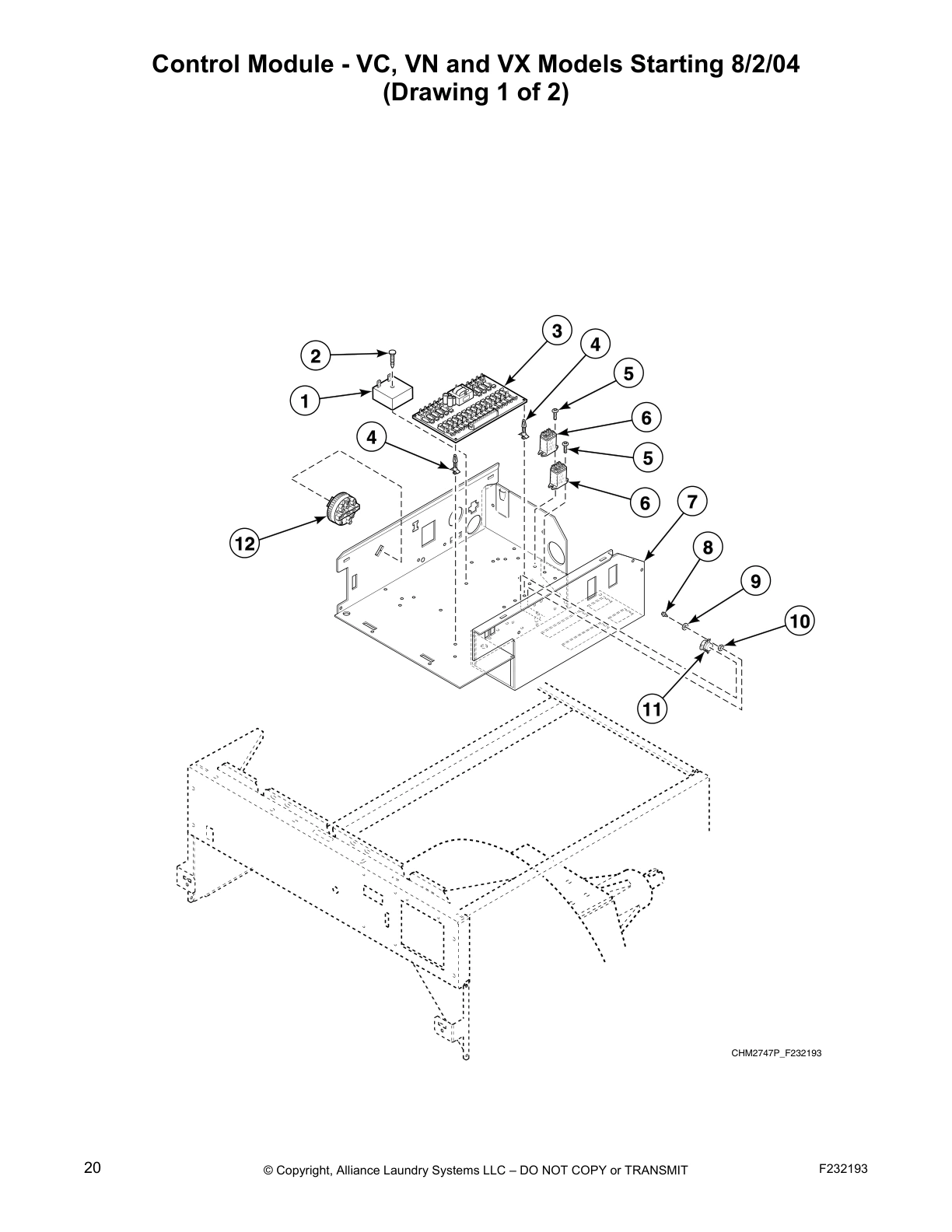

Control Module - VC, VN and VX Models Starting 8/2/04
(Drawing 1 of 2)

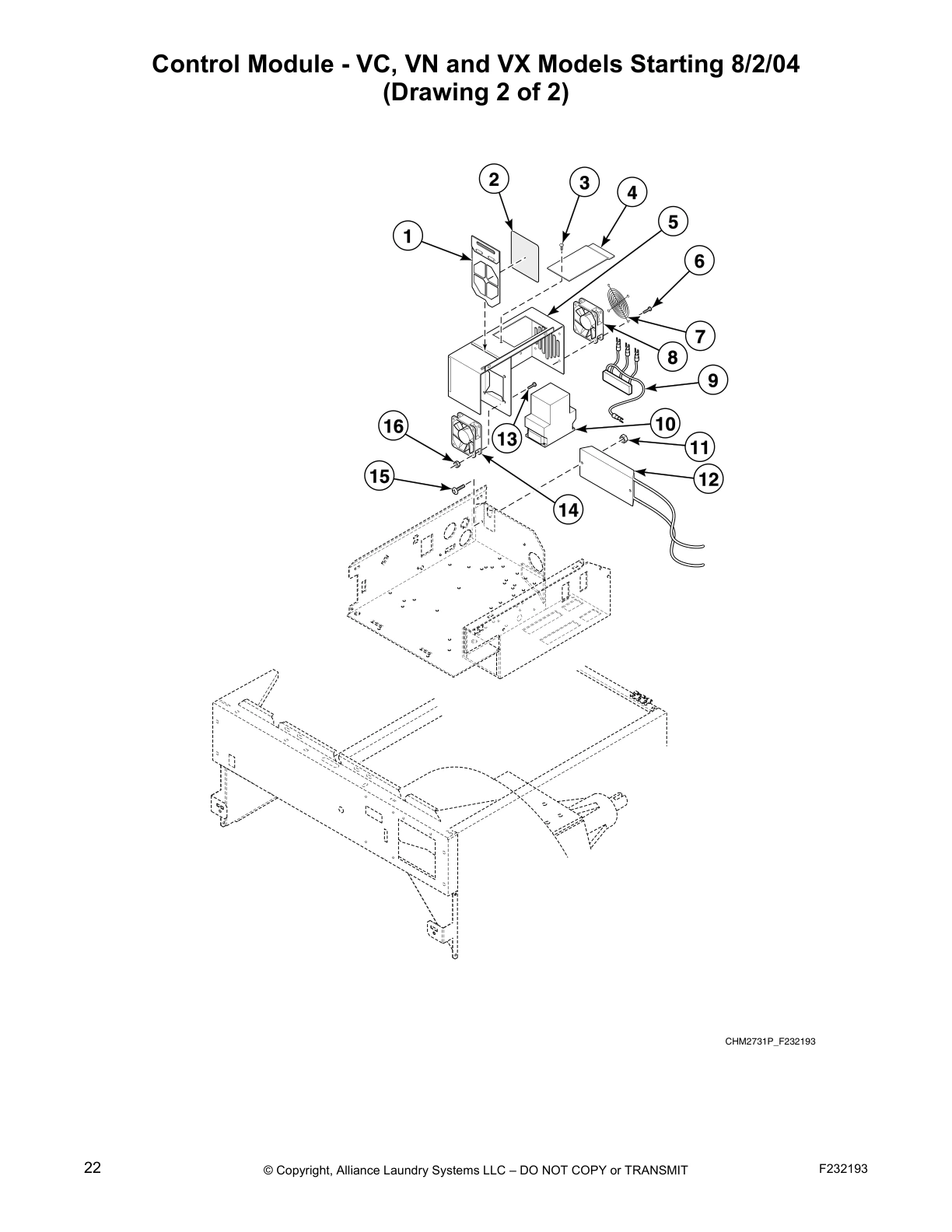

Control Module - VC, VN and VX Models Starting 8/2/04
(Drawing 2 of 2)

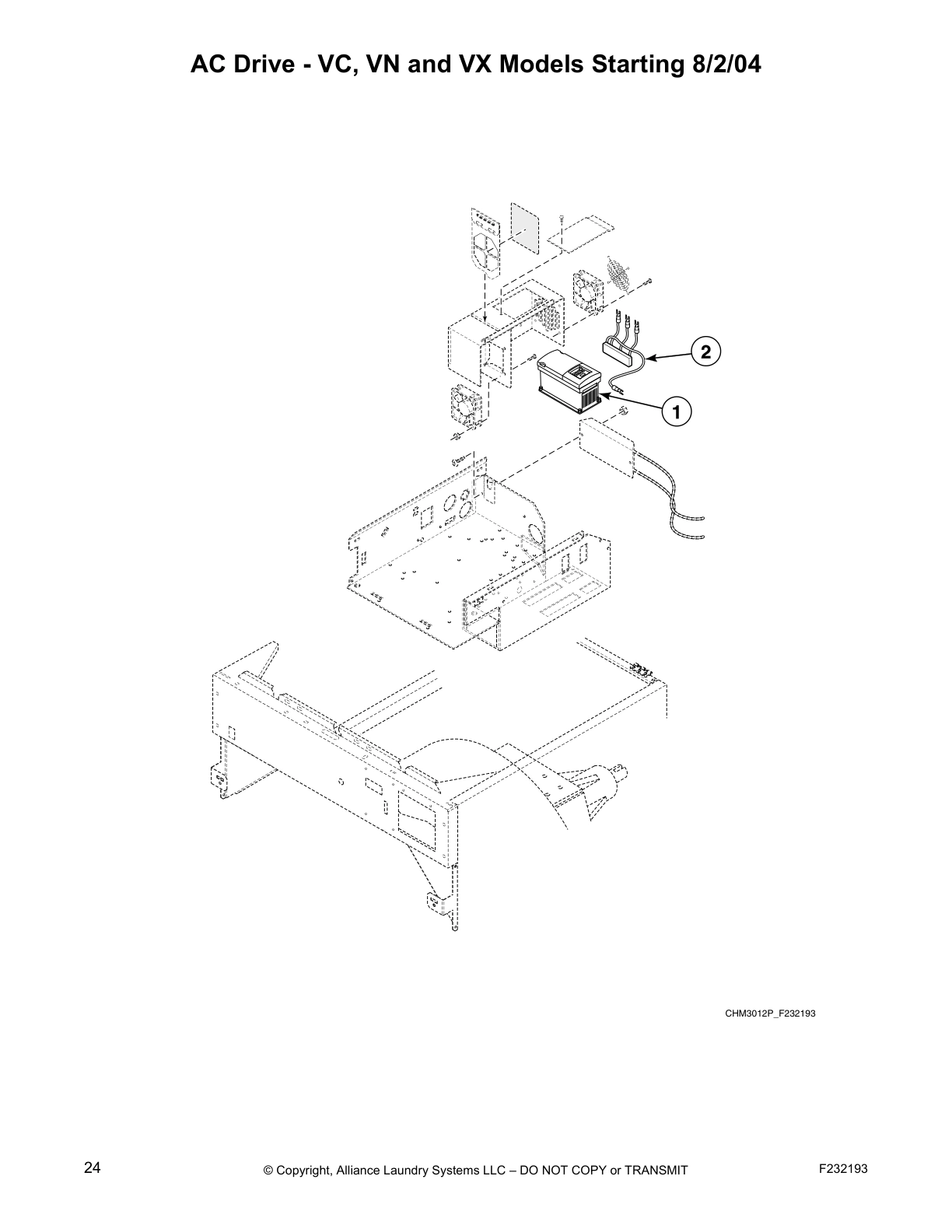

AC Drive - VC, VN and VX Models Starting 8/2/04

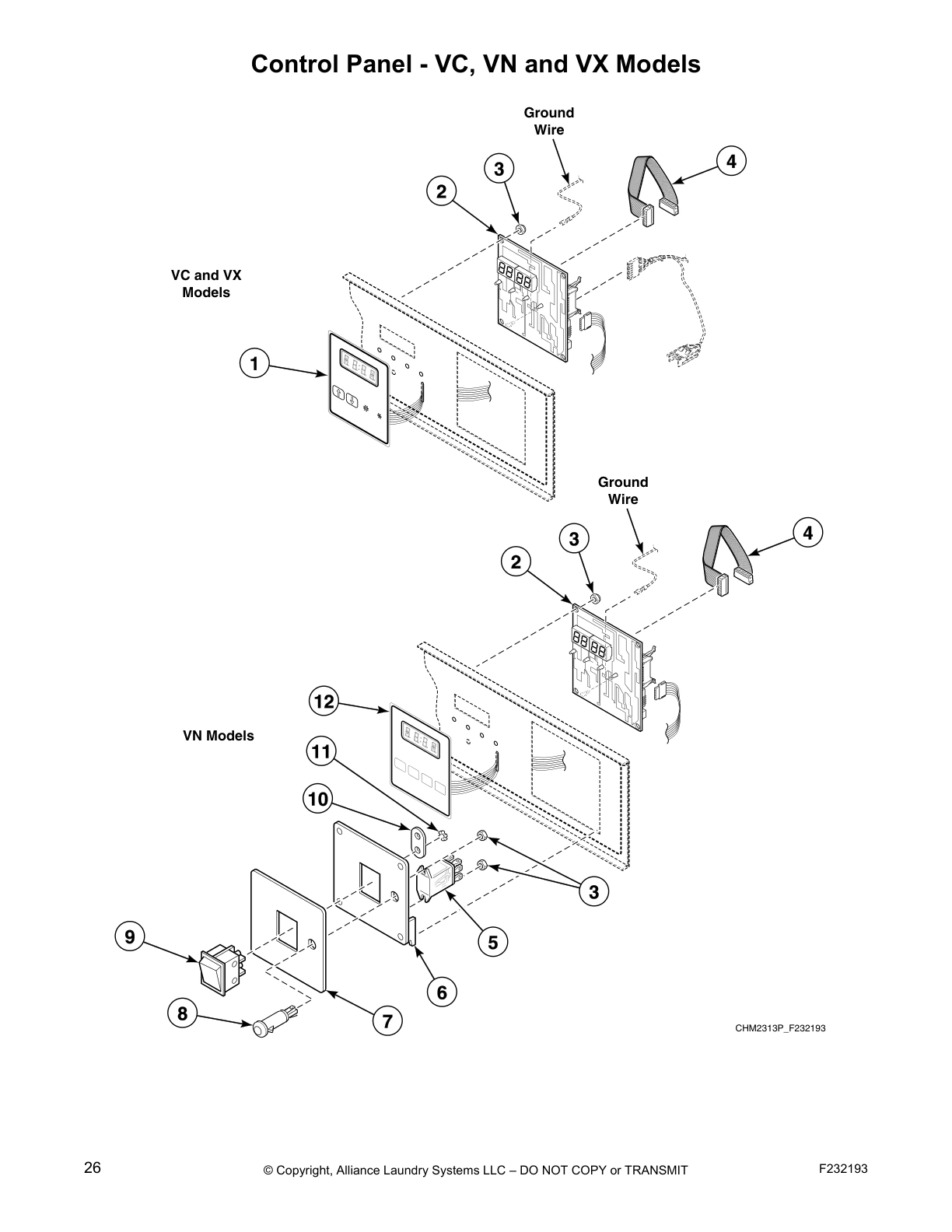

Control Panel - VC, VN and VX Models

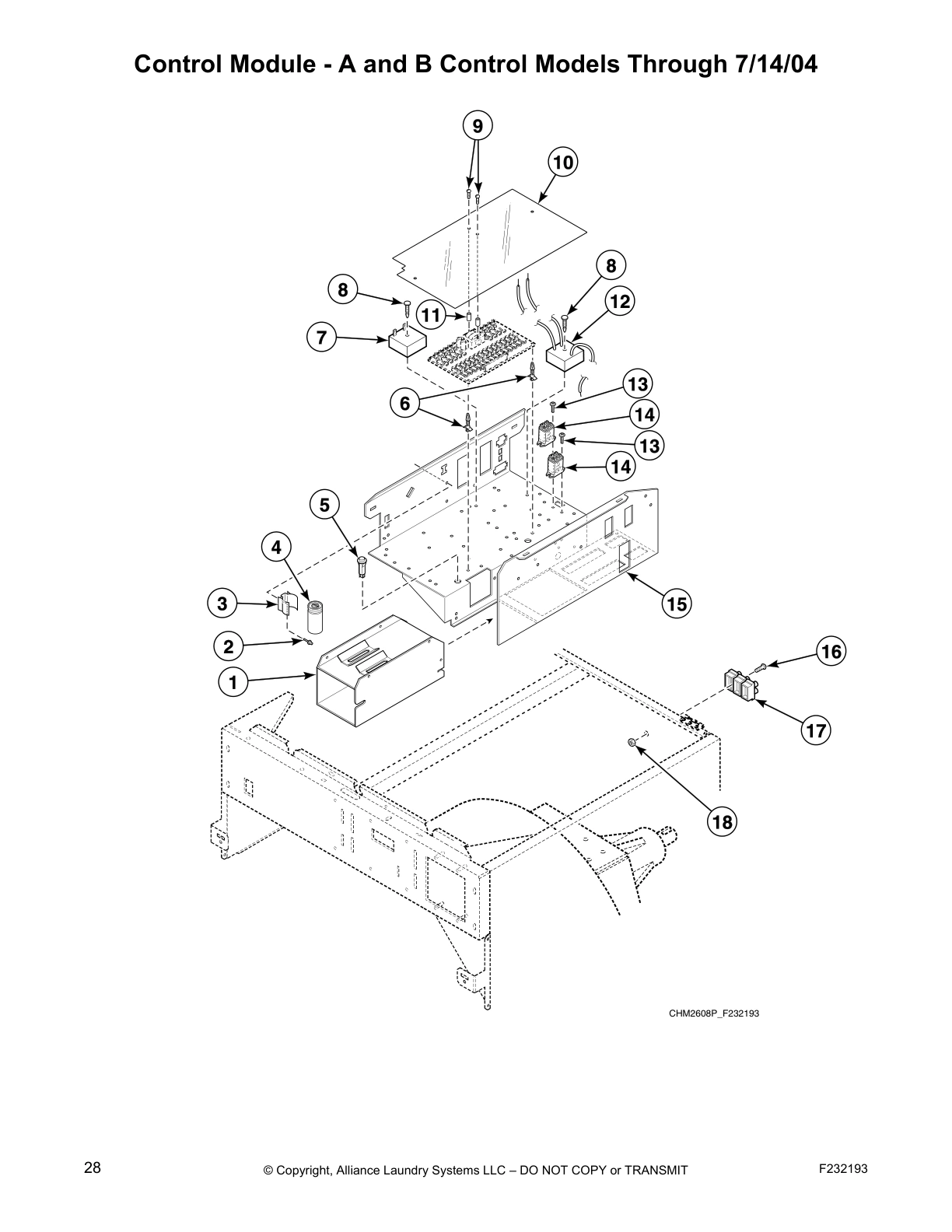

Control Module - A and B Control Models Through 7/14/04

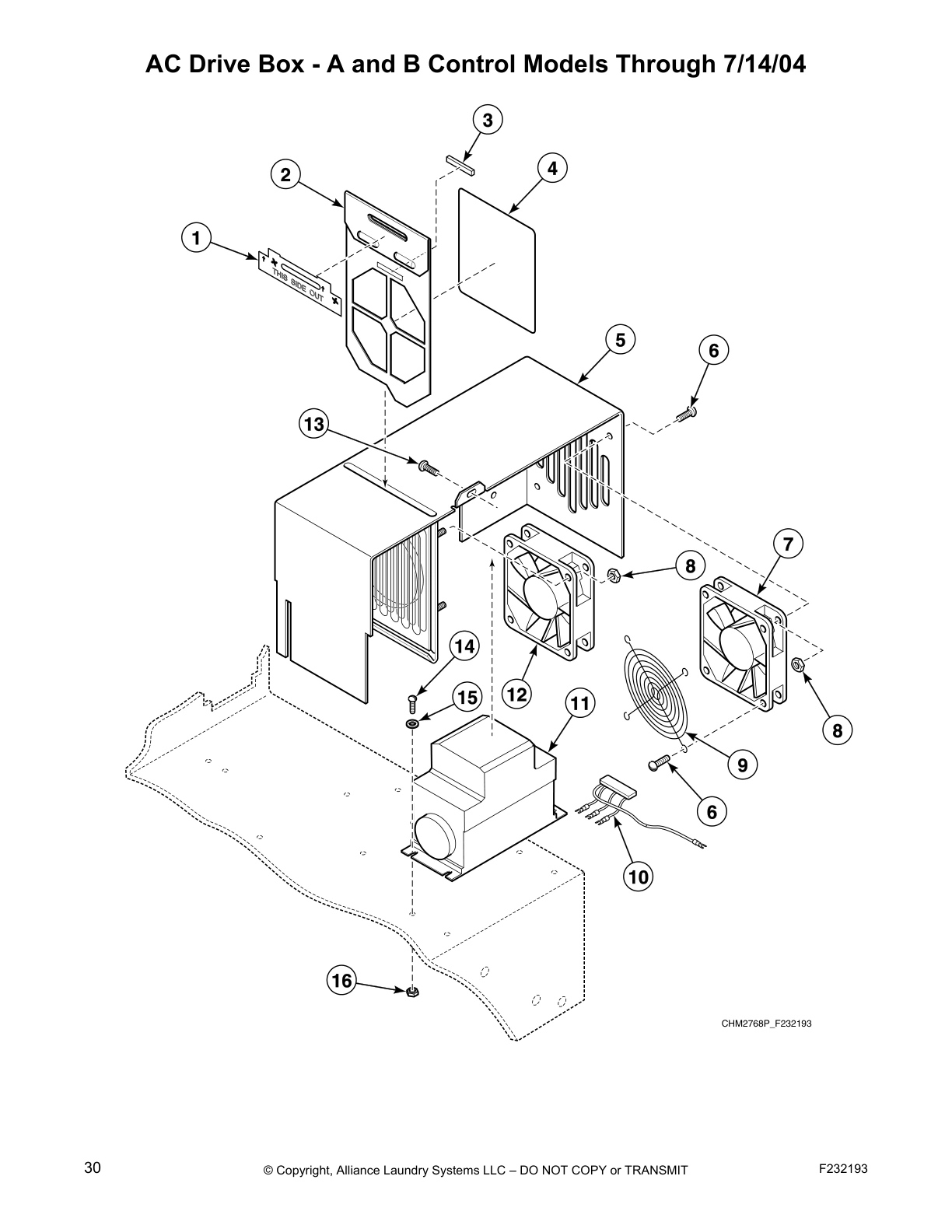

AC Drive Box - A and B Control Models Through 7/14/04

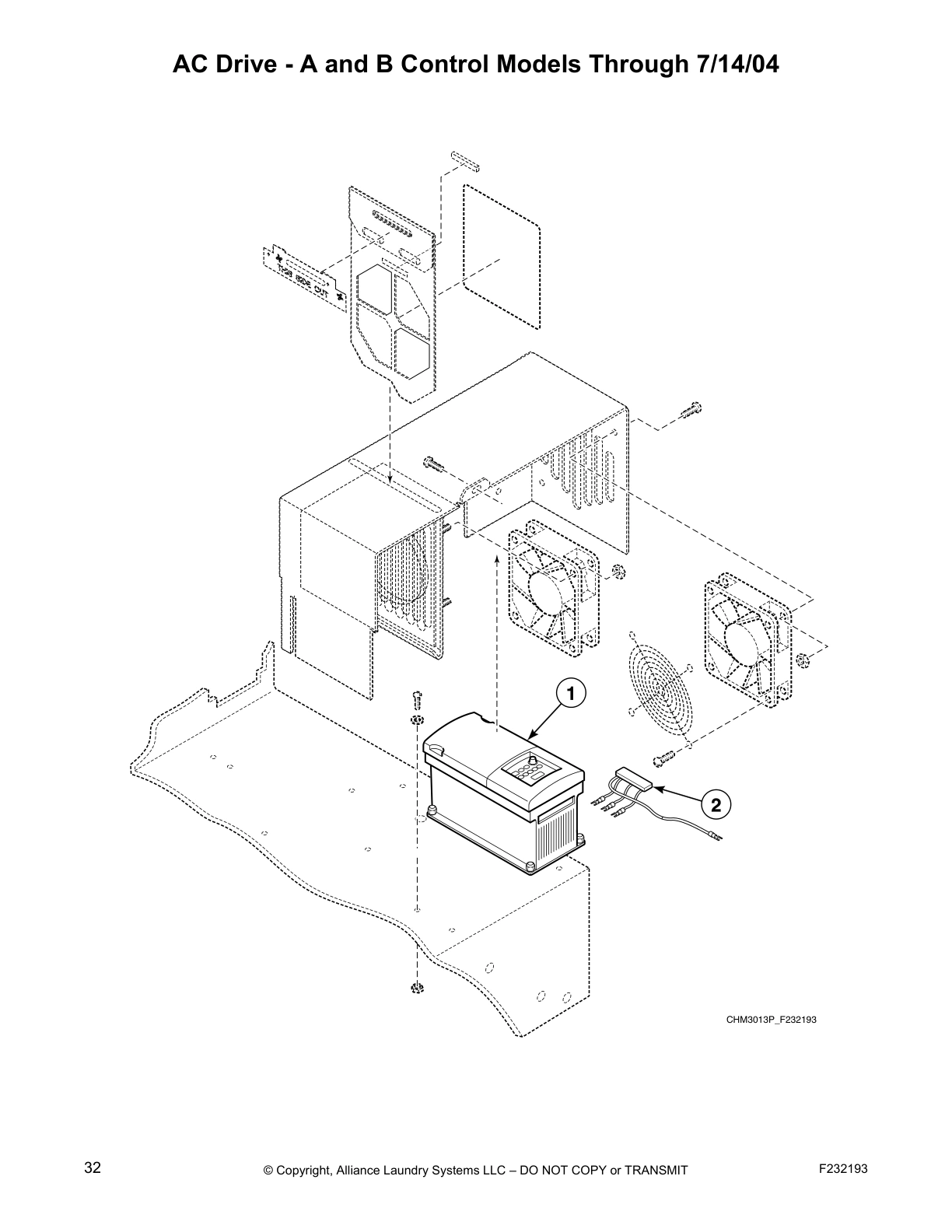

AC Drive - A and B Control Models Through 7/14/04

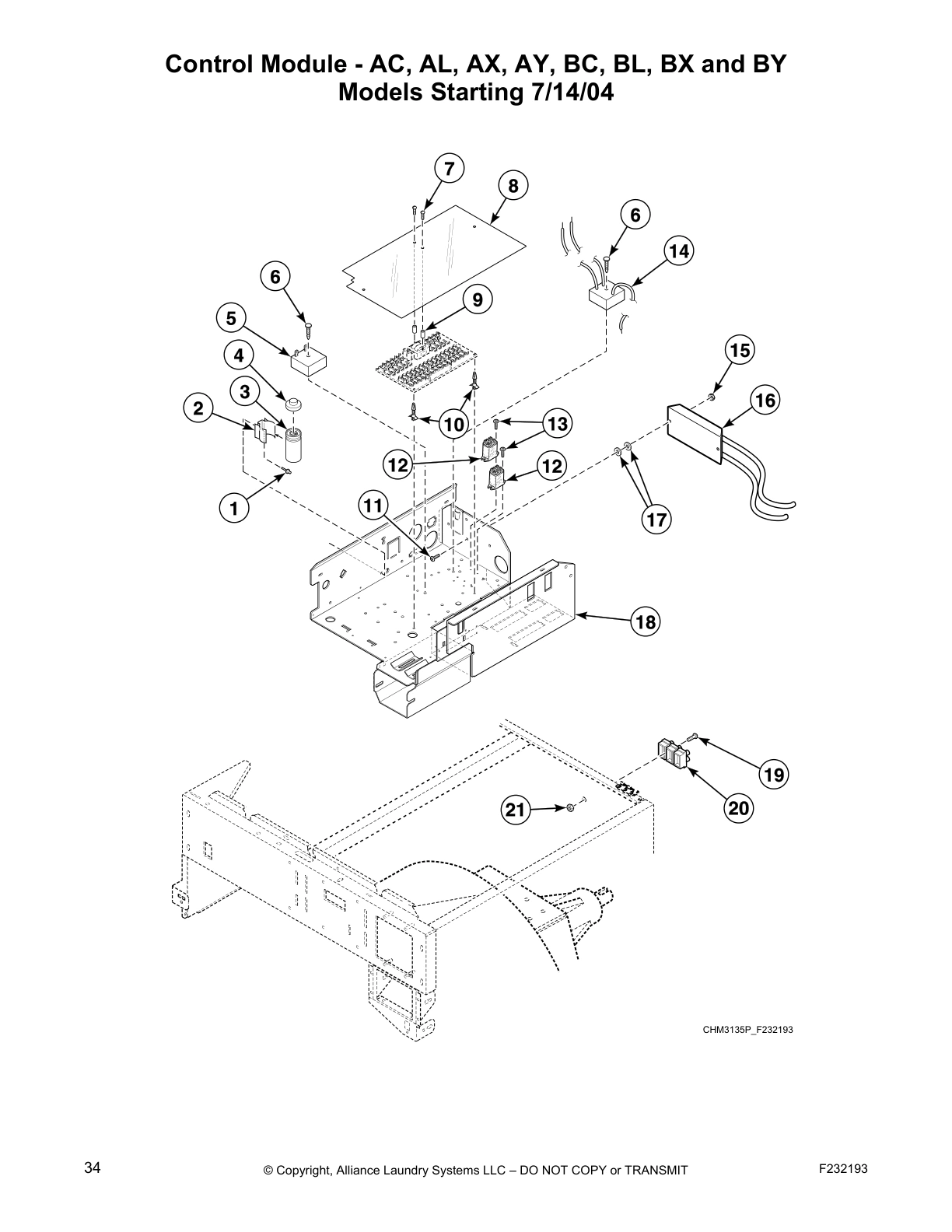

Control Module - AC, AL, AX, AY, BC, BL, BX and BY
Models Starting 7/14/04

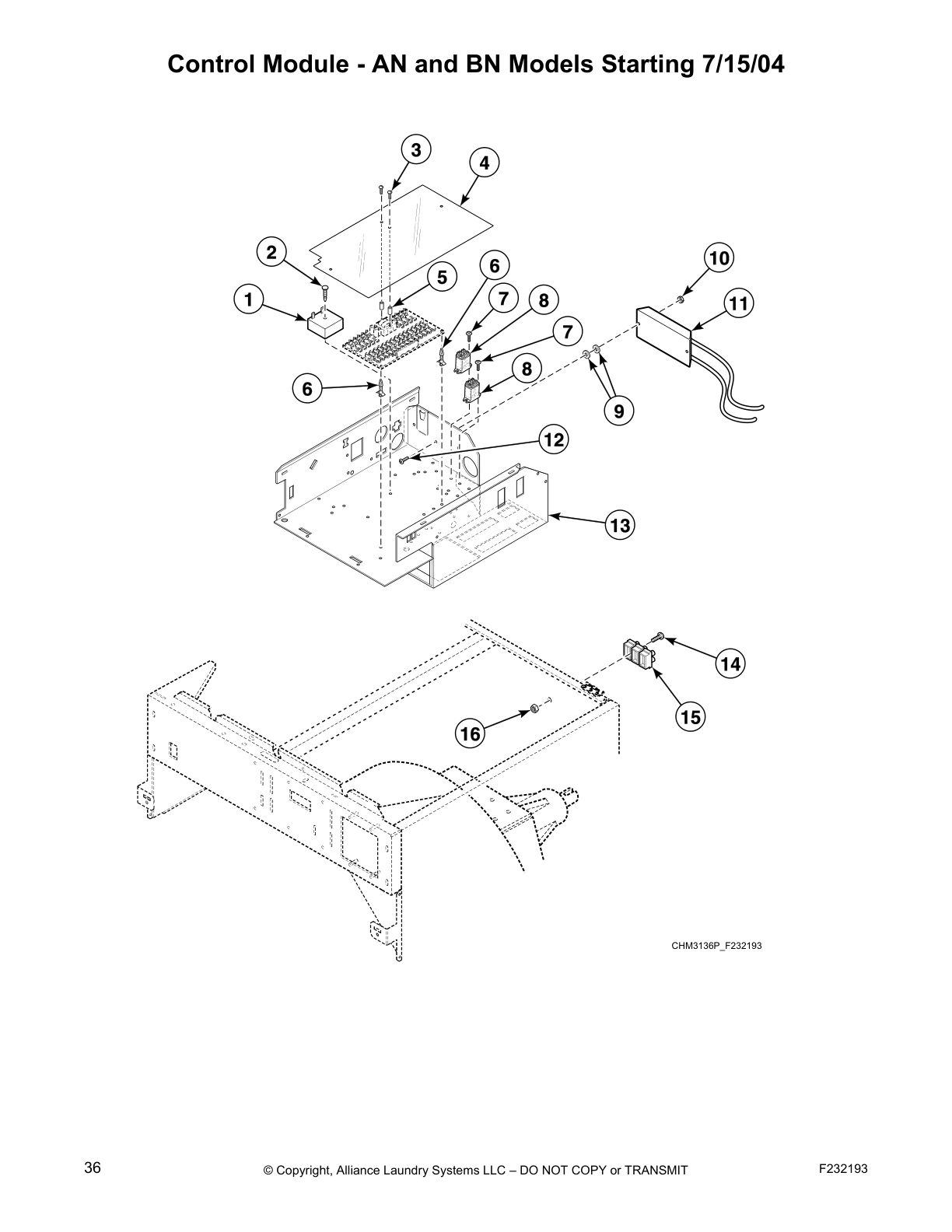

Control Module - AN and BN Models Starting 7/15/04

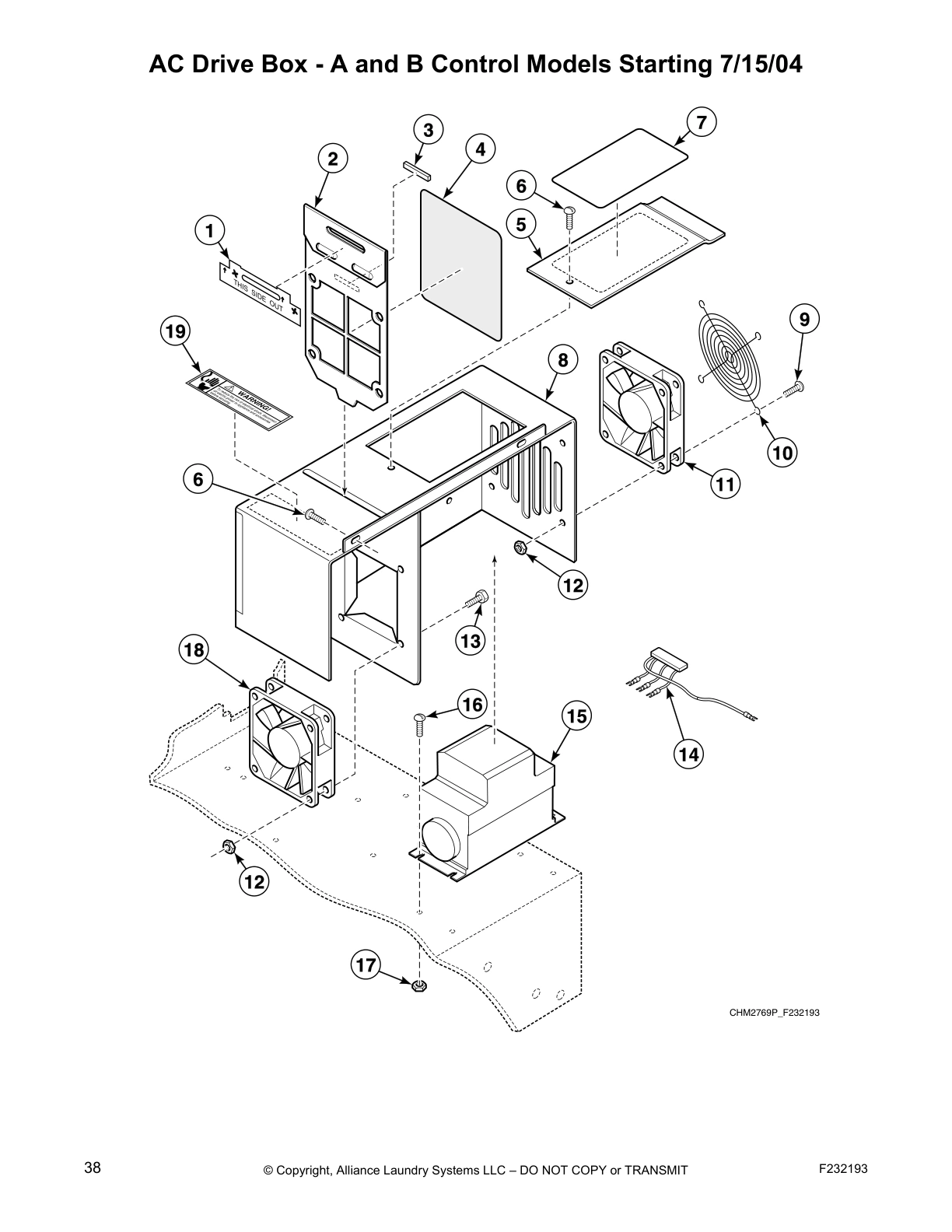

AC Drive Box - A and B Control Models Starting 7/15/04

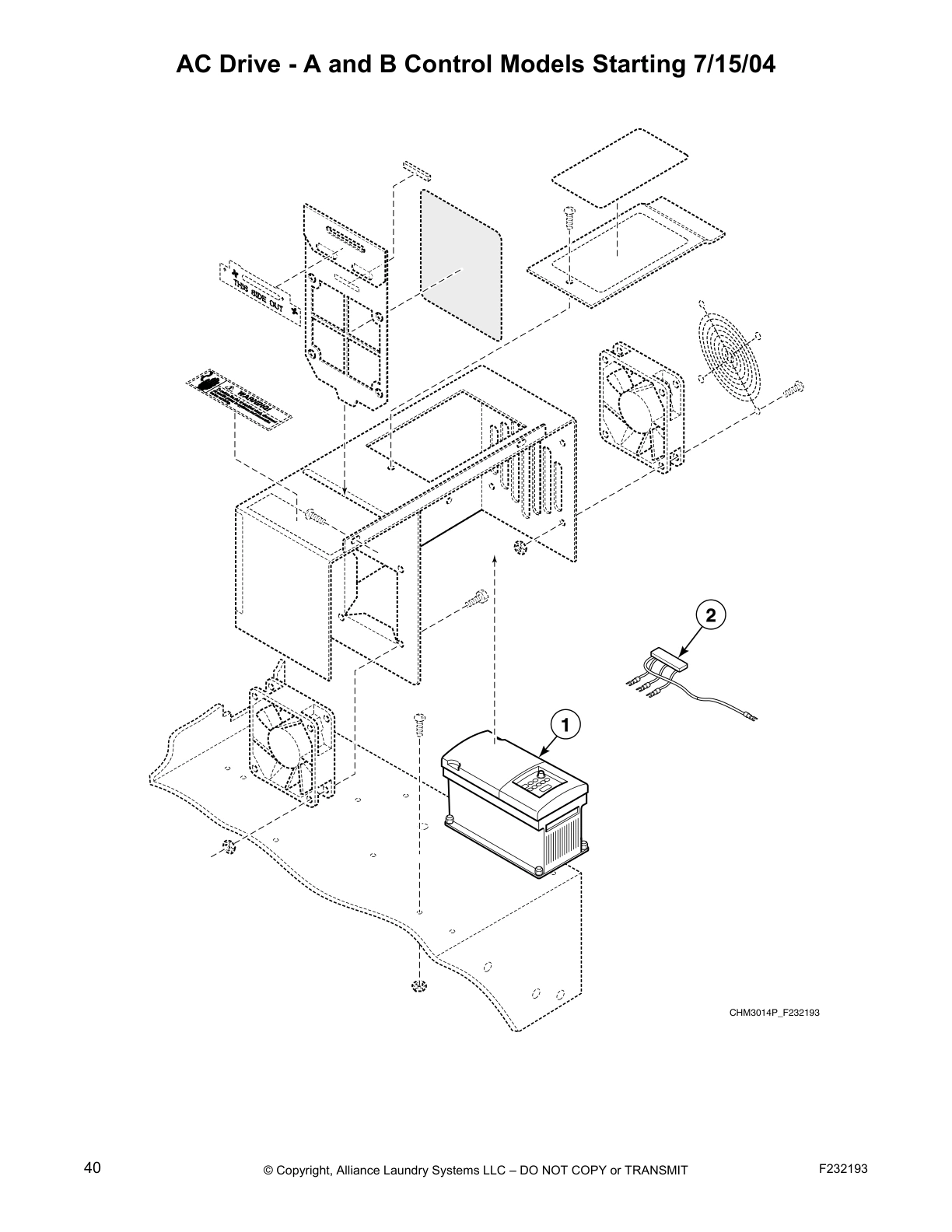

AC Drive - A and B Control Models Starting 7/15/04

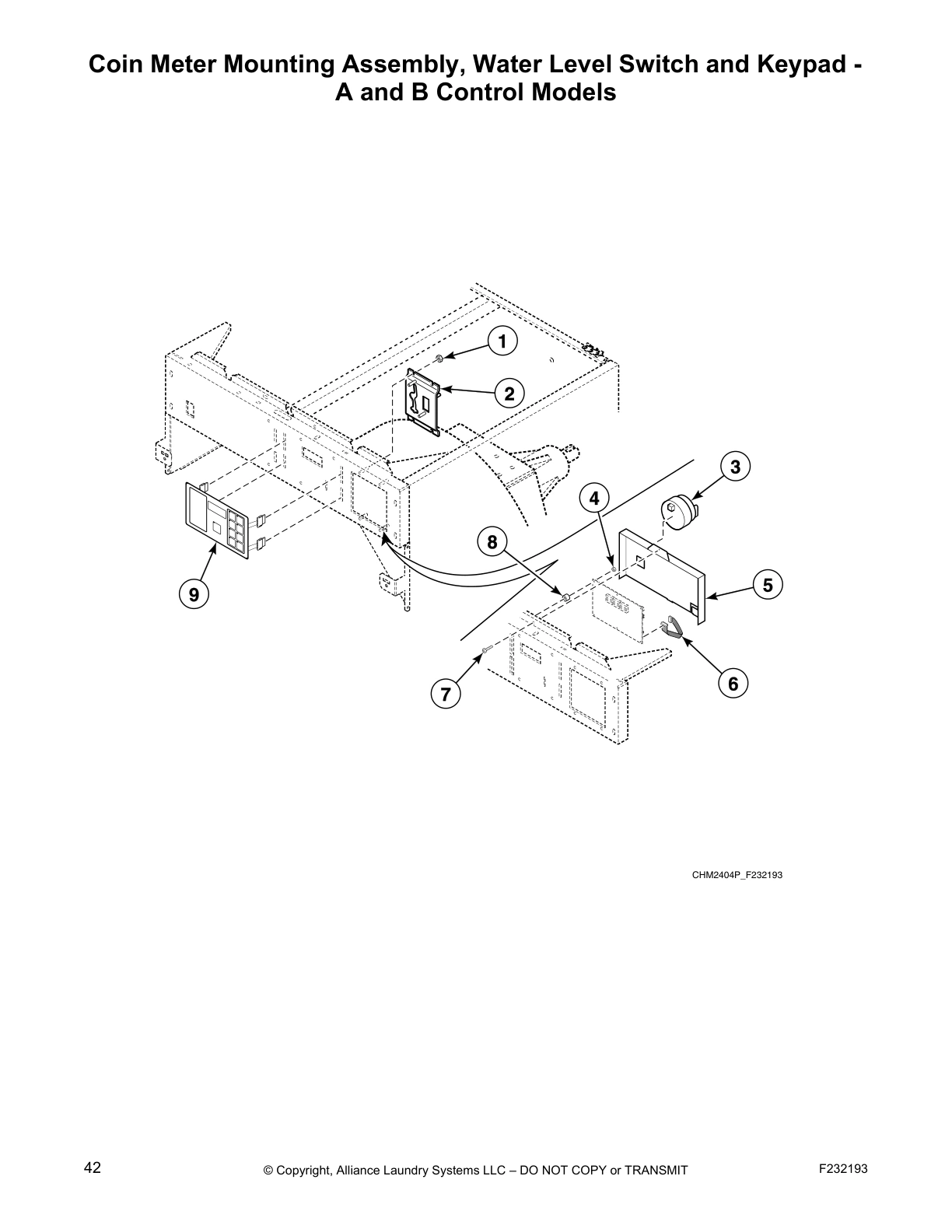

Coin Meter Mounting Assembly, Water Level Switch and Keypad -
A and B Control Models

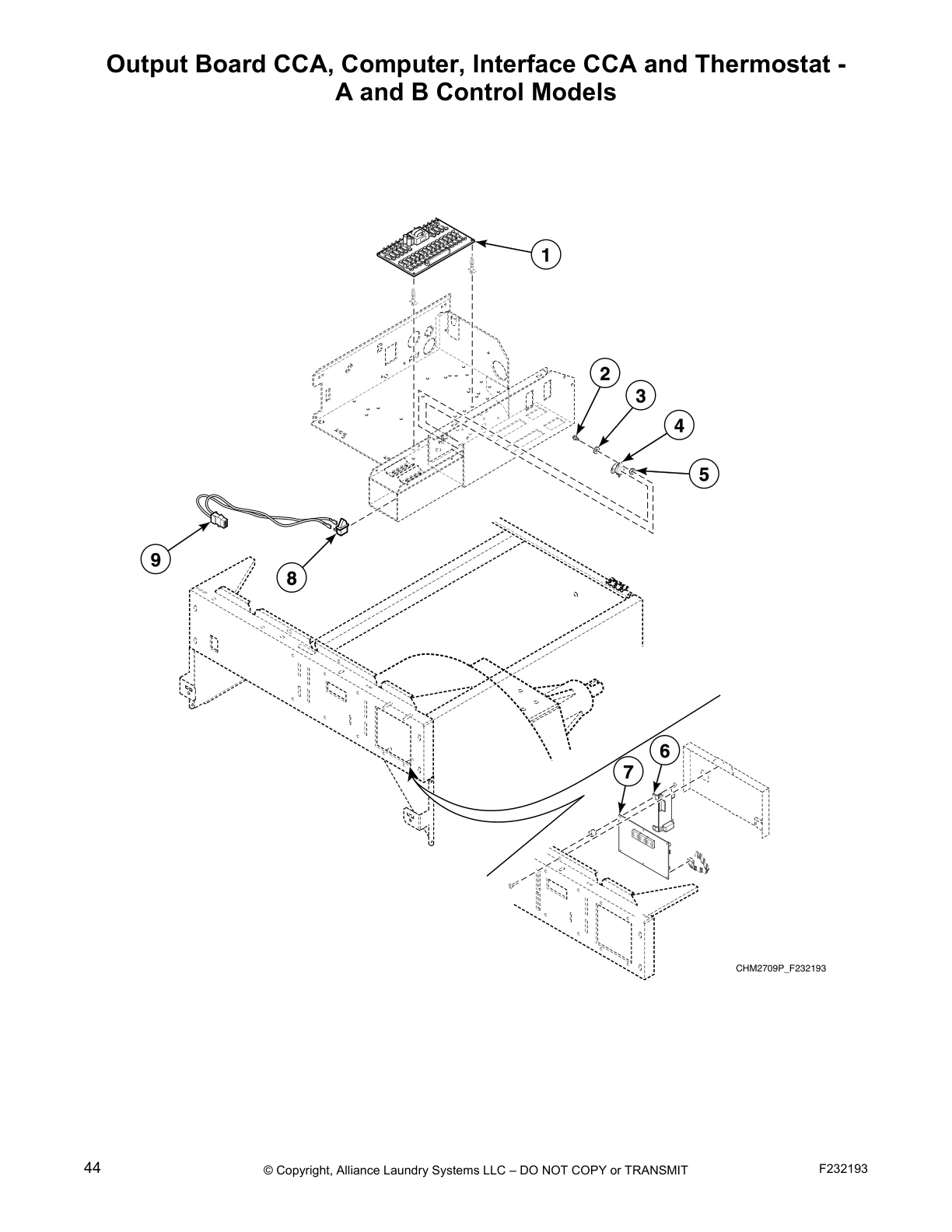

Output Board CCA, Computer, Interface CCA and Thermostat -
A and B Control Models

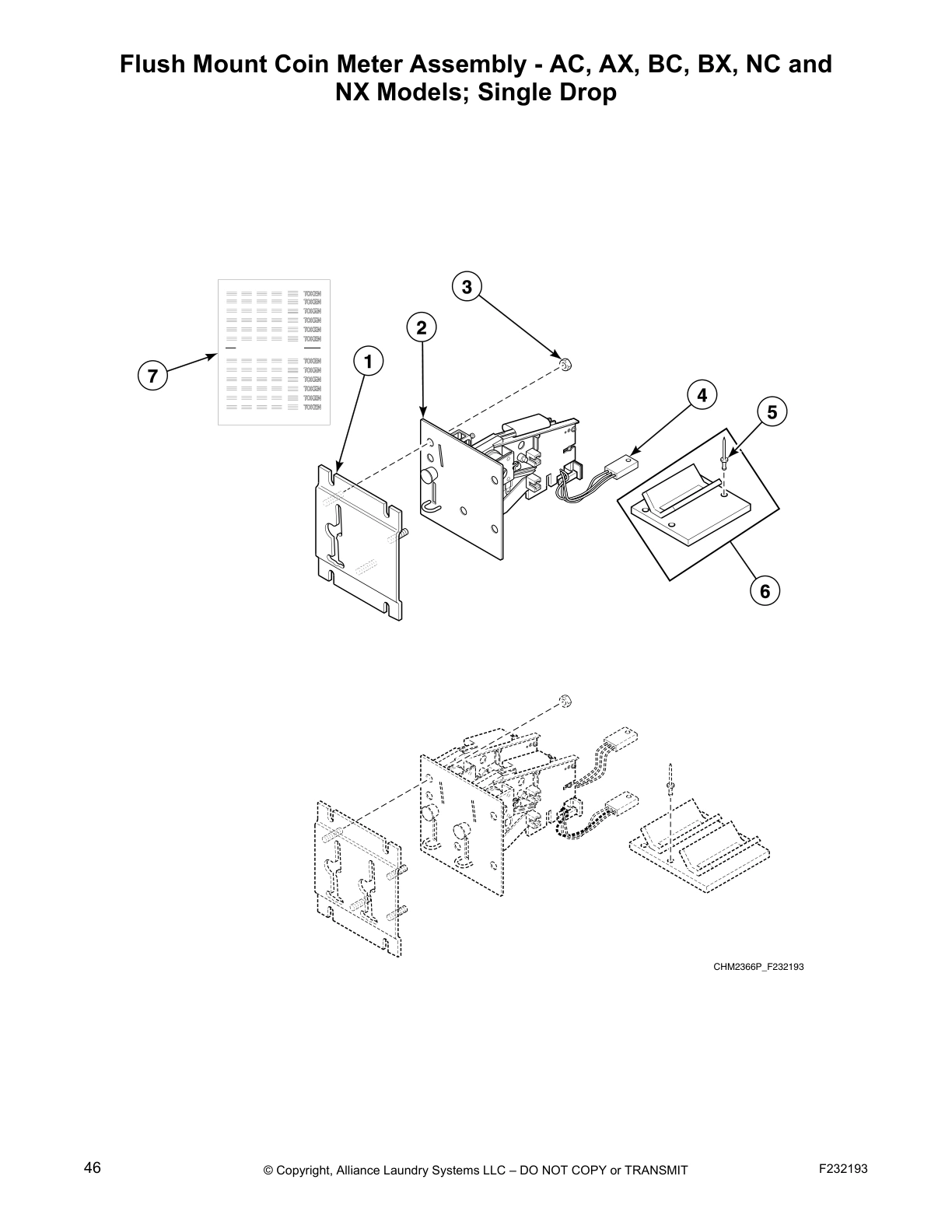

Flush Mount Coin Meter Assembly - AC, AX, BC, BX, NC and
NX Models; Single Drop

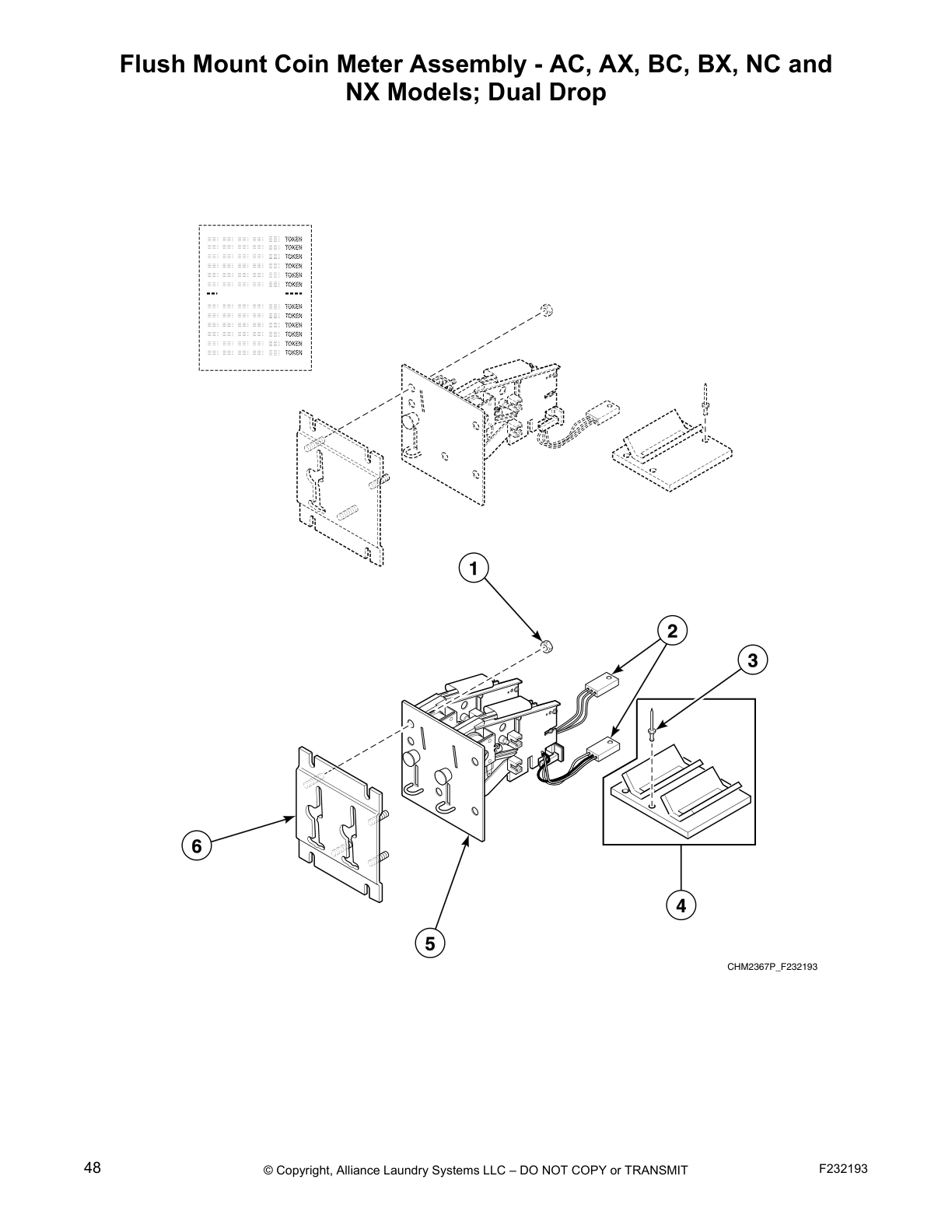

Flush Mount Coin Meter Assembly - AC, AX, BC, BX, NC and
NX Models; Dual Drop

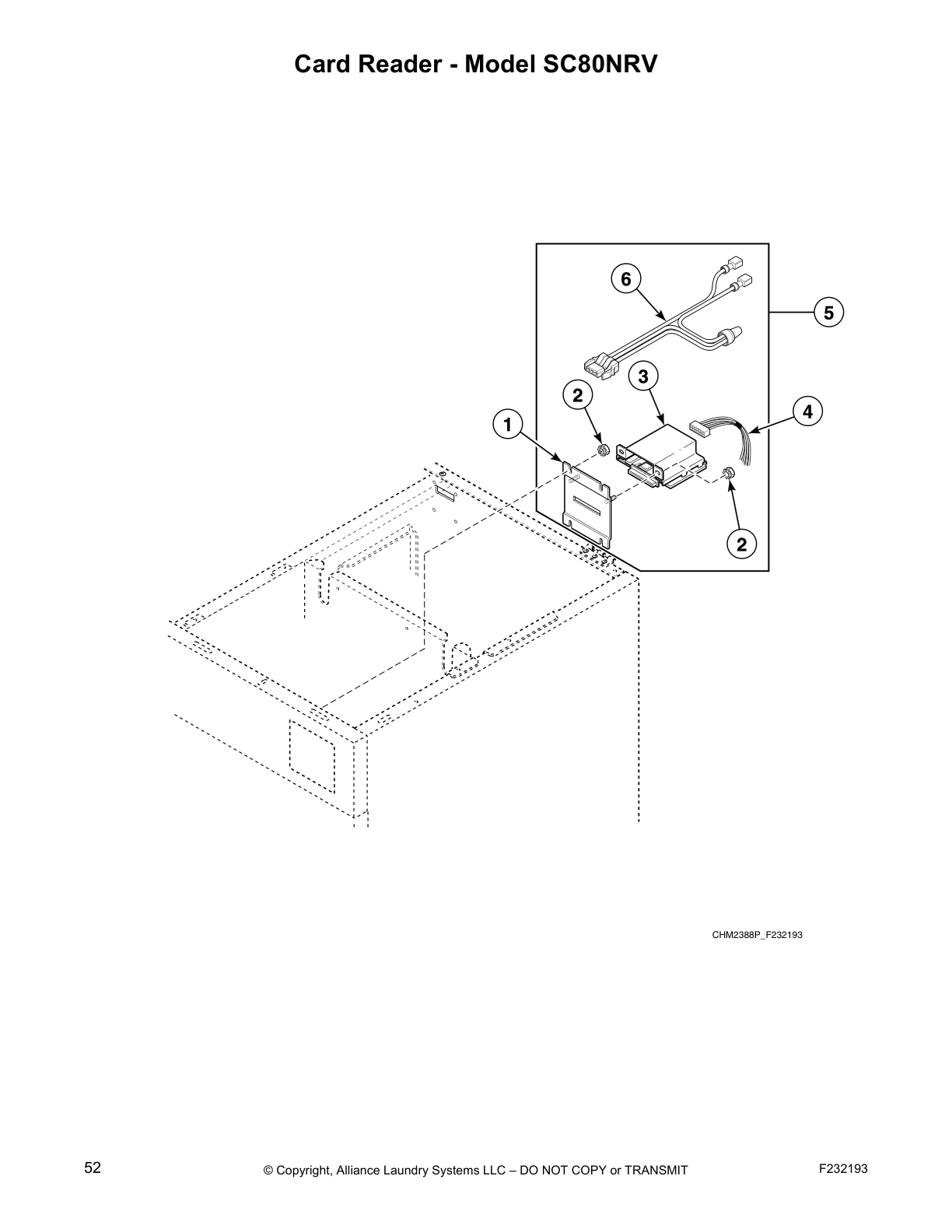

Card Reader - Model SC80NRV

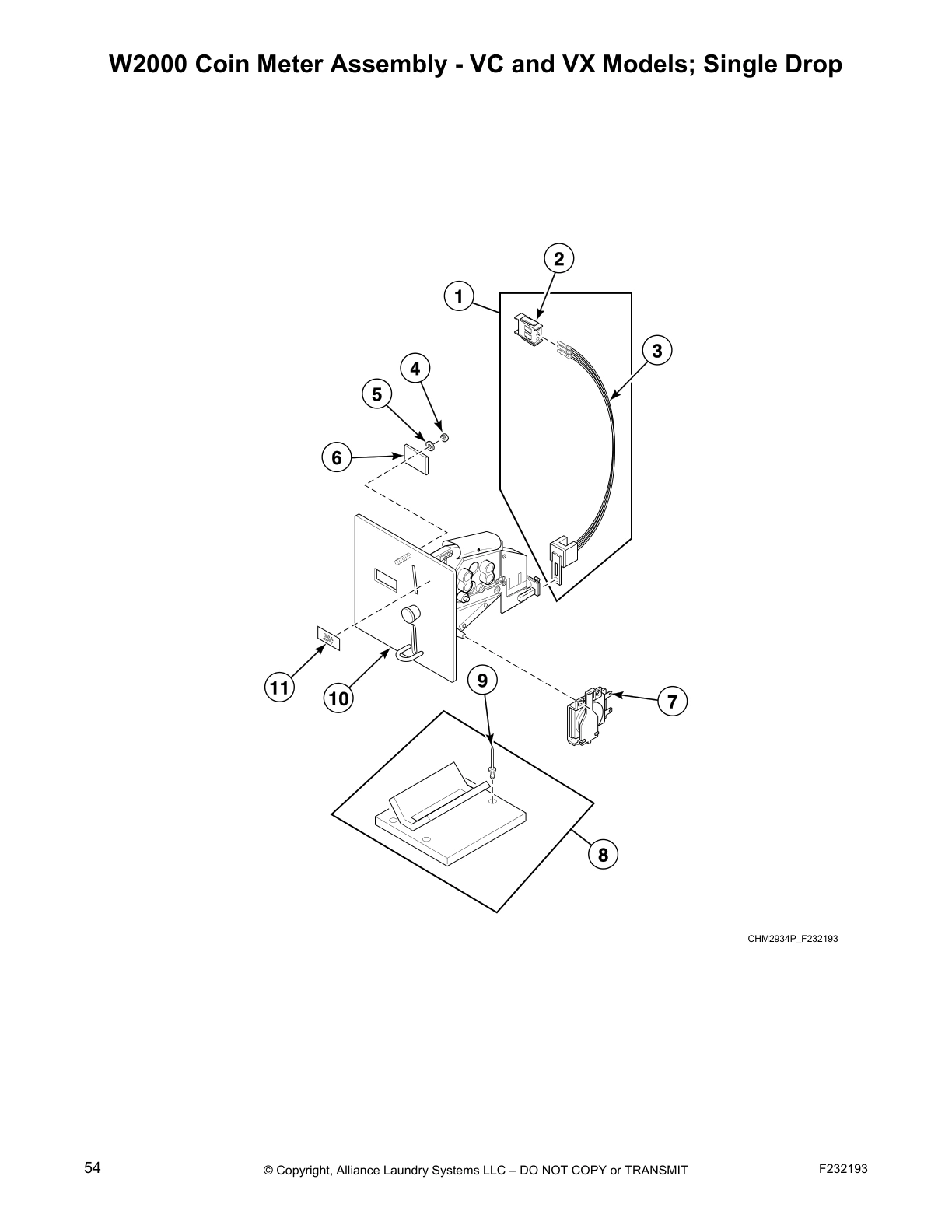

W2000 Coin Meter Assembly - VC and VX Models; Single Drop

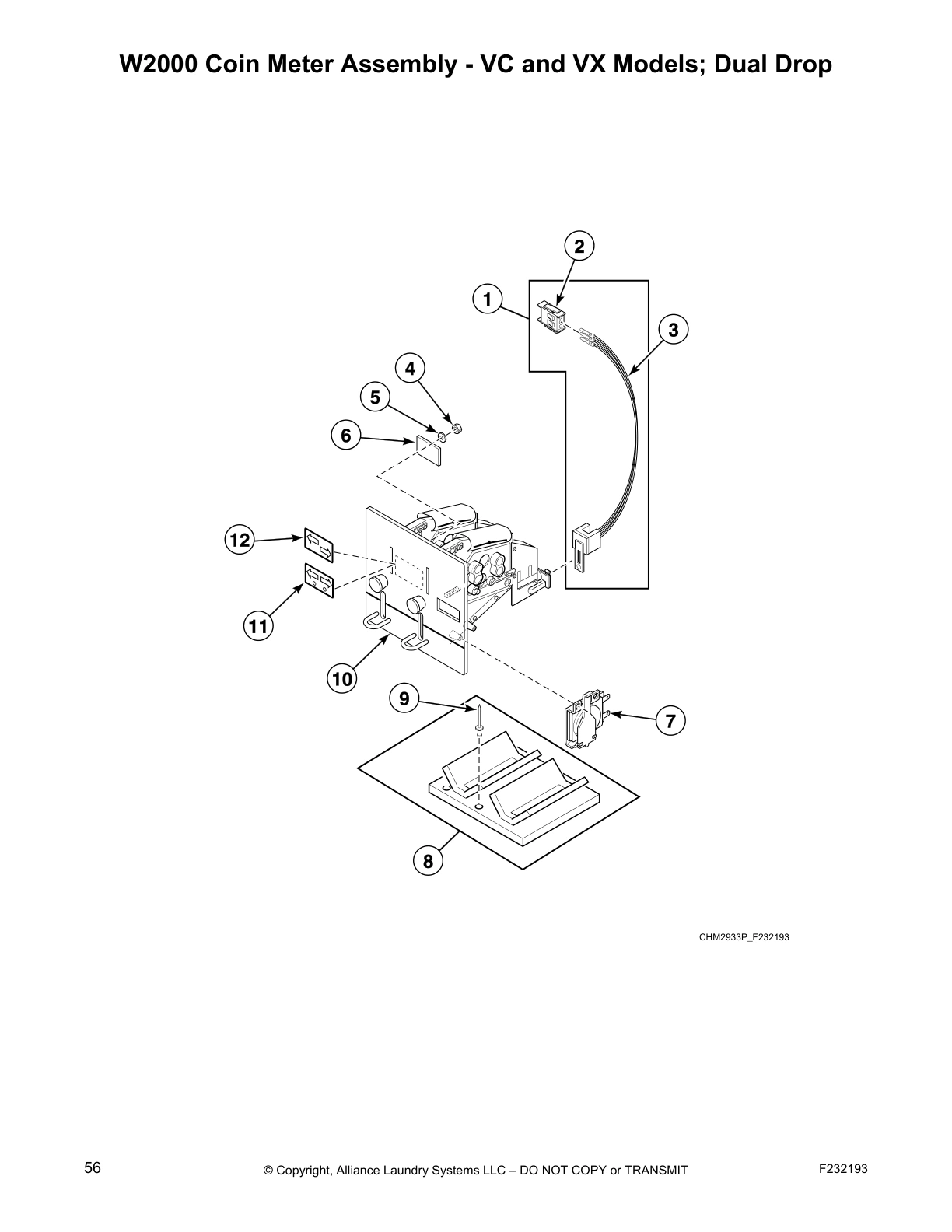

W2000 Coin Meter Assembly - VC and VX Models; Dual Drop

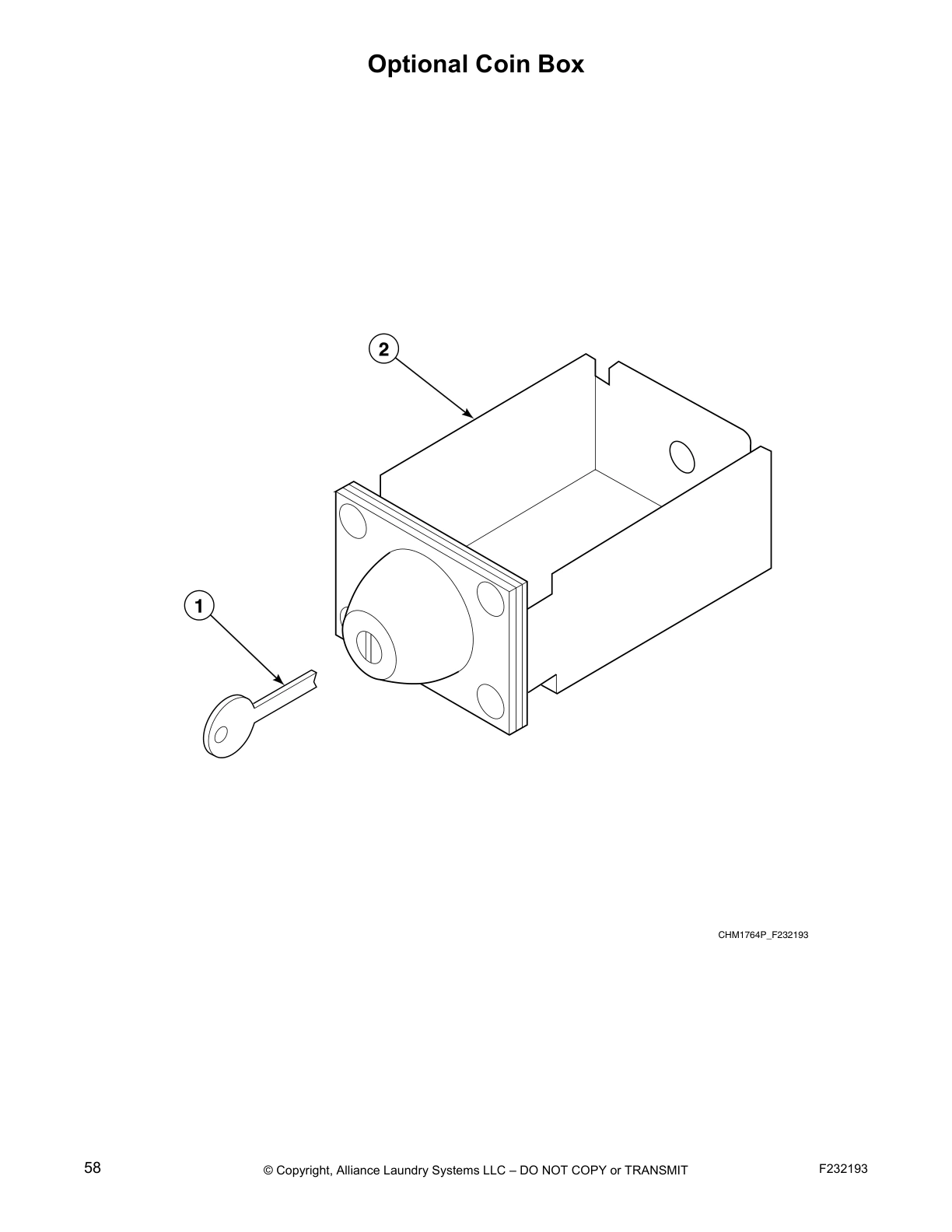

Optional Coin Box

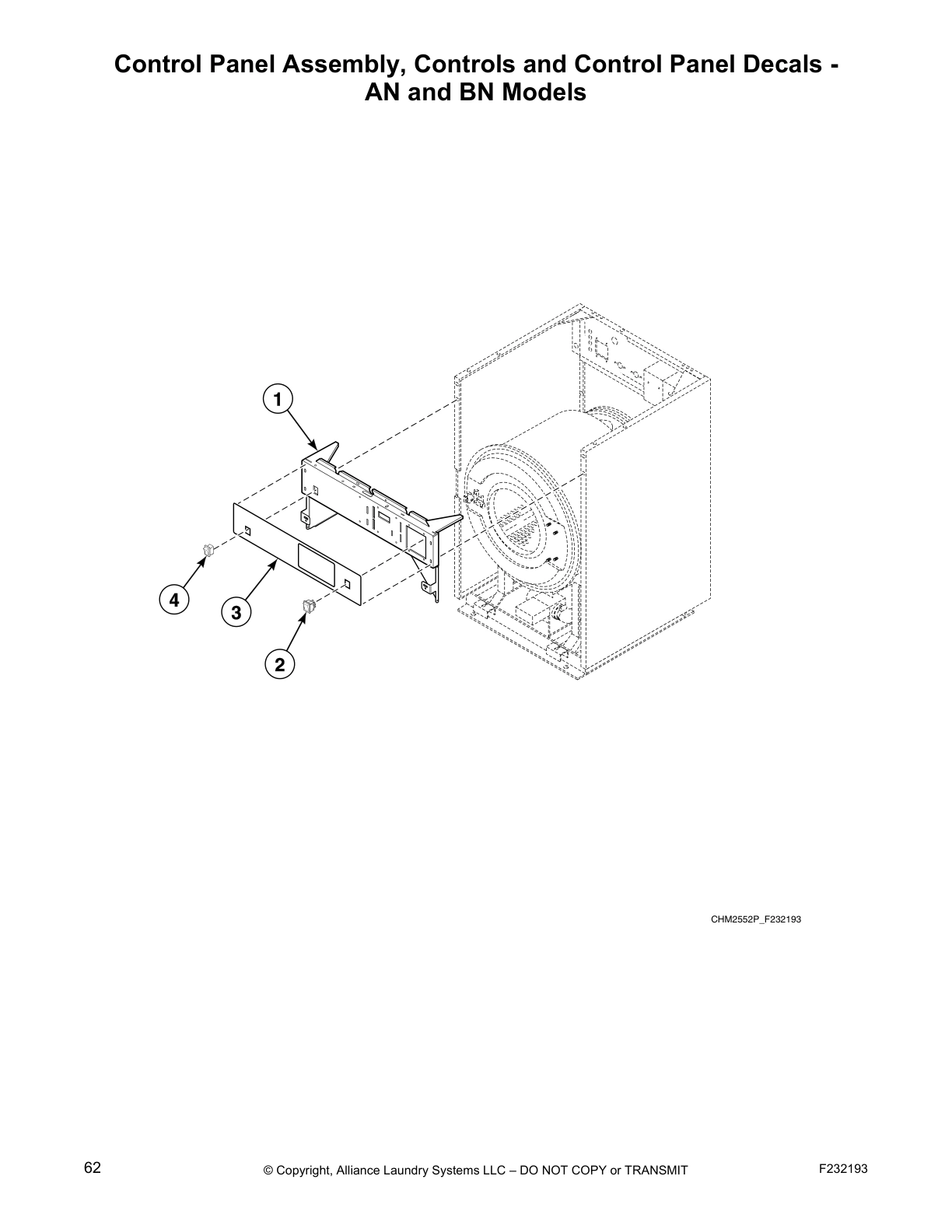

Control Panel Assembly, Controls and Control Panel Decals -
AN and BN Models

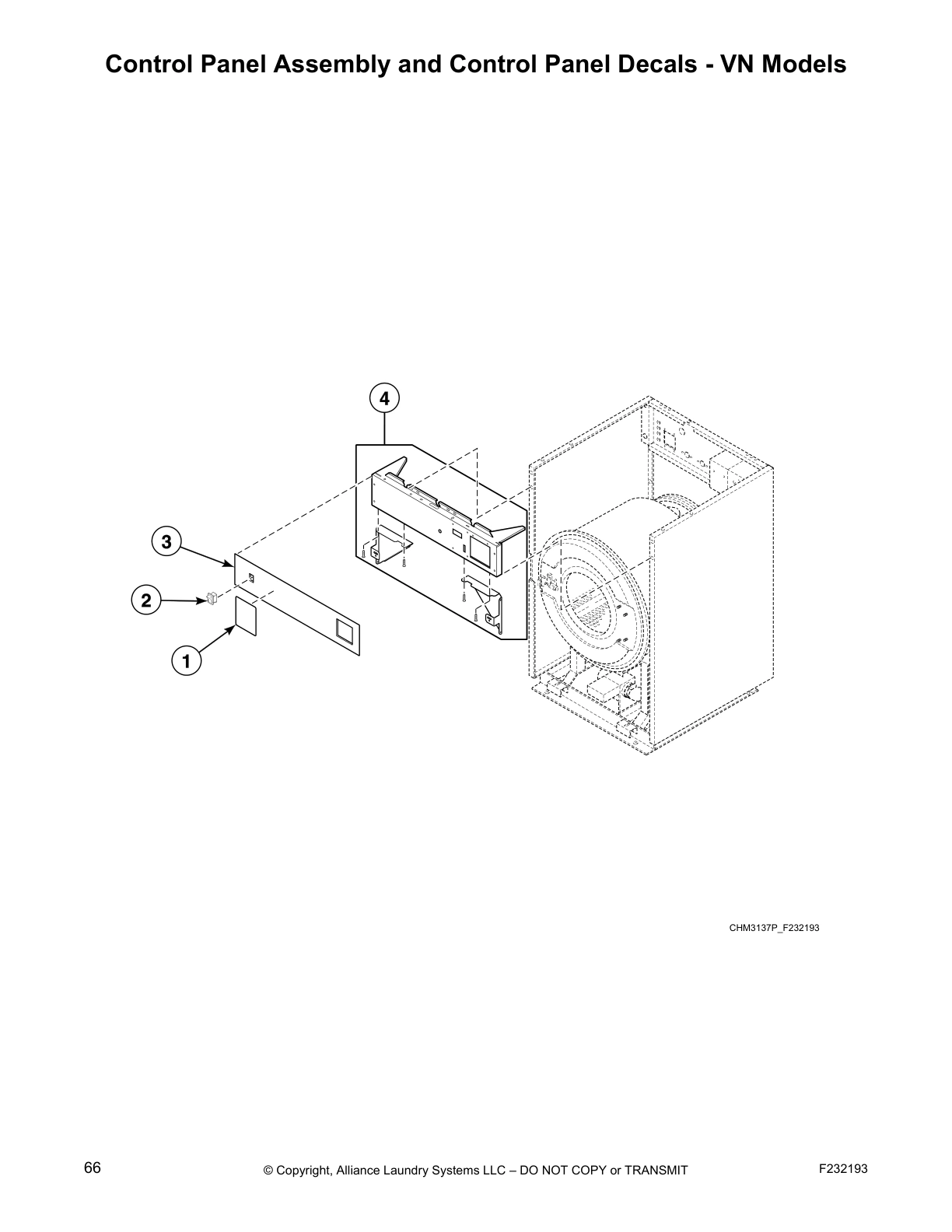

Control Panel Assembly and Control Panel Decals - VN Models

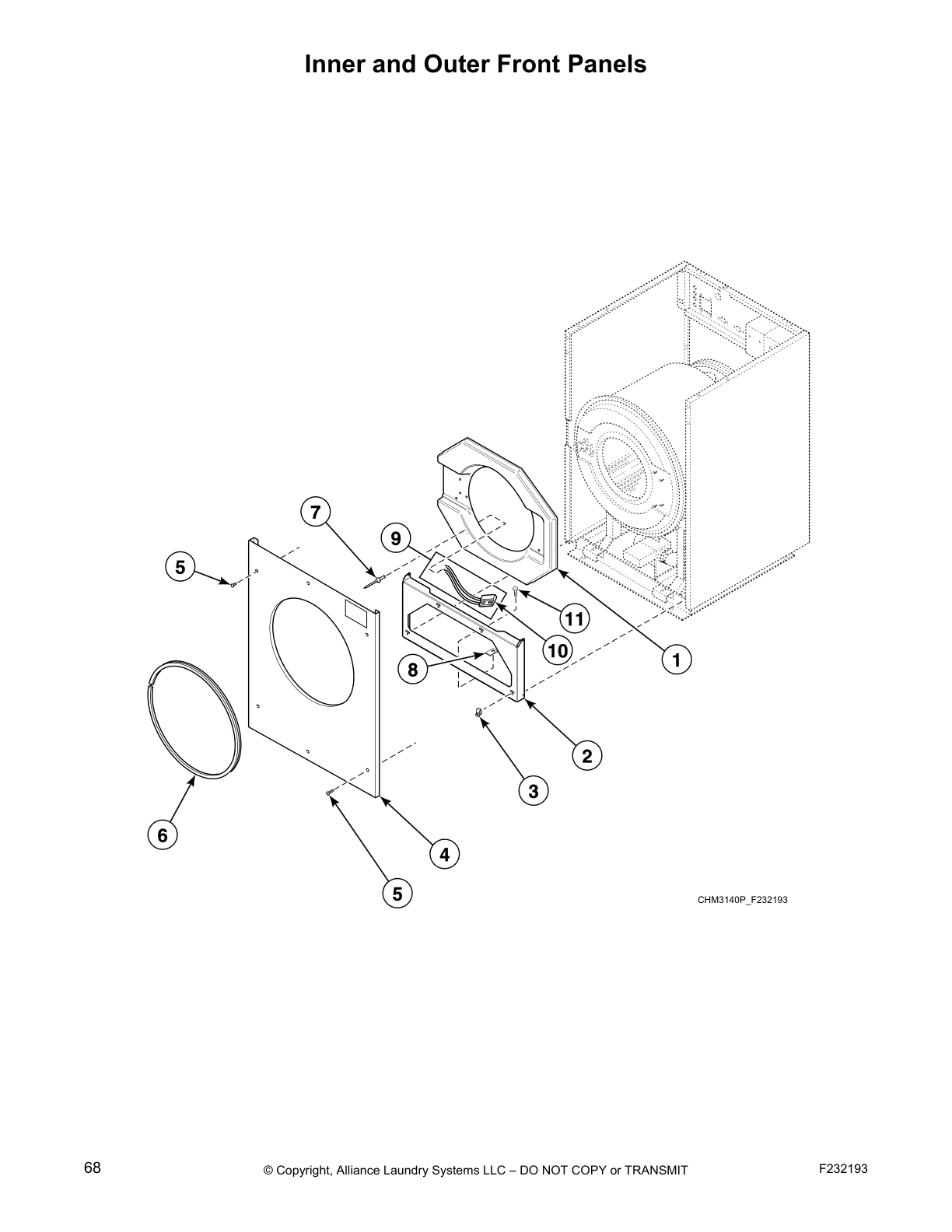

Inner and Outer Front Panels

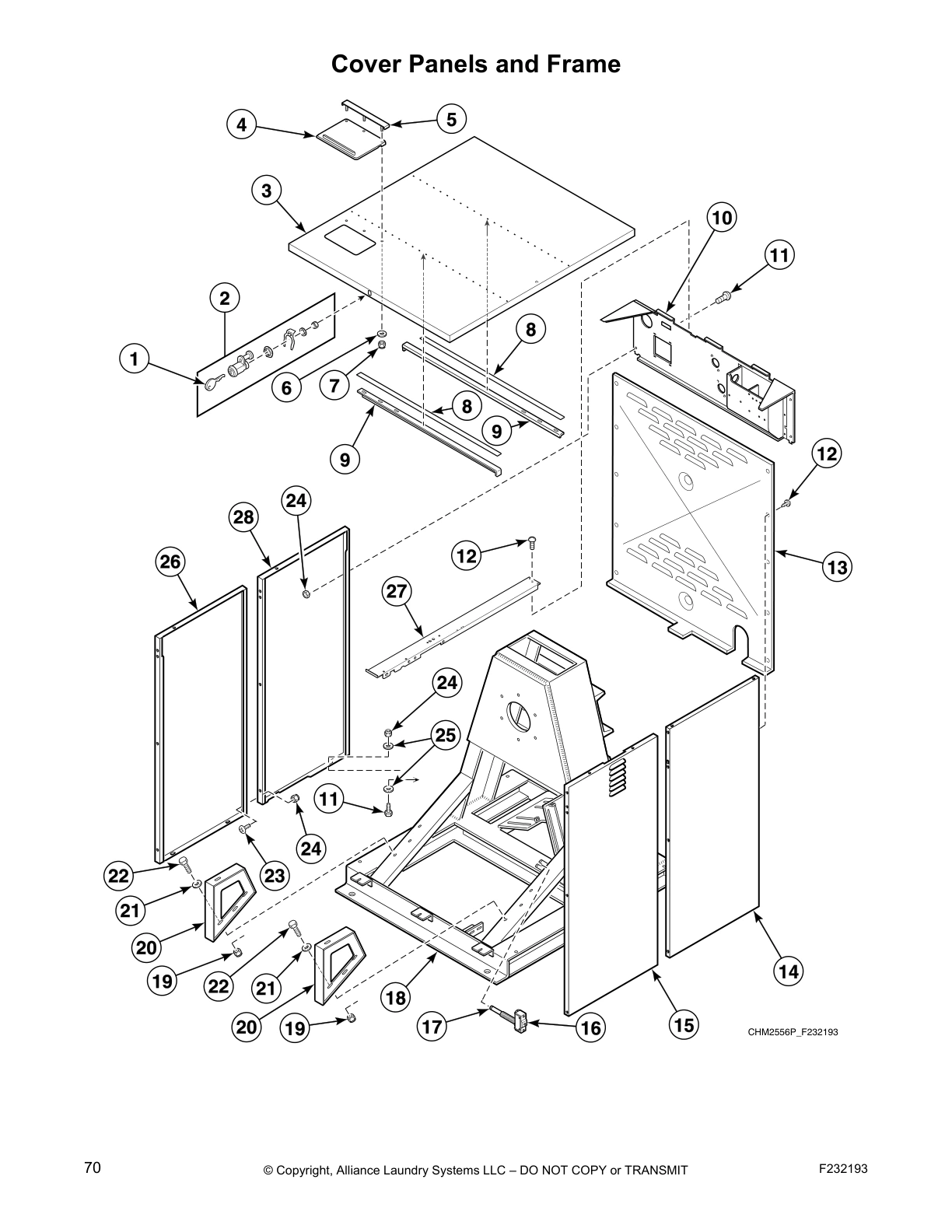

Cover Panels and Frame

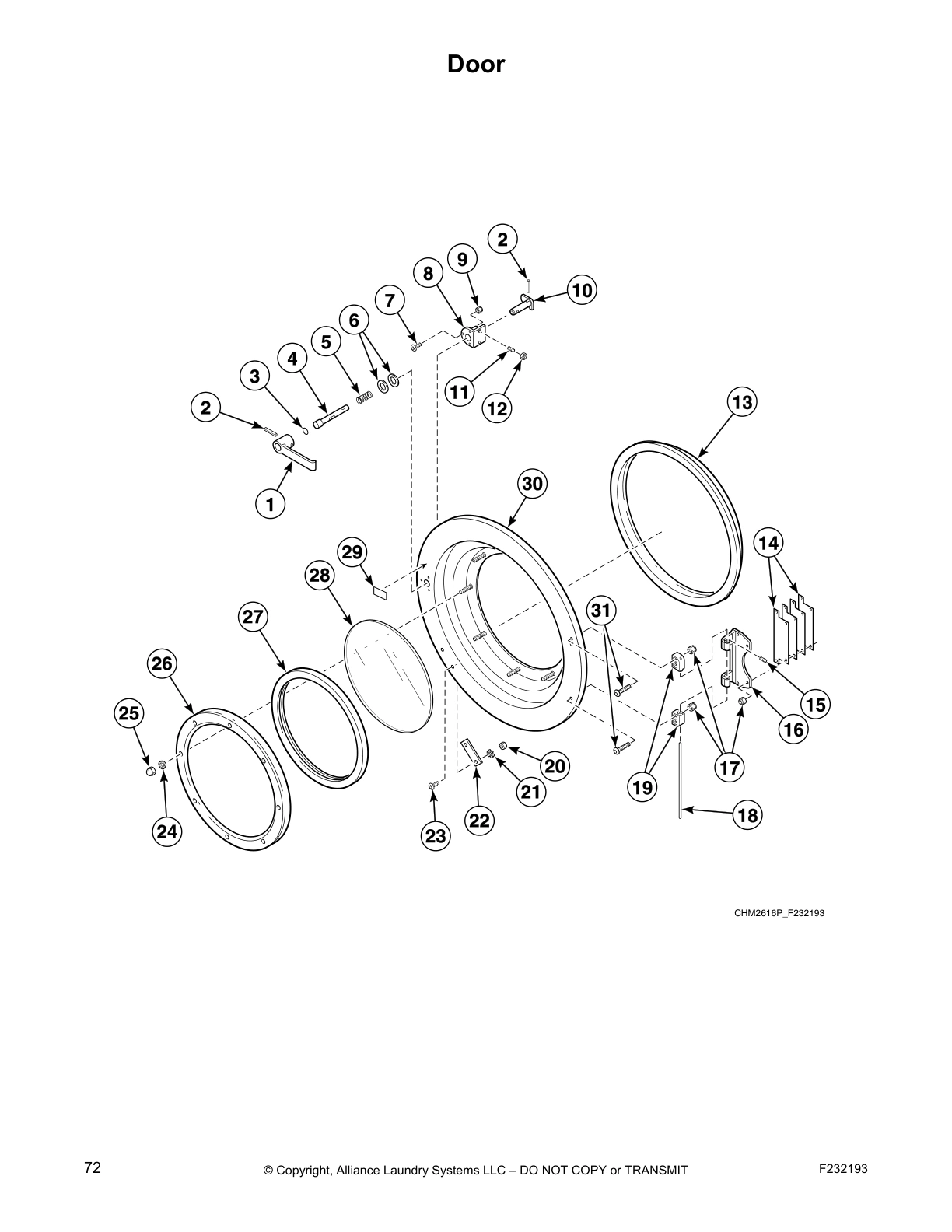

Door
Door Lock - AN, BN and VN Models

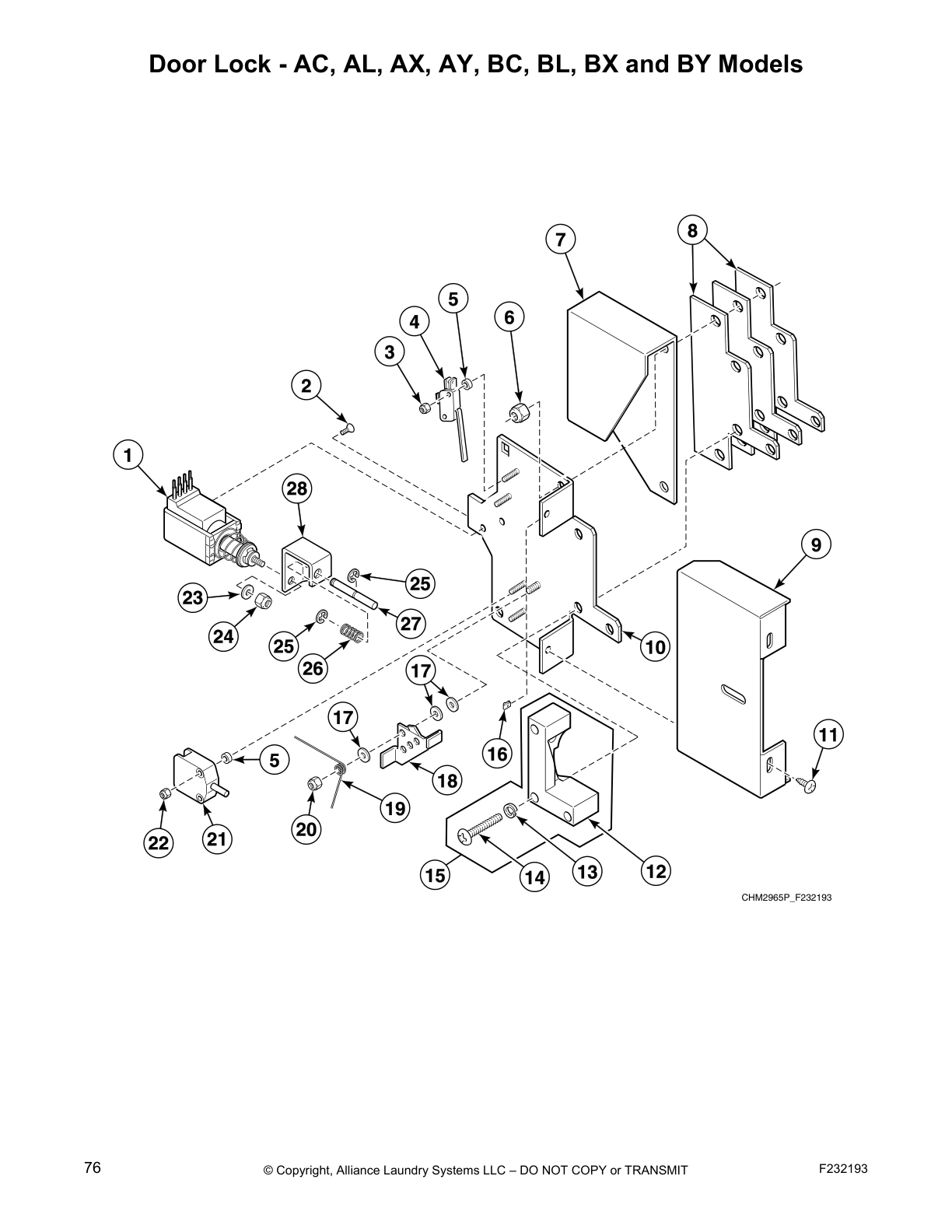

Door Lock - AC, AL, AX, AY, BC, BL, BX and BY Models

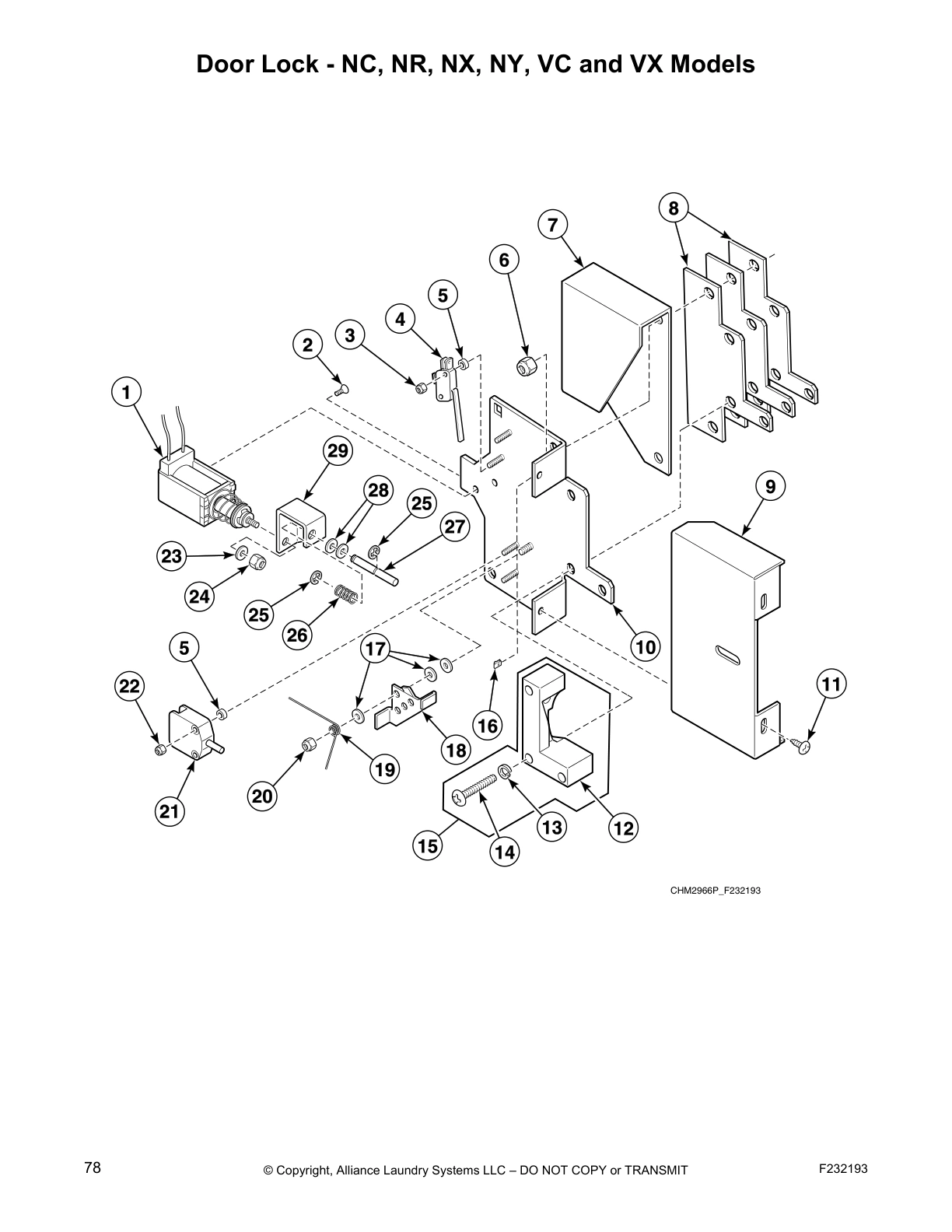

Door Lock - NC, NR, NX, NY, VC and VX Models

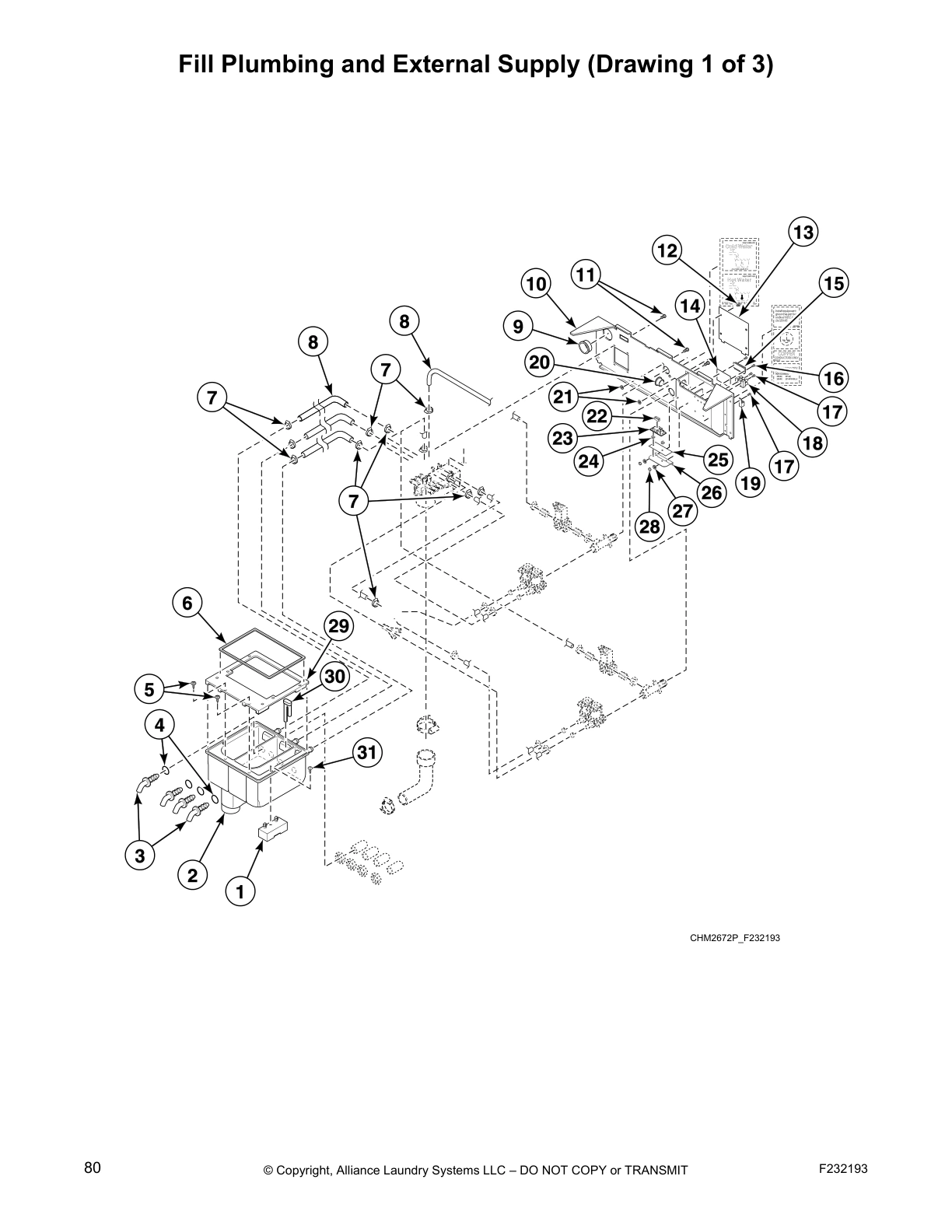

Fill Plumbing and External Supply (Drawing 1 of 3)

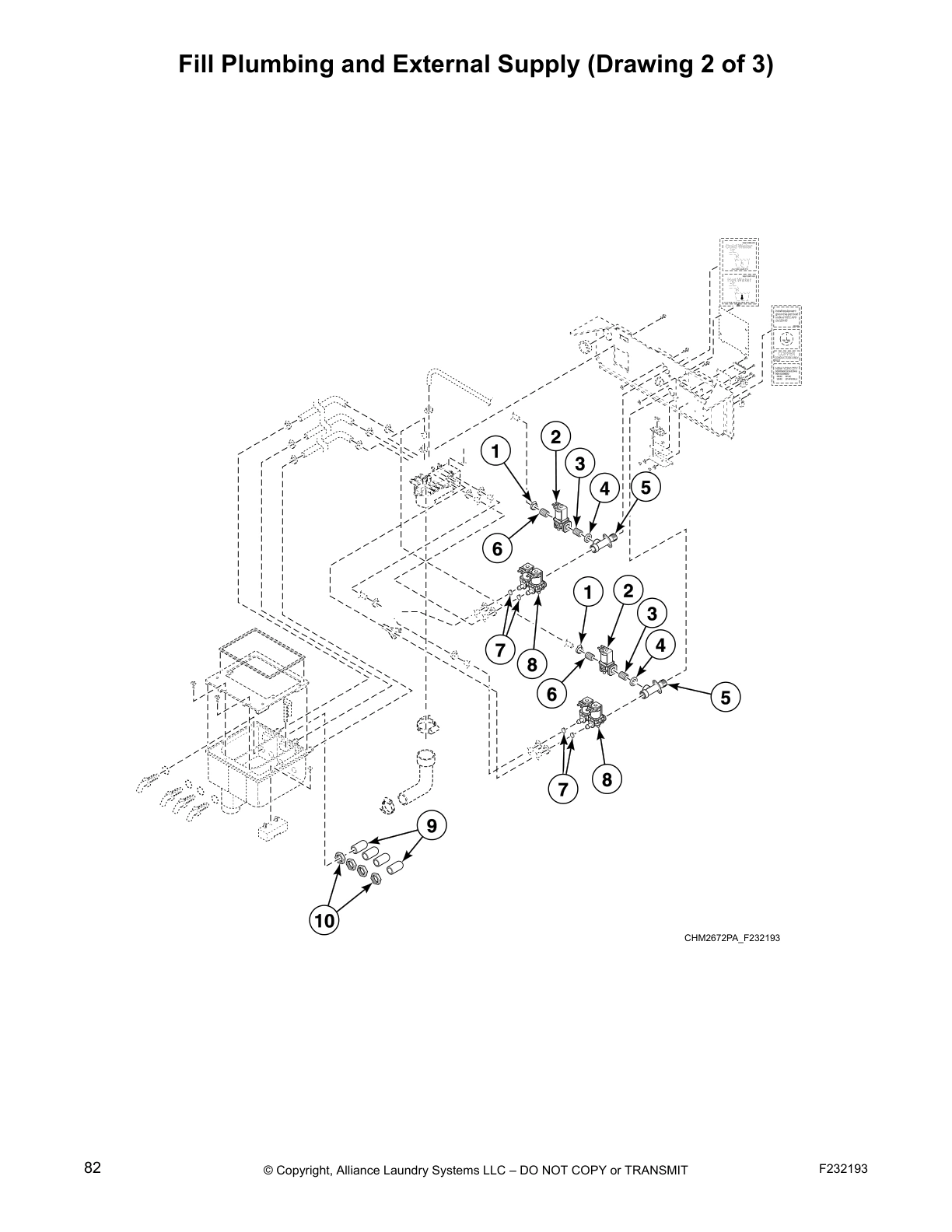

Fill Plumbing and External Supply (Drawing 2 of 3)

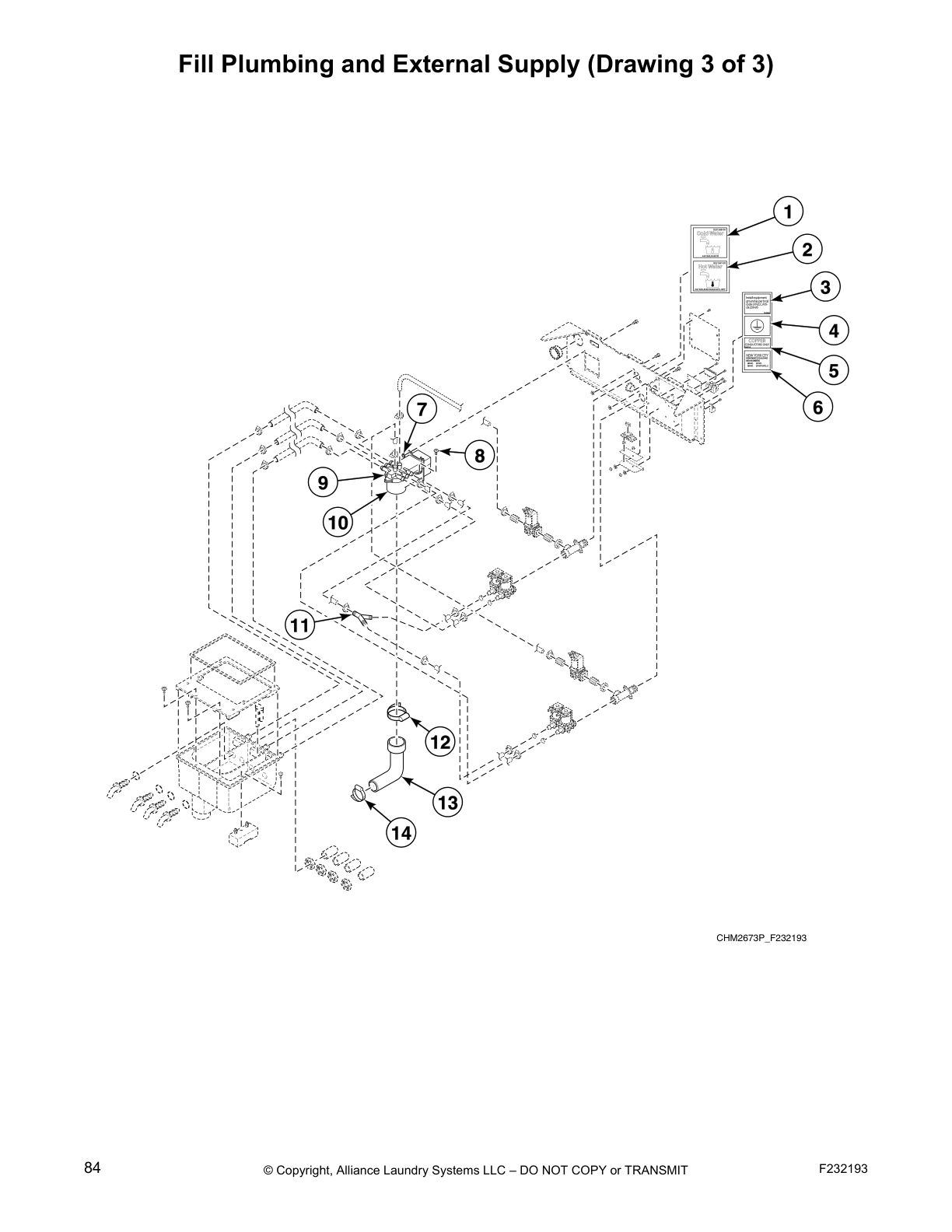

Fill Plumbing and External Supply (Drawing 3 of 3)

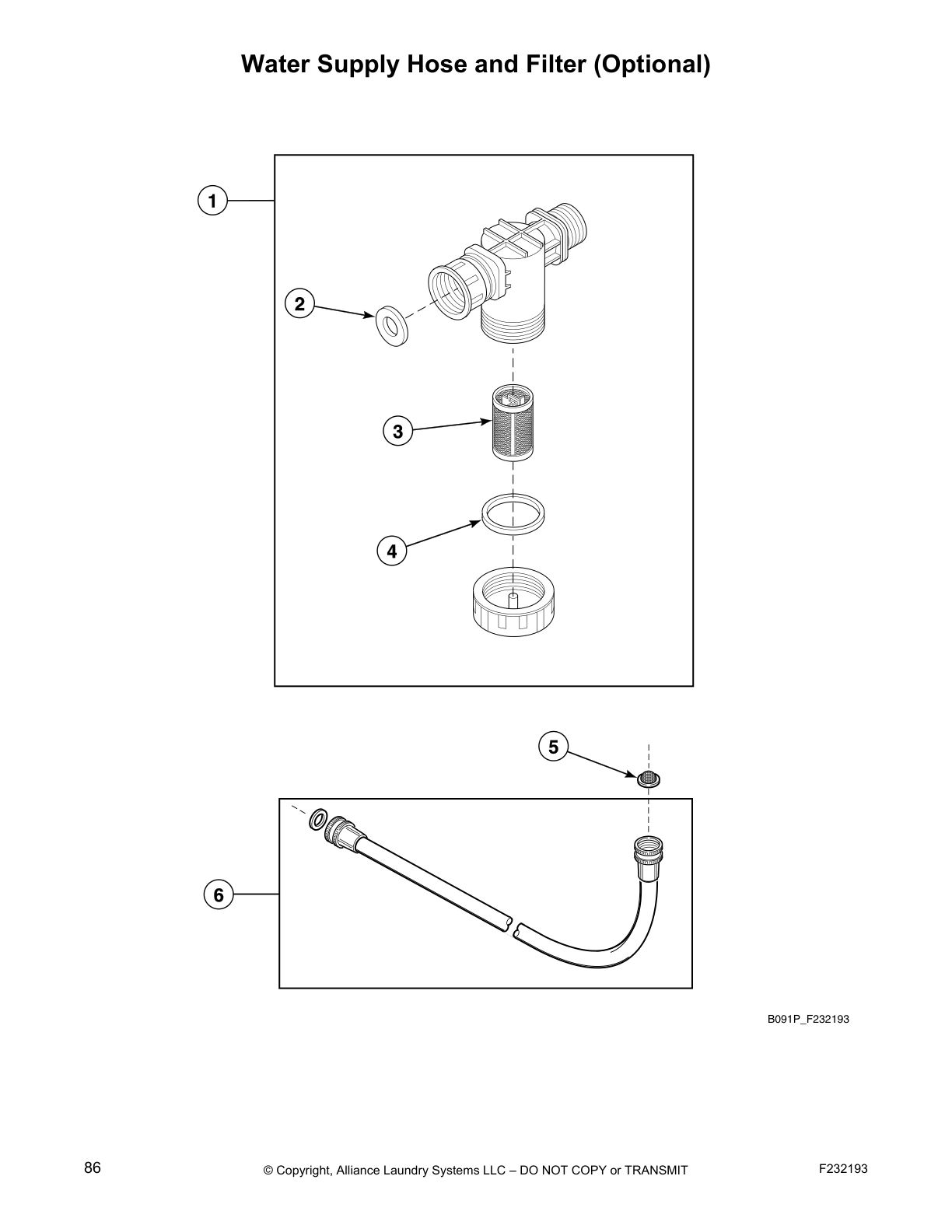

Water Supply Hose and Filter (Optional)

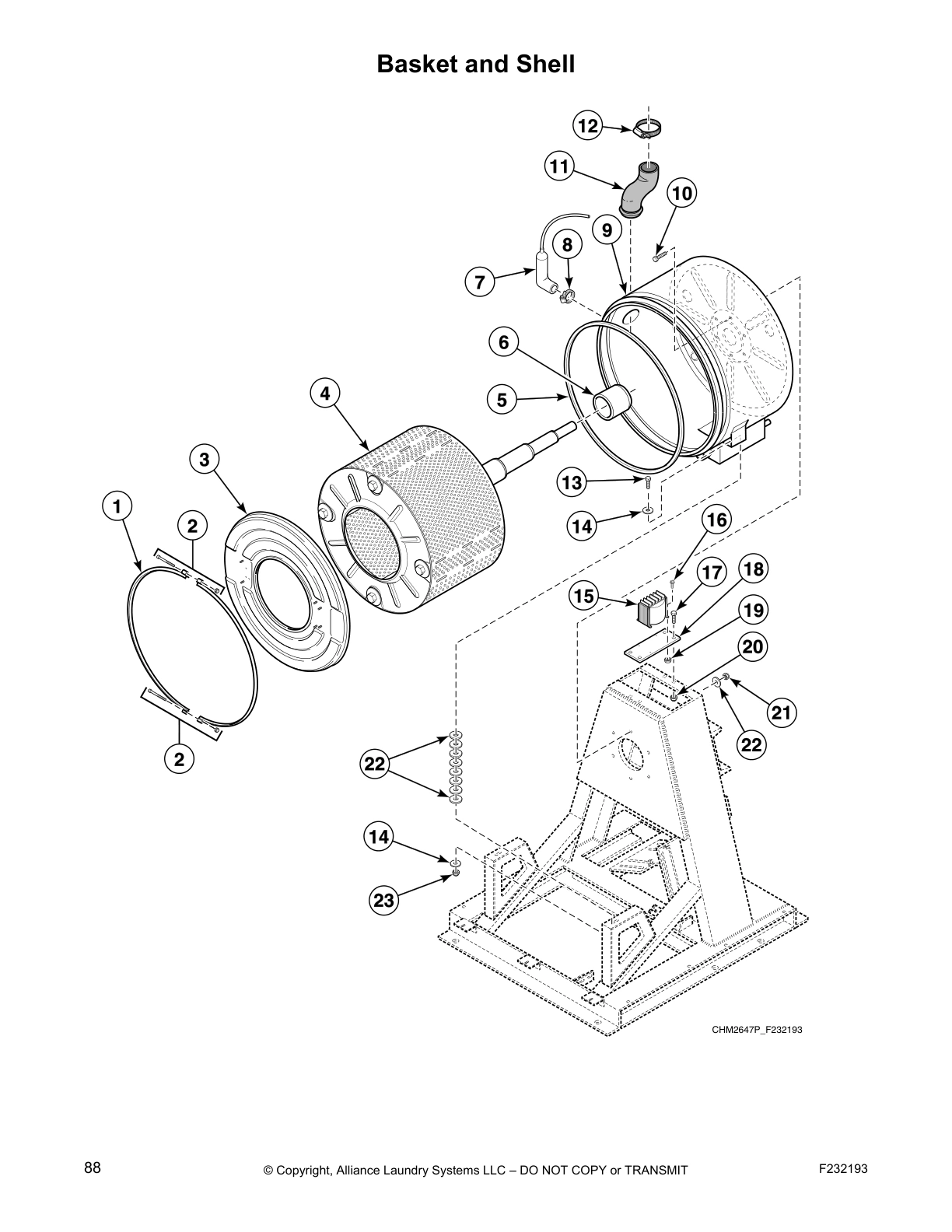

Basket and Shell

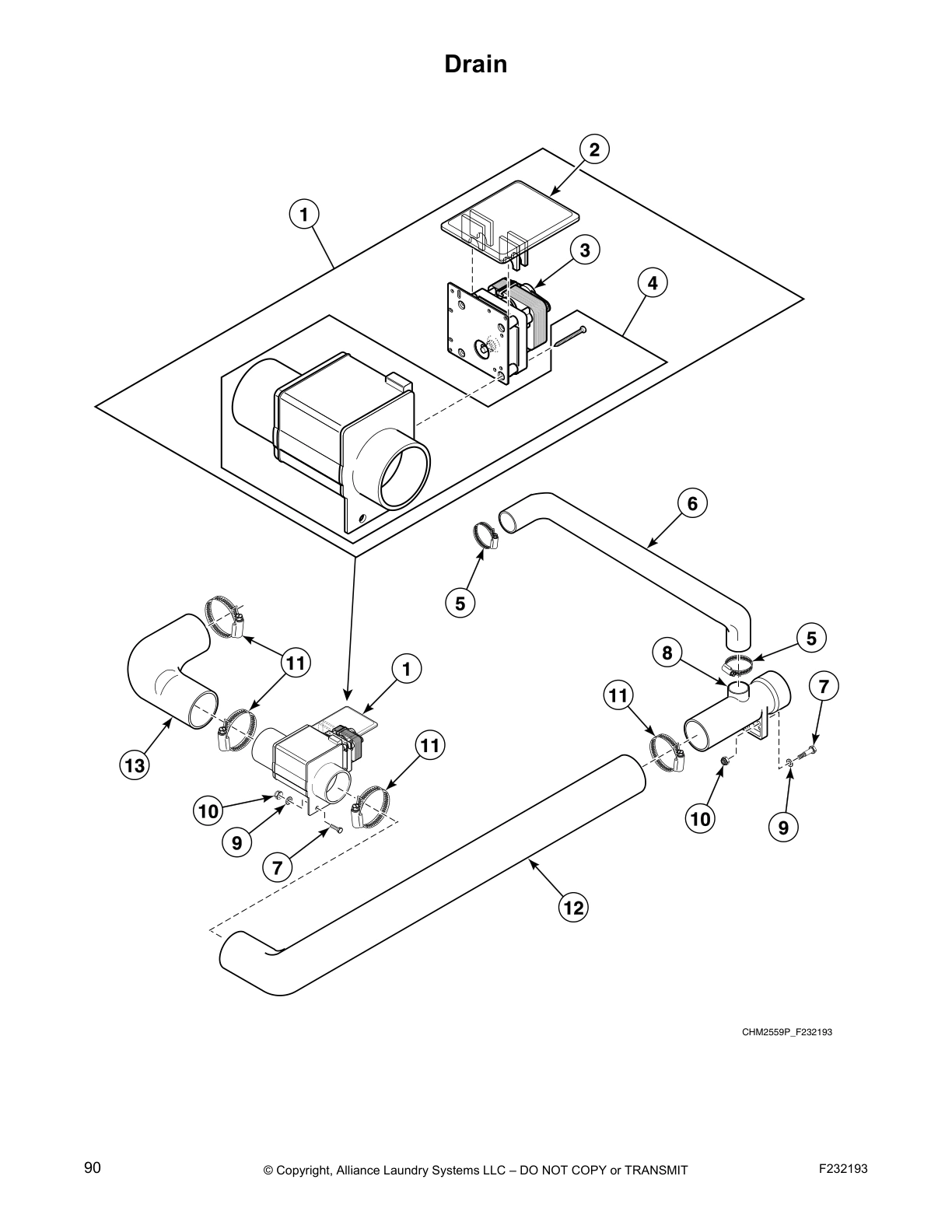

Drain

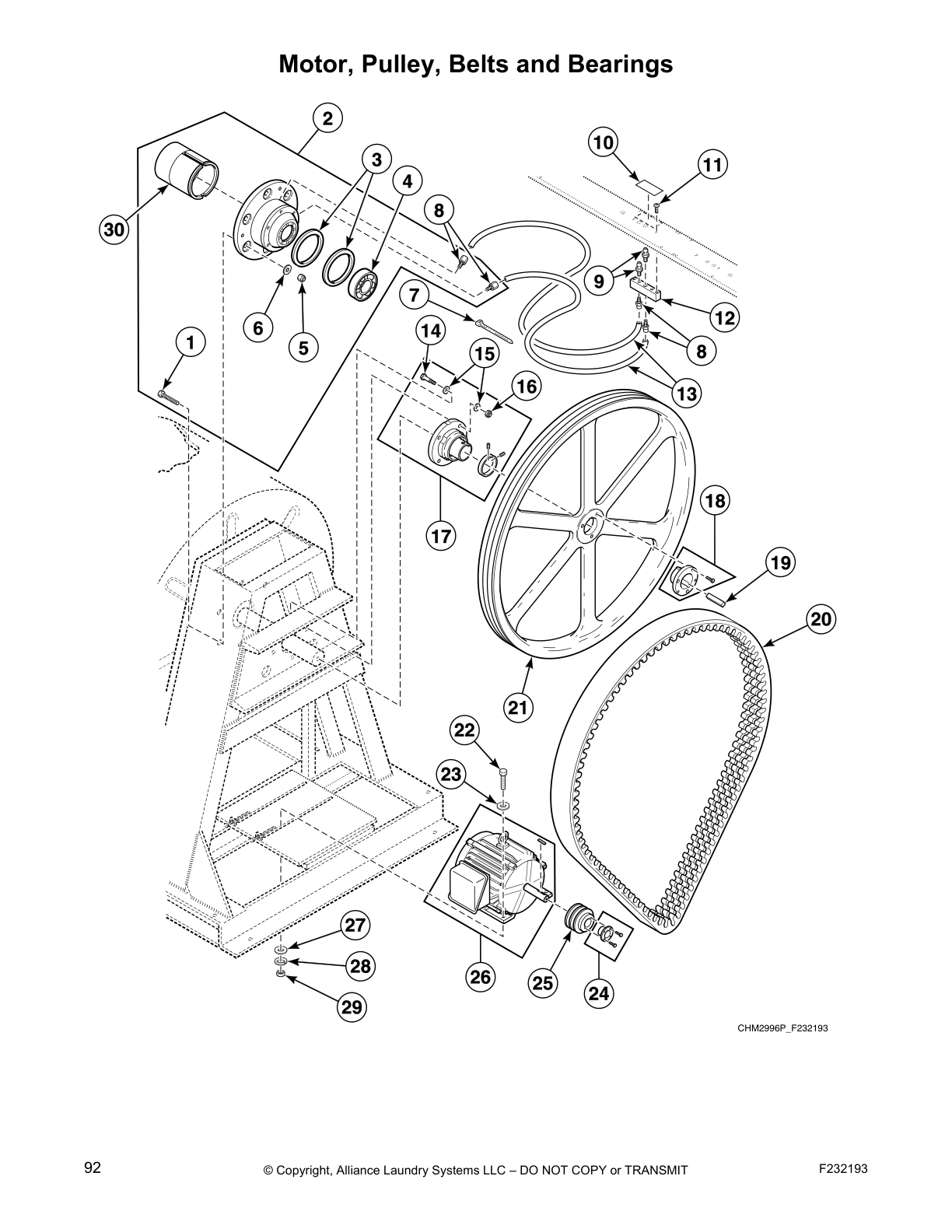

Motor, Pulley, Belts and Bearings

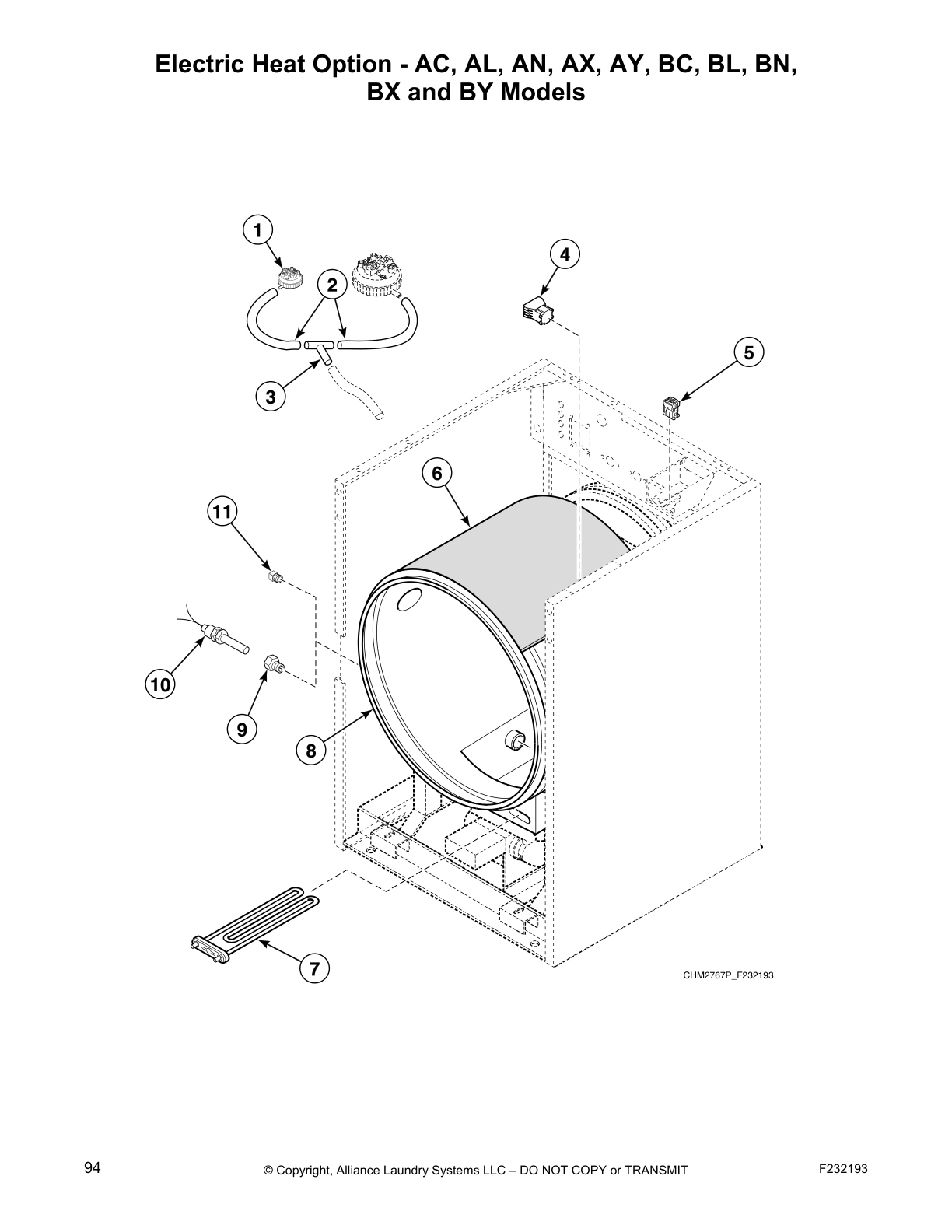

Electric Heat Option - AC, AL, AN, AX, AY, BC, BL, BN,
BX and BY Models

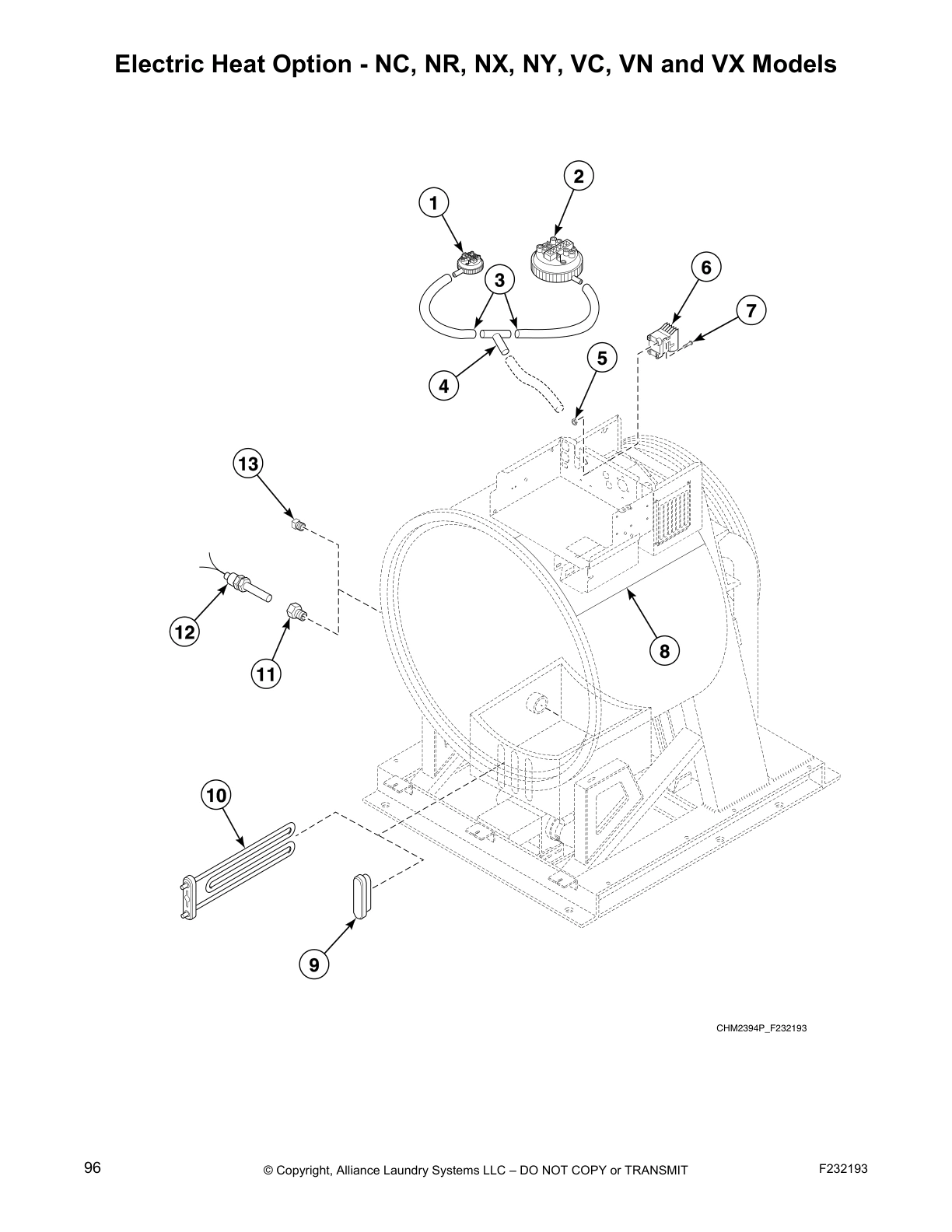

Electric Heat Option - NC, NR, NX, NY, VC, VN and VX Models

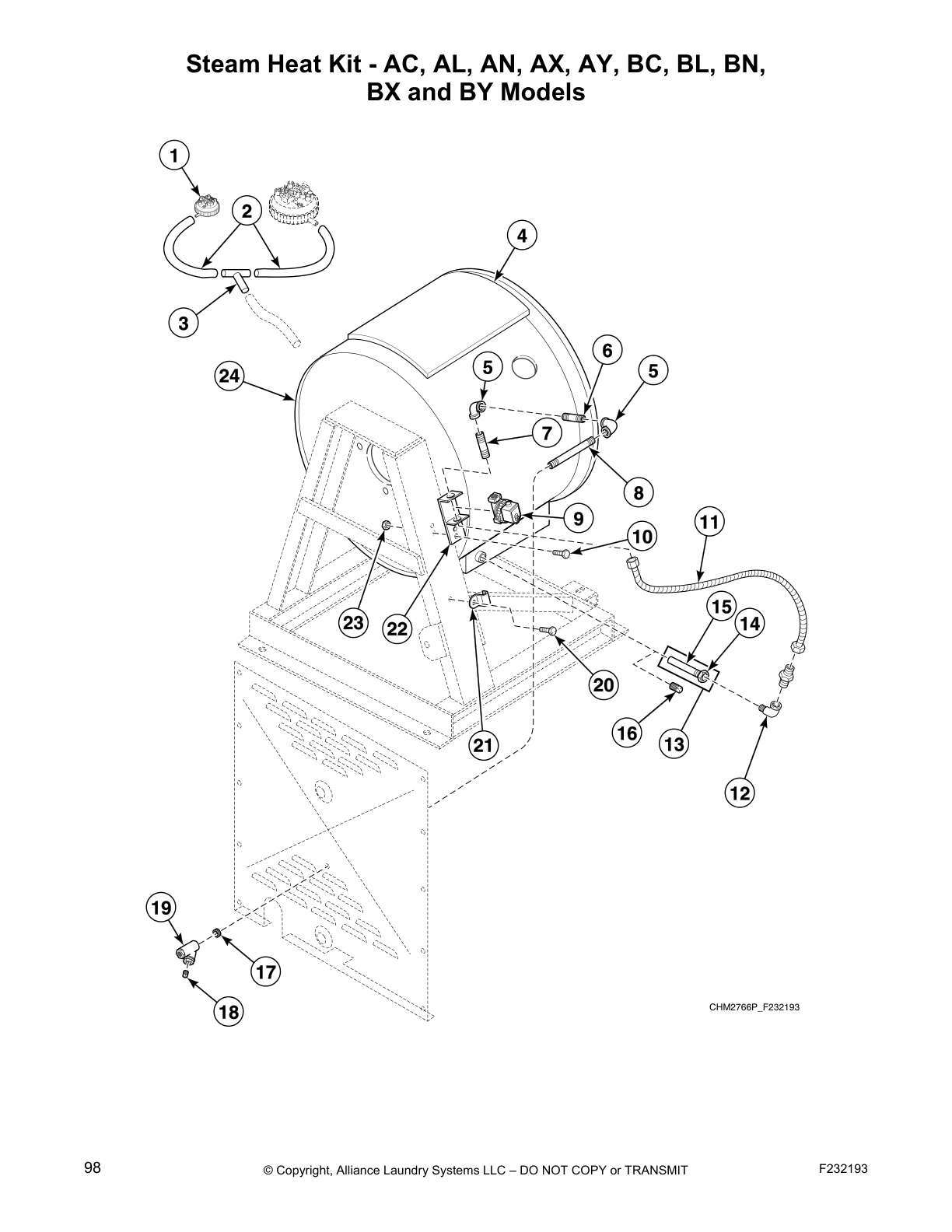

Steam Heat Kit - AC, AL, AN, AX, AY, BC, BL, BN,
BX and BY Models

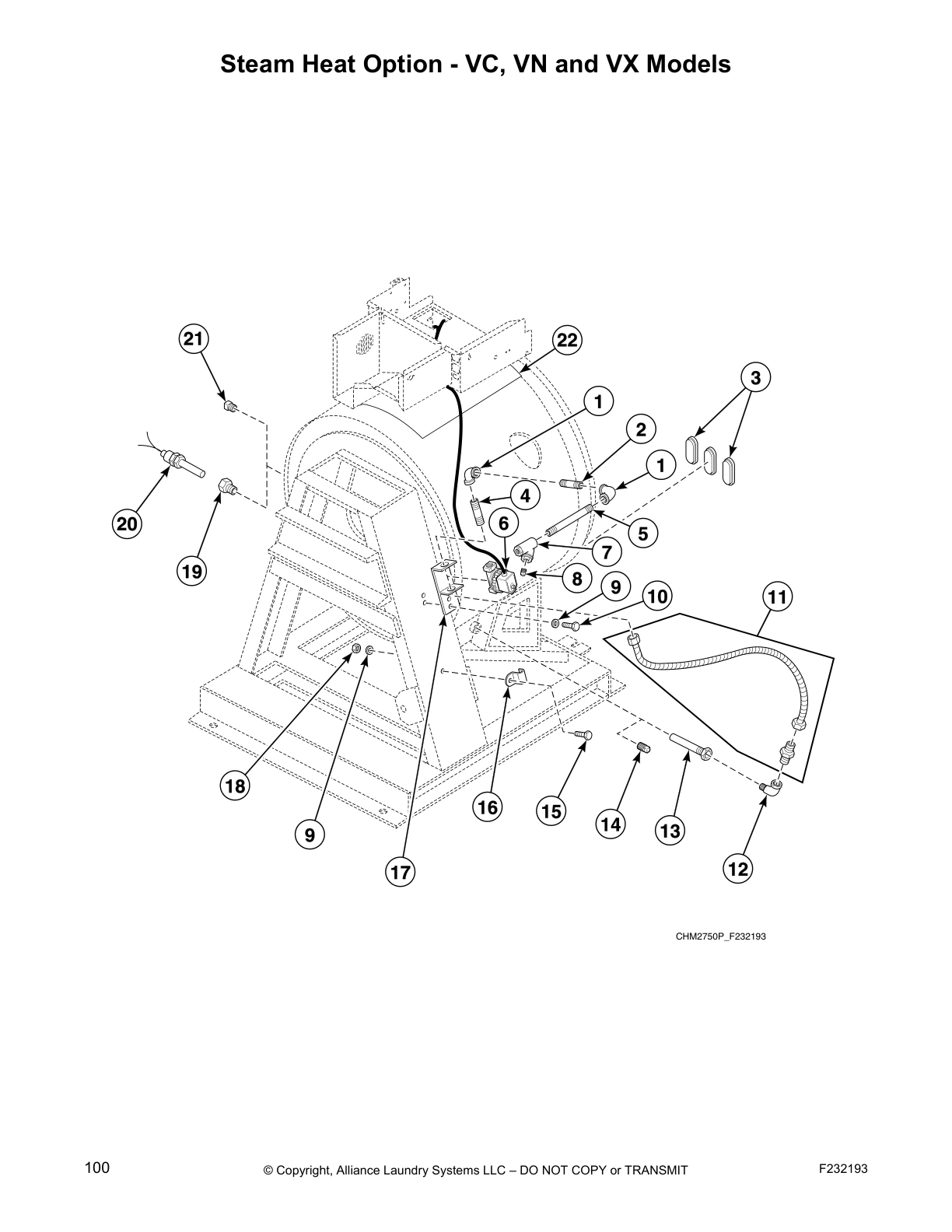

Steam Heat Option - VC, VN and VX Models

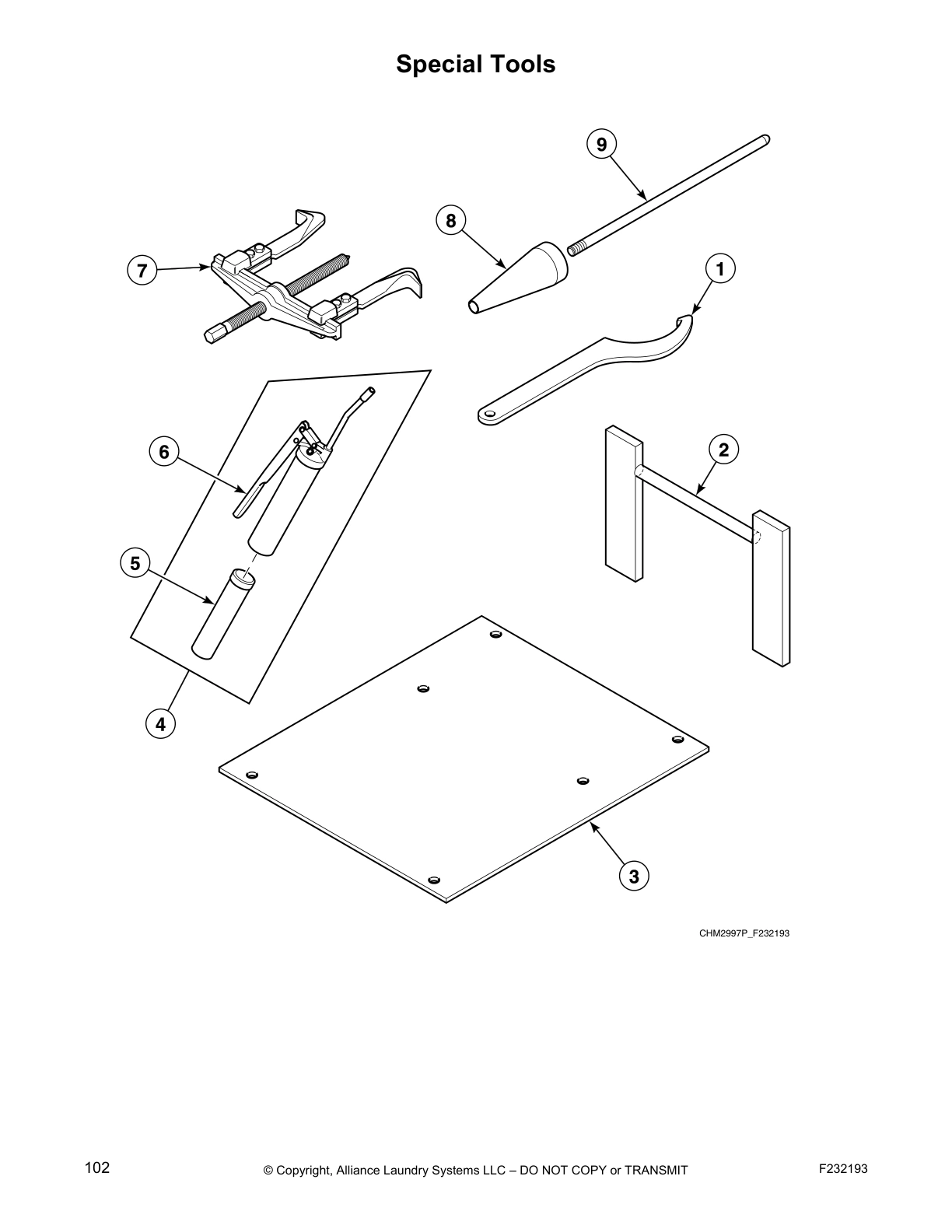

Special Tools
Common parts from model Unimac UC80BNV Washer
SPQ F0231582-05P SPQ F0231582-05P Contact Us For Availability
SPQ F0370452-31P SPQ F0370452-31P Contact Us For Availability
HIM Drive
Models with 160-series drive SPQ F200098500P Contact Us For Availability
B-control SPQ F200041700P Contact Us For Availability
SPQ F200136801 SPQ F200136801 Contact Us For Availability
SPQ F200108P SPQ F200108P Contact Us For Availability
SPQ F200166 SPQ F200166 Contact Us For Availability
SPQ F200165 SPQ F200165 Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
Water Pressure Switch SPQ F8223001P Contact Us For Availability
1
PowerFlex 40 Drive SPQ F8169418 Contact Us For Availability
1
Coin Box Assembly SPQ F0637455-00 Contact Us For Availability
1
Timer SPQ F0330404-00P Contact Us For Availability
1
Filter Handle Decal SPQ F231377 Contact Us For Availability
1
Mounting Bracket Assembly SPQ F0636707-00 Contact Us For Availability
1
Water Level Switch SPQ F0340351-10P Contact Us For Availability
1
Key SPQ F160423 Contact Us For Availability
1
Door Bezel SPQ F170419-1 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Door Handle SPQ F150225 Contact Us For Availability
1
Supply Dispenser Standoff SPQ F0150504-00 Contact Us For Availability
1
Shell Band Kit SPQ F8537808 Contact Us For Availability
1
Screw SPQ F430947 Contact Us For Availability
1
Drain Valve Kit SPQ F200166402 Contact Us For Availability
1
Elbow SPQ 70079601 Contact Us For Availability
1
Locknut Spanner Wrench SPQ F703654 Contact Us For Availability
2
Screw SPQ F037044860-1 Contact Us For Availability
2
AC Drive Cover Assembly SPQ F0270321-00P Contact Us For Availability
2
Magnet SPQ F431222 Contact Us For Availability
2
Display Window Cover SPQ F110105 Contact Us For Availability
2
AC Drive Radio Filter Assembly SPQ F8169417 Contact Us For Availability
2
Rocker Switch SPQ F340411 Contact Us For Availability
2
On/Off Switch Assembly SPQ F0636445-02 Contact Us For Availability
2
Coin Box SPQ F160421 Contact Us For Availability
2
Front Cabinet Brace SPQ F634804 Contact Us For Availability
2
Door Locking Linkage Pin SPQ F430977 Contact Us For Availability
2
Valve SPQ F8322803P Contact Us For Availability
2
Washer SPQ F270305 Contact Us For Availability
2
Nut SPQ F791001 Contact Us For Availability
2
Drain Valve Cover SPQ F200133600 Contact Us For Availability
2
Basket Pulley SPQ F745015-1 Contact Us For Availability
2
Steam Bracket Assembly SPQ F422404P Contact Us For Availability
2
Fiberglass Blanket SPQ F420710 Contact Us For Availability
2
Basket Pulley Puller Tool SPQ F8608502P Contact Us For Availability
3
Door Lock Kit SPQ F0300131-00P Contact Us For Availability
3
Washer SPQ F430928 Contact Us For Availability
3
AC Drive Cover Assembly SPQ F8026401P Contact Us For Availability
3
Flange Relay SPQ F0432316-00 Contact Us For Availability
3
Filter SPQ F633321 Contact Us For Availability
3
Control Panel Decal SPQ F0231613-51 Contact Us For Availability
3
SPQ F0636545-00P SPQ F0636545-00P Contact Us For Availability
3
Door Spacer SPQ F230662 Contact Us For Availability
3
SPQ F430225 SPQ F430225 Contact Us For Availability
3
O-Ring SPQ F633512 Contact Us For Availability
3
Nipple SPQ F421969 Contact Us For Availability
3
Conductor Decal SPQ F230630 Contact Us For Availability
3
Air Trap Hose SPQ F603988P Contact Us For Availability
3
Drain Motor SPQ F380943P Contact Us For Availability
3
SPQ F8203804 SPQ F8203804 Contact Us For Availability
3
Elbow SPQ F422806 Contact Us For Availability
3
Bolt Layout Mounting Template SPQ F609692 Contact Us For Availability
4
Door Lock Assembly SPQ F200203200 Contact Us For Availability
4
Washer SPQ F431702 Contact Us For Availability
4
SPQ F140639 SPQ F140639 Contact Us For Availability
4
Front Panel SPQ F634818-5P Contact Us For Availability
4
SPQ F200270500 SPQ F200270500 Contact Us For Availability
4
SPQ F320300 SPQ F320300 Contact Us For Availability
4
Water Hose SPQ F0150503-00 Contact Us For Availability
4
Nut SPQ F230739 Contact Us For Availability
4
Shell Weldment SPQ F8407401 Contact Us For Availability
4
SPQ F100155 SPQ F100155 Contact Us For Availability
4
Washer SPQ F420709 Contact Us For Availability
4
Grease Gun Kit
Includes items 5 and 6 SPQ F798700 Contact Us For Availability
5
SPQ F792000 SPQ F792000 Contact Us For Availability
5
Nut SPQ F0290116-00 Contact Us For Availability
5
Nut SPQ F430231 Contact Us For Availability
5
Main Harness SPQ F0170427-00 Contact Us For Availability
5
SPQ F630430 SPQ F630430 Contact Us For Availability
5
SPQ F310125 SPQ F310125 Contact Us For Availability
5
SPQ F431901 SPQ F431901 Contact Us For Availability
5
Water Connection Inlet Manifold SPQ F150247 Contact Us For Availability
5
Screw SPQ F231146 Contact Us For Availability
5
SPQ F430201 SPQ F430201 Contact Us For Availability
5
Drain Valve Motor SPQ F8618901P Contact Us For Availability
5
Steam Valve Repair Kit SPQ F420718 Contact Us For Availability
5
Bearing Grease SPQ F210206P Contact Us For Availability
6
Cap Plug SPQ F730168 Contact Us For Availability
6
SPQ F431806 SPQ F431806 Contact Us For Availability
6
SPQ F200181500 SPQ F200181500 Contact Us For Availability
6
Blind Rivet SPQ F8679201P Contact Us For Availability
6
SPQ F431916 SPQ F431916 Contact Us For Availability
6
Hose Barb SPQ F150246 Contact Us For Availability
6
Overflow Hose SPQ F200213 Contact Us For Availability
6
SPQ F270407 SPQ F270407 Contact Us For Availability
6
SPQ F8312007P SPQ F8312007P Contact Us For Availability
6
SPQ 901690 SPQ 901690 Contact Us For Availability
6
Grease Gun SPQ F210207P Contact Us For Availability
7
Screw SPQ F037044860-2 Contact Us For Availability
7
SPQ F150390 SPQ F150390 Contact Us For Availability
7
SPQ F180501 SPQ F180501 Contact Us For Availability
7
SPQ F370225P SPQ F370225P Contact Us For Availability
7
SPQ F8535601 SPQ F8535601 Contact Us For Availability
7
Ribbon Cable SPQ F0634903-00 Contact Us For Availability
7
Computer SPQ F350110 Contact Us For Availability
7
Magnetic Switch Assembly SPQ J1111905 Contact Us For Availability
7
SPQ F431024 SPQ F431024 Contact Us For Availability
7
SPQ F320200 SPQ F320200 Contact Us For Availability
7
Flow Restrictor SPQ F421930 Contact Us For Availability
7
SPQ F020014200 SPQ F020014200 Contact Us For Availability
7
Screw SPQ F150401 Contact Us For Availability
7
SPQ F140605 SPQ F140605 Contact Us For Availability
7
Basket Puller Tool SPQ F460129P Contact Us For Availability
8
SPQ F0430165-00 SPQ F0430165-00 Contact Us For Availability
8
SPQ F0140941-00 SPQ F0140941-00 Contact Us For Availability
8
SPQ F200321300 SPQ F200321300 Contact Us For Availability
8
SPQ F0150273-00 SPQ F0150273-00 Contact Us For Availability
8
SPQ F8059701 SPQ F8059701 Contact Us For Availability
8
SPQ F0430268-00 SPQ F0430268-00 Contact Us For Availability
8
Vacuum Breaker Assembly SPQ F430177 Contact Us For Availability
8
Drain Tee SPQ F430103 Contact Us For Availability
8
SPQ J1408004 SPQ J1408004 Contact Us For Availability
8
Fiberglass Blanket SPQ F330182 Contact Us For Availability
8
SPQ F420409 SPQ F420409 Contact Us For Availability
8
Cone SPQ 399P4 Contact Us For Availability
9
SPQ F0150329-00 SPQ F0150329-00 Contact Us For Availability
9
SPQ F200100201 SPQ F200100201 Contact Us For Availability
9
Pop Rivet SPQ F431215 Contact Us For Availability
9
Screw SPQ F140219P Contact Us For Availability
9
SPQ F603980 SPQ F603980 Contact Us For Availability
9
SPQ F430317 SPQ F430317 Contact Us For Availability
9
SPQ F603003 SPQ F603003 Contact Us For Availability
9
Cap SPQ F0381751-00P Contact Us For Availability
9
Washer SPQ F150398 Contact Us For Availability
9
SPQ F190701 SPQ F190701 Contact Us For Availability
9
Basket Installation Tool Rod SPQ 401P4 Contact Us For Availability
10
L-Catch Kit SPQ F746808 Contact Us For Availability
10
Fan Guard SPQ F0220922-00 Contact Us For Availability
10
Nut SPQ F431016 Contact Us For Availability
10
Coin Box Cover Assembly SPQ F0637138-00 Contact Us For Availability
10
Magnetic Switch SPQ F0340723-00 Contact Us For Availability
10
Valve Panel Assembly SPQ F0636543-00 Contact Us For Availability
10
Screw SPQ F430108 Contact Us For Availability
10
Door Handle Kit SPQ F730155 Contact Us For Availability
10
Door Lock Plate Assembly SPQ F8066701 Contact Us For Availability
10
Vacuum Breaker Bottom SPQ F015033000 Contact Us For Availability
10
Lubrication Instruction Decal SPQ F231078 Contact Us For Availability
10
Element SPQ F360205P Contact Us For Availability
10
Temperature Probe Assembly SPQ F8045001 Contact Us For Availability
11
Door Lock Catch Casting SPQ F150261 Contact Us For Availability
11
Muffin Fan SPQ F110110 Contact Us For Availability
11
AC Drive Resistor Assembly SPQ F0637379-00P Contact Us For Availability
11
Grease Manifold SPQ F430925 Contact Us For Availability
11
Screw SPQ F430532 Contact Us For Availability
11
Screw SPQ F0636543-01 Contact Us For Availability
11
Y Connector SPQ F422808 Contact Us For Availability
11
Hose Clamp SPQ F200201 Contact Us For Availability
11
Supply Dispenser Hose SPQ F8061601 Contact Us For Availability
11
Steam Hose SPQ F200153P Contact Us For Availability
12
Screw SPQ F0637379-01P Contact Us For Availability
12
Nut SPQ F431041 Contact Us For Availability
12
Input Power Connection Box Cover SPQ F430929 Contact Us For Availability
12
Rear Drain Hose SPQ F0150399-00 Contact Us For Availability
12
Tubing SPQ F320326 Contact Us For Availability
12
Street Elbow SPQ H86070034 Contact Us For Availability
13
External Supply Connection Decal SPQ F430174 Contact Us For Availability
13
Module Box Assembly SPQ F430909 Contact Us For Availability
13
Right Side Panel SPQ F603976 Contact Us For Availability
13
Door Gasket SPQ F8440801P Contact Us For Availability
13
Washer SPQ F431100 Contact Us For Availability
13
Rear Fill Hose SPQ F150492 Contact Us For Availability
13
Washer SPQ F430144 Contact Us For Availability
13
Drain Hose SPQ F150400 Contact Us For Availability
13
Washer SPQ C000628P Contact Us For Availability
13
Plug SPQ F421507 Contact Us For Availability
13
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Nut SPQ F200296100P Contact Us For Availability
14
Input Block SPQ F200100102 Contact Us For Availability
14
AC Drive Side Panel Assembly SPQ F0636546-00 Contact Us For Availability
14
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
14
L-Catch Kit SPQ F430982 Contact Us For Availability
14
Terminal SPQ F602533 Contact Us For Availability
14
Nut SPQ F430185 Contact Us For Availability
14
Bushing SPQ F603050 Contact Us For Availability
14
Plug SPQ F200202600 Contact Us For Availability
15
Inverter Drive SPQ F370844 Contact Us For Availability
15
Switch SPQ F200180200 Contact Us For Availability
15
Door Hinge SPQ F430536 Contact Us For Availability
15
Power Distribution Block SPQ F231376-6 Contact Us For Availability
15
Screw SPQ F360156P Contact Us For Availability
15
Rear Bearing Kit SPQ F430339 Contact Us For Availability
15
Steam Injection Tube SPQ F603048 Contact Us For Availability
15
Steam Bracket Assembly SPQ F430115 Contact Us For Availability
16
Door Lock Torsion Spring SPQ F0636636-00 Contact Us For Availability
16
Air Filter Assembly SPQ F370843 Contact Us For Availability
16
Output Board Cover SPQ F0140798-00P Contact Us For Availability
16
Module Box Tray SPQ F0636185-01 Contact Us For Availability
16
Cooling Fan Filter Slide SPQ F431133 Contact Us For Availability
16
Rod SPQ F190216P Contact Us For Availability
16
Input Power Block SPQ F231376-5 Contact Us For Availability
16
Transformer Mounting Plate SPQ F430107 Contact Us For Availability
16
Basket Pulley Bushing
Includes screws SPQ F430239 Contact Us For Availability
17
Spacer SPQ F310110 Contact Us For Availability
17
Frame Assembly SPQ F340913 Contact Us For Availability
17
Door Lock Torsion Spring SPQ F431902 Contact Us For Availability
17
Ground Terminal Lug SPQ F140766 Contact Us For Availability
17
Key SPQ F745016-1 Contact Us For Availability
17
Nut SPQ F601186 Contact Us For Availability
18
Snap Bushing SPQ F430916 Contact Us For Availability
18
Nut SPQ F633673 Contact Us For Availability
18
Reducer Bushing SPQ F430215 Contact Us For Availability
18
Spring Pin SPQ F602813-3 Contact Us For Availability
18
Nut SPQ F632745 Contact Us For Availability
18
Front Bearing Kit
Includes items 1, 3-6, 8 an SPQ F280290 Contact Us For Availability
19
Washer SPQ F150271 Contact Us For Availability
19
Washer SPQ F430903 Contact Us For Availability
19
Shell Band Fastener Kit SPQ F431017 Contact Us For Availability
19
Belt SPQ F608824-1 Contact Us For Availability
19
Nipple SPQ F421936 Contact Us For Availability
20
Fuse SPQ M413865 Contact Us For Availability
20
Door Lock Pin Linkage SPQ F430232 Contact Us For Availability
20
Capacitor SPQ F430938 Contact Us For Availability
20
Washer SPQ F603947 Contact Us For Availability
20
Motor Pulley Bushing
Includes screws SPQ F200140300P Contact Us For Availability
21
Fuse Holder SPQ F140748 Contact Us For Availability
21
Tubing SPQ F0320211-00 Contact Us For Availability
21
Drive Motor Pulley SPQ F150268 Contact Us For Availability
22
Glass SPQ F8390801 Contact Us For Availability
22
Standoff SPQ F140747 Contact Us For Availability
22
Motor
Includes key SPQ F430993 Contact Us For Availability
22
Steam Filter SPQ F410301 Contact Us For Availability
23
Spacer SPQ F431123 Contact Us For Availability
23
External Supply Fuse Decal SPQ F140734 Contact Us For Availability
24
Fuse Holder Bracket SPQ F140938 Contact Us For Availability
24
Fiberglass Blanket SPQ F0637017-00 Contact Us For Availability
24
Triple Lip Seal SPQ F280211P Contact Us For Availability
25
Door Lock Plate Shim SPQ F310205 Contact Us For Availability
25
Nut SPQ F430322 Contact Us For Availability
25
Bearing Adapter Sleeve SPQ F280289P Contact Us For Availability
26
Top Cover Stiffener SPQ F0636547-00 Contact Us For Availability
26
Door Weldment SPQ F8504901 Contact Us For Availability
26
Door Lock Assembly Cover SPQ F310137 Contact Us For Availability
26
Door Lock Plate Assembly SPQ F0636103-00 Contact Us For Availability
26
Supply Dispenser Bezel SPQ F350115 Contact Us For Availability
26
Bearing SPQ F220236P Contact Us For Availability
27
Door Lock Assembly Cover SPQ F300128P Contact Us For Availability
27
SPQ F0636549-00 SPQ F0636549-00 Contact Us For Availability
27
Bolt SPQ F170115 Contact Us For Availability
27
SPQ F431231 SPQ F431231 Contact Us For Availability
27
Injection Nozzle SPQ F0350312-10 Contact Us For Availability
27
Cable Tie SPQ F430300 Contact Us For Availability
28
SPQ F431147 SPQ F431147 Contact Us For Availability
28
SPQ F0636548-00 SPQ F0636548-00 Contact Us For Availability
28
Pushbutton Rod SPQ F290210P Contact Us For Availability
28
Injection Nozzle Kit SPQ F180506 Contact Us For Availability
29
Door Lock Spring SPQ F230661 Contact Us For Availability
29
SPQ F150455 SPQ F150455 Contact Us For Availability
29
Siphon Tube SPQ F231271 Contact Us For Availability
30
Bezel Gasket SPQ F431113 Contact Us For Availability
30
Door Assembly SPQ F608782-2 Contact Us For Availability
30
SPQ F100307 SPQ F100307 Contact Us For Availability
31
Hose Clamp SPQ F431022 Contact Us For Availability
31
SPQ F430974 SPQ F430974 Contact Us For Availability
NI
SPQ F603031 SPQ F603031 Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
SPQ F430922 SPQ F430922 Contact Us For Availability
NI
160-Series to PowerFlex 40 Drive Kit SPQ F200320900 Contact Us For Availability
NI
SPQ F200146800P SPQ F200146800P Contact Us For Availability
NI
Ratchet Fastener SPQ F350404 Contact Us For Availability
NI
SPQ F0636888-00 SPQ F0636888-00 Contact Us For Availability
NI
SPQ F8172903 SPQ F8172903 Contact Us For Availability
NI
SPQ F8172807 SPQ F8172807 Contact Us For Availability
NI
SPQ F8195301 SPQ F8195301 Contact Us For Availability
NI
SPQ F200205802 SPQ F200205802 Contact Us For Availability
NI
SPQ F0231582-01P SPQ F0231582-01P Contact Us For Availability
NI
Communication Box Kit
Icon SPQ F200098600P Contact Us For Availability
NI
Communication Box Kit
Standard SPQ F200041800P Contact Us For Availability
NI
Communication Box Kit SPQ F350109 Contact Us For Availability
NI
SPQ F350108 SPQ F350108 Contact Us For Availability
NI
SPQ F0370452-30P SPQ F0370452-30P Contact Us For Availability
NI
Communication Box Kit
Icon SPQ F200040300P Contact Us For Availability
NI
SPQ F160420 SPQ F160420 Contact Us For Availability
NI
SPQ F160673P SPQ F160673P Contact Us For Availability
NI
SPQ F200120100 SPQ F200120100 Contact Us For Availability
NI
SPQ F8505107 SPQ F8505107 Contact Us For Availability
NI
SPQ F0798839-01 SPQ F0798839-01 Contact Us For Availability
NI
SPQ F200136800P SPQ F200136800P Contact Us For Availability
NI
SPQ F0798839-00 SPQ F0798839-00 Contact Us For Availability
NI
SPQ F200139500 SPQ F200139500 Contact Us For Availability
NI
SPQ F180511 SPQ F180511 Contact Us For Availability
NI
SPQ F190303 SPQ F190303 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ F0636525-00 SPQ F0636525-00 Contact Us For Availability
NI
SPQ F8521501 SPQ F8521501 Contact Us For Availability
NI
B-control SPQ F370851P Contact Us For Availability
× ![]()
