Model Unimac UC60MN2 Washer – Common Parts & Diagrams
Decals
Control Module - MN Models; Terminal Strip Style (Drawing 1 of 2)

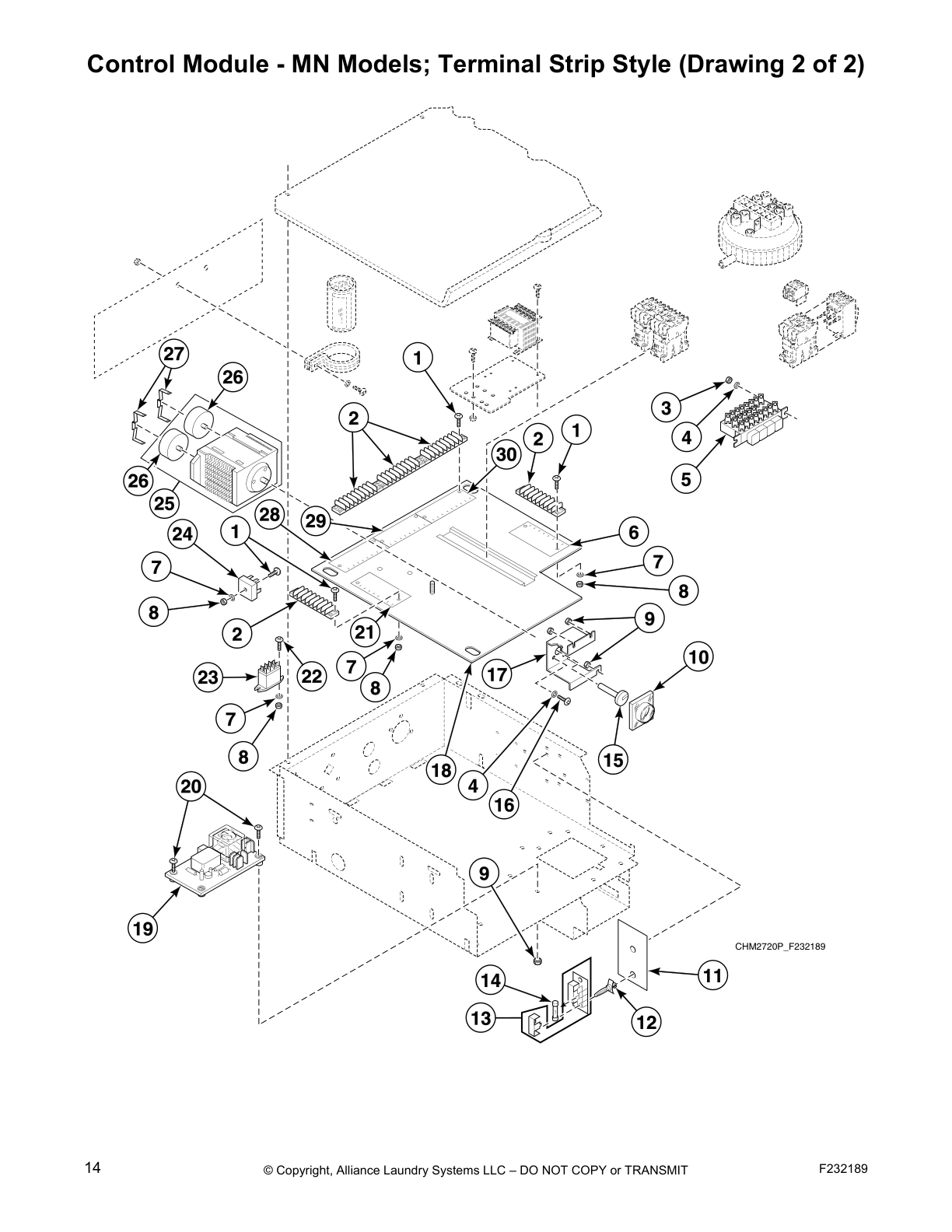

Control Module - MN Models; Terminal Strip Style (Drawing 2 of 2)

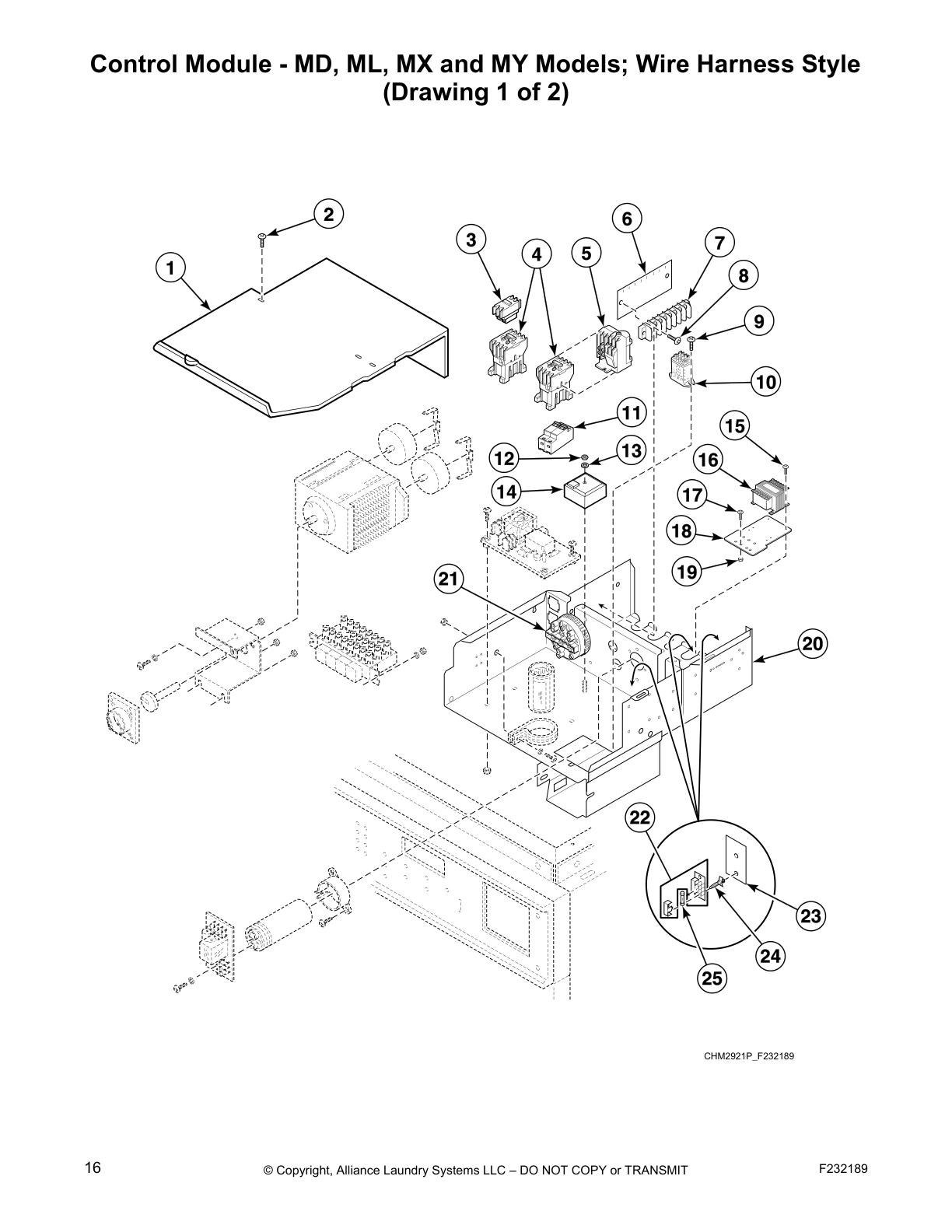

Control Module - MD, ML, MX and MY Models; Wire Harness Style
(Drawing 1 of 2)

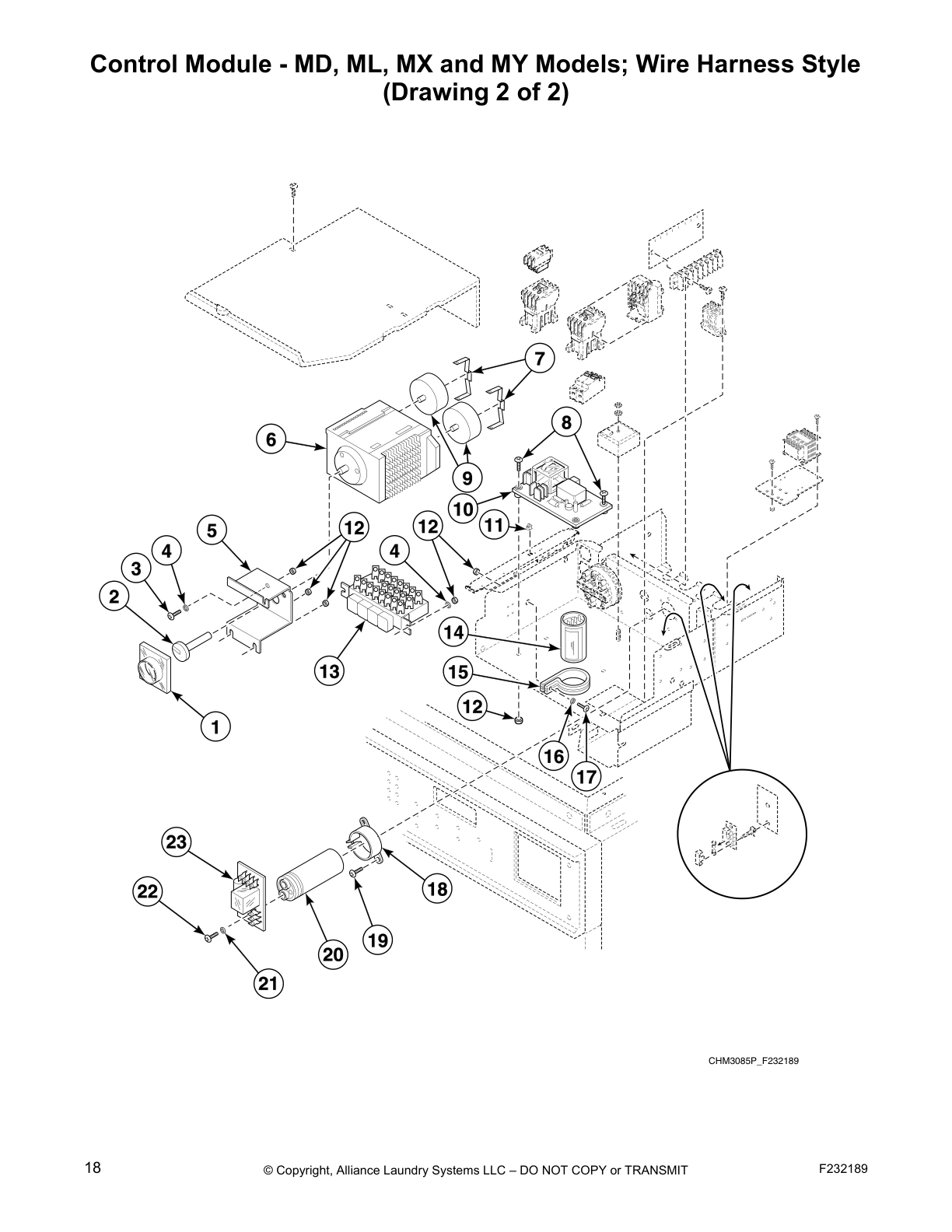

Control Module - MD, ML, MX and MY Models; Wire Harness Style
(Drawing 2 of 2)

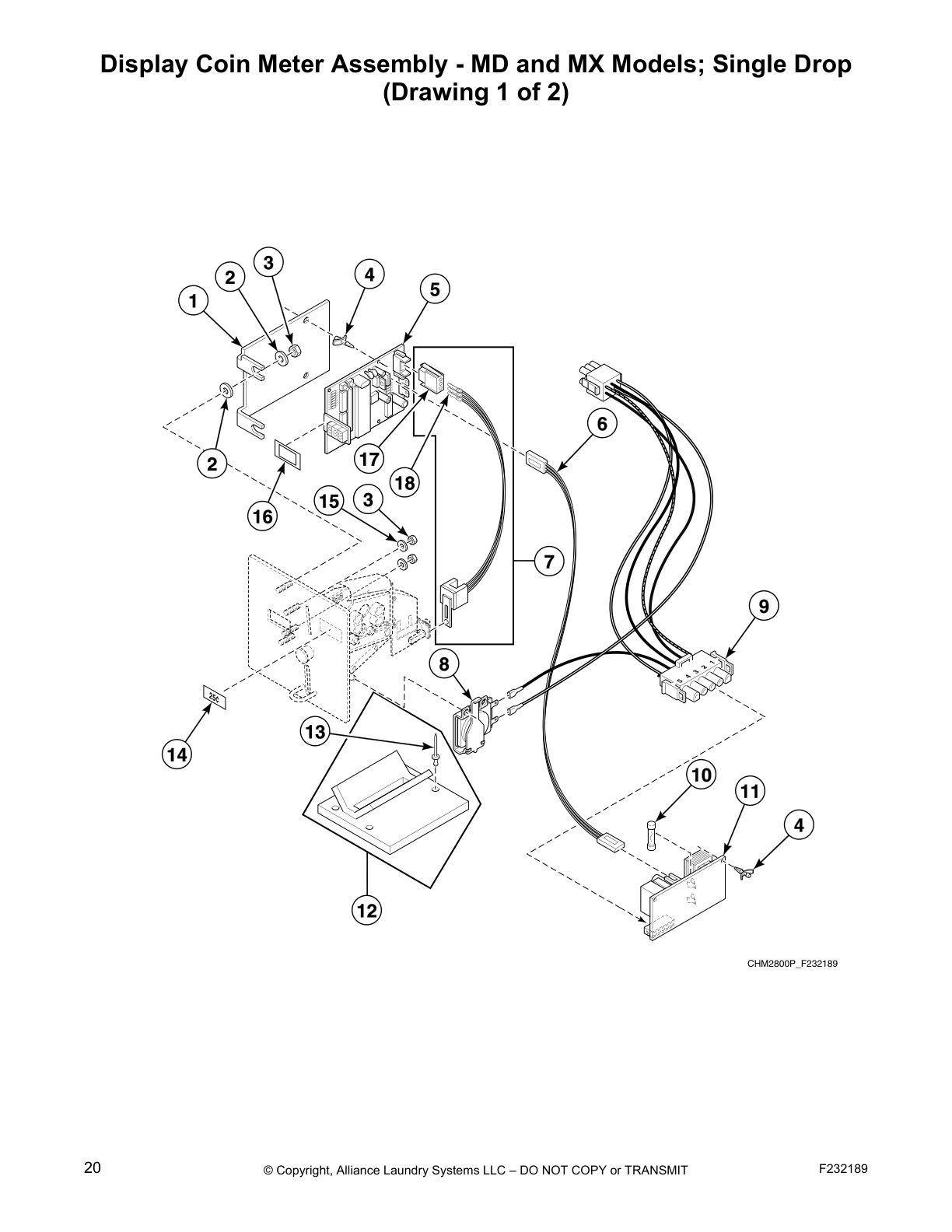

Display Coin Meter Assembly - MD and MX Models; Single Drop
(Drawing 1 of 2)

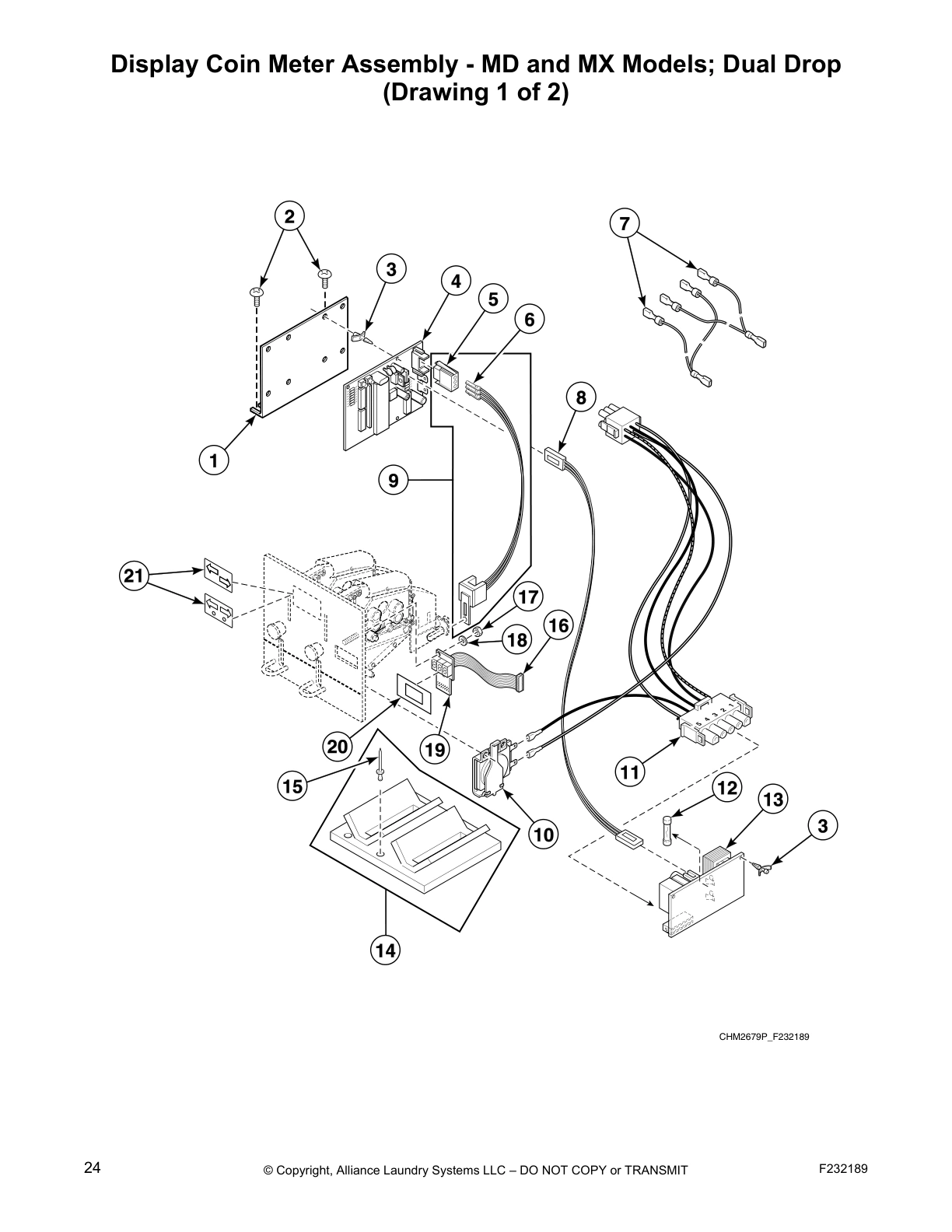

Display Coin Meter Assembly - MD and MX Models; Dual Drop
(Drawing 1 of 2)

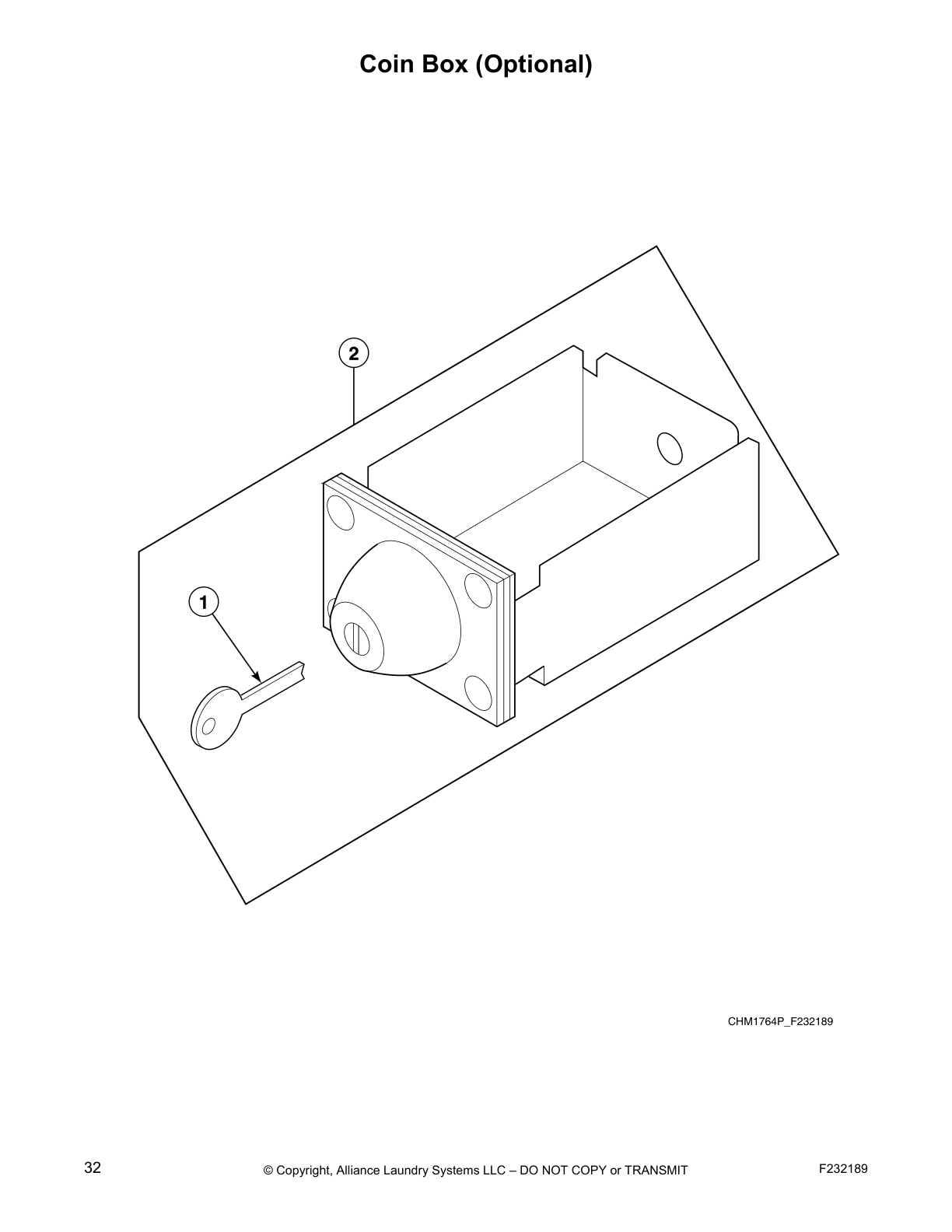

Coin Box (Optional)

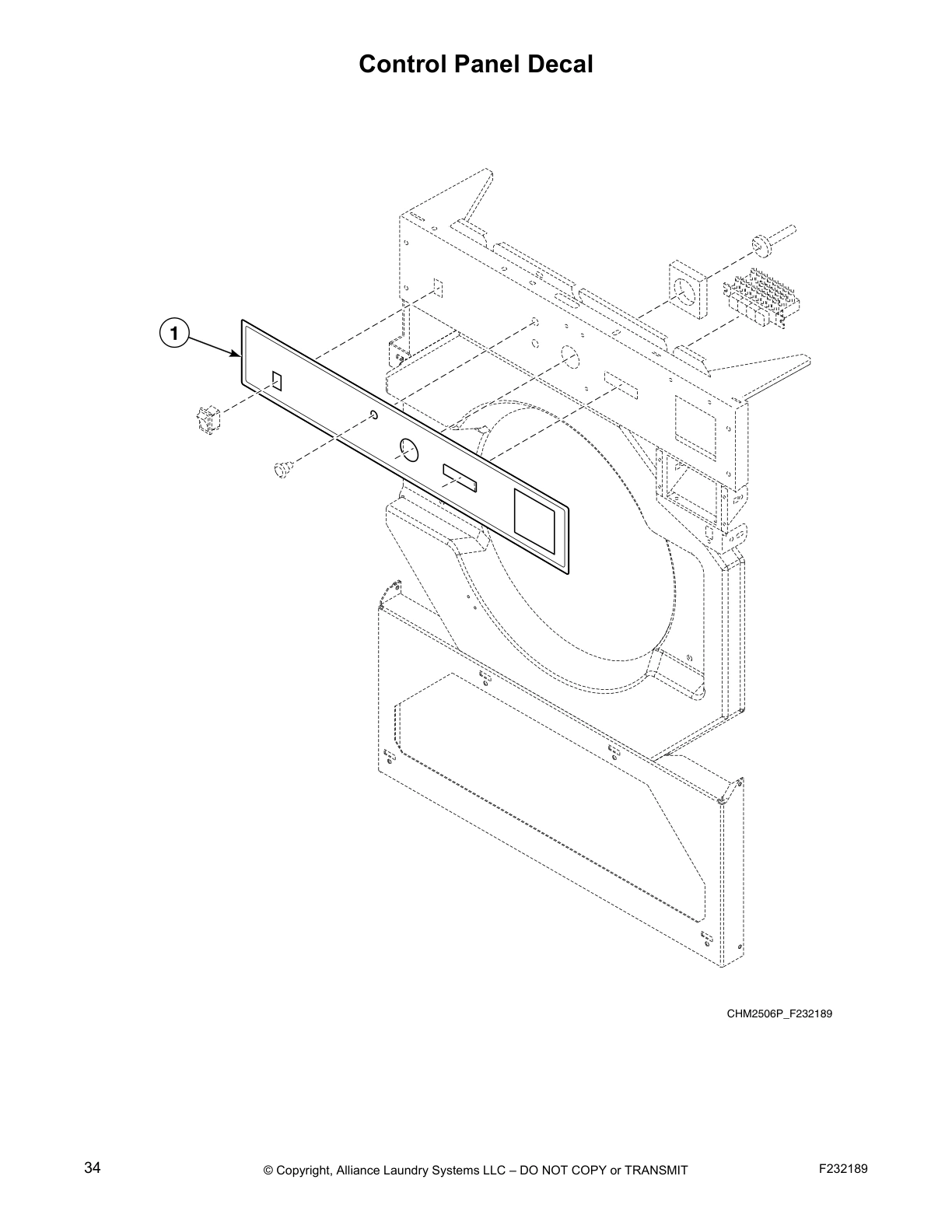

Control Panel Decal

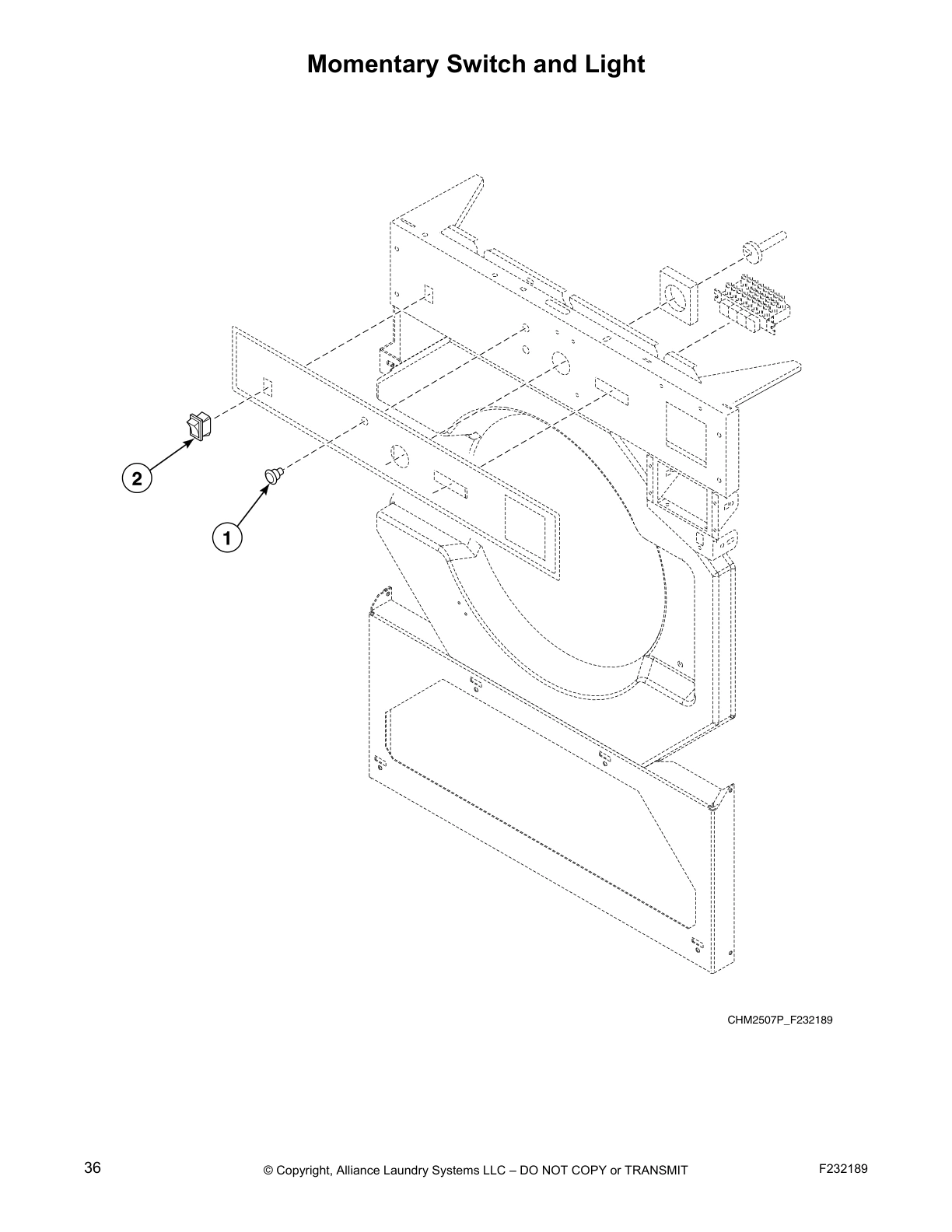

Momentary Switch and Light

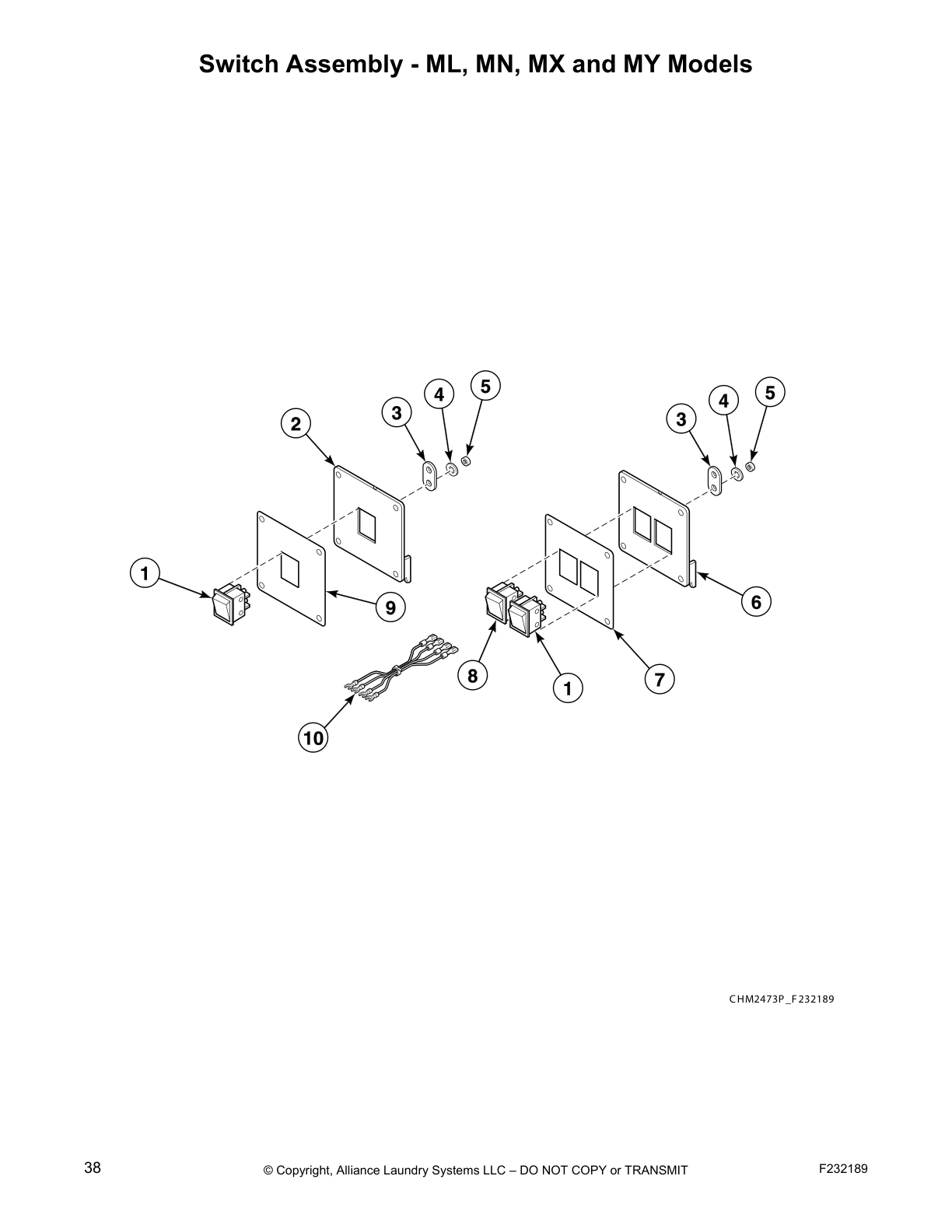

Switch Assembly - ML, MN, MX and MY Models

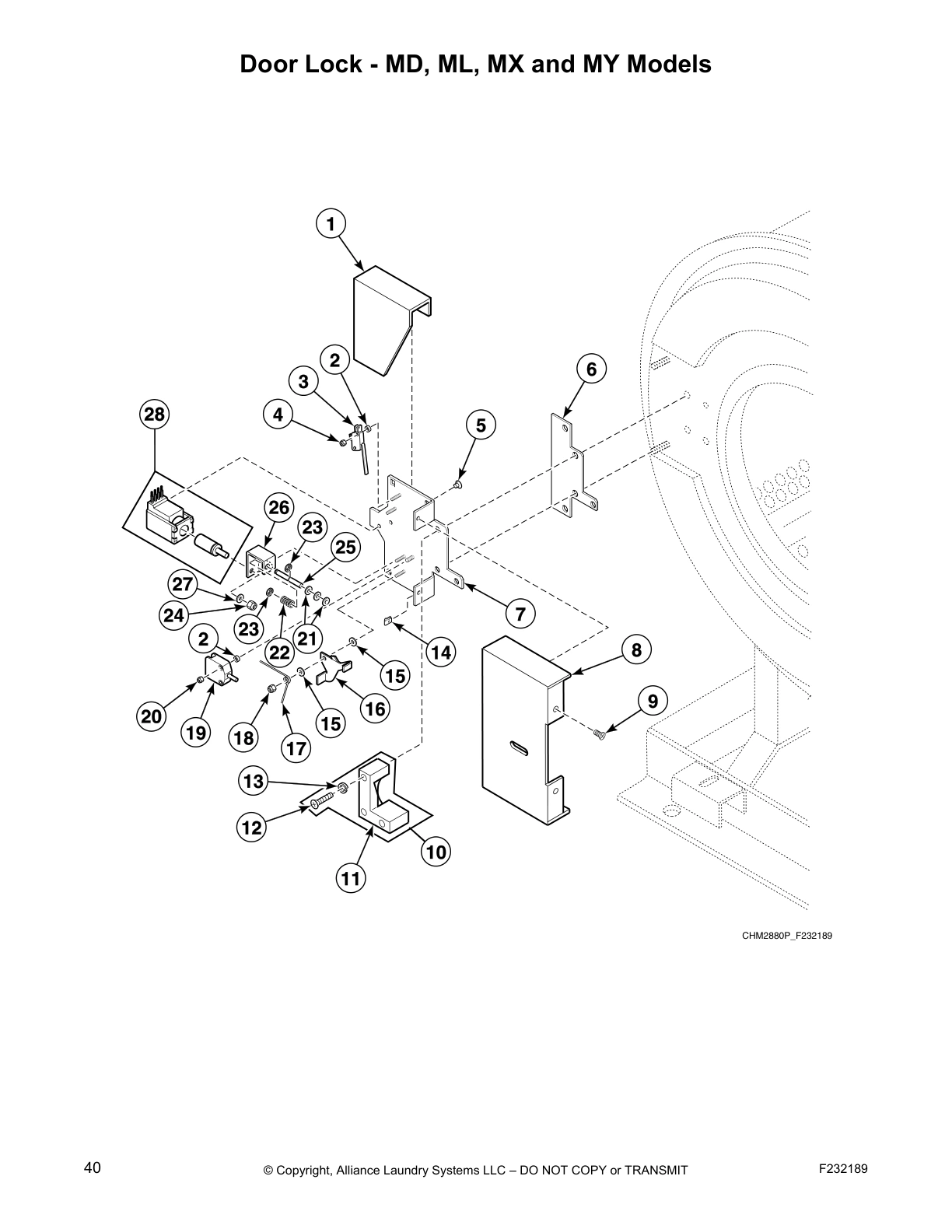

Door Lock - MD, ML, MX and MY Models

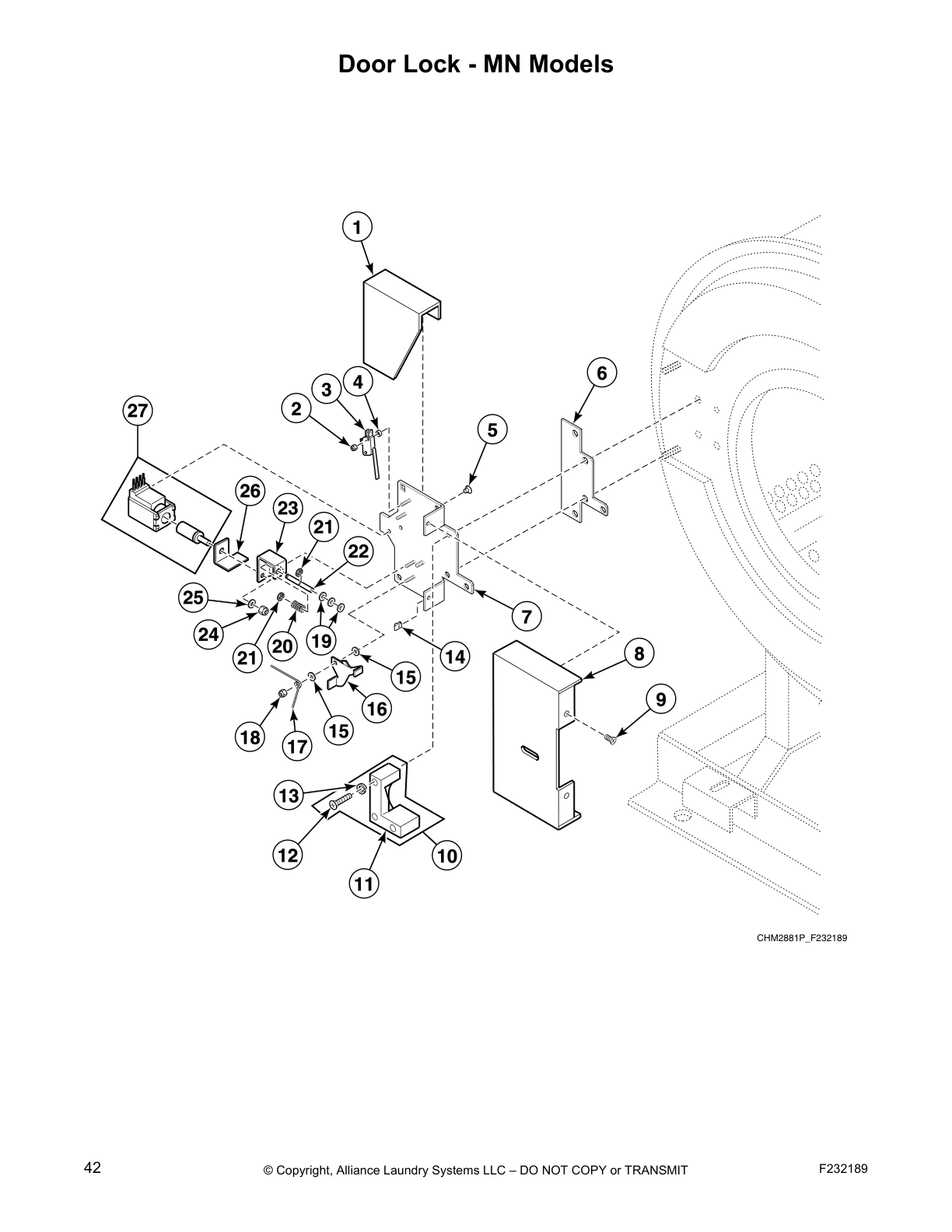

Door Lock - MN Models

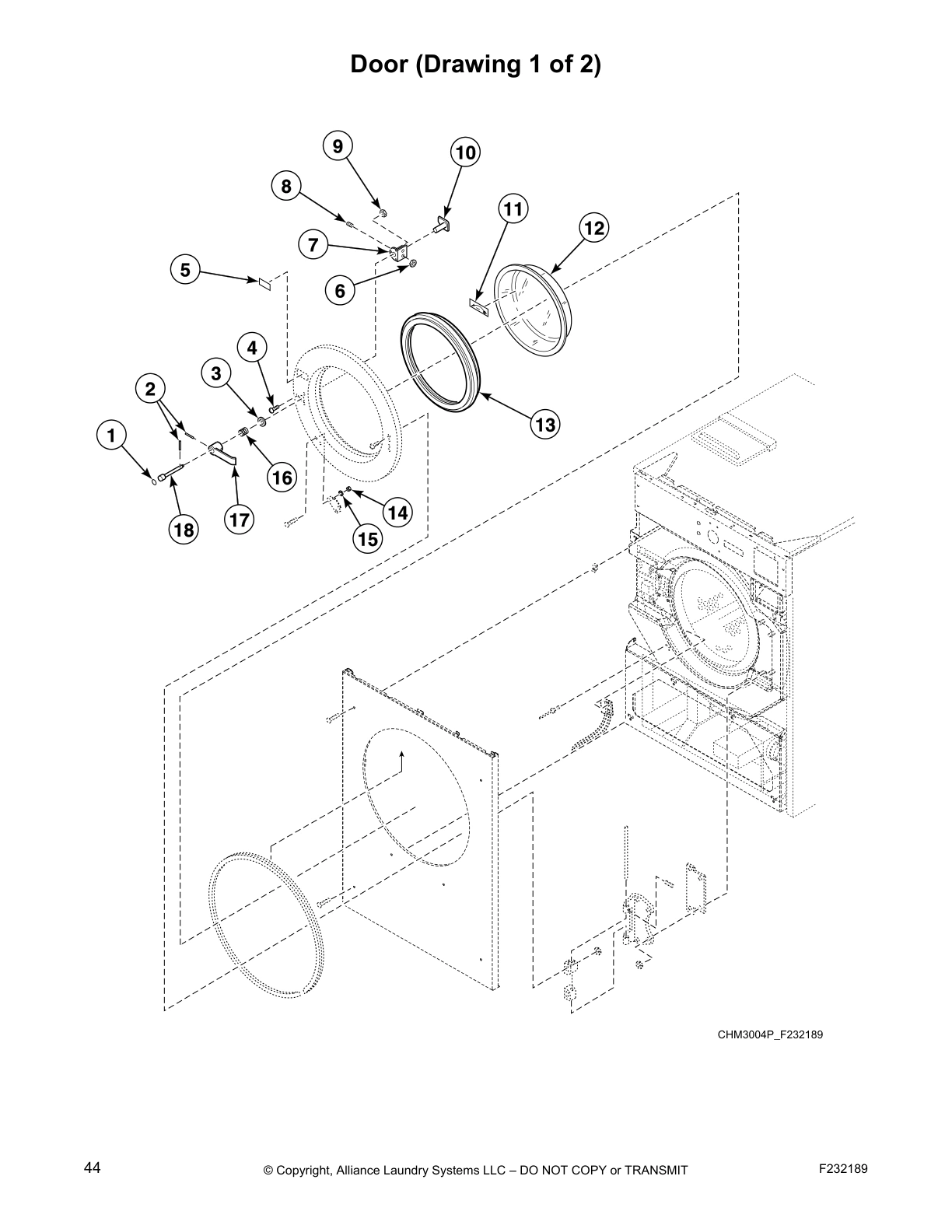

Door (Drawing 1 of 2)

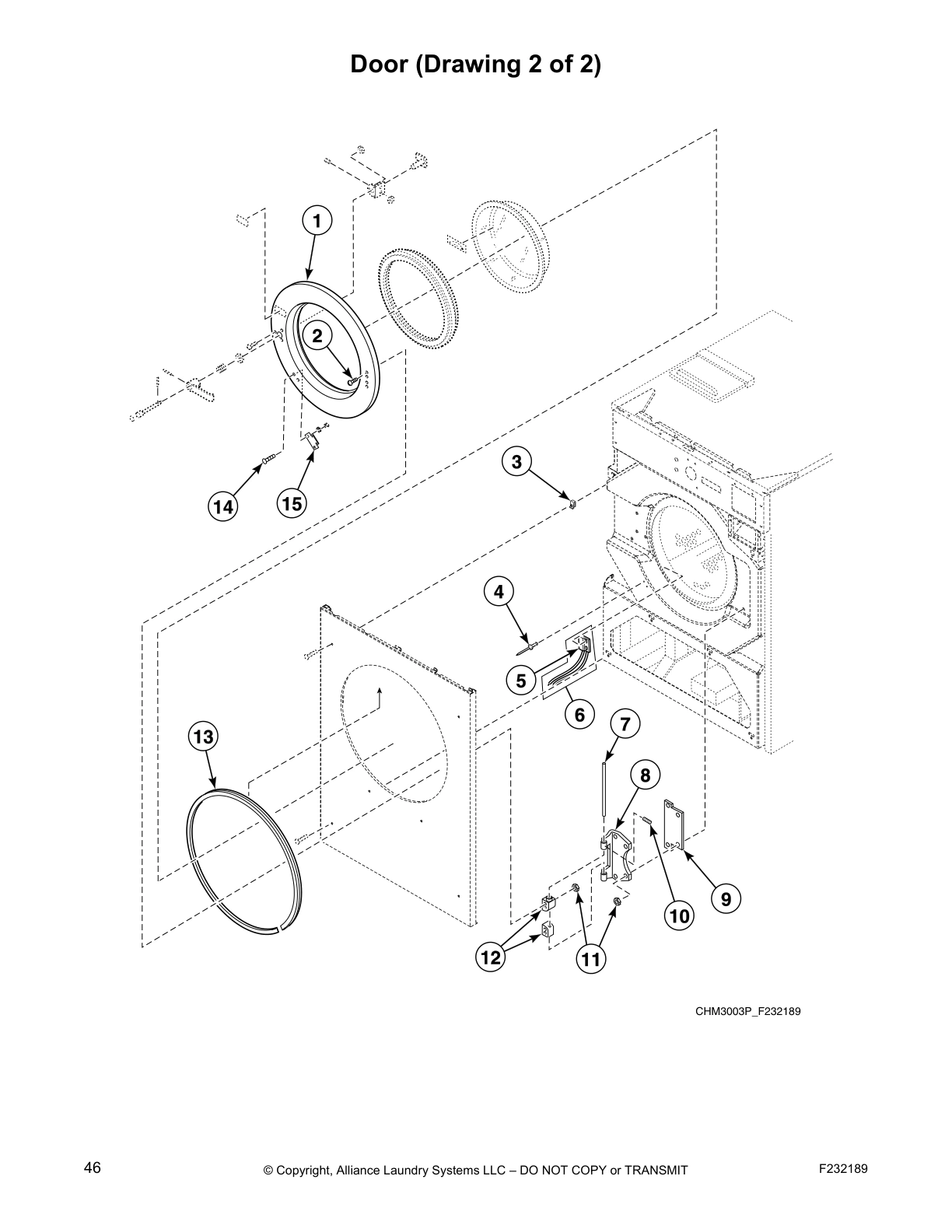

Door (Drawing 2 of 2)

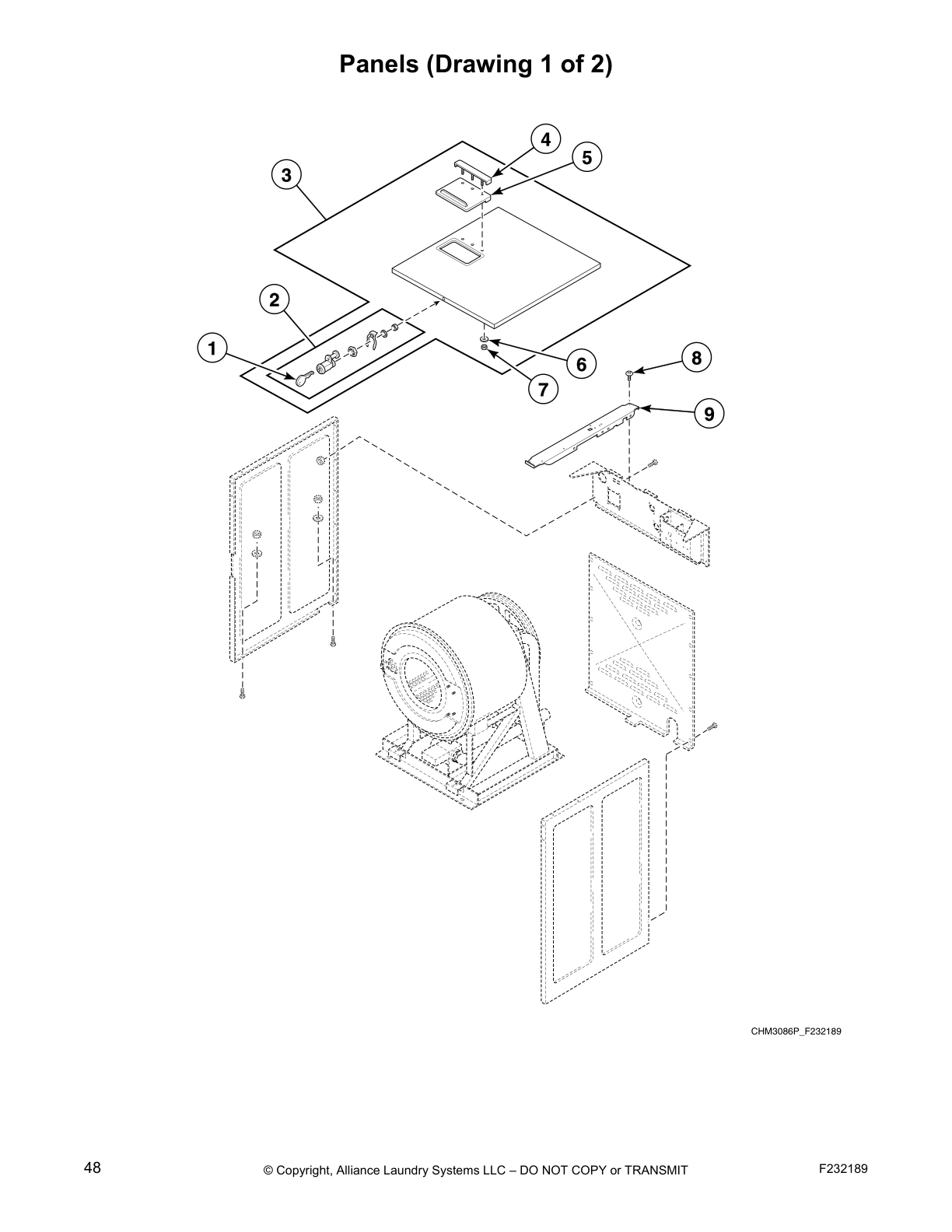

Panels (Drawing 1 of 2)

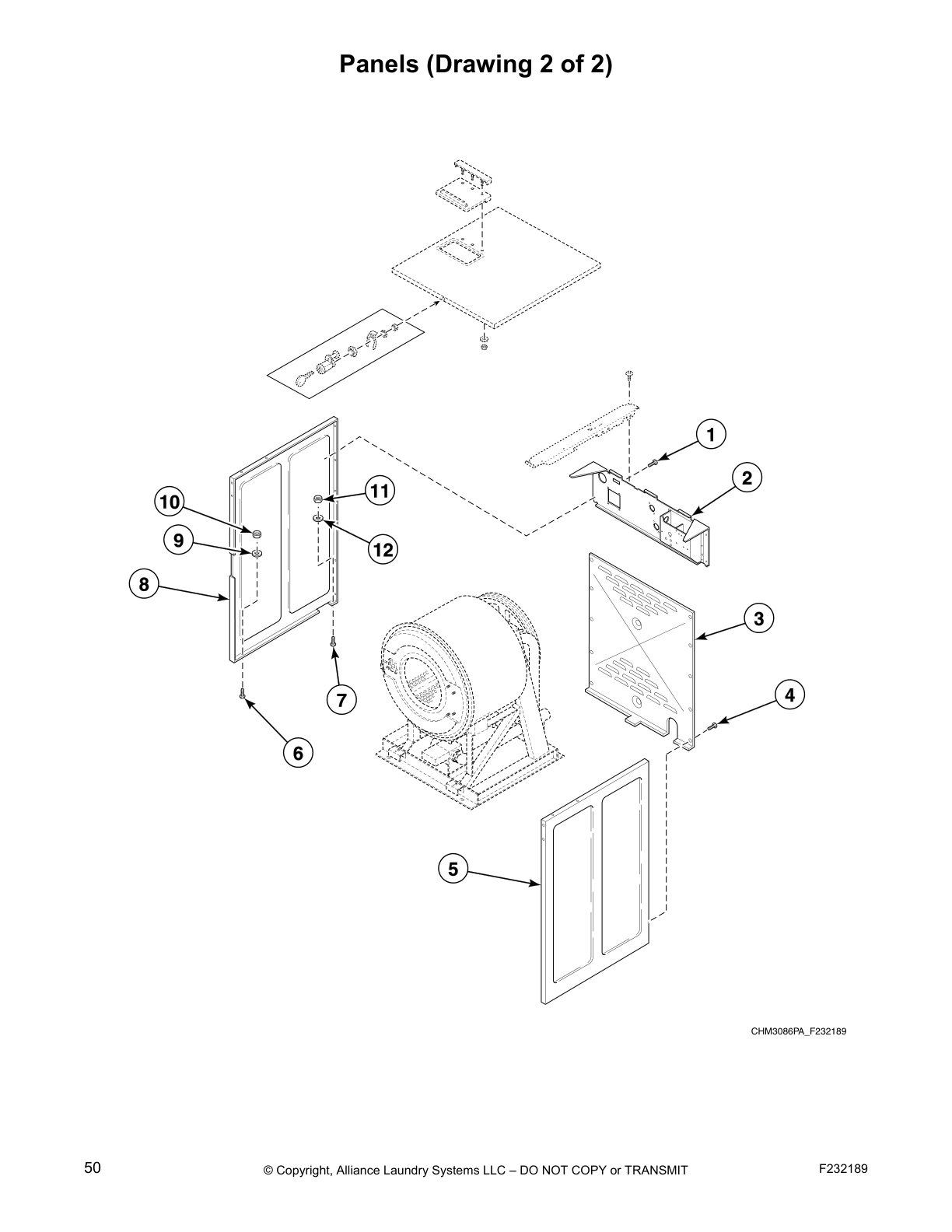

Panels (Drawing 2 of 2)

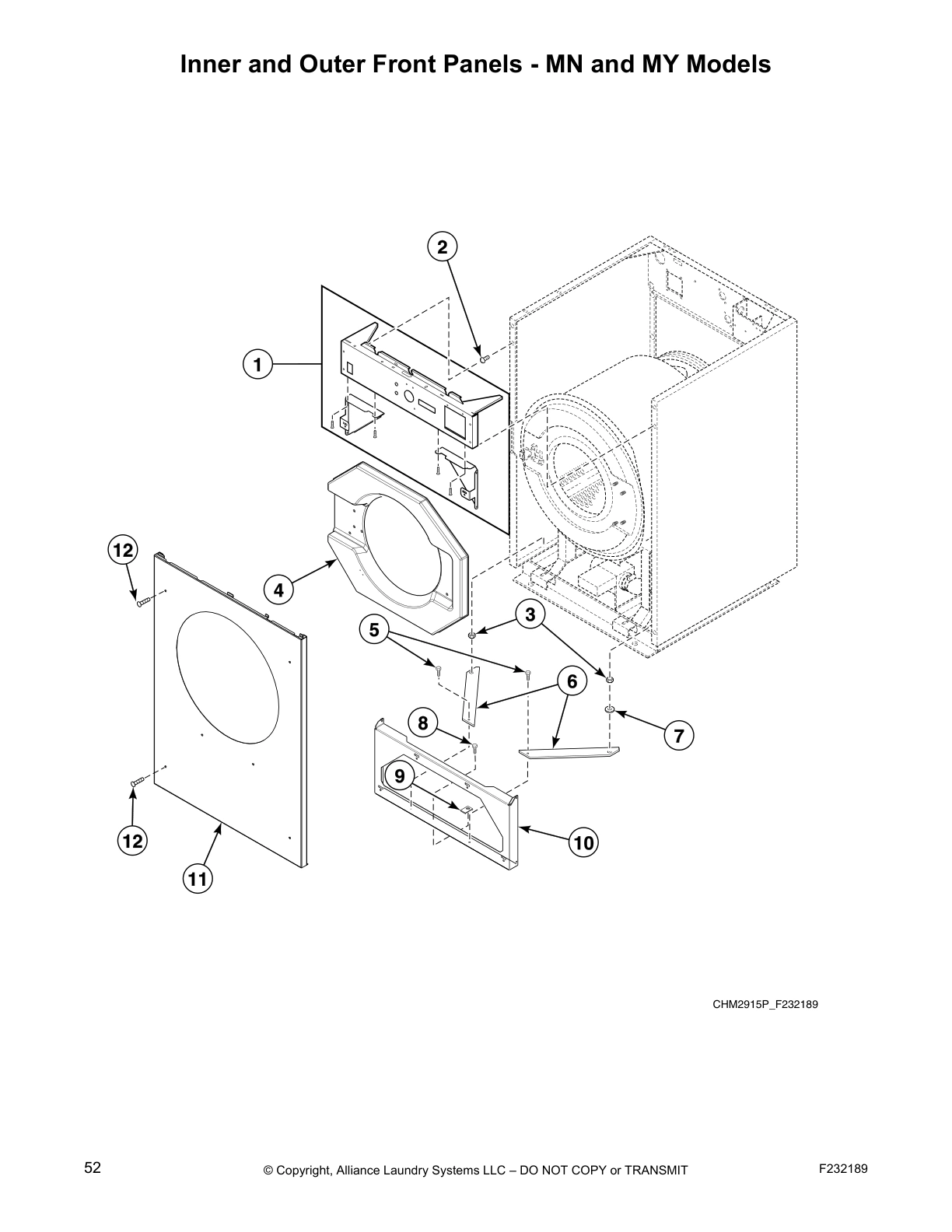

Inner and Outer Front Panels - MN and MY Models

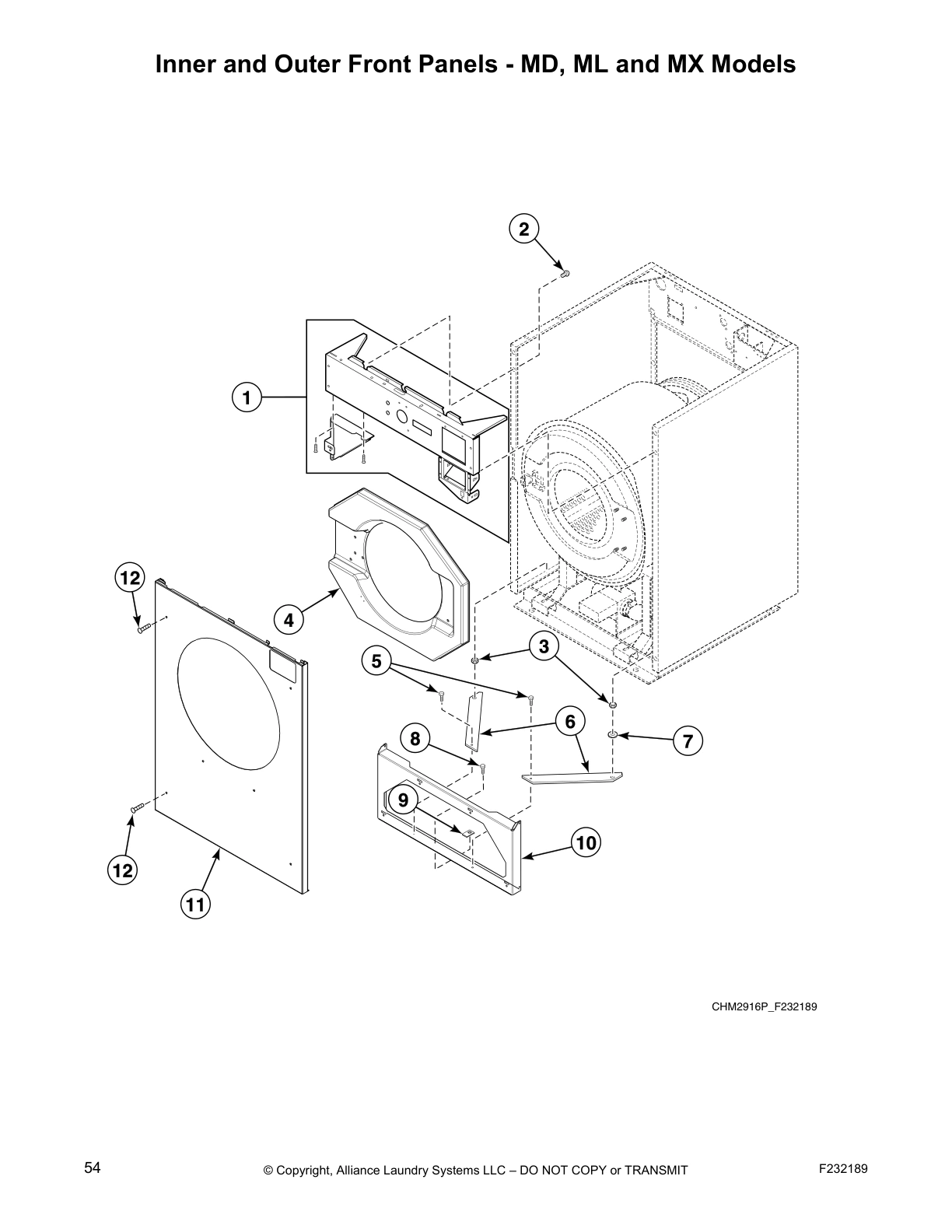

Inner and Outer Front Panels - MD, ML and MX Models

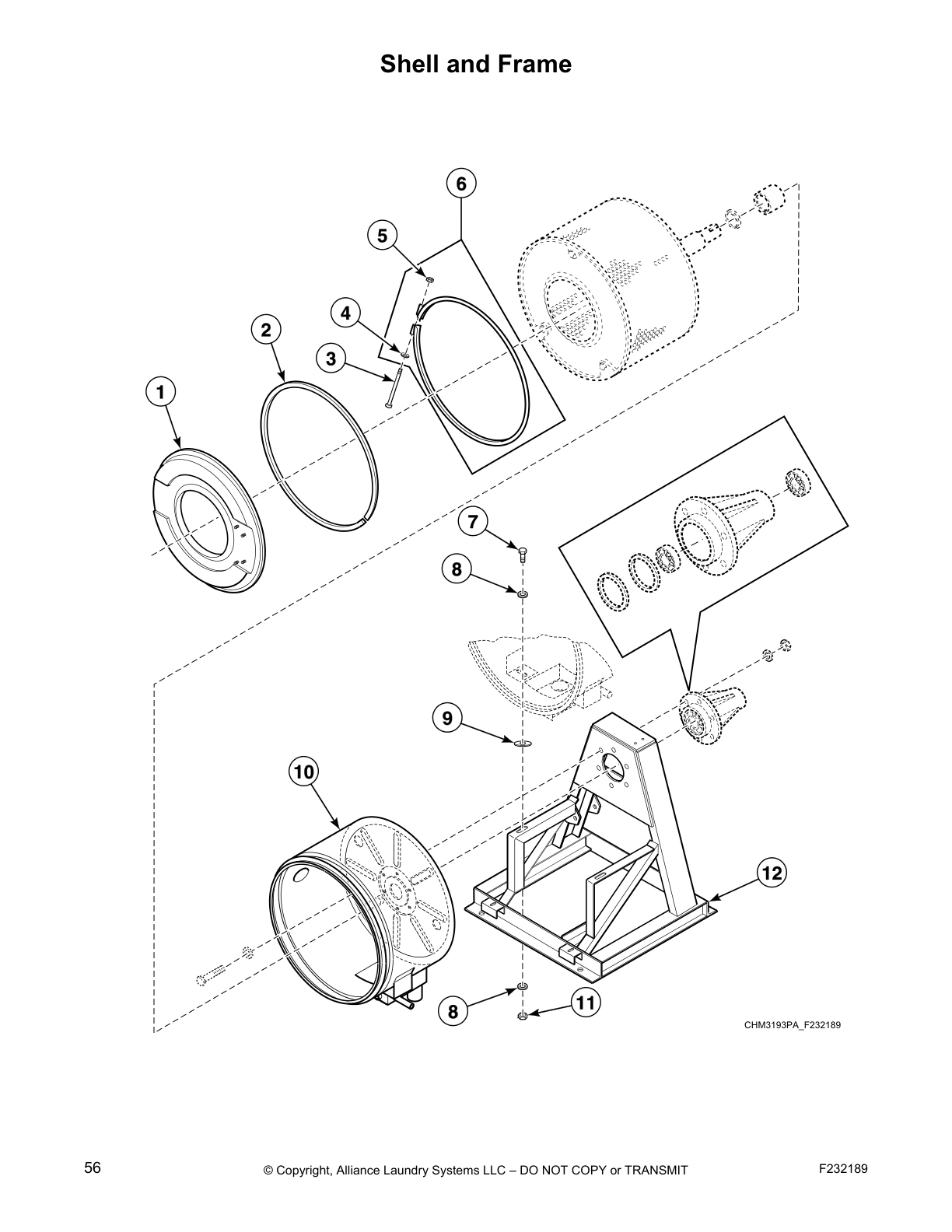

Shell and Frame

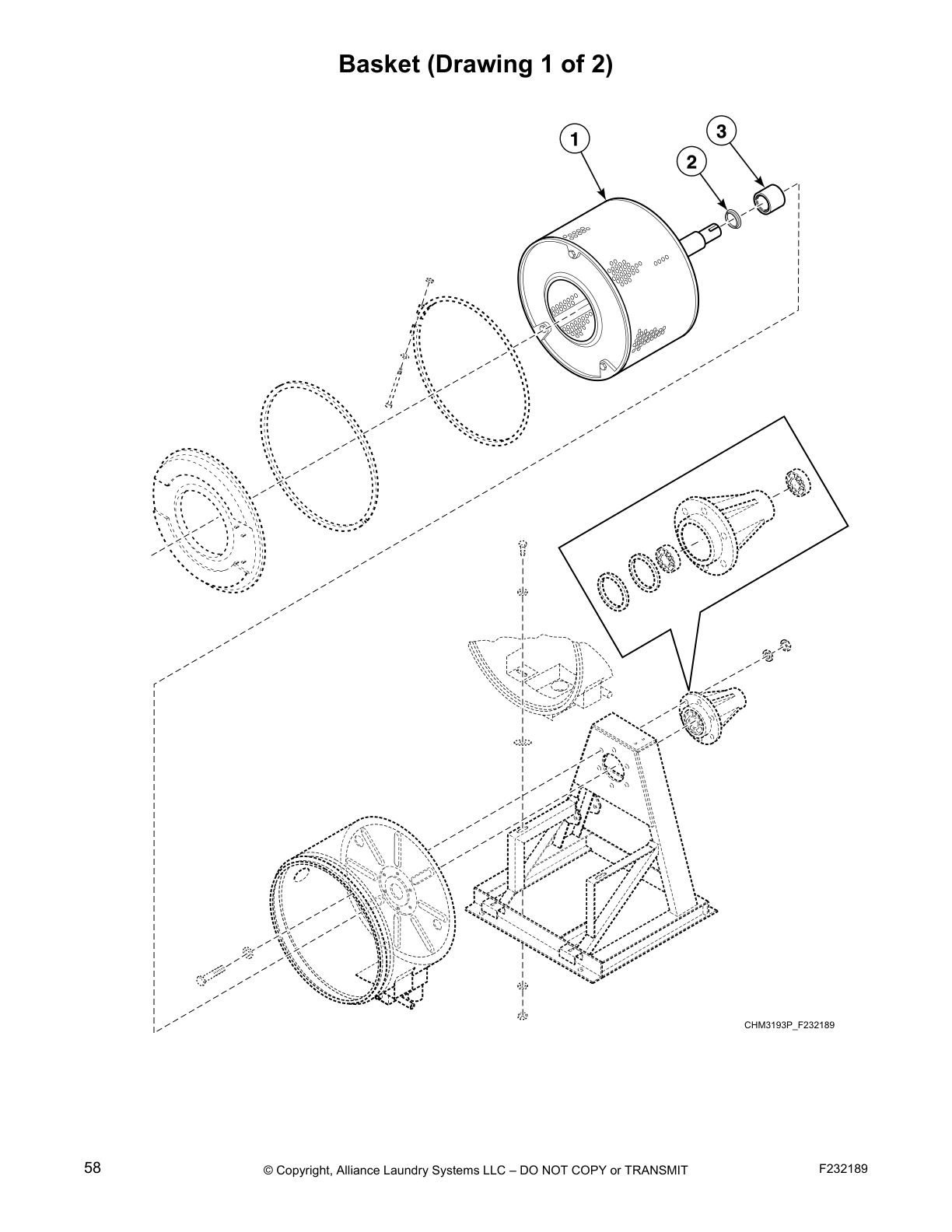

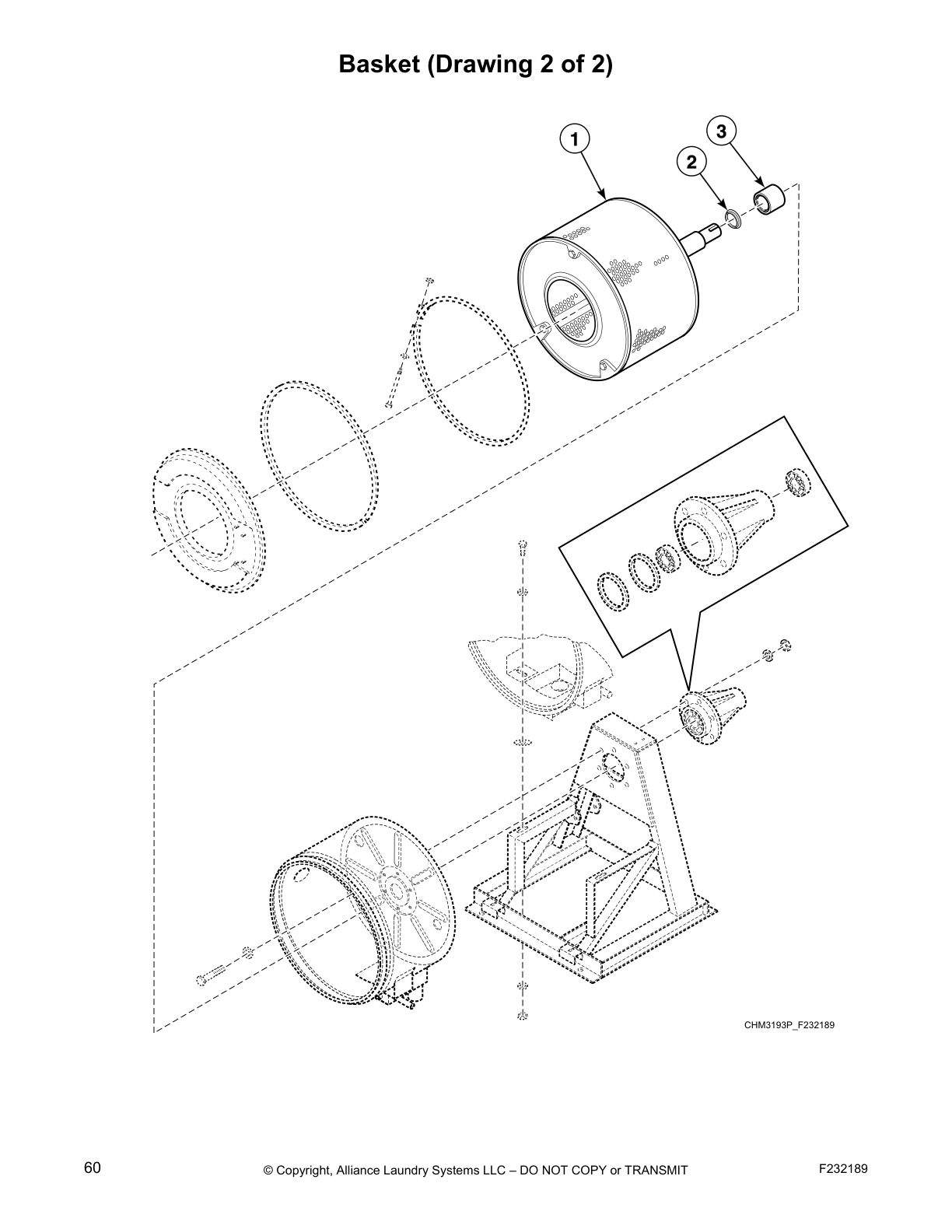

Basket (Drawing 1 of 2)
Basket (Drawing 2 of 2)
Trunnion - 20, 25 and 30 Pound Models

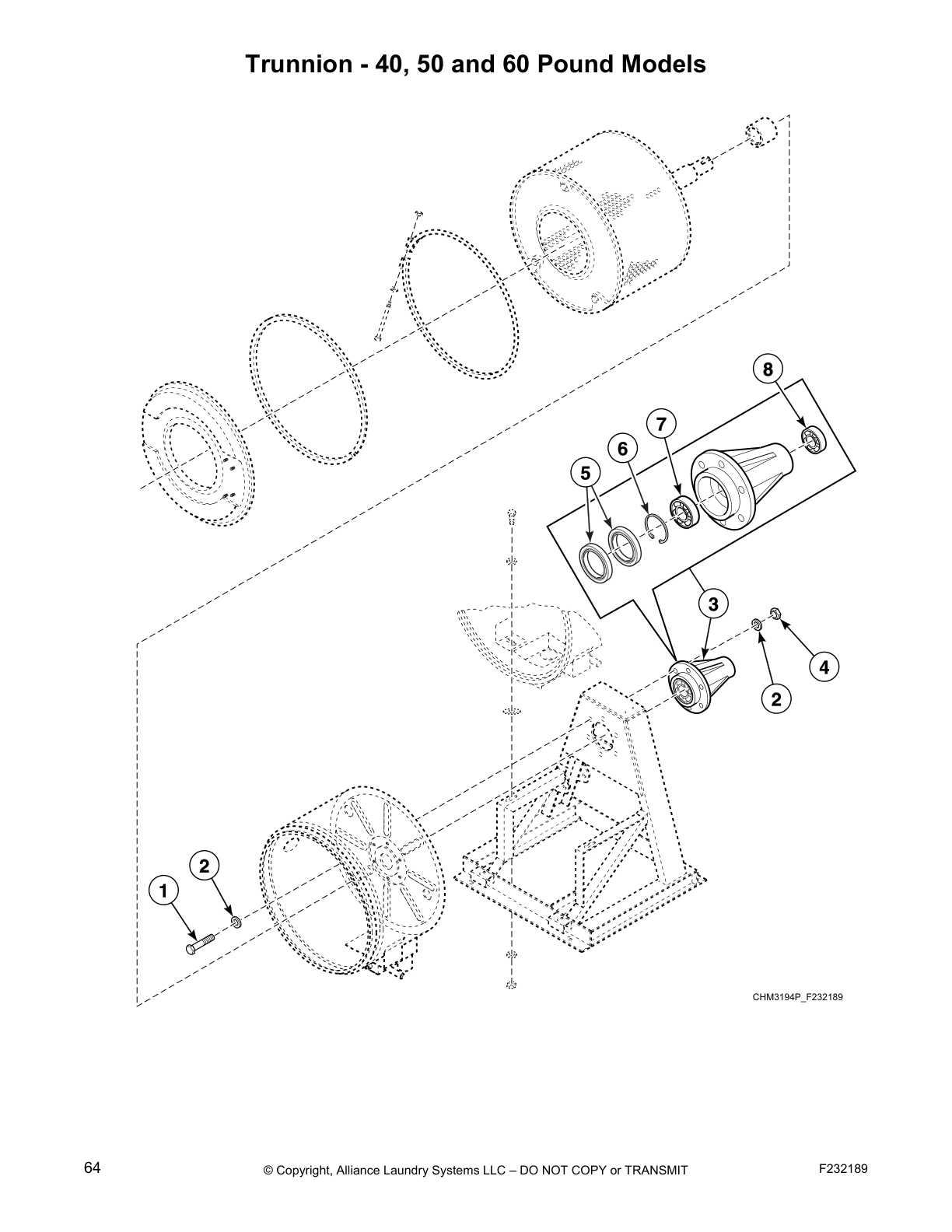

Trunnion - 40, 50 and 60 Pound Models

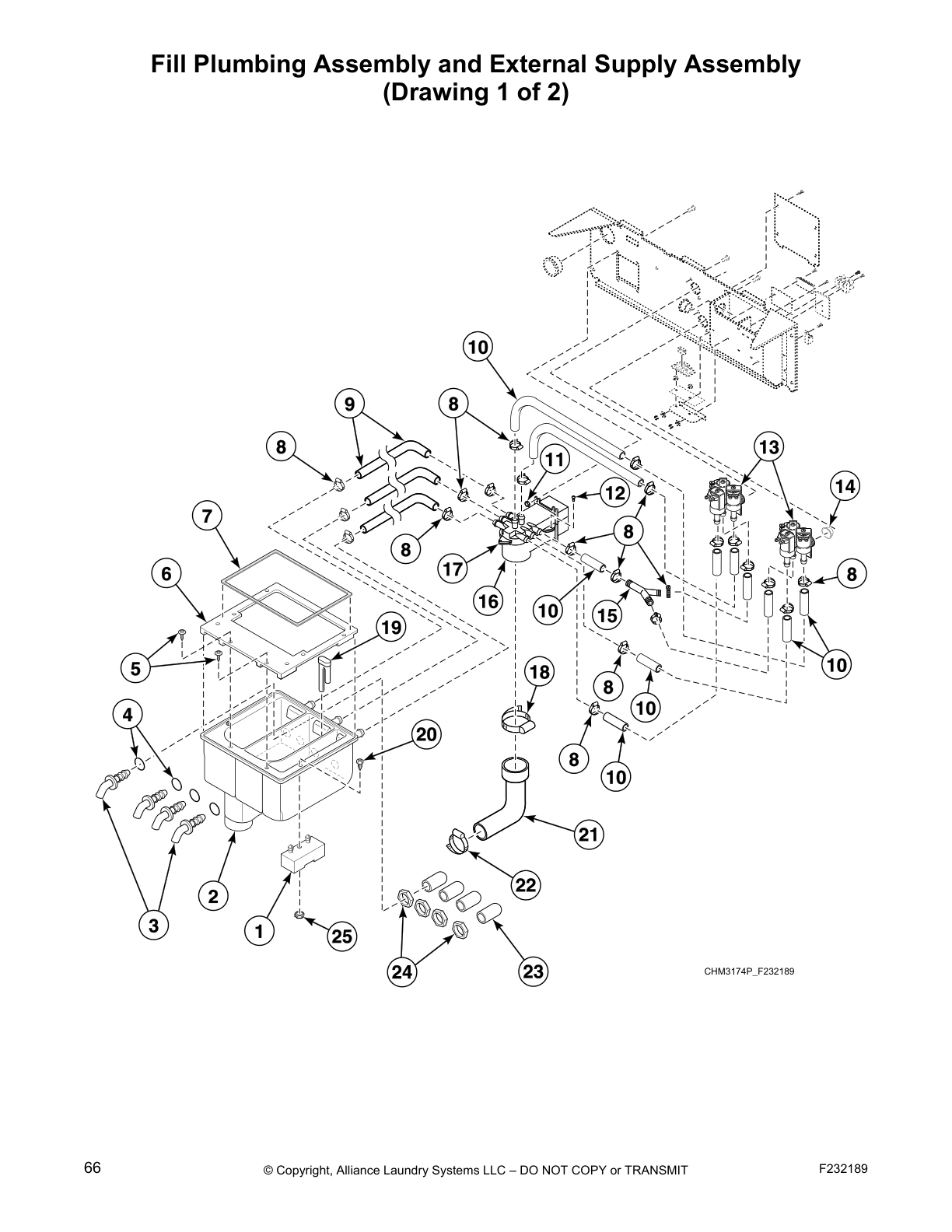

Fill Plumbing Assembly and External Supply Assembly
(Drawing 1 of 2)

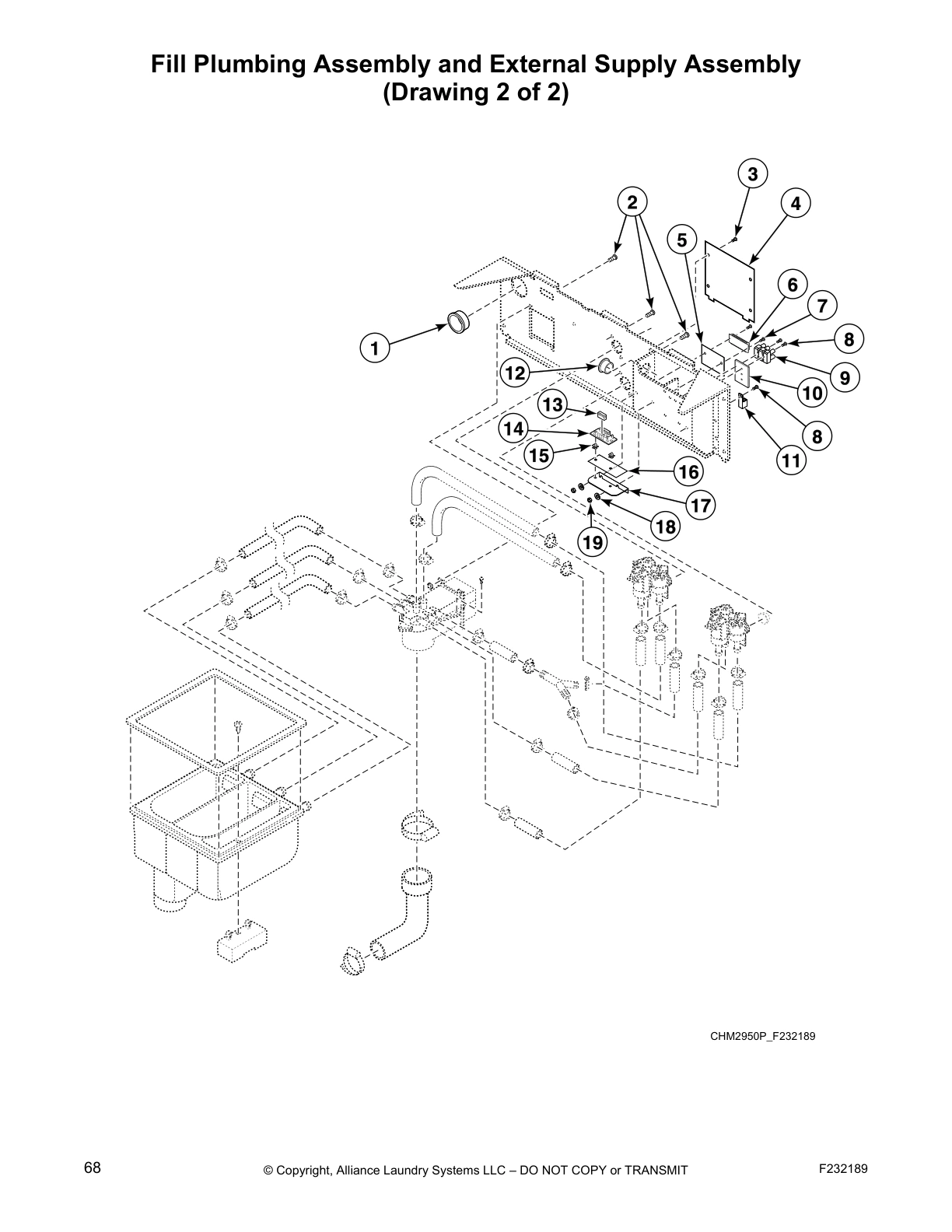

Fill Plumbing Assembly and External Supply Assembly
(Drawing 2 of 2)

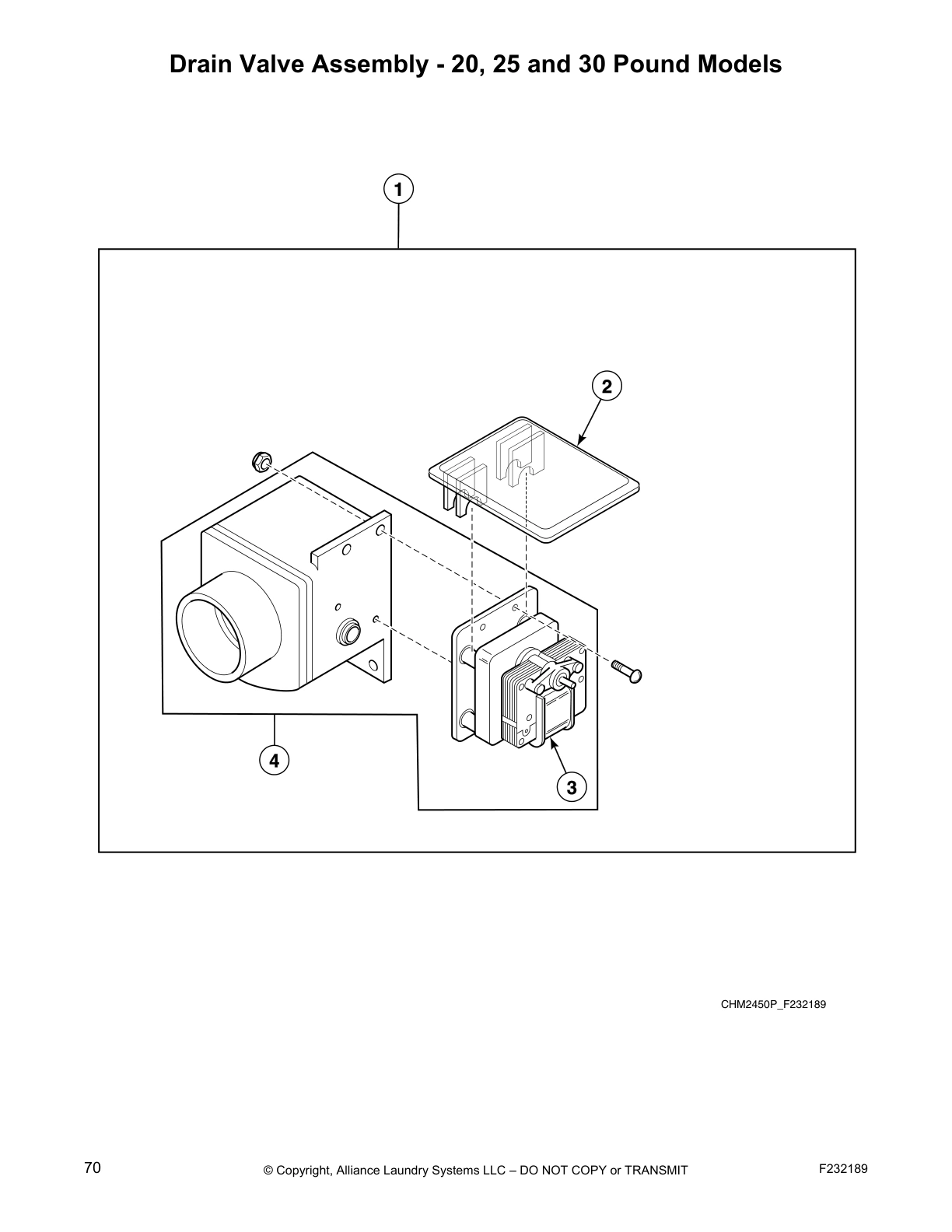

Drain Valve Assembly - 20, 25 and 30 Pound Models

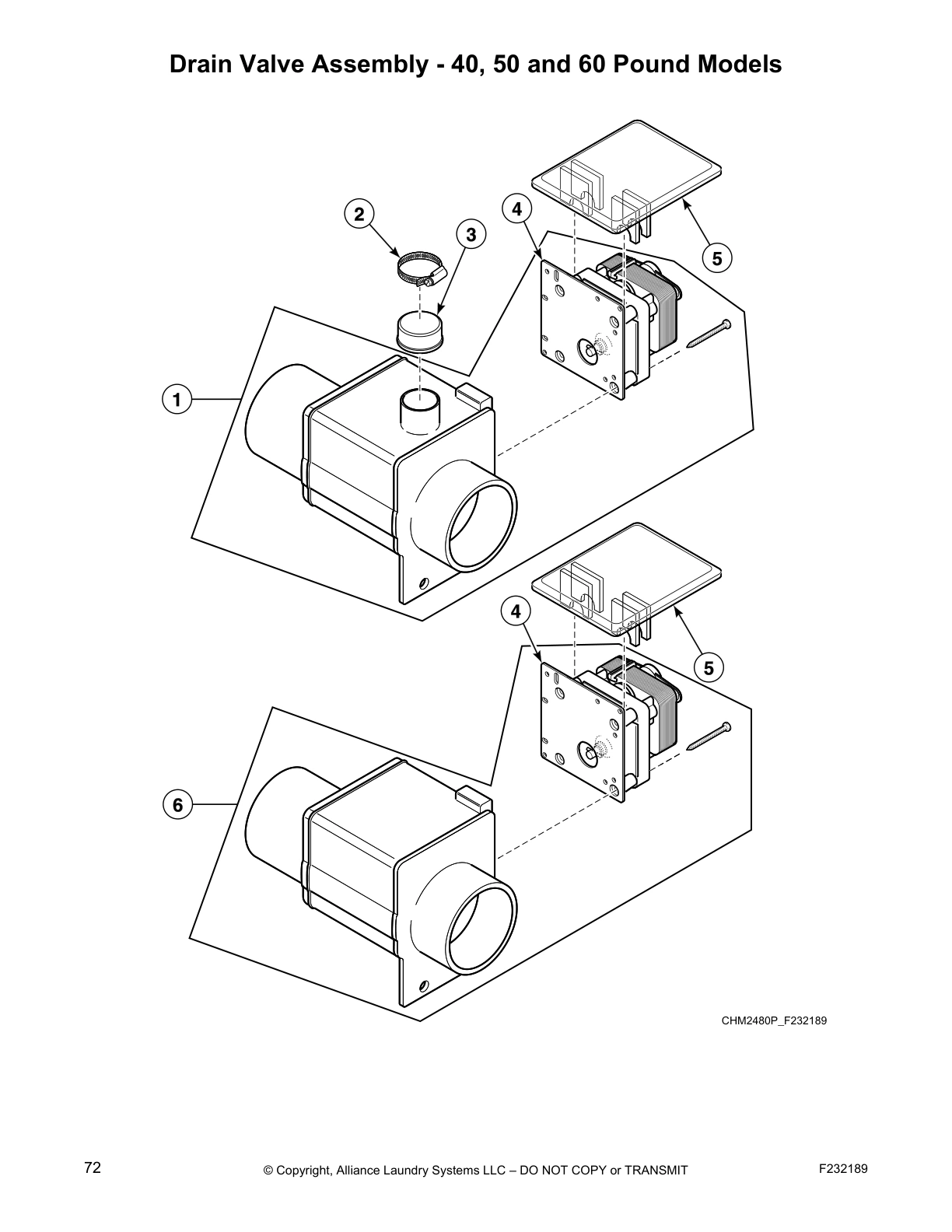

Drain Valve Assembly - 40, 50 and 60 Pound Models

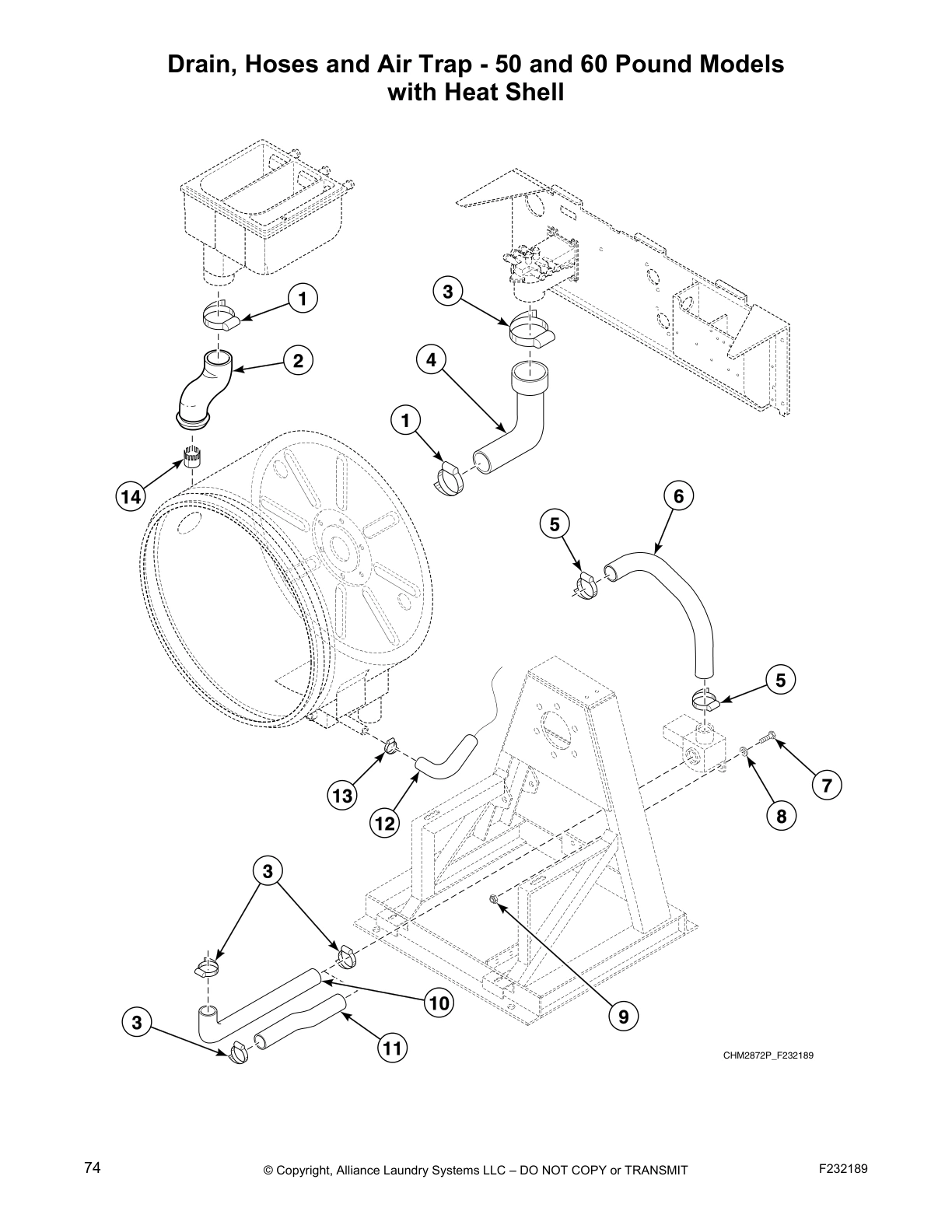

Drain, Hoses and Air Trap - 50 and 60 Pound Models
with Heat Shell

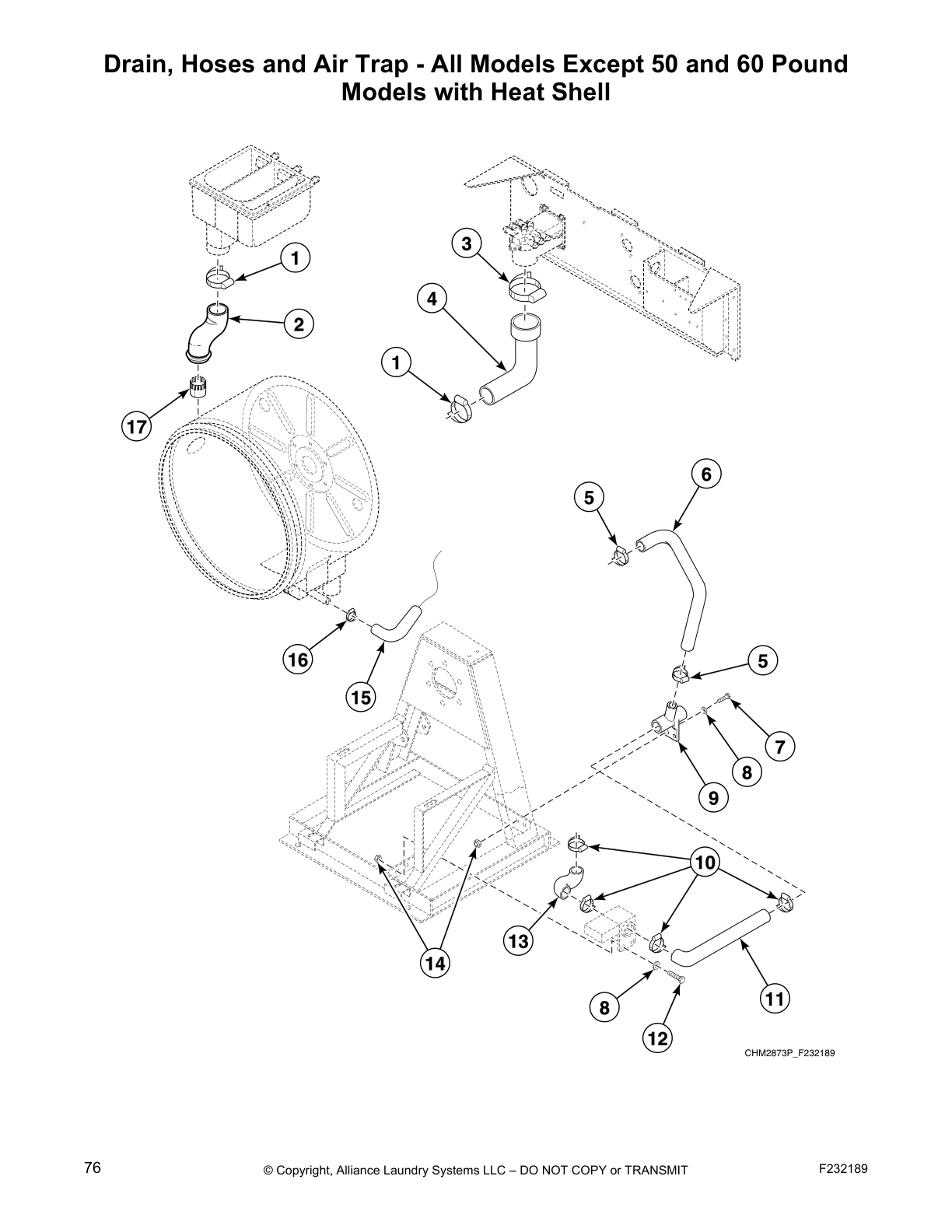

Drain, Hoses and Air Trap - All Models Except 50 and 60 Pound
Models with Heat Shell

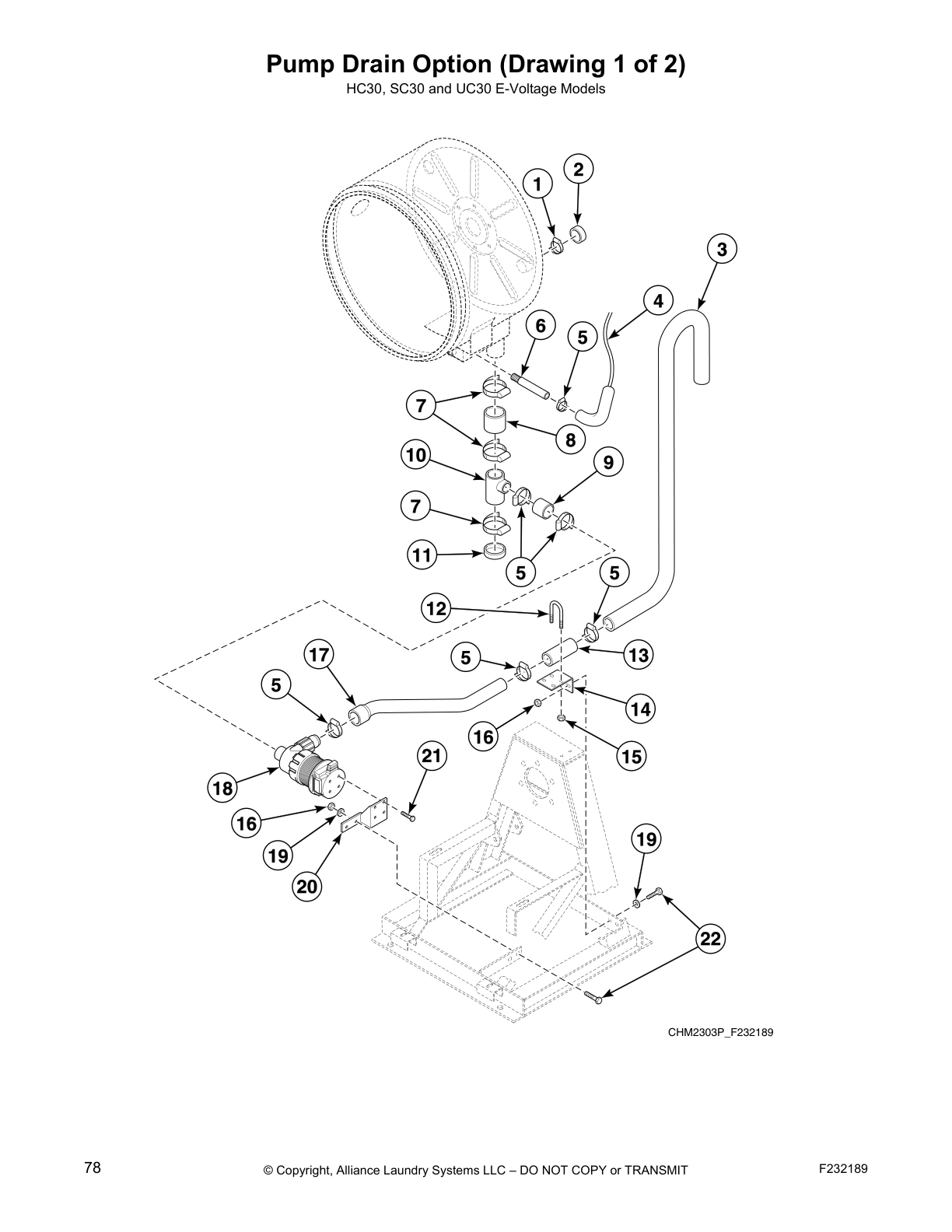

Pump Drain Option (Drawing 1 of 2)

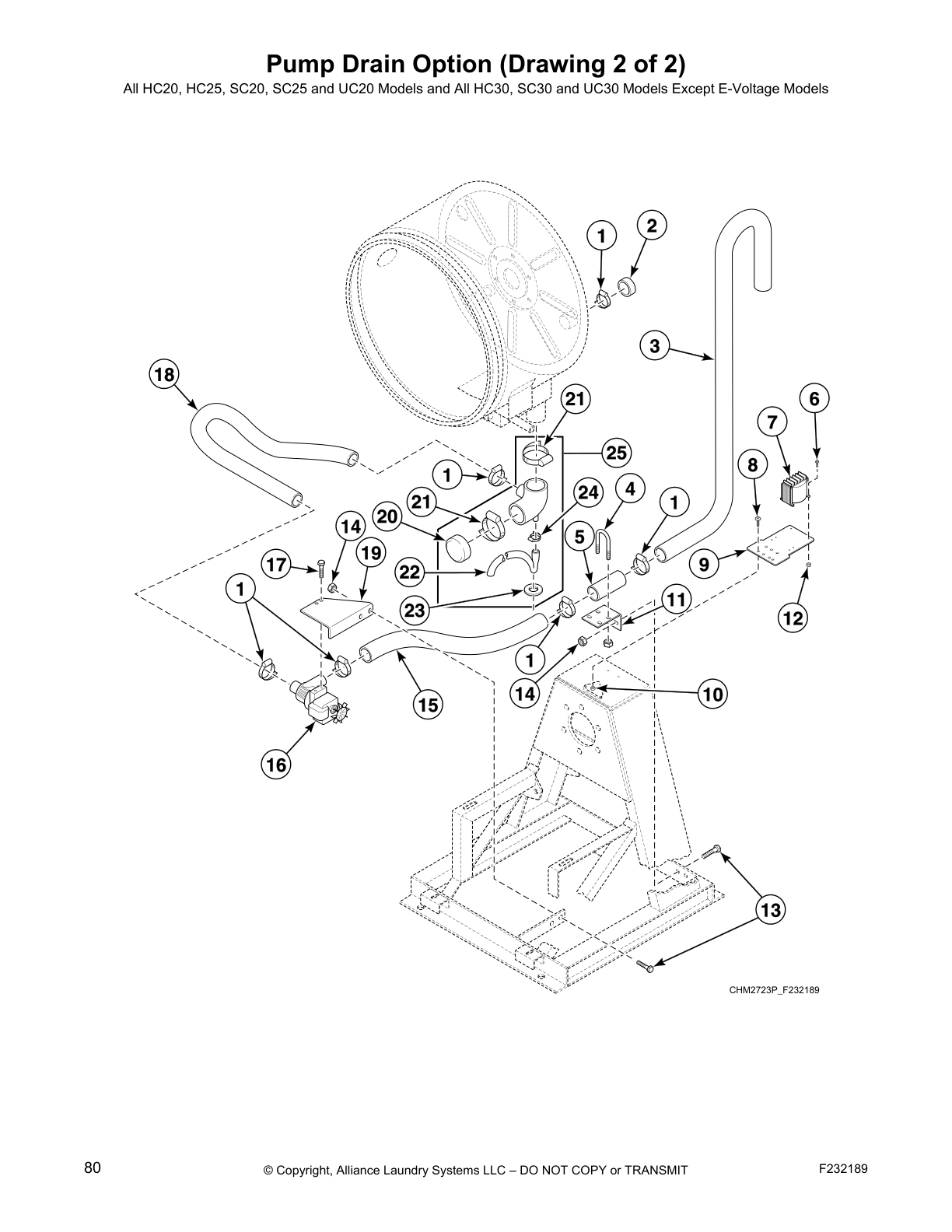

Pump Drain Option (Drawing 2 of 2)

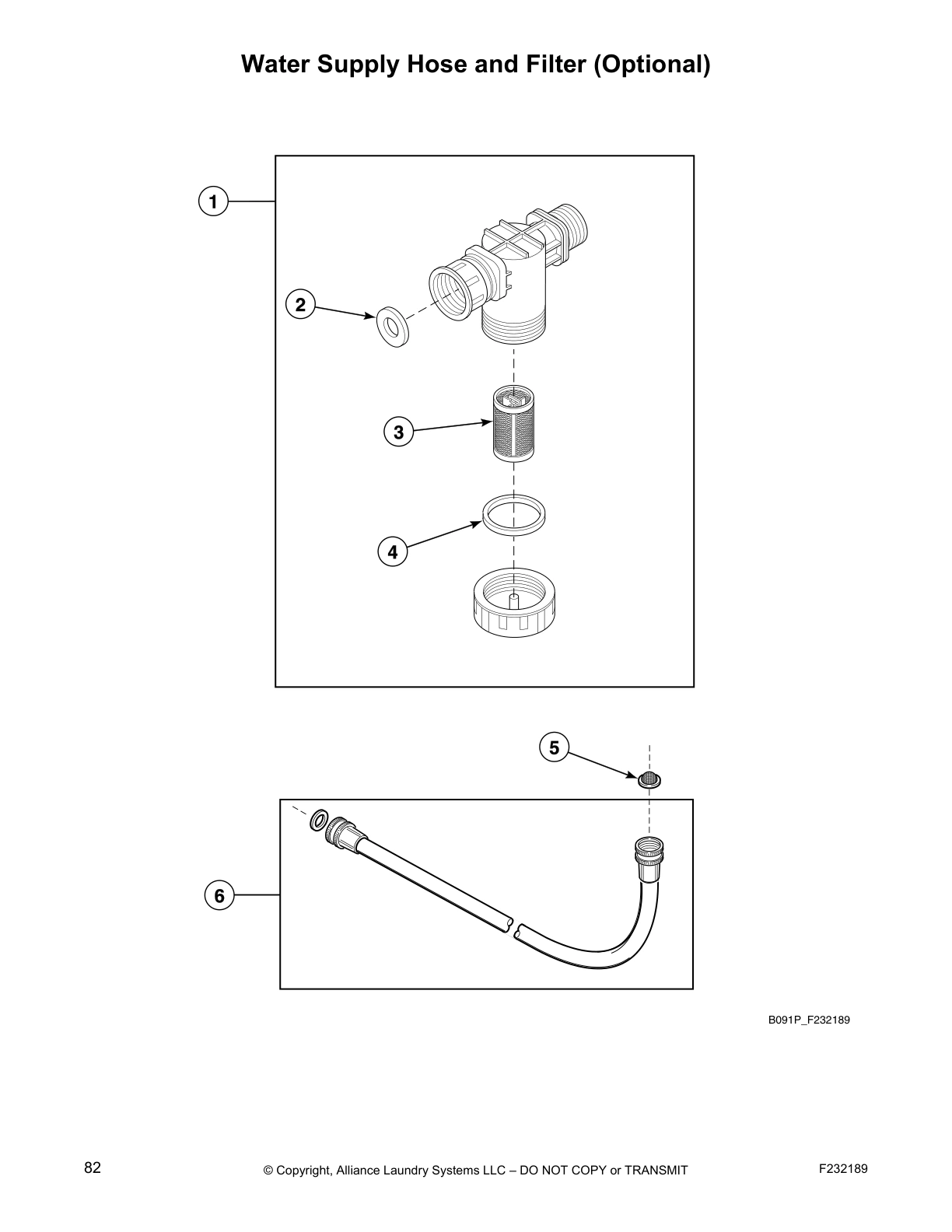

Water Supply Hose and Filter (Optional)

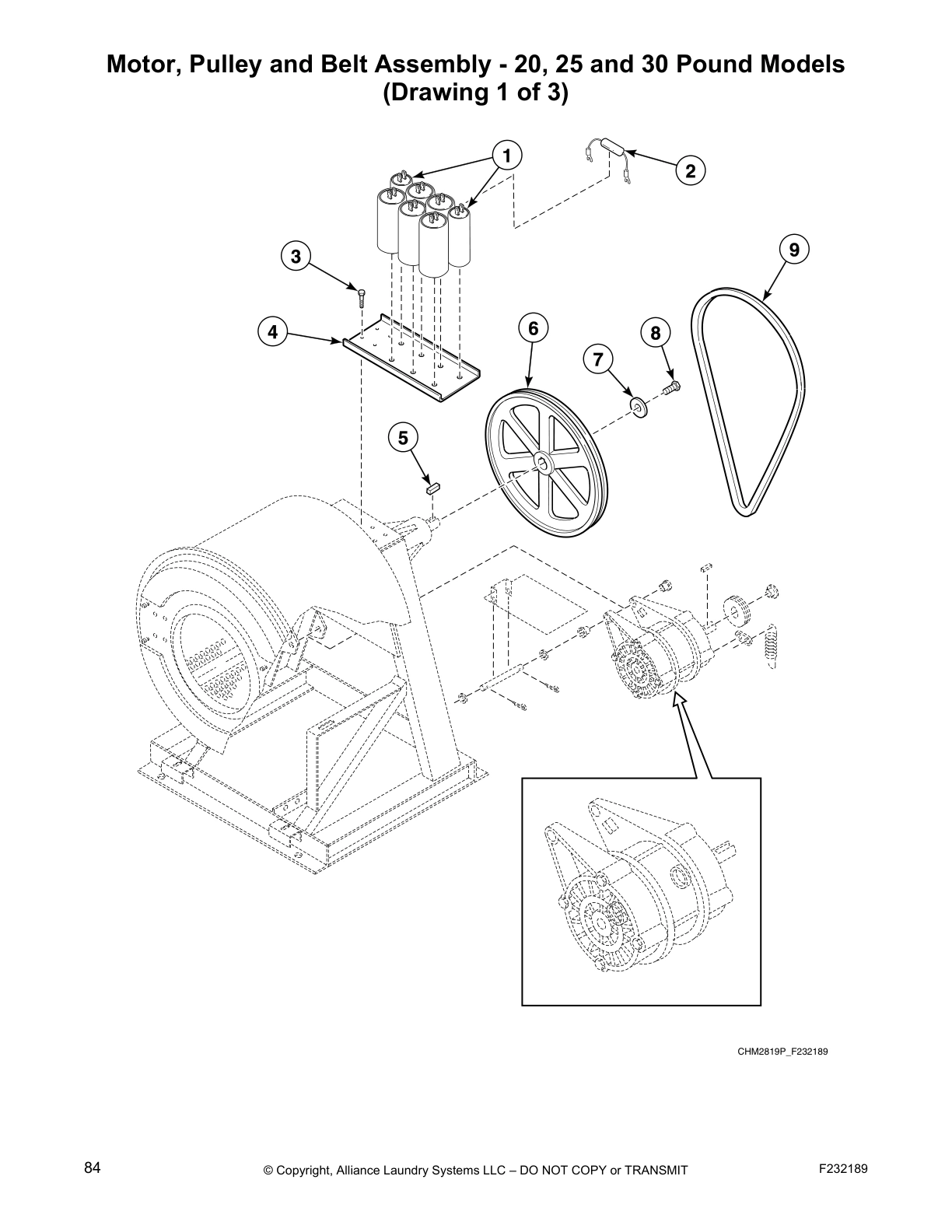

Motor, Pulley and Belt Assembly - 20, 25 and 30 Pound Models
(Drawing 1 of 3)

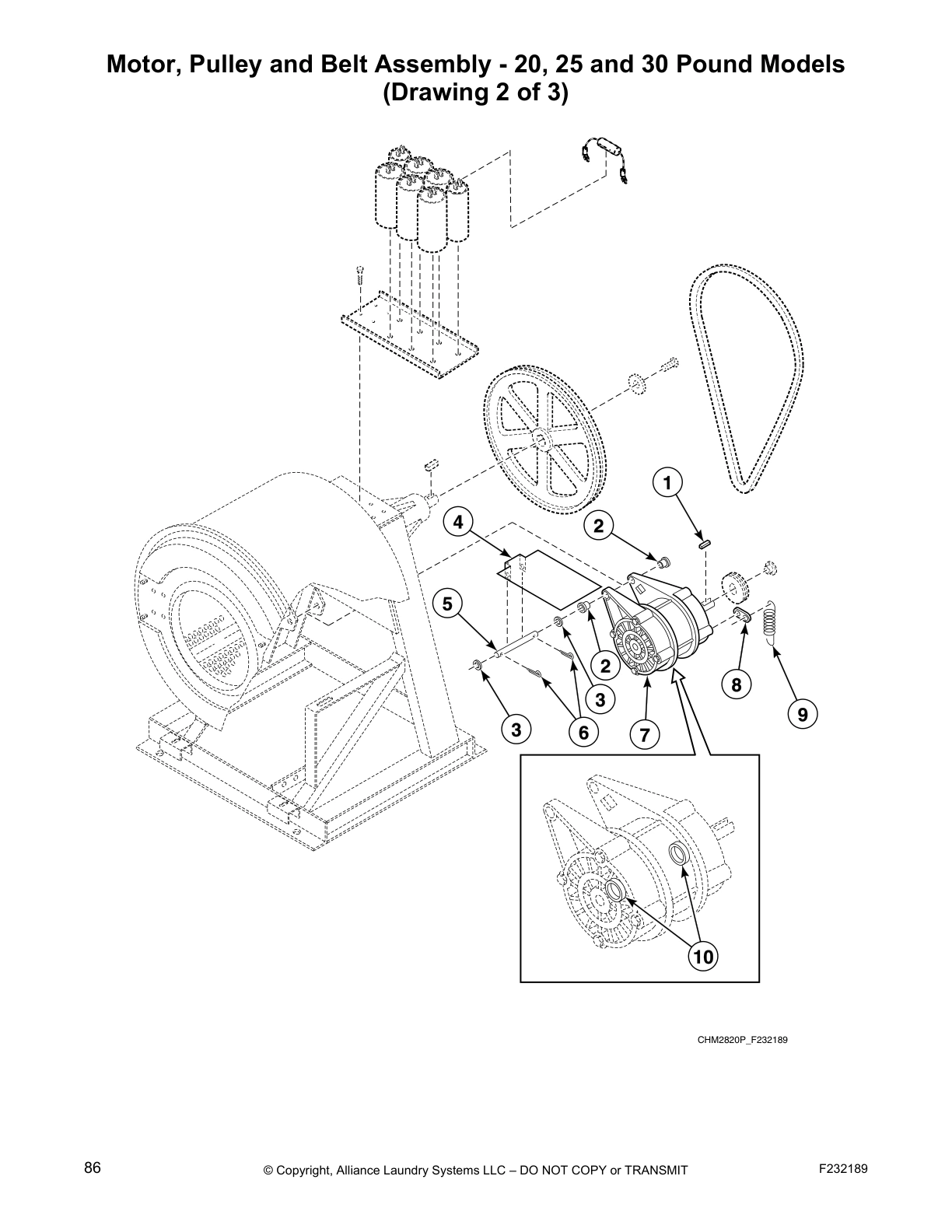

Motor, Pulley and Belt Assembly - 20, 25 and 30 Pound Models
(Drawing 2 of 3)

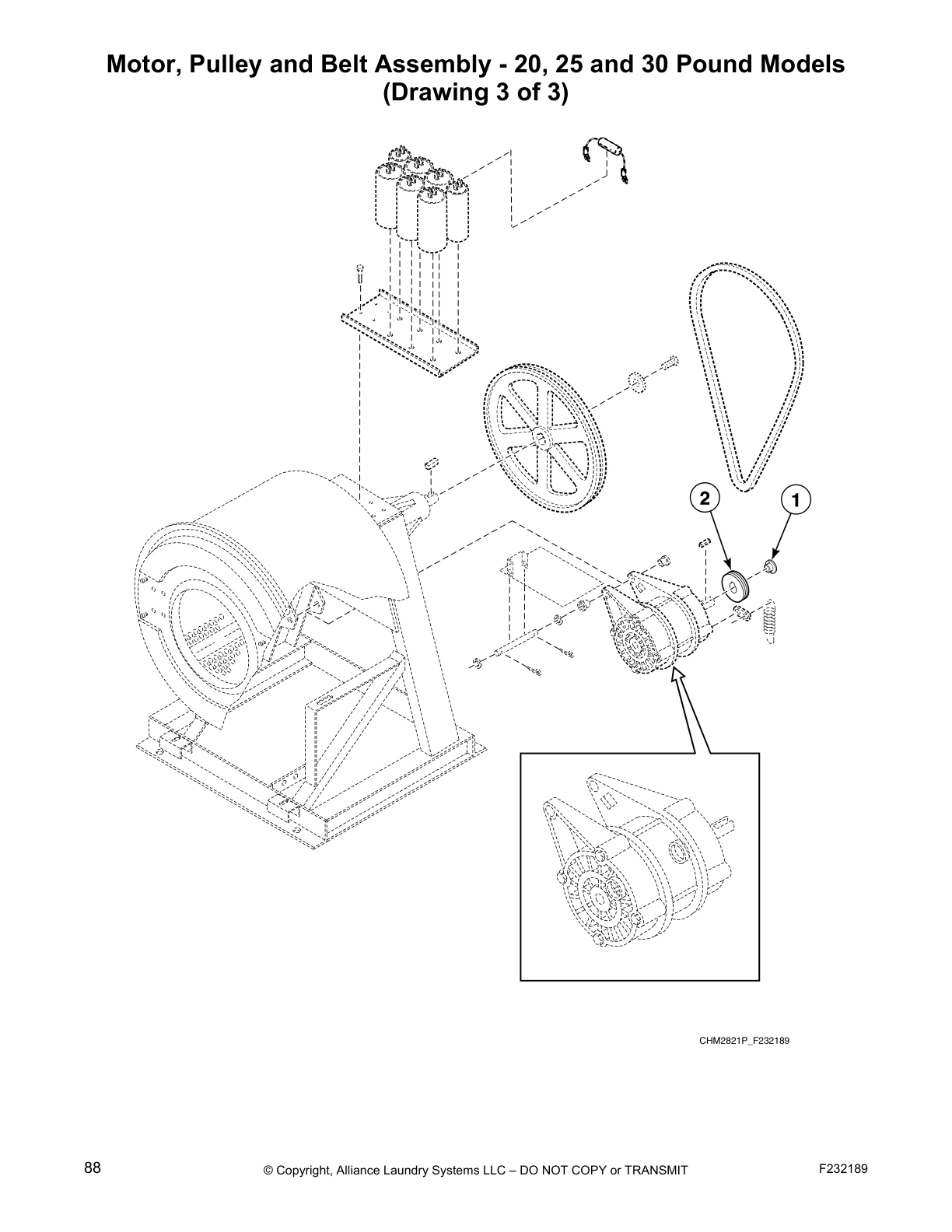

Motor, Pulley and Belt Assembly - 20, 25 and 30 Pound Models
(Drawing 3 of 3)

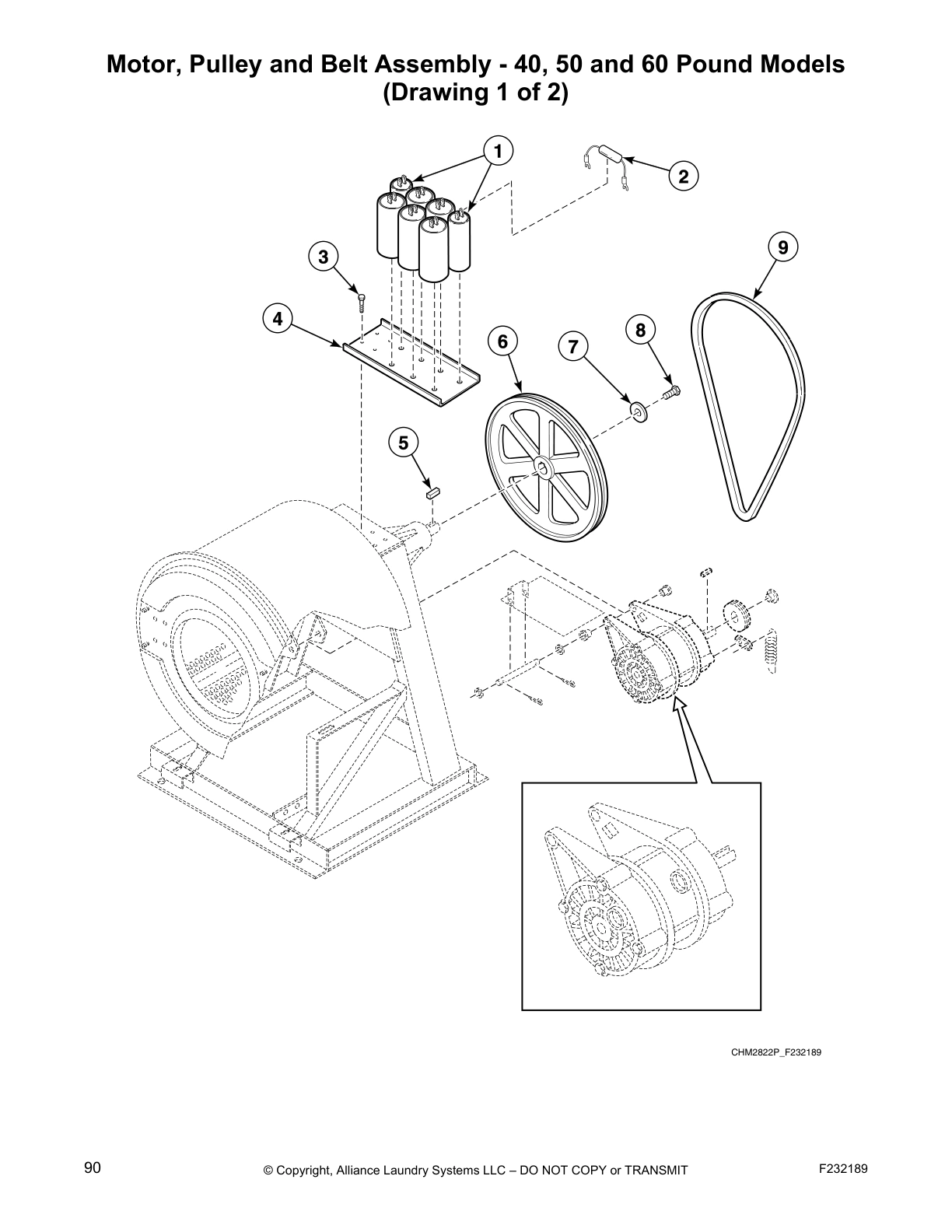

Motor, Pulley and Belt Assembly - 40, 50 and 60 Pound Models
(Drawing 1 of 2)

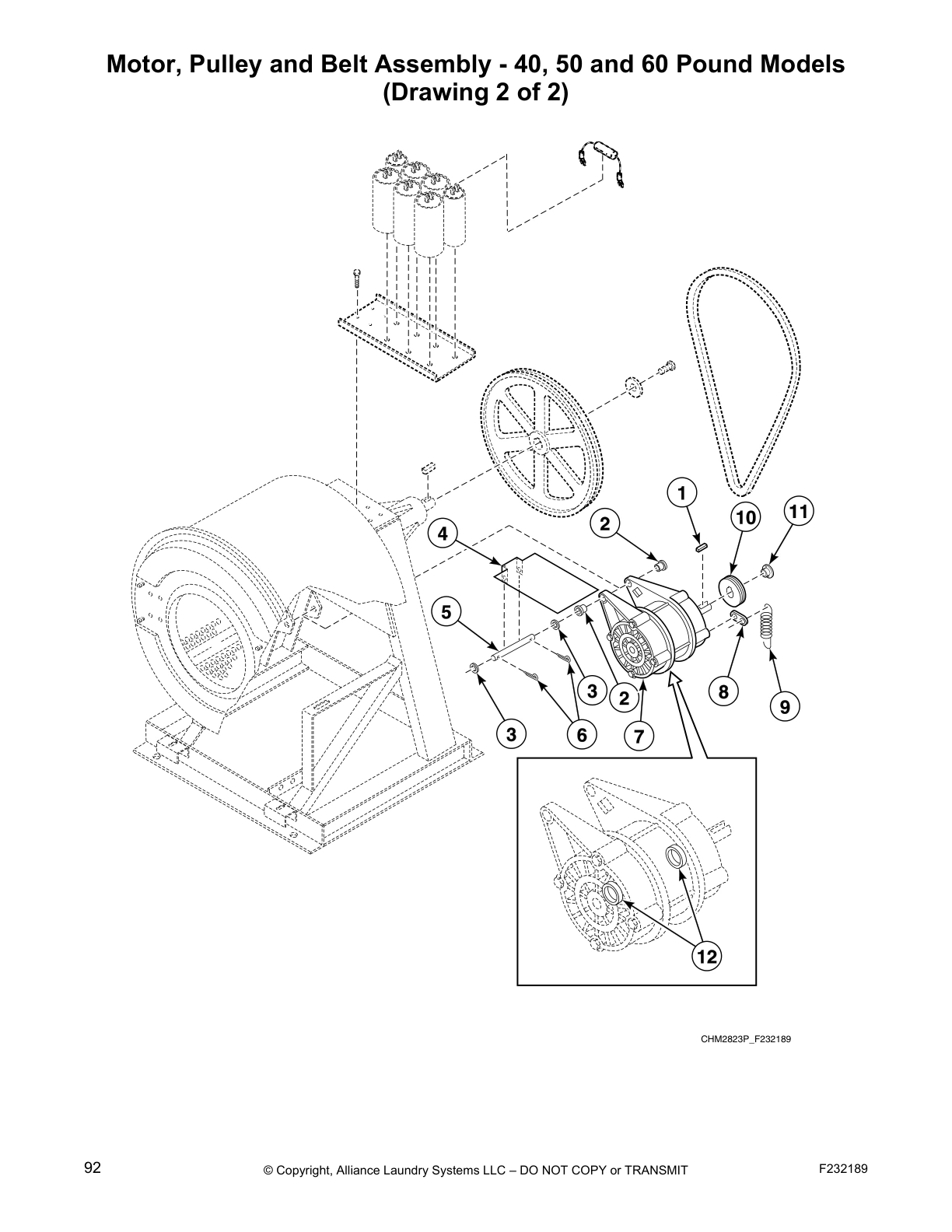

Motor, Pulley and Belt Assembly - 40, 50 and 60 Pound Models
(Drawing 2 of 2)

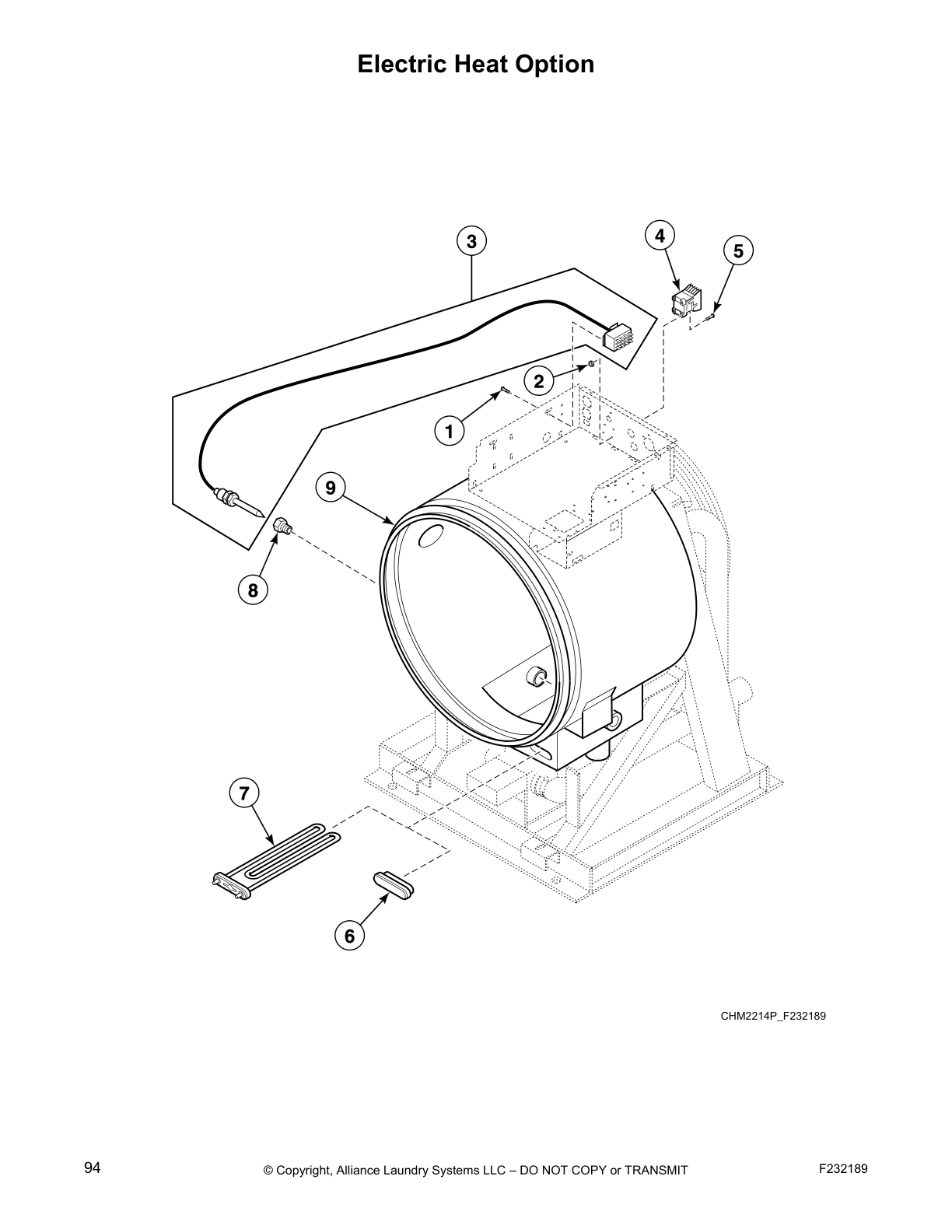

Electric Heat Option

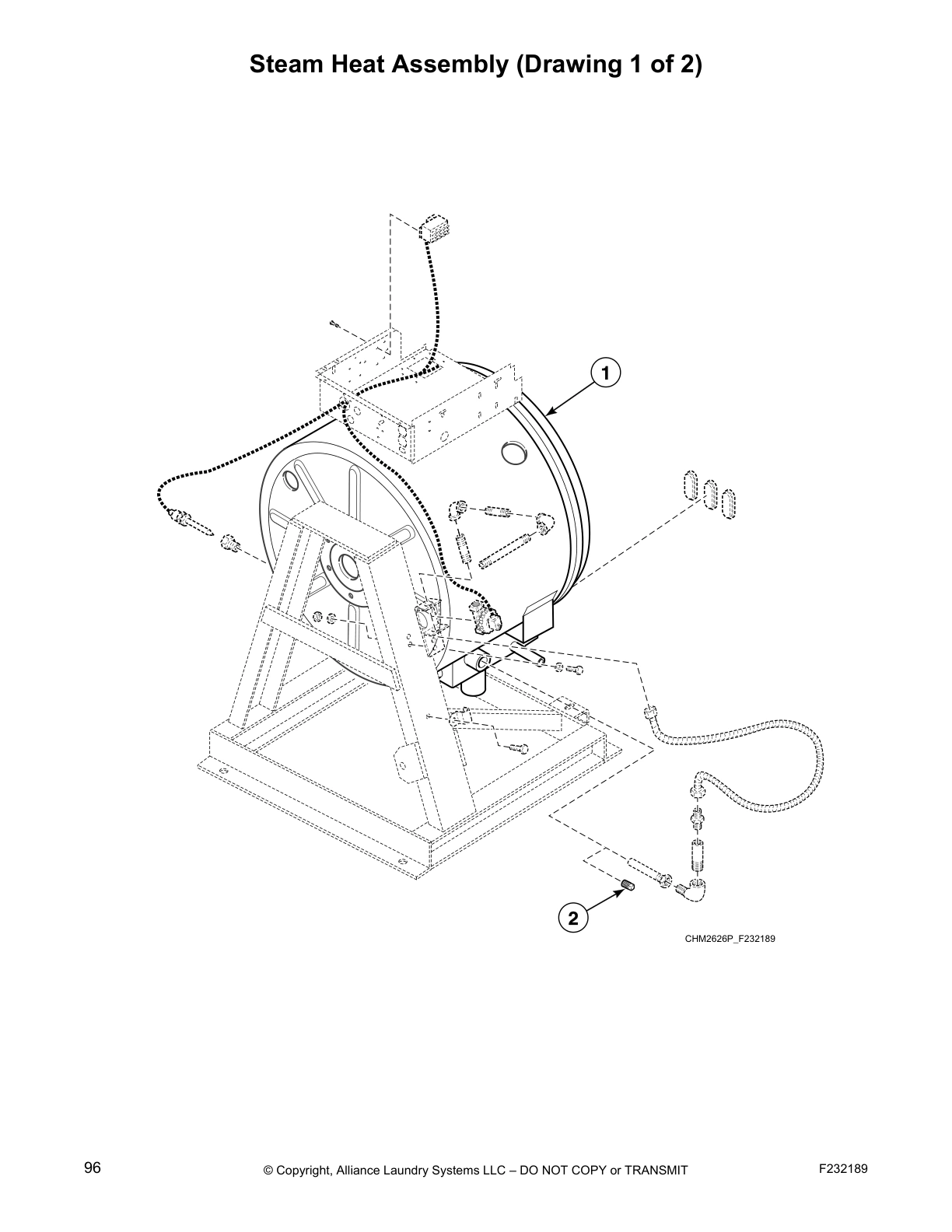

Steam Heat Assembly (Drawing 1 of 2)

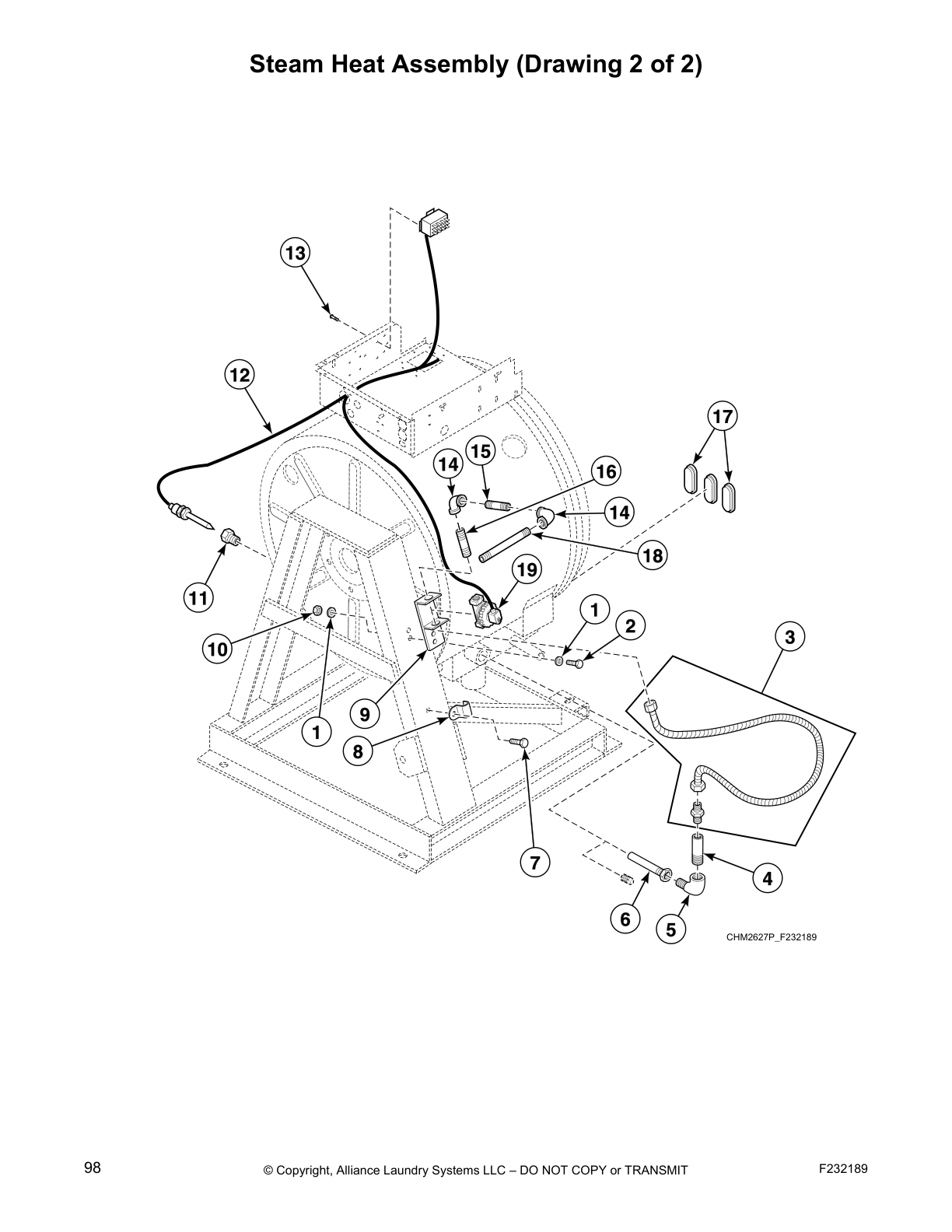

Steam Heat Assembly (Drawing 2 of 2)

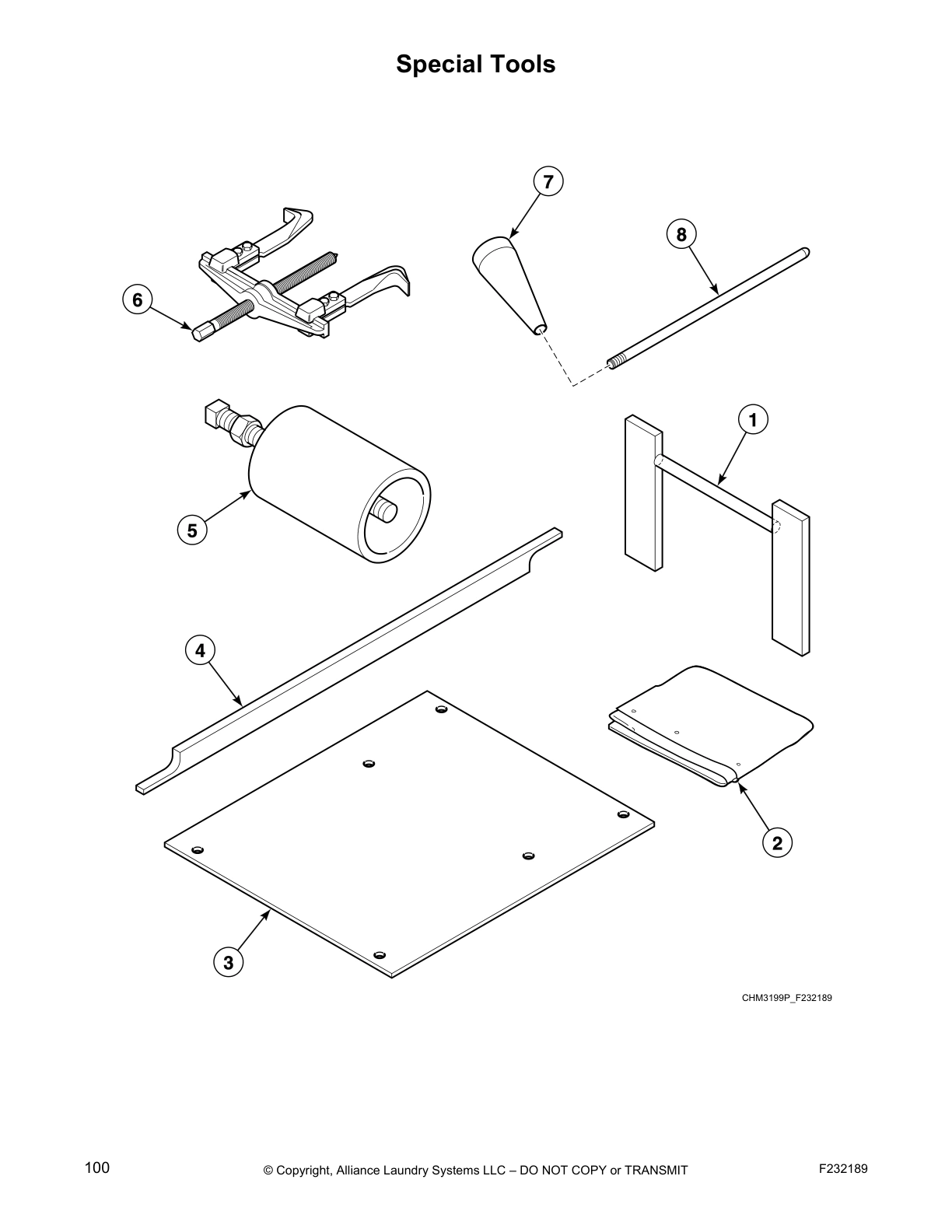

Special Tools
Common parts from model Unimac UC60MN2 Washer
SPQ F160304P SPQ F160304P Contact Us For Availability
SPQ F140748 SPQ F140748 Contact Us For Availability
SPQ F350422 SPQ F350422 Contact Us For Availability
SPQ F350413 SPQ F350413 Contact Us For Availability
Extension Spring SPQ F601515 Contact Us For Availability
SPQ F8160101P SPQ F8160101P Contact Us For Availability
SPQ F0150503-00 SPQ F0150503-00 Contact Us For Availability
SPQ F140766 SPQ F140766 Contact Us For Availability
SPQ F430903 SPQ F430903 Contact Us For Availability
SPQ F380943P SPQ F380943P Contact Us For Availability
SPQ F200133600 SPQ F200133600 Contact Us For Availability
SPQ F200166300 SPQ F200166300 Contact Us For Availability
SPQ F200166 SPQ F200166 Contact Us For Availability
SPQ F200165 SPQ F200165 Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
Drain Valve SPQ F8406304 Contact Us For Availability
1
Cycle Timer Indicator Cover SPQ F150249 Contact Us For Availability
1
Key SPQ F160420 Contact Us For Availability
1
Control Panel Decal SPQ F200021141 Contact Us For Availability
1
Light SPQ F350411 Contact Us For Availability
1
Door Lock Splash Shield SPQ F320200 Contact Us For Availability
1
Red Dot Decal SPQ F230662 Contact Us For Availability
1
Door SPQ F602842-2 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Screw SPQ F430925 Contact Us For Availability
1
Control Panel Assembly SPQ F0636962-01 Contact Us For Availability
1
Shell Front Kit SPQ F741302-01 Contact Us For Availability
1
Washer SPQ F430317 Contact Us For Availability
1
Pressfit Upgrade Kit SPQ F939P3 Contact Us For Availability
1
Screw SPQ F430987 Contact Us For Availability
1
Supply Dispenser Standoff SPQ F0150504-00 Contact Us For Availability
1
Grommet SPQ F200139500 Contact Us For Availability
1
Hose Clamp SPQ F200215 Contact Us For Availability
1
Key SPQ F430802 Contact Us For Availability
1
Shell Weldment SPQ F0637661-00 Contact Us For Availability
1
Basket Pulley Puller Tool SPQ F460131P Contact Us For Availability
2
Shell Front Gasket Kit SPQ F792000 Contact Us For Availability
2
Hose Clamp SPQ F8406303 Contact Us For Availability
2
Vacuum Breaker Fill Hose SPQ F8071701 Contact Us For Availability
2
Nut SPQ F430231 Contact Us For Availability
2
Momentary Switch SPQ F350431 Contact Us For Availability
2
Door Locking Linkage Pin SPQ F431901 Contact Us For Availability
2
Pushbutton Rod SPQ F150225 Contact Us For Availability
2
Screw SPQ F431022 Contact Us For Availability
2
Blind Rivet SPQ F430969 Contact Us For Availability
2
Rear Panel SPQ F0636297-01 Contact Us For Availability
2
Stud SPQ F8231001 Contact Us For Availability
2
Excluder Seal SPQ F8337101 Contact Us For Availability
2
Washer SPQ F431131 Contact Us For Availability
2
Siphon Tube SPQ F0381736-00P Contact Us For Availability
2
Vacuum Breaker Fill Hose SPQ F0150340-01 Contact Us For Availability
2
Washer SPQ F200213 Contact Us For Availability
2
Washer SPQ F270305 Contact Us For Availability
2
Resistor SPQ F370116 Contact Us For Availability
2
Motor Bearing SPQ F100124 Contact Us For Availability
2
Plug SPQ F200202600 Contact Us For Availability
2
Steam Injector Tube Assembly SPQ F8521501 Contact Us For Availability
3
Door Lock Kit SPQ F0300131-00P Contact Us For Availability
3
Trunnion Kit SPQ F747005 Contact Us For Availability
3
Clip SPQ F200120100 Contact Us For Availability
3
Spring Pin SPQ F320300 Contact Us For Availability
3
Top Cover Assembly SPQ F063771200P Contact Us For Availability
3
Side Panel SPQ F0636297-00 Contact Us For Availability
3
Nut SPQ F430233 Contact Us For Availability
3
Screw SPQ F430518 Contact Us For Availability
3
Shaft Seal Sleeve Kit SPQ F8343909P Contact Us For Availability
3
Injection Nozzle Kit SPQ F200202201P Contact Us For Availability
3
Screw SPQ F370112 Contact Us For Availability
3
Steam Bracket Assembly SPQ F430108 Contact Us For Availability
3
Motor Support Bushing SPQ F200186100 Contact Us For Availability
3
Bolt Layout Mounting Template SPQ F608710 Contact Us For Availability
4
SPQ F200203200 SPQ F200203200 Contact Us For Availability
4
SPQ F730525 SPQ F730525 Contact Us For Availability
4
Screw SPQ F431222 Contact Us For Availability
4
External Supply Connection Decal SPQ F430174 Contact Us For Availability
4
Magnetic Switch Assembl SPQ J1111905 Contact Us For Availability
4
Lid Clamp Assembly SPQ F630430 Contact Us For Availability
4
Right Side Panel SPQ F200022900P Contact Us For Availability
4
Door Bezel SPQ F8659101 Contact Us For Availability
4
Nut SPQ F430240 Contact Us For Availability
4
O-Ring SPQ F602374 Contact Us For Availability
4
SPQ F020014200 SPQ F020014200 Contact Us For Availability
4
Washer SPQ 901690 Contact Us For Availability
4
Contactor SPQ F330188P Contact Us For Availability
4
Steam Control Harness SPQ F410300 Contact Us For Availability
5
Nut SPQ F430311 Contact Us For Availability
5
SPQ F430225 SPQ F430225 Contact Us For Availability
5
Push Red Button Decal SPQ F431916 Contact Us For Availability
5
Rod SPQ F8245101 Contact Us For Availability
5
Supply Dispenser Lid SPQ F200270500 Contact Us For Availability
5
Triple Lip Seal SPQ F8203806 Contact Us For Availability
5
Supply Dispenser Bezel SPQ F0430268-00 Contact Us For Availability
5
Terminal SPQ F602533 Contact Us For Availability
5
Drain Valve Motor SPQ F8577201 Contact Us For Availability
5
Washer SPQ F150332 Contact Us For Availability
5
Key SPQ F200033500 Contact Us For Availability
5
Motor Drip Shield SPQ F200280700 Contact Us For Availability
5
Contactor SPQ F330187P Contact Us For Availability
5
Steam Valve Repair Kit SPQ F200154 Contact Us For Availability
5
Basket Puller Kit SPQ F798003 Contact Us For Availability
6
SPQ F360156P SPQ F360156P Contact Us For Availability
6
SPQ F430977 SPQ F430977 Contact Us For Availability
6
Washer SPQ F431147 Contact Us For Availability
6
Door Spacer SPQ F8535601 Contact Us For Availability
6
Door Hinge SPQ F0340723-00 Contact Us For Availability
6
Washer SPQ F0637630-00P Contact Us For Availability
6
SPQ F8537804 SPQ F8537804 Contact Us For Availability
6
Retaining Ring SPQ F8337901 Contact Us For Availability
6
Power Distribution Block SPQ F231376-6 Contact Us For Availability
6
SPQ F270407 SPQ F270407 Contact Us For Availability
6
Pulley SPQ F430801 Contact Us For Availability
6
Motor Support Rod SPQ F603897 Contact Us For Availability
6
SPQ F8368201 SPQ F8368201 Contact Us For Availability
6
Basket Puller Tool SPQ F460129P Contact Us For Availability
7
Heating Element Plug SPQ F330175P Contact Us For Availability
7
Terminal Strip SPQ F350141 Contact Us For Availability
7
Switch Panel Assembly Decal SPQ F633092-1 Contact Us For Availability
7
SPQ F8059701 SPQ F8059701 Contact Us For Availability
7
Screw SPQ F230661 Contact Us For Availability
7
Door Hinge Shim Kit SPQ F200321200 Contact Us For Availability
7
SPQ F8160301P SPQ F8160301P Contact Us For Availability
7
SPQ F430942 SPQ F430942 Contact Us For Availability
7
Bearing SPQ F100135 Contact Us For Availability
7
Input Power Block SPQ F231376-5 Contact Us For Availability
7
SPQ F150398 SPQ F150398 Contact Us For Availability
7
Cotter Pin SPQ F430401 Contact Us For Availability
7
Washer SPQ F280173 Contact Us For Availability
7
SPQ F430115 SPQ F430115 Contact Us For Availability
7
Basket Guide Cone Tool SPQ 398P4 Contact Us For Availability
8
SPQ F200167700 SPQ F200167700 Contact Us For Availability
8
SPQ F635541 SPQ F635541 Contact Us For Availability
8
Rocker Switch SPQ F230918 Contact Us For Availability
8
SPQ F8066701 SPQ F8066701 Contact Us For Availability
8
SPQ F431041 SPQ F431041 Contact Us For Availability
8
Door Assembly SPQ F602813-3 Contact Us For Availability
8
Bearing SPQ F100134 Contact Us For Availability
8
SPQ F190303 SPQ F190303 Contact Us For Availability
8
SPQ F231376-3 SPQ F231376-3 Contact Us For Availability
8
Belt SPQ F431115 Contact Us For Availability
8
Motor SPQ F220354P Contact Us For Availability
8
Element SPQ F330182 Contact Us For Availability
8
Basket Installation Tool Rod SPQ 401P4 Contact Us For Availability
9
SPQ F603003 SPQ F603003 Contact Us For Availability
9
SPQ F0150273-00 SPQ F0150273-00 Contact Us For Availability
9
SPQ F190216P SPQ F190216P Contact Us For Availability
9
Cabinet Brace SPQ F0637632-00 Contact Us For Availability
9
SPQ F231376-2 SPQ F231376-2 Contact Us For Availability
9
SPQ F430100 SPQ F430100 Contact Us For Availability
9
Motor SPQ F8597804P Contact Us For Availability
9
Shell Weldment SPQ F330180P Contact Us For Availability
9
SPQ F601186 SPQ F601186 Contact Us For Availability
10
L-Catch Kit SPQ F746808 Contact Us For Availability
10
Nut SPQ F430215 Contact Us For Availability
10
Relay CCA SPQ F370413P Contact Us For Availability
10
Door Handle Kit SPQ F730155 Contact Us For Availability
10
Screw SPQ F430536 Contact Us For Availability
10
Nut SPQ F431024 Contact Us For Availability
10
Cabinet Brace SPQ F634803P Contact Us For Availability
10
Shell Weldment SPQ F0637659-00 Contact Us For Availability
10
Water Hose SPQ F200108P Contact Us For Availability
10
Input Power Block Insulator SPQ F0230111-00 Contact Us For Availability
10
Hose Clamp SPQ F200123500 Contact Us For Availability
10
Pulley SPQ F280422P Contact Us For Availability
11
Door Lock Catch Casting SPQ F150261 Contact Us For Availability
11
Spin Rotation Decal SPQ F230914 Contact Us For Availability
11
Front Panel SPQ F8200602P Contact Us For Availability
11
Ground Terminal Lug SPQ F140734 Contact Us For Availability
11
Drain Hose SPQ F430103 Contact Us For Availability
11
Sump Drain Hose SPQ F0150524-00 Contact Us For Availability
11
Sheave SPQ F0280385-00 Contact Us For Availability
11
Thermostat SPQ F421962 Contact Us For Availability
12
Door Mount SPQ F150271 Contact Us For Availability
12
Screw SPQ F430177 Contact Us For Availability
12
Nut SPQ F370440P Contact Us For Availability
12
Screw SPQ F430982 Contact Us For Availability
12
Counterclockwise Spin Rotation Decal SPQ F230693 Contact Us For Availability
12
Frame Assembly SPQ F0637645-00 Contact Us For Availability
12
Snap Bushing SPQ F140938 Contact Us For Availability
12
Screw SPQ F8035801 Contact Us For Availability
12
Bushing SPQ F280225P Contact Us For Availability
12
Screw SPQ F290111P Contact Us For Availability
13
Washer SPQ F330227 Contact Us For Availability
13
Washer SPQ F431100 Contact Us For Availability
13
Elbow SPQ F430948 Contact Us For Availability
13
Cycle Selector Switch SPQ F370414P Contact Us For Availability
13
Door Glass SPQ F8485401P Contact Us For Availability
13
Trim SPQ F8679201P Contact Us For Availability
13
Overflow Plug SPQ F430107 Contact Us For Availability
13
3-Way Valve SPQ F0381769-00P Contact Us For Availability
13
Fuse SPQ F170615 Contact Us For Availability
14
Door Gasket SPQ F170124 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Strainer SPQ F0381766-00P Contact Us For Availability
14
Fuse Holder SPQ F350115 Contact Us For Availability
14
Hose Clamp SPQ F150352 Contact Us For Availability
14
Nipple SPQ 70079601 Contact Us For Availability
15
Bolt SPQ F8390801 Contact Us For Availability
15
Standoff SPQ F0350312-10 Contact Us For Availability
15
Switch Clamp SPQ F340442 Contact Us For Availability
15
Nut SPQ F430232 Contact Us For Availability
15
Door Lock Switch Lever SPQ F431902 Contact Us For Availability
15
Nut SPQ F017012402 Contact Us For Availability
15
Y Connector SPQ F0381765-00P Contact Us For Availability
15
Air Trap Hose SPQ F200222 Contact Us For Availability
15
Pipe Nipple SPQ F420708 Contact Us For Availability
16
Door Lock Torsion Spring SPQ F0636636-00 Contact Us For Availability
16
Washer SPQ F340002 Contact Us For Availability
16
Vacuum Breaker Bottom SPQ F0381750-00P Contact Us For Availability
16
External Supply Fuse Decal SPQ F180506 Contact Us For Availability
16
Supply Dispenser Baffle SPQ F150419 Contact Us For Availability
16
Heating Element Plug SPQ 70435601 Contact Us For Availability
17
Vacuum Breaker Top SPQ F0381738-00P Contact Us For Availability
17
Spacer SPQ F310110 Contact Us For Availability
17
Screw SPQ F0340722-00 Contact Us For Availability
17
Fuse Holder Bracket SPQ F231271 Contact Us For Availability
17
DIN Valve Kit SPQ F360202 Contact Us For Availability
18
Door Handle SPQ F310125 Contact Us For Availability
18
Washer SPQ F633512 Contact Us For Availability
18
Pipe Insulation SPQ 70214101 Contact Us For Availability
19
Transformer Mounting Bracket SPQ F360117P Contact Us For Availability
19
Nut SPQ F431113 Contact Us For Availability
19
Vacuum Breaker Assembly SPQ F0381737-00P Contact Us For Availability
19
Steam Hose SPQ F8521601 Contact Us For Availability
20
Door Lock Pin Linkage SPQ F310137 Contact Us For Availability
21
Door Lock Retainer Latch SPQ F310205 Contact Us For Availability
21
Supply Dispenser Sub-Assembly SPQ F422808 Contact Us For Availability
22
Door Release Solenoid SPQ F431231 Contact Us For Availability
22
Vacuum Breaker Fill Hose SPQ F015033000 Contact Us For Availability
23
Hose Clamp SPQ F0150329-00 Contact Us For Availability
23
Transformer Mounting Bracket SPQ F430910 Contact Us For Availability
23
Door Lock Solenoid SPQ F150455 Contact Us For Availability
24
Cap SPQ F603031 Contact Us For Availability
24
Standoff SPQ F0340345-00P Contact Us For Availability
24
Door Lock Microswitch SPQ F431017 Contact Us For Availability
25
Injection Nozzle SPQ F150390 Contact Us For Availability
25
Door Lock Plate Shim SPQ F431123 Contact Us For Availability
26
Door Lock Plate Assembly SPQ F0636103-00 Contact Us For Availability
27
Door Lock Assembly Cover SPQ F300128P Contact Us For Availability
NI
SPQ F200166302 SPQ F200166302 Contact Us For Availability
NI
SPQ F730168 SPQ F730168 Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
SPQ M413865 SPQ M413865 Contact Us For Availability
NI
SPQ F330185P SPQ F330185P Contact Us For Availability
NI
SPQ F140738 SPQ F140738 Contact Us For Availability
NI
SPQ F430916 SPQ F430916 Contact Us For Availability
NI
SPQ F160301P SPQ F160301P Contact Us For Availability
NI
Start/Stop Kit SPQ F200020941 Contact Us For Availability
NI
SPQ F730016P SPQ F730016P Contact Us For Availability
NI
SPQ F350430 SPQ F350430 Contact Us For Availability
NI
SPQ F350420 SPQ F350420 Contact Us For Availability
NI
SPQ F340411 SPQ F340411 Contact Us For Availability
NI
SPQ F0798839-01 SPQ F0798839-01 Contact Us For Availability
NI
SPQ F0798839-00 SPQ F0798839-00 Contact Us For Availability
NI
SPQ F430533 SPQ F430533 Contact Us For Availability
NI
SPQ F200131000P SPQ F200131000P Contact Us For Availability
NI
SPQ F060390105 SPQ F060390105 Contact Us For Availability
NI
SPQ F0637628-00P SPQ F0637628-00P Contact Us For Availability
NI
SPQ F0430348-00 SPQ F0430348-00 Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
NI
SPQ F0431807-00 SPQ F0431807-00 Contact Us For Availability
NI
SPQ F0200244-00 SPQ F0200244-00 Contact Us For Availability
NI
SPQ F231376-1 SPQ F231376-1 Contact Us For Availability
NI
SPQ F140747 SPQ F140747 Contact Us For Availability
NI
Drain Valve Cover SPQ F380933P Contact Us For Availability
NI
SPQ F380972P SPQ F380972P Contact Us For Availability
NI
SPQ F200166400 SPQ F200166400 Contact Us For Availability
NI
SPQ F200166402 SPQ F200166402 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ F310124 SPQ F310124 Contact Us For Availability
NI
SPQ F280373 SPQ F280373 Contact Us For Availability
NI
SPQ F280304 SPQ F280304 Contact Us For Availability
NI
Clip SPQ F8597803P Contact Us For Availability
NI
SPQ F360205P SPQ F360205P Contact Us For Availability
NI
SPQ F8289001 SPQ F8289001 Contact Us For Availability
NI
SPQ F8286801 SPQ F8286801 Contact Us For Availability
× ![]()
