Model Unimac UC50VNV Washer – Common Parts & Diagrams
Decals
Control Module

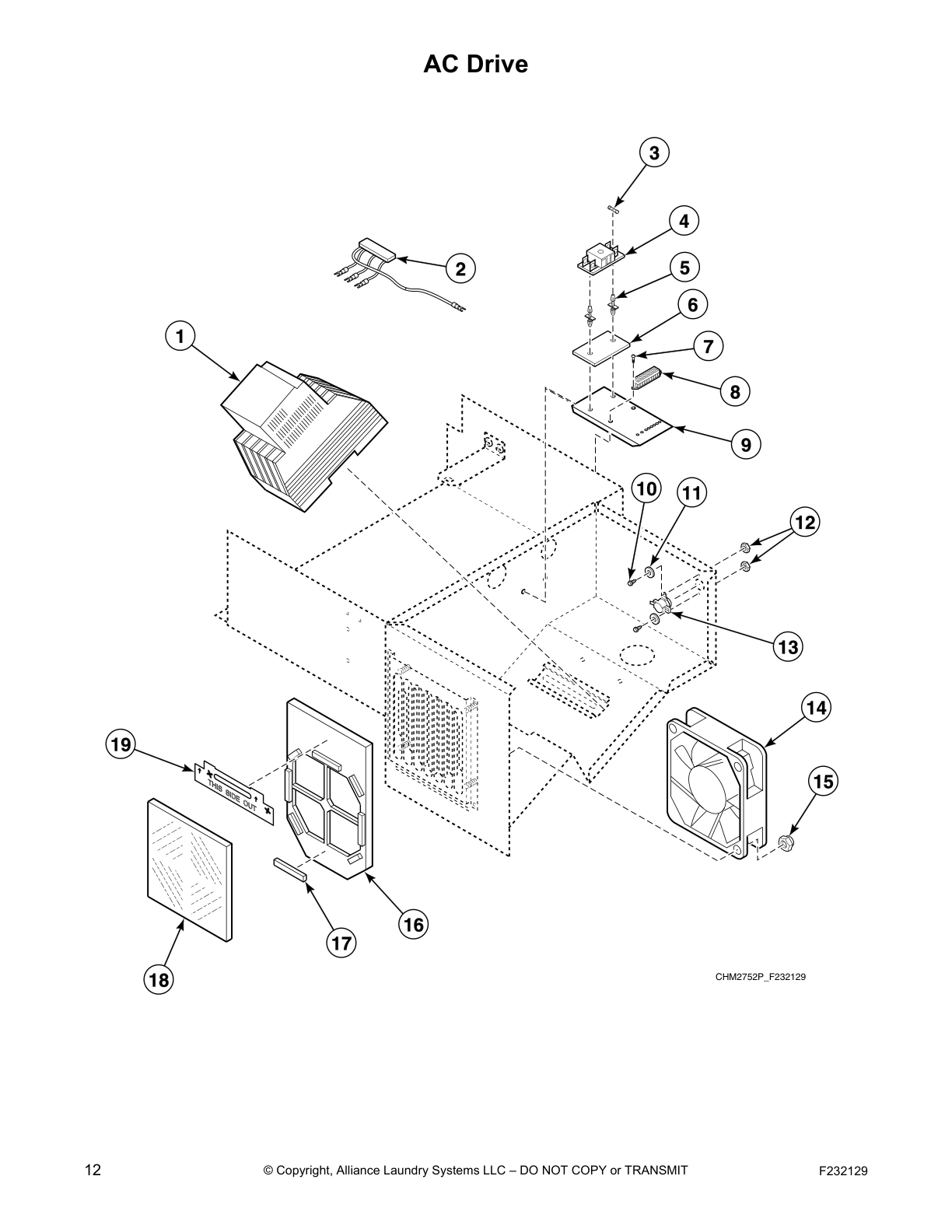

AC Drive

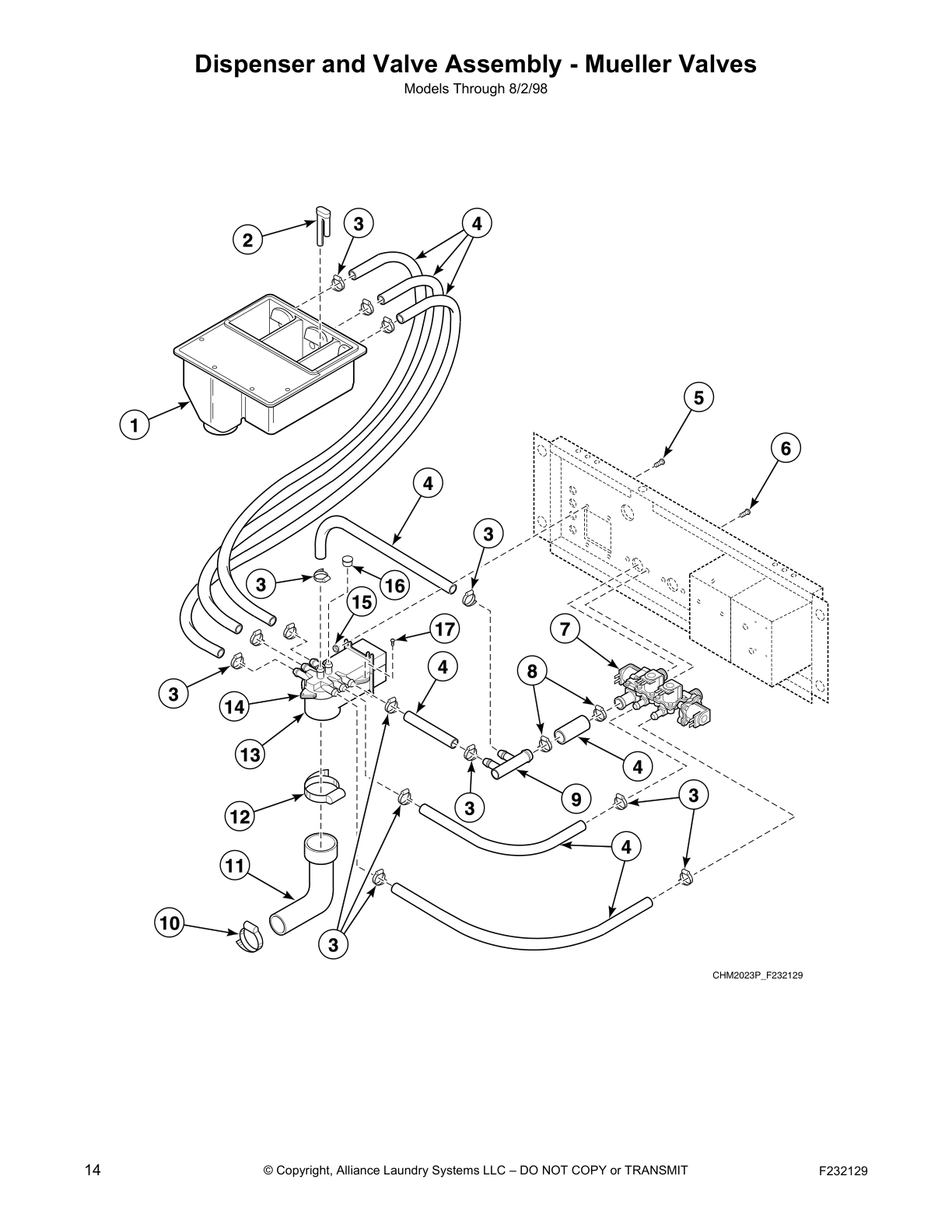

Dispenser and Valve Assembly - Mueller Valves

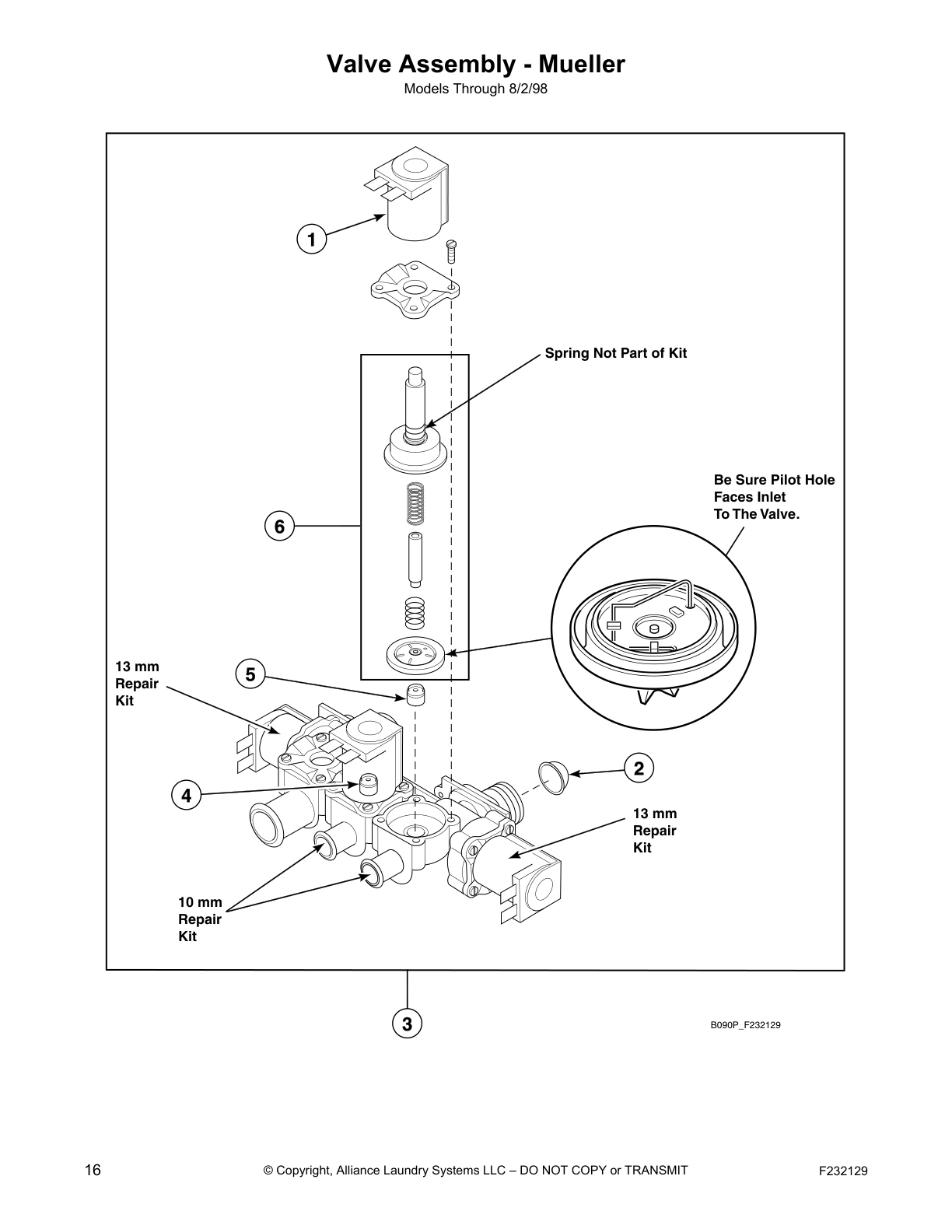

Valve Assembly - Mueller

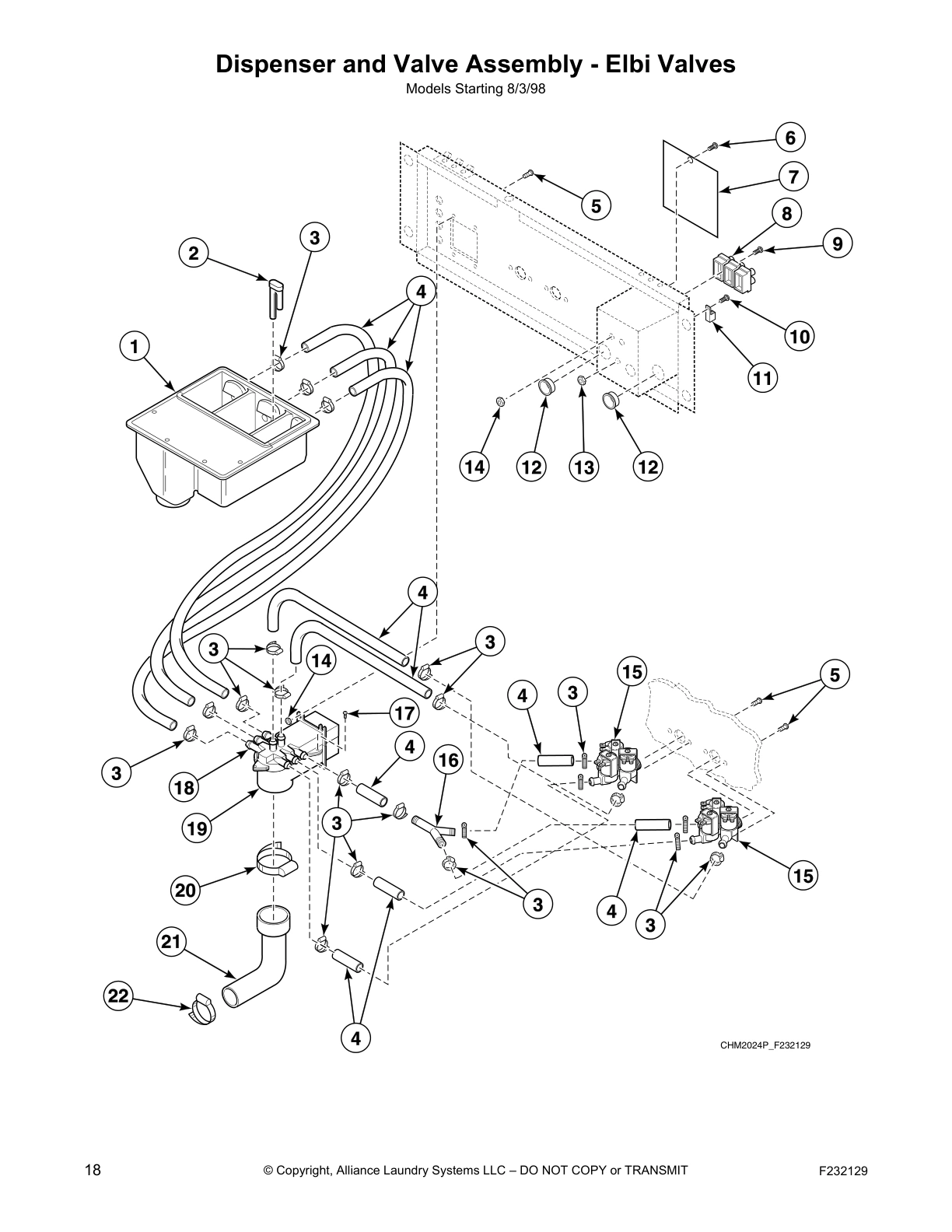

Dispenser and Valve Assembly - Elbi Valves

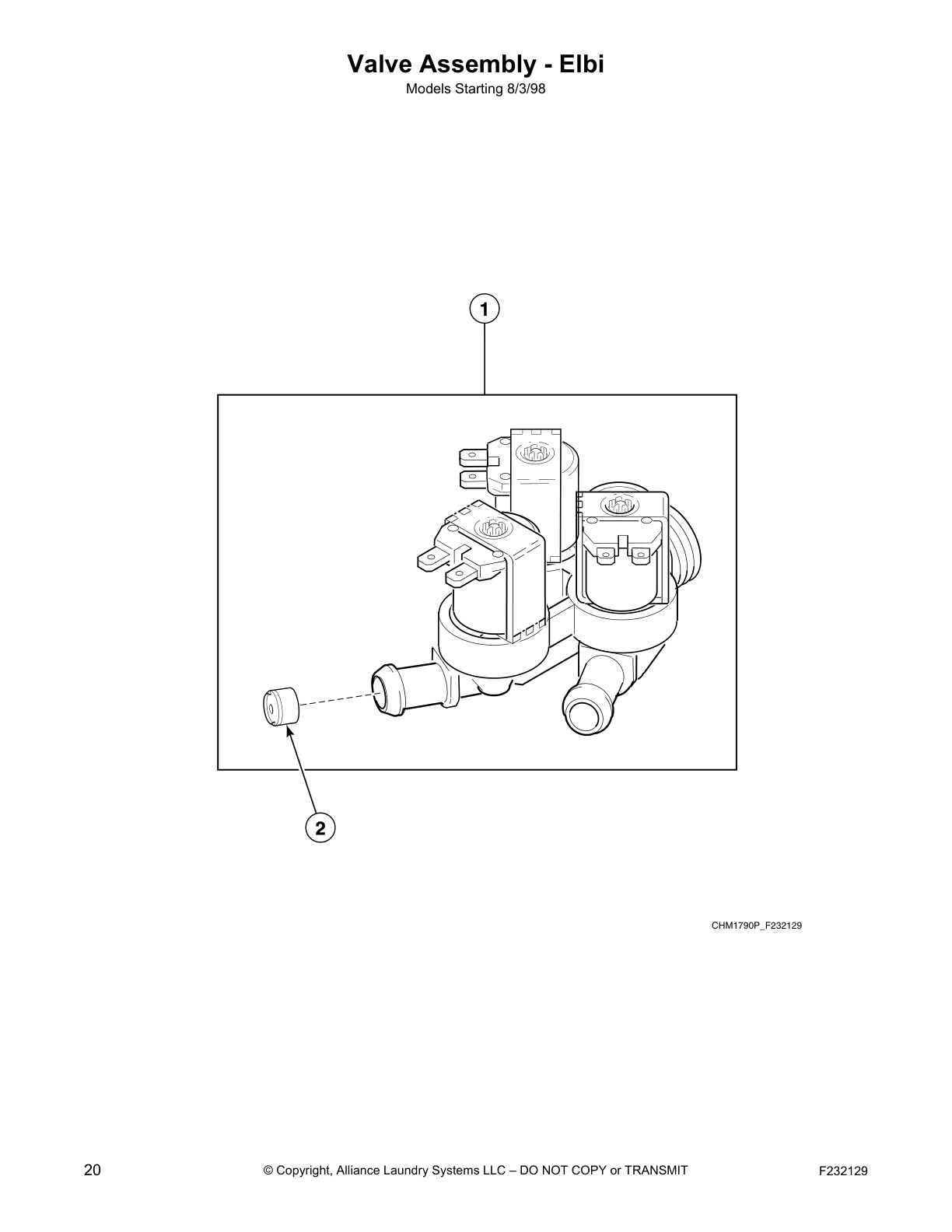

Valve Assembly - Elbi

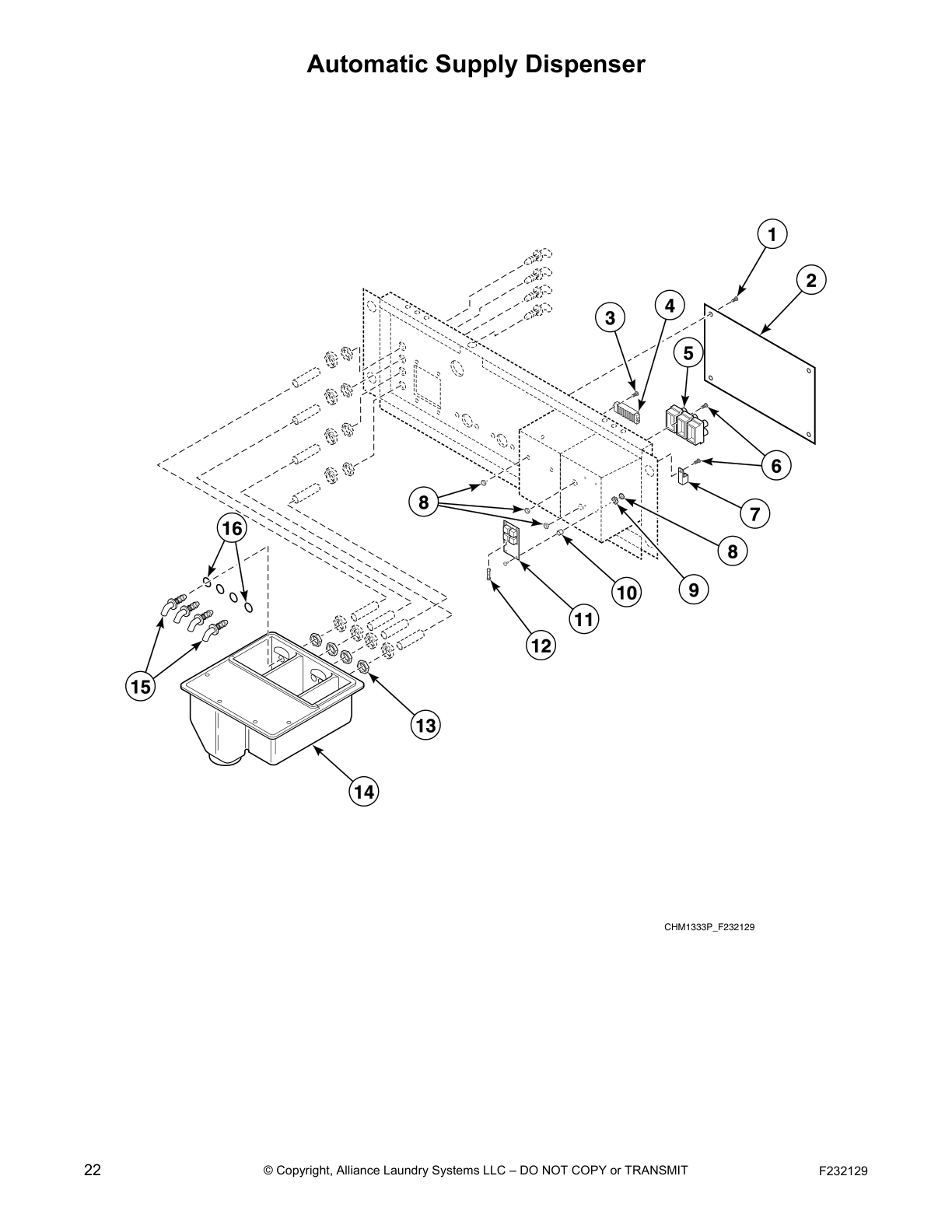

Automatic Supply Dispenser

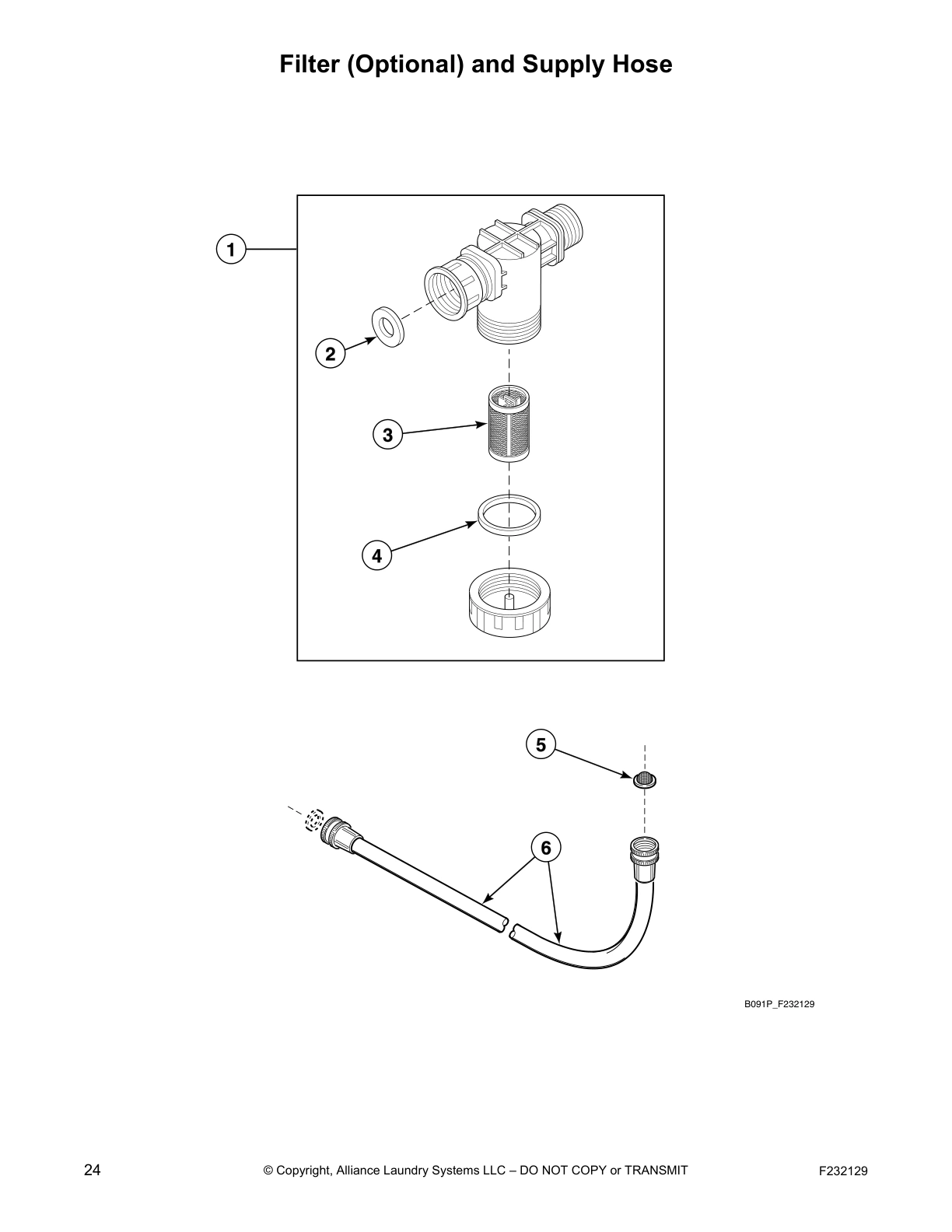

Filter (Optional) and Supply Hose

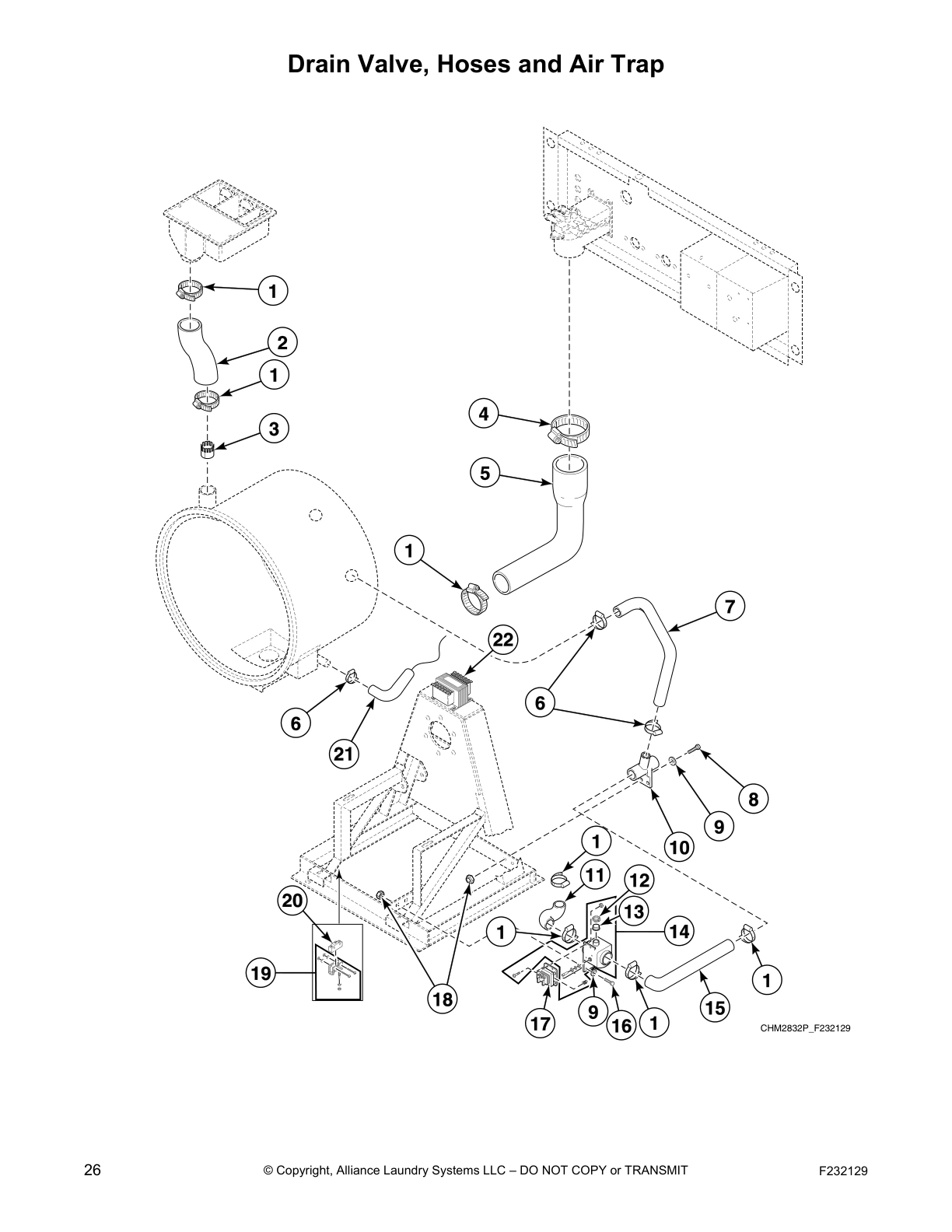

Drain Valve, Hoses and Air Trap

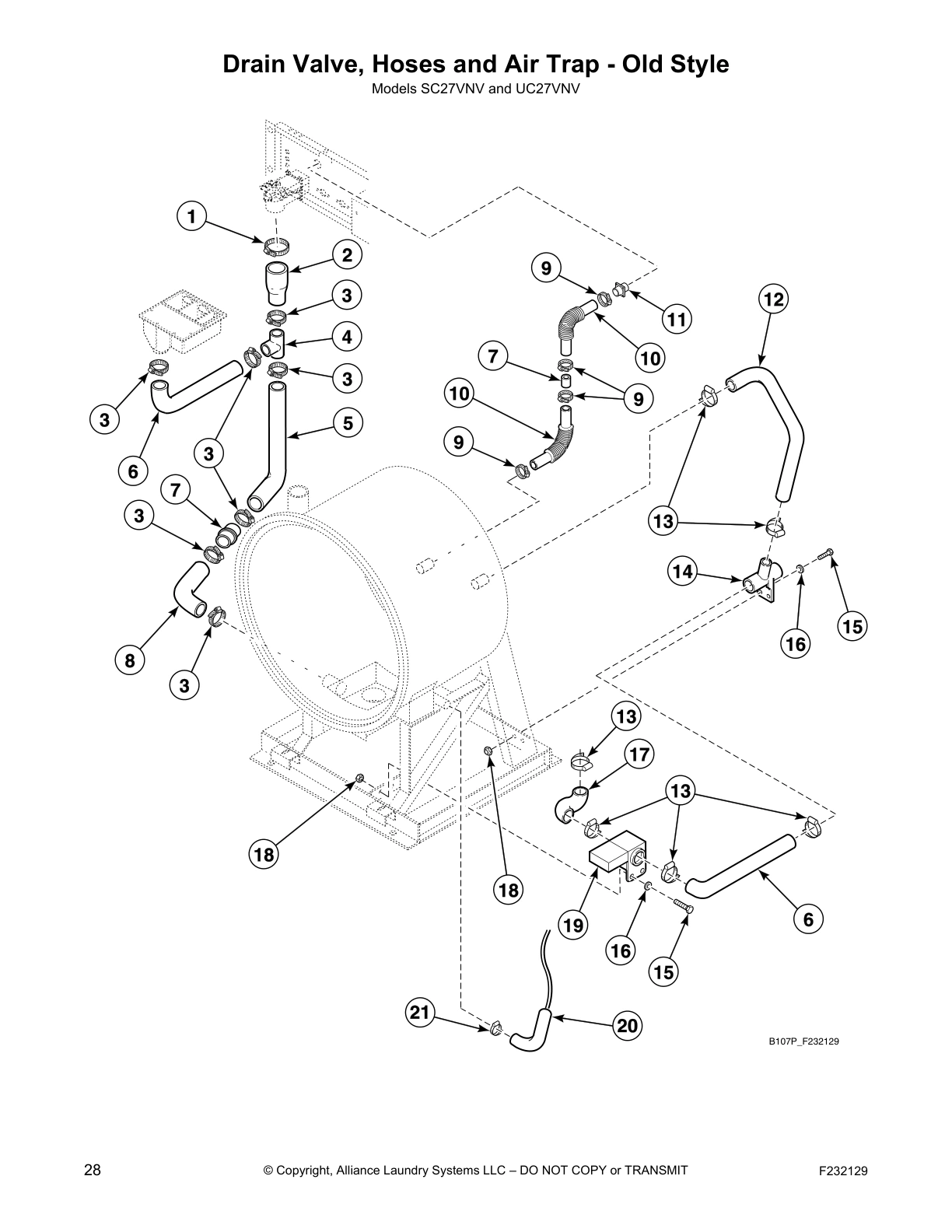

Drain Valve, Hoses and Air Trap - Old Style

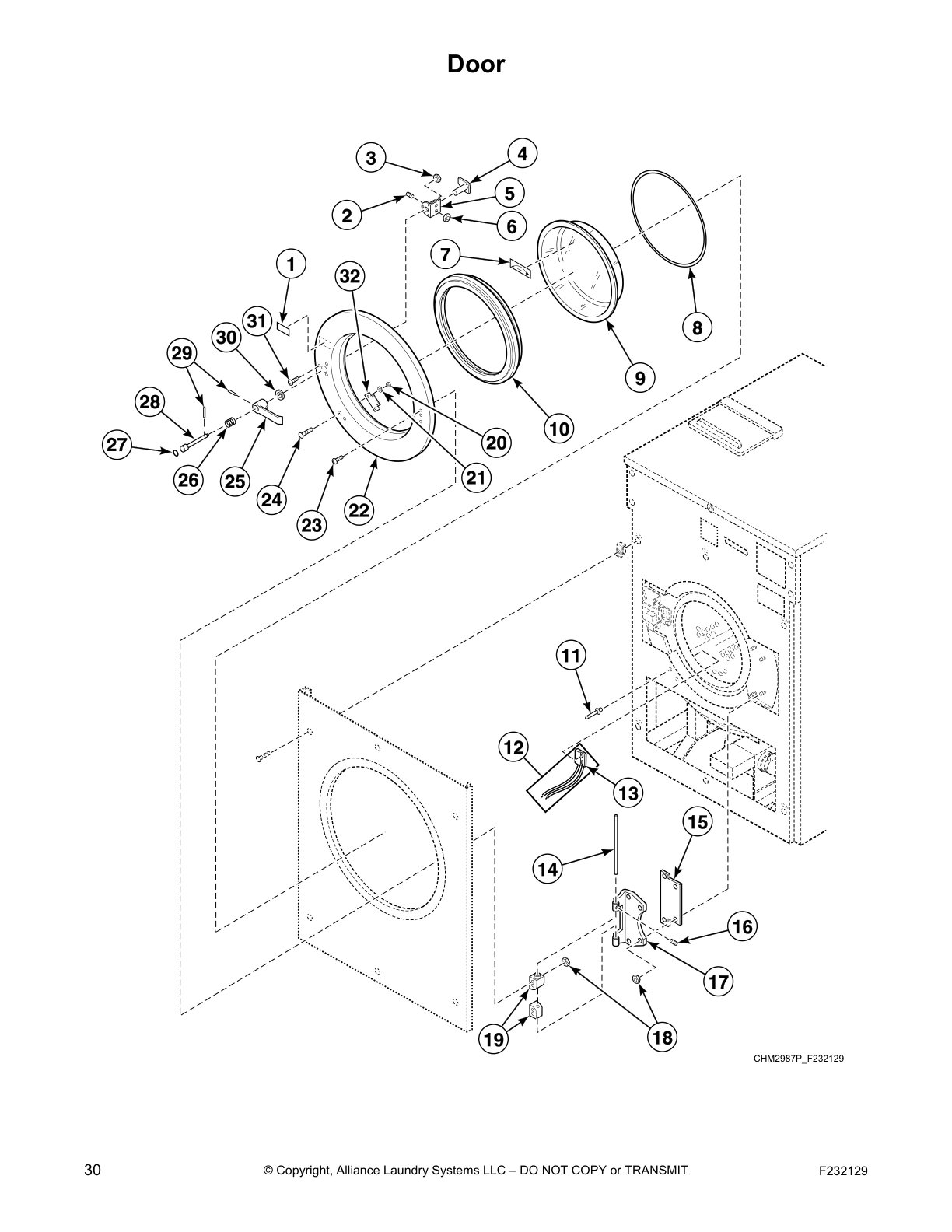

Door

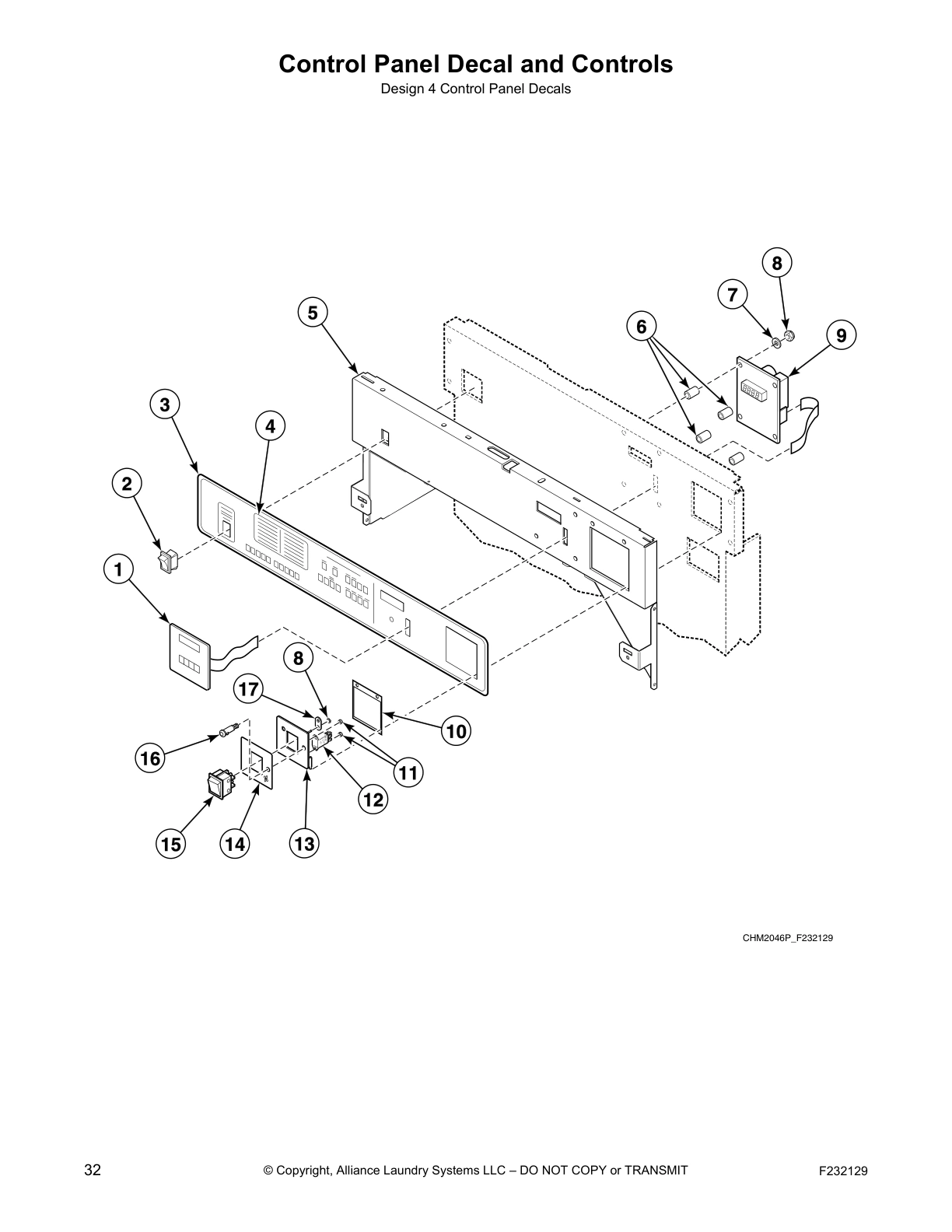

Control Panel Decal and Controls

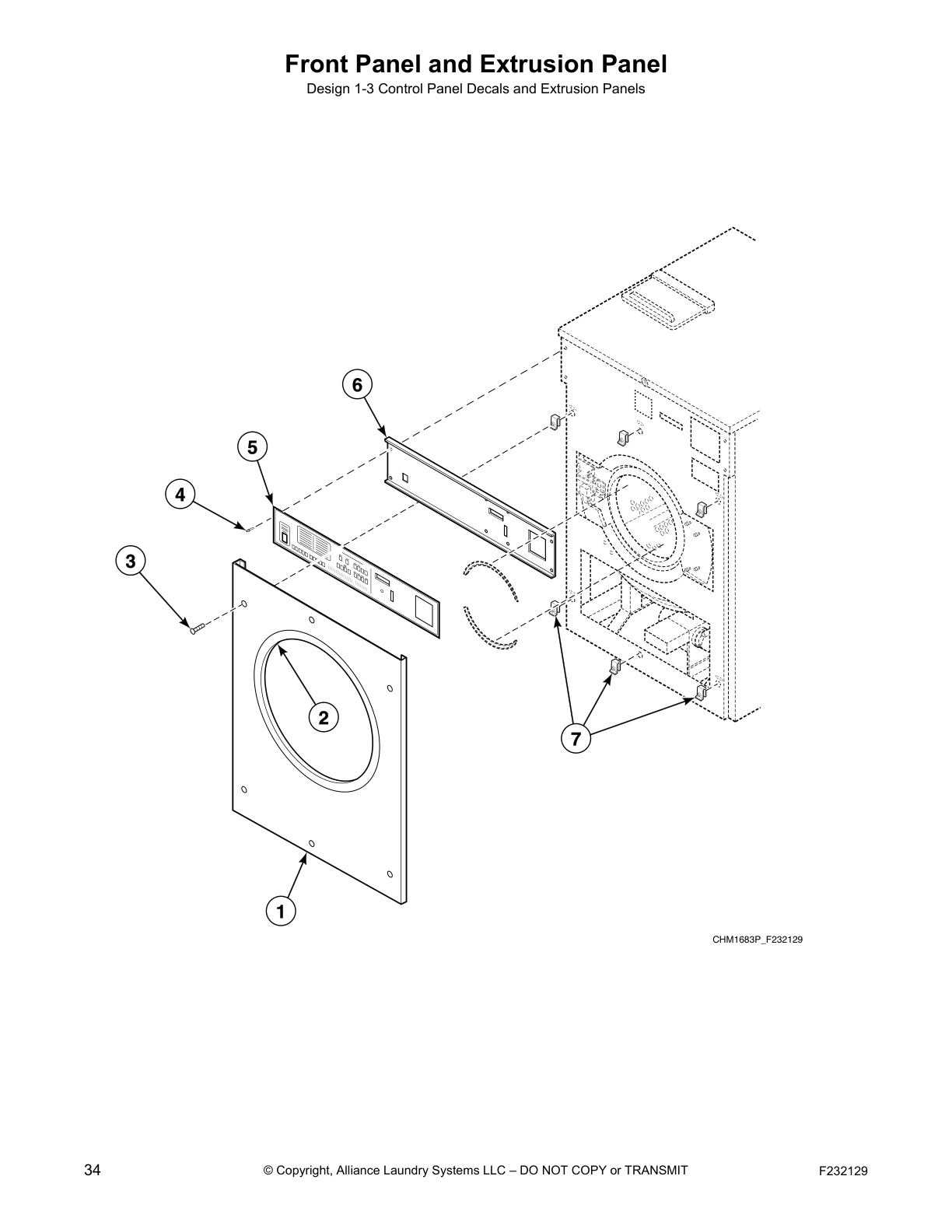

Front Panel and Extrusion Panel

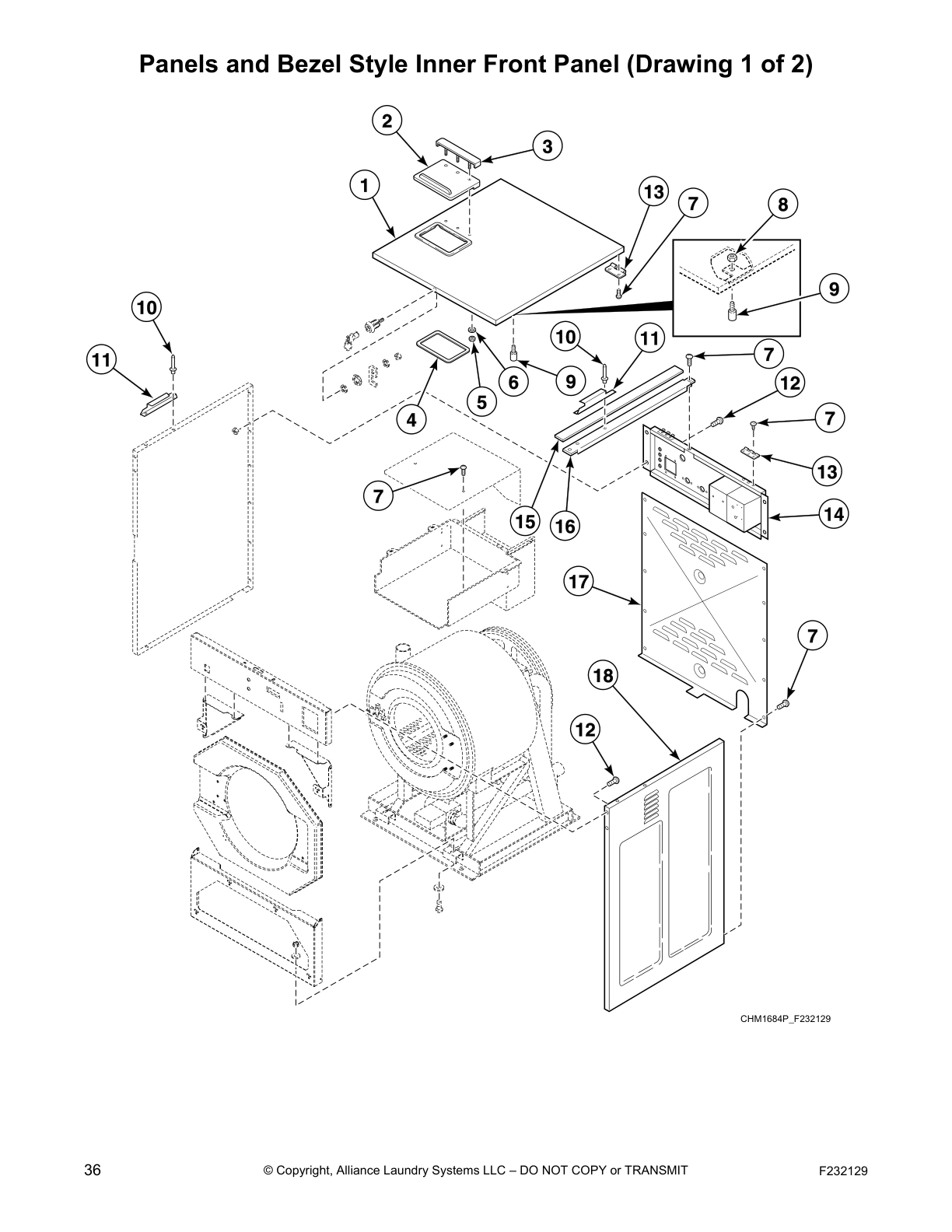

Panels and Bezel Style Inner Front Panel (Drawing 1 of 2)

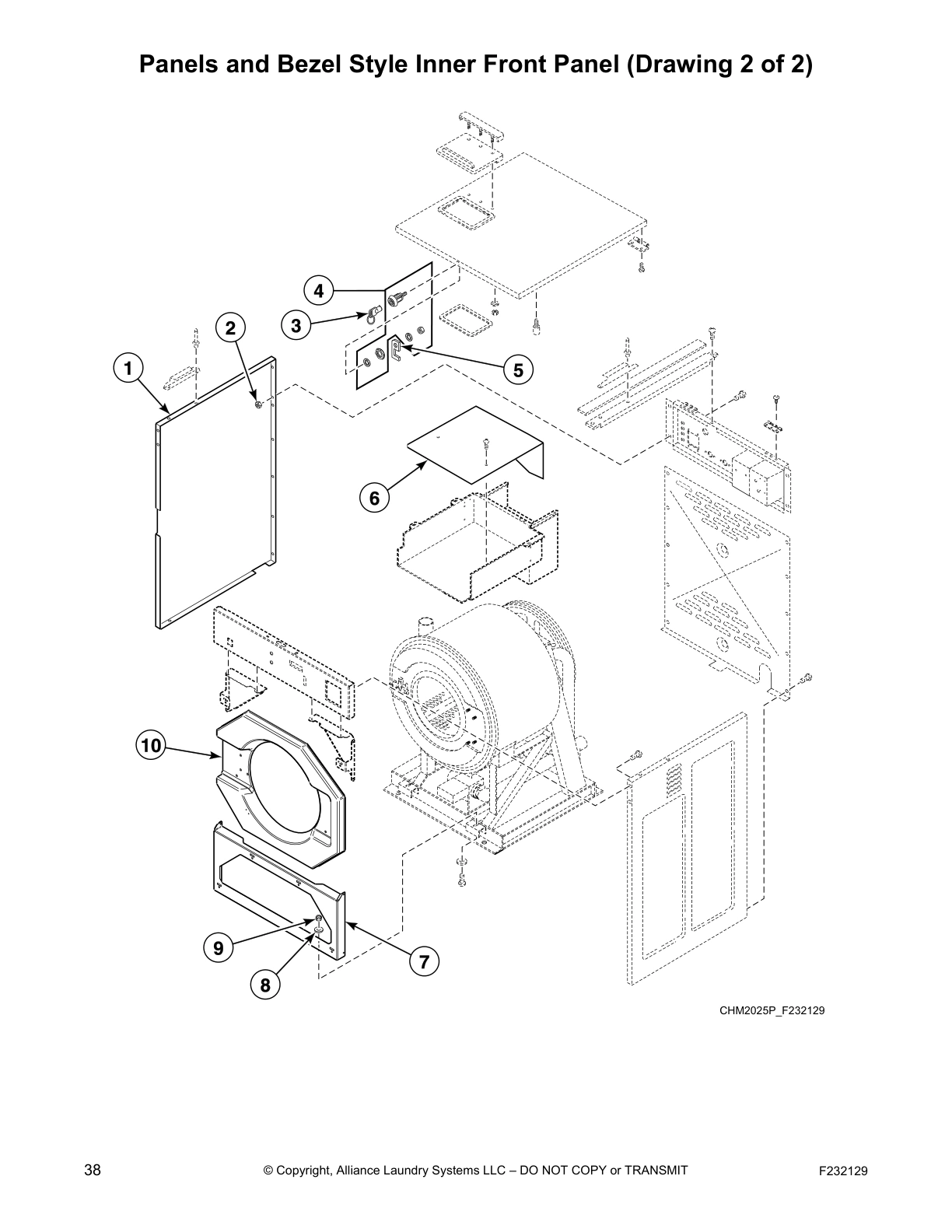

Panels and Bezel Style Inner Front Panel (Drawing 2 of 2)

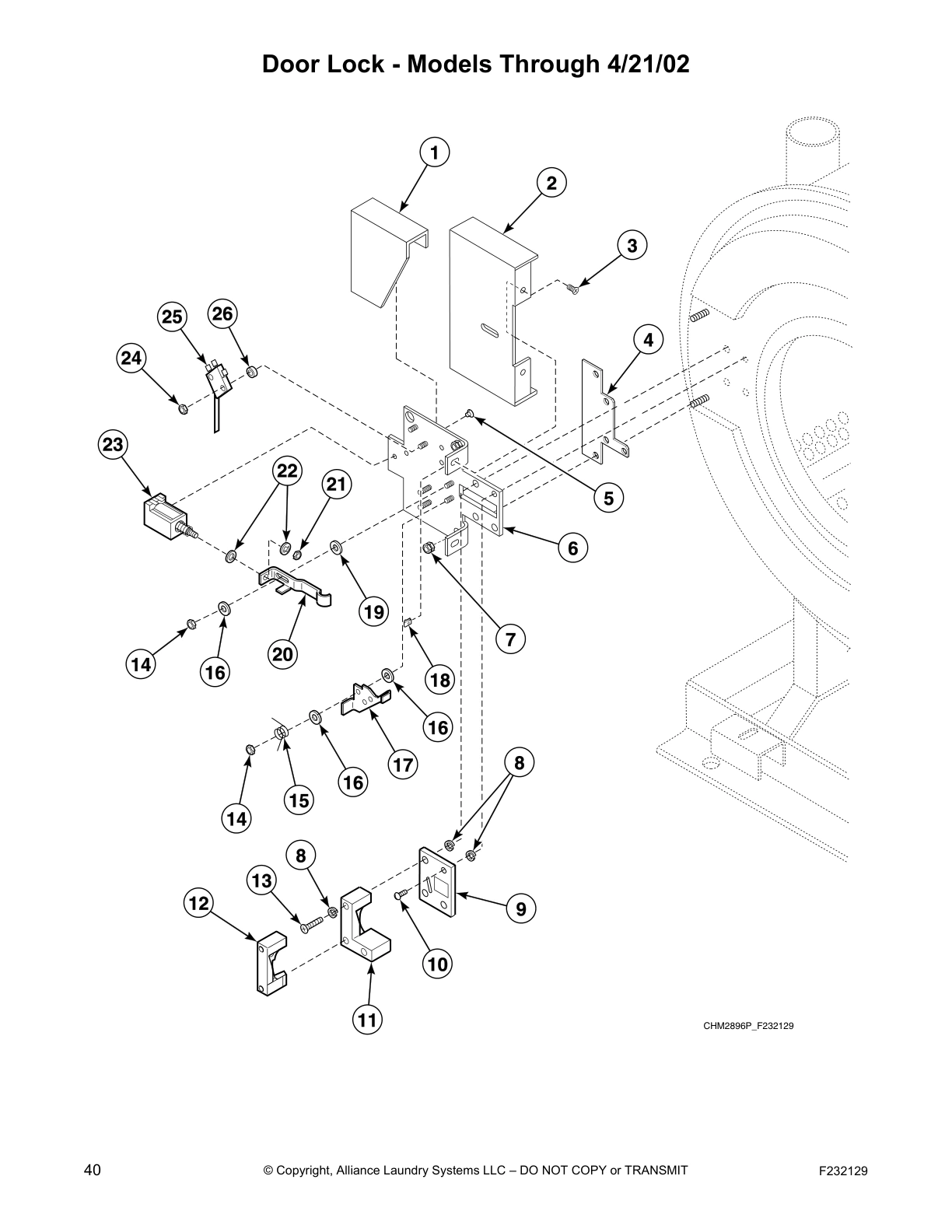

Door Lock - Models Through 4/21/02

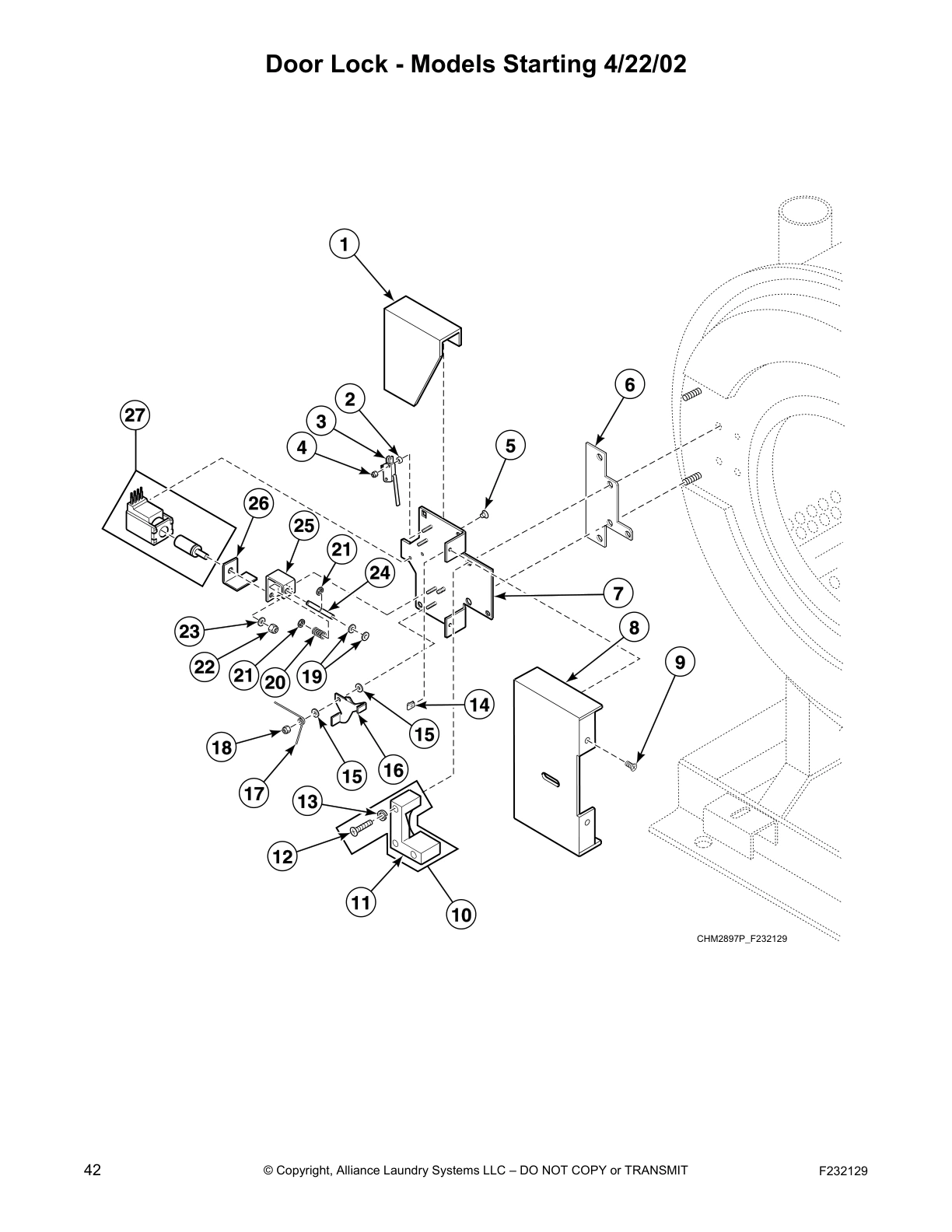

Door Lock - Models Starting 4/22/02

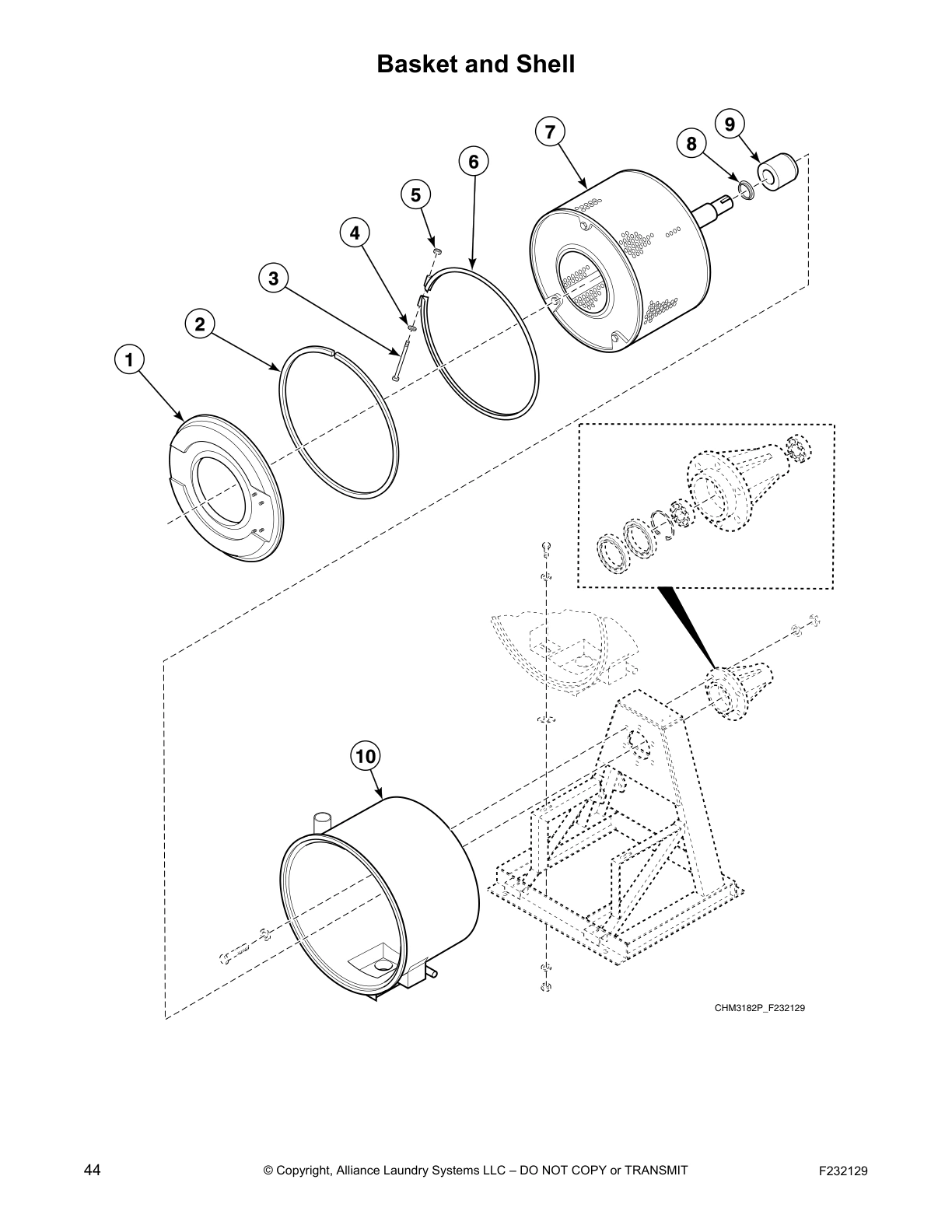

Basket and Shell

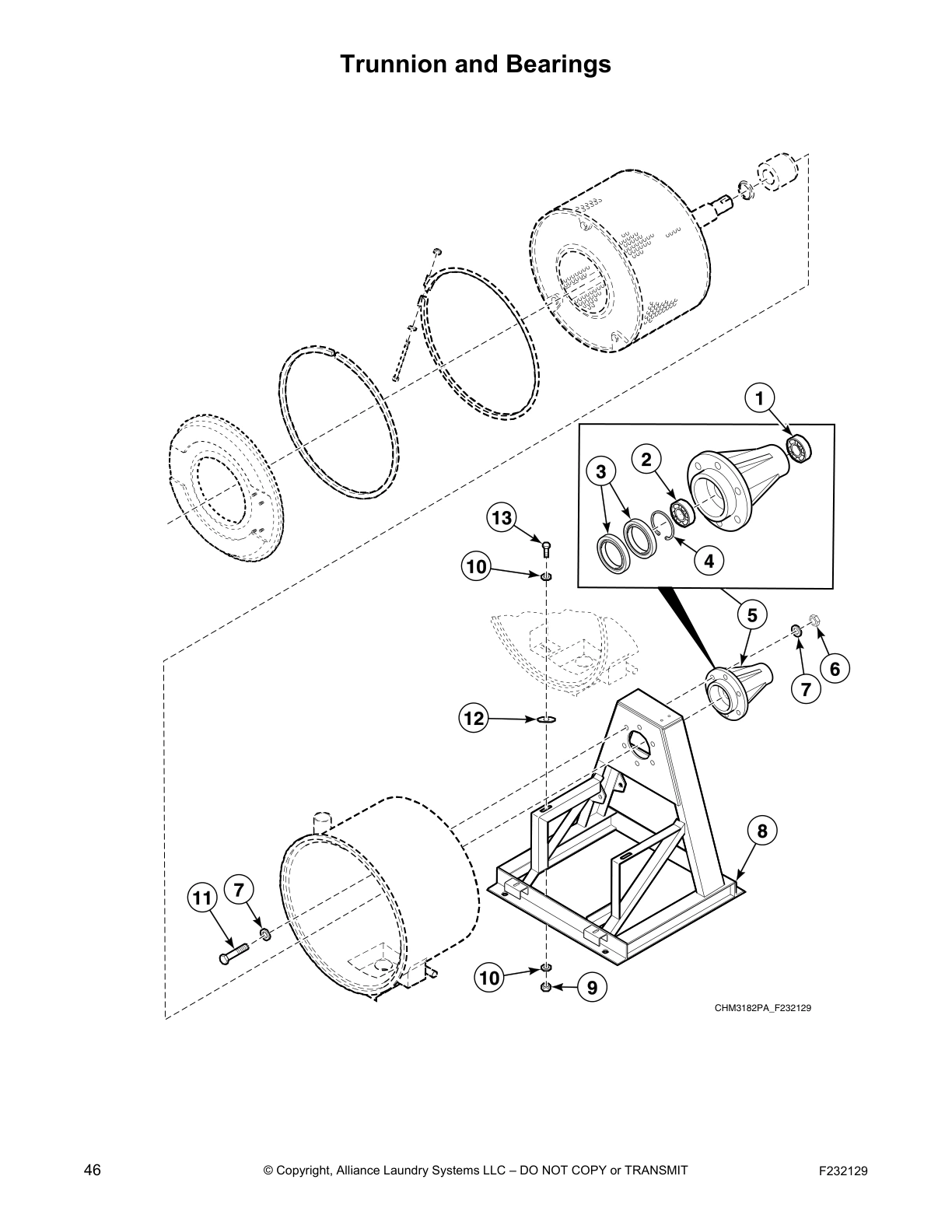

Trunnion and Bearings

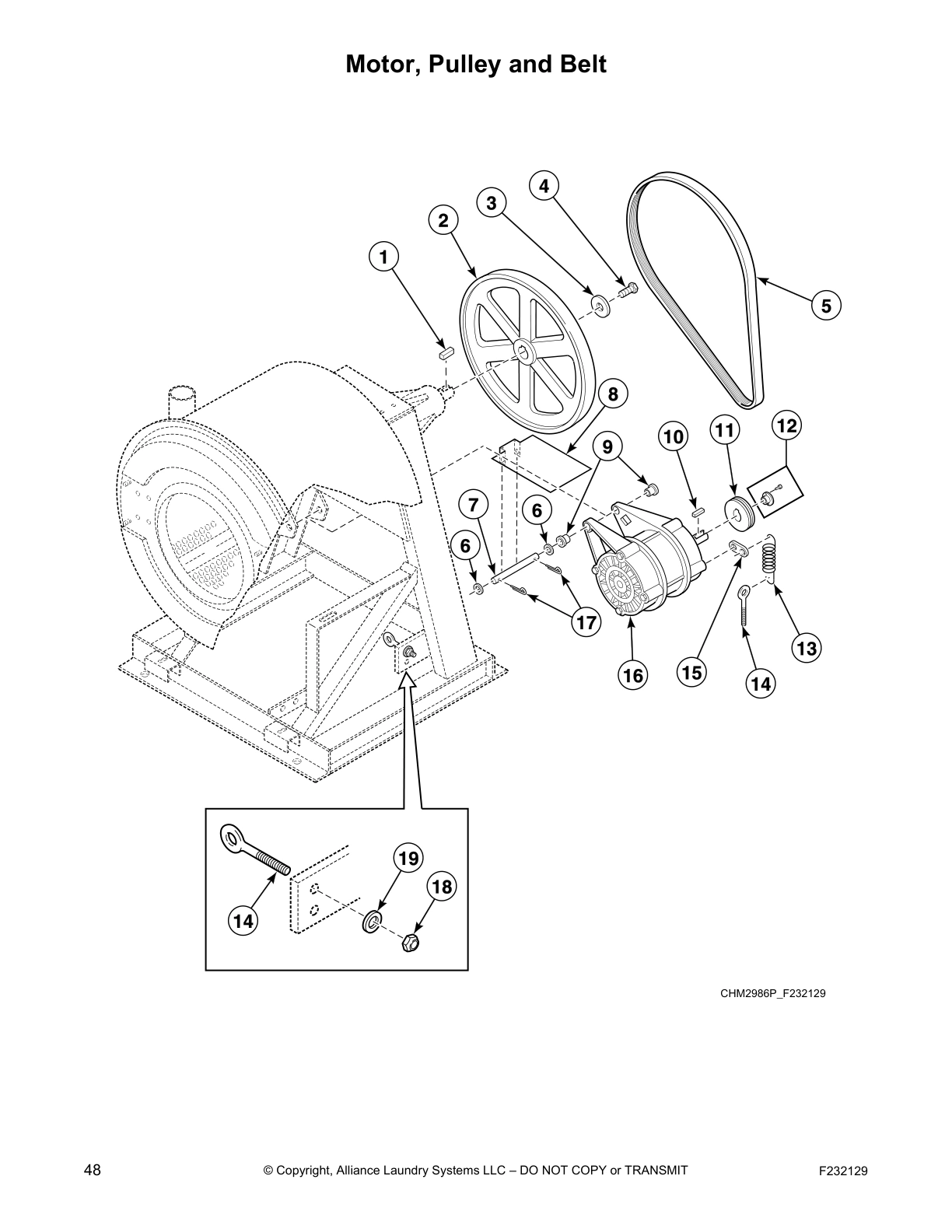

Motor, Pulley and Belt

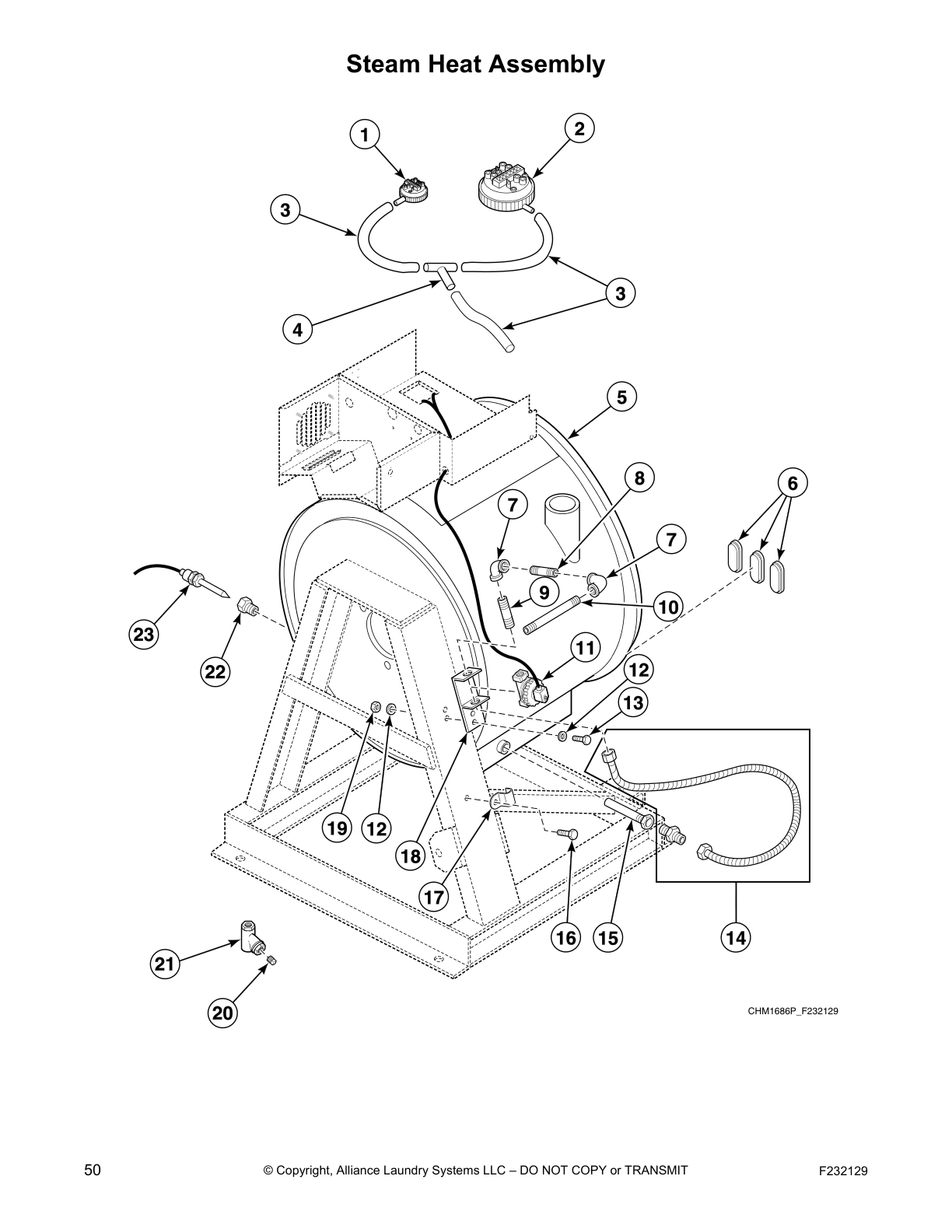

Steam Heat Assembly

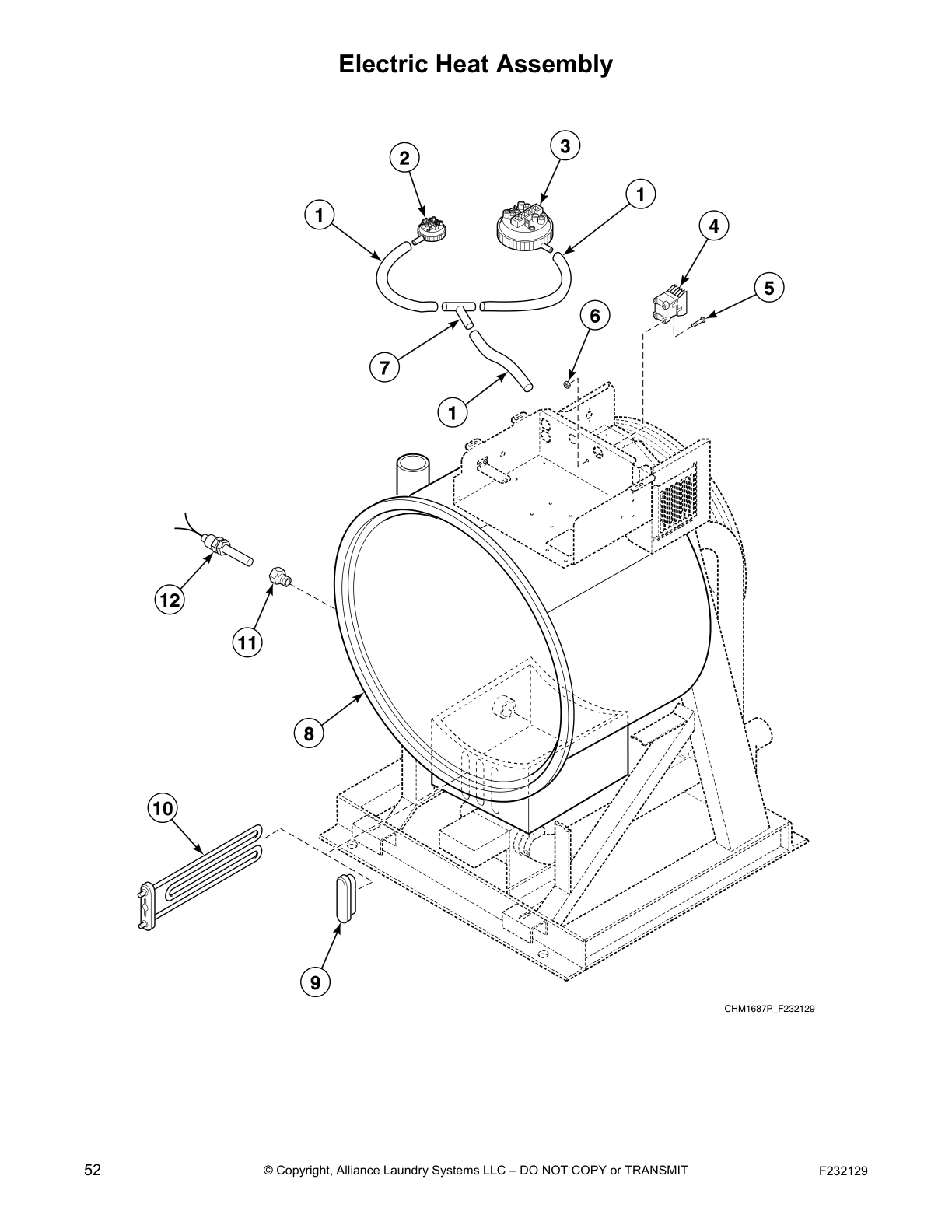

Electric Heat Assembly

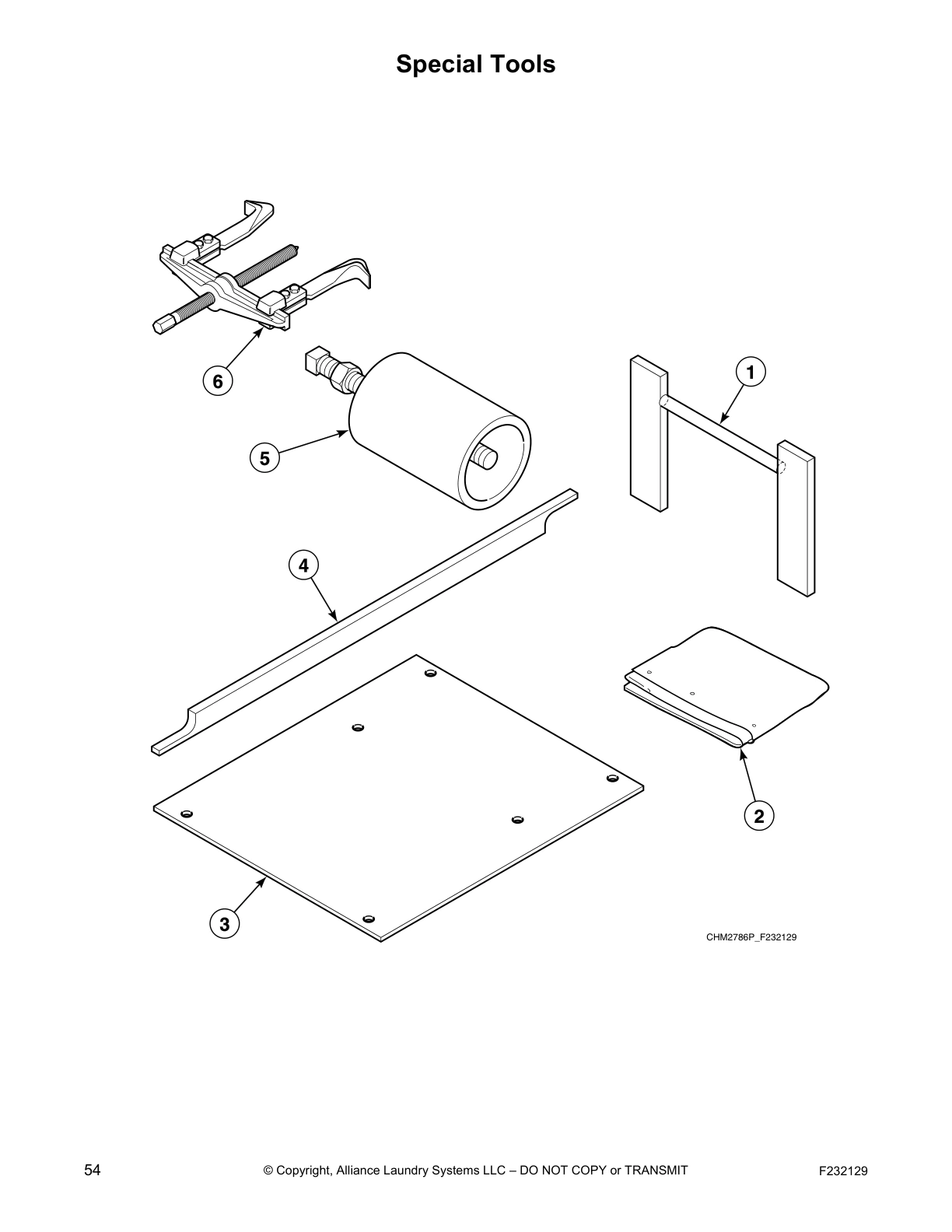

Special Tools
Common parts from model Unimac UC50VNV Washer
SPQ M413865 SPQ M413865 Contact Us For Availability
SPQ F200166 SPQ F200166 Contact Us For Availability
SPQ F200165 SPQ F200165 Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
Elbi Conversion Kit SPQ F798709 Contact Us For Availability
1
Coil SPQ F380900 Contact Us For Availability
1
Push Red Button Decal SPQ F230661 Contact Us For Availability
1
Keypad SPQ F370576P Contact Us For Availability
1
Front Panel SPQ F8200602P Contact Us For Availability
1
Top Cover Kit SPQ F758000-01P Contact Us For Availability
1
Left Side Panel Kit SPQ F757603 Contact Us For Availability
1
Door Lock Splash Shield SPQ F320200 Contact Us For Availability
1
Shell Front Assembly SPQ F609272-1P Contact Us For Availability
1
Bearing SPQ F100134 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Tubing SPQ F422404P Contact Us For Availability
1
Basket Pulley Puller Tool SPQ F460131P Contact Us For Availability
2
Shell Front Gasket Kit SPQ F792000 Contact Us For Availability
2
Door Mount SPQ F150271 Contact Us For Availability
2
Siphon Tube SPQ F430177 Contact Us For Availability
2
Power Supply Cover SPQ F633260 Contact Us For Availability
2
Washer SPQ F270305 Contact Us For Availability
2
Switch SPQ F340913 Contact Us For Availability
2
Water Level Switch SPQ F430215 Contact Us For Availability
2
Trim SPQ F8679201P Contact Us For Availability
2
Supply Dispenser Lid SPQ F200270500 Contact Us For Availability
2
Door Locking Linkage Pin SPQ F431901 Contact Us For Availability
2
Trunnion Kit SPQ F100135 Contact Us For Availability
2
Screw SPQ F200299700 Contact Us For Availability
2
Water Pressure Switch SPQ F8223001P Contact Us For Availability
2
Template SPQ F450127 Contact Us For Availability
3
SPQ F200203200 SPQ F200203200 Contact Us For Availability
3
Magnet SPQ F431222 Contact Us For Availability
3
Water Hose SPQ F150390 Contact Us For Availability
3
Fuse SPQ F0270321-00P Contact Us For Availability
3
SPQ F200213 SPQ F200213 Contact Us For Availability
3
Terminal SPQ F430938 Contact Us For Availability
3
Lid Clamp Assembly SPQ F630430 Contact Us For Availability
3
Key SPQ F160562 Contact Us For Availability
3
Screw SPQ F430518 Contact Us For Availability
3
Nut SPQ F8203806 Contact Us For Availability
3
Belt SPQ F431115 Contact Us For Availability
3
Bolt Layout Mounting Template SPQ F608710 Contact Us For Availability
4
Door Glass
Models SC50VNV and UC50VNV SPQ F8390801 Contact Us For Availability
4
Supply Dispenser Gasket SPQ F170170 Contact Us For Availability
4
3-Way Mixing Valve Kit SPQ F798710 Contact Us For Availability
4
Power Distribution Block SPQ F140768 Contact Us For Availability
4
Overlay SPQ F231402 Contact Us For Availability
4
Pop Rivet SPQ F431210 Contact Us For Availability
4
Lid Lock SPQ 70155603 Contact Us For Availability
4
SPQ F430225 SPQ F430225 Contact Us For Availability
4
Motor Support Rod SPQ F430100 Contact Us For Availability
4
Contactor SPQ F330187P Contact Us For Availability
5
SPQ F747005 SPQ F747005 Contact Us For Availability
5
Flow Restrictor SPQ F380958 Contact Us For Availability
5
Overflow Hose SPQ F150419 Contact Us For Availability
5
SPQ F730155 SPQ F730155 Contact Us For Availability
5
Control Panel Assembly SPQ F634830-2 Contact Us For Availability
5
Control Panel Decal SPQ F230790 Contact Us For Availability
5
Nut SPQ F431024 Contact Us For Availability
5
Top Cover Latch SPQ F190805P Contact Us For Availability
5
SPQ F430977 SPQ F430977 Contact Us For Availability
5
Motor Drip Shield SPQ F280366P Contact Us For Availability
5
Contactor SPQ F330180P Contact Us For Availability
5
Basket Puller Kit SPQ F798003 Contact Us For Availability
6
Screw SPQ F430917 Contact Us For Availability
6
Washer SPQ F150340 Contact Us For Availability
6
Valve Repair Kit SPQ F380957 Contact Us For Availability
6
SPQ F270407 SPQ F270407 Contact Us For Availability
6
SPQ F0150273-00 SPQ F0150273-00 Contact Us For Availability
6
Spacer SPQ F401206 Contact Us For Availability
6
Motor Support Bushing SPQ F430325 Contact Us For Availability
6
AC Drive Control Module Cove SPQ F190802P Contact Us For Availability
6
SPQ F8059701 SPQ F8059701 Contact Us For Availability
6
SPQ F633734 SPQ F633734 Contact Us For Availability
6
Shell Band Kit SPQ F8537804 Contact Us For Availability
6
SPQ F430240 SPQ F430240 Contact Us For Availability
6
Basket Puller Tool SPQ F460129P Contact Us For Availability
7
SPQ F200108P SPQ F200108P Contact Us For Availability
7
Nut SPQ F430231 Contact Us For Availability
7
Washer SPQ F140747 Contact Us For Availability
7
Stud SPQ F430174 Contact Us For Availability
7
SPQ F431041 SPQ F431041 Contact Us For Availability
7
Cabinet Brace SPQ F602753 Contact Us For Availability
7
SPQ F8066701 SPQ F8066701 Contact Us For Availability
7
Pressfit Upgrade Kit SPQ F942P3 Contact Us For Availability
7
SPQ F431131 SPQ F431131 Contact Us For Availability
7
SPQ F603897 SPQ F603897 Contact Us For Availability
8
SPQ F430948 SPQ F430948 Contact Us For Availability
8
Injection Nozzle Kit SPQ F430903 Contact Us For Availability
8
SPQ F150417 SPQ F150417 Contact Us For Availability
8
Washer SPQ F633291 Contact Us For Availability
8
SPQ F603003 SPQ F603003 Contact Us For Availability
8
SPQ F200216900 SPQ F200216900 Contact Us For Availability
8
Nipple SPQ 70079601 Contact Us For Availability
9
SPQ F602567 SPQ F602567 Contact Us For Availability
9
SPQ F140734 SPQ F140734 Contact Us For Availability
9
SPQ F230693 SPQ F230693 Contact Us For Availability
9
Switch Mounting Panel Assembly SPQ F370313-13P Contact Us For Availability
9
SPQ F390300 SPQ F390300 Contact Us For Availability
9
SPQ F634803P SPQ F634803P Contact Us For Availability
9
Shaft Seal Sleeve Kit SPQ F8343909P Contact Us For Availability
9
SPQ F200186100 SPQ F200186100 Contact Us For Availability
9
Tee SPQ F422806 Contact Us For Availability
9
SPQ F420708 SPQ F420708 Contact Us For Availability
10
Door Gasket
Models SC50VNV and UC50VNV SPQ F170124 Contact Us For Availability
10
L-Catch Kit SPQ F746808 Contact Us For Availability
10
Standoff SPQ F180506 Contact Us For Availability
10
Coin Meter Mounting Shim SPQ F0634819-00 Contact Us For Availability
10
Pop Rivet SPQ F431215 Contact Us For Availability
10
Screw SPQ F430925 Contact Us For Availability
10
Door Bezel SPQ F0170426-00 Contact Us For Availability
10
Sheave Kit SPQ F430802 Contact Us For Availability
10
Pipe Nipple SPQ 70214101 Contact Us For Availability
10
Element SPQ F360205P Contact Us For Availability
11
Door Lock Catch Casting SPQ F150261 Contact Us For Availability
11
Fuse Holder SPQ F0350312-10 Contact Us For Availability
11
Front Drain Hose SPQ F8035801 Contact Us For Availability
11
Door Gasket
Models SC27VNV, SC35VNV, UC27VNV SPQ F170123 Contact Us For Availability
11
Mounting Bracket SPQ F602722 Contact Us For Availability
11
Screw SPQ F430987 Contact Us For Availability
11
Pulley Bushing SPQ F280287P Contact Us For Availability
11
DIN Valve Kit SPQ F8521601 Contact Us For Availability
11
Reducer Bushing SPQ F421936 Contact Us For Availability
12
Door Lock Catch SPQ F150223 Contact Us For Availability
12
Insulator Bushing SPQ F140909 Contact Us For Availability
12
Fuse SPQ F350115 Contact Us For Availability
12
Washer SPQ F430317 Contact Us For Availability
12
Blind Rivet SPQ J1111905 Contact Us For Availability
12
Flange Relay SPQ F330227 Contact Us For Availability
12
Screw SPQ F430982 Contact Us For Availability
12
Bearing SPQ F430303 Contact Us For Availability
12
Extension Spring SPQ F280298P Contact Us For Availability
12
Temperature Probe SPQ F370606P Contact Us For Availability
13
Hose Clamp SPQ F200215 Contact Us For Availability
13
Drain Valve SPQ F150352 Contact Us For Availability
13
Magnetic Switch Assembly SPQ F200321200 Contact Us For Availability
13
Switch Mounting Plate Sub-Assembly SPQ F633540 Contact Us For Availability
13
Take-Apart Hinge SPQ F190203P Contact Us For Availability
13
Washer SPQ F431100 Contact Us For Availability
13
Triple Lip Seal SPQ F430942 Contact Us For Availability
13
Screw SPQ F310124 Contact Us For Availability
13
Screw SPQ F430108 Contact Us For Availability
14
Drain Hose SPQ F8406304 Contact Us For Availability
14
Supply Dispenser Sub-Assembly SPQ F602374 Contact Us For Availability
14
Drain Connector Tee SPQ F8017101 Contact Us For Availability
14
Magnetic Switch SPQ F0340723-00 Contact Us For Availability
14
Switch Panel Decal SPQ F231381 Contact Us For Availability
14
Valve Panel Sub-Assembly SPQ F633494-4 Contact Us For Availability
14
Motor Conversion Kit SPQ F430537 Contact Us For Availability
14
Pipe Insulation SPQ F410300 Contact Us For Availability
15
Washer SPQ F310110 Contact Us For Availability
15
Screw SPQ F150356 Contact Us For Availability
15
Screw SPQ F430103 Contact Us For Availability
15
Rod
Models SC50VNV and UC50VNV SPQ F602813-3 Contact Us For Availability
15
Rocker Switch SPQ F340411 Contact Us For Availability
15
Gasket SPQ F170402P Contact Us For Availability
15
Door Lock Switch Lever SPQ F431902 Contact Us For Availability
15
Steam Hose SPQ F200154 Contact Us For Availability
16
3-Way Valve SPQ F381728P Contact Us For Availability
16
Door Lock Torsion Spring SPQ F0636636-00 Contact Us For Availability
16
Cap Plug SPQ F190301 Contact Us For Availability
16
Drain Motor SPQ F200123500 Contact Us For Availability
16
Door Hinge Shim Kit
As required SPQ F200131000P Contact Us For Availability
16
Light SPQ F350411 Contact Us For Availability
16
Top Brace SPQ F603227 Contact Us For Availability
16
Cotter Pin SPQ F8329201P Contact Us For Availability
16
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
17
Screw SPQ F430536 Contact Us For Availability
17
Clip SPQ F601515 Contact Us For Availability
17
Rear Panel SPQ F200022800P Contact Us For Availability
17
Door Lock Splash Shield SPQ F605381 Contact Us For Availability
17
Nut SPQ F430401 Contact Us For Availability
18
Vacuum Breaker Top SPQ F381720P Contact Us For Availability
18
Pushbutton Stop SPQ F430264 Contact Us For Availability
18
Door Lock Pin Release Spring SPQ F430232 Contact Us For Availability
18
Switch Extension SPQ F380943P Contact Us For Availability
18
Door Hinge SPQ F190216P Contact Us For Availability
18
Steam Bracket Assembly SPQ F0430165-00 Contact Us For Availability
19
Vacuum Breaker Bottom SPQ F422808 Contact Us For Availability
19
E-Ring Retainer SPQ F431147 Contact Us For Availability
19
Door Release Solenoid SPQ F431903 Contact Us For Availability
19
Basket Pulley SPQ F430300 Contact Us For Availability
19
Nut SPQ F601186 Contact Us For Availability
20
Plug SPQ F0340345-10P Contact Us For Availability
20
Air Trap Hose SPQ F150309 Contact Us For Availability
20
Air Trap Hose SPQ F020014200 Contact Us For Availability
20
Screw
Models SC27VNV, SC35VNV, SC50VNV UC35VN SPQ F430533 Contact Us For Availability
20
Spacer SPQ F605382 Contact Us For Availability
20
Door Lock Pin Linkage SPQ F310137 Contact Us For Availability
21
Vacuum Breaker Hose SPQ F0150329-00 Contact Us For Availability
21
SPQ F200205 SPQ F200205 Contact Us For Availability
21
Washer SPQ F431022 Contact Us For Availability
21
Door Lock Retainer Latch SPQ F310205 Contact Us For Availability
21
Steam Filter SPQ F420409 Contact Us For Availability
22
Hose Clamp SPQ F015033000 Contact Us For Availability
22
Door Assembly
Models SC50VNV and UC50VNV SPQ F431113 Contact Us For Availability
22
Door Lock Solenoid SPQ F431017 Contact Us For Availability
23
Door Lock Plate Cover SPQ F300128P Contact Us For Availability
23
Includ 9, 10, 13, 16, 24, 27 and 31 SPQ F060390105 Contact Us For Availability
23
Door Lock Microswitch SPQ F431123 Contact Us For Availability
24
Bolt SPQ F430974 Contact Us For Availability
24
Door Lock Plate Shim SPQ F431231 Contact Us For Availability
25
Door Lock Harness SPQ F340919 Contact Us For Availability
25
Door Handle SPQ F430916 Contact Us For Availability
25
Door Lock Plate Assembly SPQ F150455 Contact Us For Availability
26
Door Lock Spring SPQ F150225 Contact Us For Availability
26
Door Lock Assembly Cover SPQ F0636103-00 Contact Us For Availability
27
Door Lock Kit SPQ F0300131-00P Contact Us For Availability
27
Red Dot Decal SPQ F310125 Contact Us For Availability
28
Pushbutton Rod SPQ F230662 Contact Us For Availability
29
Spring Pin SPQ F320300 Contact Us For Availability
31
Door Spacer SPQ F431907 Contact Us For Availability
32
Counterclockwise Spin Rotation Decal SPQ F8535601 Contact Us For Availability
NI
SPQ F380939 SPQ F380939 Contact Us For Availability
NI
SPQ F140748 SPQ F140748 Contact Us For Availability
NI
SPQ F730168 SPQ F730168 Contact Us For Availability
NI
SPQ F633322 SPQ F633322 Contact Us For Availability
NI
SPQ F8333201 SPQ F8333201 Contact Us For Availability
NI
SPQ F380954 SPQ F380954 Contact Us For Availability
NI
3-Way Valve SPQ F381725P Contact Us For Availability
NI
SPQ F602533 SPQ F602533 Contact Us For Availability
NI
Flow Restrictor SPQ G582P3 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ F8485401P SPQ F8485401P Contact Us For Availability
NI
SPQ F633510 SPQ F633510 Contact Us For Availability
NI
SPQ F605386-7P SPQ F605386-7P Contact Us For Availability
NI
SPQ F633569 SPQ F633569 Contact Us For Availability
NI
SPQ F0798839-00 SPQ F0798839-00 Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
NI
Heating Element Plug SPQ F360202 Contact Us For Availability
NI
SPQ 70435601 SPQ 70435601 Contact Us For Availability
× ![]()
