Model Unimac UC40VNV Washer – Common Parts & Diagrams
Decals
Control Module - Models Through 8/1/04

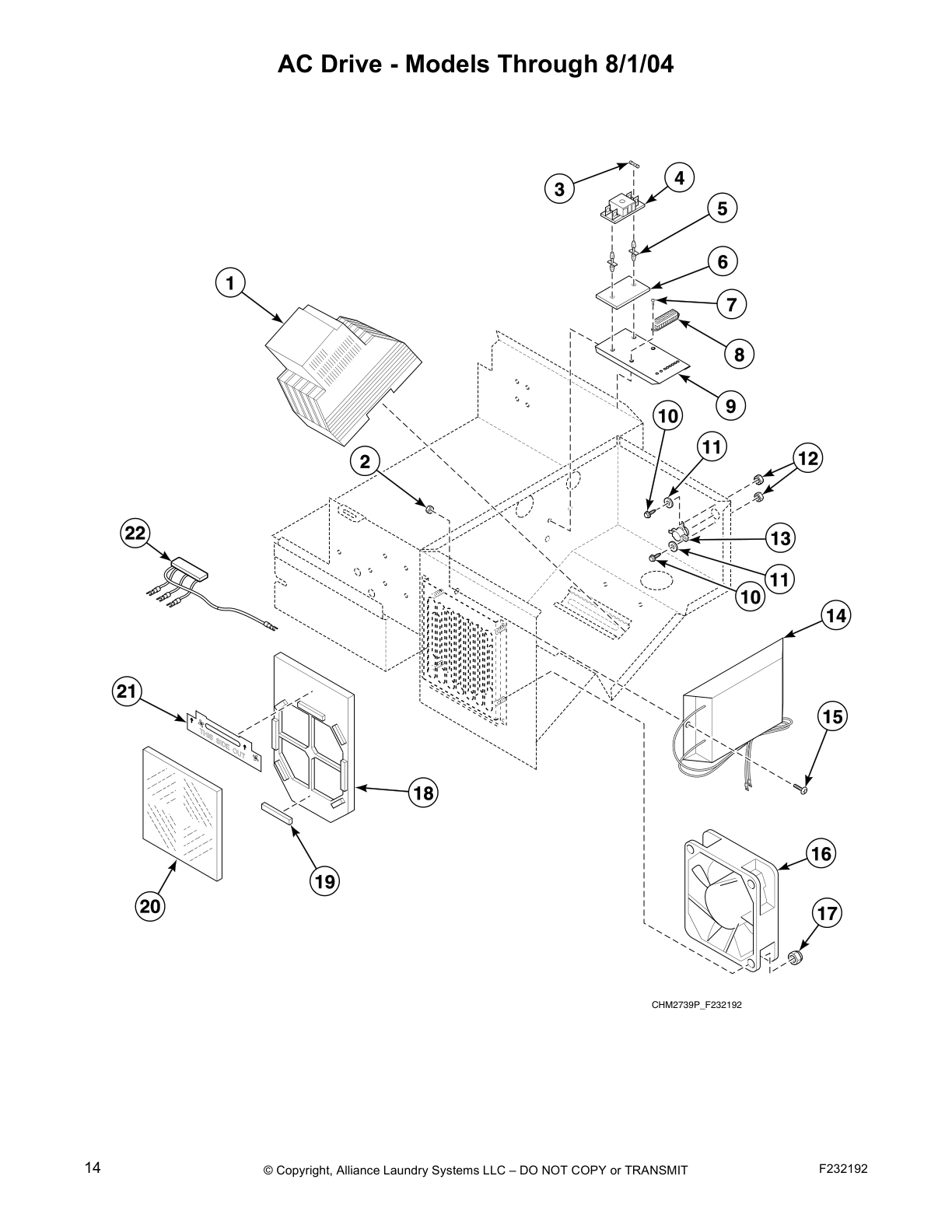

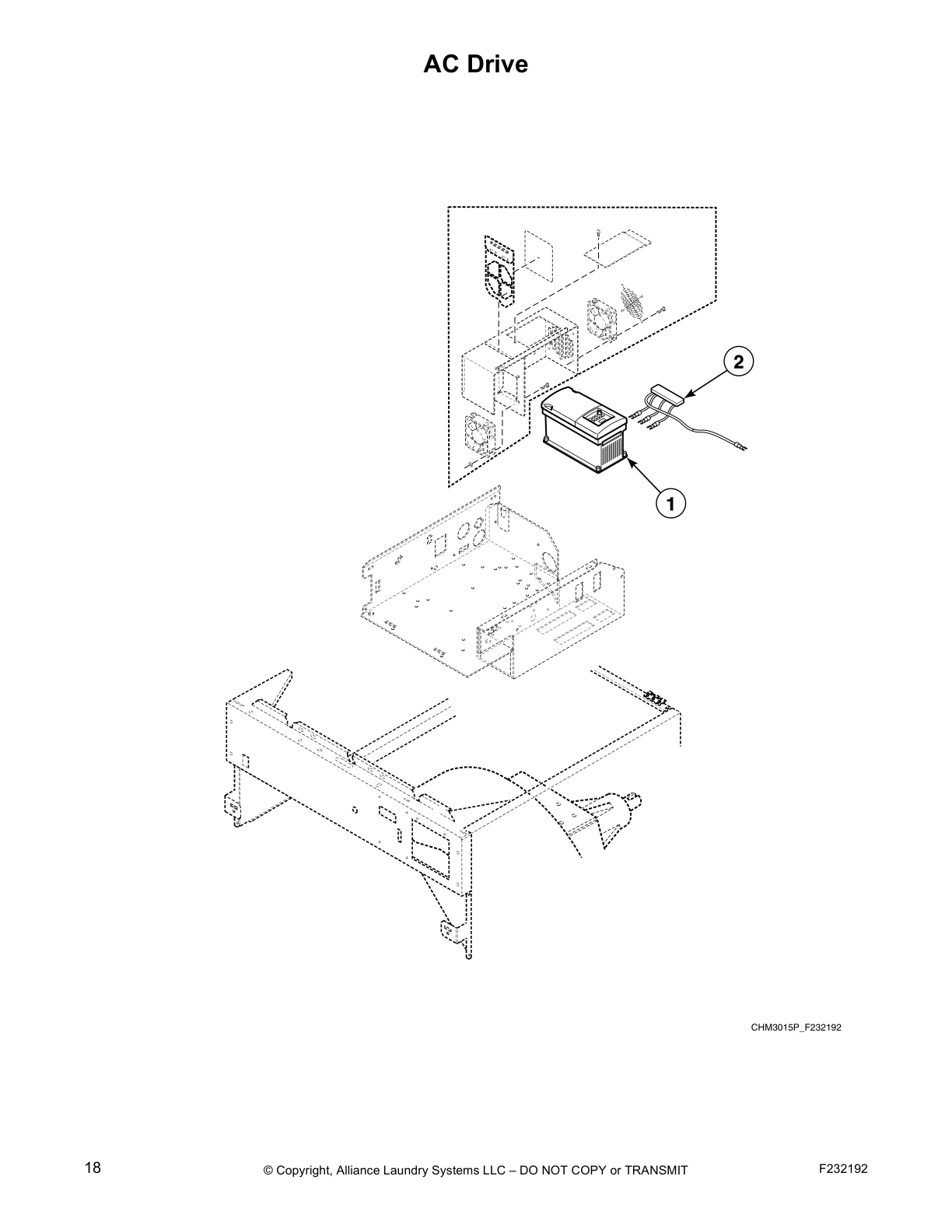

AC Drive - Models Through 8/1/04

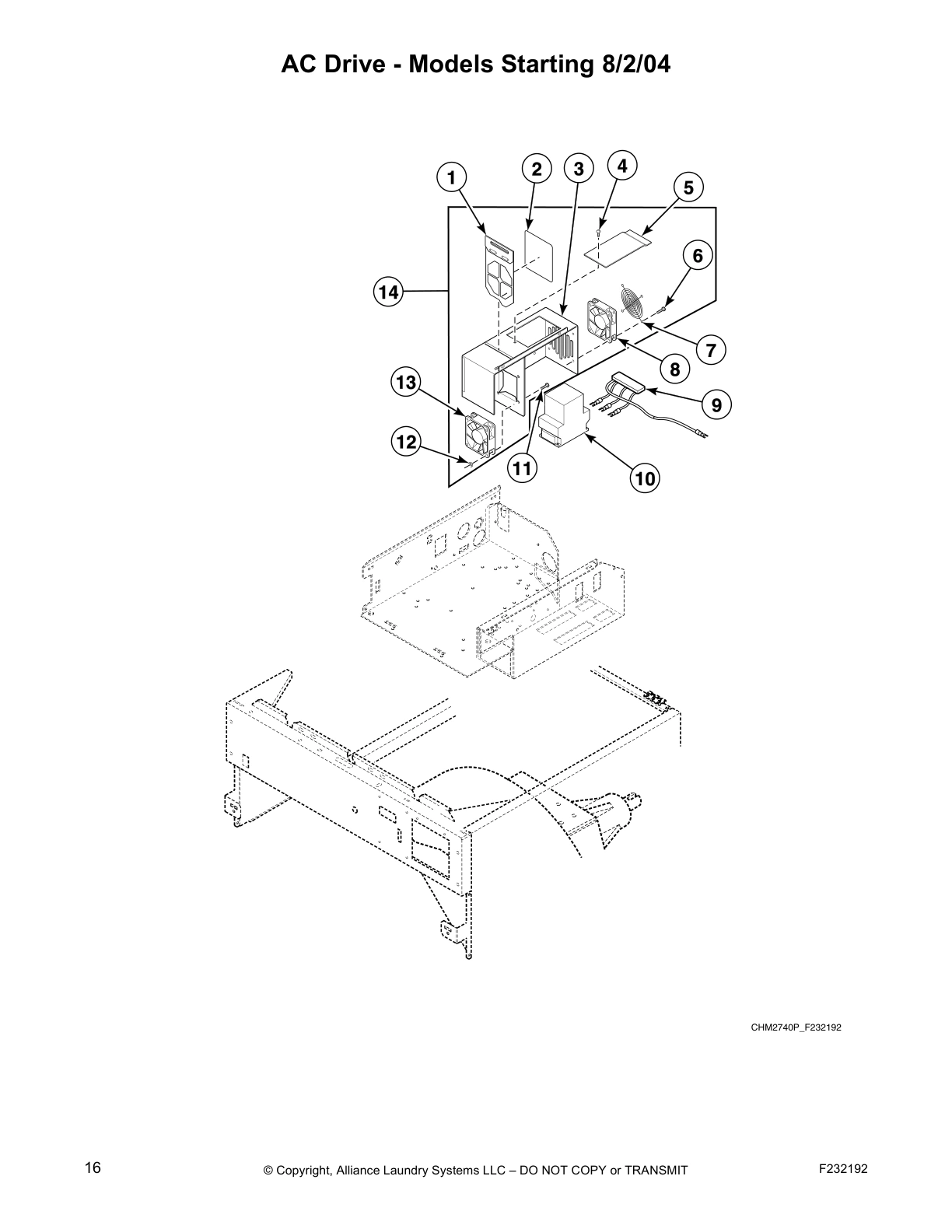

AC Drive - Models Starting 8/2/04
AC Drive

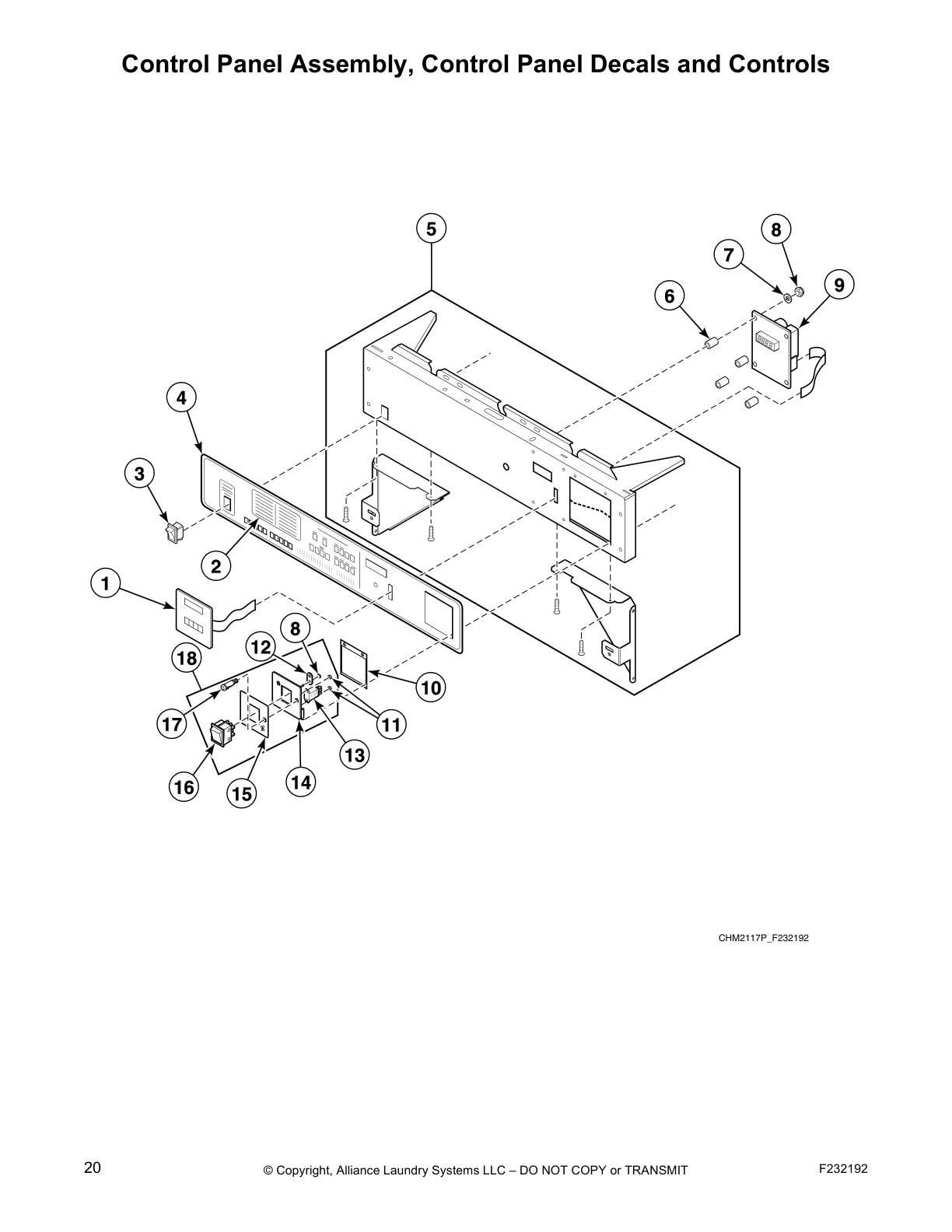

Control Panel Assembly, Control Panel Decals and Controls

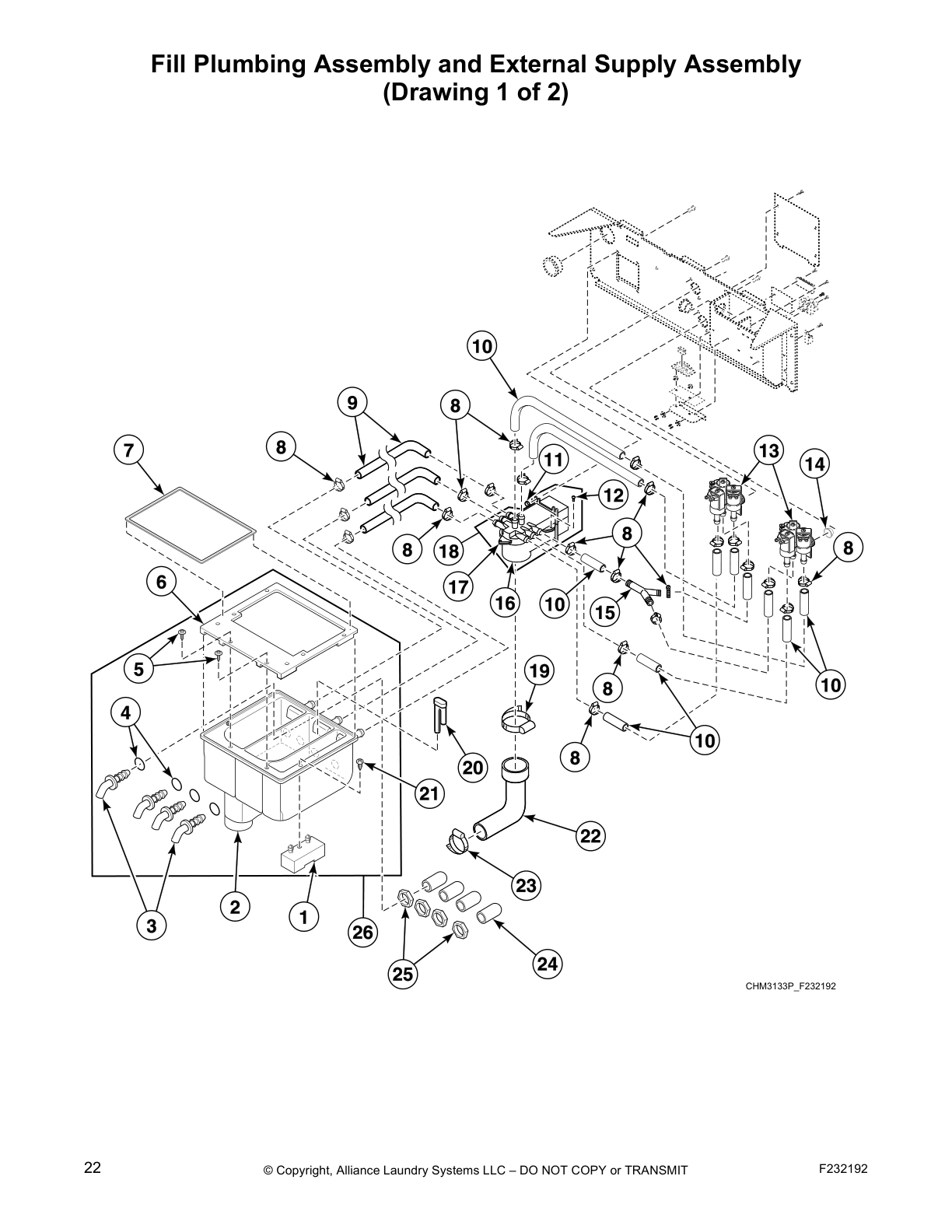

Fill Plumbing Assembly and External Supply Assembly
(Drawing 1 of 2)

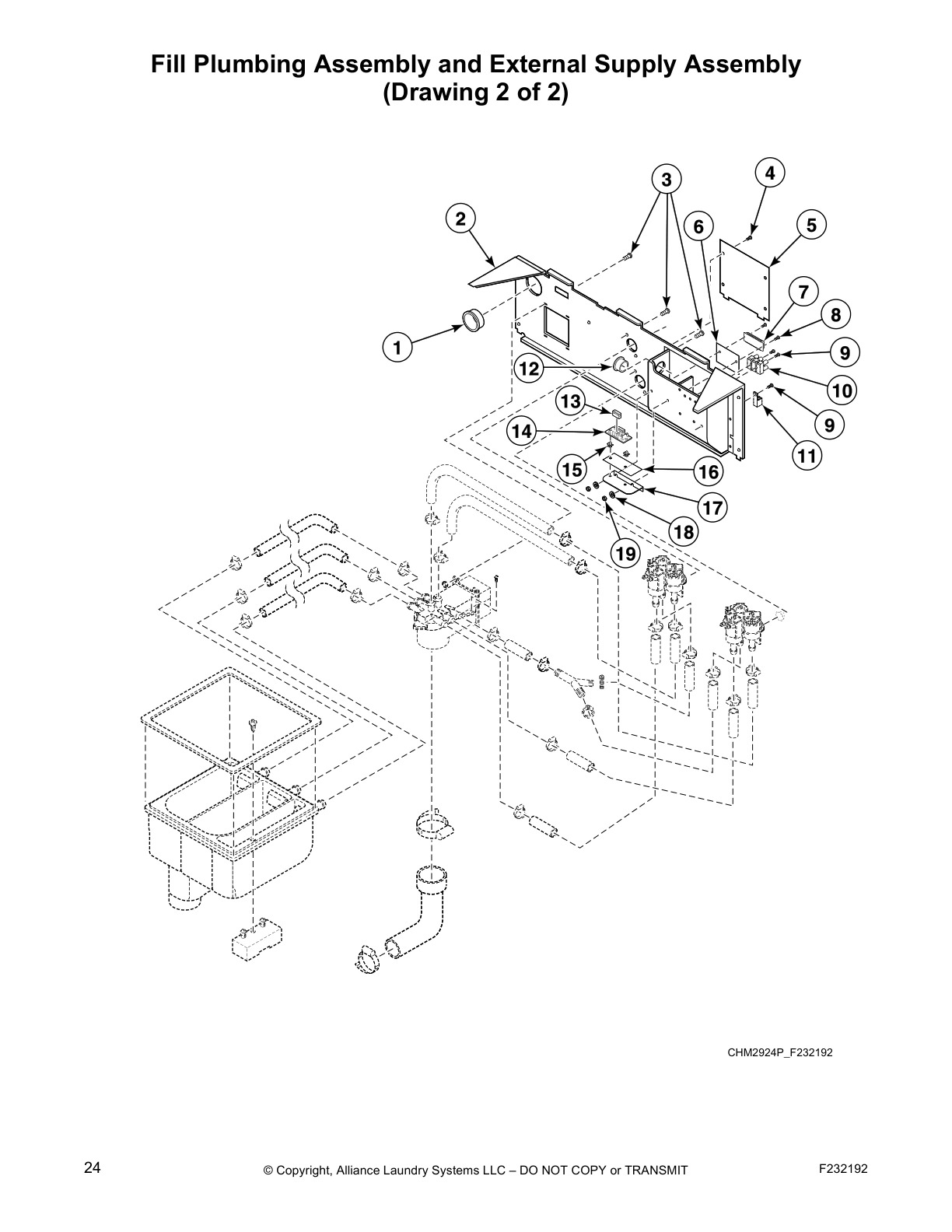

Fill Plumbing Assembly and External Supply Assembly
(Drawing 2 of 2)

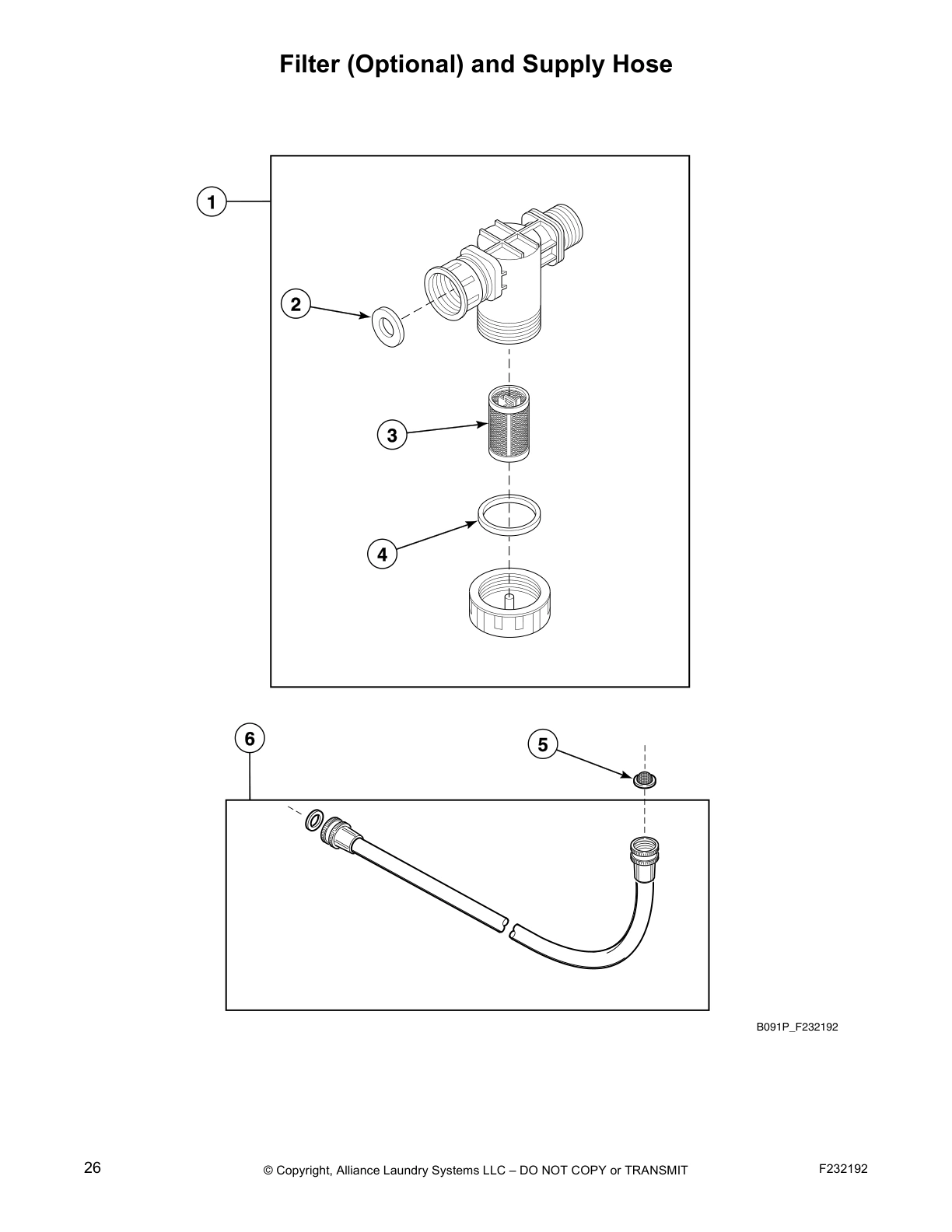

Filter (Optional) and Supply Hose

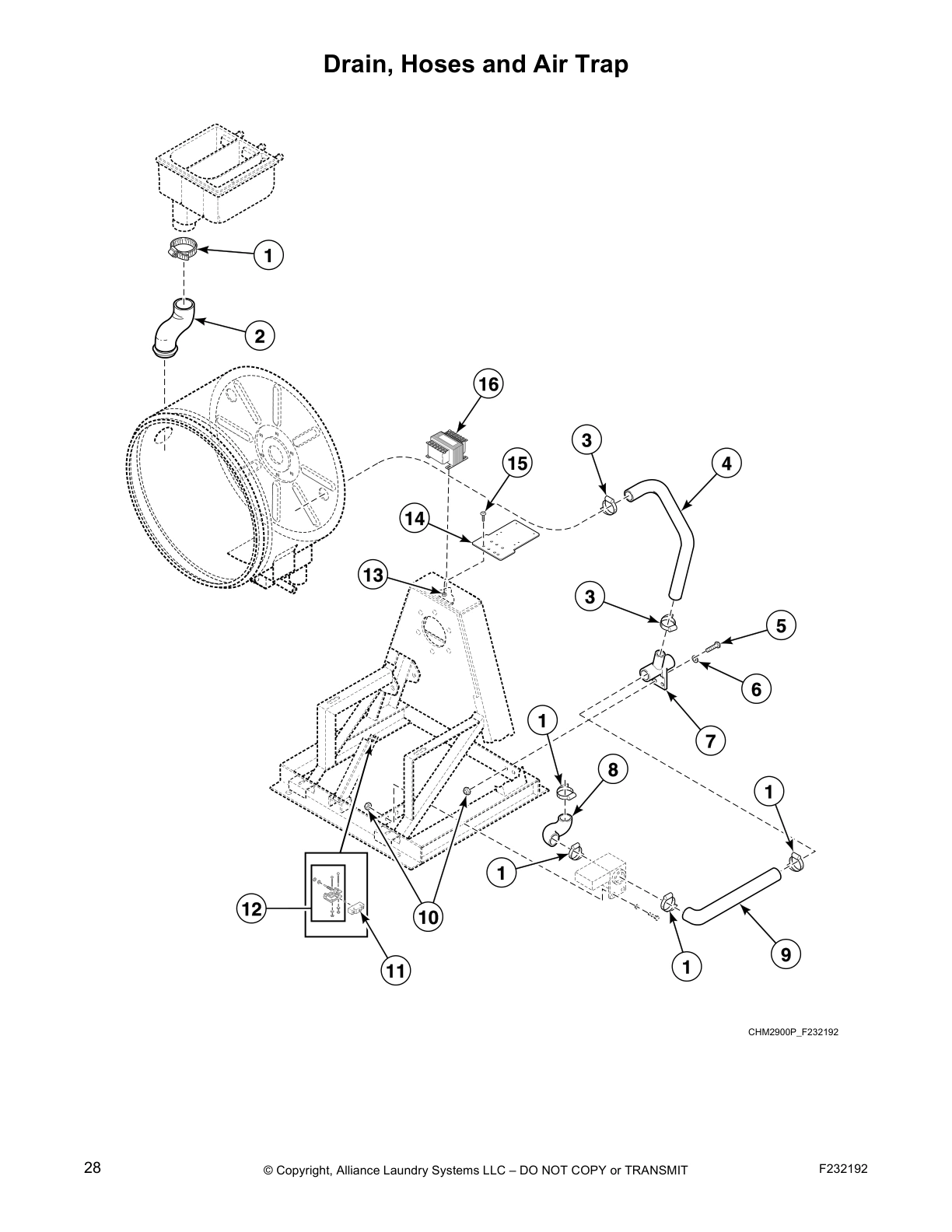

Drain, Hoses and Air Trap

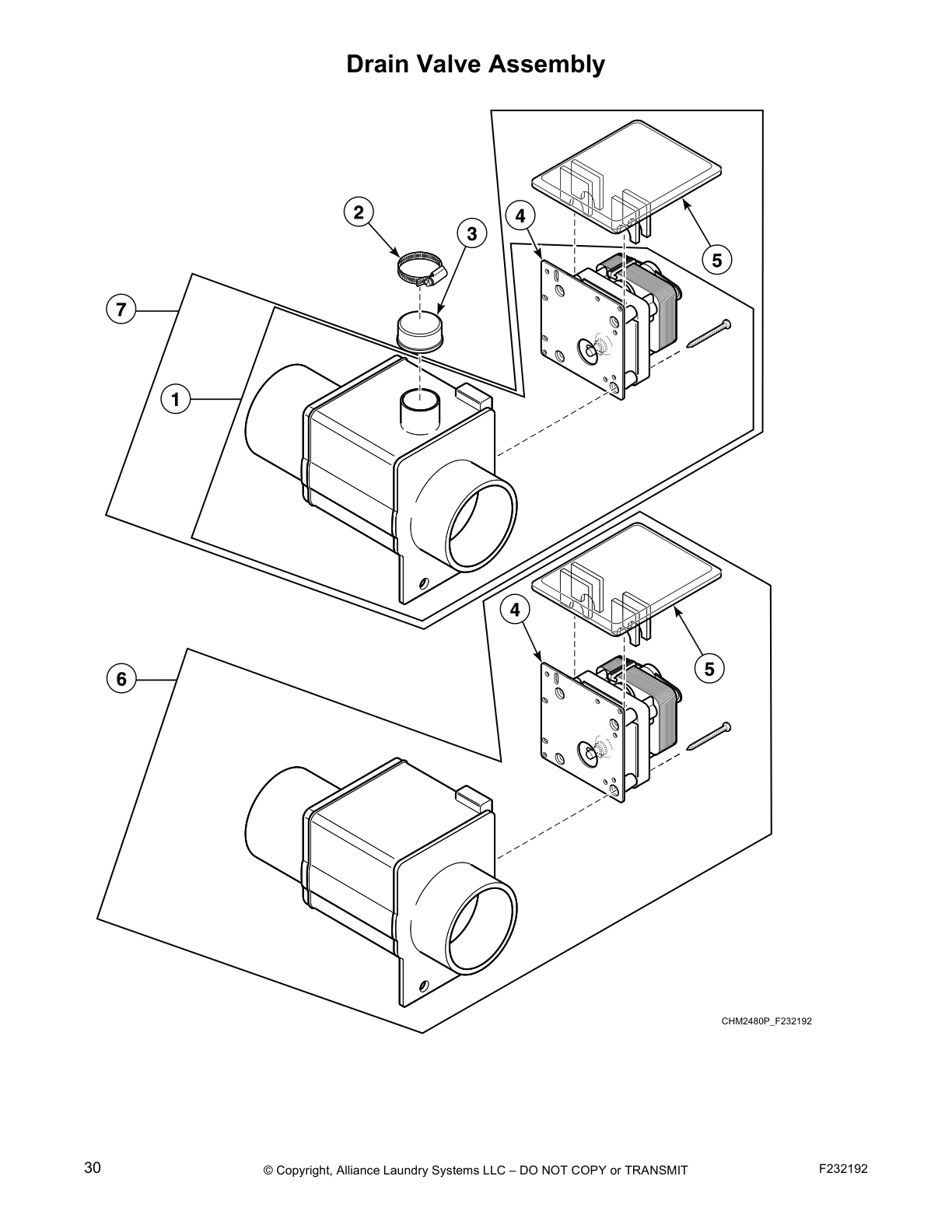

Drain Valve Assembly

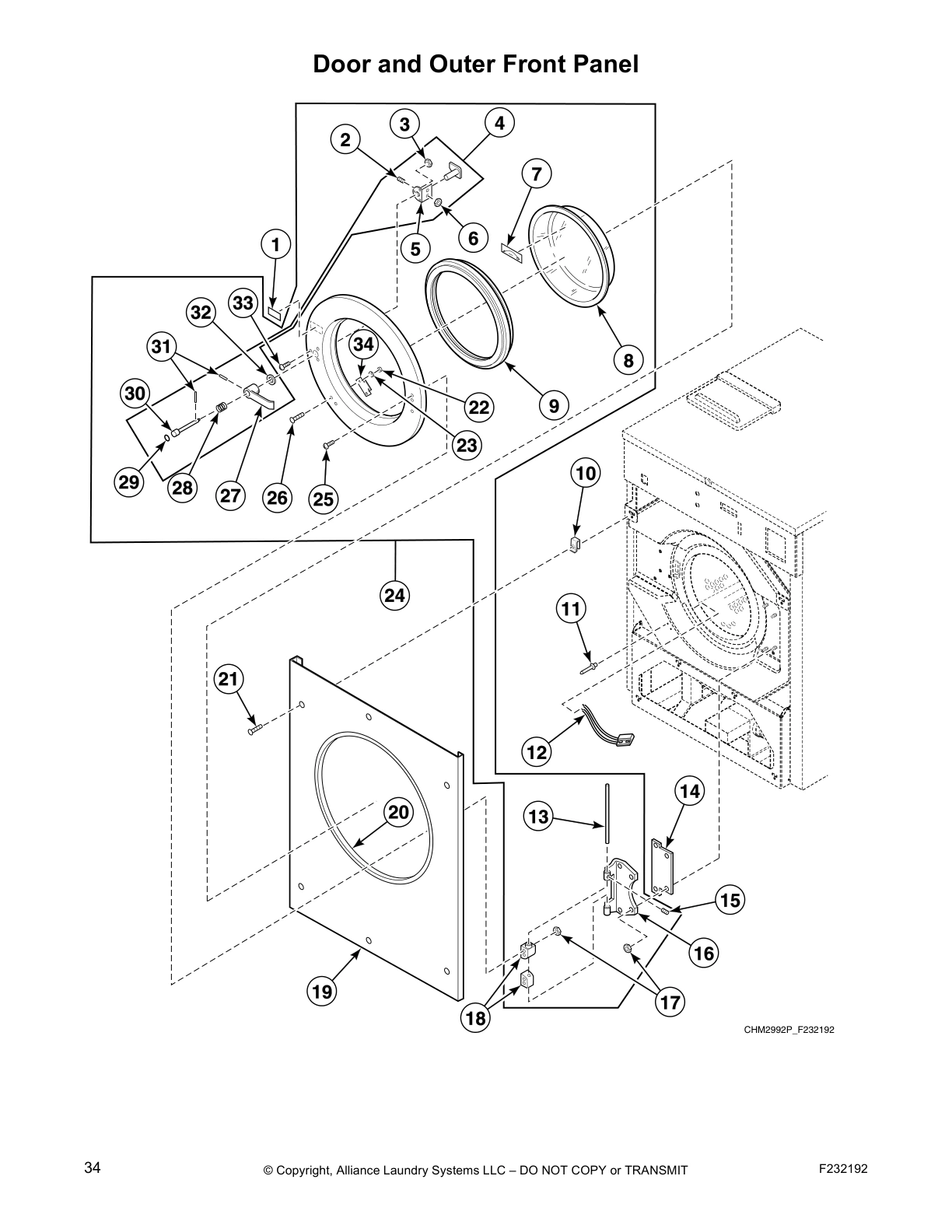

Door and Outer Front Panel
Side, Rear, Top and Inner Front Panels

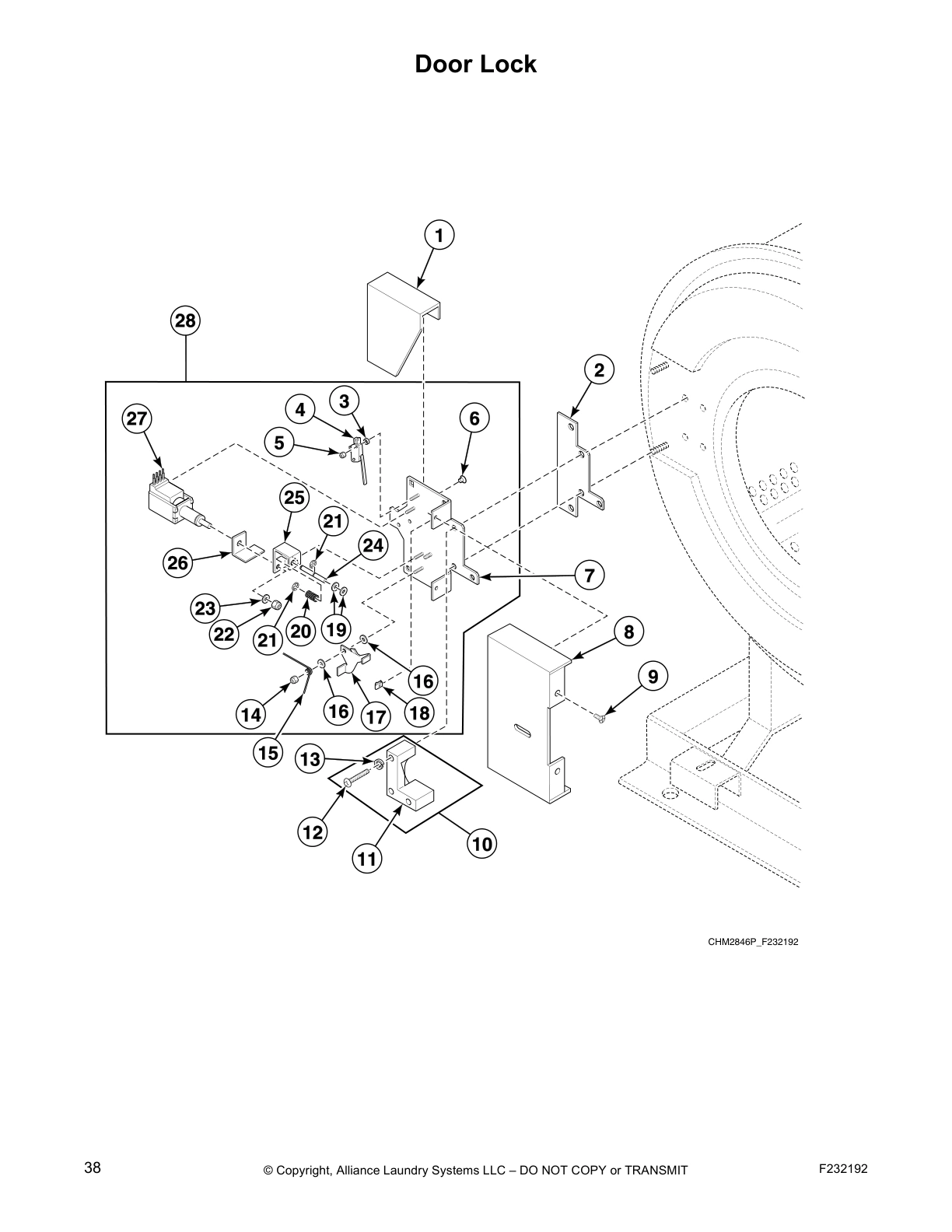

Door Lock

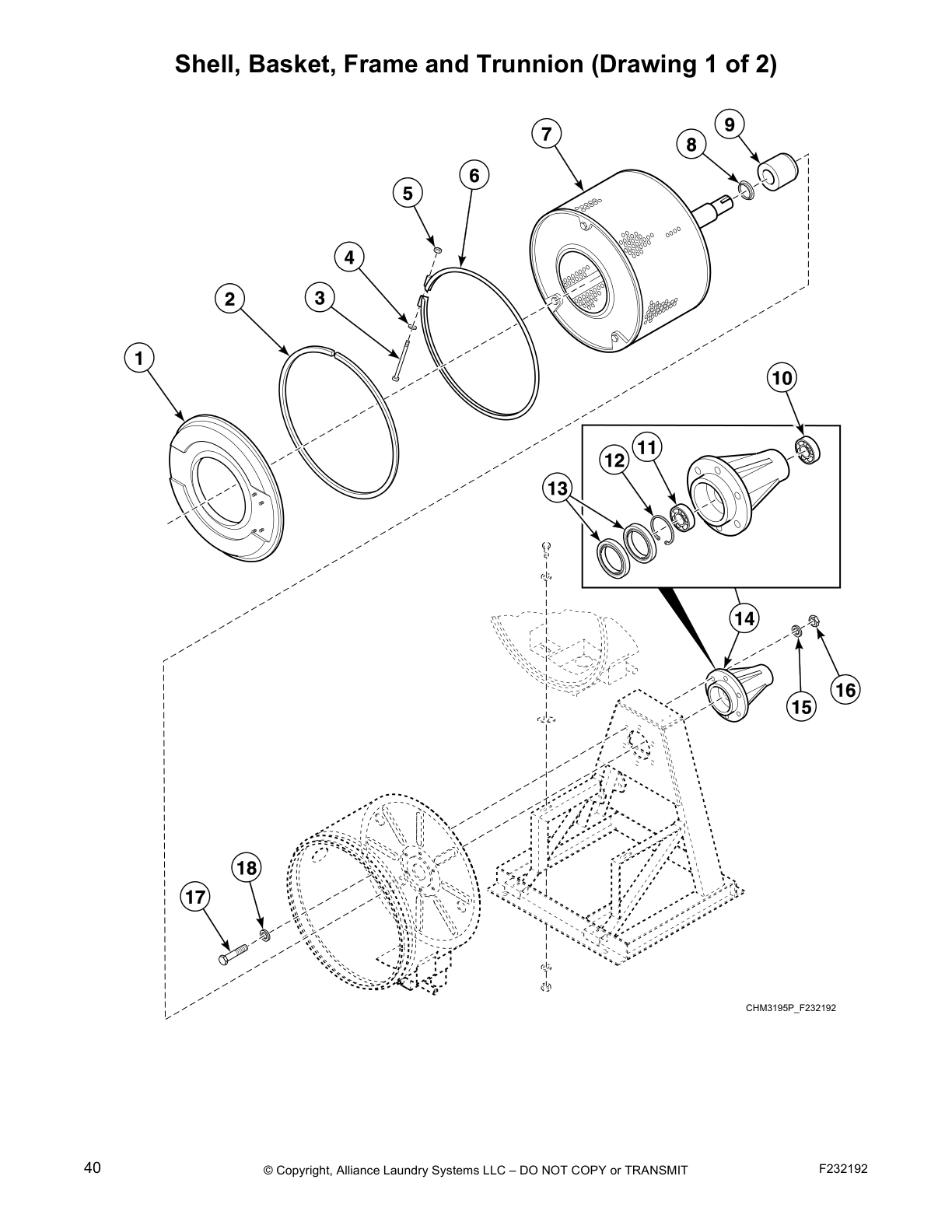

Shell, Basket, Frame and Trunnion (Drawing 1 of 2)

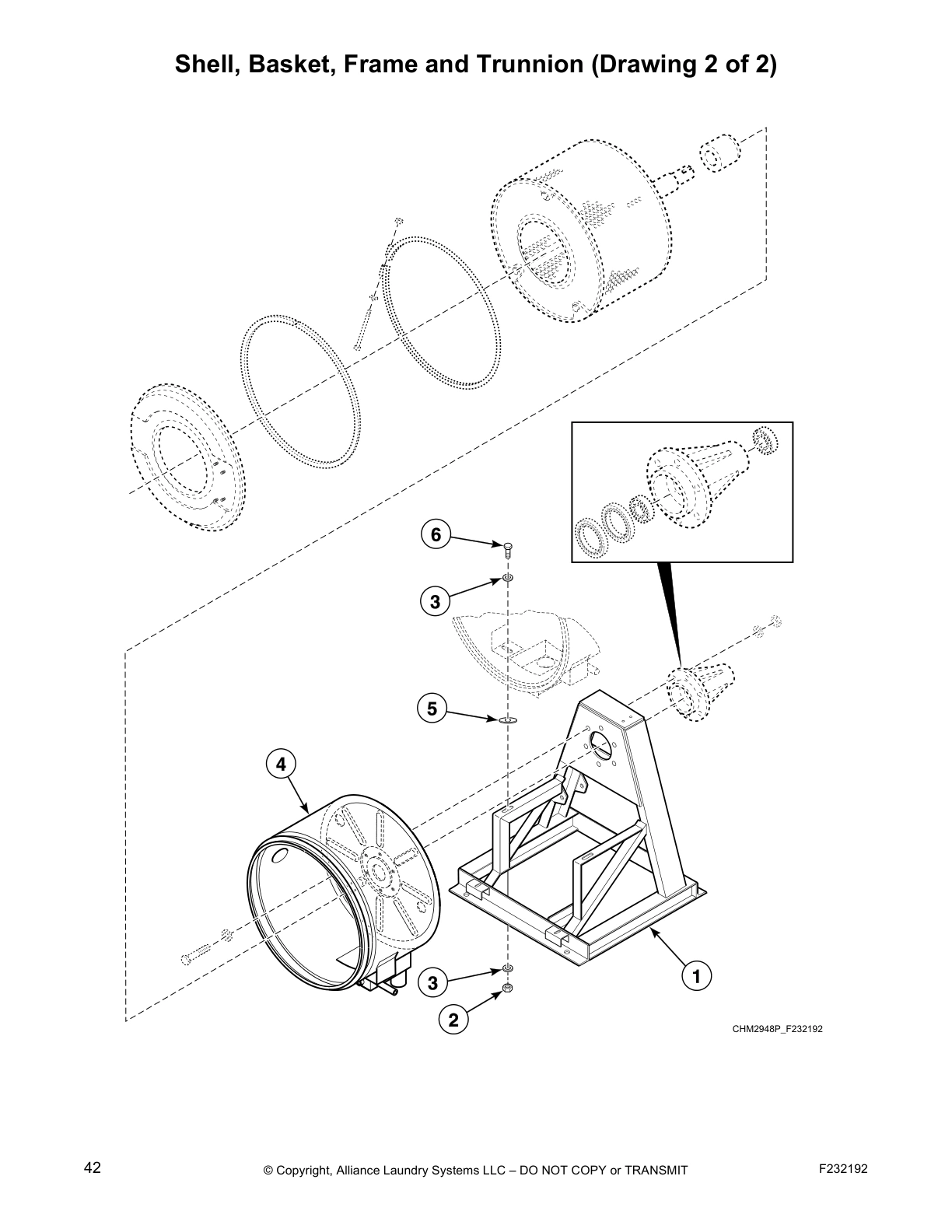

Shell, Basket, Frame and Trunnion (Drawing 2 of 2)

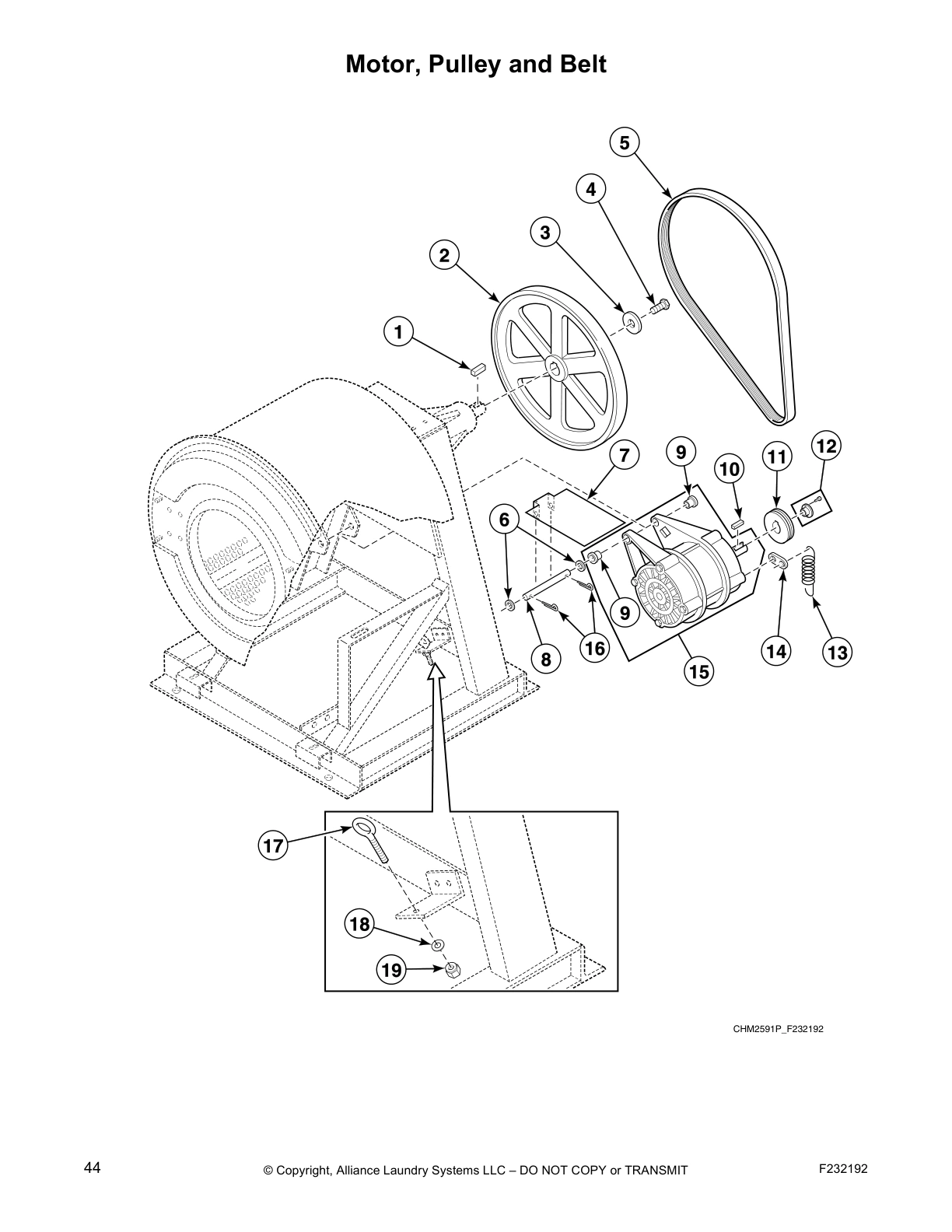

Motor, Pulley and Belt

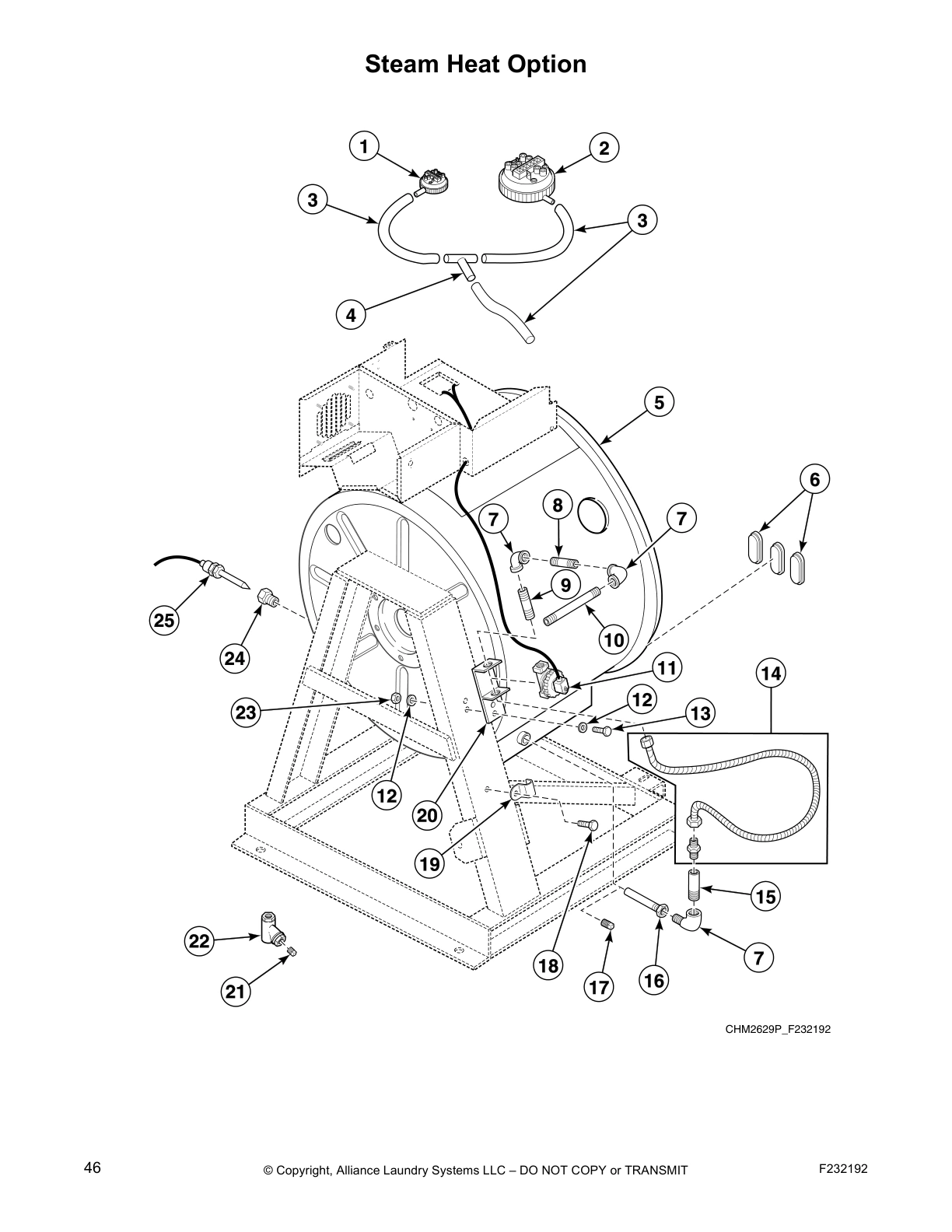

Steam Heat Option

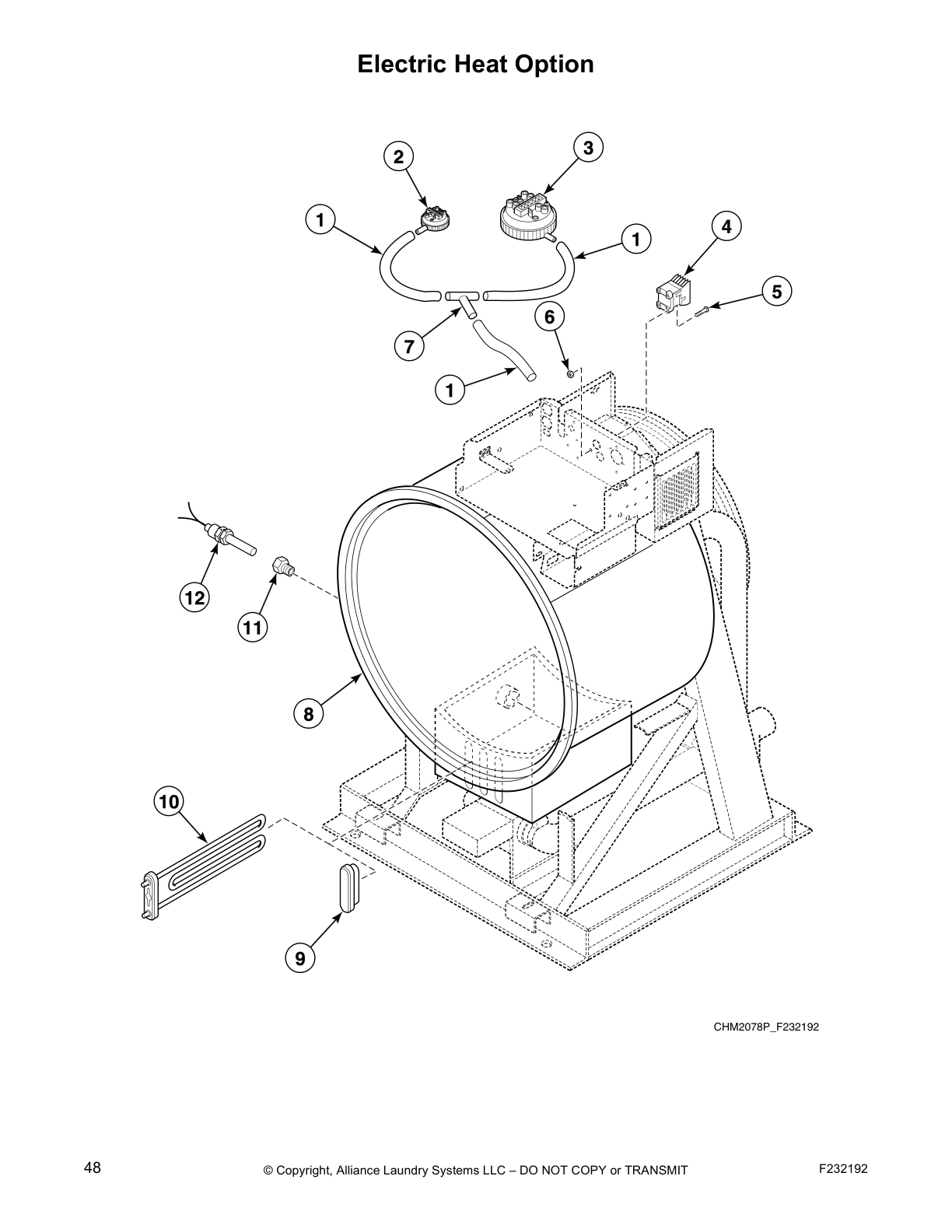

Electric Heat Option

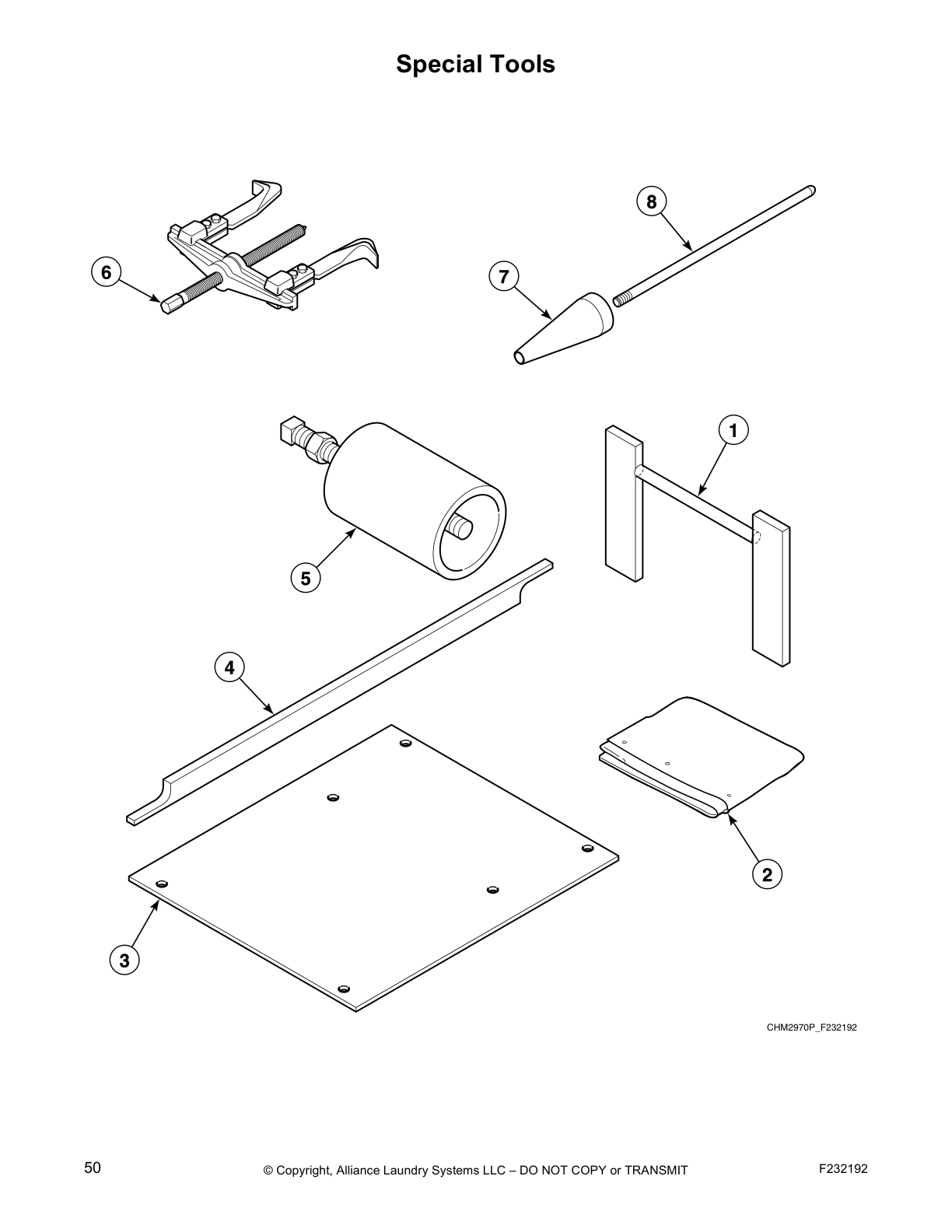

Special Tools
Common parts from model Unimac UC40VNV Washer
SPQ F170124 SPQ F170124 Contact Us For Availability
SPQ F8312003P SPQ F8312003P Contact Us For Availability
SPQ F0150503-00 SPQ F0150503-00 Contact Us For Availability
SPQ F231376-5 SPQ F231376-5 Contact Us For Availability
SPQ F140766 SPQ F140766 Contact Us For Availability
SPQ F200166 SPQ F200166 Contact Us For Availability
SPQ F200165 SPQ F200165 Contact Us For Availability
SPQ F8618901P SPQ F8618901P Contact Us For Availability
SPQ F200166402 SPQ F200166402 Contact Us For Availability
SPQ F430303 SPQ F430303 Contact Us For Availability
SPQ F8196202 SPQ F8196202 Contact Us For Availability
1
Drain Valve SPQ F8406304 Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
PowerFlex 40 Drive SPQ F8169422 Contact Us For Availability
1
Keypad SPQ F370576P Contact Us For Availability
1
Supply Dispenser Standoff SPQ F0150504-00 Contact Us For Availability
1
Hose Clamp SPQ F200213 Contact Us For Availability
1
Grommet SPQ F200139500 Contact Us For Availability
1
Push Red Button Decal SPQ F230661 Contact Us For Availability
1
Side Panel SPQ F0635982-00P Contact Us For Availability
1
Door Lock Splash Shield SPQ F320200 Contact Us For Availability
1
Shell Front Assembly SPQ F0636283-00P Contact Us For Availability
1
Frame Weldment SPQ F200195302 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Tubing SPQ F422404P Contact Us For Availability
1
Basket Pulley Puller Tool SPQ F460131P Contact Us For Availability
2
Hose Clamp SPQ F8406303 Contact Us For Availability
2
Filter SPQ F0270321-00P Contact Us For Availability
2
Overflow Hose SPQ F8071701 Contact Us For Availability
2
AC Drive Radio Filter Assembly SPQ F8169423 Contact Us For Availability
2
Switch Panel Assembly SPQ F350413 Contact Us For Availability
2
Supply Dispenser Sub-Assembly SPQ F0381736-00P Contact Us For Availability
2
Nut SPQ F633512 Contact Us For Availability
2
Washer SPQ F270305 Contact Us For Availability
2
Washer SPQ F8200502P Contact Us For Availability
2
Grommet SPQ F8231001 Contact Us For Availability
2
Door Locking Linkage Pin SPQ F8059701 Contact Us For Availability
2
Nut SPQ F200195301 Contact Us For Availability
2
Belt SPQ F150269 Contact Us For Availability
2
Water Pressure Switch SPQ F8223001P Contact Us For Availability
2
Steam Bracket Assembly SPQ F0430165-00 Contact Us For Availability
3
Basket Assembly SPQ F792000 Contact Us For Availability
3
Overlay SPQ F633510 Contact Us For Availability
3
O-Ring SPQ F0430268-00 Contact Us For Availability
3
Washer SPQ F200205 Contact Us For Availability
3
Overflow Plug SPQ F200215 Contact Us For Availability
3
Counterclockwise Spin Rotation Decal SPQ F310125 Contact Us For Availability
3
SPQ F0798839-01 SPQ F0798839-01 Contact Us For Availability
3
Washer SPQ F0636108-01 Contact Us For Availability
3
Motor Drip Shield SPQ F431115 Contact Us For Availability
3
Bolt Layout Mounting Template SPQ F0637047-00 Contact Us For Availability
4
Momentary Switch SPQ F200057700 Contact Us For Availability
4
Supply Dispenser Bezel SPQ F150321 Contact Us For Availability
4
Drain Tee SPQ F0200238-00 Contact Us For Availability
4
Drain Valve Motor SPQ F150352 Contact Us For Availability
4
SPQ F8535601 SPQ F8535601 Contact Us For Availability
4
Lid Lock Pin SPQ F0636217-00 Contact Us For Availability
4
SPQ F0798839-00 SPQ F0798839-00 Contact Us For Availability
4
Excluder Seal SPQ F430518 Contact Us For Availability
4
Motor Support Rod SPQ F430100 Contact Us For Availability
4
Contactor SPQ F330178P Contact Us For Availability
5
SPQ F8390801 SPQ F8390801 Contact Us For Availability
5
Control Panel Decal SPQ F231402 Contact Us For Availability
5
Screw SPQ F0636524-03 Contact Us For Availability
5
Drain Hose SPQ F430927 Contact Us For Availability
5
Top Cover Assembly SPQ F0170426-00 Contact Us For Availability
5
SPQ F431901 SPQ F431901 Contact Us For Availability
5
Motor Support Bushing SPQ F280369P Contact Us For Availability
5
Contactor SPQ F330182 Contact Us For Availability
5
Basket Puller Kit SPQ F798002 Contact Us For Availability
6
SPQ F200203200 SPQ F200203200 Contact Us For Availability
6
SPQ F430922 SPQ F430922 Contact Us For Availability
6
SPQ F430325 SPQ F430325 Contact Us For Availability
6
SPQ F190303 SPQ F190303 Contact Us For Availability
6
Input Power Connection Box Cover SPQ F0636524-01 Contact Us For Availability
6
SPQ F270407 SPQ F270407 Contact Us For Availability
6
Drain Valve Cover SPQ F380933P Contact Us For Availability
6
SPQ F730155 SPQ F730155 Contact Us For Availability
6
Supply Dispenser Lid SPQ 70155603 Contact Us For Availability
6
Shaft Seal Sleeve SPQ F741701 Contact Us For Availability
6
SPQ F063597402P SPQ F063597402P Contact Us For Availability
6
Nipple SPQ F8196204 Contact Us For Availability
6
Screw SPQ F330179P Contact Us For Availability
6
Basket Puller Tool SPQ F460129P Contact Us For Availability
7
Shaft Seal Sleeve Kit SPQ F938P3 Contact Us For Availability
7
SPQ F0220922-00 SPQ F0220922-00 Contact Us For Availability
7
Spacer SPQ F200120100 Contact Us For Availability
7
External Supply Connection Decal SPQ F430948 Contact Us For Availability
7
Rear Drain Hose SPQ F150398 Contact Us For Availability
7
Drain Valve Kit SPQ F380943P Contact Us For Availability
7
SPQ F0150273-00 SPQ F0150273-00 Contact Us For Availability
7
SPQ F430225 SPQ F430225 Contact Us For Availability
7
SPQ F200216900 SPQ F200216900 Contact Us For Availability
7
Nut SPQ F330180P Contact Us For Availability
7
Basket Guide Cone Tool SPQ 397P4 Contact Us For Availability
8
SPQ F110110 SPQ F110110 Contact Us For Availability
8
Washer SPQ F0231601-32 Contact Us For Availability
8
SPQ F200202201P SPQ F200202201P Contact Us For Availability
8
SPQ F200185200 SPQ F200185200 Contact Us For Availability
8
SPQ F431041 SPQ F431041 Contact Us For Availability
8
SPQ F063664000P SPQ F063664000P Contact Us For Availability
8
SPQ F430977 SPQ F430977 Contact Us For Availability
8
SPQ F8391701P SPQ F8391701P Contact Us For Availability
8
SPQ F603059 SPQ F603059 Contact Us For Availability
8
SPQ 70079601 SPQ 70079601 Contact Us For Availability
8
Tee SPQ F430917 Contact Us For Availability
8
Basket Installation Tool Rod SPQ 401P4 Contact Us For Availability
9
Flange Relay SPQ F037044860-2 Contact Us For Availability
9
Shell Weldment SPQ F430231 Contact Us For Availability
9
Microcomputer SPQ F0636810-01 Contact Us For Availability
9
SPQ F602533 SPQ F602533 Contact Us For Availability
9
SPQ F0200240-00 SPQ F0200240-00 Contact Us For Availability
9
SPQ F230693 SPQ F230693 Contact Us For Availability
9
SPQ F200270500 SPQ F200270500 Contact Us For Availability
9
SPQ F8066701 SPQ F8066701 Contact Us For Availability
9
SPQ F8337001 SPQ F8337001 Contact Us For Availability
9
SPQ F200186100 SPQ F200186100 Contact Us For Availability
9
SPQ F420708 SPQ F420708 Contact Us For Availability
10
Bearing SPQ F100108 Contact Us For Availability
10
Water Level Switch SPQ F0340345-10P Contact Us For Availability
10
L-Catch Kit SPQ F746808 Contact Us For Availability
10
Terminal Block SPQ M413865 Contact Us For Availability
10
Inverter Drive SPQ F370843 Contact Us For Availability
10
Coin Meter Mounting Shim SPQ F0634819-00 Contact Us For Availability
10
Water Hose SPQ F200108P Contact Us For Availability
10
Sheave Kit SPQ F430802 Contact Us For Availability
10
Pipe Nipple SPQ 70214101 Contact Us For Availability
10
Heating Element SPQ F0360210-00 Contact Us For Availability
11
Retaining Ring SPQ F100123P Contact Us For Availability
11
Door Lock Catch Casting SPQ F150261 Contact Us For Availability
11
Input Power Block SPQ F140748 Contact Us For Availability
11
Blind Rivet SPQ J1111905 Contact Us For Availability
11
Left Side Panel SPQ F8155901P Contact Us For Availability
11
Pulley Bushing SPQ F280287P Contact Us For Availability
11
DIN Valve Kit SPQ F8521601 Contact Us For Availability
11
Reducer Bushing SPQ F421936 Contact Us For Availability
12
Pressure Switch SPQ F8134602P Contact Us For Availability
12
Clip SPQ F601515 Contact Us For Availability
12
Screw SPQ F430177 Contact Us For Availability
12
Ground Terminal Lug SPQ F140747 Contact Us For Availability
12
Washer SPQ F430317 Contact Us For Availability
12
Switch Extension SPQ F340913 Contact Us For Availability
12
Magnetic Switch Assembly SPQ F8245101 Contact Us For Availability
12
Cabinet Brace SPQ F0636218-00 Contact Us For Availability
12
Screw SPQ F430982 Contact Us For Availability
12
Triple Lip Seal SPQ F8337801 Contact Us For Availability
12
Extension Spring SPQ F280298P Contact Us For Availability
12
Temperature Probe SPQ F370606P Contact Us For Availability
13
Muffin Fan SPQ F110105 Contact Us For Availability
13
3-Way Valve SPQ F0381769-00P Contact Us For Availability
13
Screw SPQ F430174 Contact Us For Availability
13
Snap Bushing SPQ F140734 Contact Us For Availability
13
Transformer Mounting Bracket SPQ F200167700 Contact Us For Availability
13
Rod SPQ F200321200 Contact Us For Availability
13
Washer SPQ F431100 Contact Us For Availability
13
Trunnion Kit SPQ F8203803 Contact Us For Availability
13
Motor Conversion Kit SPQ F310124 Contact Us For Availability
13
Screw SPQ F430108 Contact Us For Availability
14
AC Drive Cover Assembly SPQ F200146800P Contact Us For Availability
14
Switch Mounting Plate Sub-Assembly SPQ F330227 Contact Us For Availability
14
Nut SPQ F430232 Contact Us For Availability
14
Strainer SPQ F0381766-00P Contact Us For Availability
14
Fuse SPQ F140938 Contact Us For Availability
14
Screw SPQ F430107 Contact Us For Availability
14
Door Hinge Shim Kit SPQ F602813-2 Contact Us For Availability
14
Rear Panel SPQ F430925 Contact Us For Availability
14
Washer SPQ F747003 Contact Us For Availability
14
Pipe Insulation SPQ F410300 Contact Us For Availability
15
Door Lock Torsion Spring SPQ F310110 Contact Us For Availability
15
Switch Panel Decal SPQ F633540 Contact Us For Availability
15
Y Connector SPQ F0381765-00P Contact Us For Availability
15
Fuse Holder SPQ F170615 Contact Us For Availability
15
Transformer SPQ F360156P Contact Us For Availability
15
Screw SPQ F200131000P Contact Us For Availability
15
Side Panel Assembly SPQ F0636220-00P Contact Us For Availability
15
Nut SPQ F747002 Contact Us For Availability
15
Steam Hose SPQ F200153P Contact Us For Availability
16
Rocker Switch SPQ F231381 Contact Us For Availability
16
Vacuum Breaker Bottom SPQ F0381750-00P Contact Us For Availability
16
Standoff SPQ F350115 Contact Us For Availability
16
Door Hinge SPQ F430536 Contact Us For Availability
16
Side Panel Assembly SPQ F8178201 Contact Us For Availability
16
Door Lock Switch Lever SPQ F431902 Contact Us For Availability
16
Screw SPQ F431131 Contact Us For Availability
16
Screw SPQ F430401 Contact Us For Availability
16
Steam Injector Tube Assembly SPQ 70435601 Contact Us For Availability
17
Vacuum Breaker Top SPQ F0381738-00P Contact Us For Availability
17
Door Lock Plate Shim SPQ F0636636-00 Contact Us For Availability
17
Light SPQ F340411 Contact Us For Availability
17
External Supply Fuse Decal SPQ F0350312-10 Contact Us For Availability
17
Door Mount SPQ F190216P Contact Us For Availability
17
Shell Front Gasket Kit SPQ F430240 Contact Us For Availability
17
Washer SPQ F430537 Contact Us For Availability
17
Plug SPQ F8368201 Contact Us For Availability
18
Door Lock Pin Release Spring SPQ F430264 Contact Us For Availability
18
Switch Mounting Panel Assembly SPQ F350411 Contact Us For Availability
18
Vacuum Breaker Assembly SPQ F0381737-00P Contact Us For Availability
18
Fuse Holder Bracket SPQ F180506 Contact Us For Availability
18
Right Side Panel SPQ F200178200 Contact Us For Availability
18
Shell Band Kit SPQ F430987 Contact Us For Availability
18
Nut SPQ F430300 Contact Us For Availability
18
Water Level Switch SPQ F200202600 Contact Us For Availability
19
Trim SPQ F150271 Contact Us For Availability
19
Washer SPQ F231271 Contact Us For Availability
19
E-Ring Retainer SPQ F431147 Contact Us For Availability
19
Stud SPQ F0635981-01 Contact Us For Availability
20
Door Assembly SPQ F430533 Contact Us For Availability
20
Nut SPQ F170403 Contact Us For Availability
20
Door Lock Pin Linkage SPQ F310137 Contact Us For Availability
21
Bolt SPQ F015050100P Contact Us For Availability
21
Vacuum Breaker Hose SPQ F422808 Contact Us For Availability
21
Door Lock Retainer Latch SPQ F310205 Contact Us For Availability
21
Nut SPQ F601186 Contact Us For Availability
22
Hose Clamp SPQ F015033000 Contact Us For Availability
22
Door Release Solenoid SPQ F431017 Contact Us For Availability
22
Reducer Bushing SPQ F420409 Contact Us For Availability
23
Cap SPQ F0150329-00 Contact Us For Availability
23
Door Lock Spring SPQ F431022 Contact Us For Availability
23
Door Lock Solenoid SPQ F431123 Contact Us For Availability
24
Supply Dispenser Assembly SPQ F603031 Contact Us For Availability
24
Red Dot Decal SPQ F431113 Contact Us For Availability
24
Tubing SPQ F430215 Contact Us For Availability
24
Door Lock Kit SPQ F431231 Contact Us For Availability
25
Injection Nozzle SPQ F602374 Contact Us For Availability
25
Pushbutton Rod SPQ F8150501 Contact Us For Availability
25
Spacer SPQ F150455 Contact Us For Availability
26
Injection Nozzle Kit SPQ F150390 Contact Us For Availability
26
Spring Pin SPQ F060390105 Contact Us For Availability
26
Door Lock Microswitch SPQ F0636103-00 Contact Us For Availability
27
Door Lock Plate Assembly SPQ F300128P Contact Us For Availability
27
Magnet SPQ F430974 Contact Us For Availability
28
Door Lock Assembly Cover SPQ F0300131-00P Contact Us For Availability
28
Door Handle Kit SPQ F430916 Contact Us For Availability
29
Door Spacer SPQ F150225 Contact Us For Availability
30
Door Glass SPQ F230662 Contact Us For Availability
32
SPQ F320300 SPQ F320300 Contact Us For Availability
33
SPQ F431222 SPQ F431222 Contact Us For Availability
34
SPQ F431916 SPQ F431916 Contact Us For Availability
NI
SPQ F200166302 SPQ F200166302 Contact Us For Availability
NI
SPQ F730168 SPQ F730168 Contact Us For Availability
NI
160-Series to PowerFlex 40 Drive Kit SPQ F200320900 Contact Us For Availability
NI
SPQ F8172408 SPQ F8172408 Contact Us For Availability
NI
SPQ F8172504 SPQ F8172504 Contact Us For Availability
NI
SPQ F401206 SPQ F401206 Contact Us For Availability
NI
SPQ F370313-60P SPQ F370313-60P Contact Us For Availability
NI
SPQ F0200244-00 SPQ F0200244-00 Contact Us For Availability
NI
SPQ F231376-6 SPQ F231376-6 Contact Us For Availability
NI
SPQ F231376-3 SPQ F231376-3 Contact Us For Availability
NI
SPQ F430903 SPQ F430903 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ F0200239-00 SPQ F0200239-00 Contact Us For Availability
NI
SPQ F200185300 SPQ F200185300 Contact Us For Availability
NI
Drain Valve Kit SPQ F380972P Contact Us For Availability
NI
SPQ F200133600 SPQ F200133600 Contact Us For Availability
NI
SPQ F200166300 SPQ F200166300 Contact Us For Availability
NI
SPQ F8485401P SPQ F8485401P Contact Us For Availability
NI
SPQ F017012402 SPQ F017012402 Contact Us For Availability
NI
SPQ F630430 SPQ F630430 Contact Us For Availability
NI
SPQ F431024 SPQ F431024 Contact Us For Availability
NI
SPQ F603003 SPQ F603003 Contact Us For Availability
NI
SPQ F8312006P SPQ F8312006P Contact Us For Availability
NI
SPQ F8343906P SPQ F8343906P Contact Us For Availability
NI
SPQ F200195402 SPQ F200195402 Contact Us For Availability
NI
SPQ F430942 SPQ F430942 Contact Us For Availability
NI
Heating Element Plug SPQ F422806 Contact Us For Availability
NI
SPQ F360202 SPQ F360202 Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
× ![]()
