Model Unimac UC30BN2 Washer – Common Parts & Diagrams

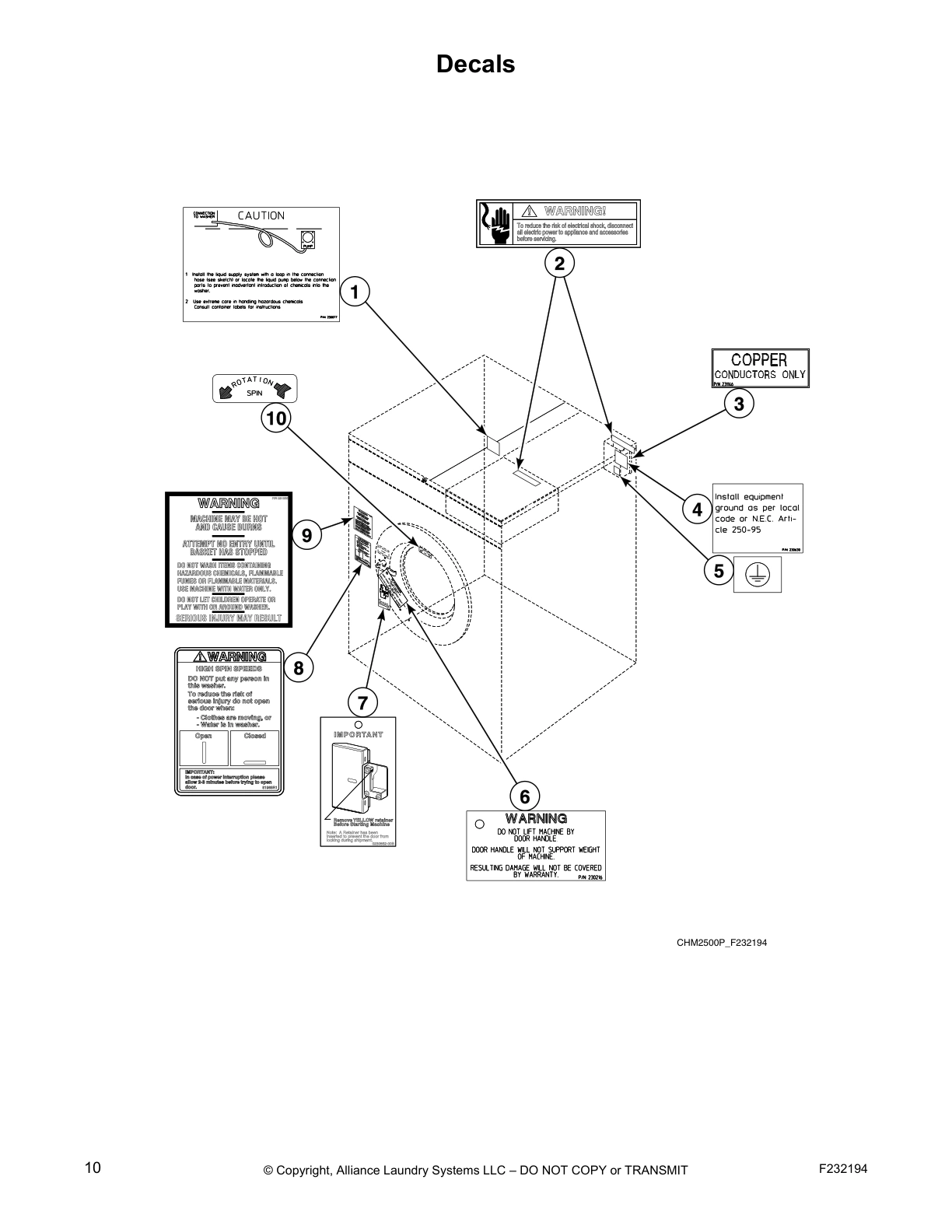

Decals

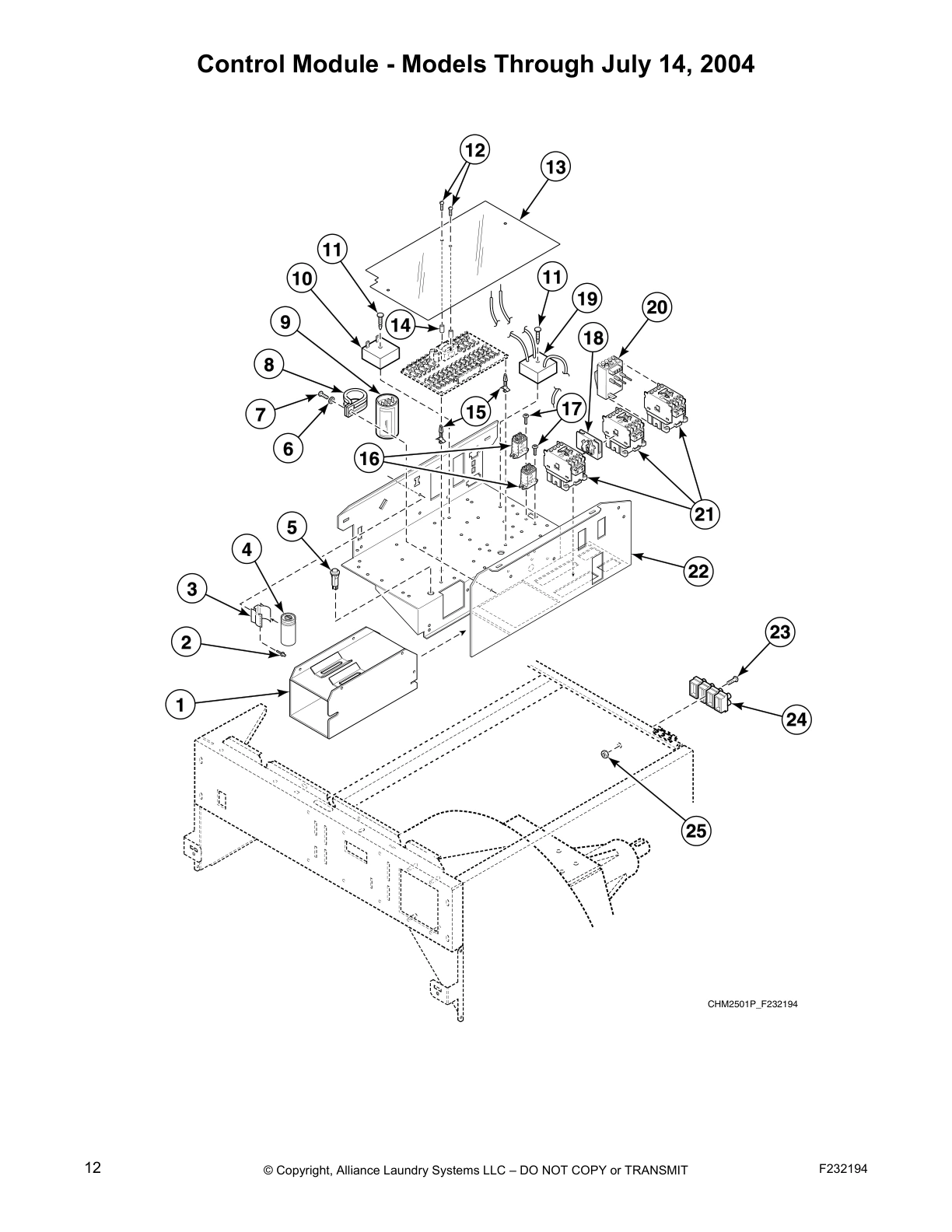

Control Module - Models Through July 14, 2004

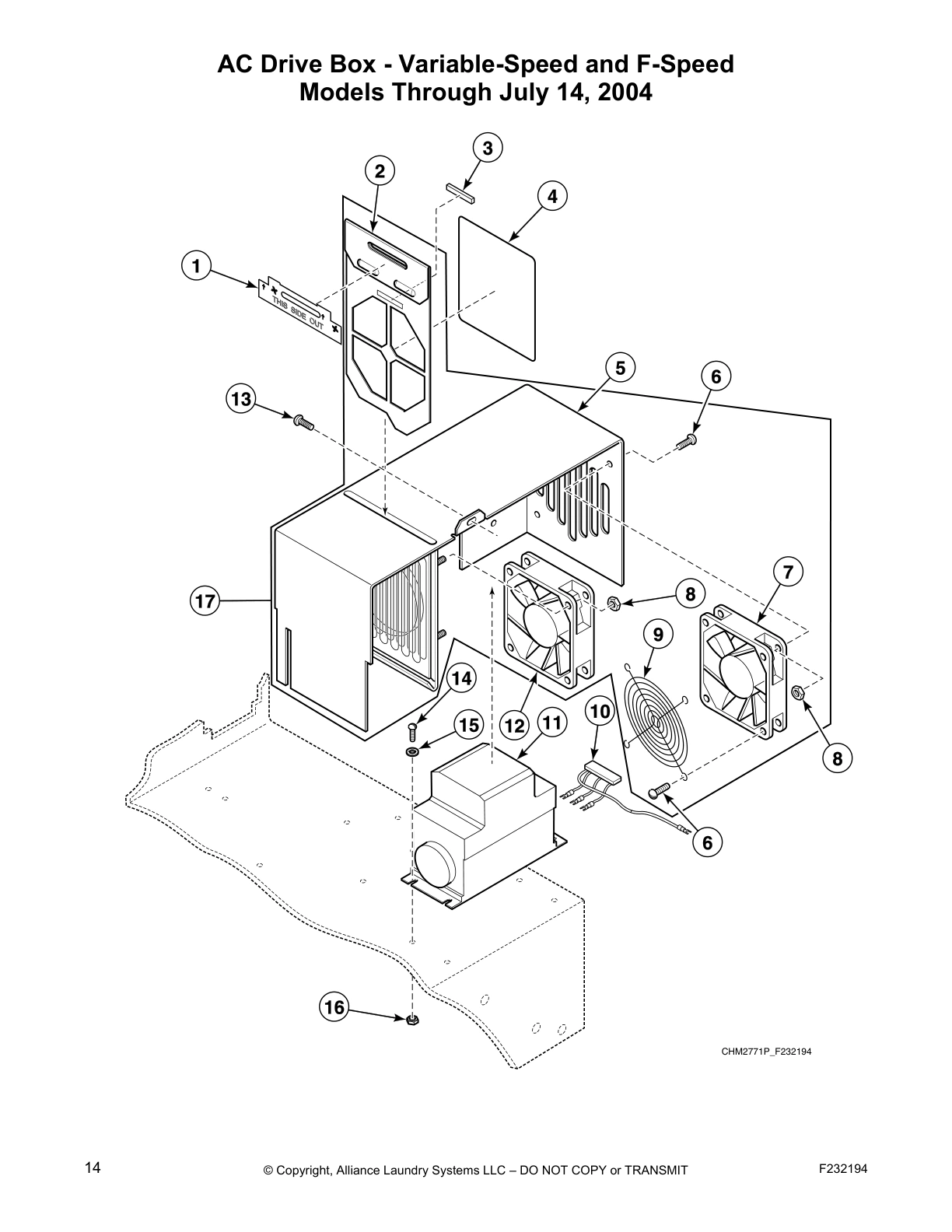

AC Drive Box - Variable-Speed and F-Speed
Models Through July 14, 2004

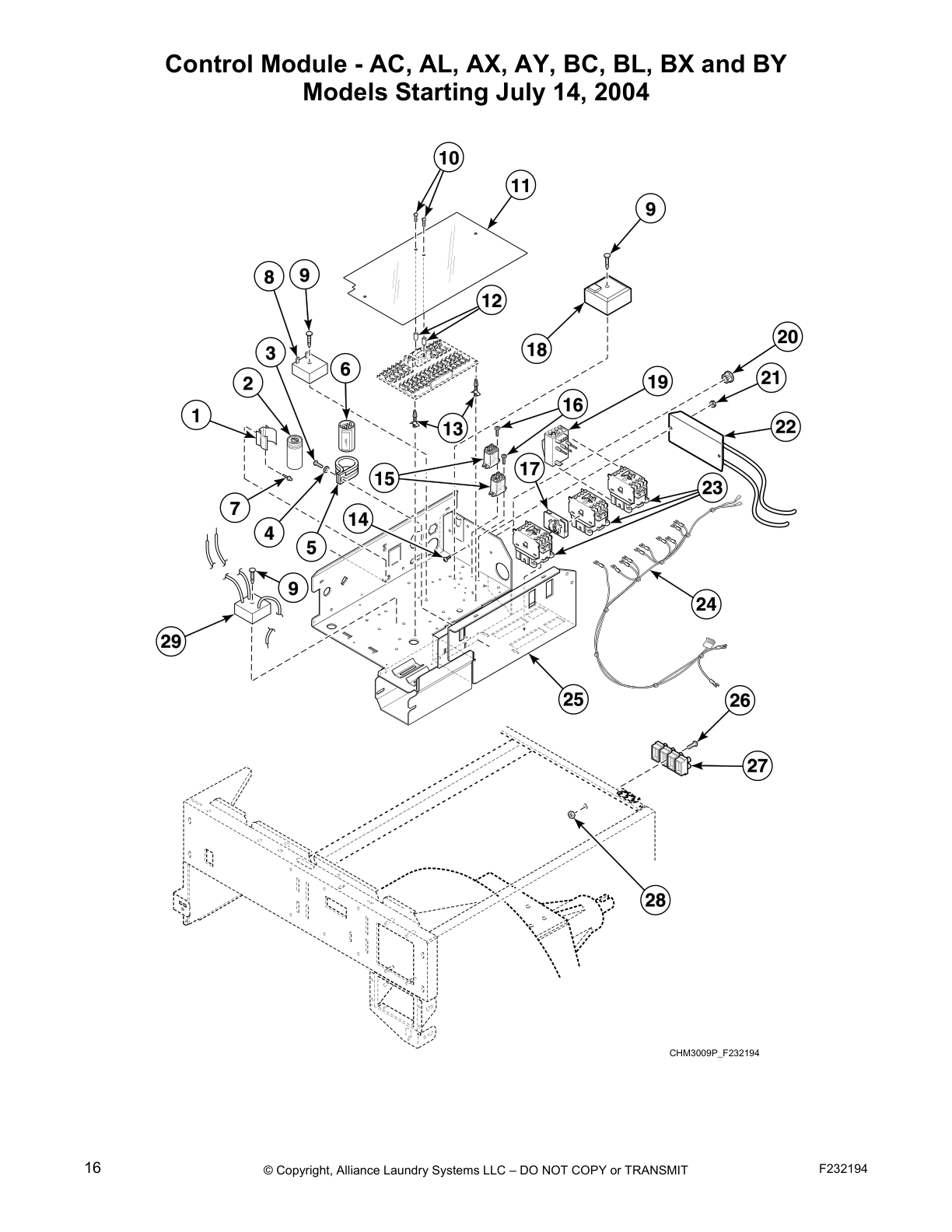

Control Module - AC, AL, AX, AY, BC, BL, BX and BY
Models Starting July 14, 2004

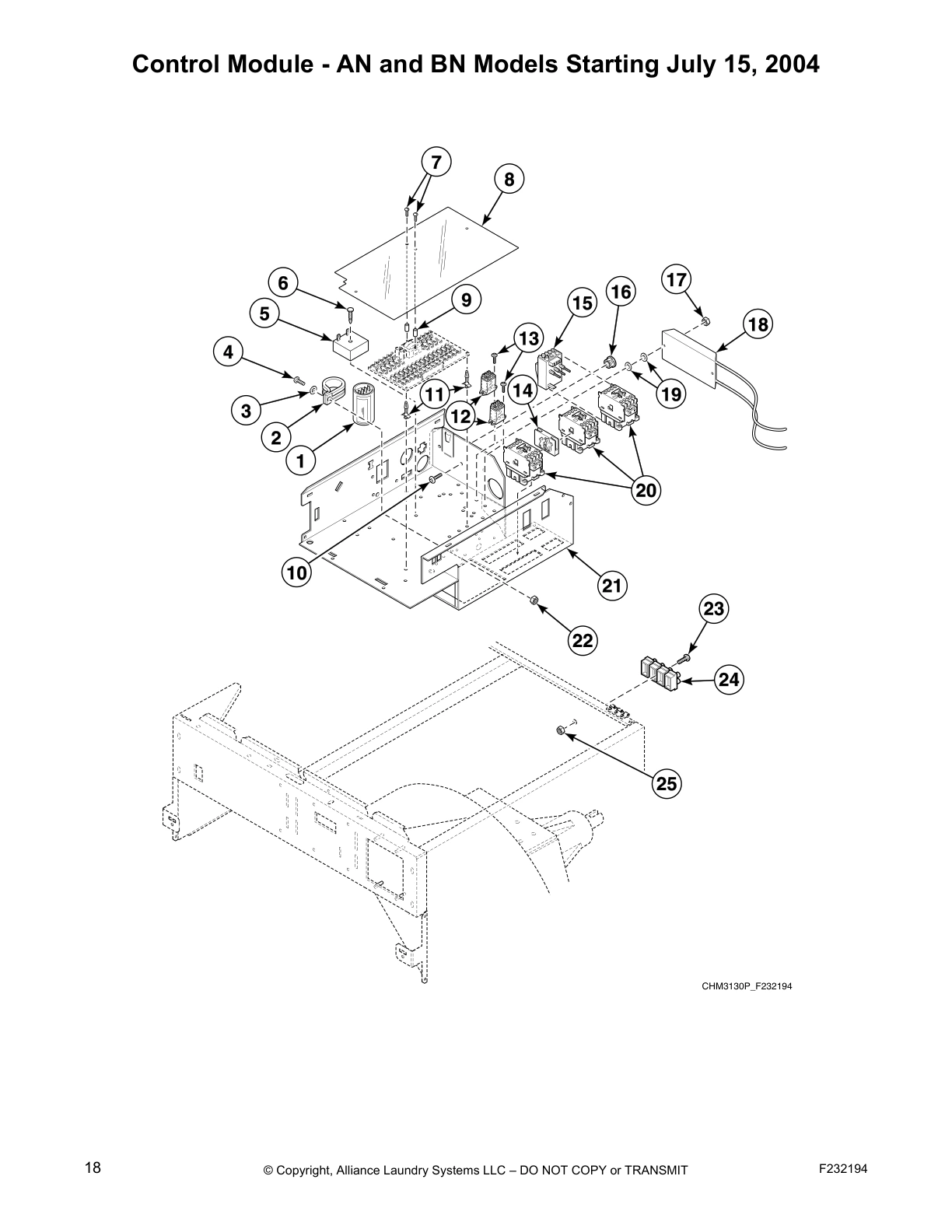

Control Module - AN and BN Models Starting July 15, 2004

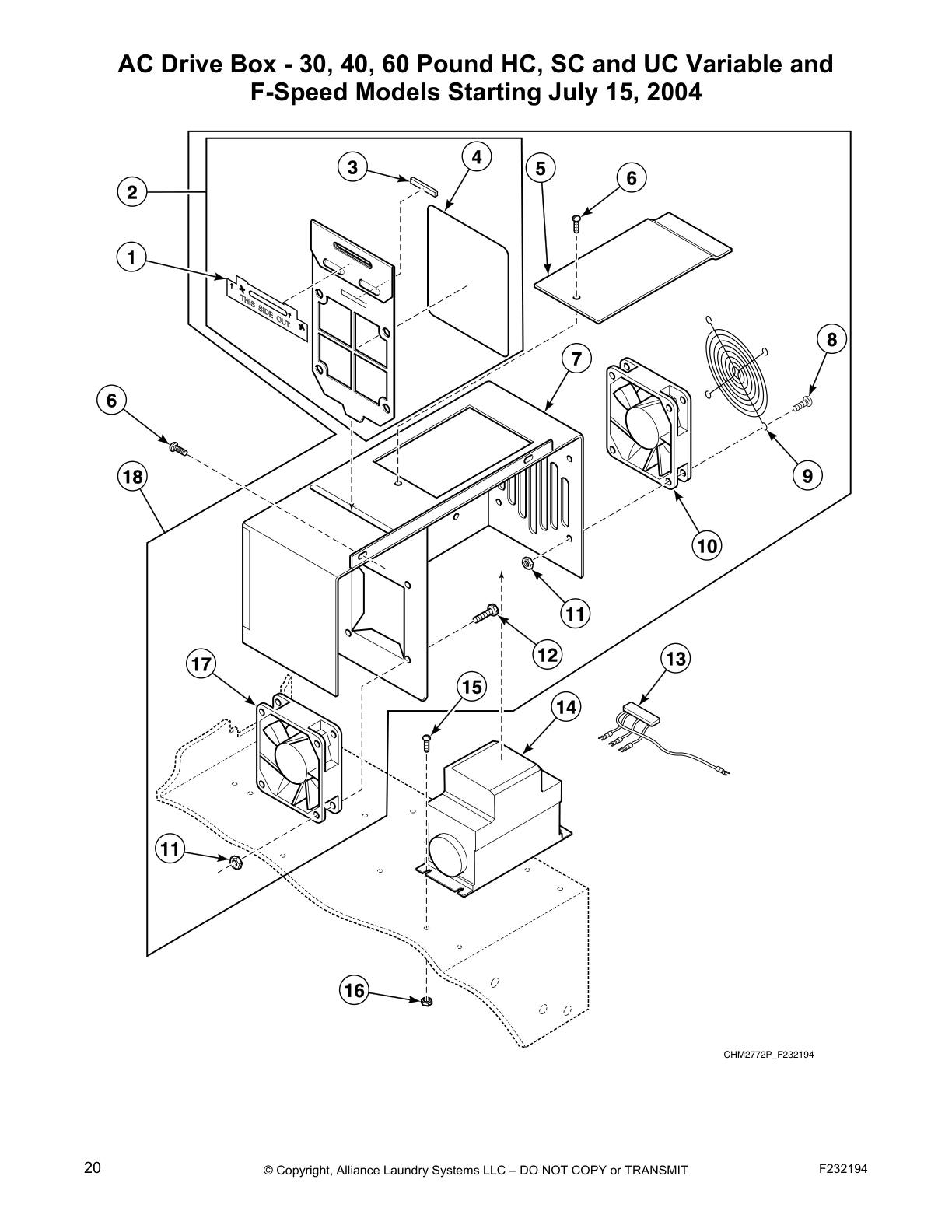

AC Drive Box - 30, 40, 60 Pound HC, SC and UC Variable and
F-Speed Models Starting July 15, 2004

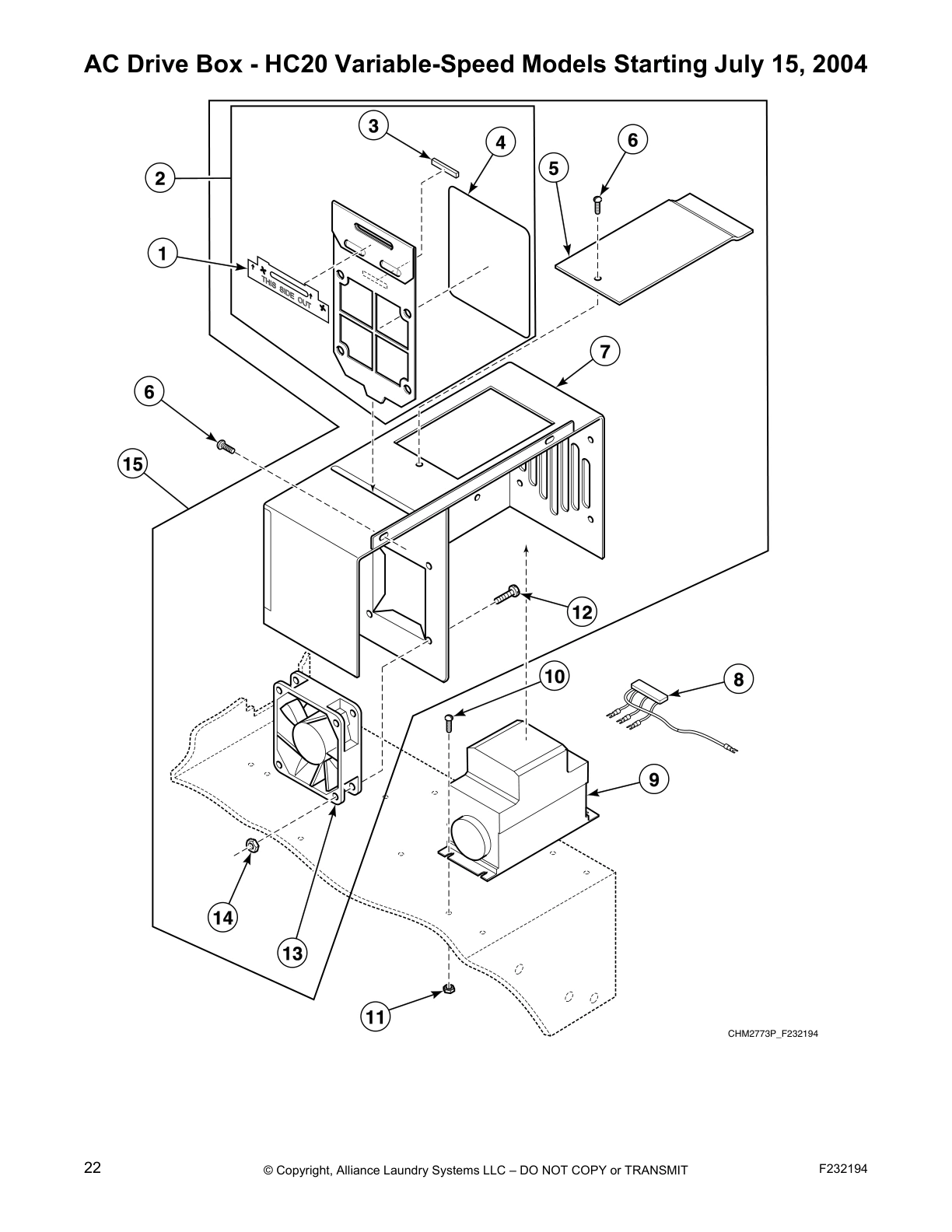

AC Drive Box - HC20 Variable-Speed Models Starting July 15, 2004

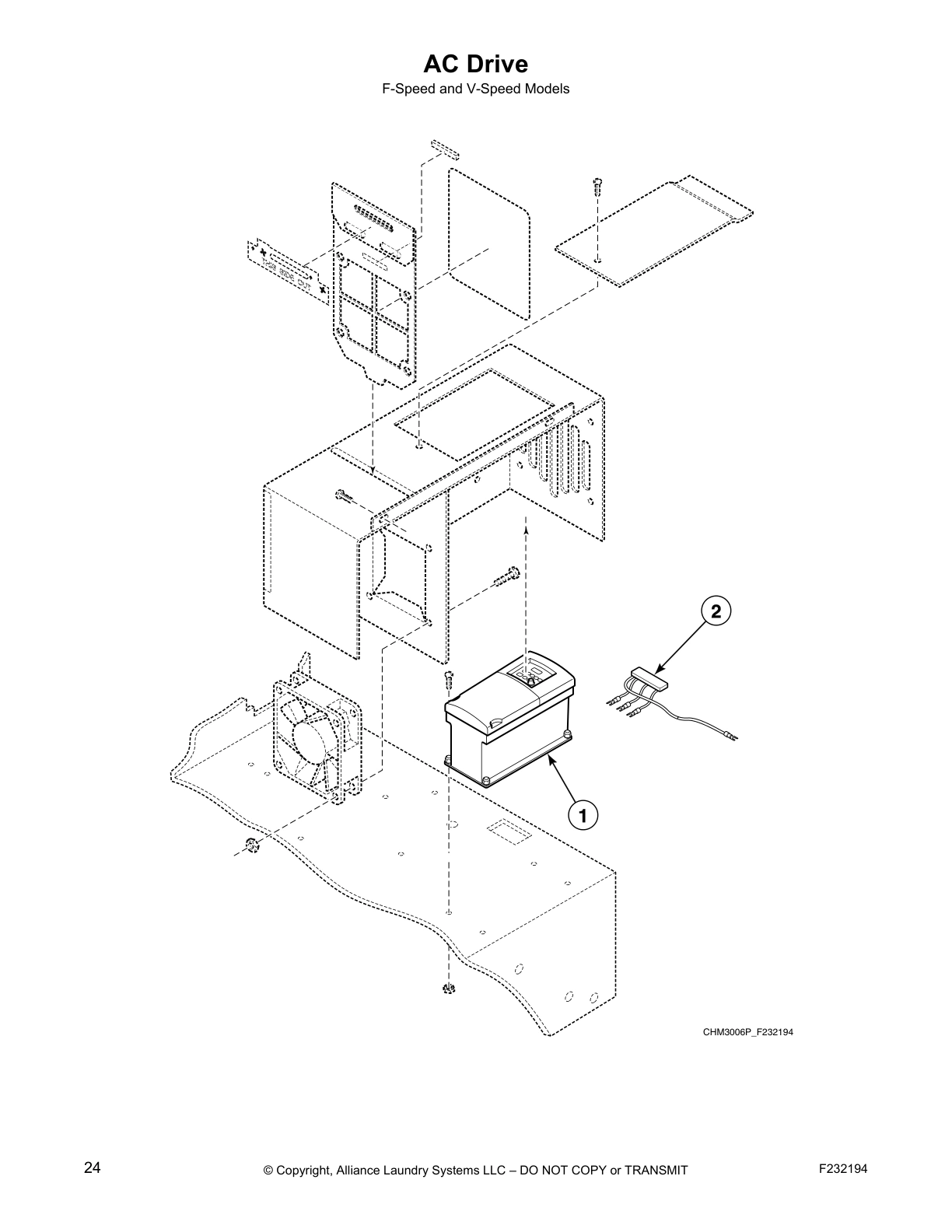

AC Drive

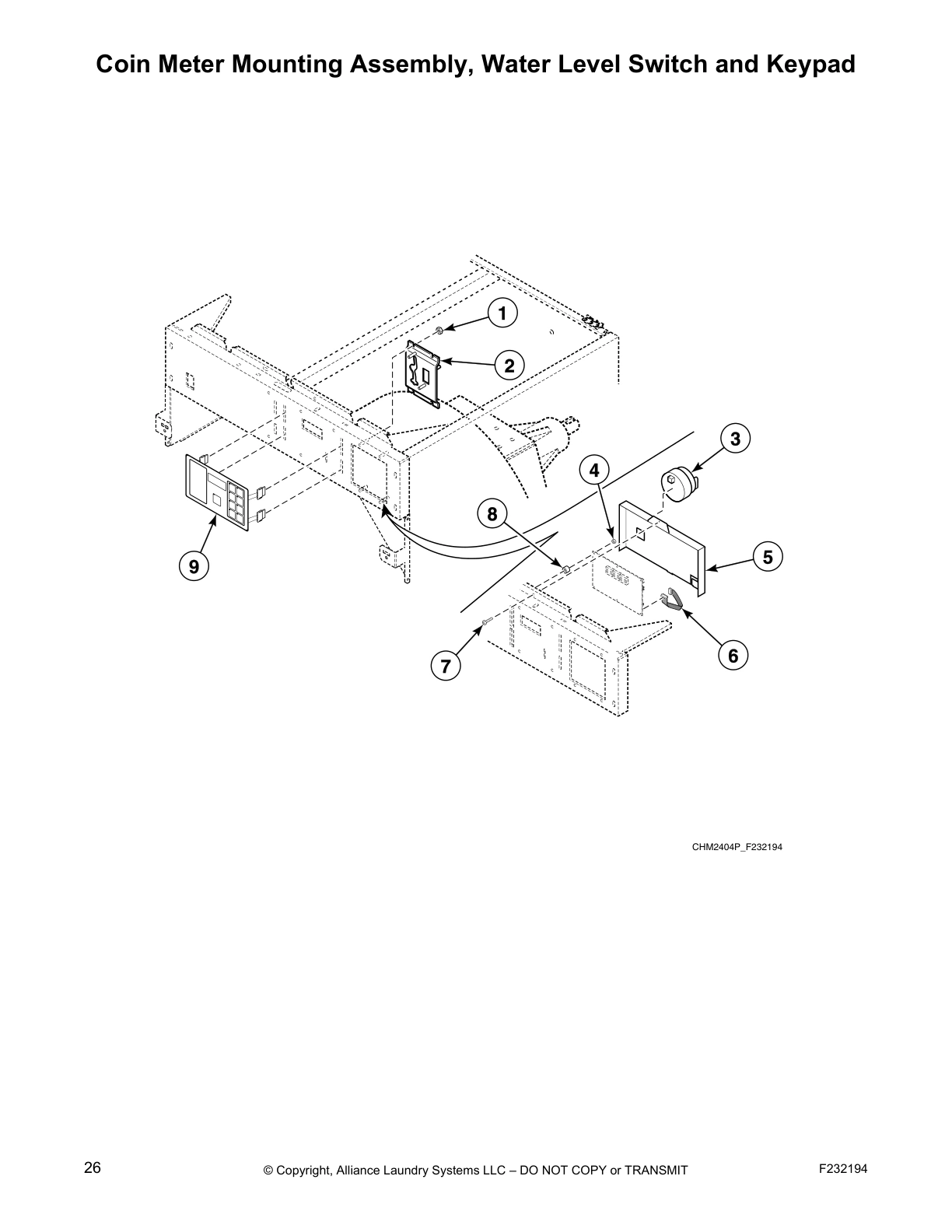

Coin Meter Mounting Assembly, Water Level Switch and Keypad

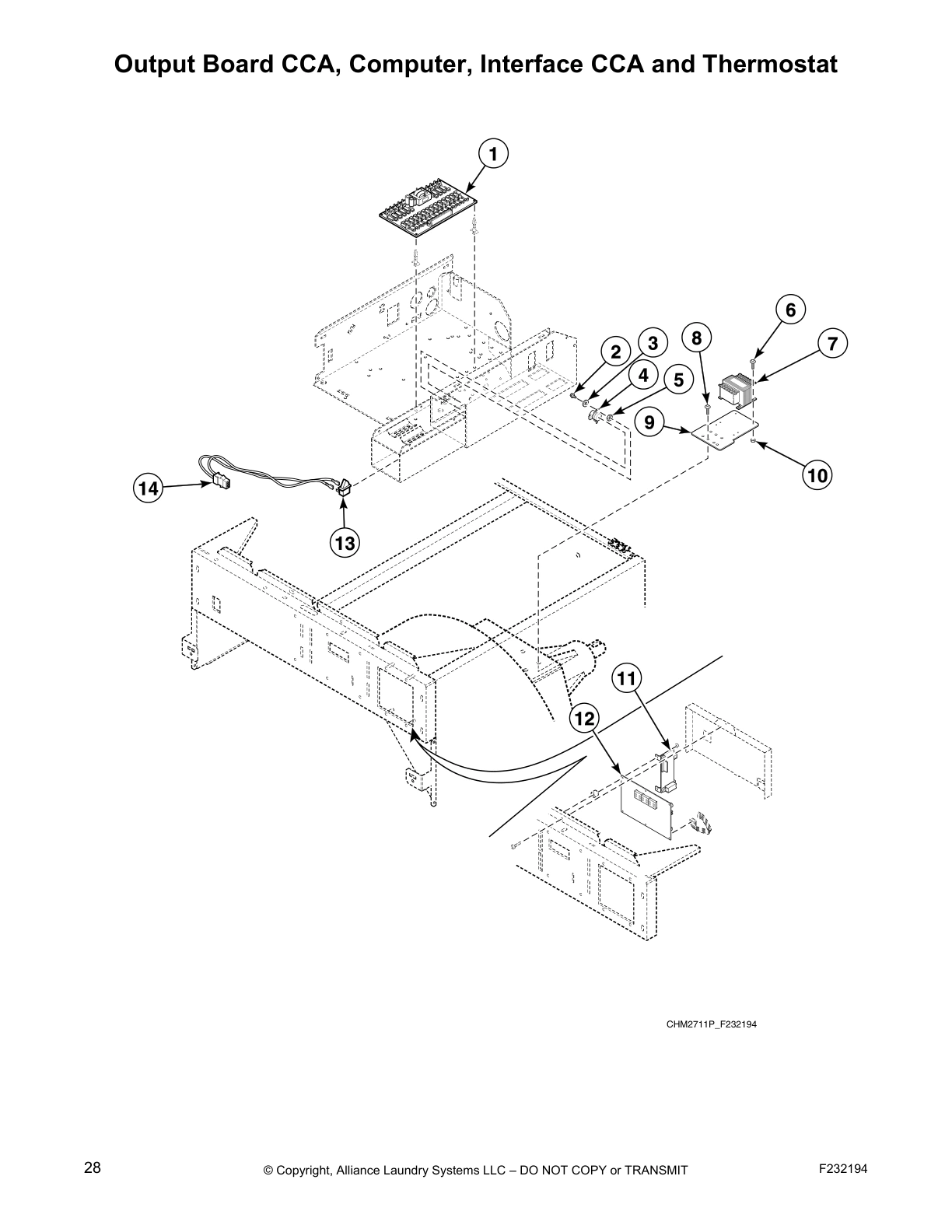

Output Board CCA, Computer, Interface CCA and Thermostat

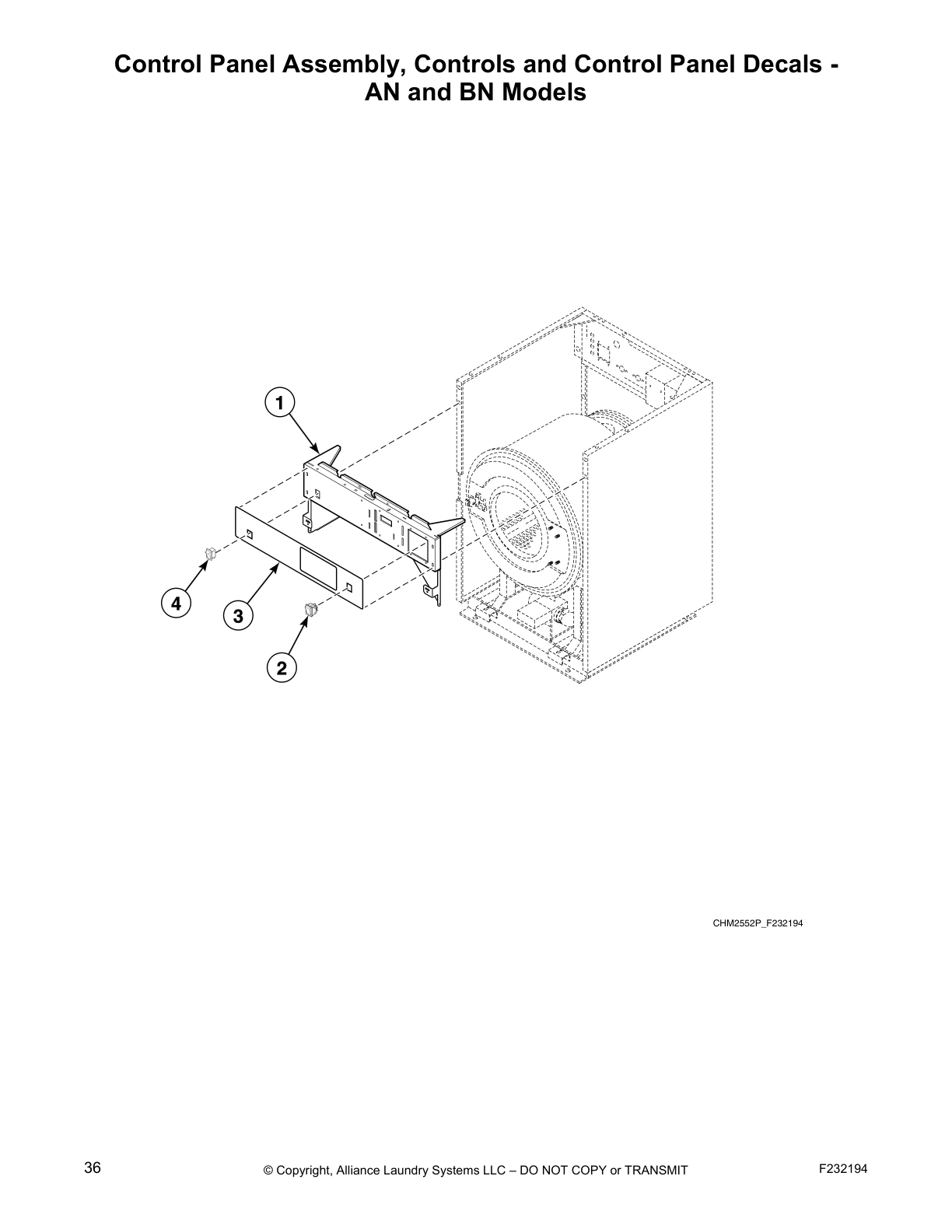

Control Panel Assembly, Controls and Control Panel Decals -
AN and BN Models

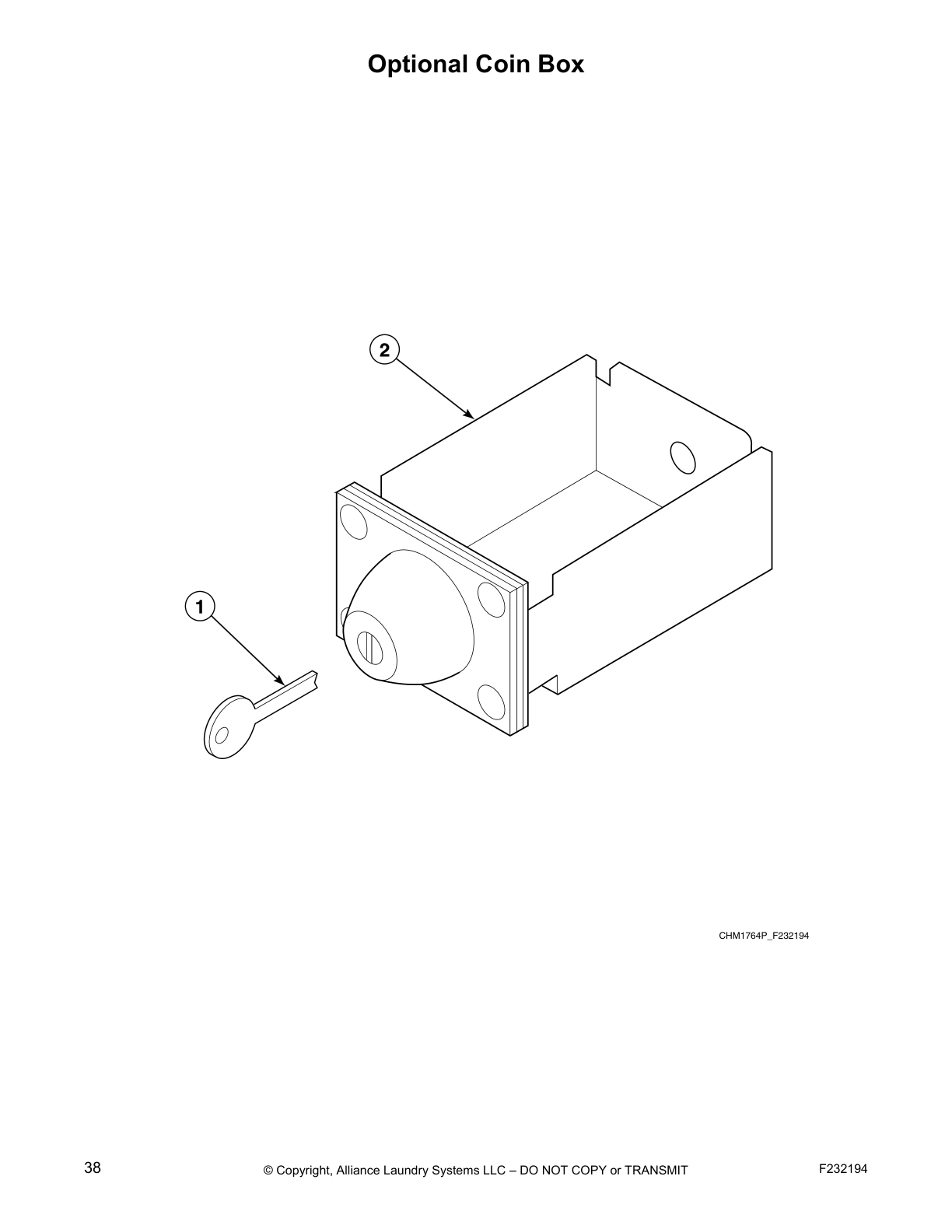

Optional Coin Box

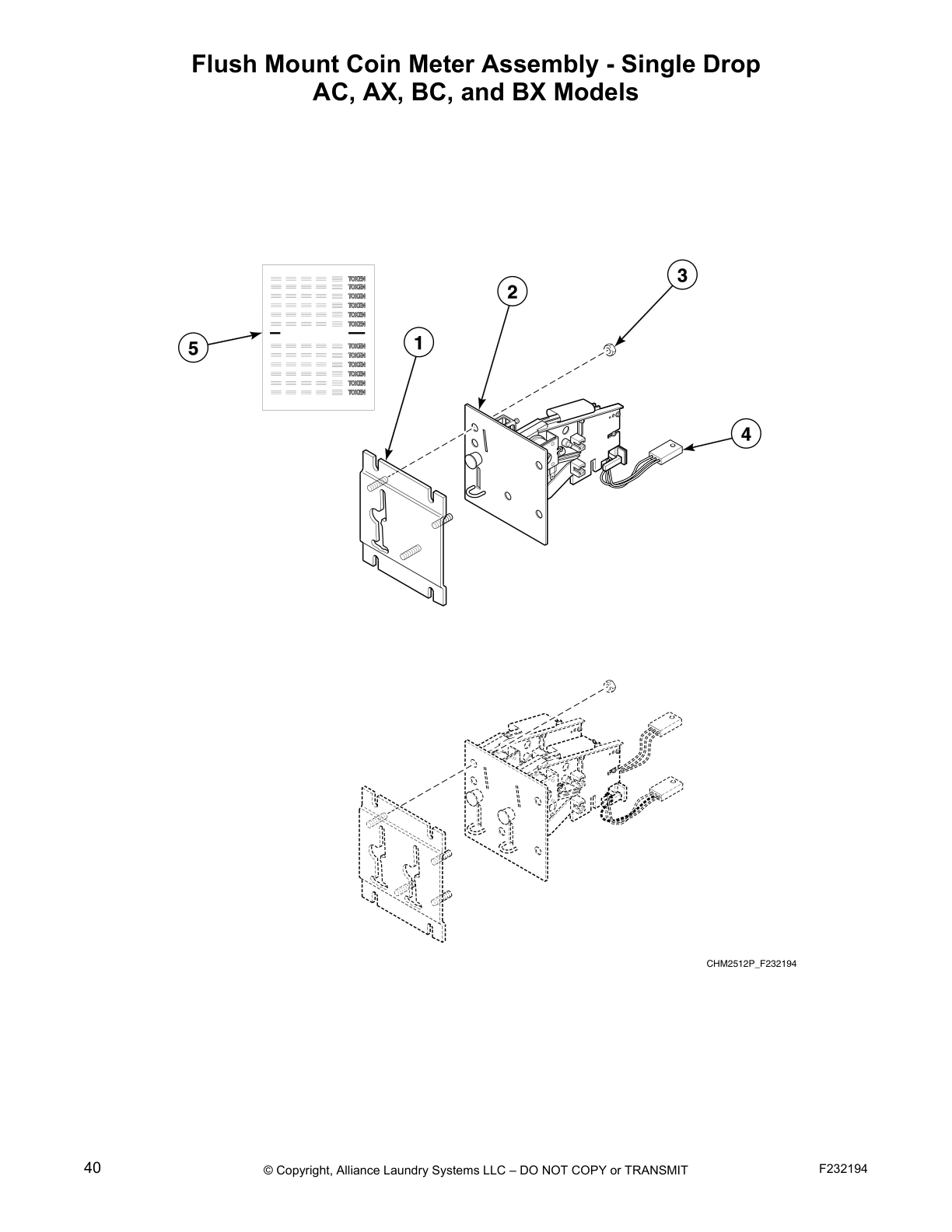

Flush Mount Coin Meter Assembly - Single Drop
AC, AX, BC, and BX Models

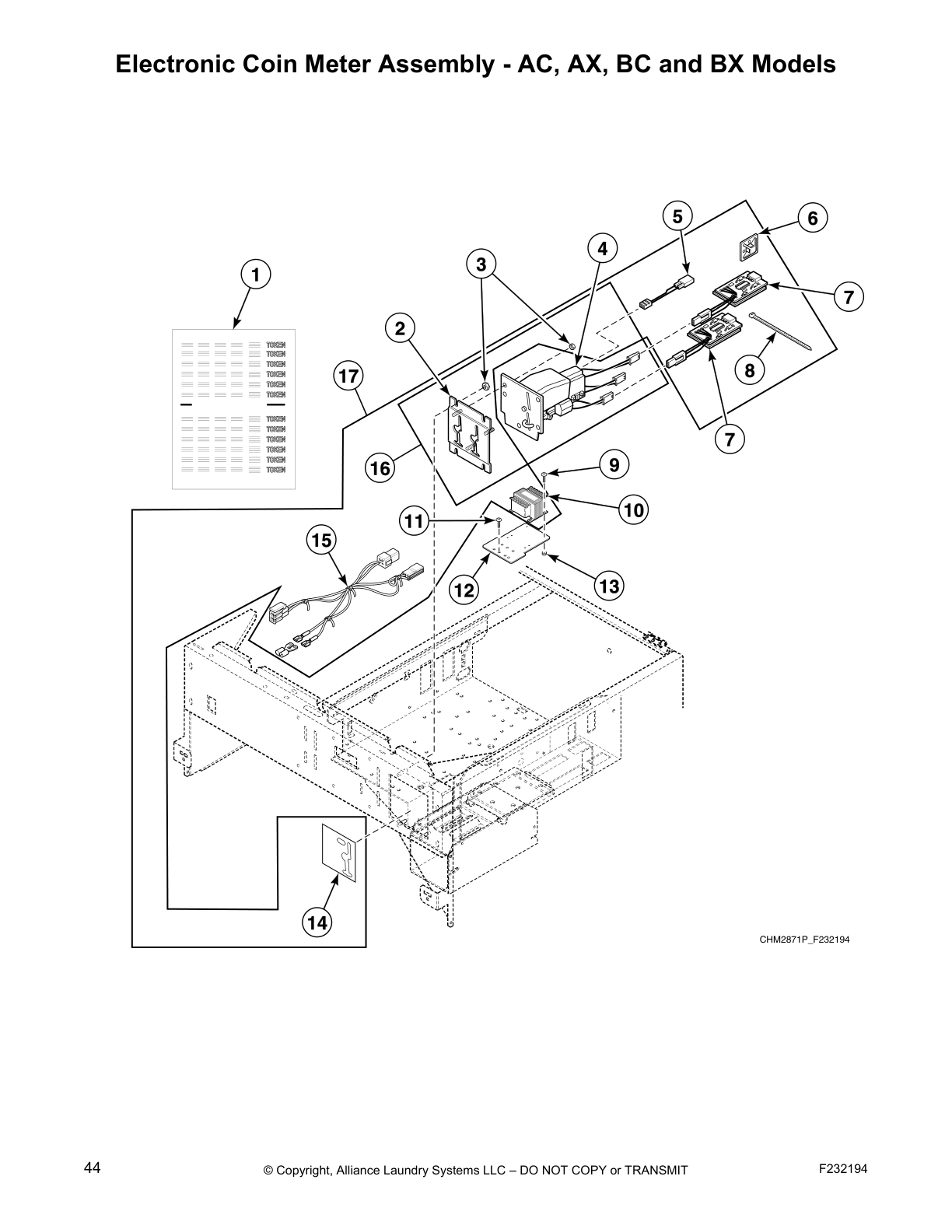

Electronic Coin Meter Assembly - AC, AX, BC and BX Models

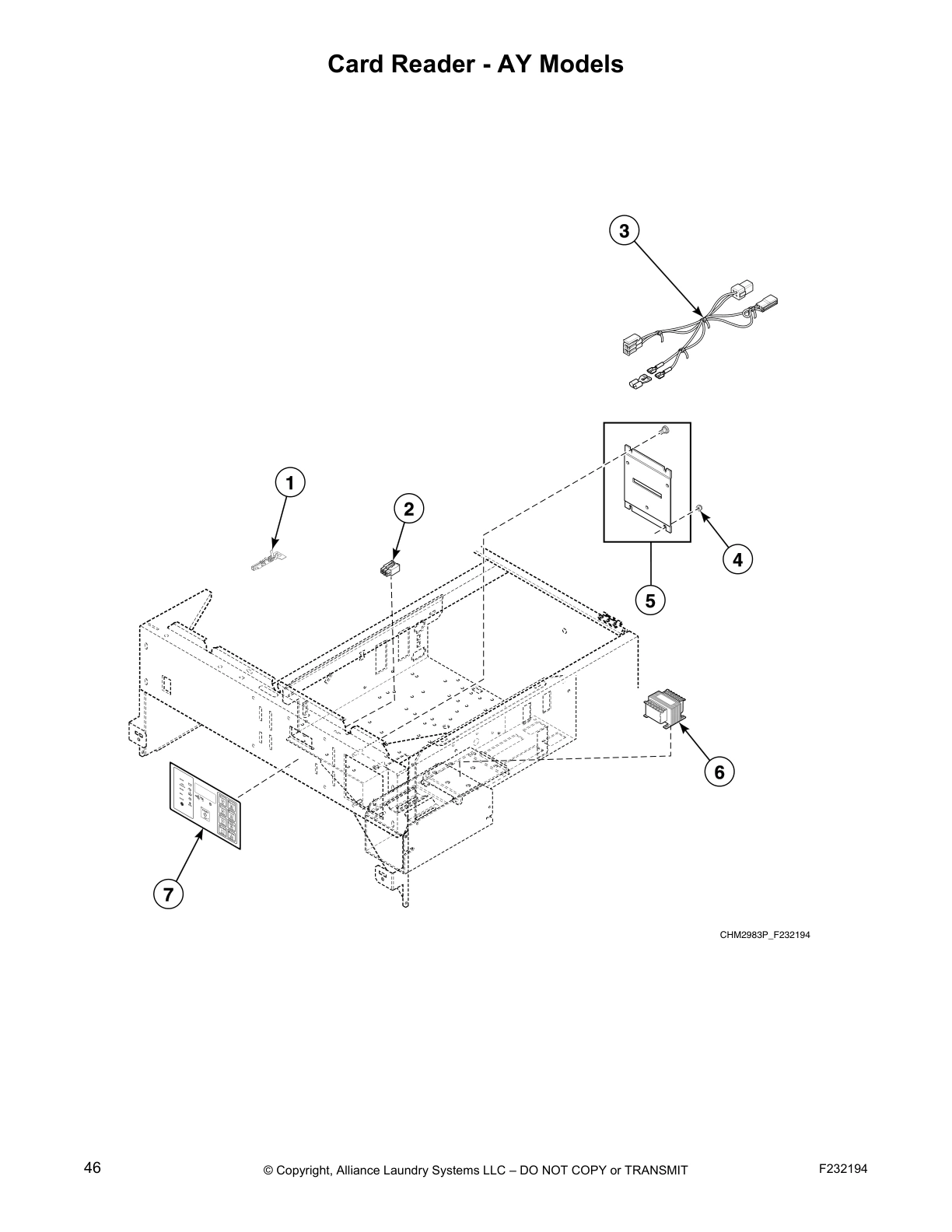

Card Reader - AY Models

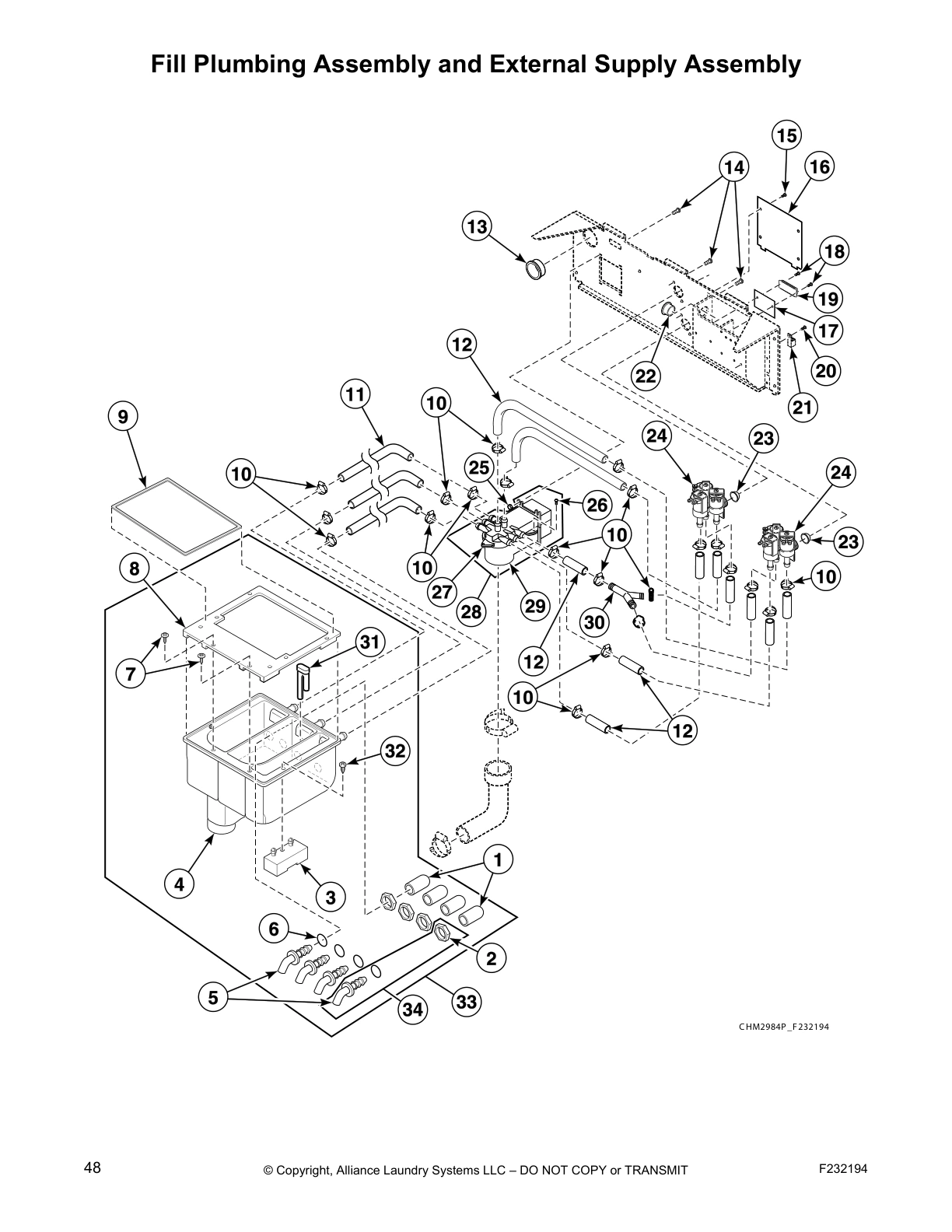

Fill Plumbing Assembly and External Supply Assembly

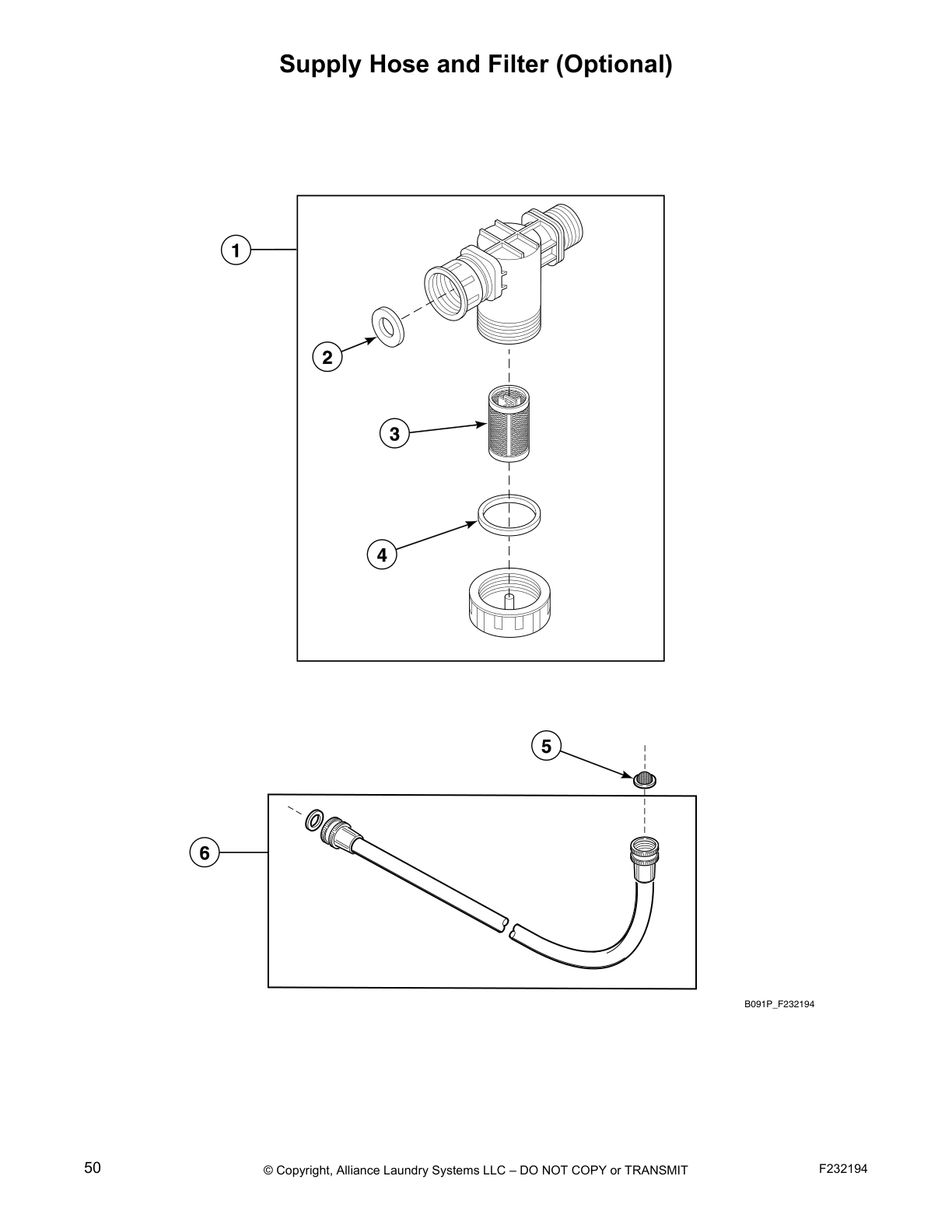

Supply Hose and Filter (Optional)

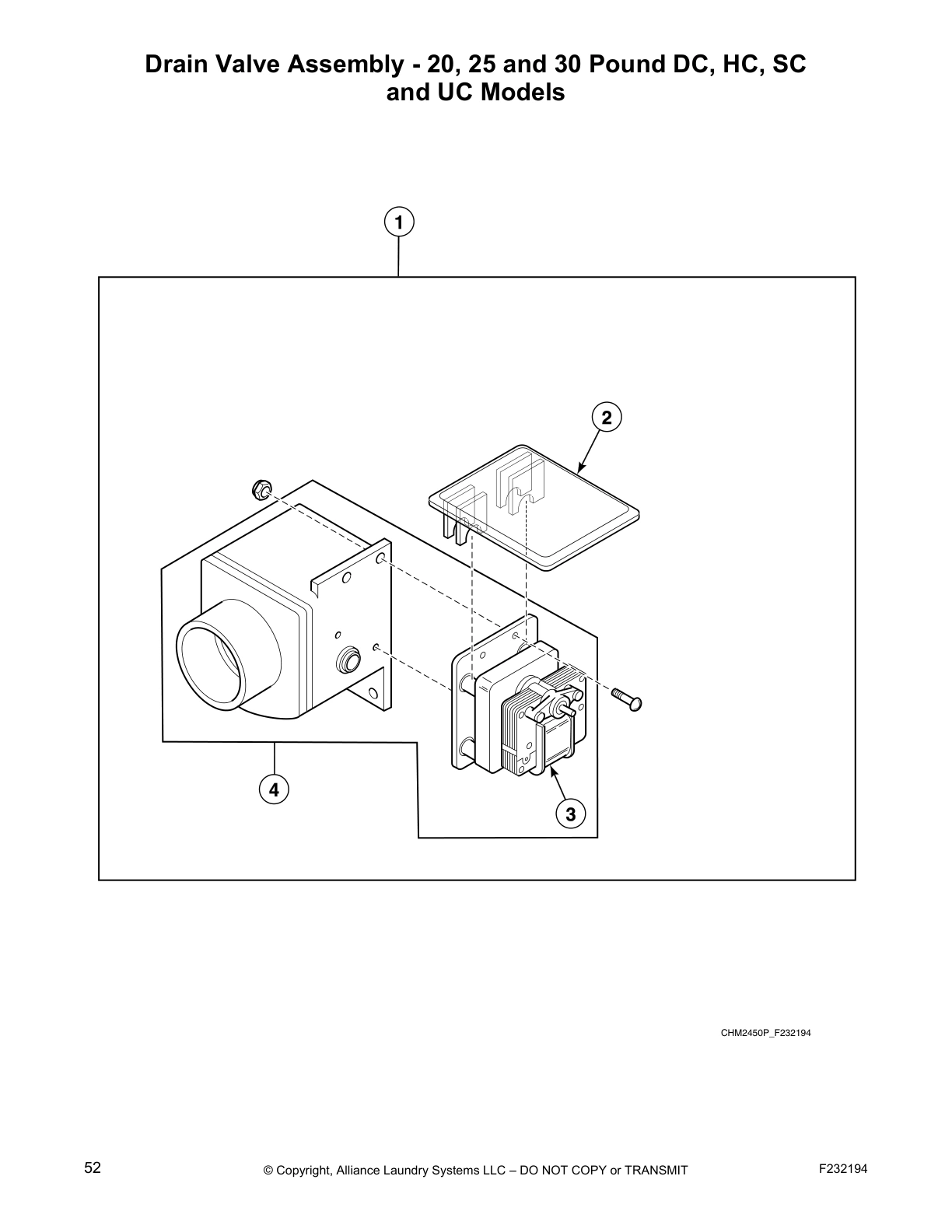

Drain Valve Assembly - 20, 25 and 30 Pound DC, HC, SC
and UC Models

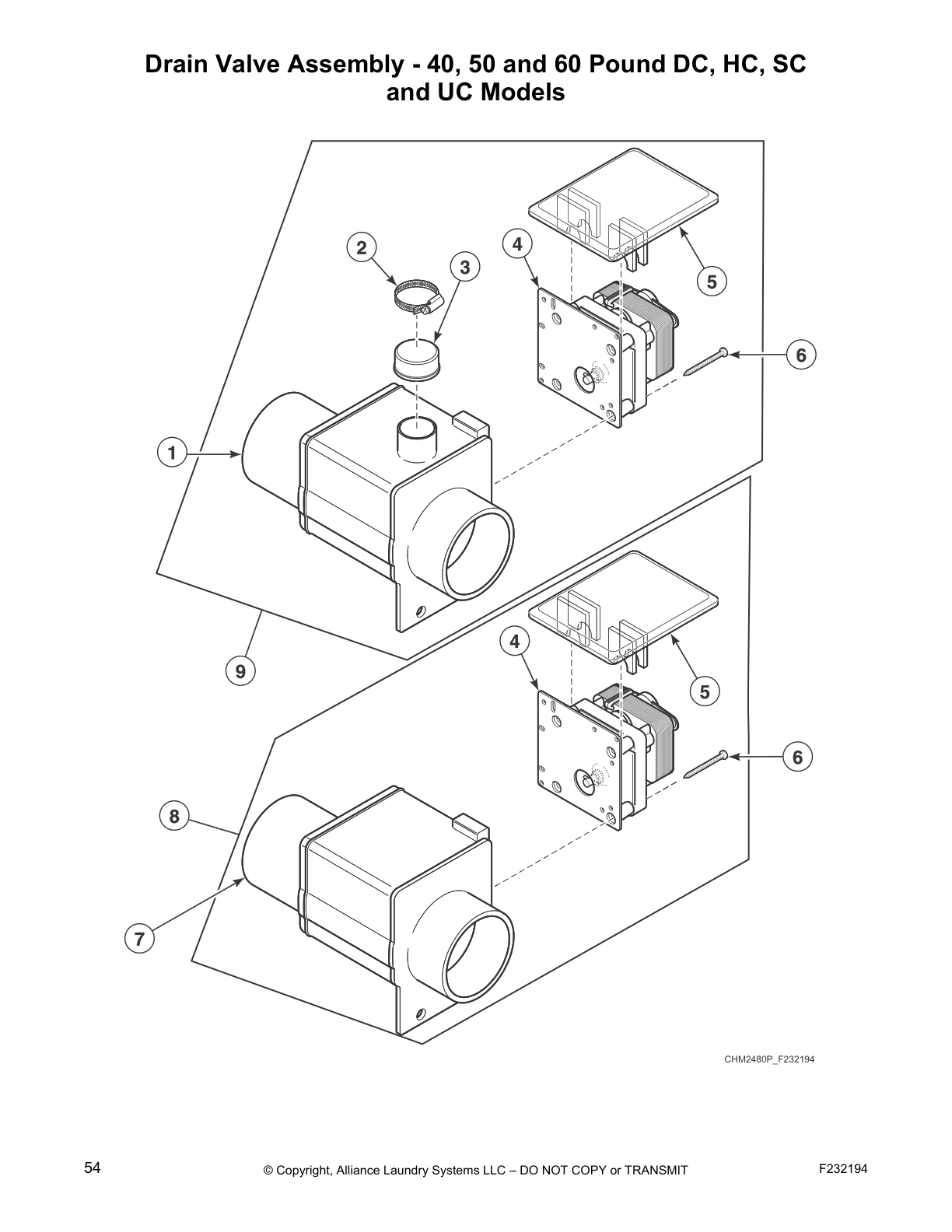

Drain Valve Assembly - 40, 50 and 60 Pound DC, HC, SC
and UC Models

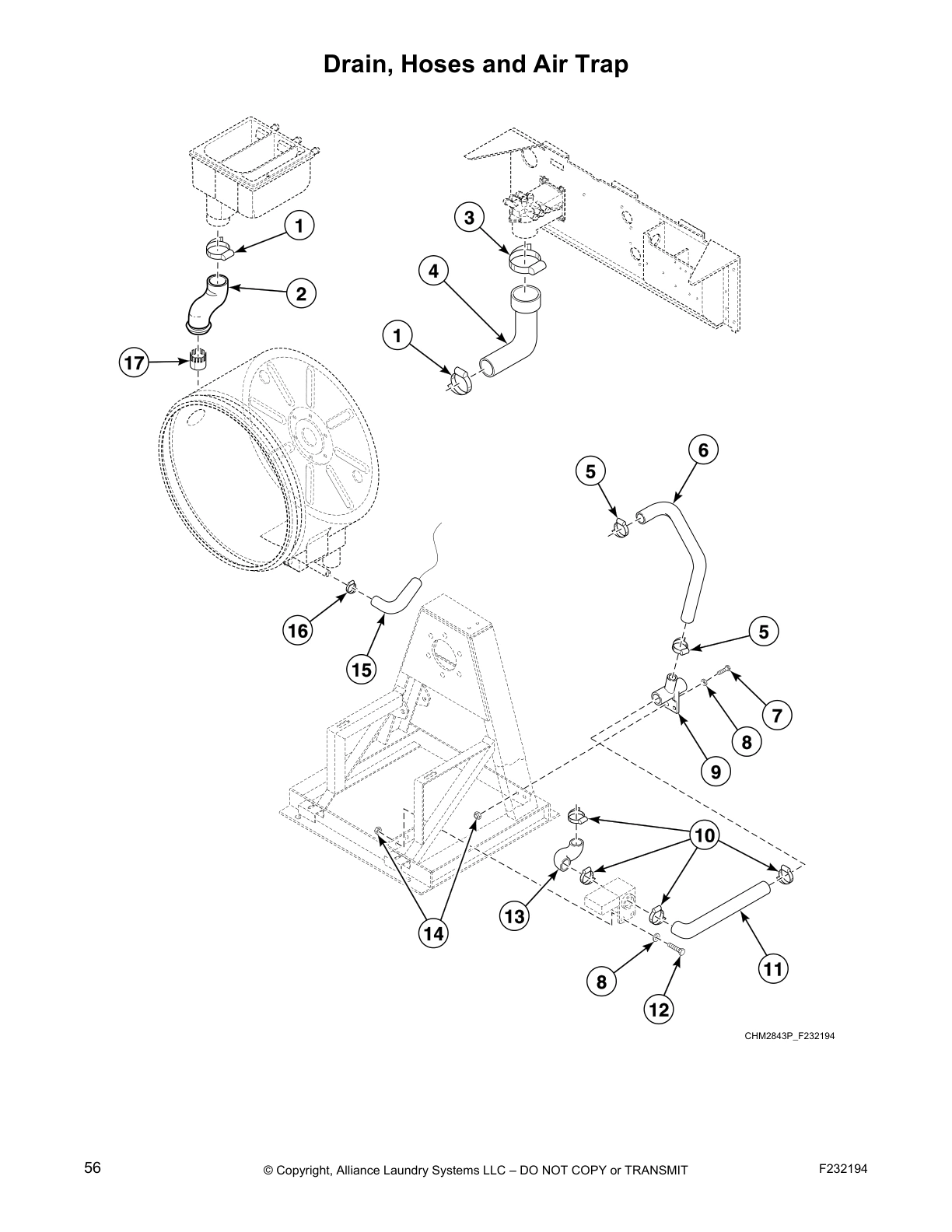

Drain, Hoses and Air Trap

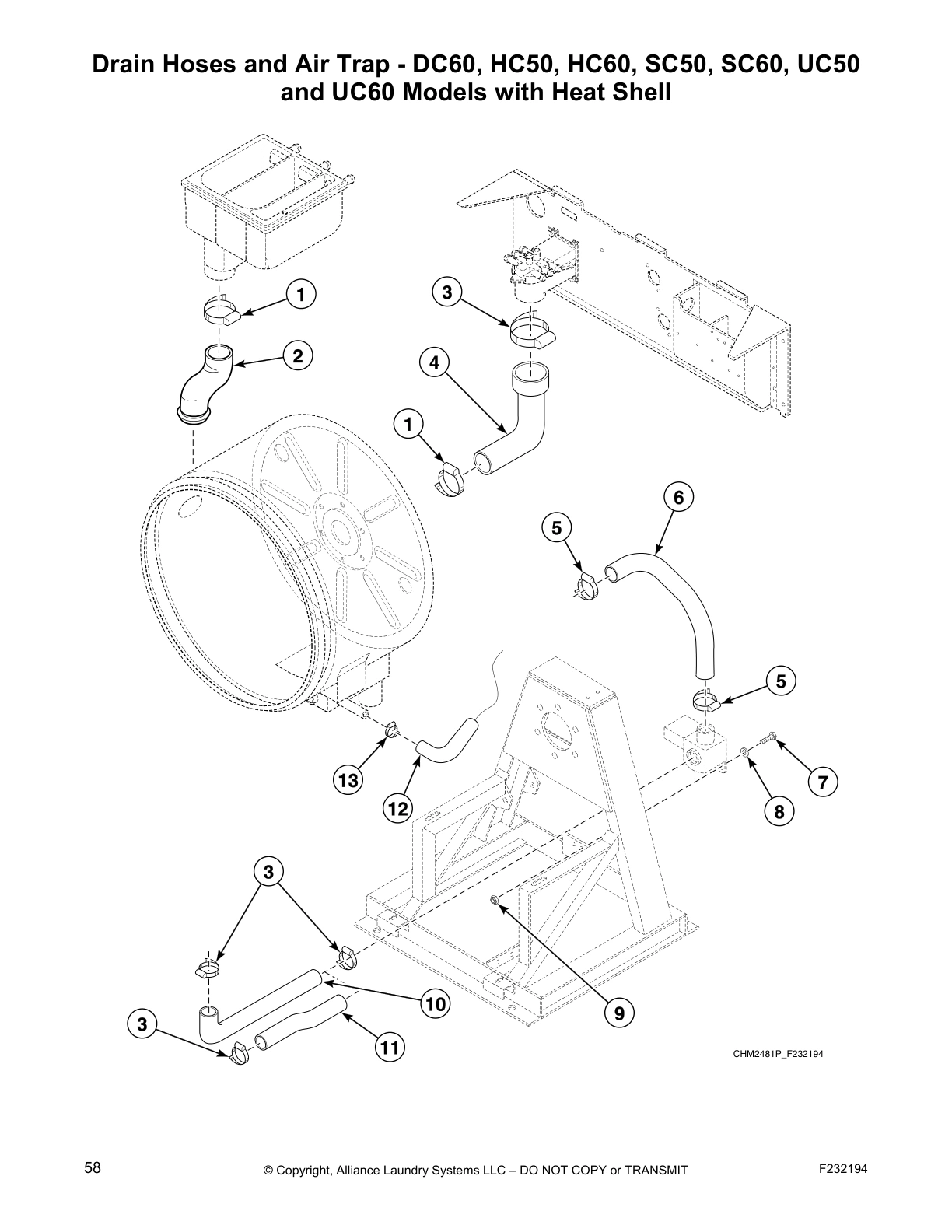

Drain Hoses and Air Trap - DC60, HC50, HC60, SC50, SC60, UC50
and UC60 Models with Heat Shell

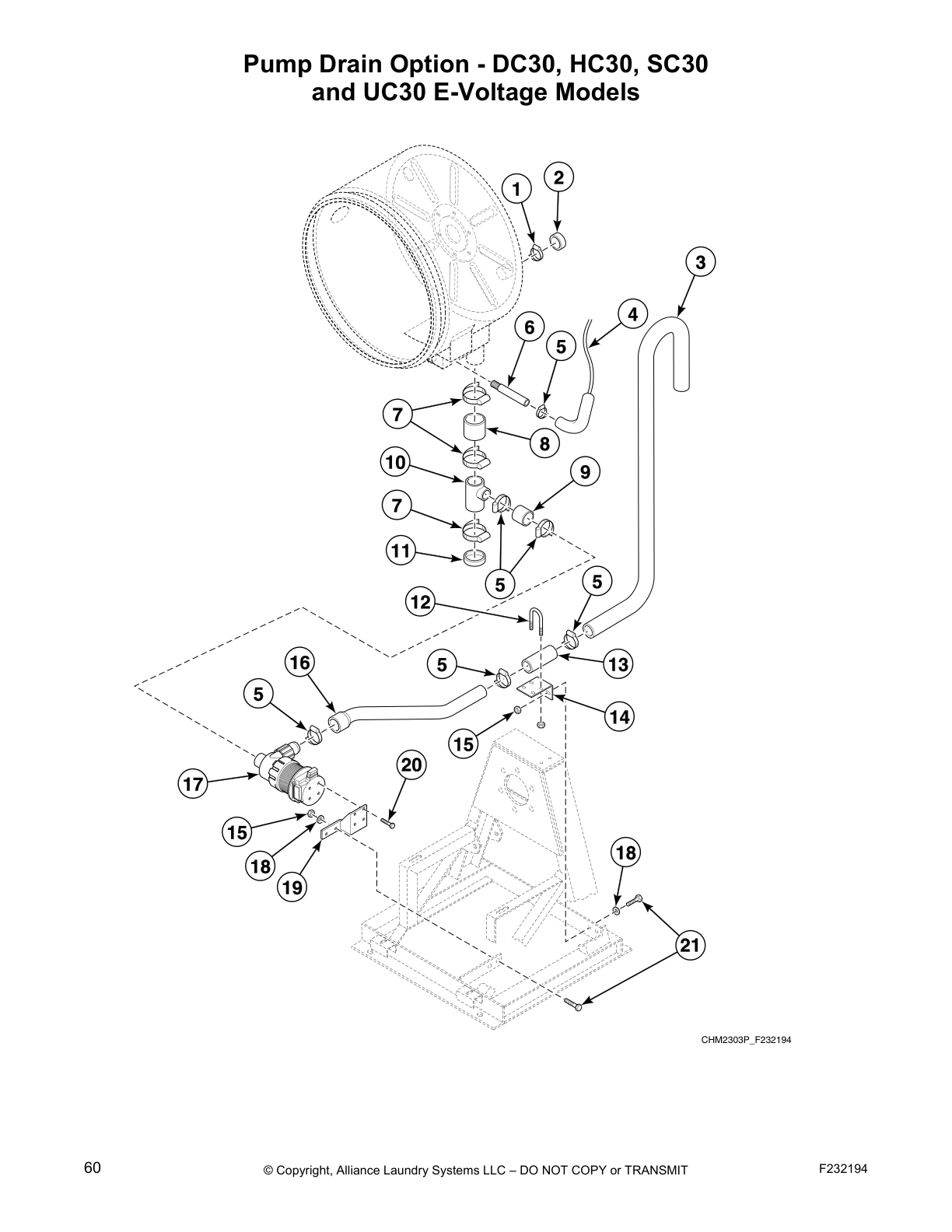

Pump Drain Option - DC30, HC30, SC30
and UC30 E-Voltage Models

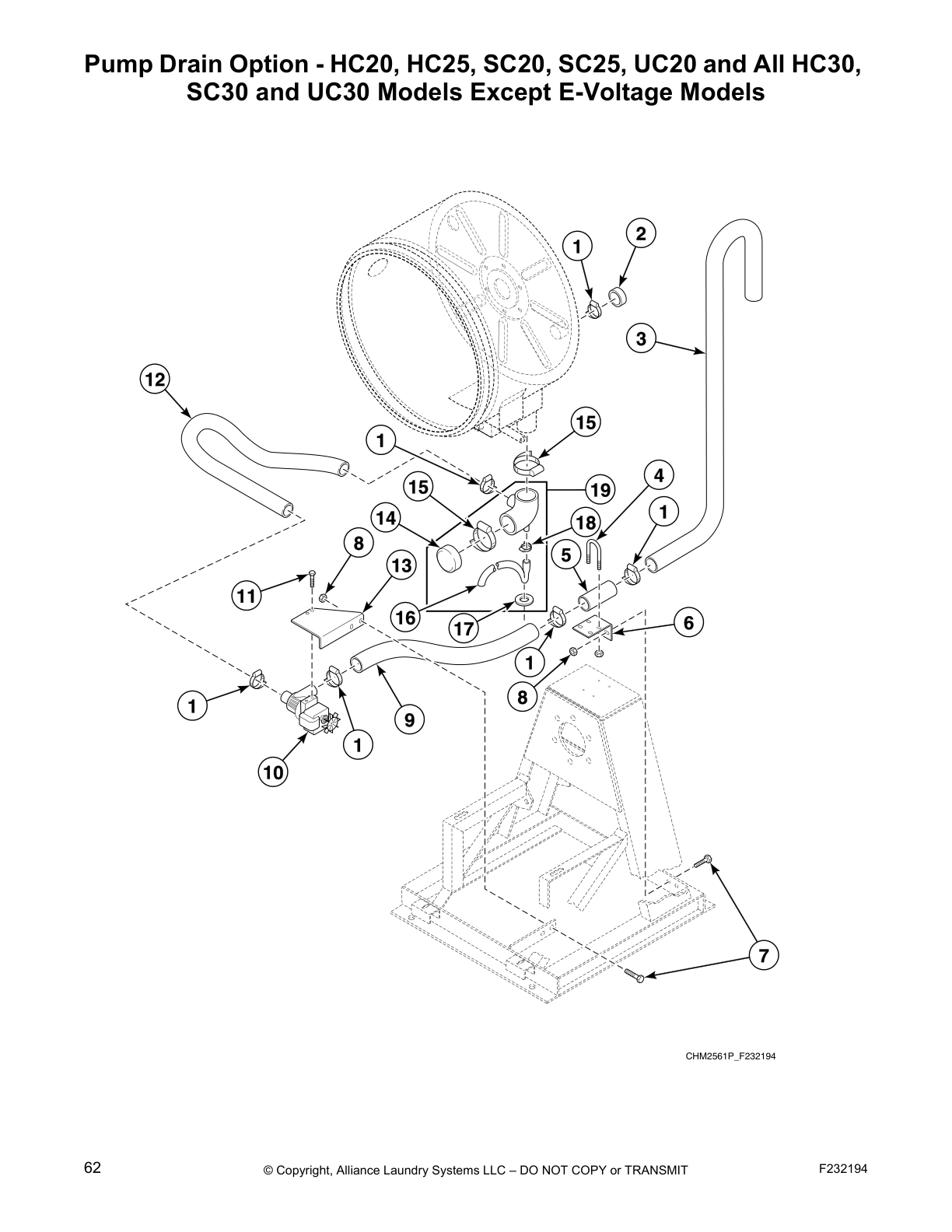

Pump Drain Option - HC20, HC25, SC20, SC25, UC20 and All HC30,
SC30 and UC30 Models Except E-Voltage Models

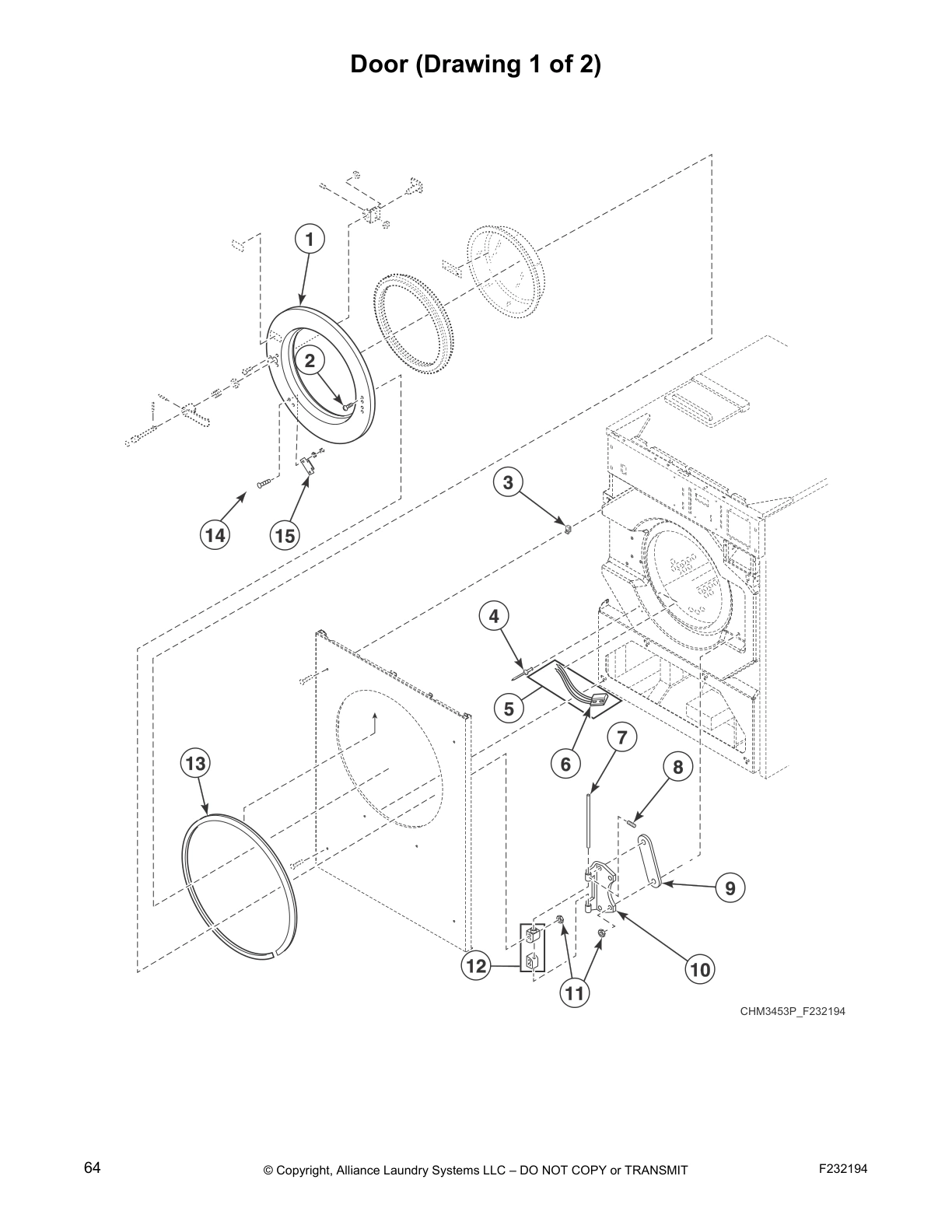

Door (Drawing 1 of 2)

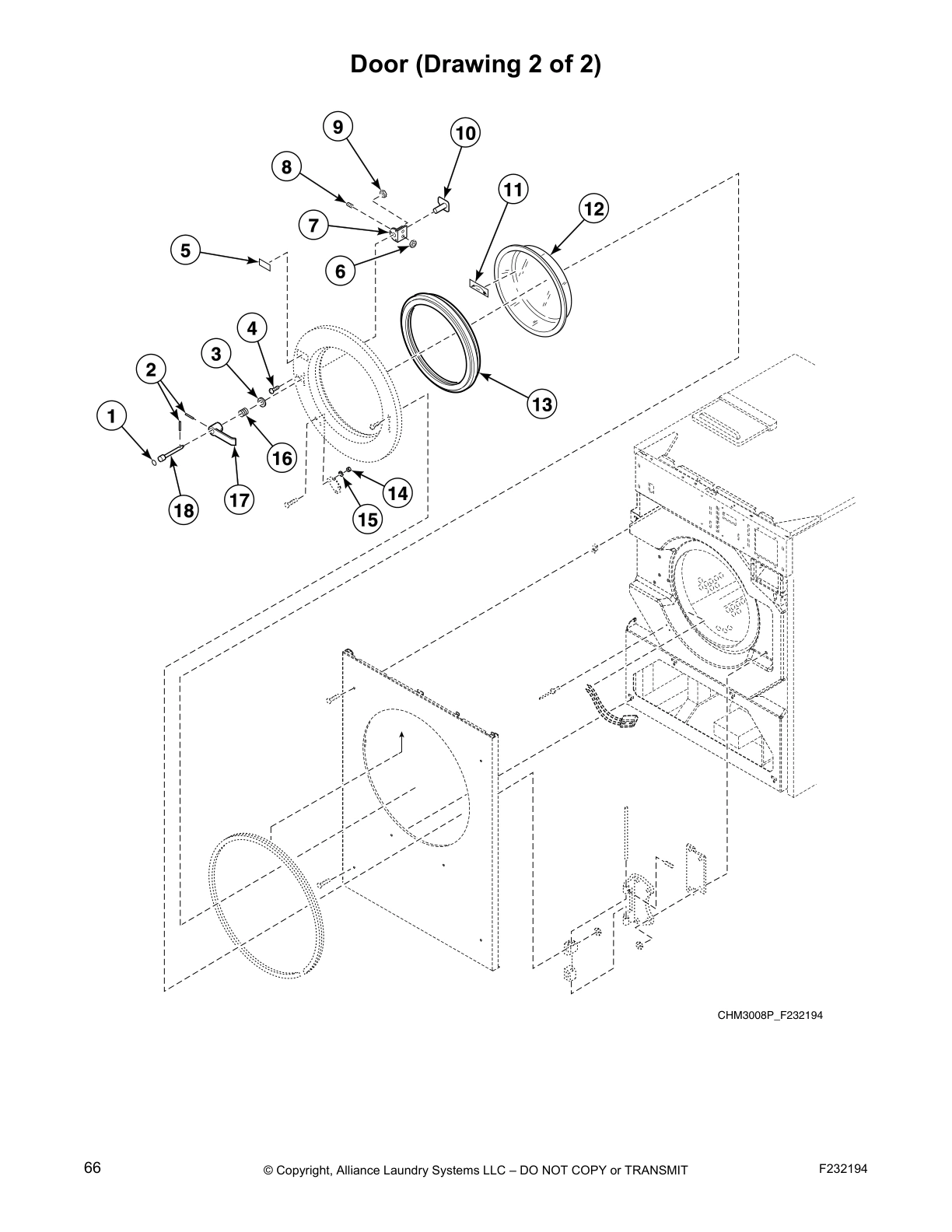

Door (Drawing 2 of 2)

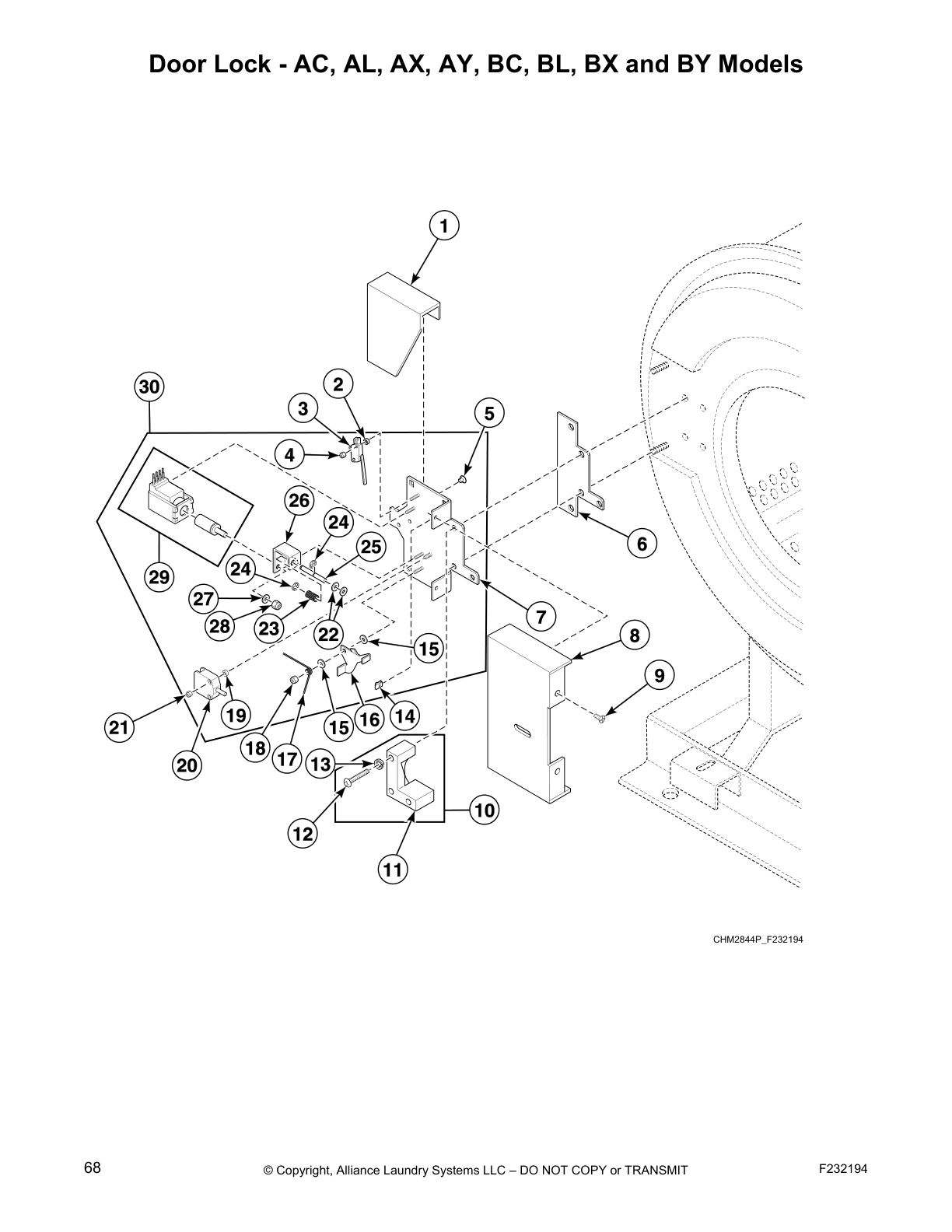

Door Lock - AC, AL, AX, AY, BC, BL, BX and BY Models

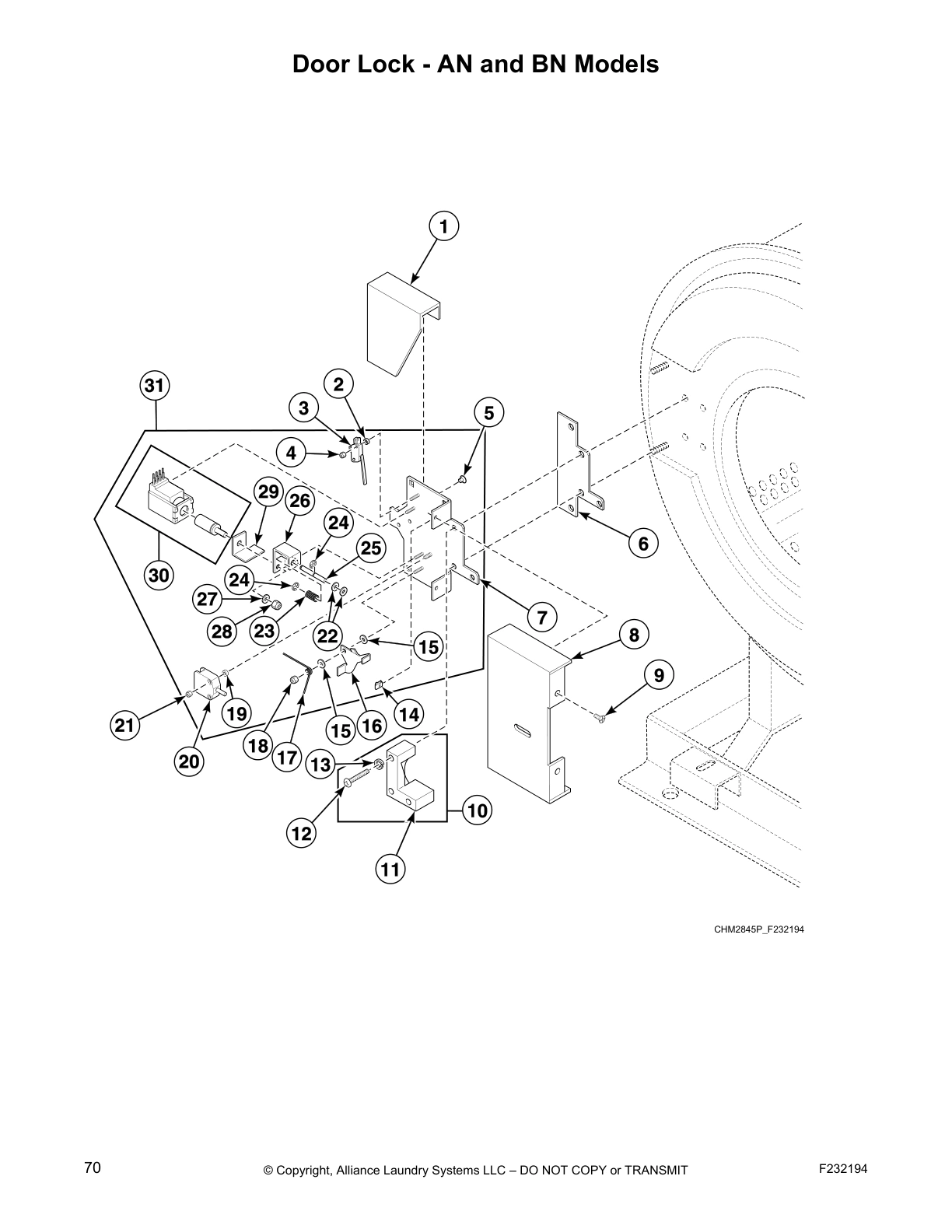

Door Lock - AN and BN Models

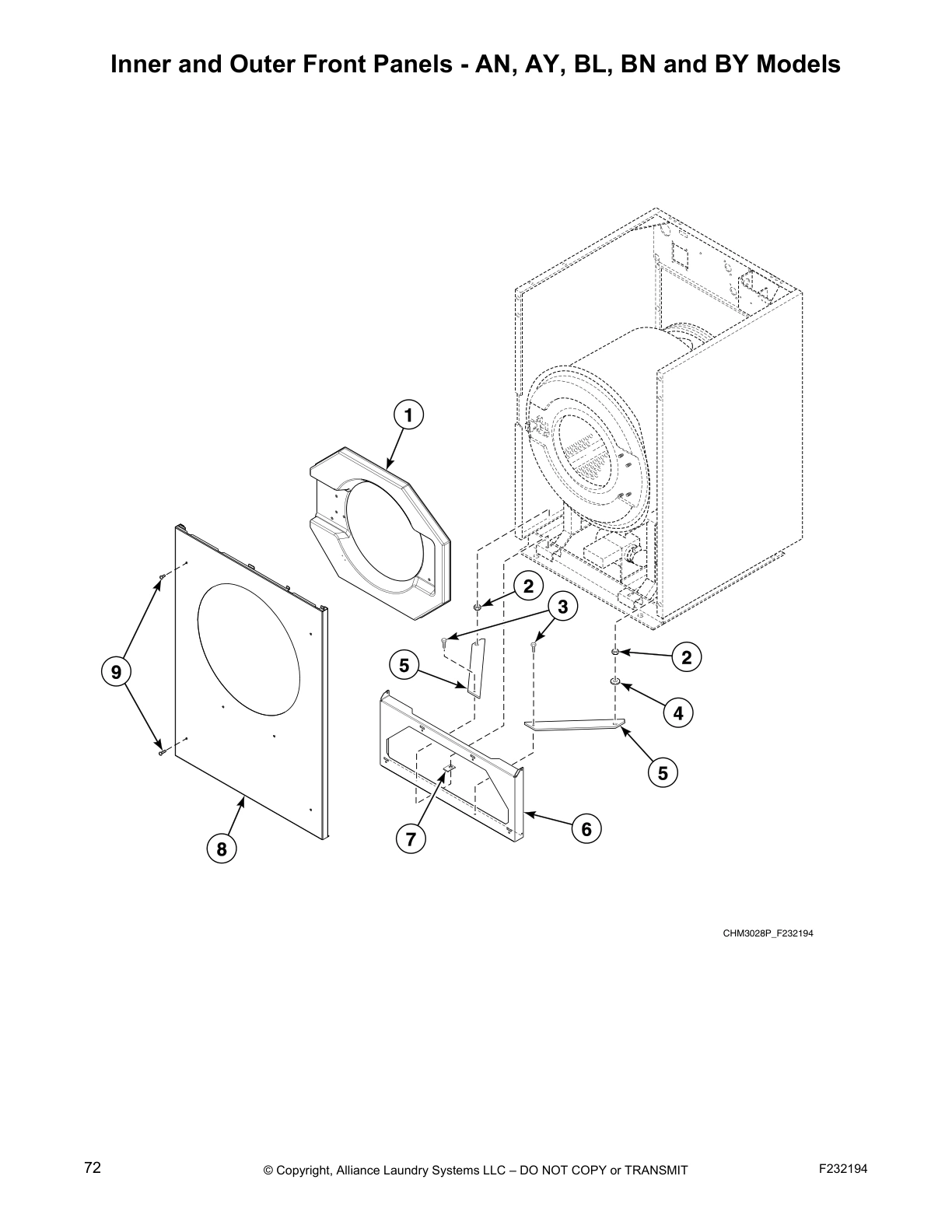

Inner and Outer Front Panels - AN, AY, BL, BN and BY Models

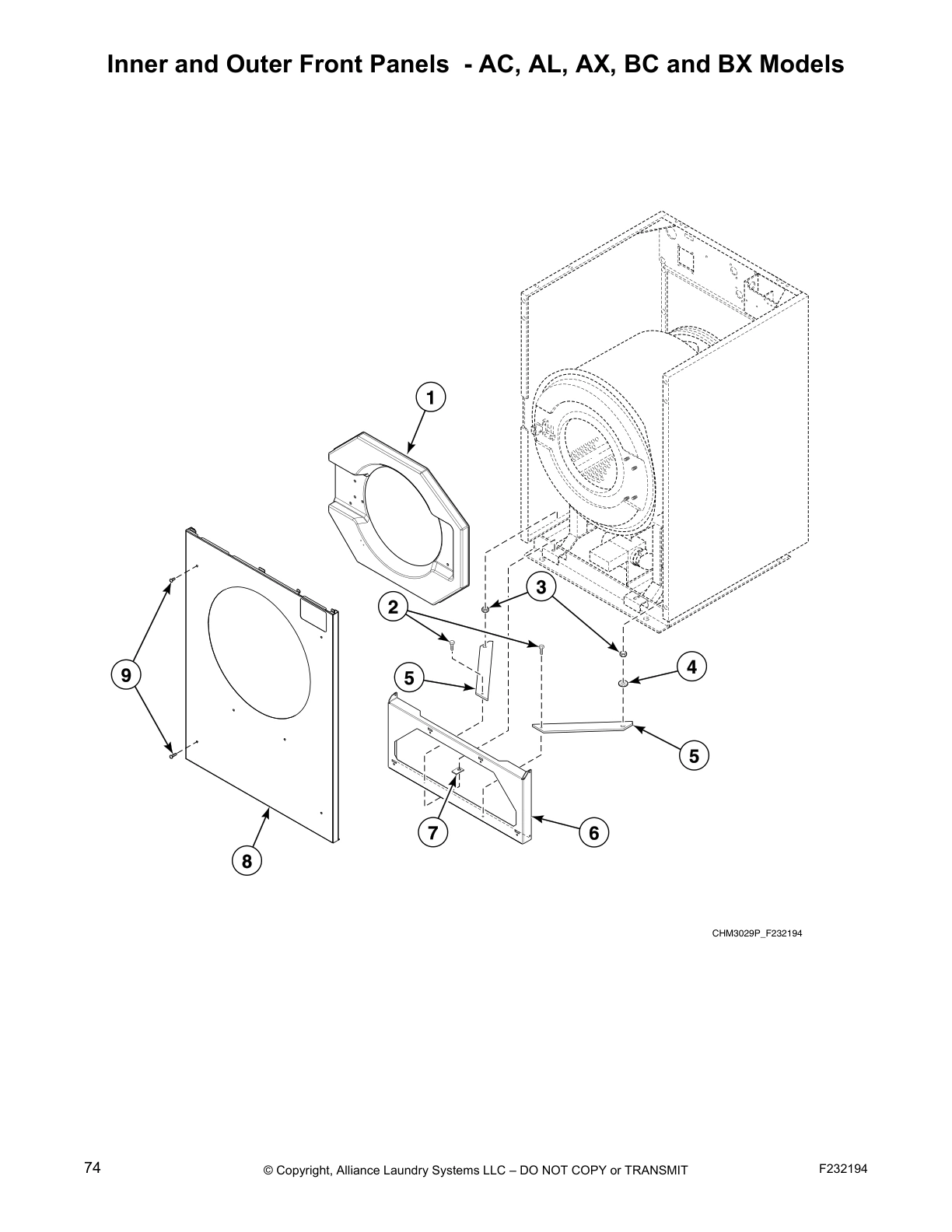

Inner and Outer Front Panels - AC, AL, AX, BC and BX Models

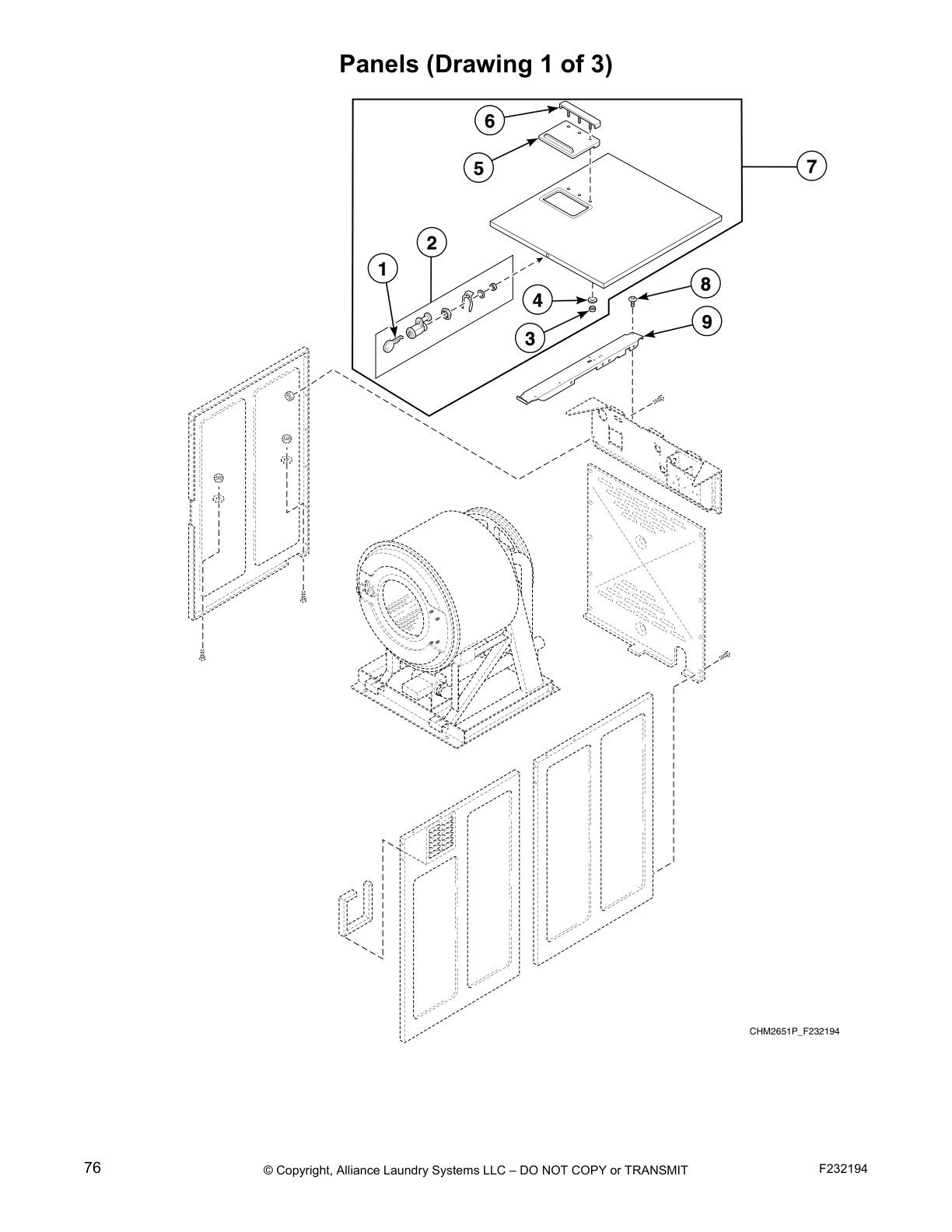

Panels (Drawing 1 of 3)

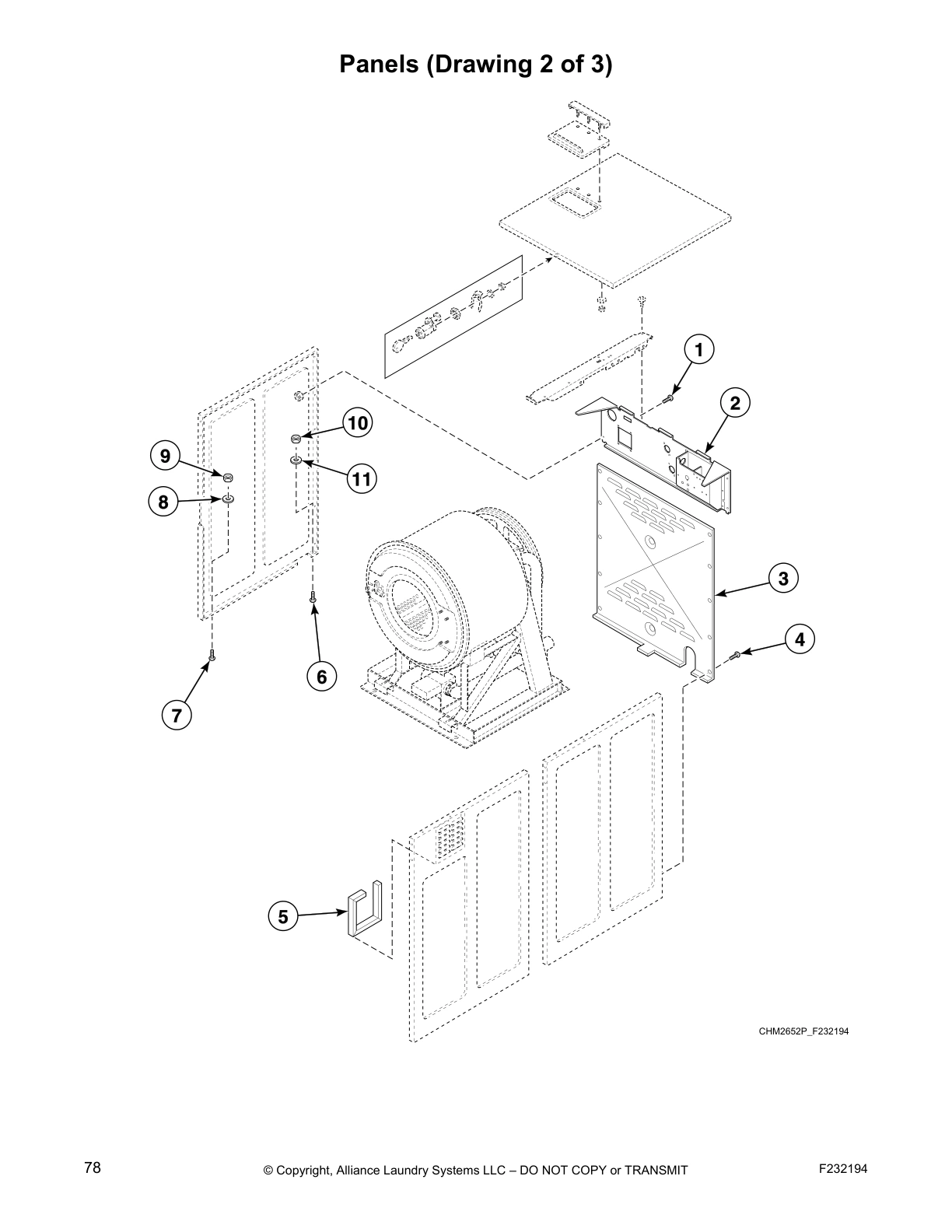

Panels (Drawing 2 of 3)

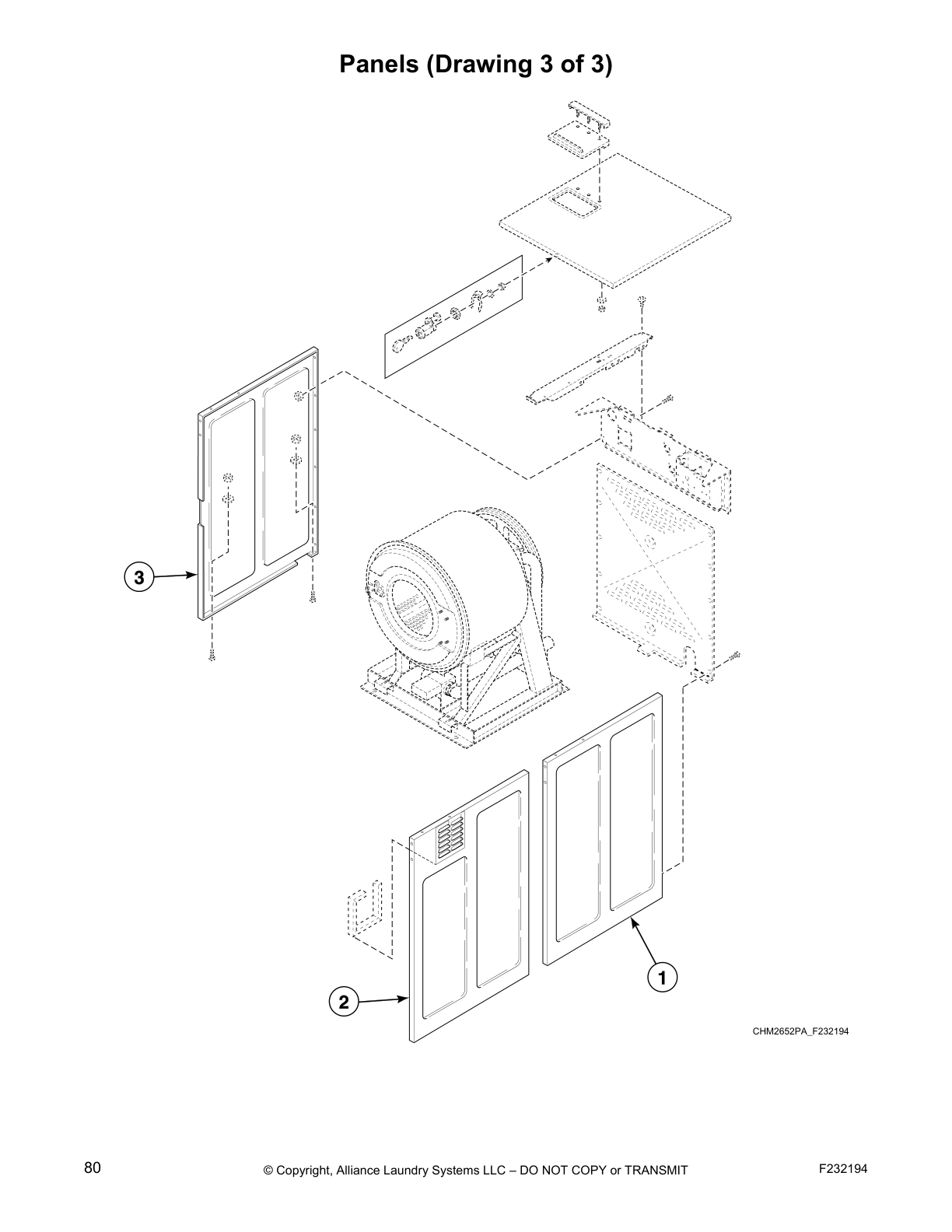

Panels (Drawing 3 of 3)

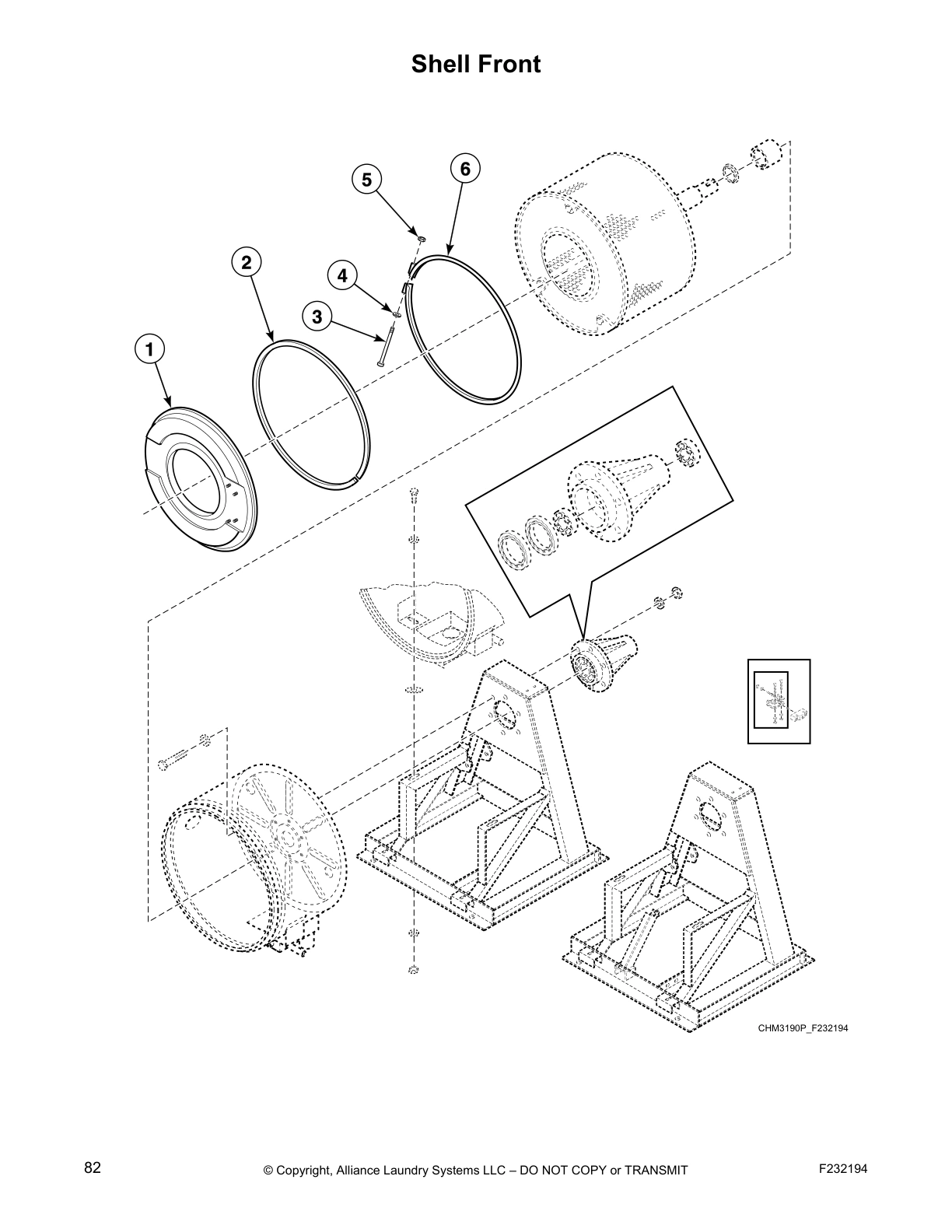

Shell Front

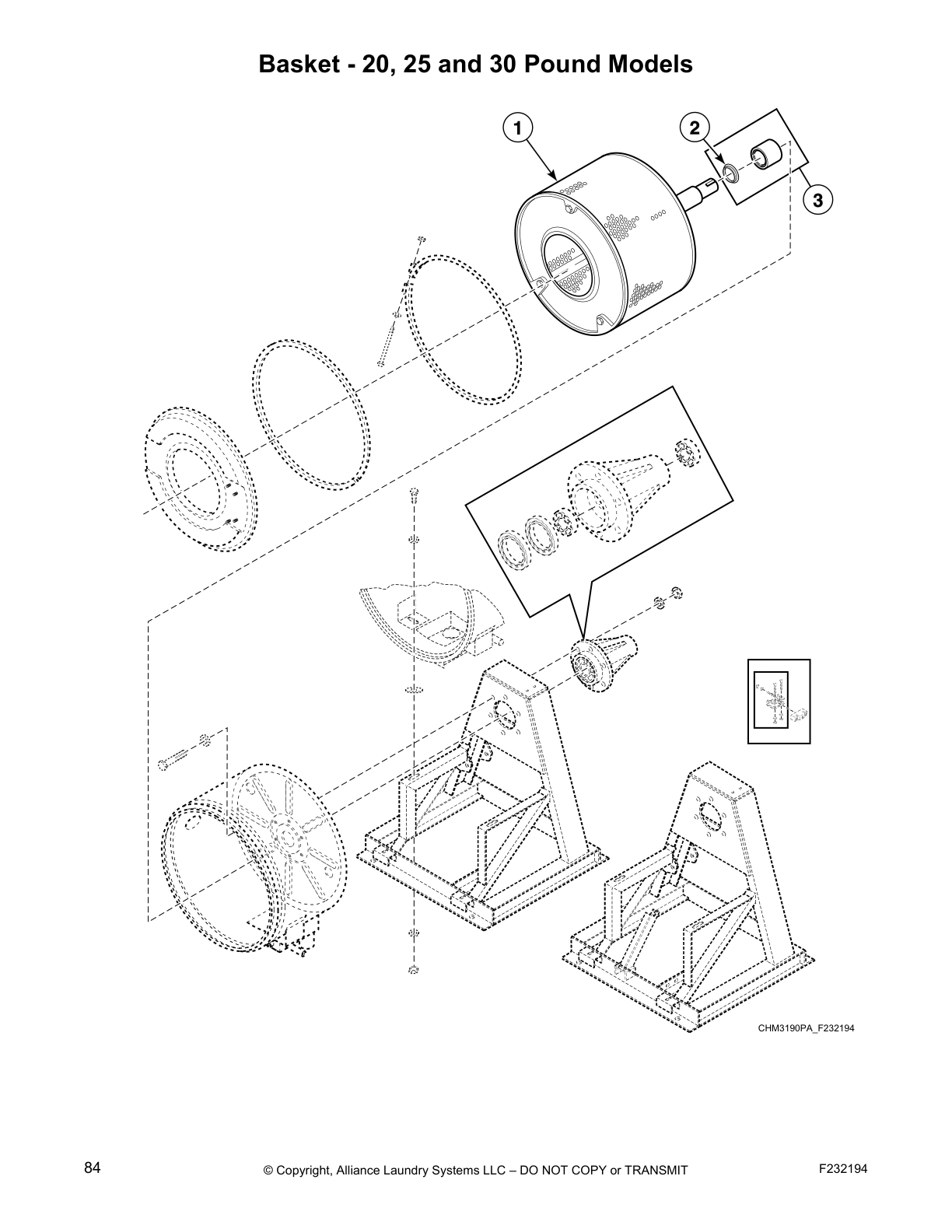

Basket - 20, 25 and 30 Pound Models
Basket - 40, 50 and 60 Pound Models

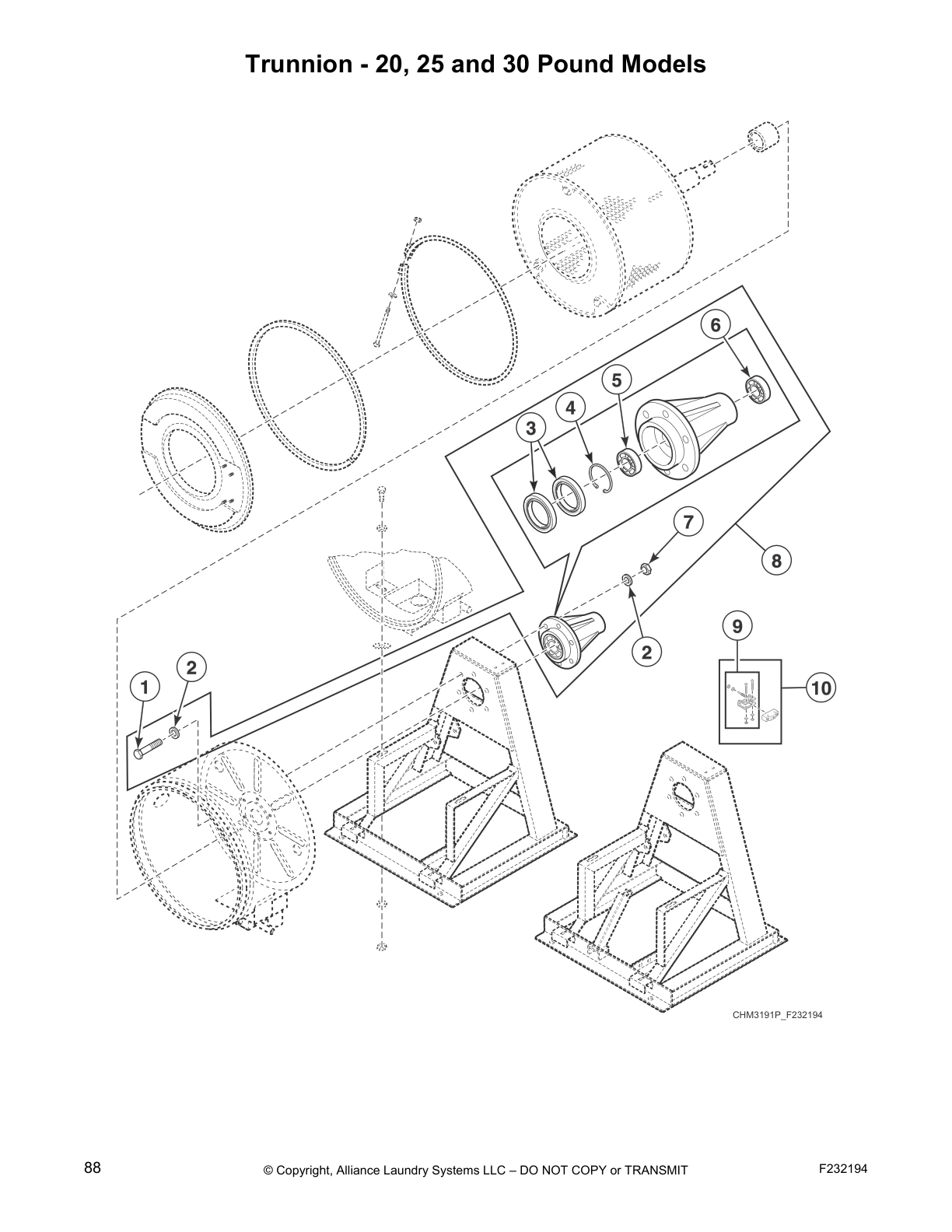

Trunnion - 20, 25 and 30 Pound Models

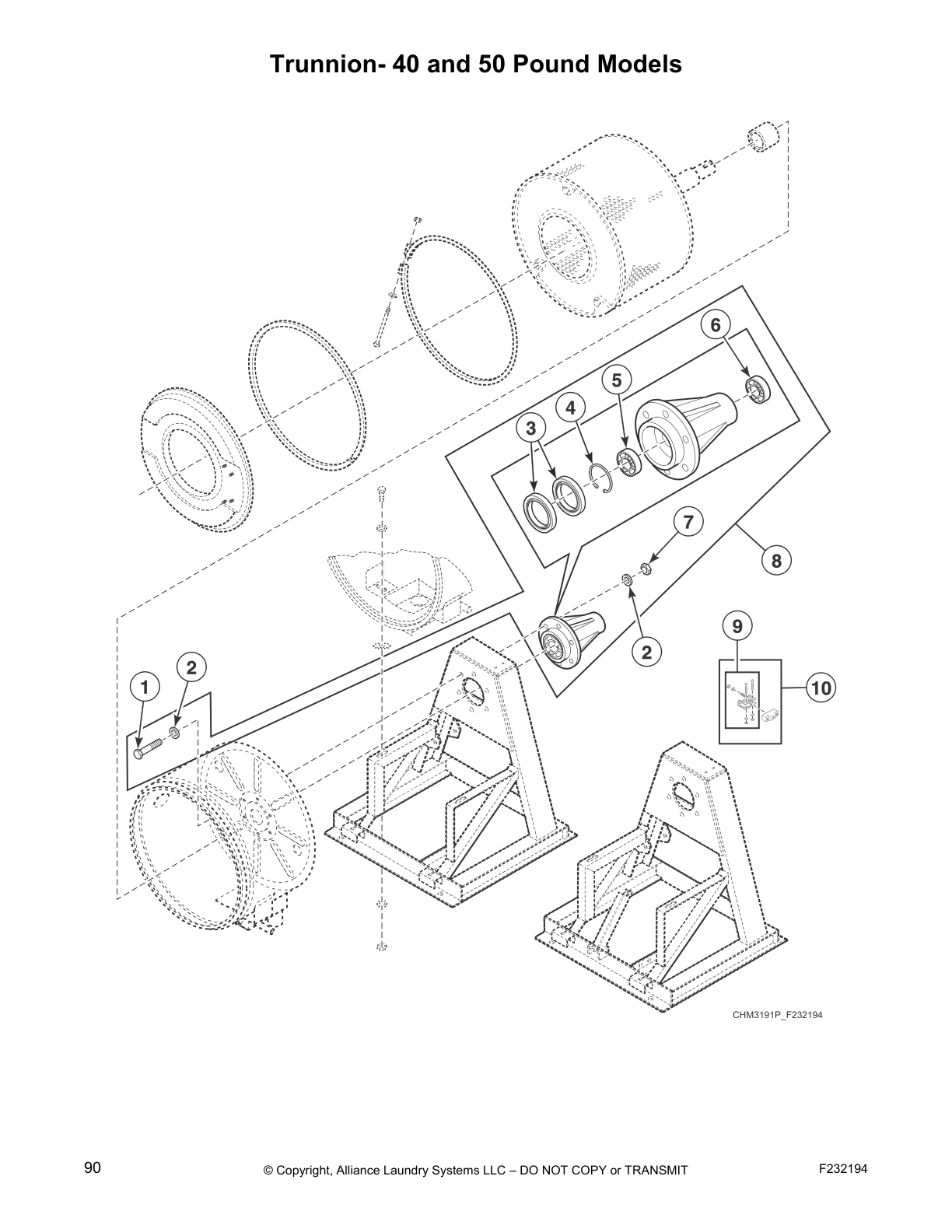

Trunnion- 40 and 50 Pound Models

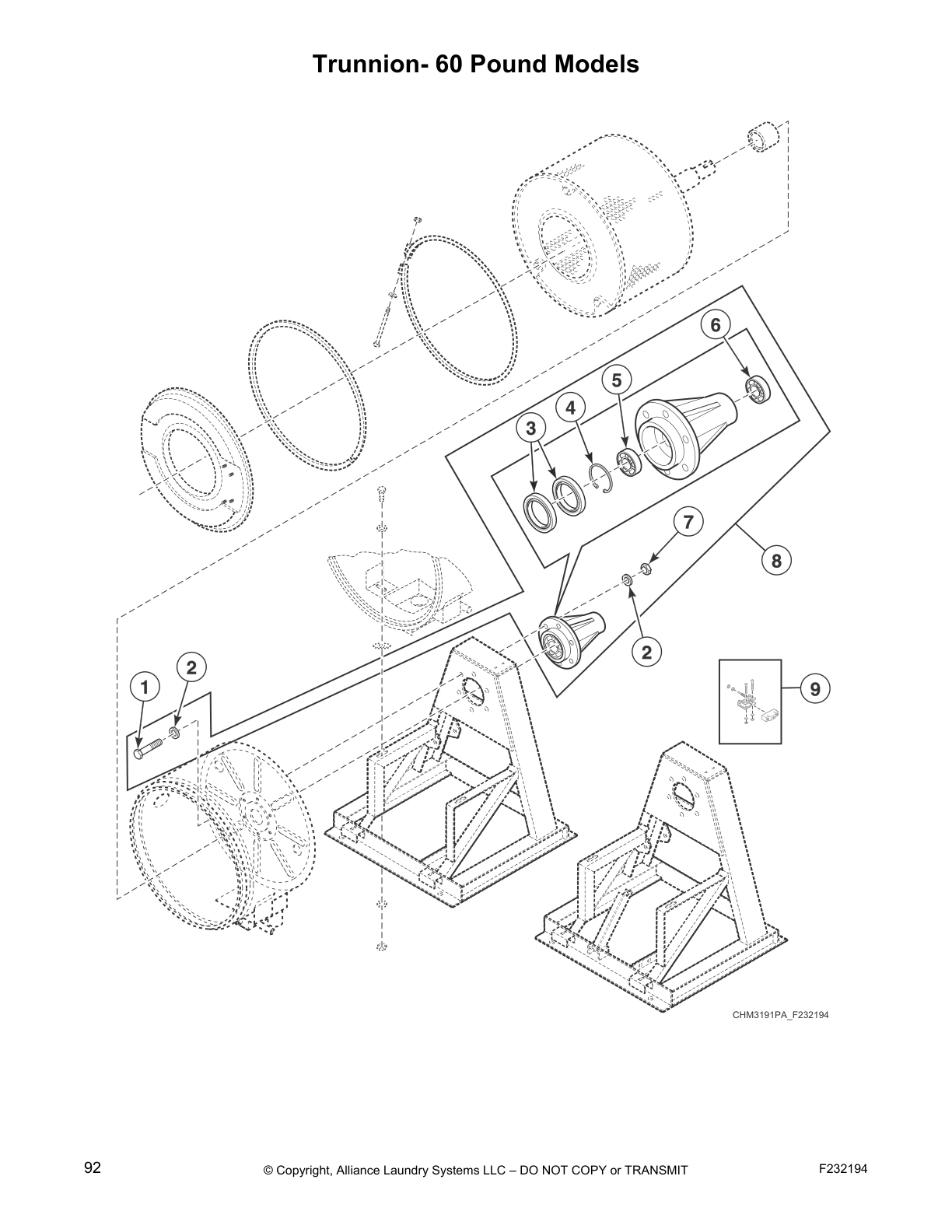

Trunnion- 60 Pound Models

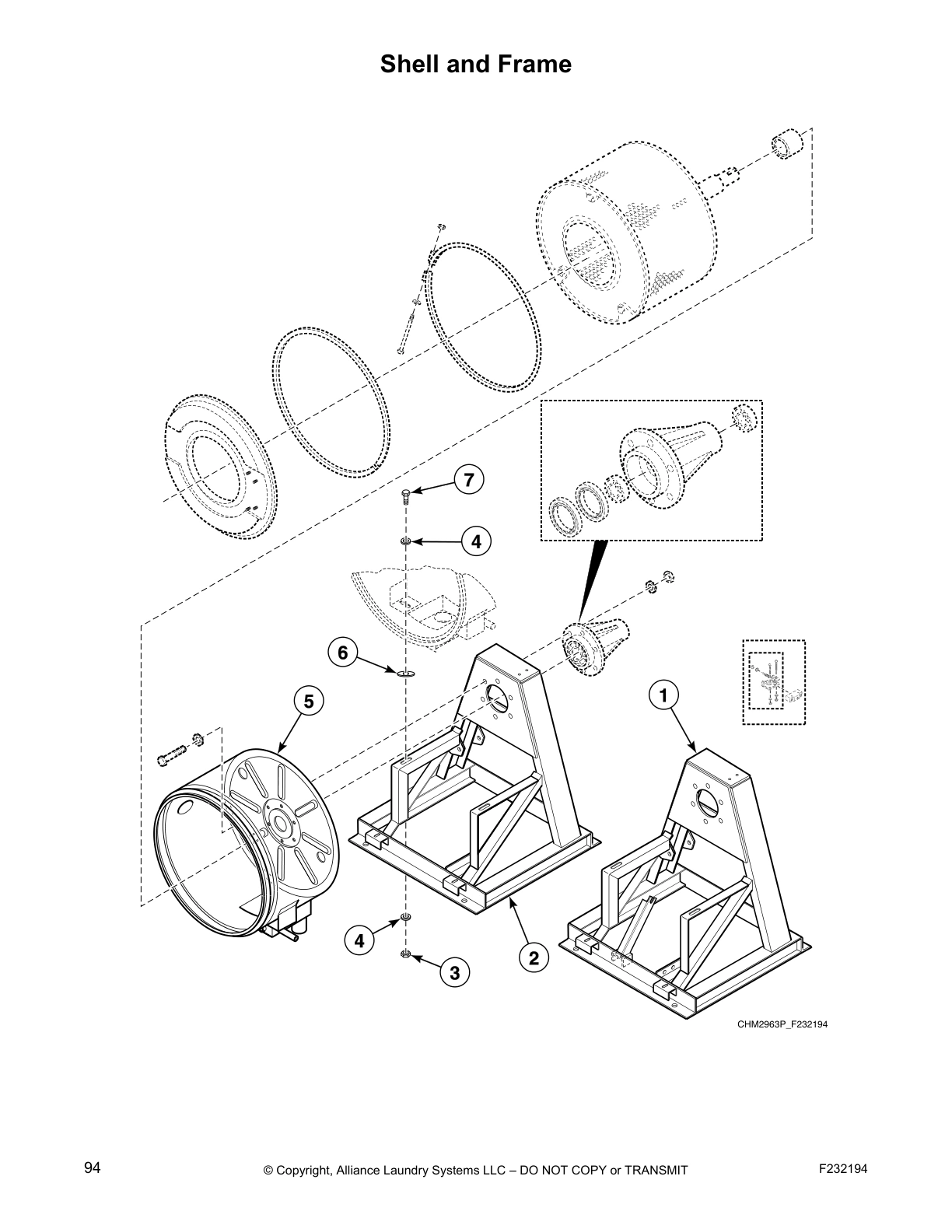

Shell and Frame

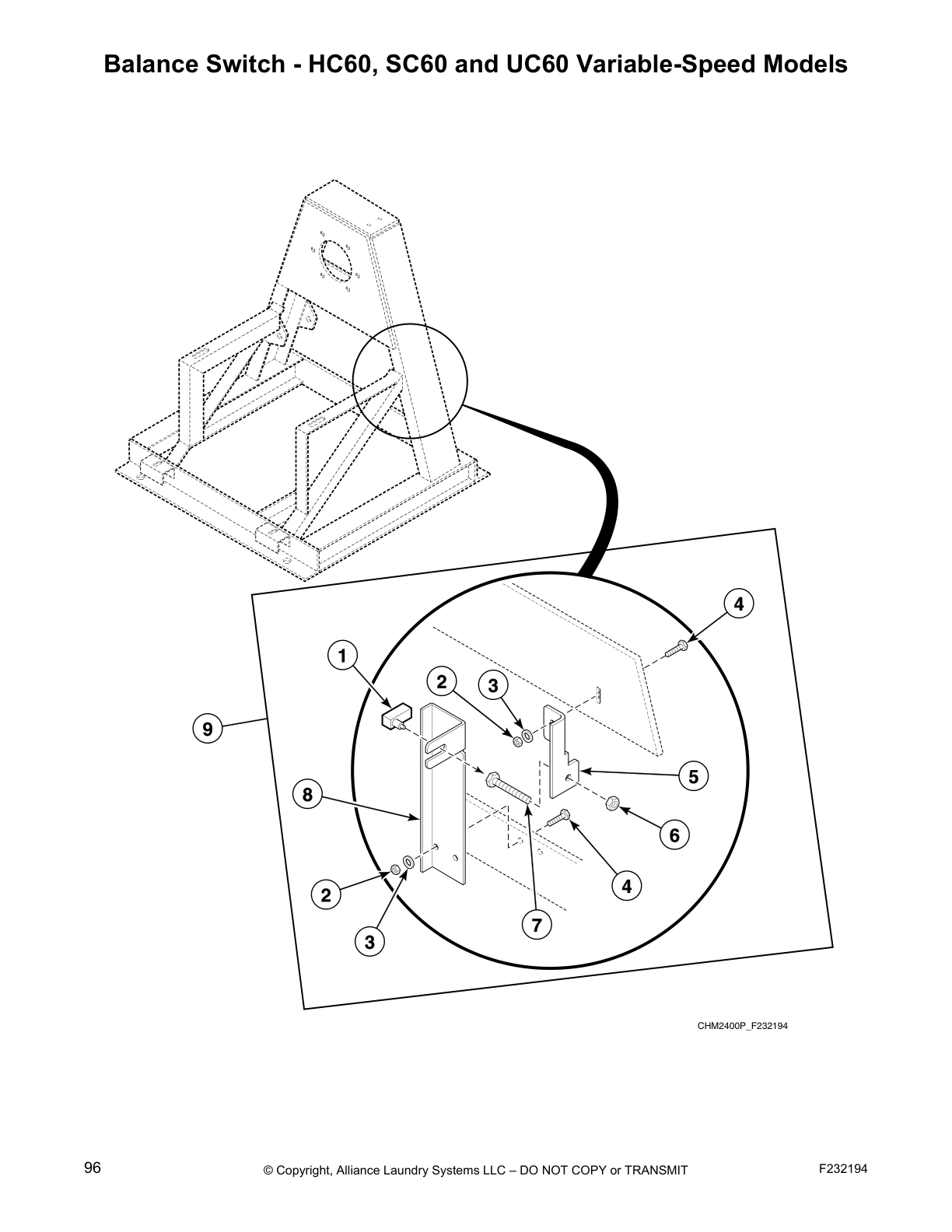

Balance Switch - HC60, SC60 and UC60 Variable-Speed Models

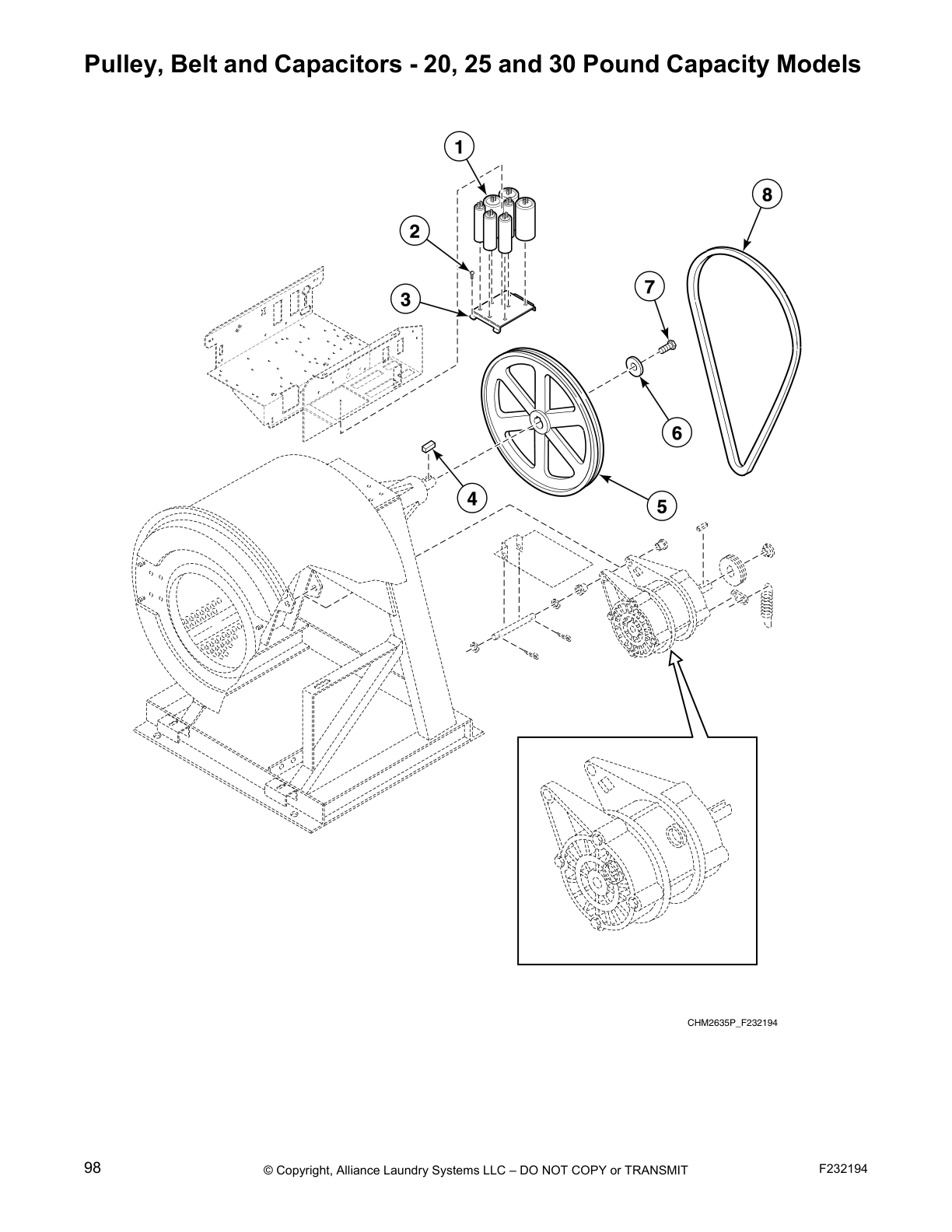

Pulley, Belt and Capacitors - 20, 25 and 30 Pound Capacity Models

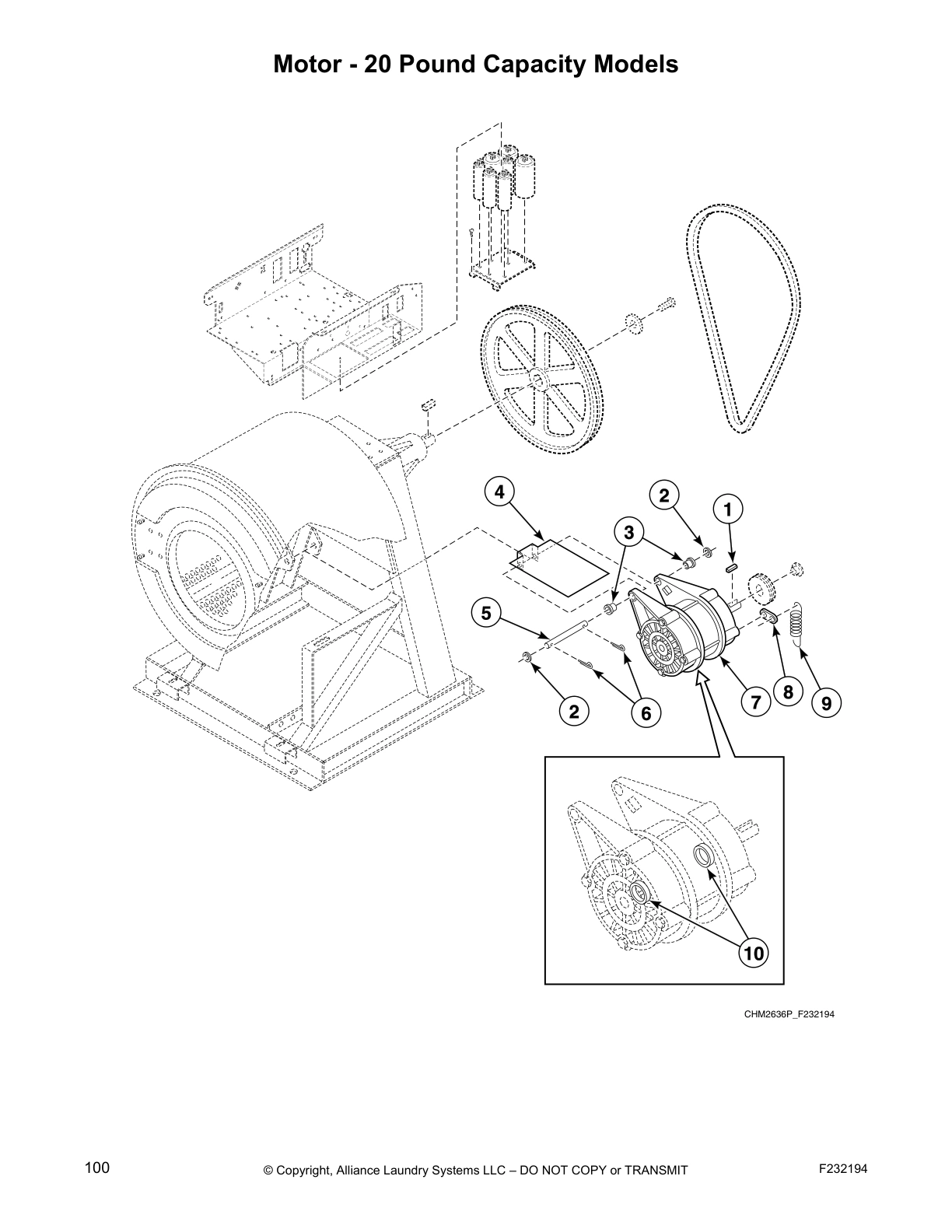

Motor - 20 Pound Capacity Models

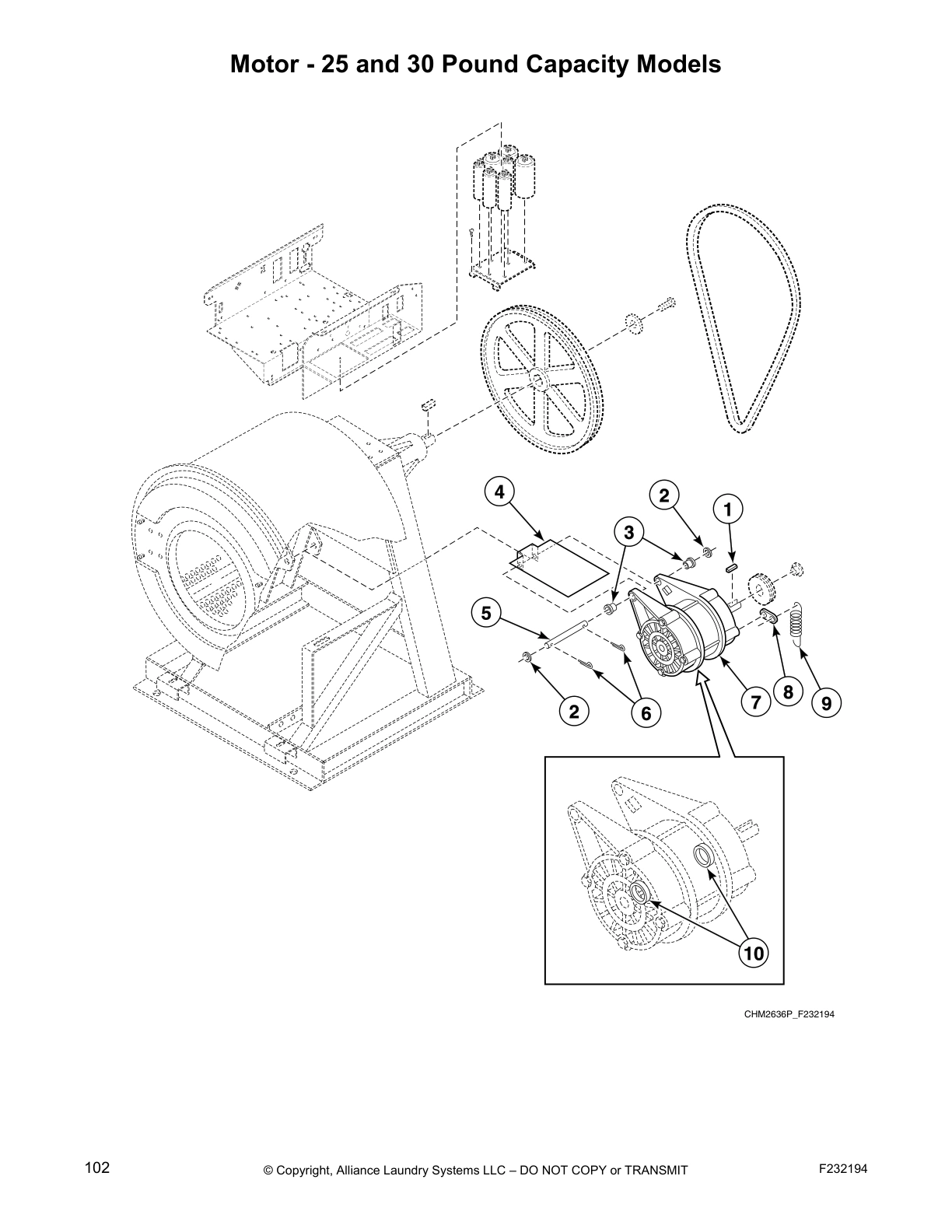

Motor - 25 and 30 Pound Capacity Models

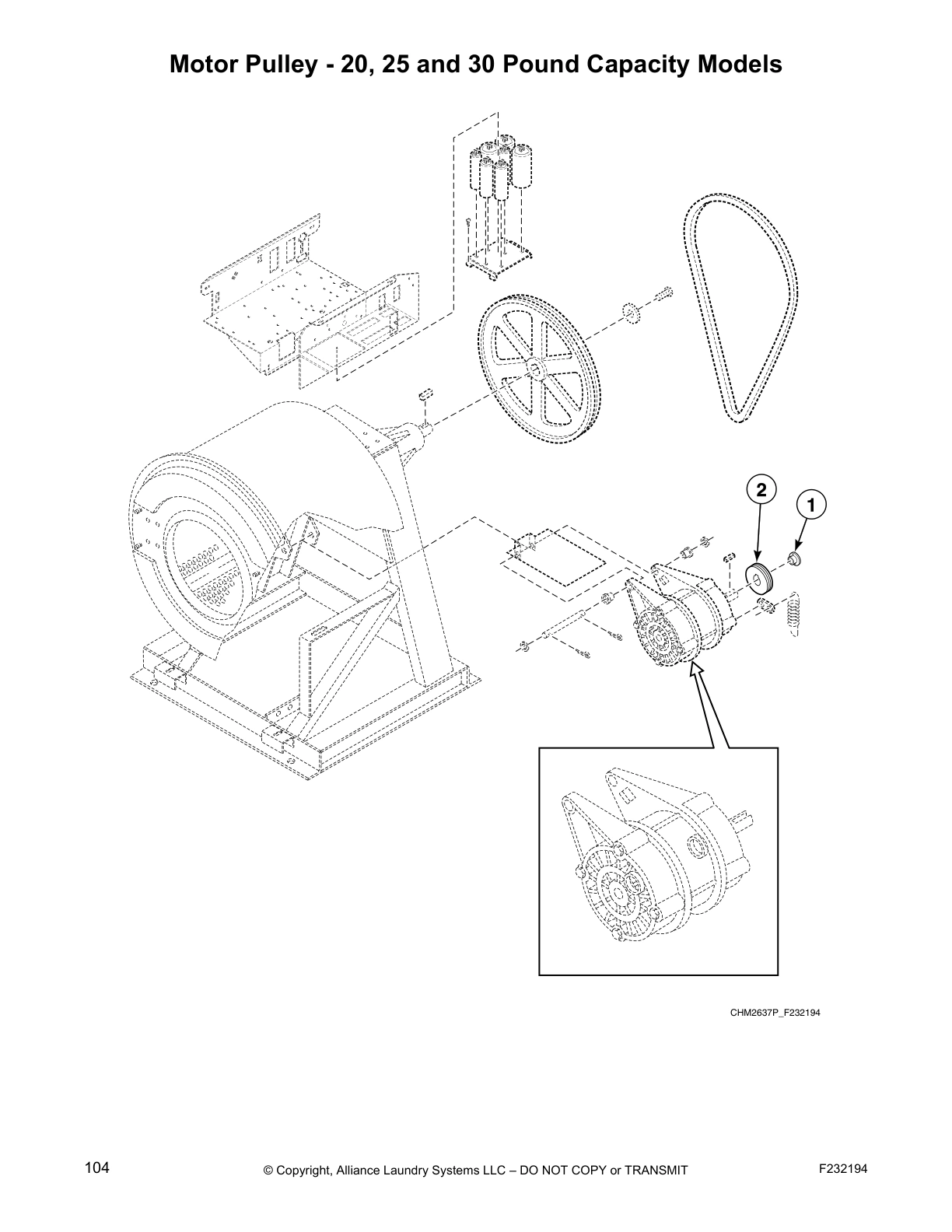

Motor Pulley - 20, 25 and 30 Pound Capacity Models

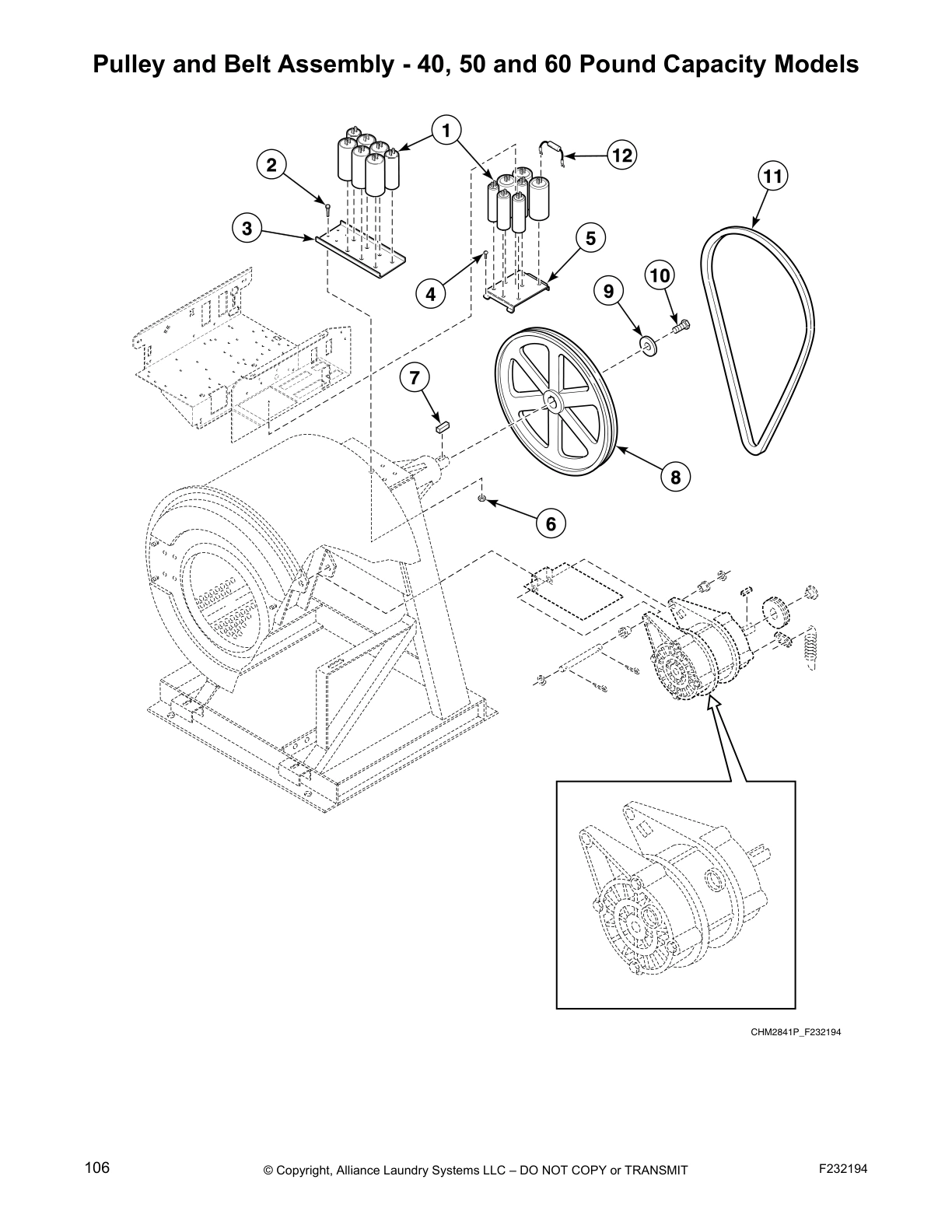

Pulley and Belt Assembly - 40, 50 and 60 Pound Capacity Models

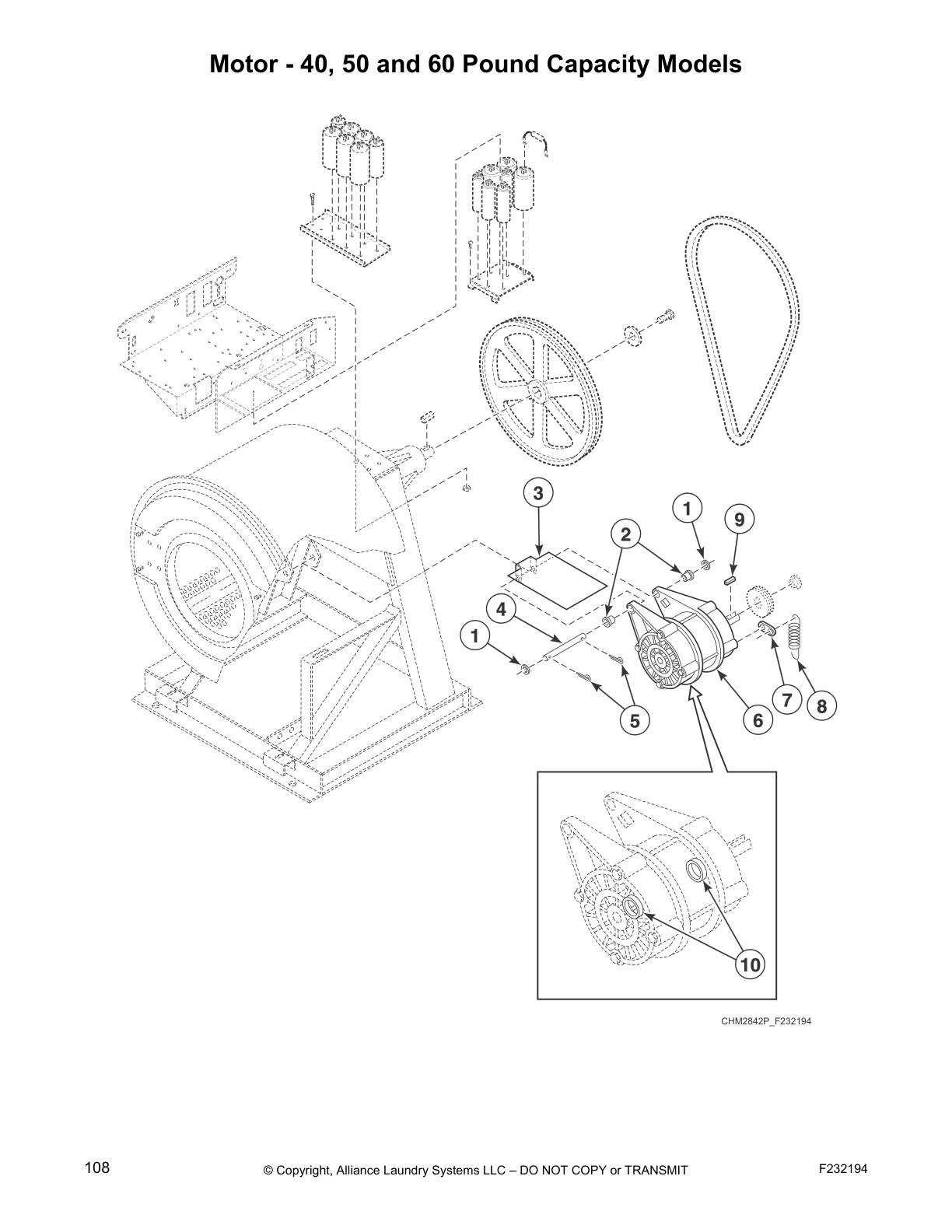

Motor - 40, 50 and 60 Pound Capacity Models

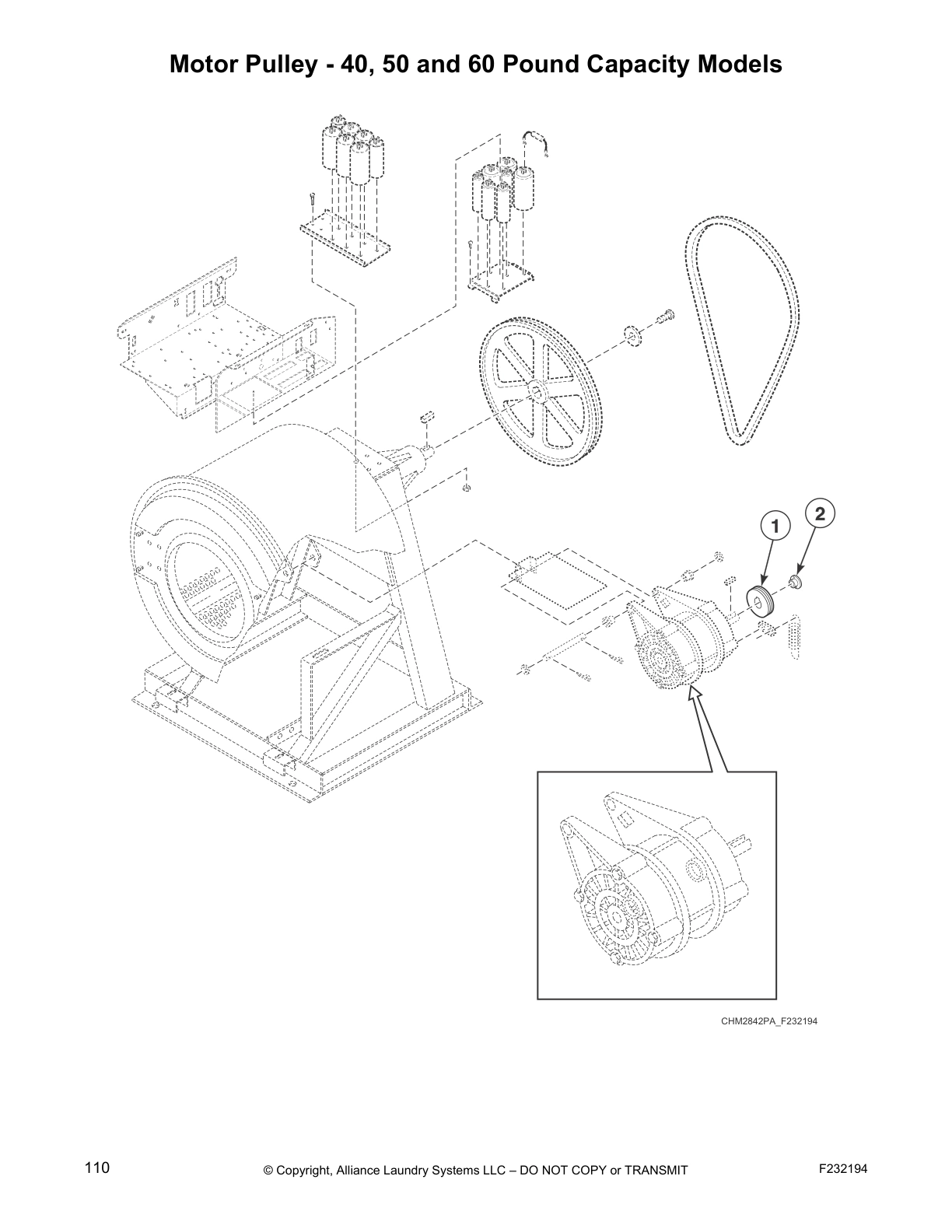

Motor Pulley - 40, 50 and 60 Pound Capacity Models

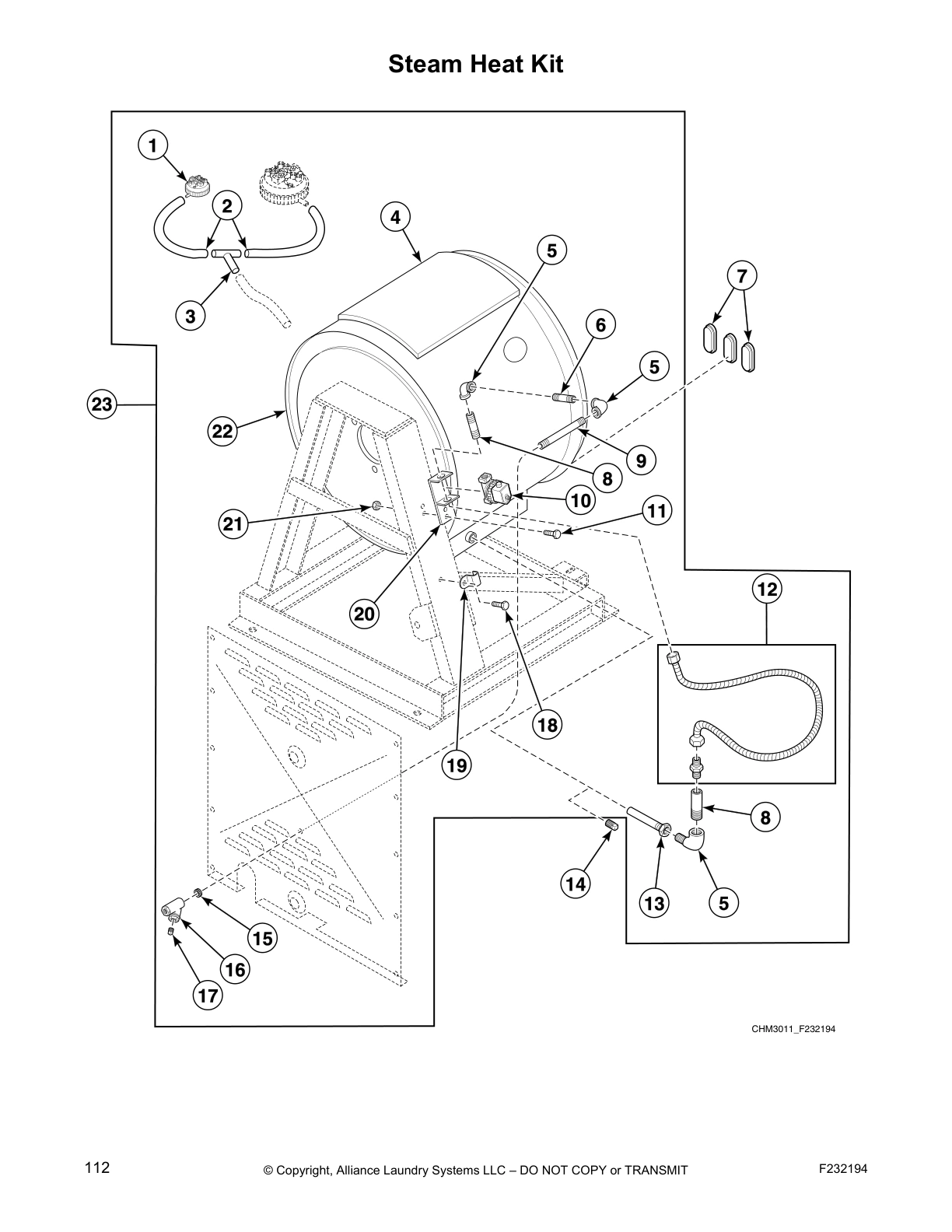

Steam Heat Kit

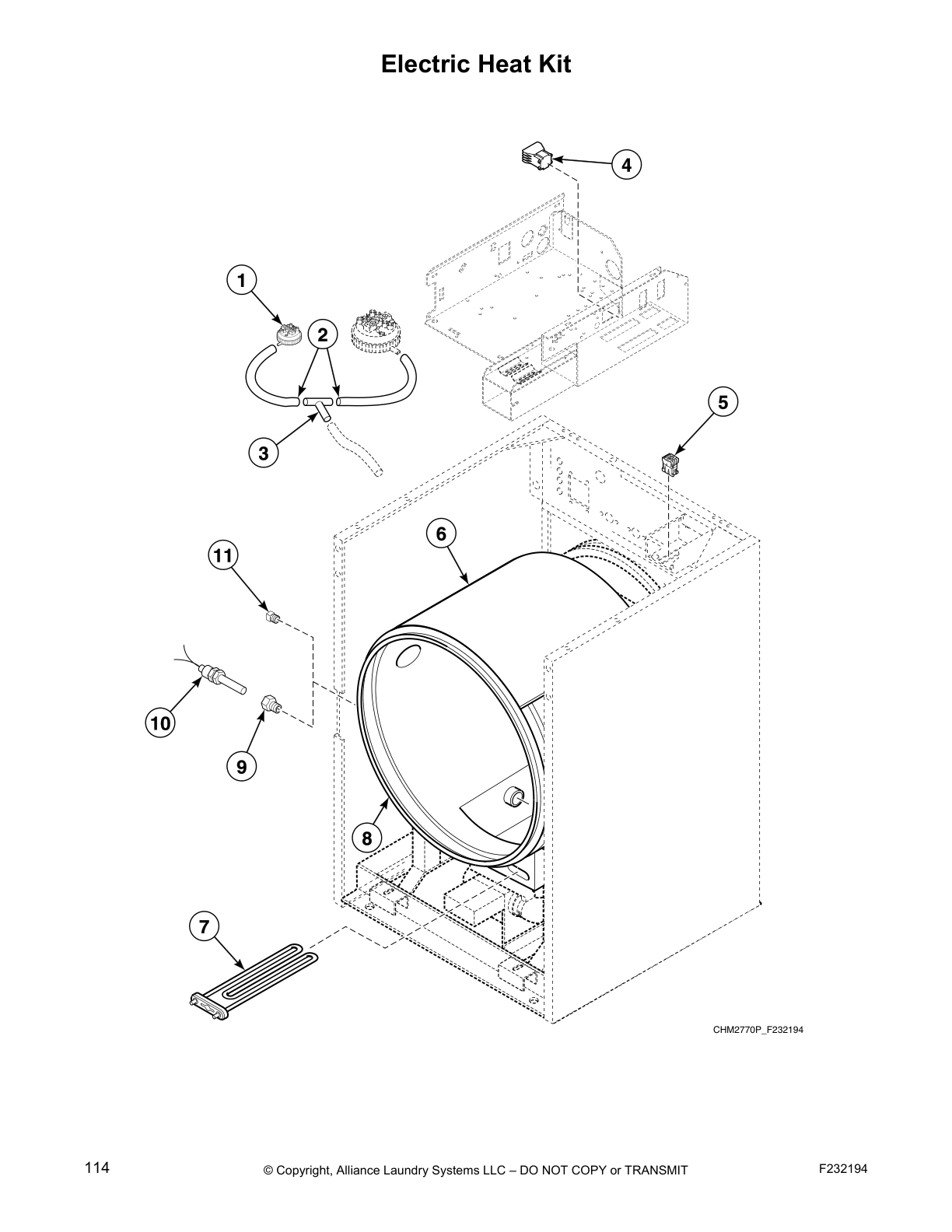

Electric Heat Kit

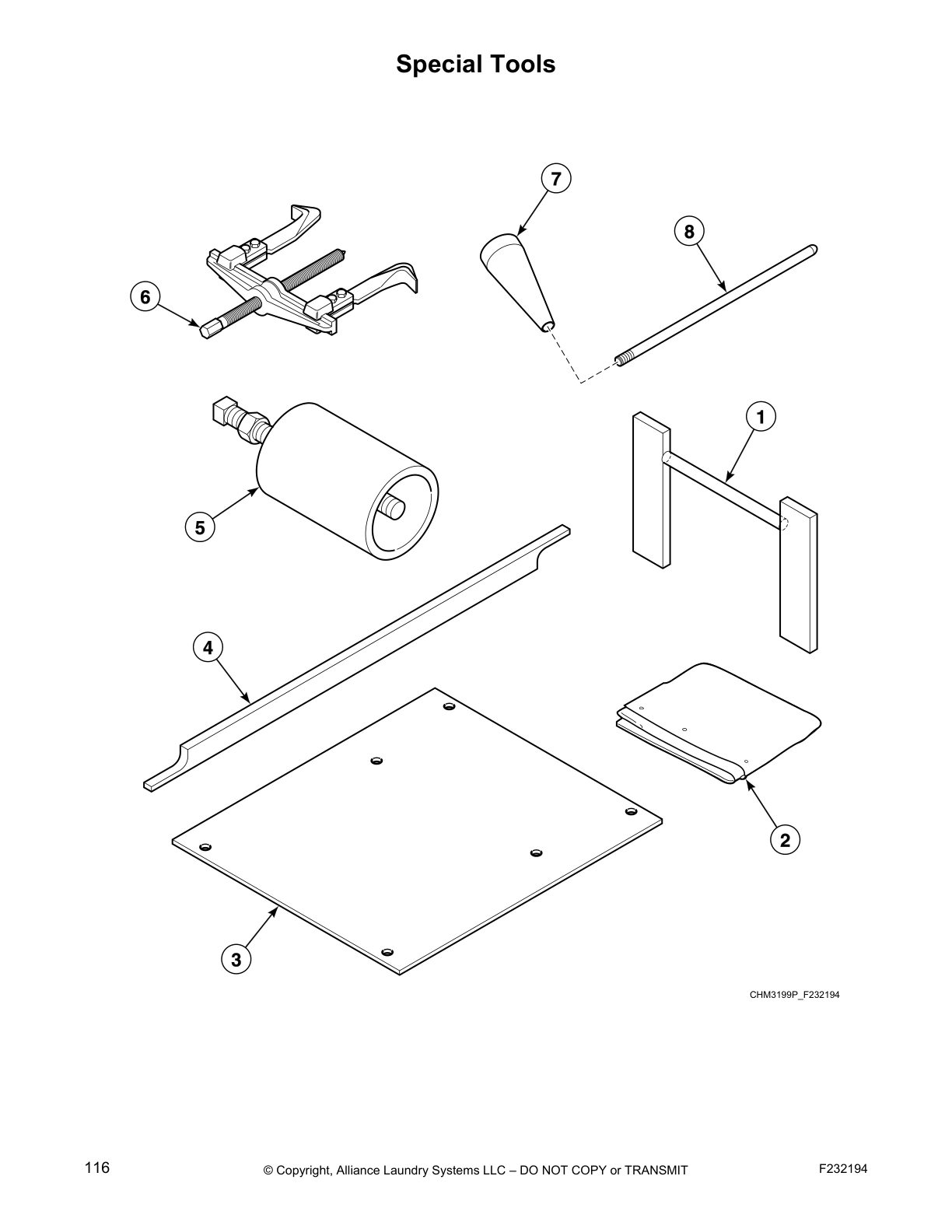

Special Tools
Common parts from model Unimac UC30BN2 Washer
SPQ F0231582-05P SPQ F0231582-05P Contact Us For Availability
SPQ F360156P SPQ F360156P Contact Us For Availability
SPQ F360117P SPQ F360117P Contact Us For Availability
SPQ F0150503-00 SPQ F0150503-00 Contact Us For Availability
SPQ F200166 SPQ F200166 Contact Us For Availability
SPQ F200165 SPQ F200165 Contact Us For Availability
SPQ F430927 SPQ F430927 Contact Us For Availability
Pulley SPQ F280423 Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
Drain Valve Assembly SPQ F603175 Contact Us For Availability
1
Mounting Bracket Assembly SPQ F0636707-00 Contact Us For Availability
1
Water Pressure Switch SPQ F8223001P Contact Us For Availability
1
Fuse SPQ F350110 Contact Us For Availability
1
Control Panel Assembly SPQ F0636522-01 Contact Us For Availability
1
Key SPQ F160423 Contact Us For Availability
1
Cap SPQ F190303 Contact Us For Availability
1
Hose Clamp SPQ F200215 Contact Us For Availability
1
Red Dot Decal SPQ F230662 Contact Us For Availability
1
Door Lock Splash Shield SPQ F320200 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Screw SPQ F430925 Contact Us For Availability
1
Right Side Panel SPQ F8155501P Contact Us For Availability
1
Shell Front Assembly SPQ F632006P Contact Us For Availability
1
Pressfit Upgrade Kit SPQ F936P3 Contact Us For Availability
1
Screw SPQ F430987 Contact Us For Availability
1
Capacitor SPQ F370224P Contact Us For Availability
1
Washer SPQ F430325 Contact Us For Availability
1
Bushing SPQ H87529111P Contact Us For Availability
1
Sheave SPQ H87520334 Contact Us For Availability
1
Basket Pulley Puller Tool SPQ F460131P Contact Us For Availability
2
E-Ring Retainer SPQ F340200 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F792000 Contact Us For Availability
2
Computer SPQ F037044860-1 Contact Us For Availability
2
AC Drive Radio Filter Assembly SPQ F200320900 Contact Us For Availability
2
On/Off Switch Assembly SPQ F0636445-02 Contact Us For Availability
2
Rocker Switch SPQ F340411 Contact Us For Availability
2
Coin Box SPQ F160421 Contact Us For Availability
2
Snap Bushing SPQ F140766 Contact Us For Availability
2
Washer SPQ F270305 Contact Us For Availability
2
Vacuum Breaker Hose SPQ F150321 Contact Us For Availability
2
Rear Pump Drain Hose SPQ 901690 Contact Us For Availability
2
Bolt SPQ F430974 Contact Us For Availability
2
Pushbutton Rod SPQ F150225 Contact Us For Availability
2
Nut SPQ F430233 Contact Us For Availability
2
Valve Panel Assembly SPQ F0636521-00 Contact Us For Availability
2
Basket Assembly SPQ F8347901P Contact Us For Availability
2
Washer SPQ F431128 Contact Us For Availability
2
Frame Assembly SPQ F630232 Contact Us For Availability
2
Motor Support Bushing SPQ F200186100 Contact Us For Availability
2
Bushing SPQ F280225P Contact Us For Availability
2
Steam Bracket Assembly SPQ F430115 Contact Us For Availability
2
Tubing SPQ F422404P Contact Us For Availability
3
Triple Lip Seal SPQ F8203802 Contact Us For Availability
3
SPQ F0300131-00P SPQ F0300131-00P Contact Us For Availability
3
Control Panel Decal SPQ F0231613-21 Contact Us For Availability
3
U-Bolt Clamp SPQ F200217 Contact Us For Availability
3
Spring Pin SPQ F320300 Contact Us For Availability
3
Rear Panel SPQ F0636321-00P Contact Us For Availability
3
Side Panel SPQ F0636515-00P Contact Us For Availability
3
Screw SPQ F430518 Contact Us For Availability
3
Excluder Seal SPQ F8336901 Contact Us For Availability
3
Capacitor SPQ F370221 Contact Us For Availability
3
Motor Drip Shield SPQ F200216900 Contact Us For Availability
3
Fiberglass Blanket SPQ F200092800P Contact Us For Availability
3
Tee SPQ F422806 Contact Us For Availability
3
Bolt Layout Mounting Template SPQ F631796 Contact Us For Availability
4
Screw SPQ F431222 Contact Us For Availability
4
Washer SPQ F430174 Contact Us For Availability
4
SPQ F422808 SPQ F422808 Contact Us For Availability
4
Drain Valve Kit SPQ F8577201 Contact Us For Availability
4
Pipe SPQ F150352 Contact Us For Availability
4
Washer SPQ F430317 Contact Us For Availability
4
Air Chamber Nipple SPQ F020014200 Contact Us For Availability
4
Magnetic Switch Assembly SPQ F8245101 Contact Us For Availability
4
SPQ F430225 SPQ F430225 Contact Us For Availability
4
Washer SPQ F431147 Contact Us For Availability
4
Retaining Ring SPQ F8345001 Contact Us For Availability
4
Capacitor Mounting Plate SPQ F370230 Contact Us For Availability
5
Bearing SPQ F100123P Contact Us For Availability
5
SPQ F150390 SPQ F150390 Contact Us For Availability
5
Key SPQ F370220 Contact Us For Availability
5
SPQ F430311 SPQ F430311 Contact Us For Availability
5
Water Level Switch SPQ F0340343-10P Contact Us For Availability
5
Washer SPQ F0370452-21P Contact Us For Availability
5
Capacitor Mounting Plate SPQ F430107 Contact Us For Availability
5
Washer SPQ F200125800 Contact Us For Availability
5
Pump Drain Rear Connecting Bracket SPQ F150343 Contact Us For Availability
5
Magnetic Switch SPQ F8746601 Contact Us For Availability
5
Push Red Button Decal SPQ F431916 Contact Us For Availability
5
SPQ F430977 SPQ F430977 Contact Us For Availability
5
Supply Dispenser Lid SPQ F200270500 Contact Us For Availability
5
Motor Support Rod SPQ F602844 Contact Us For Availability
5
Cotter Pin SPQ F430401 Contact Us For Availability
6
Bearing SPQ F100108 Contact Us For Availability
6
Door Spacer SPQ F8535601 Contact Us For Availability
6
Transformer SPQ F0370455-60P Contact Us For Availability
6
SPQ F0430268-00 SPQ F0430268-00 Contact Us For Availability
6
SPQ F270407 SPQ F270407 Contact Us For Availability
6
Pump Inlet Hose SPQ F634178 Contact Us For Availability
6
Nut SPQ F200401P Contact Us For Availability
6
Rod SPQ F0340723-00 Contact Us For Availability
6
SPQ F8059701 SPQ F8059701 Contact Us For Availability
6
Cabinet Brace SPQ F634801 Contact Us For Availability
6
Lid Clamp Assembly SPQ F630430 Contact Us For Availability
6
Clamp Ring Assembly SPQ F8388002 Contact Us For Availability
6
Nut SPQ F0637425-00 Contact Us For Availability
6
Fiberglass Blanket SPQ F410301 Contact Us For Availability
6
Heating Element Plug SPQ 70079601 Contact Us For Availability
6
Basket Puller Tool SPQ F460129P Contact Us For Availability
7
SPQ F430264 SPQ F430264 Contact Us For Availability
7
SPQ F0330404-00P SPQ F0330404-00P Contact Us For Availability
7
Ribbon Cable SPQ F0634903-00 Contact Us For Availability
7
Transformer Mounting Bracket SPQ F0370455-20P Contact Us For Availability
7
SPQ F200202201P SPQ F200202201P Contact Us For Availability
7
SPQ F8017101 SPQ F8017101 Contact Us For Availability
7
Nut SPQ F430103 Contact Us For Availability
7
SPQ F603827-1 SPQ F603827-1 Contact Us For Availability
7
Door Hinge Shim Kit SPQ F602813-2 Contact Us For Availability
7
Screw SPQ F230661 Contact Us For Availability
7
SPQ F8066701 SPQ F8066701 Contact Us For Availability
7
Key SPQ F431024 Contact Us For Availability
7
Top Cover Assembly SPQ F063652000P Contact Us For Availability
7
Nut SPQ F430239 Contact Us For Availability
7
Screw SPQ F0636555-00 Contact Us For Availability
7
Motor Conversion Kit SPQ F8353501P Contact Us For Availability
7
Clip SPQ F601515 Contact Us For Availability
7
Pipe Nipple SPQ F420708 Contact Us For Availability
7
Element SPQ F360205P Contact Us For Availability
7
Basket Guide Cone Tool SPQ 397P4 Contact Us For Availability
8
SPQ F730168 SPQ F730168 Contact Us For Availability
8
SPQ F0432316-00 SPQ F0432316-00 Contact Us For Availability
8
Computer and Door Lock Harne SPQ F430928 Contact Us For Availability
8
SPQ F200123400 SPQ F200123400 Contact Us For Availability
8
SPQ F604147 SPQ F604147 Contact Us For Availability
8
Door Assembly SPQ F430536 Contact Us For Availability
8
SPQ F431041 SPQ F431041 Contact Us For Availability
8
SPQ F603003 SPQ F603003 Contact Us For Availability
8
SPQ F8200402P SPQ F8200402P Contact Us For Availability
8
SPQ F0430348-00 SPQ F0430348-00 Contact Us For Availability
8
SPQ F747002 SPQ F747002 Contact Us For Availability
8
Shell Weldment SPQ F0636704-00 Contact Us For Availability
8
Extension Spring SPQ F310124 Contact Us For Availability
8
Motor SPQ F8597103P Contact Us For Availability
8
Steam Valve Repair Kit SPQ F360202 Contact Us For Availability
8
Basket Installation Tool Rod SPQ 401P4 Contact Us For Availability
9
Motor SPQ F8597501P Contact Us For Availability
9
SPQ F431702 SPQ F431702 Contact Us For Availability
9
Screw SPQ F140219P Contact Us For Availability
9
SPQ F602374 SPQ F602374 Contact Us For Availability
9
SPQ F634177 SPQ F634177 Contact Us For Availability
9
SPQ F200131000P SPQ F200131000P Contact Us For Availability
9
SPQ F0150273-00 SPQ F0150273-00 Contact Us For Availability
9
SPQ F634666-5 SPQ F634666-5 Contact Us For Availability
9
Cabinet Brace SPQ F0636518-00 Contact Us For Availability
9
Key SPQ F430802 Contact Us For Availability
9
SPQ 70435601 SPQ 70435601 Contact Us For Availability
9
Reducer Bushing SPQ F421936 Contact Us For Availability
10
Drain Pump SPQ F270119P Contact Us For Availability
10
Ball Bearing SPQ M400592 Contact Us For Availability
10
L-Catch Kit SPQ F746808 Contact Us For Availability
10
Screw SPQ F430909 Contact Us For Availability
10
Output CCA SPQ F350109 Contact Us For Availability
10
Hose Clamp SPQ F0150331-00 Contact Us For Availability
10
Pump Drain Trap Weldment SPQ F633819 Contact Us For Availability
10
Door Hinge SPQ F190216P Contact Us For Availability
10
Door Handle Kit SPQ F730155 Contact Us For Availability
10
Temperature Probe Assembly SPQ F8045001 Contact Us For Availability
11
Door Lock Catch Casting SPQ F150261 Contact Us For Availability
11
Pump SPQ F200000900P Contact Us For Availability
11
Standoff SPQ F180501 Contact Us For Availability
11
Screw SPQ F430108 Contact Us For Availability
11
Vacuum Breaker Hose SPQ F0200244-01 Contact Us For Availability
11
Spin Rotation Decal SPQ F230914 Contact Us For Availability
11
Plug SPQ F200202600 Contact Us For Availability
12
Door Mount SPQ F150271 Contact Us For Availability
12
Transformer Mounting Bracket SPQ F200167700 Contact Us For Availability
12
Nut SPQ F350108 Contact Us For Availability
12
Water Hose SPQ F200108P Contact Us For Availability
12
Screw SPQ F150312 Contact Us For Availability
12
Counterclockwise Spin Rotation Decal SPQ F230693 Contact Us For Availability
12
Screw SPQ F430982 Contact Us For Availability
12
Pipe Insulation SPQ F410300 Contact Us For Availability
13
Interlock Contactor SPQ F0430165-00 Contact Us For Availability
13
Grommet SPQ F200139500 Contact Us For Availability
13
Screw SPQ F200222 Contact Us For Availability
13
Screw SPQ F270104P Contact Us For Availability
13
Trim SPQ F8679201P Contact Us For Availability
13
Door Glass SPQ F8485301P Contact Us For Availability
13
Washer SPQ F431100 Contact Us For Availability
13
Steam Hose SPQ F200154 Contact Us For Availability
14
Screw SPQ F430916 Contact Us For Availability
14
Overload Contactor SPQ F330186P Contact Us For Availability
14
Screw SPQ F430948 Contact Us For Availability
14
Pump Drain Trap Mounting Bracket SPQ F430519 Contact Us For Availability
14
Door Gasket SPQ F170123 Contact Us For Availability
14
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
15
Magnet SPQ F8390801 Contact Us For Availability
15
Insulator Bushing SPQ F8344001P Contact Us For Availability
15
Plug SPQ F609694 Contact Us For Availability
15
Nut SPQ F017012302 Contact Us For Availability
15
Door Lock Switch Lever SPQ F431902 Contact Us For Availability
16
Door Lock Torsion Spring SPQ F0636636-00 Contact Us For Availability
16
Nut SPQ F140909 Contact Us For Availability
16
Washer SPQ F431022 Contact Us For Availability
16
External Supply Connection Decal SPQ F602533 Contact Us For Availability
16
Supply Dispenser Baffle SPQ F150419 Contact Us For Availability
16
Tubing SPQ F150443 Contact Us For Availability
16
Pump Drain Outlet Hose SPQ F150482 Contact Us For Availability
17
Spacer SPQ F310110 Contact Us For Availability
17
Washer SPQ F431016 Contact Us For Availability
17
Door Lock Spring SPQ F431113 Contact Us For Availability
17
Terminal SPQ F231376-3 Contact Us For Availability
17
Washer SPQ F200213 Contact Us For Availability
17
Pump SPQ F634463P Contact Us For Availability
18
Door Switch SPQ F430232 Contact Us For Availability
18
Nut SPQ F231376-2 Contact Us For Availability
18
Overflow Plug SPQ F606192-5 Contact Us For Availability
18
Door Handle SPQ F310125 Contact Us For Availability
18
Tubing SPQ F420409 Contact Us For Availability
19
Switch Clamp SPQ F8195301 Contact Us For Availability
19
Pump Mounting Bracket SPQ F634114 Contact Us For Availability
19
Door Lock Pin Release Spring SPQ F431901 Contact Us For Availability
20
Door Locking Linkage Pin SPQ F430231 Contact Us For Availability
20
Screw SPQ F430179 Contact Us For Availability
21
Input Block SPQ F200100100 Contact Us For Availability
21
3-Way Valve SPQ F430903 Contact Us For Availability
21
Shell Weldment SPQ F601186 Contact Us For Availability
22
Steam Heat Kit SPQ F430215 Contact Us For Availability
22
Vacuum Breaker Top SPQ F140734 Contact Us For Availability
22
Door Lock Retainer Latch SPQ F310137 Contact Us For Availability
23
Vacuum Breaker Assembly SPQ F140938 Contact Us For Availability
23
Door Lock Microswitch SPQ F310205 Contact Us For Availability
24
Output Board Cover SPQ F0140799-00 Contact Us For Availability
24
Vacuum Breaker Bottom SPQ F170615 Contact Us For Availability
24
Door Lock Solenoid SPQ F431231 Contact Us For Availability
25
IDC Replacement Kit SPQ F0140795-00 Contact Us For Availability
25
Door Lock Assembly SPQ F150455 Contact Us For Availability
26
Y Connector SPQ F0381750-00P Contact Us For Availability
26
Door Lock Plate Shim SPQ F431123 Contact Us For Availability
27
Siphon Tube SPQ F0381738-00P Contact Us For Availability
27
Door Lock Plate Assembly SPQ F431017 Contact Us For Availability
28
SPQ F200203200 SPQ F200203200 Contact Us For Availability
28
Supply Dispenser Assembly SPQ F0381737-00P Contact Us For Availability
28
Door Lock Assembly Cover SPQ F0636103-00 Contact Us For Availability
29
Injection Nozzle Kit SPQ F0381736-00P Contact Us For Availability
30
Injection Nozzle SPQ F430177 Contact Us For Availability
30
SPQ F200136801 SPQ F200136801 Contact Us For Availability
31
O-Ring SPQ F0150329-00 Contact Us For Availability
31
SPQ F200136800P SPQ F200136800P Contact Us For Availability
32
Supply Dispenser Bezel SPQ F603031 Contact Us For Availability
33
Bezel Gasket SPQ F015033000 Contact Us For Availability
34
SPQ F0150504-00 SPQ F0150504-00 Contact Us For Availability
NI
SPQ F431806 SPQ F431806 Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
SPQ F0170427-00 SPQ F0170427-00 Contact Us For Availability
NI
SPQ F200189701 SPQ F200189701 Contact Us For Availability
NI
SPQ F0231582-01P SPQ F0231582-01P Contact Us For Availability
NI
SPQ F350125 SPQ F350125 Contact Us For Availability
NI
SPQ F200296000P SPQ F200296000P Contact Us For Availability
NI
SPQ F200120100 SPQ F200120100 Contact Us For Availability
NI
SPQ F160420 SPQ F160420 Contact Us For Availability
NI
SPQ F160673P SPQ F160673P Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ F200133600 SPQ F200133600 Contact Us For Availability
NI
Drain Valve Cover SPQ F380972P Contact Us For Availability
NI
SPQ F060323905 SPQ F060323905 Contact Us For Availability
NI
SPQ F430533 SPQ F430533 Contact Us For Availability
NI
SPQ F634666-2 SPQ F634666-2 Contact Us For Availability
NI
Cam Lock Assembly SPQ 802109 Contact Us For Availability
NI
Left Side Panel SPQ F8155601P Contact Us For Availability
NI
SPQ F0636516-00P SPQ F0636516-00P Contact Us For Availability
NI
Shaft Seal Sleeve SPQ F8312004P Contact Us For Availability
NI
Shaft Seal Sleeve Kit SPQ F8343904P Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
NI
SPQ F430942 SPQ F430942 Contact Us For Availability
NI
SPQ F430801 SPQ F430801 Contact Us For Availability
NI
Belt SPQ F0431159-00 Contact Us For Availability
NI
SPQ F280321 SPQ F280321 Contact Us For Availability
NI
Clip SPQ F220389P Contact Us For Availability
NI
SPQ F280284 SPQ F280284 Contact Us For Availability
NI
SPQ 70214101 SPQ 70214101 Contact Us For Availability
NI
Electric Heat Kit SPQ F200092700 Contact Us For Availability
× ![]()
