Model Whirlpool TUD7000Y1 DISHWASHER – Common Parts &amp; Diagrams

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability

Side Panel Kit (White) WPL 4317925 Contact Us For Availability

Avocado WPL 4317926 Contact Us For Availability

Gold WPL 4317927 Contact Us For Availability

Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability

Toast WPL 4317930 Contact Us For Availability

Platinum WPL 4317931 Contact Us For Availability

Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability

Black (Uncut) WPL 799340 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability

Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability

Instructions, Installation WPL LIT3369679 Contact Us For Availability

Energy Guide WPL LIT3373486 Contact Us For Availability

Wiring Diagram WPL LIT3373619 Contact Us For Availability

Guide, Use & Care WPL LIT3373749 Contact Us For Availability

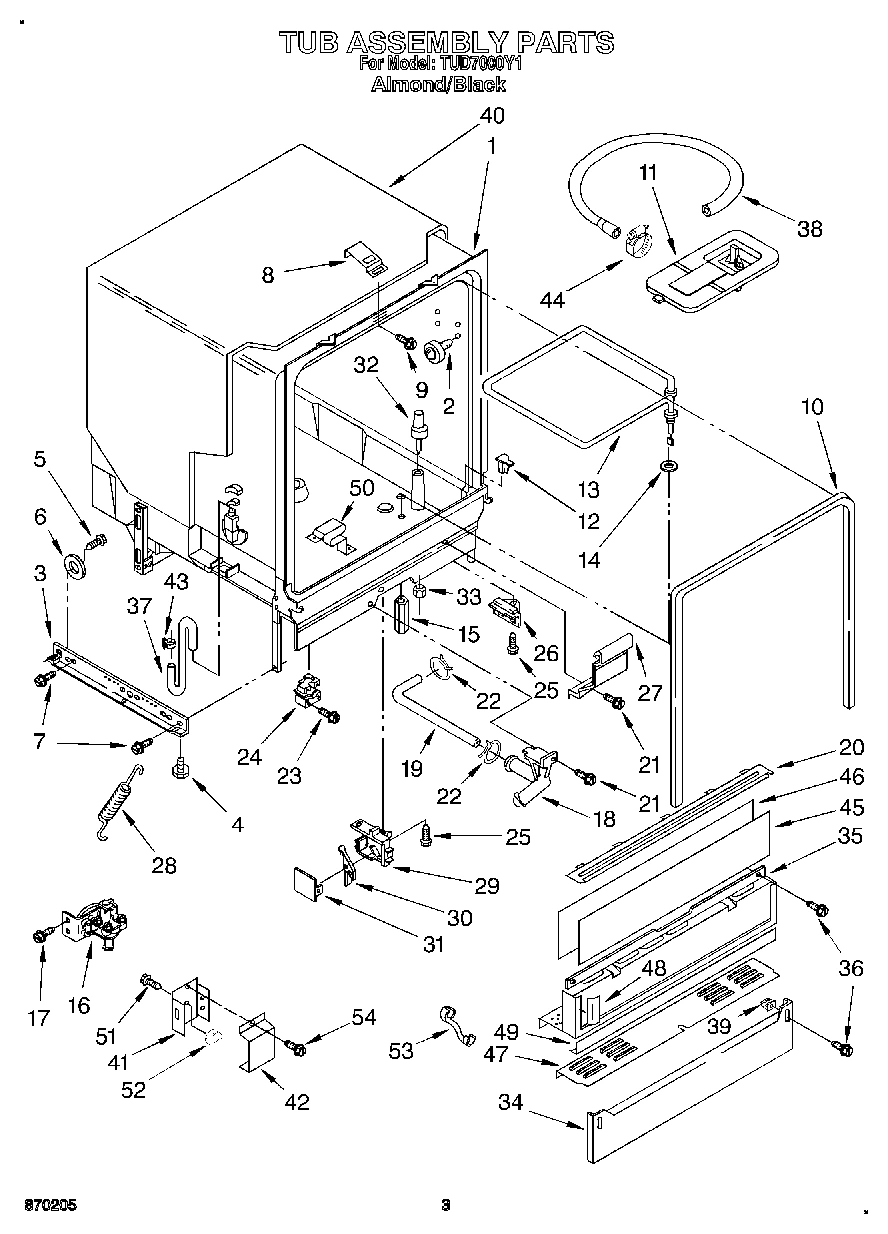

1

WP3369011 Whirlpool Dishwasher Housing Backorder WPL WP3369011 $47.40

1

Grommet, Pump Seal WPL 3369037 Contact Us For Availability

1

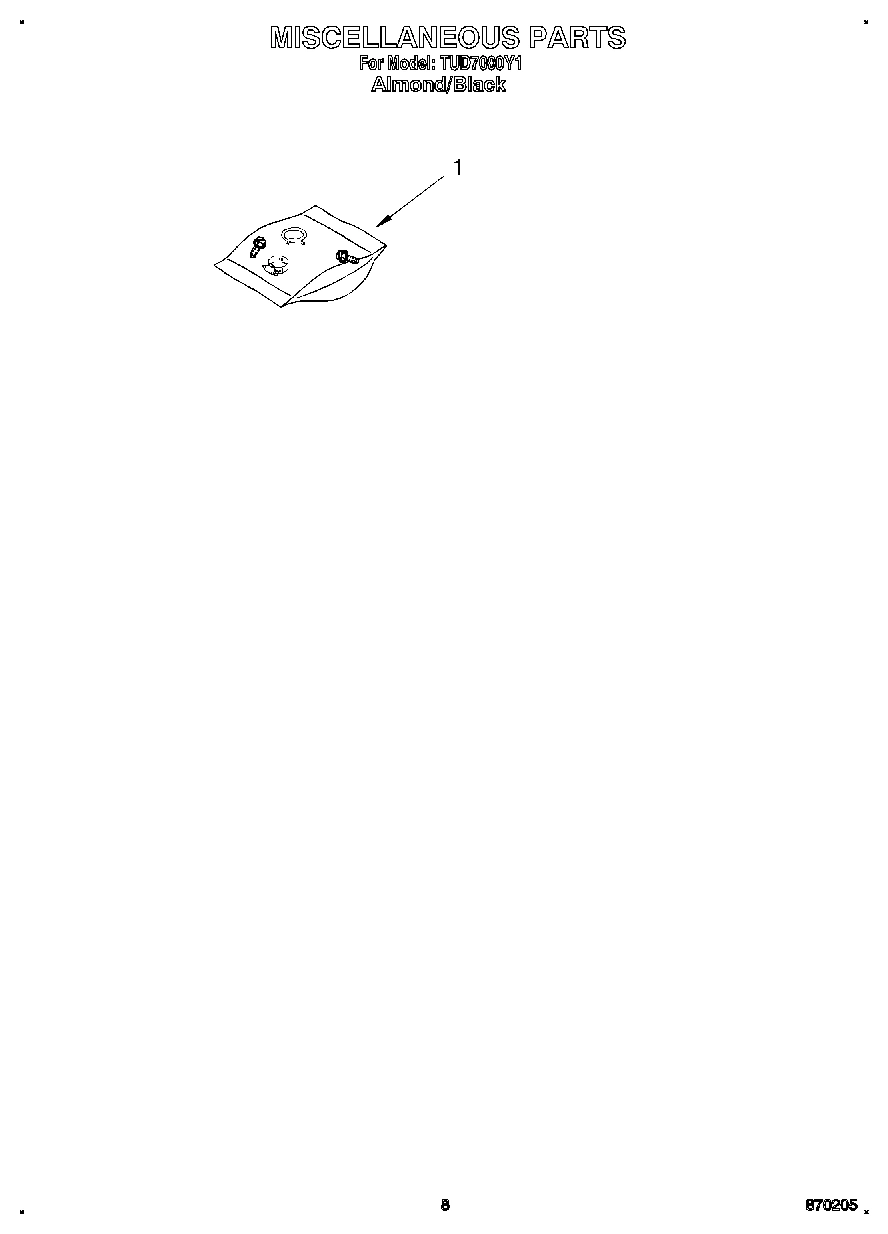

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

1

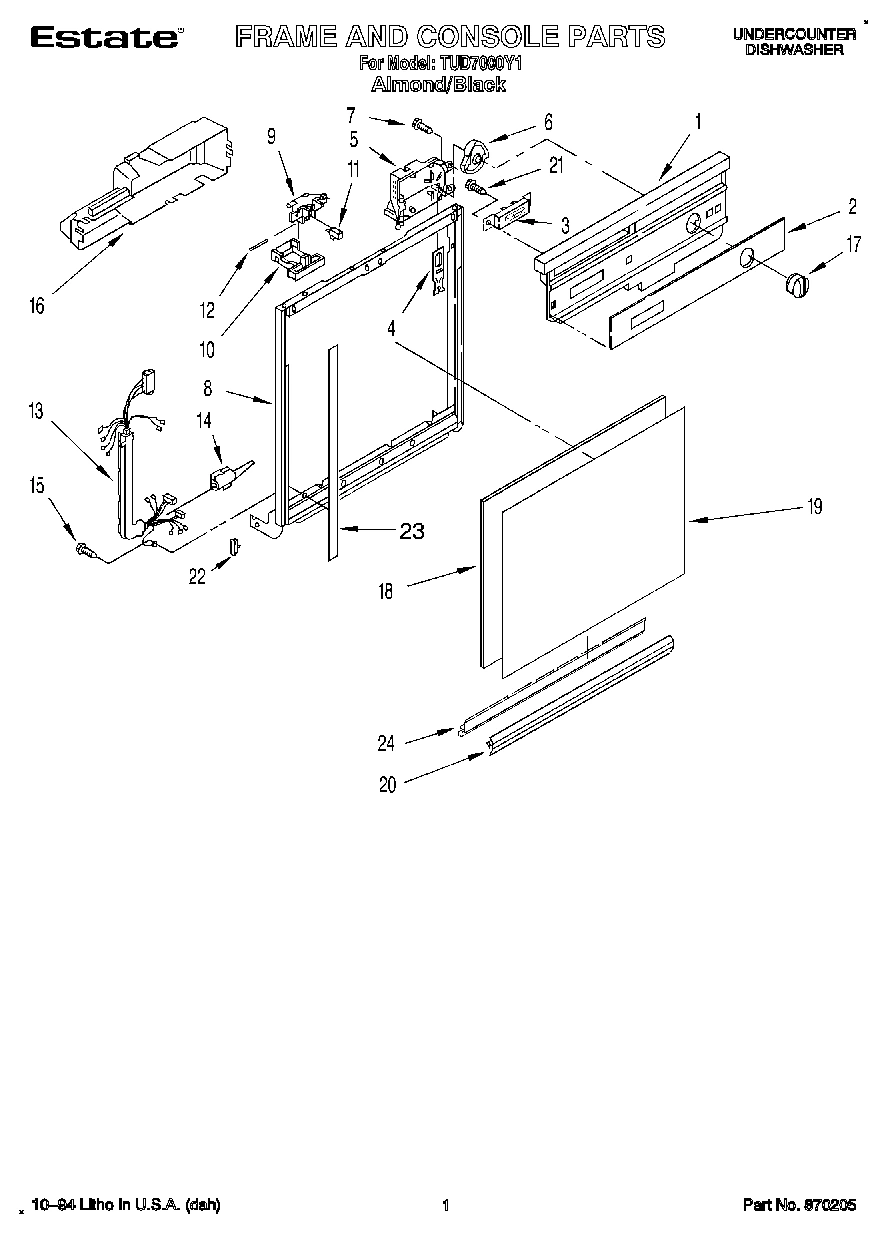

Console (Incl. Illus. 2) WPL 3373733 Contact Us For Availability

2

Seal, Drain Cover WPL 3369031 Contact Us For Availability

2

Insert, Console WPL 3374698 Contact Us For Availability

2

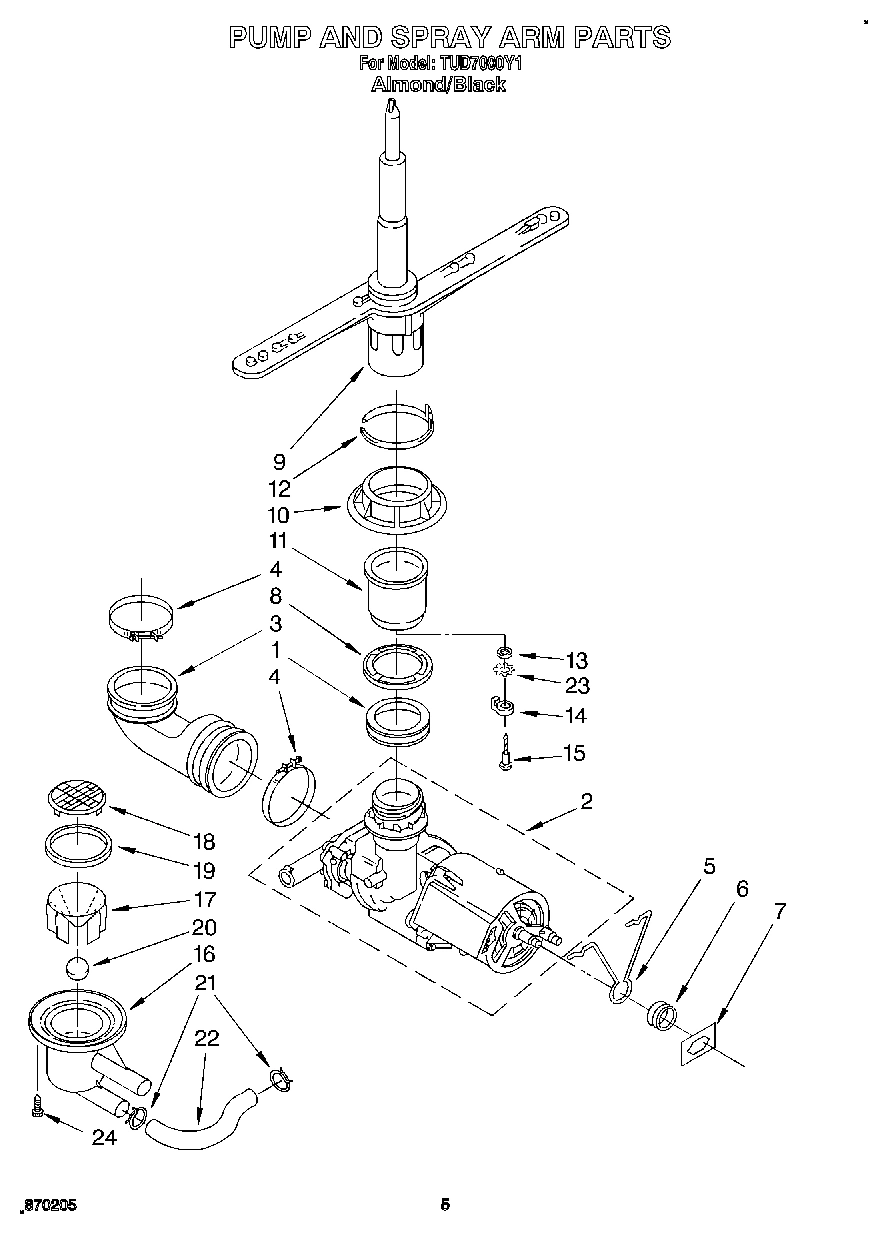

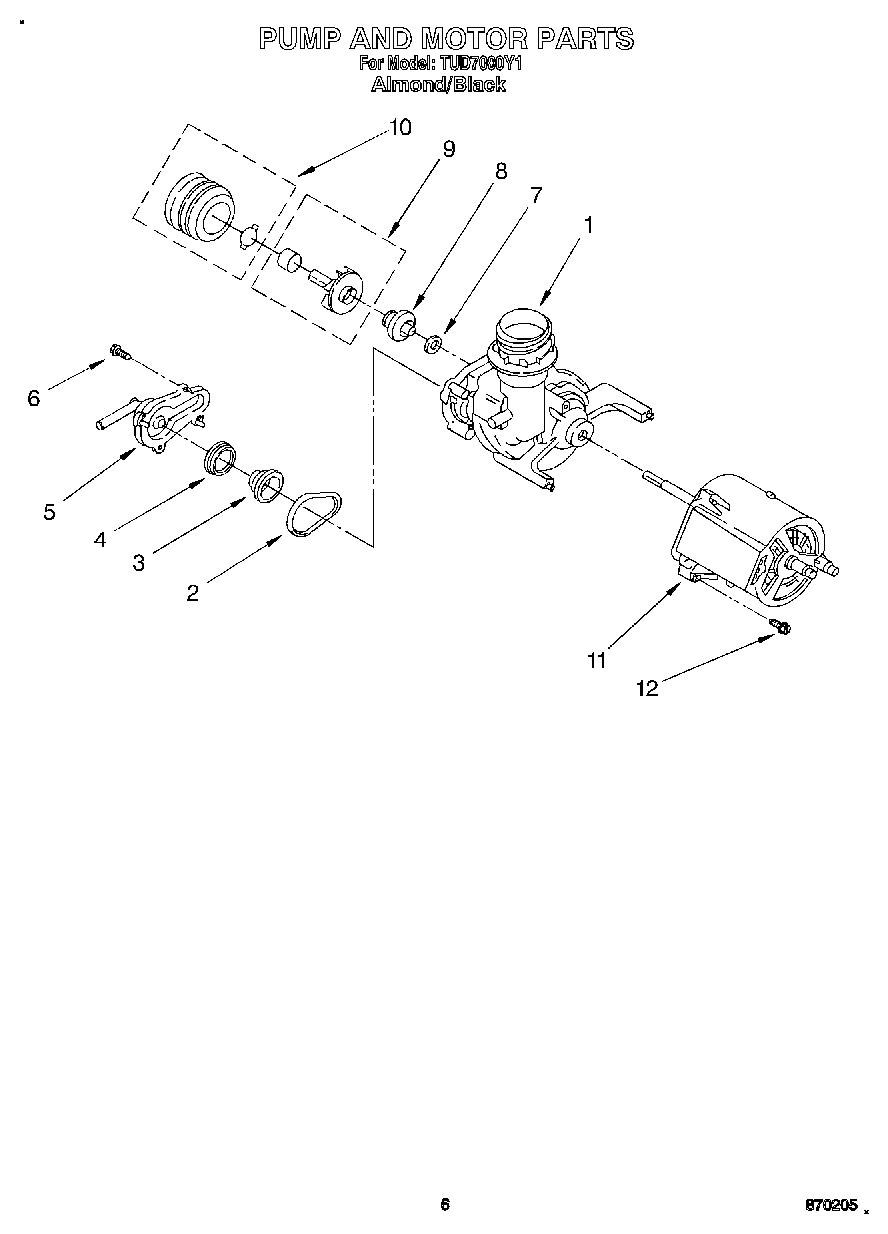

PUMP & MOTOR ASSEMBLY FOR BREAKDOWN OF PUMP P WPL 3369015 Contact Us For Availability

3

W11189178 Whirlpool Dishwasher Hose In Stock WPL W11189178 $10.12

3

Diaphragm WPL 3369028 Contact Us For Availability

3

Switch, 5-Pushbutton WPL 3373620 Contact Us For Availability

4

Ring, Diaphragm WPL 3369029 Contact Us For Availability

4

Follower, Cam WPL 3368997 Contact Us For Availability

4

Clamp (2) WPL 3369036 Contact Us For Availability

5

Cover, Drain Valve WPL 3369030 Contact Us For Availability

5

Timer WPL 3375080 Contact Us For Availability

5

Support, Motor WPL 3369033 Contact Us For Availability

6

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

6

WP8271510 Whirlpool Dishwasher Cam Backorder WPL WP8271510 $2.51

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

6

Wheel (2) WPL 302819 Contact Us For Availability

6

Grommet, Motor Support WPL 3369032 Contact Us For Availability

7

Seal Seat WPL 3369020 Contact Us For Availability

7

Push-Nut, Motor Support WPL 3370856 Contact Us For Availability

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

WP3385557 Whirlpool Dishwasher Head Seal Backorder WPL WP3385557 $55.13

8

Washer, Grommet WPL 3369038 Contact Us For Availability

8

Door Frame (Includes Item 24) WPL 3374711 Contact Us For Availability

9

4386996A Whirlpool Dishwasher Impeller In Stock WPL 4386996A $66.34

9

WP3380854 Whirlpool Door Latch Bolt In Stock WPL WP3380854 $51.51

9

Spray Arm, Assembly Lower WPL 3369008 Contact Us For Availability

WP3368954 Whirlpool Dishwasher Lever Backorder WPL WP3368954 $2.51

WP3369012 Whirlpool Dishwasher Disk Mount Backorder WPL WP3369012 $31.26

End Cap, Track (2) WPL 300845 Contact Us For Availability

Nut, Pump Outlet WPL 3369039 Contact Us For Availability

WP3369322 Whirlpool Cover Assembly Backorder WPL WP3369322 $30.25

Support & Bearing Assembly (Includes Items: 1 WPL 3371745 Contact Us For Availability

Motor WPL 3372625 Contact Us For Availability

Switch, (2) WPL 3369325 Contact Us For Availability

3368922 Whirlpool Dishwasher TORX Screw Backorder WPL 3368922 $4.61

WP3369045 Whirlpool Dishwasher Seal Backorder WPL WP3369045 $4.58

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

Pin, Switch (2) WPL 3368955 Contact Us For Availability

13

8268826 Whirlpool Dishwasher Cup Holder Backorder WPL 8268826 $10.76

13

Washer WPL 3369044 Contact Us For Availability

13

Harness and Protector WPL 3375033 Contact Us For Availability

14

3371746 Whirlpool Dishwasher Bearing Backorder WPL 3371746 $9.59

14

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

15

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

15

Shoulder Screw WPL 3371744 Contact Us For Availability

Water Valve WPL 3374621 Contact Us For Availability

Cover, Drip WPL 3371569 Contact Us For Availability

Cover Timer WPL 3373367 Contact Us For Availability

Collector WPL 3369175 Contact Us For Availability

17

Knob, Timer WPL 3371773 Contact Us For Availability

17

Funnel WPL 3369176 Contact Us For Availability

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

18

Grate, Funnel WPL 3369326 Contact Us For Availability

19

WP3369177 Whirlpool Dishwasher Seal Backorder WPL WP3369177 $4.92

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $17.79

20

WP3369178 Whirlpool Dishwasher Check Ball In Stock WPL WP3369178 $4.67

20

WP3372412 Whirlpool Dishwasher Retainer Backorder WPL WP3372412 $33.27

20

Retainer, Panel WPL 3374010 Contact Us For Availability

21

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

21

Clamp, Hose WPL 371499 Contact Us For Availability

22

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

22

Hose, Collector WPL 3369179 Contact Us For Availability

23

Washer, Curved WPL 3371634 Contact Us For Availability

23

Trim WPL 3369590 Contact Us For Availability

24

W10102260 Whirlpool Dishwasher Motor Relay Backorder WPL W10102260 $53.56

24

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $32.34

24

Screw 10-16, Hi-Lo (4) WPL 3369181 Contact Us For Availability

26

WP3368928 Whirlpool Dishwasher Fuse In Stock WPL WP3368928 $43.59

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

32

WP8519552 Whirlpool Dishwasher Float Backorder WPL WP8519552 $39.45

33

Nut WPL 717488 Contact Us For Availability

35

WP3369193 Whirlpool Dishwasher Panel Backorder WPL WP3369193 $59.71

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

42

COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability

44

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
