Model Whirlpool TU8100XTP0 TRASH COMPACTOR – Common Parts & Diagrams

1

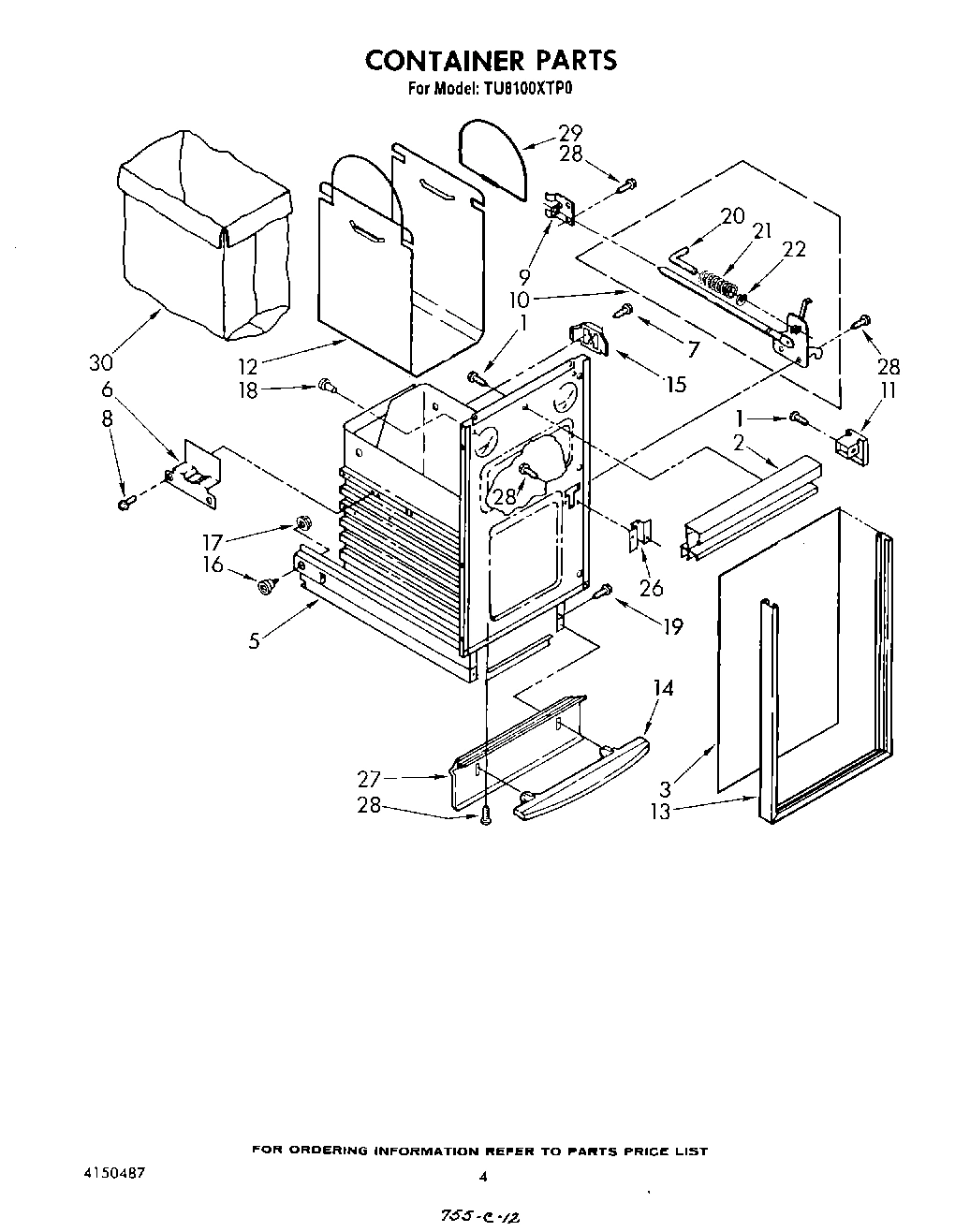

Panel, Contianer Front (White & Copper Hi-Lit
Panel, Contianer Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
View on Model
1
Panel, Contianer Front (Brushed Chrome)
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
View on Model
1
Panel, Container Front (Coffee & Harvest Gold
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
View on Model
1
Panel, Contianer Front (White & New Avocado)
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
View on Model
1
Panel, Container Front (Almond & Harvest Gold
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
View on Model
1
Panel, Contianer Front (Coffee & Avocado)
Panel, Contianer Front (Coffee & Avocado) WPL 777912 Contact Us For Availability
View on Model
1
Panel, Container Front (Black & White)
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
View on Model
1
Panel, Contianer Front (Platinum & Toast)
Panel, Contianer Front (Platinum & Toast) WPL 780280 Contact Us For Availability
View on Model
1

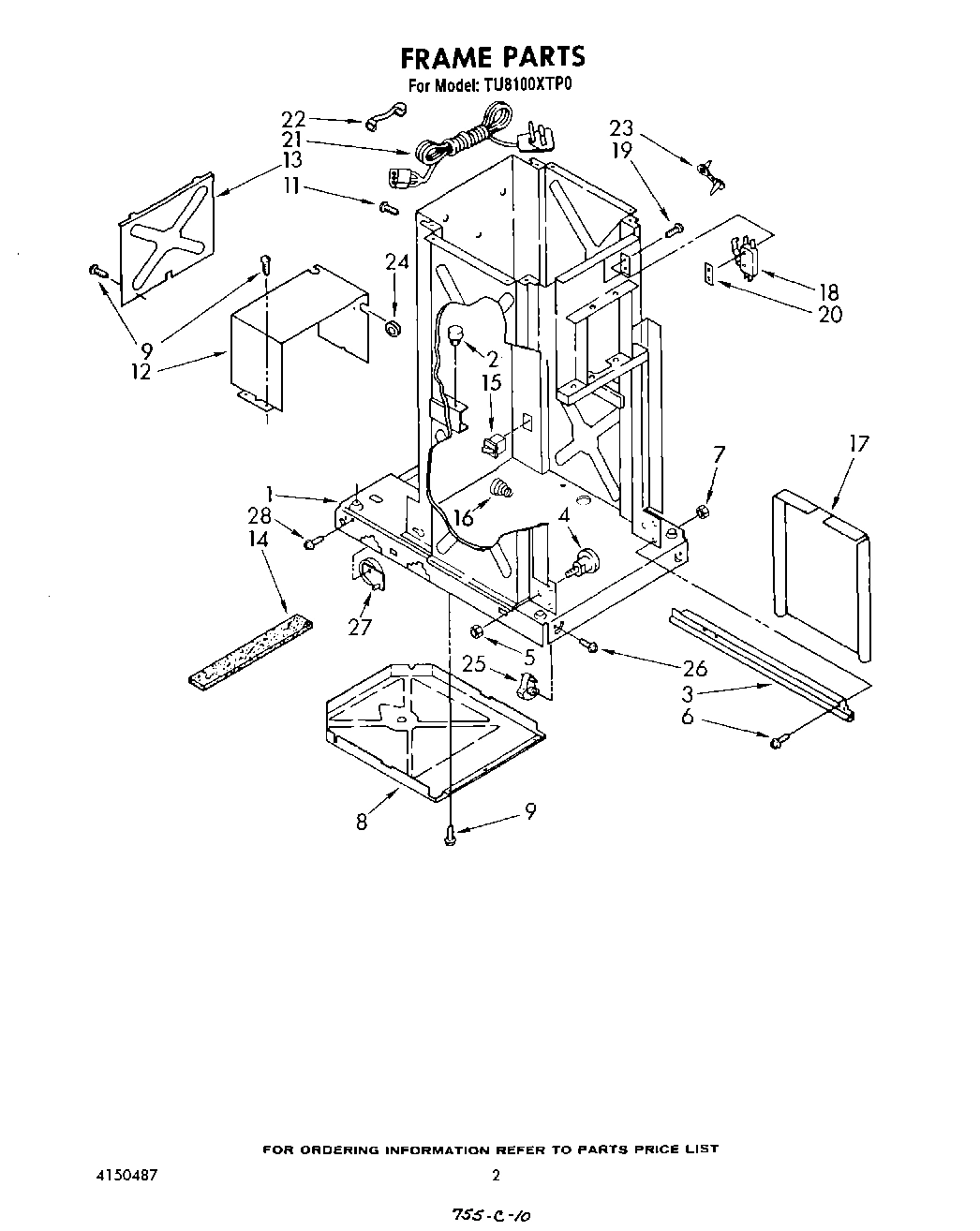

Frame (Not a Serviceable Part)
Frame (Not a Serviceable Part) WPL ARI133869A Contact Us For Availability
View on Model
1
Panel, Front Frame
Panel, Front Frame WPL 608846 Contact Us For Availability
View on Model
2

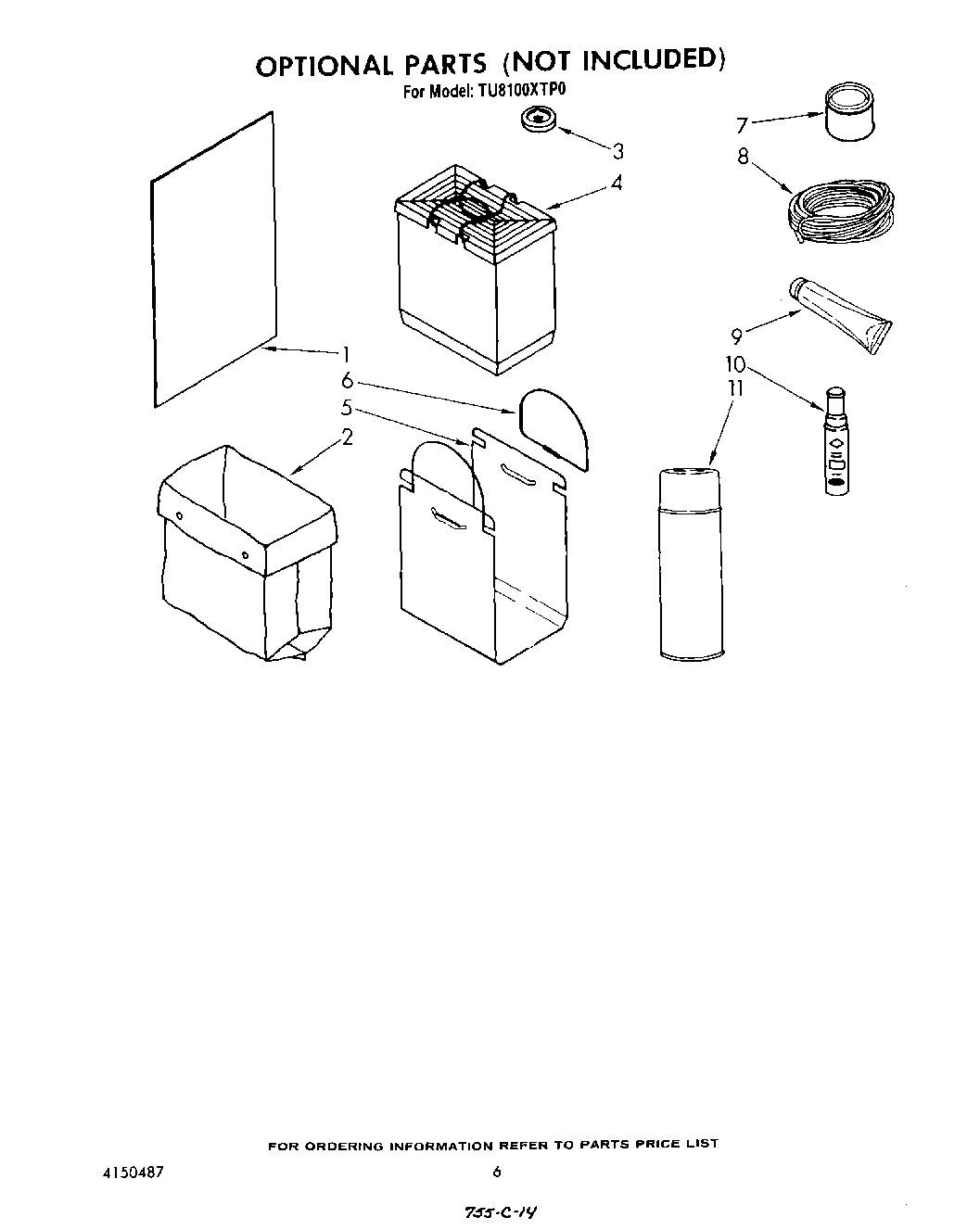

Bag, Trash (96 Pack (Paper))
Bag, Trash (96 Pack (Paper)) WPL 675350 Contact Us For Availability
View on Model
2
Bumper (4)
Bumper (4) WPL 775643 Contact Us For Availability
View on Model
2
Cover, Top
Cover, Top WPL 608572 Contact Us For Availability
View on Model
3
Deodorizer, Solid Stick-Ups (2-Pack)
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
View on Model
4
Trash, Container (Reusable)
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
View on Model
6
Cam, Spray Actuator (2)
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
View on Model
7
Nut, 6-32 (4)
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
View on Model
7
Escutcheon, Control
Escutcheon, Control WPL 4150406 Contact Us For Availability
View on Model
8
Wire (16 Ga. 80 c Blue)
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
View on Model
8
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
8
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
8
Wire, 25`` Roll (White 14 GA.)
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
View on Model
8
Wire, 25` Roll (Red 12 Ga.)
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
View on Model
8
Wire, 25`` Roll (Black 12 GA.)
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
View on Model
8
Wire, 25`` Roll (White 12 GA.)
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
View on Model
8
Screw, 6-20 x 3/8 (2)
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
View on Model
9
Bezel, Switch
Bezel, Switch WPL 780387 Contact Us For Availability
View on Model
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown)
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
View on Model
10
Paint, Touch-Up 1/2 Oz. (Coffee)
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
View on Model
11
WPL 261886
WPL 261886 WPL 261886 Contact Us For Availability
View on Model
11
WPL 261888
WPL 261888 WPL 261888 Contact Us For Availability
View on Model
11
WPL 261890
WPL 261890 WPL 261890 Contact Us For Availability
View on Model
11
WPL 285365
WPL 285365 WPL 285365 Contact Us For Availability
View on Model
11
WPL 285366
WPL 285366 WPL 285366 Contact Us For Availability
View on Model
11
WPL 675167
WPL 675167 WPL 675167 Contact Us For Availability
View on Model
11
WPL 978726
WPL 978726 WPL 978726 Contact Us For Availability
View on Model
12
Cover, Motor
Cover, Motor WPL 608849 Contact Us For Availability
View on Model
13
Trim, Container
Trim, Container WPL 777345 Contact Us For Availability
View on Model
13
Plate, Motor Cover
Plate, Motor Cover WPL 608009 Contact Us For Availability
View on Model
14
Barrier, Glass
Barrier, Glass WPL 776780 Contact Us For Availability
View on Model
14
Switch, Drawer Tilt
Switch, Drawer Tilt WPL 780421 Contact Us For Availability
View on Model
15
Compartment, Air Flow
Compartment, Air Flow WPL 777642 Contact Us For Availability
View on Model
16
Cover, Air Flow
Cover, Air Flow WPL 608783 Contact Us For Availability
View on Model
17
Panel, Inner Frame
Panel, Inner Frame WPL 780412 Contact Us For Availability
View on Model
17
Dail, Air Flow
Dail, Air Flow WPL 608782 Contact Us For Availability
View on Model
18
Bumper, Container (2)
Bumper, Container (2) WPL 775785 Contact Us For Availability
View on Model
18
End Cap, L.H.
End Cap, L.H. WPL 780179 Contact Us For Availability
View on Model
18
End Cap, R.H.
End Cap, R.H. WPL 780180 Contact Us For Availability
View on Model
19
Harness, Wiring
Harness, Wiring WPL 4150491 Contact Us For Availability
View on Model
20
Pin
Pin WPL 776654 Contact Us For Availability
View on Model
20
Plate, Nut
Plate, Nut WPL 777850 Contact Us For Availability
View on Model
21
Cord, Power
Cord, Power WPL 778575 Contact Us For Availability
View on Model
22
Bushing, Cord
Bushing, Cord WPL 776119 Contact Us For Availability
View on Model
23
Clamp, Wire
Clamp, Wire WPL 777035 Contact Us For Availability
View on Model
24
Grommet, Motor Cover
Grommet, Motor Cover WPL 776118 Contact Us For Availability
View on Model
25
leveler (2)
leveler (2) WPL 780082 Contact Us For Availability
View on Model
26
Screw & Washer Assembly (2)
Screw & Washer Assembly (2) WPL 780125 Contact Us For Availability
View on Model
27
Wheel Assembly, R.H.
Wheel Assembly, R.H. WPL 780139 Contact Us For Availability
View on Model
