Model Whirlpool TU8003XLP0 TRASH COMPACTOR – Common Parts & Diagrams

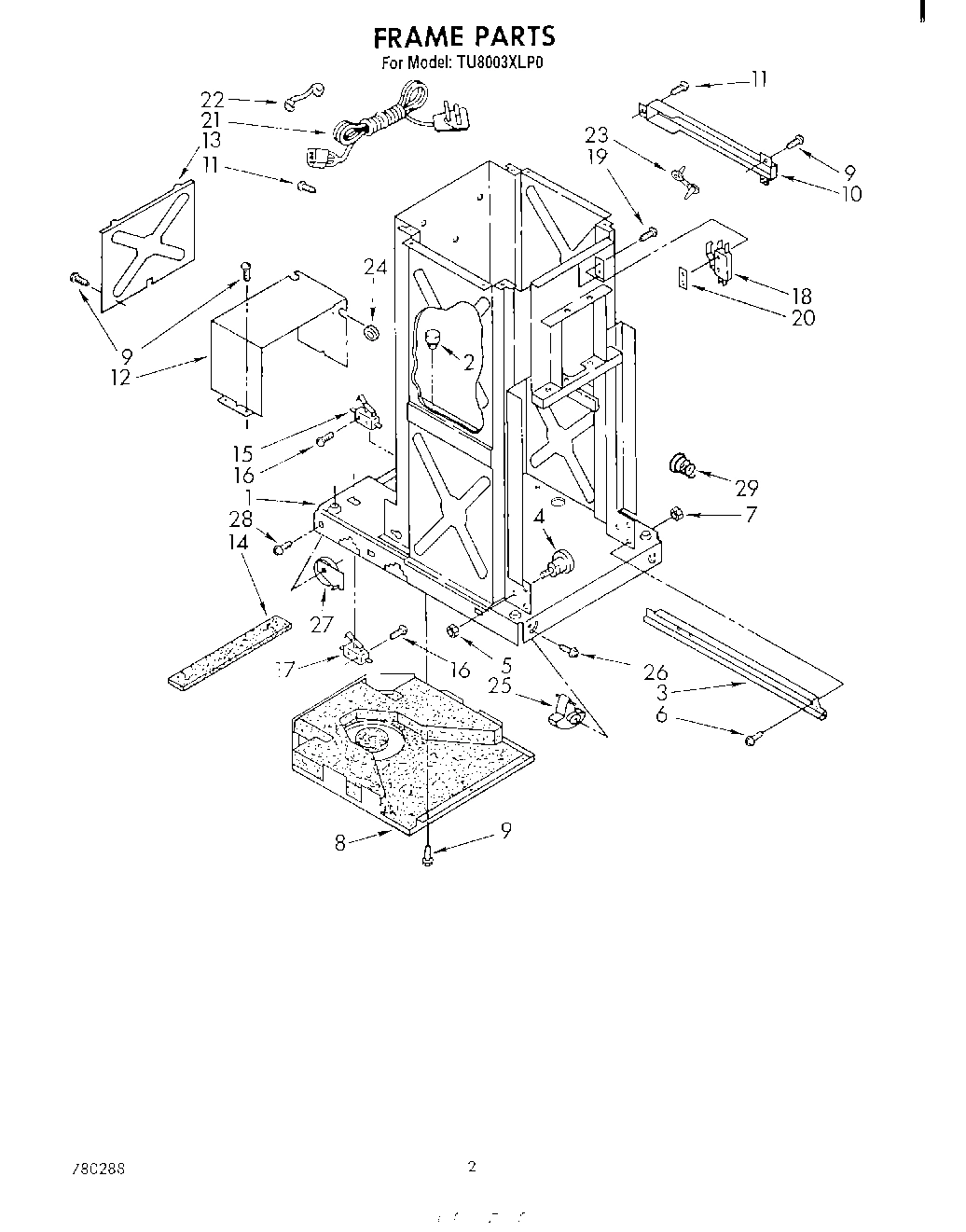

02 - FRAME

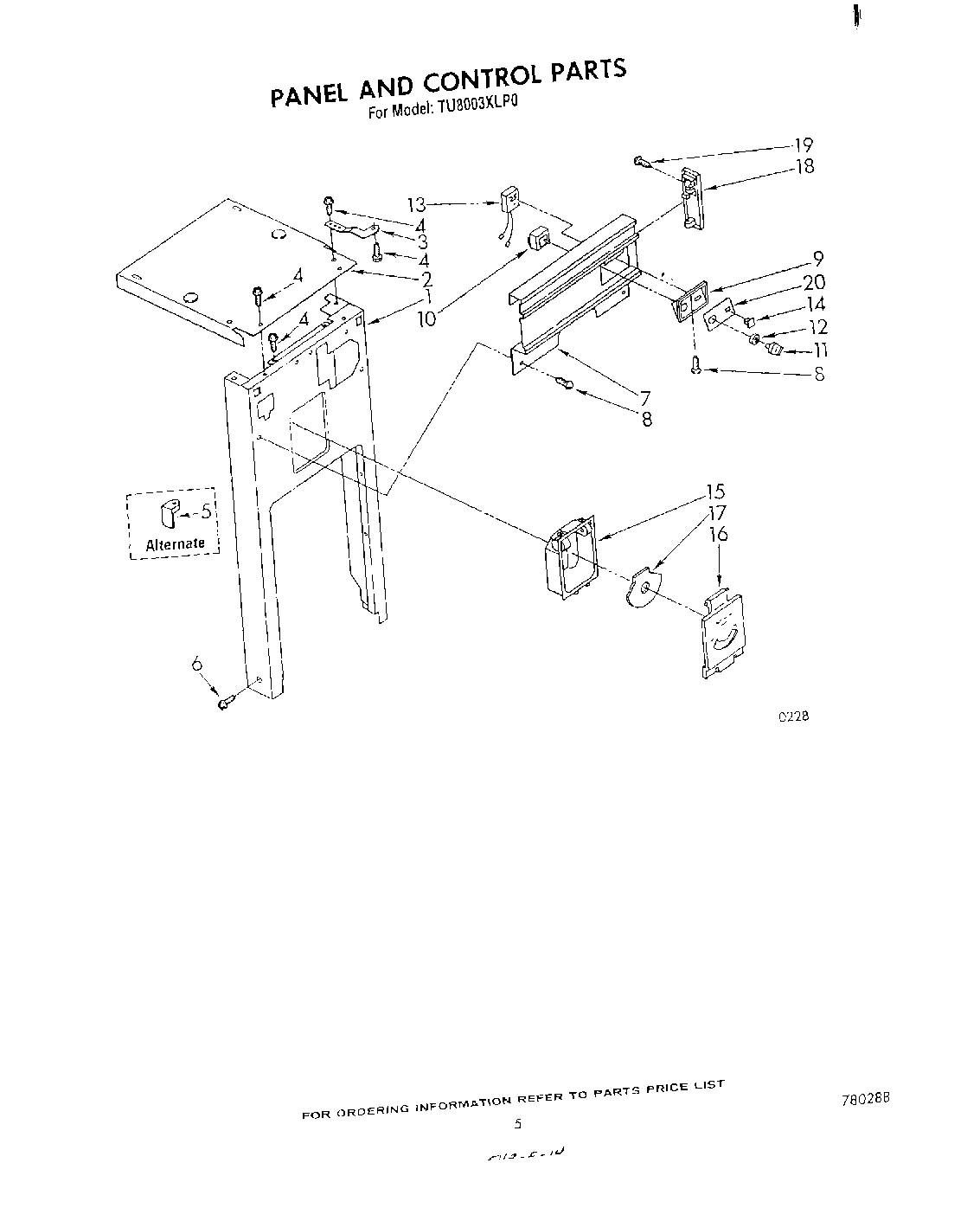

05 - PANEL AND CONTROL
01 - MOTOR AND DRIVE , LIT/OPTIONAL
03 - POWER SCREW AND RAM
04 - CONTAINER
Common parts from model Whirlpool TU8003XLP0 TRASH COMPACTOR
Sheet, Tech (Service Information) WPL LIT777830 Contact Us For Availability
Guide, Use & Care WPL LIT780212 Contact Us For Availability
List, Repair Parts WPL LIT780288 Contact Us For Availability
Instructions, Installation WPL LIT780291 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI133826A Contact Us For Availability
2
Handle, Container WPL 780184 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
3
Panel, Front (Black & White) WPL 777941 Contact Us For Availability
3
Panel, Front (Platinum & Toast) WPL 780280 Contact Us For Availability
4
Plate, Trim (2) WPL 608051 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
7
Escutcheon, Control WPL 780183 Contact Us For Availability
7
Screw, 6-20 x 3/8 WPL 776191 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
9
Bezel, Switch WPL 780190 Contact Us For Availability
10
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
11
Knob, Rotary Switch WPL 780191 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
11
Cap, Handle End R.H. WPL 780188 Contact Us For Availability
11
Cap, Handle End L.H. WPL 780189 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
13
Light, Indicator WPL 780181 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
13
Trim, Container WPL 777345 Contact Us For Availability
14
Lens, Indicator WPL 780182 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
15
Compartment, Air Flow WPL 777642 Contact Us For Availability
16
Cover, Air Flow WPL 608783 Contact Us For Availability
17
Dail, Air Flow WPL 608782 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
18
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
18
Bumper, Container (2) WPL 775785 Contact Us For Availability
20
Inset, Bezel WPL 780186 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
21
Coffee WPL 261886 Contact Us For Availability
21
Avocado WPL 261888 Contact Us For Availability
21
Golden Wheat WPL 261890 Contact Us For Availability
21
Toast WPL 283365 Contact Us For Availability
21
Platinum WPL 283366 Contact Us For Availability
21
Primer (Tan) WPL 675167 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
21
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
21
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
21
Harness, Wiring WPL 778580 Contact Us For Availability
21
Stanford Brow WPL 978726 Contact Us For Availability
× ![]()
