Model Whirlpool TU8000XLP0 TRASH COMPACTOR – Common Parts & Diagrams
01 - MOTOR AND DRIVE, LIT/OPTIONAL
03 - POWER SCREW AND RAM

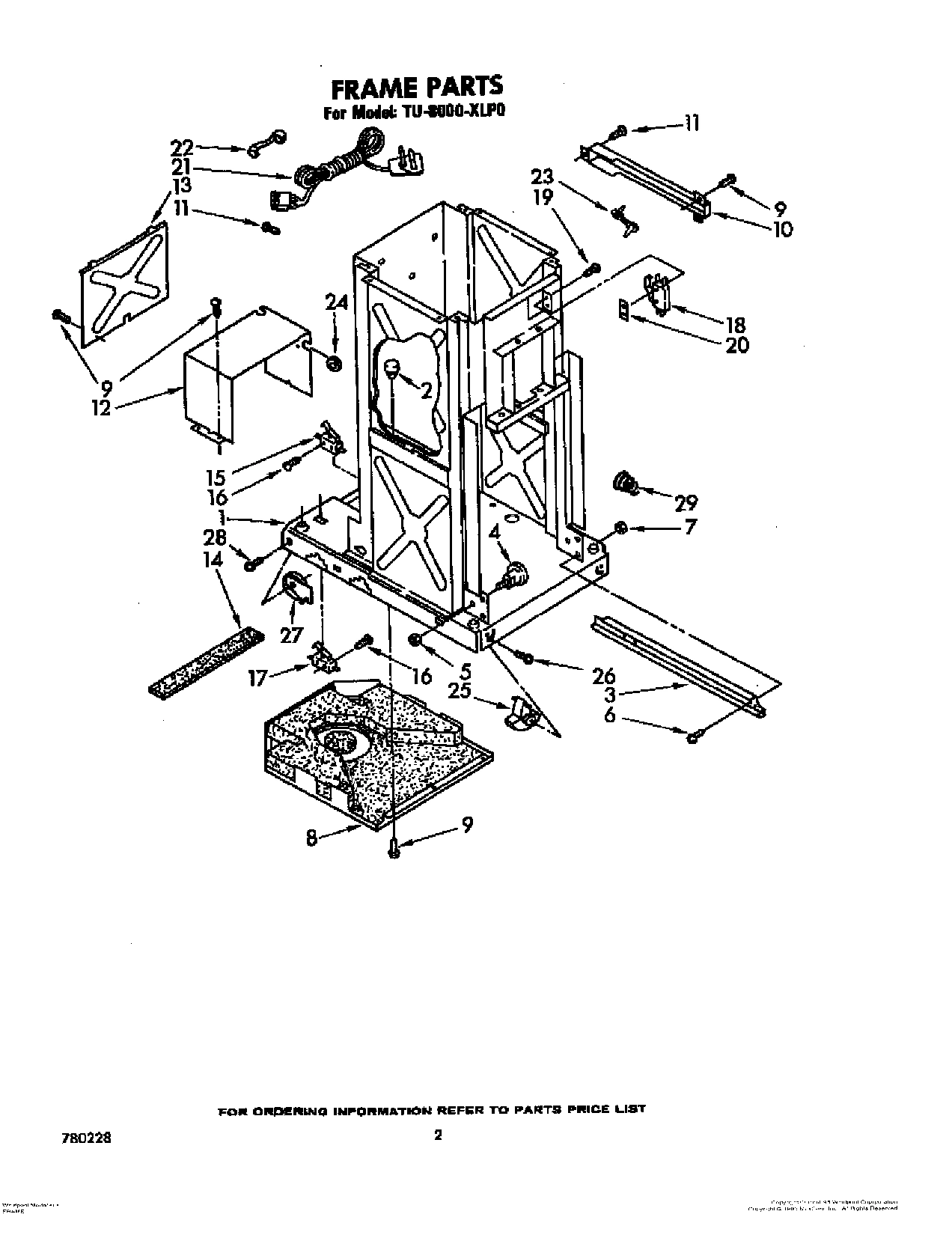

02 - FRAME

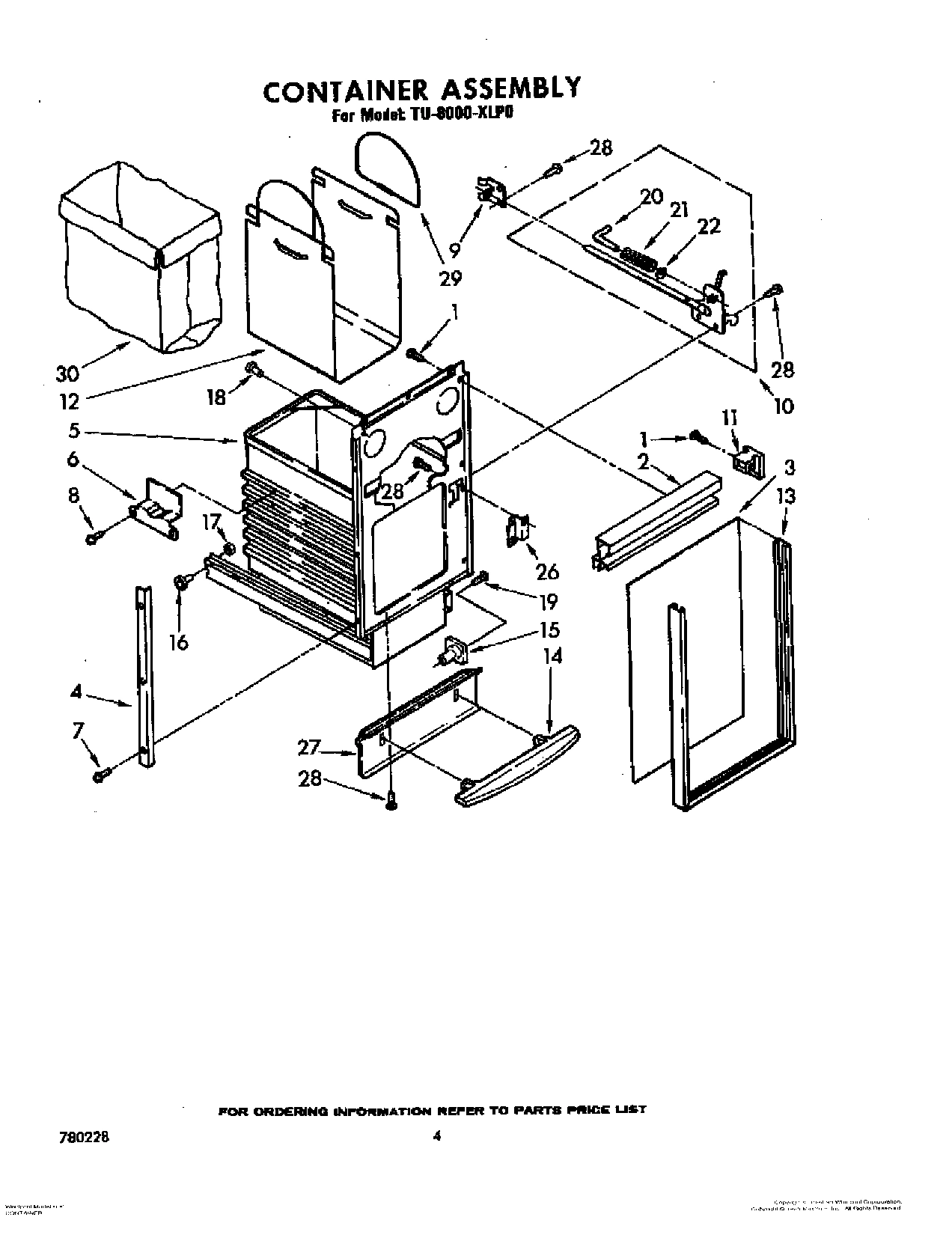

04 - CONTAINER

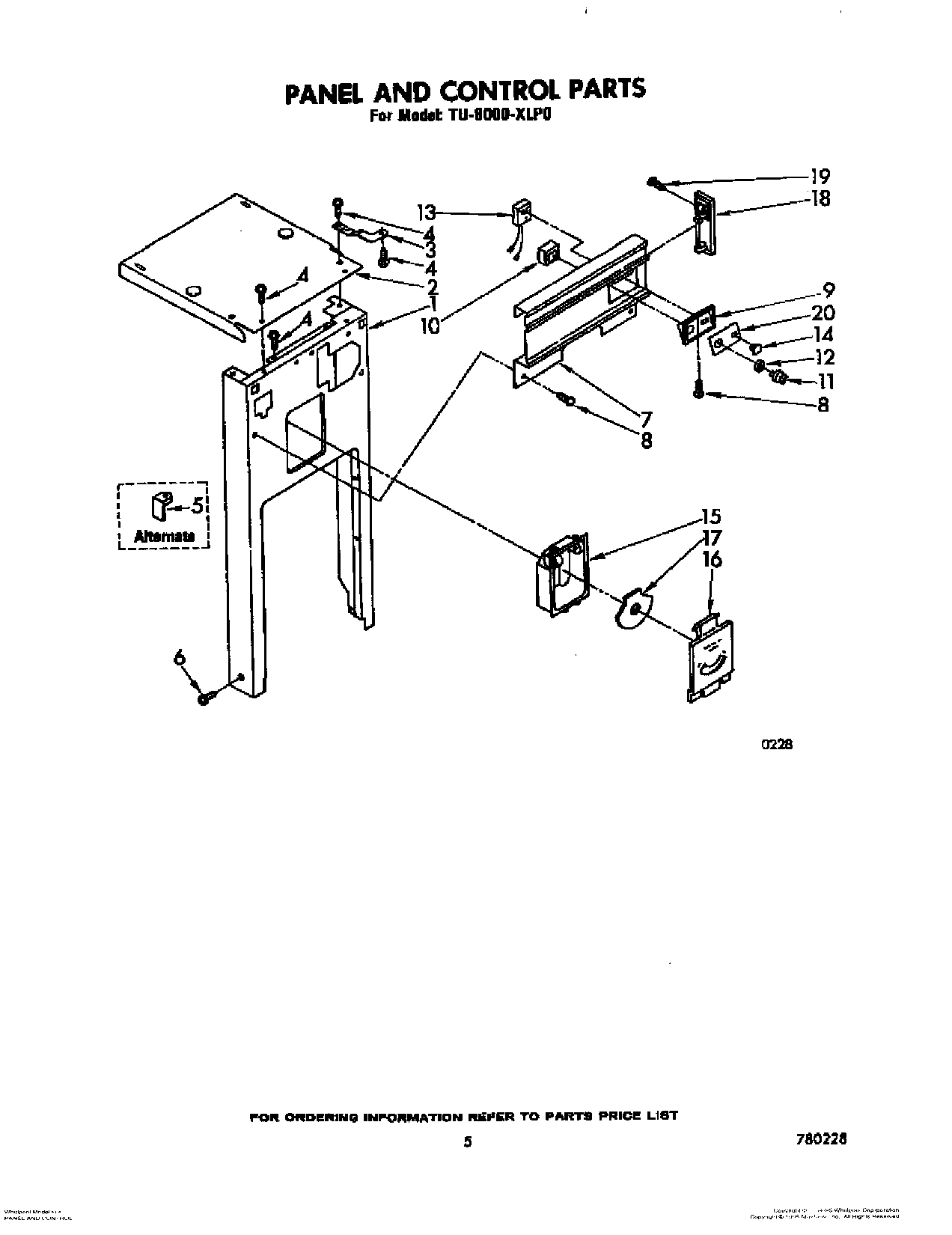

05 - PANEL AND CONTROL
Common parts from model Whirlpool TU8000XLP0 TRASH COMPACTOR
1
Frame (Not a Serviceable Part) WPL ARI133817A Contact Us For Availability
1
Panel, Front Frame WPL 608778 Contact Us For Availability
2
Bumper (4) WPL 775643 Contact Us For Availability
2
Handle, Container WPL 780184 Contact Us For Availability
2
Cover, Top (Recessed) WPL 608572 Contact Us For Availability
3
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
3
Panel, Front (Black & White) WPL 777941 Contact Us For Availability
4
Plate, Trim (2) WPL 608051 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
7
Screw, 6-20 x 3/8 WPL 776191 Contact Us For Availability
7
Escutcheon, Harold Brown WPL 780183 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
9
Bezel, Switch WPL 780190 Contact Us For Availability
11
Cap, Handle End R.H. WPL 780188 Contact Us For Availability
11
Cap, Handle End L.H. WPL 780189 Contact Us For Availability
11
Knob, Rotary Switch WPL 780191 Contact Us For Availability
12
Cover, Motor WPL 608567 Contact Us For Availability
13
Plate, Motor Cover WPL 608009 Contact Us For Availability
13
Trim, Container WPL 777345 Contact Us For Availability
13
Light, Indicator WPL 777323 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
14
Lens, Indicator WPL 777322 Contact Us For Availability
15
Switch, Drawer Safety WPL 775803 Contact Us For Availability
15
Plate, Nut Assembly WPL 608413 Contact Us For Availability
15
Compartment, Air Flow WPL 777642 Contact Us For Availability
16
Screw, 6-32 x 7/8 WPL 777460 Contact Us For Availability
16
Cover, Air Flow WPL 608783 Contact Us For Availability
17
Switch, Drawer Tilt WPL 775804 Contact Us For Availability
17
Dail, Air Flow WPL 608782 Contact Us For Availability
18
Bumper, Container (2) WPL 775785 Contact Us For Availability
18
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
18
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
19
Screw, Machine No.8-32 x 3/8 (2) WPL 777178 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
20
Inset, Bezel WPL 780186 Contact Us For Availability
21
Coffee WPL 261886 Contact Us For Availability
21
Avocado WPL 261888 Contact Us For Availability
21
Harvest Gold WPL 261890 Contact Us For Availability
21
Primer (Tan) WPL 675167 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
21
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
21
Harness, Wiring WPL 778580 Contact Us For Availability
21
Stanford Brown WPL 978726 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
leveler (2) WPL 780082 Contact Us For Availability
26
Screw & Washer Assembly (2) WPL 780125 Contact Us For Availability
27
Wheel Assembly, R.H. WPL 780139 Contact Us For Availability
× ![]()
