Model Whirlpool TT20BKXZN00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2151712 WPL LIT2151712 Contact Us For Availability

WPL LIT2152544 WPL LIT2152544 Contact Us For Availability

WPL LIT2154075 WPL LIT2154075 Contact Us For Availability

WPL LIT4361166 WPL LIT4361166 Contact Us For Availability

1

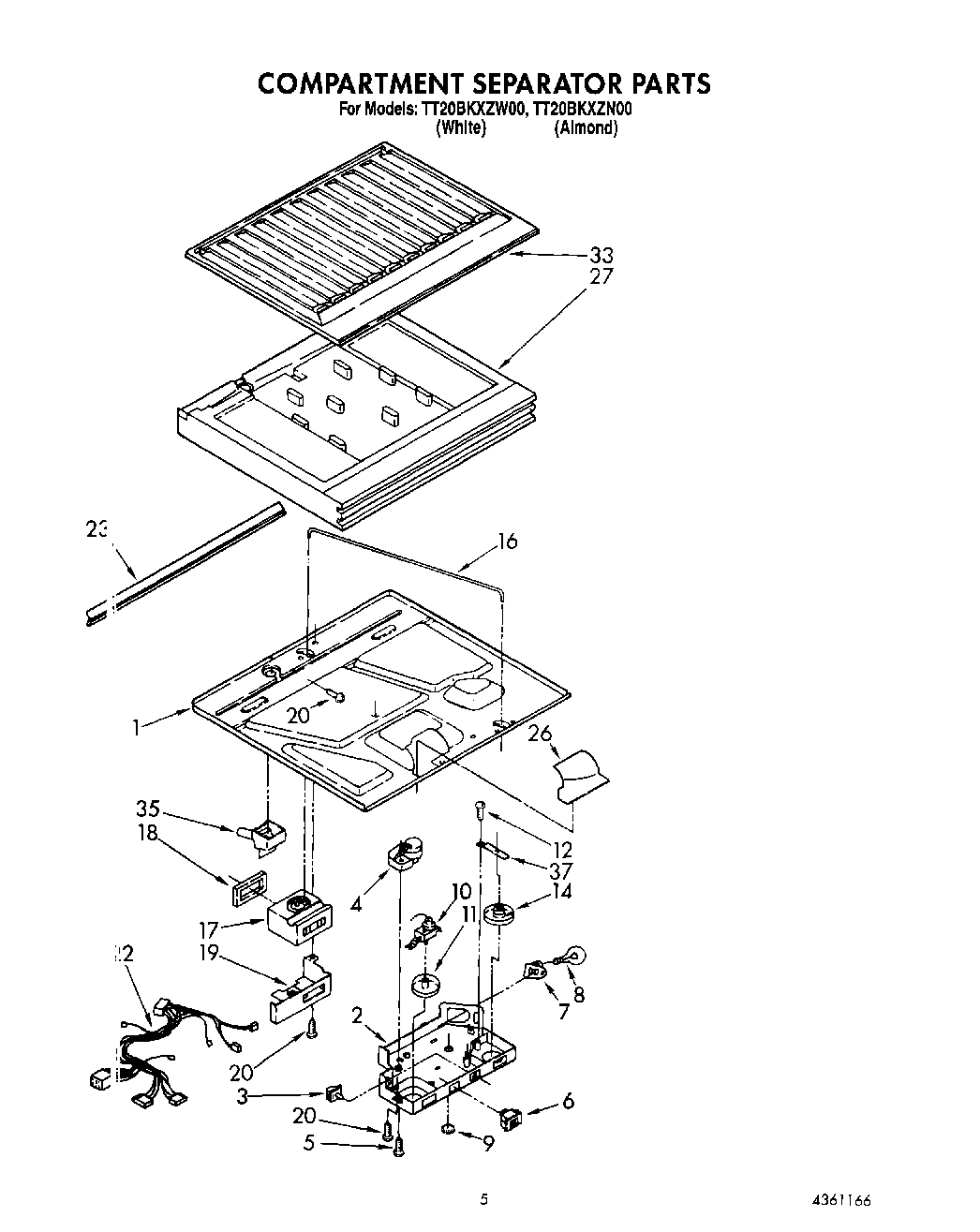

Bottom, Compartment Separator WPL 1122715 Contact Us For Availability

1

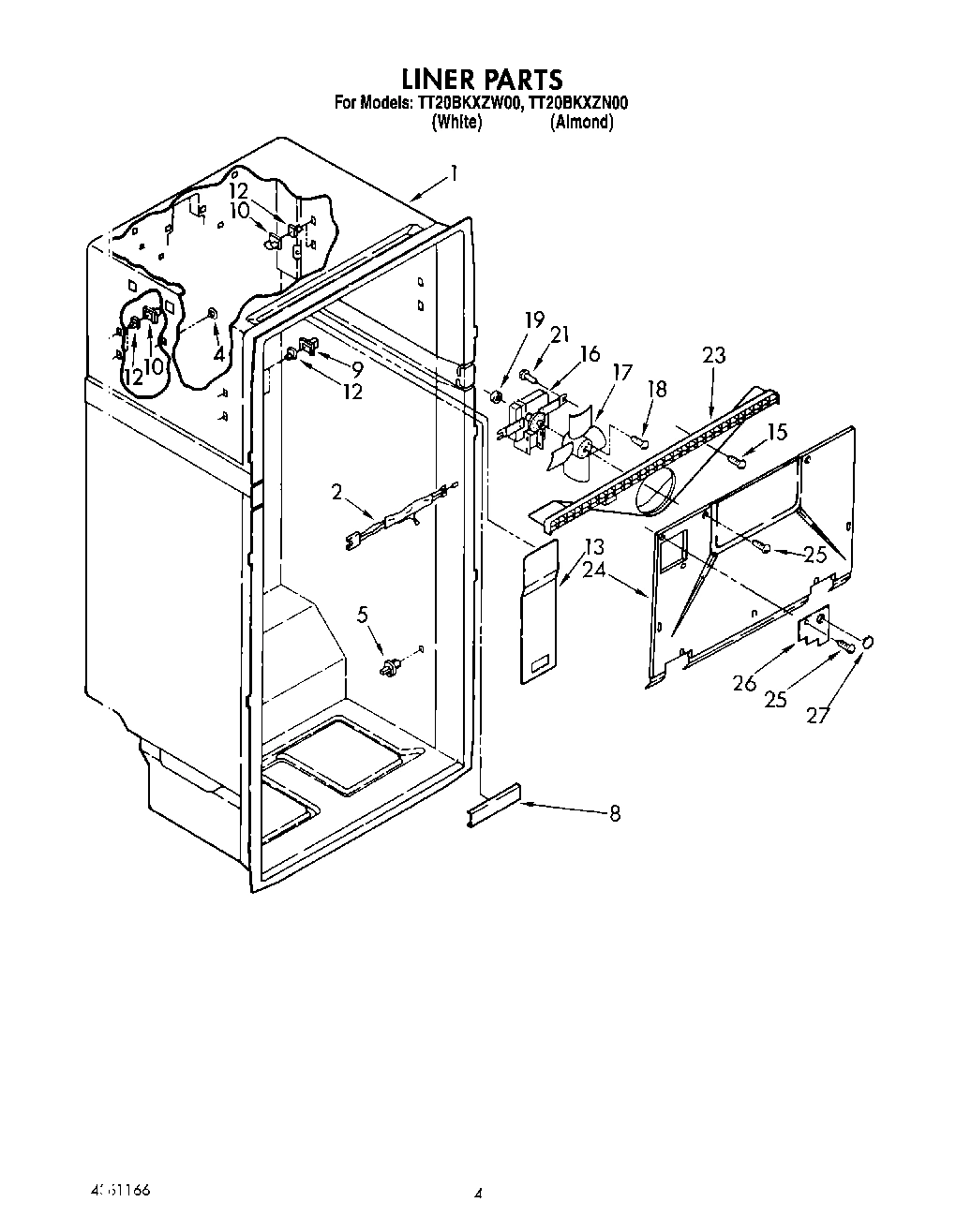

Liner (Not A Serviceable Part) WPL ARI133584A Contact Us For Availability

1

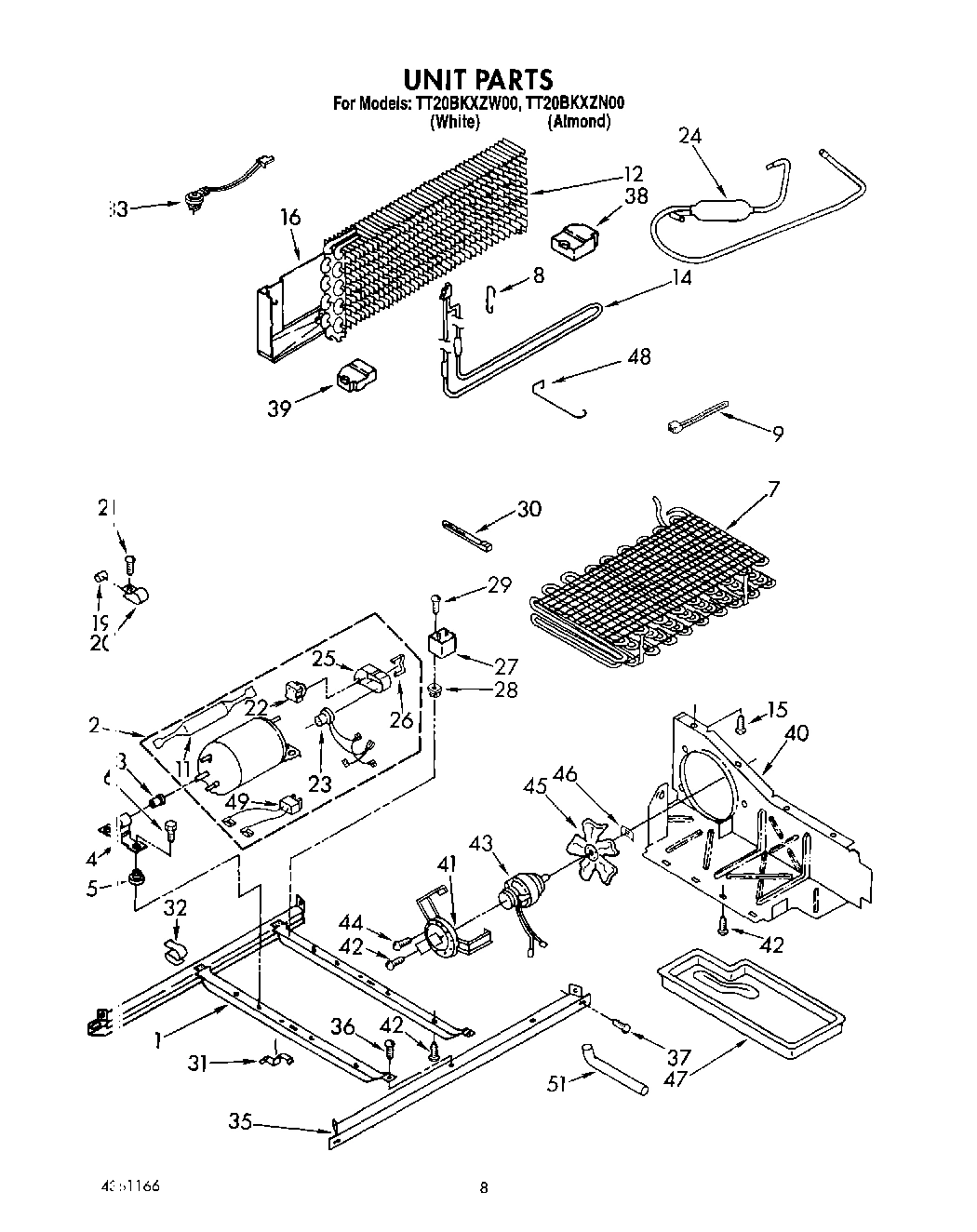

Unit, Frame WPL 2154451 Contact Us For Availability

1

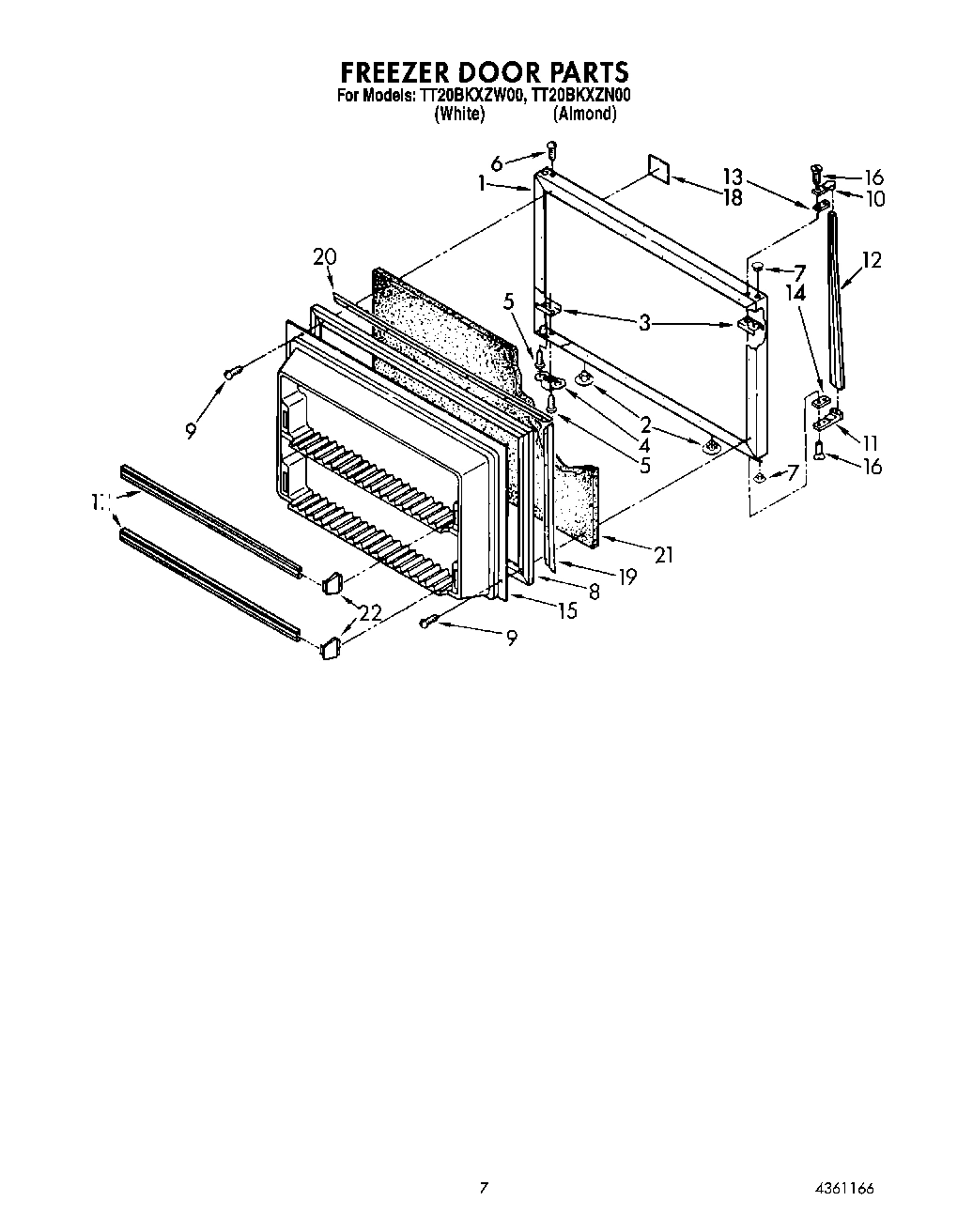

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability

1

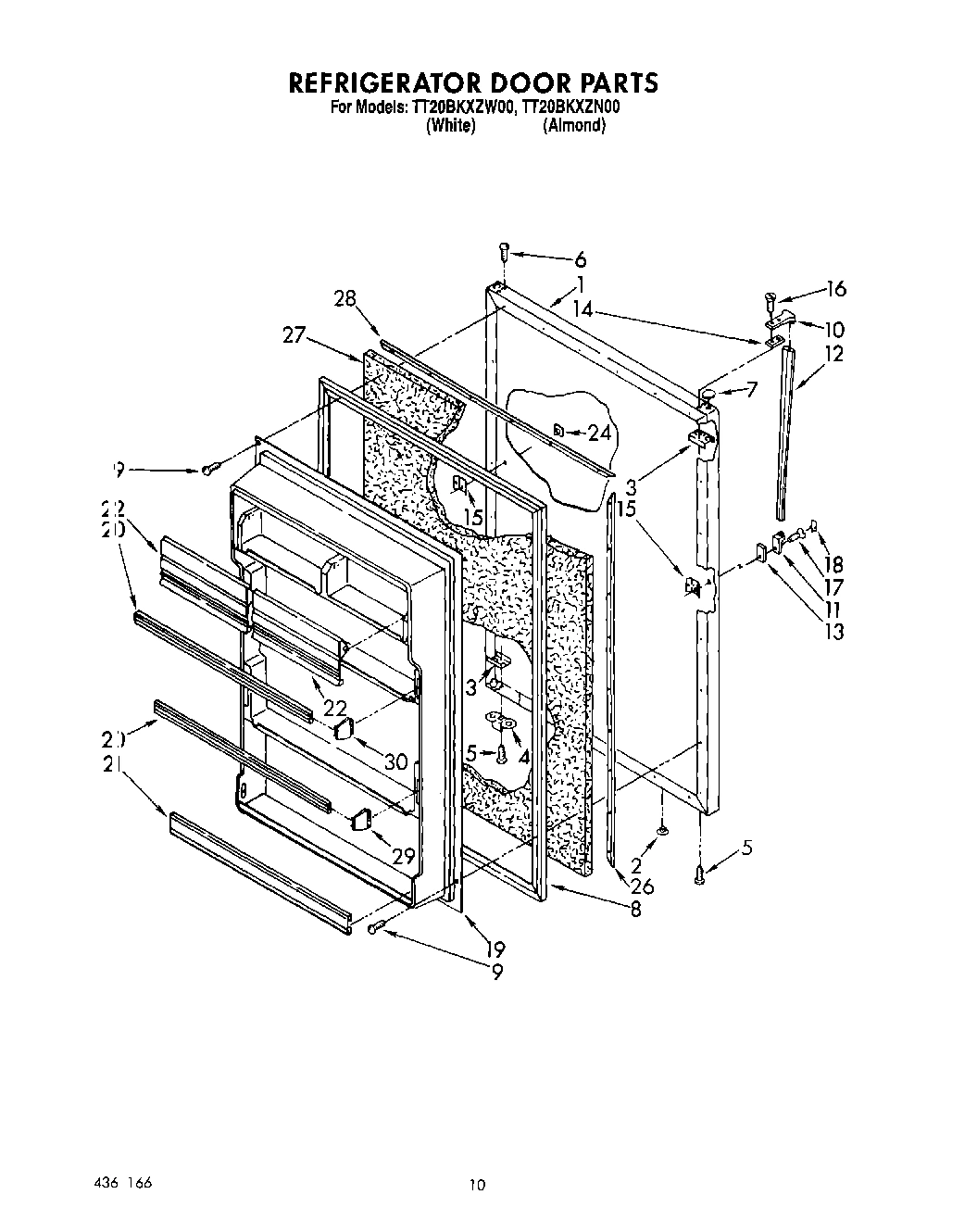

Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability

1

Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Box, Control WPL 1105455 Contact Us For Availability

2

Compressor Kit (Includes Items 11, 22, 23, 25 WPL 4318250 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

5

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Grommet, Compressor (4) (Production) WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Screw (4) WPL 489334 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Condenser Assembly WPL 2154009 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

8

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $89.09

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Electrical, Shield WPL 1106892 Contact Us For Availability

8

Support, Heater WPL 2149120 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $124.51

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Stud (2) WPL 946356 Contact Us For Availability

9

Strap, Mtg. WPL 1123230 Contact Us For Availability

10

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

10

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

10

819342 Whirlpool Refrigerator Endcap Kit In Stock WPL 819342 $30.71

11

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

11

Knob, Thermostat WPL 2148150 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

support stud (8) WPL 946355 Contact Us For Availability

Evaporator Assembly WPL 2153978 Contact Us For Availability

Handle, Center WPL 1108729 Contact Us For Availability

Handle, Center WPL 1106189 Contact Us For Availability

13

Shim, Handle WPL 943187 Contact Us For Availability

13

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

13

Cover, Air Duct WPL 2157410 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

Spacer, Handle Door WPL 943188 Contact Us For Availability

Knob, Air Control WPL 2148151 Contact Us For Availability

Heater, Defrost WPL 2154736 Contact Us For Availability

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

Interior Door Panel WPL 1122575 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Rod, Connecting WPL 1105459 Contact Us For Availability

Drain Pan WPL 2153974 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Air Diffuser Assembly WPL 2157416 Contact Us For Availability

Trim, Door Shelf (2) WPL 1114327 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Nameplate WPL 2152532 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

Retainer, Gasket WPL 1122553 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Dampener (2) WPL 2149670 Contact Us For Availability

Interior Door Panel WPL 2156205 Contact Us For Availability

20

Tube Clamp (2) WPL 510716 Contact Us For Availability

20

Trim, Door (2) WPL 1114322 Contact Us For Availability

21

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

21

Screw WPL 489168 Contact Us For Availability

21

Trim, Door WPL 1114323 Contact Us For Availability

22

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

22

Relay (See Overload) WPL ARI133585A Contact Us For Availability

22

Compartment Door WPL 2151754 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

Gasket, Bottom Separator WPL 1114382 Contact Us For Availability

Scroll, Fan WPL 1127100 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 2154403 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Evaporator Cover WPL 2157426 Contact Us For Availability

Muffler WPL 2154034 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

25

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

25

Terminal Cover (Service) WPL 1108115 Contact Us For Availability

25

Terminal Cover (Production) WPL 2154452 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Insulation, Filler WPL 1108196 Contact Us For Availability

Strap, Cover (Production) WPL 1105222 Contact Us For Availability

Strap, Cover (Service) WPL 938384 Contact Us For Availability

Retainer, Gasket WPL 1122551 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Insulation, Compartment Separator WPL 1105463 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Running Capacitor (Service) WPL 2154565 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

28

Retainer, Gasket WPL 1122552 Contact Us For Availability

29

4318297 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4318297 $10.39

29

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT xEnamel, Golden Harvest (13 Oz. Spray C WPL 261891 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

31

Clip, Unit Cover WPL 548744 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

33

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

33

Separator, Compartment (Top) WPL 1129022 Contact Us For Availability

35

Cup, Drain WPL 937065 Contact Us For Availability

35

Unit, Rail WPL 2149717 Contact Us For Availability

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

38

Support (R.S.) WPL 1118805 Contact Us For Availability

39

Support (L.S.) WPL 1118806 Contact Us For Availability

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Air, Baffle WPL 1127938 Contact Us For Availability

41

Fan, Mounting Bracket WPL 548695 Contact Us For Availability

42

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan, Blade WPL 1108179 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

47

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

48

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

48

Cover, Unit WPL 1105531 Contact Us For Availability

49

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

Drain Extension WPL 2154119 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
