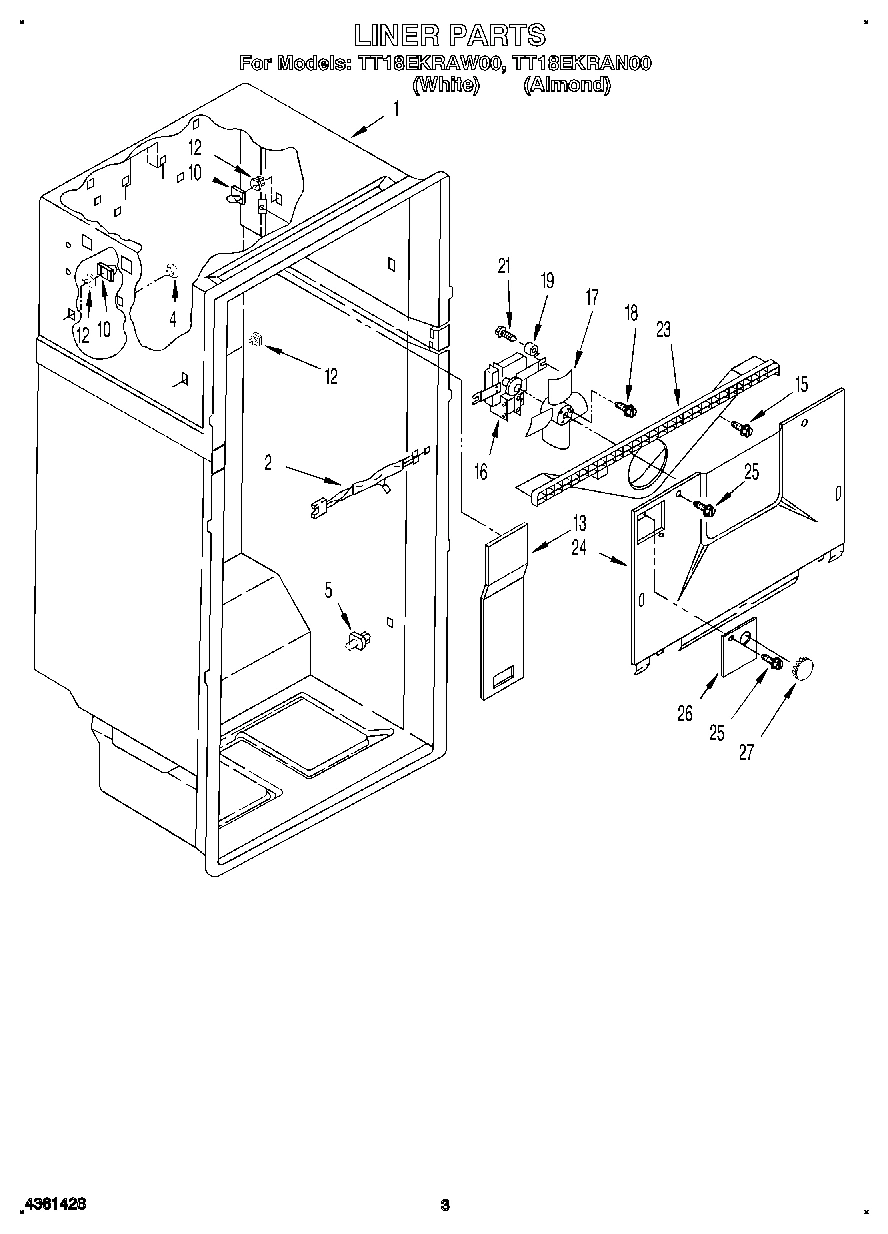

Model Whirlpool TT18EKRAW00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

1

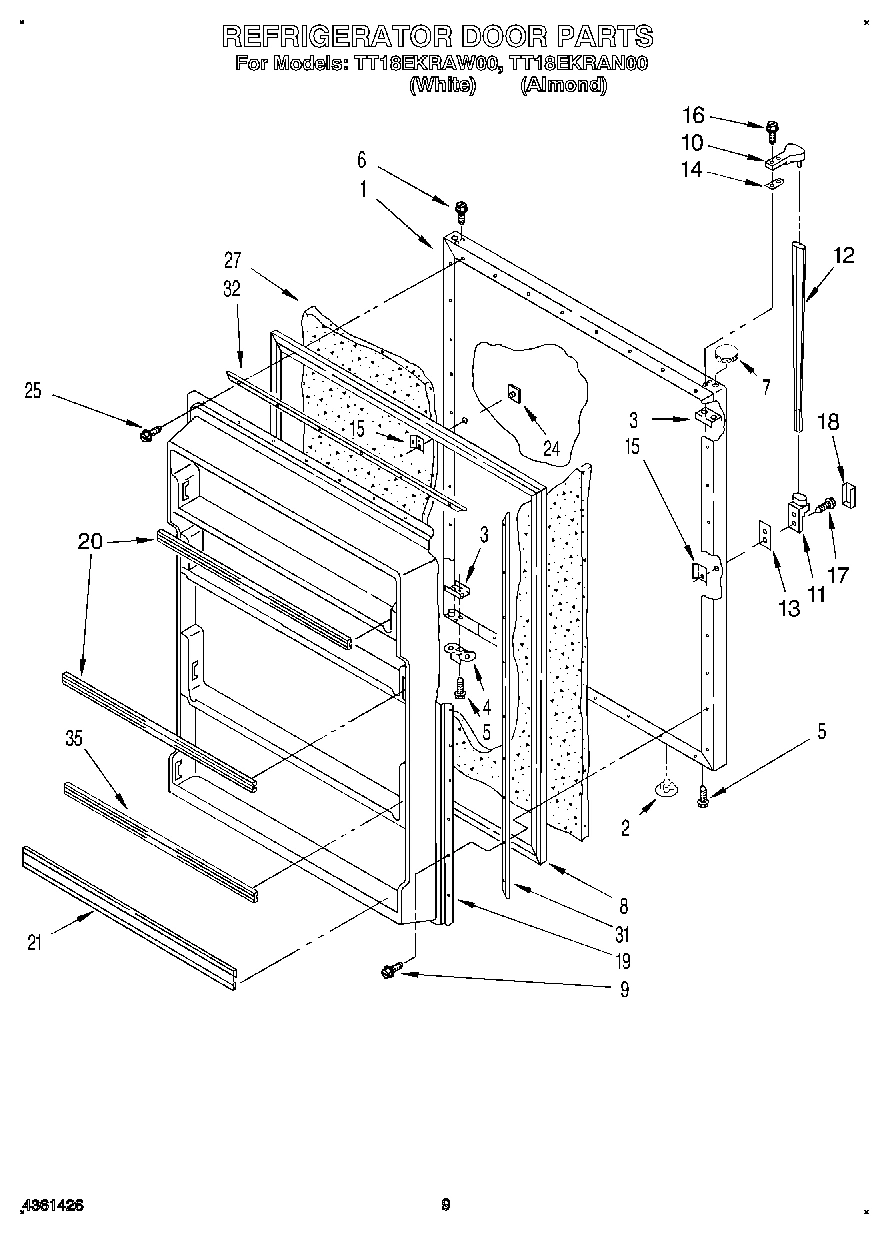

Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability

1

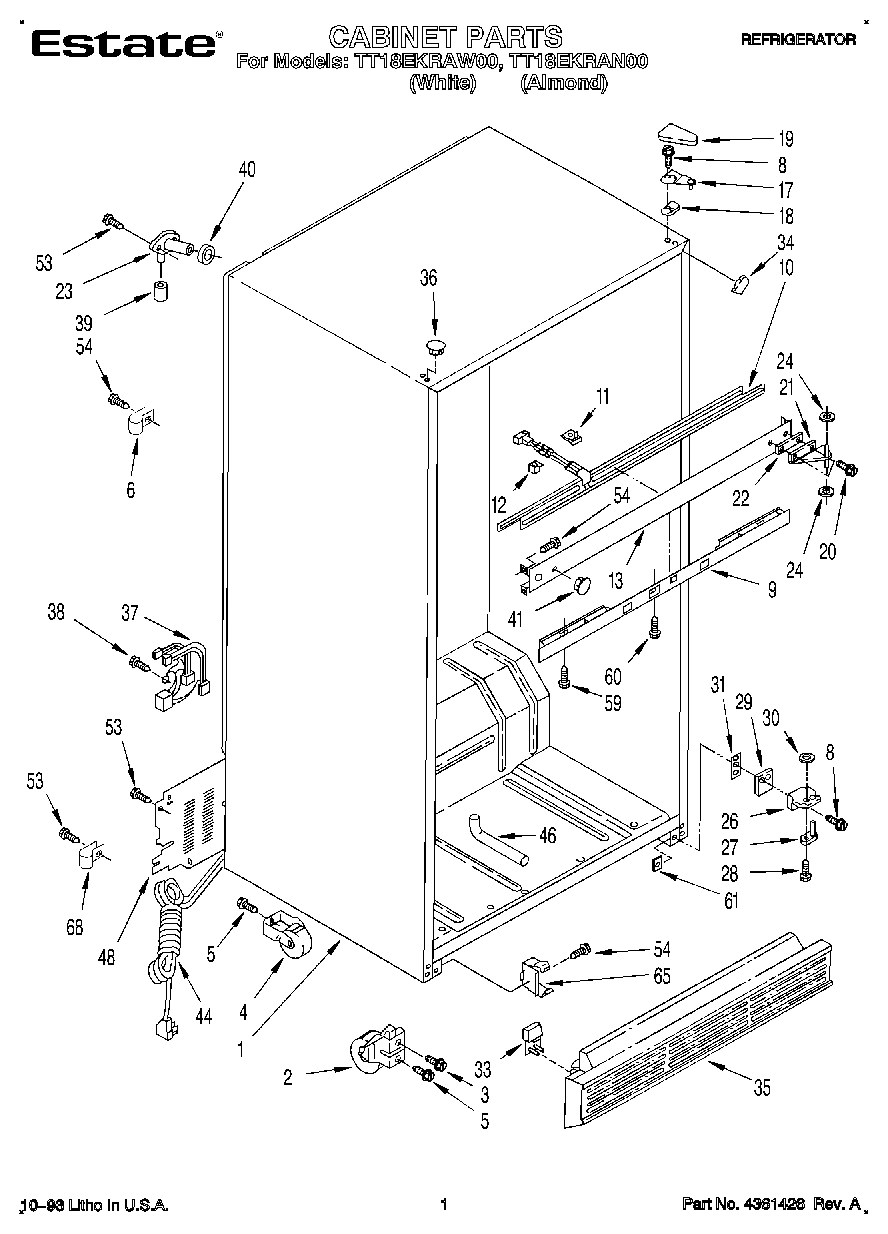

Cabinet (Not A Serviceable Part) WPL ARI133234A Contact Us For Availability

1

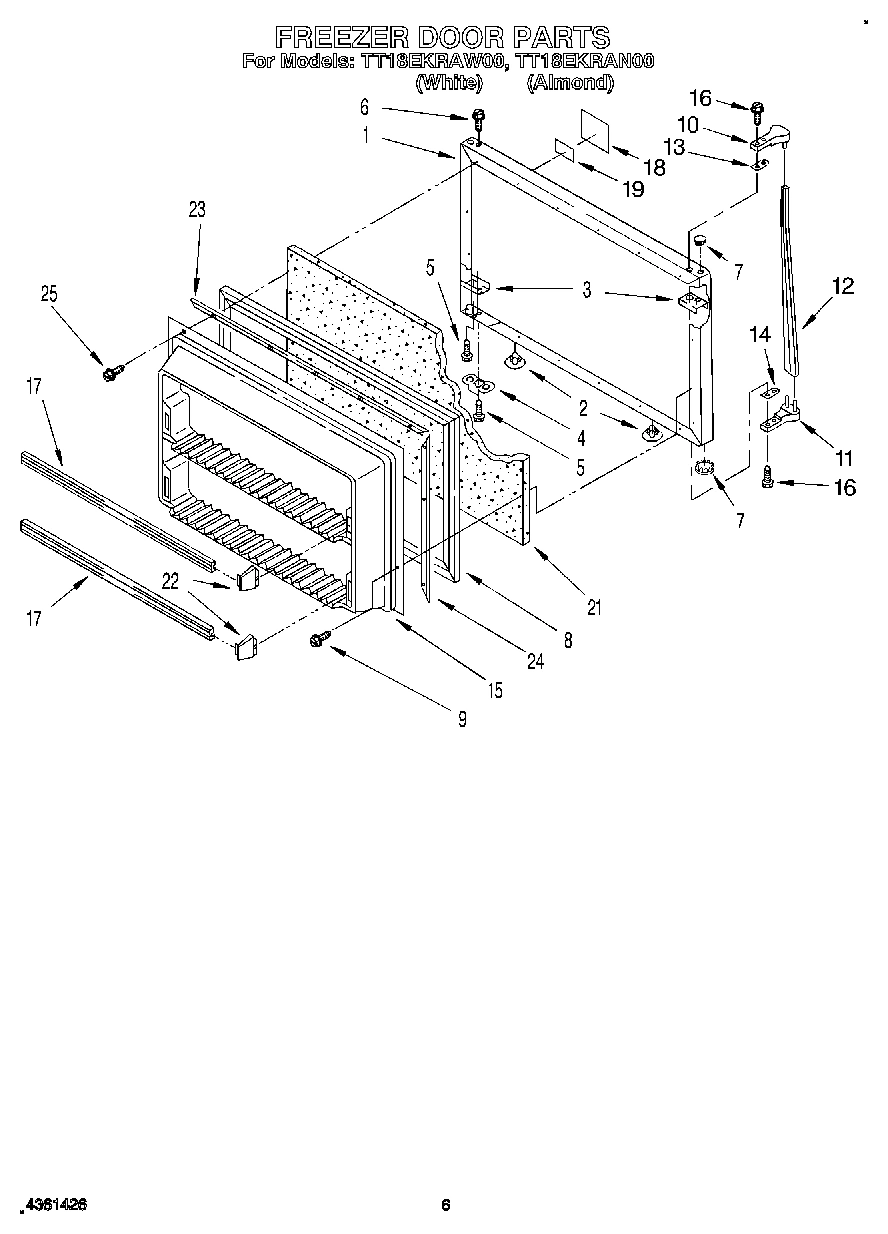

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability

1

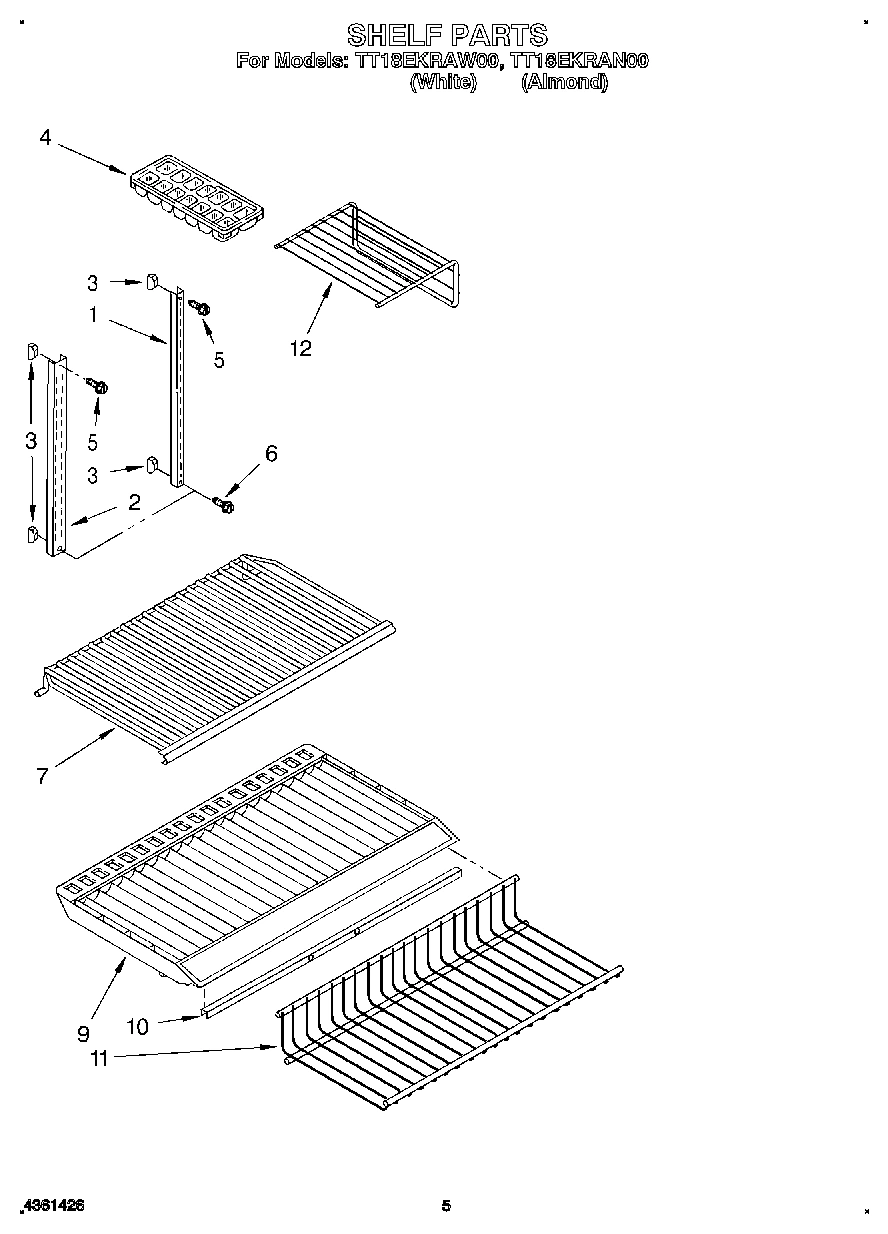

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

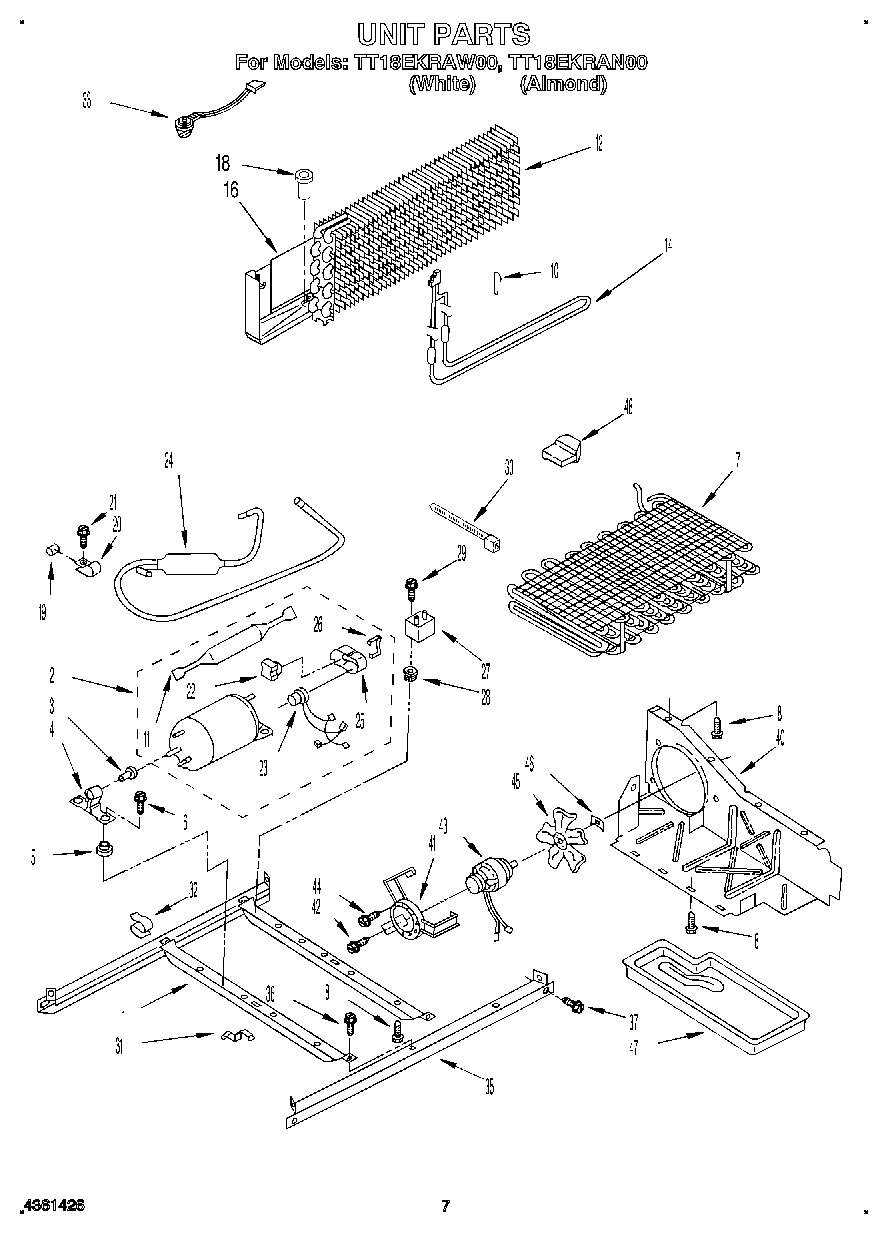

Unit, Frame WPL 2159747 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

Compressor KIt Includes Items (11, 22, 23, 25 WPL 4318241 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

5

Grommet, Compressor (4) WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

Screw (4) WPL 489334 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Shelf-Full WPL 2163243 Contact Us For Availability

7

Condenser Assembly WPL 2154008 Contact Us For Availability

8

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

8

Door Gasket, Magnetic WPL 1116734 Contact Us For Availability

8

Screw WPL 489327 Contact Us For Availability

8

Door Gasket Magnetic WPL 1116735 Contact Us For Availability

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Control, Front Cover WPL 2163213 Contact Us For Availability

9

Crisper Cover WPL 2163244 Contact Us For Availability

819342 Whirlpool Refrigerator Endcap Kit In Stock WPL 819342 $30.71

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

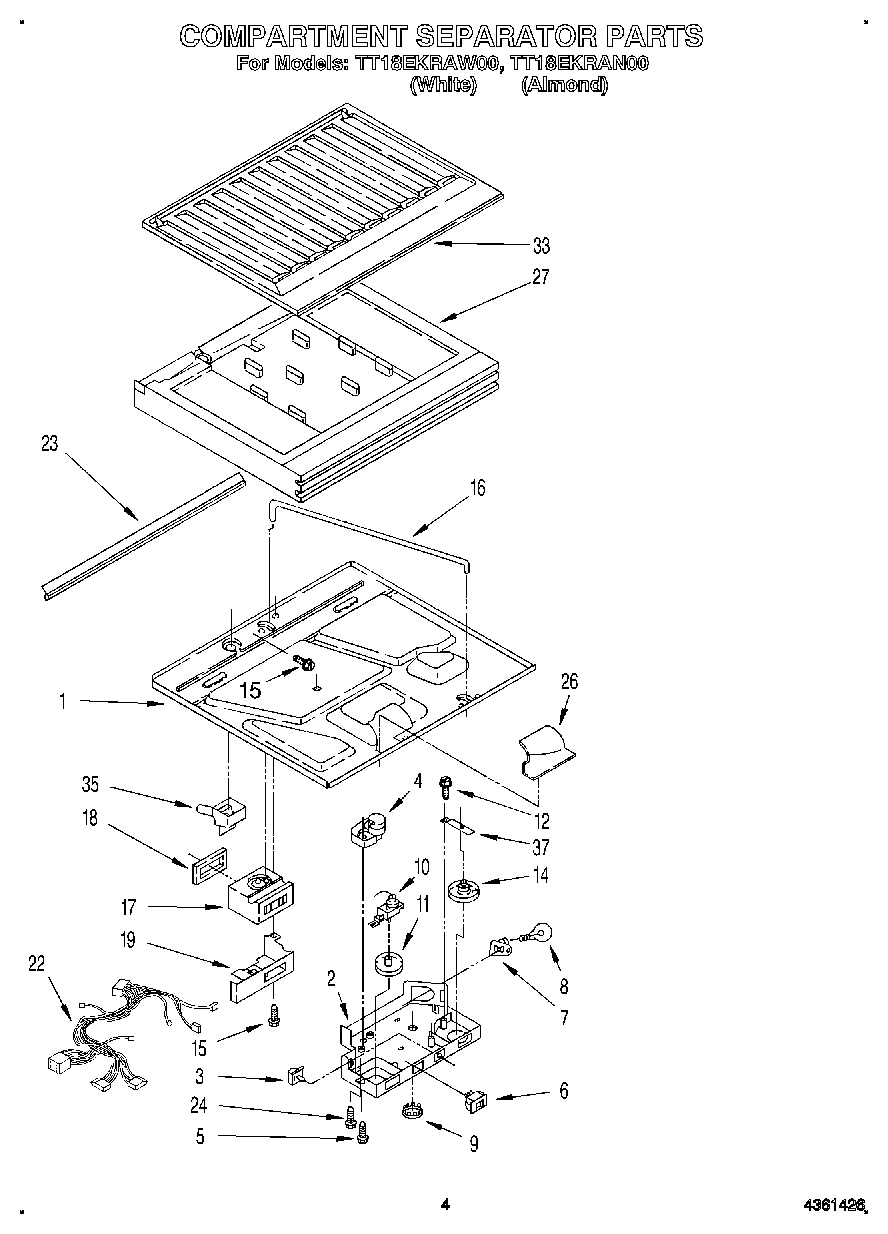

Heater, Mullion WPL 2154064 Contact Us For Availability

Support, Heater WPL 2149120 Contact Us For Availability

11

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

11

Clip, Mullion (3) WPL 2149060 Contact Us For Availability

11

Trivet WPL 2163238 Contact Us For Availability

WPW10401596 Whirlpool Freezer Wire Shelf Backorder WPL WPW10401596 $39.02

Handle, Center WPL 1106189 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Handle, Center WPL 2163266 Contact Us For Availability

Evaporator WPL 2153977 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle WPL 935076 Contact Us For Availability

Center Rail (White) WPL 1116540 Contact Us For Availability

Center Rail (Almond) WPL 1116543 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Heater, Defrost WPL 2162020 Contact Us For Availability

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

Interior Door Panel WPL 1116610 Contact Us For Availability

16

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

16

Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability

17

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $37.95

17

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

17

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

Shim, Hinge Top WPL 1123517 Contact Us For Availability

Nameplate WPL 2152532 Contact Us For Availability

Drain Fitting WPL 981629 Contact Us For Availability

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

Interior Door Panel WPL 2160167 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

Dampener (2) WPL 2149670 Contact Us For Availability

20

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

20

Trim, Door Shelf WPL 2163303 Contact Us For Availability

20

Tube Clamp (2) WPL 2159720 Contact Us For Availability

21

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

21

Trim, Door Shelf WPL 2163304 Contact Us For Availability

21

Hinge, Center WPL 2147335 Contact Us For Availability

22

EndCap, Trim (4) WPL 1106862 Contact Us For Availability

22

Shim, Hinge Center WPL 836155 Contact Us For Availability

22

Relay (See Overload) WPL ARI133236A Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability

Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability

Overload (Production (Inciudes Relay)) WPL 2159611 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability

Muffler WPL 2159732 Contact Us For Availability

25

Terminal Cover WPL 2154452 Contact Us For Availability

26

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

26

Strap, Cover WPL 1105222 Contact Us For Availability

27

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

27

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

29

Shim, Bottom WPL 1123379 Contact Us For Availability

30

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

31

Spacer WPL 1121117 Contact Us For Availability

31

Clip, Unit Cover WPL 548744 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

33

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

33

Corner Filler, Grille WPL 1118078 Contact Us For Availability

34

Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Trim, Door Shelf WPL 2163305 Contact Us For Availability

xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Grille WPL 1118079 Contact Us For Availability

Unit, Rail WPL 1116622 Contact Us For Availability

36

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

36

Hole Plug (5) (Almond) WPL 2151653 Contact Us For Availability

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Air, Baffle WPL 2154102 Contact Us For Availability

41

Hole Plug (White) WPL 1129062 Contact Us For Availability

41

Hole Plug (Almond) WPL 1129063 Contact Us For Availability

41

Fan, Mounting Bracket WPL 2162060 Contact Us For Availability

42

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan Blade WPL 1115135 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Fitting, Drain WPL 2154118 Contact Us For Availability

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Cover, Unit WPL 2159744 Contact Us For Availability

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
