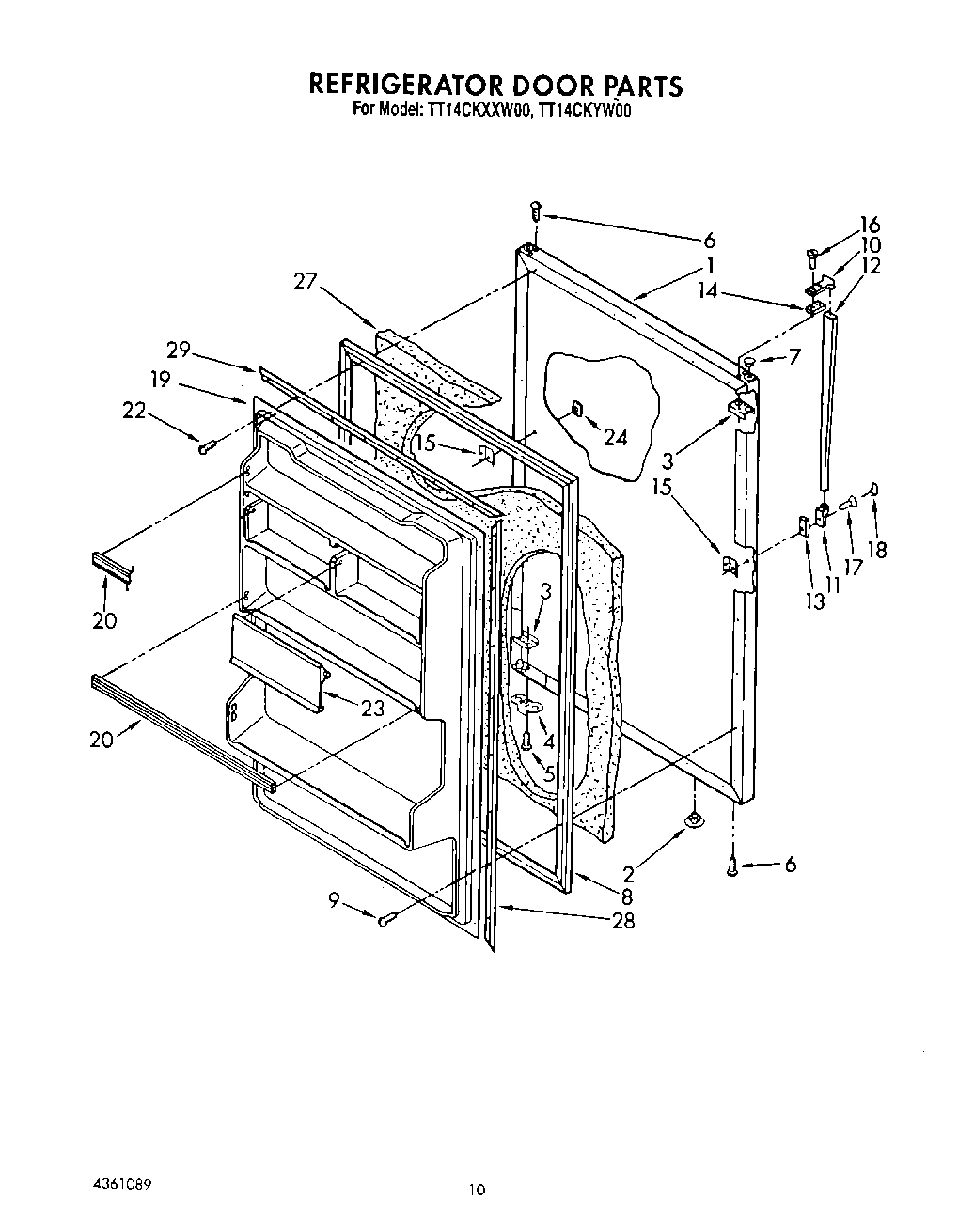

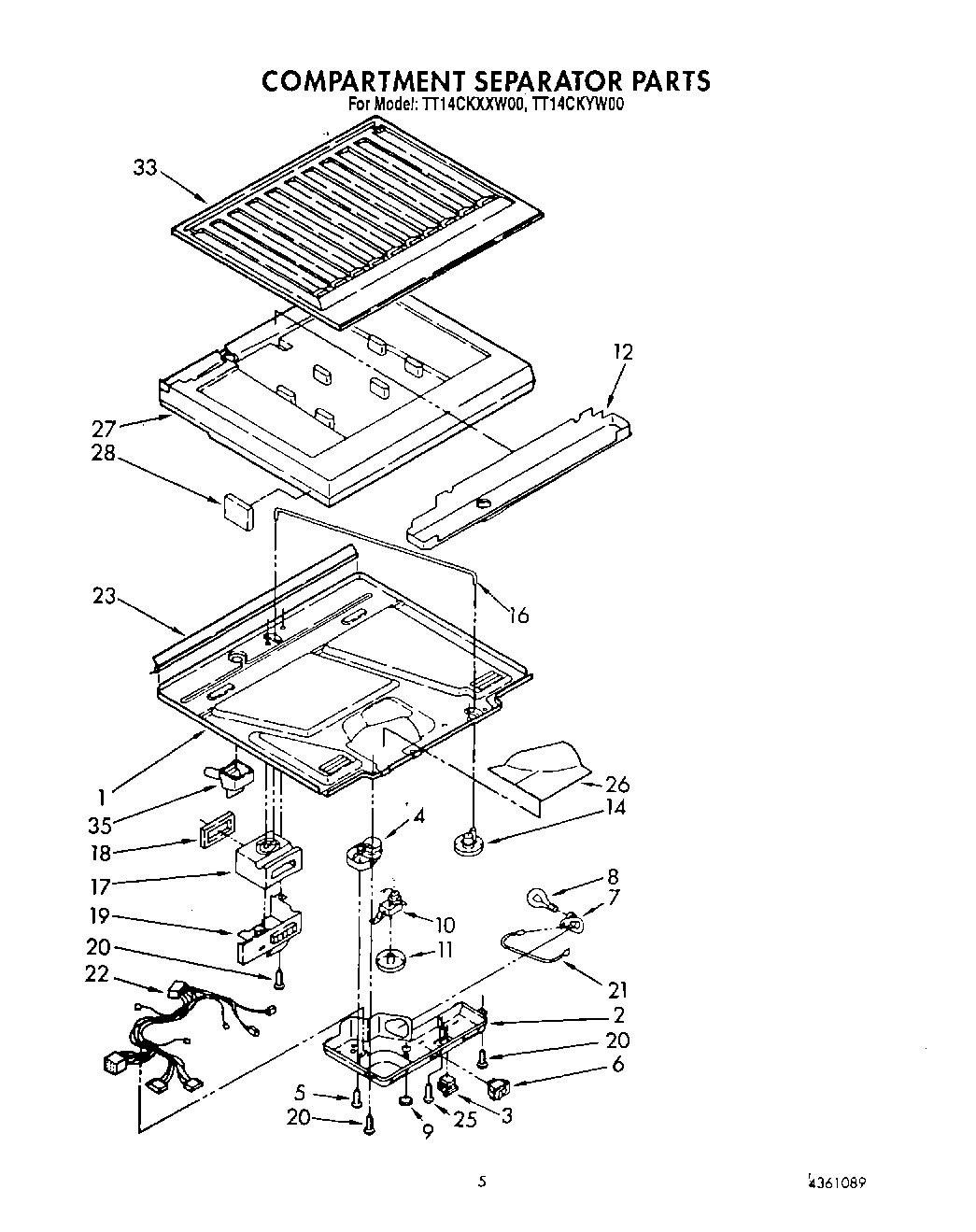

Model Whirlpool TT14CKYXW00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI132487A Contact Us For Availability

1

Shelf, Pullout (2) WPL 1104455 Contact Us For Availability

1

Screw WPL 489050 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI132486A Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Support, Crisper Cover WPL 1103731 Contact Us For Availability

2

Bumper (2) WPL 944772 Contact Us For Availability

2

Leveler (2) WPL 944766 Contact Us For Availability

2

Hole Plug (White) WPL 534927 Contact Us For Availability

2

Hole Plug (Almond) WPL 989197 Contact Us For Availability

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

Cover, Crisper WPL 2151743 Contact Us For Availability

3

Condenser WPL 2154641 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Post, Crisper WPL 836410 Contact Us For Availability

4

Clip, Tube (2) WPL 1118652 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Spacer (2) WPL 2149077 Contact Us For Availability

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

Side, Electric Shield WPL 942751 Contact Us For Availability

6

Spacer WPL 2154438 Contact Us For Availability

6

Clip, Center Rail WPL 1129018 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Top, Electric Shield WPL 1129067 Contact Us For Availability

7

Heat Shield Evaporator WPL 1108169 Contact Us For Availability

7

Heater, Mullion WPL 1118897 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

WP2188456A Whirlpool Refrigerator Door Gasket Backorder WPL WP2188456A $100.80

8

Pan, Crisper WPL 1111909 Contact Us For Availability

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

9

Cover, Ice Cube WPL 2151427 Contact Us For Availability

9

Tube Clamp WPL 510716 Contact Us For Availability

10

Stud Hook WPL 939065 Contact Us For Availability

10

Dampener WPL 945593 Contact Us For Availability

819342 Whirlpool Refrigerator Endcap Kit In Stock WPL 819342 $30.71

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Clip, Strap WPL 1123230 Contact Us For Availability

Screw, 8-32 x 1/2 (2) WPL 489370 Contact Us For Availability

12

Case, Relay WPL 1108115 Contact Us For Availability

12

Handle, Center WPL 1106194 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Cover, Air Duct WPL 1118775 Contact Us For Availability

Overload WPL 1105172 Contact Us For Availability

Center Rail (White) WPL 1111510 Contact Us For Availability

Center Rail (Almond) WPL 1111512 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Support, Heater WPL 1108172 Contact Us For Availability

14

Center, Rail Shim (2) WPL 2151428 Contact Us For Availability

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

Screw WPL 489319 Contact Us For Availability

15

Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability

16

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

16

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Hinge, Top WPL 1129045 Contact Us For Availability

Trim, Door Shelf WPL 1116038 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Shim, Hinge Top WPL 1100511 Contact Us For Availability

Nameplate WPL 2151706 Contact Us For Availability

19

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

19

Interior Door Panel WPL 1120628 Contact Us For Availability

19

Grommet (2) WPL 531933 Contact Us For Availability

20

Trim, Door Shelf (2) WPL 1116031 Contact Us For Availability

20

Bracket, Condenser (2) WPL 944791 Contact Us For Availability

20

Screw WPL 489327 Contact Us For Availability

21

Insulation Foam (Required When Replacing Exte WPL 876029 Contact Us For Availability

21

Screw (2) WPL 489168 Contact Us For Availability

21

Hinge, Center WPL 1129047 Contact Us For Availability

22

Evaporator WPL 1108180 Contact Us For Availability

22

Shim, Hinge Center WPL 836155 Contact Us For Availability

22

Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

Compartment Door WPL 1124589 Contact Us For Availability

Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability

Scroll, Fan WPL 1122814 Contact Us For Availability

285002 Whirlpool Nut Backorder WPL 285002 $7.58

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Evaporator Cover WPL 2151569 Contact Us For Availability

25

Evaporator Tray WPL 1101002 Contact Us For Availability

26

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

26

Hinge Butt, Bottom WPL 1123882 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

27

Hole Plug WPL 1103725 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability

28

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Clamp, Dryer WPL 1127590 Contact Us For Availability

Shim, Bottom WPL 943708 Contact Us For Availability

30

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

30

Unit Mounting Plate WPL 1118781 Contact Us For Availability

31

Exchanger, Heat WPL 1127874 Contact Us For Availability

31

Cover, Glider Rail (2) (White) WPL 2151421 Contact Us For Availability

31

Cover, Glider Rail (2) (Almond) WPL 2151422 Contact Us For Availability

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability

32

Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability

33

Heater, Defrost WPL 1127659 Contact Us For Availability

34

Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability

34

Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

Cup, Drain WPL 939191 Contact Us For Availability

Hole Plug (White) WPL 1119707 Contact Us For Availability

Hole Plug (Almond) WPL 1119709 Contact Us For Availability

36

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

36

Hole Plug (2) (Almond) WPL 2151653 Contact Us For Availability

37

Hole Seal WPL 1129056 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Cover, Wiring WPL 942845 Contact Us For Availability

40

Hole Plug (2) (White) WPL 1122929 Contact Us For Availability

40

Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability

41

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

44

Overload WPL 483037 Contact Us For Availability

44

Cord, Service WPL 937360 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

45

Clamp WPL 937357 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

46

Fitting, Drain WPL 942813 Contact Us For Availability

47

Capacitor WPL 482996 Contact Us For Availability

47

Seal, Gasket WPL 1106507 Contact Us For Availability

48

Unit Mounting Rail WPL 1118782 Contact Us For Availability

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

49

Cover, Plug WPL 1106511 Contact Us For Availability

50

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

52

Tube, Clamp WPL 489151 Contact Us For Availability

52

Clamp (2) WPL 519405 Contact Us For Availability

53

Nut WPL 489142 Contact Us For Availability

54

Washer WPL 489143 Contact Us For Availability

54

Tap Plate (2) WPL 2147312 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

57

Hole Seal WPL 1120224 Contact Us For Availability

58

Seal, Gasket WPL 1106510 Contact Us For Availability
