Model Whirlpool TS22BRXAW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR SHELF
09 - DISPENSER FRONT

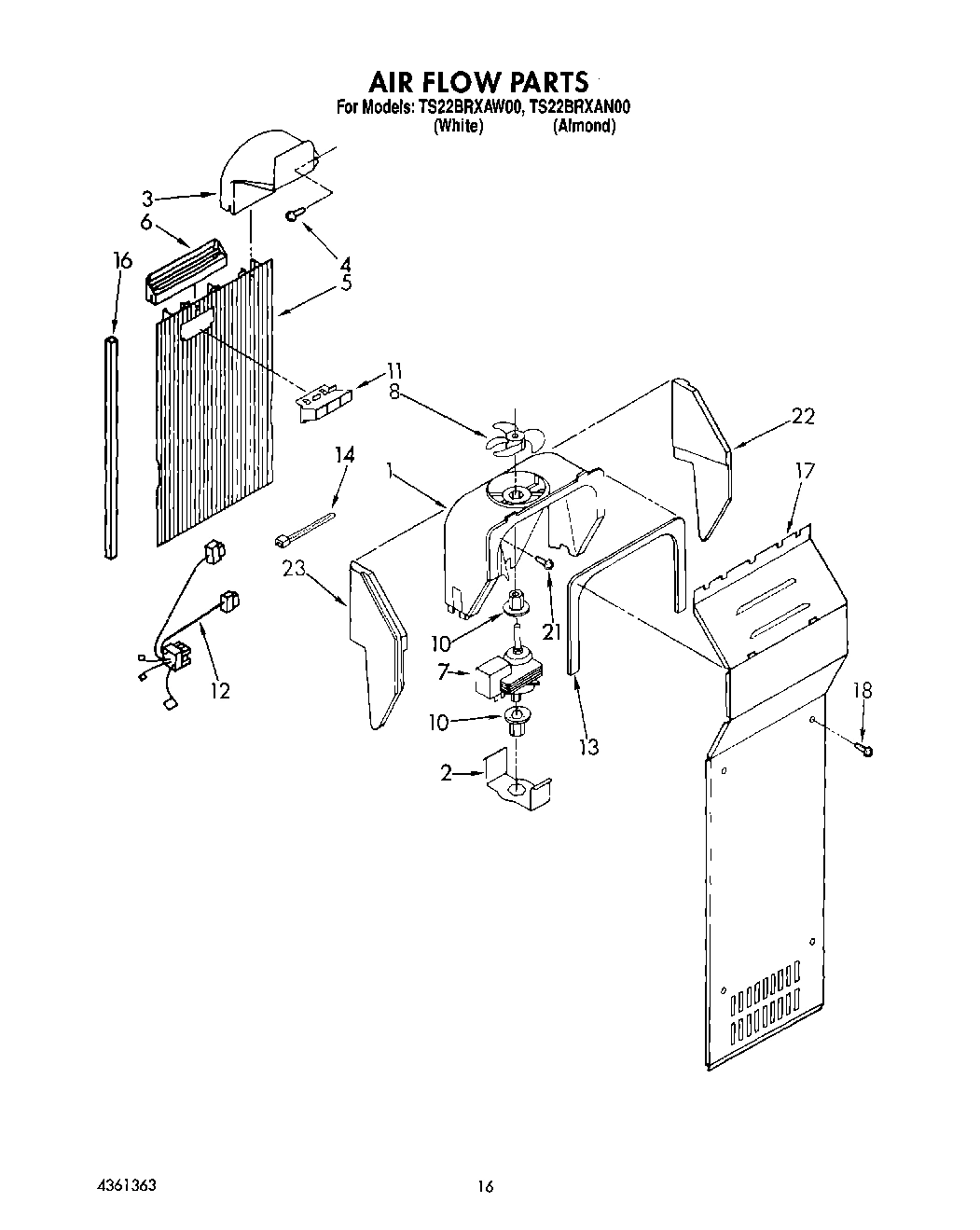

11 - AIR FLOW

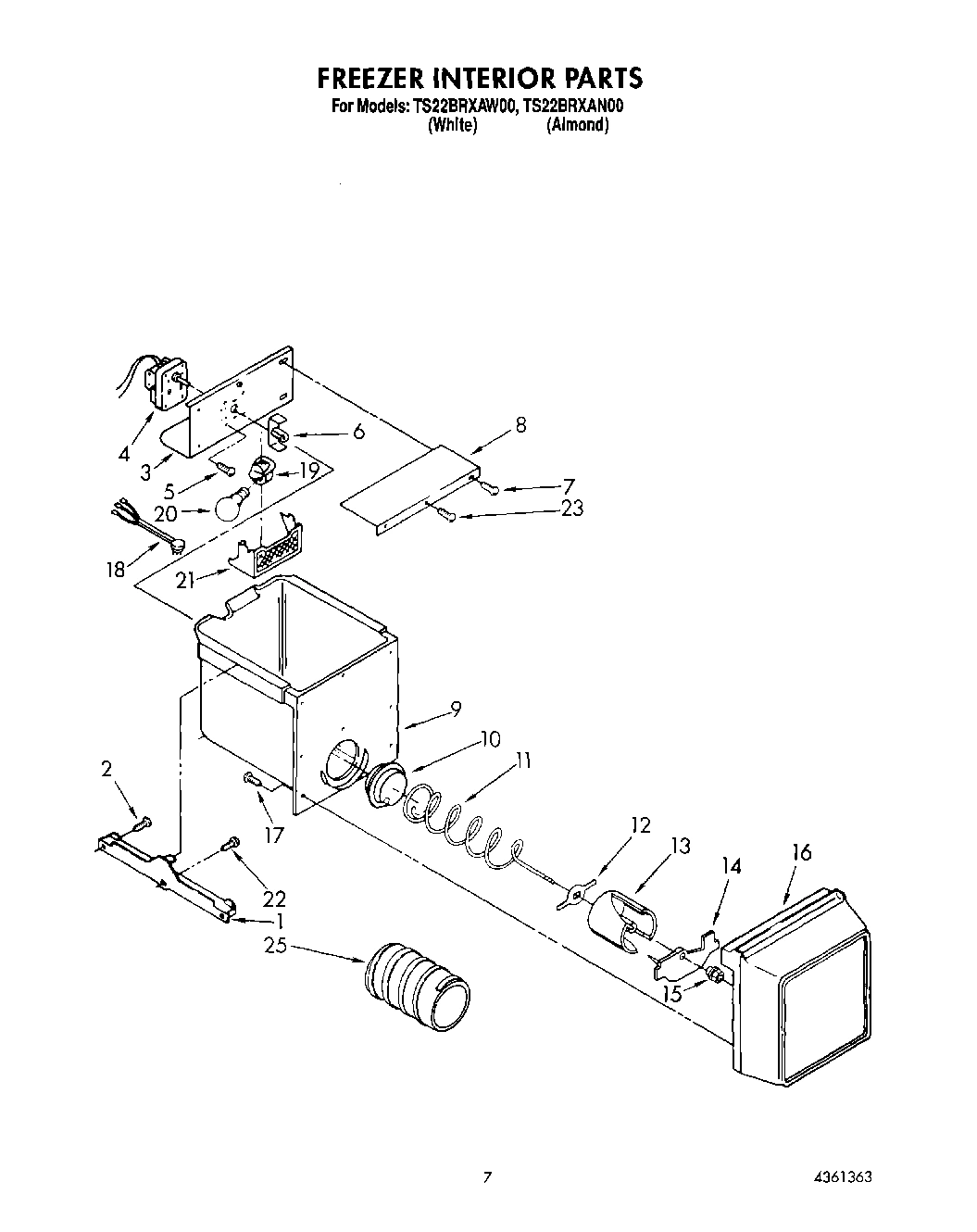

06 - FREEZER INTERIOR

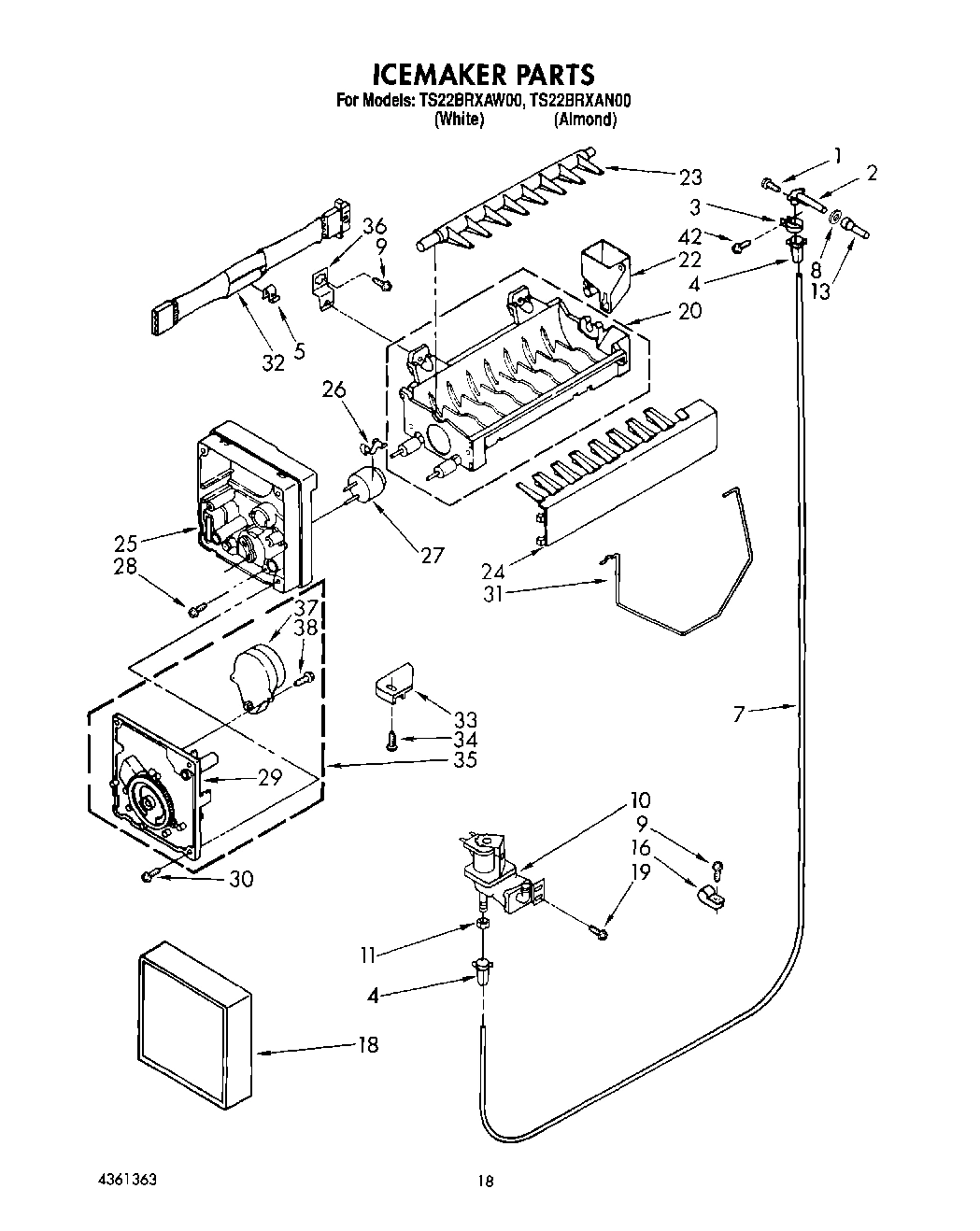

13 - ICEMAKER, LIT/OPTIONAL
02 - CABINET

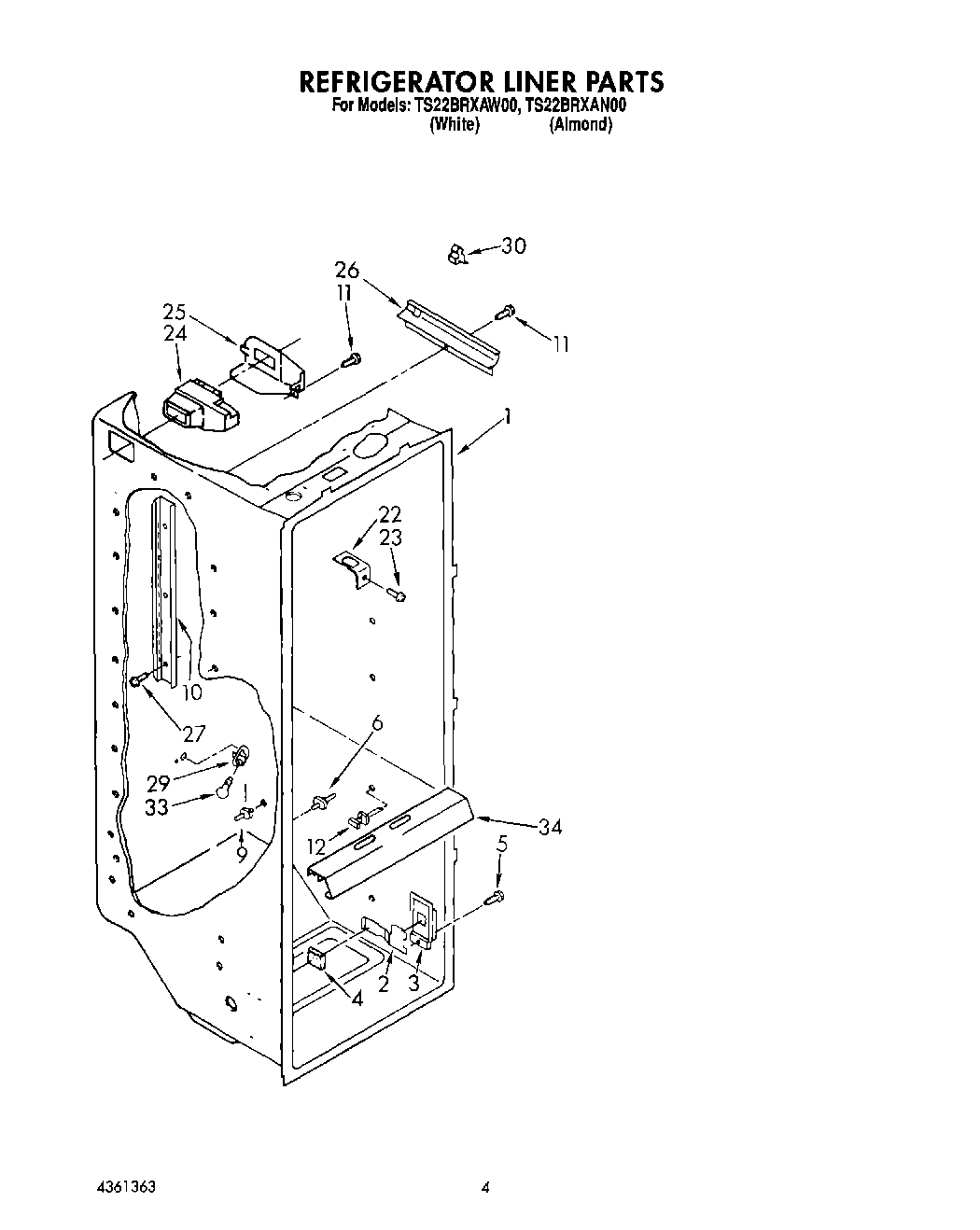

03 - REFRIGERATOR LINER
10 - UNIT

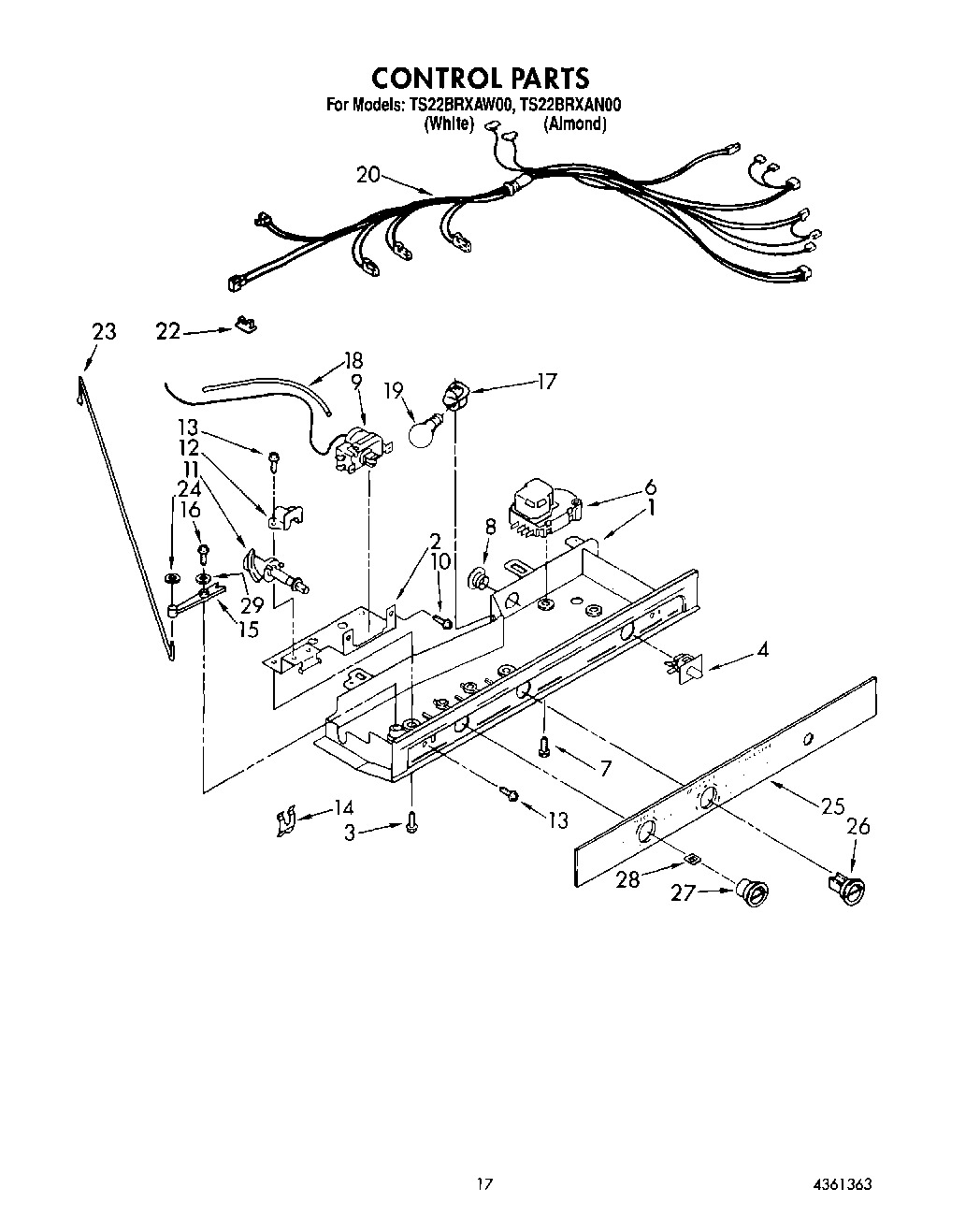

12 - CONTROL

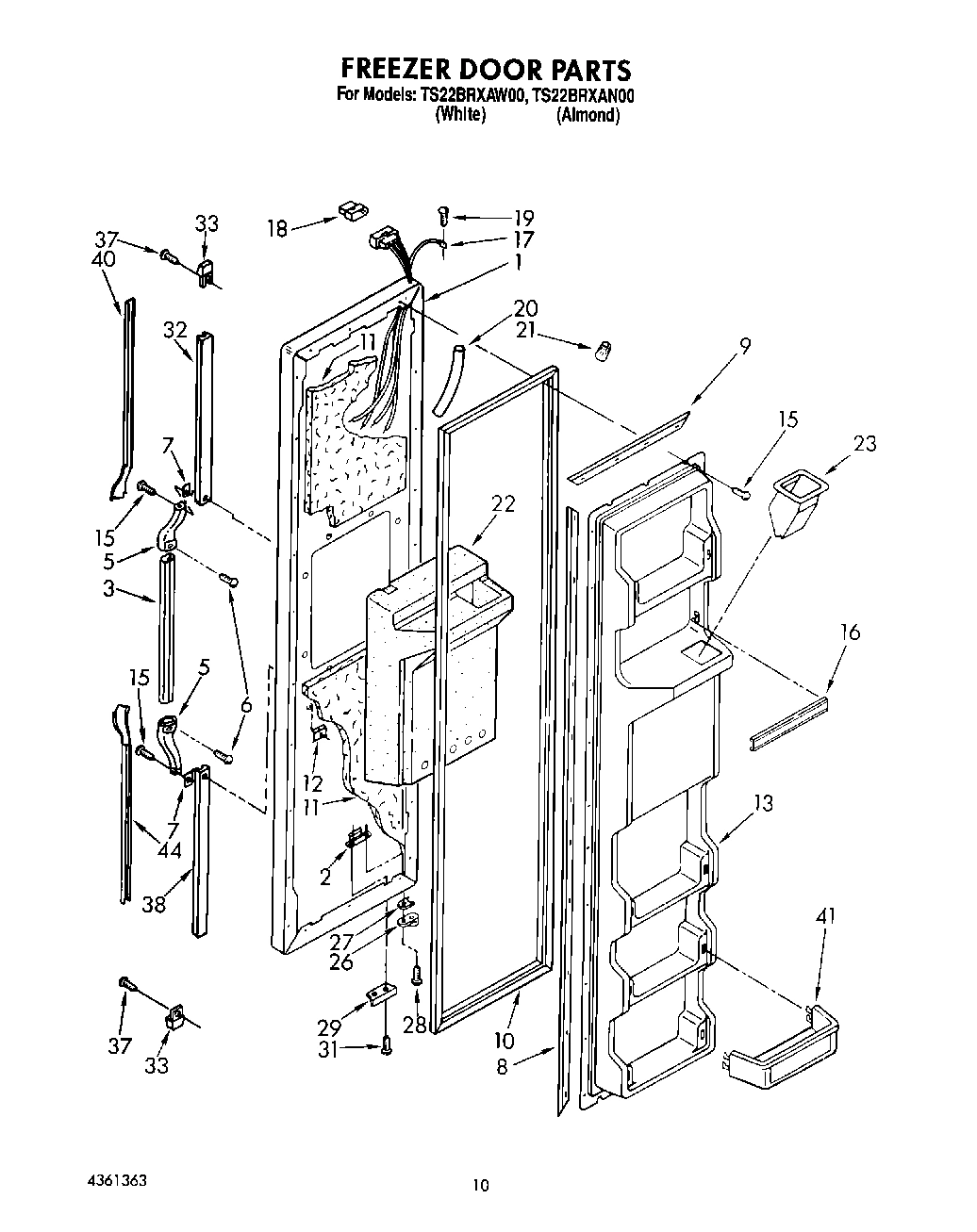

08 - FREEZER DOOR

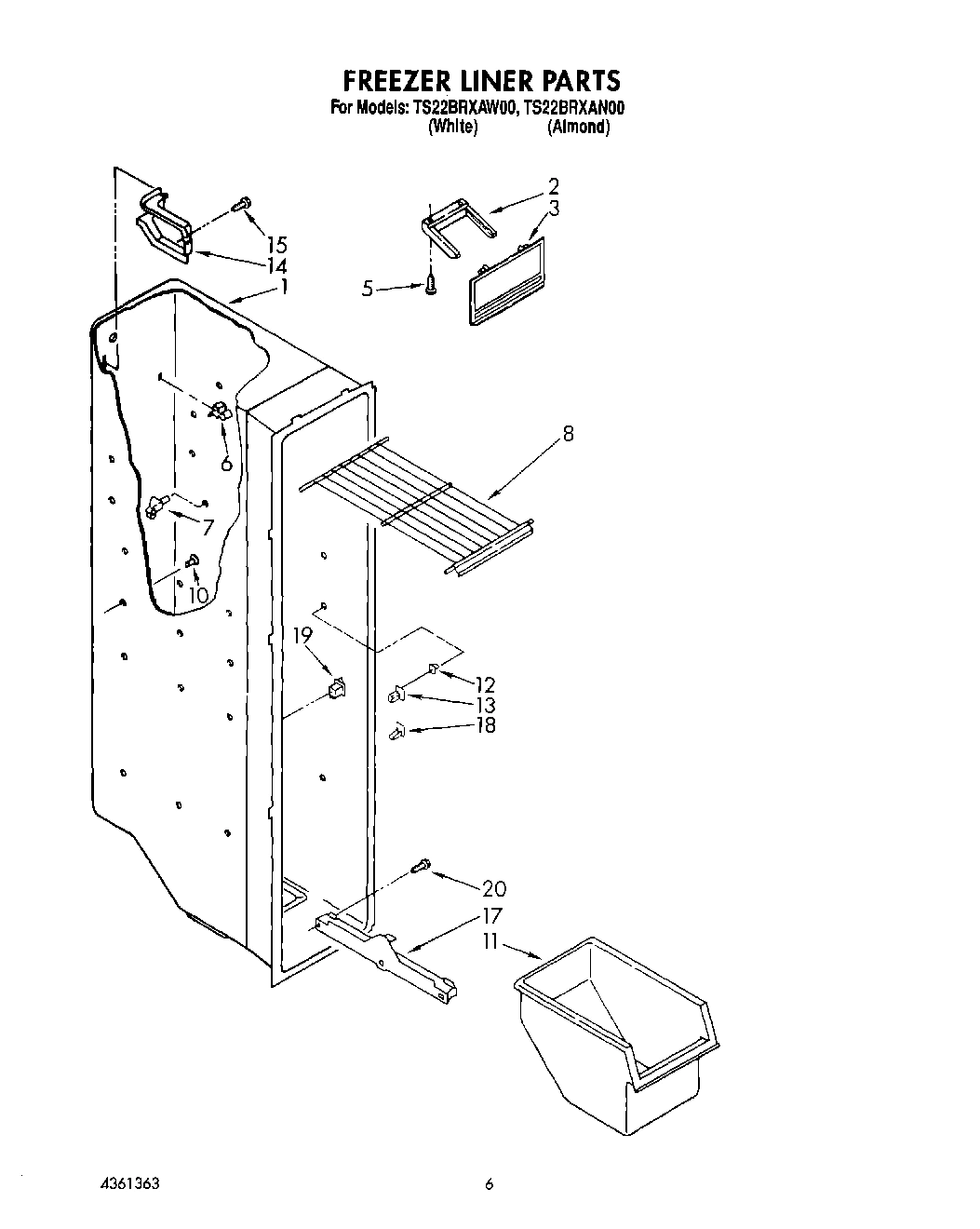

05 - FREEZER LINER
07 - REFRIGERATOR DOOR
Common parts from model Whirlpool TS22BRXAW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2163293 WPL LIT2163293 Contact Us For Availability
WPL LIT4361363 WPL LIT4361363 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI164724A Contact Us For Availability
1
Control Box WPL 2155518 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1115235 Contact Us For Availability
1
freezer, door panel (almond (also order item WPL 1115238 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI164725A Contact Us For Availability
1
refrigerator door (white) WPL 1115273 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1115276 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Door, Ice Compartment WPL 2152361 Contact Us For Availability
3
Door, Compartment WPL 2148289 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Trim, Compartment Door WPL 1124432 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162347 Contact Us For Availability
6
Trim, Door Shelf WPL 1120852 Contact Us For Availability
7
End Cap WPL 1110713 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Shelf (Large 2) WPL 1114609 Contact Us For Availability
8
Shelf (Small 1) WPL 1118165 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Ladder, Shelf WPL 1108433 Contact Us For Availability
10
End Cap, Center Handle WPL 1119359 Contact Us For Availability
10
Grommet WPL 1110779 Contact Us For Availability
11
Foam Insullation WPL 876029 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Bin, Freezer WPL 2148194 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Stud, Support WPL 946355 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Overload (Includes Relay) WPL 2154857 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
End Cap WPL 2156220 Contact Us For Availability
13
Stud, Front WPL 946356 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Relay (See Overload) WPL ARI164726A Contact Us For Availability
15
Shim WPL 935075 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
16
Trim, Door Shelf WPL 2152357 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1118032 Contact Us For Availability
17
Slide, Freezer Bin WPL 1115383 Contact Us For Availability
17
Panel, Interior Door WPL 1129249 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Stud, Rear WPL 1106982 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
screw WPL 487979 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1116821 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Clamp WPL 2161329 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 1109488 Contact Us For Availability
23
Bracket, Door Stop WPL 1115906 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Screw WPL 489075 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2152647 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Compressor (Includes Items 38, 43, 44, 45, 46 WPL 4317959 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Handle, Center WPL 1118417 Contact Us For Availability
29
Retainer, Top WPL 1119366 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Retainer, Bottom WPL 1119360 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2162079 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Light Lens WPL 1118315 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Extension, Bottom WPL 1118435 Contact Us For Availability
35
Extension, Top WPL 1118436 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
Unit, Harness WPL 2153994 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw WPL 489022 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Retainer, Gasket WPL 1117766 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Retainer, Gasket WPL 1118301 Contact Us For Availability
41
Door, Shelf WPL 2152686 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
WPL 799344 WPL 799344 Contact Us For Availability
42
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
42
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
42
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
42
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
42
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
42
WPL 515393 WPL 515393 Contact Us For Availability
42
WPL 542639 WPL 542639 Contact Us For Availability
42
WPL 72112 WPL 72112 Contact Us For Availability
42
WPL 799340 WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
44
Overload WPL 1118841 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
Cover, Unit WPL 2161316 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI164723A Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Hinge Cover (White) WPL 1119787 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
