Model Electrolux TRT16NRHD0 REFRIGERATOR – Common Parts & Diagrams

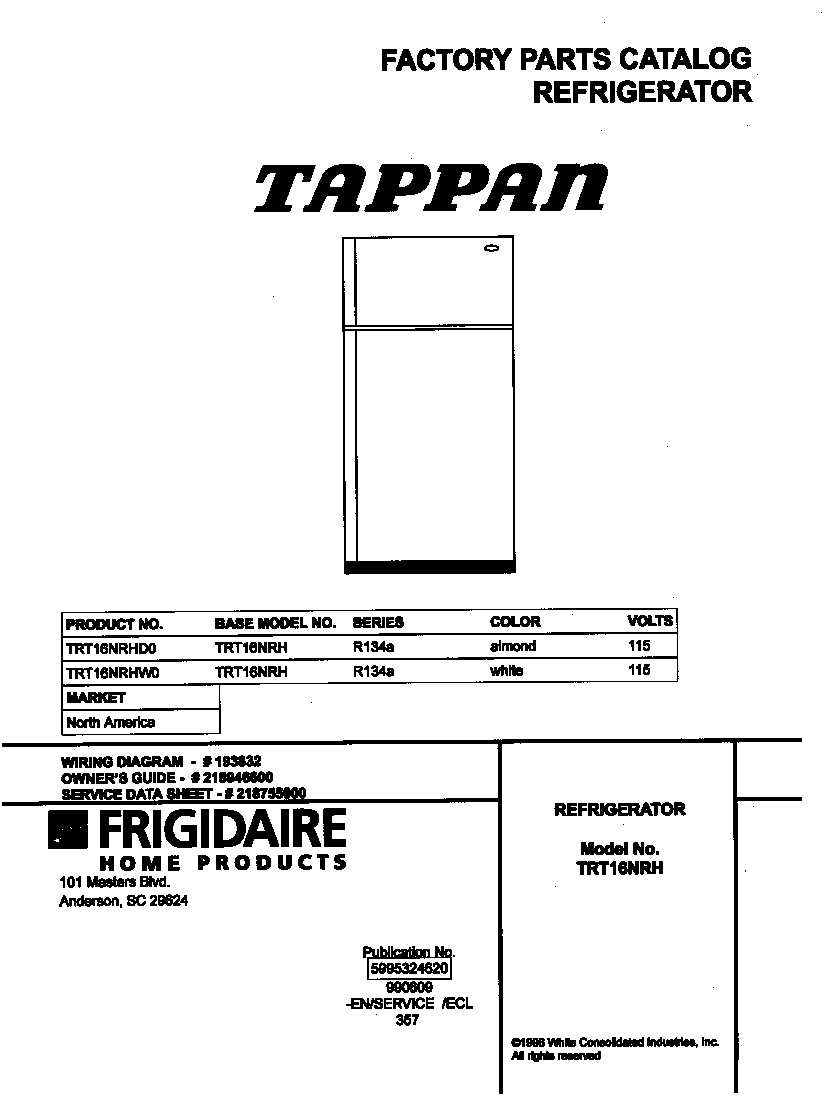

01 - COVER

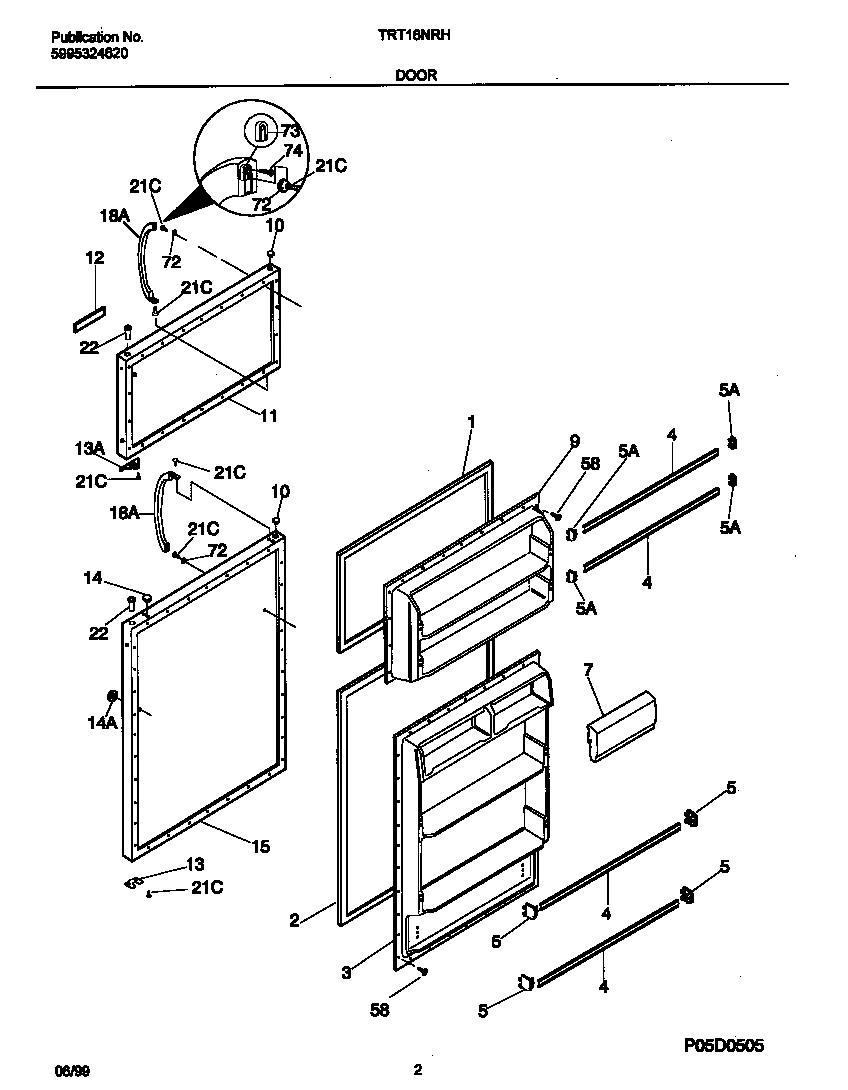

02 - DOORS

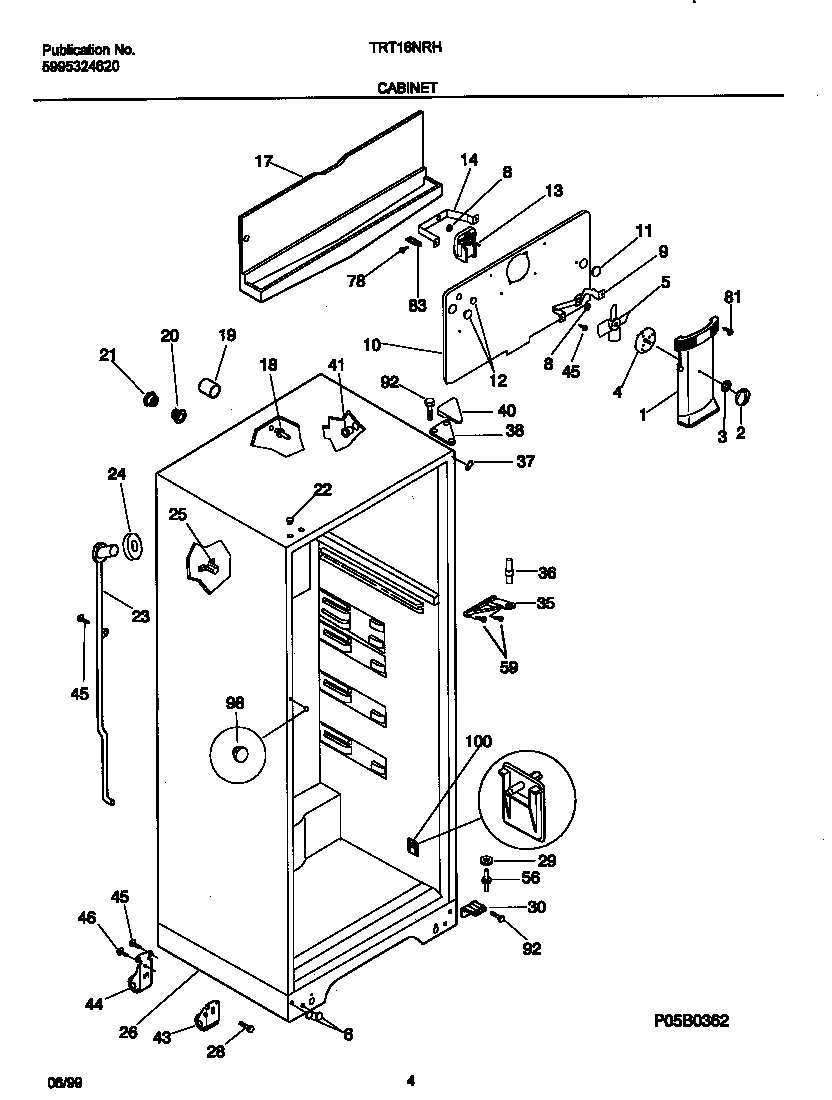

03 - CABINET

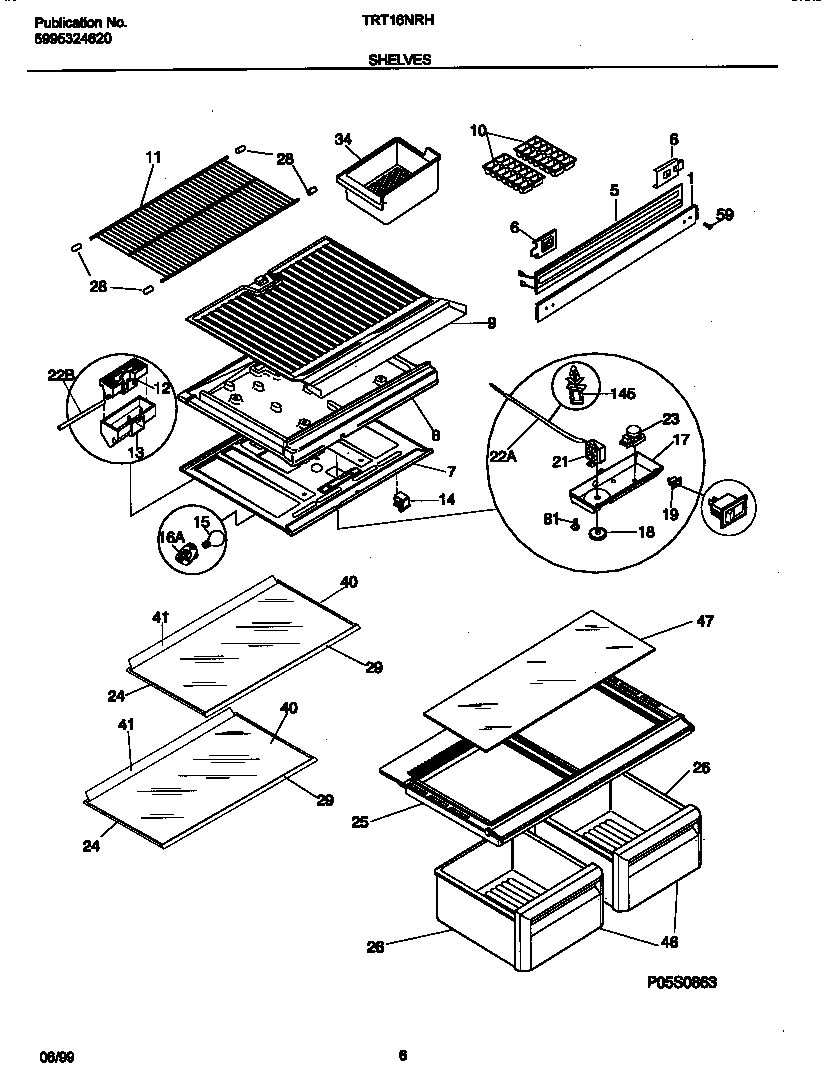

04 - SHELVES

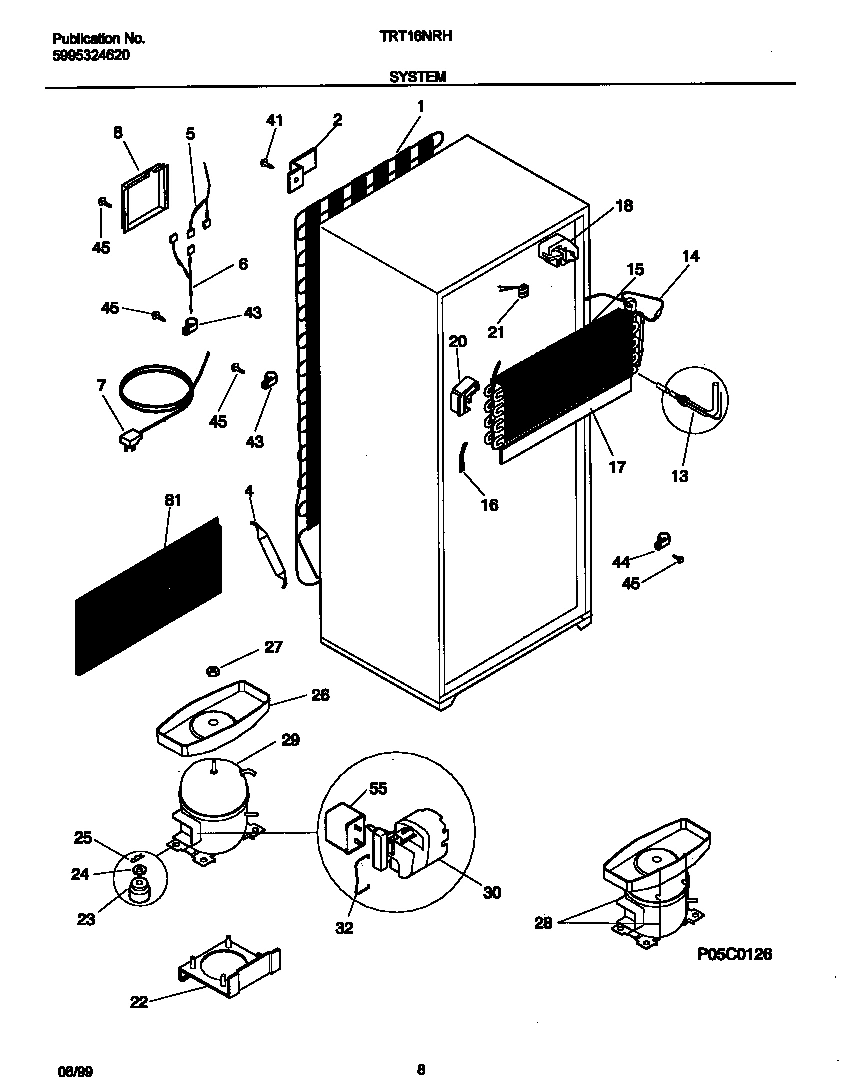

05 - SYSTEM

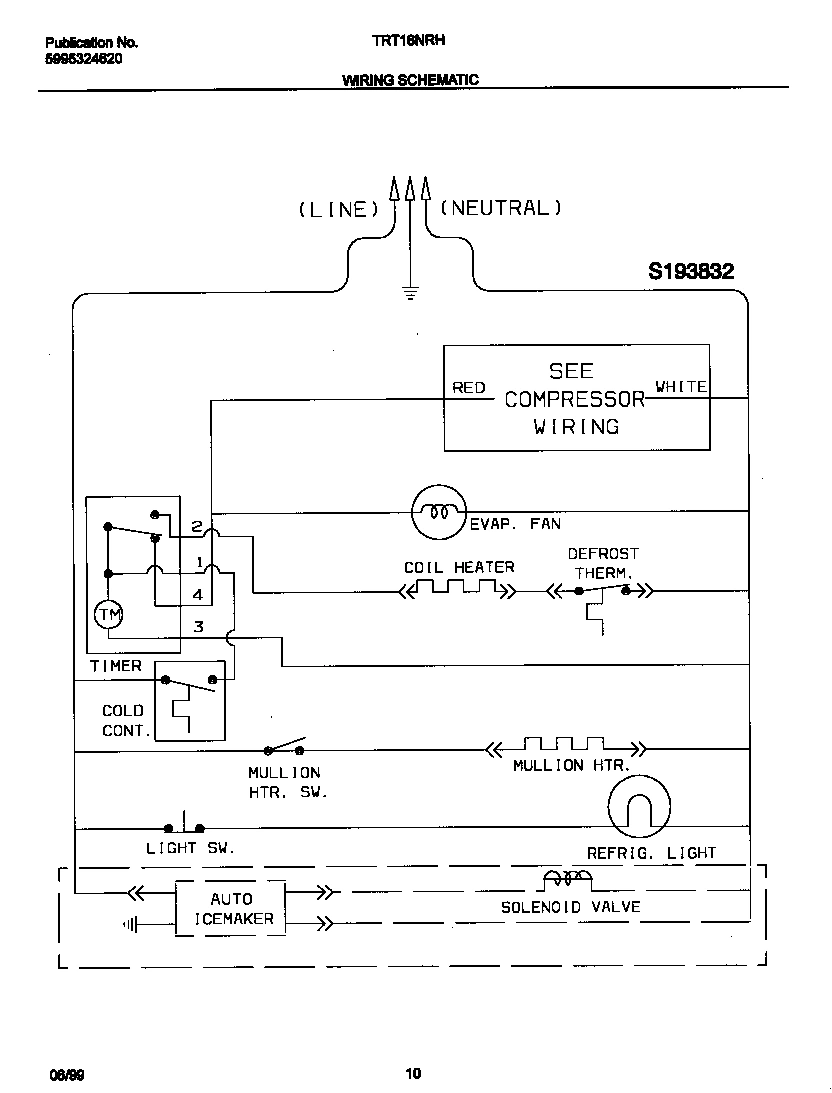

06 - WIRING DIAGRAM

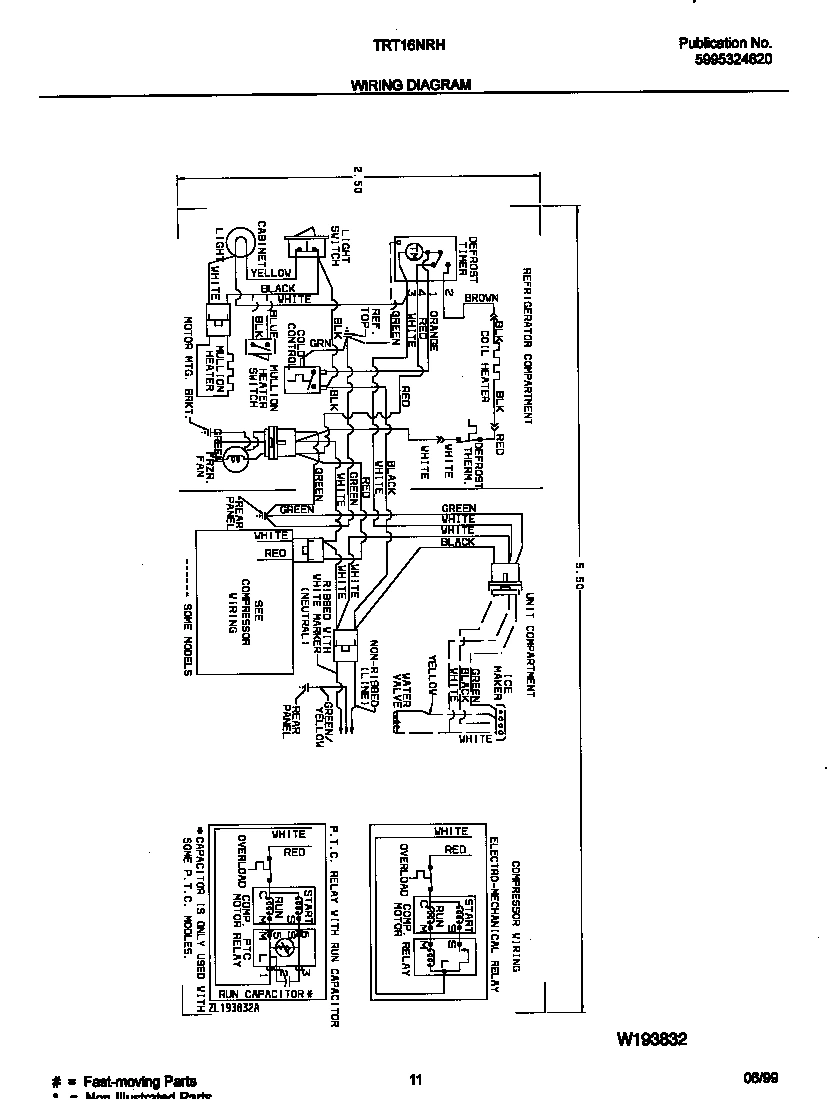

07 - WIRING DIAGRAM
Common parts from model Electrolux TRT16NRHD0 REFRIGERATOR
*93803
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*93808
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
*93820
PLUG-BUTTON,CAB LINER HOLES WCI 5308016571 Contact Us For Availability
*93821
WCI 5303001380 WCI 5303001380 Contact Us For Availability
*93823
SPACER-SHELF WCI 218159700 Contact Us For Availability
*93825
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*93826
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*93830
SPACER-COND TUBE,BLACK WCI 5303208866 Contact Us For Availability
*93831
WCI 5304406721 WCI 5304406721 Contact Us For Availability
*93832
SCREW,HEX HD SER WSHR ,8-18 X 3/8 WCI 218754500 Contact Us For Availability
*93833
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD WCI 5308003607 Contact Us For Availability
*93837
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
*93838
Washer,ext tooth lock ,No.10 ,grounding WCI 5308009617 Contact Us For Availability
1
GASKET-FRZR DOOR, ALMOND, MAGNETIC WCI 5303288856 Contact Us For Availability
1
WCI 218651801 WCI 218651801 Contact Us For Availability
1
WCI 218491000 WCI 218491000 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218781001 WCI 218781001 Contact Us For Availability
5
HARNESS-WIRING,CONTROL/DIVIDER WCI 218878500 Contact Us For Availability
6
PLUG-BUTTON, ALMOND WCI 5303001389 Contact Us For Availability
6
WCI 218845602 WCI 218845602 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
WCI 218865801 WCI 218865801 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218909701 WCI 218909701 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 218865600 WCI 218865600 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
11
SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE WCI 5303283107 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 215076403 WCI 215076403 Contact Us For Availability
14
WCI 5308009754 WCI 5308009754 Contact Us For Availability
15
WCI 218818701 WCI 218818701 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303321455 WCI 5303321455 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218821301 WCI 218821301 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
20
WCI 218821201 WCI 218821201 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731104 WCI 218731104 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 218276001 WCI 218276001 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 218314102 WCI 218314102 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
PAN - CRISPER WCI 3206180 No Longer Available
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR ,FRZR SHELF WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WCI 215919442 WCI 215919442 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
40
WCI 3206105 WCI 3206105 Contact Us For Availability
40
WCI 218390569 WCI 218390569 Contact Us For Availability
41
WCI 215919839 WCI 215919839 Contact Us For Availability
43
ROLLER ASSY,FRONT ,(2) WCI 218703001 Contact Us For Availability
44
ROLLER ASSY,REAR ,(2) WCI 218713600 Contact Us For Availability
46
WCI 5303307450 WCI 5303307450 Contact Us For Availability
46
BOLT-ROLLER MTG,HEX WSHR HD ,1/4-28 X 0.500,( WCI 5308009762 Contact Us For Availability
47
WCI 218390598 WCI 218390598 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
72
WCI 218397000 No Longer Available
81
WCI 218905701 WCI 218905701 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
WCI 215099711 WCI 215099711 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
