Model GE TNX22BACBLBB Refrigerator – Common Parts & Diagrams

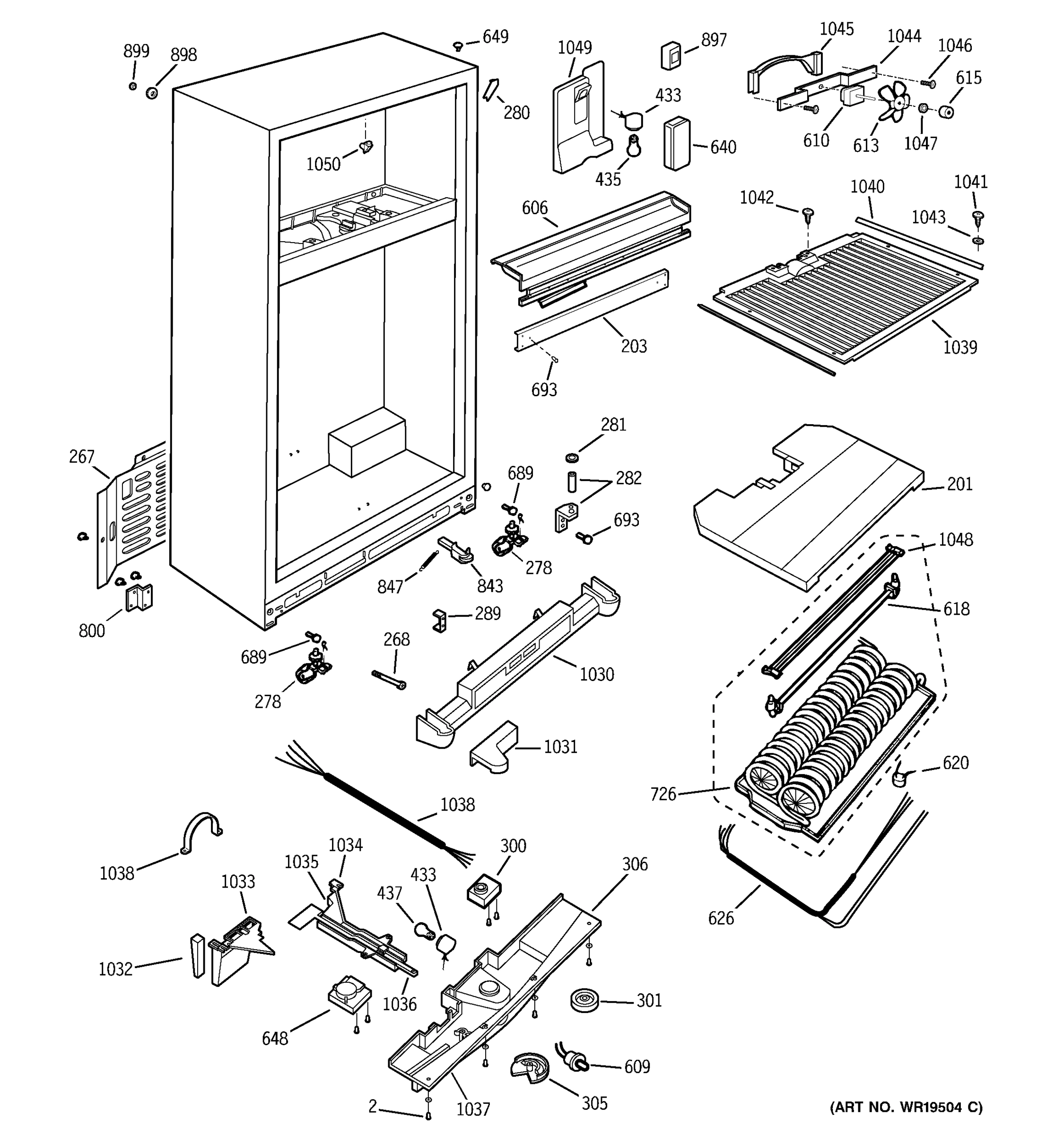

CABINET

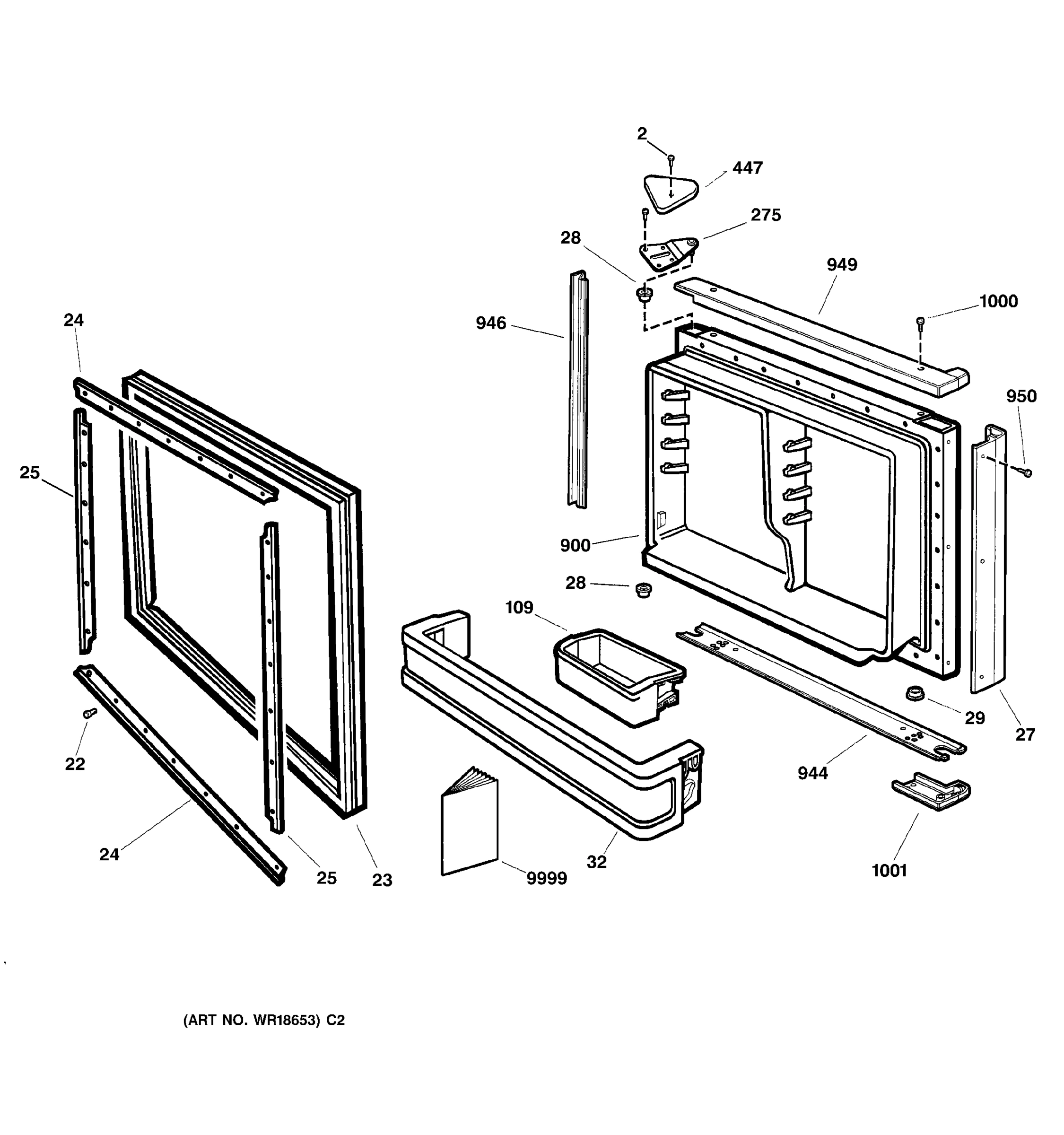

FREEZER DOOR

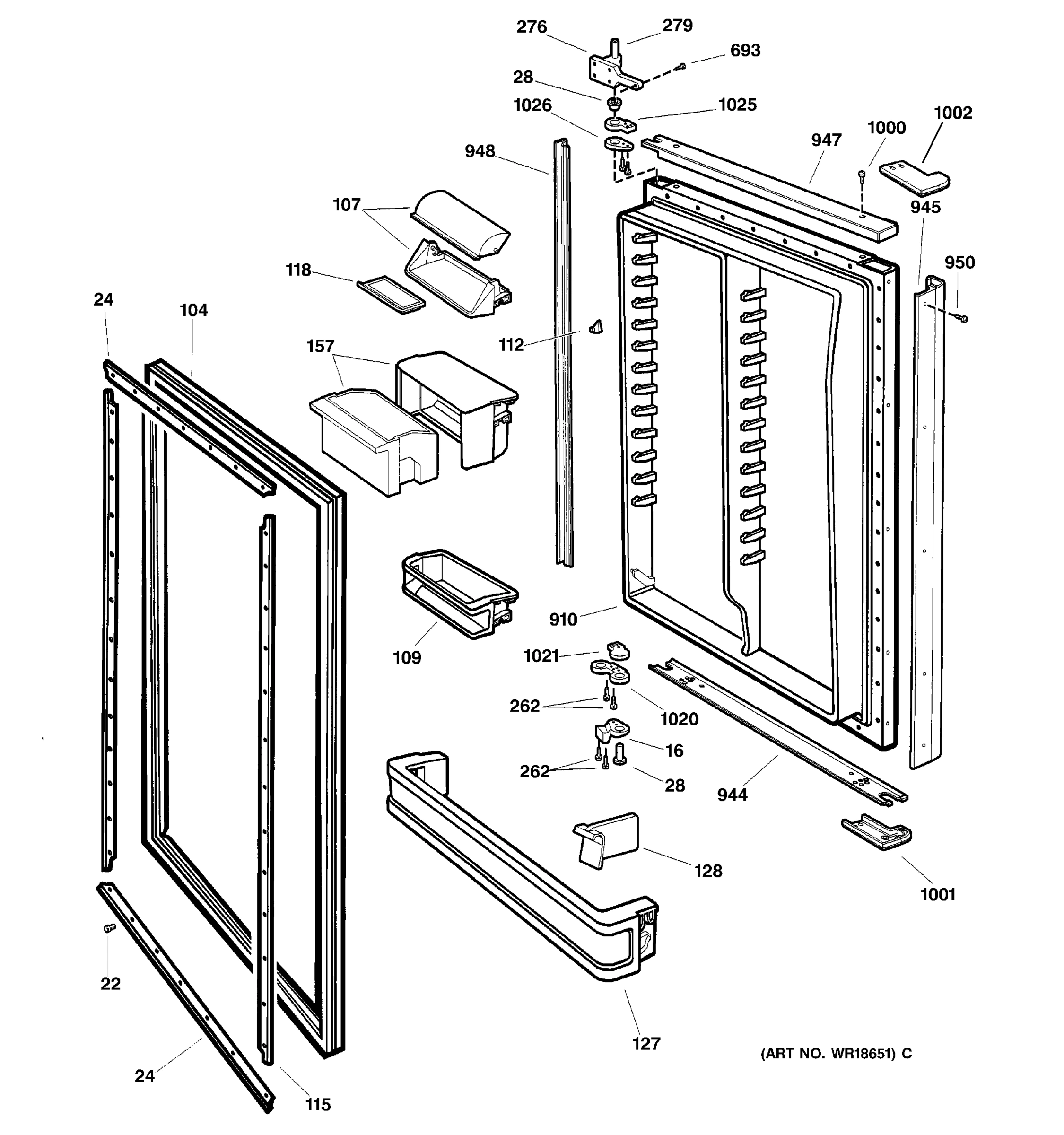

FRESH FOOD DOOR

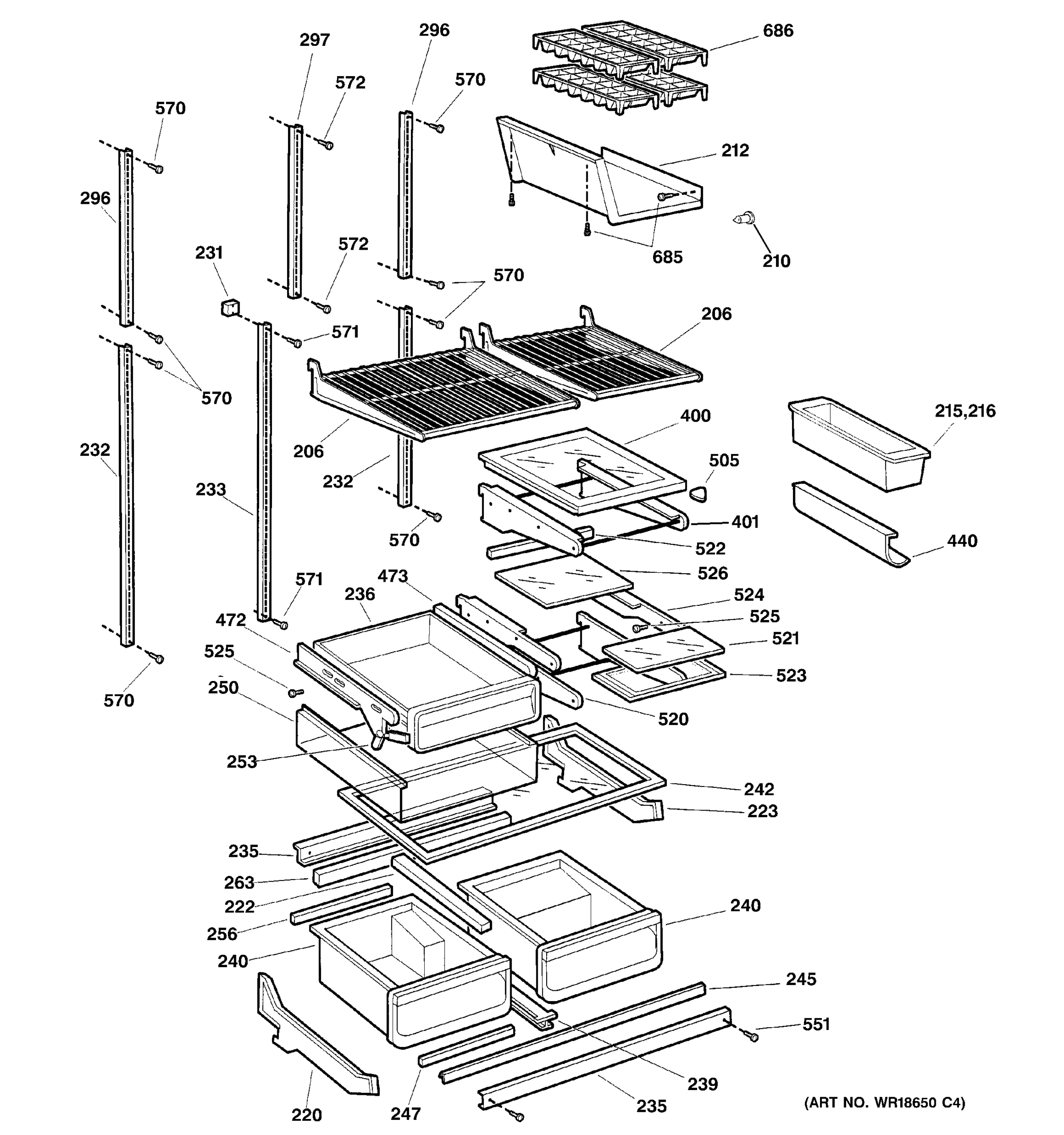

SHELVES

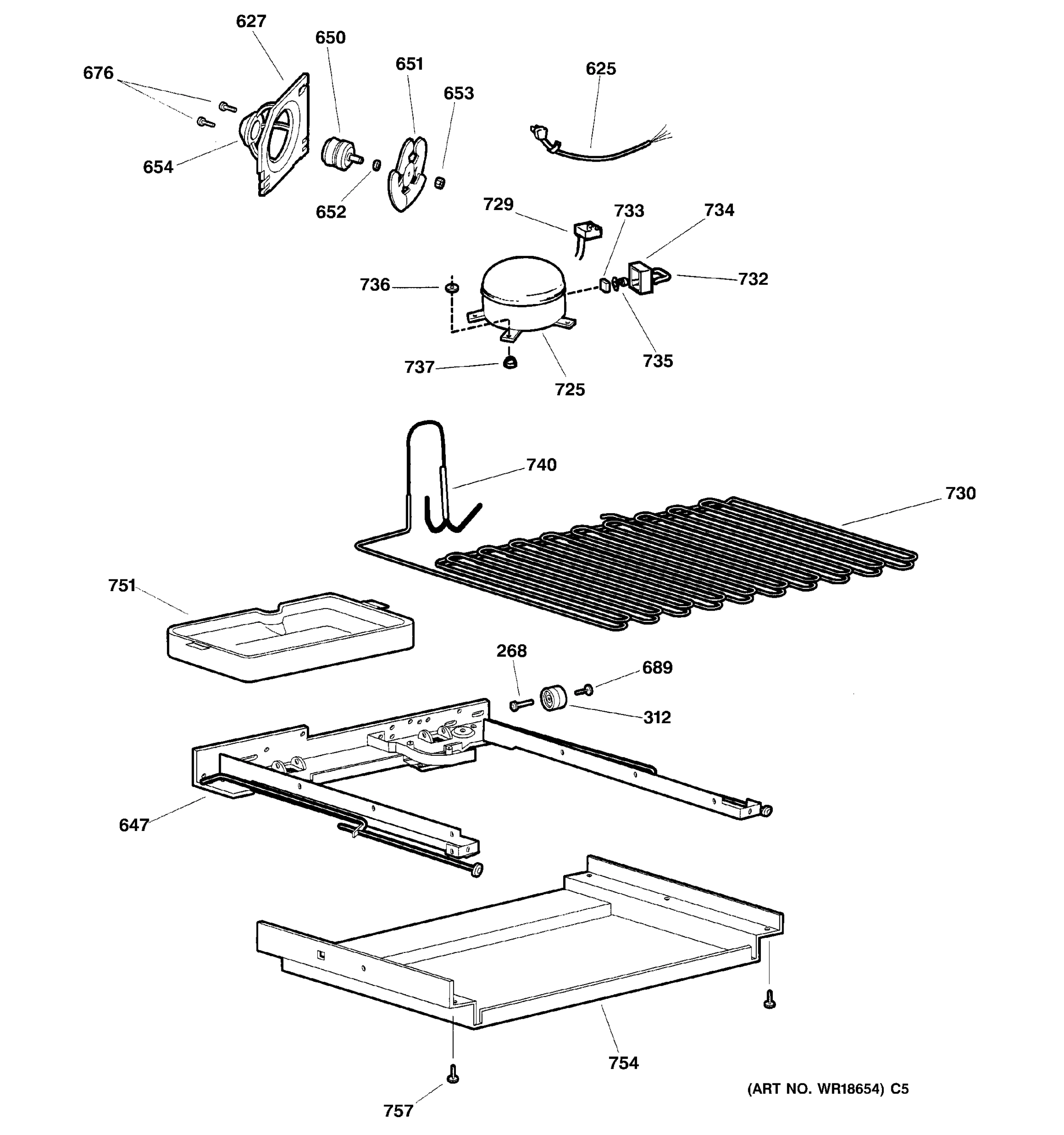

UNIT PARTS
Common parts from model GE TNX22BACBLBB Refrigerator
16
GEN WR02X10305 GEN WR02X10305 Contact Us For Availability
22
SCREW GEN WR01X10086 Contact Us For Availability
23
GEN WR24X10029 GEN WR24X10029 Contact Us For Availability
24
GEN WR02X10254 GEN WR02X10254 Contact Us For Availability
25
GEN WR02X10255 GEN WR02X10255 Contact Us For Availability
27
GEN WR12M938 GEN WR12M938 Contact Us For Availability
28
GEN WR02X10256 GEN WR02X10256 Contact Us For Availability
29
GEN WR02X10307 GEN WR02X10307 Contact Us For Availability
32
GEN WR71X10163 GEN WR71X10163 Contact Us For Availability
104
GEN WR24X10030 GEN WR24X10030 Contact Us For Availability
107
GEN WR71X10164 GEN WR71X10164 Contact Us For Availability
109
GEN WR71X10165 GEN WR71X10165 Contact Us For Availability
115
GEN WR02X10259 GEN WR02X10259 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
127
GEN WR71X10166 GEN WR71X10166 Contact Us For Availability
128
GEN WR02X10260 GEN WR02X10260 Contact Us For Availability
157
GEN WR71X10167 GEN WR71X10167 Contact Us For Availability
206
GEN WR71X10168 GEN WR71X10168 Contact Us For Availability
206
GEN WR71X10169 GEN WR71X10169 Contact Us For Availability
210
GROMMET FZ SHELF GEN WR02X6261 Contact Us For Availability
212
GEN WR30M156 GEN WR30M156 Contact Us For Availability
215
GEN WR32X0897 GEN WR32X0897 Contact Us For Availability
216
GEN WR32X1435 GEN WR32X1435 Contact Us For Availability
220
GEN WR72X10027 GEN WR72X10027 Contact Us For Availability
222
GEN WR14X10024 GEN WR14X10024 Contact Us For Availability
223
GEN WR72X10028 GEN WR72X10028 Contact Us For Availability
231
GEN WR02X10262 GEN WR02X10262 Contact Us For Availability
232
TRACK SHELF FF R/L GEN WR72X0096 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR02X10263 GEN WR02X10263 Contact Us For Availability
236
GEN WR32X10085 GEN WR32X10085 Contact Us For Availability
239
GEN WR72X10029 GEN WR72X10029 Contact Us For Availability
240
GEN WR32X10087 GEN WR32X10087 Contact Us For Availability
240
GEN WR32X10086 GEN WR32X10086 Contact Us For Availability
242
GEN WR32X10088 GEN WR32X10088 Contact Us For Availability
245
GEN WR14X10025 GEN WR14X10025 Contact Us For Availability
247
GEN WR14X10026 GEN WR14X10026 Contact Us For Availability
250
GEN WR02X10264 GEN WR02X10264 Contact Us For Availability
253
GEN WR02X8446 GEN WR02X8446 Contact Us For Availability
256
GEN WR14X10028 GEN WR14X10028 Contact Us For Availability
262
SCR 10-32 PNT 1.0 S LW GEN WR01X2134 Contact Us For Availability
263
GEN WR14X10027 GEN WR14X10027 Contact Us For Availability
268
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
275
GEN WR13X10048 GEN WR13X10048 Contact Us For Availability
276
GEN WR13X10052 GEN WR13X10052 Contact Us For Availability
279
GEN WR01X10099 GEN WR01X10099 Contact Us For Availability
296
GEN WR72X10030 GEN WR72X10030 Contact Us For Availability
297
GEN WR72X10031 GEN WR72X10031 Contact Us For Availability
305
GEN WR02X10270 GEN WR02X10270 Contact Us For Availability
306
GEN WR17X10417 GEN WR17X10417 Contact Us For Availability
400
GEN WR71X10170 GEN WR71X10170 Contact Us For Availability
401
GEN WR71M937 GEN WR71M937 Contact Us For Availability
435
LAMP 40 W GEN PURCH LOCAL Contact Us For Availability
437
GEN PURCH. LOCAL GEN PURCH. LOCAL Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
447
GEN WR02X9436 GEN WR02X9436 Contact Us For Availability
472
GEN WR72X10032 GEN WR72X10032 Contact Us For Availability
473
GEN WR72X10033 GEN WR72X10033 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
521
GEN WR71X10173 GEN WR71X10173 Contact Us For Availability
522
GEN WR38X10154 GEN WR38X10154 Contact Us For Availability
523
GEN WR71X10174 GEN WR71X10174 Contact Us For Availability
524
GEN WR72X0280 GEN WR72X0280 Contact Us For Availability
524
GEN WR72X0281 GEN WR72X0281 Contact Us For Availability
525
GEN WR01X1763 GEN WR01X1763 Contact Us For Availability
526
GEN WR71X10175 GEN WR71X10175 Contact Us For Availability
551
GEN WR01X10101 GEN WR01X10101 Contact Us For Availability
570
GEN WR01X10102 GEN WR01X10102 Contact Us For Availability
571
GEN WR01X10103 GEN WR01X10103 Contact Us For Availability
572
GEN WR01X10104 GEN WR01X10104 Contact Us For Availability
606
GEN WR17X10418 GEN WR17X10418 Contact Us For Availability
609
GEN WR23X10089 GEN WR23X10089 Contact Us For Availability
610
GEN WR60X203 GEN WR60X203 Contact Us For Availability
615
GROMMET FAN MOTOR GEN WR02X10220 Contact Us For Availability
618
GEN WR51X10028 GEN WR51X10028 Contact Us For Availability
625
GEN WR23X10090 GEN WR23X10090 Contact Us For Availability
626
GEN WR23X10091 GEN WR23X10091 Contact Us For Availability
627
GEN WR17X10189 GEN WR17X10189 Contact Us For Availability
640
GEN WR02X10271 GEN WR02X10271 Contact Us For Availability
647
GEN WR17X10419 GEN WR17X10419 Contact Us For Availability
649
GEN WR02X10312 GEN WR02X10312 Contact Us For Availability
651
GEN WR60X0234 GEN WR60X0234 Contact Us For Availability
652
WASHER, CUSHION GEN WR01X1714 Contact Us For Availability
653
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
654
GEN WR01X2019 GEN WR01X2019 Contact Us For Availability
654
GEN WR02X9240 GEN WR02X9240 Contact Us For Availability
693
GEN WR01X10116 GEN WR01X10116 Contact Us For Availability
726
GEN WR85X10011 GEN WR85X10011 Contact Us For Availability
730
GEN WR84X10016 GEN WR84X10016 Contact Us For Availability
732
CLAMP RELAY COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X10024 GEN WR08X10024 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
740
GEN WR86X10006 GEN WR86X10006 Contact Us For Availability
751
GEN WR32X10011 GEN WR32X10011 Contact Us For Availability
754
GEN WR82X10054 GEN WR82X10054 Contact Us For Availability
757
GEN WR01X10081 GEN WR01X10081 Contact Us For Availability
800
GEN WR29M11 GEN WR29M11 Contact Us For Availability
843
GEN WR11X0172 GEN WR11X0172 Contact Us For Availability
897
COVER ICEMAKER GEN WR02X10273 Contact Us For Availability
898
GEN WR02X10274 GEN WR02X10274 Contact Us For Availability
899
GEN WR02X10275 GEN WR02X10275 Contact Us For Availability
900
GEN WR78X10251 GEN WR78X10251 Contact Us For Availability
910
GEN WR78X10252 GEN WR78X10252 Contact Us For Availability
944
GEN WR38X10162 GEN WR38X10162 Contact Us For Availability
945
GEN WR12M933 GEN WR12M933 Contact Us For Availability
946
GEN WR38X10167 GEN WR38X10167 Contact Us For Availability
947
GEN WR38X10163 GEN WR38X10163 Contact Us For Availability
948
GEN WR38X10165 GEN WR38X10165 Contact Us For Availability
949
GEN WR38X10168 GEN WR38X10168 Contact Us For Availability
950
GEN WR1M711 GEN WR1M711 Contact Us For Availability
1000
GEN WR01X10121 GEN WR01X10121 Contact Us For Availability
1001
GEN WR2M3512 GEN WR2M3512 Contact Us For Availability
1002
GEN WR2M3511 GEN WR2M3511 Contact Us For Availability
1020
GEN WR13X10049 GEN WR13X10049 Contact Us For Availability
1021
GEN WR02X10315 GEN WR02X10315 Contact Us For Availability
1025
GEN WR02X10316 GEN WR02X10316 Contact Us For Availability
1026
GEN WR02X10282 GEN WR02X10282 Contact Us For Availability
1030
GEN WR79X10011 GEN WR79X10011 Contact Us For Availability
1031
GEN WR79X10012 GEN WR79X10012 Contact Us For Availability
1032
GEN WR82X10057 GEN WR82X10057 Contact Us For Availability
1033
GEN WR02X10283 GEN WR02X10283 Contact Us For Availability
1034
GEN WR02X10284 GEN WR02X10284 Contact Us For Availability
1035
GEN WR14X10029 GEN WR14X10029 Contact Us For Availability
1036
GEN WR02X10285 GEN WR02X10285 Contact Us For Availability
1037
GEN WR02X10286 GEN WR02X10286 Contact Us For Availability
1038
GEN WR01X10108 GEN WR01X10108 Contact Us For Availability
1038
GEN WR23X10092 GEN WR23X10092 Contact Us For Availability
1039
GEN WR17X10420 GEN WR17X10420 Contact Us For Availability
1040
GEN WR14X10030 GEN WR14X10030 Contact Us For Availability
1041
GEN WR01X10109 GEN WR01X10109 Contact Us For Availability
1042
GEN WR01X10110 GEN WR01X10110 Contact Us For Availability
1043
GEN WR01X10111 GEN WR01X10111 Contact Us For Availability
1044
GEN WR02X10287 GEN WR02X10287 Contact Us For Availability
1045
GEN WR02X10288 GEN WR02X10288 Contact Us For Availability
1046
GEN WR01X10112 GEN WR01X10112 Contact Us For Availability
1047
GEN WR01X10113 GEN WR01X10113 Contact Us For Availability
1048
GEN WR02X10289 GEN WR02X10289 Contact Us For Availability
1049
GEN WR02X10290 GEN WR02X10290 Contact Us For Availability
1050
PLATE, SWITCH LIGHT FZ GEN WR02X10291 Contact Us For Availability
1050
COVER,LIGHT SWITCH PLATE GEN WR02X10292 Contact Us For Availability
1050
GEN WR23X10093 GEN WR23X10093 Contact Us For Availability
9999
GEN 31-47000 GEN 31-47000 Contact Us For Availability
9999
GEN 31-47002 GEN 31-47002 Contact Us For Availability
9999
GEN 49-60019 GEN 49-60019 Contact Us For Availability
9999
GEN WR49X10007 GEN WR49X10007 Contact Us For Availability
× ![]()
