Model Whirlpool TMH14XMB0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
03 - INTERIOR AND VENTILATION PARTS

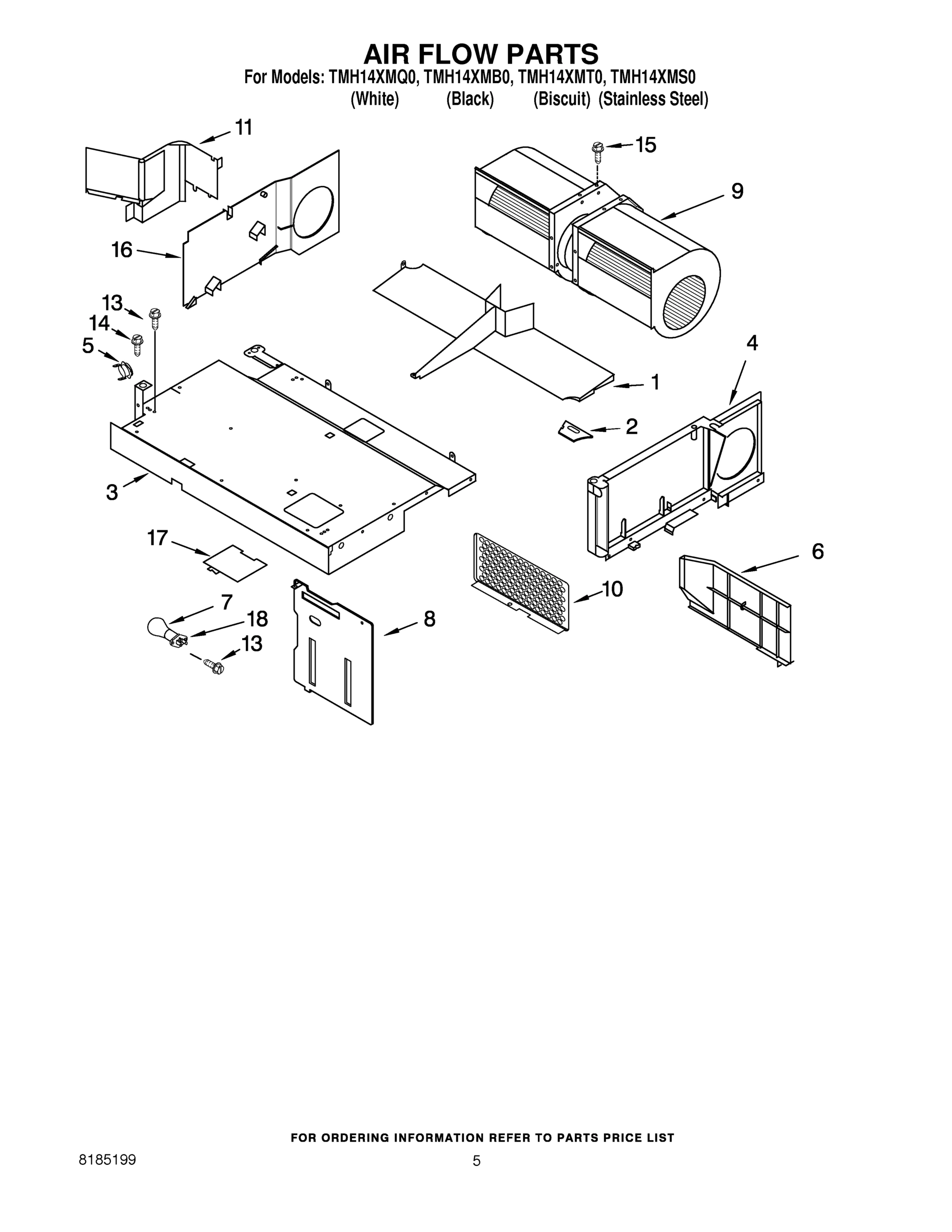

04 - AIR FLOW PARTS

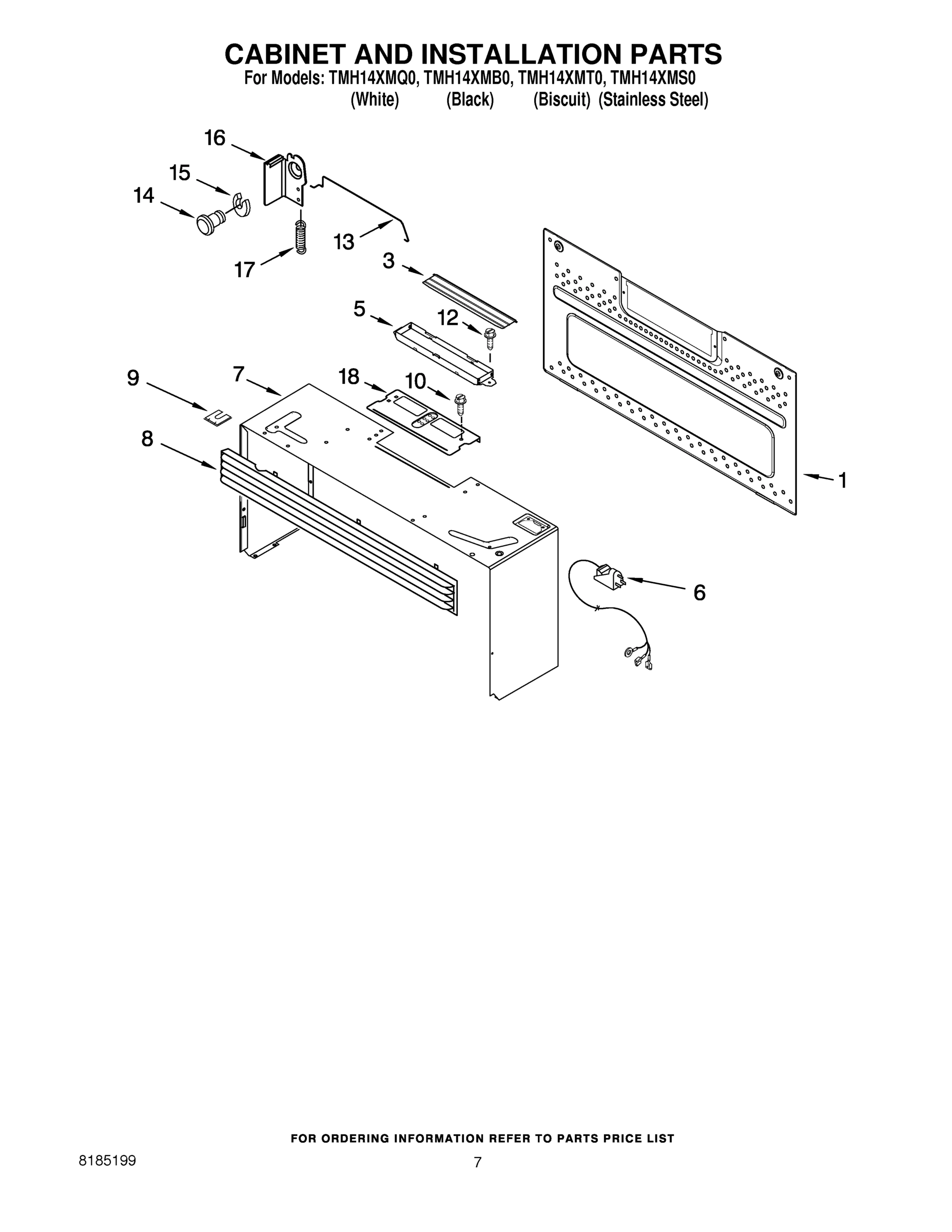

06 - CABINET AND INSTALLATION PARTS

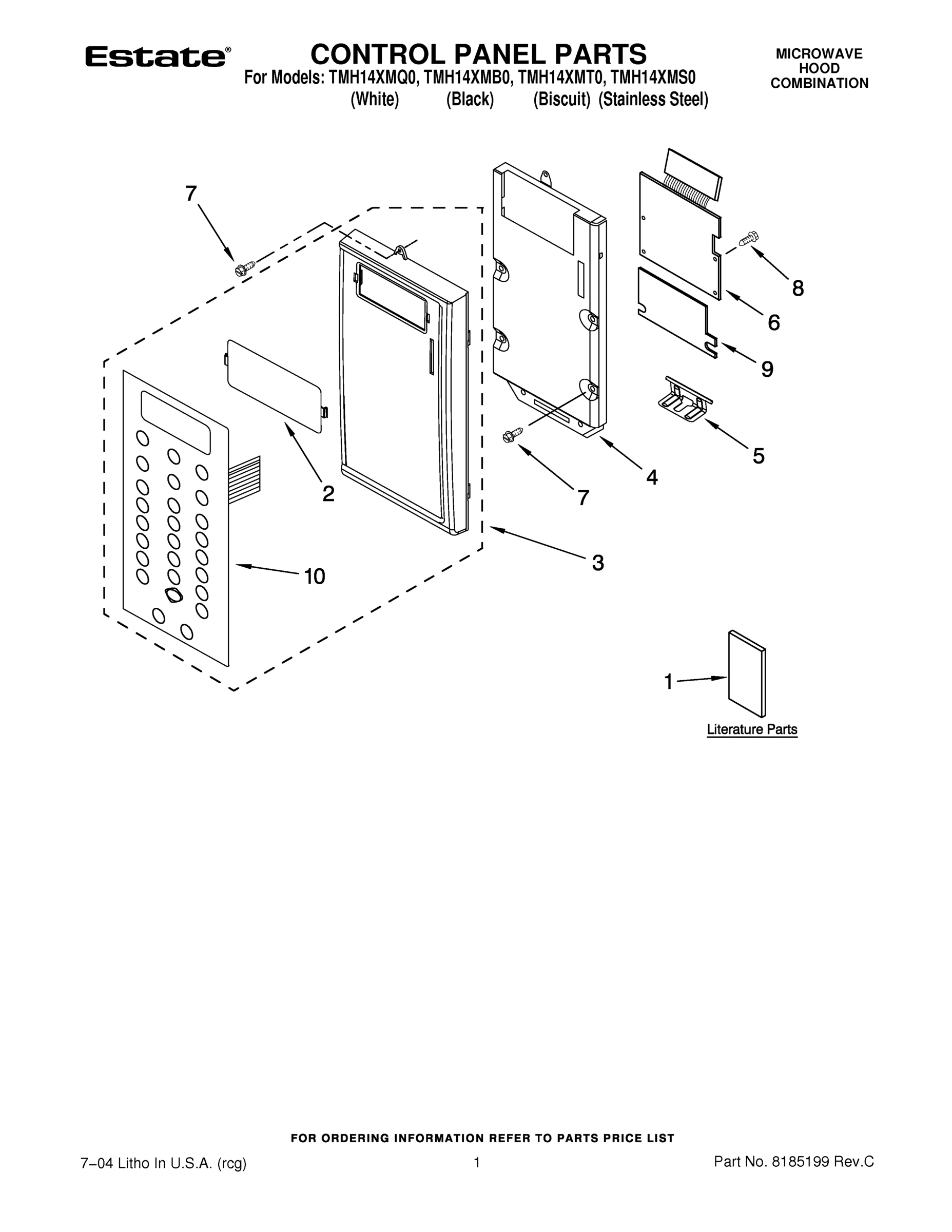

01 - CONTROL PANEL PARTS

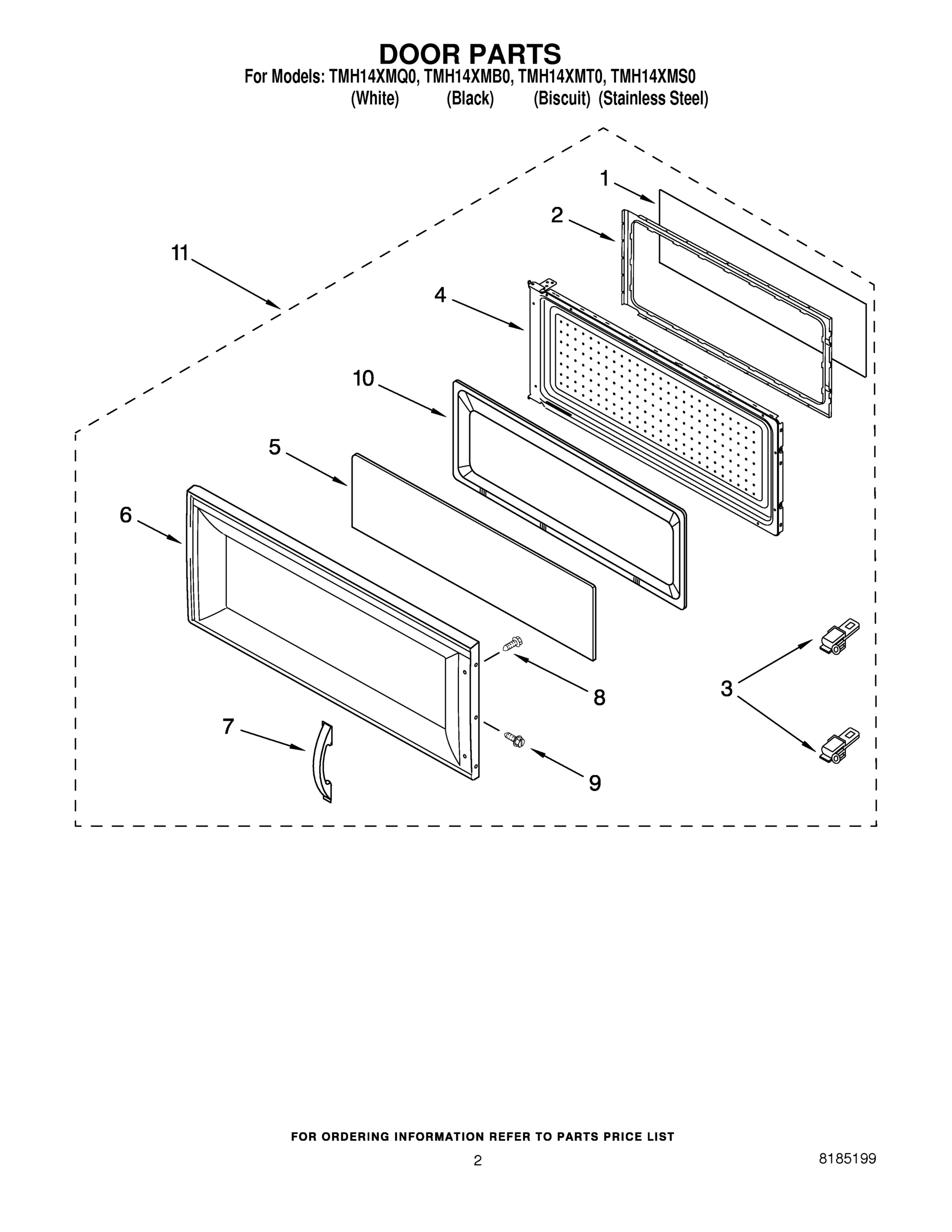

02 - DOOR PARTS

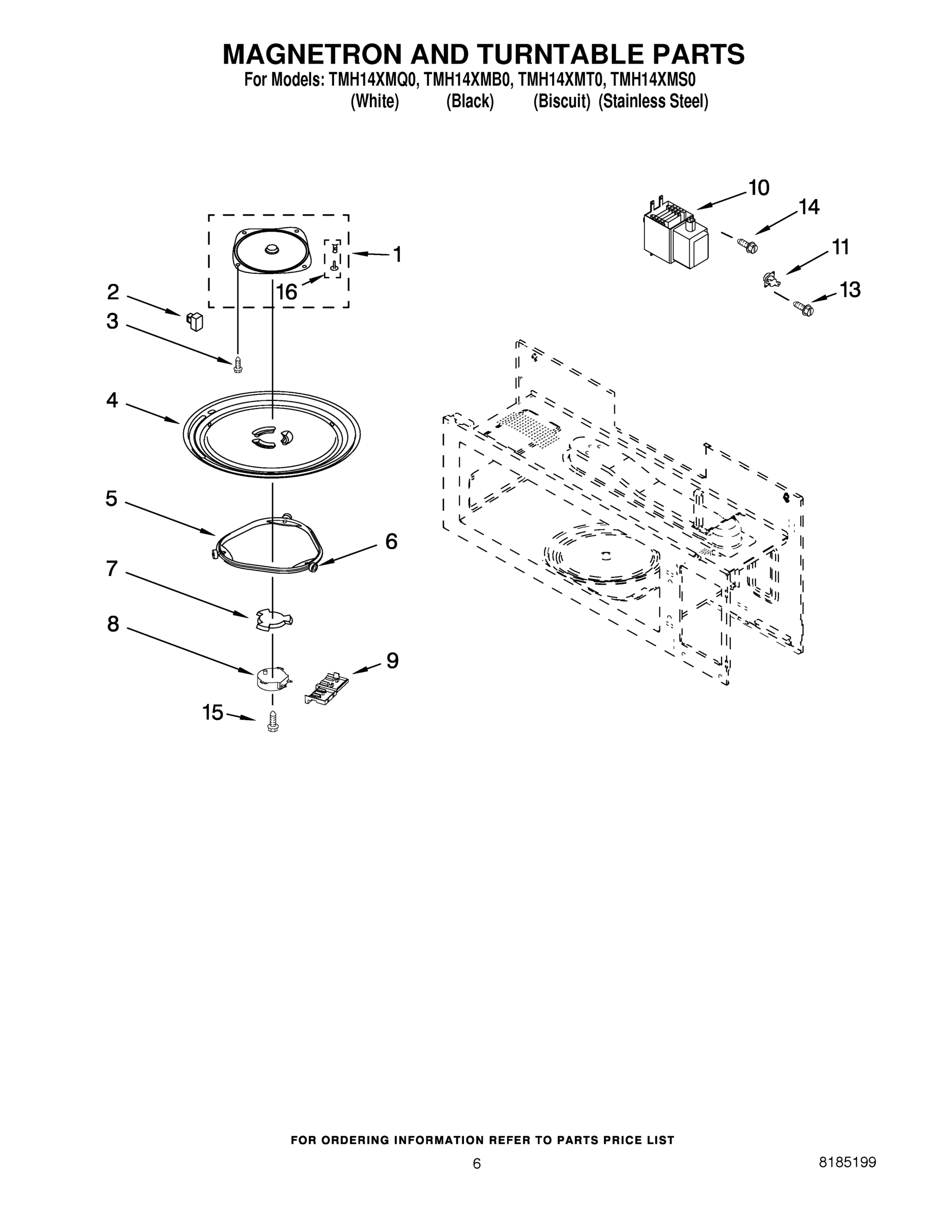

05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool TMH14XMB0 MICROWAVE HOOD COMBINATION
1
Deflector, Air WPL 8185096 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8184732 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8184986 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8184994 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8185002 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Cover, Inlet WPL 8185255 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Socket, Motor Wire WPL 8185097 Contact Us For Availability
2
Lens WPL 4393739 Contact Us For Availability
2
Cover (4) WPL 8169448 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Base Plate WPL 8185116 Contact Us For Availability
3
Panel, Control (White) WPL 8185226 Contact Us For Availability
3
Panel, Control (Black) WPL 8185227 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8185228 Contact Us For Availability
3
Panel, Control (Stainless Steel) WPL 8205004 Contact Us For Availability
3
Nail, Plastic WPL 4393291 Contact Us For Availability
4
Turntable WPL 4393799 Contact Us For Availability
4
Air Guide (Right) WPL 8185098 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
4
Body, Door (Includes 1) (White) WPL 8185107 Contact Us For Availability
4
Body, Door (Includes 1) (Biscuit) WPL 8185108 Contact Us For Availability
4
Body, Door (Includes 1) (Black) WPL 8185109 Contact Us For Availability
5
Glass, Outer WPL 4393725 Contact Us For Availability
5
Thermostat WPL 4393945 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
6
Wheel, Plastic WPL 4393861 Contact Us For Availability
6
Deflector, Cooling Air WPL 8185099 Contact Us For Availability
6
PCB Assembly WPL 8204874 Contact Us For Availability
6
Frame, Outer (Includes 5) (White) WPL 8185216 Contact Us For Availability
6
Frame, Outer (Includes 5) (Black) WPL 8185217 Contact Us For Availability
6
Frame, Outer (Includes 5) (Biscuit) WPL 8185225 Contact Us For Availability
6
Frame, Outer (Includes 5) (Stainless Steel) WPL 8205003 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Case, Outer (White) WPL 8185091 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8185092 Contact Us For Availability
7
Case, Outer (Black) WPL 8185093 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
8
Cooling Air Guide WPL 8185215 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
9
Motor, Fan WPL 8184825 Contact Us For Availability
9
Foil, PCB WPL 8185122 Contact Us For Availability
9
Cover, Terminal WPL 4393756 Contact Us For Availability
10
Shield WPL 8204736 Contact Us For Availability
10
Switch, Membrane (White) WPL 8185230 Contact Us For Availability
10
Switch, Membrane (Black) WPL 8185231 Contact Us For Availability
10
Switch, Membrane (Biscuit) WPL 8185232 Contact Us For Availability
10
Switch, Membrane (Stainless Steel) WPL 8205005 Contact Us For Availability
10
Bezel (Stainless Models Only) WPL 8185349 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Air Guide, Sealing Plate WPL 8204996 Contact Us For Availability
11
Door, Complete (White) WPL 8185221 Contact Us For Availability
11
Door, Complete (8185222 Black) WPL 8185222 Contact Us For Availability
11
Door, Complete (8185229 Biscuit) WPL 8185229 Contact Us For Availability
11
Door, Complete (Stainless Steel) WPL 8205006 Contact Us For Availability
11
Thermostat WPL 8184829 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
13
Screw WPL 4393838 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Screw WPL 4393833 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Air Guide (Left) WPL 8185115 Contact Us For Availability
16
Catch WPL 8185033 Contact Us For Availability
16
Bushing, Nail WPL 4393290 Contact Us For Availability
17
Cover, Light WPL 8185118 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Holder, Lamp WPL 8169539 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Wall Template WPL 8183743 Contact Us For Availability
18
Upper Template WPL 8184731 Contact Us For Availability
18
Cover, Motor WPL 8185090 Contact Us For Availability
18
Miscellaneous WPL ARI131645A Contact Us For Availability
× ![]()
