Model Whirlpool TGR51W0WN0 GAS RANGE – Common Parts & Diagrams
02 - EXTERNAL OVEN
04 - BACKGUARD

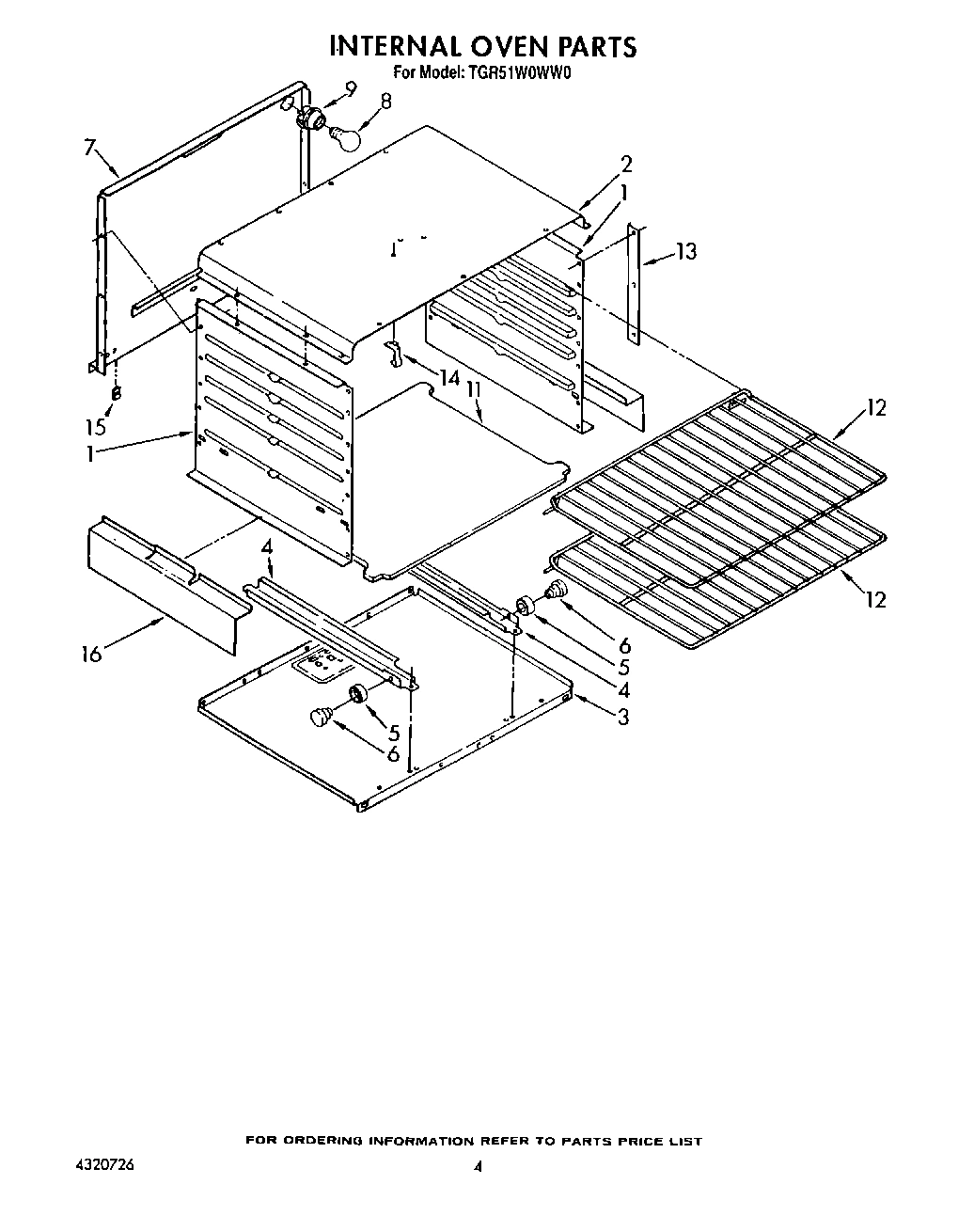

03 - INTERNAL OVEN

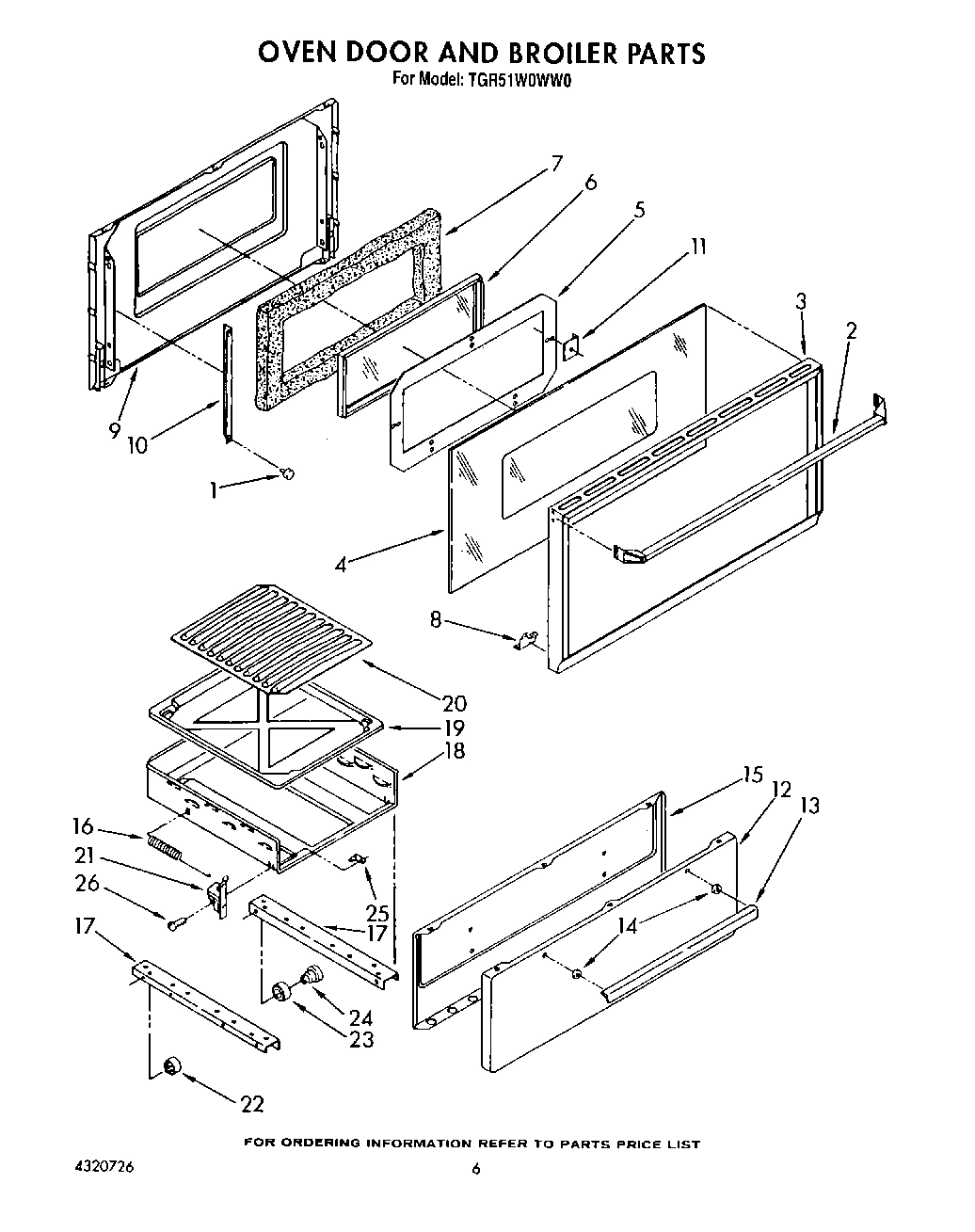

05 - OVEN DOOR AND BROILER

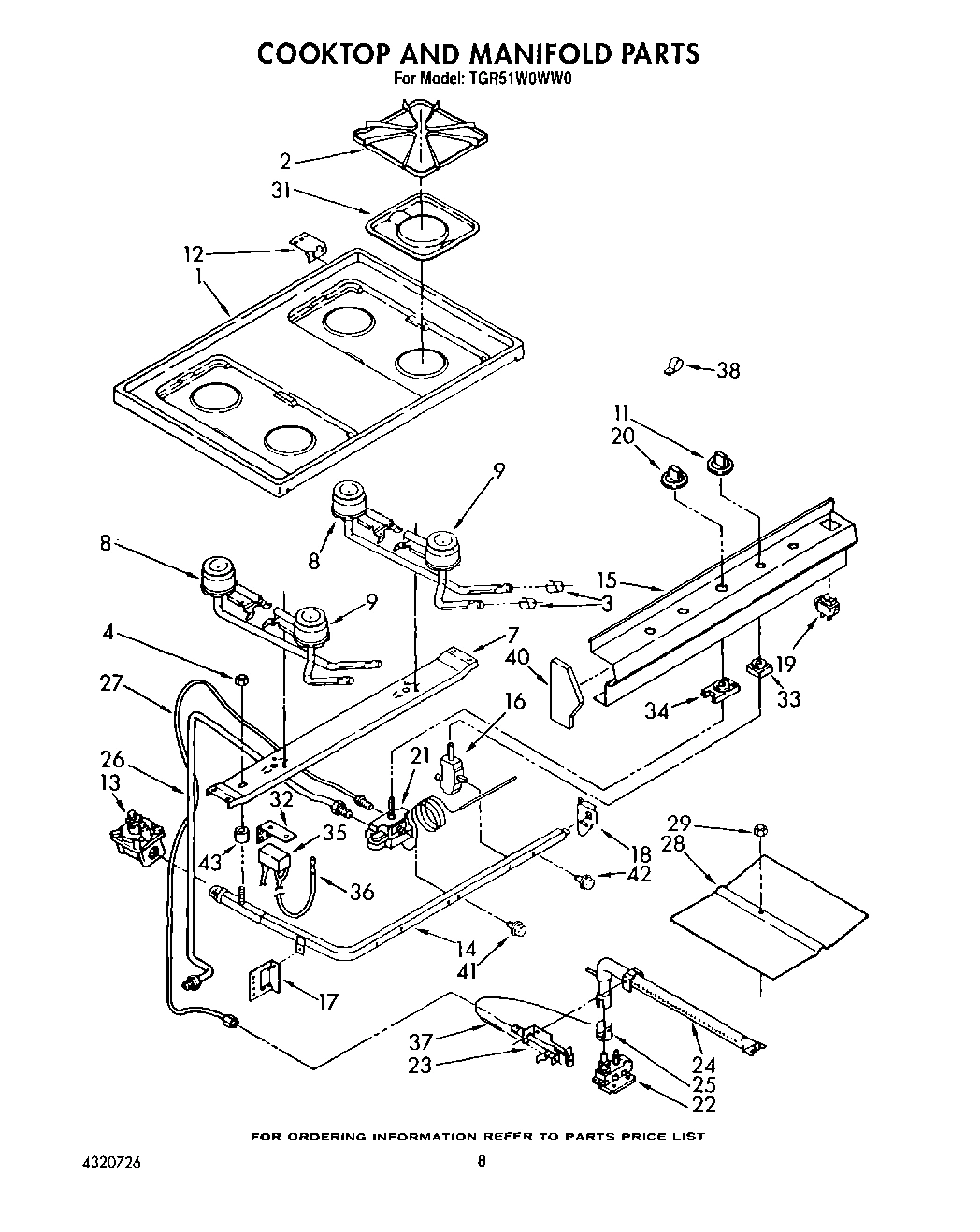

06 - COOKTOP AND MANIFOLD, LIT/OPTIONAL
Common parts from model Whirlpool TGR51W0WN0 GAS RANGE
WPL LIT3149508 WPL LIT3149508 Contact Us For Availability
WPL LIT4315709 WPL LIT4315709 Contact Us For Availability
WPL LIT4320334 WPL LIT4320334 Contact Us For Availability
WPL LIT4320726 WPL LIT4320726 Contact Us For Availability
1
Frame WPL 4179274 Contact Us For Availability
1
Bumper (4) WPL 4157128 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315783 Contact Us For Availability
1
Cooktop (White) WPL 4314891 Contact Us For Availability
1
Cooktop (Almond) WPL 4314892 Contact Us For Availability
2
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
2
Bottom, Backguard WPL 4315482 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Handle, Door WPL 4157028 Contact Us For Availability
2
Screw, 8-18 X 3/8 (4) WPL 4157116 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
3
Glass WPL 4320724 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Frame, Door WPL 4157029 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Glass WPL 4157885 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Clock WPL 4157214 Contact Us For Availability
5
Ring, Hold Down WPL 4320351 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Bracket, Clock WPL 4179246 Contact Us For Availability
6
Window WPL 4157032 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
7
Panel, Rear WPL 4315348 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Knob, Clock WPL 786434 Contact Us For Availability
8
Support, Glass WPL 4157034 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
Wire Harness WPL 4320725 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Liner, Door WPL 4315061 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
10
Burner Box WPL 4315080 Contact Us For Availability
10
Support, Glass (2) WPL 4157037 Contact Us For Availability
11
Bottom, Oven WPL 4320784 Contact Us For Availability
11
Plate (2) WPL 4157131 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Rack, Oven (2) WPL 4320534 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320457 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320458 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Broiler Door WPL 4157208 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Seal, Door (Top) WPL 4315333 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4179355 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
15
Panel, Manifold WPL 4314856 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 90 degree (4) (Includes Illus. No. 42) WPL 4314814 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
18
Screw, 6-20 x 1 WPL 4315409 Contact Us For Availability
18
Liner, Broiler WPL 4315088 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
19
Switch, Oven Light WPL 4179106 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat, (Includes Illus. No. 41) WPL 4179354 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Flame Spreader WPL 4320440 Contact Us For Availability
32
Plate, Spark Module WPL 4157171 Contact Us For Availability
35
Module, Spark WPL 4315322 Contact Us For Availability
36
Ignitor (R.H.) WPL 4179204 Contact Us For Availability
36
Ignitor (L.H.) WPL 4179205 Contact Us For Availability
37
Ignitor, Oven WPL 4315316 Contact Us For Availability
38
Strain Relief WPL 4157185 Contact Us For Availability
40
Endcap (L.H.) WPL 4157186 Contact Us For Availability
40
Endcap (R.H.) WPL 4157187 Contact Us For Availability
41
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
42
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
43
WPL 241430 WPL 241430 Contact Us For Availability
43
WPL 4315726 WPL 4315726 Contact Us For Availability
43
WPL 4179219 WPL 4179219 Contact Us For Availability
43
WPL 4315207 WPL 4315207 Contact Us For Availability
43
WPL 4315520 WPL 4315520 Contact Us For Availability
× ![]()
