Model Electrolux TGF377WJCA RANGE – Common Parts & Diagrams

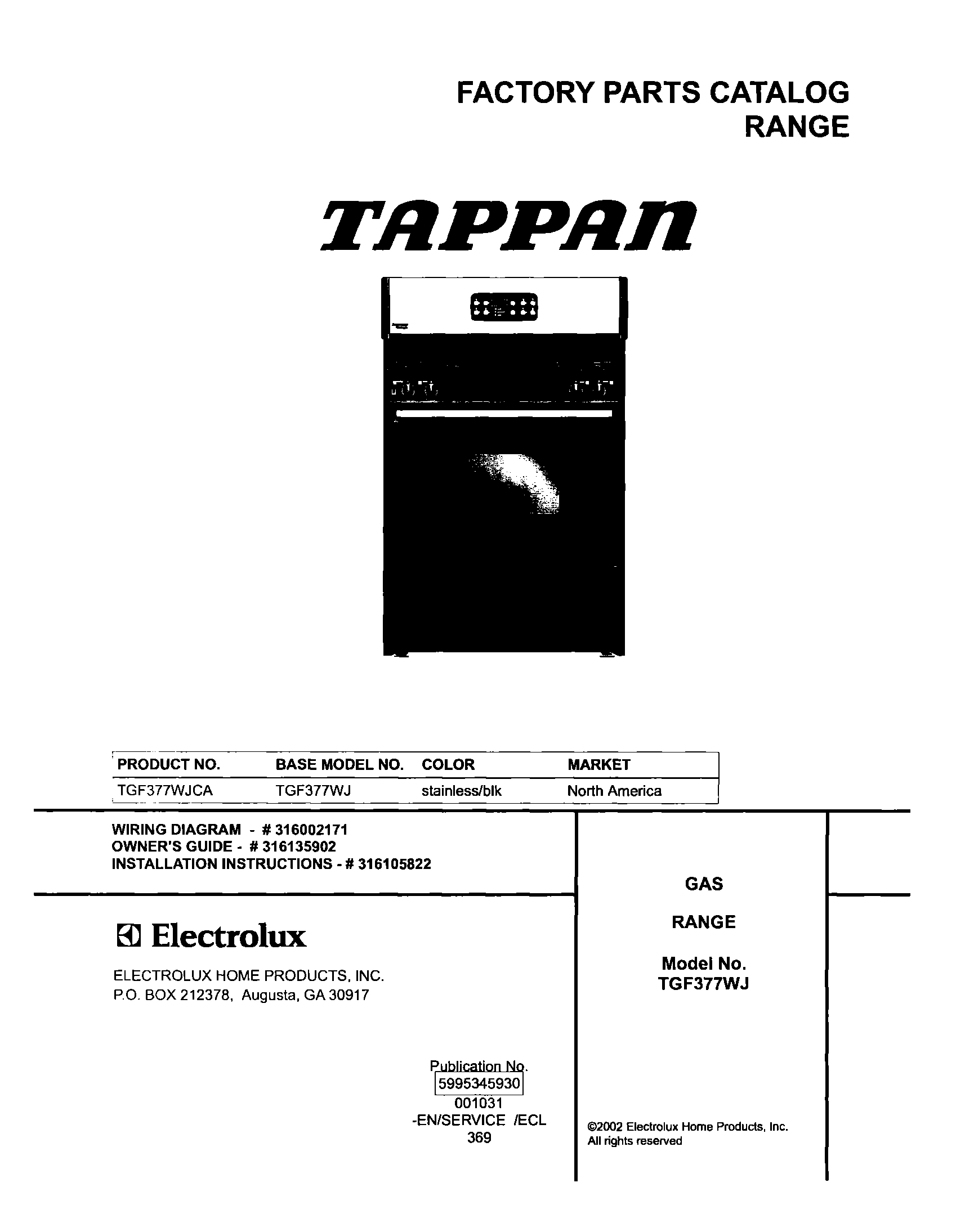

01 - COVER

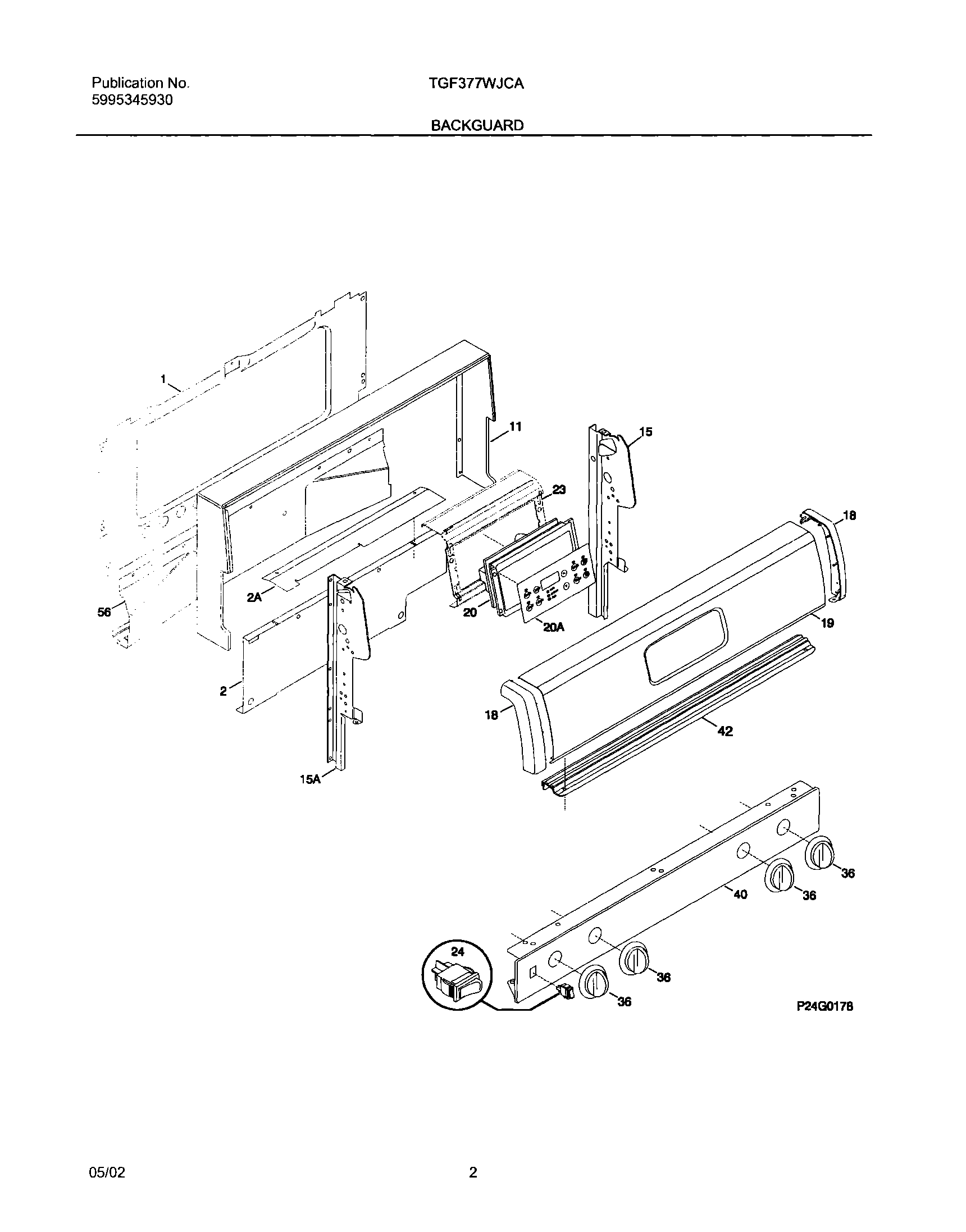

03 - BACKGUARD

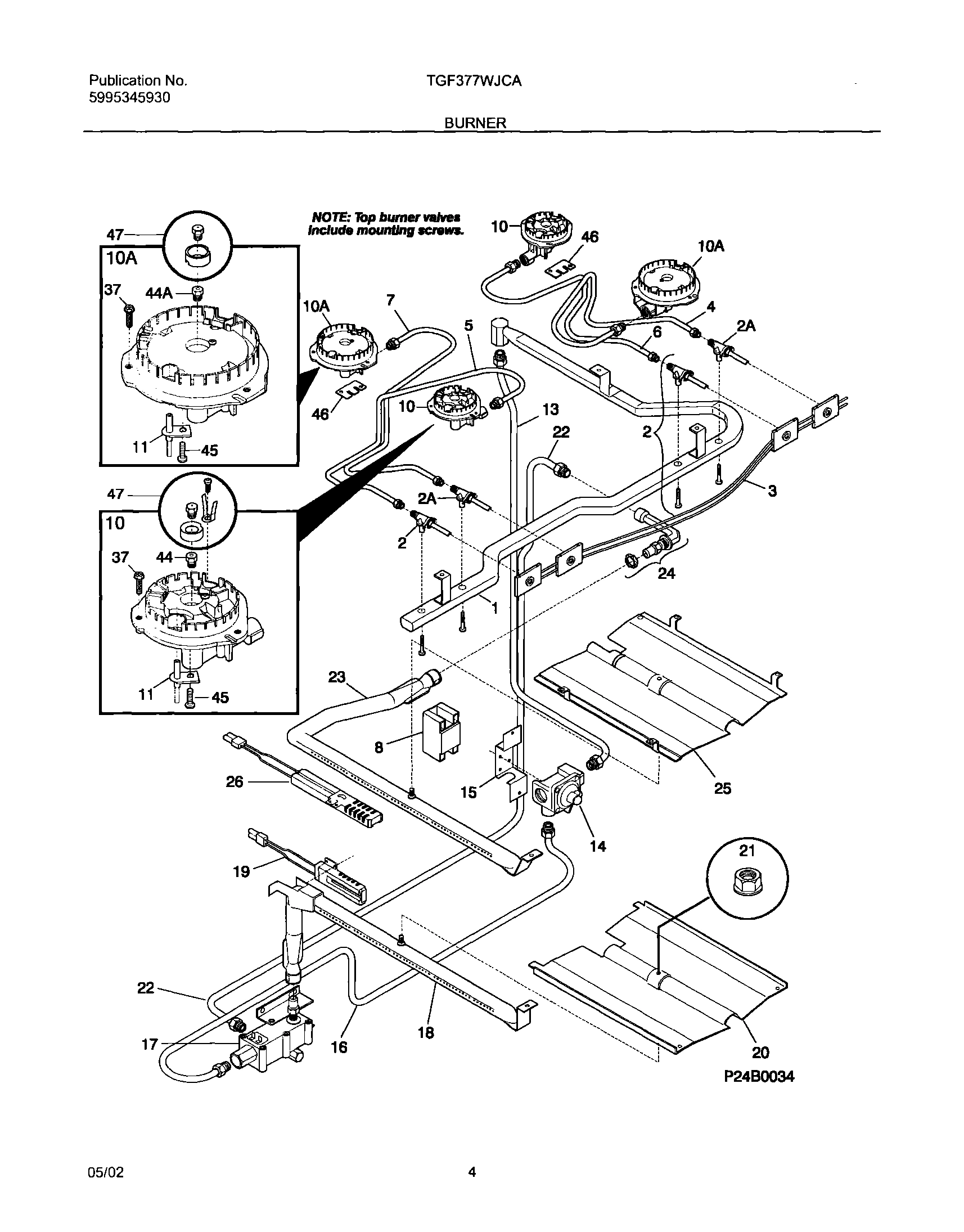

05 - BURNER

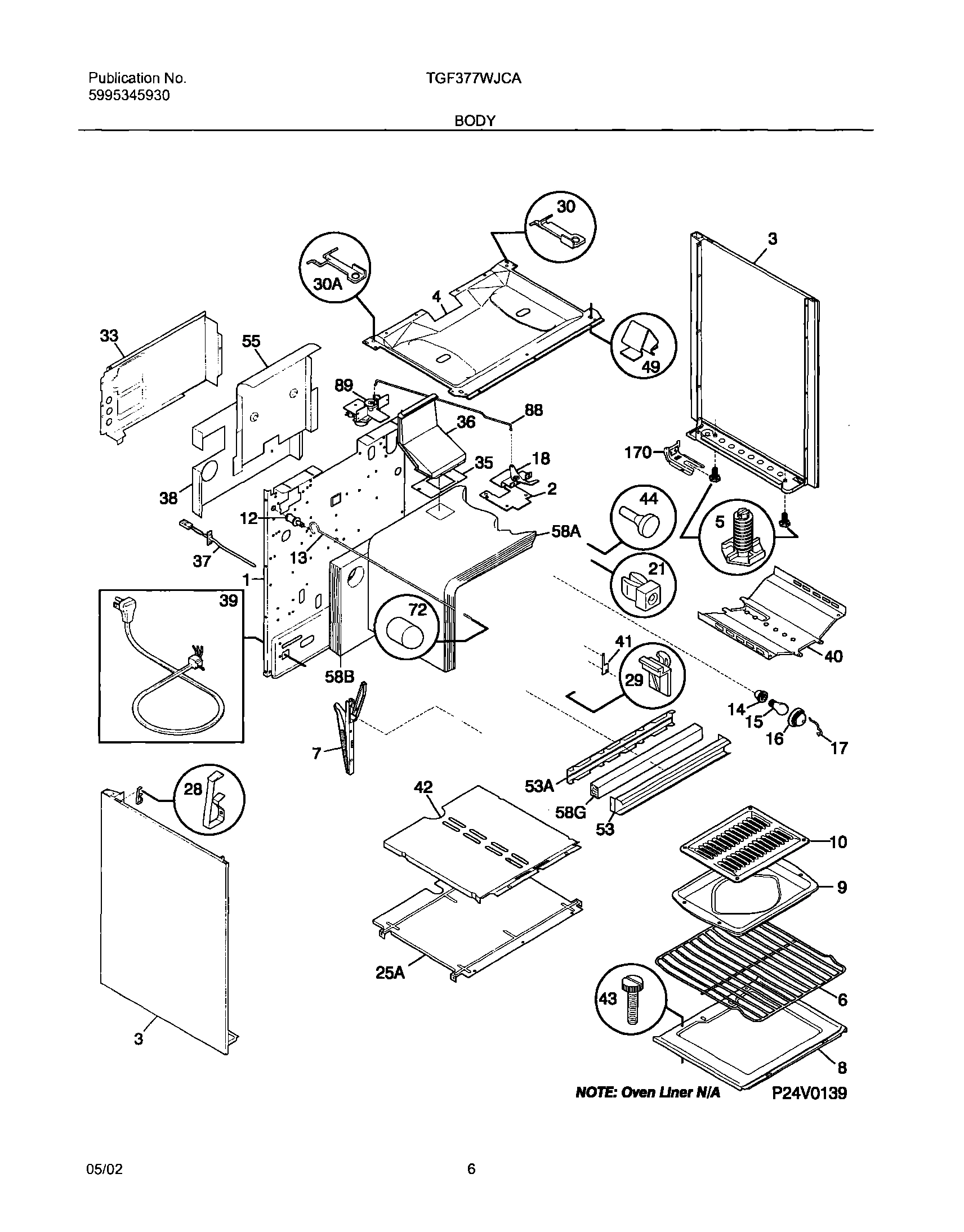

07 - BODY

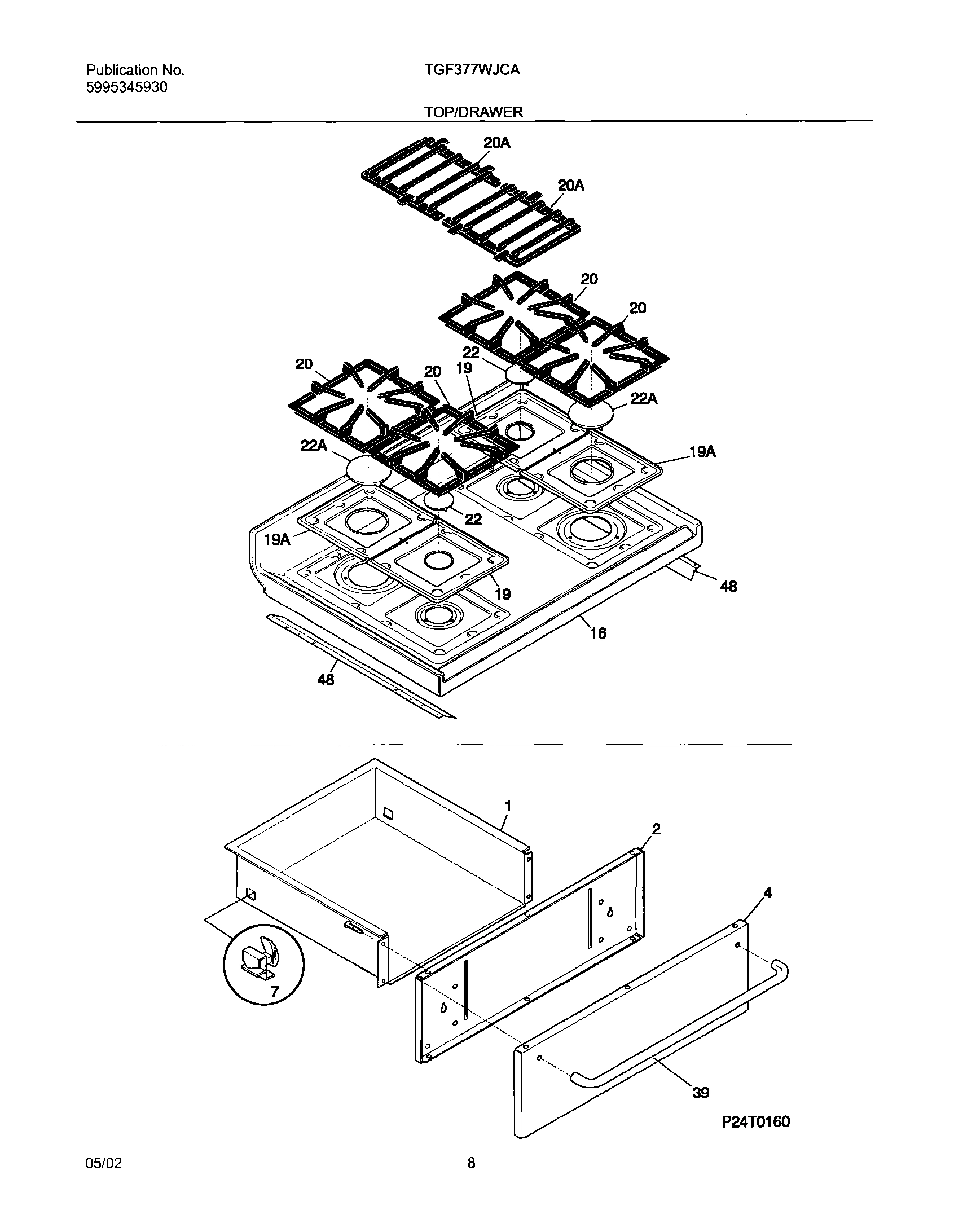

09 - TOP/DRAWER

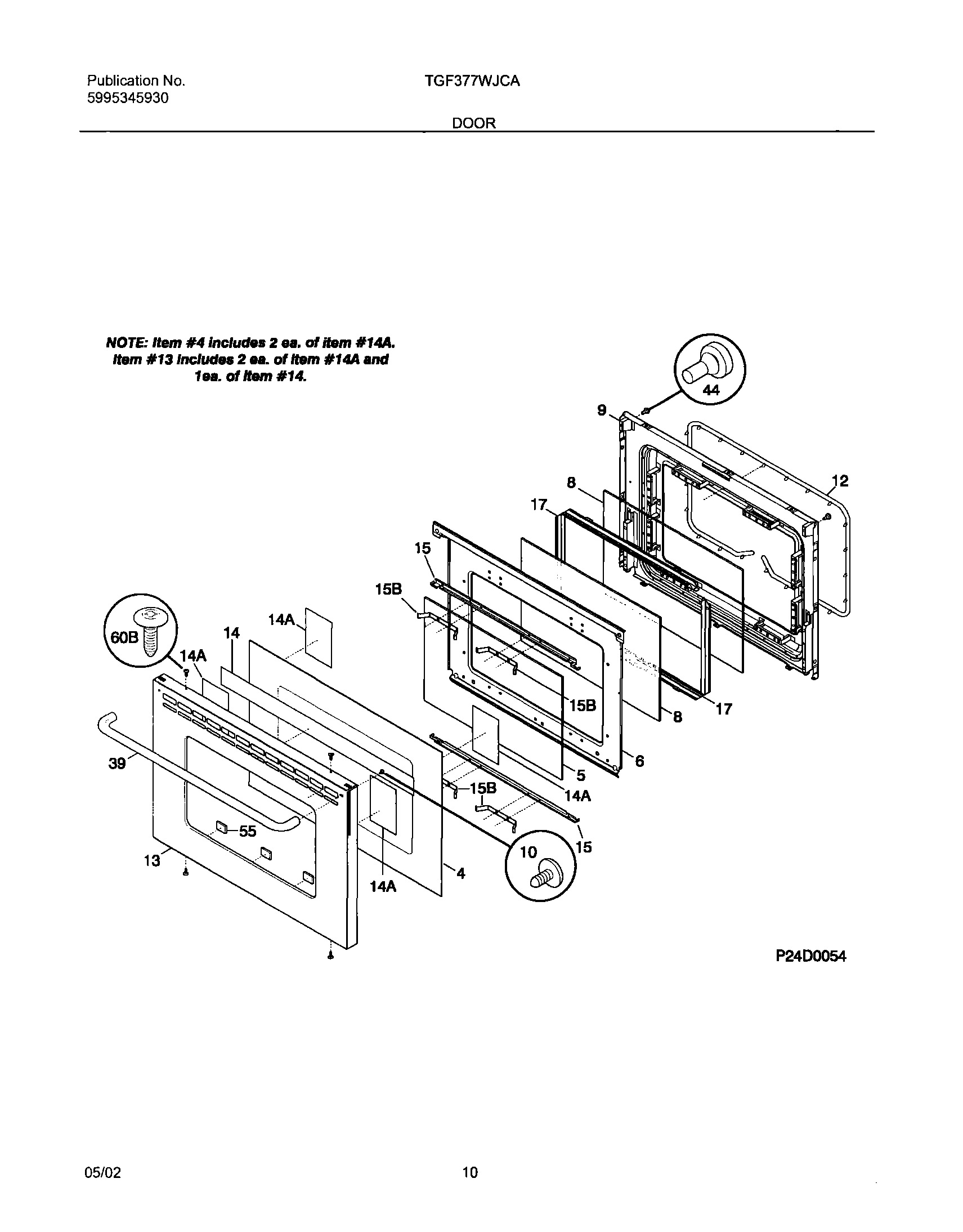

11 - DOOR

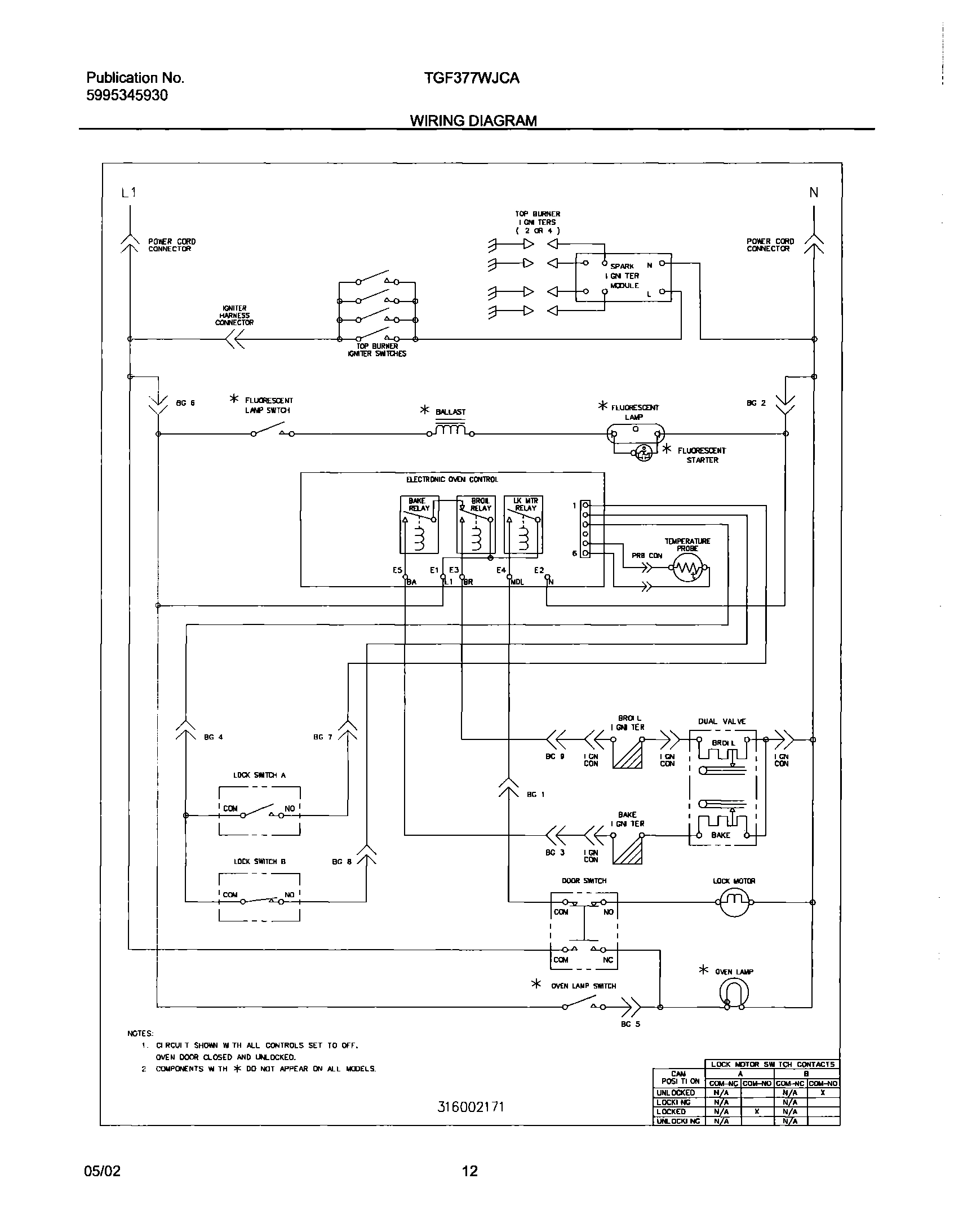

12 - WIRING DIAGRAM
Common parts from model Electrolux TGF377WJCA RANGE
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 316134100 WCI 316134100 Contact Us For Availability
2
Shield-drawer,liner ,galv steel ,front panel WCI 5303288582 Contact Us For Availability
2A
WCI 316134102 WCI 316134102 Contact Us For Availability
3
WCI 316001826 WCI 316001826 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316079401 WCI 316079401 Contact Us For Availability
4
WCI 316117900 WCI 316117900 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
WCI 316117600 WCI 316117600 Contact Us For Availability
6
Tube,burner ,natural ,RR WCI 316059614 Contact Us For Availability
6
WCI 316091404 WCI 316091404 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066619 WCI 316066619 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
WCI 316001006 WCI 316001006 Contact Us For Availability
10A
Burner Assy-top,sealed ,large ,11,100 BTU,(2) WCI 5303935098 Contact Us For Availability
13
Tube,3/8 ,aluminum ,rgltr to manf ,with fitti WCI 316065005 Contact Us For Availability
13
WCI 316079302 WCI 316079302 Contact Us For Availability
14
WCI 316102203 WCI 316102203 Contact Us For Availability
14A
FOIL-ALUMINUM, (2) WCI 316102202 Contact Us For Availability
15
WCI 316081405 WCI 316081405 Contact Us For Availability
16
WCI 5303307708 WCI 5303307708 Contact Us For Availability
17
Spacer-glass,(2) WCI 316117701 Contact Us For Availability
19
PAN-BURNER, BLACK, SMALL, (2) WCI 316011415 Contact Us For Availability
19A
Pan-burner,large ,black WCI 316011419 Contact Us For Availability
20
WCI 316084503 WCI 316084503 Contact Us For Availability
20A
WCI 316084604 WCI 316084604 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
21A
TRIM-RING,BLACK ,LARGE WCI 316011304 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
Cap-burner,small ,black ,(4) WCI 316122100 Contact Us For Availability
22A
CAP-BURNER,BLACK ,LARGE WCI 316098505 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
24
SWITCH-ROCKER, OVEN LIGHT, BLACK, RH WCI 316083101 Contact Us For Availability
36
WCI 316109512 WCI 316109512 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 Contact Us For Availability
48
Shield,deflector ,main top panel ,(2) WCI 316077401 Contact Us For Availability
56
WCI 316085501 WCI 316085501 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
NI
WCI 316065306 WCI 316065306 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
NI
WCI 316001629 WCI 316001629 Contact Us For Availability
NI
WCI 316021123 WCI 316021123 Contact Us For Availability
NI
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
NI
WCI 316133600 WCI 316133600 Contact Us For Availability
NI
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
× ![]()
