Model Electrolux TGF364SCWA RANGE – Common Parts & Diagrams

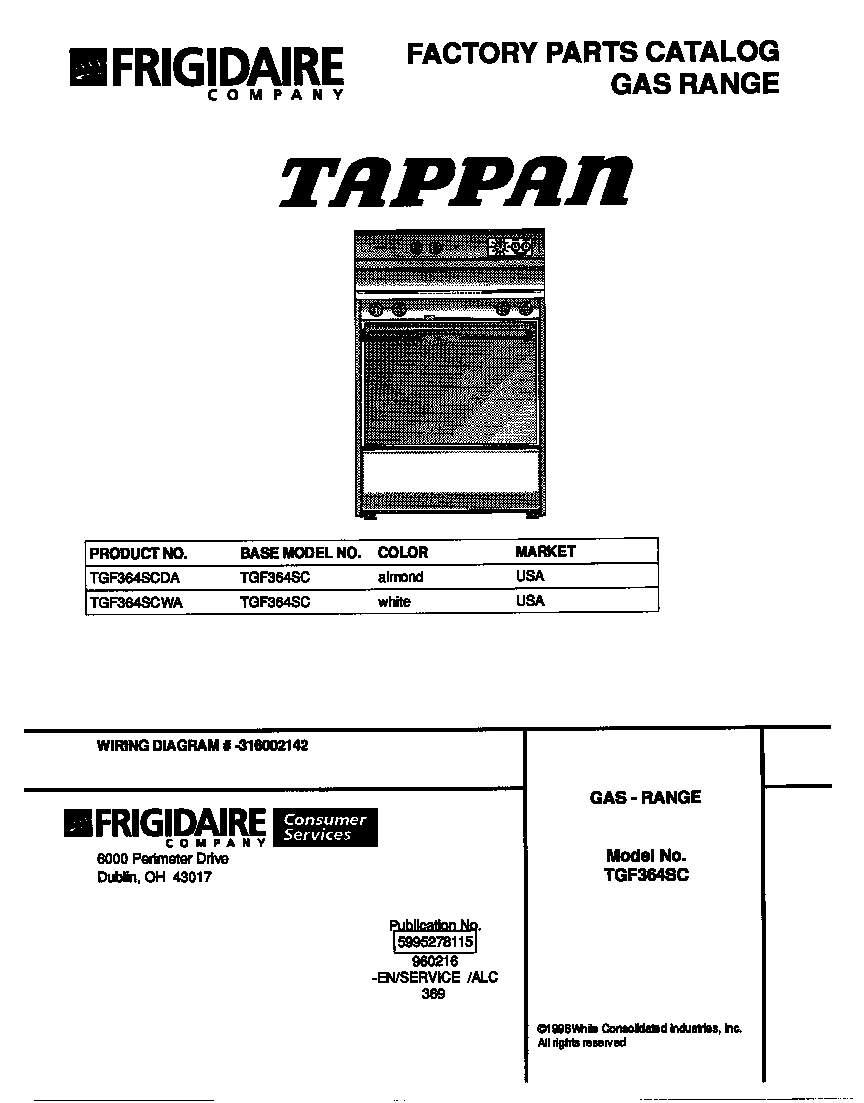

01 - COVER

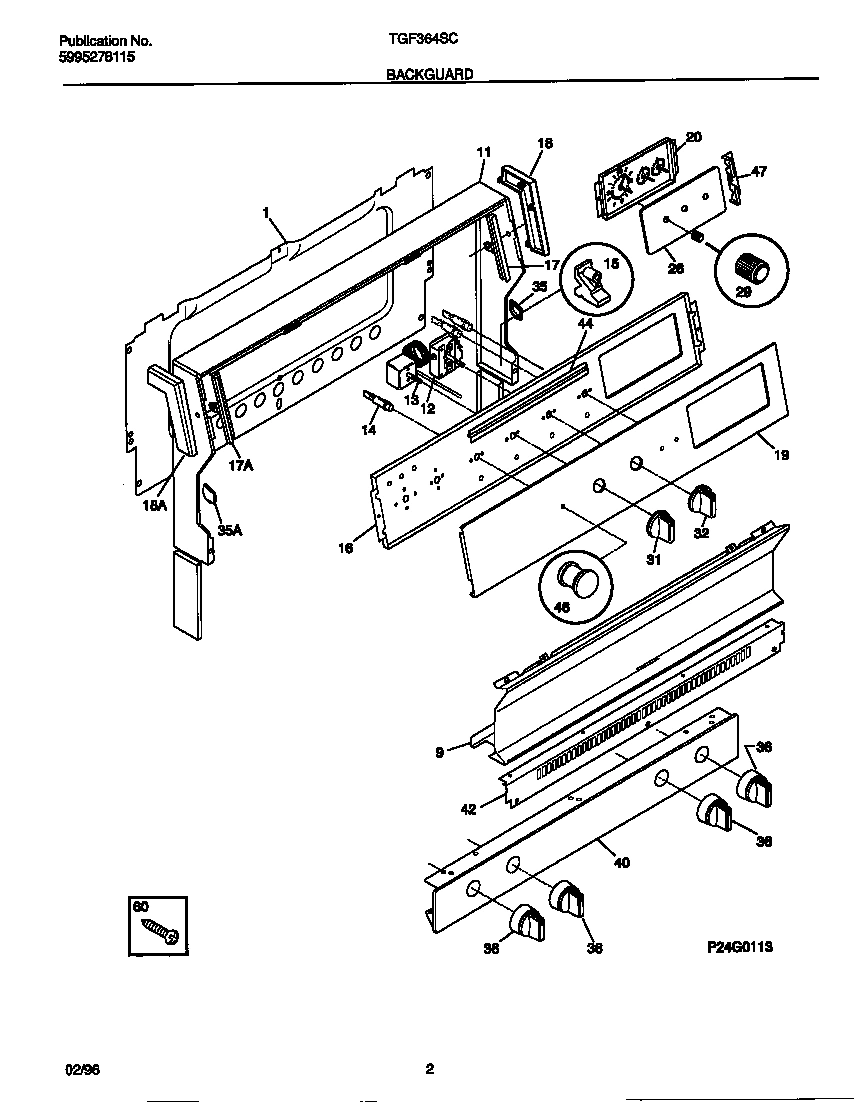

02 - BACKGUARD

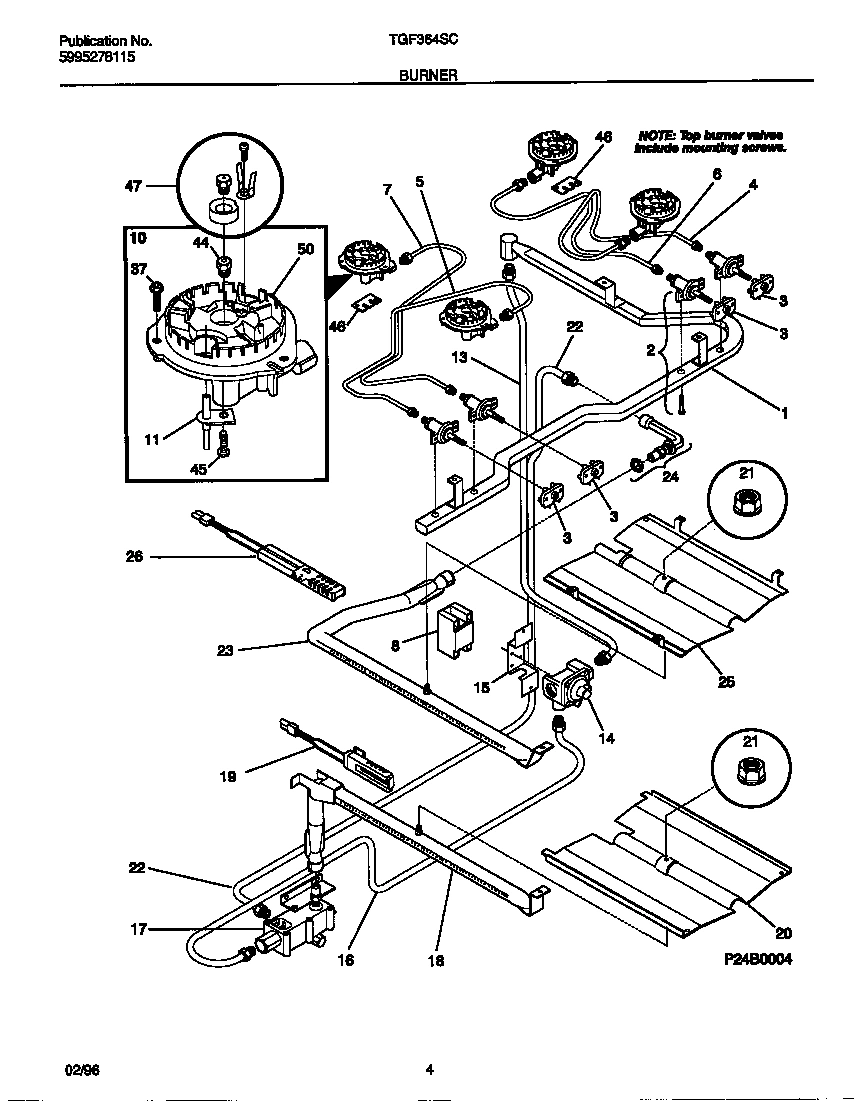

03 - BURNER

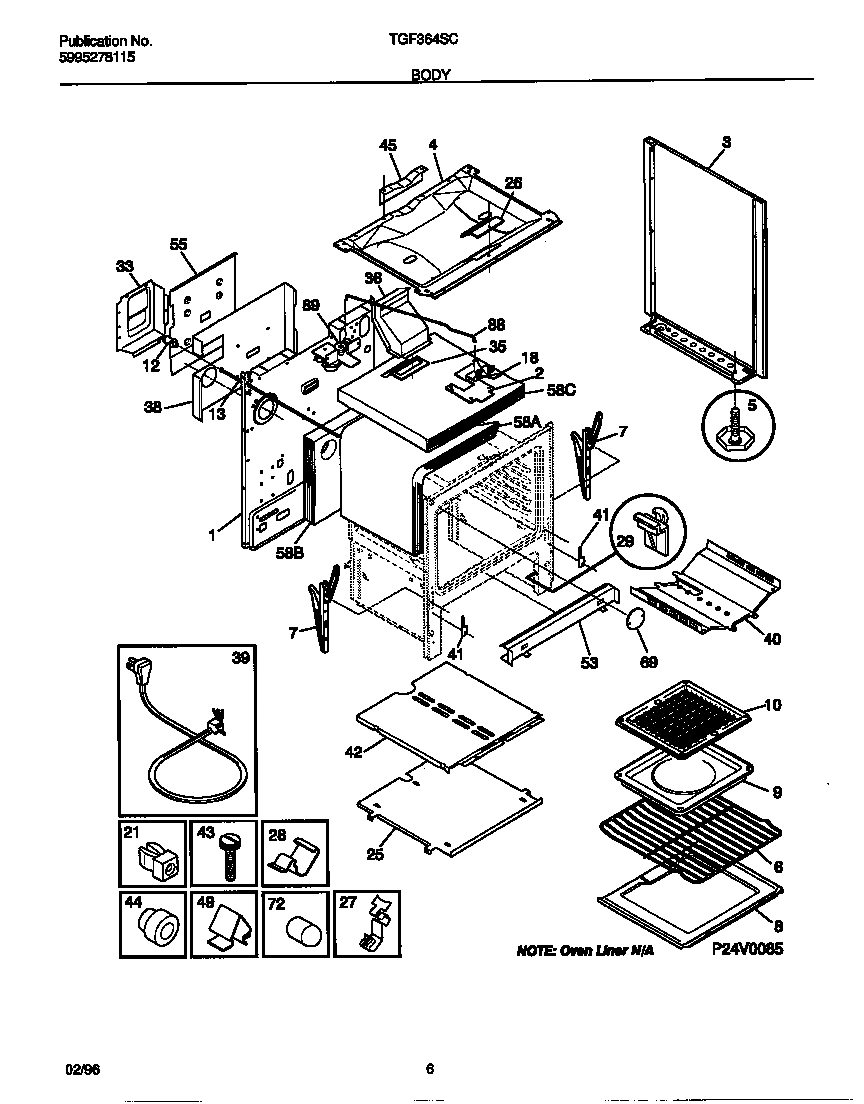

04 - BODY

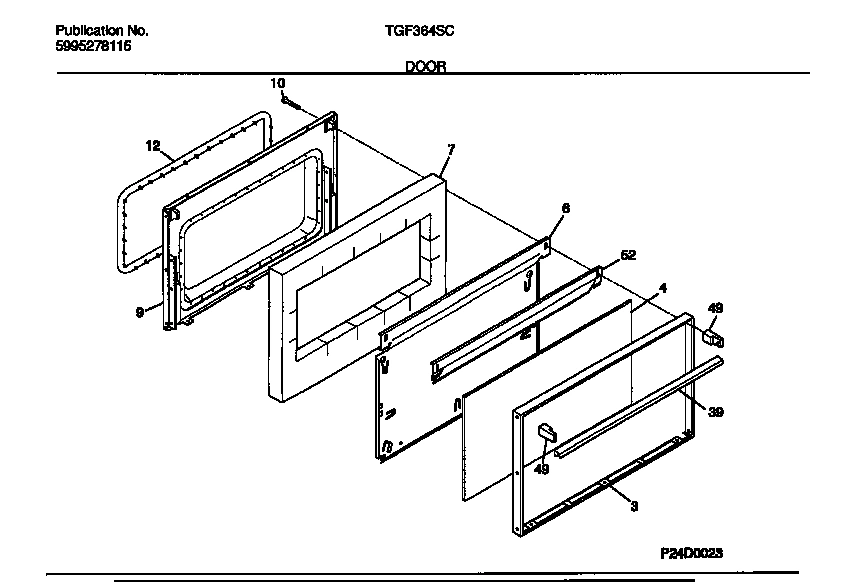

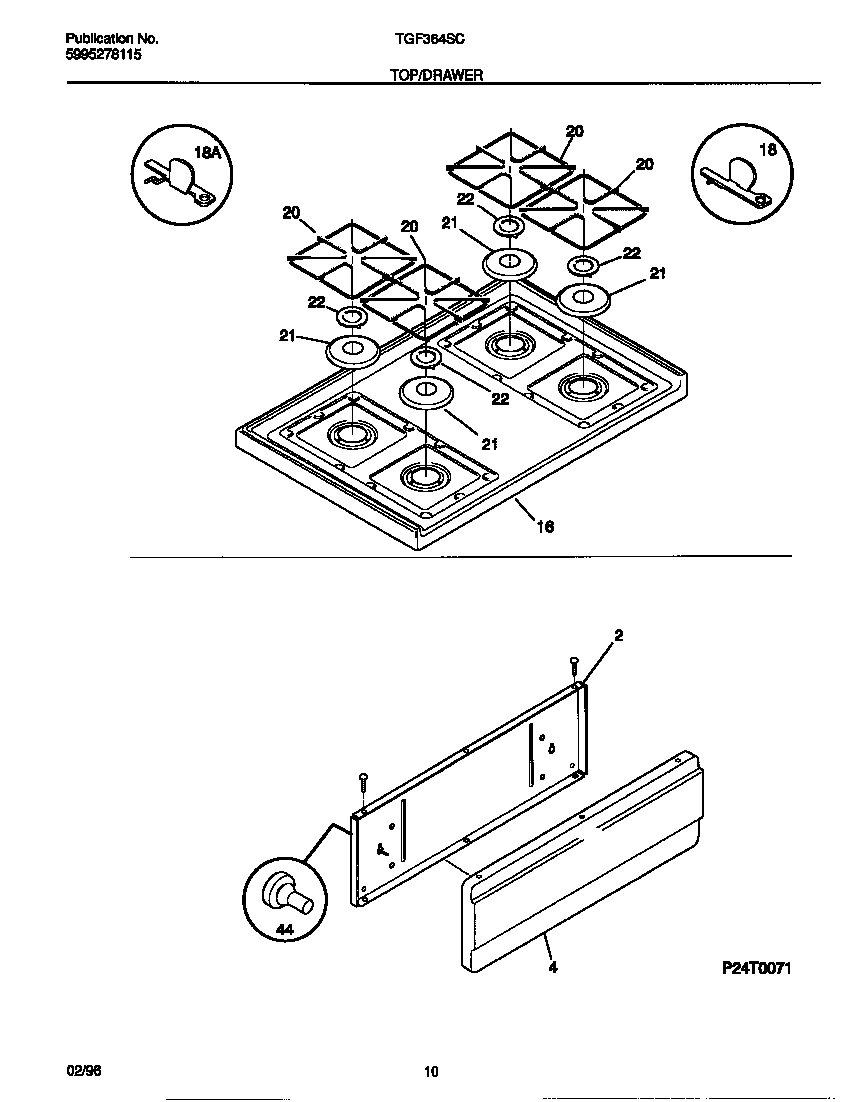

05 - TOP/DRAWER
06 - DOOR

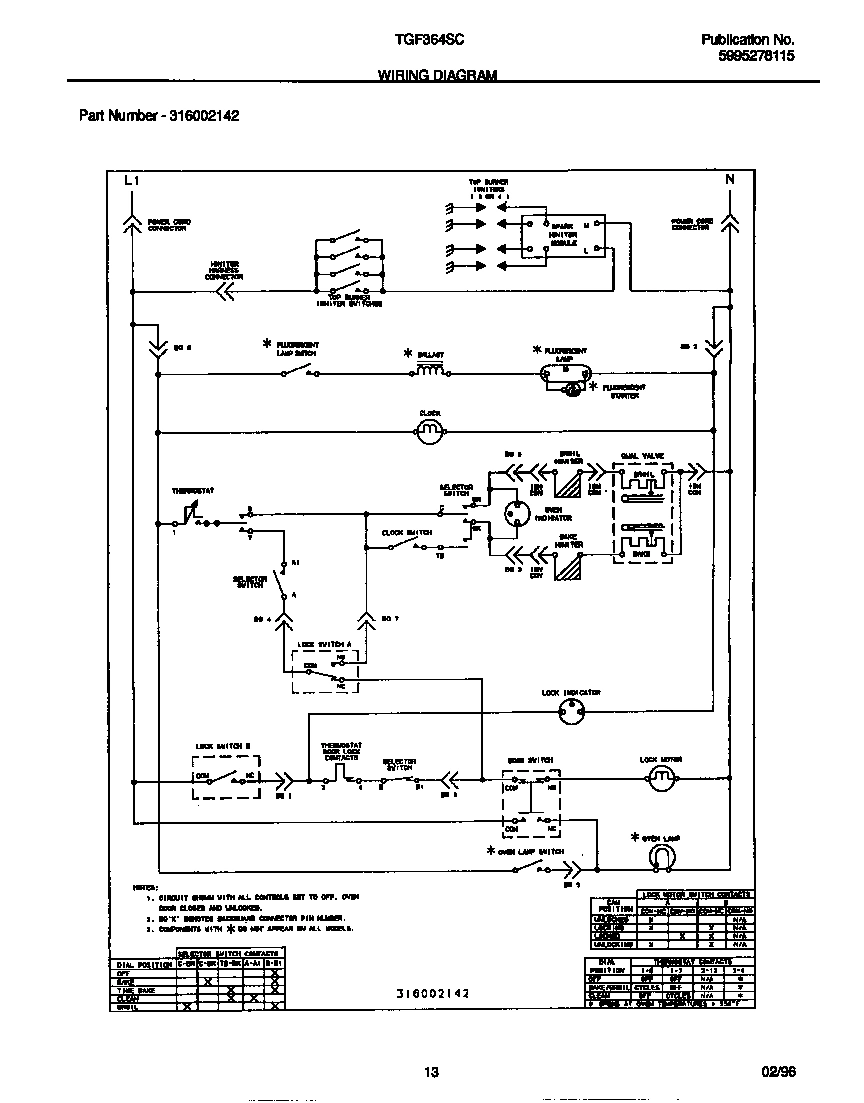

07 - WIRING DIAGRAM
Common parts from model Electrolux TGF364SCWA RANGE
*90527
SCREW, CUP PT, 8-18 X 3/8 WCI 316021108 Contact Us For Availability
*90528
FOIL-ALUMINUM WCI 3017527 Contact Us For Availability
*90529
WCI 316056500 WCI 316056500 Contact Us For Availability
*90530
WCI 316001636 WCI 316001636 Contact Us For Availability
*90531
Plug-button,glide ,(4) WCI 3018702 Contact Us For Availability
*90532
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
*90534
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*90536
WCI 316065301 WCI 316065301 Contact Us For Availability
*90537
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*90539
WCI 5303269859 WCI 5303269859 Contact Us For Availability
*90541
WCI 5303280311 WCI 5303280311 Contact Us For Availability
1
WCI 316029410 WCI 316029410 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316081004 WCI 316081004 Contact Us For Availability
3
WCI 316081005 WCI 316081005 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3A
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) WCI 3200834 Contact Us For Availability
3B
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316011912 WCI 316011912 Contact Us For Availability
4
PANEL-DUMMY, WHITE WCI 3051201 Contact Us For Availability
4
WCI 316089001 WCI 316089001 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
5D
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316091402 WCI 316091402 Contact Us For Availability
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
7A
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
8A
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066611 WCI 316066611 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
12
WCI 316027700 WCI 316027700 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
16
WCI 316010408 WCI 316010408 Contact Us For Availability
16A
GUSSET-TOP MTG, RH (NOT ILLUSTRATED) WCI 5303271891 Contact Us For Availability
16B
GUSSET-TOP MTG, LH (NOT ILLUSTRATED) WCI 5303271892 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
WCI 3131290 WCI 3131290 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
20
WCI 316038107 WCI 316038107 Contact Us For Availability
20
WCI 5303288408 WCI 5303288408 Contact Us For Availability
20
WCI 316088900 WCI 316088900 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
24
WCI 316070400 WCI 316070400 Contact Us For Availability
25
WCI 5303288407 WCI 5303288407 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 316023020 WCI 316023020 Contact Us For Availability
36
WCI 3131931 WCI 3131931 Contact Us For Availability
38
WCI 316051701 WCI 316051701 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
40A
WCI 3200836 WCI 3200836 Contact Us For Availability
40B
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL, (4) WCI 5303210090 No Longer Available
45
WCI 316011100 WCI 316011100 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46
WCI 316074700 WCI 316074700 Contact Us For Availability
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
50
BURNER-TOP, SMALL, (4), INCLUDES 37 WCI 5303935026 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
53A
WCI 5303271047 WCI 5303271047 Contact Us For Availability
55
WCI 316052601 WCI 316052601 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
69
WCI 3051218 WCI 3051218 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028100 WCI 316028100 Contact Us For Availability
× ![]()
