Model Electrolux TGF362BBBC RANGE – Common Parts & Diagrams

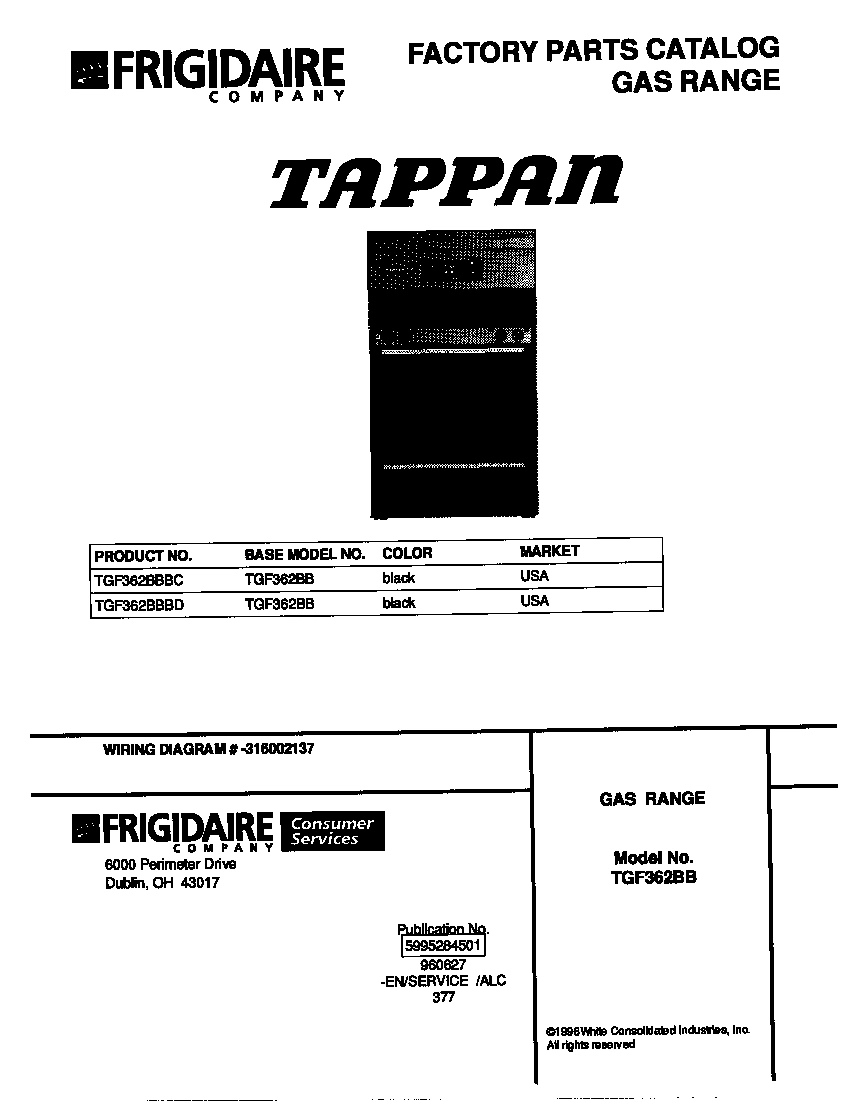

01 - COVER

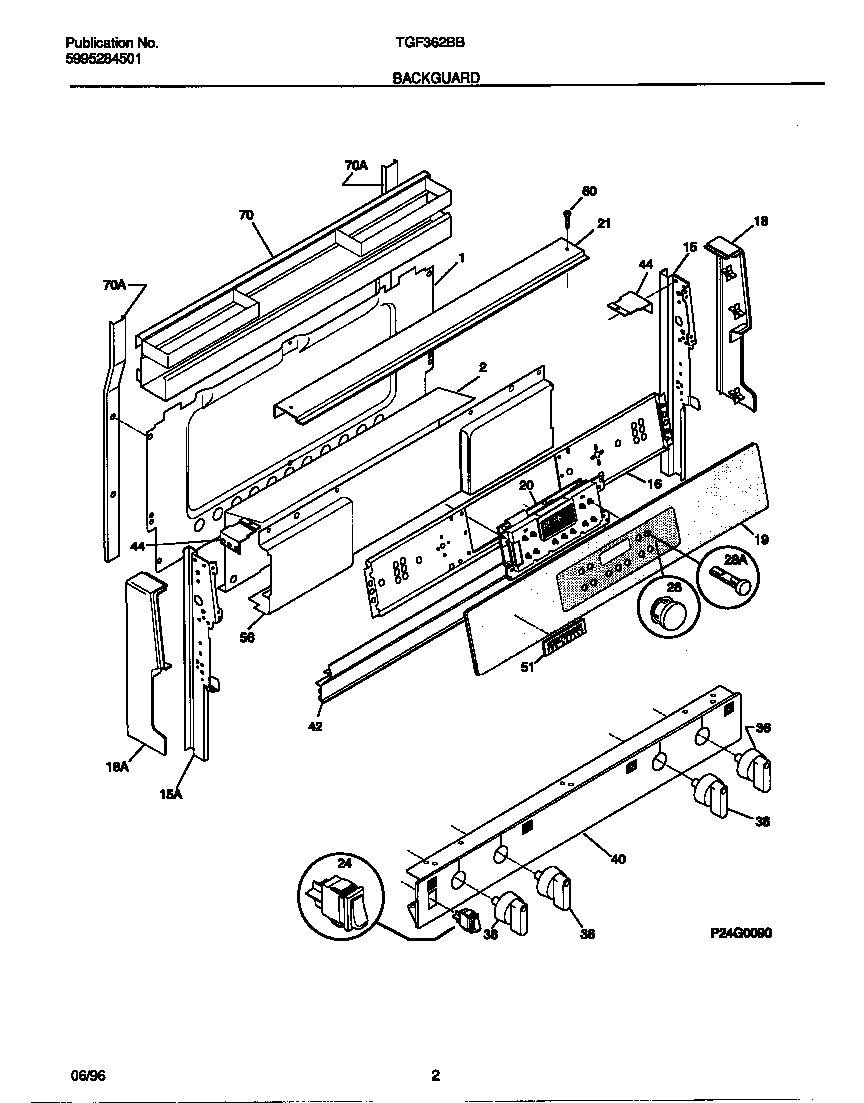

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
06 - DOOR
07 - WIRING DIAGRAM
Common parts from model Electrolux TGF362BBBC RANGE
*02760
SCREW, CUP PT, 8-18 X 3/8 WCI 316021108 Contact Us For Availability
*02767
Plug-button,glide ,(4) WCI 3018702 Contact Us For Availability
*02768
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*02770
WCI 5303280311 WCI 5303280311 Contact Us For Availability
*02772
WCI 5303288574 WCI 5303288574 Contact Us For Availability
*02773
WCI 316065301 WCI 316065301 Contact Us For Availability
*02774
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 316063503 WCI 316063503 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3B
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) WCI 3200834 Contact Us For Availability
3C
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
3D
WCI 316081003 WCI 316081003 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316011912 WCI 316011912 Contact Us For Availability
4
WCI 316089000 WCI 316089000 Contact Us For Availability
4A
WCI 316056209 WCI 316056209 Contact Us For Availability
4B
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
5
WCI 316088600 WCI 316088600 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
5D
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
7A
WCI 316007002 No Longer Available
8
WCI 316088700 WCI 316088700 Contact Us For Availability
8A
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
10A
SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375 WCI 316001001 Contact Us For Availability
10B
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
16A
WCI 5303291521 WCI 5303291521 Contact Us For Availability
16B
GUSSET-TOP MTG, RH (NOT ILLUSTRATED) WCI 5303271891 Contact Us For Availability
16C
GUSSET-TOP MTG, LH (NOT ILLUSTRATED) WCI 5303271892 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
20
WCI 316069900 WCI 316069900 Contact Us For Availability
20
WCI 316070000 WCI 316070000 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
CAP-BURNER, GRAY, SMALL, (2) WCI 316011003 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC WCI 316080600 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
30
WCI 316059200 WCI 316059200 Contact Us For Availability
30
WCI 316059201 WCI 316059201 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 5303272844 WCI 5303272844 Contact Us For Availability
38
WCI 316051701 WCI 316051701 Contact Us For Availability
39
WCI 316008306 WCI 316008306 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
40A
WCI 3200836 WCI 3200836 Contact Us For Availability
40B
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL, (2) WCI 5303210090 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
48
SHIELD-MAINTOP WCI 316077401 Contact Us For Availability
49
WCI 5303307192 WCI 5303307192 Contact Us For Availability
49
WCI 5303307193 WCI 5303307193 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
53A
WCI 5303271047 WCI 5303271047 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316047704 WCI 316047704 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
105
WCI 316071900 WCI 316071900 Contact Us For Availability
× ![]()
