01 - COVER
02 - BACKGUARD

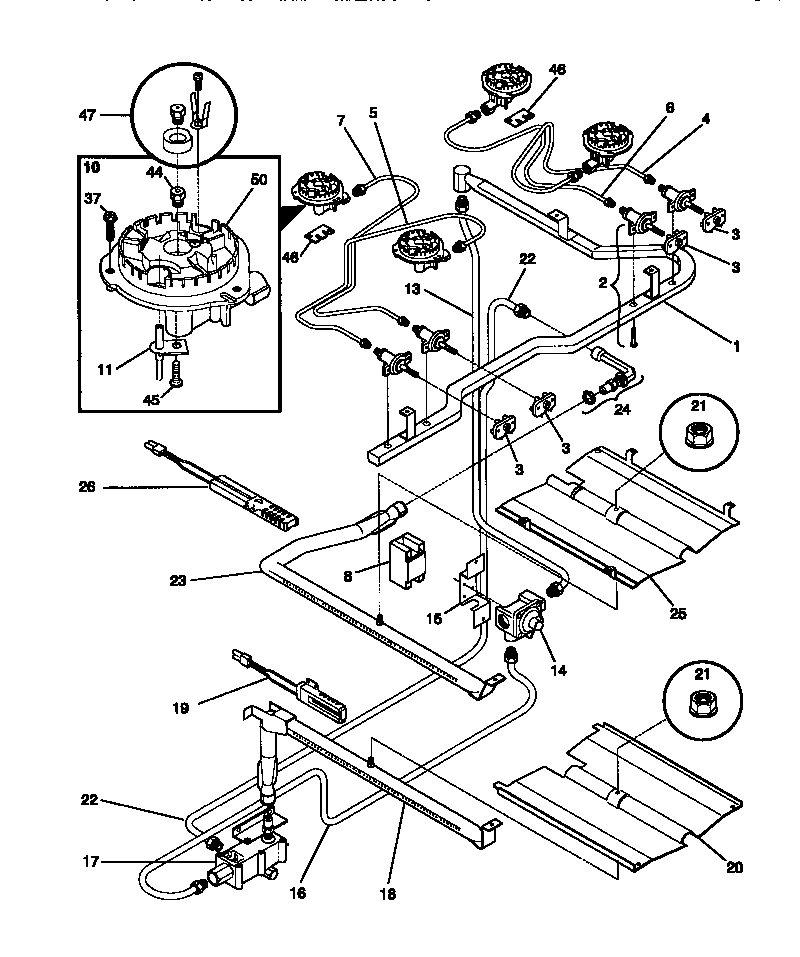

03 - BURNER

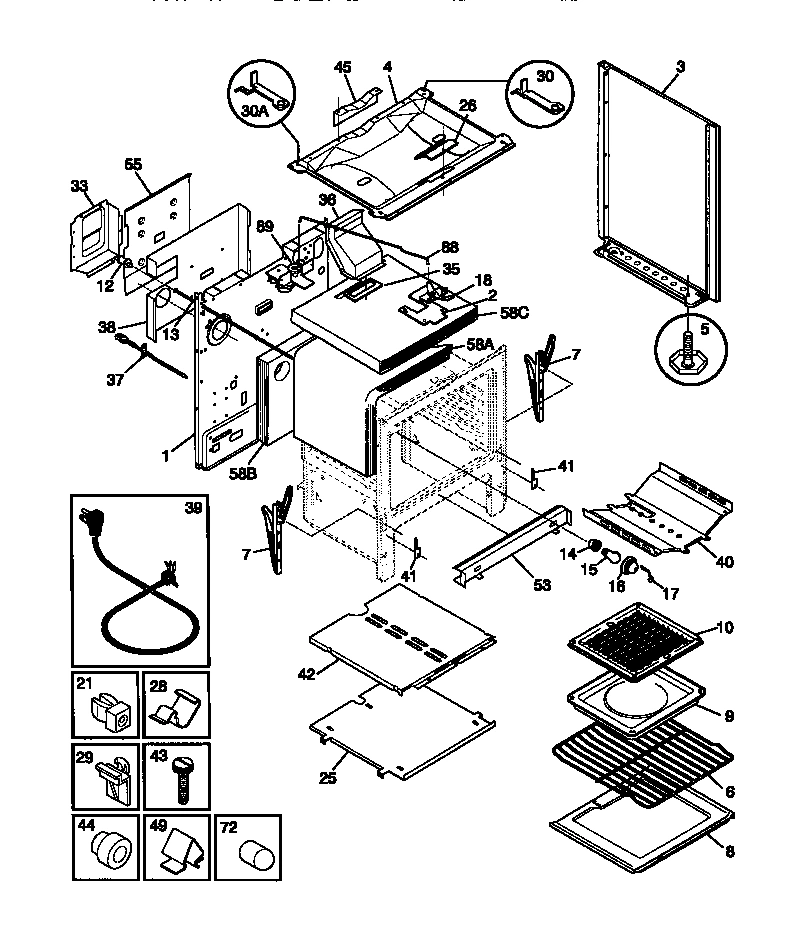

04 - BODY

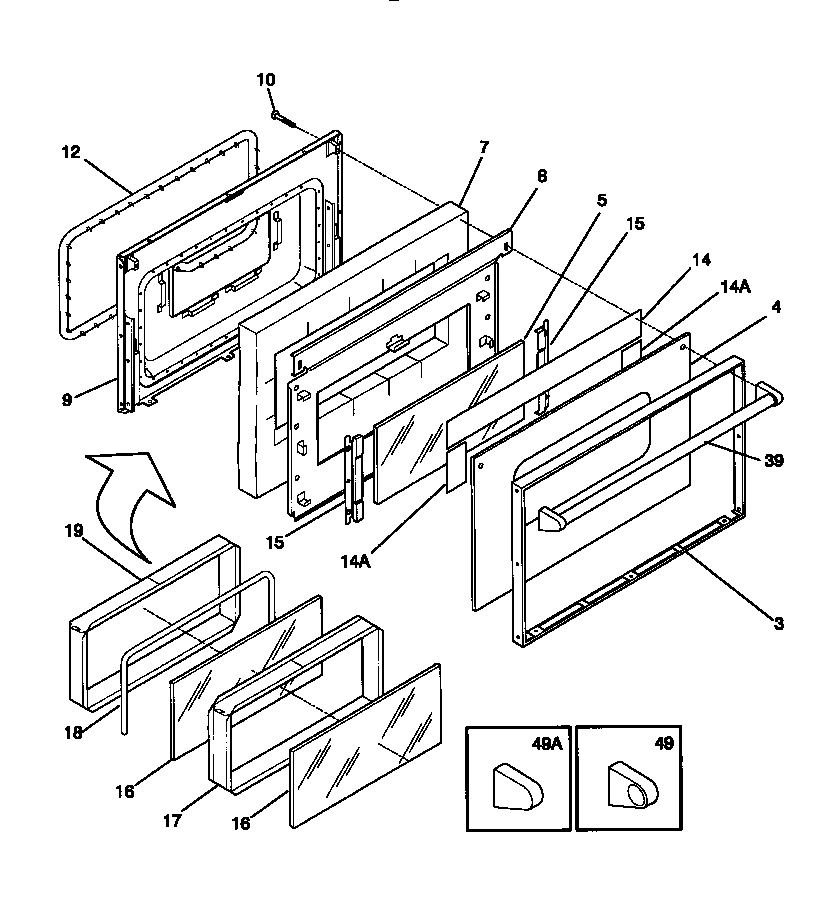

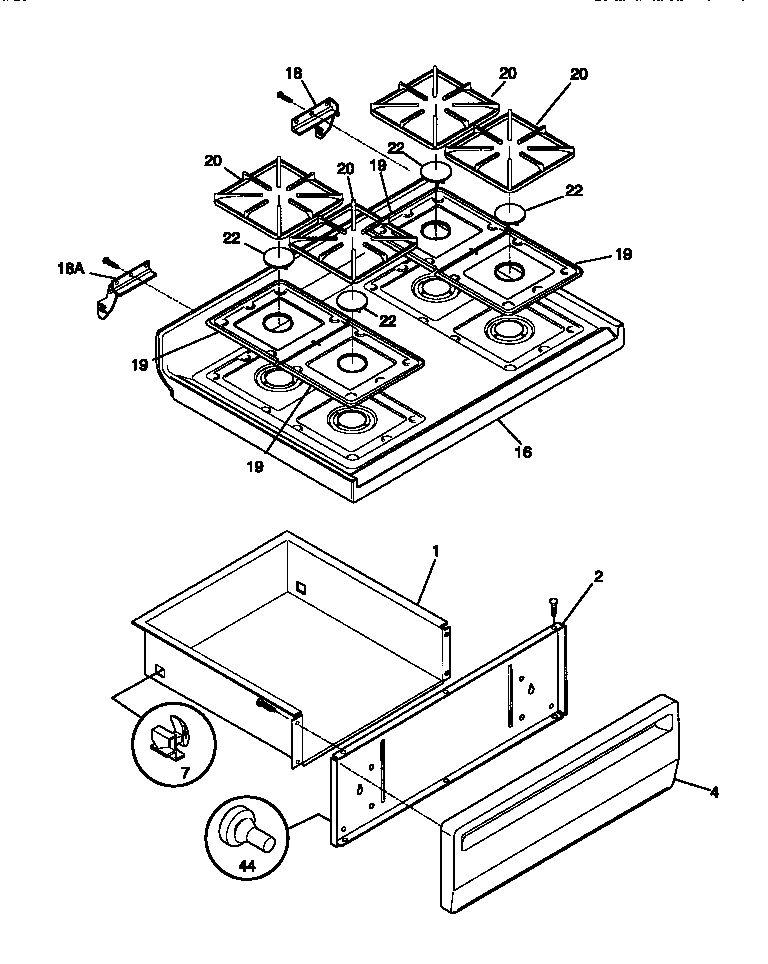

05 - TOP/DRAWER
06 - DOOR

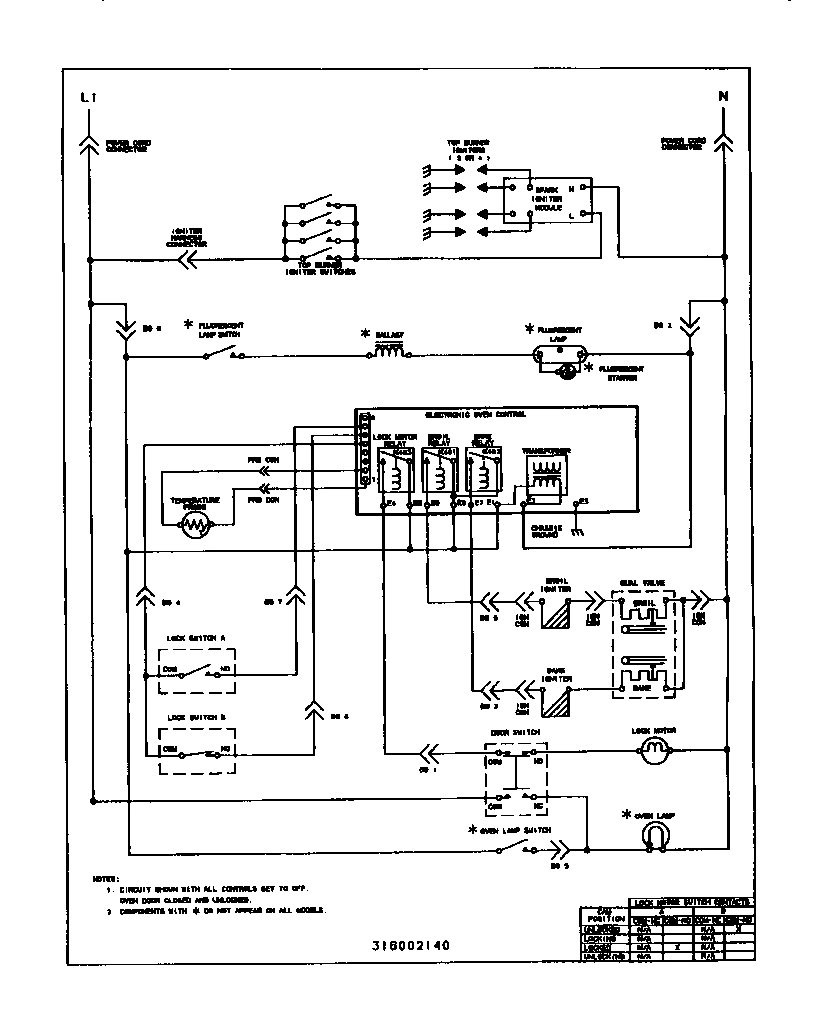

07 - WIRING DIAGRAM
Common parts from model Electrolux TGF356BCDA RANGE
*31764
WCI 316001632 WCI 316001632 Contact Us For Availability
*31765
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
*31766
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*31768
WCI 5303288574 WCI 5303288574 Contact Us For Availability
*31769
WCI 316065300 WCI 316065300 Contact Us For Availability
*31770
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*31772
WCI 5303269859 WCI 5303269859 Contact Us For Availability
*31774
WCI 5303280311 WCI 5303280311 Contact Us For Availability
1
WCI 316029410 WCI 316029410 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WCI 316002140 WCI 316002140 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
WCI 316081006 WCI 316081006 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
WCI 316081007 WCI 316081007 Contact Us For Availability
3B
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) WCI 3200834 Contact Us For Availability
3C
FASTENER-EDGE MTG (NOT ILLUSTRATED) WCI 3200846 Contact Us For Availability
3D
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
4
WCI 316011912 WCI 316011912 Contact Us For Availability
4
WCI 316084406 WCI 316084406 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3051152 Contact Us For Availability
4A
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability
5A
WCI 3934058 WCI 3934058 Contact Us For Availability
5C
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303211084 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076400 WCI 316076400 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066603 WCI 316066603 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375 WCI 316001001 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
16
WCI 5303301547 WCI 5303301547 Contact Us For Availability
16A
GUSSET-TOP MTG, RH (NOT ILLUSTRATED) WCI 5303271891 Contact Us For Availability
16B
GUSSET-TOP MTG, LH (NOT ILLUSTRATED) WCI 5303271892 Contact Us For Availability
17
WCI 5303209517 WCI 5303209517 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
SEAL-ROPE, 0.25 DIA WCI 5303211085 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
WCI 316011401 WCI 316011401 Contact Us For Availability
19
WCI 316067600 WCI 316067600 Contact Us For Availability
20
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
20
WCI 316085201 WCI 316085201 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
24
WCI 316070400 WCI 316070400 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 316023020 WCI 316023020 Contact Us For Availability
36
WCI 5303272844 WCI 5303272844 Contact Us For Availability
38
WCI 316051701 WCI 316051701 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 316008302 Contact Us For Availability
39A
WCI 08067961 WCI 08067961 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
40A
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL, (2) WCI 5303210090 Contact Us For Availability
45
WCI 316011100 WCI 316011100 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46
WCI 316074700 WCI 316074700 Contact Us For Availability
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
49
WCI 5303307192 WCI 5303307192 Contact Us For Availability
49A
WCI 5303307193 WCI 5303307193 Contact Us For Availability
50
BURNER-TOP, INCLUDES 37 WCI 5303935026 Contact Us For Availability
53
WCI 5303271047 WCI 5303271047 Contact Us For Availability
55
WCI 316052601 WCI 316052601 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58A
WCI 316054200 WCI 316054200 Contact Us For Availability
58B
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
× ![]()
