Model Electrolux TGF351SHWB RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

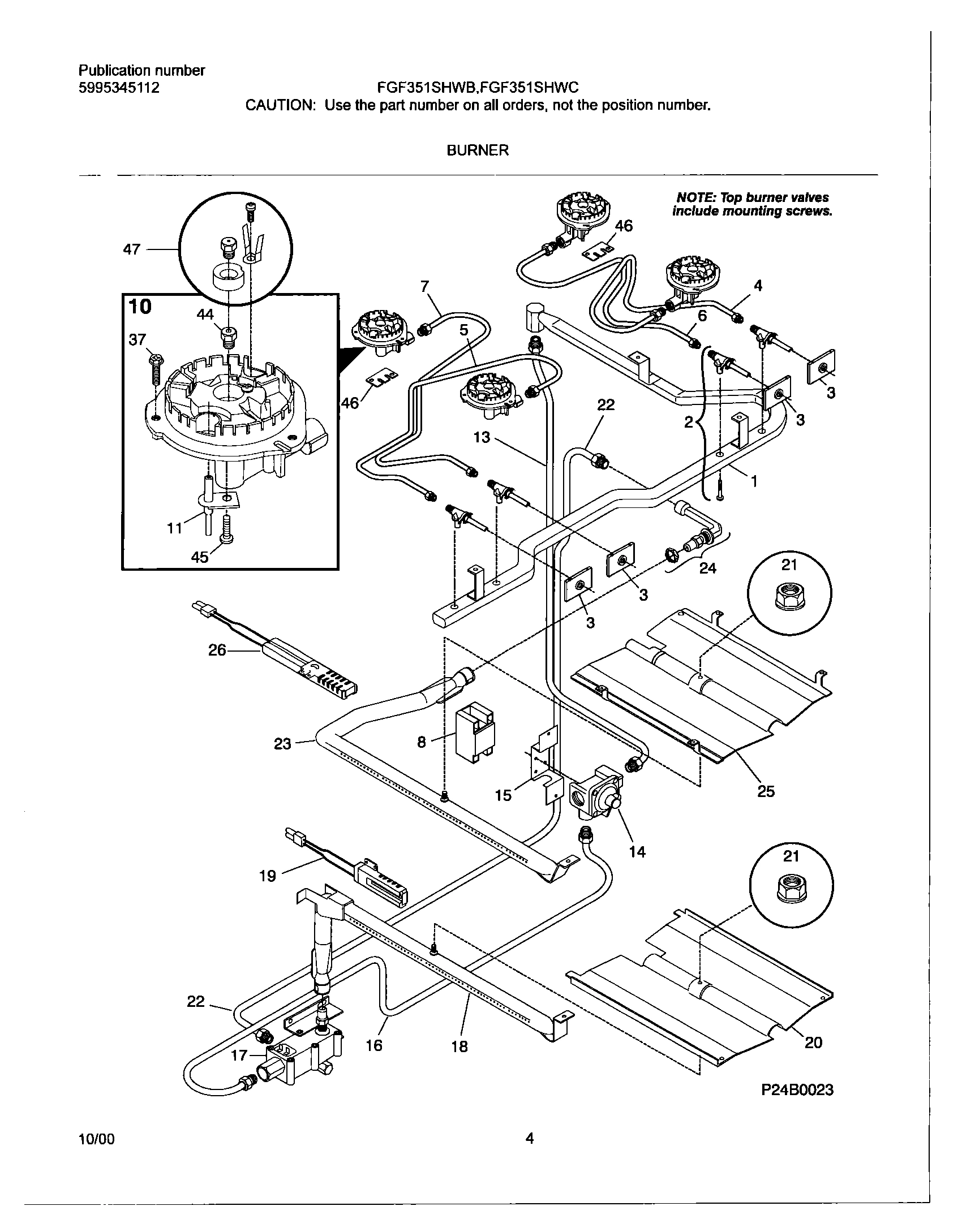

05 - BURNER

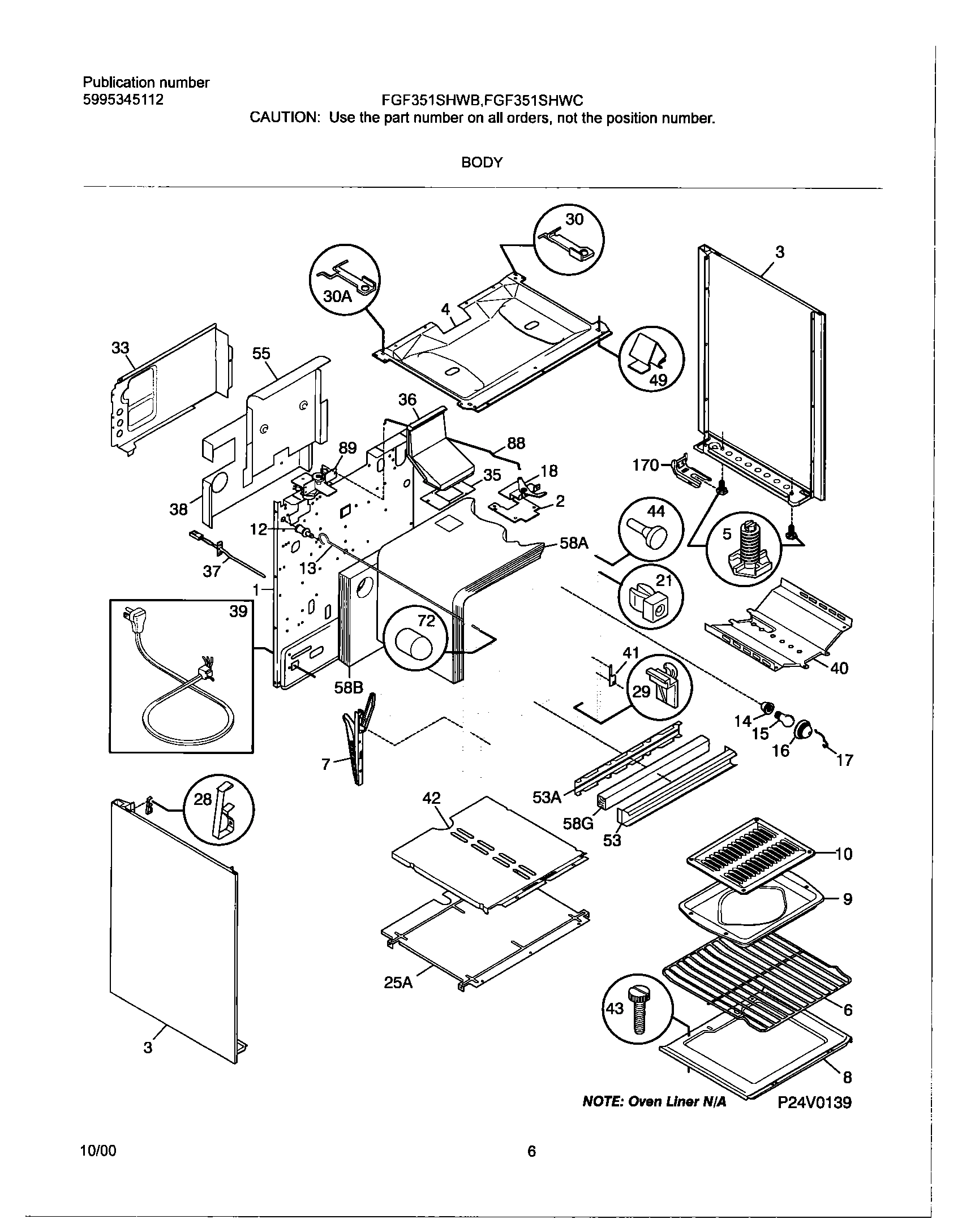

07 - BODY

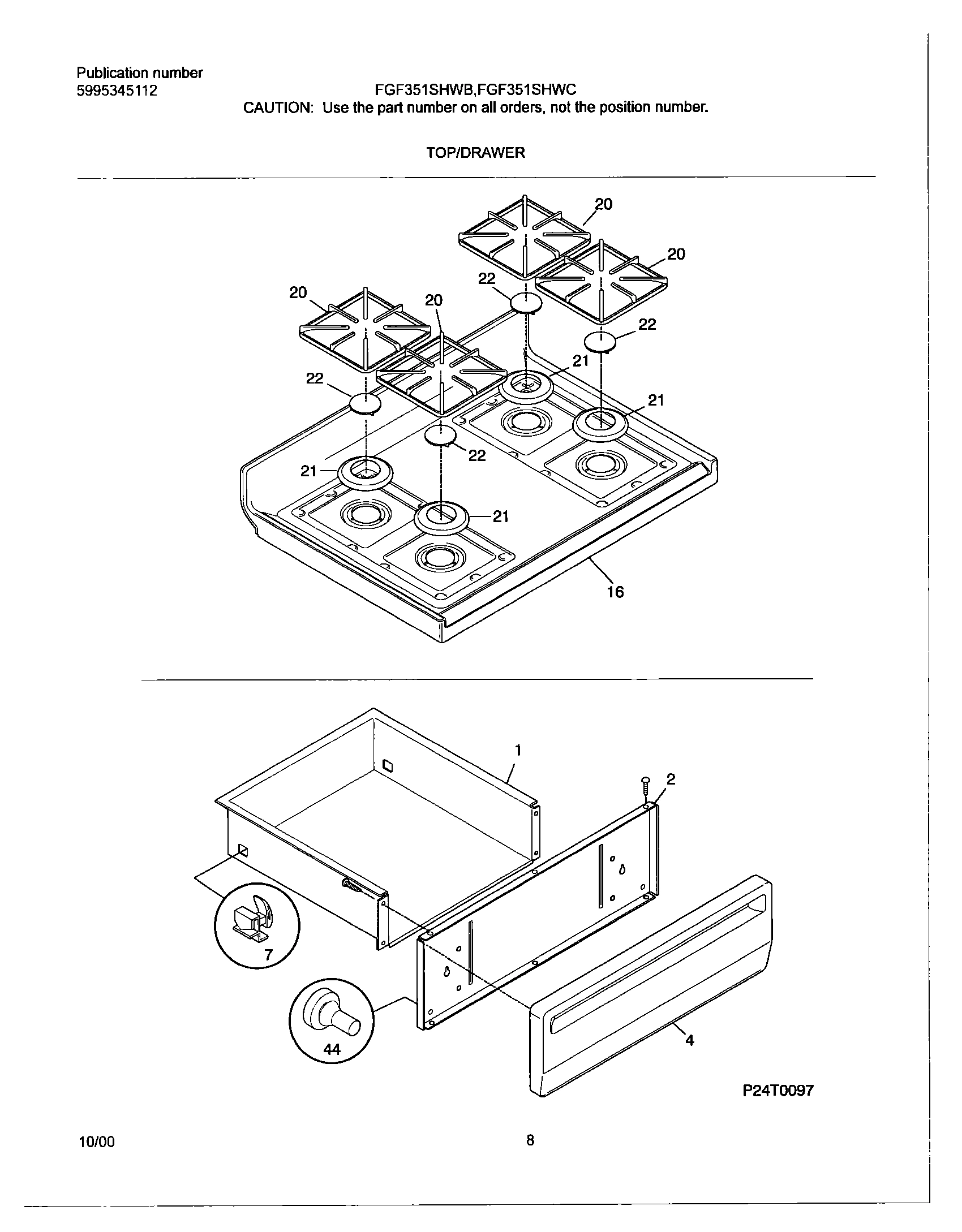

09 - TOP/DRAWER

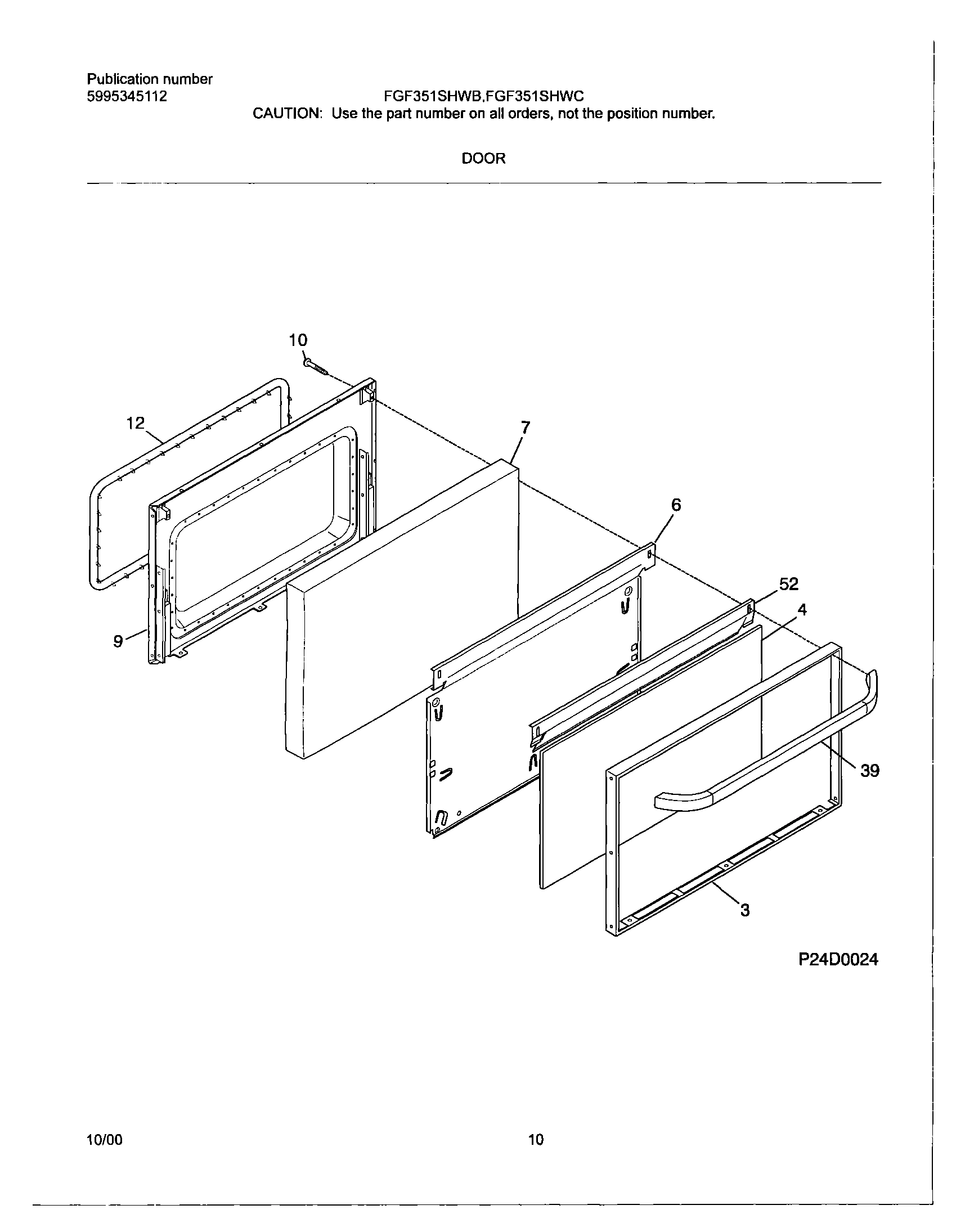

11 - DOOR

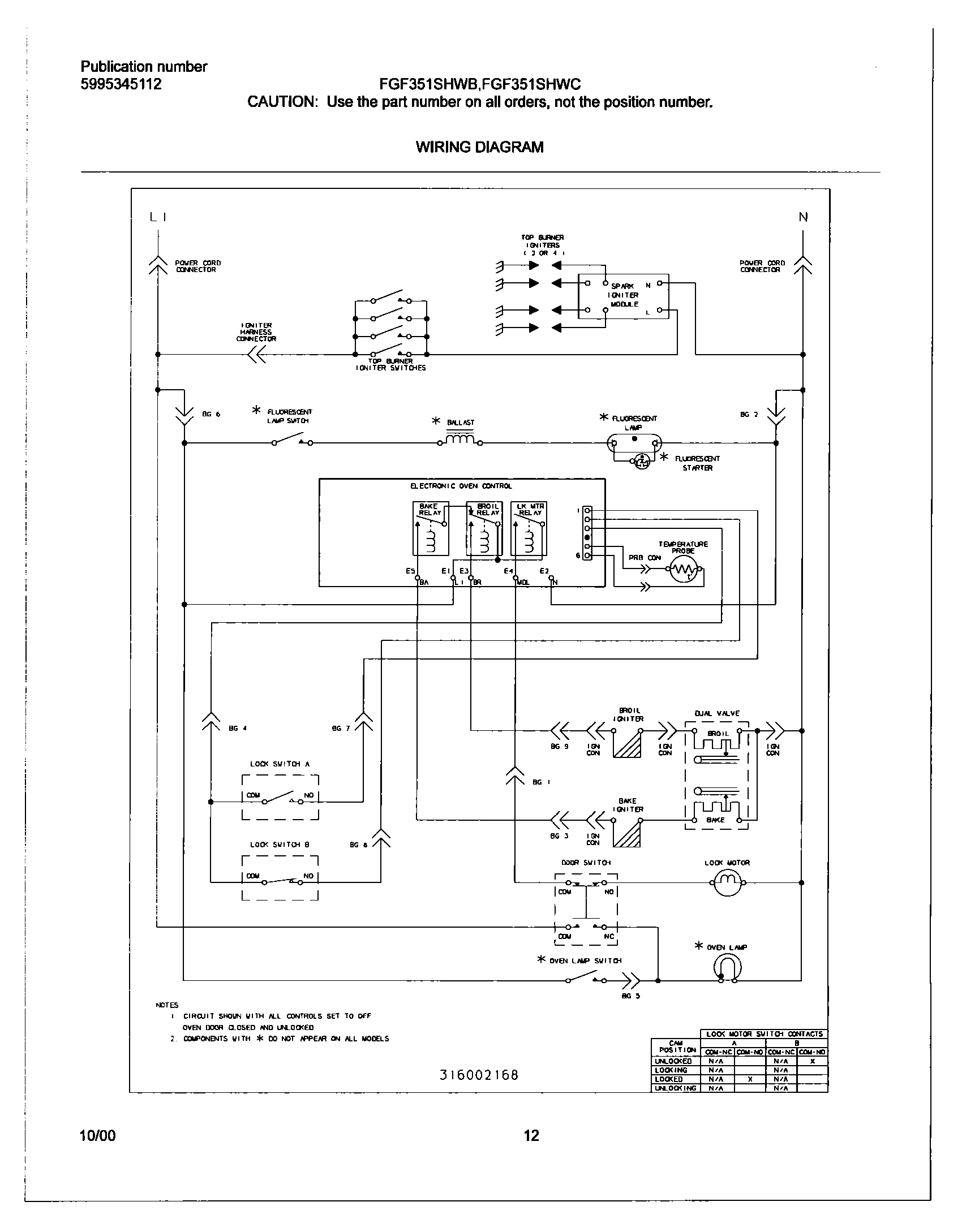

12 - WIRING DIAGRAM
Common parts from model Electrolux TGF351SHWB RANGE
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
Shield-drawer,galv steel ,front panel WCI 5303288582 Contact Us For Availability
3
WCI 316001824 WCI 316001824 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
Panel-drawer front,white WCI 316084405 Contact Us For Availability
4
WCI 316089001 WCI 316089001 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
6
Tube,burner ,natural ,RR WCI 316059614 Contact Us For Availability
6
WCI 316091402 WCI 316091402 Contact Us For Availability
7
WCI 316076404 WCI 316076404 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066611 WCI 316066611 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
13
Tube,3/8 ,aluminum ,rgltr to manf ,with fitti WCI 316065005 Contact Us For Availability
16
WCI 5303301546 WCI 5303301546 Contact Us For Availability
20
WCI 316088900 WCI 316088900 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
32
WCI 316101400 WCI 316101400 Contact Us For Availability
36
WCI 316109512 WCI 316109512 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 Contact Us For Availability
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
53A
Shield,insulation ,front frame WCI 08067992 Contact Us For Availability
55
WCI 316107800 WCI 316107800 Contact Us For Availability
58A
WCI 316047708 WCI 316047708 Contact Us For Availability
58B
Insulation, 2`` ,oven back WCI 316054200 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
NI
WCI 316065306 WCI 316065306 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
NI
Cover Plate,burner box WCI 08067757 Contact Us For Availability
NI
WIRING HARNESS,CHASSIS WCI 316001632 Contact Us For Availability
NI
WCI 316021123 WCI 316021123 Contact Us For Availability
NI
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
NI
WCI 316089600 WCI 316089600 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
NI
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
× ![]()
