Model Electrolux TGF336BHDB RANGE – Common Parts & Diagrams

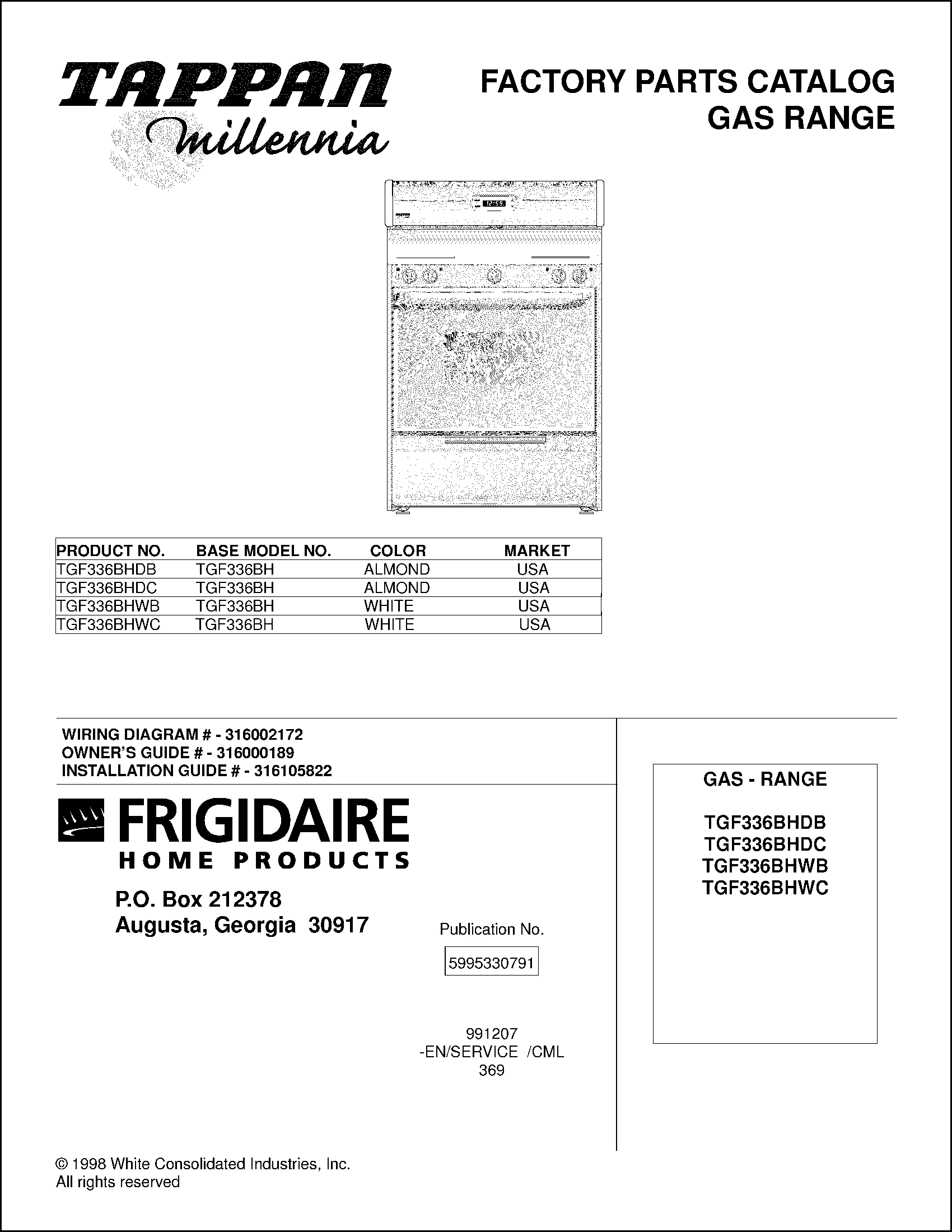

01 - COVER

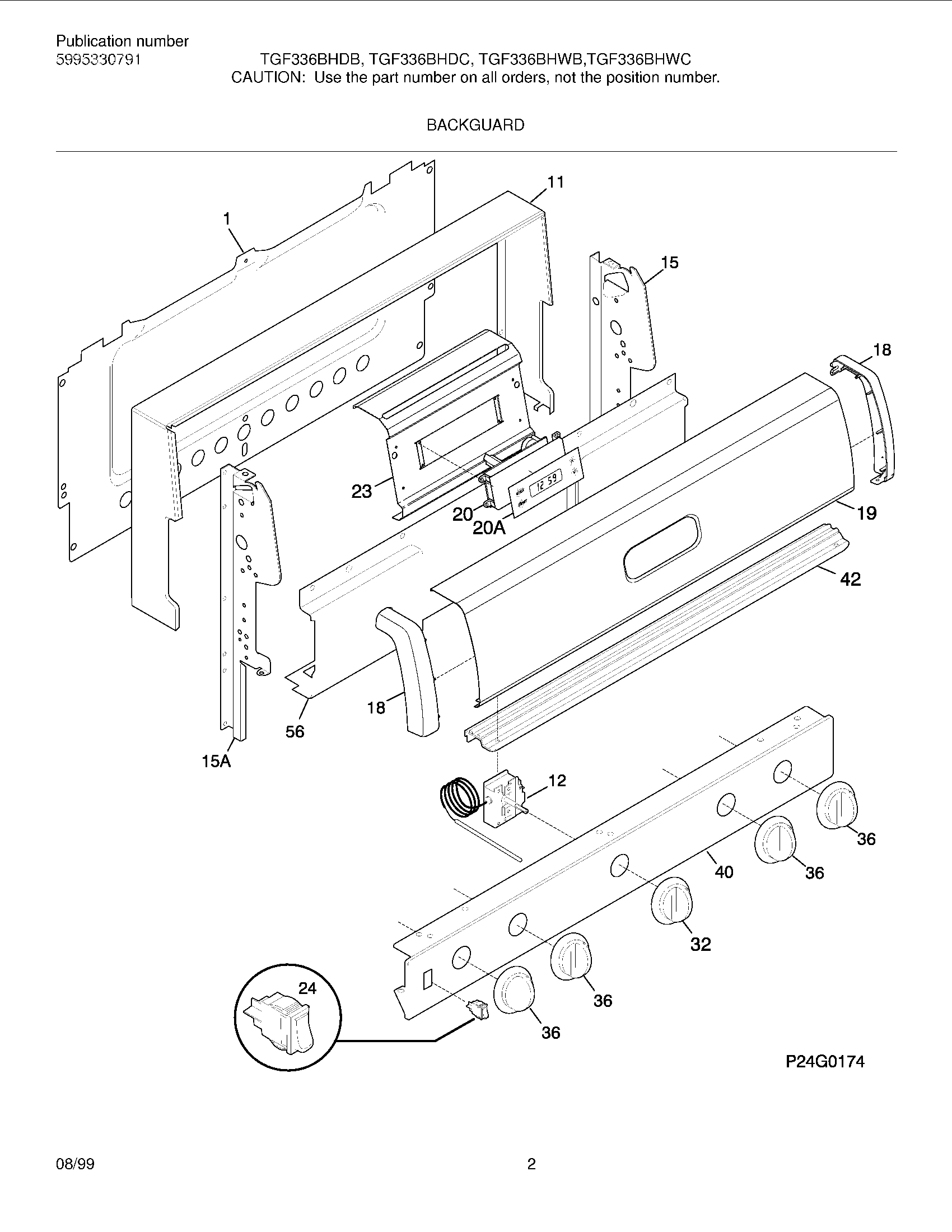

03 - BACKGUARD

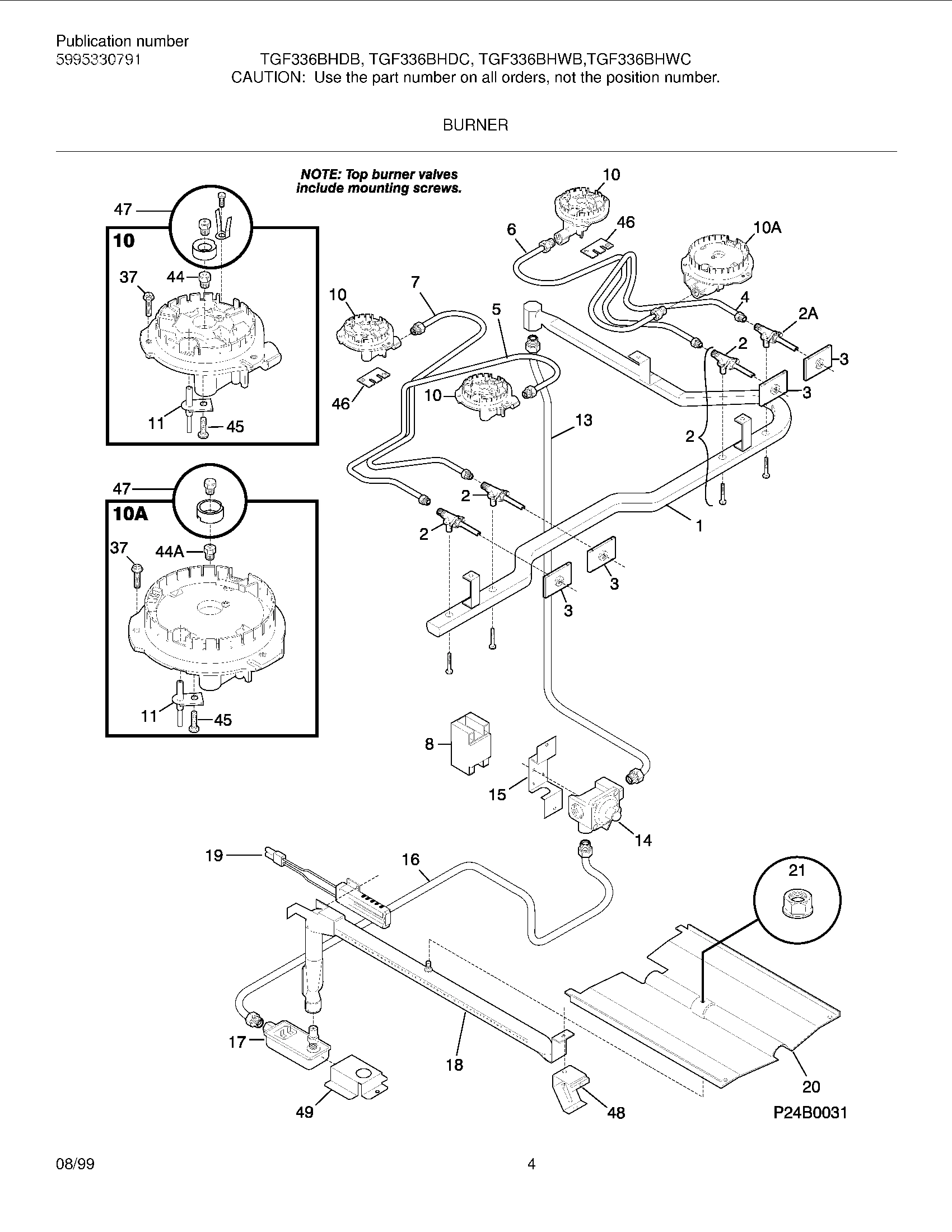

05 - BURNER

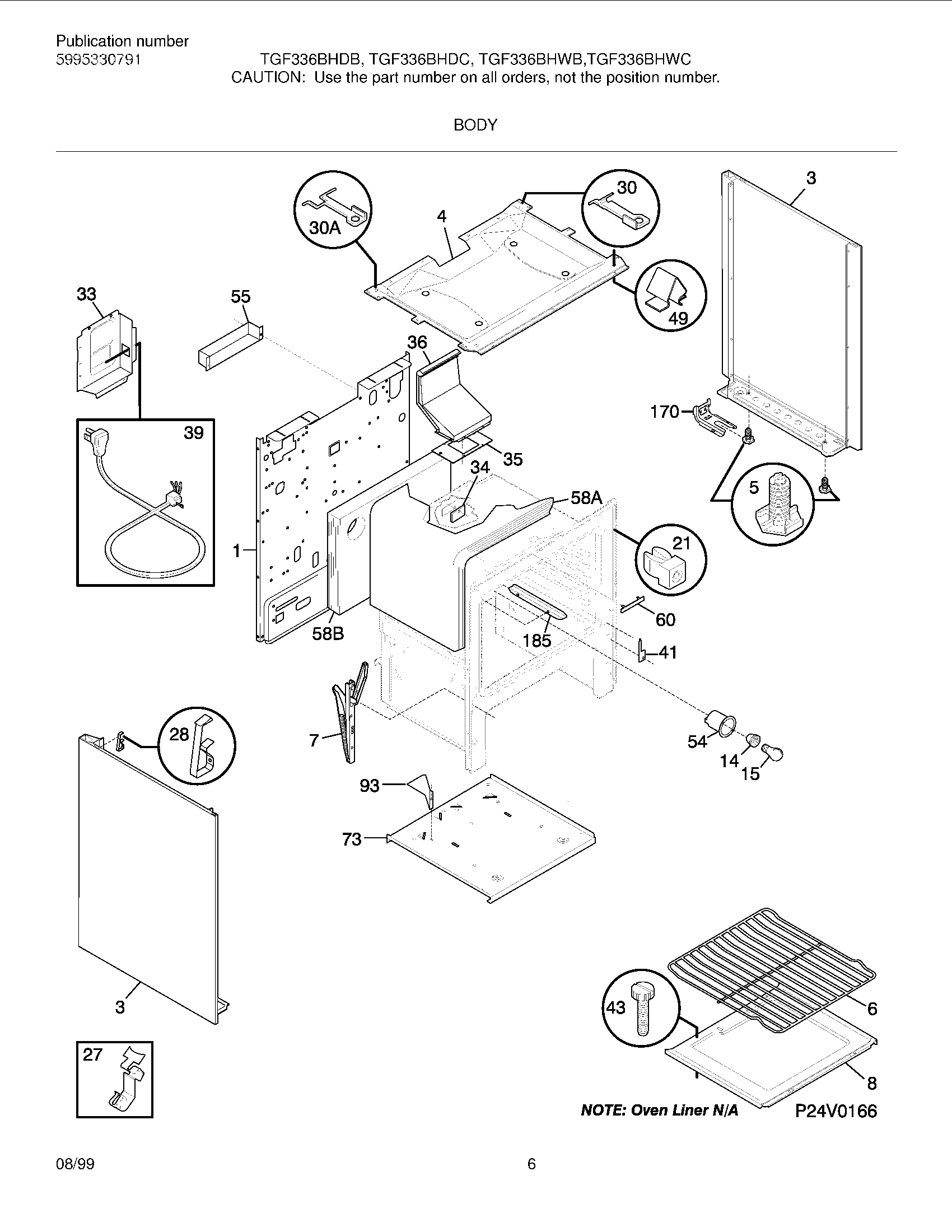

07 - BODY

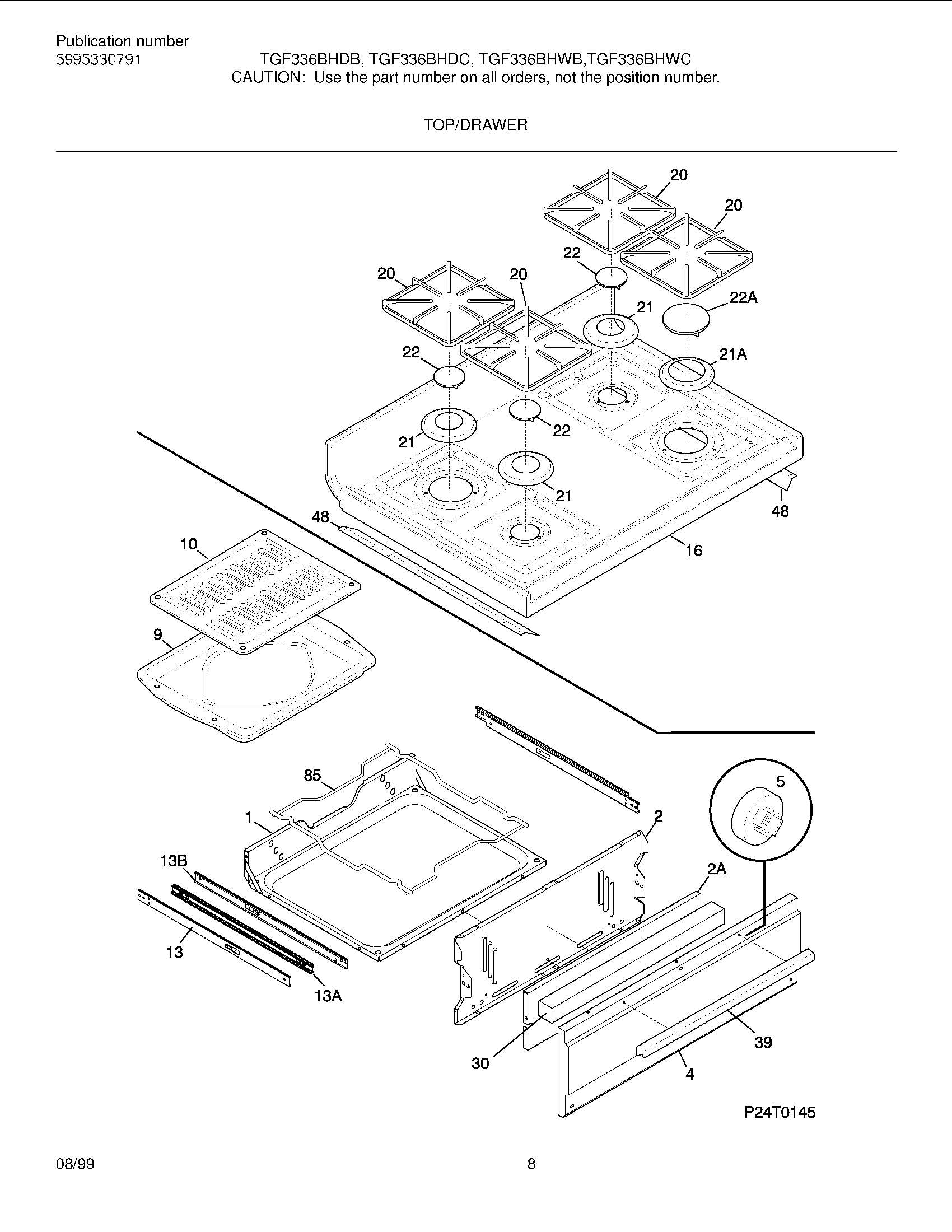

09 - TOP/DRAWER

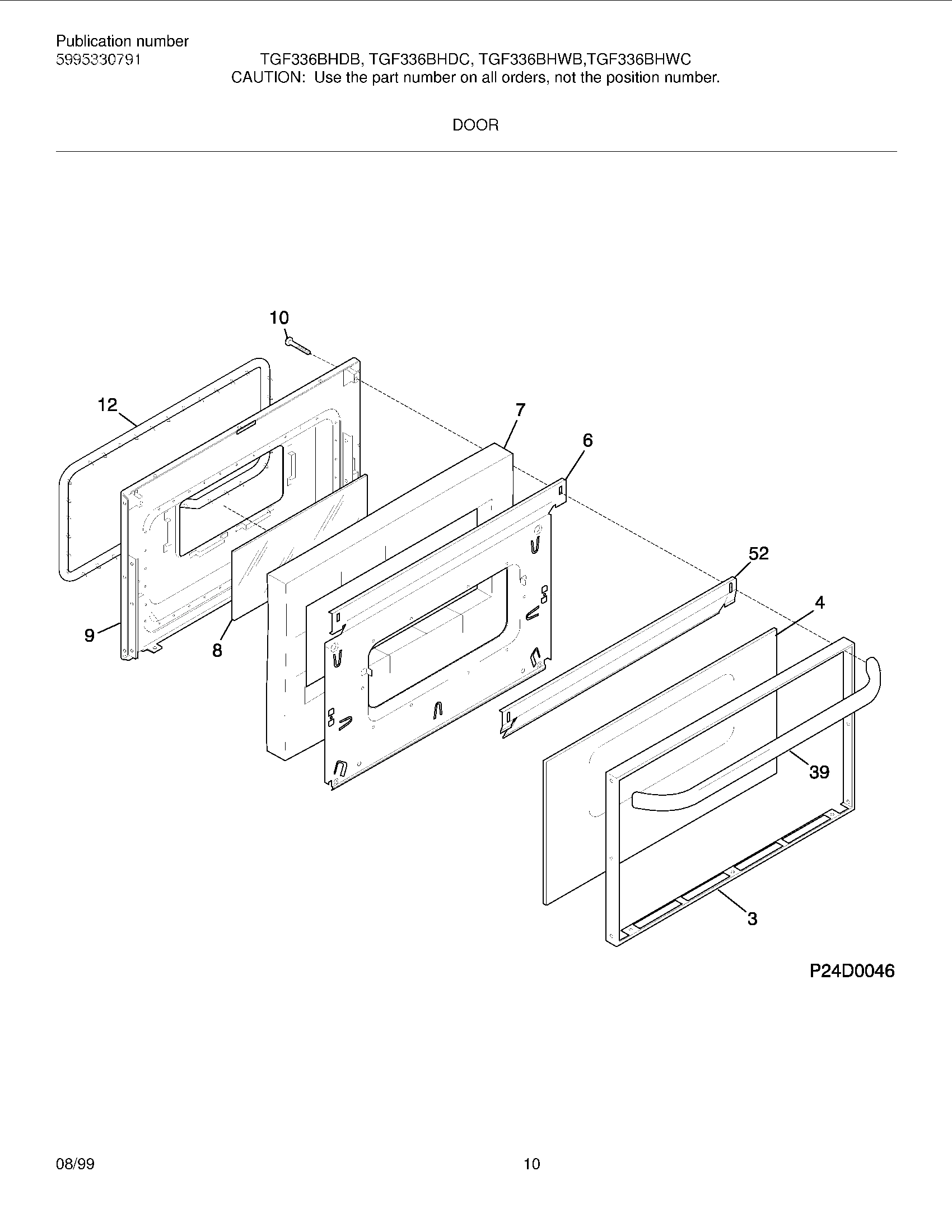

11 - DOOR
12 - WIRING DIAGRAM
Common parts from model Electrolux TGF336BHDB RANGE
1
CARRIAGE, BROILER WCI 316110201 Contact Us For Availability
2
WCI 316110101 WCI 316110101 Contact Us For Availability
2A
WCI 316127502 WCI 316127502 Contact Us For Availability
2A
WCI 316110800 WCI 316110800 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4
WCI 316089000 WCI 316089000 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
5
NUT-NYLON PUSH IN WCI 316129100 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
SCREW-HANDLE MTG, WATER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
13
TUBE, ALUMINUM, RGLTR TO MANF, W/FITTINGS WCI 316065005 Contact Us For Availability
13
GLIDE-LOW BROIL, INNER WCI 316111502 Contact Us For Availability
13A
GLIDE-DRAWER,INNER WCI 316111600 Contact Us For Availability
13B
WCI 316111501 WCI 316111501 Contact Us For Availability
16
MAINTOP, WHITE WCI 316114802 Contact Us For Availability
20
GRATE, BLACK WCI 316085201 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
22A
WCI 316111703 WCI 316111703 Contact Us For Availability
30
WCI 316111400 WCI 316111400 Contact Us For Availability
32
WCI 316109506 WCI 316109506 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
39
WCI 316019508 WCI 316019508 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 No Longer Available
48
SHIELD-MAINTOP WCI 316077401 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
73
WCI 316109902 WCI 316109902 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
185
WCI 316112900 WCI 316112900 Contact Us For Availability
NI
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
NI
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
NI
WCI 316001226 WCI 316001226 Contact Us For Availability
NI
WCI 316021123 WCI 316021123 Contact Us For Availability
NI
SCREW, 8-18 X 5/8 ,SHOULDER SQDR WCI 316021120 Contact Us For Availability
NI
WCI 316071608 WCI 316071608 Contact Us For Availability
NI
WCI 5303212671 WCI 5303212671 Contact Us For Availability
× ![]()
