Model Electrolux TGC3X6XCB2 COOK-TOP – Common Parts & Diagrams

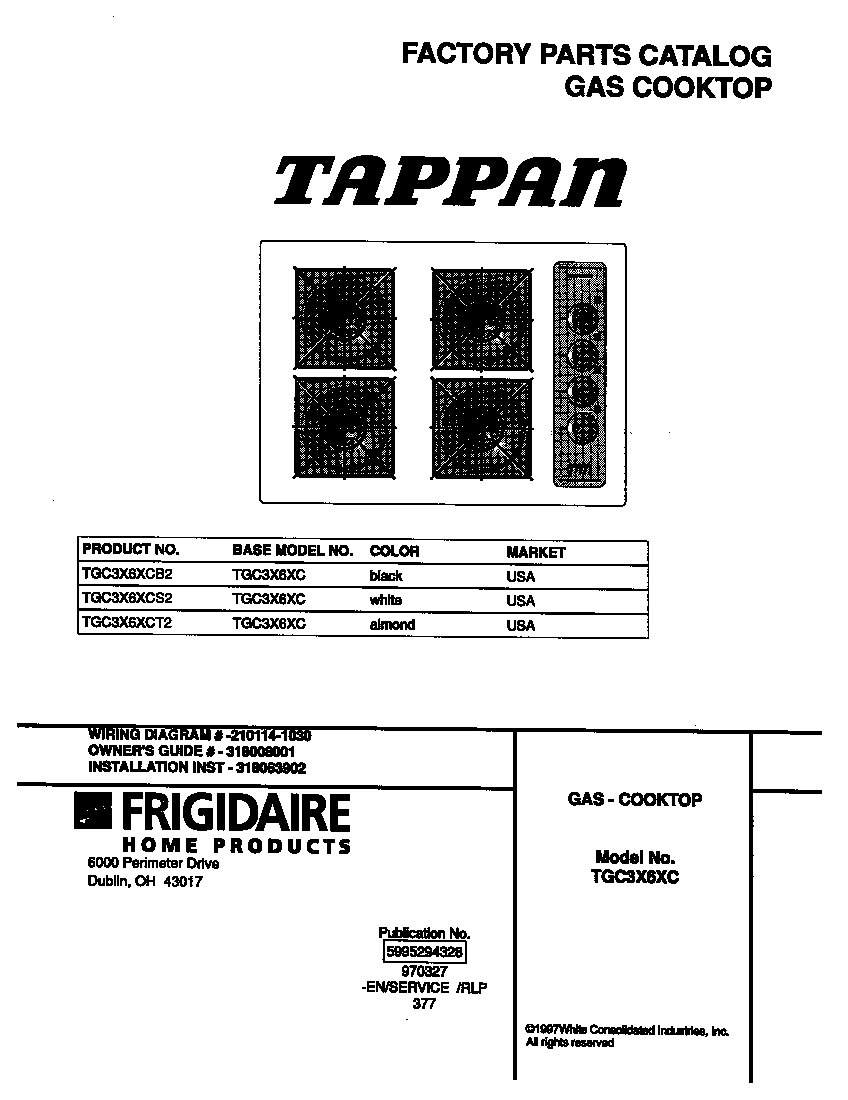

01 - COVER

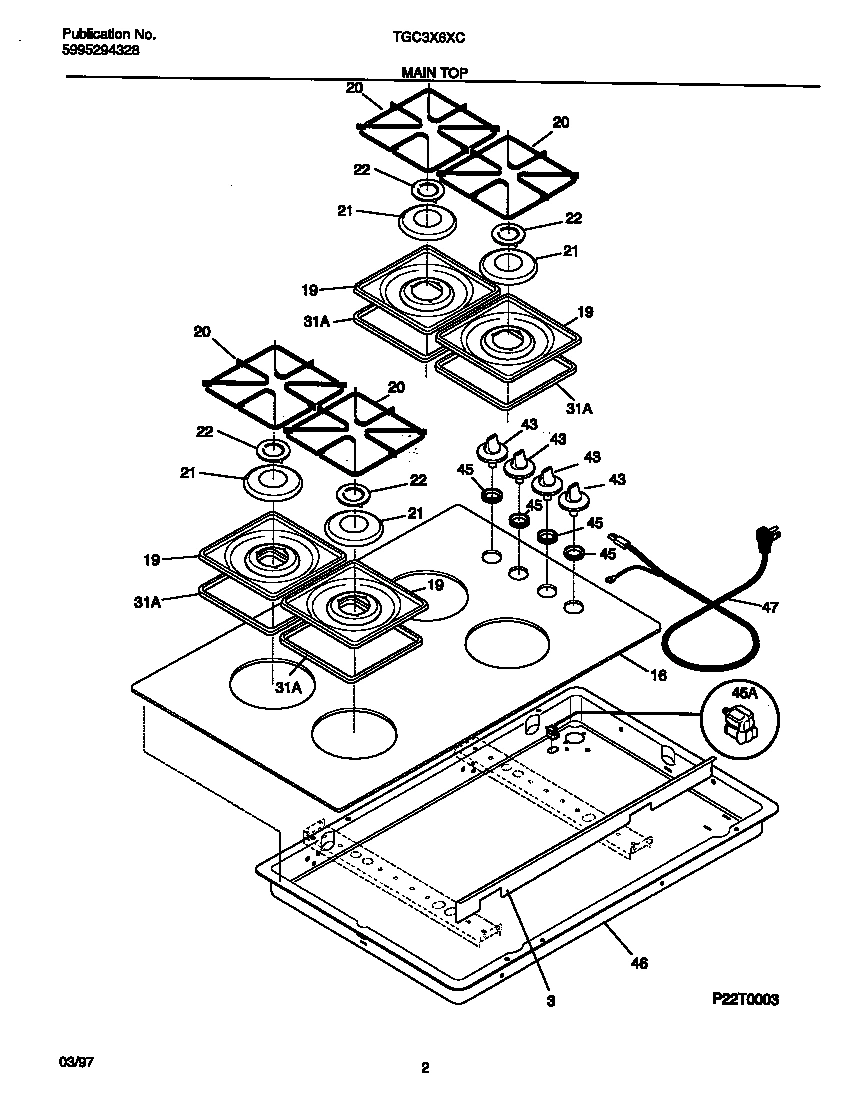

02 - MAIN TOP

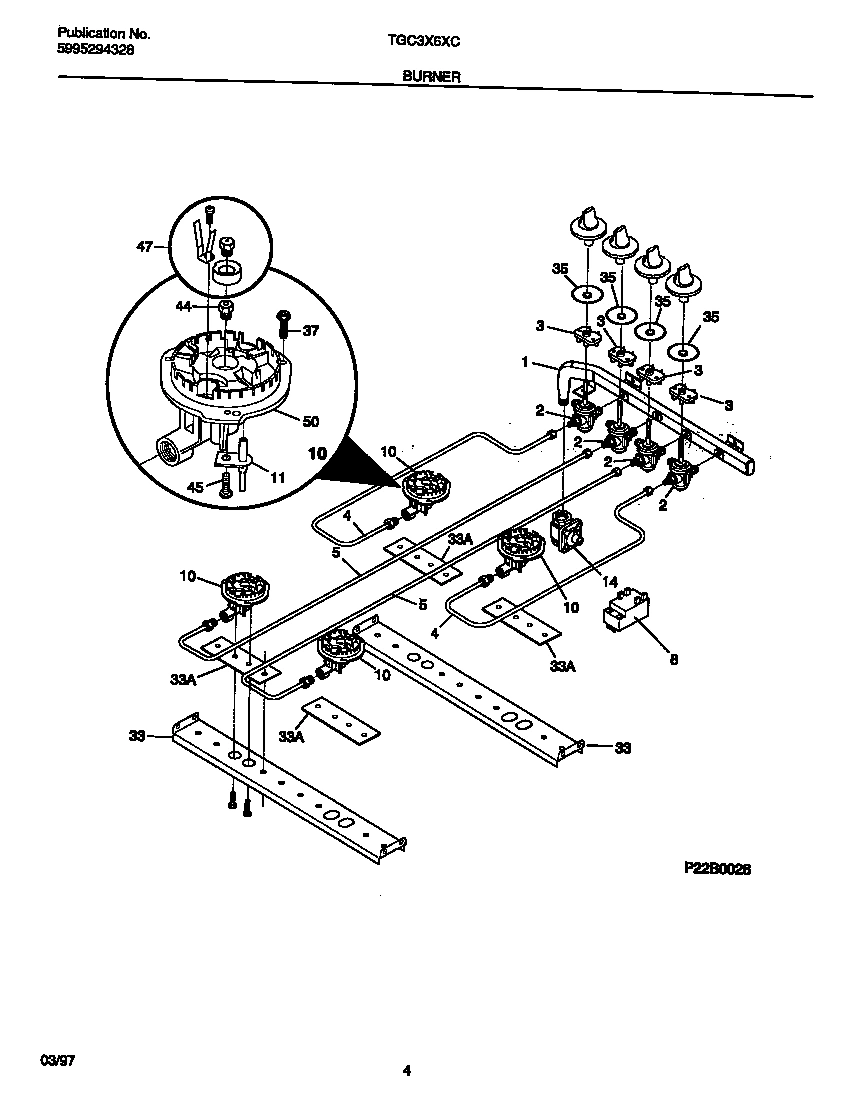

03 - BURNER

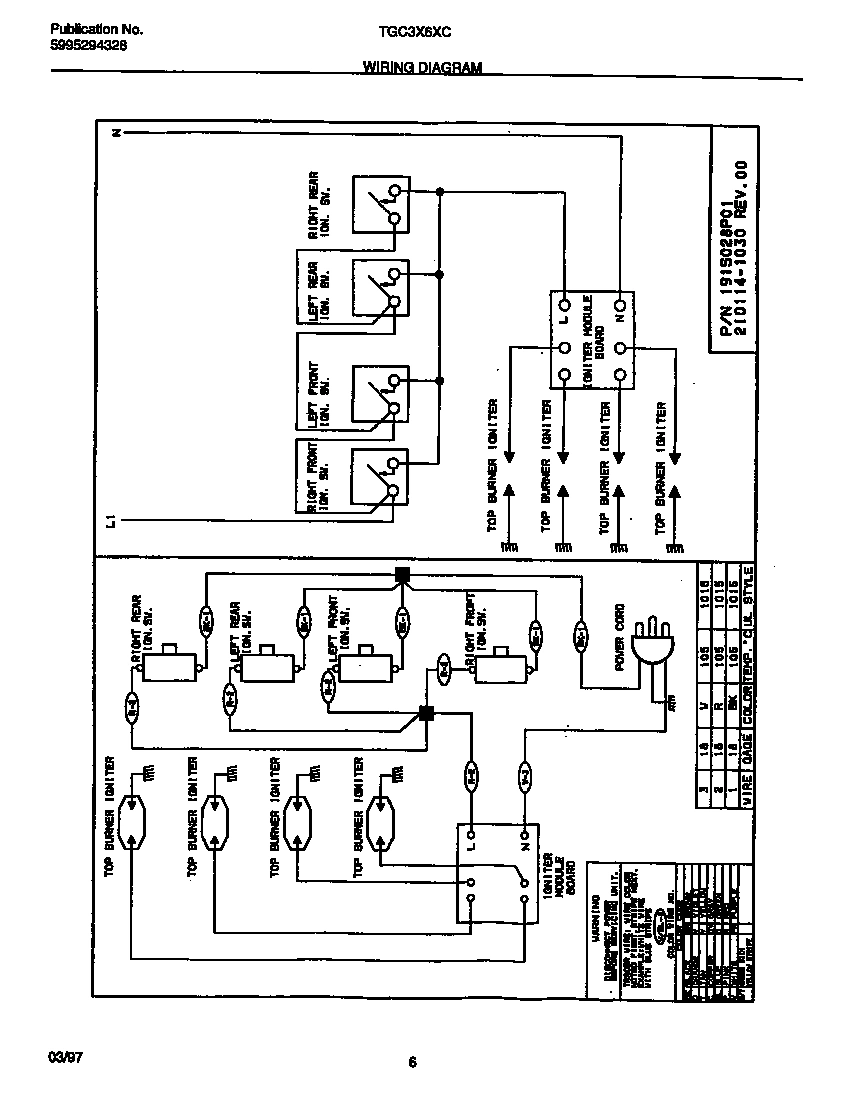

04 - WIRING DIAGRAM
Common parts from model Electrolux TGC3X6XCB2 COOK-TOP
*41760
WCI 318083900 WCI 318083900 Contact Us For Availability
*41761
RETAINER/BRACKET WCI 5303304033 Contact Us For Availability
*41763
WCI 318065000 WCI 318065000 Contact Us For Availability
1A
WCI 5303307976 WCI 5303307976 Contact Us For Availability
2A
VALVE-TOP BURNER, SMALL, 2-POSITION, (3) WCI 5303935042 Contact Us For Availability
2B
SCREW-TOP VALVE MTG, HEX WASHER HEAD, 1/4-20 WCI 316048200 Contact Us For Availability
3
SWITCH-IGNITOR, (5) WCI 316032002 Contact Us For Availability
4
WCI 5303305456 WCI 5303305456 Contact Us For Availability
5
WCI 5303305455 WCI 5303305455 Contact Us For Availability
8B
BRACKET, SPARK MODULE (NOT ILLUSTRATED) WCI 318024200 Contact Us For Availability
10
BURNER ASSY-TOP, SEALED, 9000 BTU (1) (INCLUD WCI 318055001 Contact Us For Availability
33
WCI 318072000 WCI 318072000 Contact Us For Availability
33
WCI 5303307977 WCI 5303307977 Contact Us For Availability
35
WCI 5303307978 WCI 5303307978 Contact Us For Availability
37
SCREW, BURNER MTG, METRIC, (15) WCI 5303320671 Contact Us For Availability
44
ORIFICE-TOP BURNER, 9000 BTU, (1) WCI 318088700 Contact Us For Availability
45
SCREW-IGNITOR MTG, SELF-TAPPING, M3 X 5.8, (4 WCI 316011100 Contact Us For Availability
46
WCI 5303307897 WCI 5303307897 Contact Us For Availability
47
WCI 5303302413 WCI 5303302413 Contact Us For Availability
47
WCI 5303303991 WCI 5303303991 Contact Us For Availability
50
BURNER-TOP, SMALL, (2) INCLUDES, 37 WCI 5303935026 Contact Us For Availability
× ![]()
