Model Electrolux TGC3X4XCD2 COOK-TOP – Common Parts & Diagrams

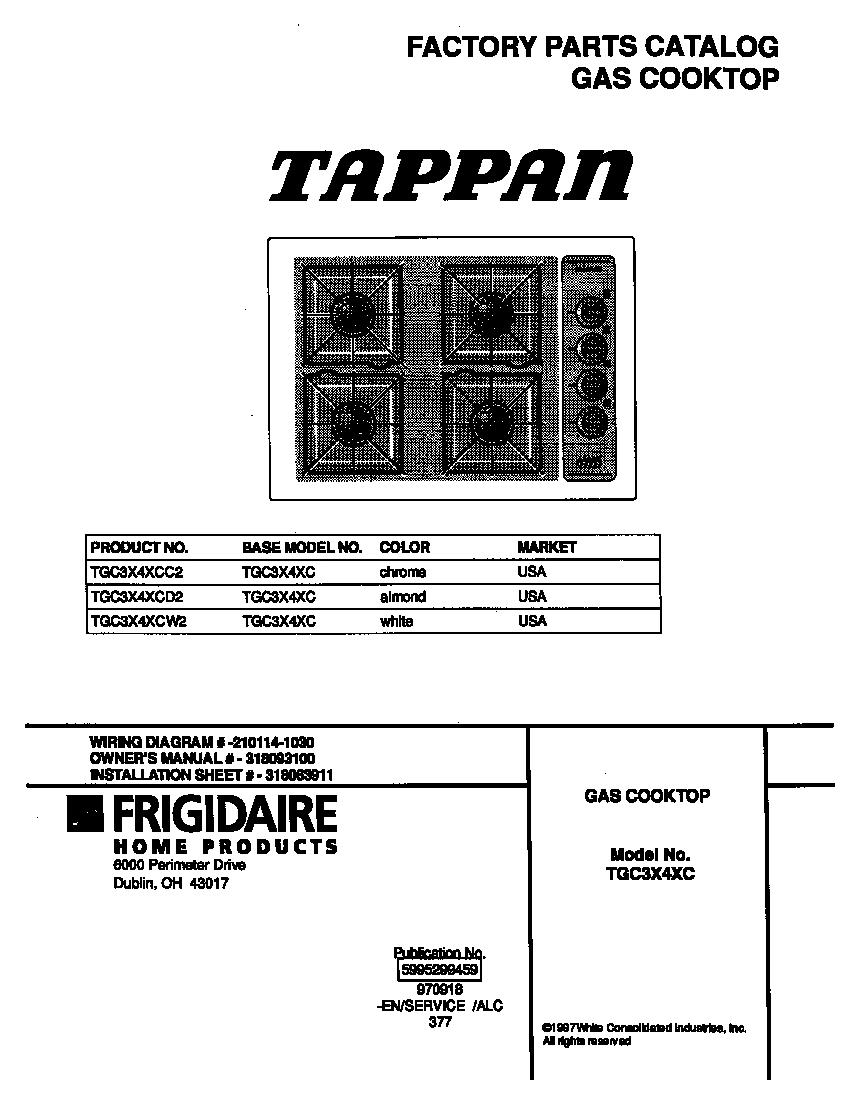

01 - COVER

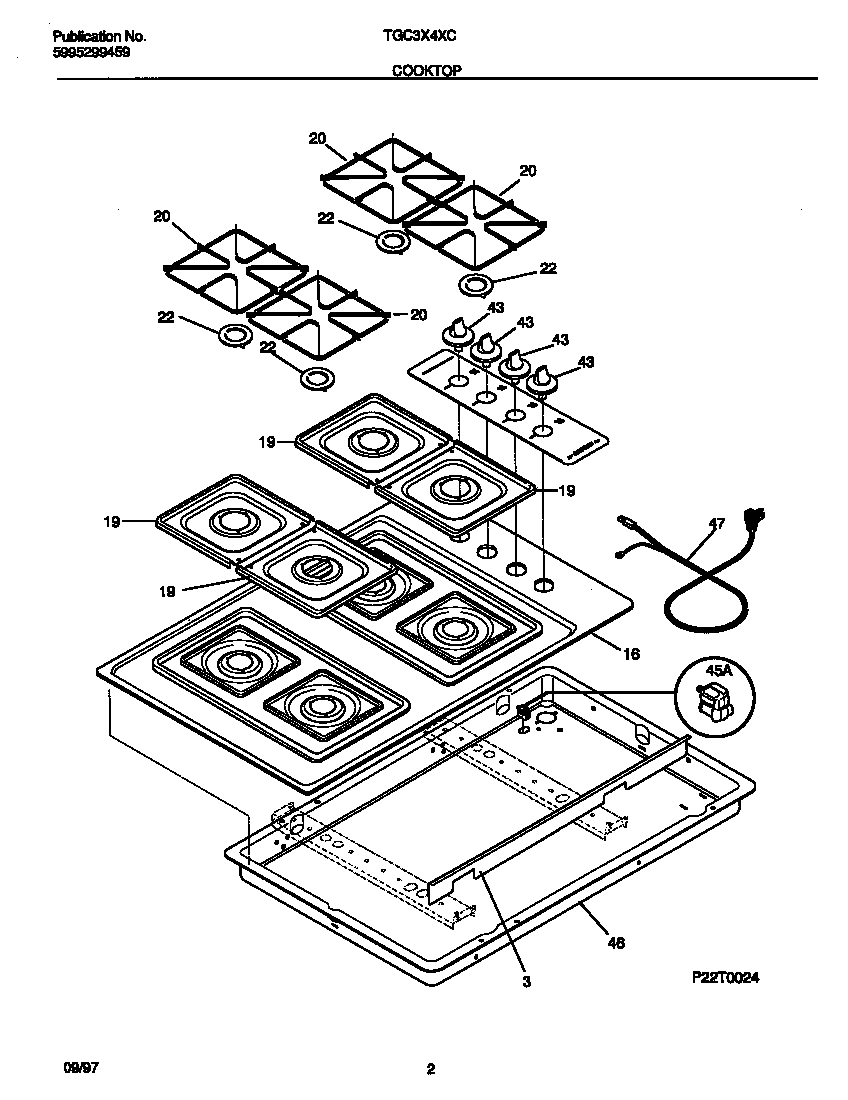

02 - COOKTOP

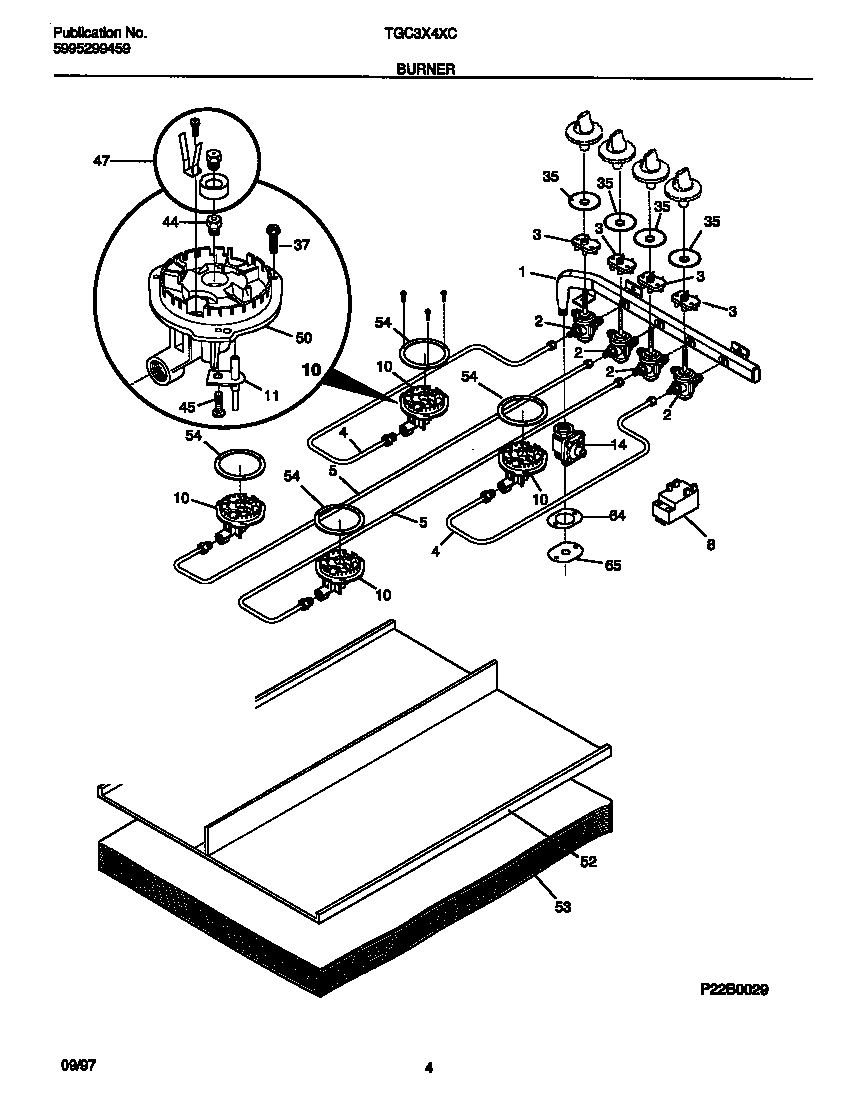

03 - BURNER

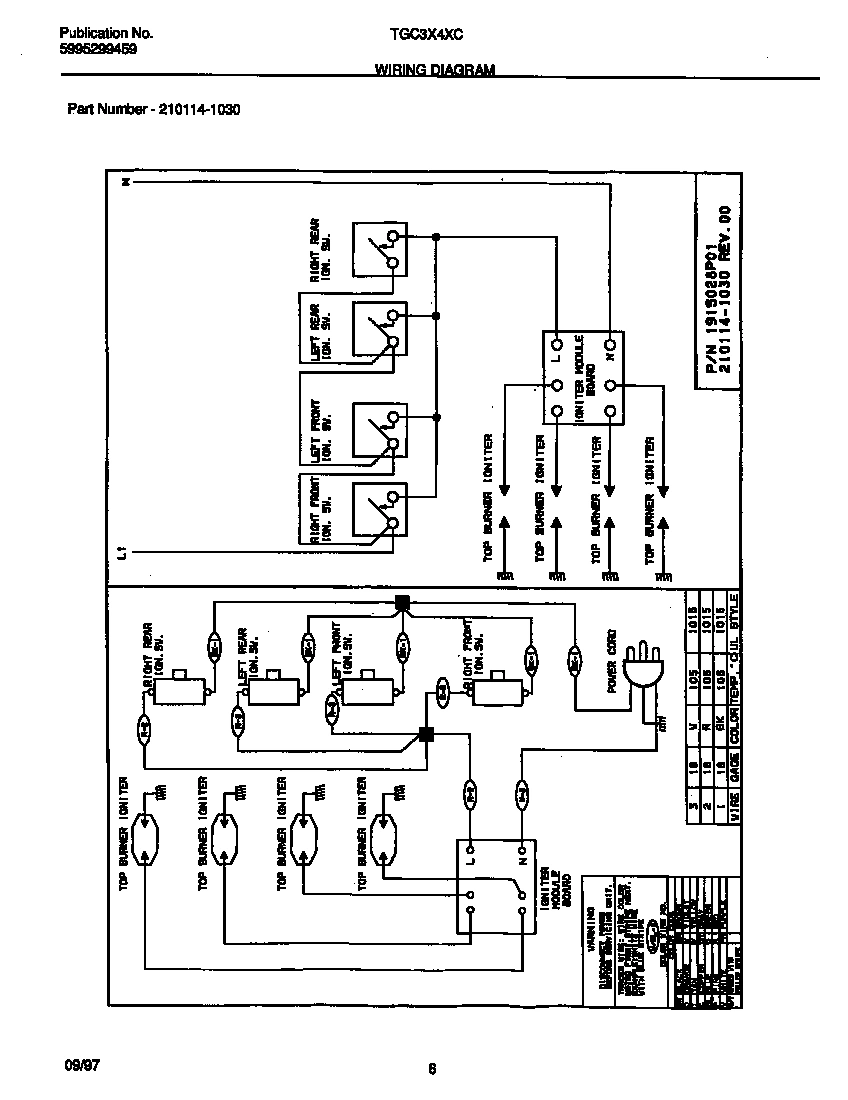

04 - WIRING DIAGRAM
Common parts from model Electrolux TGC3X4XCD2 COOK-TOP
1A
WCI 318077700 WCI 318077700 Contact Us For Availability
2A
VALVE-TOP BURNER, 2-POSITION, (3) WCI 5303935042 Contact Us For Availability
3
WCI 316032002 WCI 316032002 Contact Us For Availability
4
TUBE-BURNER, RF, RR WCI 5303305456 Contact Us For Availability
5
WCI 5303305455 WCI 5303305455 Contact Us For Availability
10
BURNER ASSY-TOP, SEALED, 9000 BTU, (4), INCLU WCI 318055001 Contact Us For Availability
19
PAN-BURNER (4) WCI 316011401 Contact Us For Availability
35
WCI 5303307978 WCI 5303307978 Contact Us For Availability
44
ORIFICE-TOP BURNER, 9000 BTU WCI 318088700 Contact Us For Availability
45
SCREW-IGNITOR MTG, SELF-TAPPING, M3 X 5.8 WCI 316011100 Contact Us For Availability
46
WCI 5303303989 WCI 5303303989 Contact Us For Availability
47
WCI 5303303991 WCI 5303303991 Contact Us For Availability
47
WCI 5303308575 WCI 5303308575 Contact Us For Availability
50
BURNER-TOP, SMALL, (4) WCI 5303302430 Contact Us For Availability
52
WCI 5303209024 WCI 5303209024 Contact Us For Availability
53
WCI 5303209025 WCI 5303209025 Contact Us For Availability
64
RETAINER/BRACKET WCI 5303304033 Contact Us For Availability
× ![]()
