Model Electrolux TGC3X4XCBA COOK-TOP – Common Parts & Diagrams

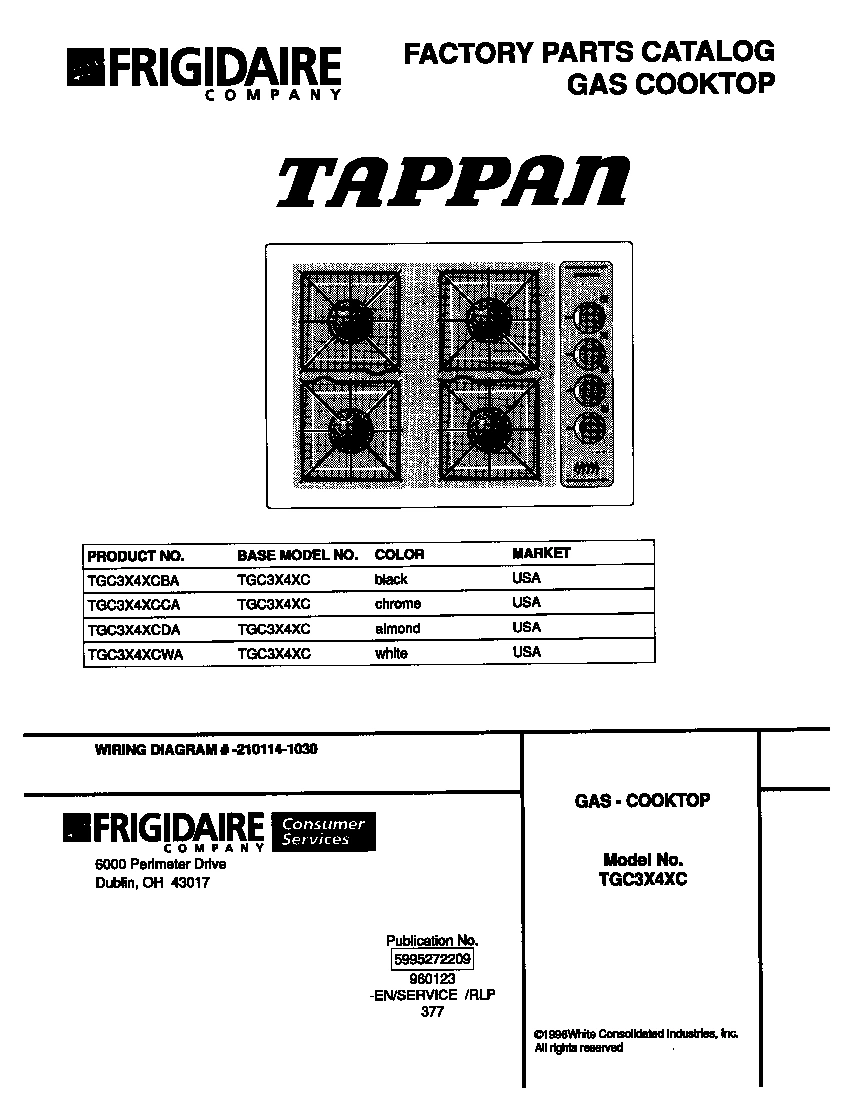

01 - COVER

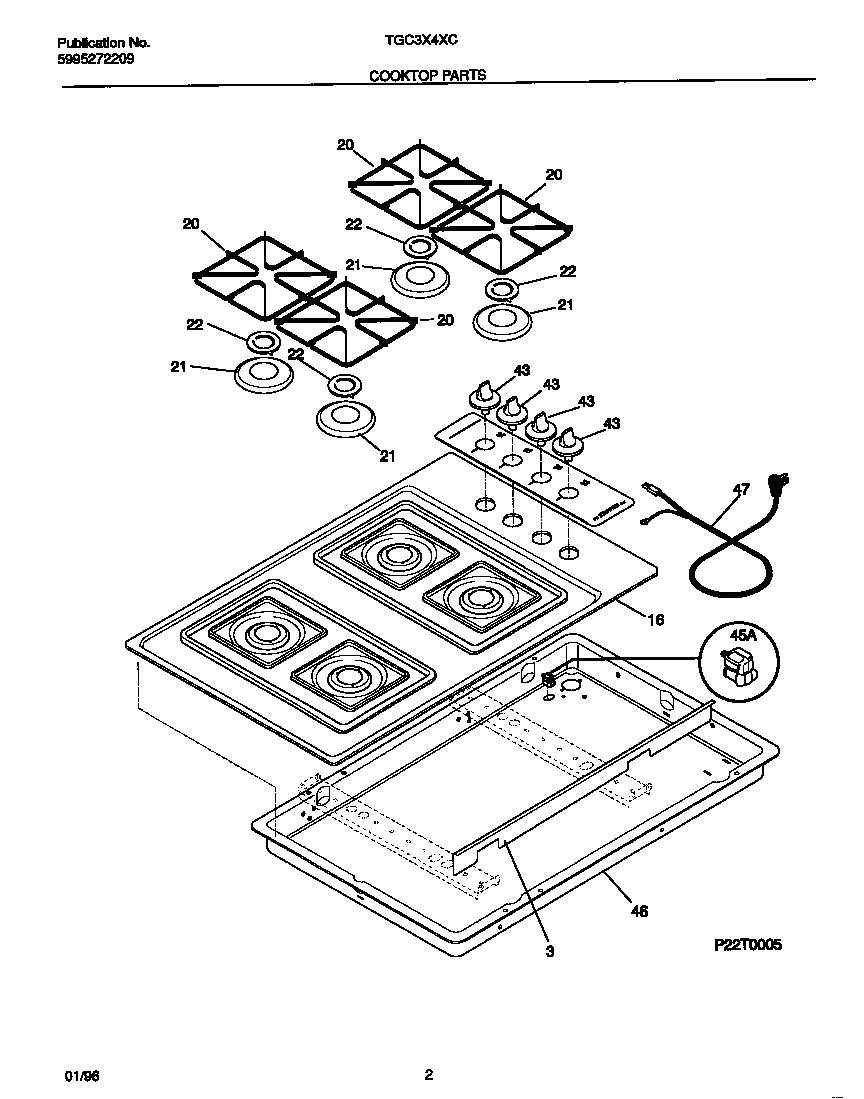

02 - COOKTOP PARTS

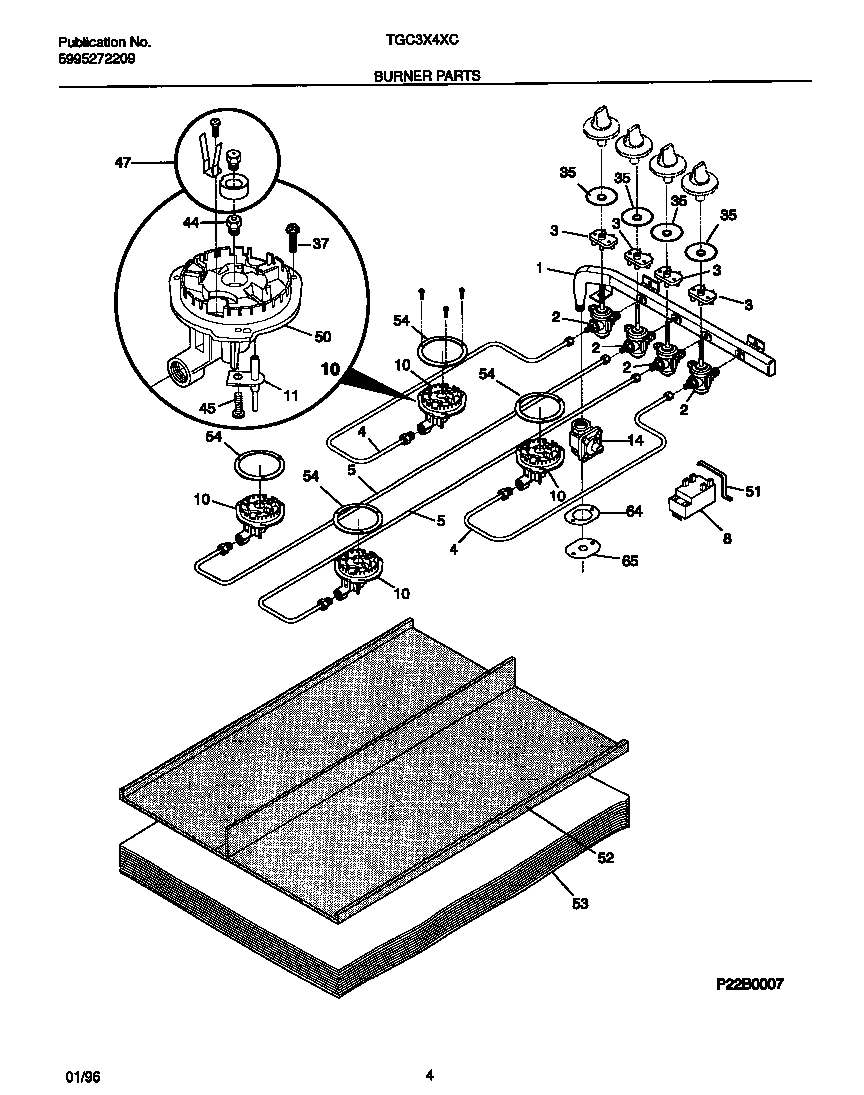

03 - BURNER PARTS

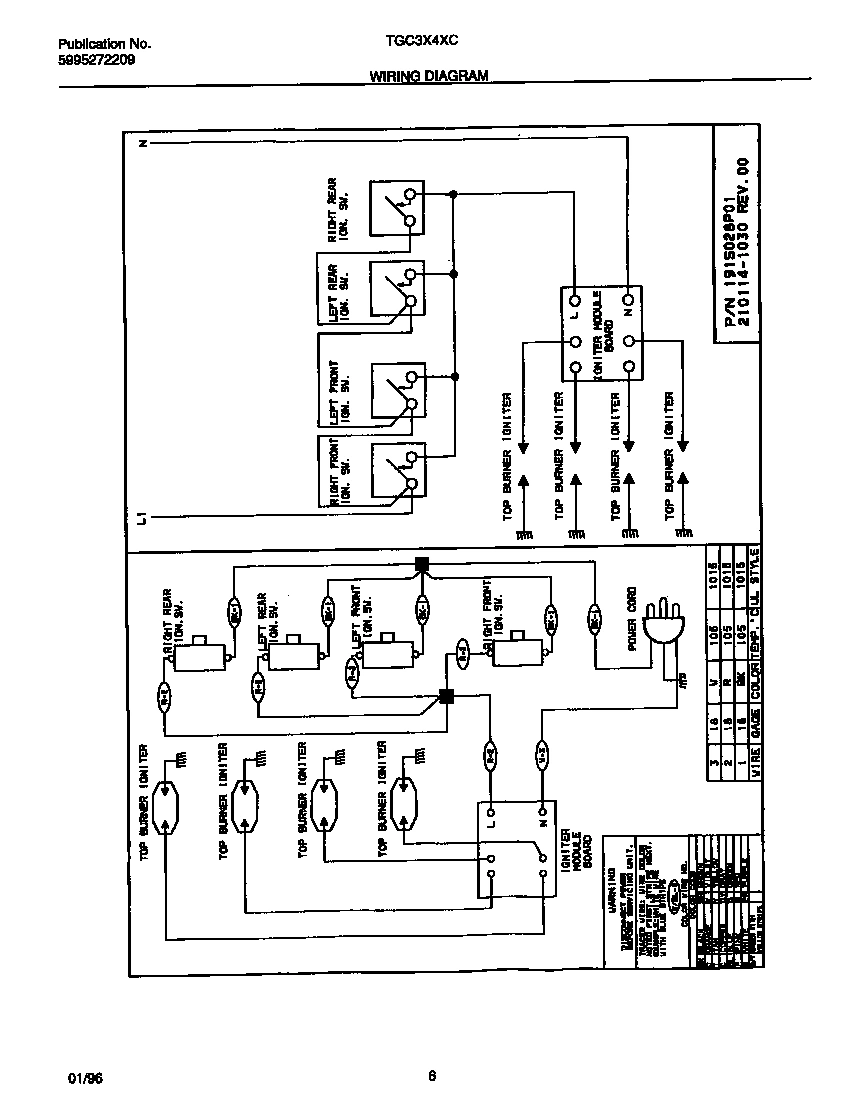

04 - WIRING DIAGRAM
Common parts from model Electrolux TGC3X4XCBA COOK-TOP
*41680
WCI 318052500 WCI 318052500 Contact Us For Availability
*41681
WCI 318052501 WCI 318052501 Contact Us For Availability
*41682
WCI 318052502 WCI 318052502 Contact Us For Availability
*41683
WCI 318052503 WCI 318052503 Contact Us For Availability
*41684
HARNESS-WIRING, MAIN WCI 5303307979 Contact Us For Availability
1
WCI 5303284581 WCI 5303284581 Contact Us For Availability
2A
VALVE-TOP BURNER, 2-POSITION, (4) WCI 5303935042 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032002 Contact Us For Availability
4
TUBE-BURNER, RF, RR WCI 5303305456 Contact Us For Availability
5
WCI 5303305455 WCI 5303305455 Contact Us For Availability
10
BURNER ASSY-TOP, SEALED, 9000 BTU, (1) (INCLU WCI 318055001 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
35
WCI 5303307978 WCI 5303307978 Contact Us For Availability
43
WCI 318016205 WCI 318016205 Contact Us For Availability
44
ORIFICE-TOP BURNER, 9000 BTU, SMALL WCI 318088700 Contact Us For Availability
45
WCI 316011100 WCI 316011100 Contact Us For Availability
46
WCI 5303303989 WCI 5303303989 Contact Us For Availability
47
WCI 5303303991 WCI 5303303991 Contact Us For Availability
47
WCI 5303308575 WCI 5303308575 Contact Us For Availability
50
BURNER-TOP, SMALL, (4) WCI 5303302430 Contact Us For Availability
51
WCI 318024200 WCI 318024200 Contact Us For Availability
52
WCI 5303209024 WCI 5303209024 Contact Us For Availability
53
WCI 5303209025 WCI 5303209025 Contact Us For Availability
64
RETAINER/BRACKET WCI 5303304033 Contact Us For Availability
× ![]()
