Model GE TFX24ZLC Refrigerator – Common Parts & Diagrams

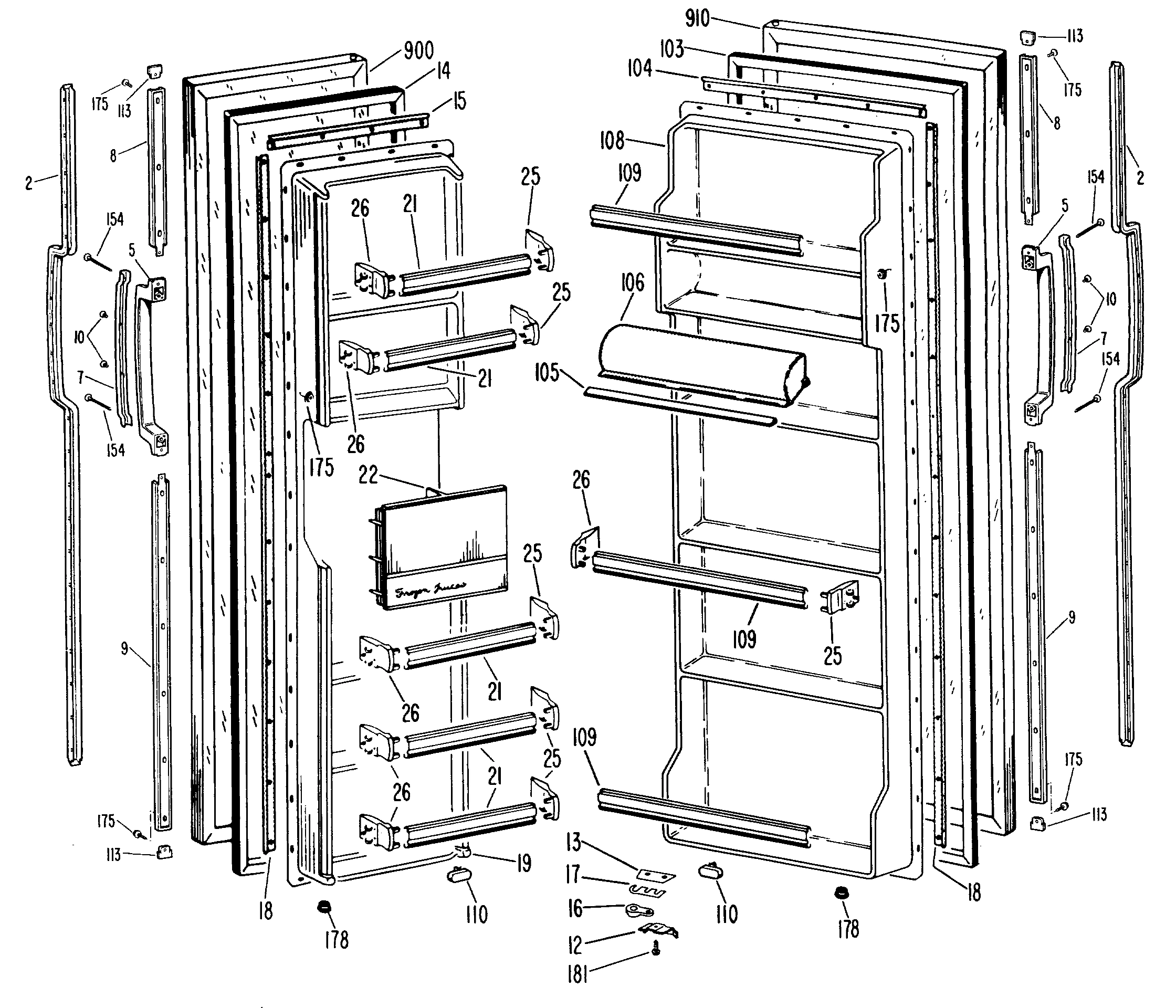

0

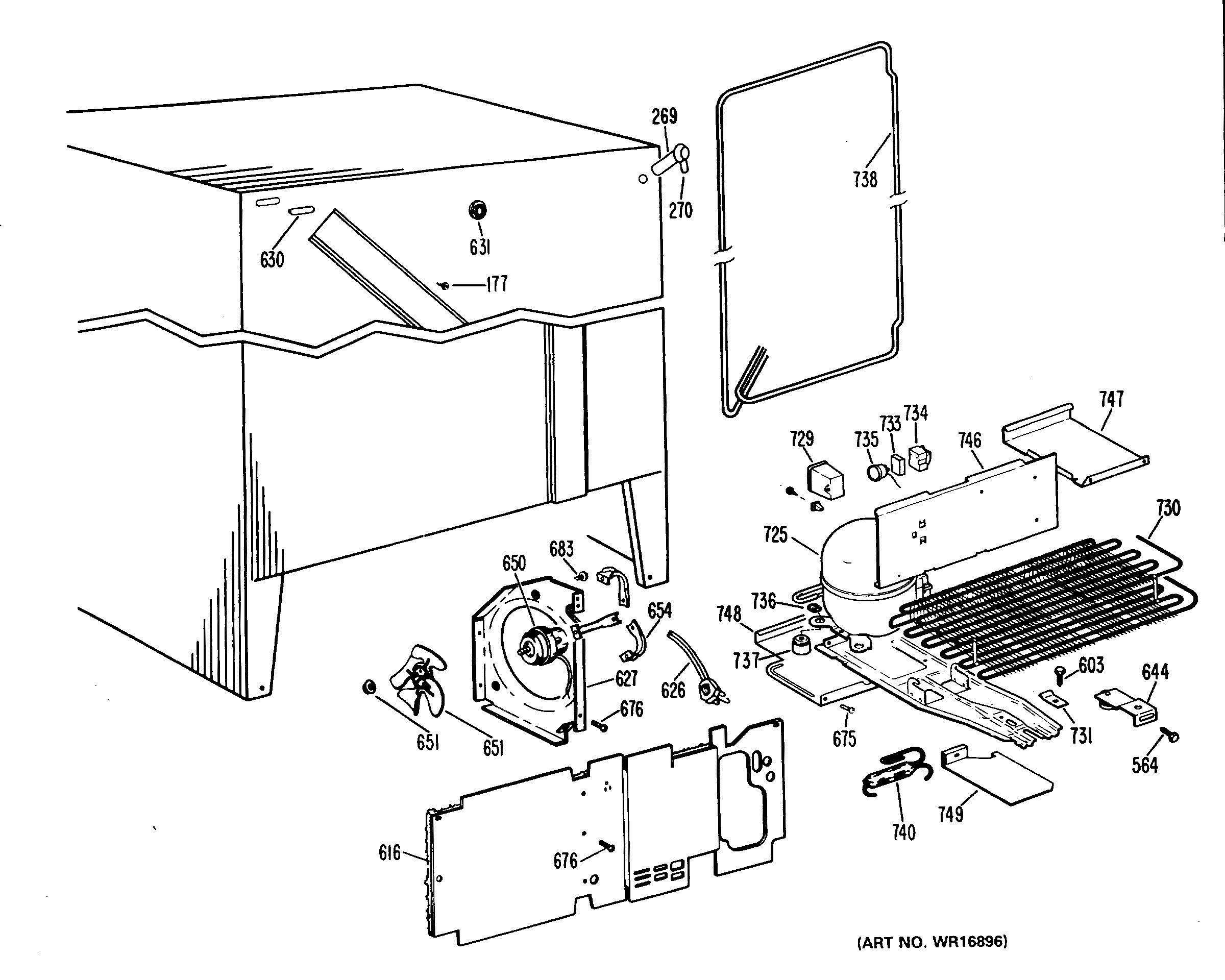

1

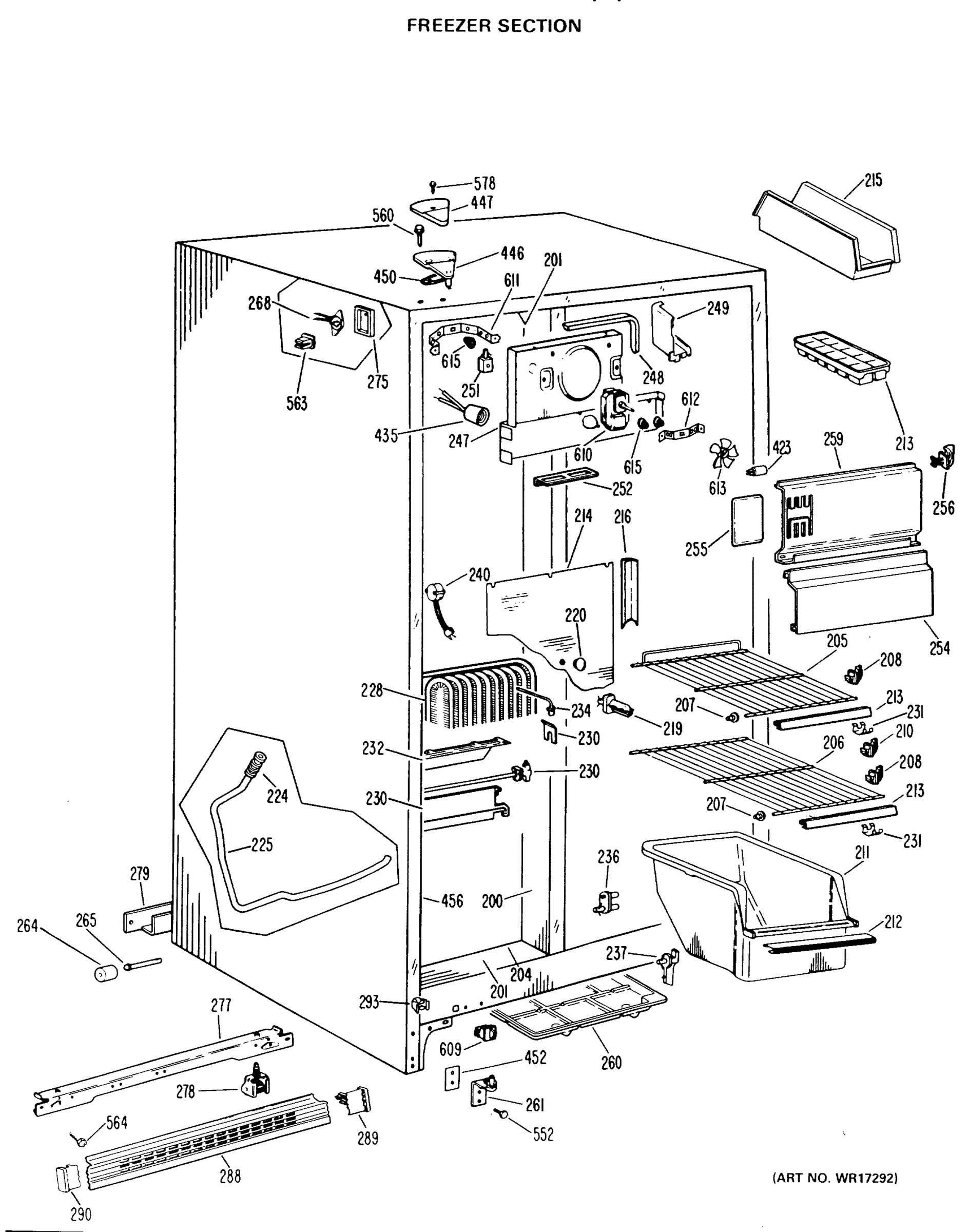

FREEZER SECTION

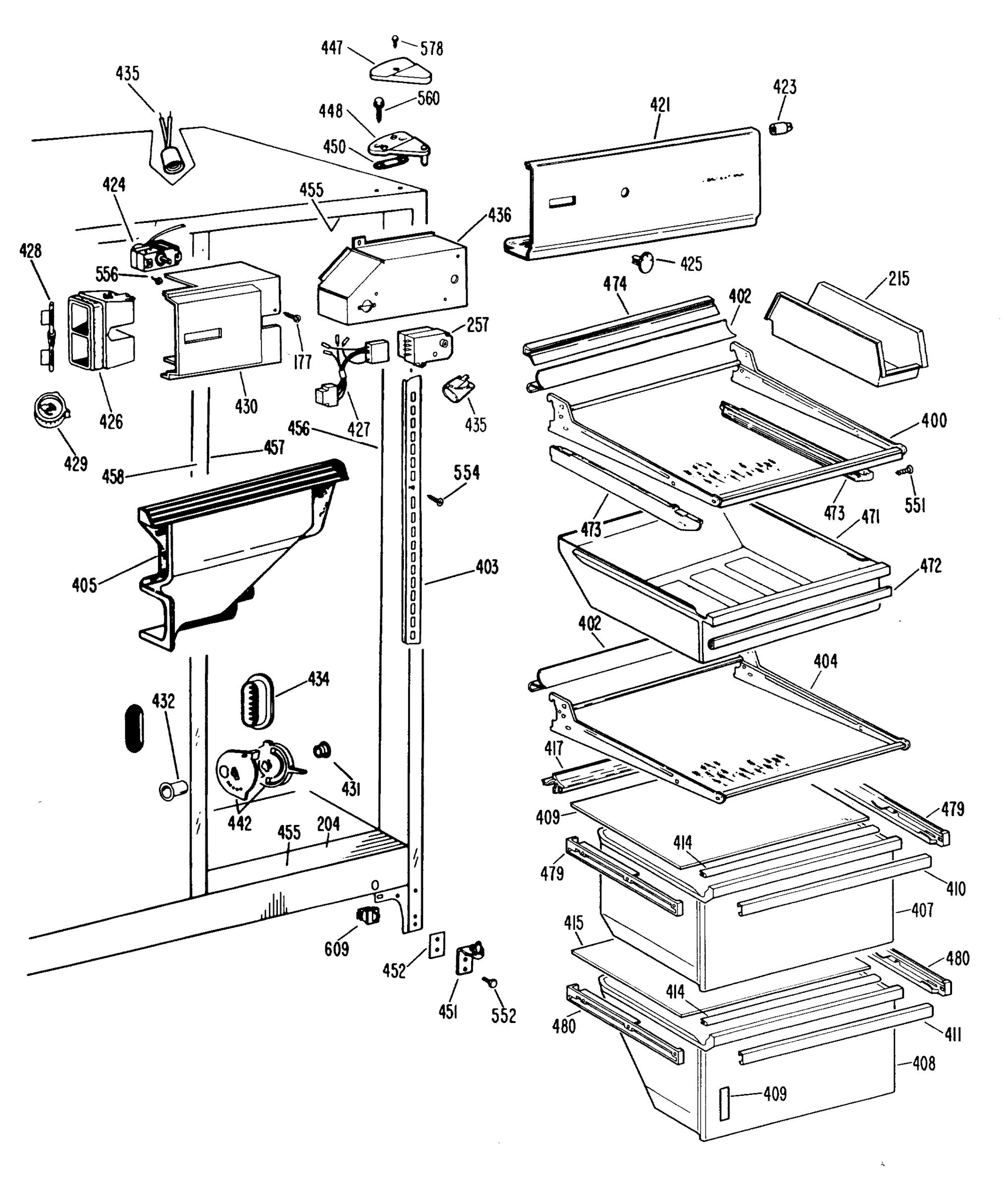

FRESH FOOD SECTION
Common parts from model GE TFX24ZLC Refrigerator
6
GEN WR12X0699 GEN WR12X0699 Contact Us For Availability
7
GEN WR12X0620 GEN WR12X0620 Contact Us For Availability
8
GEN WR12X0621 GEN WR12X0621 Contact Us For Availability
9
GEN WR12X0616 GEN WR12X0616 Contact Us For Availability
10
GEN WR01X1766 GEN WR01X1766 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0465 GEN WR24X0465 Contact Us For Availability
15
GEN WR17X1167 GEN WR17X1167 Contact Us For Availability
17
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0541 GEN WR77X0541 Contact Us For Availability
21
GEN WR17X2507 GEN WR17X2507 Contact Us For Availability
22
GEN WR01X5015 GEN WR01X5015 Contact Us For Availability
22
GEN WR17X2511 GEN WR17X2511 Contact Us For Availability
25
GEN WR02X7968 GEN WR02X7968 Contact Us For Availability
26
GEN WR02X7969 GEN WR02X7969 Contact Us For Availability
103
GEN WR24X0464 GEN WR24X0464 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X1310 GEN WR38X1310 Contact Us For Availability
106
GEN WR22X0397 GEN WR22X0397 Contact Us For Availability
108
GEN WR77X0536 GEN WR77X0536 Contact Us For Availability
109
GEN WR17X2493 GEN WR17X2493 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
113
GEN WR02X7871 GEN WR02X7871 Contact Us For Availability
154
GEN WR01X1765 GEN WR01X1765 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
GEN WR40X1641 GEN WR40X1641 Contact Us For Availability
201
GEN WR40X1638 GEN WR40X1638 Contact Us For Availability
202
GEN WR40X1637 GEN WR40X1637 Contact Us For Availability
205
SHELF FRZ. TOP GEN WR71X1673 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
210
GEN WR02X7215 GEN WR02X7215 Contact Us For Availability
211
GEN WR21X0170 GEN WR21X0170 Contact Us For Availability
212
GEN WR17X2513 GEN WR17X2513 Contact Us For Availability
213
GEN WR38X1316 GEN WR38X1316 Contact Us For Availability
214
GEN WR02X7257 GEN WR02X7257 Contact Us For Availability
214
COVER EVAP GEN WR17X2128 Contact Us For Availability
215
GEN WR32X0898 GEN WR32X0898 Contact Us For Availability
215
GEN WR32X0913 GEN WR32X0913 Contact Us For Availability
216
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
GEN WR02X7926 GEN WR02X7926 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X7845 GEN WR02X7845 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
228
GEN WR85X0201 GEN WR85X0201 Contact Us For Availability
230
GEN WR02X4557 GEN WR02X4557 Contact Us For Availability
230
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
230
GEN WR51X0258 GEN WR51X0258 Contact Us For Availability
231
GEN WR02X4944 GEN WR02X4944 Contact Us For Availability
232
GEN WR02X4970 GEN WR02X4970 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
ORIFICE EVAP FAN GEN WR17X1428 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
GEN WR17X1414 GEN WR17X1414 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
252
GEN WR02X7042 GEN WR02X7042 Contact Us For Availability
254
SHIELD LIGHT FZ GEN WR17X1569 Contact Us For Availability
255
GEN WR02X6254 GEN WR02X6254 Contact Us For Availability
256
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
259
GEN WR17X2502 GEN WR17X2502 Contact Us For Availability
260
GEN WR32X0963 GEN WR32X0963 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
FILL TUBE GEN WR02X6087 Contact Us For Availability
270
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
270
GROMMET WATER FILL GEN WR02X6268 Contact Us For Availability
275
GEN WR02X4339 GEN WR02X4339 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X2005 GEN WR17X2005 Contact Us For Availability
288
GEN WR02X7079 GEN WR02X7079 Contact Us For Availability
288
GRILLE O C GEN WR74X0190 Contact Us For Availability
289
GEN WR02X7154 GEN WR02X7154 Contact Us For Availability
290
GEN WR02X7155 GEN WR02X7155 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WR02X7080 Contact Us For Availability
400
GEN WR71X1928 GEN WR71X1928 Contact Us For Availability
402
GEN WR38X1305 GEN WR38X1305 Contact Us For Availability
403
GEN WR72X0119 GEN WR72X0119 Contact Us For Availability
404
GEN WR71X1929 GEN WR71X1929 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X1049 GEN WR32X1049 Contact Us For Availability
408
GEN WR32X1047 GEN WR32X1047 Contact Us For Availability
409
GEN WR32X1046 GEN WR32X1046 Contact Us For Availability
409
GEN WR02X7214 GEN WR02X7214 Contact Us For Availability
410
GEN WR17X2495 GEN WR17X2495 Contact Us For Availability
411
GEN WR17X2496 GEN WR17X2496 Contact Us For Availability
414
GEN WR14X0339 GEN WR14X0339 Contact Us For Availability
415
GEN WR32X0886 GEN WR32X0886 Contact Us For Availability
417
GEN WR02X7359 GEN WR02X7359 Contact Us For Availability
421
GEN WR17X2497 GEN WR17X2497 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
423
GEN WR02X6350 GEN WR02X6350 Contact Us For Availability
424
GEN WR09X0442 GEN WR09X0442 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X8043 GEN WR02X8043 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR14X0369 GEN WR14X0369 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X4836 GEN WR02X4836 Contact Us For Availability
430
GEN WR17X2209 GEN WR17X2209 Contact Us For Availability
431
GEN WR02X6146 GEN WR02X6146 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
446
GEN WR13X0578 GEN WR13X0578 Contact Us For Availability
447
GEN WR02X7961 GEN WR02X7961 Contact Us For Availability
448
GEN WR13X0577 GEN WR13X0577 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
453
GEN WR40X1631 GEN WR40X1631 Contact Us For Availability
454
GEN WR40X1629 GEN WR40X1629 Contact Us For Availability
455
GEN WR40X1635 GEN WR40X1635 Contact Us For Availability
456
GEN WR40X1632 GEN WR40X1632 Contact Us For Availability
457
GEN WR40X1640 GEN WR40X1640 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
471
GEN WR32X1048 GEN WR32X1048 Contact Us For Availability
472
GEN WR38X1309 GEN WR38X1309 Contact Us For Availability
473
GEN WR17X1515 GEN WR17X1515 Contact Us For Availability
473
GEN WR17X1516 GEN WR17X1516 Contact Us For Availability
474
GEN WR14X0282 GEN WR14X0282 Contact Us For Availability
479
SLIDE PAN R/S GEN WR17X2099 Contact Us For Availability
479
GEN WR17X2100 GEN WR17X2100 Contact Us For Availability
480
GEN WR72X0110 GEN WR72X0110 Contact Us For Availability
480
GEN WR72X0111 GEN WR72X0111 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
558
GEN WZ06X0107 GEN WZ06X0107 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
610
GEN WR60X0178 GEN WR60X0178 Contact Us For Availability
611
GEN WR02X4792 GEN WR02X4792 Contact Us For Availability
612
GEN WR02X7137 GEN WR02X7137 Contact Us For Availability
615
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
616
GEN WR82X0286 GEN WR82X0286 Contact Us For Availability
627
BAFFLE AIR COND FAN GEN WR17X1488 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
654
GEN WR02X7106 GEN WR02X7106 Contact Us For Availability
683
SCREW GEN WZ05X0164 Contact Us For Availability
730
GEN WR84X0135 GEN WR84X0135 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
734
GEN WR02X7928 GEN WR02X7928 Contact Us For Availability
734
GEN WR02X7929 GEN WR02X7929 Contact Us For Availability
735
GEN WR08X0096 GEN WR08X0096 Contact Us For Availability
736
GEN WR02X7228 GEN WR02X7228 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0046 GEN WR84X0046 Contact Us For Availability
746
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
746
GEN WR17X2006 GEN WR17X2006 Contact Us For Availability
747
GEN WR17X2331 GEN WR17X2331 Contact Us For Availability
748
BAFFLE COMP. FLR. GEN WR17X2004 Contact Us For Availability
748
GEN WR17X2345 GEN WR17X2345 Contact Us For Availability
749
GEN WR17X2338 GEN WR17X2338 Contact Us For Availability
900
GEN WR78X8064 GEN WR78X8064 Contact Us For Availability
900
GEN WR78X8065 GEN WR78X8065 Contact Us For Availability
900
GEN WR78X8066 GEN WR78X8066 Contact Us For Availability
910
GEN WR78X7901 GEN WR78X7901 Contact Us For Availability
910
GEN WR78X7902 GEN WR78X7902 Contact Us For Availability
912
GEN WR78X7903 GEN WR78X7903 Contact Us For Availability
32767
GEN 49-6584 GEN 49-6584 Contact Us For Availability
× ![]()
