Model GE TFX22KJC – Common Parts & Diagrams

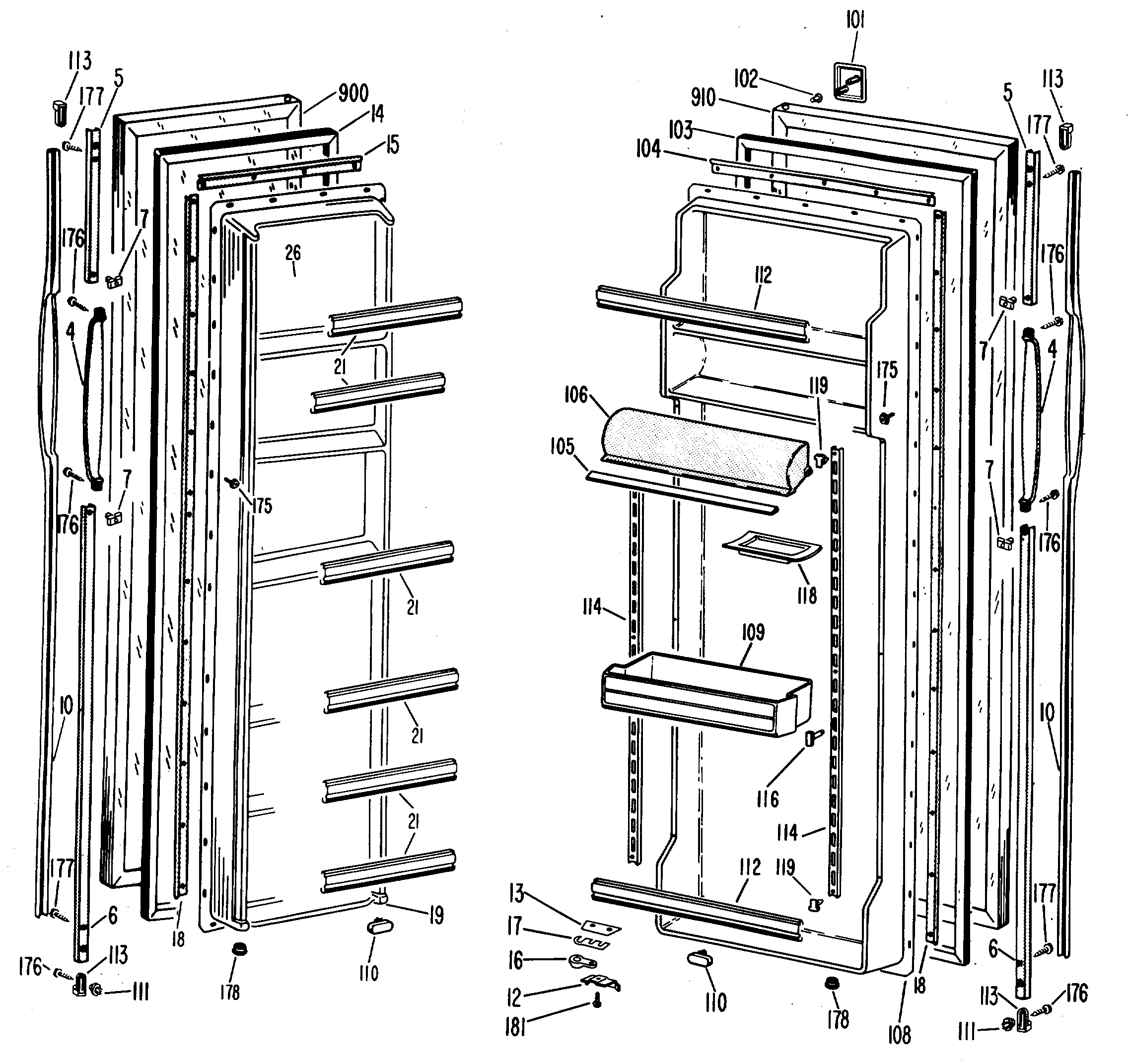

0

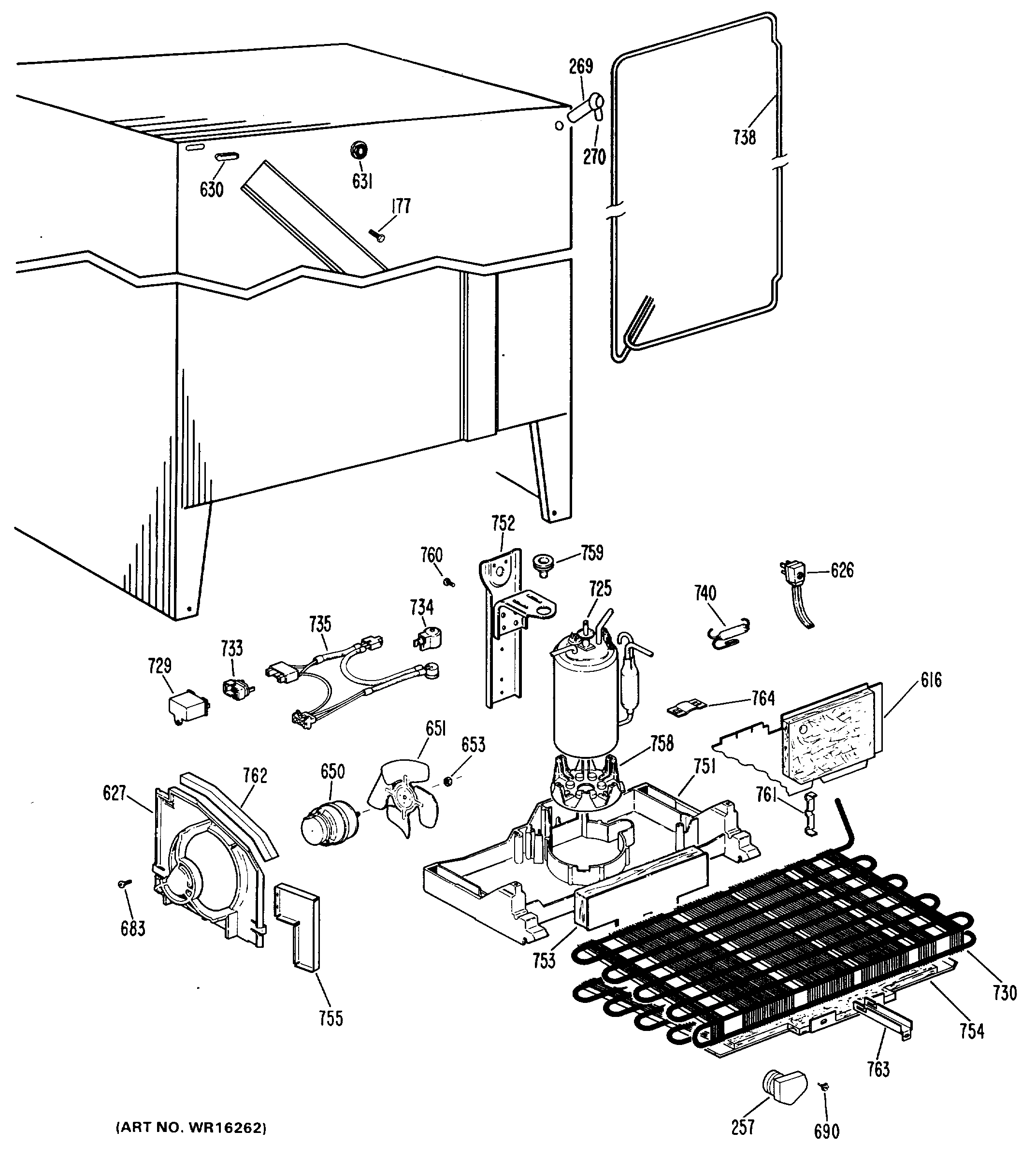

1

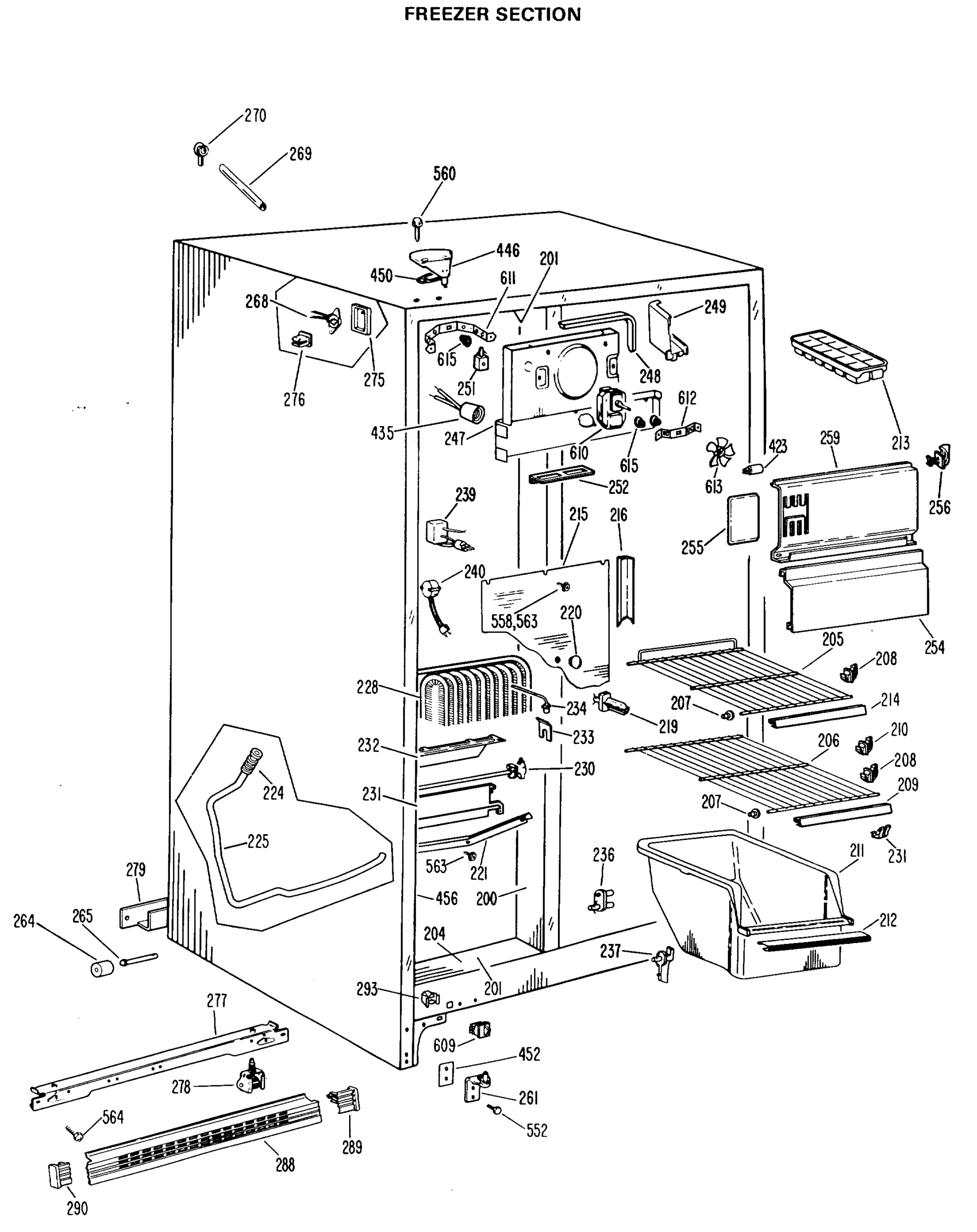

FREEZER SECTION

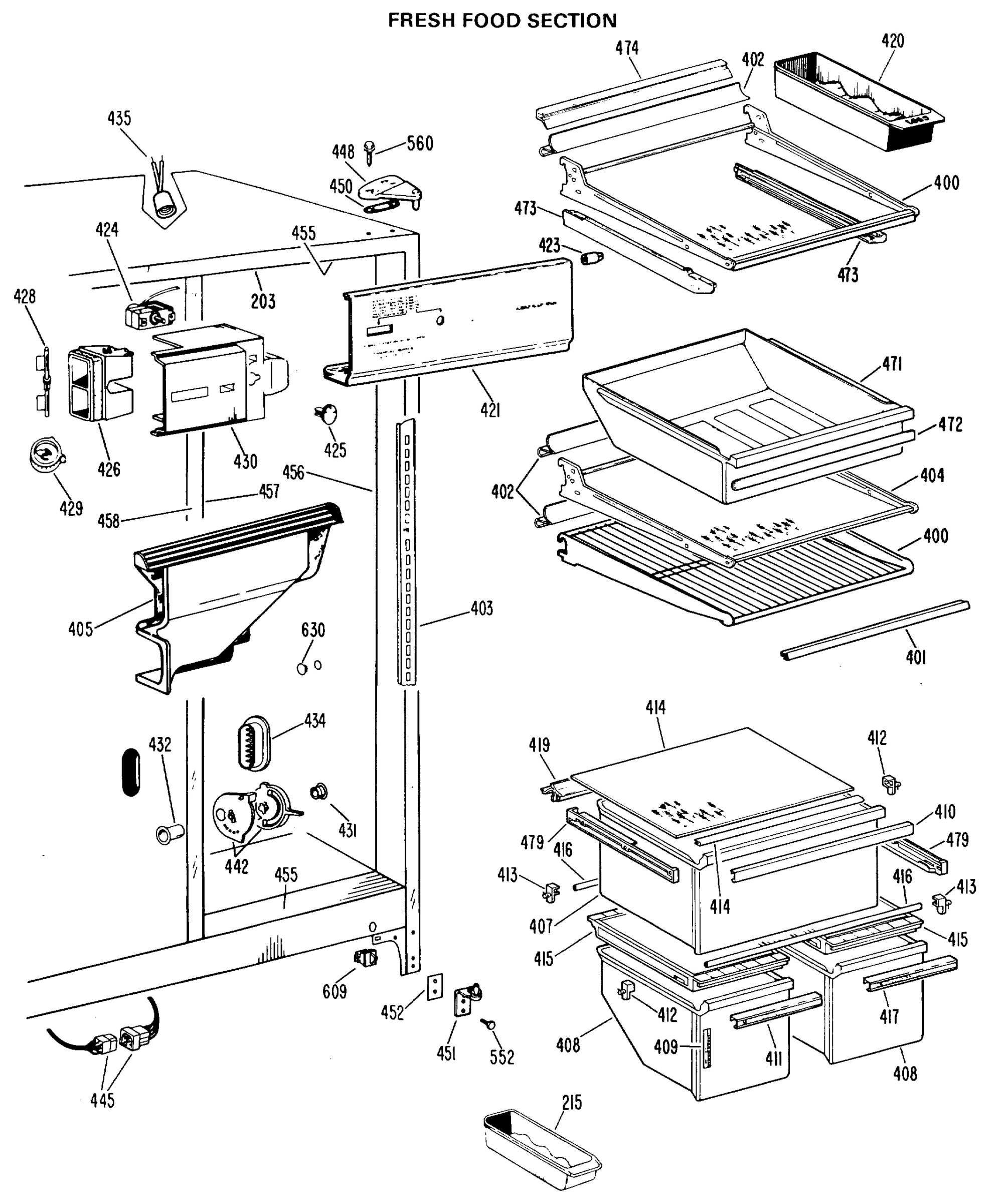

FRESH FOOD SECTION
Common parts from model GE TFX22KJC
5
GEN WR12X0448 GEN WR12X0448 Contact Us For Availability
7
GEN WR01X1246 GEN WR01X1246 Contact Us For Availability
8
GEN WR12X0449 GEN WR12X0449 Contact Us For Availability
10
GEN WR12X0521 GEN WR12X0521 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0425 GEN WR24X0425 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
17
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0474 GEN WR77X0474 Contact Us For Availability
21
GEN WR17X2143 GEN WR17X2143 Contact Us For Availability
101
NAMEPLATE FRZ O.DOOR GE GEN WR03X0408 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR24X0424 GEN WR24X0424 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X0905 GEN WR38X0905 Contact Us For Availability
106
GEN WR22X0334 GEN WR22X0334 Contact Us For Availability
108
GEN WR77X0468 GEN WR77X0468 Contact Us For Availability
109
GEN WR71X1749 GEN WR71X1749 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR01X1247 GEN WR01X1247 Contact Us For Availability
112
GEN WR71X1452 GEN WR71X1452 Contact Us For Availability
113
GEN WR12X0320 GEN WR12X0320 Contact Us For Availability
114
GEN WR17X1391 GEN WR17X1391 Contact Us For Availability
116
GEN WR02X7316 GEN WR02X7316 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
119
GEN WR02X7287 GEN WR02X7287 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
180
GEN WZ05X0166 GEN WZ05X0166 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5371 Contact Us For Availability
203
RETNR BRKR-TOP FF & FZ GEN WR02X5927 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X5872 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X7032 Contact Us For Availability
205
GEN WR71X1656 GEN WR71X1656 Contact Us For Availability
206
SHELF FRZ. MOVABLE GEN WR71X1647 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X1021 GEN WR38X1021 Contact Us For Availability
209
GEN WR38X1025 GEN WR38X1025 Contact Us For Availability
210
GEN WR02X7215 GEN WR02X7215 Contact Us For Availability
211
GEN WR21X0161 GEN WR21X0161 Contact Us For Availability
212
GEN WR17X1979 GEN WR17X1979 Contact Us For Availability
214
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
214
GEN WR02X7257 GEN WR02X7257 Contact Us For Availability
214
GEN WR17X2121 GEN WR17X2121 Contact Us For Availability
215
CLIP EVAP COVER GEN WR02X4843 Contact Us For Availability
215
GEN WR32X0895 GEN WR32X0895 Contact Us For Availability
216
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
PLUG RECESSED GEN WR02X3025 Contact Us For Availability
221
GASKET DRAIN TROUGH GEN WR02X4594 Contact Us For Availability
221
TROUGH DRAIN GEN WR17X1238 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR17X2114 GEN WR17X2114 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
228
L0W SIDE ASM GEN WR85X0200 Contact Us For Availability
230
BRACKET DEF HTR GEN WR02X4837 Contact Us For Availability
230
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
230
GEN WR51X0231 GEN WR51X0231 Contact Us For Availability
231
GEN WR02X4944 GEN WR02X4944 Contact Us For Availability
232
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
239
GEN WR23X0314 GEN WR23X0314 Contact Us For Availability
247
GEN WR17X1413 GEN WR17X1413 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
GEN WR17X1414 GEN WR17X1414 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
252
GEN WR02X7042 GEN WR02X7042 Contact Us For Availability
253
RIVET POP GEN WR01X1168 Contact Us For Availability
254
GEN WR17X1567 GEN WR17X1567 Contact Us For Availability
255
GEN WR02X6254 GEN WR02X6254 Contact Us For Availability
256
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
257
GEN WR02X7568 GEN WR02X7568 Contact Us For Availability
259
GEN WR17X1927 GEN WR17X1927 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
FILL TUBE GEN WR02X6087 Contact Us For Availability
270
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
275
GEN WR02X4339 GEN WR02X4339 Contact Us For Availability
277
GEN WR17X2119 GEN WR17X2119 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X6194 GEN WR17X6194 Contact Us For Availability
288
GEN WR02X7079 GEN WR02X7079 Contact Us For Availability
288
GEN WR74X0189 GEN WR74X0189 Contact Us For Availability
289
GEN WR02X7154 GEN WR02X7154 Contact Us For Availability
290
GEN WR02X7155 GEN WR02X7155 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WR02X7080 Contact Us For Availability
400
GEN WR71X1651 GEN WR71X1651 Contact Us For Availability
402
GEN WR38X0959 GEN WR38X0959 Contact Us For Availability
403
GEN WR72X0062 GEN WR72X0062 Contact Us For Availability
404
GEN WR71X1650 GEN WR71X1650 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X0903 GEN WR32X0903 Contact Us For Availability
408
GEN WR32X0901 GEN WR32X0901 Contact Us For Availability
409
GEN WR02X7214 GEN WR02X7214 Contact Us For Availability
410
GEN WR17X2072 GEN WR17X2072 Contact Us For Availability
411
GEN WR17X1558 GEN WR17X1558 Contact Us For Availability
412
GEN WR02X4941 GEN WR02X4941 Contact Us For Availability
413
GEN WR02X4942 GEN WR02X4942 Contact Us For Availability
414
GEN WR14X0339 GEN WR14X0339 Contact Us For Availability
414
GEN WR32X0893 GEN WR32X0893 Contact Us For Availability
415
GEN WR32X0676 GEN WR32X0676 Contact Us For Availability
416
GEN WR02X4790 GEN WR02X4790 Contact Us For Availability
417
GEN WR17X1557 GEN WR17X1557 Contact Us For Availability
419
GEN WR14X0341 GEN WR14X0341 Contact Us For Availability
420
GEN WR32X0856 GEN WR32X0856 Contact Us For Availability
421
GEN WR17X2101 GEN WR17X2101 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
423
GEN WR02X6350 GEN WR02X6350 Contact Us For Availability
424
GEN WR09X0359 GEN WR09X0359 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GASKET FOAM GEN WR14X0271 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X4836 GEN WR02X4836 Contact Us For Availability
430
CLIP-CONTROL HOUSING GEN WR01X5463 Contact Us For Availability
430
HOUSING CONT GEN WR17X1412 Contact Us For Availability
431
CAP MULLION DUCT GEN WR02X4799 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
435
GEN WR02X7494 GEN WR02X7494 Contact Us For Availability
442
KNOB CONTROL GEN WR02X3883 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
446
GEN WR13X0580 GEN WR13X0580 Contact Us For Availability
448
GEN WR13X0579 GEN WR13X0579 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
SHIM HINGE BTM. GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7011 GEN WR02X7011 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
455
BREAKER STRIP-TOP & BTM. GEN WR40X5378 Contact Us For Availability
456
RETNR BRKR-HINGE & MULL GEN WR02X5926 Contact Us For Availability
456
BREAKER STRIP-HINGE SIDE GEN WR40X5376 Contact Us For Availability
457
BREAKER STRIP-FF MULLION GEN WR40X1575 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
471
GEN WR32X0902 GEN WR32X0902 Contact Us For Availability
472
GEN WR38X0954 GEN WR38X0954 Contact Us For Availability
473
GEN WR17X1515 GEN WR17X1515 Contact Us For Availability
473
GEN WR17X1516 GEN WR17X1516 Contact Us For Availability
474
GEN WR14X0282 GEN WR14X0282 Contact Us For Availability
479
SLIDE PAN R/S GEN WR17X2099 Contact Us For Availability
479
GEN WR17X2100 GEN WR17X2100 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
558
GEN WZ06X0107 GEN WZ06X0107 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
563
GROMMET SCR CLOSED GEN WR01X1326 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
565
SCR 8-32 T TR 1/2 SS XTW GEN WZ06X0113 Contact Us For Availability
568
GEN WZ05X0137 GEN WZ05X0137 Contact Us For Availability
571
GEN WZ04X0247 GEN WZ04X0247 Contact Us For Availability
610
GEN WR60X0175 GEN WR60X0175 Contact Us For Availability
611
GEN WR02X4792 GEN WR02X4792 Contact Us For Availability
612
GEN WR02X7137 GEN WR02X7137 Contact Us For Availability
615
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
616
BAFFLE SOUND REAR ASM GEN WR82X0271 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
627
GEN WR17X2102 GEN WR17X2102 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
FAN BLADE GEN WR60X0167 Contact Us For Availability
678
SCR 8-18 AB HXW 3/8 S GEN WR01X1687 Contact Us For Availability
683
GEN WR01X1720 GEN WR01X1720 Contact Us For Availability
683
SCREW GEN WZ05X0164 Contact Us For Availability
687
GEN WZ04X0224 GEN WZ04X0224 Contact Us For Availability
687
GEN WZ05X0194 GEN WZ05X0194 Contact Us For Availability
691
GEN WR01X1644 GEN WR01X1644 Contact Us For Availability
725
GEN WR87X0223 GEN WR87X0223 Contact Us For Availability
725
REFRIGERANT GEN WR97X5017 Contact Us For Availability
730
GEN WR84X0104 GEN WR84X0104 Contact Us For Availability
733
GEN WR07X0187 GEN WR07X0187 Contact Us For Availability
734
GEN WR02X7396 GEN WR02X7396 Contact Us For Availability
735
GEN WR08X0088 GEN WR08X0088 Contact Us For Availability
738
GEN WR84X0110 GEN WR84X0110 Contact Us For Availability
751
GEN WR17X2088 GEN WR17X2088 Contact Us For Availability
752
GEN WR17X2087 GEN WR17X2087 Contact Us For Availability
753
GEN WR82X0265 GEN WR82X0265 Contact Us For Availability
754
GEN WR82X0282 GEN WR82X0282 Contact Us For Availability
755
GEN WR82X0284 GEN WR82X0284 Contact Us For Availability
758
GEN WR17X2091 GEN WR17X2091 Contact Us For Availability
759
GEN WR02X7394 GEN WR02X7394 Contact Us For Availability
760
GEN WR01X1717 GEN WR01X1717 Contact Us For Availability
761
GEN WR02X7395 GEN WR02X7395 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
763
GEN WR02X7502 GEN WR02X7502 Contact Us For Availability
764
GEN WR02X7500 GEN WR02X7500 Contact Us For Availability
900
GEN WR78X7839 GEN WR78X7839 Contact Us For Availability
901
GEN WR78X7840 GEN WR78X7840 Contact Us For Availability
902
GEN WR78X7841 GEN WR78X7841 Contact Us For Availability
910
GEN WR78X7848 GEN WR78X7848 Contact Us For Availability
911
GEN WR78X7849 GEN WR78X7849 Contact Us For Availability
912
GEN WR78X7850 GEN WR78X7850 Contact Us For Availability
32767
GEN 31-5022 GEN 31-5022 Contact Us For Availability
32767
GEN 49-6537 GEN 49-6537 Contact Us For Availability
32767
NUTSTRIP-TOP HINGE GEN WR02X4198 Contact Us For Availability
32767
GEN WR02X4625 GEN WR02X4625 Contact Us For Availability
32767
GEN WR02X4816 GEN WR02X4816 Contact Us For Availability
32767
GEN WR02X7108 GEN WR02X7108 Contact Us For Availability
32767
GEN WR49X0249 GEN WR49X0249 Contact Us For Availability
× ![]()
