Model GE TFX20RKC Refrigerator – Common Parts & Diagrams
0
1

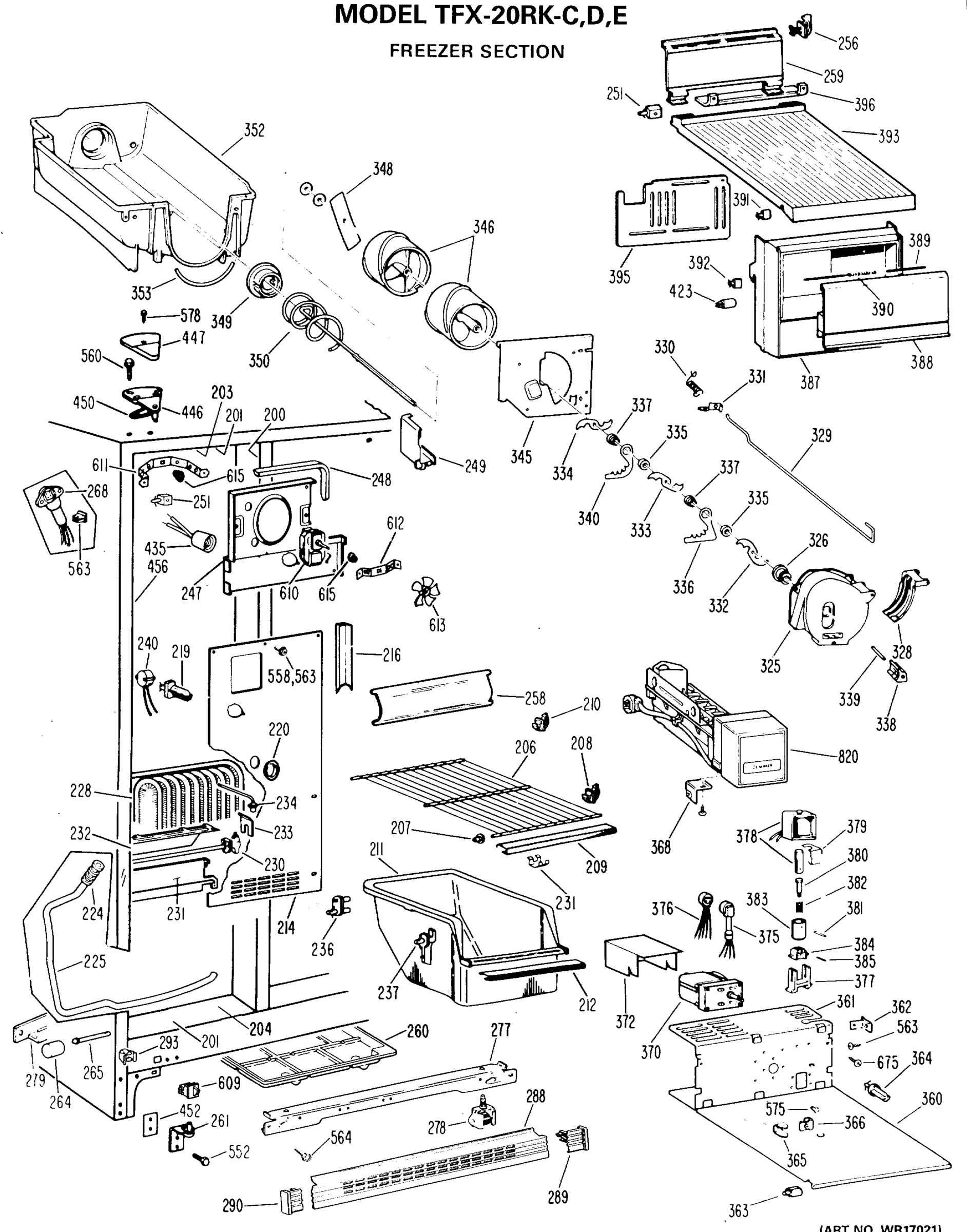

FREEZER SECTION

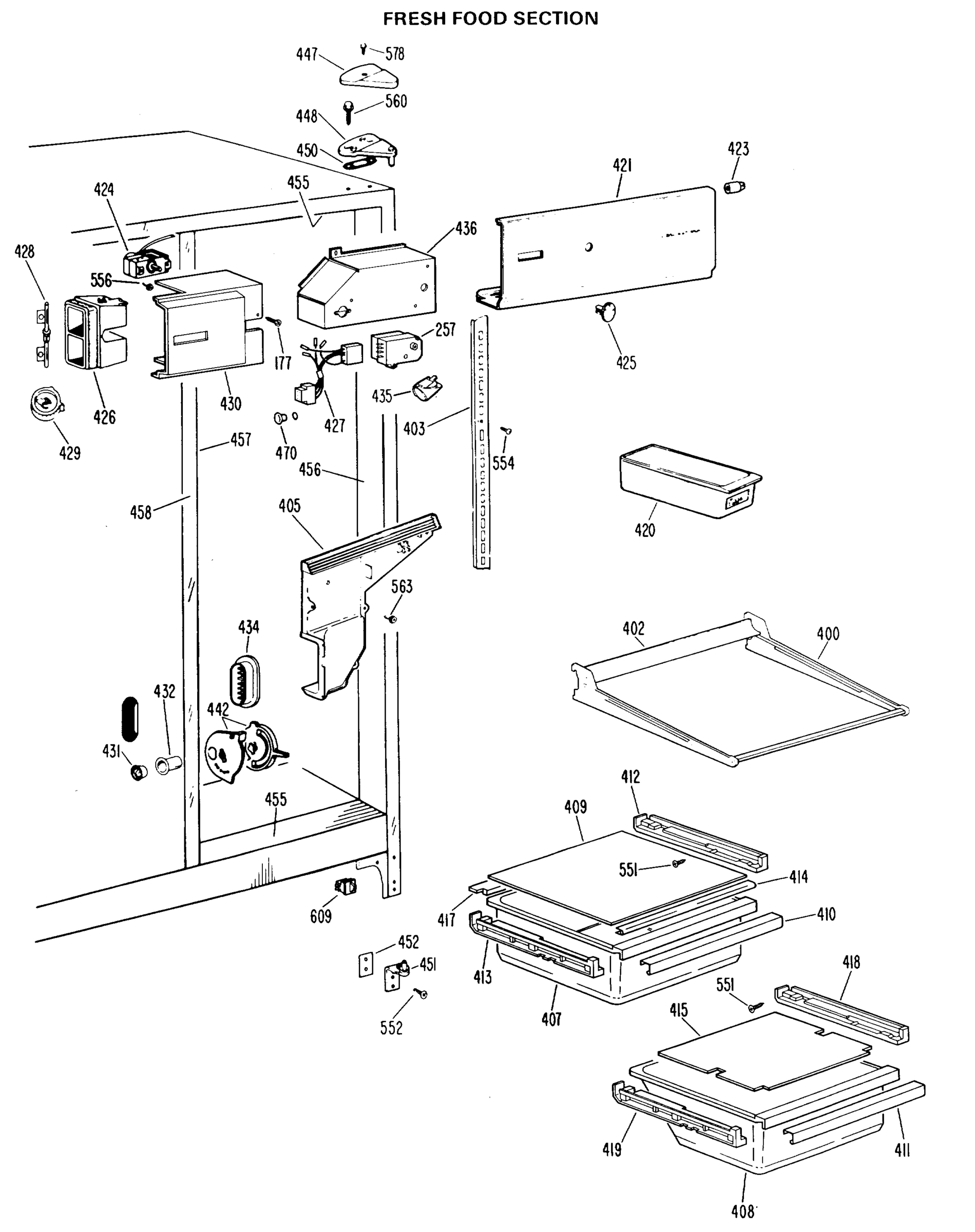

FRESH FOOD SECTION
Common parts from model GE TFX20RKC Refrigerator
8
GEN WR12X0626 GEN WR12X0626 Contact Us For Availability
9
GEN WR12X0625 GEN WR12X0625 Contact Us For Availability
10
GEN WR01X1766 GEN WR01X1766 Contact Us For Availability
11
GEN WR01X5469 GEN WR01X5469 Contact Us For Availability
11
GEN WR38X1191 GEN WR38X1191 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0425 GEN WR24X0425 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
17
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0393 GEN WR77X0393 Contact Us For Availability
20
GEN WR23X0161 GEN WR23X0161 Contact Us For Availability
21
GEN WR71X1456 GEN WR71X1456 Contact Us For Availability
22
GEN WR01X5015 GEN WR01X5015 Contact Us For Availability
22
GEN WR17X2125 GEN WR17X2125 Contact Us For Availability
24
GEN WR38X0907 GEN WR38X0907 Contact Us For Availability
25
GEN WR02X4979 GEN WR02X4979 Contact Us For Availability
26
GEN WR02X4980 GEN WR02X4980 Contact Us For Availability
28
GEN WR17X2193 GEN WR17X2193 Contact Us For Availability
29
GEN WR49X0308 GEN WR49X0308 Contact Us For Availability
29
GEN WR49X5102 GEN WR49X5102 Contact Us For Availability
30
GEN WR38X0953 GEN WR38X0953 Contact Us For Availability
31
GEN WR02X5997 GEN WR02X5997 Contact Us For Availability
32
GEN WR14X0245 GEN WR14X0245 Contact Us For Availability
32
GEN WR17X2321 GEN WR17X2321 Contact Us For Availability
33
GEN WR51X0323 GEN WR51X0323 Contact Us For Availability
34
GEN WR02X3951 GEN WR02X3951 Contact Us For Availability
35
PLUNGER SCREW & SLEEVE GEN WR02X6325 Contact Us For Availability
36
GEN WR02X4235 GEN WR02X4235 Contact Us For Availability
37
CLIP TIME DELAY GEN WR02X4248 Contact Us For Availability
39
TIME DELAY ASM. GEN WR09X0268 Contact Us For Availability
41
CRANK & RIVET ASM DISP GEN WR17X1048 Contact Us For Availability
42
BEARING CRANK DISP GEN WR02X4234 Contact Us For Availability
43
KEEPER LANYARD DISP GEN WR02X4069 Contact Us For Availability
43
LANYARD DISPENSER GEN WR02X4237 Contact Us For Availability
44
GEN WR02X4833 GEN WR02X4833 Contact Us For Availability
45
GEN WR02X4240 GEN WR02X4240 Contact Us For Availability
46
GEN WR02X3950 GEN WR02X3950 Contact Us For Availability
47
GEN WR02X3948 GEN WR02X3948 Contact Us For Availability
48
GEN WR02X7636 GEN WR02X7636 Contact Us For Availability
49
GEN WR02X4592 GEN WR02X4592 Contact Us For Availability
50
GEN WR02X4591 GEN WR02X4591 Contact Us For Availability
52
GEN WR02X4832 GEN WR02X4832 Contact Us For Availability
53
GEN WR17X2322 GEN WR17X2322 Contact Us For Availability
54
GEN WR02X4231 GEN WR02X4231 Contact Us For Availability
55
GEN WR38X0851 GEN WR38X0851 Contact Us For Availability
60
GEN WR17X1269 GEN WR17X1269 Contact Us For Availability
61
GEN WR17X1261 GEN WR17X1261 Contact Us For Availability
62
GEN WR17X1586 GEN WR17X1586 Contact Us For Availability
63
PULLEY TIME DELAY DISP GEN WR17X1457 Contact Us For Availability
64
ARM TIME DELAY DISP GEN WR17X1045 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
GEN WR14X0246 GEN WR14X0246 Contact Us For Availability
68
GEN WR14X0247 GEN WR14X0247 Contact Us For Availability
68
GEN WR17X1257 GEN WR17X1257 Contact Us For Availability
69
SHIELD & FUNNEL ASM DISP GEN WR17X5881 Contact Us For Availability
72
GEN WR02X7068 GEN WR02X7068 Contact Us For Availability
72
GEN WR02X7237 GEN WR02X7237 Contact Us For Availability
72
GEN WR23X0144 GEN WR23X0144 Contact Us For Availability
103
GEN WR24X0427 GEN WR24X0427 Contact Us For Availability
104
GEN WR17X5600 GEN WR17X5600 Contact Us For Availability
105
GEN WR38X0967 GEN WR38X0967 Contact Us For Availability
106
GEN WR22X0335 GEN WR22X0335 Contact Us For Availability
108
GEN WR77X0471 GEN WR77X0471 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
112
GEN WR71X1654 GEN WR71X1654 Contact Us For Availability
113
GEN WR02X7871 GEN WR02X7871 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
154
GEN WR01X1765 GEN WR01X1765 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
179
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5371 Contact Us For Availability
203
RETNR BRKR-TOP FF & FZ GEN WR02X5927 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X7032 Contact Us For Availability
206
SHELF FRZ. MOVABLE GEN WR71X1647 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X1025 GEN WR38X1025 Contact Us For Availability
210
GEN WR02X7215 GEN WR02X7215 Contact Us For Availability
211
GEN WR21X0161 GEN WR21X0161 Contact Us For Availability
212
GEN WR17X1979 GEN WR17X1979 Contact Us For Availability
214
COVER EVAP GEN WR17X2126 Contact Us For Availability
216
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
GEN WR02X7926 GEN WR02X7926 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X7845 GEN WR02X7845 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
228
GEN WR85X0200 GEN WR85X0200 Contact Us For Availability
230
BRACKET DEF HTR GEN WR02X4837 Contact Us For Availability
230
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
230
GEN WR51X0231 GEN WR51X0231 Contact Us For Availability
231
GEN WR02X4944 GEN WR02X4944 Contact Us For Availability
232
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X1413 GEN WR17X1413 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
GEN WR17X1414 GEN WR17X1414 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
256
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
257
SCREW GEN WZ05X0160 Contact Us For Availability
258
GEN WR17X1407 GEN WR17X1407 Contact Us For Availability
259
GEN WR17X1929 GEN WR17X1929 Contact Us For Availability
260
GEN WR32X0963 GEN WR32X0963 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
GEN WR01X1543 GEN WR01X1543 Contact Us For Availability
269
FILL TUBE GEN WR02X6087 Contact Us For Availability
270
GROMMET WATER FILL GEN WR02X6268 Contact Us For Availability
277
RAIL MACH MTG FRT GEN WR17X1491 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X2342 GEN WR17X2342 Contact Us For Availability
288
GEN WR02X7079 GEN WR02X7079 Contact Us For Availability
288
GEN WR74X0183 GEN WR74X0183 Contact Us For Availability
289
GEN WR02X7154 GEN WR02X7154 Contact Us For Availability
290
GEN WR02X7155 GEN WR02X7155 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WR02X7080 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
SPRING DEFLECTOR GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
GEN WR02X4139 GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
GEN WR17X2068 GEN WR17X2068 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
AUGER HELIX DISP GEN WR17X2054 Contact Us For Availability
352
GEN WR30X0257 GEN WR30X0257 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X1735 GEN WR71X1735 Contact Us For Availability
361
GEN WR71X1734 GEN WR71X1734 Contact Us For Availability
362
GEN WR02X4590 GEN WR02X4590 Contact Us For Availability
363
GEN WR02X4465 GEN WR02X4465 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X7311 GEN WR02X7311 Contact Us For Availability
370
GEN WR60X0111 GEN WR60X0111 Contact Us For Availability
371
GEN WR17X1062 GEN WR17X1062 Contact Us For Availability
372
GEN WR02X4782 GEN WR02X4782 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
386
GEN WZ06X0100 GEN WZ06X0100 Contact Us For Availability
387
COVER BUCKET& INSERT ASM GEN WR17 Contact Us For Availability
400
GEN WR71X1672 GEN WR71X1672 Contact Us For Availability
402
GEN WR38X0968 GEN WR38X0968 Contact Us For Availability
403
GEN WR72X0089 GEN WR72X0089 Contact Us For Availability
405
GEN WR17X1382 GEN WR17X1382 Contact Us For Availability
407
GEN WR32X0899 GEN WR32X0899 Contact Us For Availability
408
GEN WR32X0900 GEN WR32X0900 Contact Us For Availability
409
GEN WR32X0654 GEN WR32X0654 Contact Us For Availability
410
GEN WR17X1559 GEN WR17X1559 Contact Us For Availability
411
HANDLE PAN MEAT GEN WR17X1560 Contact Us For Availability
412
SLIDE PAN-R. SIDE GEN WR02X6012 Contact Us For Availability
413
SLIDE PAN-L. SIDE GEN WR02X6013 Contact Us For Availability
414
GEN WR14X5111 GEN WR14X5111 Contact Us For Availability
415
COVER PAN GEN WR32X5173 Contact Us For Availability
417
GEN WR14X5108 GEN WR14X5108 Contact Us For Availability
418
SLIDE PAN-R. SIDE GEN WR02X6014 Contact Us For Availability
419
SLIDE PAN-L. SIDE GEN WR02X6015 Contact Us For Availability
420
GEN WR32X0856 GEN WR32X0856 Contact Us For Availability
421
GEN WR17X2122 GEN WR17X2122 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0359 GEN WR09X0359 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GASKET FOAM GEN WR14X0271 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X4836 GEN WR02X4836 Contact Us For Availability
430
CLIP-CONTROL HOUSING GEN WR01X5463 Contact Us For Availability
430
GEN WR17X2209 GEN WR17X2209 Contact Us For Availability
431
CAP MULLION DUCT GEN WR02X4799 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
447
GEN WR02X7569 GEN WR02X7569 Contact Us For Availability
447
GEN WR02X7570 GEN WR02X7570 Contact Us For Availability
448
GEN WR13X0577 GEN WR13X0577 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
455
BREAKER STRIP-TOP & BTM. GEN WR40X5375 Contact Us For Availability
456
RETAINER BREAKER-BTM FF GEN WR02X4598 Contact Us For Availability
456
RETNR BRKR-HINGE & MULL GEN WR02X5926 Contact Us For Availability
456
BREAKER STRIP-HINGE SIDE GEN WR40X5376 Contact Us For Availability
457
BREAKER STRIP-FF MULLION GEN WR40X1575 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
616
GEN WR82X0290 GEN WR82X0290 Contact Us For Availability
627
BAFFLE AIR COND FAN GEN WR17X1488 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
654
GEN WR02X7106 GEN WR02X7106 Contact Us For Availability
683
SCREW GEN WZ05X0164 Contact Us For Availability
725
REFRIGERANT 6.5 OZ. GEN WR97X5036 Contact Us For Availability
730
GEN WR84X0138 GEN WR84X0138 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
734
GEN WR02X7915 GEN WR02X7915 Contact Us For Availability
734
GEN WR02X7917 GEN WR02X7917 Contact Us For Availability
735
GEN WR02X7916 GEN WR02X7916 Contact Us For Availability
735
GEN WR08X0095 GEN WR08X0095 Contact Us For Availability
736
GEN WR02X7228 GEN WR02X7228 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0110 GEN WR84X0110 Contact Us For Availability
746
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
746
GEN WR17X2006 GEN WR17X2006 Contact Us For Availability
747
GEN WR17X2337 GEN WR17X2337 Contact Us For Availability
748
BAFFLE COMP. FLR. GEN WR17X2004 Contact Us For Availability
749
GEN WR17X2338 GEN WR17X2338 Contact Us For Availability
801
COIL-ICE GEN WR62X0044 Contact Us For Availability
802
ELBOW WATER FITTING GEN WR57X0052 Contact Us For Availability
803
GEN WR57X0046 GEN WR57X0046 Contact Us For Availability
803
FITTING HOSE GEN WR57X0050 Contact Us For Availability
900
GEN WR78X8088 GEN WR78X8088 Contact Us For Availability
900
GEN WR78X8089 GEN WR78X8089 Contact Us For Availability
900
GEN WR78X8090 GEN WR78X8090 Contact Us For Availability
910
GEN WR78X8082 GEN WR78X8082 Contact Us For Availability
910
GEN WR78X8083 GEN WR78X8083 Contact Us For Availability
910
GEN WR78X8084 GEN WR78X8084 Contact Us For Availability
32767
GEN 49-6405 GEN 49-6405 Contact Us For Availability
32767
GEN 49-6564 GEN 49-6564 Contact Us For Availability
× ![]()
