Model GE TFX20KHB Refrigerator – Common Parts & Diagrams
0
1

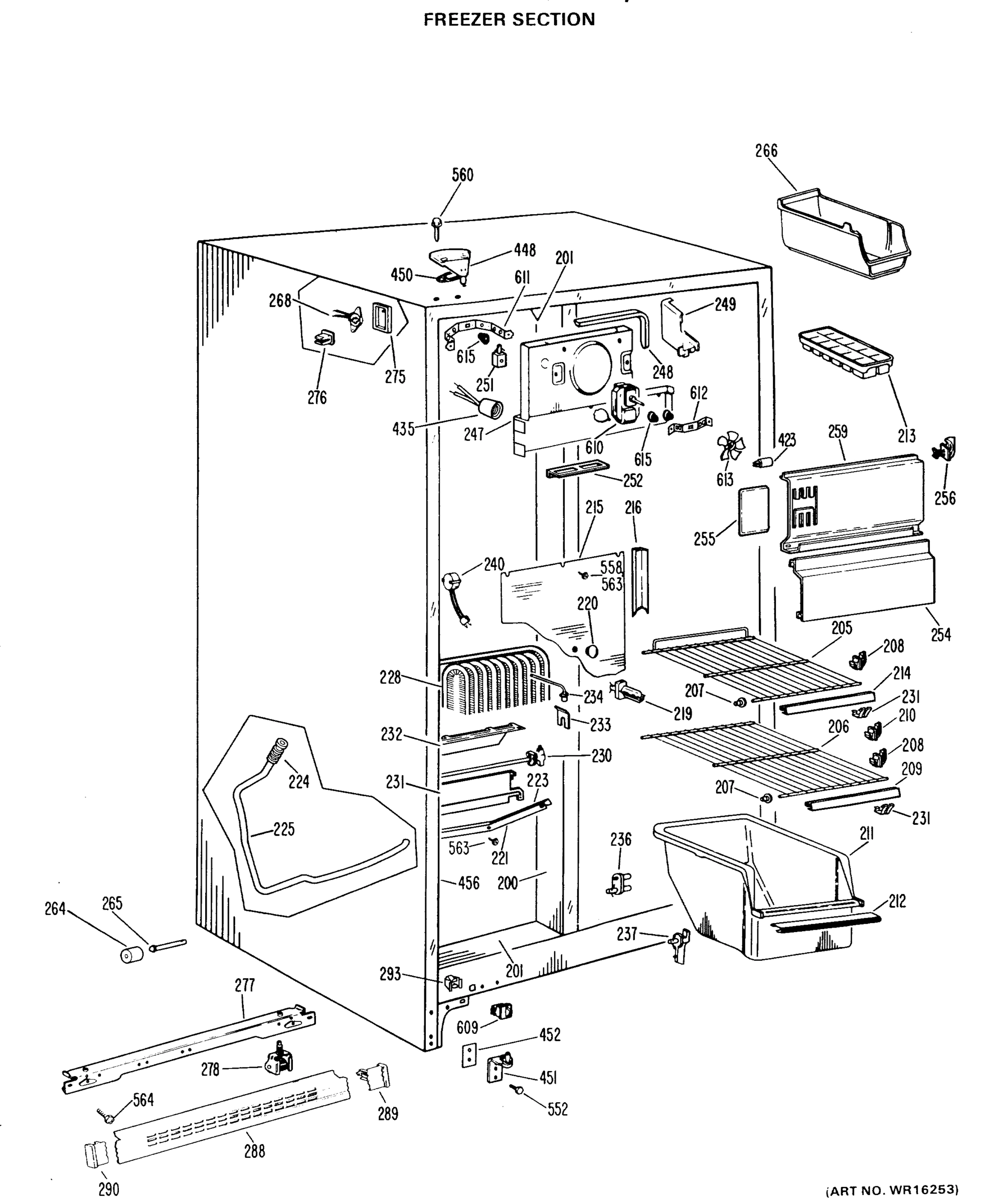

FREEZER SECTION

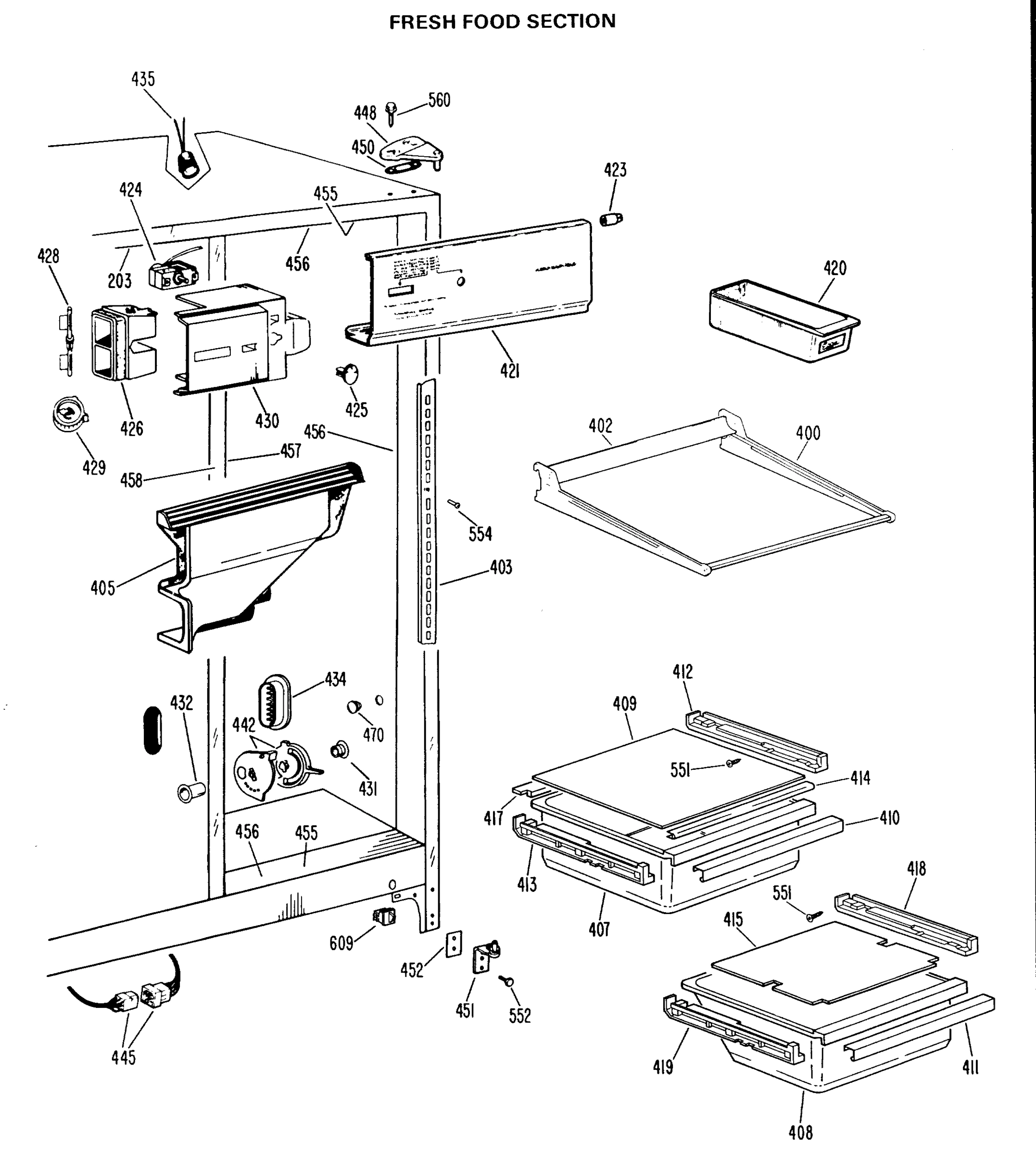

FRESH FOOD SECTION
Common parts from model GE TFX20KHB Refrigerator
4
GEN WR12X0317 GEN WR12X0317 Contact Us For Availability
5
GEN WR12X0448 GEN WR12X0448 Contact Us For Availability
7
GEN WR01X1246 GEN WR01X1246 Contact Us For Availability
8
GEN WR12X0449 GEN WR12X0449 Contact Us For Availability
10
GEN WR12X0521 GEN WR12X0521 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR02X4540 GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0425 GEN WR24X0425 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0389 GEN WR77X0389 Contact Us For Availability
21
GEN WR71X1456 GEN WR71X1456 Contact Us For Availability
22
GEN WR01X5015 GEN WR01X5015 Contact Us For Availability
22
GEN WR17X2120 GEN WR17X2120 Contact Us For Availability
25
GEN WR02X4979 GEN WR02X4979 Contact Us For Availability
26
GEN WR02X4980 GEN WR02X4980 Contact Us For Availability
101
NAMEPLATE FRZ O.DOOR GE GEN WR03X0408 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR24X0427 GEN WR24X0427 Contact Us For Availability
104
GEN WR17X5600 GEN WR17X5600 Contact Us For Availability
105
GEN WR38X0967 GEN WR38X0967 Contact Us For Availability
106
GEN WR22X0273 GEN WR22X0273 Contact Us For Availability
108
GEN WR77X0406 GEN WR77X0406 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR01X1247 GEN WR01X1247 Contact Us For Availability
112
GEN WR71X1654 GEN WR71X1654 Contact Us For Availability
113
GEN WR12X0320 GEN WR12X0320 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
UNKNOWN GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
180
GEN WZ05X0166 GEN WZ05X0166 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
UNKNOWN GEN WR40X1574 Contact Us For Availability
201
UNKNOWN GEN WR40X5371 Contact Us For Availability
203
UNKNOWN GEN WR02X5927 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X7032 Contact Us For Availability
205
UNKNOWN GEN WR71X1656 Contact Us For Availability
206
UNKNOWN GEN WR71X1647 Contact Us For Availability
207
UNKNOWN GEN WR02X4676 Contact Us For Availability
208
UNKNOWN GEN WR02X4674 Contact Us For Availability
209
UNKNOWN GEN WR38X1021 Contact Us For Availability
209
UNKNOWN GEN WR38X1025 Contact Us For Availability
210
UNKNOWN GEN WR02X7215 Contact Us For Availability
211
UNKNOWN GEN WR21X0116 Contact Us For Availability
212
UNKNOWN GEN WR17X1979 Contact Us For Availability
214
UNKNOWN GEN WR01X1332 Contact Us For Availability
214
UNKNOWN GEN WR02X7257 Contact Us For Availability
214
UNKNOWN GEN WR17X2121 Contact Us For Availability
215
UNKNOWN GEN WR02X4843 Contact Us For Availability
216
UNKNOWN GEN WR14X0274 Contact Us For Availability
219
UNKNOWN GEN WR02X4421 Contact Us For Availability
220
UNKNOWN GEN WR02X3025 Contact Us For Availability
221
UNKNOWN GEN WR02X4594 Contact Us For Availability
221
UNKNOWN GEN WR17X1238 Contact Us For Availability
224
UNKNOWN GEN WR02X4967 Contact Us For Availability
225
UNKNOWN GEN WR01X5042 Contact Us For Availability
225
UNKNOWN GEN WR02X4838 Contact Us For Availability
225
UNKNOWN GEN WR17X2114 Contact Us For Availability
228
UNKNOWN GEN WR02X4982 Contact Us For Availability
228
UNKNOWN GEN WR02X4983 Contact Us For Availability
228
UNKNOWN GEN WR85X0200 Contact Us For Availability
230
UNKNOWN GEN WR02X4837 Contact Us For Availability
230
UNKNOWN GEN WR17X1276 Contact Us For Availability
230
UNKNOWN GEN WR51X0231 Contact Us For Availability
231
UNKNOWN GEN WR02X4944 Contact Us For Availability
232
UNKNOWN GEN WR02X4971 Contact Us For Availability
234
UNKNOWN GEN WR02X4546 Contact Us For Availability
236
UNKNOWN GEN WR02X4548 Contact Us For Availability
237
UNKNOWN GEN WR02X7036 Contact Us For Availability
239
GEN WR23X0314 GEN WR23X0314 Contact Us For Availability
247
UNKNOWN GEN WR17X1413 Contact Us For Availability
248
UNKNOWN GEN WR14X0272 Contact Us For Availability
249
UNKNOWN GEN WR17X1414 Contact Us For Availability
251
UNKNOWN GEN WR02X2880 Contact Us For Availability
252
UNKNOWN GEN WR02X7042 Contact Us For Availability
253
RIVET POP GEN WR01X1168 Contact Us For Availability
254
UNKNOWN GEN WR17X1567 Contact Us For Availability
255
UNKNOWN GEN WR02X6254 Contact Us For Availability
256
UNKNOWN GEN WR02X4839 Contact Us For Availability
257
UNKNOWN GEN WR02X4527 Contact Us For Availability
259
UNKNOWN GEN WR17X1927 Contact Us For Availability
265
UNKNOWN GEN WR02X3598 Contact Us For Availability
265
UNKNOWN GEN WR02X4742 Contact Us For Availability
266
UNKNOWN GEN WR30X0198 Contact Us For Availability
268
UNKNOWN GEN WR23X0312 Contact Us For Availability
269
UNKNOWN GEN WR02X6087 Contact Us For Availability
270
UNKNOWN GEN WR02X3248 Contact Us For Availability
275
UNKNOWN GEN WR02X4339 Contact Us For Availability
277
UNKNOWN GEN WR17X1491 Contact Us For Availability
278
UNKNOWN GEN WR02X4858 Contact Us For Availability
288
UNKNOWN GEN WR02X7079 Contact Us For Availability
288
UNKNOWN GEN WR74X0183 Contact Us For Availability
289
UNKNOWN GEN WR02X7154 Contact Us For Availability
290
UNKNOWN GEN WR02X7155 Contact Us For Availability
293
UNKNOWN GEN WR02X7080 Contact Us For Availability
400
UNKNOWN GEN WR71X1672 Contact Us For Availability
402
UNKNOWN GEN WR38X0968 Contact Us For Availability
403
UNKNOWN GEN WR72X5041 Contact Us For Availability
405
UNKNOWN GEN WR14X0264 Contact Us For Availability
405
UNKNOWN GEN WR17X1382 Contact Us For Availability
407
UNKNOWN GEN WR32X0629 Contact Us For Availability
408
UNKNOWN GEN WR32X0630 Contact Us For Availability
409
UNKNOWN GEN WR32X0654 Contact Us For Availability
410
UNKNOWN GEN WR17X1559 Contact Us For Availability
411
UNKNOWN GEN WR17X1560 Contact Us For Availability
412
UNKNOWN GEN WR02X6012 Contact Us For Availability
413
UNKNOWN GEN WR02X6013 Contact Us For Availability
414
UNKNOWN GEN WR14X5111 Contact Us For Availability
415
UNKNOWN GEN WR32X5173 Contact Us For Availability
417
UNKNOWN GEN WR14X5108 Contact Us For Availability
418
UNKNOWN GEN WR02X6014 Contact Us For Availability
419
UNKNOWN GEN WR02X6015 Contact Us For Availability
420
UNKNOWN GEN WR32X0856 Contact Us For Availability
421
UNKNOWN GEN WR17X2122 Contact Us For Availability
423
UNKNOWN GEN WR02X6347 Contact Us For Availability
423
UNKNOWN GEN WR02X6350 Contact Us For Availability
424
UNKNOWN GEN WR09X0359 Contact Us For Availability
425
UNKNOWN GEN WR02X7157 Contact Us For Availability
426
UNKNOWN GEN WR02X3880 Contact Us For Availability
426
UNKNOWN GEN WR02X4834 Contact Us For Availability
426
UNKNOWN GEN WR14X0271 Contact Us For Availability
428
UNKNOWN GEN WR02X4835 Contact Us For Availability
429
UNKNOWN GEN WR02X4836 Contact Us For Availability
430
UNKNOWN GEN WR01X5463 Contact Us For Availability
430
UNKNOWN GEN WR17X1412 Contact Us For Availability
431
UNKNOWN GEN WR02X4799 Contact Us For Availability
432
UNKNOWN GEN WR02X3886 Contact Us For Availability
434
UNKNOWN GEN WR02X4542 Contact Us For Availability
435
UNKNOWN GEN WR02X7494 Contact Us For Availability
442
KNOB CONTROL GEN WR02X3883 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
UNKNOWN GEN WR02X7035 Contact Us For Availability
445
UNKNOWN GEN WR49X0233 Contact Us For Availability
448
UNKNOWN GEN WR13X0496 Contact Us For Availability
450
UNKNOWN GEN WR02X4194 Contact Us For Availability
452
UNKNOWN GEN WR02X4497 Contact Us For Availability
452
UNKNOWN GEN WR02X7011 Contact Us For Availability
452
UNKNOWN GEN WR02X7190 Contact Us For Availability
455
UNKNOWN GEN WR40X5375 Contact Us For Availability
456
UNKNOWN GEN WR02X4597 Contact Us For Availability
456
UNKNOWN GEN WR02X4598 Contact Us For Availability
456
UNKNOWN GEN WR02X5926 Contact Us For Availability
456
UNKNOWN GEN WR40X5376 Contact Us For Availability
457
UNKNOWN GEN WR40X1575 Contact Us For Availability
458
UNKNOWN GEN WR02X4739 Contact Us For Availability
458
UNKNOWN GEN WR02X7031 Contact Us For Availability
458
UNKNOWN GEN WR02X7033 Contact Us For Availability
458
UNKNOWN GEN WR40X1576 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
551
UNKNOWN GEN WZ04X0244 Contact Us For Availability
552
UNKNOWN GEN WR01X1587 Contact Us For Availability
554
UNKNOWN GEN WR01X1483 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
558
UNKNOWN GEN WZ06X0107 Contact Us For Availability
560
UNKNOWN GEN WR01X1249 Contact Us For Availability
563
UNKNOWN GEN WR01X1326 Contact Us For Availability
564
UNKNOWN GEN WR01X1194 Contact Us For Availability
565
SCR 8-32 T TR 1/2 SS XTW GEN WZ06X0113 Contact Us For Availability
568
GEN WZ05X0137 GEN WZ05X0137 Contact Us For Availability
571
GEN WZ04X0247 GEN WZ04X0247 Contact Us For Availability
610
UNKNOWN GEN WR60X0168 Contact Us For Availability
611
UNKNOWN GEN WR02X4792 Contact Us For Availability
612
UNKNOWN GEN WR02X7137 Contact Us For Availability
615
UNKNOWN GEN WR02X2945 Contact Us For Availability
616
UNKNOWN GEN WR82X0271 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
627
UNKNOWN GEN WR17X2102 Contact Us For Availability
631
UNKNOWN GEN WR02X4829 Contact Us For Availability
631
UNKNOWN GEN WR02X4968 Contact Us For Availability
651
UNKNOWN GEN WR01X1515 Contact Us For Availability
651
UNKNOWN GEN WR01X1714 Contact Us For Availability
651
UNKNOWN GEN WR60X0167 Contact Us For Availability
678
SCR 8-18 AB HXW 3/8 S GEN WR01X1687 Contact Us For Availability
683
UNKNOWN GEN WR01X1720 Contact Us For Availability
683
UNKNOWN GEN WZ05X0164 Contact Us For Availability
687
GEN WZ04X0224 GEN WZ04X0224 Contact Us For Availability
687
UNKNOWN GEN WZ05X0194 Contact Us For Availability
689
GEN WR01X1598 GEN WR01X1598 Contact Us For Availability
691
GEN WR01X1644 GEN WR01X1644 Contact Us For Availability
725
UNKNOWN GEN WR87X0208 Contact Us For Availability
725
UNKNOWN GEN WR97X0086 Contact Us For Availability
730
UNKNOWN GEN WR84X0104 Contact Us For Availability
733
GEN WR07X0185 GEN WR07X0185 Contact Us For Availability
734
UNKNOWN GEN WR02X7396 Contact Us For Availability
738
UNKNOWN GEN WR84X0110 Contact Us For Availability
751
UNKNOWN GEN WR17X2088 Contact Us For Availability
752
UNKNOWN GEN WR17X2087 Contact Us For Availability
753
UNKNOWN GEN WR82X0265 Contact Us For Availability
754
UNKNOWN GEN WR82X0272 Contact Us For Availability
755
UNKNOWN GEN WR82X0268 Contact Us For Availability
758
UNKNOWN GEN WR17X2091 Contact Us For Availability
759
UNKNOWN GEN WR02X7394 Contact Us For Availability
760
UNKNOWN GEN WR01X1717 Contact Us For Availability
761
UNKNOWN GEN WR02X7395 Contact Us For Availability
762
UNKNOWN GEN WR02X7493 Contact Us For Availability
763
UNKNOWN GEN WR02X7502 Contact Us For Availability
764
UNKNOWN GEN WR02X7500 Contact Us For Availability
765
UNKNOWN GEN WR50X0104 Contact Us For Availability
900
GEN WR78X7453 GEN WR78X7453 Contact Us For Availability
901
GEN WR78X7454 GEN WR78X7454 Contact Us For Availability
902
GEN WR78X7455 GEN WR78X7455 Contact Us For Availability
910
GEN WR78X7456 GEN WR78X7456 Contact Us For Availability
911
GEN WR78X7457 GEN WR78X7457 Contact Us For Availability
912
GEN WR78X7458 GEN WR78X7458 Contact Us For Availability
32767
GEN 31-5022 GEN 31-5022 Contact Us For Availability
32767
GEN 49-6515 GEN 49-6515 Contact Us For Availability
32767
NUTSTRIP-TOP HINGE GEN WR02X4198 Contact Us For Availability
32767
GEN WR02X4625 GEN WR02X4625 Contact Us For Availability
32767
GEN WR02X4816 GEN WR02X4816 Contact Us For Availability
32767
GEN WR02X7108 GEN WR02X7108 Contact Us For Availability
32767
GEN WR49X0249 GEN WR49X0249 Contact Us For Availability
32767
GEN WR78X7606 GEN WR78X7606 Contact Us For Availability
32767
GEN WR78X7607 GEN WR78X7607 Contact Us For Availability
32767
GEN WR78X7608 GEN WR78X7608 Contact Us For Availability
32767
GEN WR78X7741 GEN WR78X7741 Contact Us For Availability
× ![]()
