Model GE TFF24ZAC Refrigerator – Common Parts & Diagrams
BACKVIEW
FREEZER SECTION

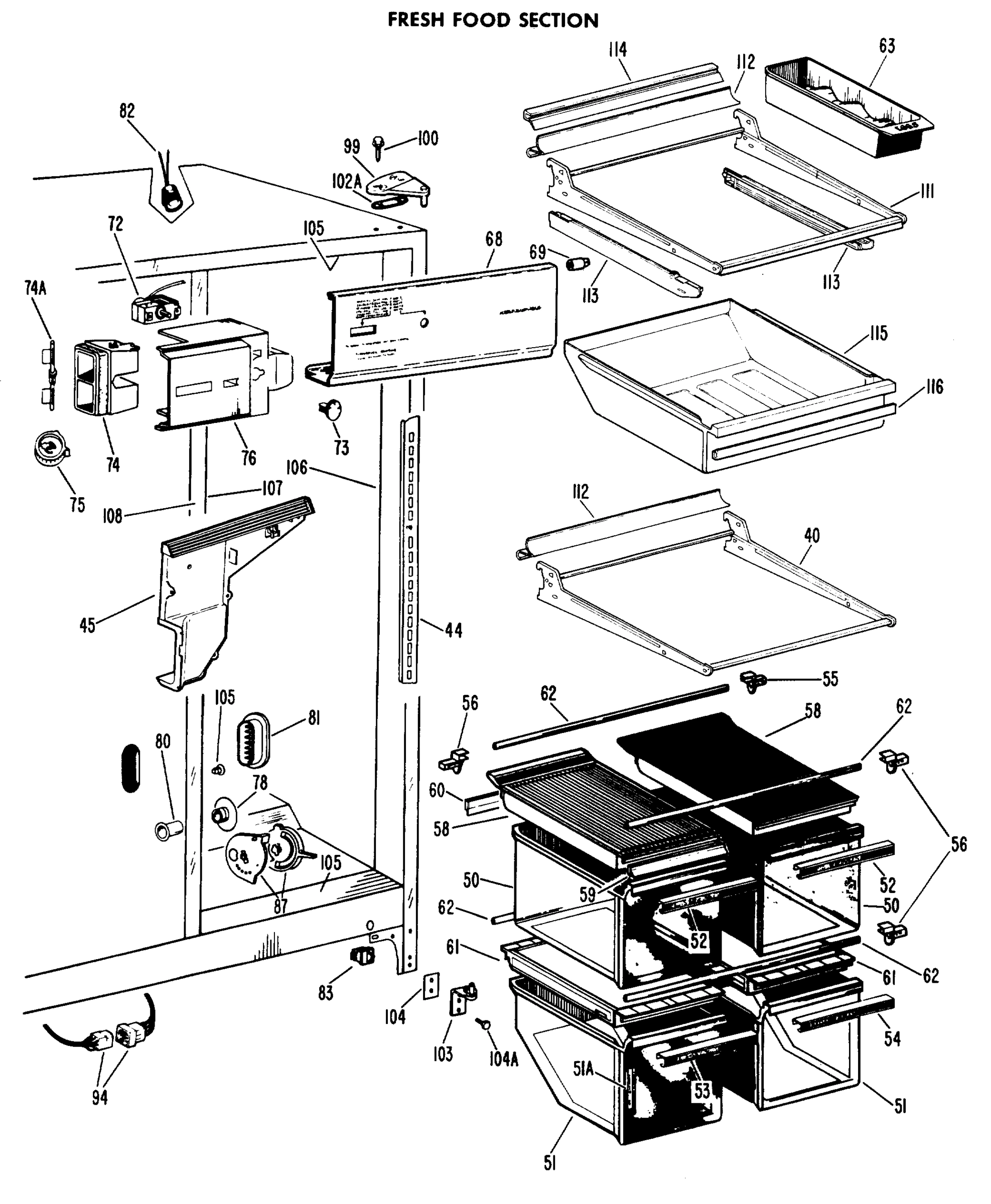

FRESH FOOD SECTION

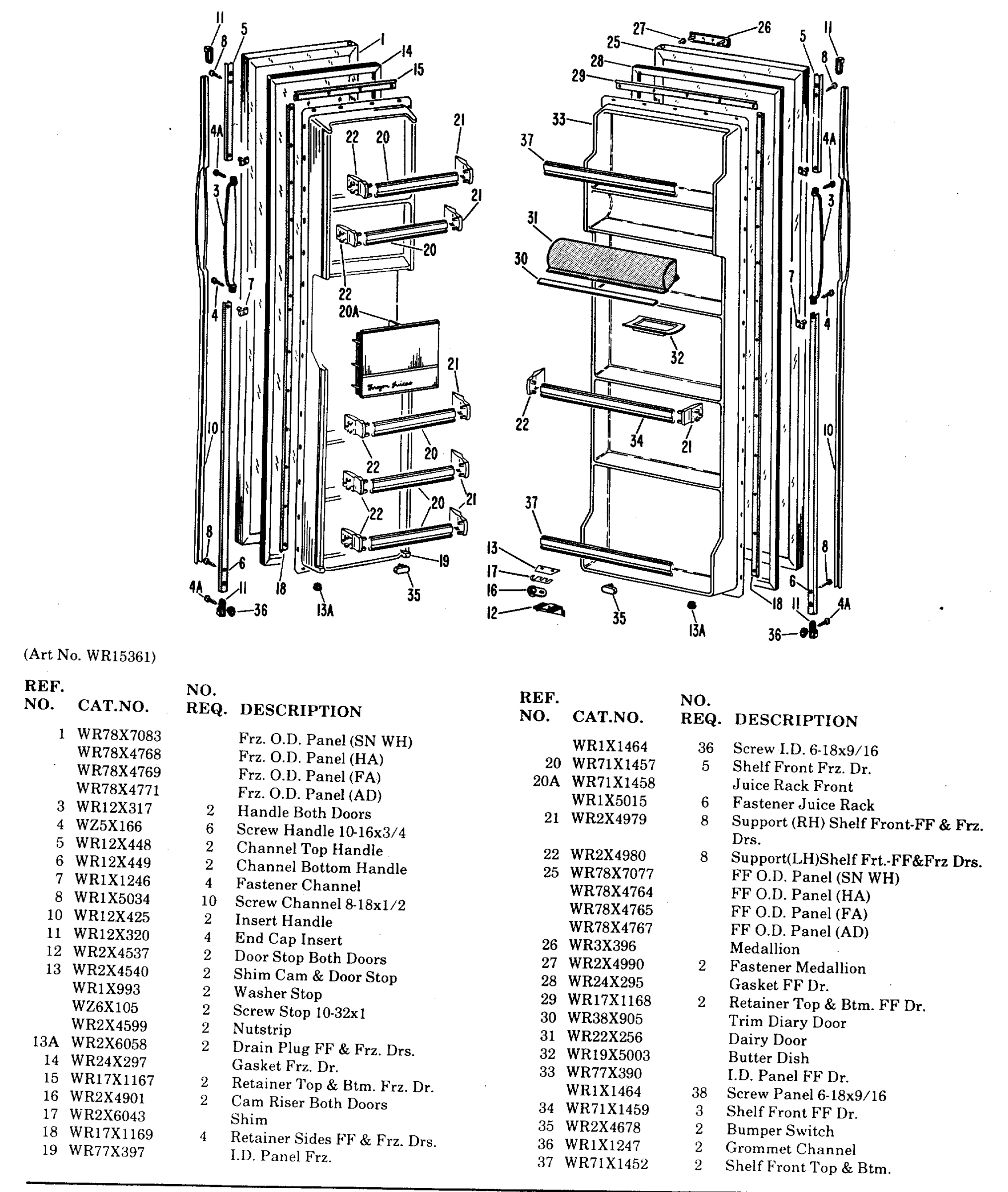

REFRIGERATOR DOORS
Common parts from model GE TFF24ZAC Refrigerator
1
GEN WR78X4768 GEN WR78X4768 Contact Us For Availability
1
GEN WR78X4769 GEN WR78X4769 Contact Us For Availability
1
GEN WR78X4771 GEN WR78X4771 Contact Us For Availability
1
GEN WR78X7083 GEN WR78X7083 Contact Us For Availability
3
GEN WR12X0317 GEN WR12X0317 Contact Us For Availability
4
GEN WZ05X0166 GEN WZ05X0166 Contact Us For Availability
5
GEN WR12X0448 GEN WR12X0448 Contact Us For Availability
6
GEN WR12X0449 GEN WR12X0449 Contact Us For Availability
7
GEN WR01X1246 GEN WR01X1246 Contact Us For Availability
8
SCREW GEN WR01X5034 Contact Us For Availability
10
GEN WR12X0425 GEN WR12X0425 Contact Us For Availability
11
GEN WR12X0320 GEN WR12X0320 Contact Us For Availability
12
STOP DOOR CHROME GEN WR02X4537 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
SHIM CAM DOOR STOP GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
13
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
13
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
14
GEN WR24X0297 GEN WR24X0297 Contact Us For Availability
15
GEN WR17X1167 GEN WR17X1167 Contact Us For Availability
17
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0397 GEN WR77X0397 Contact Us For Availability
20
GEN WR01X5015 GEN WR01X5015 Contact Us For Availability
20
GEN WR71X1457 GEN WR71X1457 Contact Us For Availability
20
GEN WR71X1458 GEN WR71X1458 Contact Us For Availability
21
GEN WR02X4979 GEN WR02X4979 Contact Us For Availability
22
GEN WR02X4980 GEN WR02X4980 Contact Us For Availability
25
GEN WR78X4764 GEN WR78X4764 Contact Us For Availability
25
GEN WR78X4765 GEN WR78X4765 Contact Us For Availability
25
GEN WR78X4767 GEN WR78X4767 Contact Us For Availability
25
GEN WR78X7077 GEN WR78X7077 Contact Us For Availability
26
GEN WR03X0396 GEN WR03X0396 Contact Us For Availability
27
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
28
GEN WR24X0295 GEN WR24X0295 Contact Us For Availability
29
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
30
GEN WR38X0905 GEN WR38X0905 Contact Us For Availability
31
GEN WR22X0256 GEN WR22X0256 Contact Us For Availability
32
BUTTER DISH GEN WR19X5003 Contact Us For Availability
33
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
33
GEN WR77X0390 GEN WR77X0390 Contact Us For Availability
34
GEN WR71X1459 GEN WR71X1459 Contact Us For Availability
35
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
36
GEN WR01X1247 GEN WR01X1247 Contact Us For Availability
37
GEN WR71X1452 GEN WR71X1452 Contact Us For Availability
40
SHELF CANTILEVER WIRE GEN WR71X1504 Contact Us For Availability
44
SCREW TRACK 10-24X1-1/8 GEN WR01X1483 Contact Us For Availability
44
NUTSTRIP TRACK GEN WR02X4625 Contact Us For Availability
44
TRACK SHELF GEN WR72X0062 Contact Us For Availability
45
GROMMET SCREW GEN WR01X1326 Contact Us For Availability
45
GASKET GEN WR14X0264 Contact Us For Availability
45
FF AIR RETURN ASM. GEN WR17X1523 Contact Us For Availability
50
PANS TOP VEG. & FRUIT GEN WR32X0649 Contact Us For Availability
51
DECAL MT. PAN GEN WR02X4796 Contact Us For Availability
51
PAN BTM. MT. & VEG. GEN WR32X0650 Contact Us For Availability
52
HANDLE VEG. PAN GEN WR17X1556 Contact Us For Availability
53
HANDLE MT. PAN GEN WR17X1558 Contact Us For Availability
54
HANDLE FRUIT PAN GEN WR17X1557 Contact Us For Availability
55
SUPPORT RT. REAR/L. FRON GEN WR02X4941 Contact Us For Availability
56
SUPPORT L. REAR/RT. FRON GEN WR02X4942 Contact Us For Availability
58
BUMPER COVER GEN WR02X7034 Contact Us For Availability
58
COVER PANS TOP GEN WR32X0675 Contact Us For Availability
59
GASKET COVER FRONT GEN WR14X0287 Contact Us For Availability
60
GASKET COVER REAR GEN WR14X0288 Contact Us For Availability
61
COVER PANS BOTTOM GEN WR32X0676 Contact Us For Availability
62
RAIL COVER FRT. & REAR GEN WR02X4790 Contact Us For Availability
63
EGG BUCKET GEN WR32X0653 Contact Us For Availability
68
CANOE CLIP GEN WR01X1332 Contact Us For Availability
68
LIGHT SHIELD FF GEN WR17X1572 Contact Us For Availability
69
SUPPORT LT. SHIELD TOP GEN WR02X6347 Contact Us For Availability
69
SUPPORT BTM. LT. SHIELD GEN WR02X6350 Contact Us For Availability
72
GEN WR09X5131 GEN WR09X5131 Contact Us For Availability
72
SCREW 8-32X1/4 GEN WZ02X0460 Contact Us For Availability
73
GEN WR02X4943 GEN WR02X4943 Contact Us For Availability
74
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
74
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
74
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
74
GASKET FOAM GEN WR14X0271 Contact Us For Availability
74
SCREW DAMPER 8-18X1/2 GEN WZ04X0399 Contact Us For Availability
75
DAMPER WHEEL GEN WR02X4836 Contact Us For Availability
76
GEN WR17X1412 GEN WR17X1412 Contact Us For Availability
78
VENT COLLAR GEN WR02X4799 Contact Us For Availability
80
FERRULE GEN WR02X3886 Contact Us For Availability
81
AIR RETURN BAFFLE GEN WR02X4542 Contact Us For Availability
81
SEAL GEN WR02X4543 Contact Us For Availability
82
SOCKET LAMP 2 LEAD GEN WR02X4049 Contact Us For Availability
82
BRACKET LT. FF GEN WR02X4849 Contact Us For Availability
82
SCREW 8-32X1/2 GEN WZ05X0196 Contact Us For Availability
87
DAMPER ASM. GEN WR02X3883 Contact Us For Availability
94
CLAMP HARNESS GEN WR02X4838 Contact Us For Availability
94
CLIP HARNESS GEN WR02X4453 Contact Us For Availability
94
GEN WR49X0233 GEN WR49X0233 Contact Us For Availability
99
NUTSTRIP TOP HINGE GEN WR02X4198 Contact Us For Availability
99
HINGE BOTH DOORS GEN WR13X0496 Contact Us For Availability
100
SCREW HINGE 12-24X7/8 GEN WR01X1249 Contact Us For Availability
102
SHIM GEN WR02X4194 Contact Us For Availability
104
POP RIVET GEN WR01X1361 Contact Us For Availability
104
SCREW HINGE 12-24X1-1/16 GEN WR01X1587 Contact Us For Availability
104
NUTSTRIP BTM. HINGE GEN WR02X4400 Contact Us For Availability
104
SHIM GEN WR02X4497 Contact Us For Availability
105
RETAINER BOTTOM FF GEN WR02X5872 Contact Us For Availability
105
BREAKER STRIP TOP & BOTT GEN WR40X5378 Contact Us For Availability
106
GEN WR02X5926 GEN WR02X5926 Contact Us For Availability
106
BRKR. STRIP HINGE SIDE F GEN WR40X5376 Contact Us For Availability
107
BRKR. STRIP MULLION SIDE GEN WR40X1575 Contact Us For Availability
108
SCREW 8 GEN WZ06X0096 Contact Us For Availability
108
SCREW BRACKET 8-32X3/8 GEN WR01X1501 Contact Us For Availability
108
U-NUT MULLION BTM. GEN WR02X4739 Contact Us For Availability
108
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
108
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
108
MULLION STRIP (WH) GEN WR40X1576 Contact Us For Availability
111
GEN WR71X1509 GEN WR71X1509 Contact Us For Availability
112
GEN WR38X0959 GEN WR38X0959 Contact Us For Availability
113
GEN WR17X1515 GEN WR17X1515 Contact Us For Availability
113
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
113
GEN WR17X1516 GEN WR17X1516 Contact Us For Availability
114
GEN WR14X0282 GEN WR14X0282 Contact Us For Availability
115
GEN WR32X0709 GEN WR32X0709 Contact Us For Availability
116
GEN WR38X0954 GEN WR38X0954 Contact Us For Availability
119
GEN WR02X7032 GEN WR02X7032 Contact Us For Availability
119
BREAKER STRIP MULLION SI GEN WR40X1574 Contact Us For Availability
120
GEN WR02X4556 GEN WR02X4556 Contact Us For Availability
120
BREAKER STRIP TOP & BTM. GEN WR40X5379 Contact Us For Availability
121
GEN WR71X1515 GEN WR71X1515 Contact Us For Availability
122
SHELF FRZ. GEN WR71X1366 Contact Us For Availability
123
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
124
SUPPORT SHELF R. SIDE GEN WR02X4674 Contact Us For Availability
125
CLIP TRIM GEN WR02X4944 Contact Us For Availability
125
GEN WR38X0957 GEN WR38X0957 Contact Us For Availability
127
BASKET FRZ. GEN WR21X0119 Contact Us For Availability
129
SUPPORT FRONT GEN WR02X7036 Contact Us For Availability
130
SUPPORT REAR GEN WR02X4548 Contact Us For Availability
132
CLIP-BAFFLE & HTR. GEN WR02X4843 Contact Us For Availability
132
GASKET BAFFLE GEN WR14X0274 Contact Us For Availability
132
GEN WR17X1578 GEN WR17X1578 Contact Us For Availability
132
SCREW 6-20X3/8 GEN WZ04X0284 Contact Us For Availability
132
SCREW 8-18X1/2 GEN WZ06X0107 Contact Us For Availability
132
SCREW TOP CENTER 8-32X1/ GEN WZ06X0113 Contact Us For Availability
133
PLUG BUTTON 75" DIA. HOL GEN WR02X6008 Contact Us For Availability
134
SUPPORT-EVAP. BAFFLE GEN WR02X4421 Contact Us For Availability
135
PLUG BUTTON-1.25" DIA. H GEN WR02X3025 Contact Us For Availability
136
GEN WR01X5043 GEN WR01X5043 Contact Us For Availability
136
GASKET GEN WR02X4545 Contact Us For Availability
136
DRAIN TUBE-FRZ. GEN WR02X4967 Contact Us For Availability
136
DRAIN TROUGH GEN WR17X1245 Contact Us For Availability
137
DRAIN TUBE-EXTENSION FRZ GEN WR02X4969 Contact Us For Availability
137
FOAM BLOCK GEN WR02X4982 Contact Us For Availability
137
FOAM BLOCK GEN WR02X4983 Contact Us For Availability
137
MACHINE LOW SIDE GEN WR85X0103 Contact Us For Availability
137
REFRIGERANT 7-1/2 OZ. GEN WR97X5017 Contact Us For Availability
138
BRACKET HEATER MOUNTING GEN WR02X4557 Contact Us For Availability
138
HEATER DEFROST GEN WR51X5172 Contact Us For Availability
139
GEN WR02X4970 GEN WR02X4970 Contact Us For Availability
139
GEN WR17X1276 GEN WR17X1276 Contact Us For Availability
140
LEAD & CONNECTOR TOP & B GEN WR02X4546 Contact Us For Availability
142
GEN WR60X0108 GEN WR60X0108 Contact Us For Availability
144
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
145
MOUNTING BRACKET LARGE GEN WR02X4792 Contact Us For Availability
145
MOUNTING BRACKET SMALL GEN WR02X4793 Contact Us For Availability
145
SCREW 8-18X3/8 GEN WZ04X0287 Contact Us For Availability
145
GEN WZ05X0197 GEN WZ05X0197 Contact Us For Availability
147
GASKET-ORIFICE GEN WR14X0272 Contact Us For Availability
147
GEN WR17X1428 GEN WR17X1428 Contact Us For Availability
148
AIR BAF GEN WR17X1414 Contact Us For Availability
149
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
150
GEN WR01X1168 GEN WR01X1168 Contact Us For Availability
150
GEN WR02X7042 GEN WR02X7042 Contact Us For Availability
151
GEN WR17X1569 GEN WR17X1569 Contact Us For Availability
151
GEN WR17X1570 GEN WR17X1570 Contact Us For Availability
152
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
152
GEN WR02X6254 GEN WR02X6254 Contact Us For Availability
153
GEN WZ05X0164 GEN WZ05X0164 Contact Us For Availability
153
GEN WR02X3756 GEN WR02X3756 Contact Us For Availability
153
GEN WR02X4527 GEN WR02X4527 Contact Us For Availability
154
GEN WR32X0687 GEN WR32X0687 Contact Us For Availability
155
GEN WR74X0149 GEN WR74X0149 Contact Us For Availability
156
GEN WR02X4668 GEN WR02X4668 Contact Us For Availability
156
GEN WR02X4699 GEN WR02X4699 Contact Us For Availability
158
GEN WR02X4098 GEN WR02X4098 Contact Us For Availability
158
GEN WR02X4099 GEN WR02X4099 Contact Us For Availability
160
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
167
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
168
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
169
GEN WR30X0198 GEN WR30X0198 Contact Us For Availability
171
GEN WR02X4229 GEN WR02X4229 Contact Us For Availability
171
GEN WR23X0191 GEN WR23X0191 Contact Us For Availability
172
GEN WR29X5104 GEN WR29X5104 Contact Us For Availability
174
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
174
GEN WR02 GEN WR02 Contact Us For Availability
202
CLIP COND GEN WR02X4621 Contact Us For Availability
202
GEN WR84X0037 GEN WR84X0037 Contact Us For Availability
203
CONDENSER LOOP GEN WR84X0046 Contact Us For Availability
204
CUP & BRACKET R. SIDE GEN WR02X1864 Contact Us For Availability
204
CUP & BRACKET L. SIDE GEN WR02X1865 Contact Us For Availability
206
GEN WR02X2202 GEN WR02X2202 Contact Us For Availability
208
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
209
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
209
GEN WR02X3867 GEN WR02X3867 Contact Us For Availability
209
GEN WR07X0138 GEN WR07X0138 Contact Us For Availability
211
GEN WR60X0042 GEN WR60X0042 Contact Us For Availability
212
NUT BLADE GEN WR01X1515 Contact Us For Availability
212
WASHER MOTOR GEN WR02X4191 Contact Us For Availability
213
GEN WR02X4801 GEN WR02X4801 Contact Us For Availability
217
GEN WR82X0206 GEN WR82X0206 Contact Us For Availability
219
GEN WR17X1488 GEN WR17X1488 Contact Us For Availability
220
GEN WR17X1489 GEN WR17X1489 Contact Us For Availability
221
GEN WR17X1494 GEN WR17X1494 Contact Us For Availability
225
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
225
GEN WR17X1284 GEN WR17X1284 Contact Us For Availability
226
GEN WR02X6157 GEN WR02X6157 Contact Us For Availability
227
GEN WR02X3904 GEN WR02X3904 Contact Us For Availability
228
GEN WR01X1546 GEN WR01X1546 Contact Us For Availability
229
GEN 49-6287-1 GEN 49-6287-1 Contact Us For Availability
229
CLIP COND. GEN WR02X4850 Contact Us For Availability
× ![]()
