Model GE TFF24RLB Refrigerator – Common Parts & Diagrams
0
1

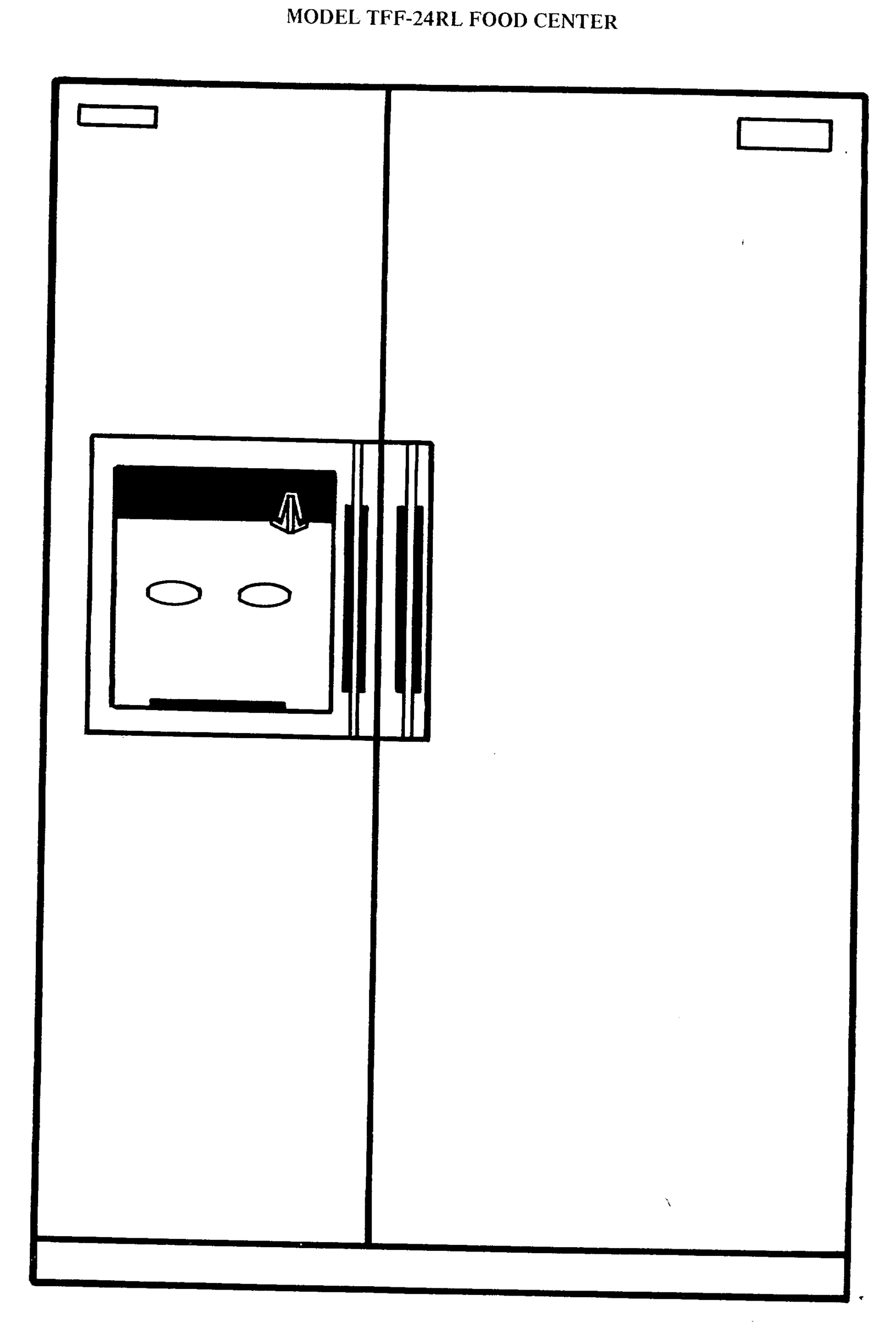

FOOD CENTER

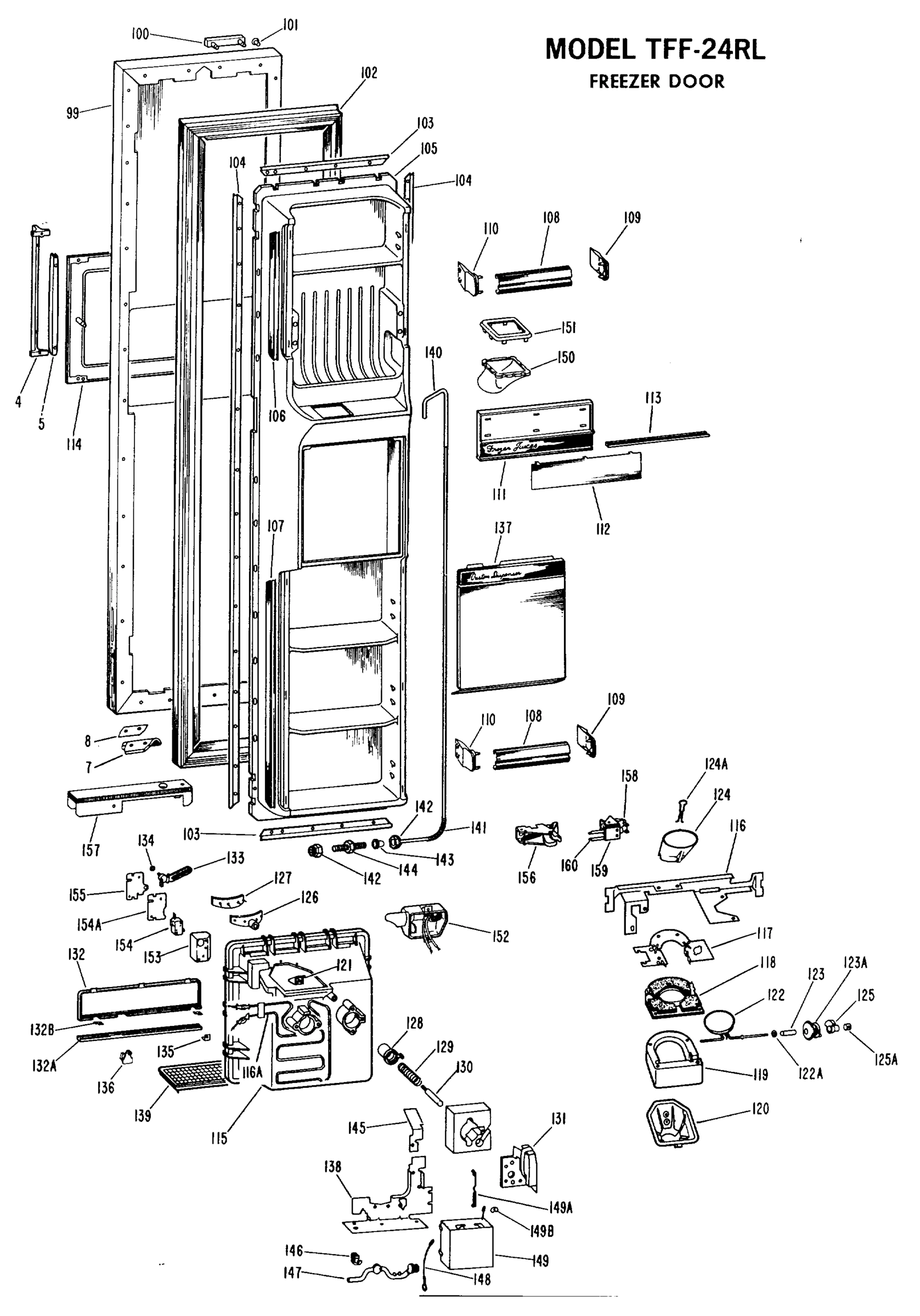

FREEZER DOOR

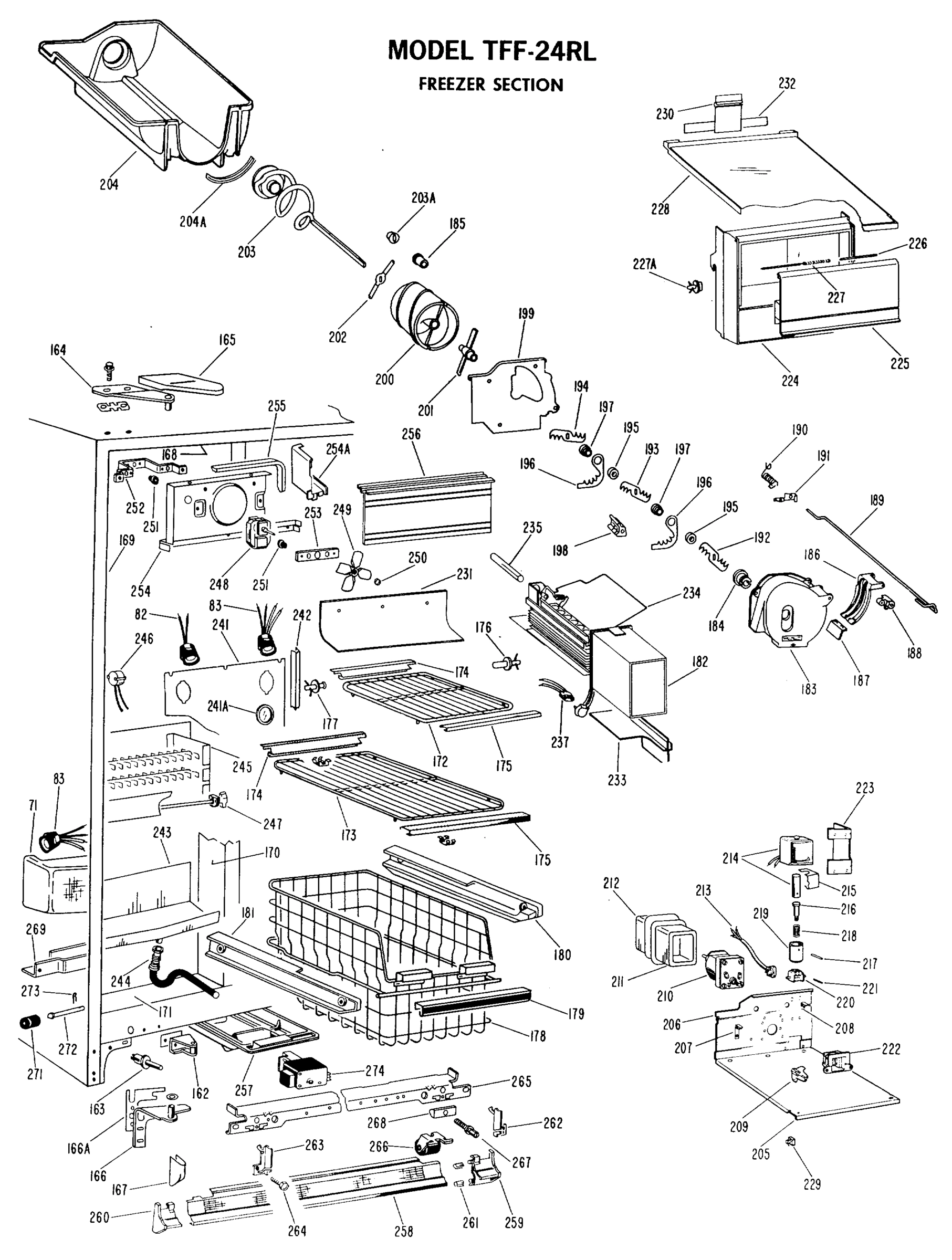

FREEZER SECTION
Common parts from model GE TFF24RLB Refrigerator
1
GEN WR78X4339 GEN WR78X4339 Contact Us For Availability
1
GEN WR78X4340 GEN WR78X4340 Contact Us For Availability
1
GEN WR78X4341 GEN WR78X4341 Contact Us For Availability
2
FASTENER - TRIM GEN WR01X1302 Contact Us For Availability
2
GEN WR38X0649 GEN WR38X0649 Contact Us For Availability
3
GEN WR03X0386 GEN WR03X0386 Contact Us For Availability
4
GEN WR12X0371 GEN WR12X0371 Contact Us For Availability
5
GEN WR01X1316 GEN WR01X1316 Contact Us For Availability
5
SCREW - HANDLE TO DOOR GEN WR01X1356 Contact Us For Availability
5
GEN WR12X0372 GEN WR12X0372 Contact Us For Availability
6
GEN WR38X0670 GEN WR38X0670 Contact Us For Availability
7
DOOR STOP - BOTH DOORS GEN WR02X3404 Contact Us For Availability
8
CHANNEL NUT - FF DR. GEN WR01X1382 Contact Us For Availability
8
GEN WR01X1383 GEN WR01X1383 Contact Us For Availability
8
GEN WR02X3405 GEN WR02X3405 Contact Us For Availability
9
GEN WR24X0230 GEN WR24X0230 Contact Us For Availability
10
GEN WR17X0827 GEN WR17X0827 Contact Us For Availability
12
GEN WR77X0233 GEN WR77X0233 Contact Us For Availability
13
GEN WR02X4223 GEN WR02X4223 Contact Us For Availability
13
GEN WR02X4224 GEN WR02X4224 Contact Us For Availability
13
GEN WR71X1252 GEN WR71X1252 Contact Us For Availability
13
GEN WR71X1253 GEN WR71X1253 Contact Us For Availability
14
GEN WR02X4225 GEN WR02X4225 Contact Us For Availability
14
GEN WR02X4226 GEN WR02X4226 Contact Us For Availability
14
SHELF FRONT - FF DOOR BT GEN WR71X1224 Contact Us For Availability
16
GEN WR17X0829 GEN WR17X0829 Contact Us For Availability
17
GEN WR17X0828 GEN WR17X0828 Contact Us For Availability
18
GEN WR01X1384 GEN WR01X1384 Contact Us For Availability
18
GEN WR02X4227 GEN WR02X4227 Contact Us For Availability
19
GEN WR38X0650 GEN WR38X0650 Contact Us For Availability
20
GEN WR22X0187 GEN WR22X0187 Contact Us For Availability
21
GEN WR22X0189 GEN WR22X0189 Contact Us For Availability
22
GEN WR02X3420 GEN WR02X3420 Contact Us For Availability
23
GEN WR02X3421 GEN WR02X3421 Contact Us For Availability
24
GEN WR02X3422 GEN WR02X3422 Contact Us For Availability
25
GEN WR02X4106 GEN WR02X4106 Contact Us For Availability
26
GEN WR03X0383 GEN WR03X0383 Contact Us For Availability
27
RIVET - PLASTIC GEN WR01X1305 Contact Us For Availability
28
BUTTER DISH GEN WR19X5003 Contact Us For Availability
29
GEN WR13X0451 GEN WR13X0451 Contact Us For Availability
30
GEN WR13X5114 GEN WR13X5114 Contact Us For Availability
31
GEN WR01X1319 GEN WR01X1319 Contact Us For Availability
31
GEN WR01X1386 GEN WR01X1386 Contact Us For Availability
32
GEN WR02X3626 GEN WR02X3626 Contact Us For Availability
32
GEN WR02X4096 GEN WR02X4096 Contact Us For Availability
33
GEN WR40X1425 GEN WR40X1425 Contact Us For Availability
34
GEN WR40X1426 GEN WR40X1426 Contact Us For Availability
35
GEN WR40X1427 GEN WR40X1427 Contact Us For Availability
36
GEN WR40X1428 GEN WR40X1428 Contact Us For Availability
37
GEN WR01X1314 GEN WR01X1314 Contact Us For Availability
37
GEN WR01X1315 GEN WR01X1315 Contact Us For Availability
37
GEN WR40X1434 GEN WR40X1434 Contact Us For Availability
38
GEN WR71X1239 GEN WR71X1239 Contact Us For Availability
41
SCREW - TRACK GEN WR01X1357 Contact Us For Availability
41
GEN WR02X4266 GEN WR02X4266 Contact Us For Availability
41
GEN WR02X5869 GEN WR02X5869 Contact Us For Availability
41
GEN WR17X1072 GEN WR17X1072 Contact Us For Availability
41
GEN WR17X1073 GEN WR17X1073 Contact Us For Availability
42
GEN WR17X0938 GEN WR17X0938 Contact Us For Availability
43
GEN WR32X0568 GEN WR32X0568 Contact Us For Availability
44
GEN WR12X0407 GEN WR12X0407 Contact Us For Availability
45
GEN WR17X1071 GEN WR17X1071 Contact Us For Availability
46
GEN WR02X3877 GEN WR02X3877 Contact Us For Availability
46
GEN WR02X4043 GEN WR02X4043 Contact Us For Availability
46
GEN WR14X0213 GEN WR14X0213 Contact Us For Availability
46
GEN WR14X0218 GEN WR14X0218 Contact Us For Availability
46
GEN WR17X0872 GEN WR17X0872 Contact Us For Availability
46
GEN WR17X0873 GEN WR17X0873 Contact Us For Availability
46
GEN WR17X0874 GEN WR17X0874 Contact Us For Availability
46
GEN WR32X0538 GEN WR32X0538 Contact Us For Availability
47
GEN WR17X0871 GEN WR17X0871 Contact Us For Availability
48
GEN WR32X0566 GEN WR32X0566 Contact Us For Availability
49
GEN WR12X0402 GEN WR12X0402 Contact Us For Availability
50
GEN WR02X3873 GEN WR02X3873 Contact Us For Availability
50
GEN WR17X0991 GEN WR17X0991 Contact Us For Availability
51
GEN WR32X0528 GEN WR32X0528 Contact Us For Availability
52
GEN WR02X3874 GEN WR02X3874 Contact Us For Availability
52
GEN WR14X0212 GEN WR14X0212 Contact Us For Availability
52
GEN WR14X0214 GEN WR14X0214 Contact Us For Availability
53
GEN WR17X0833 GEN WR17X0833 Contact Us For Availability
54
GEN WR02X3919 GEN WR02X3919 Contact Us For Availability
54
GEN WR17X0832 GEN WR17X0832 Contact Us For Availability
60
GEN WR21X0103 GEN WR21X0103 Contact Us For Availability
61
GEN WR12X0401 GEN WR12X0401 Contact Us For Availability
62
GEN WR38 GEN WR38 Contact Us For Availability
71
LIGHT SHIELD - LOWER - F GEN WR17X0876 Contact Us For Availability
82
GEN WR01X2257 GEN WR01X2257 Contact Us For Availability
82
BRACKET - LIGHT GEN WR02X4230 Contact Us For Availability
82
SCREW GEN WZ05X0196 Contact Us For Availability
83
GEN WR02X2539 GEN WR02X2539 Contact Us For Availability
99
GEN WR78X4342 GEN WR78X4342 Contact Us For Availability
99
GEN WR78X4343 GEN WR78X4343 Contact Us For Availability
99
GEN WR78X4344 GEN WR78X4344 Contact Us For Availability
99
GEN WR78X4345 GEN WR78X4345 Contact Us For Availability
100
GEN WR03X0387 GEN WR03X0387 Contact Us For Availability
101
FASTENER - MED. GEN WR02X3757 Contact Us For Availability
102
GEN WR24X0231 GEN WR24X0231 Contact Us For Availability
103
GEN WR17X0839 GEN WR17X0839 Contact Us For Availability
104
RETAINER - SIDES GEN WR17X0826 Contact Us For Availability
105
SCREW - I.D. GEN WZ04X0220 Contact Us For Availability
105
GEN WR77X0234 GEN WR77X0234 Contact Us For Availability
106
GEN WR38X0796 GEN WR38X0796 Contact Us For Availability
107
GEN WR38X0797 GEN WR38X0797 Contact Us For Availability
108
GEN WR71X1226 GEN WR71X1226 Contact Us For Availability
109
SUPPORT - RH GEN WR02X4072 Contact Us For Availability
110
SUPPORT - LH GEN WR02X4073 Contact Us For Availability
111
GEN WR01X1211 GEN WR01X1211 Contact Us For Availability
111
GEN WR02X3888 GEN WR02X3888 Contact Us For Availability
111
GEN WR71X1254 GEN WR71X1254 Contact Us For Availability
112
GEN WR38X0795 GEN WR38X0795 Contact Us For Availability
113
GEN WR38X0656 GEN WR38X0656 Contact Us For Availability
114
GEN WR38X0678 GEN WR38X0678 Contact Us For Availability
115
GEN WR17X1049 GEN WR17X1049 Contact Us For Availability
115
SCREW - RECESS GEN WZ04X0246 Contact Us For Availability
116
GEN WR17X1055 GEN WR17X1055 Contact Us For Availability
116
GEN WR51X0170 GEN WR51X0170 Contact Us For Availability
117
GEN WR02X4246 GEN WR02X4246 Contact Us For Availability
118
GEN WR02X4233 GEN WR02X4233 Contact Us For Availability
118
GEN WR02X4247 GEN WR02X4247 Contact Us For Availability
118
GEN WR02X4260 GEN WR02X4260 Contact Us For Availability
118
GEN WZ05X0201 GEN WZ05X0201 Contact Us For Availability
119
GEN WR02X4261 GEN WR02X4261 Contact Us For Availability
119
GEN WR17X1046 GEN WR17X1046 Contact Us For Availability
120
CLIP GEN WR01X1318 Contact Us For Availability
120
GEN WR17X1047 GEN WR17X1047 Contact Us For Availability
120
SCREW - FUNNEL GEN WZ06X0097 Contact Us For Availability
121
GEN WR02X4245 GEN WR02X4245 Contact Us For Availability
122
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
122
GEN WR17X1042 GEN WR17X1042 Contact Us For Availability
122
GEN WZ06X0102 GEN WZ06X0102 Contact Us For Availability
123
GEN WR17X1043 GEN WR17X1043 Contact Us For Availability
123
GEN WR17X1044 GEN WR17X1044 Contact Us For Availability
124
GEN WR17X1054 GEN WR17X1054 Contact Us For Availability
125
CRANK ARM - DUCT ASM. (W GEN WR17X1045 Contact Us For Availability
125
COMPRESSION RING DUCT AS GEN WR02X4232 Contact Us For Availability
125
GEN WR02X4268 GEN WR02X4268 Contact Us For Availability
126
CRADLE GEN WR02X3948 Contact Us For Availability
127
PAD - CRADLE GEN WR02X3950 Contact Us For Availability
128
SLEEVE - CRADLE GEN WR02X4822 Contact Us For Availability
129
SPRING - CRADLE GEN WR02X3951 Contact Us For Availability
130
GEN WR02X4238 GEN WR02X4238 Contact Us For Availability
131
GEN WR23X0140 GEN WR23X0140 Contact Us For Availability
132
BRACKET - ESCUT. GEN WR02X4231 Contact Us For Availability
132
GEN WR17X1050 GEN WR17X1050 Contact Us For Availability
132
GEN WR38X0798 GEN WR38X0798 Contact Us For Availability
133
GEN WR02X4243 GEN WR02X4243 Contact Us For Availability
134
RING - RETAINER GEN WR02X4240 Contact Us For Availability
134
SCREW - PLATE RECESS GEN WZ04X0284 Contact Us For Availability
135
GEN WR02X4239 GEN WR02X4239 Contact Us For Availability
136
BUTTON - SELECTOR GEN WR02X4236 Contact Us For Availability
137
CLIP GEN WR01X5351 Contact Us For Availability
137
GEN WR17X1052 GEN WR17X1052 Contact Us For Availability
138
PLATE - BEARING GEN WR02X4235 Contact Us For Availability
139
GRILLE GEN WR02X3953 Contact Us For Availability
140
GEN WR17X1053 GEN WR17X1053 Contact Us For Availability
141
GEN WR02X4044 GEN WR02X4044 Contact Us For Availability
142
SCREW - CLAMP GEN WZ05X0164 Contact Us For Availability
142
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
143
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
145
GEN WR02X4267 GEN WR02X4267 Contact Us For Availability
145
SCREW - RECESS GEN WZ04X0224 Contact Us For Availability
146
BEARING GEN WR02X4234 Contact Us For Availability
147
CRANK ROD GEN WR17X1048 Contact Us For Availability
148
LANYARD - DUCT DR. GEN WR02X4237 Contact Us For Availability
149
KEEPER - LANYARD GEN WR02X4069 Contact Us For Availability
149
CLIP - TIME DELAY GEN WR02X4248 Contact Us For Availability
149
TIME DELAY ASM. GEN WR09X0268 Contact Us For Availability
150
GEN WR17X1039 GEN WR17X1039 Contact Us For Availability
151
GEN WR17X1040 GEN WR17X1040 Contact Us For Availability
152
POP RIVET GEN WR01X1227 Contact Us For Availability
152
GEN WR01X1323 GEN WR01X1323 Contact Us For Availability
152
HOUSING - LAMP & SWITCH GEN WR02X3959 Contact Us For Availability
152
GEN WR17X1051 GEN WR17X1051 Contact Us For Availability
153
GEN WR01X1387 GEN WR01X1387 Contact Us For Availability
153
GEN WR02X4241 GEN WR02X4241 Contact Us For Availability
154
INSULATOR - SELECTOR GEN WR02X4244 Contact Us For Availability
154
SELECTOR SWITCH GEN WR23 Contact Us For Availability
162
PLUG BUTTON FRZ. DOOR GEN WR02X3890 Contact Us For Availability
162
GEN WR02X3889 GEN WR02X3889 Contact Us For Availability
162
GEN WR10X0122 GEN WR10X0122 Contact Us For Availability
162
SCREW - STRIKE GEN WZ04X0265 Contact Us For Availability
163
SWITCH - FAN & LIGHT - F GEN WR23X0142 Contact Us For Availability
164
SCREW - HINGE GEN WR01X1249 Contact Us For Availability
164
GEN WR02X3845 GEN WR02X3845 Contact Us For Availability
164
HARNESS KIT - TOP HINGE GEN WR49X0199 Contact Us For Availability
164
GEN WR13X0452 GEN WR13X0452 Contact Us For Availability
165
SHIELD - CASE GEN WR02X3962 Contact Us For Availability
165
SCREW - COVER GEN WZ02X0460 Contact Us For Availability
165
GEN WR02X3961 GEN WR02X3961 Contact Us For Availability
166
SCREW - HINGE GEN WR01X1188 Contact Us For Availability
166
SHIM GEN WR13X0450 Contact Us For Availability
166
GEN WR01X1327 GEN WR01X1327 Contact Us For Availability
166
PIVET GEN WR01X1361 Contact Us For Availability
166
GEN WR02X0460 GEN WR02X0460 Contact Us For Availability
166
GEN WR02X4134 GEN WR02X4134 Contact Us For Availability
166
GEN WR02X4205 GEN WR02X4205 Contact Us For Availability
166
HINGE - BTM. - FRZ. - DO GEN WR13X0453 Contact Us For Availability
167
GEN WR01X1328 GEN WR01X1328 Contact Us For Availability
167
GEN WR02X3963 GEN WR02X3963 Contact Us For Availability
168
GEN WR40X1429 GEN WR40X1429 Contact Us For Availability
169
GEN WR40X1430 GEN WR40X1430 Contact Us For Availability
170
GEN WR40X1431 GEN WR40X1431 Contact Us For Availability
171
CLIP - BREAKER STRIP GEN WR02X3859 Contact Us For Availability
171
GEN WR40X1432 GEN WR40X1432 Contact Us For Availability
172
GEN WR71X1131 GEN WR71X1131 Contact Us For Availability
173
GEN WR71X1132 GEN WR71X1132 Contact Us For Availability
174
GEN WR38X0800 GEN WR38X0800 Contact Us For Availability
175
SUPPORT - FRONT R5. & RE GEN WR02X4030 Contact Us For Availability
175
GEN WR38X0787 GEN WR38X0787 Contact Us For Availability
176
GEN WR02X3246 GEN WR02X3246 Contact Us For Availability
176
CIIP - TRIM GEN WR02X3306 Contact Us For Availability
176
GEN WR02X3872 GEN WR02X3872 Contact Us For Availability
178
GEN WR21X0104 GEN WR21X0104 Contact Us For Availability
179
CLIP - TRIM GEN WR02X3440 Contact Us For Availability
179
GEN WR38X0801 GEN WR38X0801 Contact Us For Availability
180
SLIDE (RH) - BASKET GEN WR17X0842 Contact Us For Availability
181
SCREW - SLIDE GEN WZ04X0244 Contact Us For Availability
181
GEN WR01X1166 GEN WR01X1166 Contact Us For Availability
181
SLIDE (LH) - BASKET GEN WR17X0843 Contact Us For Availability
182
SCREW - PAN HEAD RECESS GEN WR01X1219 Contact Us For Availability
182
GROMMET - SCREW GEN WR01X1326 Contact Us For Availability
182
GEN WR02X3660 GEN WR02X3660 Contact Us For Availability
182
GEN WR30X0149 GEN WR30X0149 Contact Us For Availability
182
SCREW - MTG. CENTER GEN WZ04X0331 Contact Us For Availability
183
SCREW - HOUSING GEN WZ05X0194 Contact Us For Availability
184
GEN WR01X1362 GEN WR01X1362 Contact Us For Availability
184
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
185
HELIX BUSHING GEN WR02X4142 Contact Us For Availability
186
GEN WR17X1010 GEN WR17X1010 Contact Us For Availability
187
EXTENSION - DEFLECTOR GEN WR02X4147 Contact Us For Availability
188
GEN WR01X1363 GEN WR01X1363 Contact Us For Availability
188
GEN WR02X4146 GEN WR02X4146 Contact Us For Availability
188
GEN WR17X1012 GEN WR17X1012 Contact Us For Availability
189
GEN WR01X1364 GEN WR01X1364 Contact Us For Availability
189
GEN WR01X1365 GEN WR01X1365 Contact Us For Availability
189
GEN WR17X1011 GEN WR17X1011 Contact Us For Availability
190
ACTUATOR SPRING GEN WR02X4145 Contact Us For Availability
191
RETAINER - ACTUATOR - LE GEN WR02X4251 Contact Us For Availability
195
FLAT SPACER GEN WR02X4139 Contact Us For Availability
196
BLADE - STATIONARY GEN WR17X1009 Contact Us For Availability
198
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
199
GEN WR02X4148 GEN WR02X4148 Contact Us For Availability
199
GEN WR17X1056 GEN WR17X1056 Contact Us For Availability
200
DRUM GEN WR17X1004 Contact Us For Availability
201
BLADE - FRONT - DRUM GEN WR02X4136 Contact Us For Availability
202
BLADE - REAR - DRUM GEN WR02X4137 Contact Us For Availability
203
CONE AUGER DISP GEN WR02X4144 Contact Us For Availability
203
GEN WR17X1034 GEN WR17X1034 Contact Us For Availability
204
GEN WR30X0155 GEN WR30X0155 Contact Us For Availability
205
SHELF - BTM. - BUCKET GEN WR71X1255 Contact Us For Availability
206
POP RIVET GEN WR01X1354 Contact Us For Availability
206
GEN WR71X1256 GEN WR71X1256 Contact Us For Availability
207
GEN WR02X4252 GEN WR02X4252 Contact Us For Availability
208
GEN WR02X4253 GEN WR02X4253 Contact Us For Availability
208
SCREW - RETAINER GEN WZ06X0101 Contact Us For Availability
210
MOTOR - AUGER GEN WR60X0101 Contact Us For Availability
211
GEN WR17X1061 GEN WR17X1061 Contact Us For Availability
211
SCREW - COVER GEN WZ06X0100 Contact Us For Availability
212
CLIP - COVER GEN WR02X4254 Contact Us For Availability
212
GEN WR02X4255 GEN WR02X4255 Contact Us For Availability
212
RECESS - MOTOR GEN WR17X1062 Contact Us For Availability
213
GEN WR23X0141 GEN WR23X0141 Contact Us For Availability
214
GEN WR02 GEN WR02 Contact Us For Availability
240
GEN WR23X0083 GEN WR23X0083 Contact Us For Availability
270
SCREW - CHANNEL TO CASE GEN WZ06X0062 Contact Us For Availability
275
GEN WR02X3902 GEN WR02X3902 Contact Us For Availability
276
GEN WR17X0853 GEN WR17X0853 Contact Us For Availability
279
CUP & BRACKET (RH) GEN WR02X1864 Contact Us For Availability
280
CUP & BRACKET (LH) GEN WR02X1865 Contact Us For Availability
281
GEN WR02X2202 GEN WR02X2202 Contact Us For Availability
281
GEN WR17X0852 GEN WR17X0852 Contact Us For Availability
283
GEN WR07X0105 GEN WR07X0105 Contact Us For Availability
284
GEN WR08X0032 GEN WR08X0032 Contact Us For Availability
285
GEN WR62X0022 GEN WR62X0022 Contact Us For Availability
287
GEN WR60X0042 GEN WR60X0042 Contact Us For Availability
288
NUT BLADE GEN WR01X1308 Contact Us For Availability
289
BRACKET - MOUNTING GEN WR02X2413 Contact Us For Availability
290
POP RIVET - BACKPLATE GEN WR01X1254 Contact Us For Availability
290
GEN WR17X0847 GEN WR17X0847 Contact Us For Availability
291
GEN WR02X3903 GEN WR02X3903 Contact Us For Availability
292
GEN WZ06X0080 GEN WZ06X0080 Contact Us For Availability
293
NUT STRIP GEN WR02X3904 Contact Us For Availability
293
GEN WR02X3922 GEN WR02X3922 Contact Us For Availability
293
GEN WR02X3923 GEN WR02X3923 Contact Us For Availability
293
GEN WR02X3924 GEN WR02X3924 Contact Us For Availability
295
WATER FILL GROMMET - OUT GEN WR17X0988 Contact Us For Availability
299
GEN WR57X0044 GEN WR57X0044 Contact Us For Availability
300
GEN WR57X0045 GEN WR57X0045 Contact Us For Availability
300
WASHER - HOSE FITTING GEN WR57X0046 Contact Us For Availability
301
GEN WR57X0053 GEN WR57X0053 Contact Us For Availability
302
COIL ASM. - VALVE GEN WR62X0023 Contact Us For Availability
303
GEN WR02X3069 GEN WR02X3069 Contact Us For Availability
303
PLUG BUTTON - O. C. (FOA GEN WR02X4229 Contact Us For Availability
303
ELBOW - VALVE GEN WR57X0052 Contact Us For Availability
9999
FRESH - FROZEN FOOD STOR GEN 30-6030 Contact Us For Availability
9999
GEN 30-6178 GEN 30-6178 Contact Us For Availability
9999
GEN 30-6288 GEN 30-6288 Contact Us For Availability
× ![]()
