Model GE TFF22ZBM Refrigerator – Common Parts & Diagrams

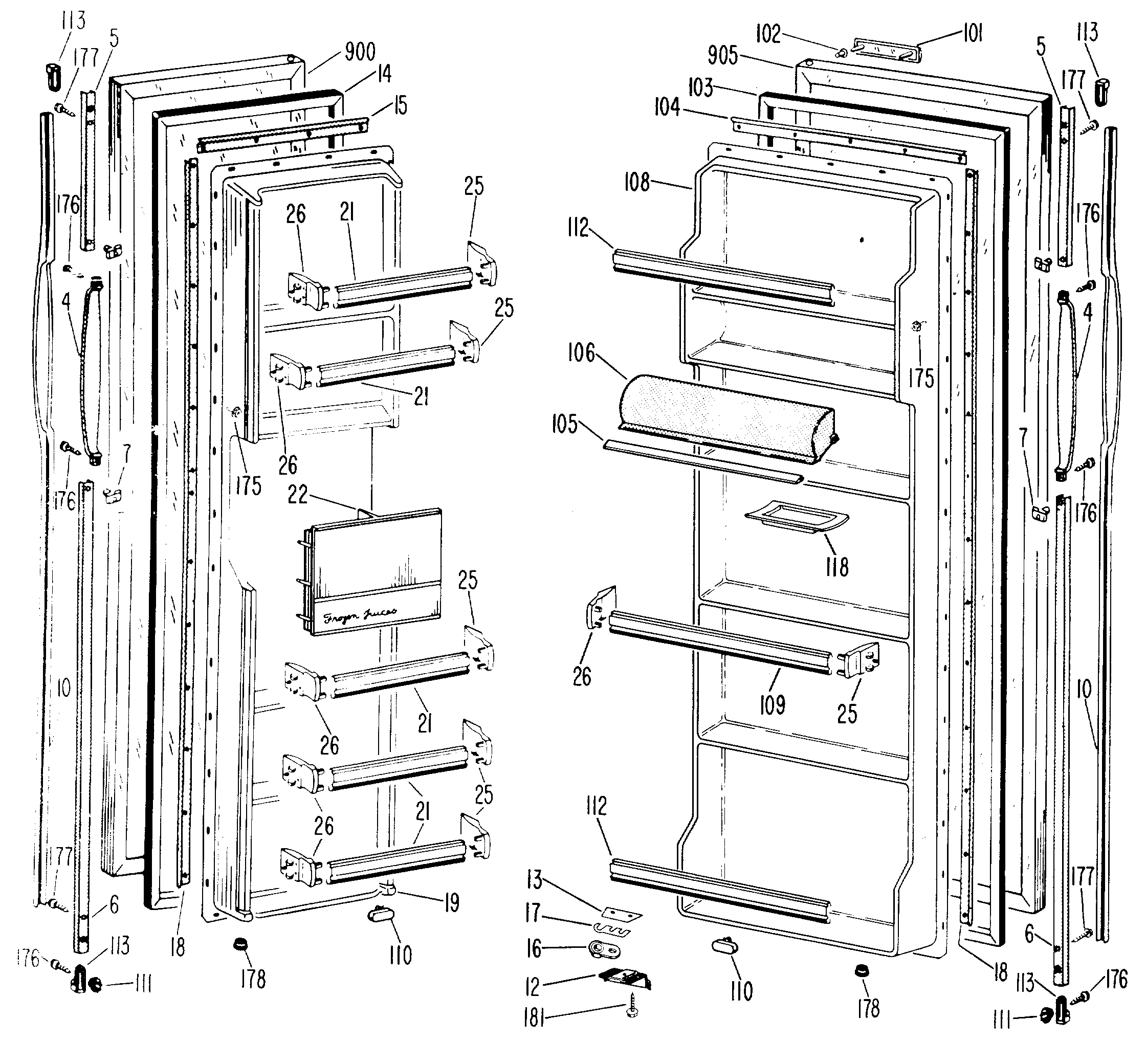

0

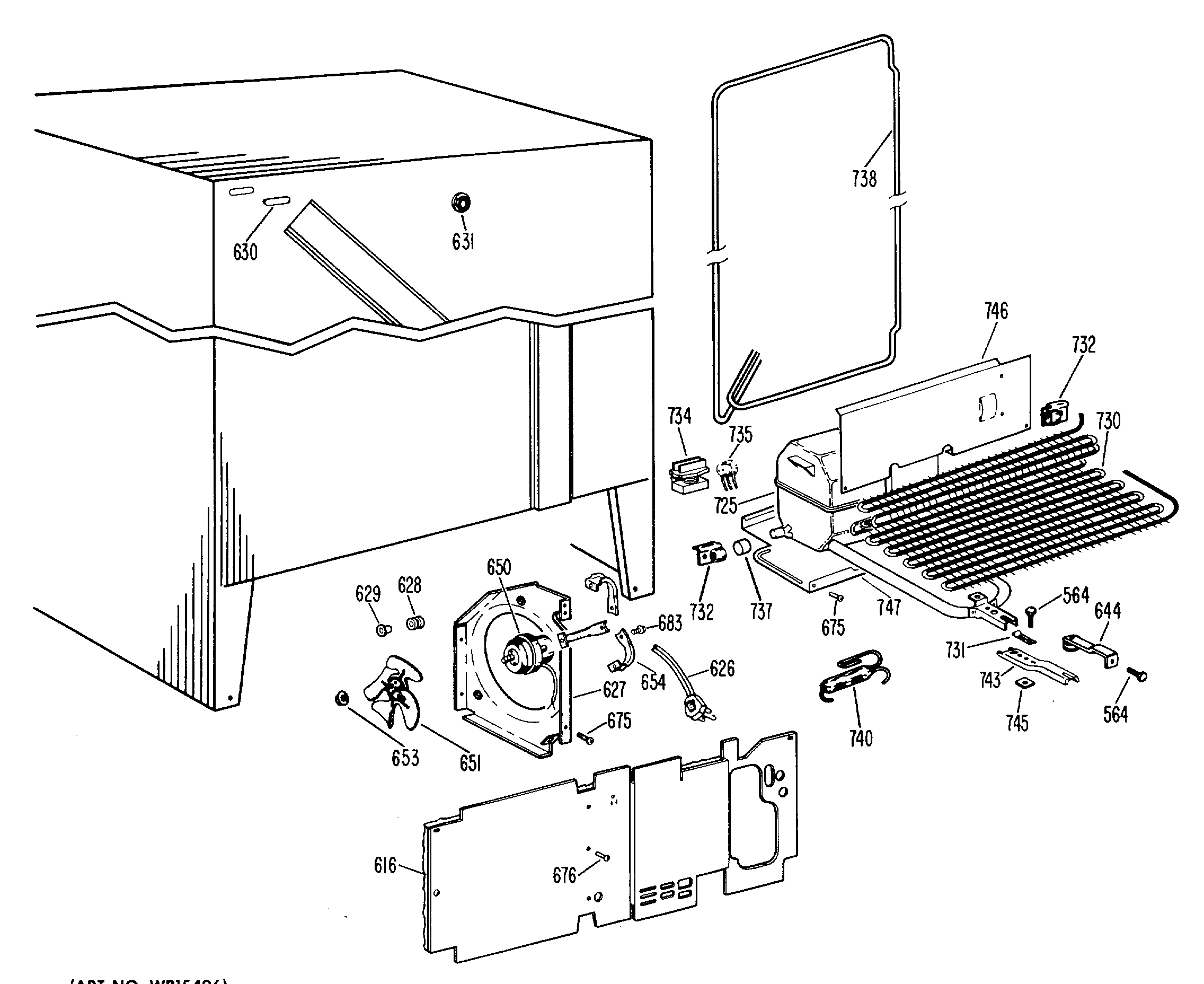

1

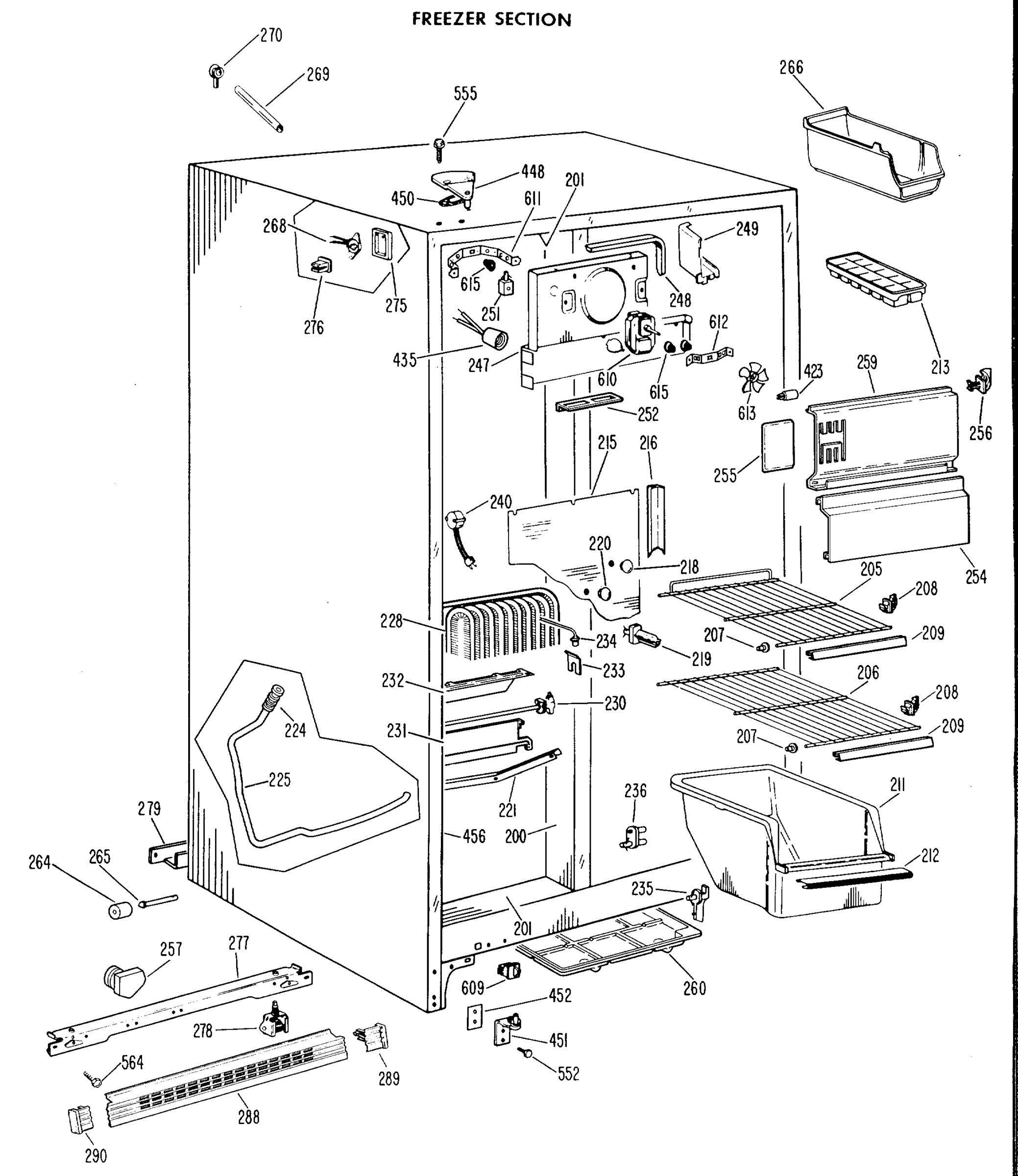

FREEZER SECTION

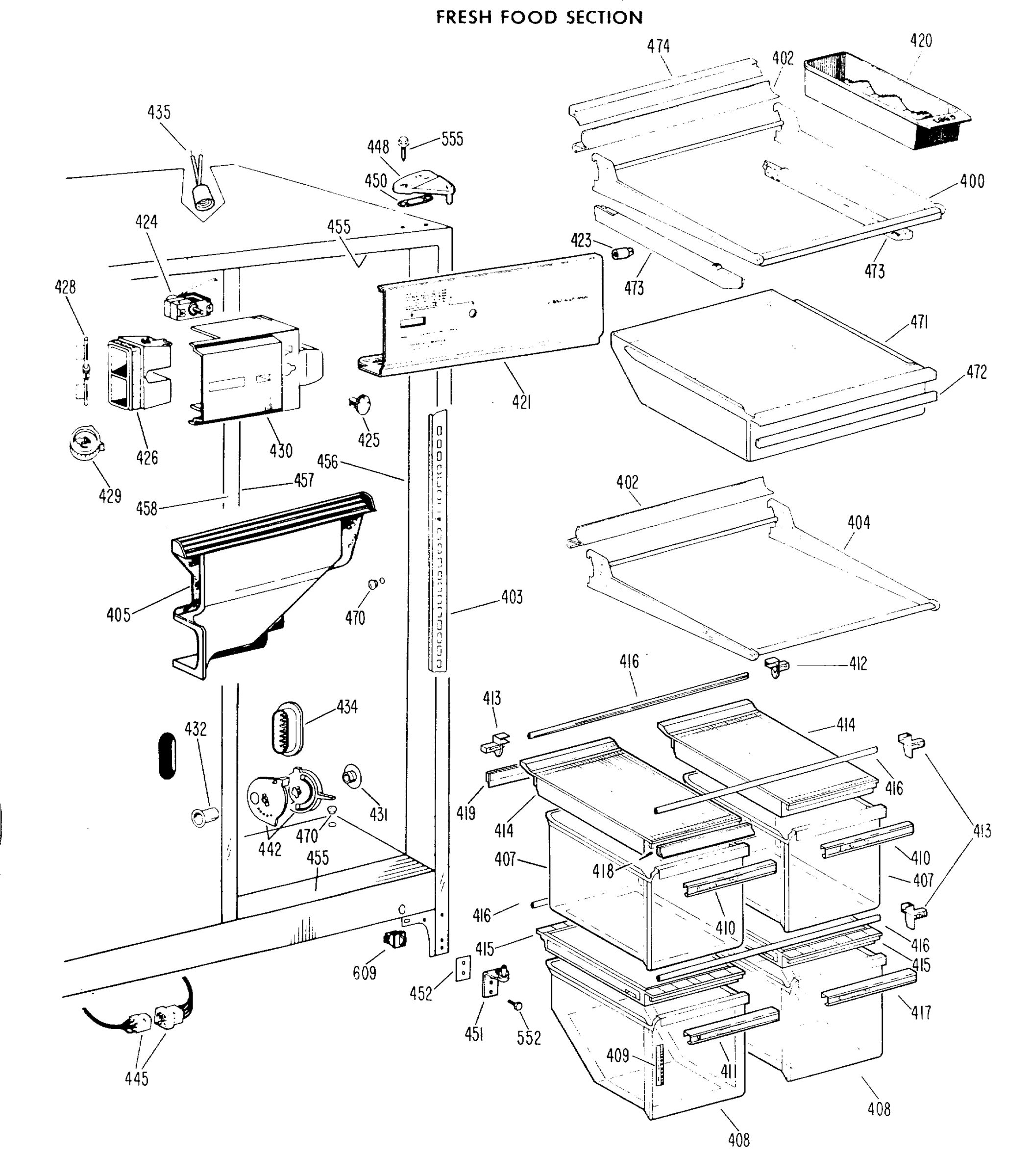

FRESH FOOD SECTION
Common parts from model GE TFF22ZBM Refrigerator
4
GEN WR12X0317 GEN WR12X0317 Contact Us For Availability
5
GEN WR12X0448 GEN WR12X0448 Contact Us For Availability
7
GEN WR01X1246 GEN WR01X1246 Contact Us For Availability
8
GEN WR12X0449 GEN WR12X0449 Contact Us For Availability
10
GEN WR12X0425 GEN WR12X0425 Contact Us For Availability
12
GEN WR02X4537 GEN WR02X4537 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
GEN WR02X4540 GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0296 GEN WR24X0296 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0389 GEN WR77X0389 Contact Us For Availability
21
GEN WR71X1456 GEN WR71X1456 Contact Us For Availability
22
GEN WR01X5015 GEN WR01X5015 Contact Us For Availability
22
GEN WR71X1476 GEN WR71X1476 Contact Us For Availability
25
GEN WR02X4979 GEN WR02X4979 Contact Us For Availability
26
GEN WR02X4980 GEN WR02X4980 Contact Us For Availability
101
GEN WR03X0396 GEN WR03X0396 Contact Us For Availability
103
GEN WR24X0295 GEN WR24X0295 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X0905 GEN WR38X0905 Contact Us For Availability
106
GEN WR22X0256 GEN WR22X0256 Contact Us For Availability
108
GEN WR77X0390 GEN WR77X0390 Contact Us For Availability
109
GEN WR71X1459 GEN WR71X1459 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR01X1247 GEN WR01X1247 Contact Us For Availability
112
GEN WR71X1452 GEN WR71X1452 Contact Us For Availability
113
GEN WR12X0320 GEN WR12X0320 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
180
GEN WZ05X0166 GEN WZ05X0166 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5371 Contact Us For Availability
203
RETNR BRKR-TOP FF & FZ GEN WR02X5927 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X5872 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X7032 Contact Us For Availability
205
SHELF FZ GEN WR71X1514 Contact Us For Availability
206
SHELF FZ-BTM. GEN WR71X1356 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X0949 GEN WR38X0949 Contact Us For Availability
211
BASKET FRZ GEN WR21X0116 Contact Us For Availability
212
TRIM HANDLE GEN WR17X1522 Contact Us For Availability
214
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
215
CLIP EVAP COVER GEN WR02X4843 Contact Us For Availability
215
COVER EVAP GEN WR17X1566 Contact Us For Availability
216
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
217
GEN WR02X7257 GEN WR02X7257 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
PLUG RECESSED GEN WR02X3025 Contact Us For Availability
221
GASKET DRAIN TROUGH GEN WR02X4594 Contact Us For Availability
221
TROUGH DRAIN GEN WR17X1238 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X7088 GEN WR02X7088 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
228
LOW SIDE ASM GEN WR85X0102 Contact Us For Availability
230
BRACKET DEF HTR GEN WR02X4837 Contact Us For Availability
230
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
230
GEN WR51X0231 GEN WR51X0231 Contact Us For Availability
231
GEN WR02X4944 GEN WR02X4944 Contact Us For Availability
232
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X1413 GEN WR17X1413 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
BAFFLE AIR OUTLET FZ GEN WR17X1414 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
252
GEN WR02X7042 GEN WR02X7042 Contact Us For Availability
253
RIVET POP GEN WR01X1168 Contact Us For Availability
254
GEN WR17X1567 GEN WR17X1567 Contact Us For Availability
255
GEN WR02X6254 GEN WR02X6254 Contact Us For Availability
256
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
257
BRACKET DEF CONTROL GEN WR02X4527 Contact Us For Availability
259
GEN WR17X1927 GEN WR17X1927 Contact Us For Availability
260
GEN WR02X7074 GEN WR02X7074 Contact Us For Availability
260
PAN WATER DISPOSAL ASM GEN WR32X0755 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
266
GEN WR30X0198 GEN WR30X0198 Contact Us For Availability
268
RECEPTACLE-ICEMAKER GEN WR23X0191 Contact Us For Availability
269
FILL TUBE GEN WR02X6087 Contact Us For Availability
270
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
270
GROMMET WATER FILL GEN WR02X6268 Contact Us For Availability
275
GEN WR02X4339 GEN WR02X4339 Contact Us For Availability
277
GEN WR17X1492 GEN WR17X1492 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X1493 GEN WR17X1493 Contact Us For Availability
288
GEN WR02X7079 GEN WR02X7079 Contact Us For Availability
288
GRILLE 0. CASE GEN WR74X0157 Contact Us For Availability
289
GEN WR02X7154 GEN WR02X7154 Contact Us For Availability
290
GEN WR02X7155 GEN WR02X7155 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WR02X7080 Contact Us For Availability
400
GEN WR71X1509 GEN WR71X1509 Contact Us For Availability
402
GEN WR38X0959 GEN WR38X0959 Contact Us For Availability
403
GEN WR72X0062 GEN WR72X0062 Contact Us For Availability
404
GEN WR71X1504 GEN WR71X1504 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X0649 GEN WR32X0649 Contact Us For Availability
408
GEN WR32X0650 GEN WR32X0650 Contact Us For Availability
409
DECAL MEAT PAN GEN WR02X4796 Contact Us For Availability
410
GEN WR17X1556 GEN WR17X1556 Contact Us For Availability
411
GEN WR17X1558 GEN WR17X1558 Contact Us For Availability
412
GEN WR02X4941 GEN WR02X4941 Contact Us For Availability
413
GEN WR02X4942 GEN WR02X4942 Contact Us For Availability
414
GEN WR32X0675 GEN WR32X0675 Contact Us For Availability
415
GEN WR02X7034 GEN WR02X7034 Contact Us For Availability
415
GEN WR32X0676 GEN WR32X0676 Contact Us For Availability
416
GEN WR02X4790 GEN WR02X4790 Contact Us For Availability
417
GEN WR17X1557 GEN WR17X1557 Contact Us For Availability
418
GEN WR14X0287 GEN WR14X0287 Contact Us For Availability
419
GEN WR14X0288 GEN WR14X0288 Contact Us For Availability
420
GEN WR32X0653 GEN WR32X0653 Contact Us For Availability
421
GEN WR17X1928 GEN WR17X1928 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
423
GEN WR02X6350 GEN WR02X6350 Contact Us For Availability
424
GEN WR09X0359 GEN WR09X0359 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GASKET FOAM GEN WR14X0271 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X7156 GEN WR02X7156 Contact Us For Availability
430
CLIP-CONTROL HOUSING GEN WR01X5463 Contact Us For Availability
430
HOUSING CONT GEN WR17X1412 Contact Us For Availability
431
CAP MULLION DUCT GEN WR02X4799 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
435
GEN WR02X4849 GEN WR02X4849 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
442
KNOB CONTROL GEN WR02X3883 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
448
HINGE TOP ASM GEN WR13X0496 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X7190 GEN WR02X7190 Contact Us For Availability
455
BREAKER STRIP-TOP & BTM. GEN WR40X5378 Contact Us For Availability
456
RETNR BRKR-HINGE & MULL GEN WR02X5926 Contact Us For Availability
456
BREAKER STRIP-HINGE SIDE GEN WR40X5376 Contact Us For Availability
457
BREAKER STRIP-FF MULLION GEN WR40X1575 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
471
GEN WR32X0709 GEN WR32X0709 Contact Us For Availability
472
GEN WR38X0954 GEN WR38X0954 Contact Us For Availability
473
GEN WR17X1515 GEN WR17X1515 Contact Us For Availability
473
GEN WR17X1516 GEN WR17X1516 Contact Us For Availability
474
GEN WR14X0282 GEN WR14X0282 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
558
GEN WZ06X0107 GEN WZ06X0107 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
562
SCR 8-32 T TR 1/2 SS NS GEN WZ05X0196 Contact Us For Availability
563
GROMMET SCR CLOSED GEN WR01X1326 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
565
SCR 8-32 T TR 1/2 SS XTW GEN WZ06X0113 Contact Us For Availability
571
GEN WZ04X0247 GEN WZ04X0247 Contact Us For Availability
610
GEN WR60X0131 GEN WR60X0131 Contact Us For Availability
611
GEN WR02X4792 GEN WR02X4792 Contact Us For Availability
612
GEN WR02X7137 GEN WR02X7137 Contact Us For Availability
615
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
616
BAFFLE SOUND REAR ASM GEN WR82X0220 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
627
GEN WR17X1632 GEN WR17X1632 Contact Us For Availability
628
GEN WR02X7104 GEN WR02X7104 Contact Us For Availability
629
GEN WR02X7105 GEN WR02X7105 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
652
GEN WR02X4191 GEN WR02X4191 Contact Us For Availability
654
GEN WR02X7106 GEN WR02X7106 Contact Us For Availability
677
GEN WR01X1467 GEN WR01X1467 Contact Us For Availability
680
GEN WR01X1546 GEN WR01X1546 Contact Us For Availability
683
SCREW GEN WZ05X0164 Contact Us For Availability
687
GEN WZ04X0224 GEN WZ04X0224 Contact Us For Availability
690
GEN WR01X1604 GEN WR01X1604 Contact Us For Availability
725
REFRIGERANT GEN WR97X5036 Contact Us For Availability
730
GEN WR84X0050 GEN WR84X0050 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
732
CUP & BRACKET ASM-R.SIDE GEN WR02X1864 Contact Us For Availability
732
CUP & BRACKET ASM-L.SIDE GEN WR02X1865 Contact Us For Availability
734
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
734
COVER RELAY GEN WR02X3867 Contact Us For Availability
734
RELAY COMP GEN WR07X0138 Contact Us For Availability
735
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
736
GEN WR02X7089 GEN WR02X7089 Contact Us For Availability
737
SLEEVE COMP MTG GEN WR02X2202 Contact Us For Availability
738
TUBE COND LOOP ASM GEN WR84X0045 Contact Us For Availability
743
EXT COMP MTG GEN WR02X6157 Contact Us For Availability
745
NUTSTRIP COMP MTG D/J GEN WR02X3904 Contact Us For Availability
746
BAFFLE COMP FRT GEN WR17X1489 Contact Us For Availability
747
BAFFLE COMP FLR GEN WR17X1494 Contact Us For Availability
900
GEN WR78X7076 GEN WR78X7076 Contact Us For Availability
901
GEN WR78X4760 GEN WR78X4760 Contact Us For Availability
902
GEN WR78X4761 GEN WR78X4761 Contact Us For Availability
903
GEN WR78X4762 GEN WR78X4762 Contact Us For Availability
904
GEN WR78X4763 GEN WR78X4763 Contact Us For Availability
905
GEN WR78X7077 GEN WR78X7077 Contact Us For Availability
32767
GEN 31-5004 GEN 31-5004 Contact Us For Availability
32767
GEN 49-6333 GEN 49-6333 Contact Us For Availability
32767
GEN WR00X0013 GEN WR00X0013 Contact Us For Availability
32767
GEN WR01X1227 GEN WR01X1227 Contact Us For Availability
32767
NUTSTRIP TOP HINGE GEN WR02X4198 Contact Us For Availability
32767
GEN WR02X462 GEN WR02X462 Contact Us For Availability
32767
FAN BLADE, COND MOTOR GEN WR60X0042 Contact Us For Availability
32767
GEN WZ06X0096 GEN WZ06X0096 Contact Us For Availability
32767
GEN WR02X4816 GEN WR02X4816 Contact Us For Availability
× ![]()
