Model GE TFF19LAB – Common Parts & Diagrams
0
1

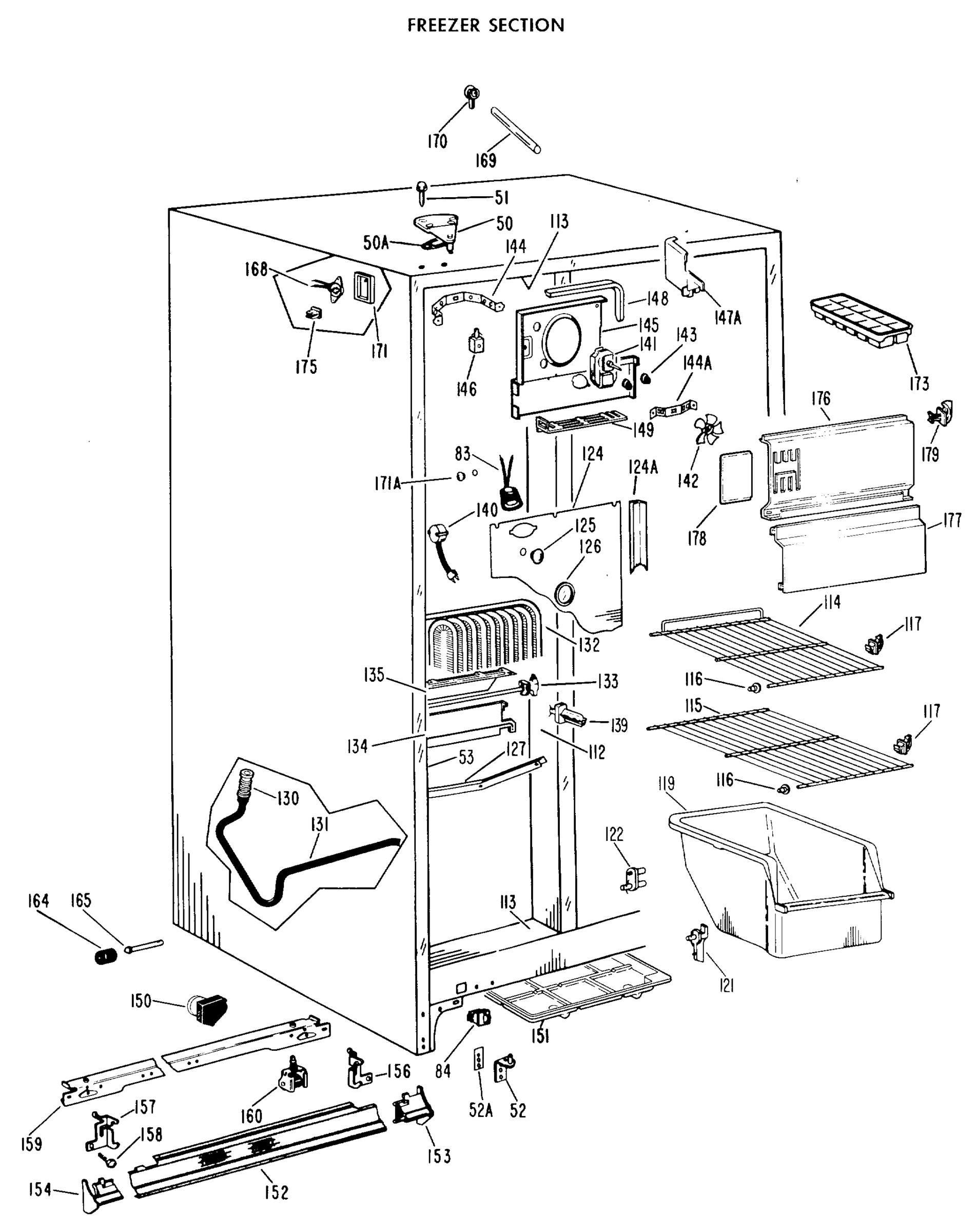

FREEZER SECTION
FRESH FOOD SECTION
Common parts from model GE TFF19LAB
1
GEN WR78X7126 GEN WR78X7126 Contact Us For Availability
2
GEN WR77X0413 GEN WR77X0413 Contact Us For Availability
3
GEN WR02X7070 GEN WR02X7070 Contact Us For Availability
4
GEN WR12X0439 GEN WR12X0439 Contact Us For Availability
5
GEN WZ06X0112 GEN WZ06X0112 Contact Us For Availability
12
STOP DOOR CHROME GEN WR02X4537 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
SHIM CAM DOOR STOP GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
13
GEN WR02X6048 GEN WR02X6048 Contact Us For Availability
13
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
14
GEN WR24X0252 GEN WR24X0252 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
17
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
20
GEN WR71X1470 GEN WR71X1470 Contact Us For Availability
21
GEN WR02X6320 GEN WR02X6320 Contact Us For Availability
22
GEN WR02X6321 GEN WR02X6321 Contact Us For Availability
25
GEN WR02X6349 GEN WR02X6349 Contact Us For Availability
30
BUTTER DISH GEN WR19X5003 Contact Us For Availability
31
GEN WR78X7127 GEN WR78X7127 Contact Us For Availability
32
GEN WR01X0396 GEN WR01X0396 Contact Us For Availability
33
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
34
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
34
GEN WR77X0407 GEN WR77X0407 Contact Us For Availability
35
GEN WR71X1520 GEN WR71X1520 Contact Us For Availability
36
GEN WR24X0304 GEN WR24X0304 Contact Us For Availability
37
GEN WR17X5600 GEN WR17X5600 Contact Us For Availability
38
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
50
SHIM GEN WR02X4194 Contact Us For Availability
50
GEN WR02X4198 GEN WR02X4198 Contact Us For Availability
50
TOP HINGE BOTH DOORS GEN WR13X0496 Contact Us For Availability
51
SCREW 12-24X7/8 GEN WR01X1249 Contact Us For Availability
52
GEN WR02X4400 GEN WR02X4400 Contact Us For Availability
52
SHIM GEN WR02X4497 Contact Us For Availability
52
SCREW HINGE 12-24X1-1/64 GEN WR01X1587 Contact Us For Availability
53
BREAKER STRIP HINGE SIDE GEN WR40X5376 Contact Us For Availability
53
RETAINER HINGE SIDE - FF GEN WR02X5926 Contact Us For Availability
53
BREAKER STRIP MULLION SI GEN WR40X1575 Contact Us For Availability
54
RETAINER BOTTOM FF GEN WR02X4598 Contact Us For Availability
54
GEN WR12X4597 GEN WR12X4597 Contact Us For Availability
54
BREAKDER STRIP TOP & BTM GEN WR40X5375 Contact Us For Availability
55
SCREW 8-32X3/8 GEN WR01X1501 Contact Us For Availability
55
U-NUT MULLION BOTTOM GEN WR02X4739 Contact Us For Availability
55
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
55
BRACKET MULLION BOTTOM GEN WR02X7033 Contact Us For Availability
55
MULLION STRIP (WH) GEN WR40X1576 Contact Us For Availability
56
SHELF WIRE GEN WR71X1347 Contact Us For Availability
57
SUPPORT SHELF GEN WR02X4076 Contact Us For Availability
59
GEN WR32X5137 GEN WR32X5137 Contact Us For Availability
60
HANDLE VEGETABLE PAN GEN WR17X1495 Contact Us For Availability
61
COVER VEG. PAN GEN WR32X0654 Contact Us For Availability
62
GASKET COVER VEG. PAN GEN WR14X5111 Contact Us For Availability
64
SLIDE RH - VEG. PAN GEN WR02X6012 Contact Us For Availability
65
SLIDE LH - VEG. PAN GEN WR02X6013 Contact Us For Availability
66
GEN WR21X0115 GEN WR21X0115 Contact Us For Availability
74
CANOE CLIP GEN WR01X1332 Contact Us For Availability
74
LIGHT SHIELD FF GEN WR17X1571 Contact Us For Availability
75
SUPPORT LIGHT SHIELD GEN WR02X6347 Contact Us For Availability
75
SUPPORT BTM. LT. SHIELD GEN WR02X6350 Contact Us For Availability
76
GEN WR09X5131 GEN WR09X5131 Contact Us For Availability
77
CLIP CONTROL GEN WR01X5463 Contact Us For Availability
77
GEN WR02X4943 GEN WR02X4943 Contact Us For Availability
78
GEN WR17X1412 GEN WR17X1412 Contact Us For Availability
78
SCREW HOUSING 8-32X1/4 GEN WZ02X0460 Contact Us For Availability
80
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
80
NOZZLE GEN WR02X4834 Contact Us For Availability
80
FOAM TAPE GEN WR14X0271 Contact Us For Availability
81
DAMPER SHAFT GEN WR02X4835 Contact Us For Availability
82
DAMPER WHEEL GEN WR02X4836 Contact Us For Availability
83
LAMP 0A15/1-FRZ. GEN WR02X4049 Contact Us For Availability
83
BRACKET SOCKET TOP GEN WR02X4849 Contact Us For Availability
83
SCREW 8-32X1/2 GEN WZ05X0196 Contact Us For Availability
88
FERRULE GEN WR02X3886 Contact Us For Availability
90
PLUG BUTTON .176 DIA. HO GEN WR02X4632 Contact Us For Availability
91
PLUG VENT GEN WR02X4410 Contact Us For Availability
92
AIR RETURN BAFFLE GEN WR02X4542 Contact Us For Availability
92
SEAL GEN WR02X4543 Contact Us For Availability
94
CLAMP HARNESS GEN WR02X4838 Contact Us For Availability
94
SCREW CLAMP GEN WR01X5034 Contact Us For Availability
94
CLIP HARNESS GEN WR02X4453 Contact Us For Availability
94
GEN WR49X0233 GEN WR49X0233 Contact Us For Availability
97
GROMMET SCREW GEN WR01X1326 Contact Us For Availability
97
SCREW 8-18X5/8 GEN WZ04X0244 Contact Us For Availability
97
GASKET GEN WR14X0264 Contact Us For Availability
97
FF AIR RETURN W GASKET GEN WR17X1382 Contact Us For Availability
112
GEN WR02X7032 GEN WR02X7032 Contact Us For Availability
112
BREAKER STRIP MILL. SIDE GEN WR40X1574 Contact Us For Availability
113
RETAINER TO FRZ. GEN WR02X5927 Contact Us For Availability
113
BREAKER STRIP TOP & BTM. GEN WR40X5371 Contact Us For Availability
114
SHELF TOP FRZ. GEN WR71X1514 Contact Us For Availability
115
SHELF FRZ. GEN WR71X1356 Contact Us For Availability
116
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
117
SUPPORT SHELF MULLION SI GEN WR02X4674 Contact Us For Availability
119
GEN WR21X5074 GEN WR21X5074 Contact Us For Availability
121
SUPPORT FRONT GEN WR02X4191 Contact Us For Availability
122
SUPPORT REAR GEN WR02X4548 Contact Us For Availability
124
CLIP BAFFLE & HEATER GEN WR02X4843 Contact Us For Availability
124
GASKET BAFFLE GEN WR14X0274 Contact Us For Availability
124
GEN WR17X5901 GEN WR17X5901 Contact Us For Availability
124
SCREW 8-18X1/2 GEN WZ06X0107 Contact Us For Availability
124
SCREW 8-32X1/2 GEN WZ06X0113 Contact Us For Availability
125
PLUG BUTTON (.360 DIA. H GEN WR02X6008 Contact Us For Availability
126
PLUG BUTTON (1.250 DIA. GEN WR02X3025 Contact Us For Availability
127
SEAL GEN WR02X4594 Contact Us For Availability
127
GEN WR17X1238 GEN WR17X1238 Contact Us For Availability
130
DRAIN TUBE FRZ. GEN WR02X4967 Contact Us For Availability
131
DRAIN TUBE EXTENSION GEN WR02X4969 Contact Us For Availability
132
FOAM BLOCK GEN WR02X4982 Contact Us For Availability
132
FOAM BLOCK GEN WR02X4983 Contact Us For Availability
132
LOW SIDE GEN WR85X0102 Contact Us For Availability
132
REFRIGERANT 6 OZ. GEN WR97X0096 Contact Us For Availability
133
HEATER DEFROST GEN WR51X0231 Contact Us For Availability
134
GEN WR02X4837 GEN WR02X4837 Contact Us For Availability
135
LEAD & CONNECTOR TOP & B GEN WR02X4546 Contact Us For Availability
135
COVER HEATER MOUNTING GEN WR02X4971 Contact Us For Availability
135
GEN WR17X1276 GEN WR17X1276 Contact Us For Availability
139
SUPPORT EVAPORATOR GEN WR02X4421 Contact Us For Availability
141
GEN WR60X0108 GEN WR60X0108 Contact Us For Availability
143
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
144
MOUNTING BRACKET LARGE GEN WR02X4792 Contact Us For Availability
144
MOUNTING BRACKET SMALL GEN WR02X4793 Contact Us For Availability
145
FAN ORIFICE GEN WR17X1413 Contact Us For Availability
146
SUPPORT ORIFICE GEN WR02X2880 Contact Us For Availability
147
AIR BAFFLE GEN WR17X1414 Contact Us For Availability
148
GASKET ORIFICE GEN WR14X0272 Contact Us For Availability
149
RIVET GUARD GEN WR01X1168 Contact Us For Availability
149
GUARD EV GEN WR02X7042 Contact Us For Availability
150
GEN WZ05X0164 GEN WZ05X0164 Contact Us For Availability
150
GEN WR02X3756 GEN WR02X3756 Contact Us For Availability
150
GEN WR02X4527 GEN WR02X4527 Contact Us For Availability
150
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
151
GEN WR32X0687 GEN WR32X0687 Contact Us For Availability
152
GEN WR74X0146 GEN WR74X0146 Contact Us For Availability
153
GEN WR02X4668 GEN WR02X4668 Contact Us For Availability
154
GEN WR02X4669 GEN WR02X4669 Contact Us For Availability
156
GEN WR02X4098 GEN WR02X4098 Contact Us For Availability
157
GEN WR02X4099 GEN WR02X4099 Contact Us For Availability
158
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
159
GEN WR17X1491 GEN WR17X1491 Contact Us For Availability
160
GEN WR02X4858 GEN WR02X4858 Contact Us For Availability
165
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
168
GEN WR23X0191 GEN WR23X0191 Contact Us For Availability
169
GEN WR29X5104 GEN WR29X5104 Contact Us For Availability
170
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
170
GEN WR02X6268 GEN WR02X6268 Contact Us For Availability
171
GEN WR02X4339 GEN WR02X4339 Contact Us For Availability
174
GEN WR30X0198 GEN WR30X0198 Contact Us For Availability
175
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
176
GEN WR17X1568 GEN WR17X1568 Contact Us For Availability
177
GEN WR17X1567 GEN WR17X1567 Contact Us For Availability
178
GEN WR02X6254 GEN WR02X6254 Contact Us For Availability
179
GEN WR02 GEN WR02 Contact Us For Availability
202
CLIP COND. GEN WR02X4621 Contact Us For Availability
202
CONDENSER ASM. GEN WR84X0036 Contact Us For Availability
203
GEN WR84X0045 GEN WR84X0045 Contact Us For Availability
204
CUP & BRACKET R. SIDE GEN WR02X1864 Contact Us For Availability
204
CUP & BRACKET L. SIDE GEN WR02X1865 Contact Us For Availability
205
GEN WR02X2202 GEN WR02X2202 Contact Us For Availability
205
SCREW BRACKET GEN WZ06X0062 Contact Us For Availability
207
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
208
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
208
GEN WR02X3867 GEN WR02X3867 Contact Us For Availability
208
GEN WR07X0138 GEN WR07X0138 Contact Us For Availability
210
GEN WR60X0042 GEN WR60X0042 Contact Us For Availability
211
NUT BLADE GEN WR01X1515 Contact Us For Availability
212
GEN WR02X4801 GEN WR02X4801 Contact Us For Availability
217
GEN WR82X0207 GEN WR82X0207 Contact Us For Availability
219
GEN WR17X1488 GEN WR17X1488 Contact Us For Availability
219
SCREW BAFFLE 8-16X1/2 GEN WZ06X0096 Contact Us For Availability
220
GEN WR17X1489 GEN WR17X1489 Contact Us For Availability
221
GEN WR17X1494 GEN WR17X1494 Contact Us For Availability
225
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
225
GEN WR17X1284 GEN WR17X1284 Contact Us For Availability
226
EXTENSION FRONT MTG. GEN WR02X6157 Contact Us For Availability
227
GEN WR02X3904 GEN WR02X3904 Contact Us For Availability
228
GEN WR01X1546 GEN WR01X1546 Contact Us For Availability
229
CLIP COND. GEN WR02X4850 Contact Us For Availability
230
GEN 49-6287-2 GEN 49-6287-2 Contact Us For Availability
230
PLUG BUTTON (1.79" HEX H GEN WR02X4829 Contact Us For Availability
230
PLUG BUTTON (1-1 2" DIA. GEN WR02X4968 Contact Us For Availability
× ![]()
