Model GE TFF19BAC Refrigerator – Common Parts & Diagrams

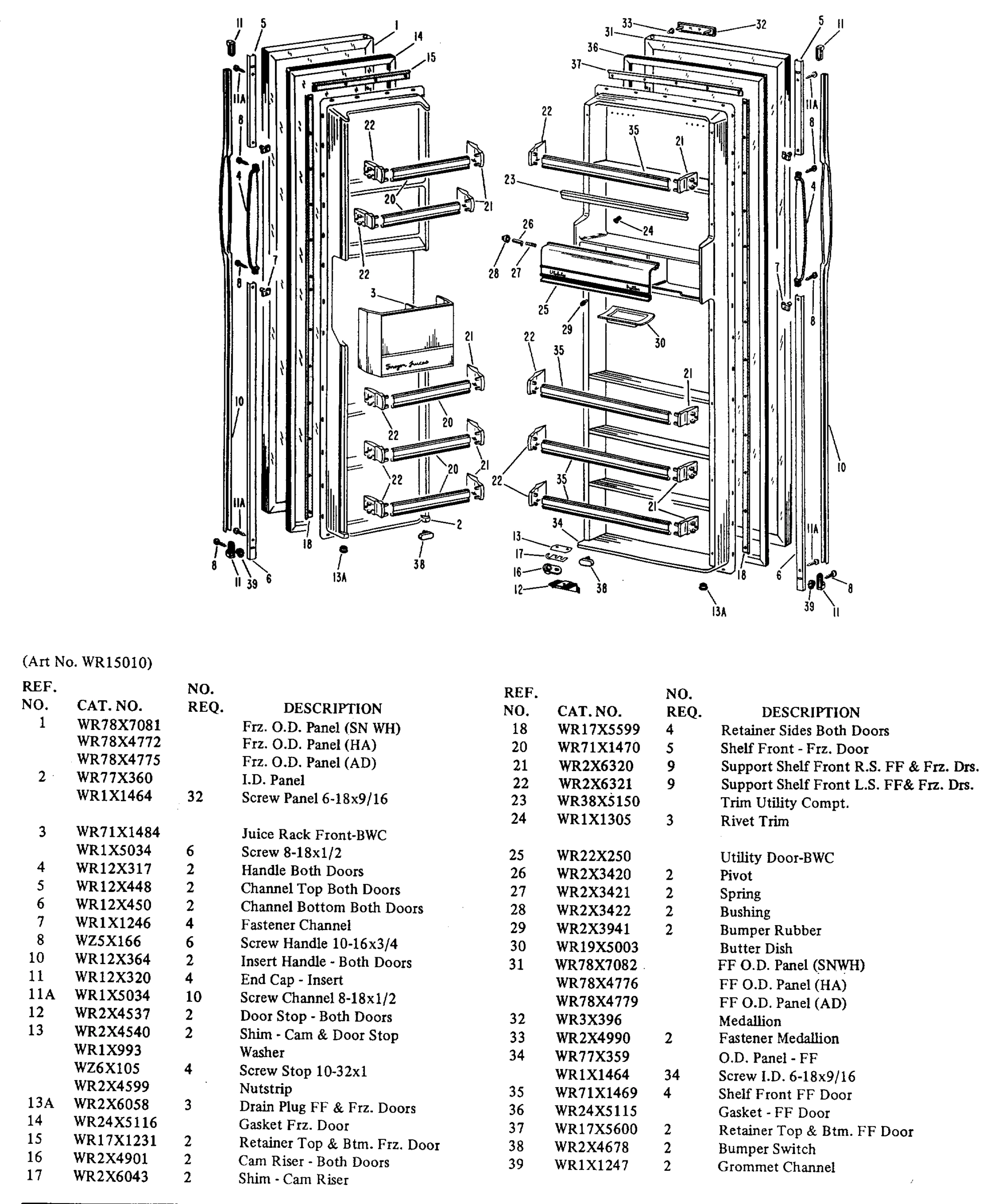

0

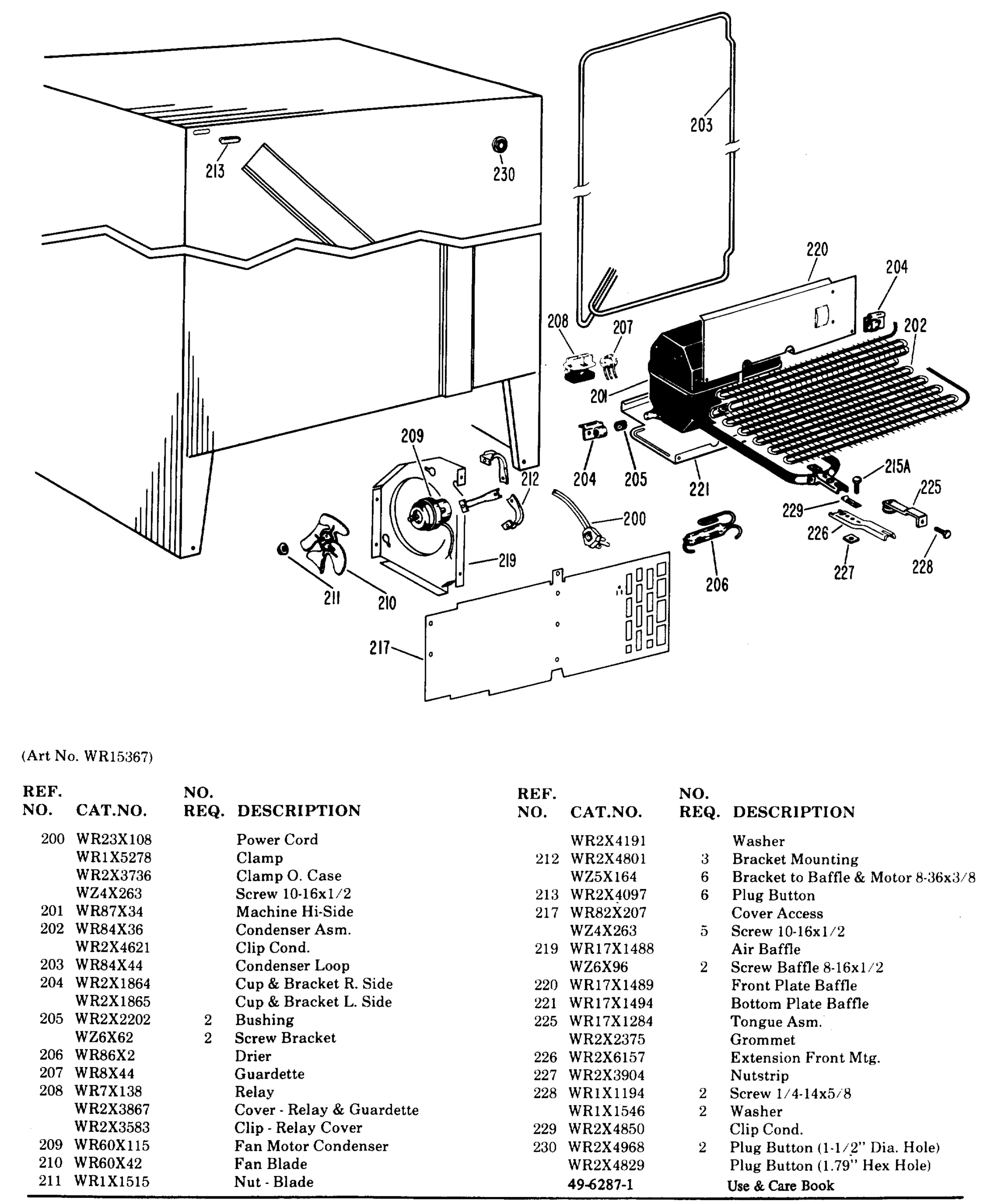

1

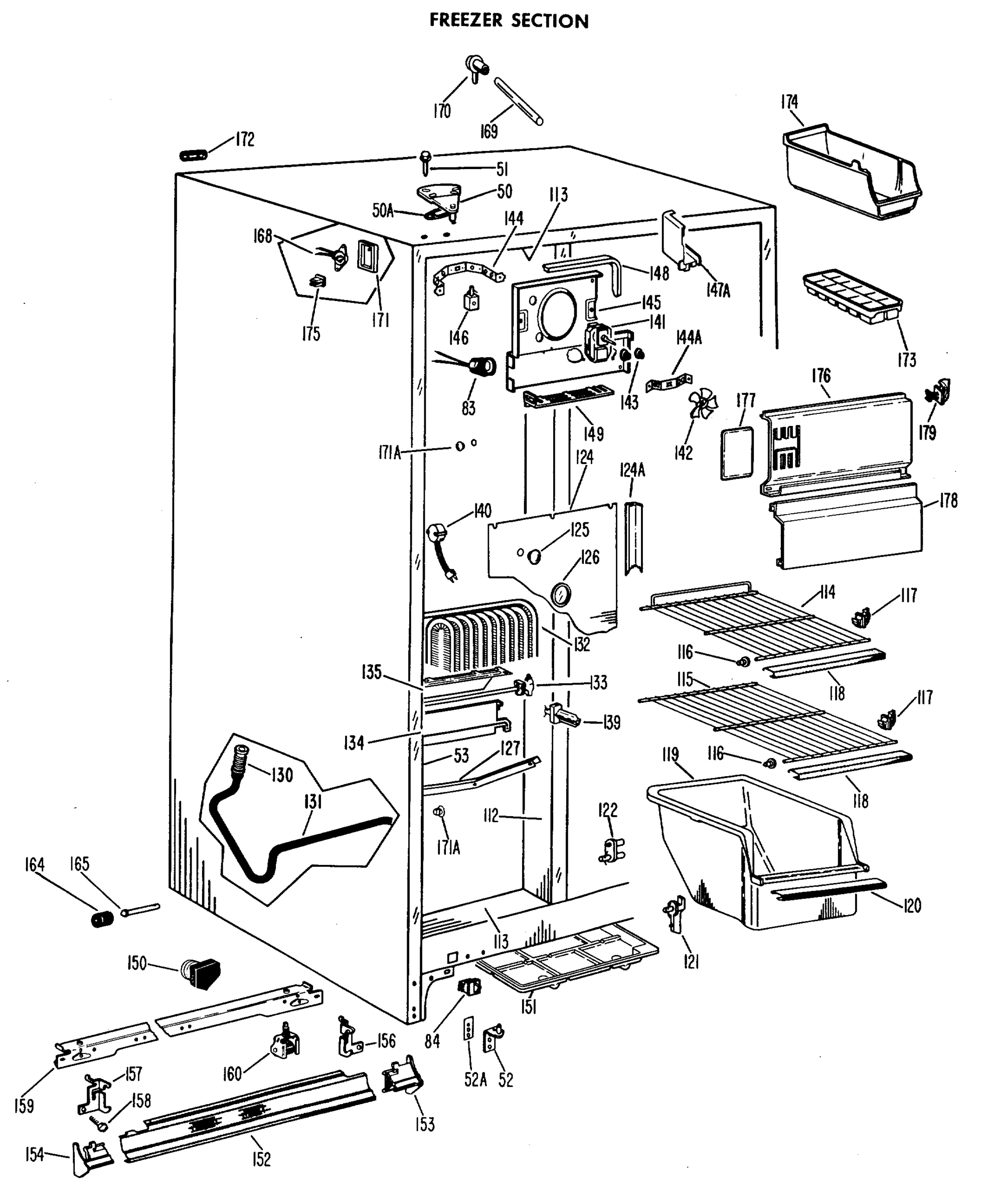

FREEZER SECTION

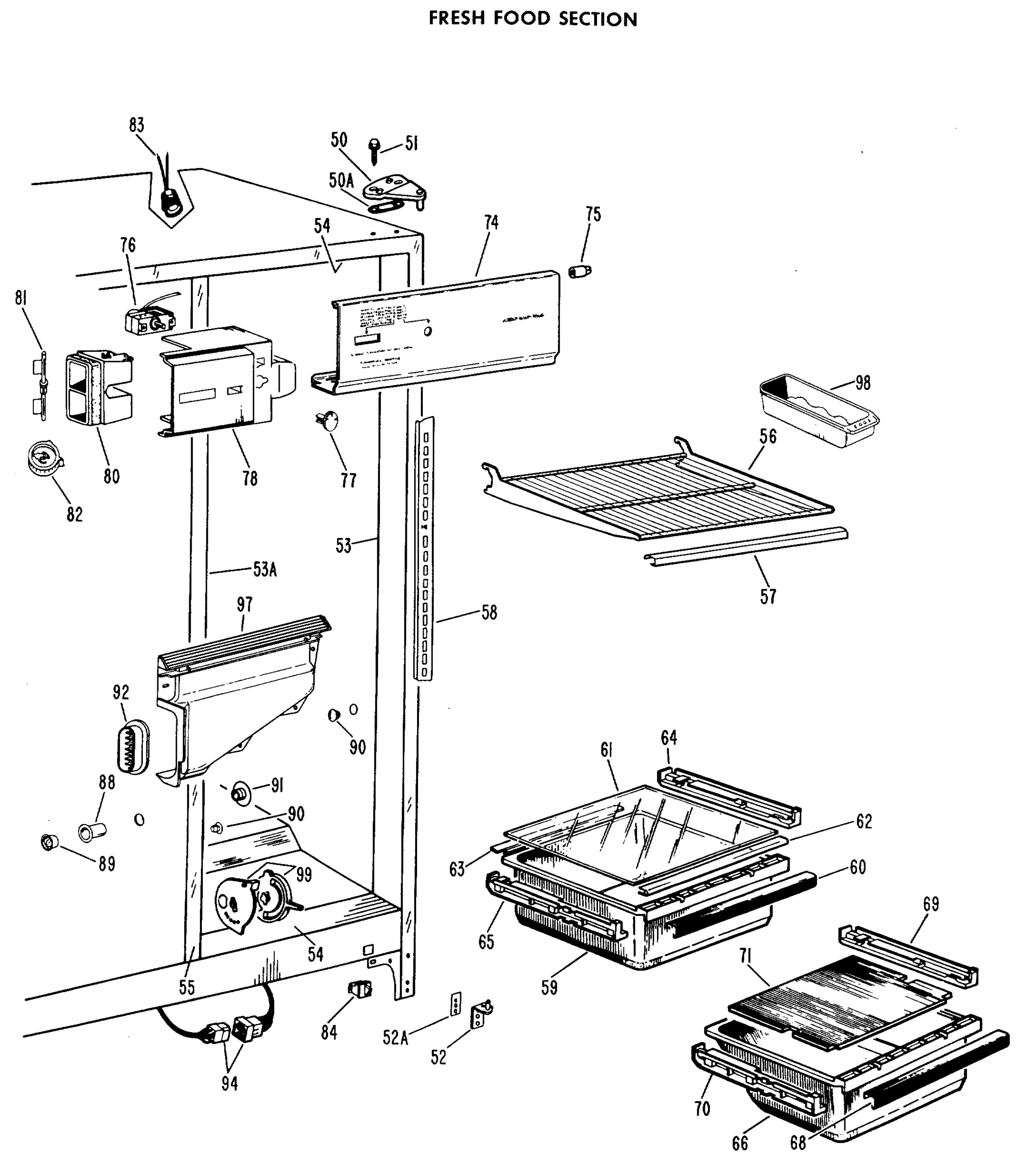

FRESH FOOD SECTION
Common parts from model GE TFF19BAC Refrigerator
1
GEN WR78X4772 GEN WR78X4772 Contact Us For Availability
1
GEN WR78X4775 GEN WR78X4775 Contact Us For Availability
1
GEN WR78X7081 GEN WR78X7081 Contact Us For Availability
2
GEN WR77X0360 GEN WR77X0360 Contact Us For Availability
3
GEN WR71X1484 GEN WR71X1484 Contact Us For Availability
4
GEN WR12X0317 GEN WR12X0317 Contact Us For Availability
5
GEN WR12X0448 GEN WR12X0448 Contact Us For Availability
6
GEN WR12X0450 GEN WR12X0450 Contact Us For Availability
7
GEN WR01X1246 GEN WR01X1246 Contact Us For Availability
8
GEN WZ05X0166 GEN WZ05X0166 Contact Us For Availability
10
INSERT HANDLE - BOTH DOO GEN WR12X0364 Contact Us For Availability
11
GEN WR12X0320 GEN WR12X0320 Contact Us For Availability
12
STOP DOOR CHROME GEN WR02X4537 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
SHIM CAM DOOR STOP GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
13
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
13
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
14
GEN WR24X5116 GEN WR24X5116 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
17
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
18
GEN WR17X5599 GEN WR17X5599 Contact Us For Availability
20
GEN WR71X1470 GEN WR71X1470 Contact Us For Availability
21
GEN WR02X6320 GEN WR02X6320 Contact Us For Availability
22
GEN WR02X6321 GEN WR02X6321 Contact Us For Availability
23
GEN WR38X5150 GEN WR38X5150 Contact Us For Availability
24
GEN WR01X1305 GEN WR01X1305 Contact Us For Availability
25
GEN WR22X0250 GEN WR22X0250 Contact Us For Availability
26
GEN WR02X3420 GEN WR02X3420 Contact Us For Availability
27
GEN WR02X3421 GEN WR02X3421 Contact Us For Availability
28
GEN WR02X3422 GEN WR02X3422 Contact Us For Availability
29
GEN WR02X3941 GEN WR02X3941 Contact Us For Availability
30
BUTTER DISH GEN WR19X5003 Contact Us For Availability
31
GEN WR78X4776 GEN WR78X4776 Contact Us For Availability
31
GEN WR78X4779 GEN WR78X4779 Contact Us For Availability
31
GEN WR78X7082 GEN WR78X7082 Contact Us For Availability
32
GEN WR03X0396 GEN WR03X0396 Contact Us For Availability
33
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
34
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
34
GEN WR77X0359 GEN WR77X0359 Contact Us For Availability
35
GEN WR71X1469 GEN WR71X1469 Contact Us For Availability
36
GEN WR24X5115 GEN WR24X5115 Contact Us For Availability
37
GEN WR17X5600 GEN WR17X5600 Contact Us For Availability
38
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
39
GEN WR01X1247 GEN WR01X1247 Contact Us For Availability
50
RIVET NUTSTRIP GEN WR01X1361 Contact Us For Availability
50
GEN WR02X4198 GEN WR02X4198 Contact Us For Availability
50
TOP HINGE BOTH DOORS GEN WR13X0496 Contact Us For Availability
51
SCREW 12-24X7/8 GEN WR01X1249 Contact Us For Availability
52
SCREW HINGE 12-24X7/8 GEN WR01X1188 Contact Us For Availability
52
GEN WR02X4400 GEN WR02X4400 Contact Us For Availability
52
SHIM GEN WR02X4526 Contact Us For Availability
53
GEN WR40X5373 GEN WR40X5373 Contact Us For Availability
53
RETAINER HINGE SIDE FF GEN WR02X5926 Contact Us For Availability
53
BREAKER STRIP MULLION SI GEN WR40X1577 Contact Us For Availability
54
RETAINER TOP FF GEN WR02X4597 Contact Us For Availability
54
RETAINER BOTTOM FF GEN WR02X4598 Contact Us For Availability
54
BREAKER STRIP TOP & BTM. GEN WR40X5375 Contact Us For Availability
55
SCREW 8-32X3/8 GEN WR01X1501 Contact Us For Availability
55
U-NUT MULLION BOTTOM GEN WR02X4739 Contact Us For Availability
55
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
55
BRACKET MULLION BOTTOM GEN WR02X7033 Contact Us For Availability
55
MULLION STRIP (WH) GEN WR40X1579 Contact Us For Availability
56
SHELF CANTILEVER WIRE GEN WR71X5768 Contact Us For Availability
57
CLIP TRIM GEN WR02X5008 Contact Us For Availability
57
GEN WR38X5146 GEN WR38X5146 Contact Us For Availability
58
SCREW 10-24X1-1/8 GEN WR01X1483 Contact Us For Availability
58
GEN WR72X5041 GEN WR72X5041 Contact Us For Availability
59
GEN WR32X0629 GEN WR32X0629 Contact Us For Availability
60
GEN WR17X5871 GEN WR17X5871 Contact Us For Availability
61
COVER VEG. PAN GEN WR32X0654 Contact Us For Availability
62
GASKET COVER VEG. PAN GEN WR14X5111 Contact Us For Availability
63
GASKET REAR VEG. PAN GEN WR14X5108 Contact Us For Availability
64
SLIDE RH - VEG. PAN GEN WR02X6012 Contact Us For Availability
65
SLIDE LH - VEG. PAN GEN WR02X6013 Contact Us For Availability
66
GEN WR32X0630 GEN WR32X0630 Contact Us For Availability
68
GEN WR17X5872 GEN WR17X5872 Contact Us For Availability
69
GEN WR02X6014 GEN WR02X6014 Contact Us For Availability
70
GEN WR02X6015 GEN WR02X6015 Contact Us For Availability
71
COVER MEAT PAN GEN WR32X5173 Contact Us For Availability
74
CANOE CLIP GEN WR01X1332 Contact Us For Availability
74
LIGHT SHIELD FF GEN WR17X1571 Contact Us For Availability
75
SUPPORT LIGHT SHIELD TOP GEN WR02X6347 Contact Us For Availability
75
SUPPORT LIGHT SHIELD BTM GEN WR02X6350 Contact Us For Availability
76
CLIP CONTROL GEN WR01X5463 Contact Us For Availability
76
GEN WR02X4943 GEN WR02X4943 Contact Us For Availability
76
GEN WR09X5131 GEN WR09X5131 Contact Us For Availability
78
GEN WR17X1412 GEN WR17X1412 Contact Us For Availability
78
SCREW HOUSING 8-32X1/4 GEN WZ02X0460 Contact Us For Availability
80
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
80
NOZZLE GEN WR02X4834 Contact Us For Availability
80
FOAM TAPE GEN WR14X0271 Contact Us For Availability
80
GEN WZ04X0399 GEN WZ04X0399 Contact Us For Availability
81
DAMPER SHAFT GEN WR02X4835 Contact Us For Availability
82
DAMPER WHEEL GEN WR02X4836 Contact Us For Availability
83
SOCKET LAMP 2 LEAD GEN WR02X4049 Contact Us For Availability
83
BRACKET SOCKET TOP GEN WR02X4849 Contact Us For Availability
83
SCREW 8-32X1/2 GEN WZ05X0196 Contact Us For Availability
88
FERRULE GEN WR02X3886 Contact Us For Availability
89
PLUG FERRULE GEN WR02X6160 Contact Us For Availability
90
PLUG BUTTON.176 DIA. HOL GEN WR02X4632 Contact Us For Availability
91
PLUG VENT GEN WR02X6153 Contact Us For Availability
92
AIR RETURN BAFFLE GEN WR02X4542 Contact Us For Availability
92
SEAL GEN WR02X4543 Contact Us For Availability
94
SCREW CLAMP GEN WR01X5034 Contact Us For Availability
94
CLAMP HARNESS GEN WR02X4838 Contact Us For Availability
94
CLIP HARNESS GEN WR02X4453 Contact Us For Availability
94
GEN WR49X0233 GEN WR49X0233 Contact Us For Availability
97
GROMMET SCREW GEN WR01X1326 Contact Us For Availability
97
SCREW 8-18X5/8 GEN WZ04X0244 Contact Us For Availability
97
GASKET GEN WR14X0264 Contact Us For Availability
97
FF AIR RETURN W/GASKET GEN WR17X1382 Contact Us For Availability
98
GEN WR32X0684 GEN WR32X0684 Contact Us For Availability
99
DAMPER ASM. GEN WR02X3883 Contact Us For Availability
112
GEN WR02X7032 GEN WR02X7032 Contact Us For Availability
112
BREAKER STRIP MULL SIDE- GEN WR40X1578 Contact Us For Availability
113
RETAINER BOTTOM FRZ. GEN WR02X5872 Contact Us For Availability
113
RETAINER TOP FRZ. GEN WR02X5927 Contact Us For Availability
113
BREAKER STRIP TOP & BTM. GEN WR40X5371 Contact Us For Availability
114
SHELF TOP FRZ. GEN WR71X1514 Contact Us For Availability
115
SHELF FRZ. GEN WR71X1356 Contact Us For Availability
116
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
117
SUPPORT SHELF MULLION SI GEN WR02X4674 Contact Us For Availability
118
GEN WR38X5180 GEN WR38X5180 Contact Us For Availability
119
GEN WR21X0116 GEN WR21X0116 Contact Us For Availability
120
HANDLE BASKET GEN WR17X1522 Contact Us For Availability
121
SUPPORT FRONT GEN WR02X7036 Contact Us For Availability
122
SUPPORT REAR GEN WR02X4548 Contact Us For Availability
124
CLIP BAFFLE & HEATER GEN WR02X4843 Contact Us For Availability
124
GASKET BAFFLE GEN WR14X0274 Contact Us For Availability
124
GEN WR17X5901 GEN WR17X5901 Contact Us For Availability
124
SCREW 8-18X1/2 GEN WZ06X0107 Contact Us For Availability
124
SCREW 8-32X1/2 GEN WZ06X0113 Contact Us For Availability
125
PLUG BUTTON (.360 DIA. H GEN WR02X6008 Contact Us For Availability
126
PLUG BUTTON (1.250 DIA. GEN WR02X3025 Contact Us For Availability
127
GASKET DRAIN TROUGH GEN WR02X4594 Contact Us For Availability
127
TROUGH DRAIN GEN WR17X1238 Contact Us For Availability
130
DRAIN TUBE FRZ. GEN WR02X4967 Contact Us For Availability
131
CLAMP TUBE GEN WR01X5042 Contact Us For Availability
131
DRAIN TUBE EXTENSION GEN WR02X4969 Contact Us For Availability
132
LOW SIDE GEN WR85X0102 Contact Us For Availability
132
REFRIGERANT 6-1/2 OZ. GEN WR97X5036 Contact Us For Availability
133
HEATER DEFROST GEN WR51X0231 Contact Us For Availability
134
GEN WR02X4837 GEN WR02X4837 Contact Us For Availability
135
LEAD & CONNECTOR TOP & B GEN WR02X4546 Contact Us For Availability
135
COVER HEATER MOUNTING GEN WR02X4971 Contact Us For Availability
135
GEN WR17X1276 GEN WR17X1276 Contact Us For Availability
137
GEN WR02X4860 GEN WR02X4860 Contact Us For Availability
139
SUPPORT EVAPORATOR GEN WR02X4421 Contact Us For Availability
141
GEN WR60X0108 GEN WR60X0108 Contact Us For Availability
143
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
144
MOUNTING BRACKET LARGE GEN WR02X4792 Contact Us For Availability
144
MOUNTING BRACKET SMALL GEN WR02X4793 Contact Us For Availability
145
GEN WR02X1413 GEN WR02X1413 Contact Us For Availability
146
SUPPORT ORIFICE GEN WR02X2880 Contact Us For Availability
147
AIR BAFFLE GEN WR17X1414 Contact Us For Availability
148
GASKET ORIFICE GEN WR14X0272 Contact Us For Availability
149
RIVET GU GEN WR01X1168 Contact Us For Availability
149
GEN WR02X7042 GEN WR02X7042 Contact Us For Availability
150
GEN WZ05X0164 GEN WZ05X0164 Contact Us For Availability
150
GEN WR02X3756 GEN WR02X3756 Contact Us For Availability
150
GEN WR02X4527 GEN WR02X4527 Contact Us For Availability
150
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
151
GEN WR32X0687 GEN WR32X0687 Contact Us For Availability
152
GEN WR74X0144 GEN WR74X0144 Contact Us For Availability
153
GEN WR02X4668 GEN WR02X4668 Contact Us For Availability
154
GEN WR02X4669 GEN WR02X4669 Contact Us For Availability
156
GEN WR02X4098 GEN WR02X4098 Contact Us For Availability
157
GEN WR02X4099 GEN WR02X4099 Contact Us For Availability
158
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
159
GEN WR17X1491 GEN WR17X1491 Contact Us For Availability
160
GEN WR02X4858 GEN WR02X4858 Contact Us For Availability
165
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
168
GEN WR23X0191 GEN WR23X0191 Contact Us For Availability
169
GEN WR29X5104 GEN WR29X5104 Contact Us For Availability
170
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
170
GEN WR02X6268 GEN WR02X6268 Contact Us For Availability
171
GEN WR02X4339 GEN WR02X4339 Contact Us For Availability
174
GEN WR30X0192 GEN WR30X0192 Contact Us For Availability
175
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
176
GEN WR17 GEN WR17 Contact Us For Availability
202
CLIP COND. GEN WR02X4621 Contact Us For Availability
202
CONDENSER ASM. GEN WR84X0036 Contact Us For Availability
203
CONDENSER LOOP GEN WR02X6325 Contact Us For Availability
204
CUP & BRACKET R. SIDE GEN WR02X1864 Contact Us For Availability
204
CUP & BRACKET L. SIDE GEN WR02X1865 Contact Us For Availability
205
GEN WR02X2202 GEN WR02X2202 Contact Us For Availability
205
SCREW BRACKET GEN WZ06X0062 Contact Us For Availability
207
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
208
CLIP - RELAY COVER GEN WR02X3583 Contact Us For Availability
208
COVER - RELAY & GUARDETT GEN WR02X3867 Contact Us For Availability
208
GEN WR07X0138 GEN WR07X0138 Contact Us For Availability
210
GEN WR60X0042 GEN WR60X0042 Contact Us For Availability
211
NUT - BLADE GEN WR01X1515 Contact Us For Availability
211
GEN WR02X4191 GEN WR02X4191 Contact Us For Availability
212
GEN WR02X4801 GEN WR02X4801 Contact Us For Availability
217
GEN WR82X0207 GEN WR82X0207 Contact Us For Availability
219
GEN WR17X1488 GEN WR17X1488 Contact Us For Availability
219
SCREW BAFFLE 8-16X1/2 GEN WZ06X0096 Contact Us For Availability
220
GEN WR17X1489 GEN WR17X1489 Contact Us For Availability
221
GEN WR17X1494 GEN WR17X1494 Contact Us For Availability
225
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
225
GEN WR17X1284 GEN WR17X1284 Contact Us For Availability
226
EXTENSION FRONT MTG. GEN WR02X6157 Contact Us For Availability
227
GEN WR02X3904 GEN WR02X3904 Contact Us For Availability
228
GEN WR01X1546 GEN WR01X1546 Contact Us For Availability
229
CLIP COND. GEN WR02X4850 Contact Us For Availability
230
GEN 49-6287-1 GEN 49-6287-1 Contact Us For Availability
230
PLUG BUTTON (1.79" HEX H GEN WR02X4829 Contact Us For Availability
230
PLUG BUTTON (1-1/2" DIA. GEN WR02X4968 Contact Us For Availability
× ![]()
