Model Whirlpool TF8503XLP0 TRASH COMPACTOR – Common Parts & Diagrams

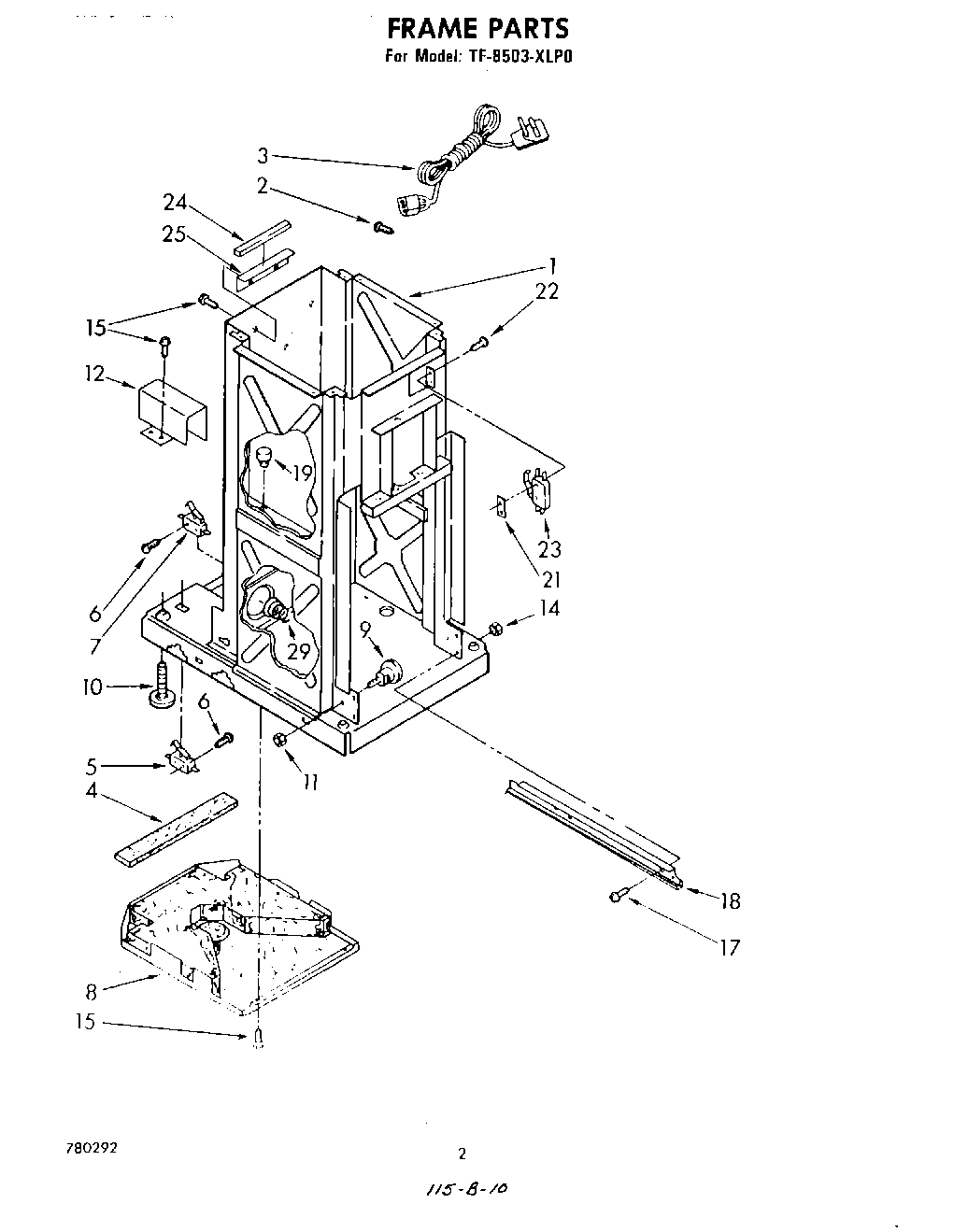

02 - FRAME

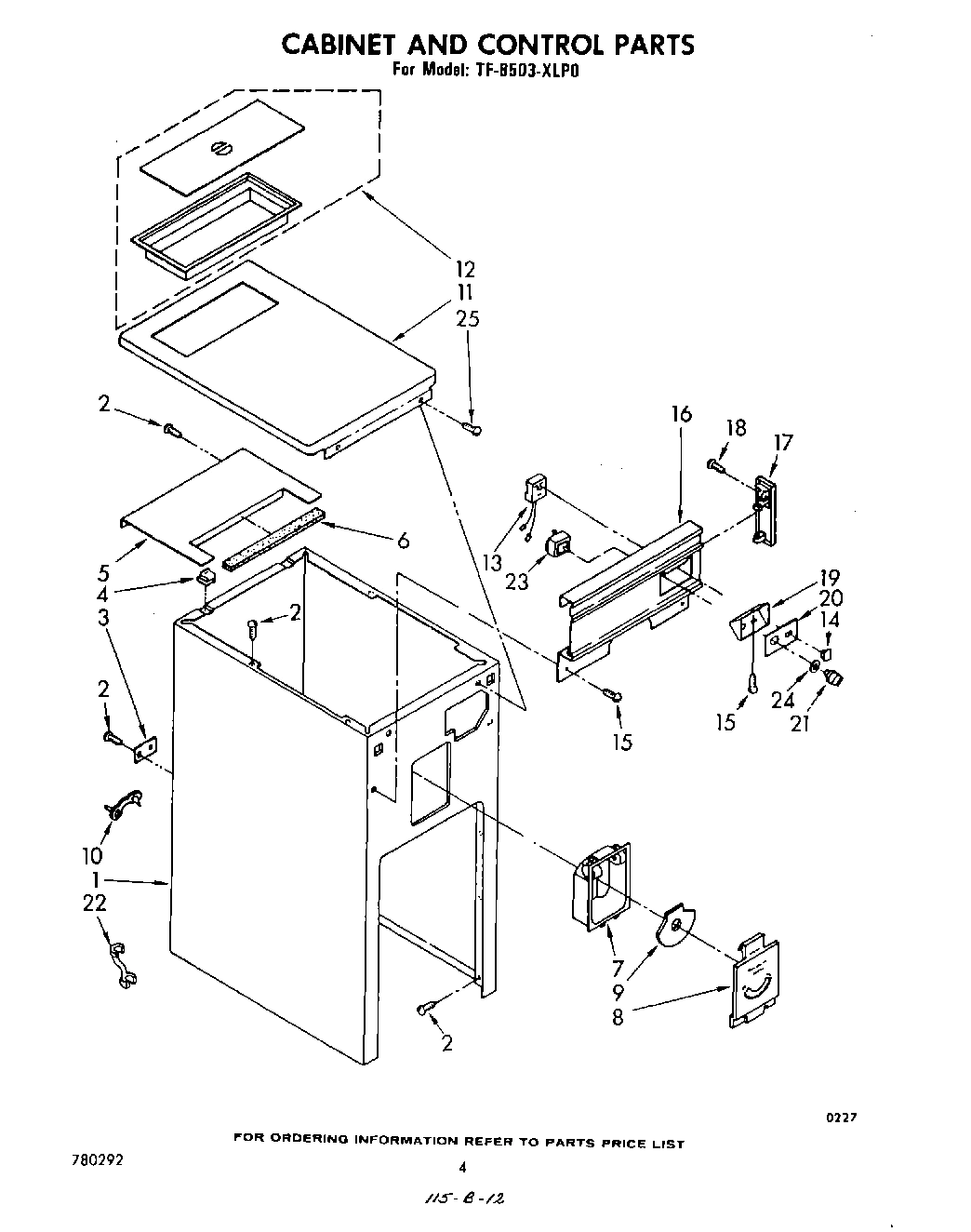

04 - CABINET AND CONTROL

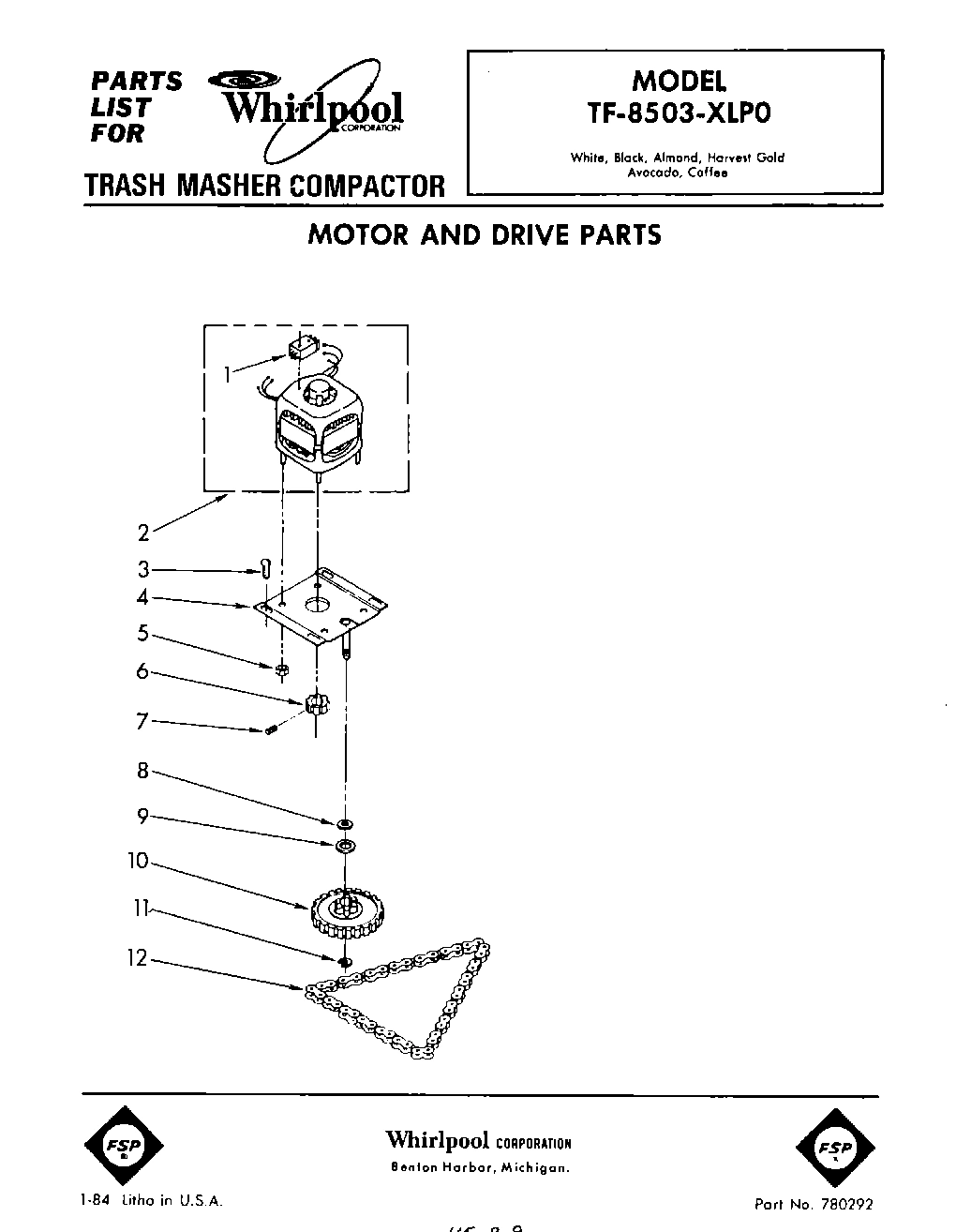

01 - MOTOR AND DRIVE , LIT/OPTIONAL

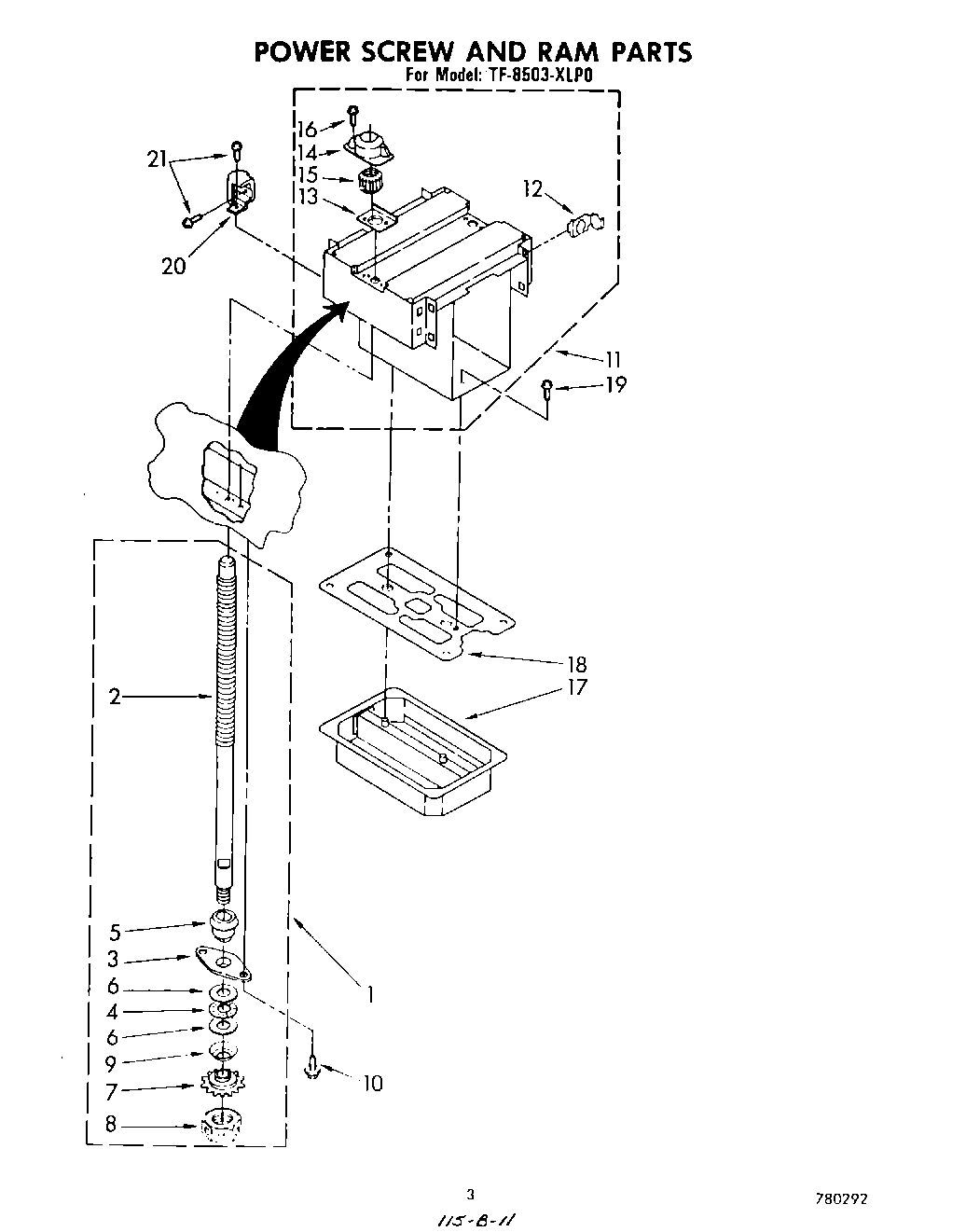

03 - POWER SCREW AND RAM

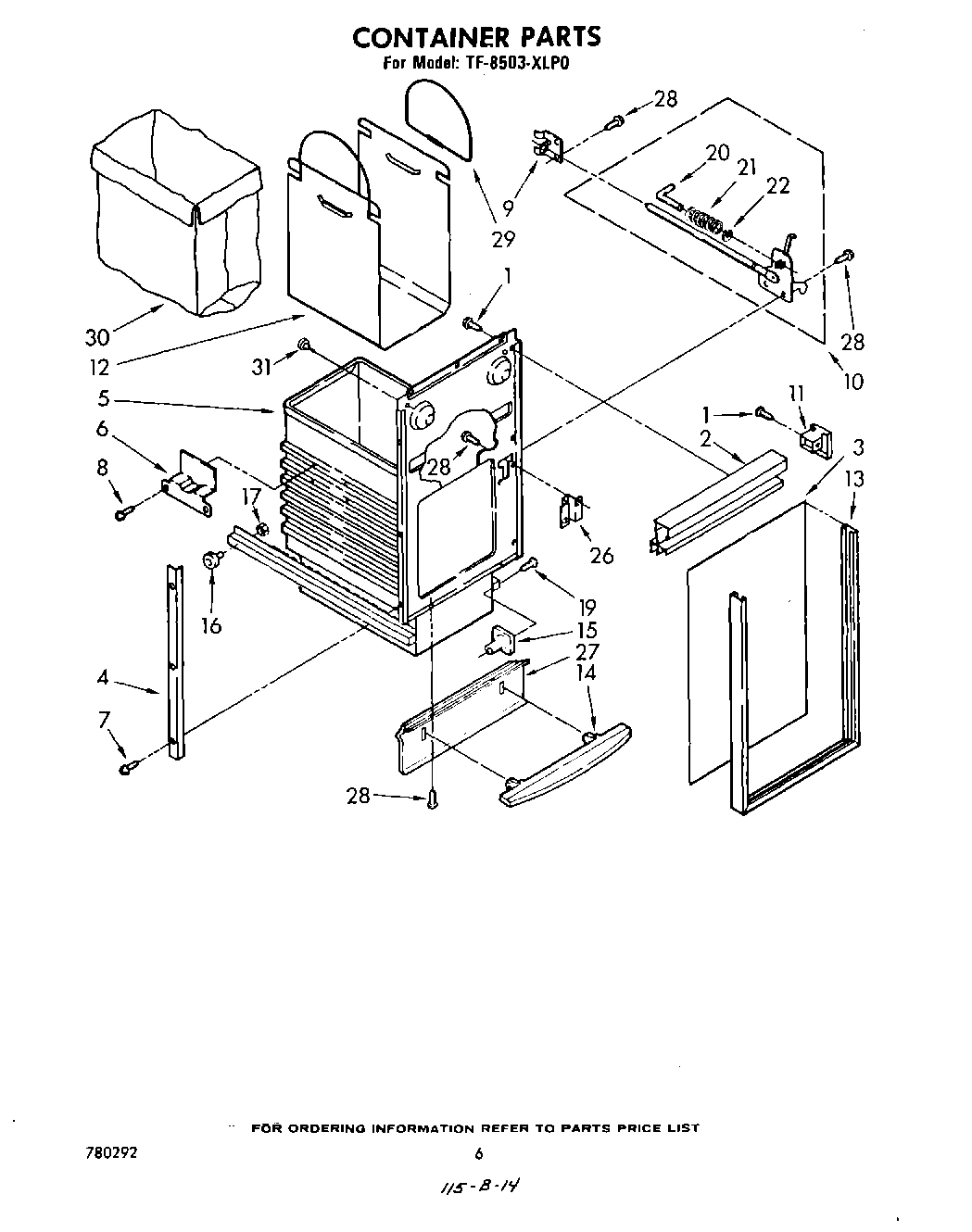

05 - CONTAINER
Common parts from model Whirlpool TF8503XLP0 TRASH COMPACTOR
1
Switch Assembly (Use W/777709 Motor) WPL 777711 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI131294A Contact Us For Availability
2
Handle, Container WPL 780184 Contact Us For Availability
3
Screw, 1/4-20 x 1/2 (4) Self-Tapping (4) WPL 776593 Contact Us For Availability
3
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
3
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
3
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
4
Plate, Trim (2) WPL 608051 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
7
Screw, 6-20 x 3/8 WPL 776191 Contact Us For Availability
10
Screw, 1/4-20 x 3/4 (4) WPL 775071 Contact Us For Availability
11
Top, Cabinet (Vinyl Clad) WPL 608430 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
11
Cap, Handle End, L.H. WPL 780188 Contact Us For Availability
11
Cap, Handle End R.H. WPL 780189 Contact Us For Availability
12
Frame & Lid Assembly WPL 780081 Contact Us For Availability
12
Diagram, Wiring WPL 777820 Contact Us For Availability
12
Sheet, Tech (Service Information) WPL 777830 Contact Us For Availability
12
Guide, Use & Care WPL 780212 Contact Us For Availability
12
Label, Consumer Buy Guide WPL 780290 Contact Us For Availability
12
Instructions, Installation WPL 780291 Contact Us For Availability
12
List, Repair parts WPL 780292 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
13
Light, Indicator WPL 780181 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
13
Trim, Container WPL 777345 Contact Us For Availability
14
Lens, Indicator Light WPL 780182 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
15
Screw, 6-20 x 3/8AB WPL 776559 Contact Us For Availability
15
Plate, Nut Assembly WPL 608413 Contact Us For Availability
16
Escutcheon WPL 780183 Contact Us For Availability
17
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
17
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
19
Bezel, Switch WPL 780190 Contact Us For Availability
19
Screw, Machine No.8-32 x 3/8 (2) WPL 777178 Contact Us For Availability
20
Inset, Bezel WPL 780186 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
21
Knob, Switch WPL 780191 Contact Us For Availability
21
Coffee WPL 261886 Contact Us For Availability
21
Avocado WPL 261888 Contact Us For Availability
21
Golden Wheat WPL 261890 Contact Us For Availability
21
Toast WPL 283365 Contact Us For Availability
21
Platinum WPL 283366 Contact Us For Availability
21
Primer (Tan) WPL 675167 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
21
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
21
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
21
Harness, Wiring WPL 778580 Contact Us For Availability
21
Stanford Bro WPL 978726 Contact Us For Availability
22
Bushing, Power Cord WPL 776119 Contact Us For Availability
25
Screw, SM (Black Head) WPL 776493 Contact Us For Availability
31
Bumper, Container (2) WPL 775785 Contact Us For Availability
× ![]()
