Model Whirlpool TF8500XRP2 TRASH COMPACTOR – Common Parts & Diagrams
06 - LIT/OPTIONAL
02 - FRAME

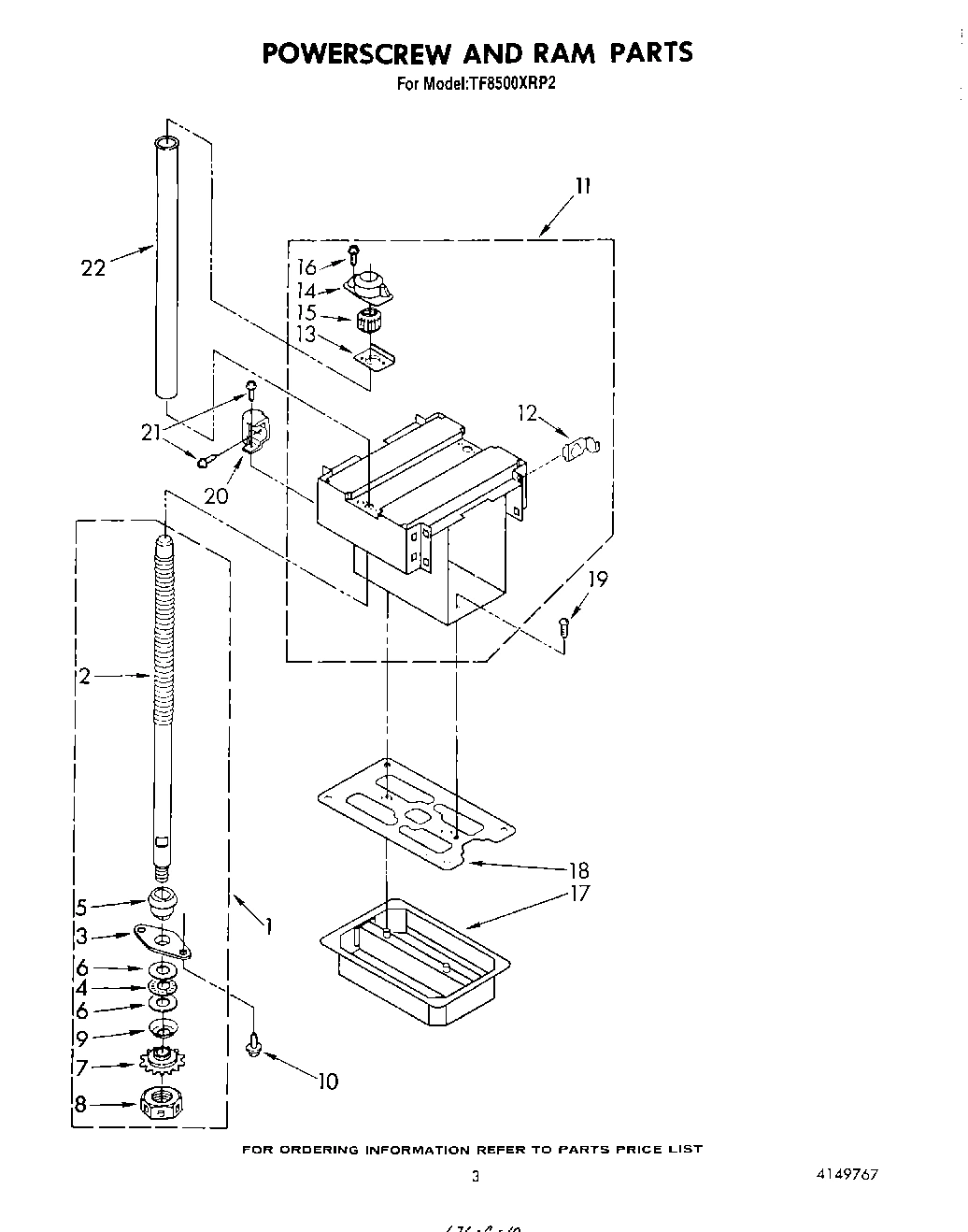

03 - POWERSCREW AND RAM

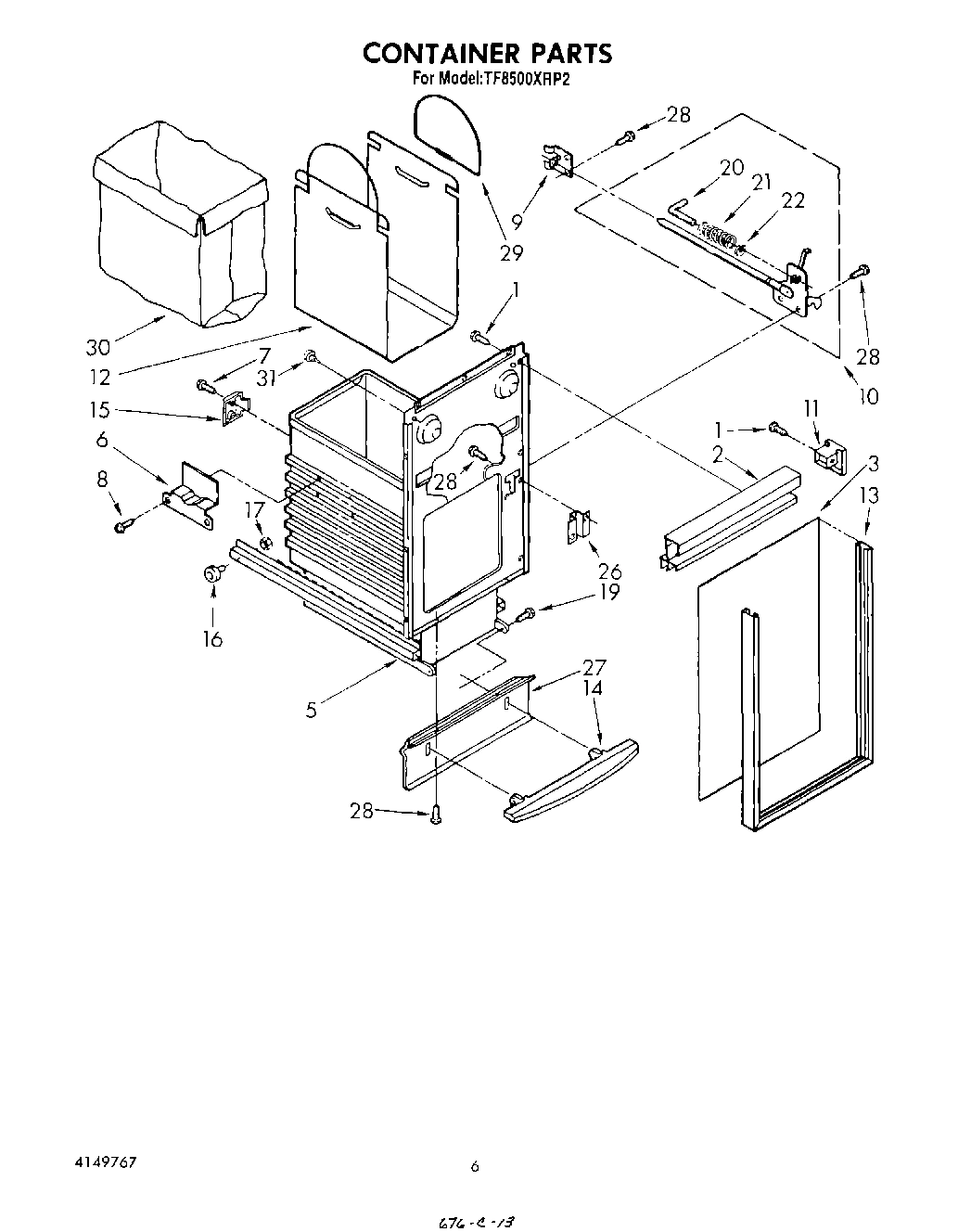

05 - CONTAINER

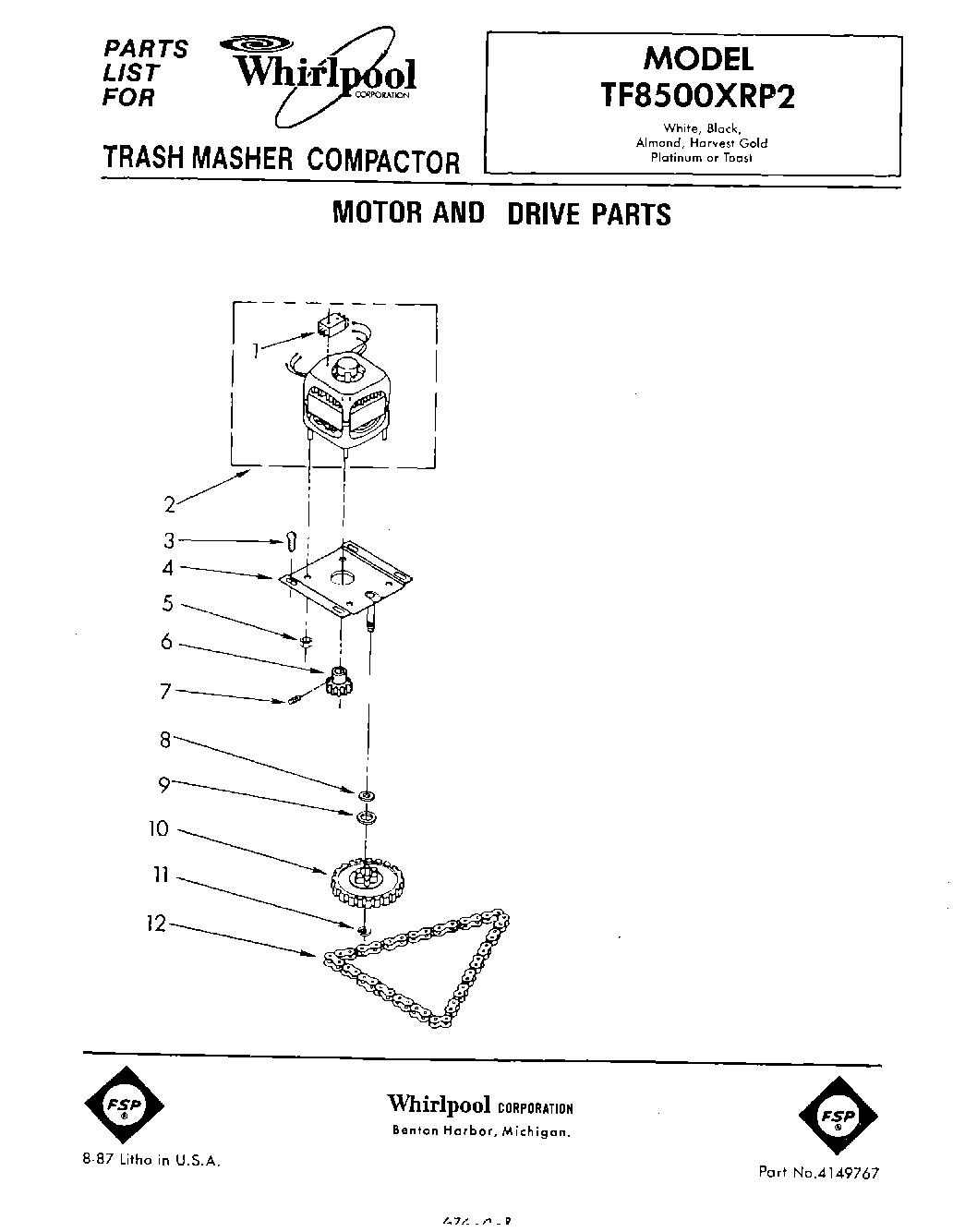

01 - MOTOR AND DRIVE

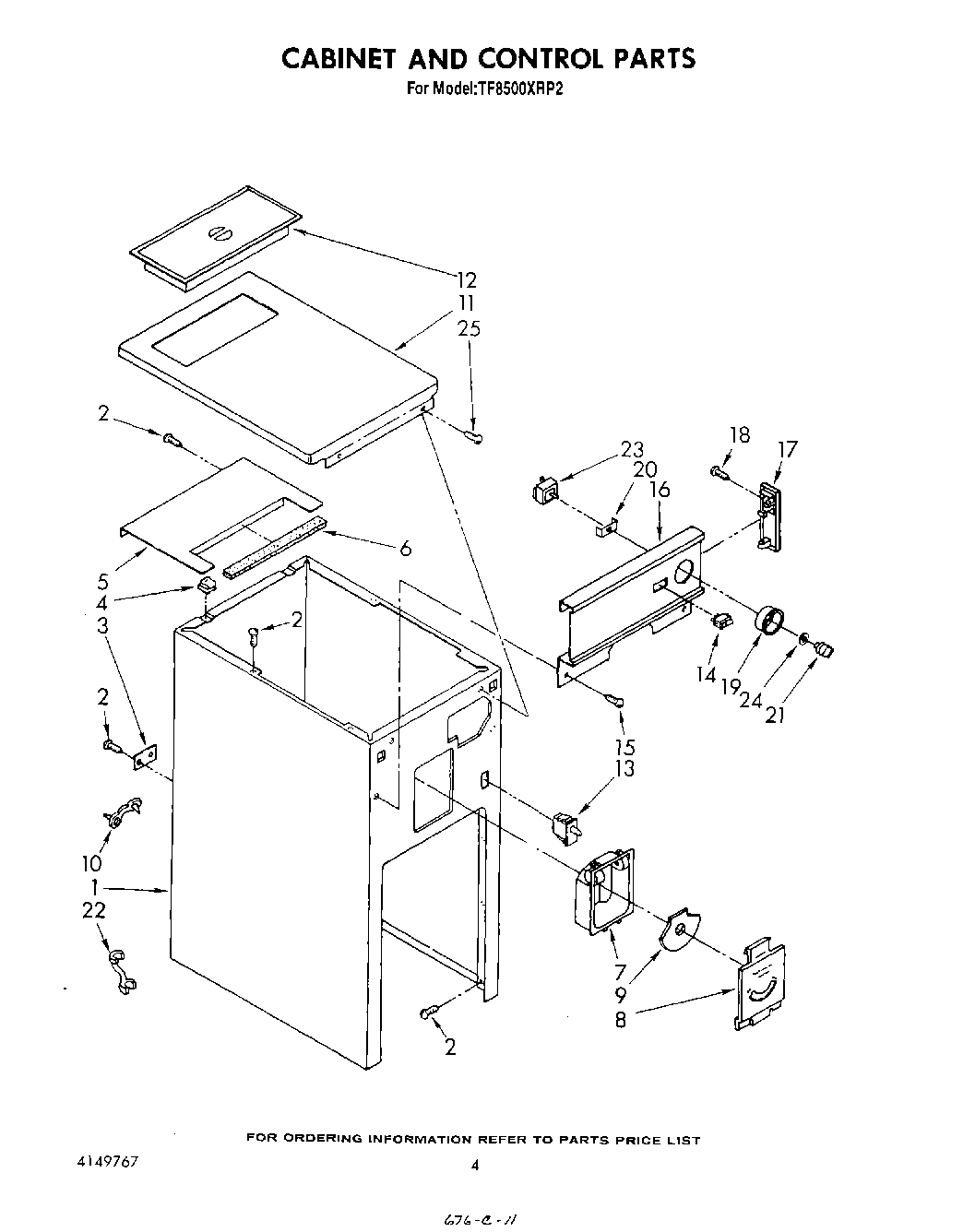

04 - CABINET AND CONTROL
Common parts from model Whirlpool TF8500XRP2 TRASH COMPACTOR
Guide, Use and Care WPL LIT4147768 Contact Us For Availability
List, Repair Parts WPL LIT4149767 Contact Us For Availability
Instructions, Installation WPL LIT780287 Contact Us For Availability
Sheet, Tech (Service Information) WPL LIT780486 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
1
Cabinet WPL 608843 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI131292A Contact Us For Availability
2
Handle, Container WPL 4149709 Contact Us For Availability
3
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
3
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
3
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Plate, Power Cord WPL 775676 Contact Us For Availability
4
Clip, Toe Mount WPL 776017 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
5
Plate, Bag Storage WPL 780438 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
6
Barrier, Glass WPL 776780 Contact Us For Availability
7
Screw (2) WPL 4149395 Contact Us For Availability
7
Compartment, Air Flow WPL 777642 Contact Us For Availability
8
Cover, Air Flow WPL 608783 Contact Us For Availability
9
Dail, Air Flow WPL 608782 Contact Us For Availability
10
Screw, 1/4-20 x 3/4 (4) WPL 775071 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
11
Cap, Handle End, L.H. WPL 780188 Contact Us For Availability
11
Cap, Handle End R.H. WPL 780189 Contact Us For Availability
11
Top, Cabinet WPL 608720 Contact Us For Availability
12
Shield, Slide Track (2) WPL 608375 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
12
Lid, Bag Storage WPL 780081 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
13
Trim, Container WPL 777345 Contact Us For Availability
13
Switch, Drawer Tilt WPL 780421 Contact Us For Availability
14
Nut, 6-32 WPL 776188 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
15
Screw, 6-20 x 3/8AB WPL 776559 Contact Us For Availability
16
Escutcheon, Control WPL 4149708 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
17
End Cap, Escutcheon (L.H.) WPL 780179 Contact Us For Availability
17
End Cap, Escutcheon R.H. WPL 780180 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
19
Bumper, Ram (4) WPL 775643 Contact Us For Availability
19
Bezel, Escutcheon WPL 780387 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
20
Bracket, Switch WPL 780417 Contact Us For Availability
21
Plate, Nut WPL 777850 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
22
Bushing, Power Cord WPL 776119 Contact Us For Availability
24
Pad, Top Support WPL 776715 Contact Us For Availability
25
Angle, Top Support WPL 608038 Contact Us For Availability
25
Harness, Wiring (Complete Assembly) WPL 4149397 Contact Us For Availability
25
Screw, 8-18 x 1/2 WPL 776493 Contact Us For Availability
31
Bumper, Container (2) WPL 775785 Contact Us For Availability
× ![]()
