Model Whirlpool TF8500XLP0 TRASH COMPACTOR – Common Parts & Diagrams
04 - CABINET AND CONTROL
01 - MOTOR AND DRIVE , LIT/OPTIONAL

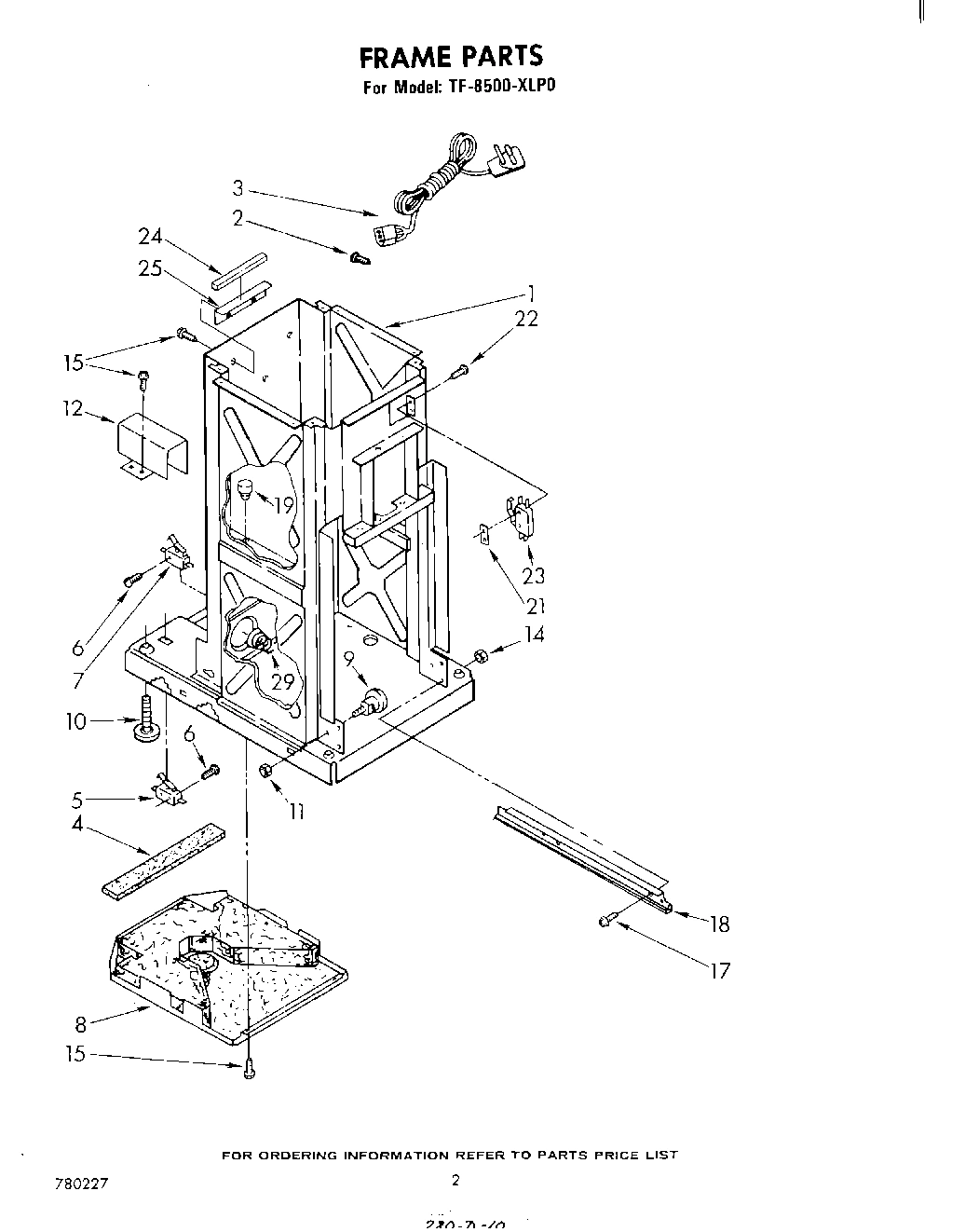

02 - FRAME

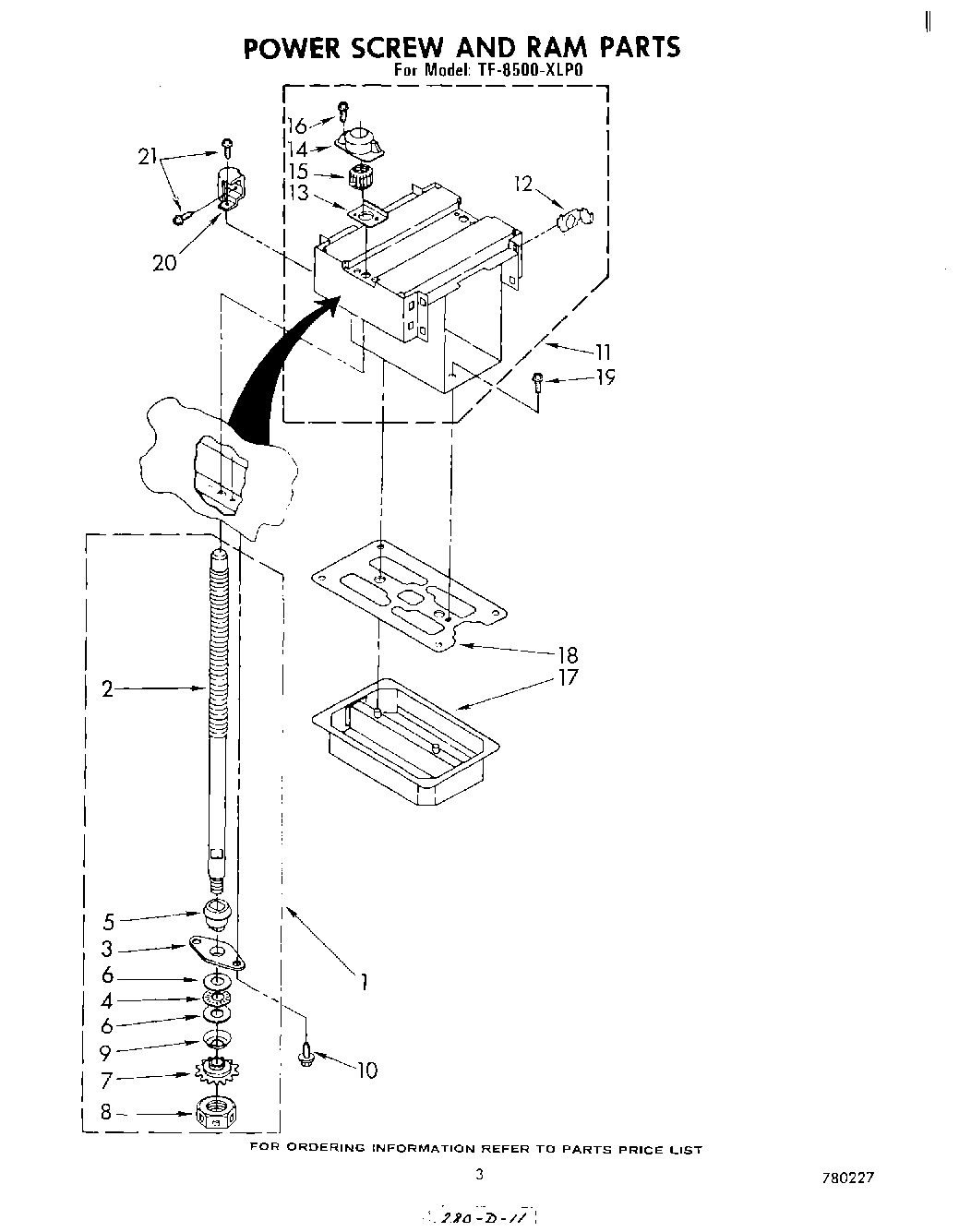

03 - POWER SCREW AND RAM

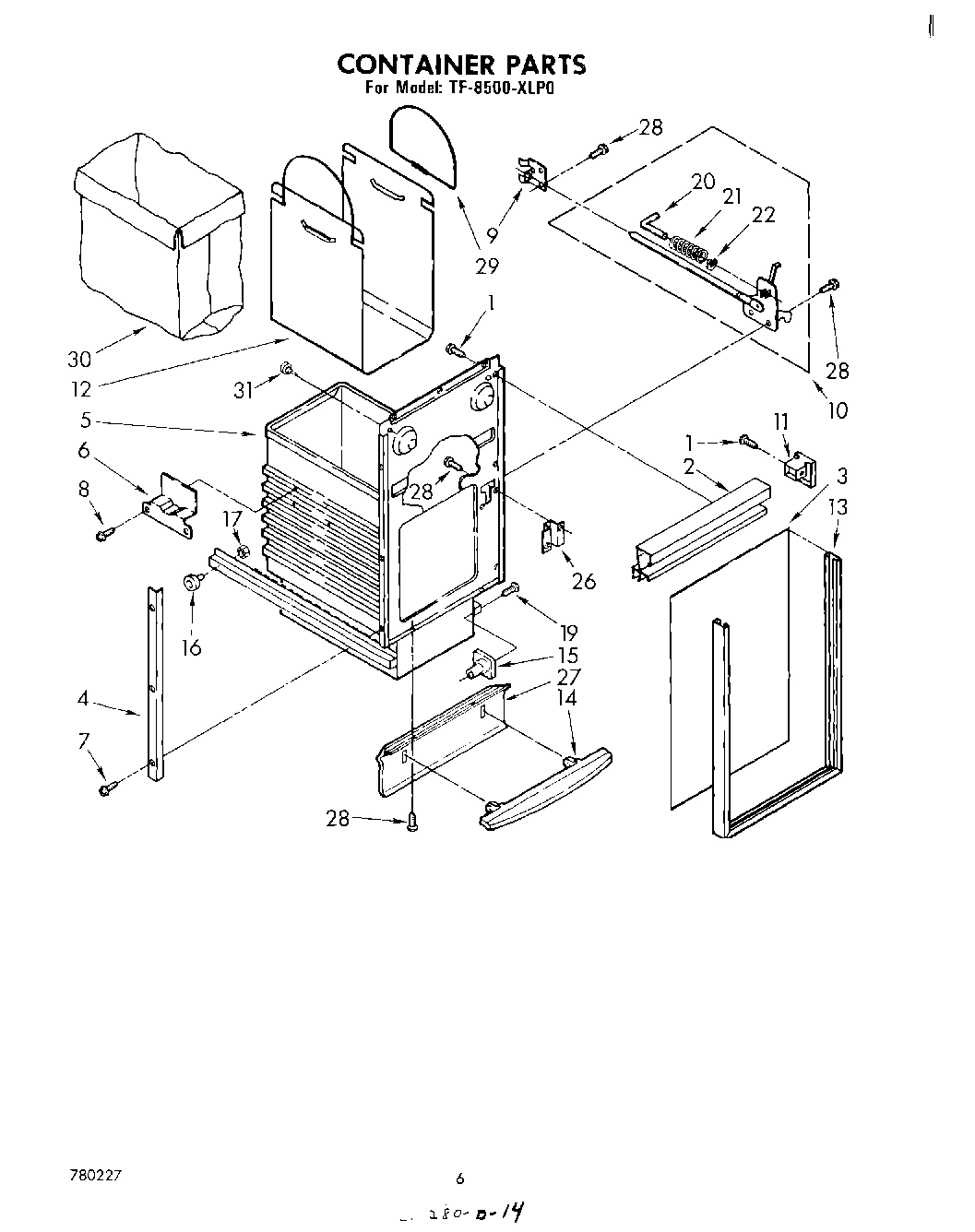

05 - CONTAINER
Common parts from model Whirlpool TF8500XLP0 TRASH COMPACTOR
1
Frame (Not a Serviceable Part) WPL ARI131285A Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI131286A Contact Us For Availability
2
Handle, Container WPL 780184 Contact Us For Availability
3
Cord, Service WPL 937360 Contact Us For Availability
3
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
3
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
4
Barrier, Glass WPL 776780 Contact Us For Availability
4
Plate, Trim (2) WPL 608051 Contact Us For Availability
5
Switch, Drawer Tilt WPL 775804 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
6
Screw, 6-32 x 7/8 WPL 777460 Contact Us For Availability
7
Switch, Drawer Safety WPL 775803 Contact Us For Availability
7
Screw, 6-20 x 3/8 WPL 776191 Contact Us For Availability
10
Screw, 1/4-20 x 3/4 (4) WPL 775071 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
11
Cap, Handle End, L.H. WPL 780188 Contact Us For Availability
11
Cap, Handle End R.H. WPL 780189 Contact Us For Availability
12
Diagram, Wiring WPL 777820 Contact Us For Availability
12
Sheet, Tech (Service Information) WPL 777830 Contact Us For Availability
12
Instructions, Installation WPL 780142 Contact Us For Availability
12
Guide, Use & Care WPL 780212 Contact Us For Availability
12
Label, Consumer Buy Guide WPL 780217 Contact Us For Availability
12
List, Repair Parts WPL 780227 Contact Us For Availability
12
Shield, Slide Track WPL 608375 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
13
Trim, Container WPL 777345 Contact Us For Availability
14
Nut, 6-32 WPL 776188 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
15
Plate, Nut Assembly WPL 608413 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
19
Bumper (4) WPL 775643 Contact Us For Availability
19
Screw, Machine No.8-32 x 3/8 (2) WPL 777178 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
21
Plate, Nut WPL 777850 Contact Us For Availability
21
Coffee WPL 261886 Contact Us For Availability
21
Avocado WPL 261888 Contact Us For Availability
21
Harvest Gold WPL 261890 Contact Us For Availability
21
Primer (Tan) WPL 675167 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
21
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
21
Harness, Wiring WPL 778580 Contact Us For Availability
21
Stanford Brown WPL 978726 Contact Us For Availability
24
Pad, Top Support WPL 776715 Contact Us For Availability
25
Angle, Top Support WPL 608038 Contact Us For Availability
31
Bumper, Container (2) WPL 775785 Contact Us For Availability
× ![]()
