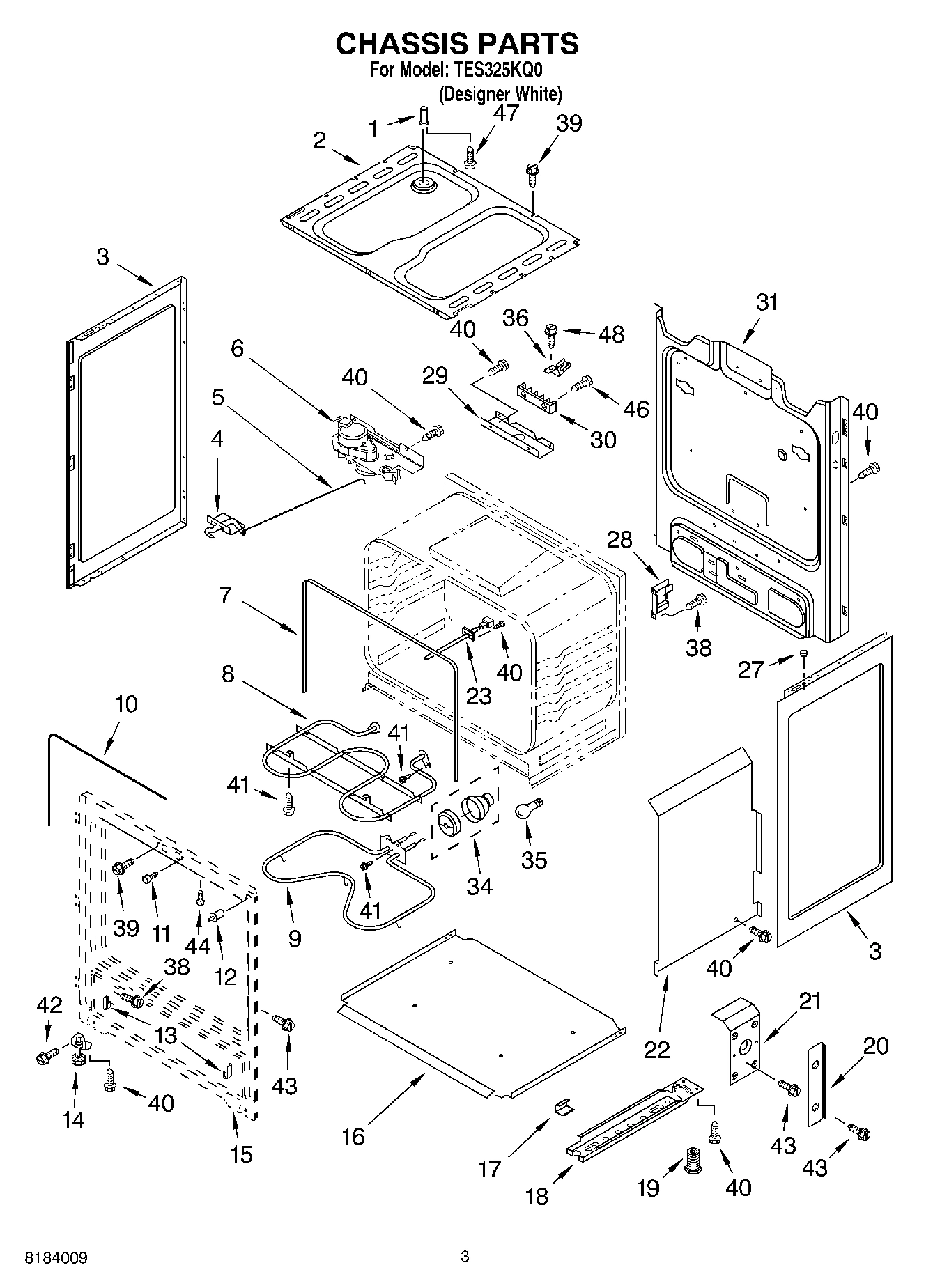

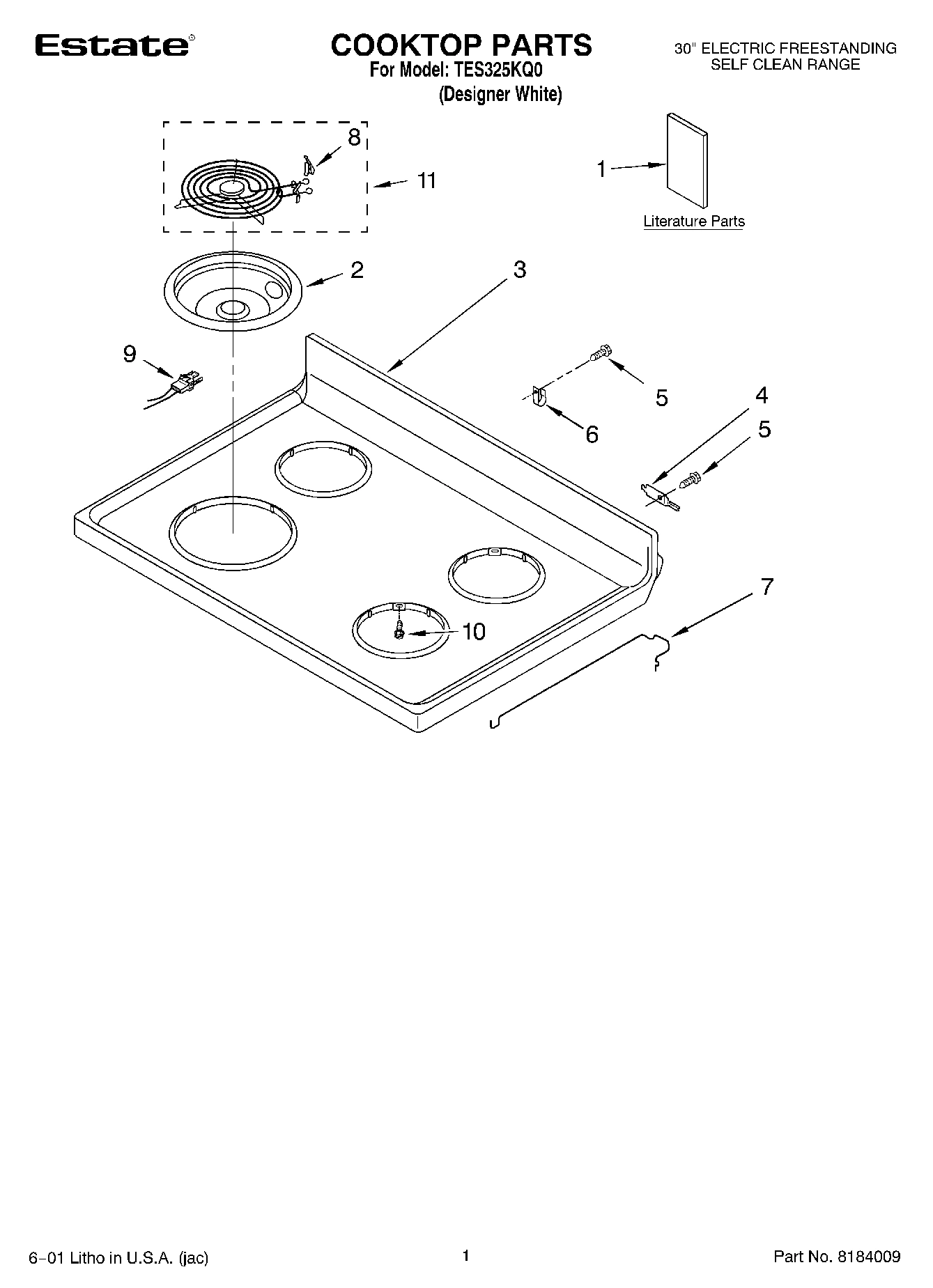

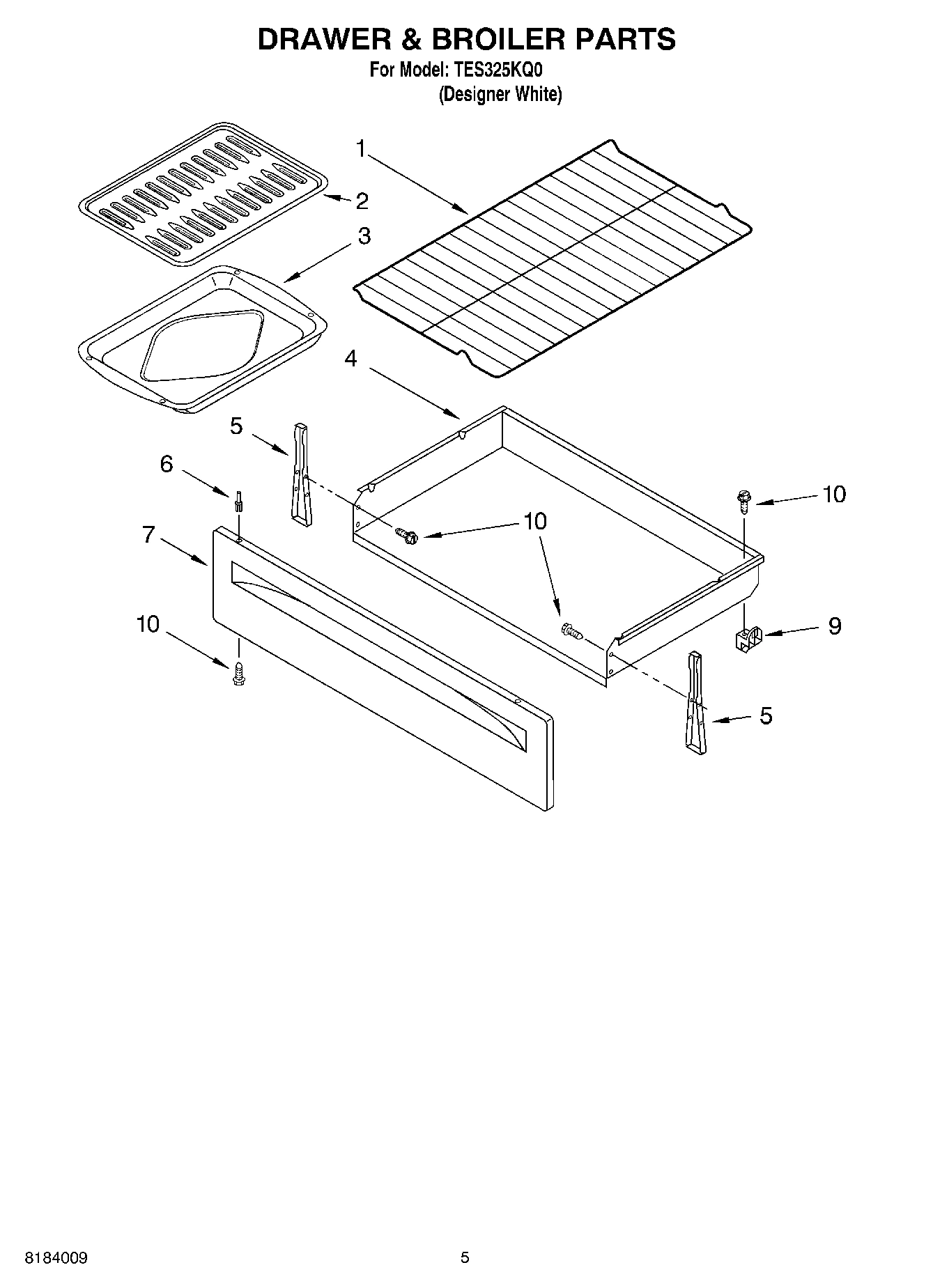

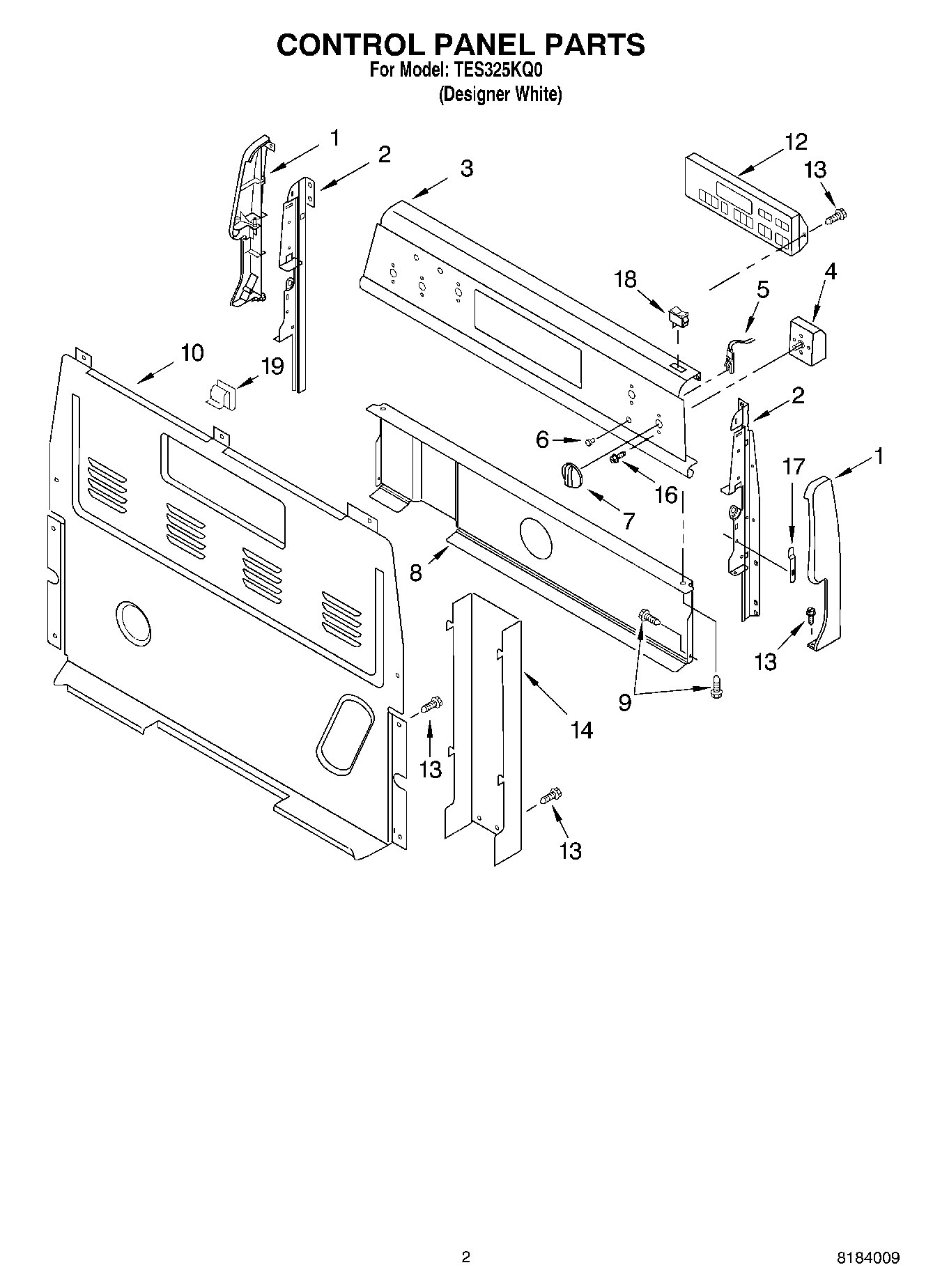

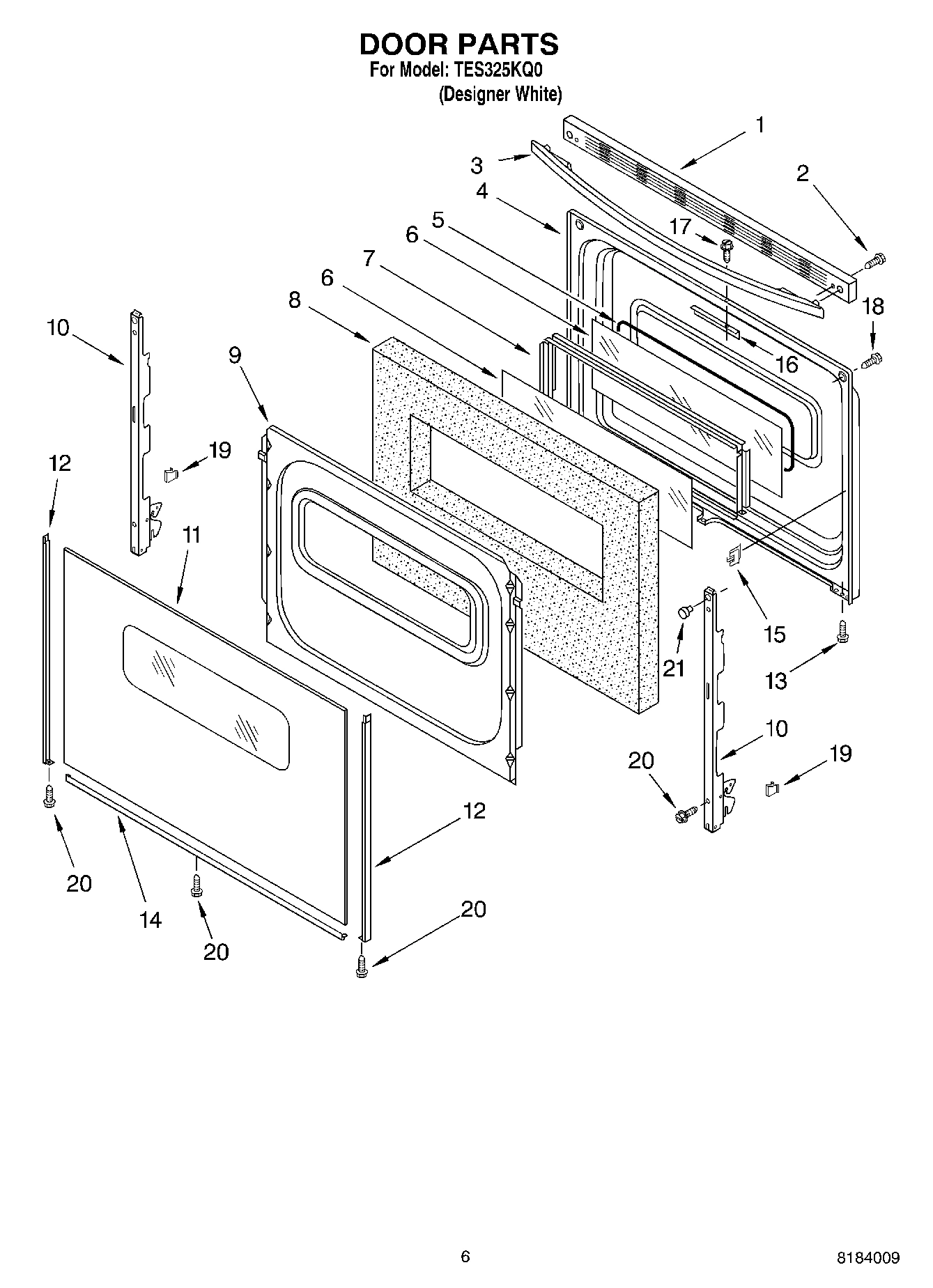

Model Whirlpool TES325KQ0 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $60.51

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation Instr (Templat WPL LIT3195945 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8053291 Contact Us For Availability

1

Literature Parts (Instructions, Intstallation WPL LIT8053714 Contact Us For Availability

1

Literature Parts (Guide, Use & Care) WPL LIT8522716 Contact Us For Availability

2

W11699791 Whirlpool Burner Box In Stock WPL W11699791 $107.87

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

3

8195532 Whirlpool Cooktop Power Switch Backorder WPL 8195532 $207.59

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

4

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

4

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

4

Drawer, Storage WPL 8272605 Contact Us For Availability

5

8522415 Whirlpool Oven Wind Gasket Backorder WPL 8522415 $28.80

5

W10838990 Whirlpool Mounting Bracket In Stock WPL W10838990 $31.66

5

Rod, Latch WPL 3196961 Contact Us For Availability

6

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WPW10107830 Whirlpool Stove Door Lock Latch A Backorder WPL WPW10107830 $121.04

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $2.51

7

WP3196232 Whirlpool Knob In Stock WPL WP3196232 $10.76

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

8

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $87.56

8

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

9

814399 Whirlpool Receptacle Kit In Stock WPL 814399 $15.52

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $36.86

9

Screw WPL 4449746 Contact Us For Availability

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

11

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

11

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

11

WPW10259865 Whirlpool Range 8" Surface Elemen In Stock WPL WPW10259865 $81.34

12

WP3195993 Whirlpool Light Switch In Stock WPL WP3195993 $56.02

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

14

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

15

Frame, Front (Not Serviceable) WPL ARI131104A Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $28.80

17

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

17

Clip, Panel (4) WPL 3196576 Contact Us For Availability

18

3149360 Whirlpool Light Switch Backorder WPL 3149360 $36.12

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

19

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Clip, Ground Wire WPL 313660 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8273266 WPL 8273266 Contact Us For Availability

WPL 8273273 WPL 8273273 Contact Us For Availability

WPL 8273335 WPL 8273335 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Shield, Inner (2) WPL 3196092 Contact Us For Availability

22

Retainer, Side (2) WPL 3195717 Contact Us For Availability

23

WPW10181986 Whirlpool Oven Sensor In Stock WPL WPW10181986 $50.55

27

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

31

Back, Main WPL 8272922 Contact Us For Availability

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

36

Strap, Ground WPL 3169573 Contact Us For Availability

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

47

WP3196567 Whirlpool Screw Backorder WPL WP3196567 $2.51

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

48

WP8272612 Whirlpool Insulation Backorder WPL WP8272612 $77.67
