Model Whirlpool TER46W0WW0 ELECTRIC RANGE – Common Parts & Diagrams
02 - COOKTOP
04 - DOOR AND DRAWER

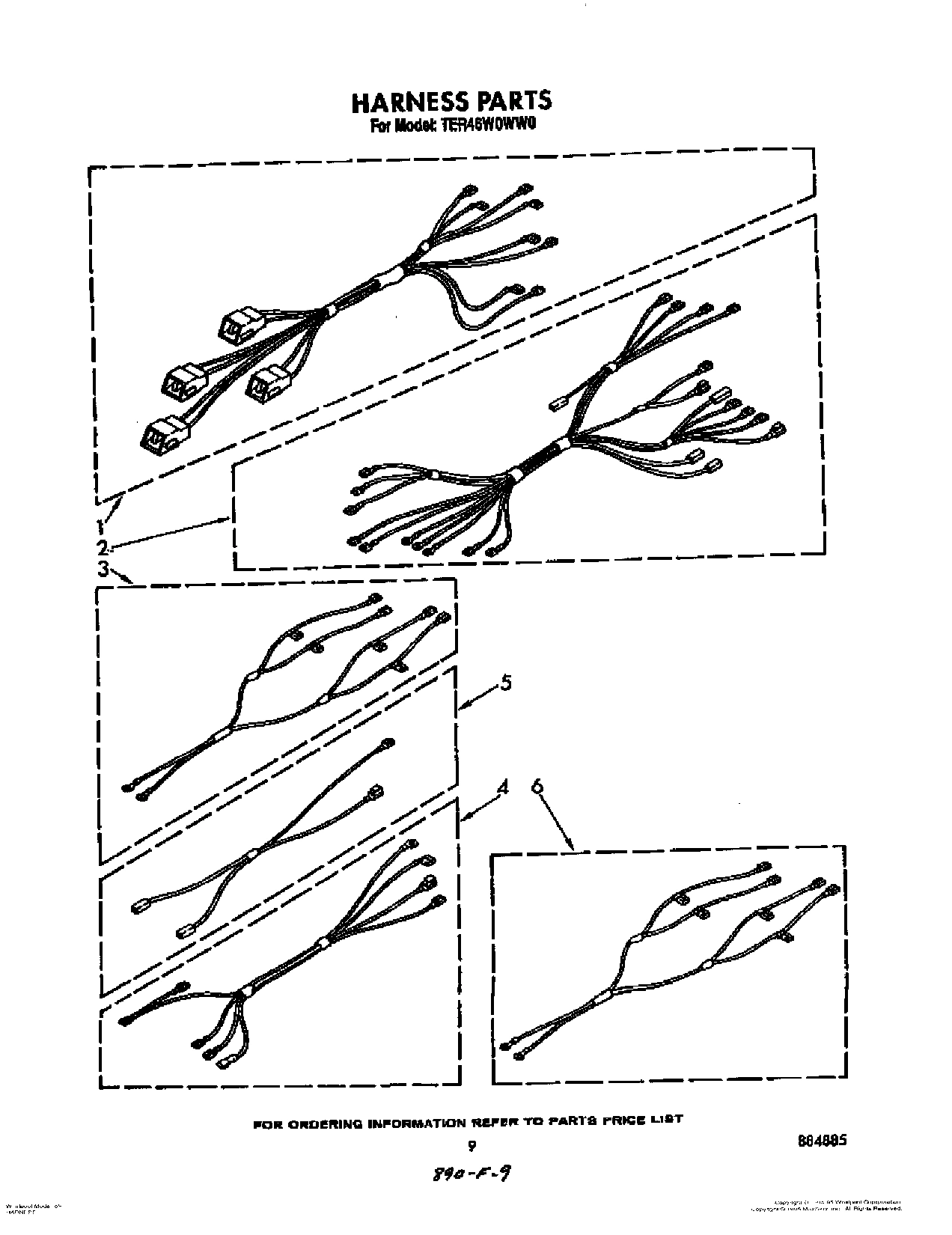

07 - HARNESS

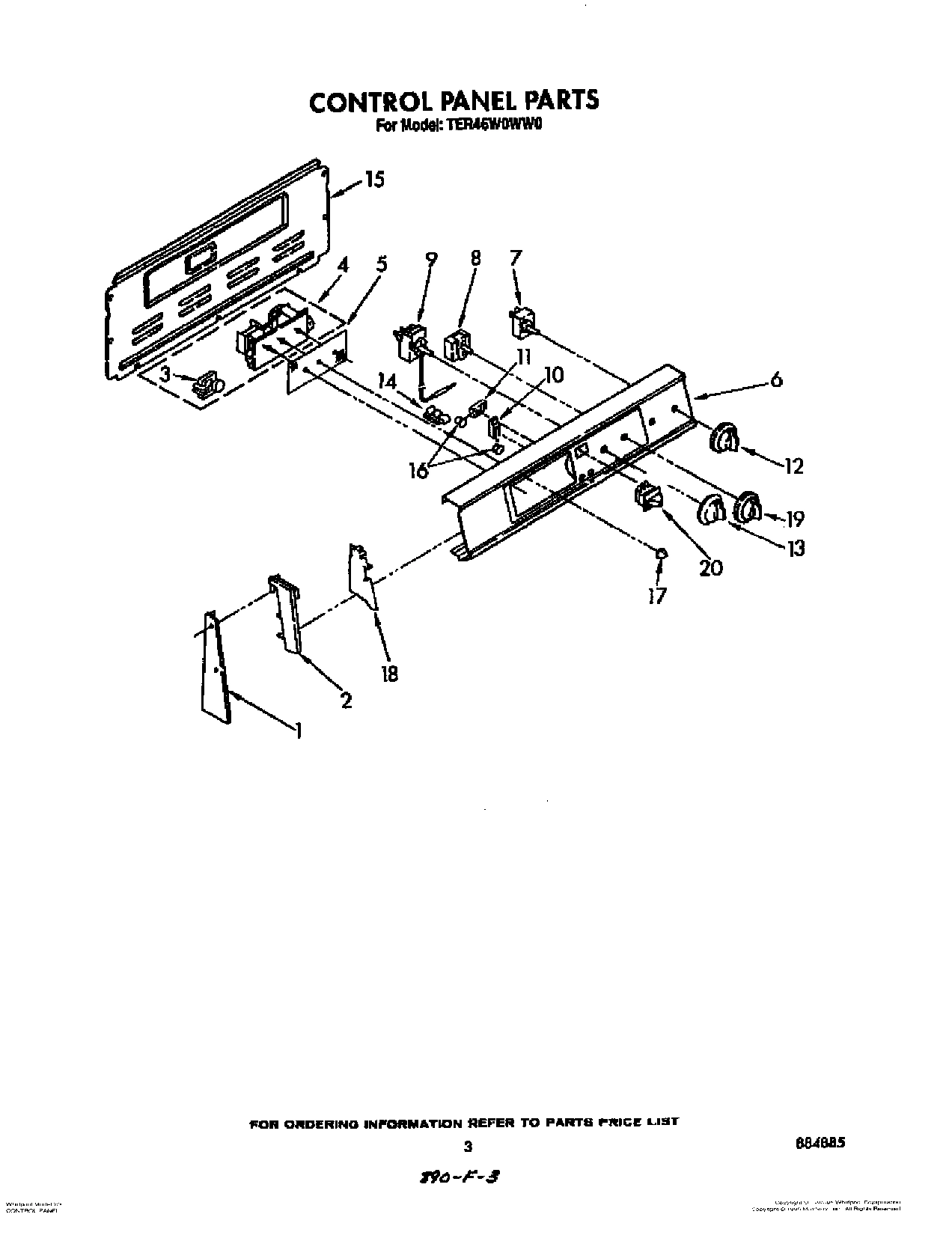

03 - CONTROL PANEL

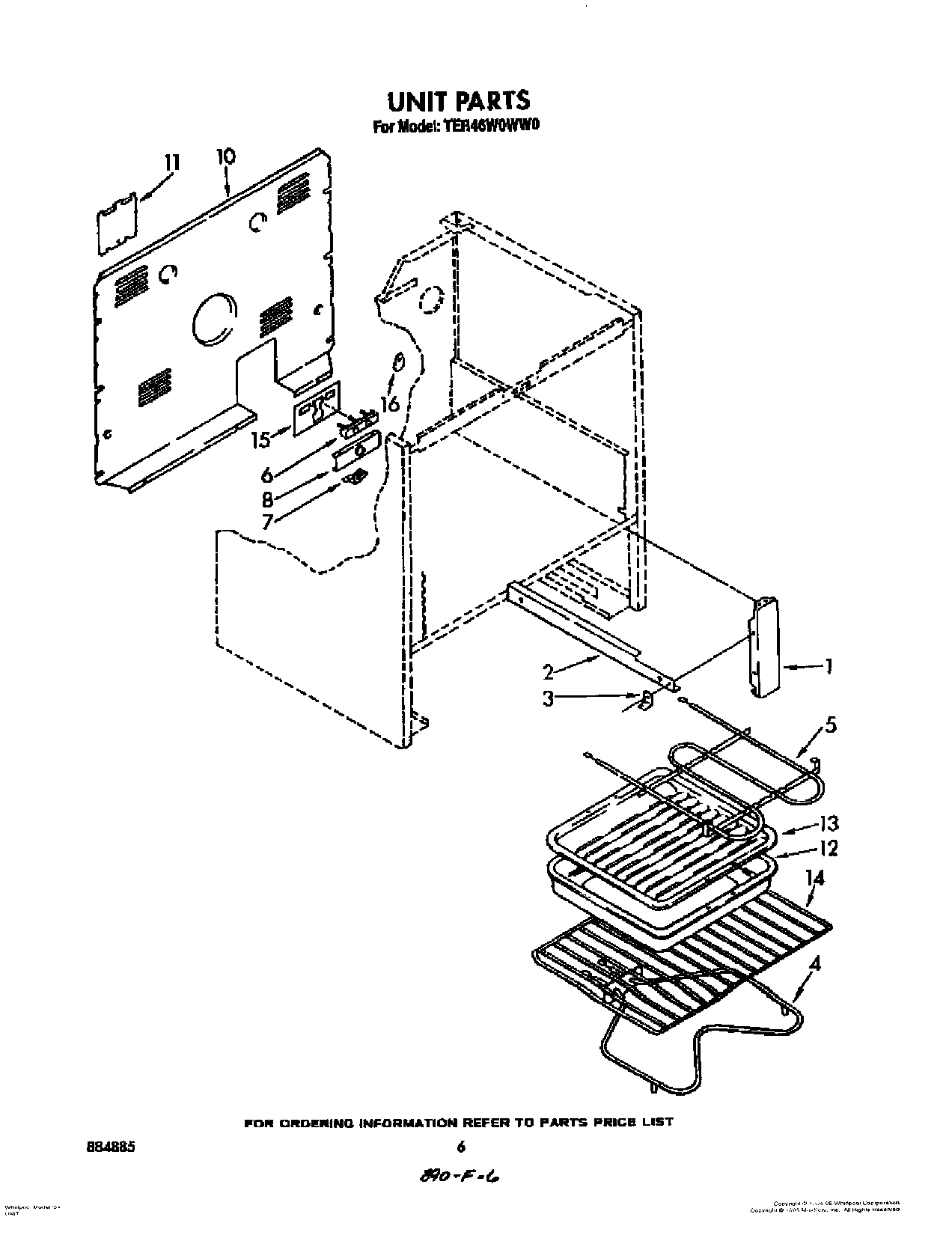

05 - UNIT, LIT/OPTIONAL

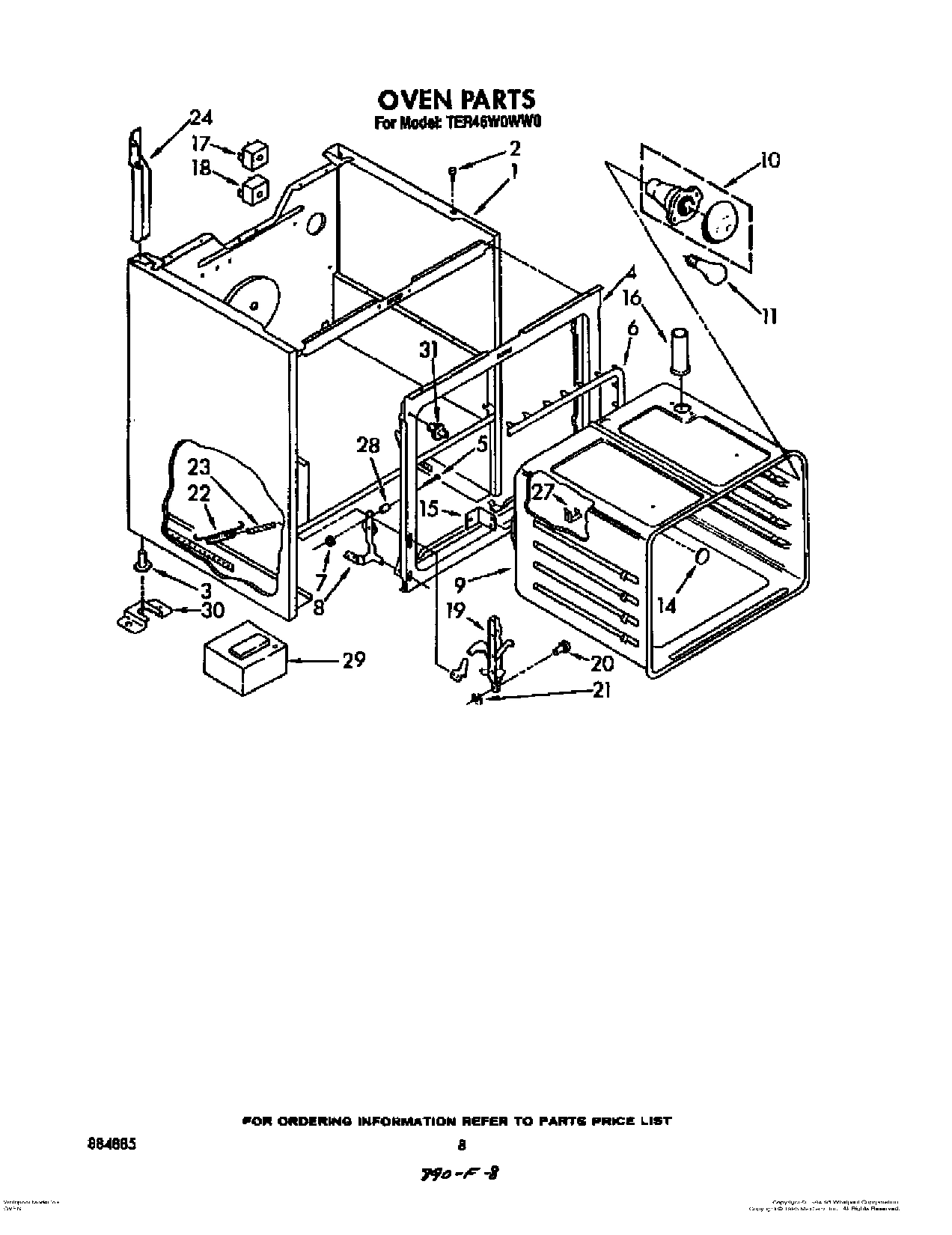

06 - OVEN
Common parts from model Whirlpool TER46W0WW0 ELECTRIC RANGE
WPL LIT3150250 WPL LIT3150250 Contact Us For Availability
WPL LIT3150255 WPL LIT3150255 Contact Us For Availability
WPL LIT3169007 WPL LIT3169007 Contact Us For Availability
WPL LIT884885 WPL LIT884885 Contact Us For Availability
1
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3150648 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 313230 Contact Us For Availability
2
End Cap L.H. WPL 313231 Contact Us For Availability
2
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
2
Rail, Slide (L.H. (Includes Illus. 3)) WPL 3149256 Contact Us For Availability
3
Seal, (2) WPL 3148441 Contact Us For Availability
3
Harness, Wire (Supply) WPL 313147 Contact Us For Availability
3
Motor, Timer WPL 309822 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Harness, Wire (Lock Switch) WPL 313346 Contact Us For Availability
4
Timer, Auto WPL 3149834 Contact Us For Availability
4
Screw (Sides) WPL 311056 Contact Us For Availability
4
Frame, Front WPL 3172194 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability
5
Glass, Timer WPL 313513 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Harness, Wire (Oven) WPL 3169012 Contact Us For Availability
6
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
6
Panel, Control WPL 3150433 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Seal, Door WPL 3148284 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Retainer, (2) Glass WPL 3148187 Contact Us For Availability
8
Switch, Selector WPL 3148419 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Thermostat, Oven WPL 3148933 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw (3) WPL 3150537 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3172547 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
10
Light, Indicator (Includes No.16) WPL 3150647 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Light, Indicator (Includes Illus. 16) WPL 314031 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
13
Knob, Thermostat WPL 3181370 Contact Us For Availability
14
Screw (2) WPL 3149333 Contact Us For Availability
14
Trim, Panel WPL 3148223 Contact Us For Availability
14
Tube Clip WPL 313570 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
14
Plug Button WPL 308535 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Rear Cover Control Panel WPL 313195 Contact Us For Availability
15
Barrier, Shield WPL 3150189 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Lens, Amber (2) WPL 313101 Contact Us For Availability
16
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
Grease WPL 261582 Contact Us For Availability
16
Coffee WPL 261886 Contact Us For Availability
16
Coffee (Uncut) WPL 261887 Contact Us For Availability
16
New Avocado WPL 261888 Contact Us For Availability
16
Harvest Gold WPL 261890 Contact Us For Availability
16
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
16
Toast WPL 285365 Contact Us For Availability
16
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
16
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
16
Pl WPL 285368 Contact Us For Availability
16
WPL 310433 WPL 310433 Contact Us For Availability
16
WPL 311982 WPL 311982 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
16
Vent, Oven WPL 307961 Contact Us For Availability
17
Spring, Knob WPL 313311 Contact Us For Availability
17
Switch, Broil WPL 314209 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Shield, Glass (2) WPL 313608 Contact Us For Availability
18
screw WPL 314215 Contact Us For Availability
18
Switch, Bake WPL 314210 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Knob, Selector WPL 3181372 Contact Us For Availability
19
Channel, Arm (2) WPL 329710 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
23
Frame, Door WPL 3148235 Contact Us For Availability
24
Insulation WPL 3147951 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
28
Snubber, Door (2) WPL 309111 Contact Us For Availability
29
Balance Block WPL 312804 Contact Us For Availability
30
Screw (4) WPL 3148604 Contact Us For Availability
30
Anchor (4) WPL 3148605 Contact Us For Availability
31
Switch, Door WPL 310345 Contact Us For Availability
× ![]()
