Model Electrolux TEB754CCBA WALL OVEN – Common Parts & Diagrams

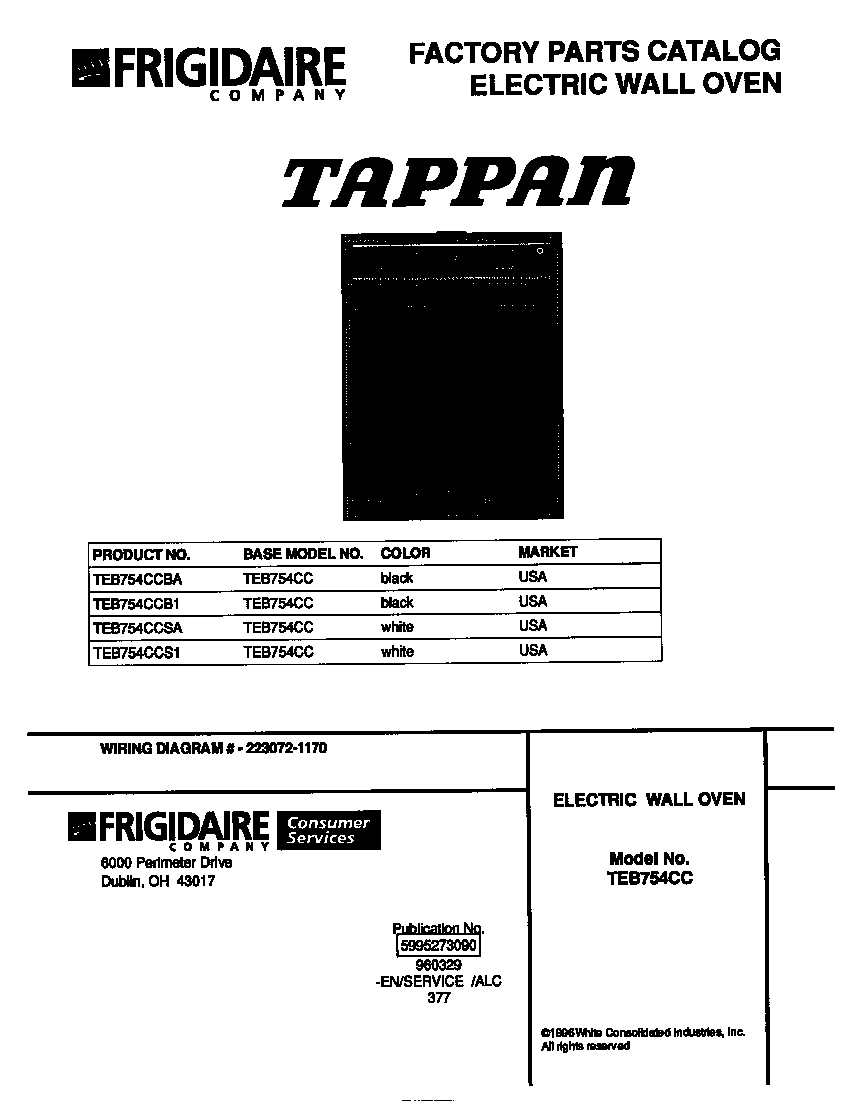

01 - COVER

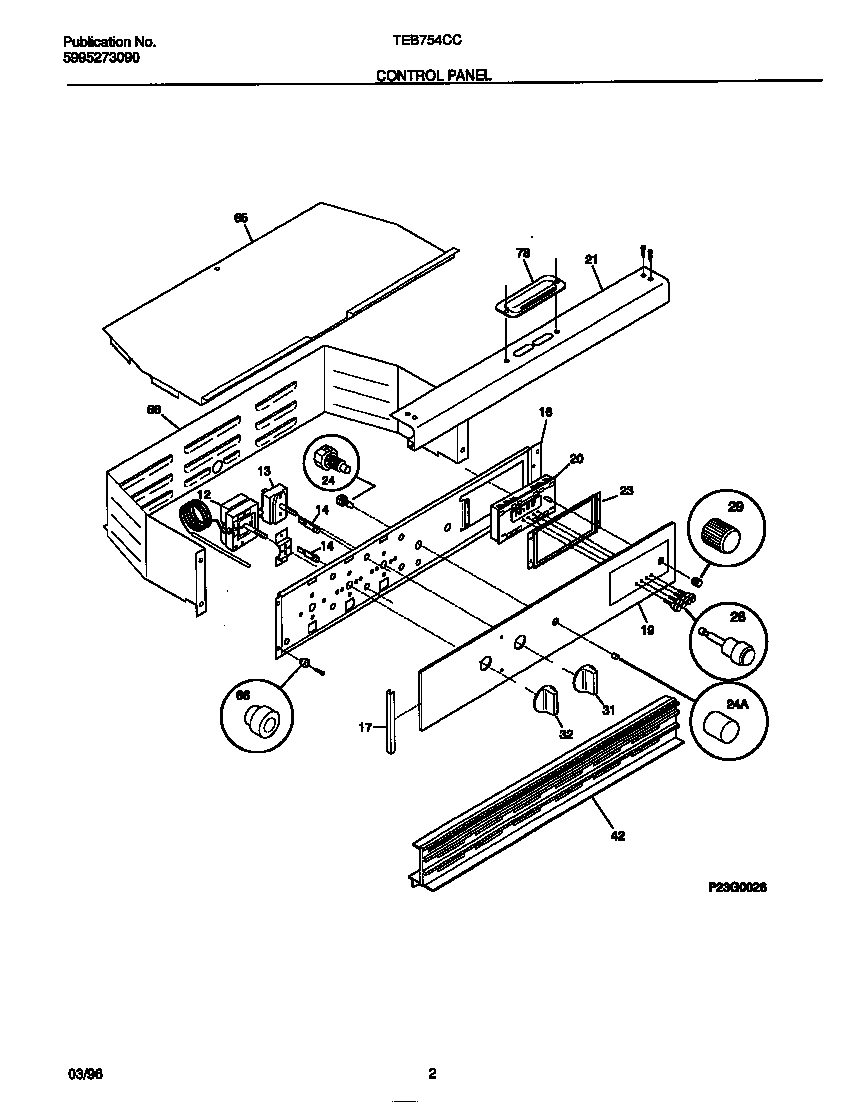

02 - CONTROL PANEL

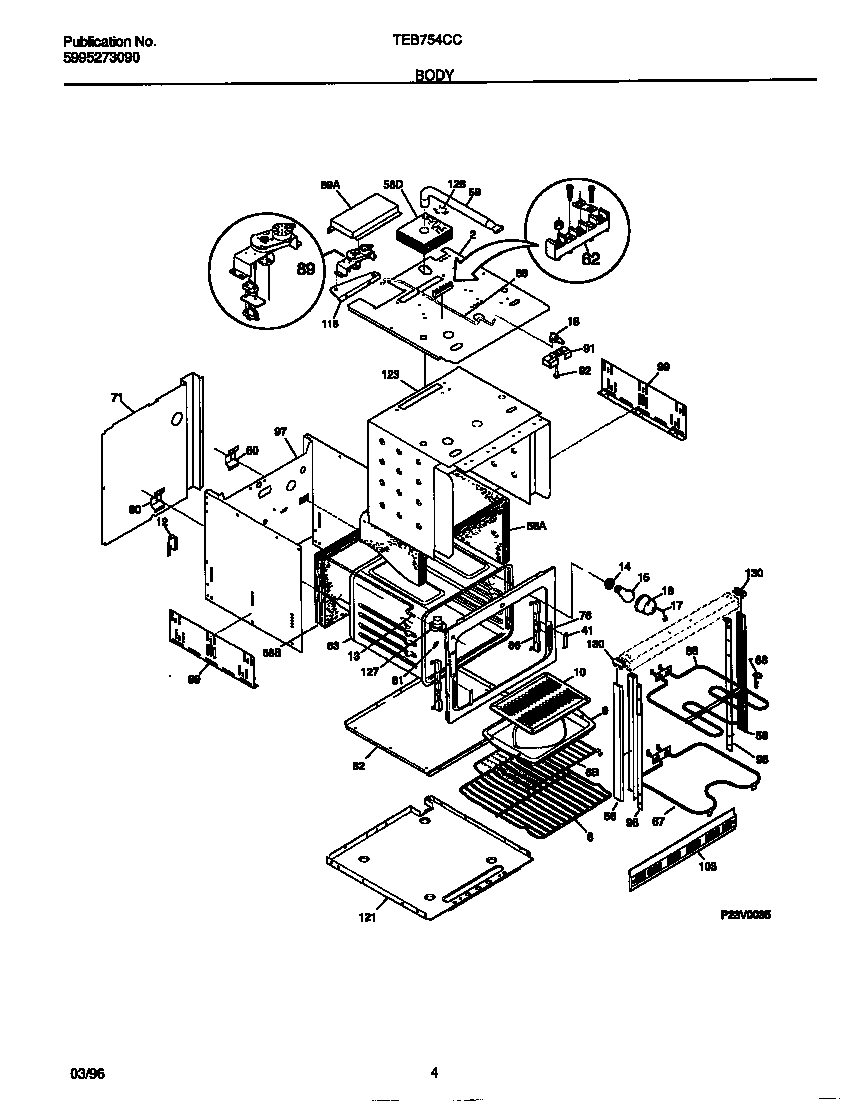

03 - BODY

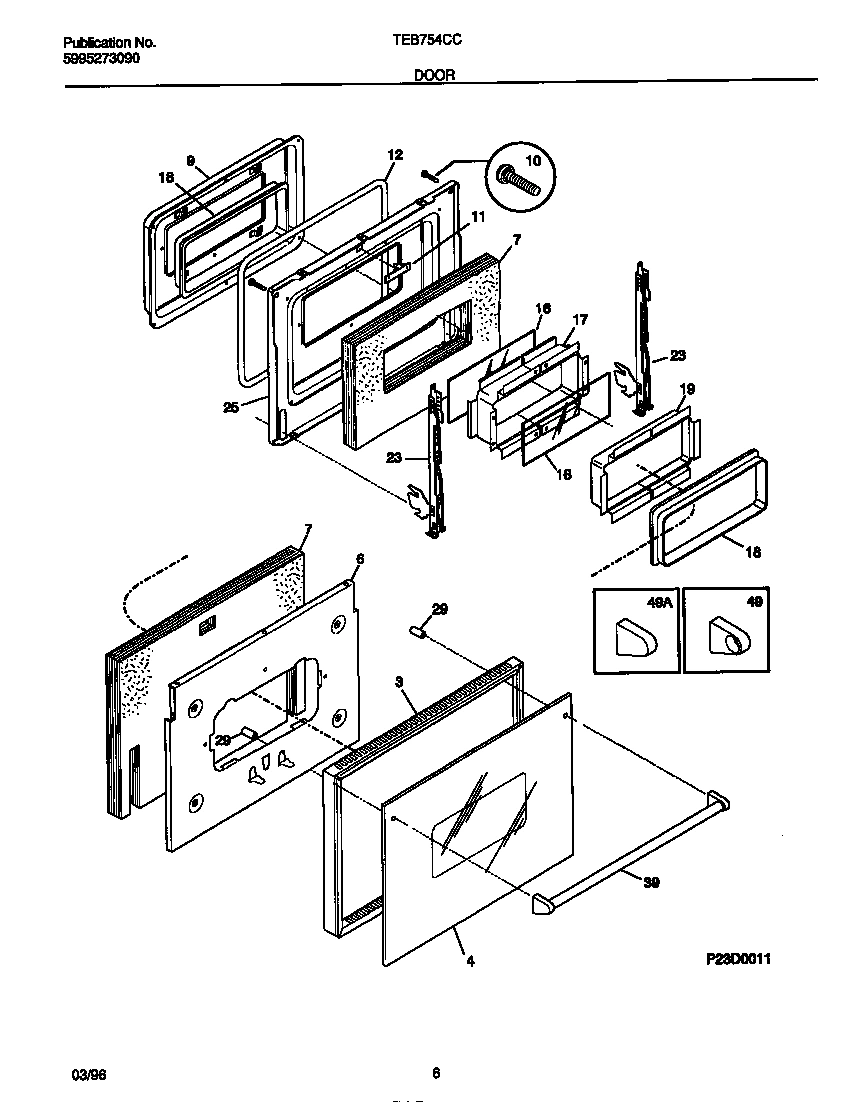

04 - DOOR

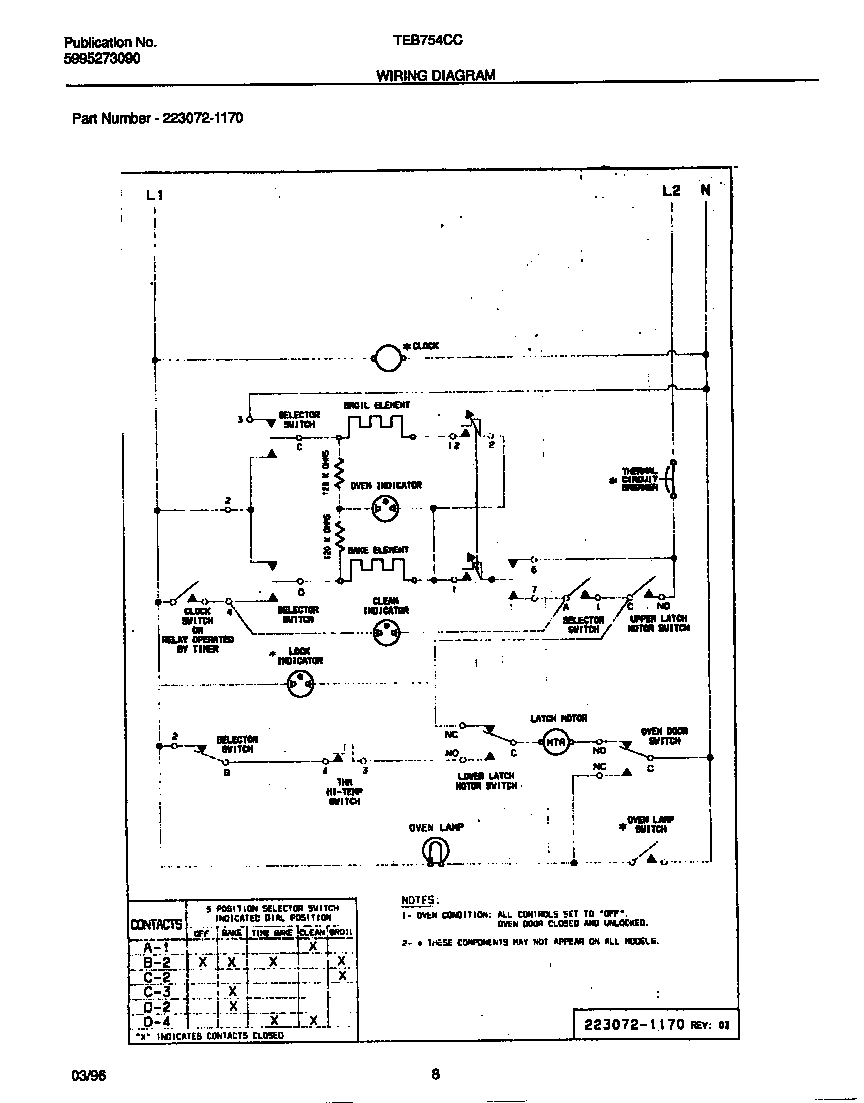

05 - WIRING DIAGRAM
Common parts from model Electrolux TEB754CCBA WALL OVEN
*35160
SCREW, 6-32 X 3/8``, WHITE WCI 5303131766 Contact Us For Availability
*35167
SCREW, 6-20 X 1/4, SIDE TRIM WCI 5303318690 Contact Us For Availability
*35168
FASTENER, SWITCH WCI 3131095 Contact Us For Availability
*35169
WCI 3201881 WCI 3201881 Contact Us For Availability
*35170
WCI 3018802 WCI 3018802 Contact Us For Availability
*35171
WCI 5303319292 WCI 5303319292 Contact Us For Availability
*35172
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*35176
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*35177
TAPE, SEAL, (2) WCI 5303316982 Contact Us For Availability
2
SHIELD-OVEN TOP WCI 3016249 Contact Us For Availability
3
WCI 318026600 WCI 318026600 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 5303016258 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303310521 WCI 5303310521 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303300950 Contact Us For Availability
10
WCI 5303310520 WCI 5303310520 Contact Us For Availability
10
WCI 5303316748 WCI 5303316748 Contact Us For Availability
11
WCI DK1323556 WCI DK1323556 Contact Us For Availability
12
SEAL-OVEN DOOR, UPPER OVEN WCI 5303299275 Contact Us For Availability
12B
WCI 5303308447 WCI 5303308447 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303210001 Contact Us For Availability
17
WCI 5303316765 WCI 5303316765 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
SPACER-GLASS WCI 5303210008 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18
SEAL-ROPE WCI 3016263 Contact Us For Availability
19
WCI 318000403 WCI 318000403 Contact Us For Availability
19
COLLAR-GLASS MTG WCI 5303210006 Contact Us For Availability
20
WCI 5303302289 WCI 5303302289 Contact Us For Availability
21
WCI 318028303 WCI 318028303 Contact Us For Availability
23
BRACKET-CLOCK MTG WCI 3202088 Contact Us For Availability
23
HINGE-OVEN DOOR, UPPER OVEN WCI 5303018381 Contact Us For Availability
24
KNOB-LIGHT SWITCH, WHITE WCI 5303299547 Contact Us For Availability
24
NUT-DECORATIVE, BLACK (NOT ILLUSTRATED) WCI 5303316767 Contact Us For Availability
24A
WCI 318090000 WCI 318090000 Contact Us For Availability
24B
WCI 5303302303 WCI 5303302303 Contact Us For Availability
25
LINER-DOOR BAFFLE WCI 5303300949 Contact Us For Availability
28
WCI 5303302295 WCI 5303302295 Contact Us For Availability
29
WCI 08017238 WCI 08017238 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
31
WCI 318016709 WCI 318016709 Contact Us For Availability
32
WCI 318016810 WCI 318016810 Contact Us For Availability
39
WCI 318040203 WCI 318040203 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
42
TRIM-VENT, BLACK WCI 5303202101 Contact Us For Availability
49
WCI 5303307192 WCI 5303307192 Contact Us For Availability
49
WCI 5303307193 WCI 5303307193 Contact Us For Availability
56
TRIM-BODYSIDE, BLACK, (2) WCI 5303271105 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3019048 Contact Us For Availability
58
WCI 5303311220 WCI 5303311220 Contact Us For Availability
59
TUBE-OVEN VENT WCI 3016301 Contact Us For Availability
62B
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
65
WCI 3016309 WCI 3016309 Contact Us For Availability
66
BUMPER, RUBBER, (4) WCI 3202093 Contact Us For Availability
68
WCI 5303302285 WCI 5303302285 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
71
WCI 5303304701 WCI 5303304701 Contact Us For Availability
76
FRONT-OVEN WCI 5303299251 Contact Us For Availability
78
COVER, OVEN VENT, BLACK WCI 316037604 Contact Us For Availability
78A
WCI 316037700 WCI 316037700 Contact Us For Availability
78B
WCI 316037800 WCI 316037800 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
WCI 3202392 WCI 3202392 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89
WCI 3016296 WCI 3016296 Contact Us For Availability
89
MOTOR-LATCH/LOCK WCI 5308015743 Contact Us For Availability
91
WCI 3019069 WCI 3019069 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
97
WCI 5303300980 WCI 5303300980 Contact Us For Availability
98A
TRIM-SIDE-INNER-RH WCI 3016279 Contact Us For Availability
98B
TRIM, SIDE, INNER, LH WCI 3016280 Contact Us For Availability
103
TRIM-BASE, BLACK WCI 5303316773 Contact Us For Availability
118
WCI 5303308461 WCI 5303308461 Contact Us For Availability
121
WCI 5303304700 WCI 5303304700 Contact Us For Availability
123
SHIELD-INSULATION, TOP & SIDES WCI 5303299270 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
127
ADAPTER ASSY WCI 3205683 Contact Us For Availability
130
END CAP-TRIM, BLACK, RH WCI 5303271106 Contact Us For Availability
130
END CAP-TRIM, BLACK, LH WCI 5303271107 Contact Us For Availability
× ![]()
