Model Electrolux TEB555CCB2 WALL OVEN – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

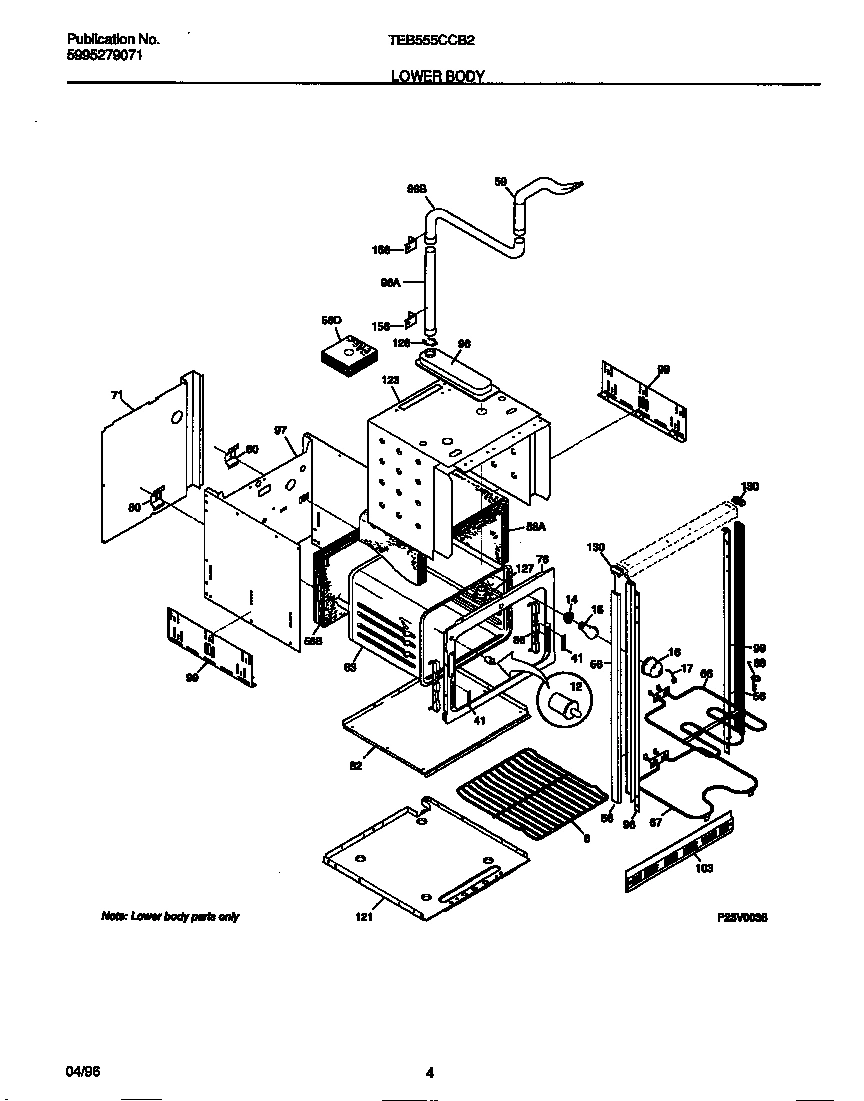

03 - LOWER BODY

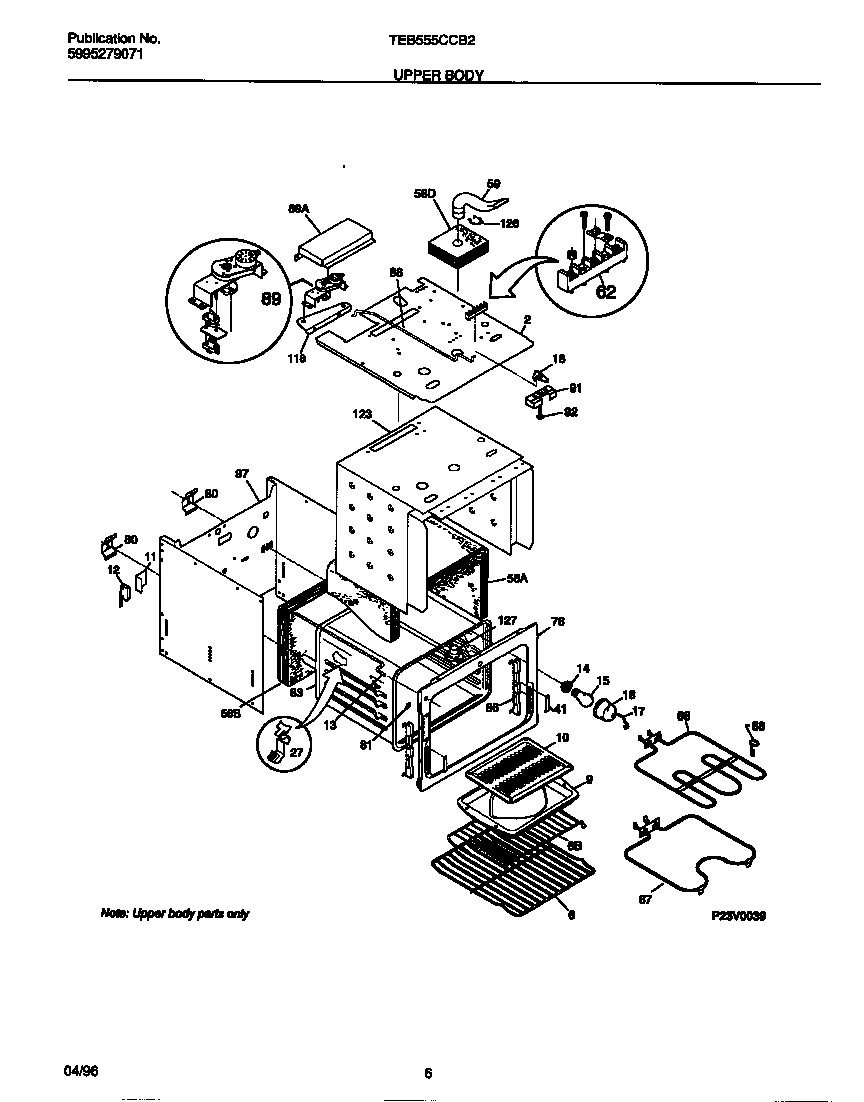

04 - UPPER BODY

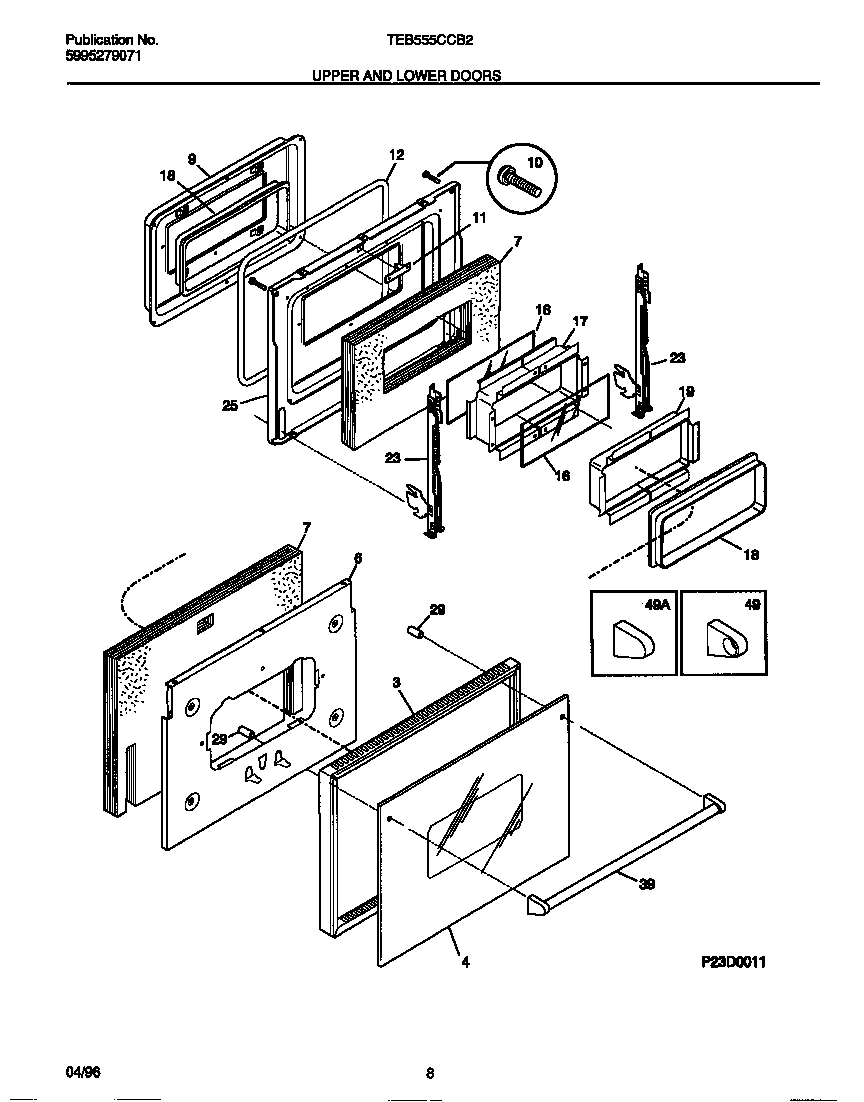

05 - UPPER AND LOWER DOORS

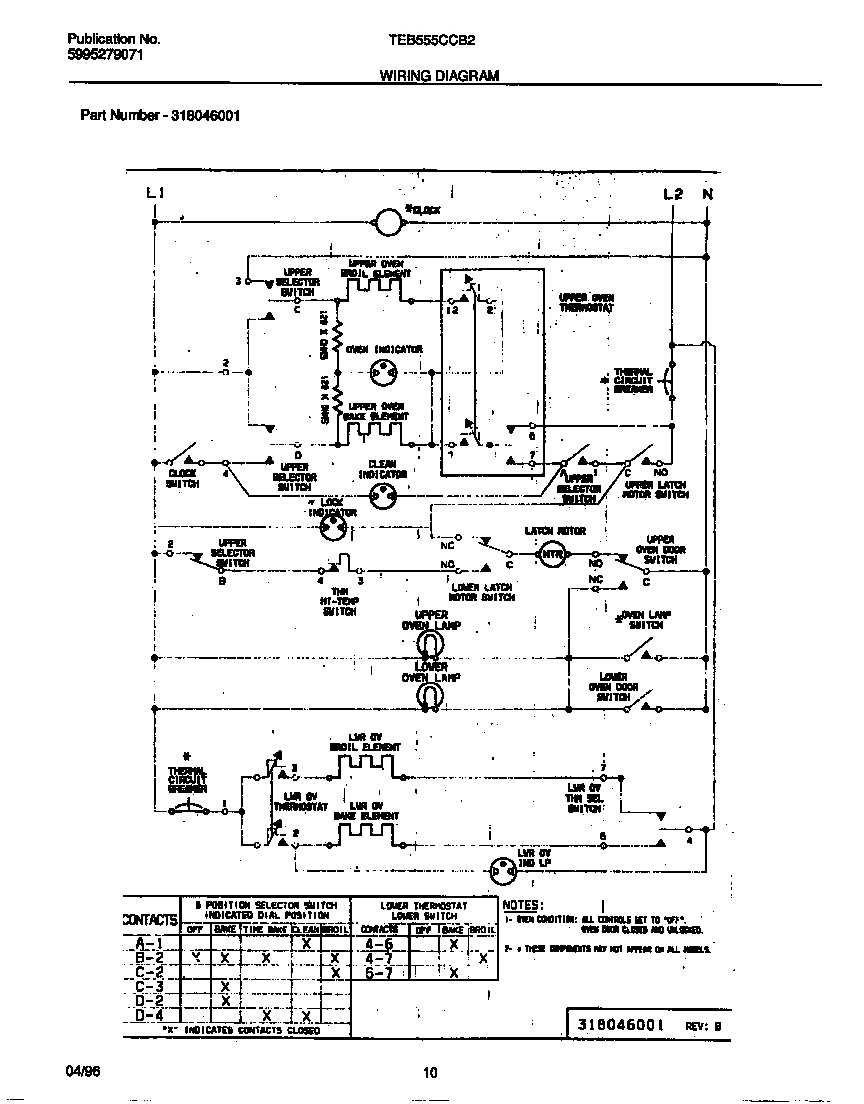

06 - WIRING DIAGRAM
Common parts from model Electrolux TEB555CCB2 WALL OVEN
*44404
WCI 3018802 WCI 3018802 Contact Us For Availability
*44406
WCI 3201881 WCI 3201881 Contact Us For Availability
*44408
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*44409
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*44410
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*44413
TAPE, SEAL, (2) WCI 5303316982 Contact Us For Availability
2
WCI 5303301263 WCI 5303301263 Contact Us For Availability
3
TRIM-OVEN DOOR WCI 5303212560 Contact Us For Availability
4
GLASS-OVEN DOOR WCI 5303299478 Contact Us For Availability
6
WCI 5303299366 WCI 5303299366 Contact Us For Availability
6
WCI 5303305676 WCI 5303305676 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
LINER-OVEN DOOR, UPPER OVEN WCI 318038600 Contact Us For Availability
9
WCI 318048401 WCI 318048401 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
WCI 5303316748 WCI 5303316748 Contact Us For Availability
11
WCI 5303308448 WCI 5303308448 Contact Us For Availability
11
WCI DK1323556 WCI DK1323556 Contact Us For Availability
12
SWITCH-DOOR WCI 5301314211 Contact Us For Availability
12
FASTENER, SWITCH (NOT ILLUSTRATED) WCI 3131095 Contact Us For Availability
12
WCI 5303308447 WCI 5303308447 Contact Us For Availability
12
SWITCH-DOOR WCI 5303275924 Contact Us For Availability
12
SEAL-OVEN DOOR, UPPER WCI 3205189 Contact Us For Availability
12
WCI 5303317713 WCI 5303317713 Contact Us For Availability
13
ROD-LIGHT SWITCH WCI 3202077 Contact Us For Availability
13
SPRING-ROD (NOT ILLUSTRATED) WCI 3204114 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, LOWER OVEN, LO WCI 5303016336 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, UPPER OVEN WCI 5303210001 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
SPACER-GLASS, UPPER OVEN WCI 5303210008 Contact Us For Availability
17
SPACER-GLASS, LOWER OVEN WCI 5303212864 Contact Us For Availability
18
SEAL-ROPE, LOWER OVEN WCI 3016338 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18
SEAL-ROPE, UPPER OVEN WCI 3016263 Contact Us For Availability
19
COLLAR-GLASS MTG, UPPER OVEN WCI 5303210006 Contact Us For Availability
21
WCI 318028320 WCI 318028320 Contact Us For Availability
21
SCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT WCI 5303307406 Contact Us For Availability
23
BRACKET-CLOCK MTG WCI 3202088 Contact Us For Availability
23
HINGE-OVEN DOOR, UPPER OVEN WCI 316009400 Contact Us For Availability
23
HINGE-OVEN DOOR, LOWER OVEN WCI 3202464 Contact Us For Availability
24
WCI 318090000 WCI 318090000 Contact Us For Availability
24
KNOB-LIGHT SWITCH, BLACK WCI 5303299474 Contact Us For Availability
24
WCI 5303302303 WCI 5303302303 Contact Us For Availability
25
LINER-DOOR BAFFLE, UPPER OVEN WCI 318048300 Contact Us For Availability
28
WCI 5303302295 WCI 5303302295 Contact Us For Availability
28
CLIP-WIRE WCI 3015722 Contact Us For Availability
29
KNOB-CLOCK/TIMER, BLACK WCI 5303016292 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
30
WCI 5303316767 WCI 5303316767 Contact Us For Availability
31
WCI 318016709 WCI 318016709 Contact Us For Availability
32
KNOB-THERMOSTAT WCI 318016809 Contact Us For Availability
32
WCI 318016810 WCI 318016810 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 318040201 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
42
TRIM-VENT, BLACK WCI 318027301 Contact Us For Availability
49
WCI 5303307192 WCI 5303307192 Contact Us For Availability
49
WCI 5303307193 WCI 5303307193 Contact Us For Availability
56
TRIM-BODYSIDE, (2) WCI 5303283302 Contact Us For Availability
56
WCI 5303318690 WCI 5303318690 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3019048 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303304702 Contact Us For Availability
58
WCI 5303317714 WCI 5303317714 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
59
TUBE-OVEN VENT WCI 3016301 Contact Us For Availability
59
Tube,oven vent WCI 3016331 Contact Us For Availability
62
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
65
WCI 5303316766 WCI 5303316766 Contact Us For Availability
66
WCI 5303304698 WCI 5303304698 Contact Us For Availability
68
WCI 5303317720 WCI 5303317720 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
69
SCREW-SWITCH MTG, 8-32 X 5/32, (2) WCI 5303292005 Contact Us For Availability
71
WCI 5303317719 WCI 5303317719 Contact Us For Availability
76
WCI 318056130 WCI 318056130 Contact Us For Availability
76
WCI 318056131 WCI 318056131 Contact Us For Availability
78
COVER, OVEN VENT, BLACK WCI 316037604 Contact Us For Availability
78
WCI 316037700 WCI 316037700 Contact Us For Availability
78
WCI 316037801 WCI 316037801 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 5303305035 Contact Us For Availability
83
WCI 318089503 WCI 318089503 Contact Us For Availability
83
WCI 318089501 WCI 318089501 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89
WCI 3016296 WCI 3016296 Contact Us For Availability
89
MOTOR-LATCH/LOCK WCI 5308015743 Contact Us For Availability
91
WCI 3019069 WCI 3019069 Contact Us For Availability
91
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
96
WCI 3016324 WCI 3016324 Contact Us For Availability
96
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
96
DUCT-VENT PIPE WCI 3016327 Contact Us For Availability
97
WCI 318066603 WCI 318066603 Contact Us For Availability
97
WCI 318066503 WCI 318066503 Contact Us For Availability
98
WCI 318029310 WCI 318029310 Contact Us For Availability
98
WCI 318029311 WCI 318029311 Contact Us For Availability
103
TRIM-BASE WCI 5303316735 Contact Us For Availability
118
BRACKET-LATCH WCI 3016276 Contact Us For Availability
119
SWITCH-THERMAL WCI 3202388 Contact Us For Availability
121
WCI 5303305036 WCI 5303305036 Contact Us For Availability
123
SHIELD-INSULATION, TOP & SIDES WCI 3202445 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
127
ADAPTER ASSY WCI 3205683 Contact Us For Availability
127
ADAPTER ASSY WCI 5303206498 Contact Us For Availability
130
END CAP-TRIM, BLACK, RH WCI 5303271106 Contact Us For Availability
130
END CAP-TRIM, BLACK, LH WCI 5303271107 Contact Us For Availability
130
WCI 5303316992 WCI 5303316992 Contact Us For Availability
156
WCI 5303317198 WCI 5303317198 Contact Us For Availability
× ![]()
