Model Electrolux TEB500CCB2 WALL OVEN – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

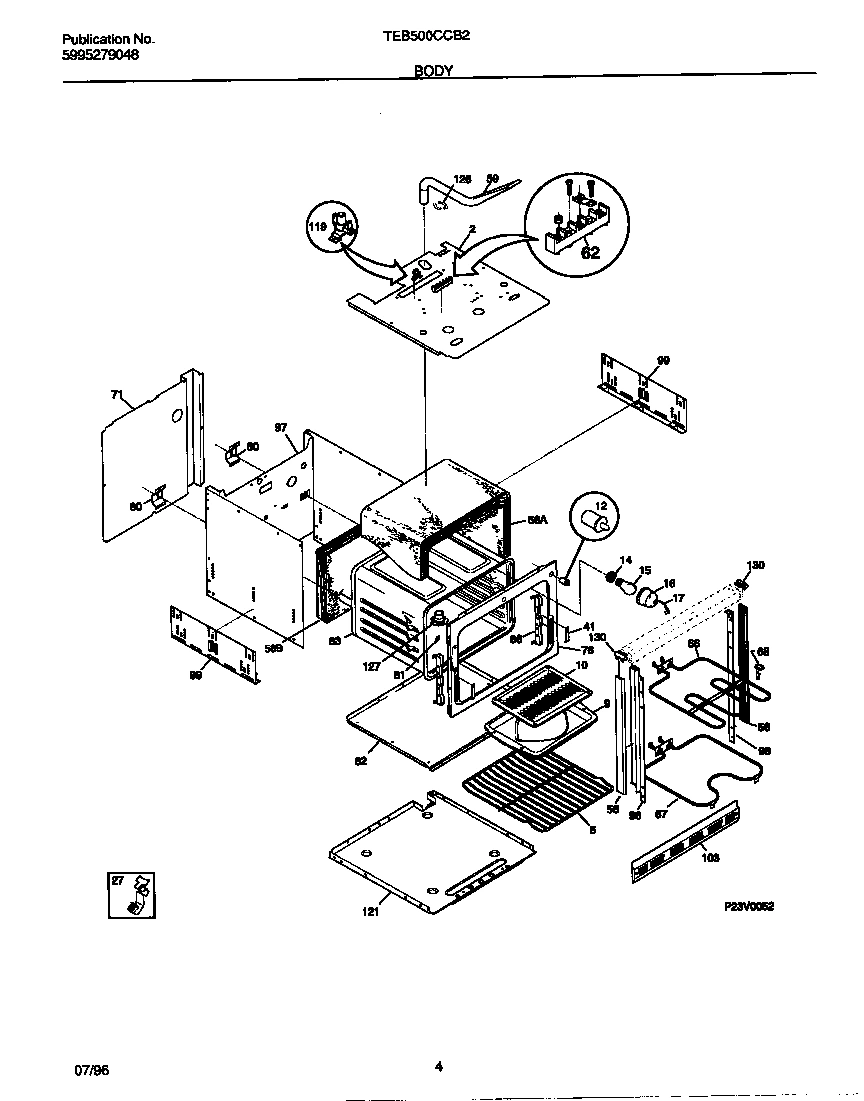

03 - BODY

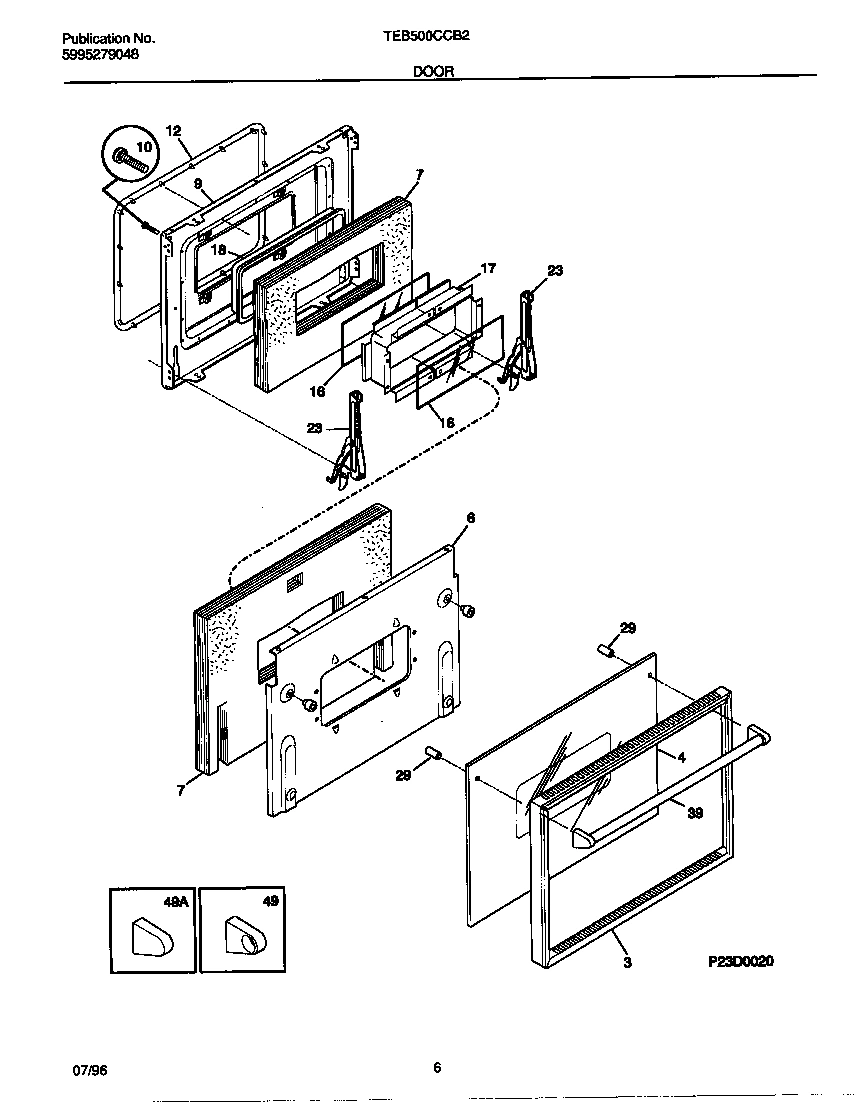

04 - DOOR

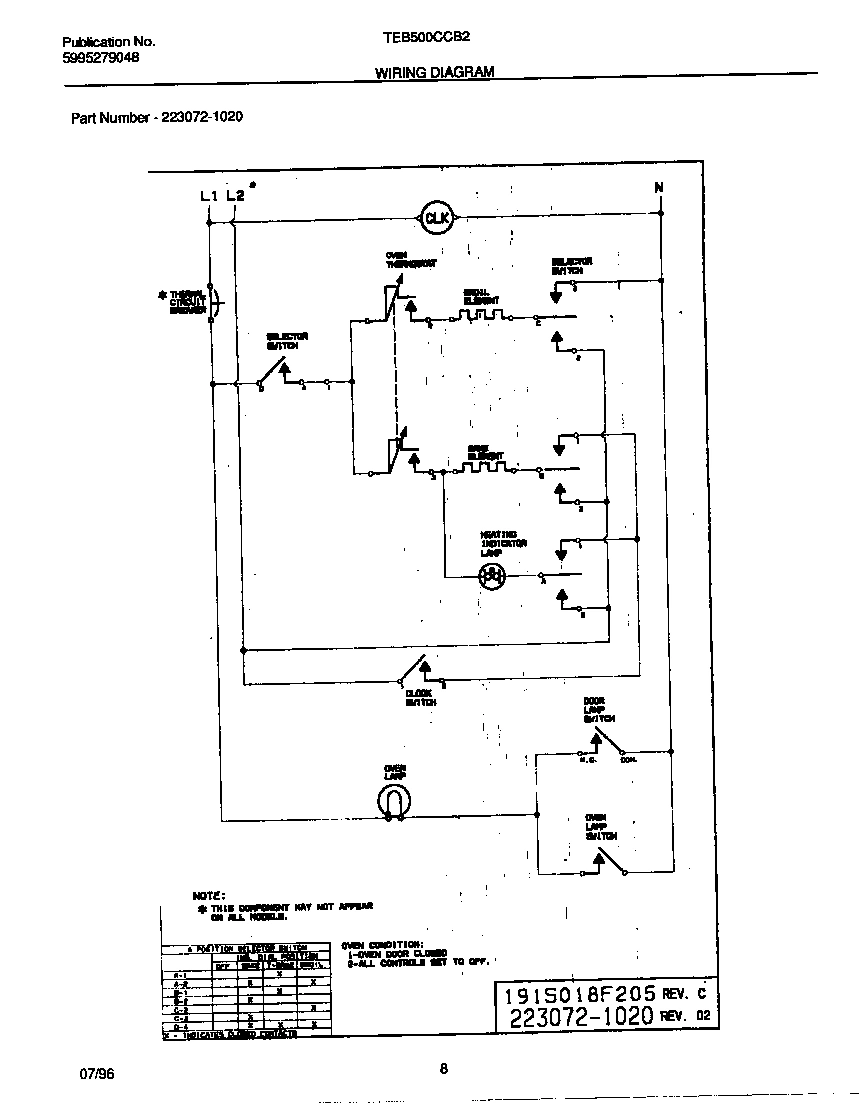

05 - WIRING DIAGRAM
Common parts from model Electrolux TEB500CCB2 WALL OVEN
*29642
WCI 08002868 WCI 08002868 Contact Us For Availability
*29645
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*29646
WCI 5303316993 WCI 5303316993 Contact Us For Availability
*29647
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*29648
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*29651
TAPE, SEAL, (2) WCI 5303316982 Contact Us For Availability
1
WCI 5303305037 WCI 5303305037 Contact Us For Availability
2
SHIELD-OVEN TOP WCI 5303298946 Contact Us For Availability
3
TRIM-OVEN DOOR WCI 5303212560 Contact Us For Availability
4
GLASS-OVEN DOOR WCI 5303299478 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048400 WCI 318048400 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
WCI 5303316748 WCI 5303316748 Contact Us For Availability
12
SEAL-OVEN DOOR, LOWER WCI 5303316768 Contact Us For Availability
12
SWITCH-DOOR WCI 5301314211 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, LOWER OVEN WCI 5303016336 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
SPACER-GLASS, LOWER OVEN WCI 5303212864 Contact Us For Availability
18
SEAL-ROPE, LOWER OVEN WCI 3016338 Contact Us For Availability
23
HINGE-OVEN DOOR, LOWER OVEN WCI 3202464 Contact Us For Availability
24
WCI 318090001 WCI 318090001 Contact Us For Availability
24
KNOB-LIGHT SWITCH, BLACK WCI 5303299474 Contact Us For Availability
24
WCI 5303302303 WCI 5303302303 Contact Us For Availability
24
NUT-DECORATIVE, BLACK (NOT ILLUSTRATED) WCI 5303316767 Contact Us For Availability
29
WCI 316029000 WCI 316029000 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
31
WCI 318016711 WCI 318016711 Contact Us For Availability
32
KNOB-THERMOSTAT WCI 318016809 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 318040201 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
42
TRIM-VENT, BLACK WCI 318027301 Contact Us For Availability
49
WCI 5303307192 WCI 5303307192 Contact Us For Availability
49
WCI 5303307193 WCI 5303307193 Contact Us For Availability
56
TRIM-BODYSIDE, BLACK, (2) WCI 5303271105 Contact Us For Availability
56
WCI 5303318690 WCI 5303318690 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303304702 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
59
TUBE-OVEN VENT WCI 3016301 Contact Us For Availability
62
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
65
WCI 5303316766 WCI 5303316766 Contact Us For Availability
66
BUMPER, RUBBER, (4) WCI 3202093 Contact Us For Availability
68
WCI 5303302397 WCI 5303302397 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
76
WCI 318056120 WCI 318056120 Contact Us For Availability
78
COVER, OVEN VENT, BLACK WCI 316037604 Contact Us For Availability
78
WCI 316037700 WCI 316037700 Contact Us For Availability
78
WCI 316037800 WCI 316037800 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 5303305035 Contact Us For Availability
83
WCI 318089500 WCI 318089500 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
97
WCI 318066603 WCI 318066603 Contact Us For Availability
98
WCI 318029300 WCI 318029300 Contact Us For Availability
98
WCI 318029301 WCI 318029301 Contact Us For Availability
103
TRIM-BASE WCI 5303316735 Contact Us For Availability
119
SWITCH-THERMAL WCI 3202388 Contact Us For Availability
121
WCI 5303305036 WCI 5303305036 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
127
ADAPTER ASSY WCI 5303206498 Contact Us For Availability
130
END CAP-TRIM, BLACK, RH WCI 5303271106 Contact Us For Availability
130
END CAP-TRIM, BLACK, LH WCI 5303271107 Contact Us For Availability
130
WCI 5303316992 WCI 5303316992 Contact Us For Availability
× ![]()
