Model GE TCX22ZASBRWH – Common Parts & Diagrams

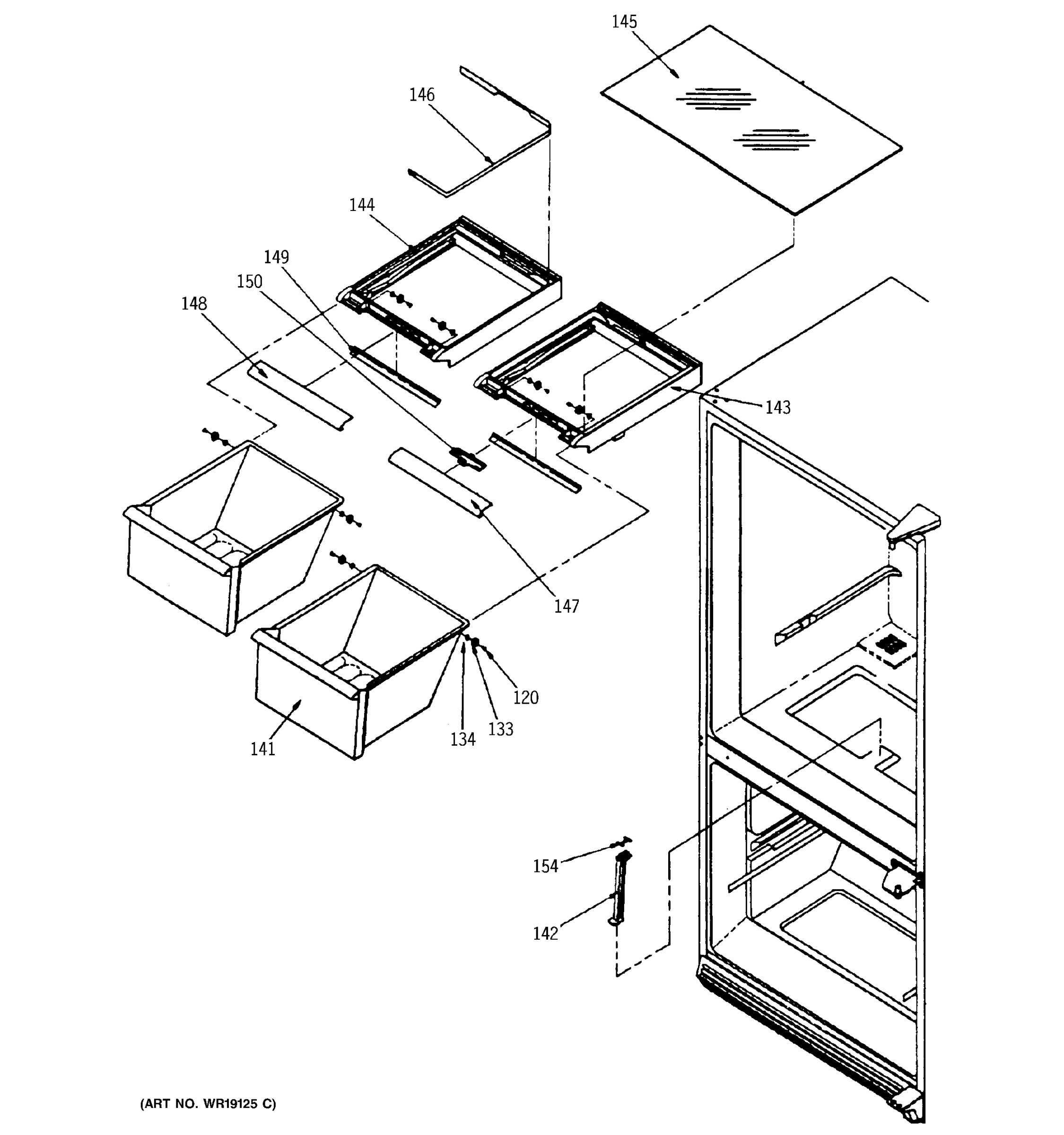

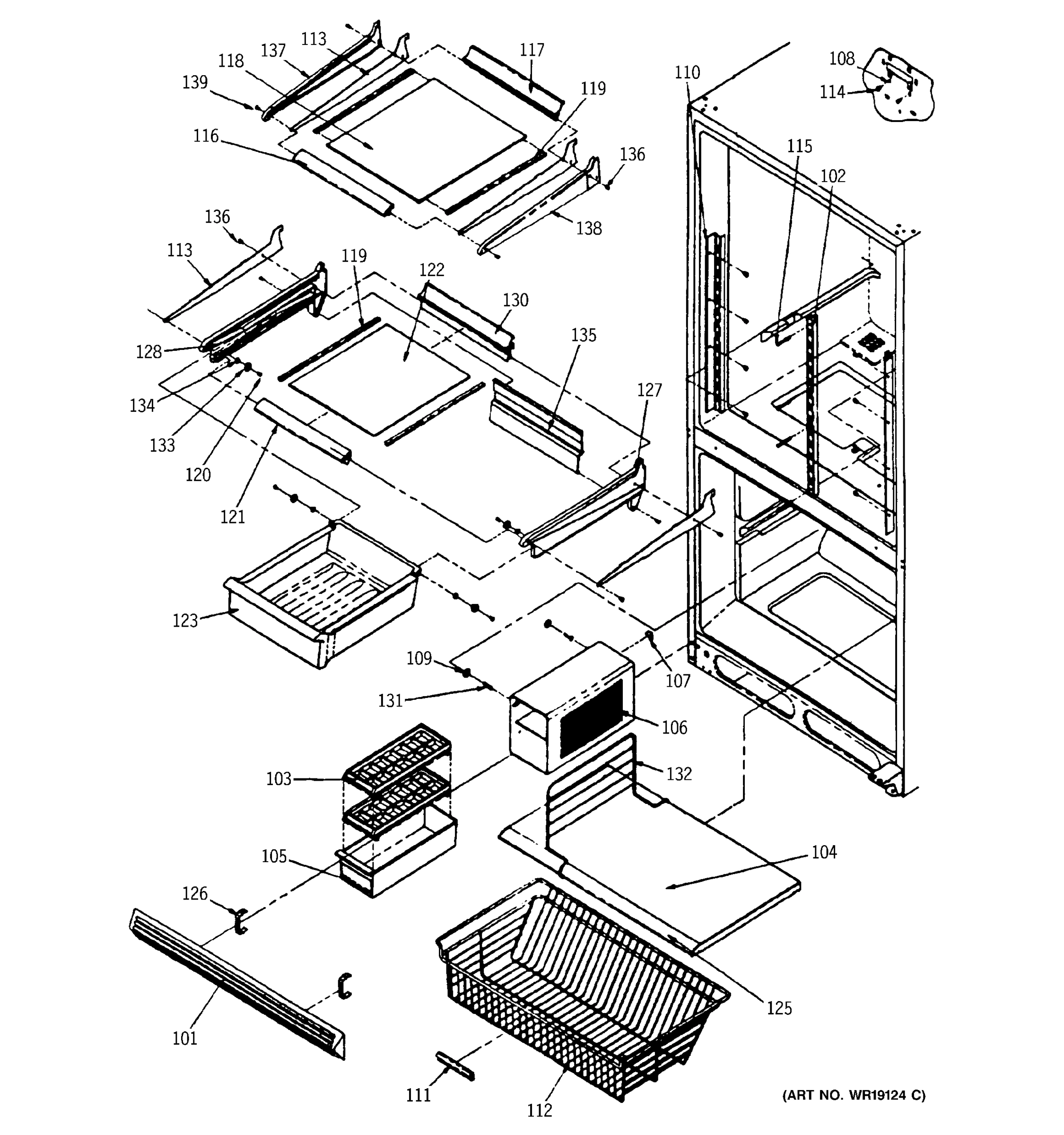

CABINET SHELVING
CABINET SHELVING

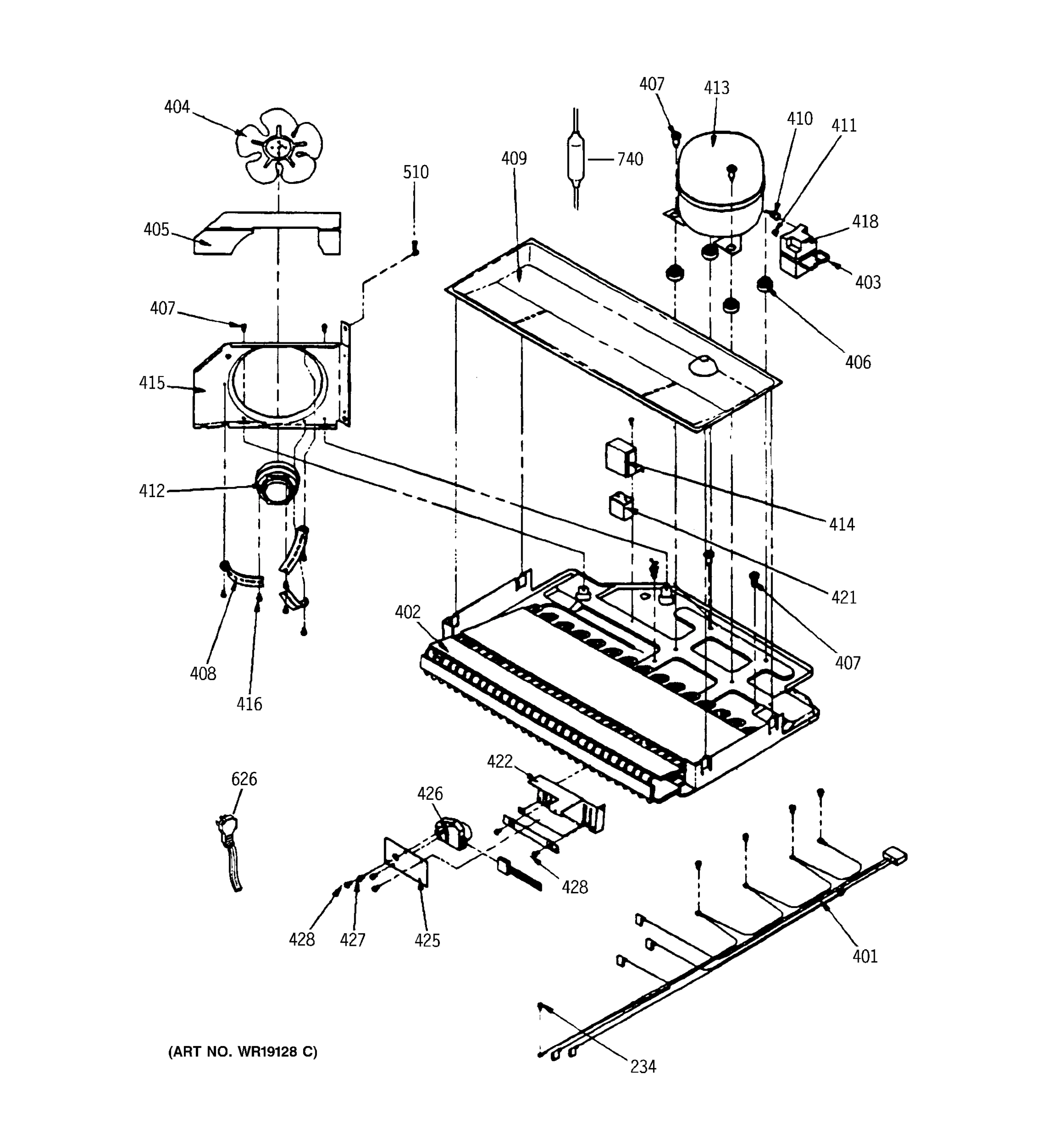

COMPRESSOR COMPARTMENT

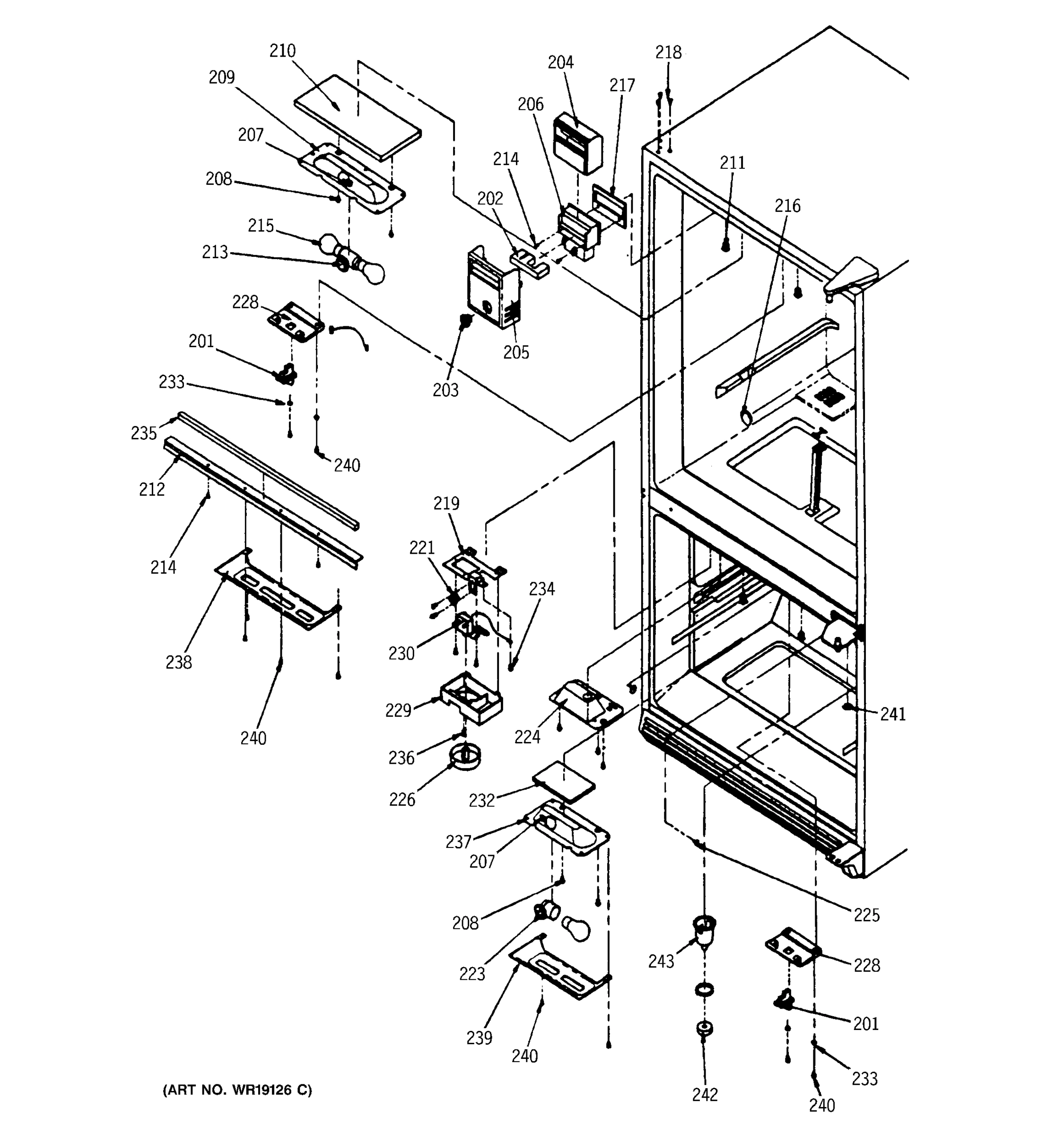

CONTROLS, SWITCHES & LIGHTS

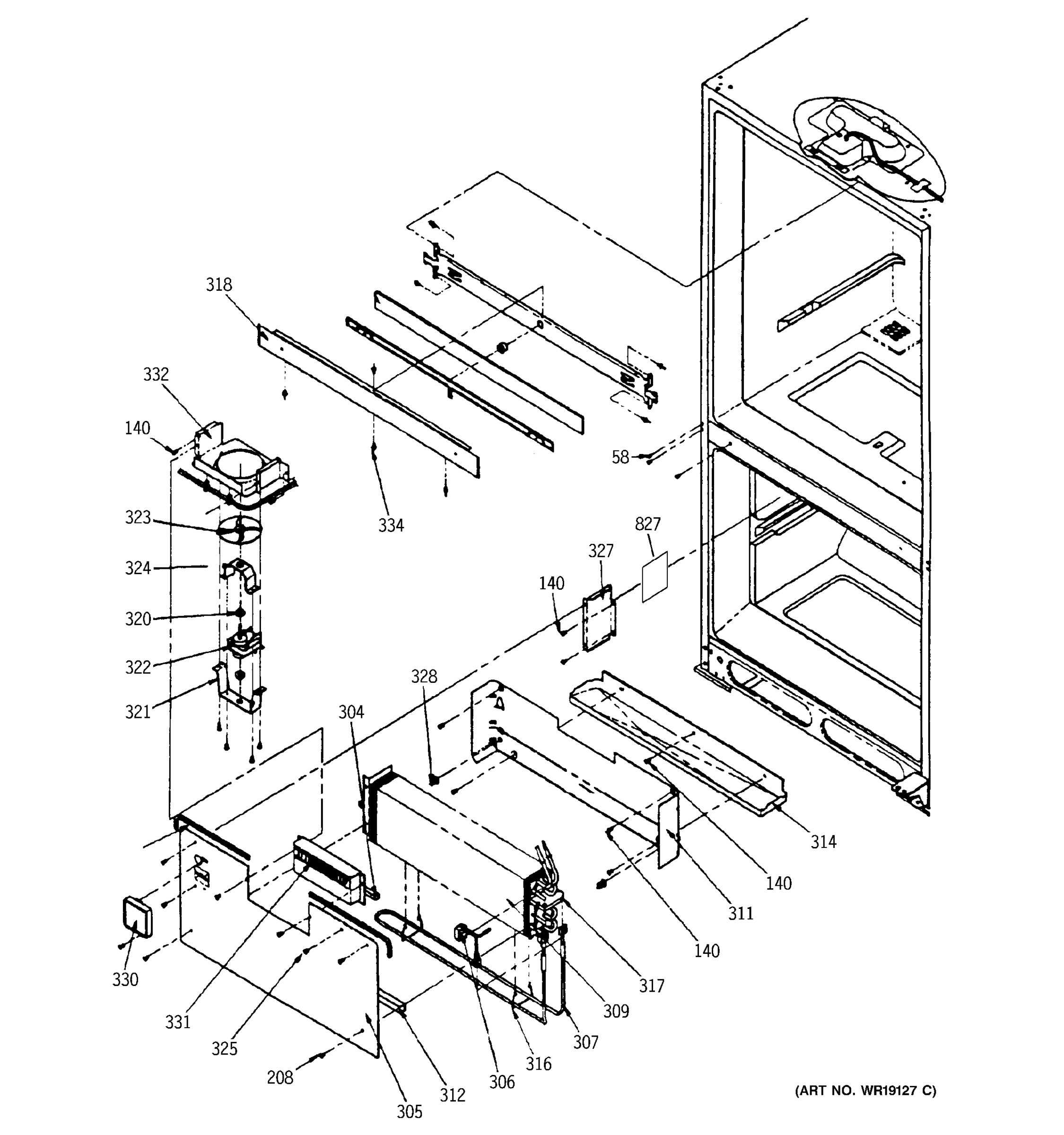

EVAPORATOR AREA & DIVIDER BLOCK

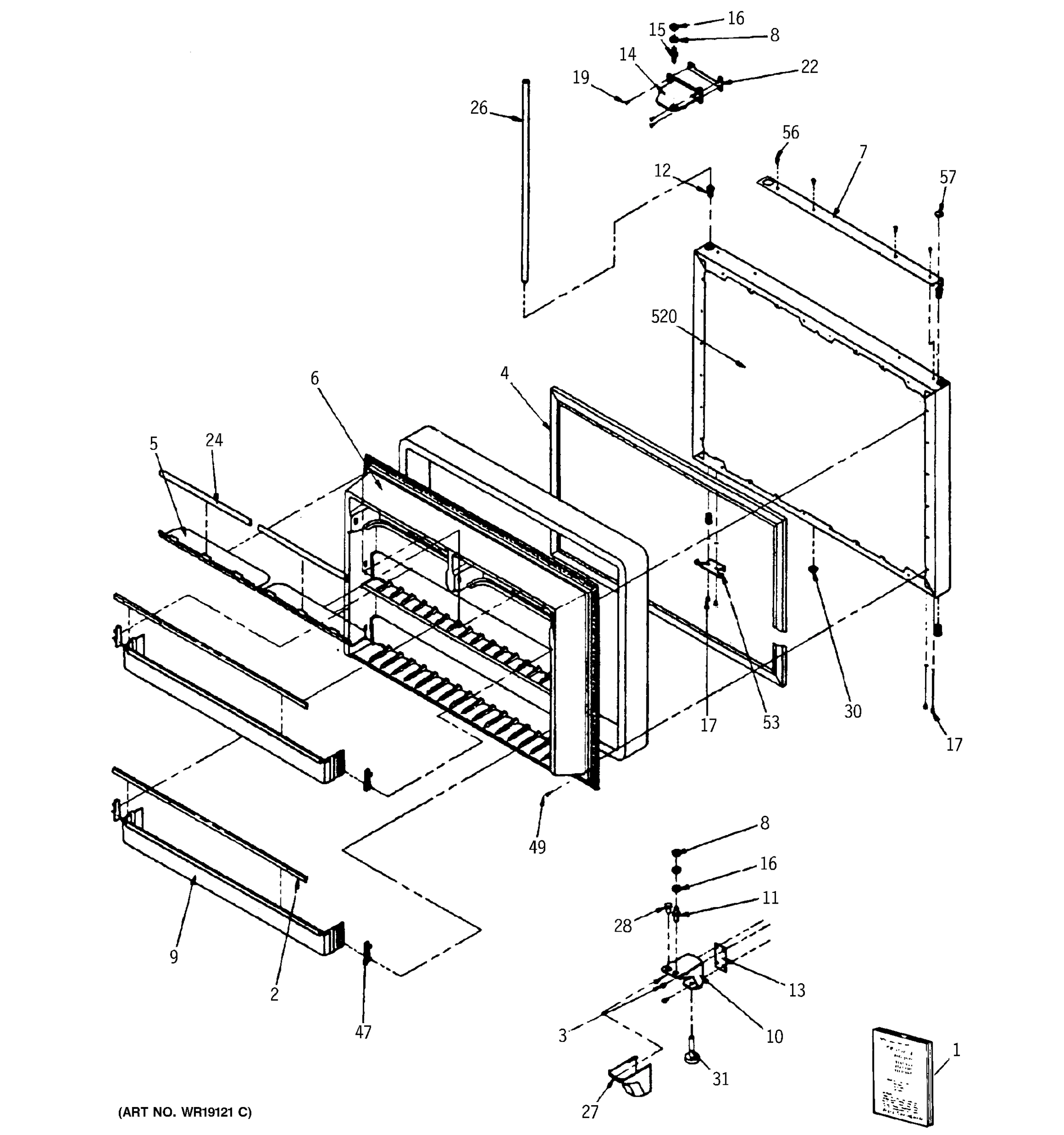

FREEZER DOOR

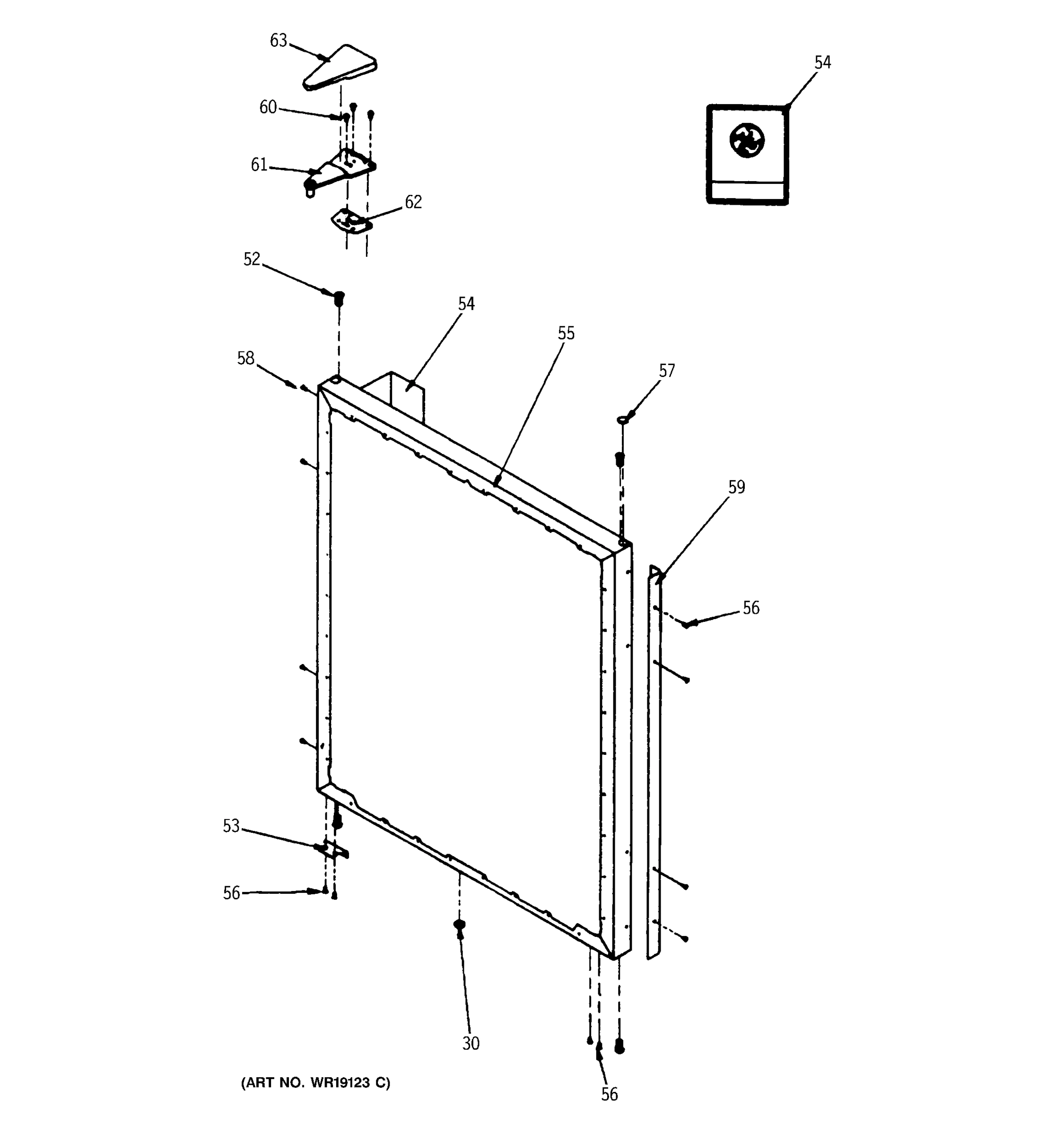

REFRIGERATOR DOOR (EXTERIOR)

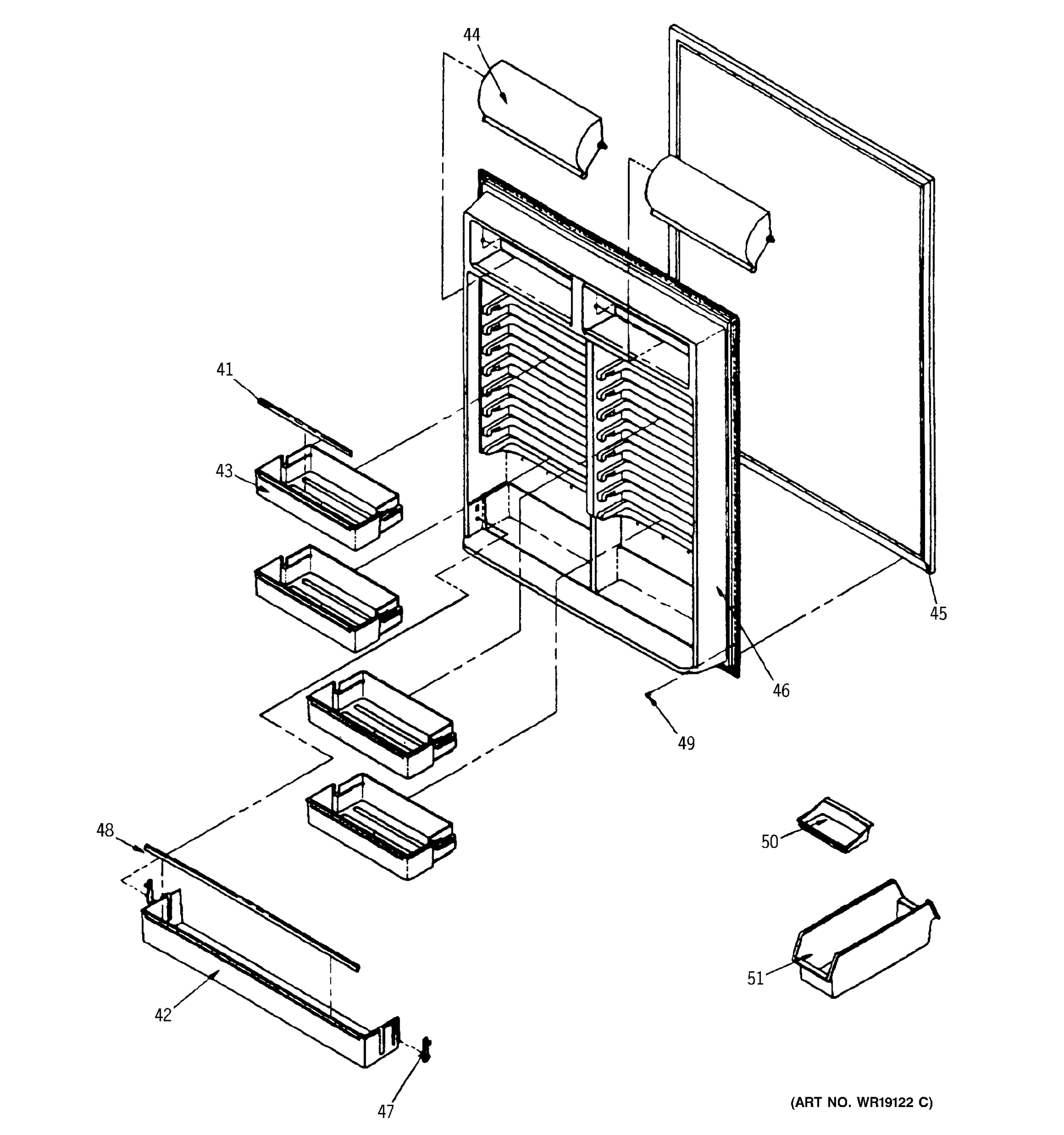

REFRIGERATOR DOOR (INTERIOR)

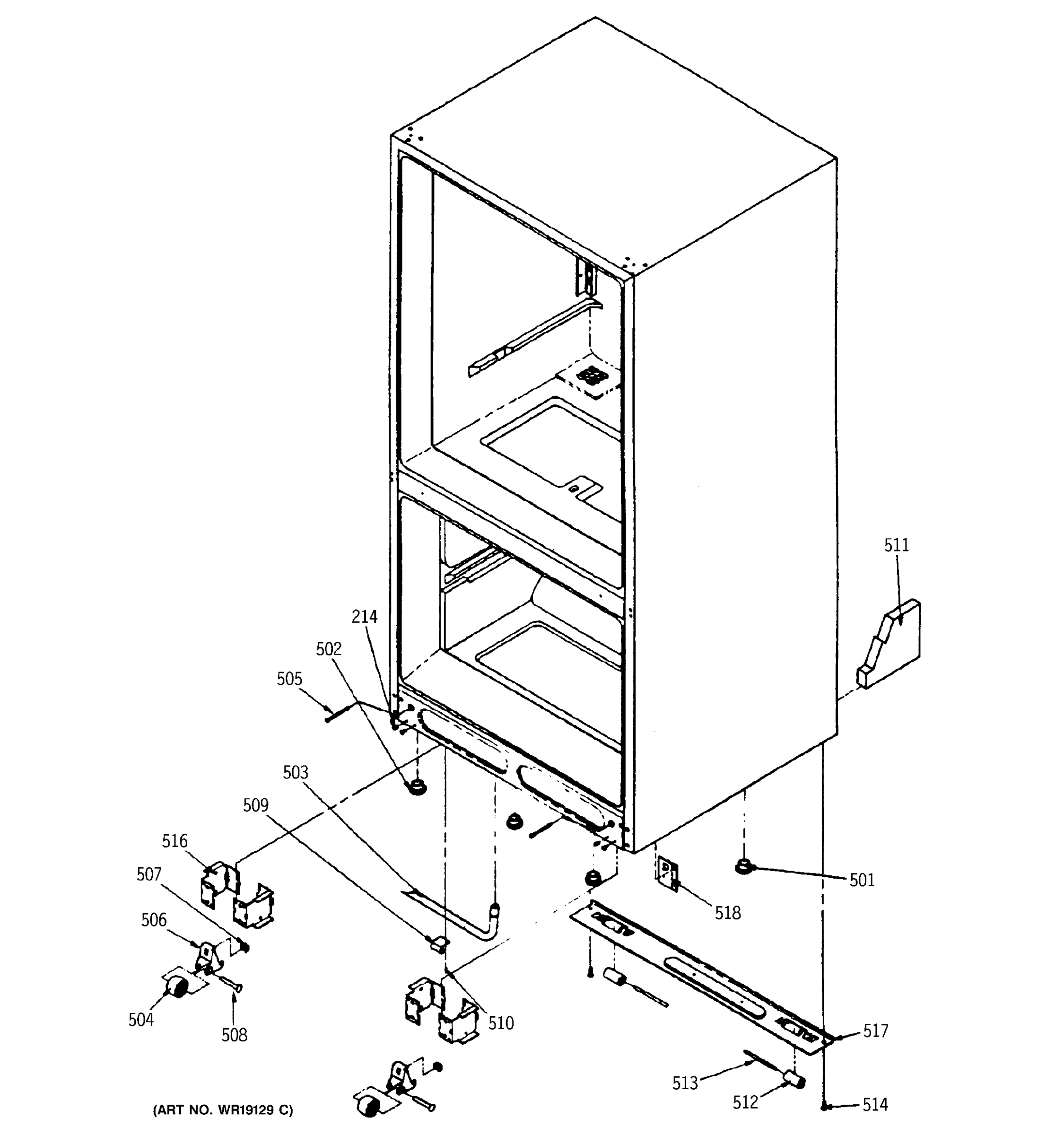

ROLLERS & MISCELLANEOUS CABINETS
Common parts from model GE TCX22ZASBRWH
1
GEN 31-5848 GEN 31-5848 Contact Us For Availability
1
GEN 49-6721 GEN 49-6721 Contact Us For Availability
2
GEN WR23X0374 GEN WR23X0374 Contact Us For Availability
3
SCREW TF,BOTTOM HINGE GEN WR01X5573 Contact Us For Availability
4
GEN WR24X0541 GEN WR24X0541 Contact Us For Availability
5
GEN WR71X2367 GEN WR71X2367 Contact Us For Availability
6
GEN WR77X0618 GEN WR77X0618 Contact Us For Availability
7
GEN WR01X1897 GEN WR01X1897 Contact Us For Availability
7
GEN WR12X0926 GEN WR12X0926 Contact Us For Availability
8
GEN WR02X8635 GEN WR02X8635 Contact Us For Availability
9
GEN WR71X2368 GEN WR71X2368 Contact Us For Availability
10
GEN WR13X0653 GEN WR13X0653 Contact Us For Availability
10
GEN WR82X0334 GEN WR82X0334 Contact Us For Availability
11
GEN WR13X0629 GEN WR13X0629 Contact Us For Availability
12
GEN WR02X8632 GEN WR02X8632 Contact Us For Availability
13
GEN WR02X8732 GEN WR02X8732 Contact Us For Availability
14
GEN WR02X8734 GEN WR02X8734 Contact Us For Availability
15
GEN WR13X0631 GEN WR13X0631 Contact Us For Availability
16
SHIM NON METAL GEN WR02X8631 Contact Us For Availability
17
GEN WR01X1860 GEN WR01X1860 Contact Us For Availability
19
GEN WR01X1862 GEN WR01X1862 Contact Us For Availability
22
GEN WR02X8736 GEN WR02X8736 Contact Us For Availability
22
GEN WR02X8737 GEN WR02X8737 Contact Us For Availability
22
GEN WR02X8738 GEN WR02X8738 Contact Us For Availability
24
GEN WR71X2369 GEN WR71X2369 Contact Us For Availability
26
PIN CENTER DOOR GEN WR13X0655 Contact Us For Availability
27
GEN WR02X8739 GEN WR02X8739 Contact Us For Availability
27
GEN WR02X8764 GEN WR02X8764 Contact Us For Availability
28
PLUG BUTTON WHITE GEN WR02X8741 Contact Us For Availability
31
GEN WR01X1852 GEN WR01X1852 Contact Us For Availability
41
GEN WR38X1754 GEN WR38X1754 Contact Us For Availability
42
GEN WR71X2218 GEN WR71X2218 Contact Us For Availability
43
GEN WR71X2217 GEN WR71X2217 Contact Us For Availability
44
GEN WR22X0479 GEN WR22X0479 Contact Us For Availability
45
GEN WR24X0542 GEN WR24X0542 Contact Us For Availability
46
GEN WR77X0619 GEN WR77X0619 Contact Us For Availability
47
GEN WR02X8636 GEN WR02X8636 Contact Us For Availability
48
GEN WR38X1755 GEN WR38X1755 Contact Us For Availability
49
GEN WR01X1807 GEN WR01X1807 Contact Us For Availability
50
GEN WR19X0036 GEN WR19X0036 Contact Us For Availability
51
GEN WR32X1373 GEN WR32X1373 Contact Us For Availability
52
GEN WR02X8557 GEN WR02X8557 Contact Us For Availability
53
GEN WR02X8743 GEN WR02X8743 Contact Us For Availability
54
GEN WR04X0209 GEN WR04X0209 Contact Us For Availability
55
GEN WR78X8581 GEN WR78X8581 Contact Us For Availability
56
GEN WR01X1861 GEN WR01X1861 Contact Us For Availability
57
GEN WR02X8637 GEN WR02X8637 Contact Us For Availability
59
GEN WR12X0927 GEN WR12X0927 Contact Us For Availability
61
GEN WR13X0656 GEN WR13X0656 Contact Us For Availability
62
SHIM TOP HINGE GEN WR02X8744 Contact Us For Availability
62
SHIM TOP HINGE GEN WR02X8746 Contact Us For Availability
63
GEN WR02X8748 GEN WR02X8748 Contact Us For Availability
102
LADDER CENTER GEN WR72X0154 Contact Us For Availability
103
GEN WR30X0297 GEN WR30X0297 Contact Us For Availability
104
GEN WR71X2370 GEN WR71X2370 Contact Us For Availability
105
GEN WR30X0293 GEN WR30X0293 Contact Us For Availability
106
GEN WR17X3257 GEN WR17X3257 Contact Us For Availability
107
GEN WR01X1864 GEN WR01X1864 Contact Us For Availability
108
GEN WR01X1865 GEN WR01X1865 Contact Us For Availability
109
GEN WR01X1866 GEN WR01X1866 Contact Us For Availability
110
LADDER SIDE GEN WR72X0153 Contact Us For Availability
111
GEN WR02X8749 GEN WR02X8749 Contact Us For Availability
112
GEN WR21X0191 GEN WR21X0191 Contact Us For Availability
113
GEN WR17X3258 GEN WR17X3258 Contact Us For Availability
114
GEN WR01X1867 GEN WR01X1867 Contact Us For Availability
115
GEN WR01X1868 GEN WR01X1868 Contact Us For Availability
116
GEN WR38X1960 GEN WR38X1960 Contact Us For Availability
117
GEN WR17X3259 GEN WR17X3259 Contact Us For Availability
118
GEN WR32X1381 GEN WR32X1381 Contact Us For Availability
119
GEN WR38X1961 GEN WR38X1961 Contact Us For Availability
120
GEN WR01X1869 GEN WR01X1869 Contact Us For Availability
121
GEN WR38X1962 GEN WR38X1962 Contact Us For Availability
122
GEN WR32X1374 GEN WR32X1374 Contact Us For Availability
123
GEN WR32X1375 GEN WR32X1375 Contact Us For Availability
125
GEN WR38X1963 GEN WR38X1963 Contact Us For Availability
126
GEN WR02X8750 GEN WR02X8750 Contact Us For Availability
127
GEN WR17X3260 GEN WR17X3260 Contact Us For Availability
128
GEN WR17X3261 GEN WR17X3261 Contact Us For Availability
130
GEN WR17X3262 GEN WR17X3262 Contact Us For Availability
131
GEN WR01X1871 GEN WR01X1871 Contact Us For Availability
132
GEN WR21X0192 GEN WR21X0192 Contact Us For Availability
133
GEN WR02X8751 GEN WR02X8751 Contact Us For Availability
134
GEN WR02X8752 GEN WR02X8752 Contact Us For Availability
135
GEN WR14X0426 GEN WR14X0426 Contact Us For Availability
137
GEN WR32X1376 GEN WR32X1376 Contact Us For Availability
138
GEN WR32X1377 GEN WR32X1377 Contact Us For Availability
139
GEN WR01X1872 GEN WR01X1872 Contact Us For Availability
141
GEN WR32X1378 GEN WR32X1378 Contact Us For Availability
142
GEN WR02X8753 GEN WR02X8753 Contact Us For Availability
143
GEN WR71X2371 GEN WR71X2371 Contact Us For Availability
144
GEN WR71X2372 GEN WR71X2372 Contact Us For Availability
145
GEN WR32X1379 GEN WR32X1379 Contact Us For Availability
146
GEN WR02X8754 GEN WR02X8754 Contact Us For Availability
147
GEN WR38X1964 GEN WR38X1964 Contact Us For Availability
148
GEN WR38X1965 GEN WR38X1965 Contact Us For Availability
149
GEN WR14X0422 GEN WR14X0422 Contact Us For Availability
150
GEN WR02X8755 GEN WR02X8755 Contact Us For Availability
154
GEN WR01X1874 GEN WR01X1874 Contact Us For Availability
202
GEN WR02X8756 GEN WR02X8756 Contact Us For Availability
203
GEN WR02X8560 GEN WR02X8560 Contact Us For Availability
204
GEN WR02X8757 GEN WR02X8757 Contact Us For Availability
205
GEN WR02X8561 GEN WR02X8561 Contact Us For Availability
206
CONTROL DAMPER GEN WR09X5209 Contact Us For Availability
207
GEN WR01X1875 GEN WR01X1875 Contact Us For Availability
208
GEN WR01X1876 GEN WR01X1876 Contact Us For Availability
209
GEN WR02X8758 GEN WR02X8758 Contact Us For Availability
210
GEN WR82X8759 GEN WR82X8759 Contact Us For Availability
211
GEN WR01X1877 GEN WR01X1877 Contact Us For Availability
212
GEN WR17X3263 GEN WR17X3263 Contact Us For Availability
213
GEN WR23X0375 GEN WR23X0375 Contact Us For Availability
214
GEN WR01X1878 GEN WR01X1878 Contact Us For Availability
216
GEN WR02X8760 GEN WR02X8760 Contact Us For Availability
217
GEN WR14X0427 GEN WR14X0427 Contact Us For Availability
218
GEN WR02X8761 GEN WR02X8761 Contact Us For Availability
219
GEN WR23X0376 GEN WR23X0376 Contact Us For Availability
221
GEN WR23X0377 GEN WR23X0377 Contact Us For Availability
223
GEN WR23X0378 GEN WR23X0378 Contact Us For Availability
224
GEN WR02X8763 GEN WR02X8763 Contact Us For Availability
225
PLUG BUTTON WH GEN WR02X8558 Contact Us For Availability
226
GEN WR02X8562 GEN WR02X8562 Contact Us For Availability
228
COVER LIGHT SWITCH GEN WR17X2833 Contact Us For Availability
229
GEN WR02X8765 GEN WR02X8765 Contact Us For Availability
230
GEN WR09X0525 GEN WR09X0525 Contact Us For Availability
232
GEN WR82X0336 GEN WR82X0336 Contact Us For Availability
233
GEN WR01X1879 GEN WR01X1879 Contact Us For Availability
234
GEN WR01X1880 GEN WR01X1880 Contact Us For Availability
235
GEN WR14X0423 GEN WR14X0423 Contact Us For Availability
236
GEN WR01X1881 GEN WR01X1881 Contact Us For Availability
237
GEN WR17X3264 GEN WR17X3264 Contact Us For Availability
238
GEN WR17X3265 GEN WR17X3265 Contact Us For Availability
239
GEN WR17X3266 GEN WR17X3266 Contact Us For Availability
240
GEN WR01X1882 GEN WR01X1882 Contact Us For Availability
241
GEN WR02X8766 GEN WR02X8766 Contact Us For Availability
242
GASKET DRAIN TUBE GEN WR14X5161 Contact Us For Availability
243
FUNNEL DRAIN TUBE GEN WR02X7850 Contact Us For Availability
304
GEN WR14X0424 GEN WR14X0424 Contact Us For Availability
305
GEN WR17X3278 GEN WR17X3278 Contact Us For Availability
306
GEN WR50X0126 GEN WR50X0126 Contact Us For Availability
307
GEN WR51X0361 GEN WR51X0361 Contact Us For Availability
309
GEN WR85X0288 GEN WR85X0288 Contact Us For Availability
311
GEN WR17X3269 GEN WR17X3269 Contact Us For Availability
312
GEN WR17X3267 GEN WR17X3267 Contact Us For Availability
314
GEN WR17X3268 GEN WR17X3268 Contact Us For Availability
316
GEN WR02X8767 GEN WR02X8767 Contact Us For Availability
317
GEN WR02X8768 GEN WR02X8768 Contact Us For Availability
318
GEN WR17X3271 GEN WR17X3271 Contact Us For Availability
320
GEN WR02X8769 GEN WR02X8769 Contact Us For Availability
321
GEN WR02X8770 GEN WR02X8770 Contact Us For Availability
322
GEN WR60X0210 GEN WR60X0210 Contact Us For Availability
323
GEN WR60X0211 GEN WR60X0211 Contact Us For Availability
324
GEN WR02X8771 GEN WR02X8771 Contact Us For Availability
325
GEN WR02X8772 GEN WR02X8772 Contact Us For Availability
327
GEN WR17X3272 GEN WR17X3272 Contact Us For Availability
328
GEN WR02X8773 GEN WR02X8773 Contact Us For Availability
330
GEN WR02X8774 GEN WR02X8774 Contact Us For Availability
331
GEN WR74X0228 GEN WR74X0228 Contact Us For Availability
332
GEN WR17X3273 GEN WR17X3273 Contact Us For Availability
401
GEN WR23X0379 GEN WR23X0379 Contact Us For Availability
402
GEN WR84X0176 GEN WR84X0176 Contact Us For Availability
403
GEN WR02X8781 GEN WR02X8781 Contact Us For Availability
404
GEN WR60X0209 GEN WR60X0209 Contact Us For Availability
405
GEN WR14X0425 GEN WR14X0425 Contact Us For Availability
406
GEN WR02X8782 GEN WR02X8782 Contact Us For Availability
407
GEN WR01X1885 GEN WR01X1885 Contact Us For Availability
408
GEN WR02X8795 GEN WR02X8795 Contact Us For Availability
409
GEN WR17X3274 GEN WR17X3274 Contact Us For Availability
410
GEN WR08X0113 GEN WR08X0113 Contact Us For Availability
412
GEN WR60X0208 GEN WR60X0208 Contact Us For Availability
413
GEN WR87X0435 GEN WR87X0435 Contact Us For Availability
414
GEN WR02X8783 GEN WR02X8783 Contact Us For Availability
415
GEN WR17X3275 GEN WR17X3275 Contact Us For Availability
418
GEN WR02X8778 GEN WR02X8778 Contact Us For Availability
422
GEN WR02X8779 GEN WR02X8779 Contact Us For Availability
425
GEN WR02X8780 GEN WR02X8780 Contact Us For Availability
427
GEN WR01X1887 GEN WR01X1887 Contact Us For Availability
428
GEN WR01X1888 GEN WR01X1888 Contact Us For Availability
501
GEN WR02X7847 GEN WR02X7847 Contact Us For Availability
502
GEN WR02X8784 GEN WR02X8784 Contact Us For Availability
503
GEN WR17X3276 GEN WR17X3276 Contact Us For Availability
504
GEN WR02X8785 GEN WR02X8785 Contact Us For Availability
505
GEN WR01X1889 GEN WR01X1889 Contact Us For Availability
506
GEN WR02X8786 GEN WR02X8786 Contact Us For Availability
507
GEN WR01X1890 GEN WR01X1890 Contact Us For Availability
508
GEN WR01X1891 GEN WR01X1891 Contact Us For Availability
509
GEN WR01X1892 GEN WR01X1892 Contact Us For Availability
510
SCREW SM GEN WR01X1893 Contact Us For Availability
511
GEN WR82X0331 GEN WR82X0331 Contact Us For Availability
511
GEN WR82X0332 GEN WR82X0332 Contact Us For Availability
512
GEN WR02X8787 GEN WR02X8787 Contact Us For Availability
513
GEN WR02X8788 GEN WR02X8788 Contact Us For Availability
516
GEN WR02X8789 GEN WR02X8789 Contact Us For Availability
517
GEN WR02X8790 GEN WR02X8790 Contact Us For Availability
518
GEN WR02X8791 GEN WR02X8791 Contact Us For Availability
520
GEN WR78X8579 GEN WR78X8579 Contact Us For Availability
827
GEN WR51X10067 GEN WR51X10067 Contact Us For Availability
× ![]()
