Model GE TCX22ZASBR Refrigerator – Common Parts & Diagrams
0

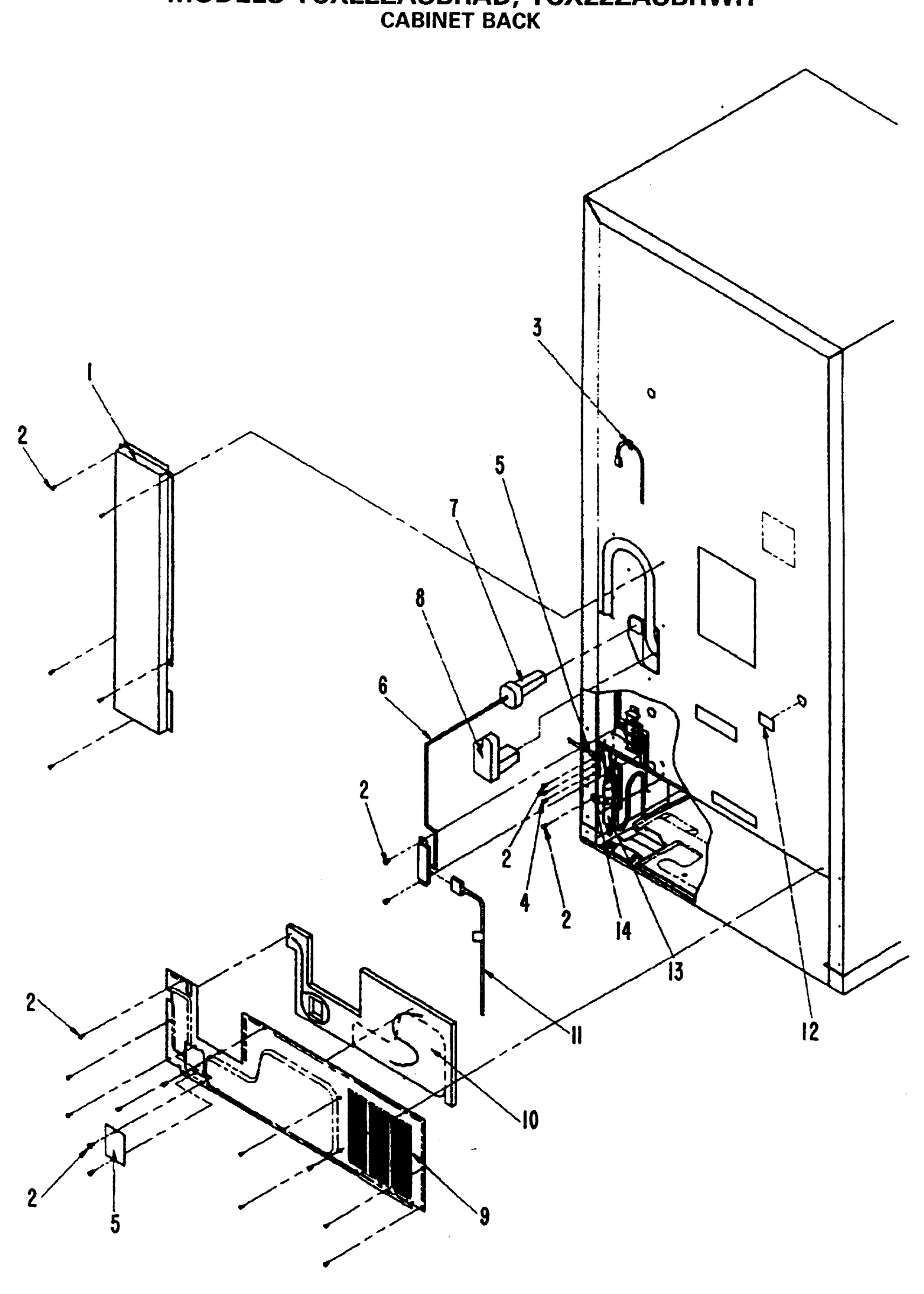

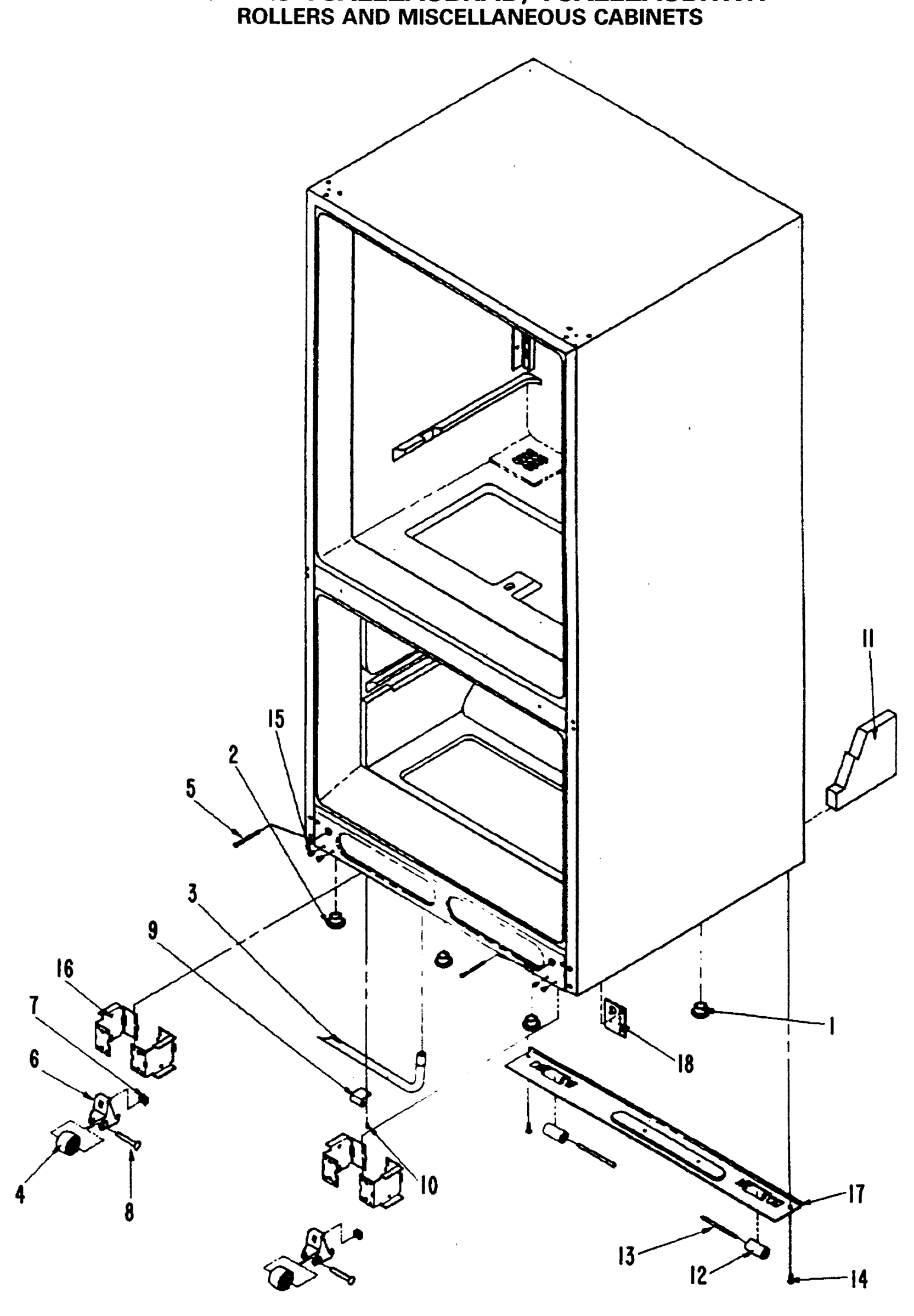

CABINET BACK

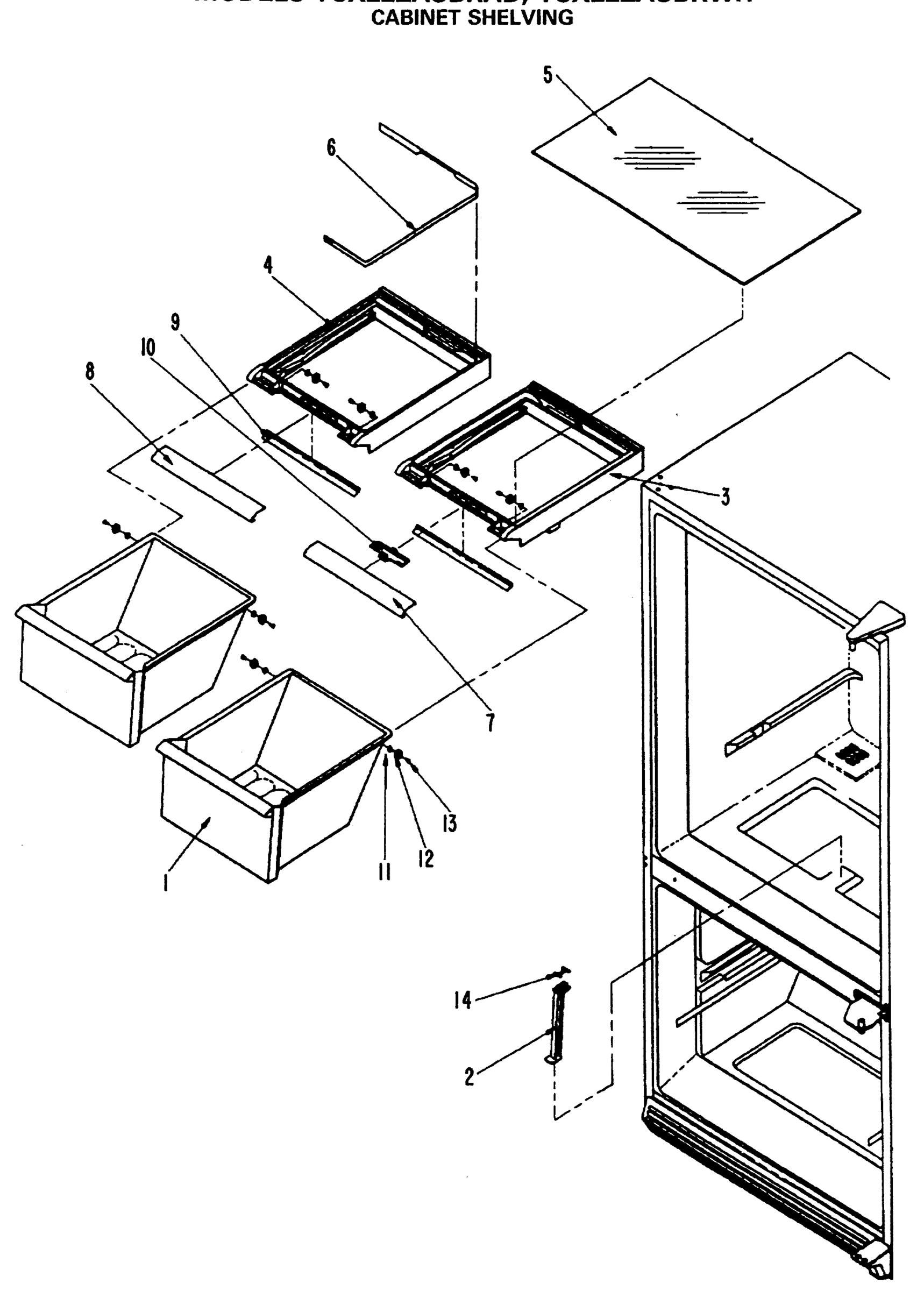

CABINET SHELVING

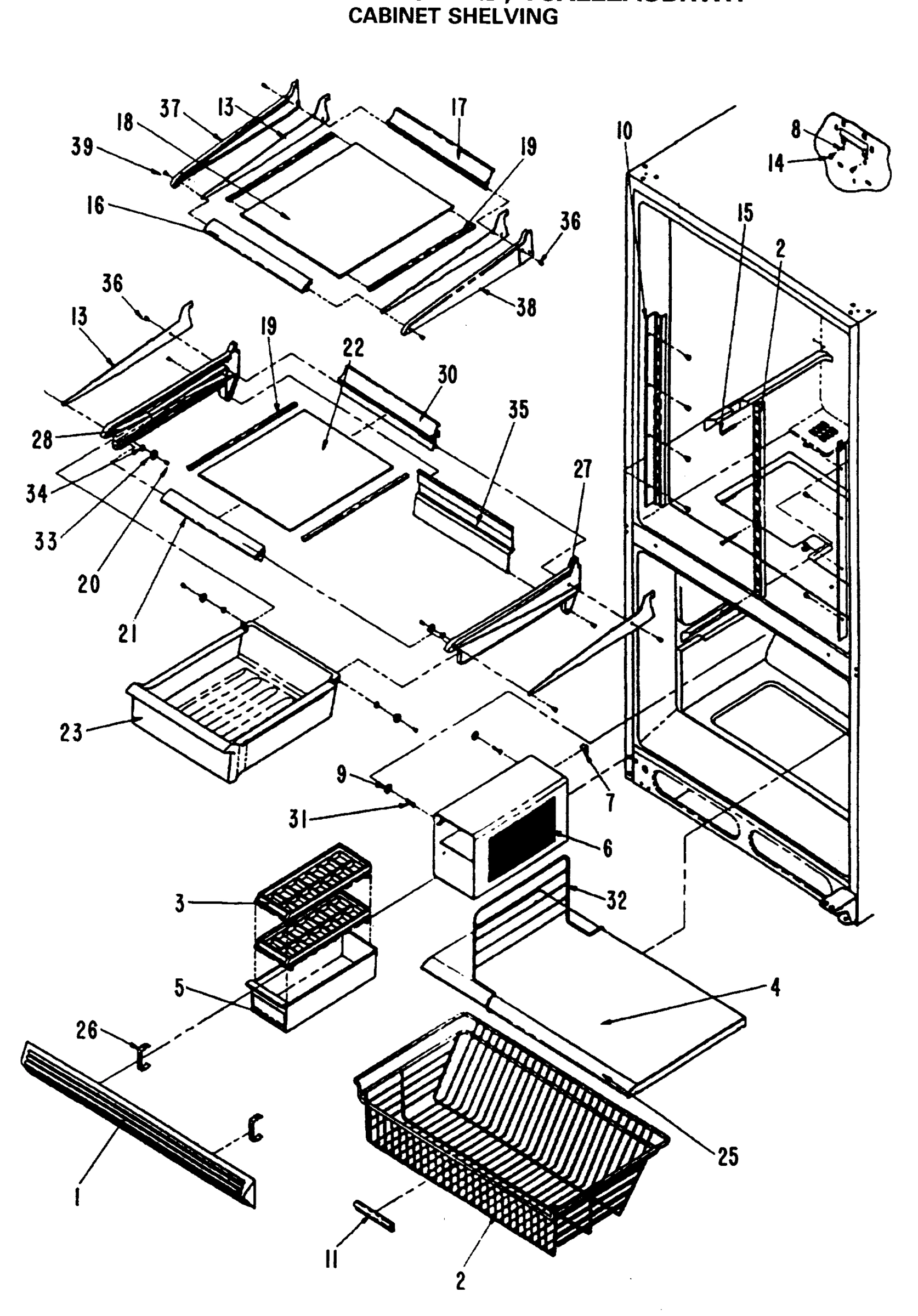

CABINET SHELVING

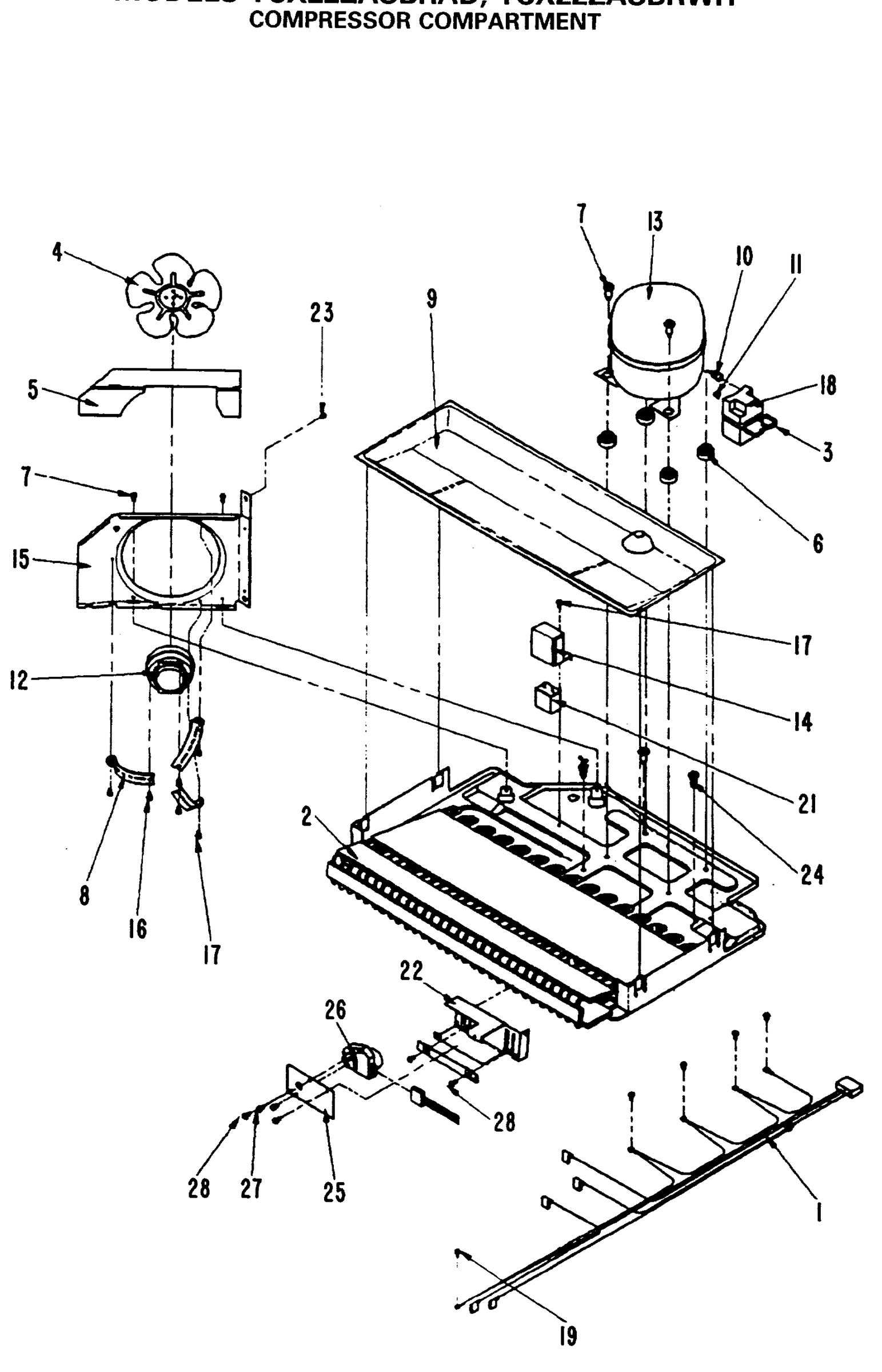

COMPRESSOR COMPARTMENT

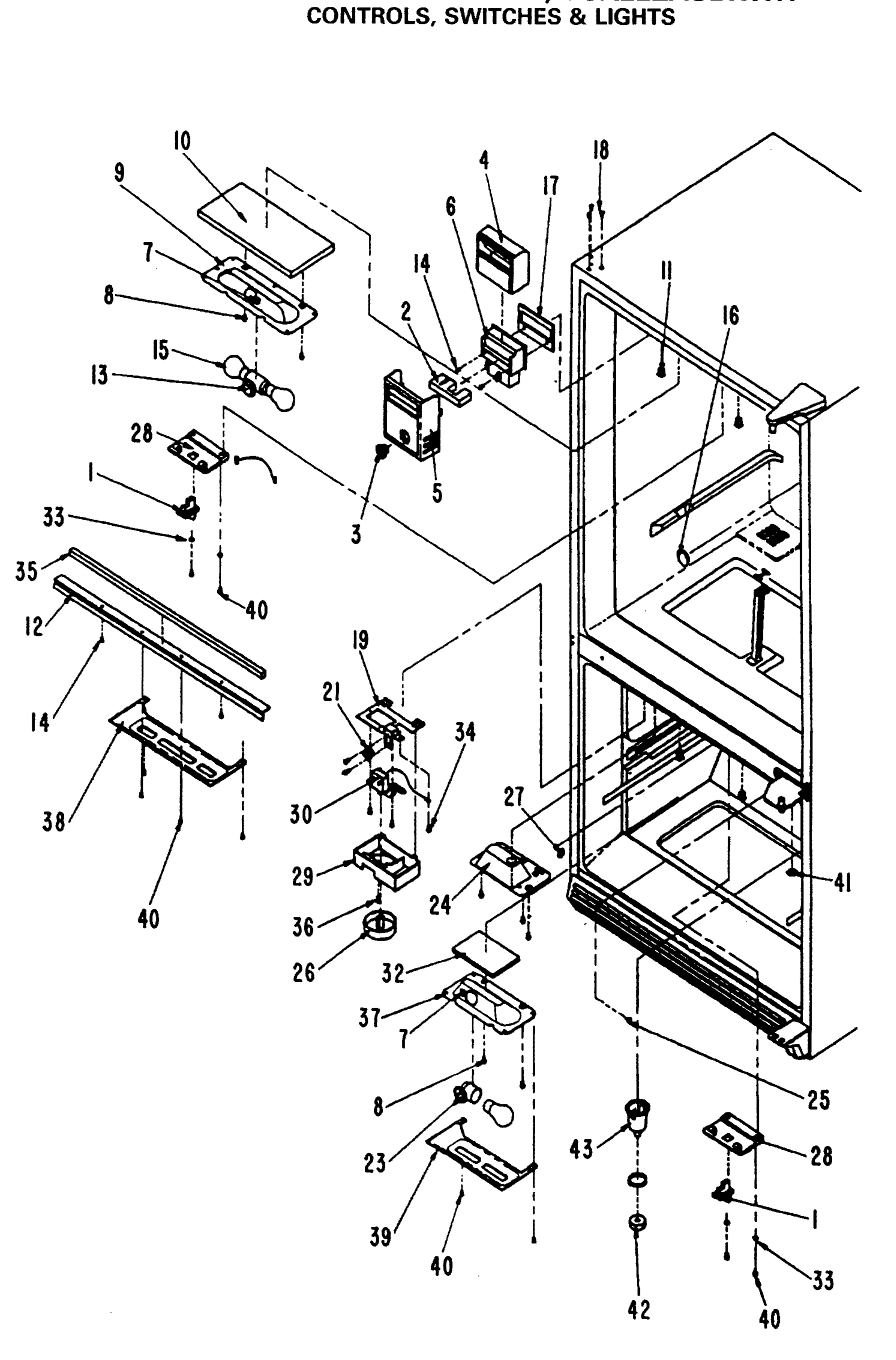

CONTROLS, SWITCHES & LIGHTS

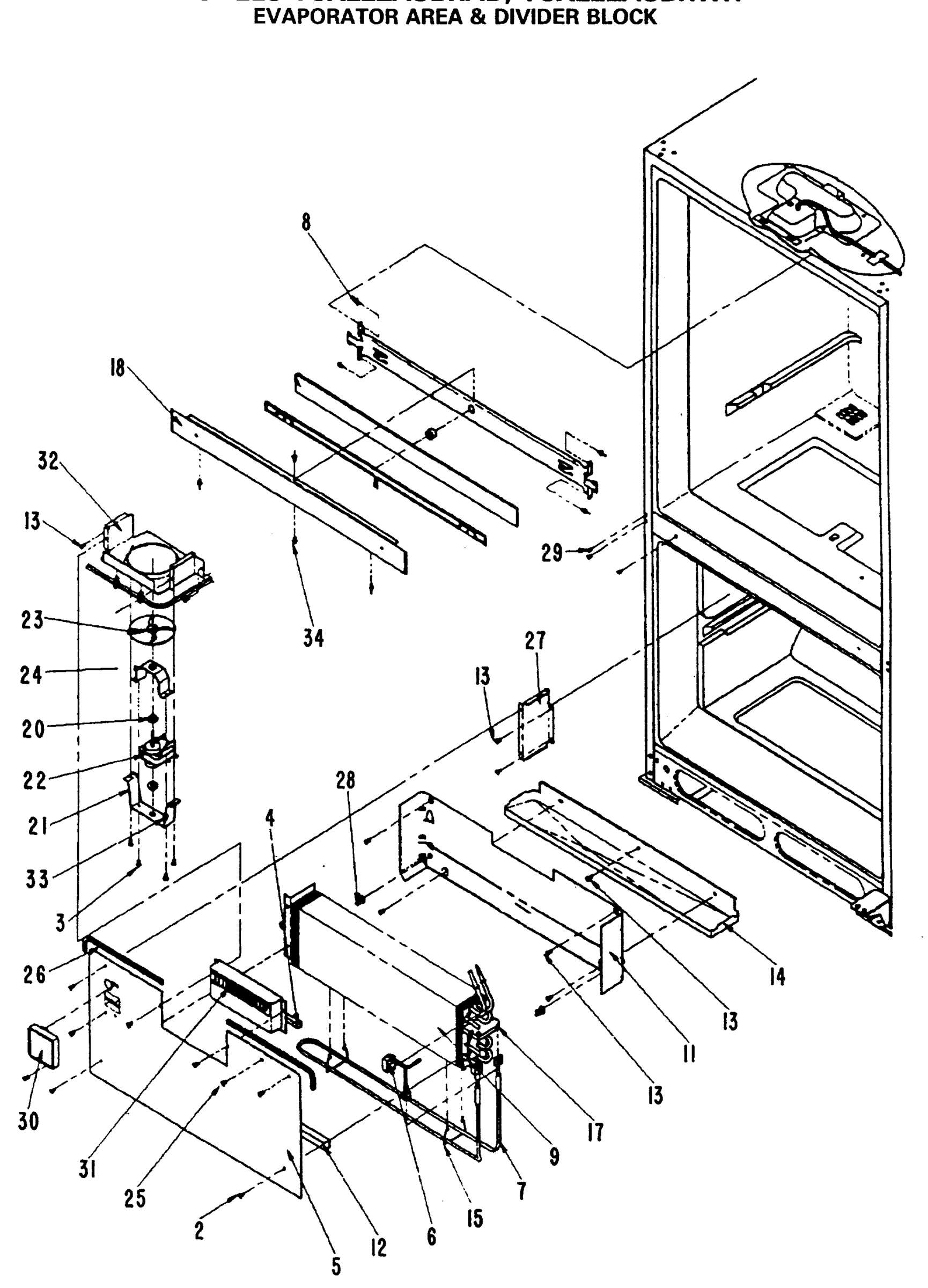

EVAPORATOR AREA & DIVIDER BLOCK

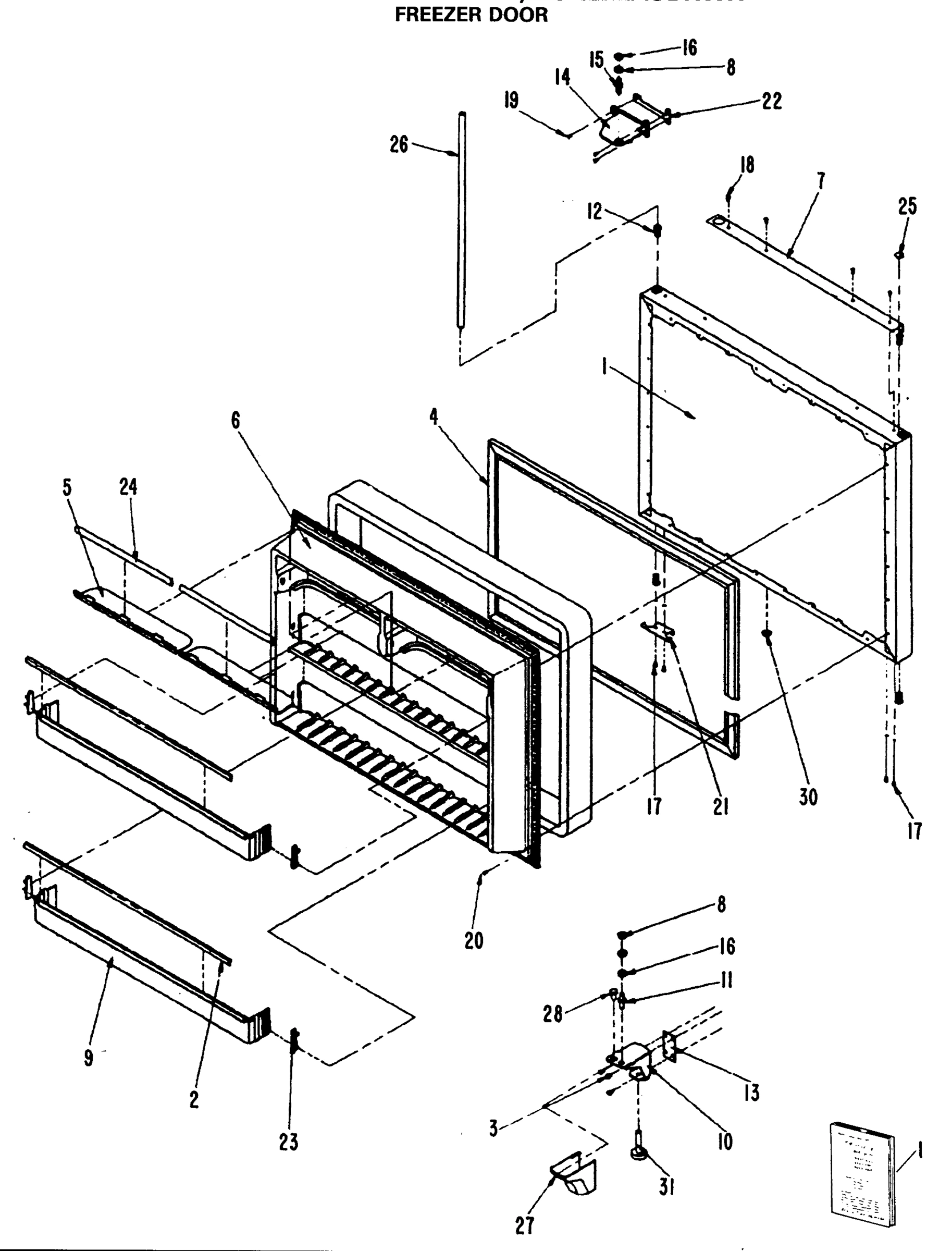

FREEZER DOOR

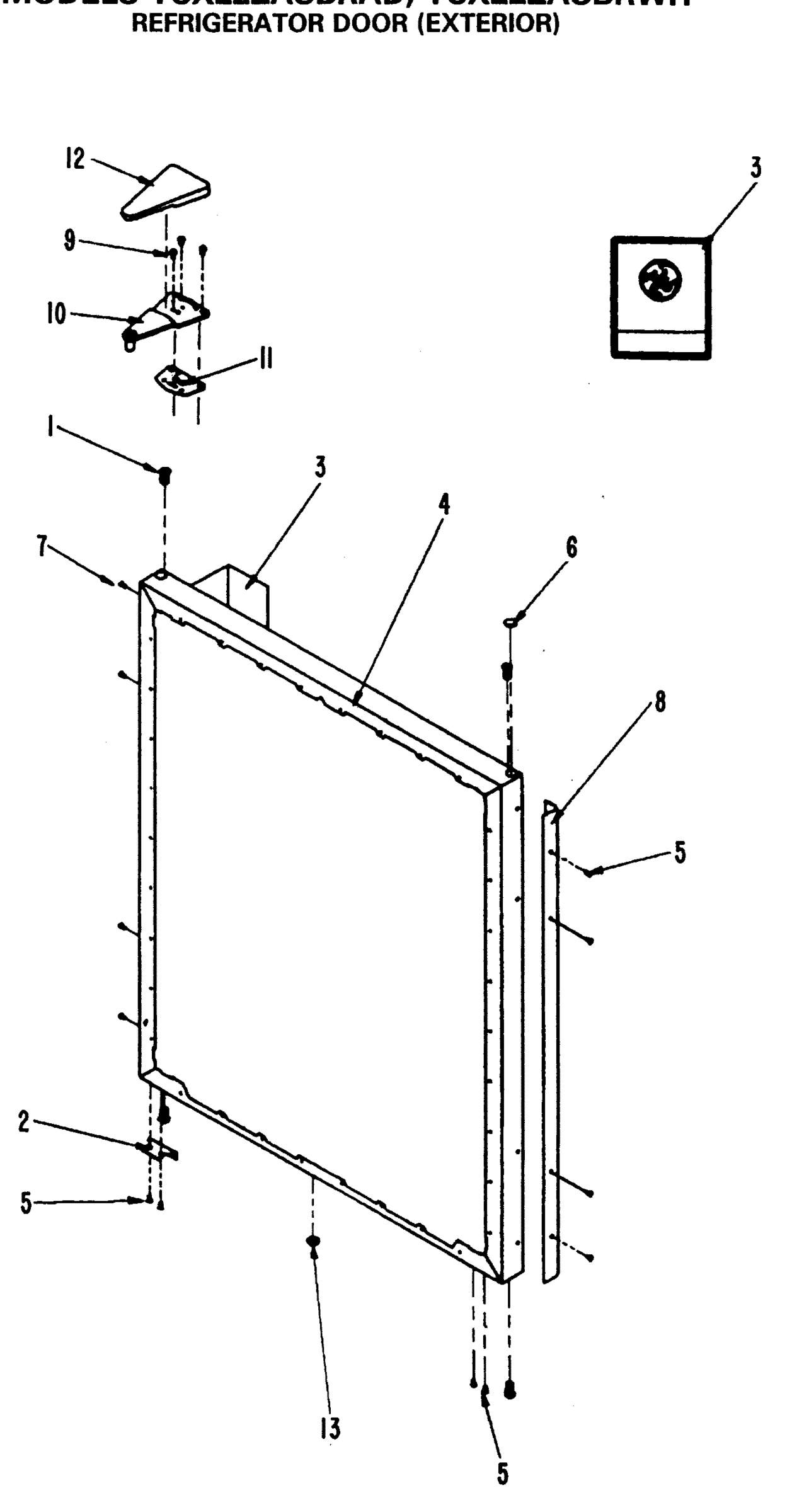

REFRIGERATOR DOOR (EXTERIOR)

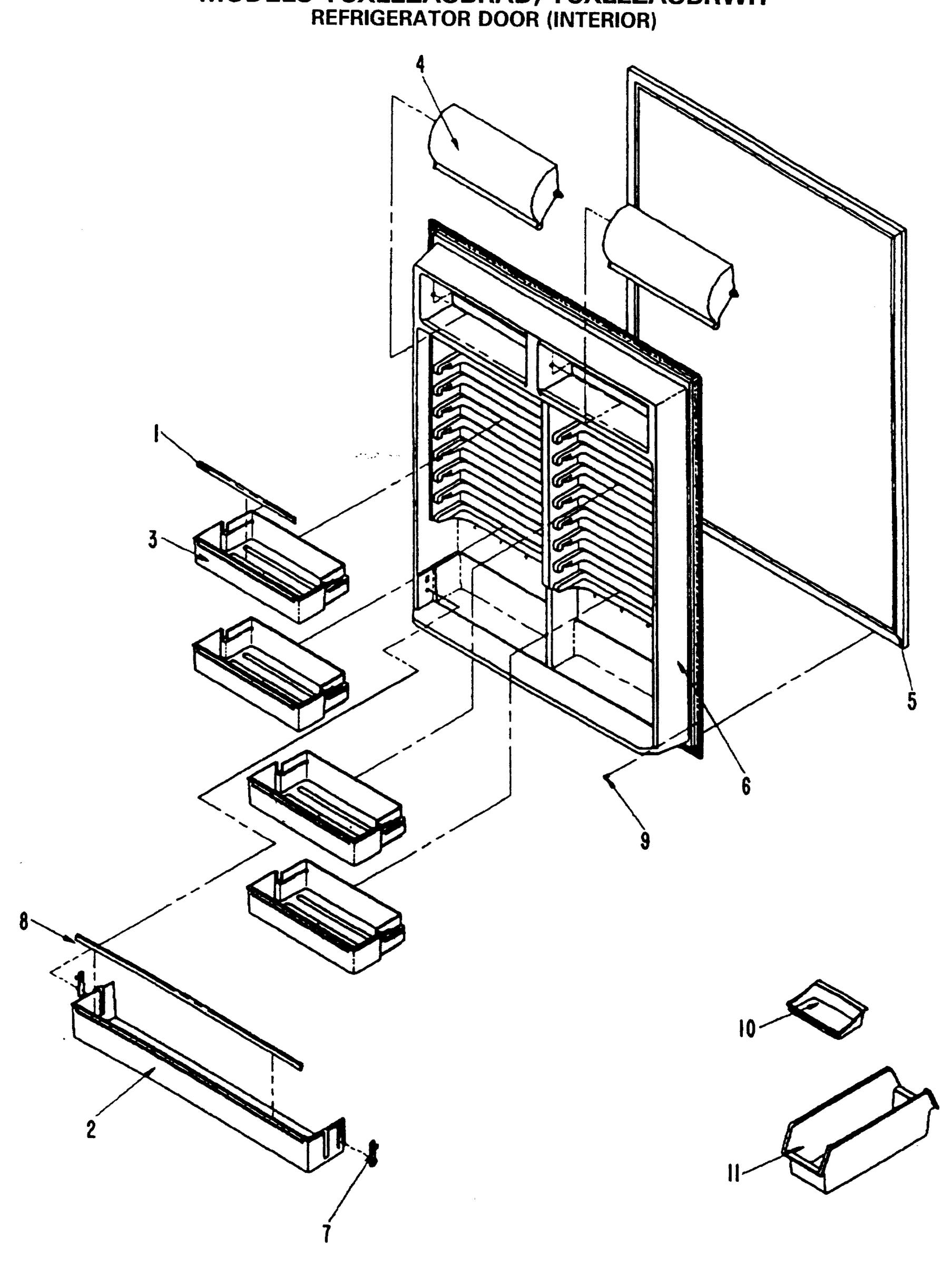

REFRIGERATOR DOOR (INTERIOR)
Common parts from model GE TCX22ZASBR Refrigerator
1
GEN WR17X3277 GEN WR17X3277 Contact Us For Availability
1
LADDER SIDE GEN WR72X0153 Contact Us For Availability
1
GEN WR74X0227 GEN WR74X0227 Contact Us For Availability
1
GEN WR32X1378 GEN WR32X1378 Contact Us For Availability
1
GEN WR23X0379 GEN WR23X0379 Contact Us For Availability
1
GEN 31-5848 GEN 31-5848 Contact Us For Availability
1
GEN 49-6721 GEN 49-6721 Contact Us For Availability
1
GEN WR78X8578 GEN WR78X8578 Contact Us For Availability
2
GEN WR02X8784 GEN WR02X8784 Contact Us For Availability
2
GEN WR02X8753 GEN WR02X8753 Contact Us For Availability
2
GEN WR84X0176 GEN WR84X0176 Contact Us For Availability
2
GEN WR02X8756 GEN WR02X8756 Contact Us For Availability
2
GEN WR23X0374 GEN WR23X0374 Contact Us For Availability
2
GEN WR02X8743 GEN WR02X8743 Contact Us For Availability
3
GEN WR17X3276 GEN WR17X3276 Contact Us For Availability
3
GEN WR02X8792 GEN WR02X8792 Contact Us For Availability
3
GEN WR30X0297 GEN WR30X0297 Contact Us For Availability
3
GEN WR71X2371 GEN WR71X2371 Contact Us For Availability
3
GEN WR02X8781 GEN WR02X8781 Contact Us For Availability
3
GEN WR02X8560 GEN WR02X8560 Contact Us For Availability
4
GEN WR02X8785 GEN WR02X8785 Contact Us For Availability
4
GEN WR01X1895 GEN WR01X1895 Contact Us For Availability
4
GEN WR71X2370 GEN WR71X2370 Contact Us For Availability
4
GEN WR71X2372 GEN WR71X2372 Contact Us For Availability
4
GEN WR60X0209 GEN WR60X0209 Contact Us For Availability
4
GEN WR02X8757 GEN WR02X8757 Contact Us For Availability
4
GEN WR14X0424 GEN WR14X0424 Contact Us For Availability
4
SCREW TF,BOTTOM HINGE GEN WR01X5573 Contact Us For Availability
4
GEN WR24X0541 GEN WR24X0541 Contact Us For Availability
4
GEN WR78X8580 GEN WR78X8580 Contact Us For Availability
4
GEN WR22X0479 GEN WR22X0479 Contact Us For Availability
4
GEN WR38X1754 GEN WR38X1754 Contact Us For Availability
4
GEN WR38X1755 GEN WR38X1755 Contact Us For Availability
5
GEN WR01X1889 GEN WR01X1889 Contact Us For Availability
5
GEN WR01X1896 GEN WR01X1896 Contact Us For Availability
5
GEN WR32X1379 GEN WR32X1379 Contact Us For Availability
5
GEN WR14X0425 GEN WR14X0425 Contact Us For Availability
5
GEN WR02X8561 GEN WR02X8561 Contact Us For Availability
5
GEN WR17X3278 GEN WR17X3278 Contact Us For Availability
5
GEN WR71X2367 GEN WR71X2367 Contact Us For Availability
5
GEN WR24X0542 GEN WR24X0542 Contact Us For Availability
6
GEN WR02X8786 GEN WR02X8786 Contact Us For Availability
6
GEN WR23X0380 GEN WR23X0380 Contact Us For Availability
6
GEN WR17X3257 GEN WR17X3257 Contact Us For Availability
6
GEN WR02X8754 GEN WR02X8754 Contact Us For Availability
6
GEN WR02X8782 GEN WR02X8782 Contact Us For Availability
6
GEN WR50X0126 GEN WR50X0126 Contact Us For Availability
6
SHIM NON METAL GEN WR02X8631 Contact Us For Availability
6
GEN WR77X0618 GEN WR77X0618 Contact Us For Availability
6
GEN WR77X0619 GEN WR77X0619 Contact Us For Availability
7
GEN WR01X1890 GEN WR01X1890 Contact Us For Availability
7
GEN WR01X1897 GEN WR01X1897 Contact Us For Availability
7
GEN WR01X1864 GEN WR01X1864 Contact Us For Availability
7
GEN WR38X1964 GEN WR38X1964 Contact Us For Availability
7
GEN WR01X1875 GEN WR01X1875 Contact Us For Availability
7
GEN WR51X0361 GEN WR51X0361 Contact Us For Availability
7
GEN WR01X1852 GEN WR01X1852 Contact Us For Availability
7
GEN WR12X0925 GEN WR12X0925 Contact Us For Availability
8
GEN WR01X1891 GEN WR01X1891 Contact Us For Availability
8
GEN WR02X8793 GEN WR02X8793 Contact Us For Availability
8
GEN WR01X1865 GEN WR01X1865 Contact Us For Availability
8
GEN WR38X1965 GEN WR38X1965 Contact Us For Availability
8
GEN WR02X8795 GEN WR02X8795 Contact Us For Availability
8
GEN WR01X1876 GEN WR01X1876 Contact Us For Availability
8
CONTROL DAMPER GEN WR09X5209 Contact Us For Availability
8
GEN WR12X0928 GEN WR12X0928 Contact Us For Availability
9
GEN WR01X1892 GEN WR01X1892 Contact Us For Availability
9
GEN WR82X0333 GEN WR82X0333 Contact Us For Availability
9
GEN WR01X1866 GEN WR01X1866 Contact Us For Availability
9
GEN WR14X0422 GEN WR14X0422 Contact Us For Availability
9
GEN WR17X3274 GEN WR17X3274 Contact Us For Availability
9
GEN WR02X8758 GEN WR02X8758 Contact Us For Availability
9
GEN WR85X0288 GEN WR85X0288 Contact Us For Availability
9
GEN WR13X0629 GEN WR13X0629 Contact Us For Availability
9
GEN WR71X2368 GEN WR71X2368 Contact Us For Availability
10
GEN WR02X7847 GEN WR02X7847 Contact Us For Availability
10
GEN WR82X0334 GEN WR82X0334 Contact Us For Availability
10
GEN WR02X8755 GEN WR02X8755 Contact Us For Availability
10
GEN WR08X0113 GEN WR08X0113 Contact Us For Availability
10
GEN WR82X8759 GEN WR82X8759 Contact Us For Availability
10
GEN WR02X8632 GEN WR02X8632 Contact Us For Availability
10
GEN WR13X0654 GEN WR13X0654 Contact Us For Availability
10
GEN WR13X0656 GEN WR13X0656 Contact Us For Availability
10
GEN WR19X0036 GEN WR19X0036 Contact Us For Availability
10
GEN WR71X2217 GEN WR71X2217 Contact Us For Availability
11
GEN WR82X0331 GEN WR82X0331 Contact Us For Availability
11
GEN WR82X0332 GEN WR82X0332 Contact Us For Availability
11
GEN WR02X8749 GEN WR02X8749 Contact Us For Availability
11
GEN WR02X8752 GEN WR02X8752 Contact Us For Availability
11
GEN WR01X1877 GEN WR01X1877 Contact Us For Availability
11
GEN WR17X3269 GEN WR17X3269 Contact Us For Availability
11
SHIM TOP HINGE GEN WR02X8745 Contact Us For Availability
11
SHIM TOP HINGE GEN WR02X8744 Contact Us For Availability
11
SHIM TOP HINGE GEN WR02X8746 Contact Us For Availability
11
GEN WR32X1373 GEN WR32X1373 Contact Us For Availability
11
GEN WR71X2218 GEN WR71X2218 Contact Us For Availability
12
GEN WR02X8787 GEN WR02X8787 Contact Us For Availability
12
GEN WR02X8794 GEN WR02X8794 Contact Us For Availability
12
GEN WR02X8751 GEN WR02X8751 Contact Us For Availability
12
GEN WR21X0191 GEN WR21X0191 Contact Us For Availability
12
GEN WR60X0208 GEN WR60X0208 Contact Us For Availability
12
GEN WR17X3263 GEN WR17X3263 Contact Us For Availability
12
GEN WR17X3267 GEN WR17X3267 Contact Us For Availability
12
GEN WR02X8747 GEN WR02X8747 Contact Us For Availability
13
GEN WR02X8788 GEN WR02X8788 Contact Us For Availability
13
GEN WR01X1869 GEN WR01X1869 Contact Us For Availability
13
GEN WR01X1873 GEN WR01X1873 Contact Us For Availability
13
GEN WR17X3258 GEN WR17X3258 Contact Us For Availability
13
GEN WR87X0435 GEN WR87X0435 Contact Us For Availability
13
COVER LIGHT SWITCH GEN WR17X2833 Contact Us For Availability
13
GEN WR23X0375 GEN WR23X0375 Contact Us For Availability
13
GEN WR02X8732 GEN WR02X8732 Contact Us For Availability
13
GEN WR13X0631 GEN WR13X0631 Contact Us For Availability
14
GEN WR01X1878 GEN WR01X1878 Contact Us For Availability
14
GEN WR02X8796 GEN WR02X8796 Contact Us For Availability
14
GEN WR01X1867 GEN WR01X1867 Contact Us For Availability
14
GEN WR01X1874 GEN WR01X1874 Contact Us For Availability
14
GEN WR02X8783 GEN WR02X8783 Contact Us For Availability
14
GEN WR17X3268 GEN WR17X3268 Contact Us For Availability
14
GEN WR02X1894 GEN WR02X1894 Contact Us For Availability
14
GEN WR02X8635 GEN WR02X8635 Contact Us For Availability
14
GEN WR02X8638 GEN WR02X8638 Contact Us For Availability
14
GEN WR02X8734 GEN WR02X8734 Contact Us For Availability
15
GEN WR82X0335 GEN WR82X0335 Contact Us For Availability
15
GEN WR01X1868 GEN WR01X1868 Contact Us For Availability
15
GEN WR17X3275 GEN WR17X3275 Contact Us For Availability
15
LAMP 40W. MED.SCREW BASE GEN PURCH.LOCALL Contact Us For Availability
15
GEN WR02X8733 GEN WR02X8733 Contact Us For Availability
16
GEN WR02X8789 GEN WR02X8789 Contact Us For Availability
16
GEN WR38X1960 GEN WR38X1960 Contact Us For Availability
16
PLUG BUTTON WH GEN WR02X8558 Contact Us For Availability
16
GEN WR02X8760 GEN WR02X8760 Contact Us For Availability
16
GEN WR02X8639 GEN WR02X8639 Contact Us For Availability
16
GEN WR02X8767 GEN WR02X8767 Contact Us For Availability
17
GEN WR02X8790 GEN WR02X8790 Contact Us For Availability
17
GEN WR17X3259 GEN WR17X3259 Contact Us For Availability
17
GEN WR14X0427 GEN WR14X0427 Contact Us For Availability
17
GEN WR02X8768 GEN WR02X8768 Contact Us For Availability
17
GEN WR01X1860 GEN WR01X1860 Contact Us For Availability
18
GEN WR02X8791 GEN WR02X8791 Contact Us For Availability
18
GEN WR32X1381 GEN WR32X1381 Contact Us For Availability
18
GEN WR02X8778 GEN WR02X8778 Contact Us For Availability
18
GEN WR02X8762 GEN WR02X8762 Contact Us For Availability
18
GEN WR17X3271 GEN WR17X3271 Contact Us For Availability
18
GEN WR01X1861 GEN WR01X1861 Contact Us For Availability
18
GEN WR04X0209 GEN WR04X0209 Contact Us For Availability
19
GEN WR38X1961 GEN WR38X1961 Contact Us For Availability
19
GEN WR23X0376 GEN WR23X0376 Contact Us For Availability
19
GEN WR01X1807 GEN WR01X1807 Contact Us For Availability
19
GEN WR01X1862 GEN WR01X1862 Contact Us For Availability
20
LADDER CENTER GEN WR72X0154 Contact Us For Availability
20
GEN WR02X8769 GEN WR02X8769 Contact Us For Availability
21
GEN WR38X1962 GEN WR38X1962 Contact Us For Availability
21
GEN WR23X0377 GEN WR23X0377 Contact Us For Availability
21
GEN WR02X8770 GEN WR02X8770 Contact Us For Availability
22
GEN WR30X0293 GEN WR30X0293 Contact Us For Availability
22
GEN WR32X1374 GEN WR32X1374 Contact Us For Availability
22
GEN WR02X8779 GEN WR02X8779 Contact Us For Availability
22
GEN WR60X0210 GEN WR60X0210 Contact Us For Availability
22
GEN WR02X8736 GEN WR02X8736 Contact Us For Availability
22
GEN WR02X8737 GEN WR02X8737 Contact Us For Availability
22
GEN WR02X8738 GEN WR02X8738 Contact Us For Availability
23
SCREW SM GEN WR01X1893 Contact Us For Availability
23
GEN WR32X1375 GEN WR32X1375 Contact Us For Availability
23
GEN WR23X0378 GEN WR23X0378 Contact Us For Availability
23
GEN WR60X0211 GEN WR60X0211 Contact Us For Availability
23
GEN WR02X8636 GEN WR02X8636 Contact Us For Availability
24
GEN WR01X1885 GEN WR01X1885 Contact Us For Availability
24
GEN WR02X8562 GEN WR02X8562 Contact Us For Availability
24
GEN WR02X8763 GEN WR02X8763 Contact Us For Availability
24
GEN WR02X8771 GEN WR02X8771 Contact Us For Availability
24
GEN WR71X2369 GEN WR71X2369 Contact Us For Availability
25
GEN WR38X1963 GEN WR38X1963 Contact Us For Availability
25
GEN WR02X8780 GEN WR02X8780 Contact Us For Availability
25
GEN WR02X8772 GEN WR02X8772 Contact Us For Availability
26
GEN WR02X8750 GEN WR02X8750 Contact Us For Availability
26
PIN CENTER DOOR GEN WR13X0655 Contact Us For Availability
27
GEN WR17X3260 GEN WR17X3260 Contact Us For Availability
27
GEN WR01X1887 GEN WR01X1887 Contact Us For Availability
27
GEN WR02X8764 GEN WR02X8764 Contact Us For Availability
27
GEN WR17X3272 GEN WR17X3272 Contact Us For Availability
27
GEN WR02X8740 GEN WR02X8740 Contact Us For Availability
28
GEN WR17X3261 GEN WR17X3261 Contact Us For Availability
28
GEN WR01X1888 GEN WR01X1888 Contact Us For Availability
28
GEN WR02X8773 GEN WR02X8773 Contact Us For Availability
28
PLUG BUTTON WHITE GEN WR02X8741 Contact Us For Availability
29
GEN WR02X8765 GEN WR02X8765 Contact Us For Availability
30
GEN WR17X3262 GEN WR17X3262 Contact Us For Availability
30
GEN WR09X0525 GEN WR09X0525 Contact Us For Availability
30
GEN WR02X8774 GEN WR02X8774 Contact Us For Availability
30
GEN WR02X8557 GEN WR02X8557 Contact Us For Availability
31
GEN WR01X1871 GEN WR01X1871 Contact Us For Availability
31
GEN WR74X0228 GEN WR74X0228 Contact Us For Availability
32
GEN WR21X0192 GEN WR21X0192 Contact Us For Availability
32
GEN WR82X0336 GEN WR82X0336 Contact Us For Availability
32
GEN WR17X3273 GEN WR17X3273 Contact Us For Availability
33
GEN WR01X1879 GEN WR01X1879 Contact Us For Availability
34
GEN WR01X1880 GEN WR01X1880 Contact Us For Availability
35
GEN WR14X0426 GEN WR14X0426 Contact Us For Availability
35
GEN WR14X0423 GEN WR14X0423 Contact Us For Availability
36
GEN WR01X1881 GEN WR01X1881 Contact Us For Availability
37
GEN WR32X1376 GEN WR32X1376 Contact Us For Availability
37
GEN WR17X3264 GEN WR17X3264 Contact Us For Availability
38
GEN WR32X1377 GEN WR32X1377 Contact Us For Availability
38
GEN WR17X3265 GEN WR17X3265 Contact Us For Availability
39
GEN WR01X1872 GEN WR01X1872 Contact Us For Availability
39
GEN WR17X3266 GEN WR17X3266 Contact Us For Availability
40
GEN WR01X1882 GEN WR01X1882 Contact Us For Availability
41
GEN WR02X8766 GEN WR02X8766 Contact Us For Availability
43
GASKET DRAIN TUBE GEN WR14X5161 Contact Us For Availability
45
FUNNEL DRAIN TUBE GEN WR02X7850 Contact Us For Availability
7695
GEN WR01X1836 GEN WR01X1836 Contact Us For Availability
× ![]()
